Connector Circuit Reference

WARNING: This page is about a different variant/trim than selected.

4WD Control Module C3253

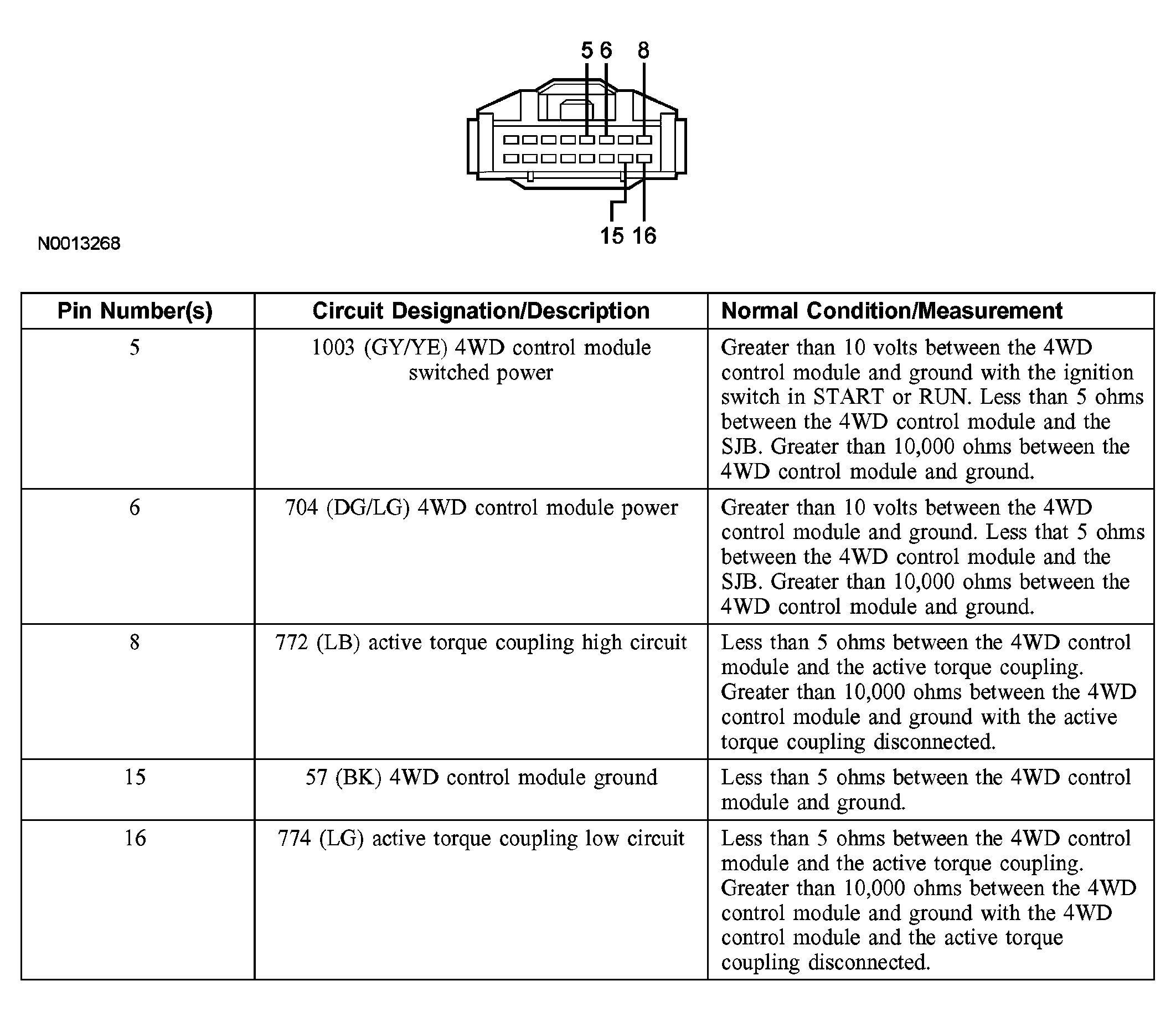

Fig 1: Identifying 4WD Control Module C3253 Connector
G03901899Courtesy of FORD MOTOR CO.

Active Torque Coupling C3254

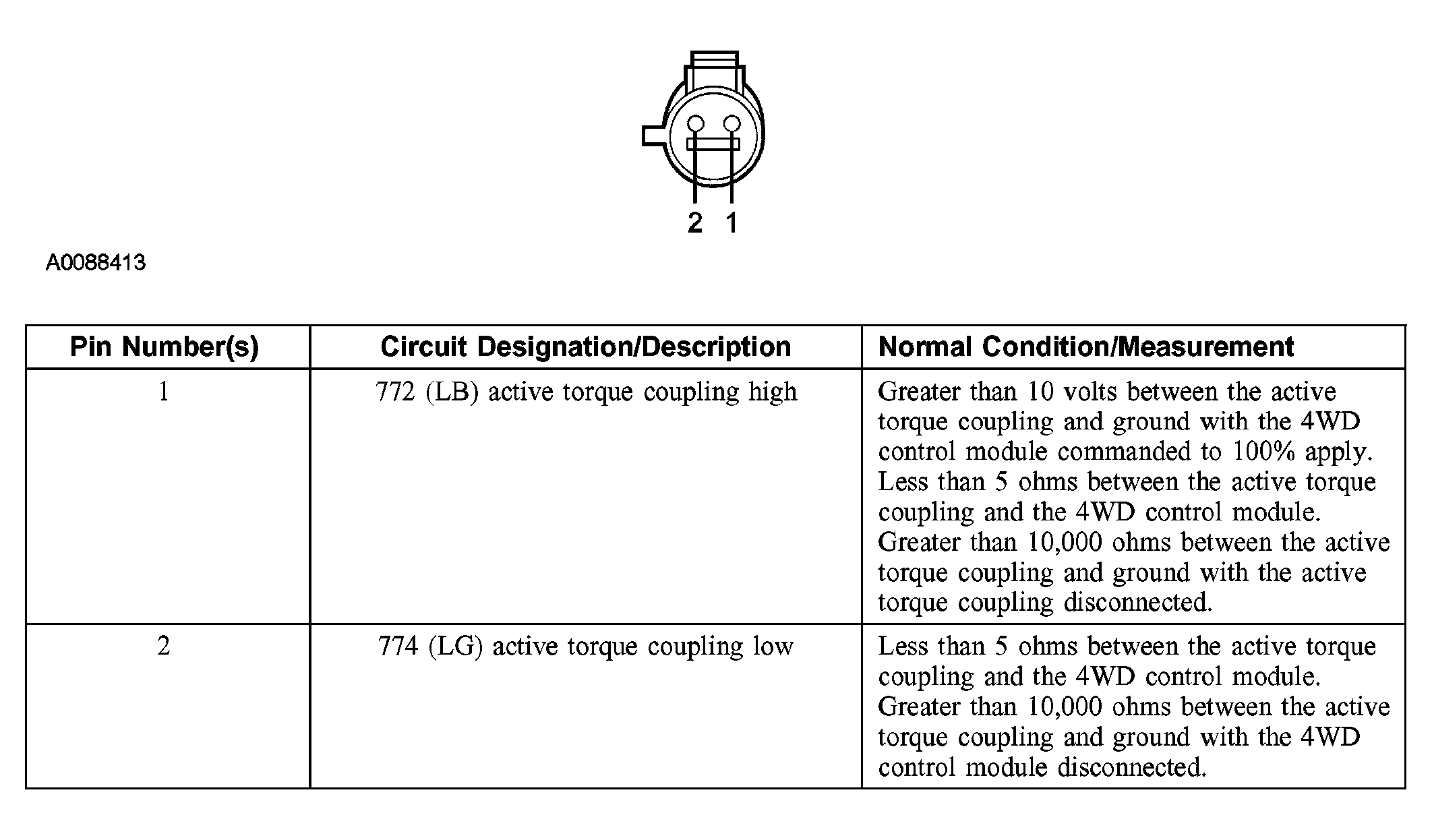

Fig 2: Identifying Active Torque Coupling C3254 Connector
G03901900Courtesy of FORD MOTOR CO.
