Removal and Installation

WARNING: This page is about a different variant/trim than selected.

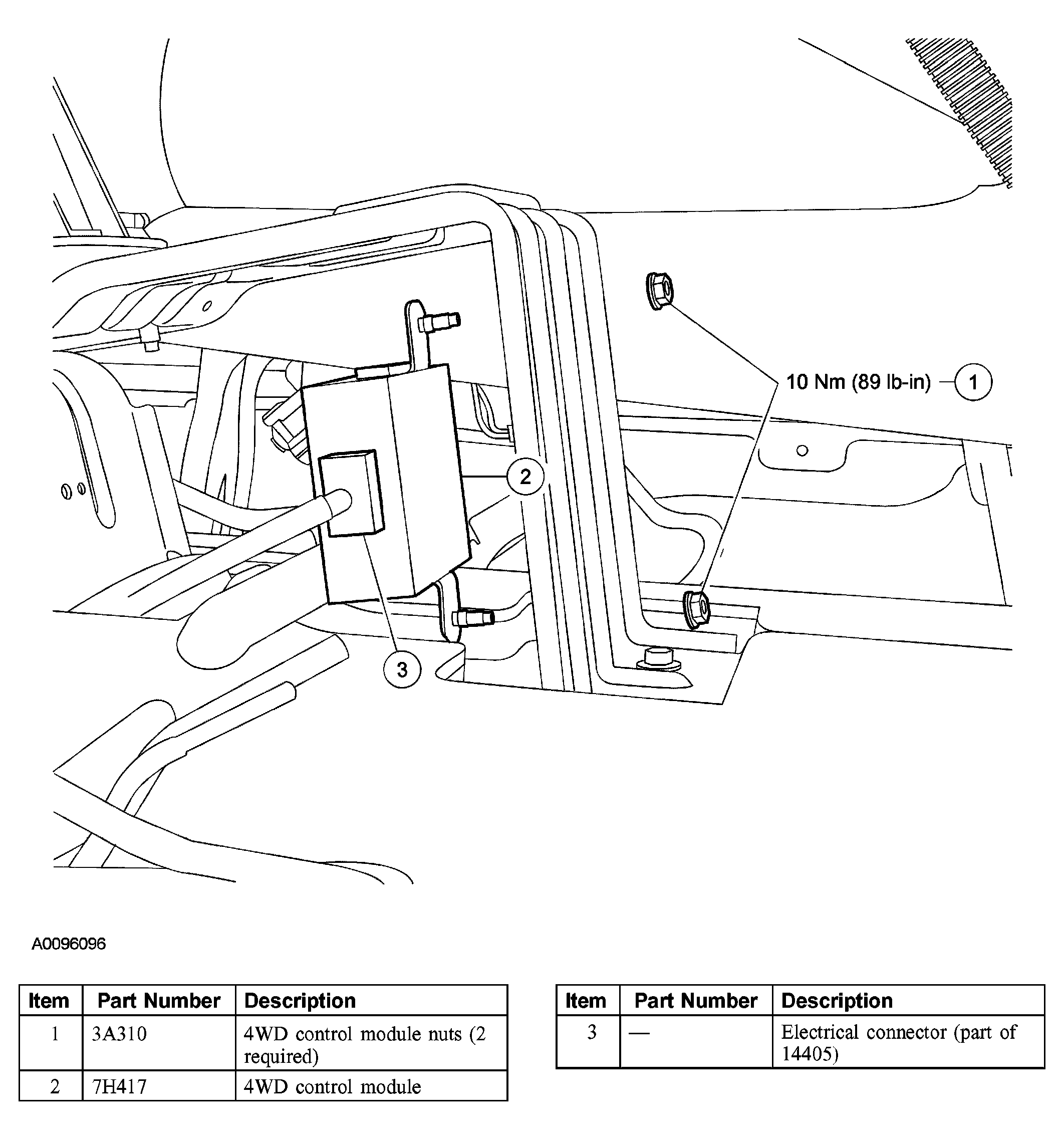

Fig 1: Exploded View Of Four-Wheel Drive (4WD) Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the 4WD control module nuts.
- To install, tighten to 10 Nm (89 lb-in).
Remove the 4WD control module.
- Disconnect the electrical connector.
To install, reverse the removal procedure.
