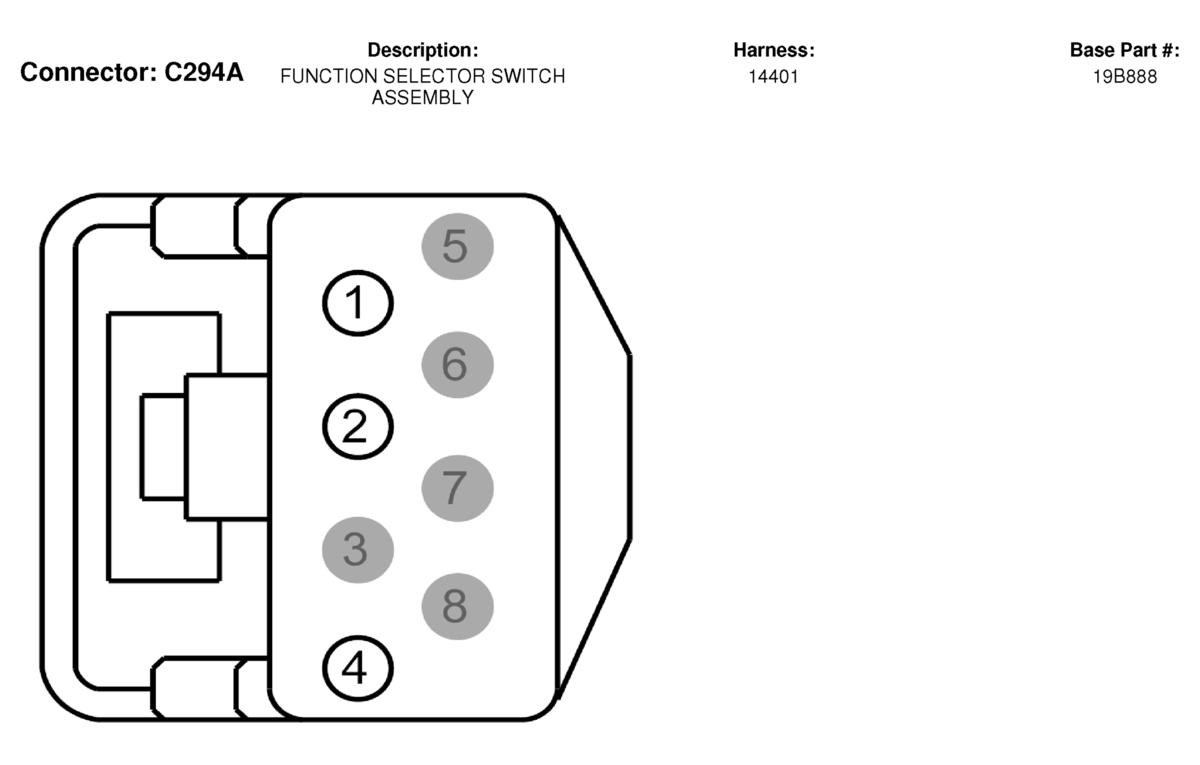

Function Selector Switch Assembly Connector End View (C294A)
Courtesy of FORD MOTOR CO. C294A CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
399 (BR-YE) |
22 |
Blower motor relay control |
|
| 2 |
41 (BK-LB) |
20 |
Voltage supplied in Start and Run (overload protected) |
|
| 3 |
* |
* |
not used |
|
| 4 |
348 (VT) |
20 |
A/C demand signal |
|
| 5 |
* |
* |
not used |
|
| 6 |
* |
* |
not used |
|
| 7 |
* |
* |
not used |
|
| 8 |
* |
* |
not used |
|
