Compressor Clutch Relay: Locations

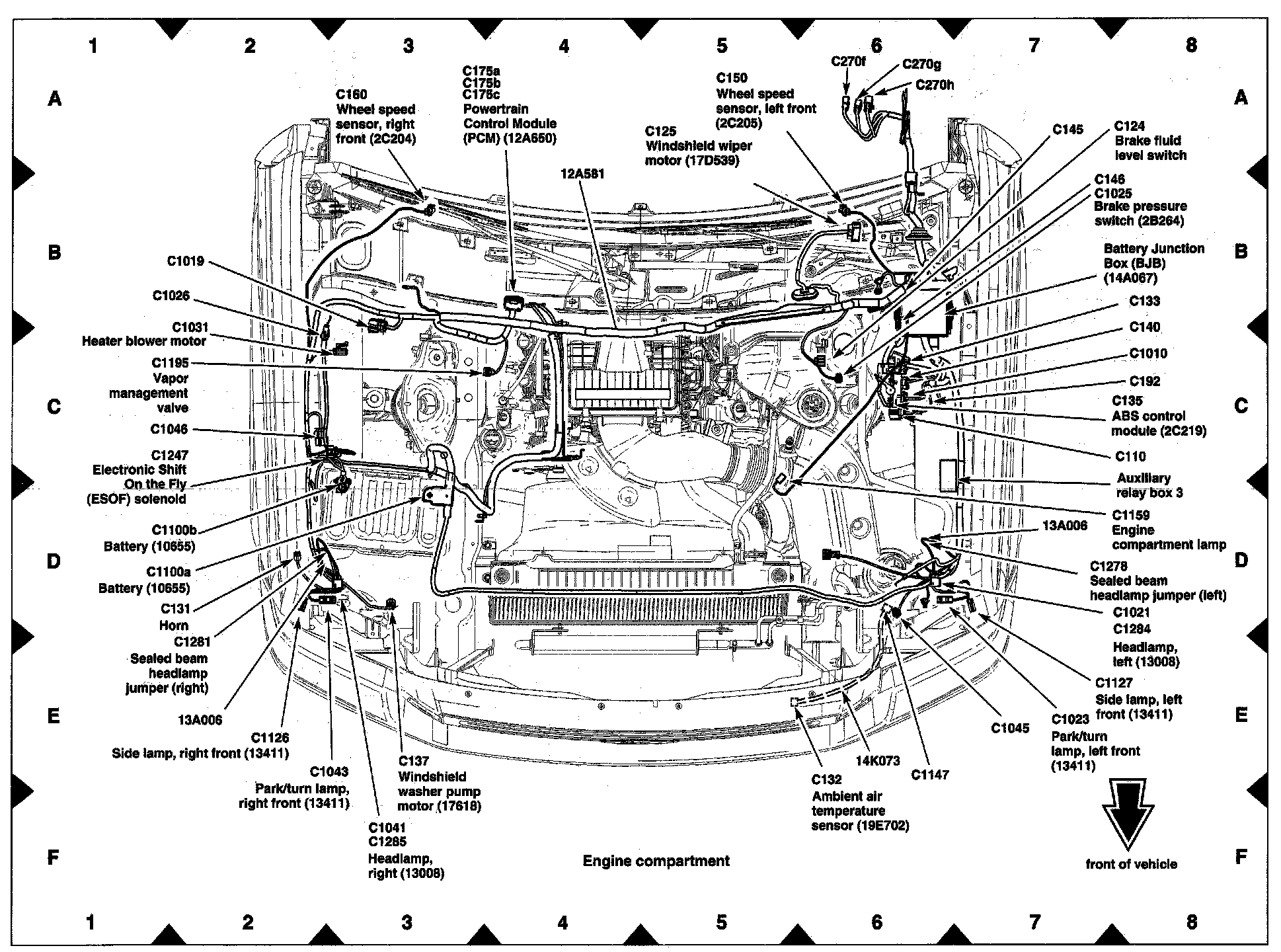

View 151-1 (Engine Compartment):

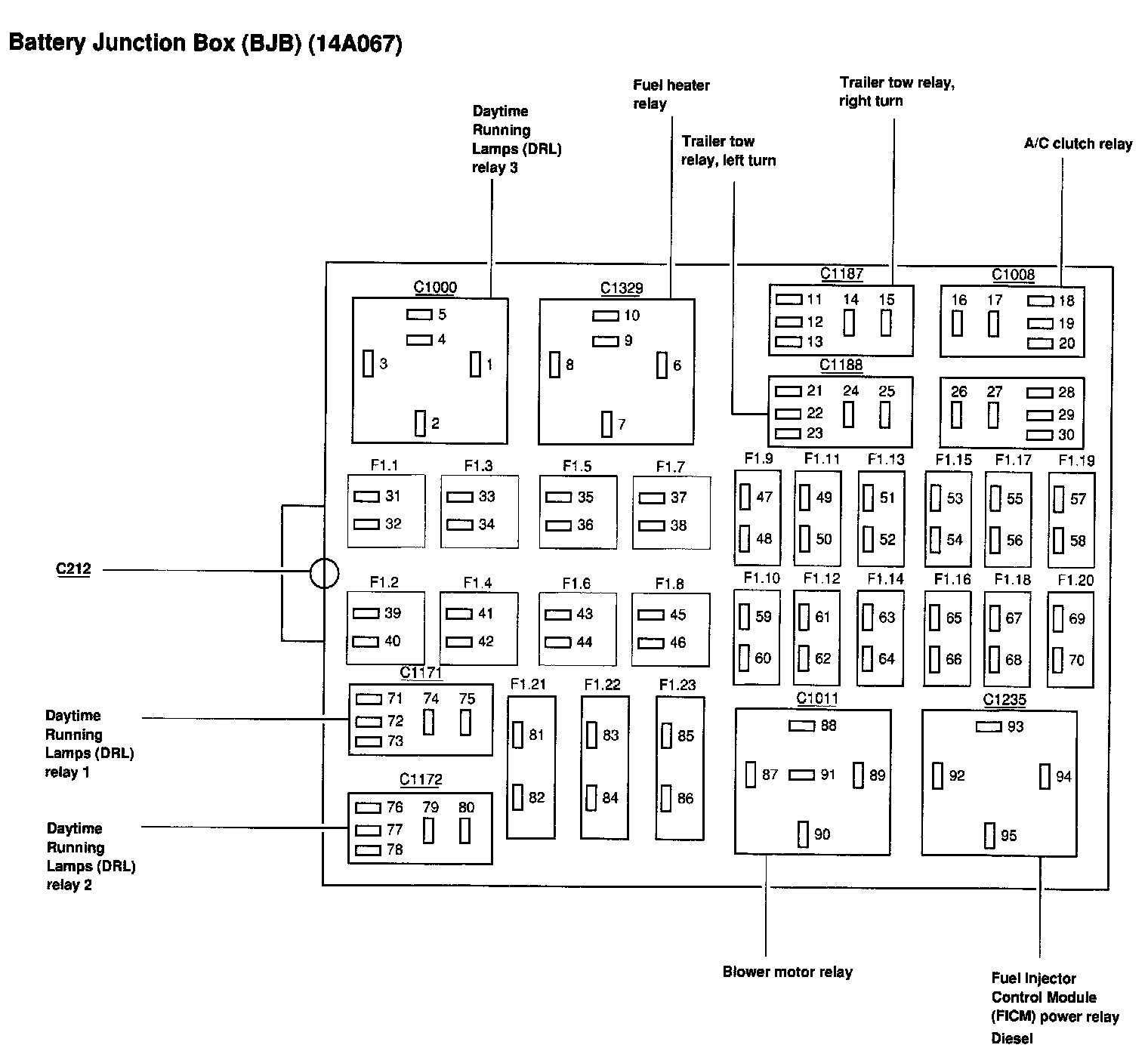

Compressor Clutch (AC) Relay is the wide open throttle relay.
