Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module
Removal and Installation
1. Remove the Hydraulic Control Unit (HCU).

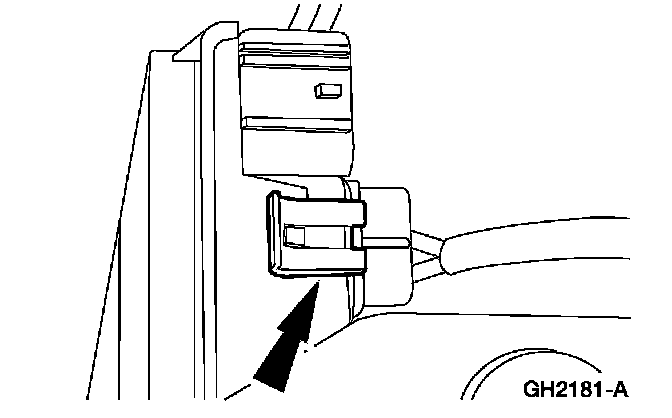

2. Disconnect the pump motor electrical connector from the anti-lock brake system (ABS) module.

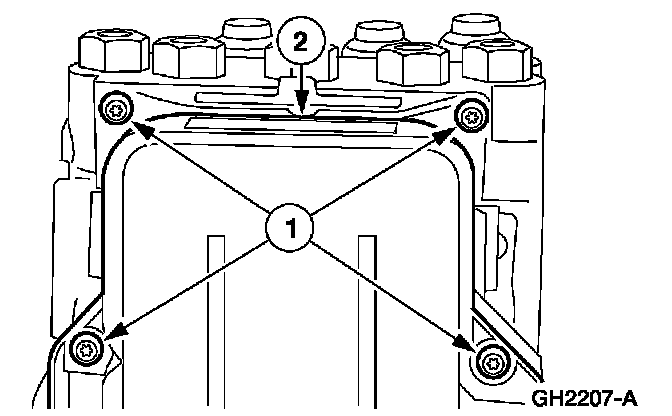

3. Remove the ABS module.

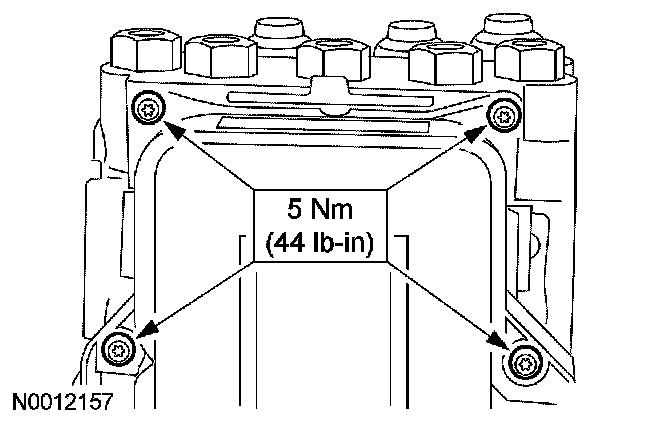

1 Remove the screws.
2 Remove the ABS module.





4. To install, reverse the removal procedure.
