Oil Temperature Sensor For ECM: Service and Repair
OIL TEMPERATURE SENSORRemoval and Installation
1. CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
Turn the ignition switch to the OFF position.

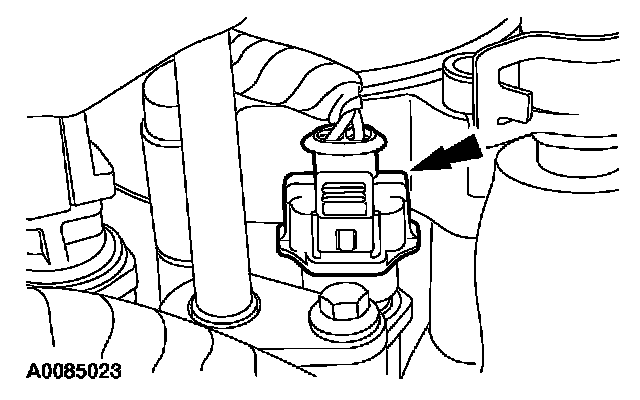

2. Disconnect the engine oil temperature (EOT) sensor.
3. Remove the EOT sensor.
4. To install, reverse the removal procedure.
