Test M: Fuel Pump Monitor/Control
PINPOINT TEST M: FUEL PUMP MONITOR/CONTROL

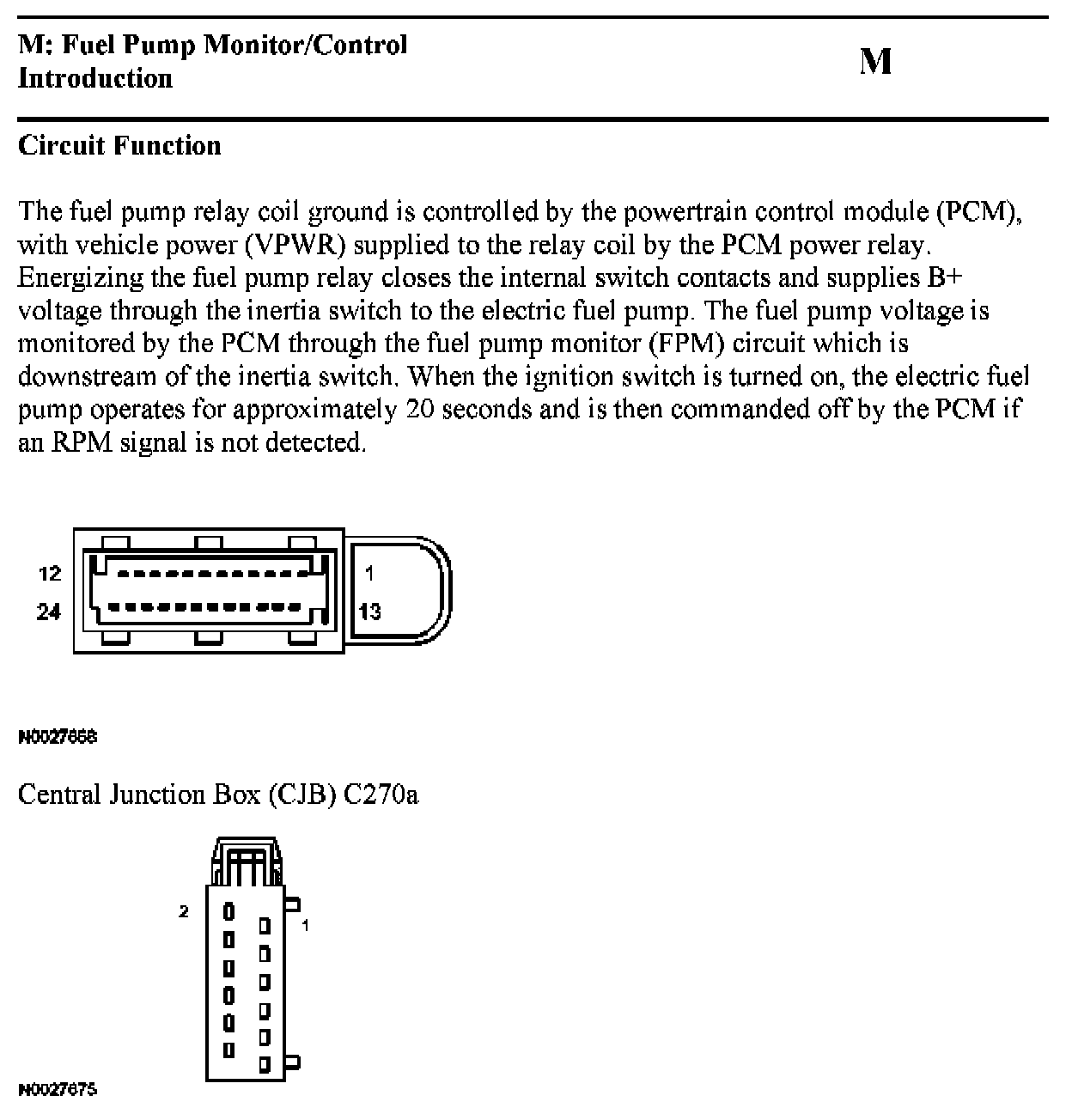

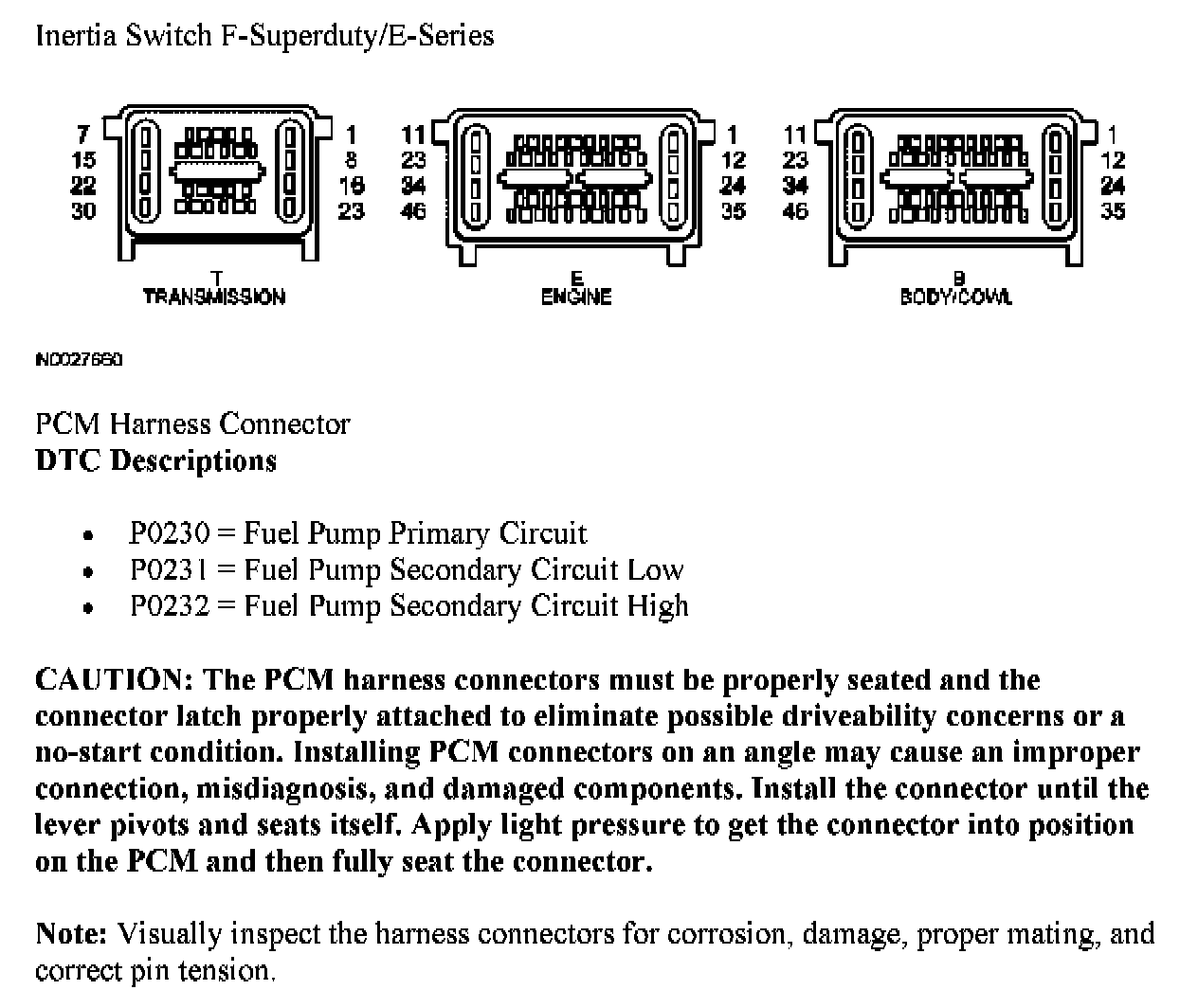

M Introduction:

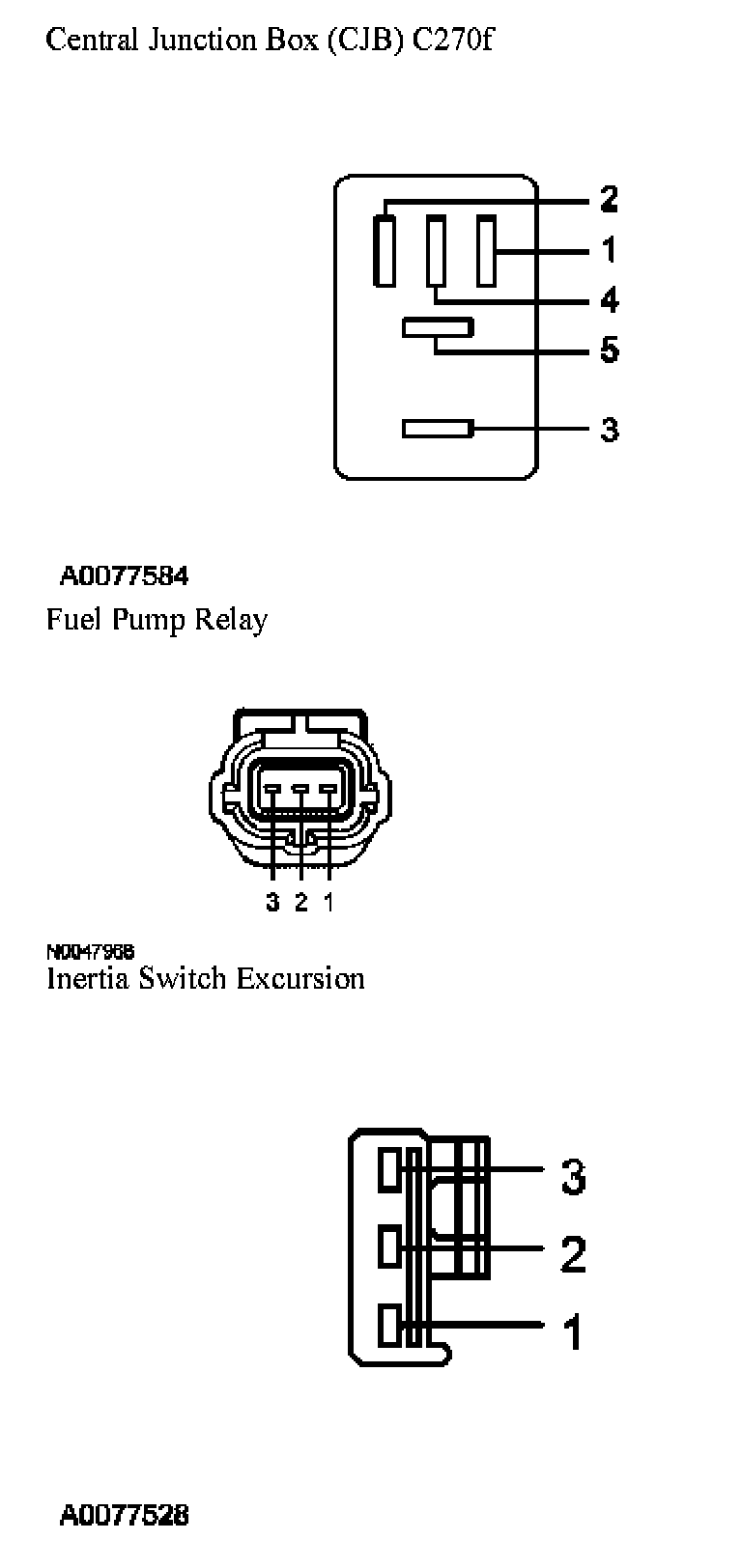

M Introduction:
M Introduction:

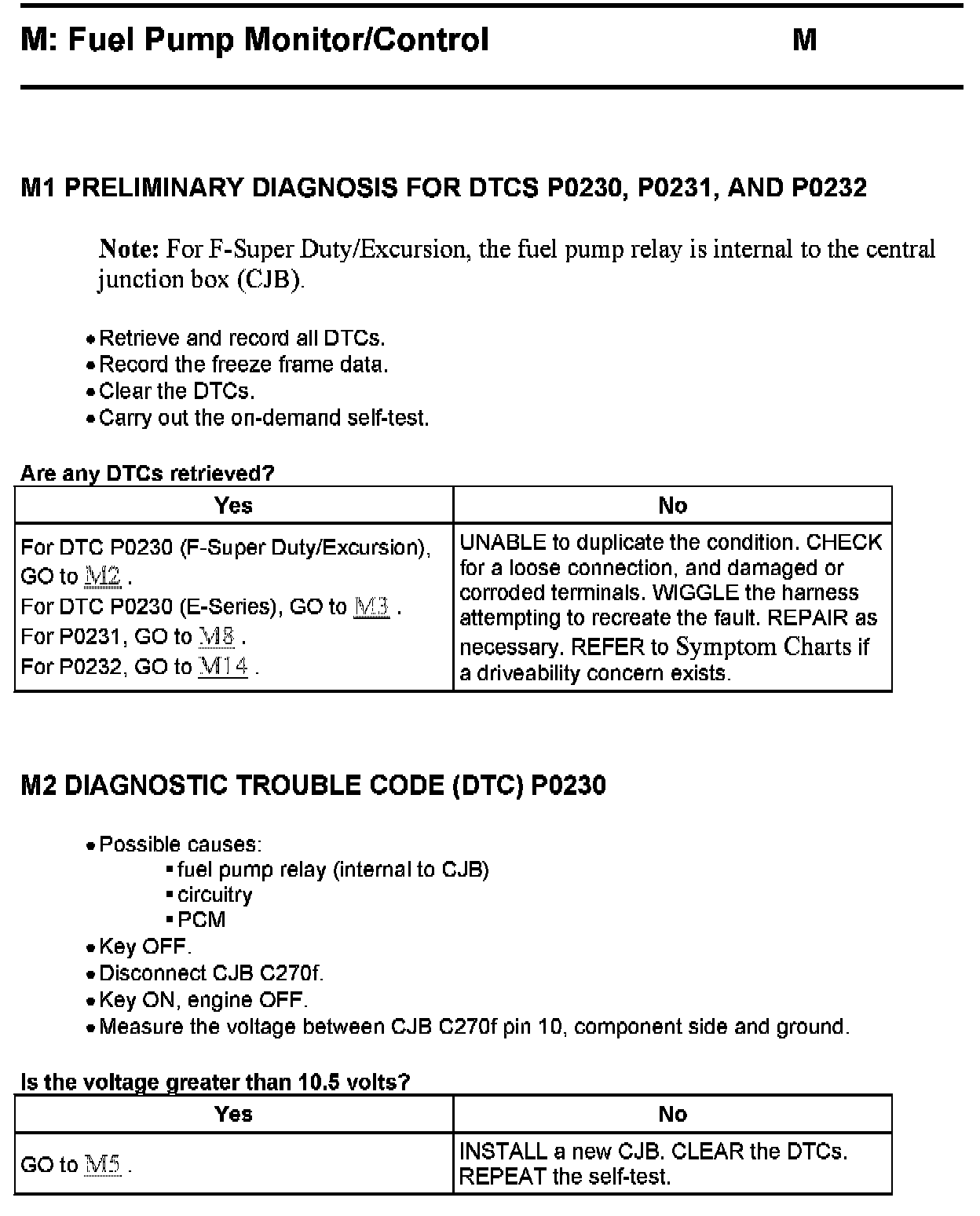

M1 - M2:

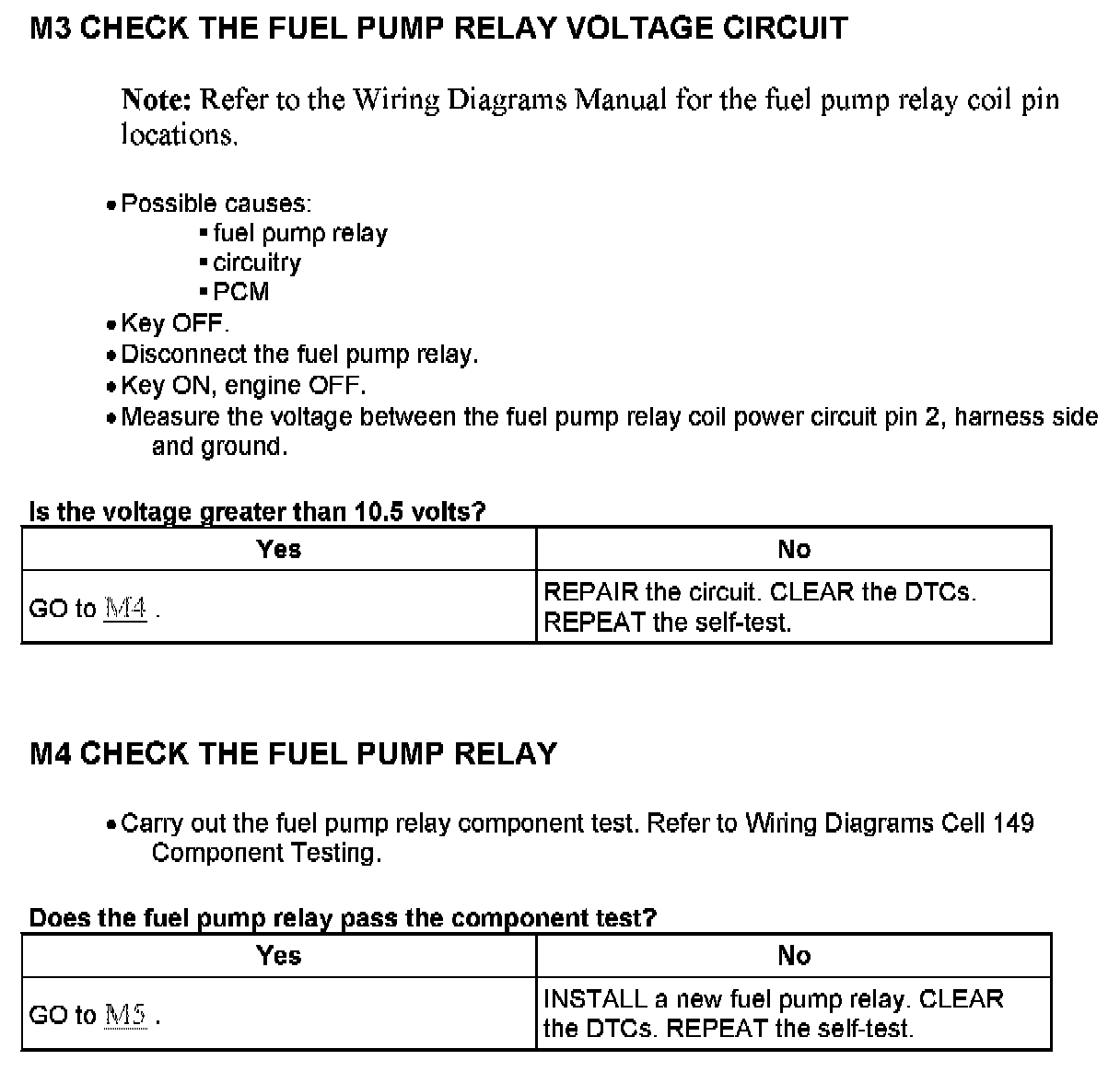

M3 - M4:

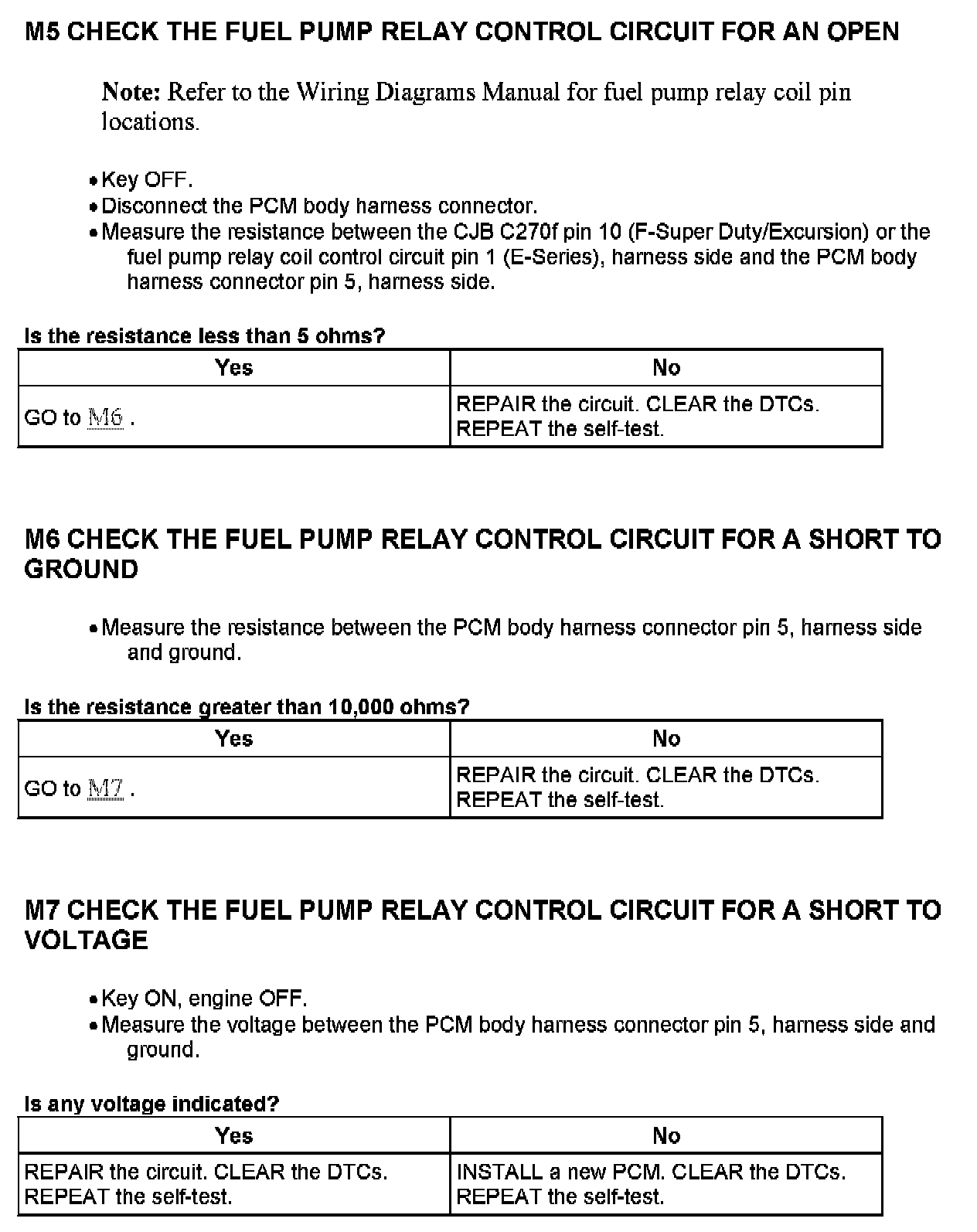

M5 - M7:

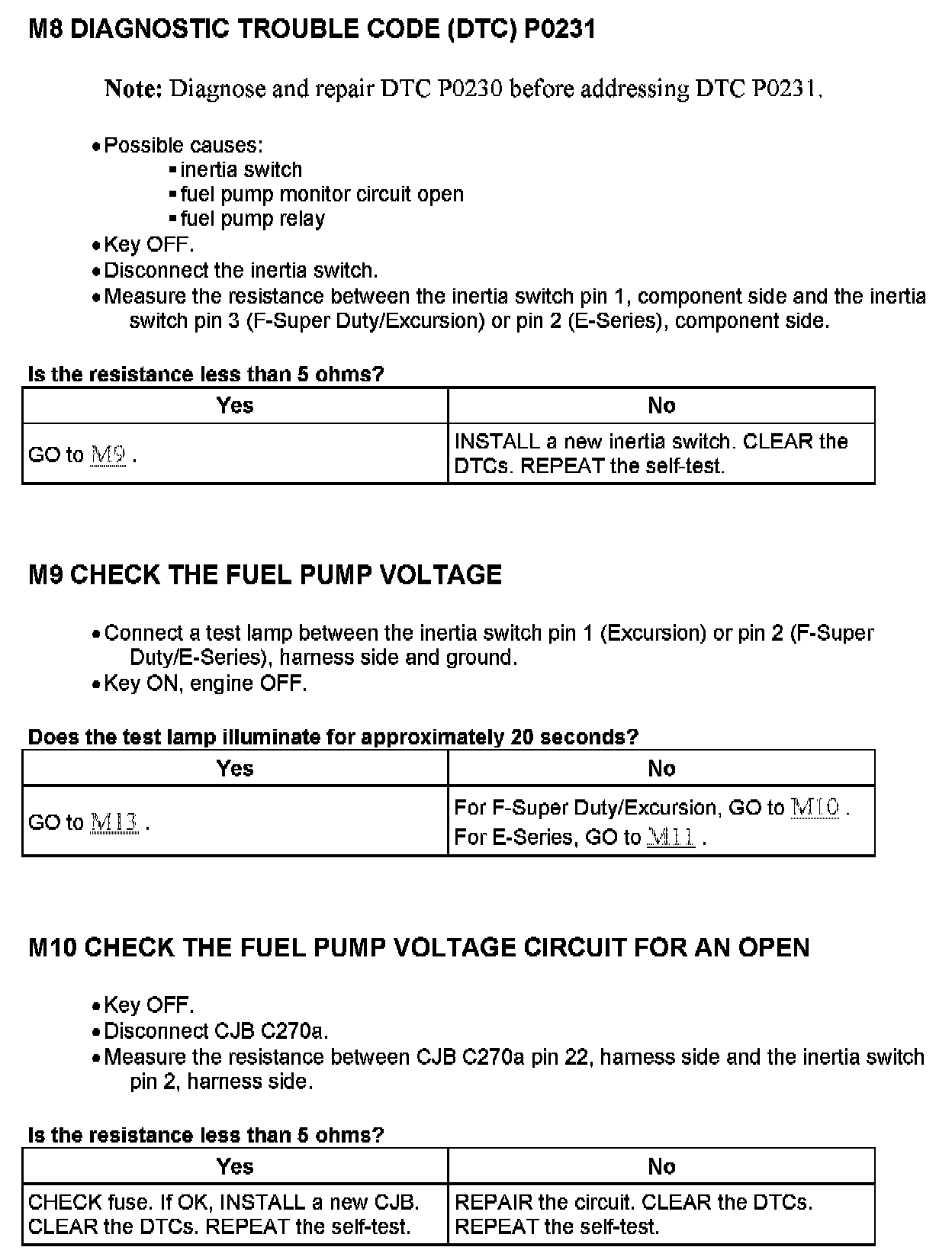

M8 - M10:

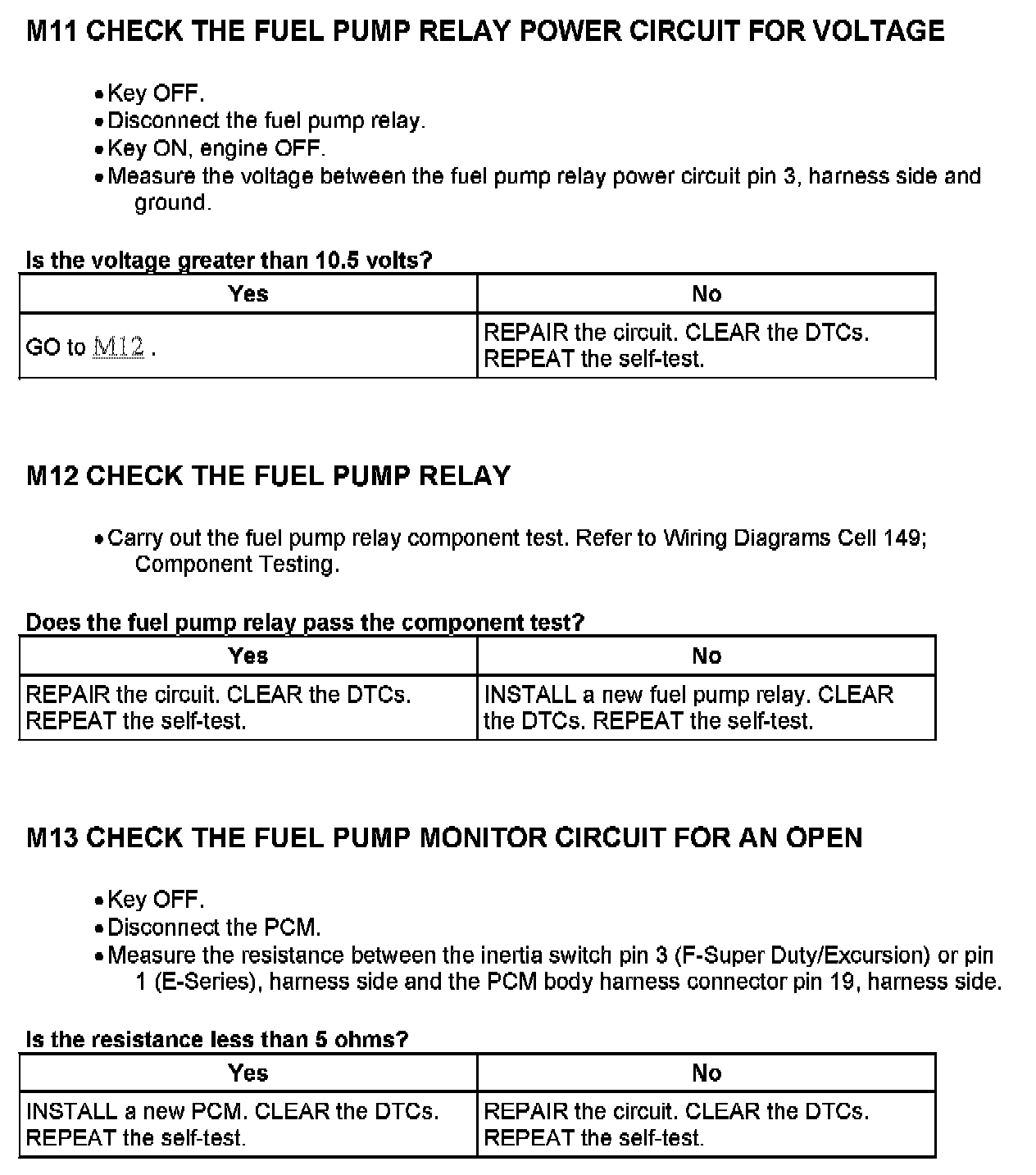

M11 - M13:

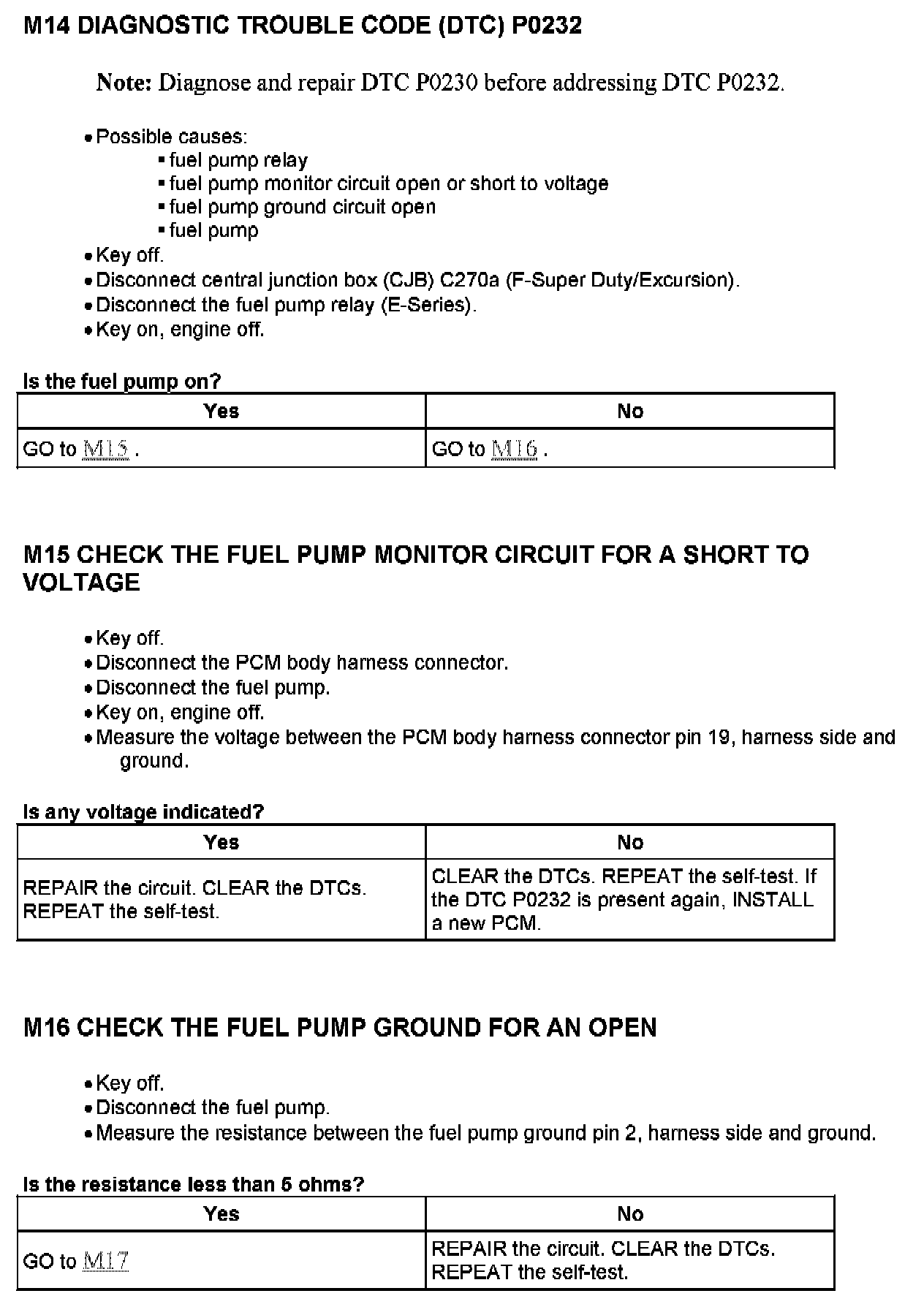

M14 - M16:

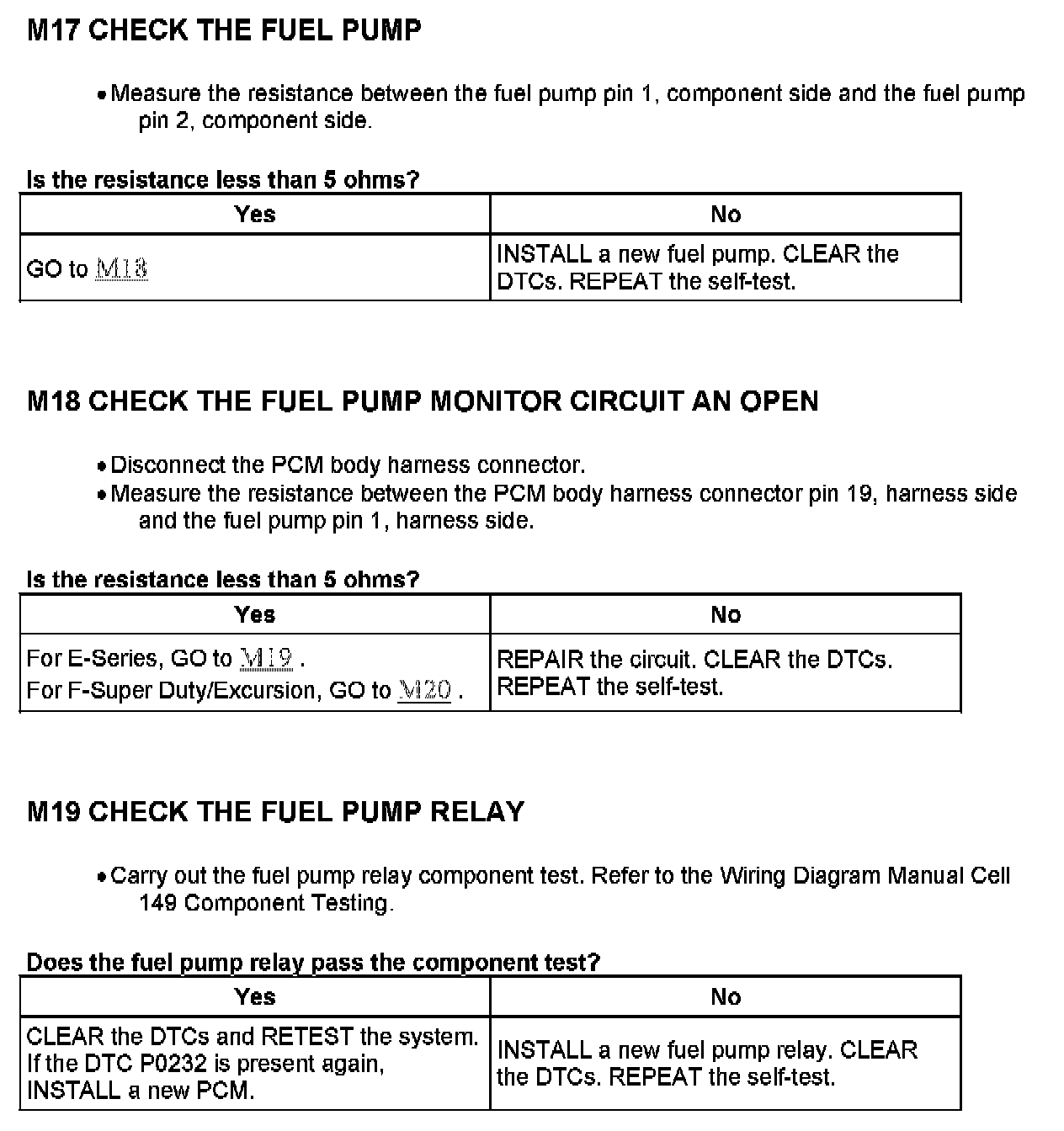

M17 - M19:

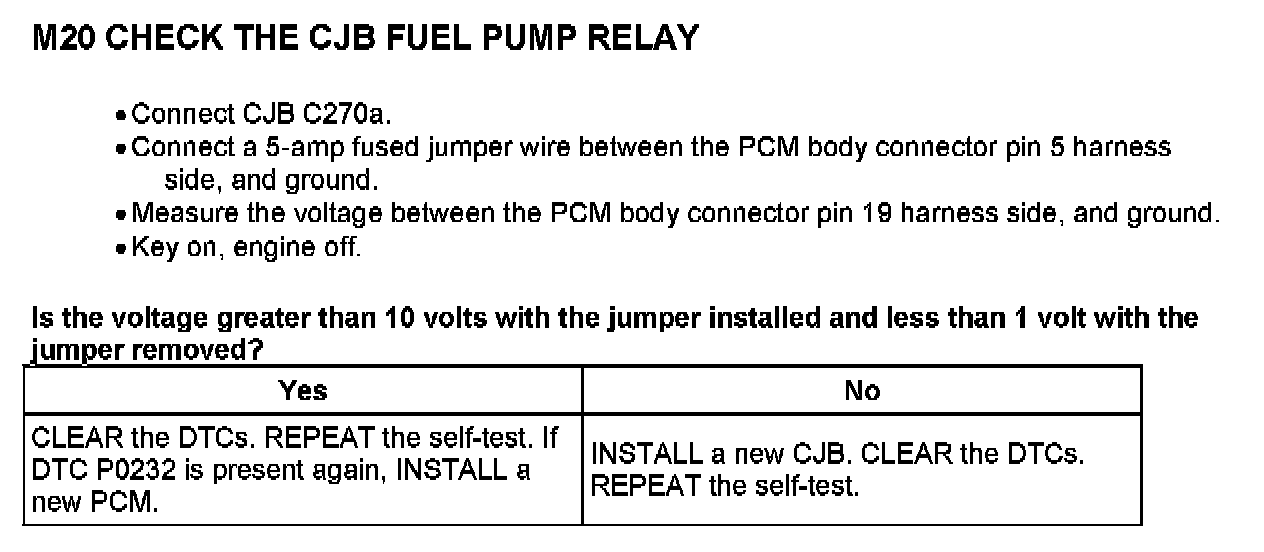

M20:
