Test Q: Injection Control Pressure (ICP) Sensor
PINPOINT TEST Q: INJECTION CONTROL PRESSURE (ICP) SENSOR

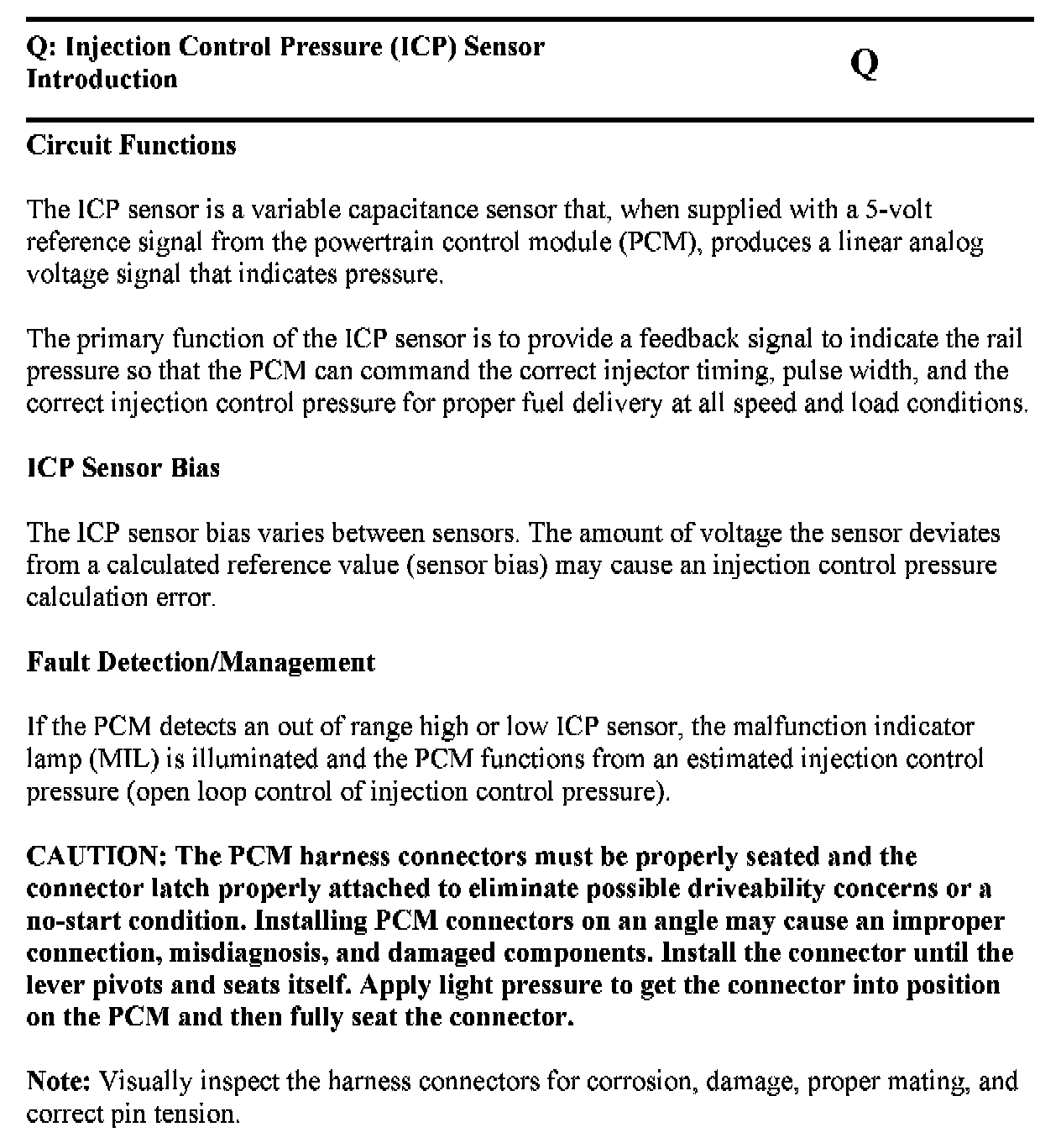

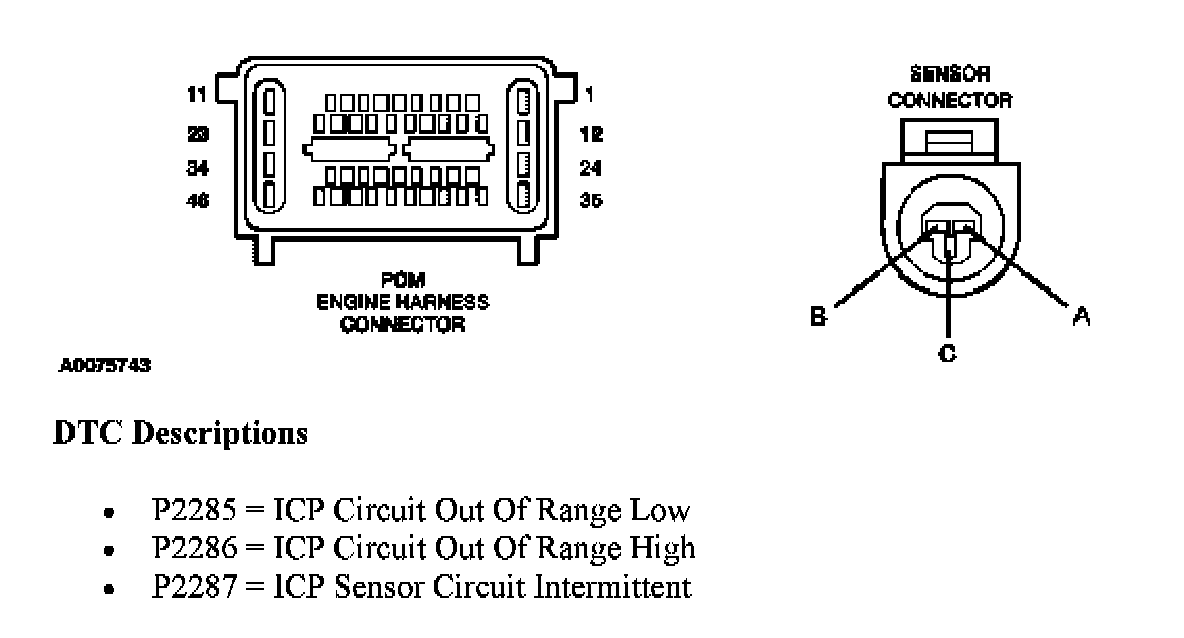

Q Introduction:
Q Introduction:

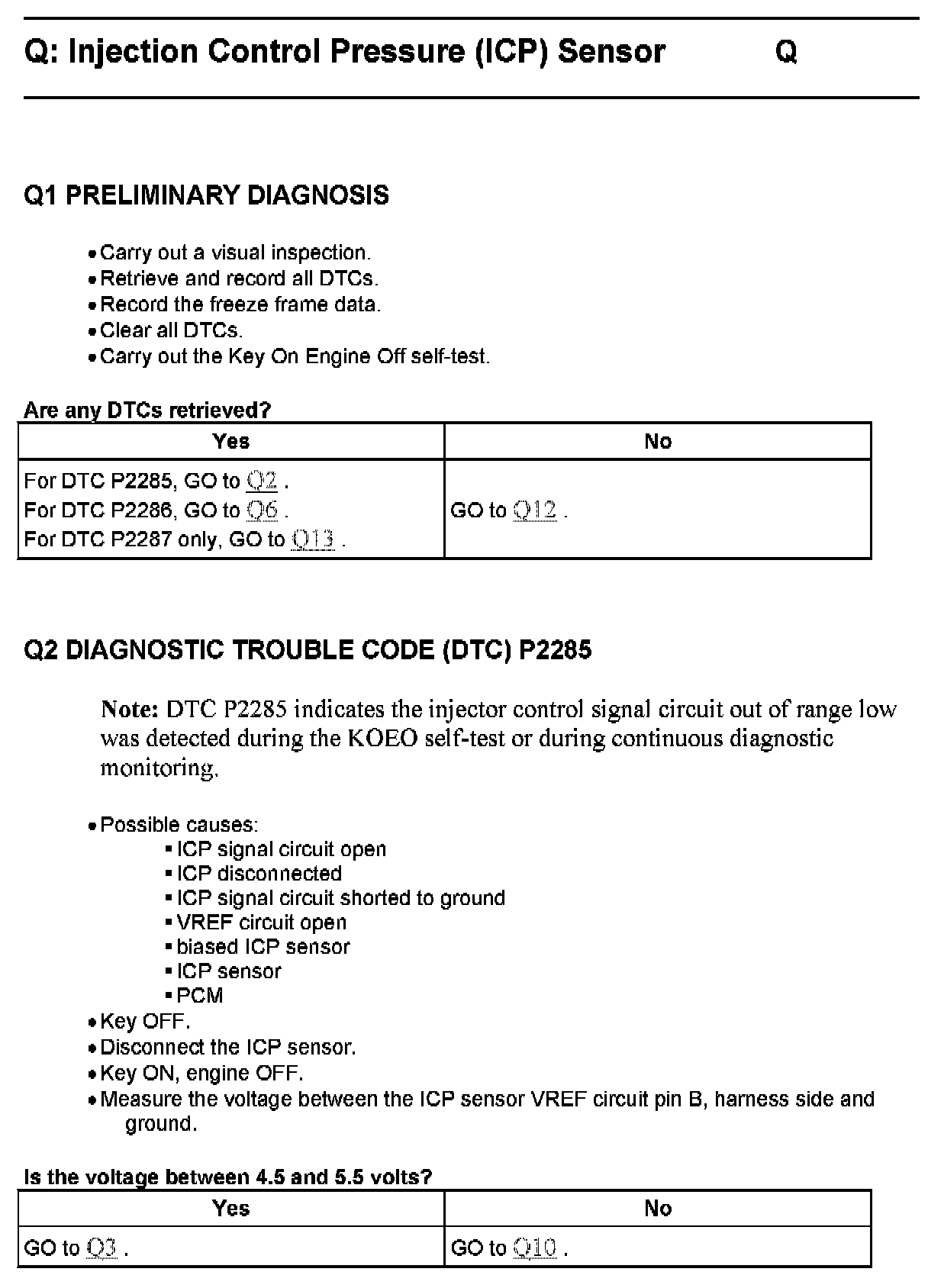

Q1 - Q2:

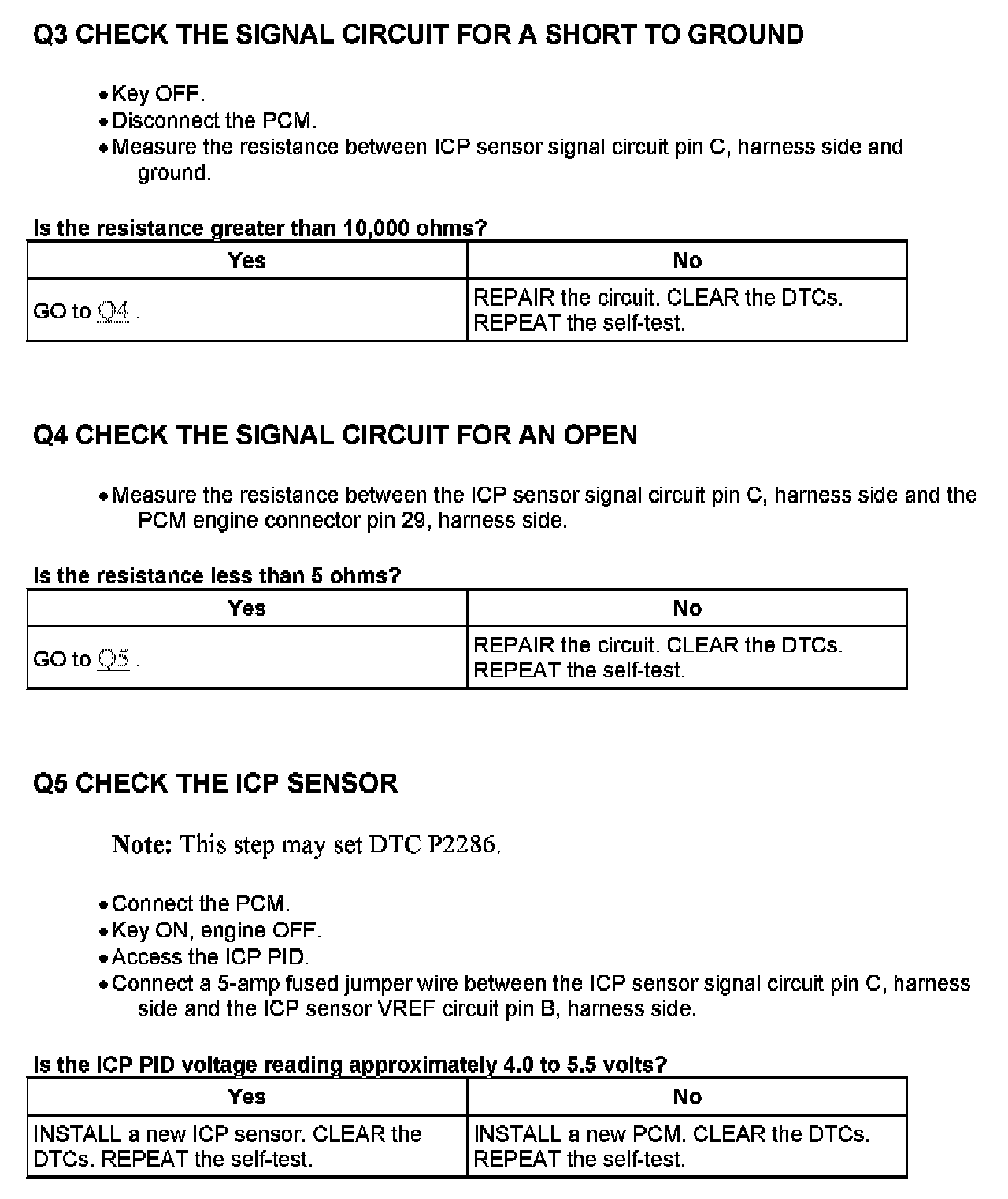

Q3 - Q5:

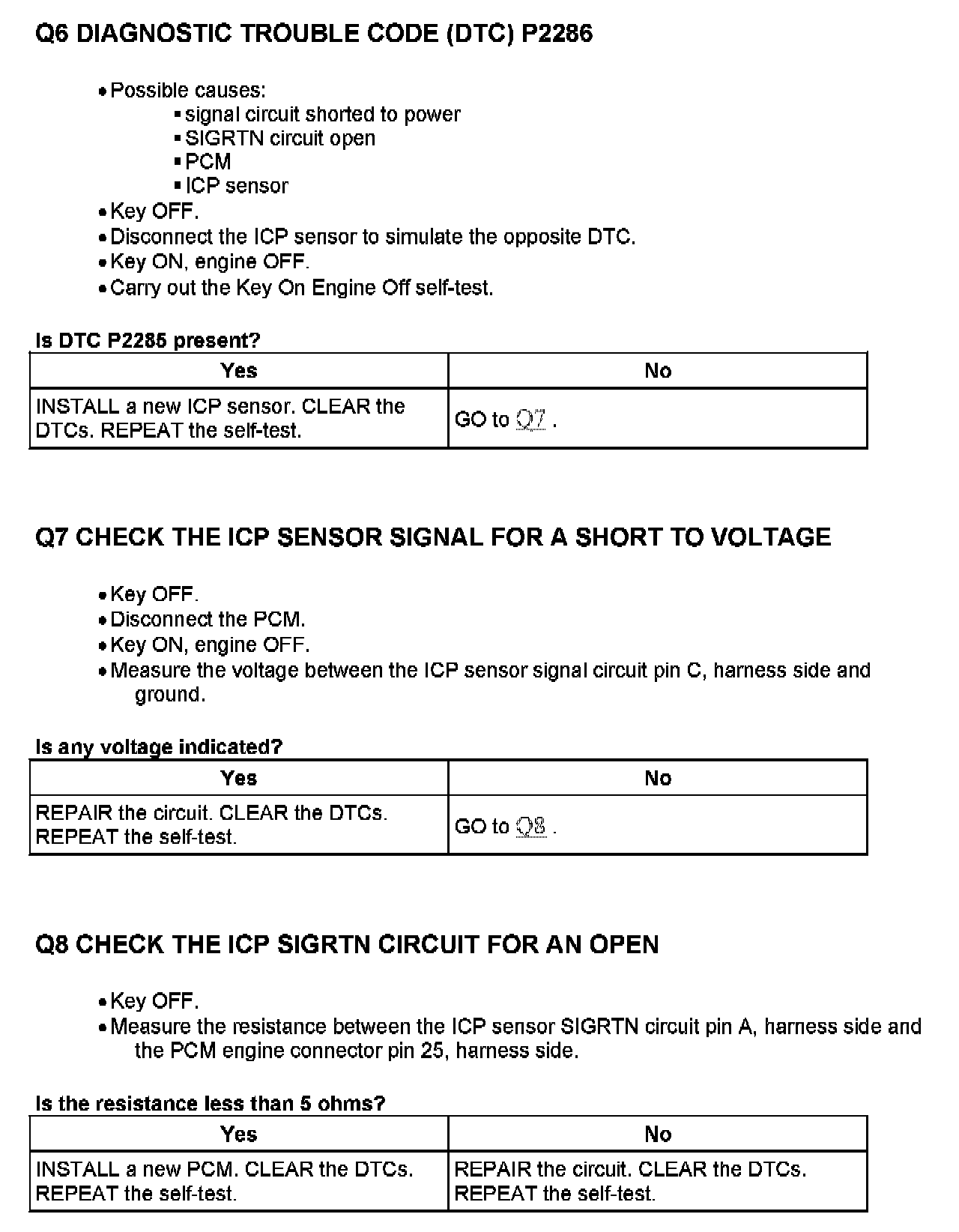

Q6 - Q8:

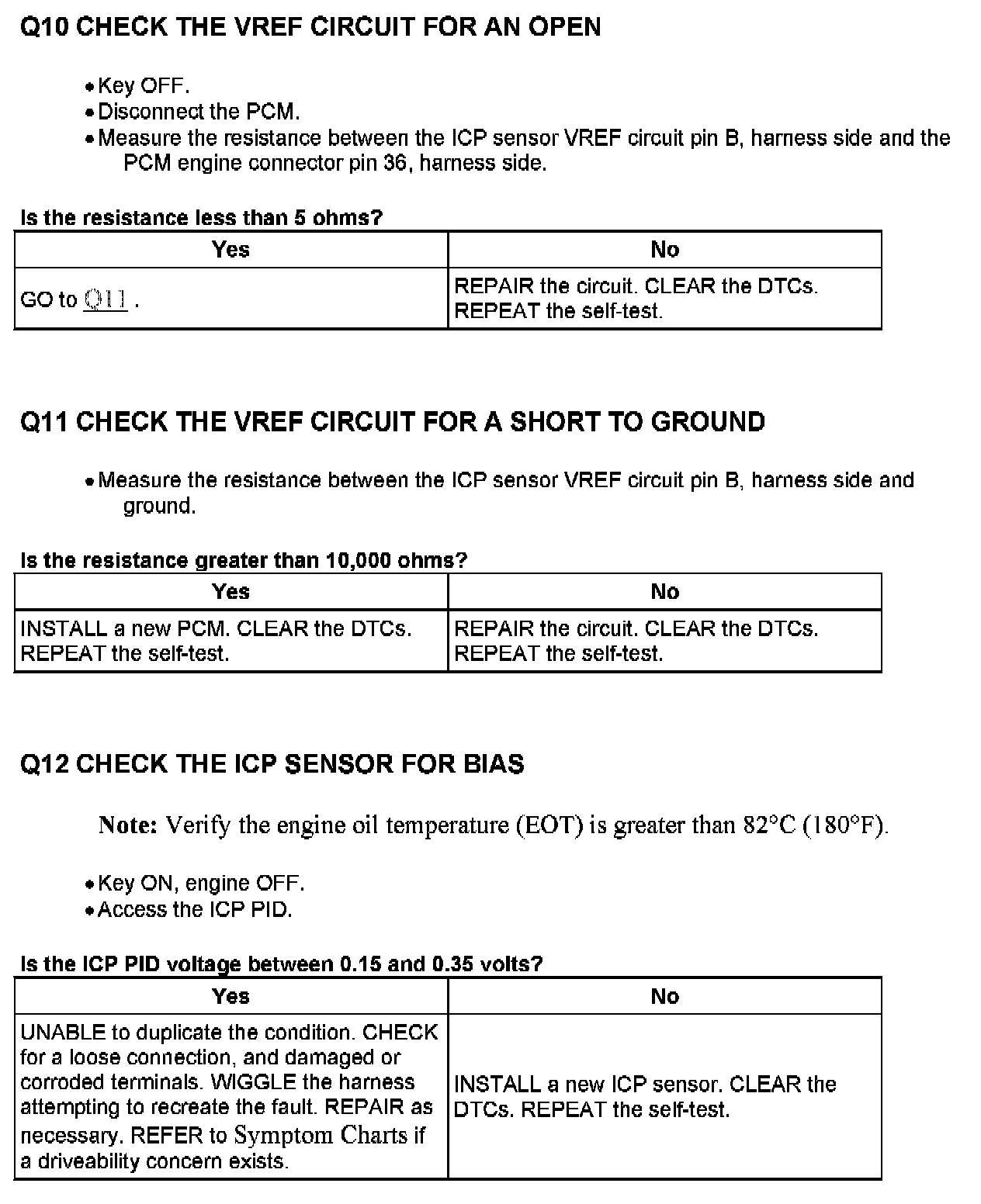

Q10 - Q12:

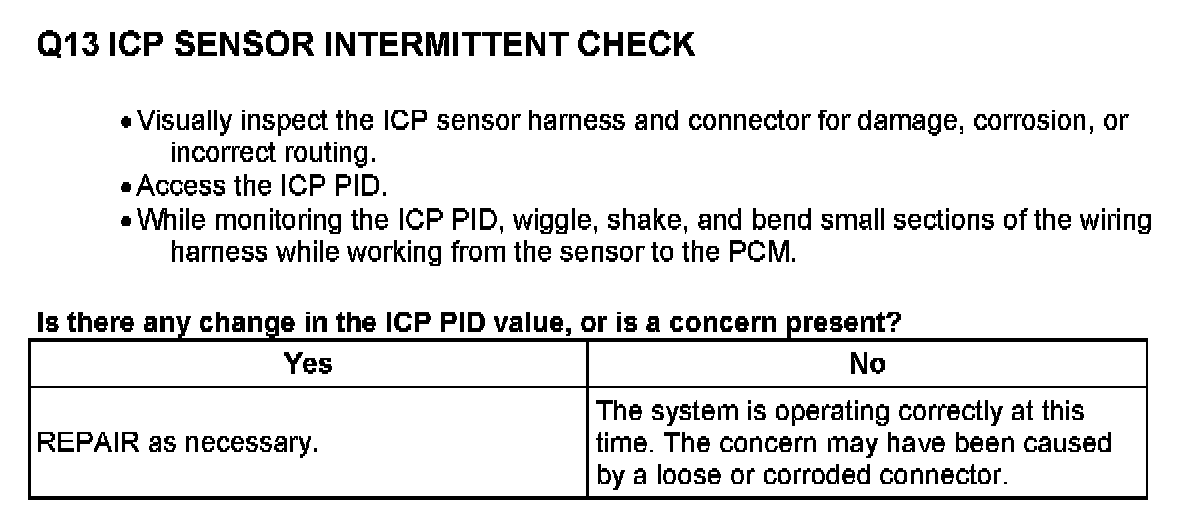

Q13:
