Test Y: Speed Control Switch



PINPOINT TEST Y: SPEED CONTROL SWITCH

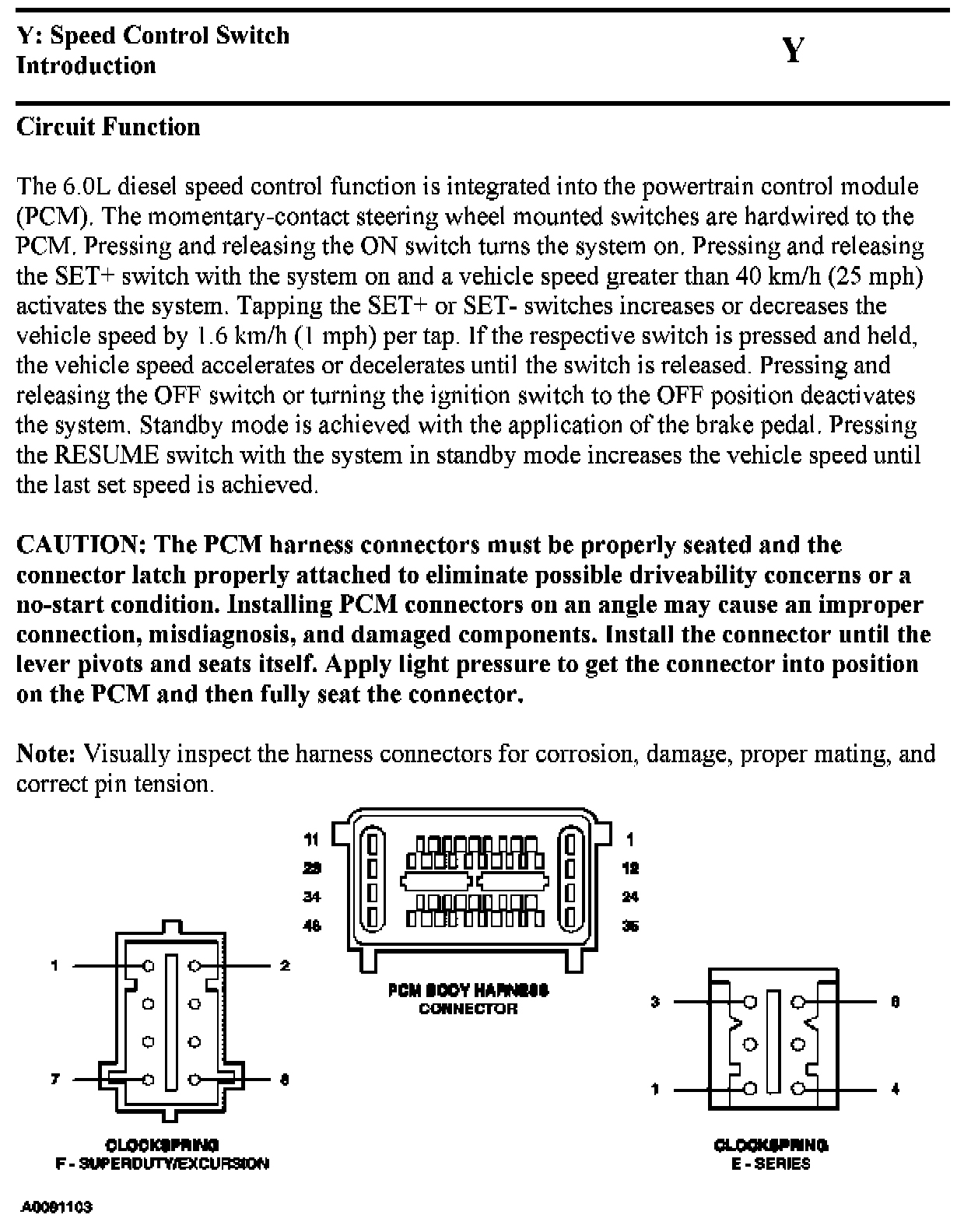

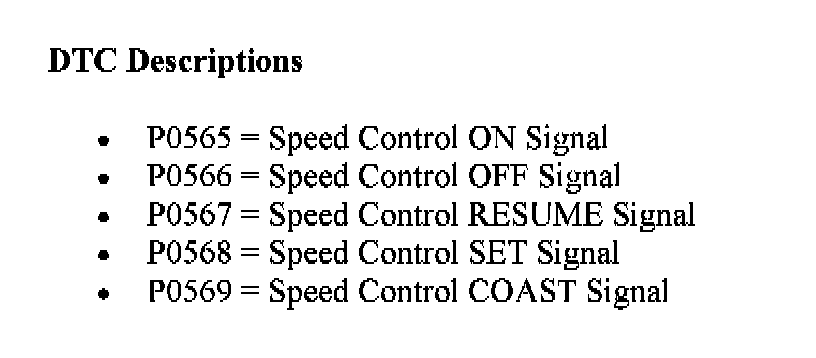

Y Introduction:





Y Introduction:

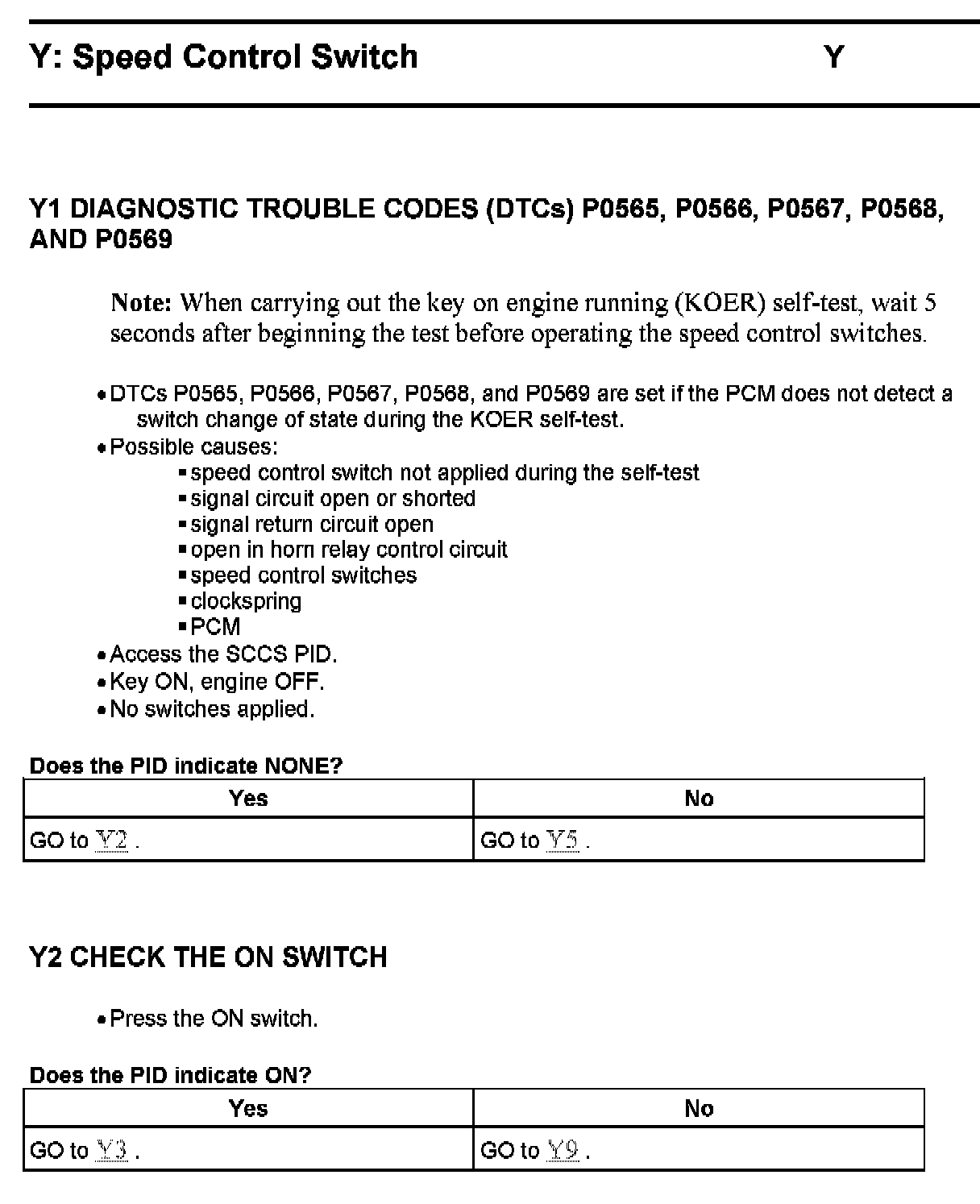

Y1 - Y2:

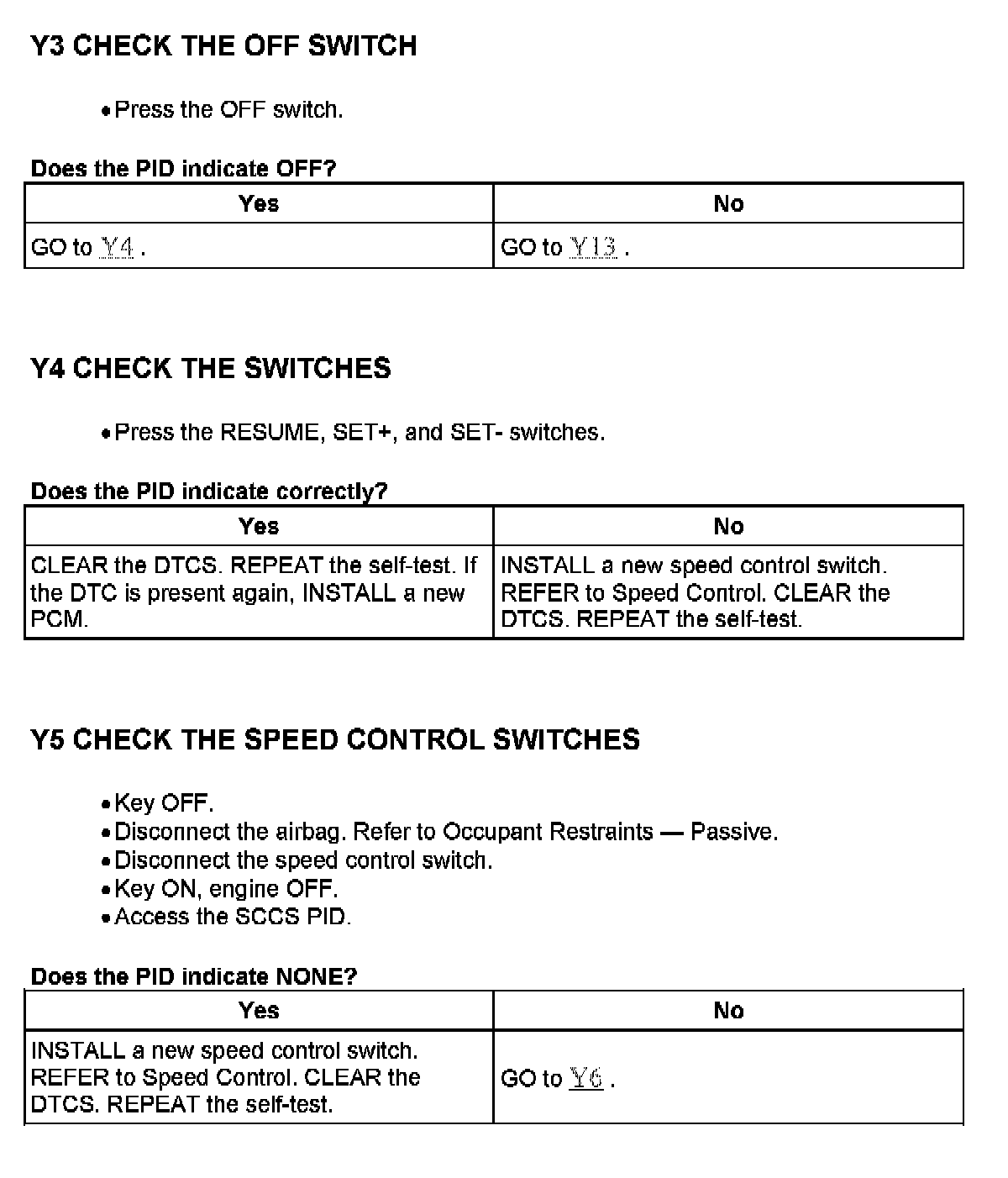

Y3 - Y5:

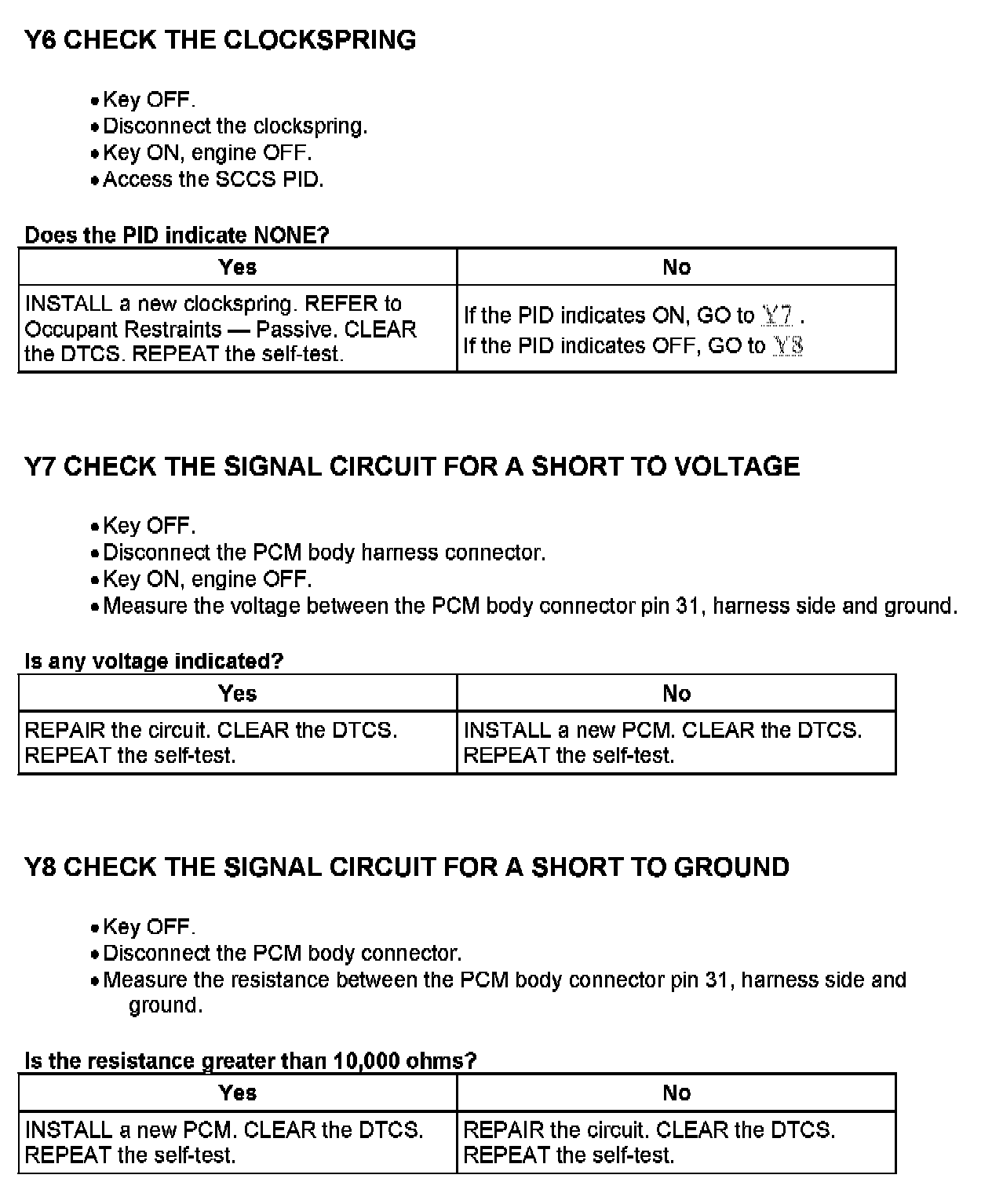

Y6 - Y8:

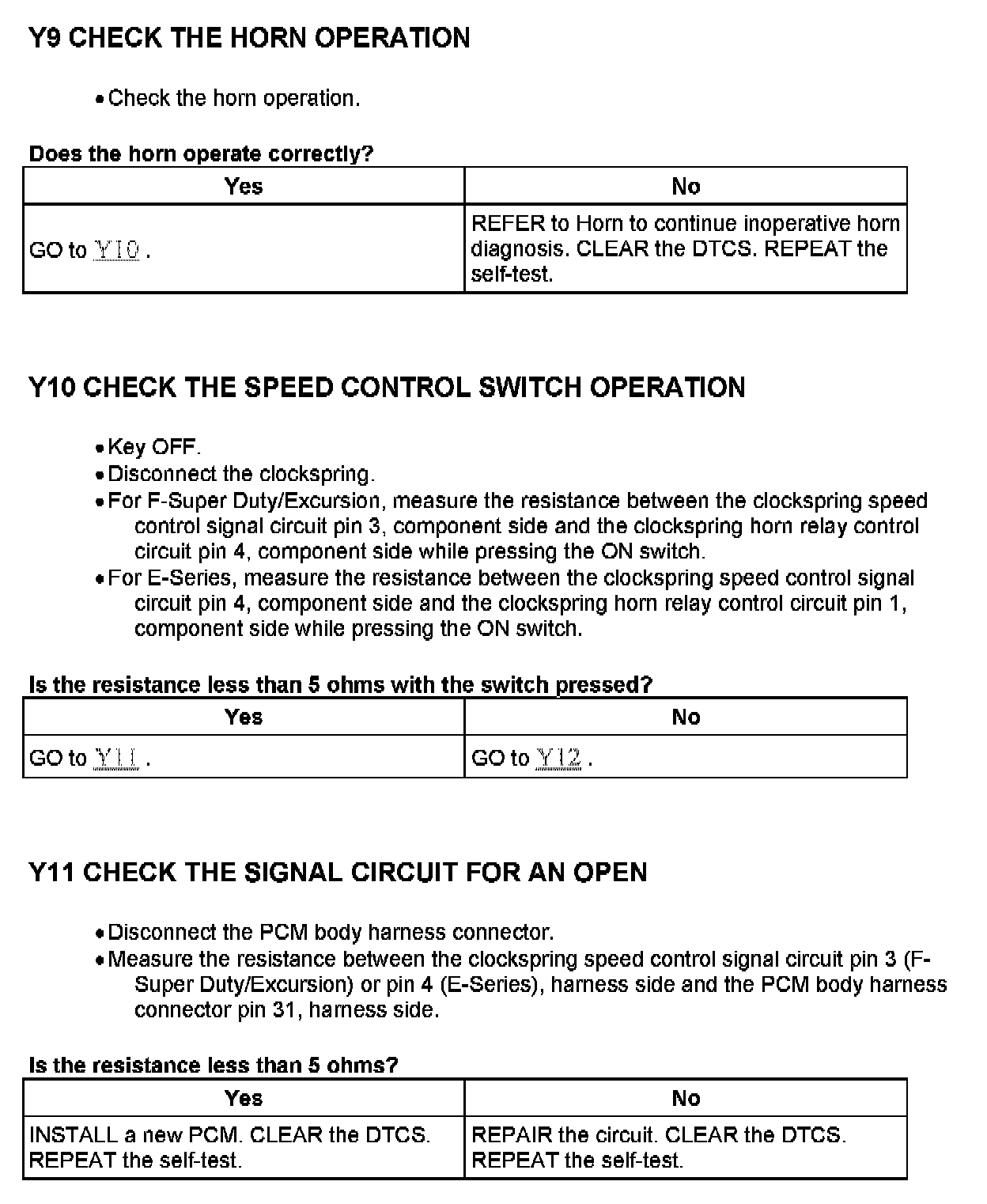

Y9 - Y11:

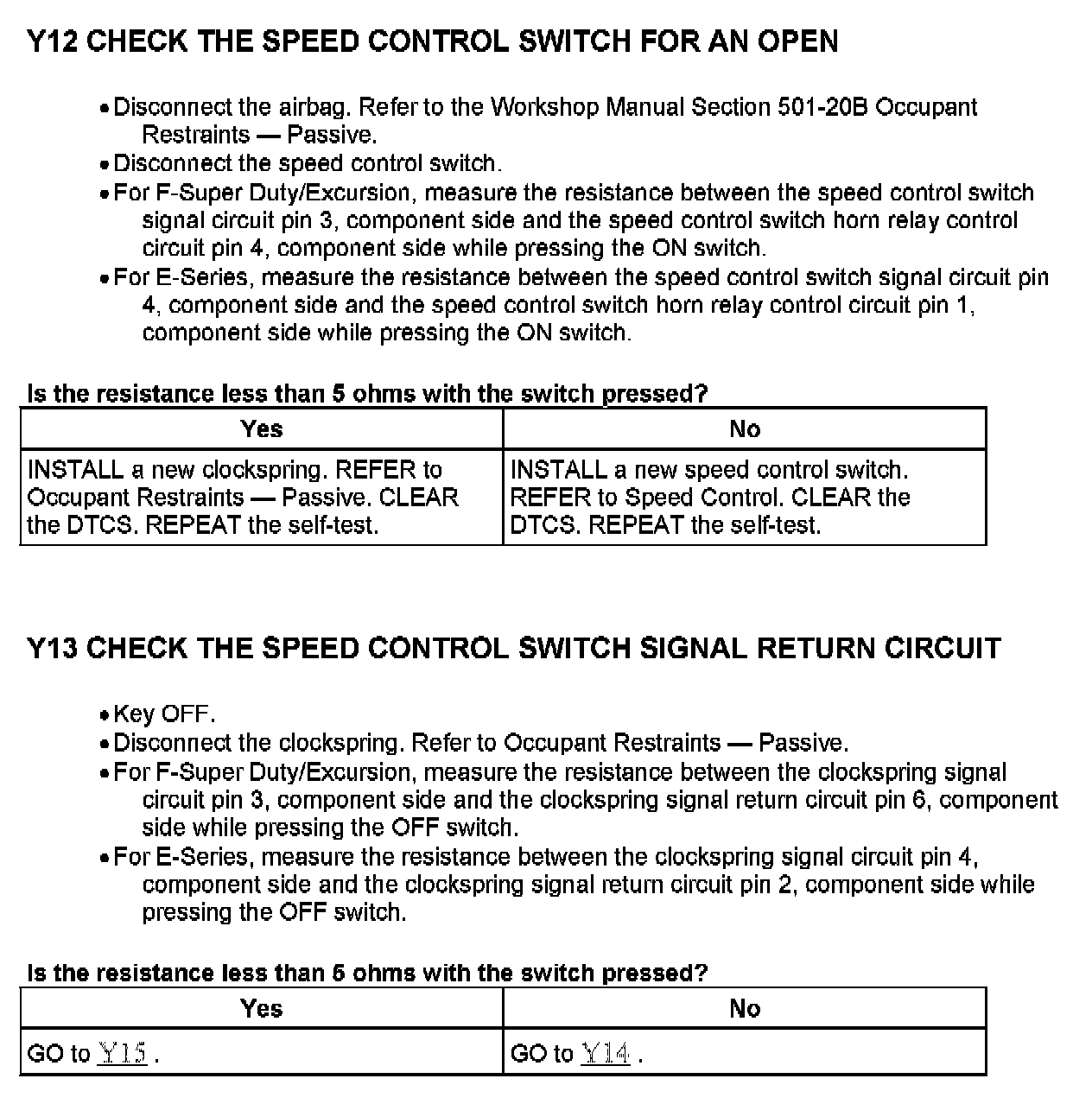

Y12 - Y13:

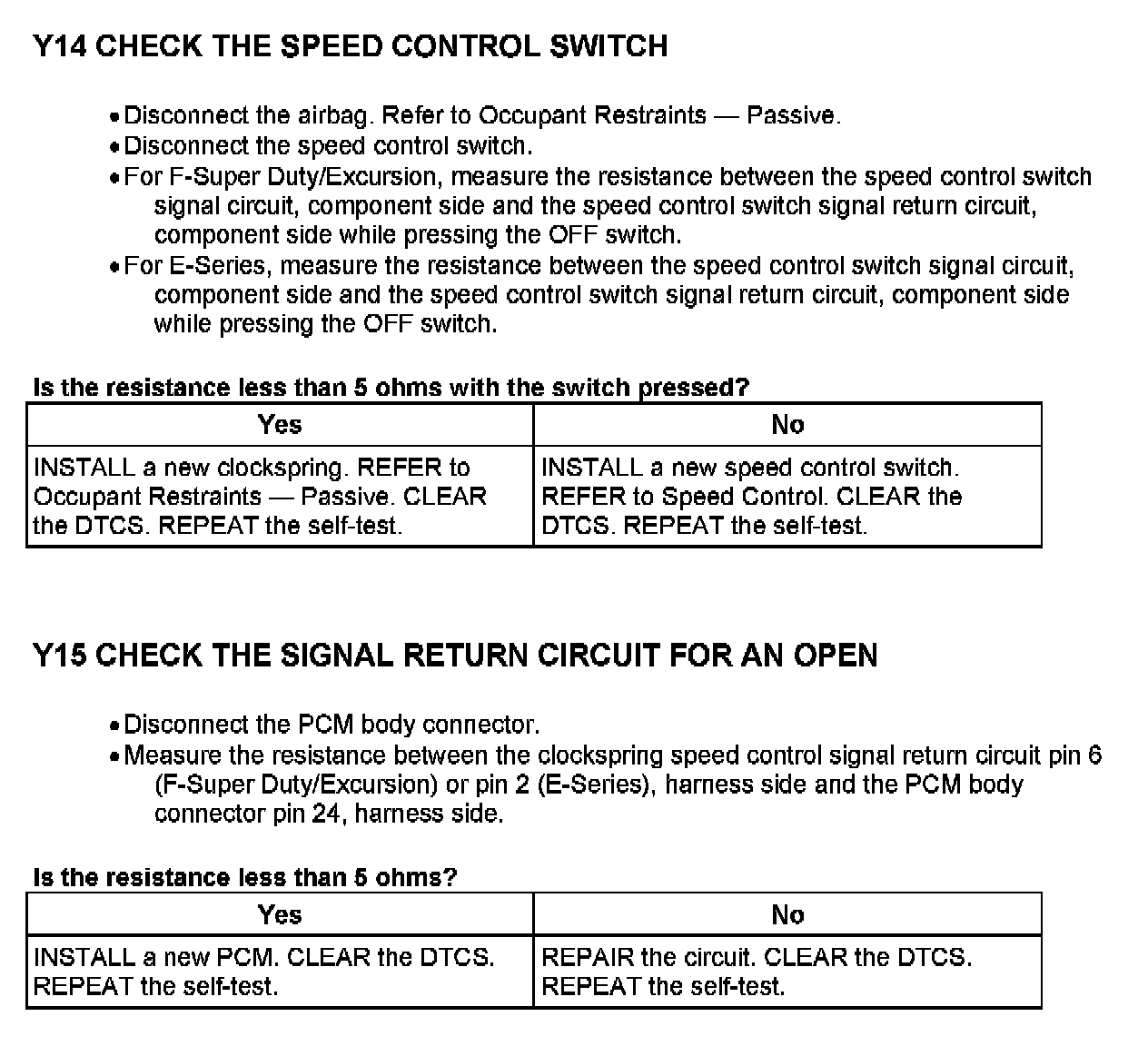

Y14 - Y15:
