Tests AA: Powertrain Control Module (PCM) Read Only Memory (ROM) Failure



PINPOINT TEST AA: POWERTRAIN CONTROL MODULE (PCM) READ ONLY MEMORY (ROM) FAILURE

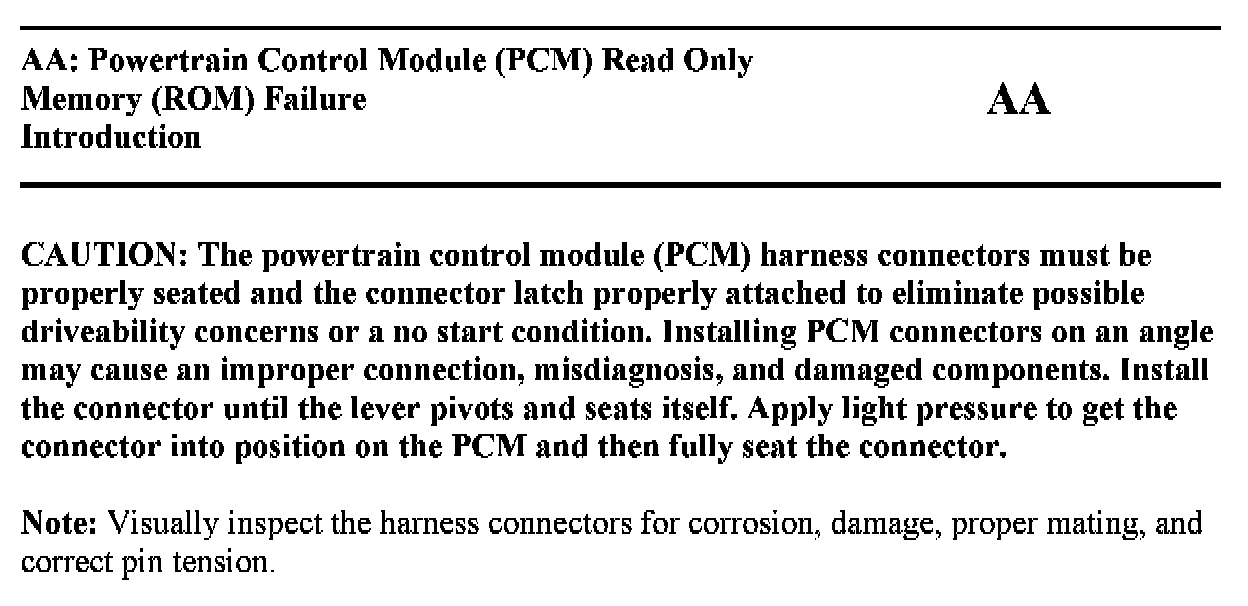

AA Introduction:

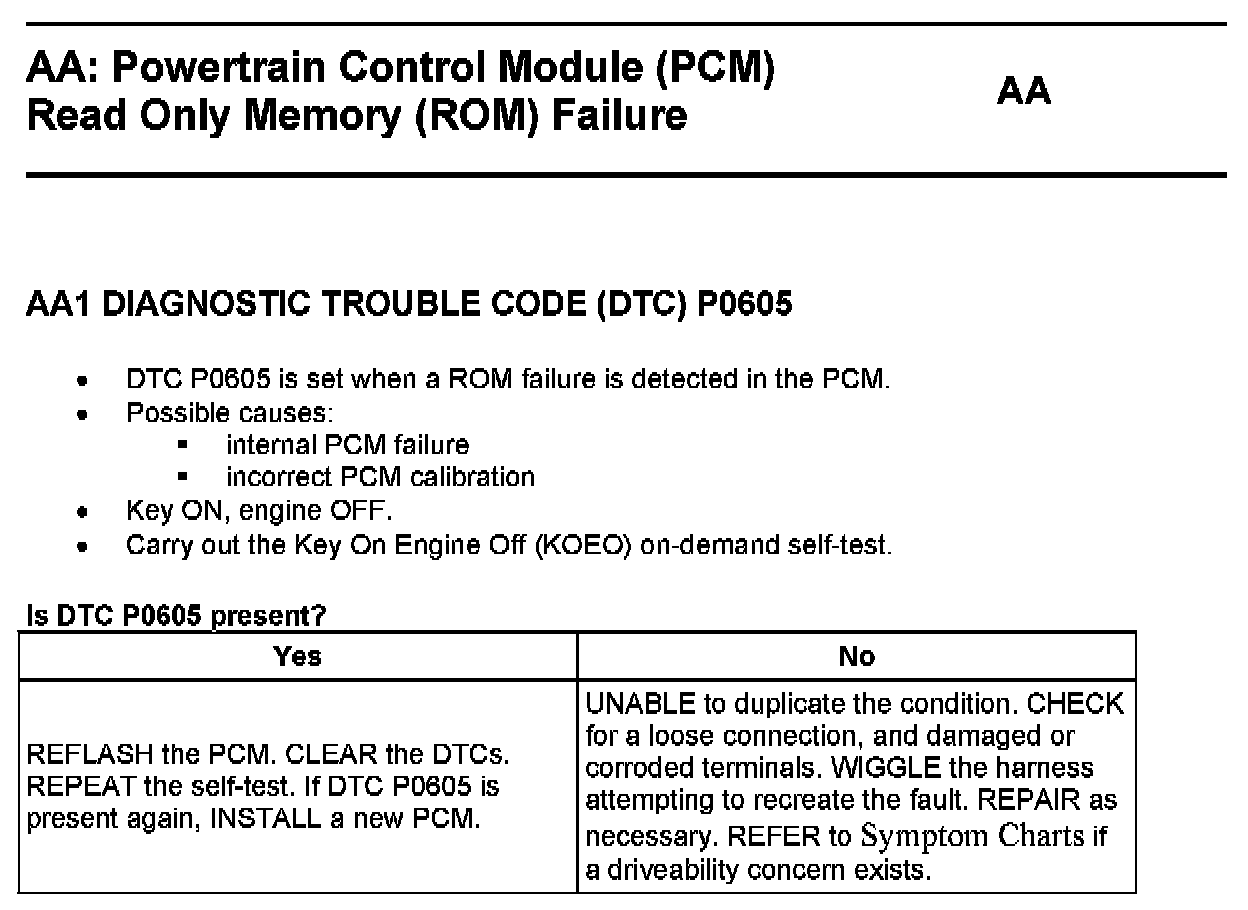

AA1:
