Tests AS: Loss of Communication With The Fuel Injection Control Module (FICM)



PINPOINT TEST AS: LOSS OF COMMUNICATION WITH THE FUEL INJECTOR CONTROL MODULE (FICM)

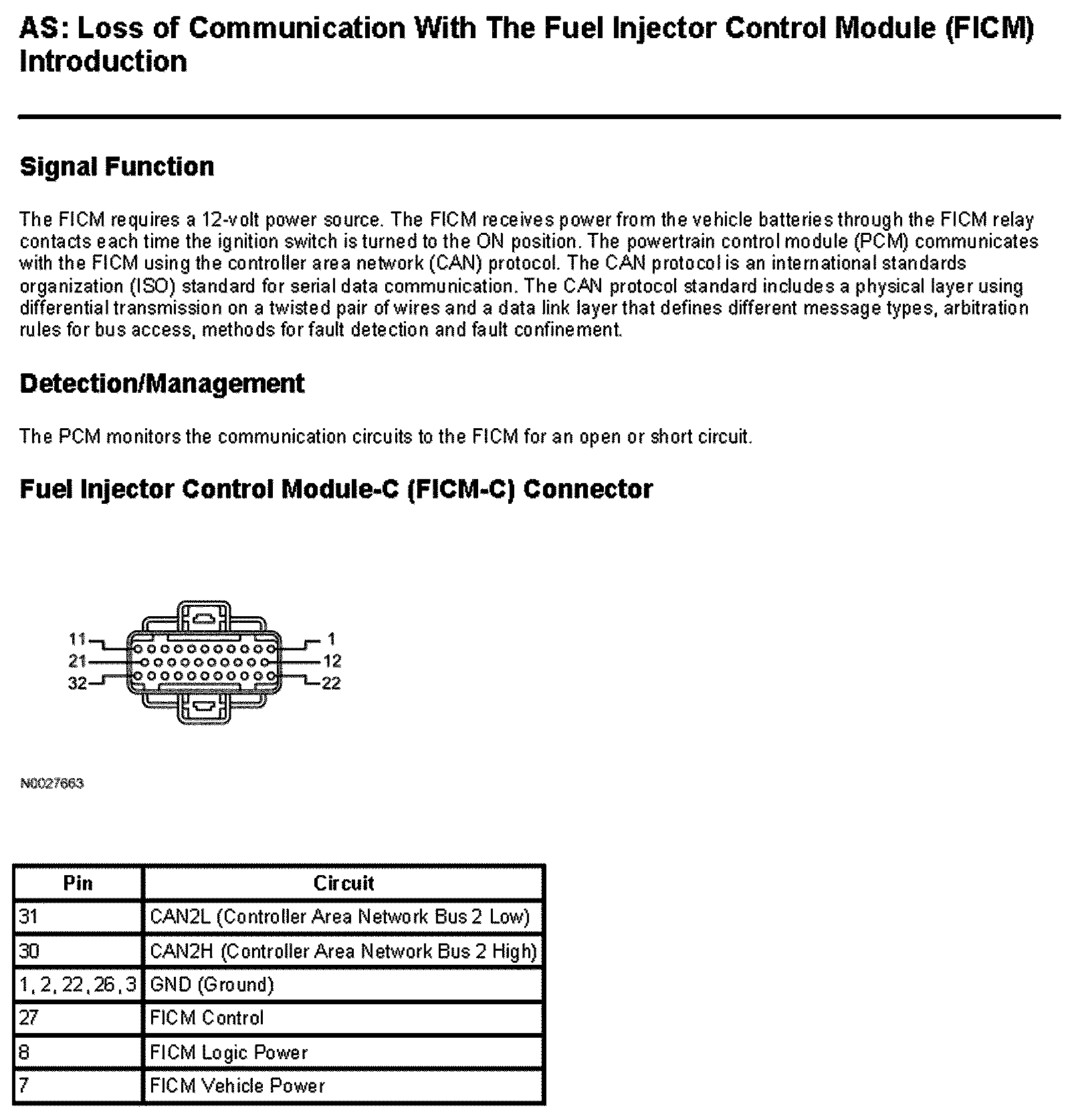

AS Introduction:

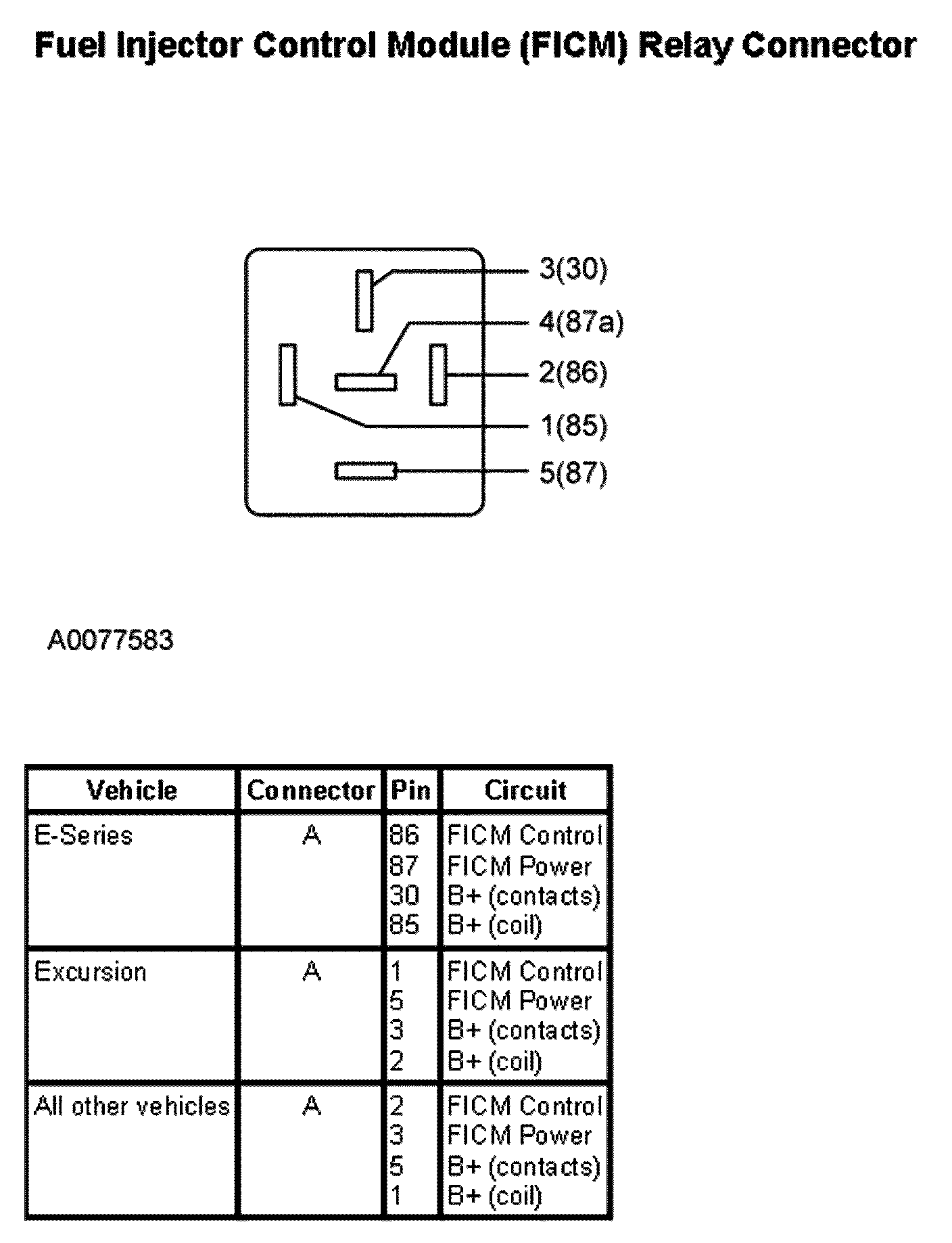

AS Introduction Cont'd:

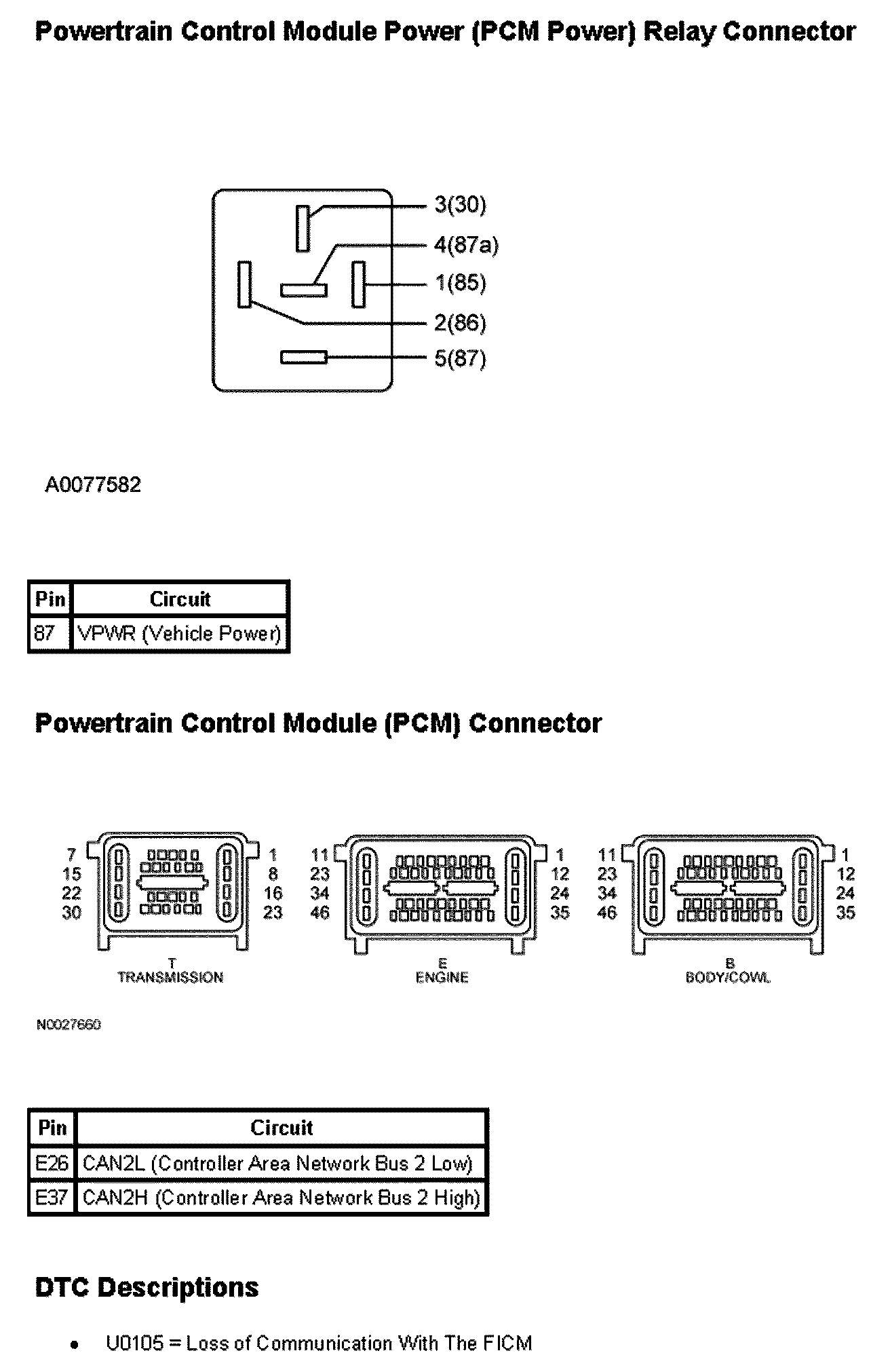

AS Introduction Cont'd:

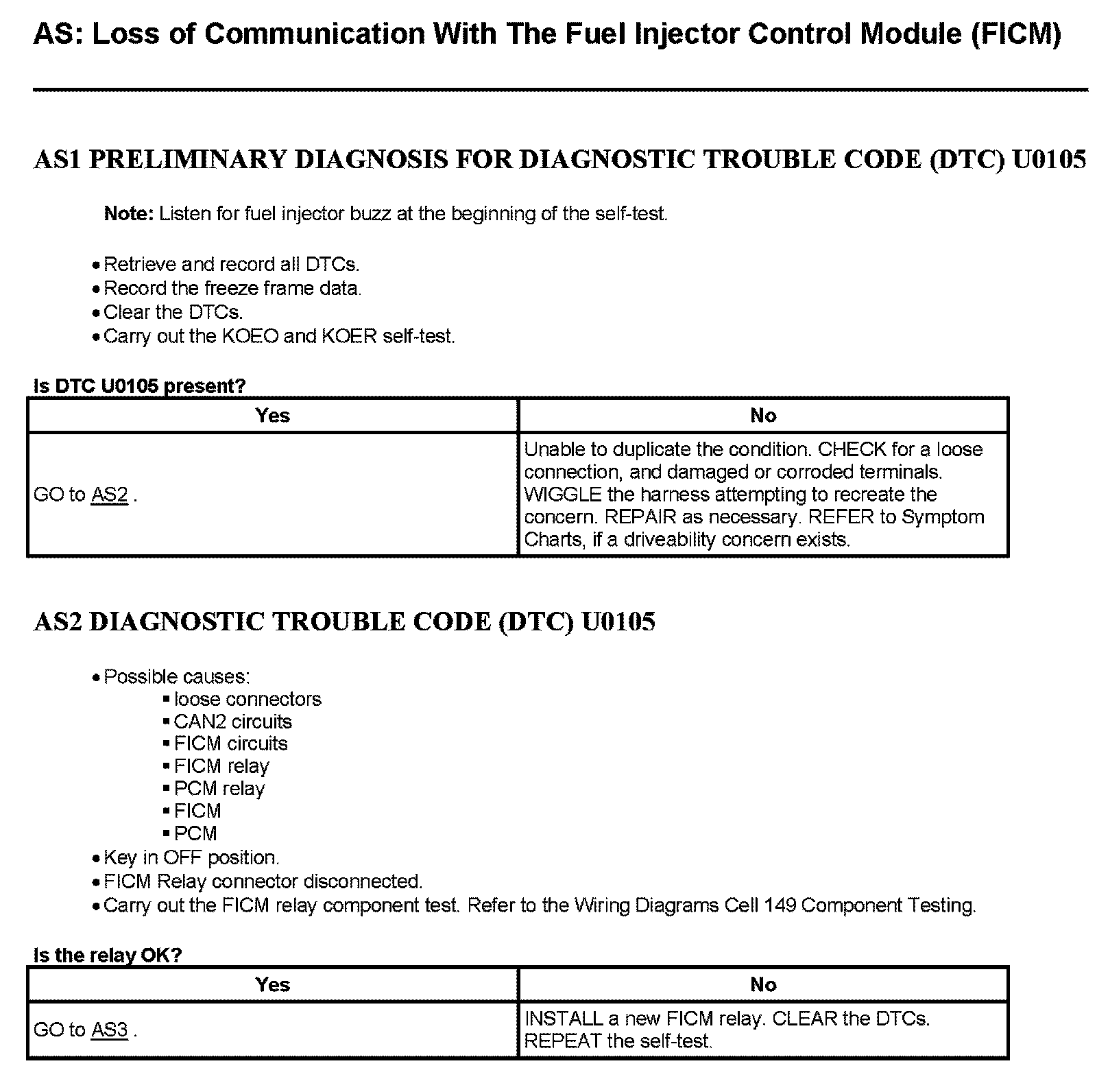

AS1-AS2:

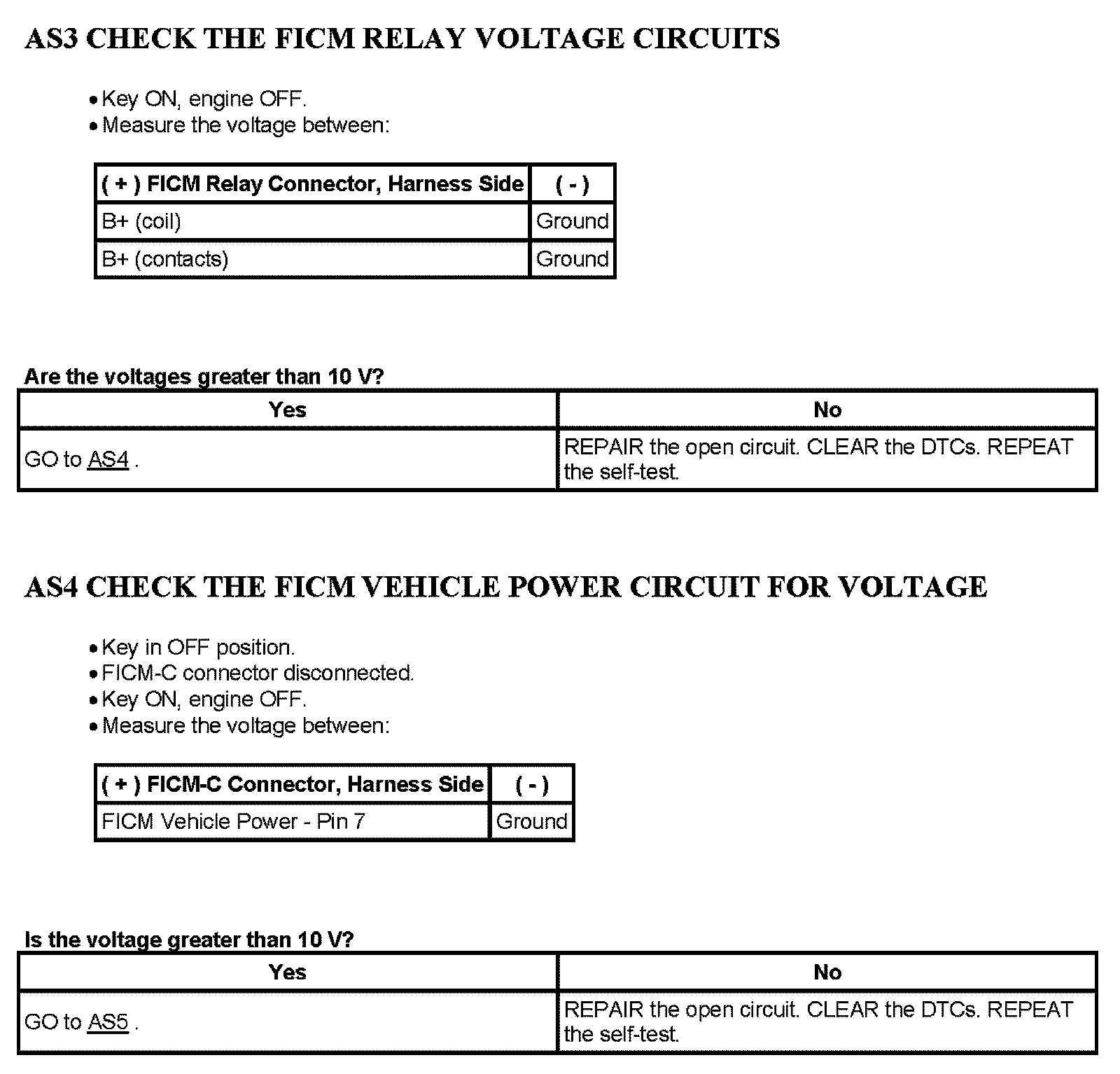

AS3-AS4:

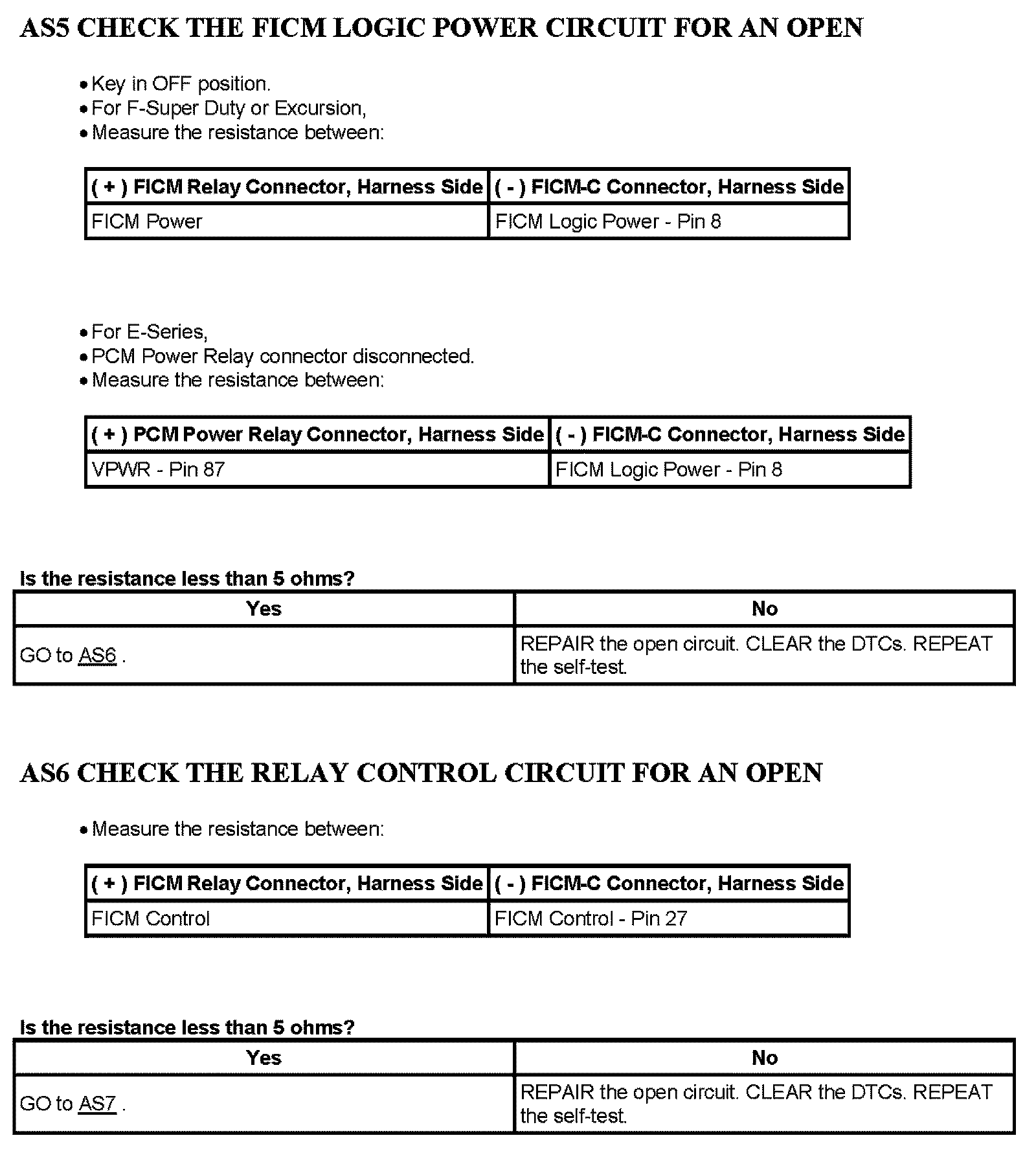

AS5-AS6:

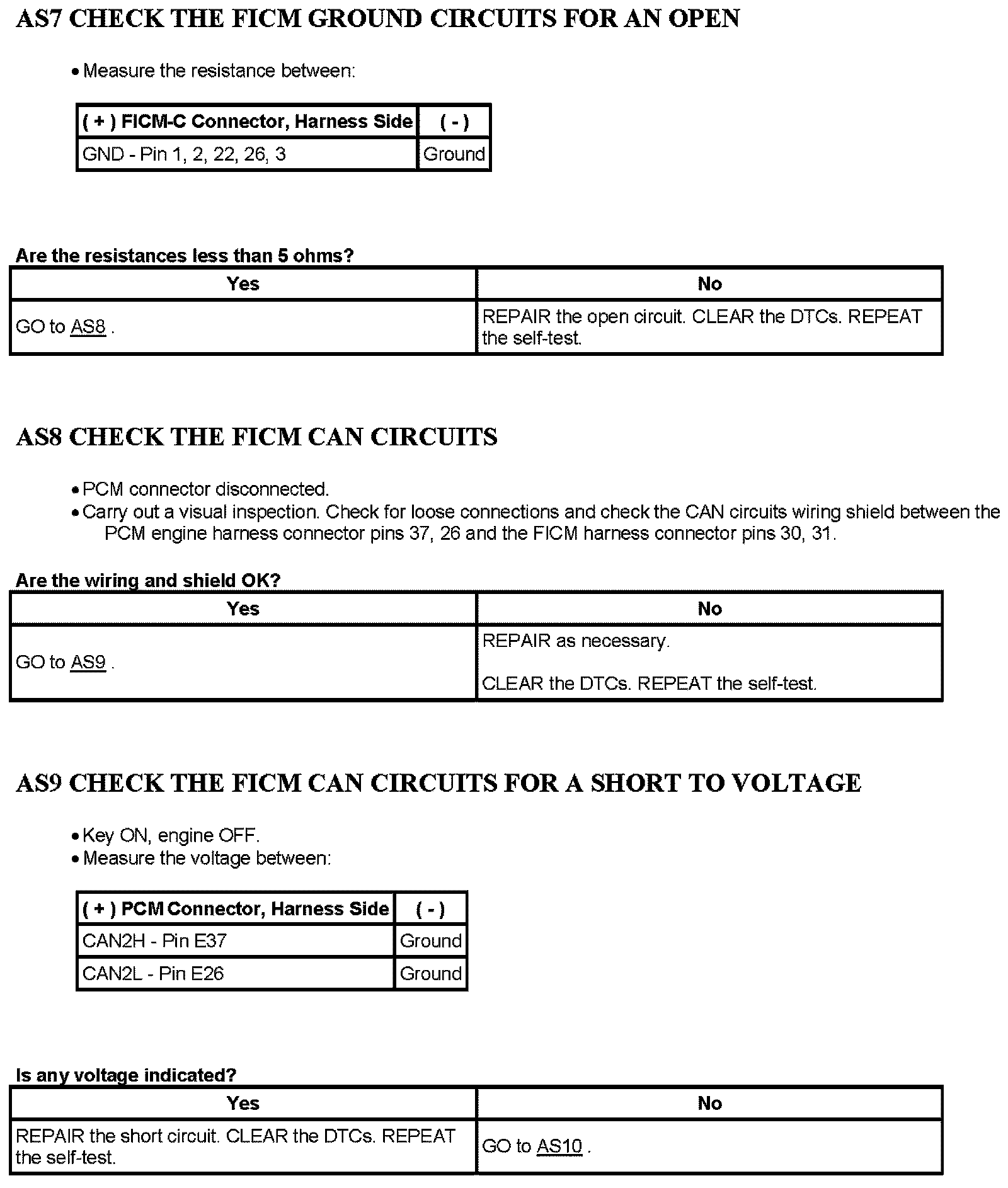

AS7-AS9:

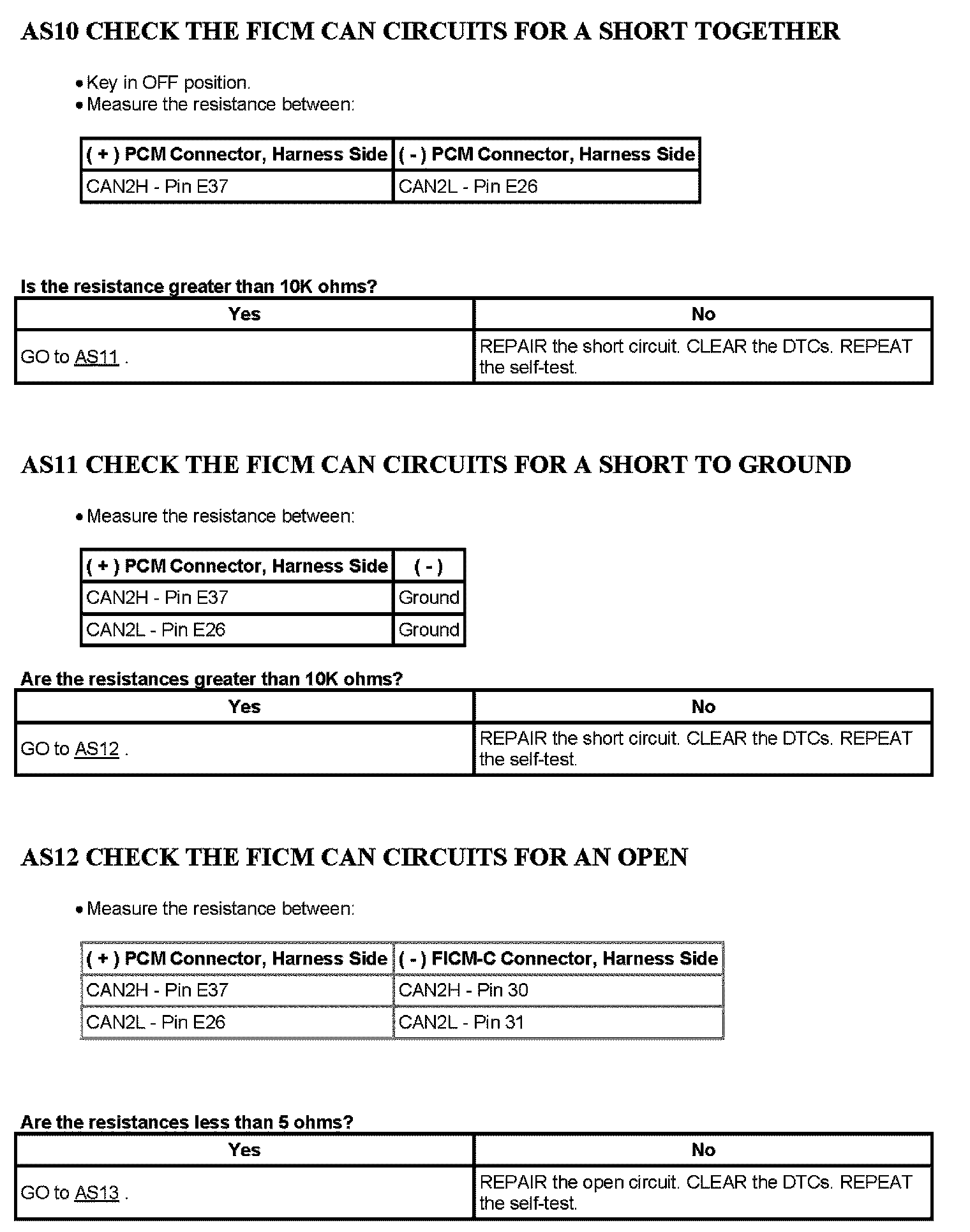

AS10-AS12:

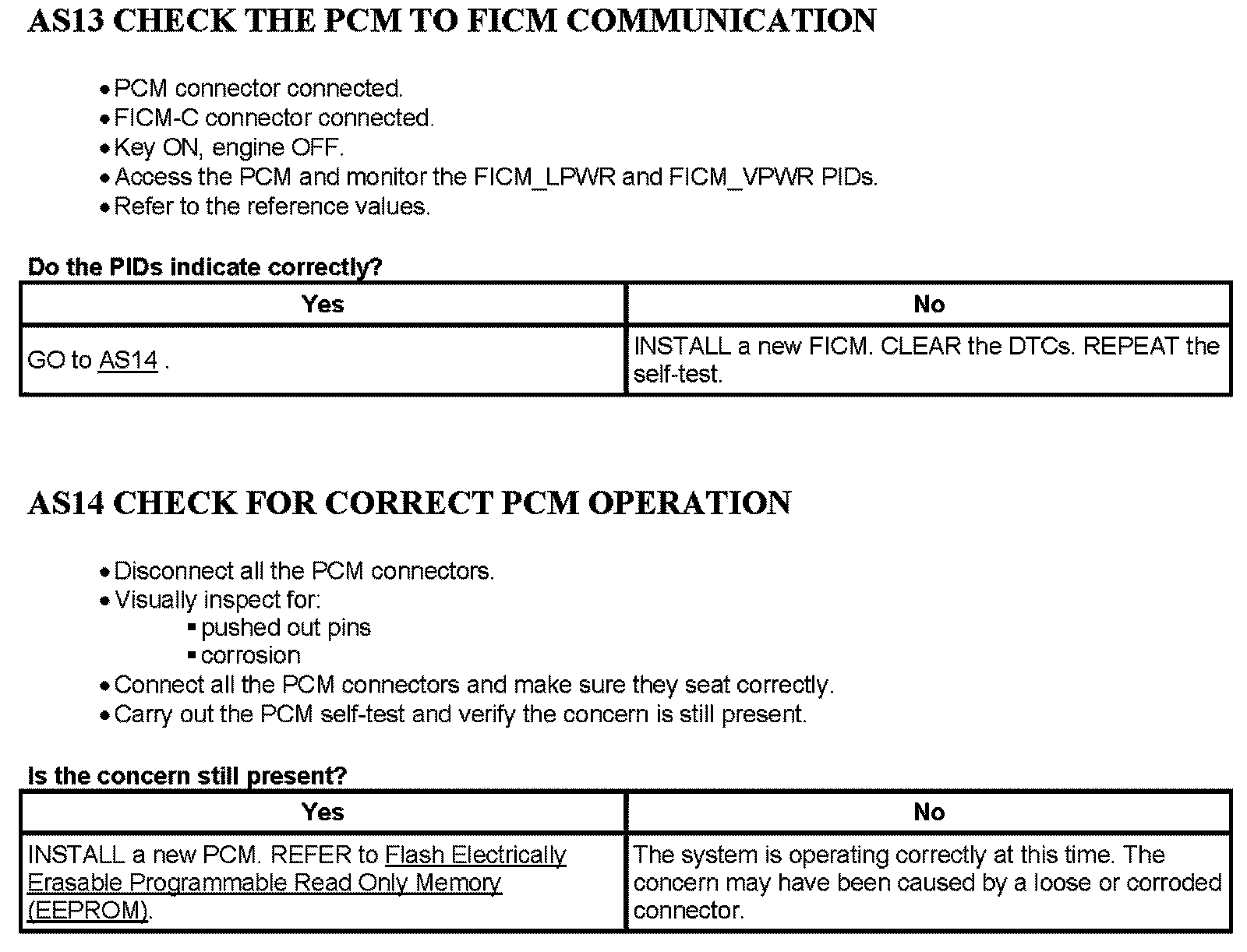

AS13-AS14:
