Tests AT: Fuel Injector Control Module (FICM) Circuit Fuel Delivery Error



PINPOINT TEST AT: FUEL INJECTION CONTROL MODULE (FICM) CIRCUIT FUEL DELIVERY ERROR

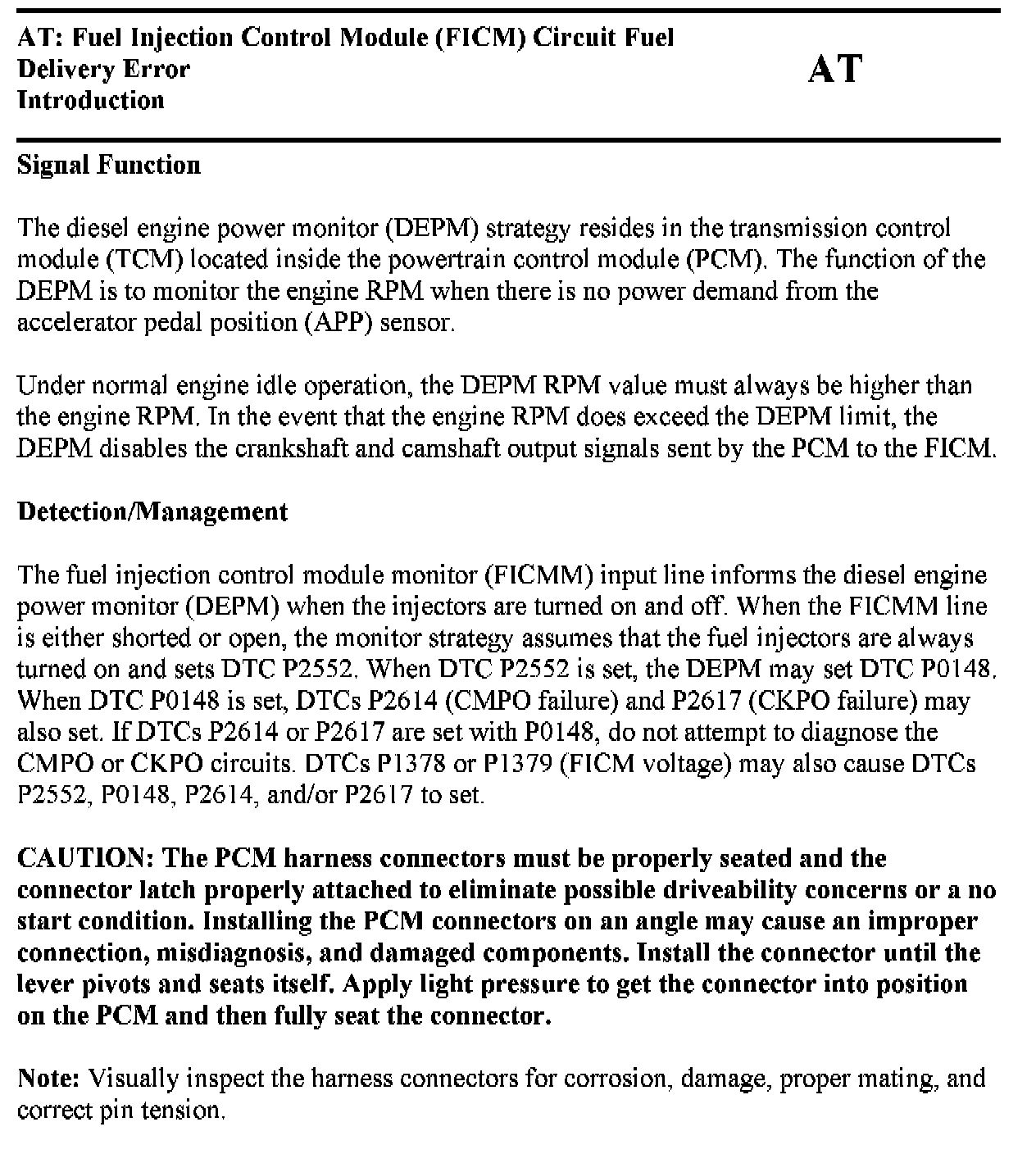

AT Introduction:

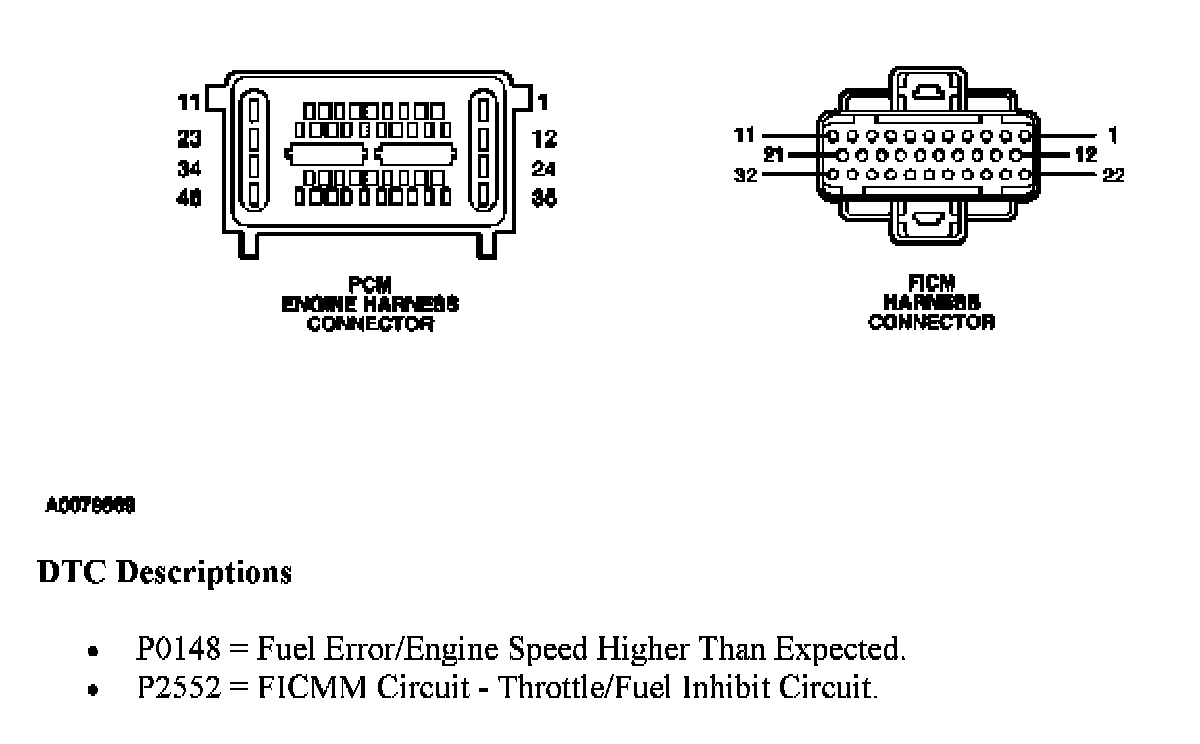

AT Introduction:

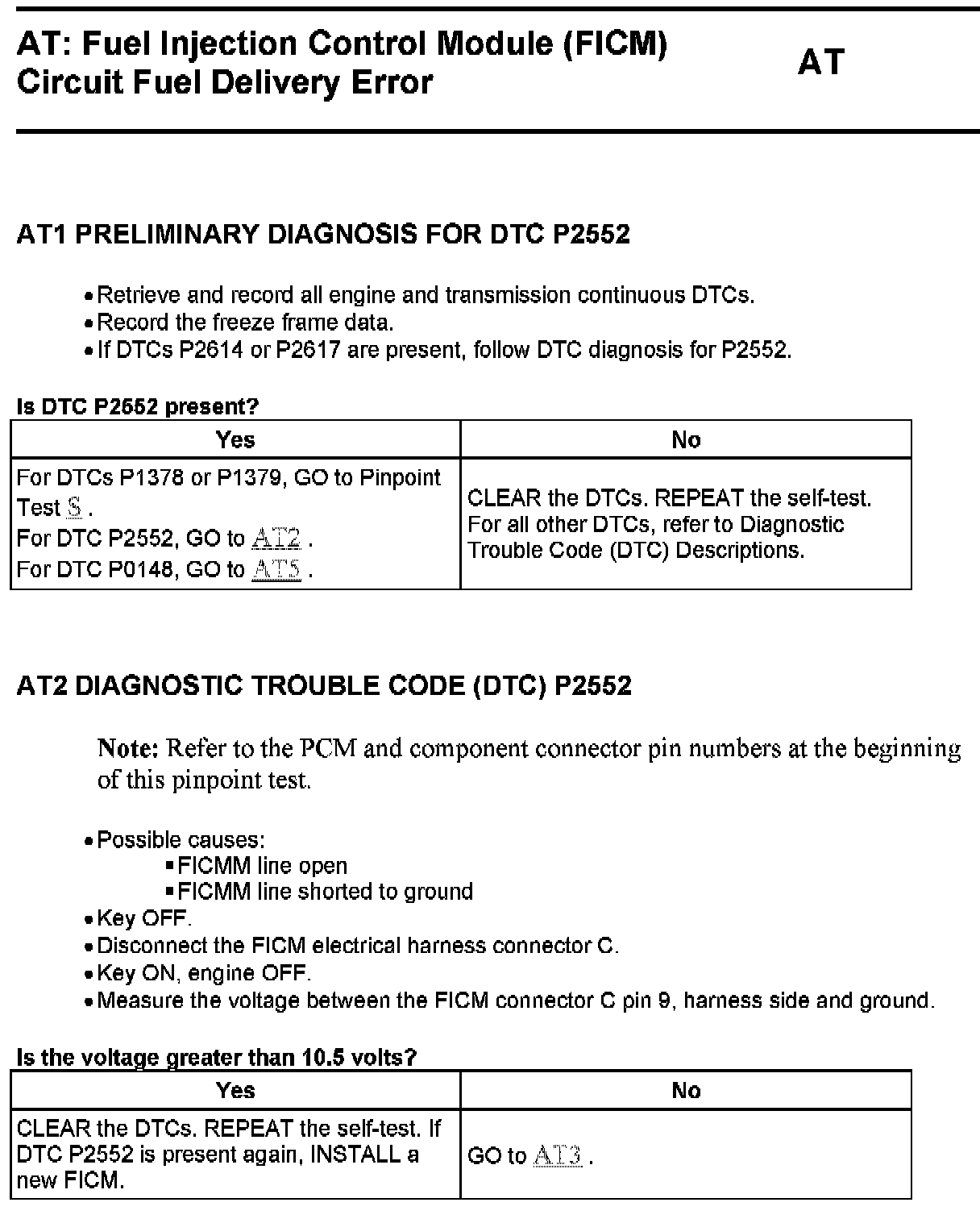

AT1 - AT2:

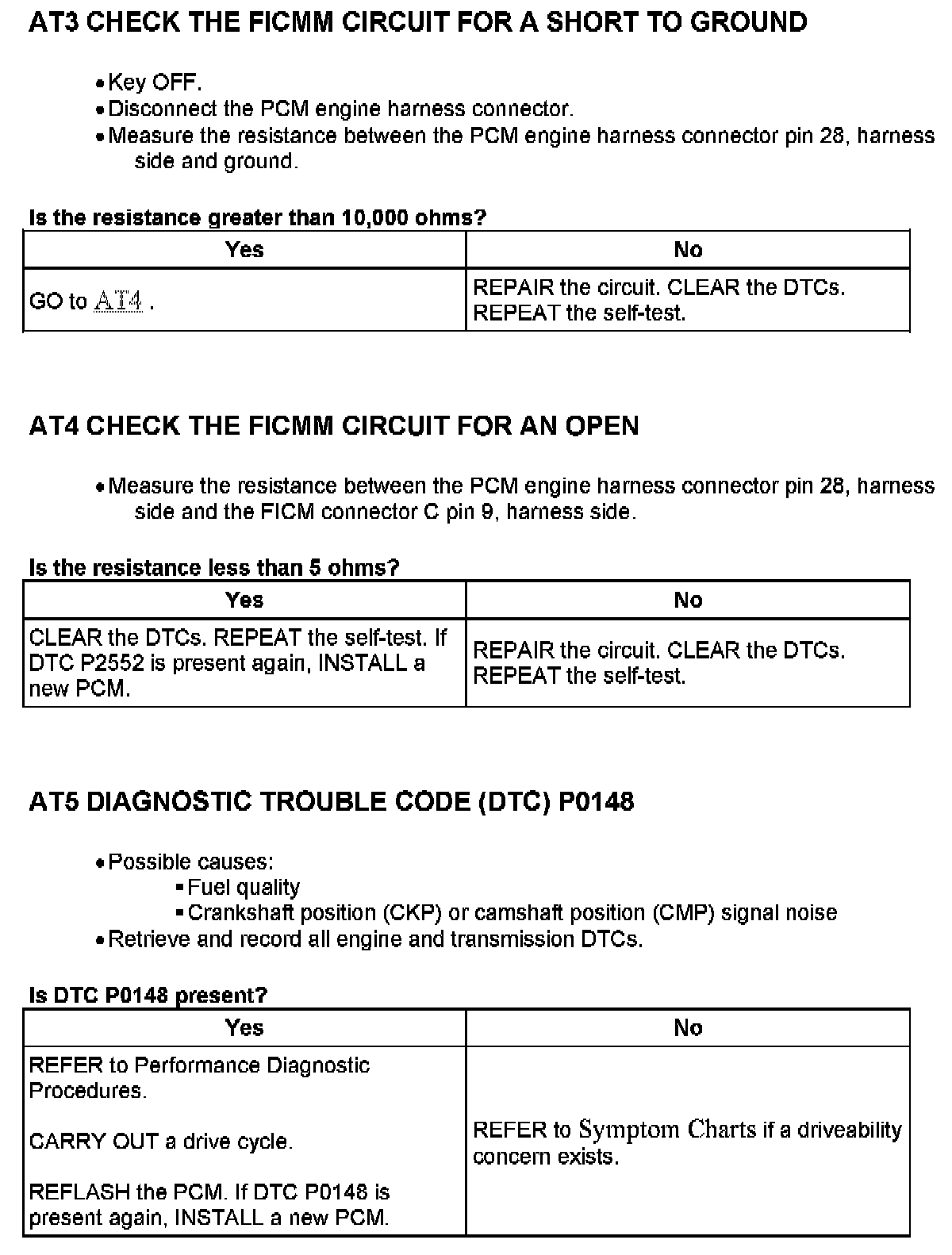

AT3 - AT5:
