Glow Plug

GLOW PLUG

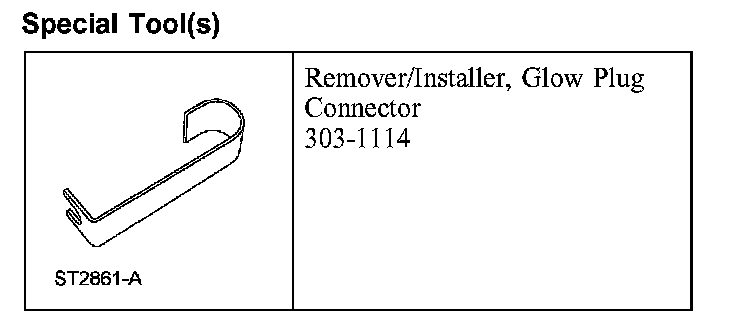

Remover/Installer, Glow Plug Connector:

Special Tool(s)

Removal







1. CAUTION: Do not pull on the wiring to remove the glow plug connector or damage may occur.

NOTE: Only one glow plug connector shown.

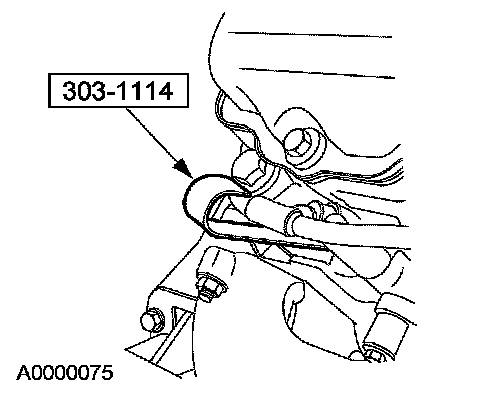

Using the special tool, remove the glow plug harness.







2. NOTE: If coolant residue is found on the glow plug, a new glow plug sleeve may have to be installed.

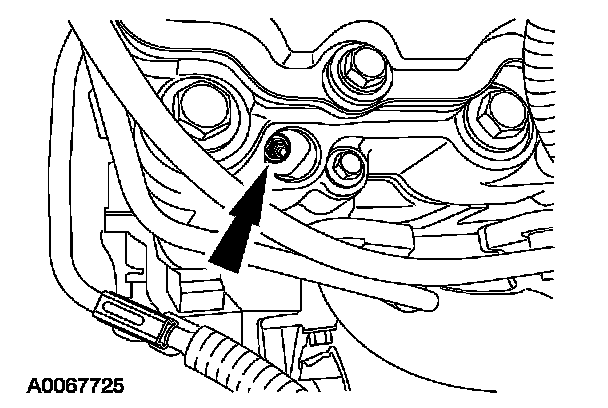

Remove the glow plug.

Installation

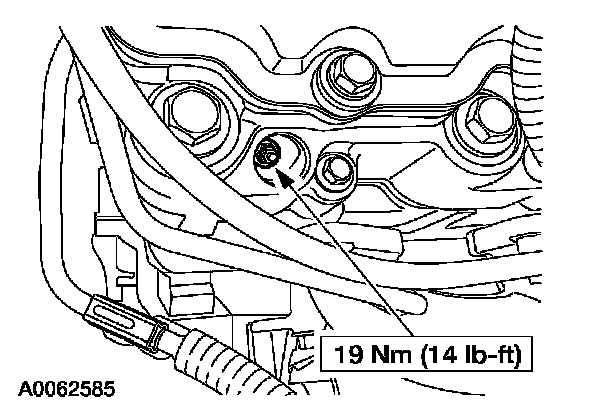

1. Install the glow plug.

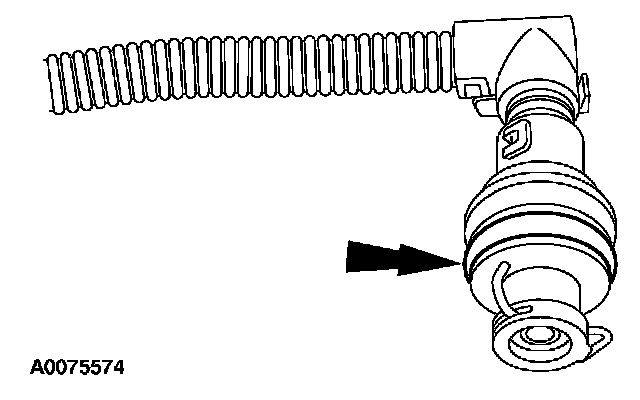

2. Clean and apply clean engine oil to the O-ring seals.

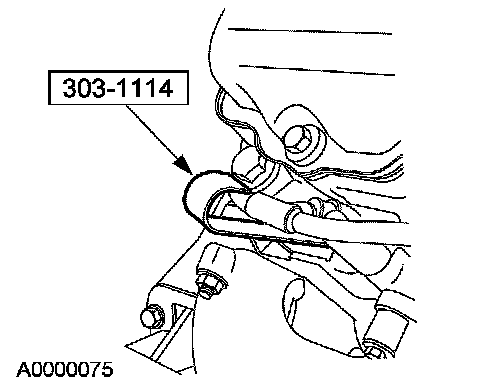

3. Using the special tool, install the glow plug harness
