Test F: Intake Air Temperature (IAT) Sensor
PINPOINT TEST F: INTAKE AIR TEMPERATURE (IAT) SENSOR

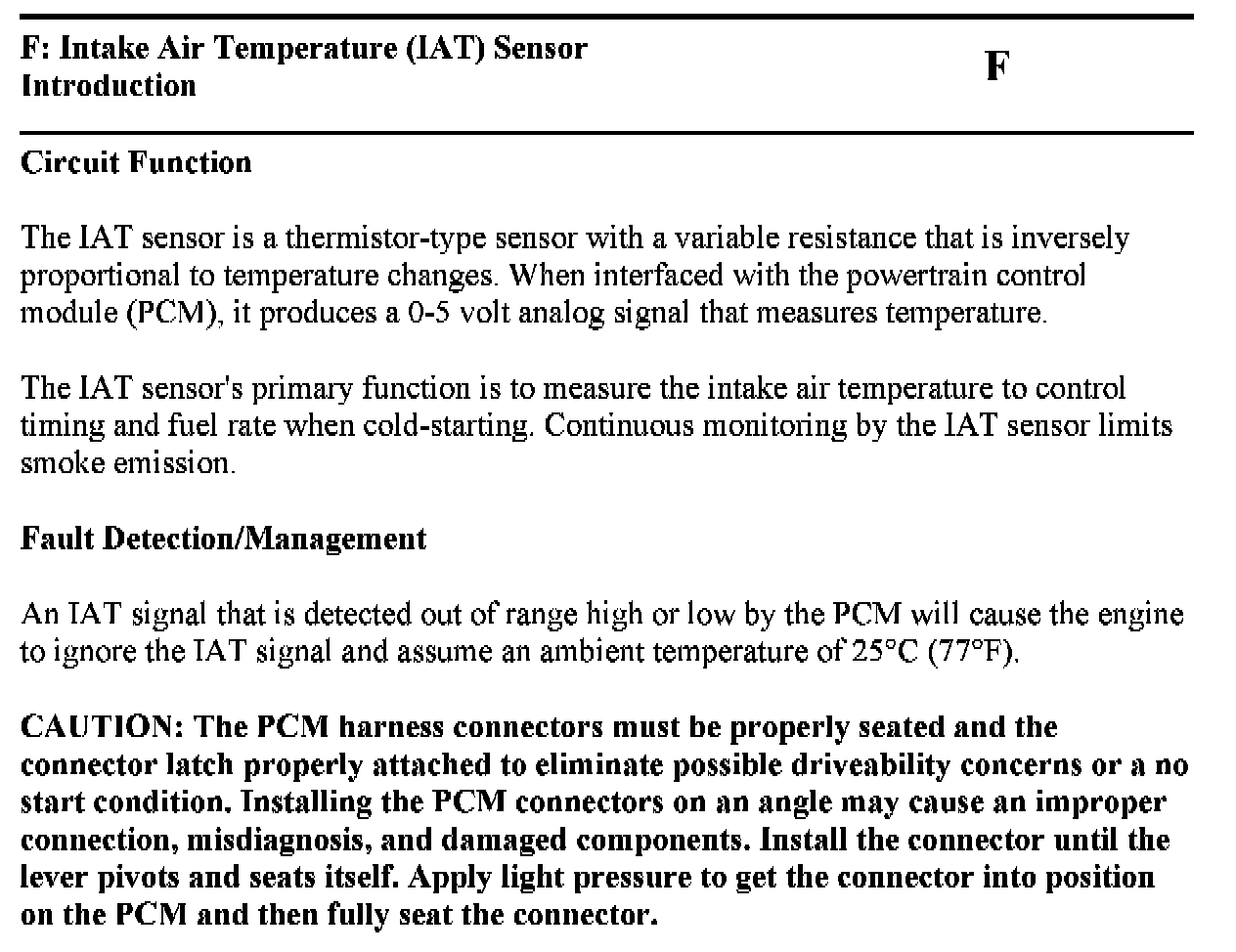

F Introduction:
F Introduction:
F1 - F2:

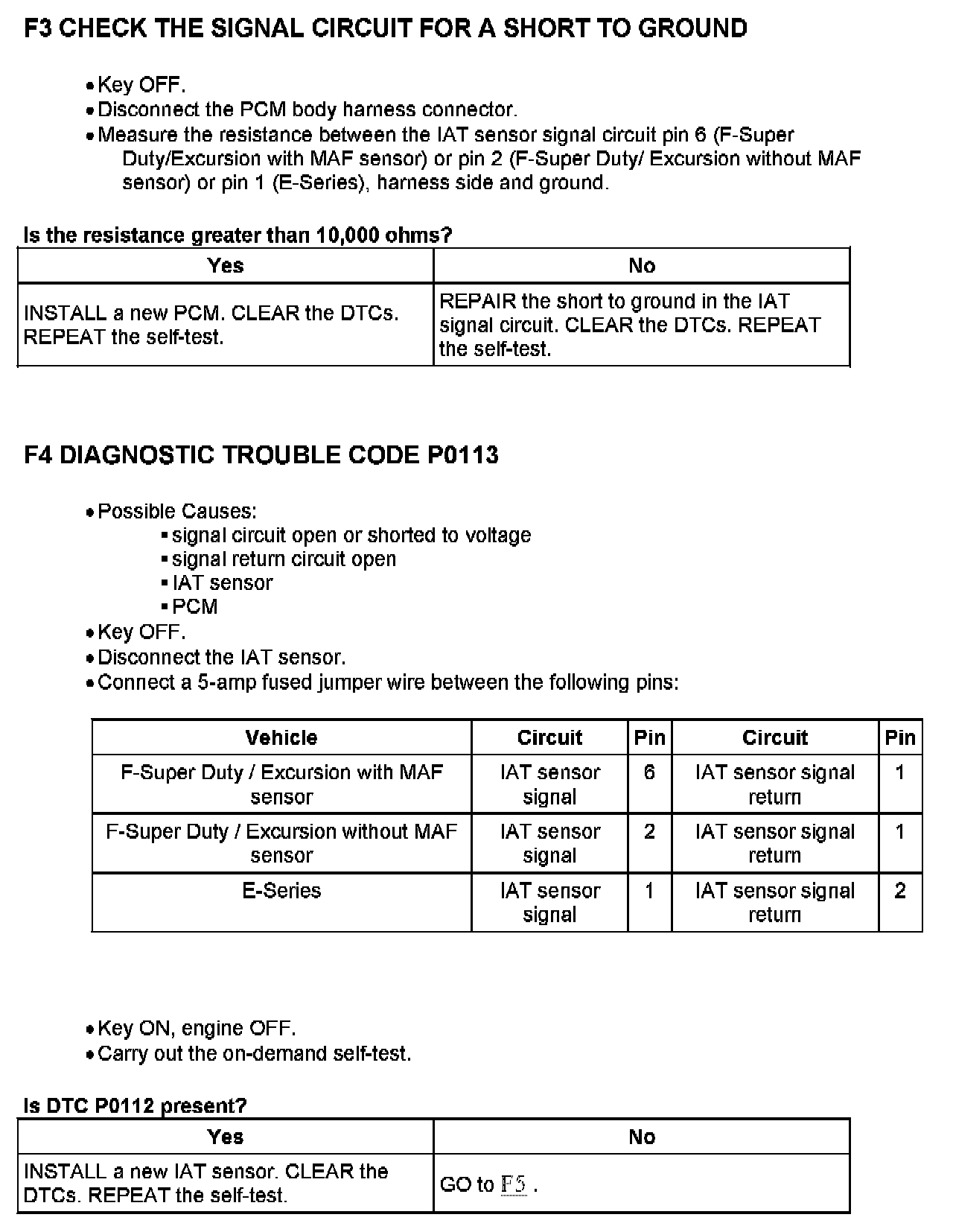

F3 - F4:

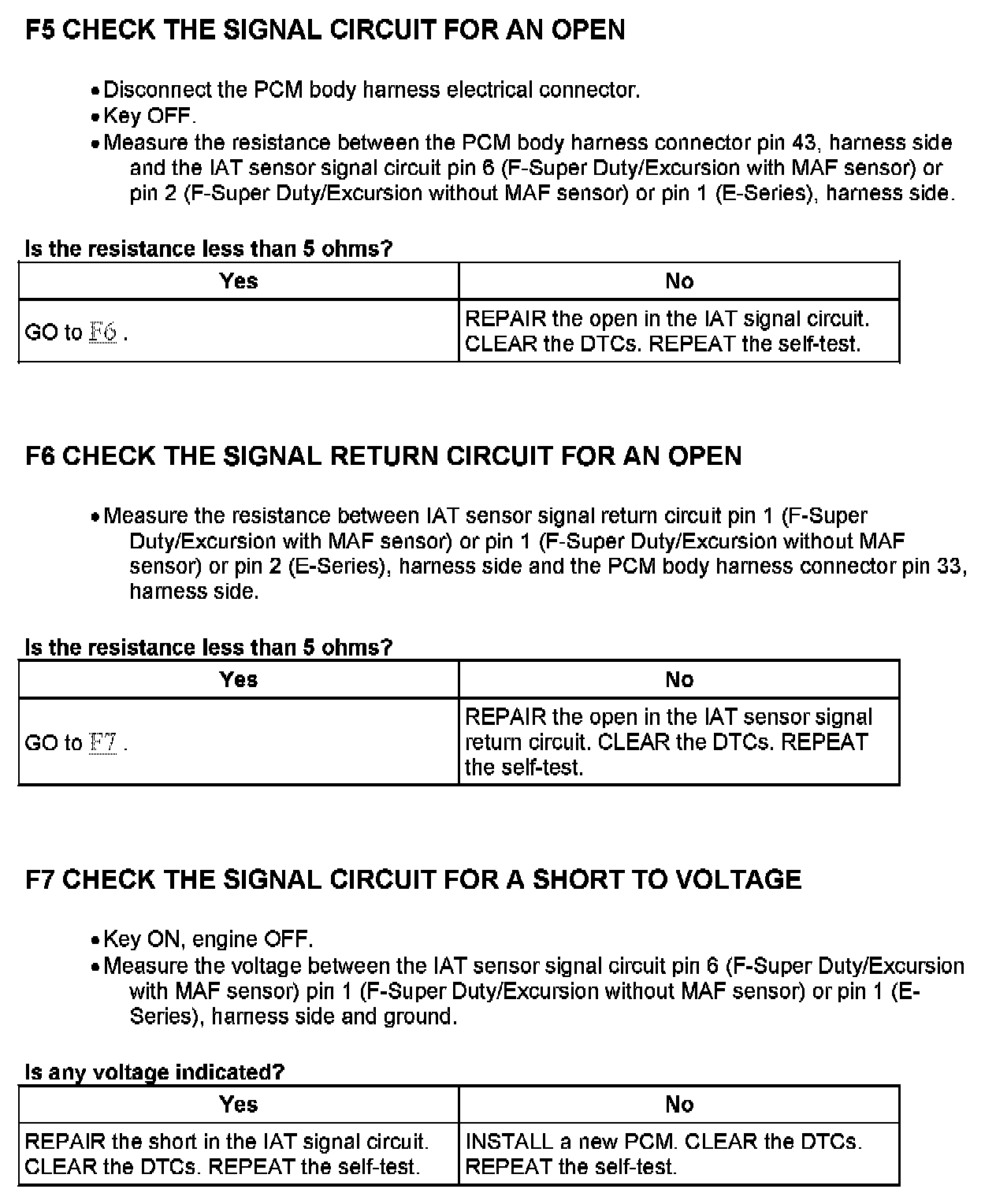

F5 - F7:
