Switch - Key-In-Ignition Warning: Installation

  1. To install, reverse the removal procedure.
    • Verify the ignition switch lock cylinder operation.

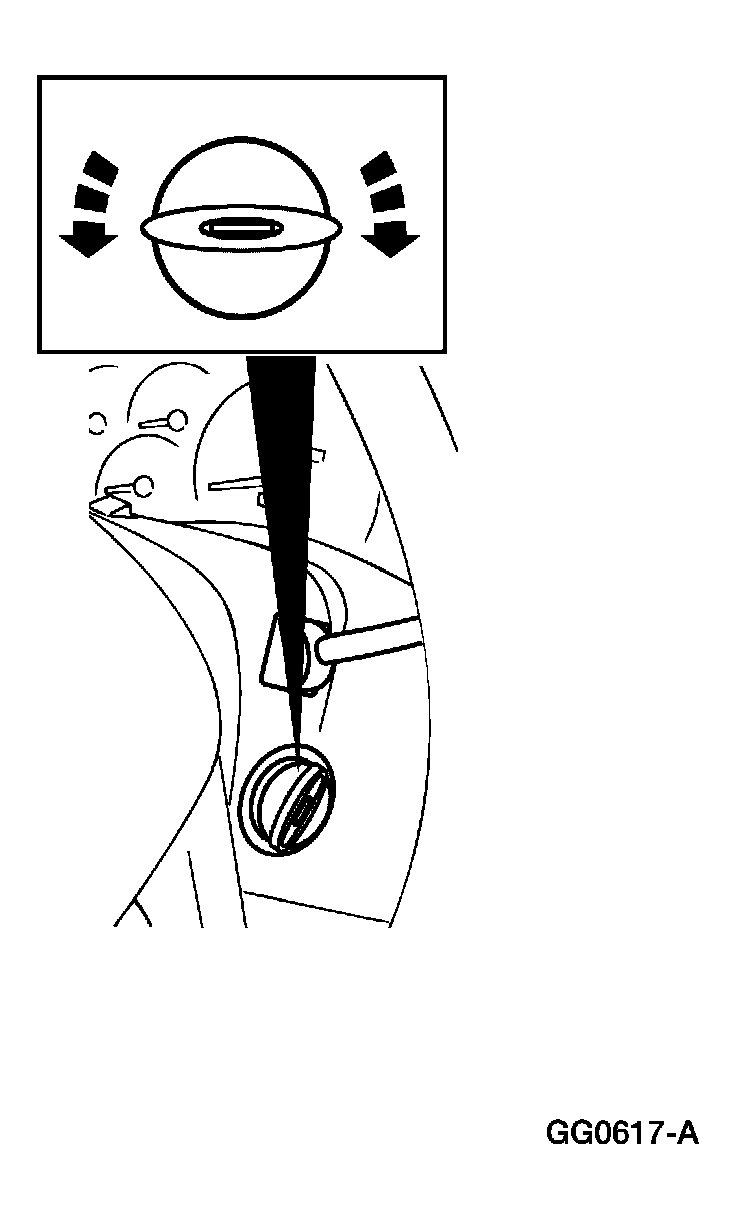

    Fig 1: Identifying Ignition Lock Cylinder
    G03891132Courtesy of FORD MOTOR CO.
