Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Loosen the bolt and disconnect the powertrain control module (PCM) electrical connector.

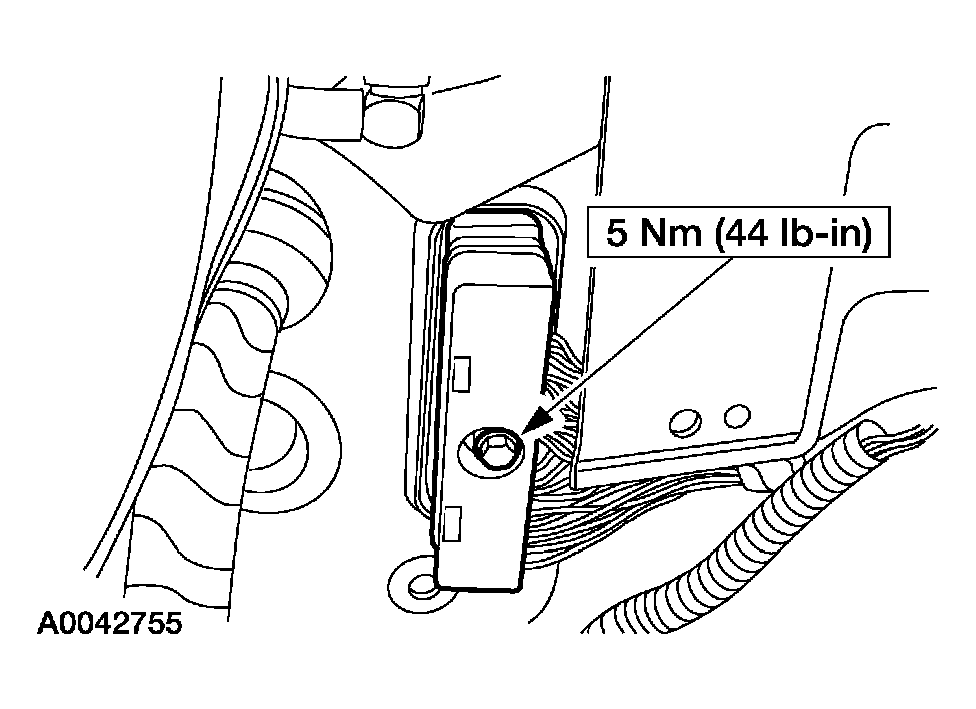

    Fig 1: Disconnecting Powertrain Control Module Electrical Connector With Torque Specifications
    G03908078Courtesy of FORD MOTOR CO.
  3. Release the two harness retainers from the PCM bracket.

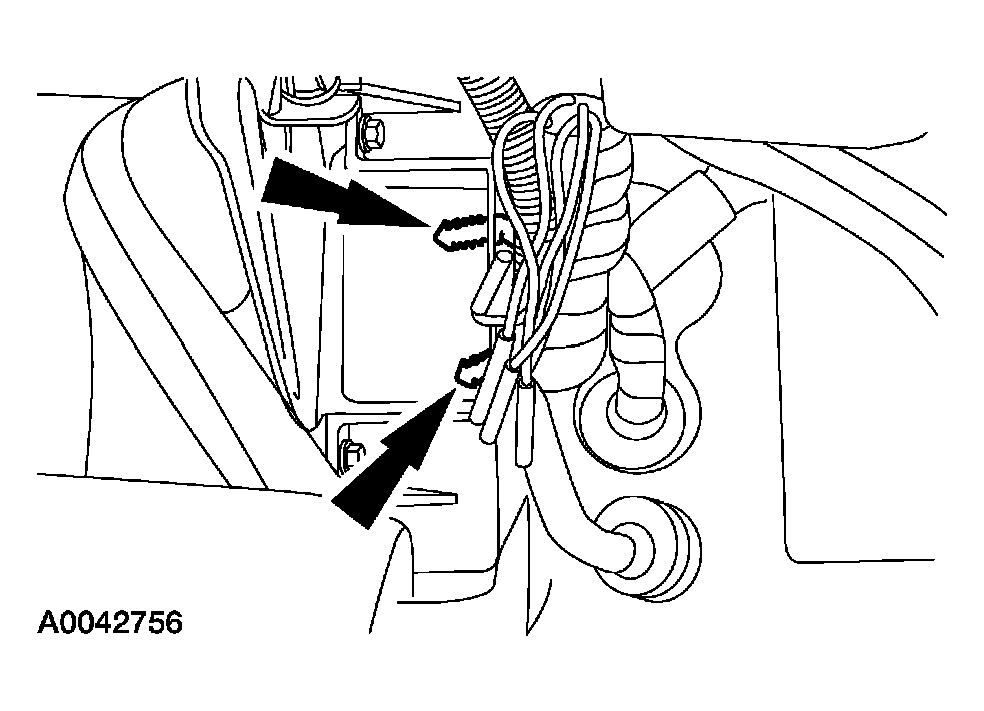

    Fig 2: Removing Harness Retainers From PCM Bracket
    G03908079Courtesy of FORD MOTOR CO.
  4. Remove the screws and remove the PCM and bracket assembly.

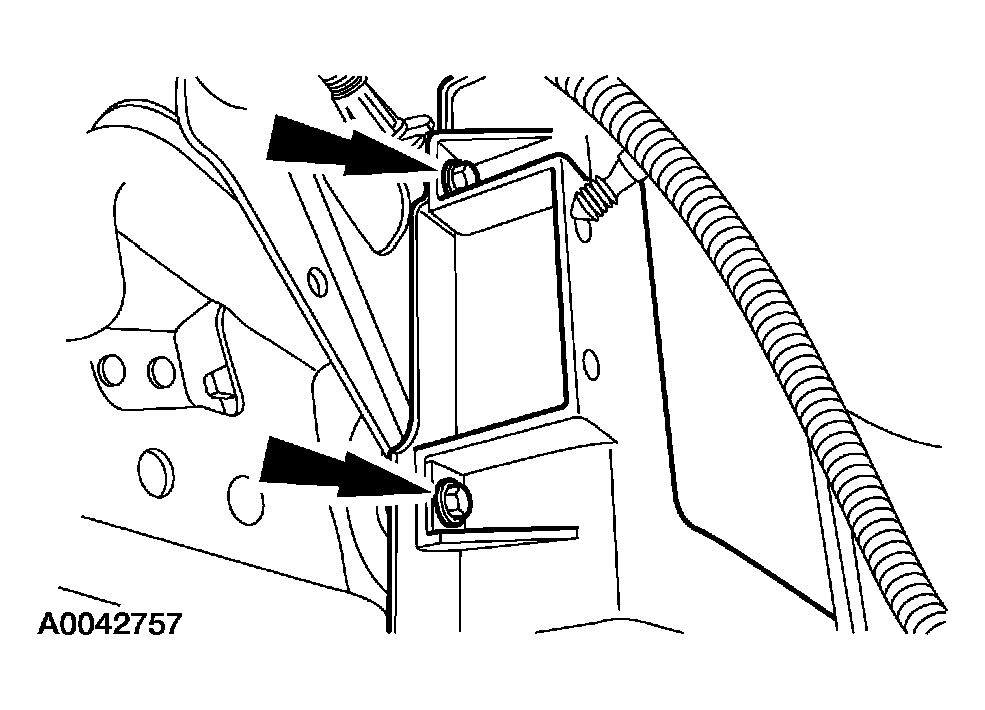

    Fig 3: Removing PCM And Bracket Assembly
    G03908080Courtesy of FORD MOTOR CO.
  5. Separate the PCM from the bracket.

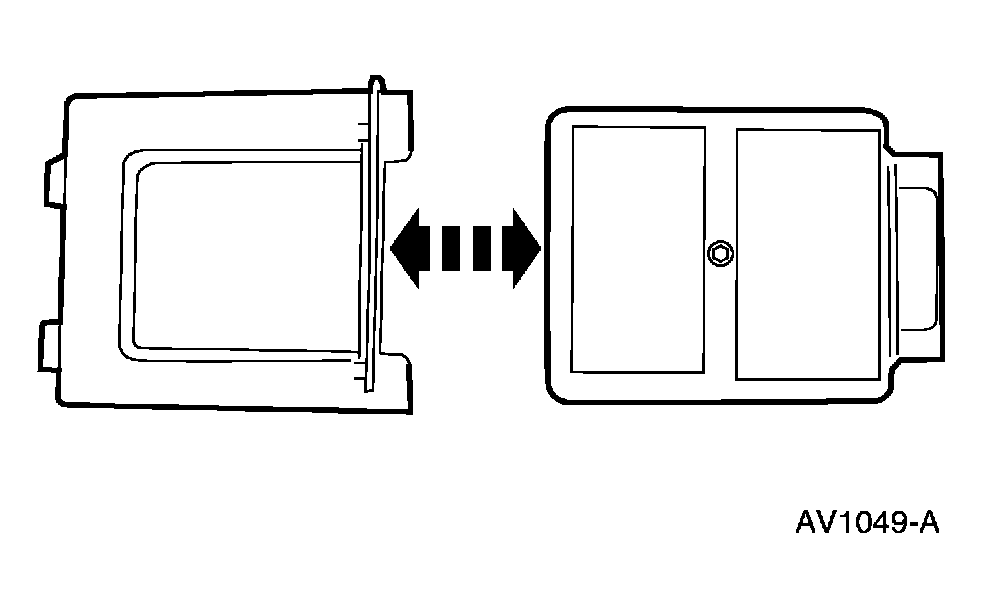

    Fig 4: Removing PCM From Bracket
    G03908081Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
