Speed Control Cable: Installation

Insert the speed control cable slug into the speed control servo pulley slot until the spring snaps into the groove of the slug.

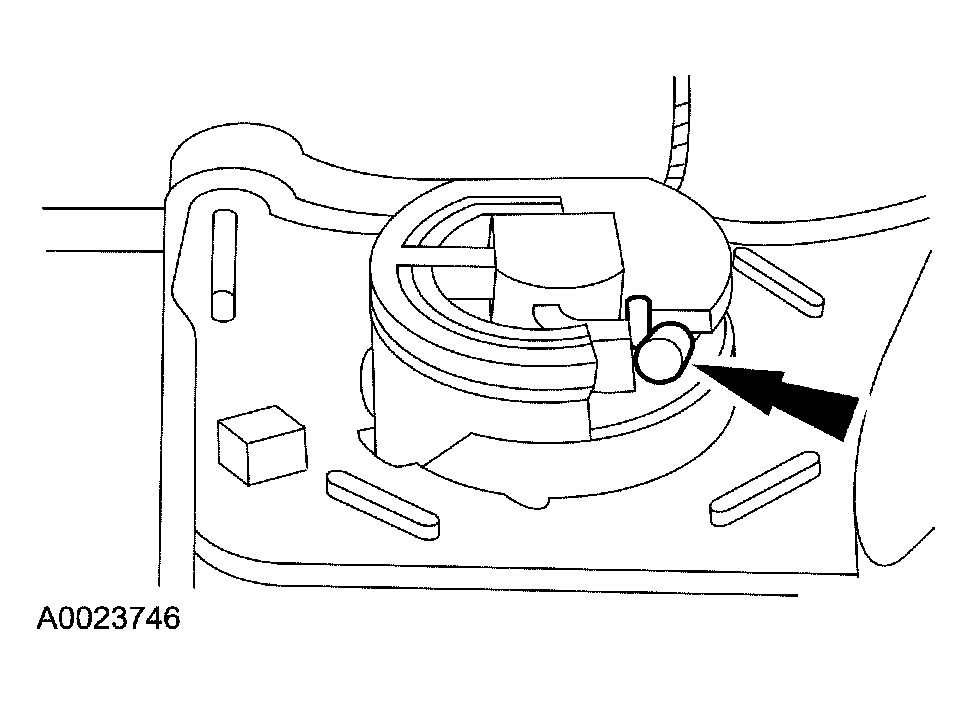

Fig 1: Inserting Speed Control Cable Slug Into Speed Control Servo Pulley Slot
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the rubber seal is fully seated onto the speed control cable cap.

NOTE: Incorrect wrapping of the speed control cable around the speed control servo pulley may result in a high idle condition.

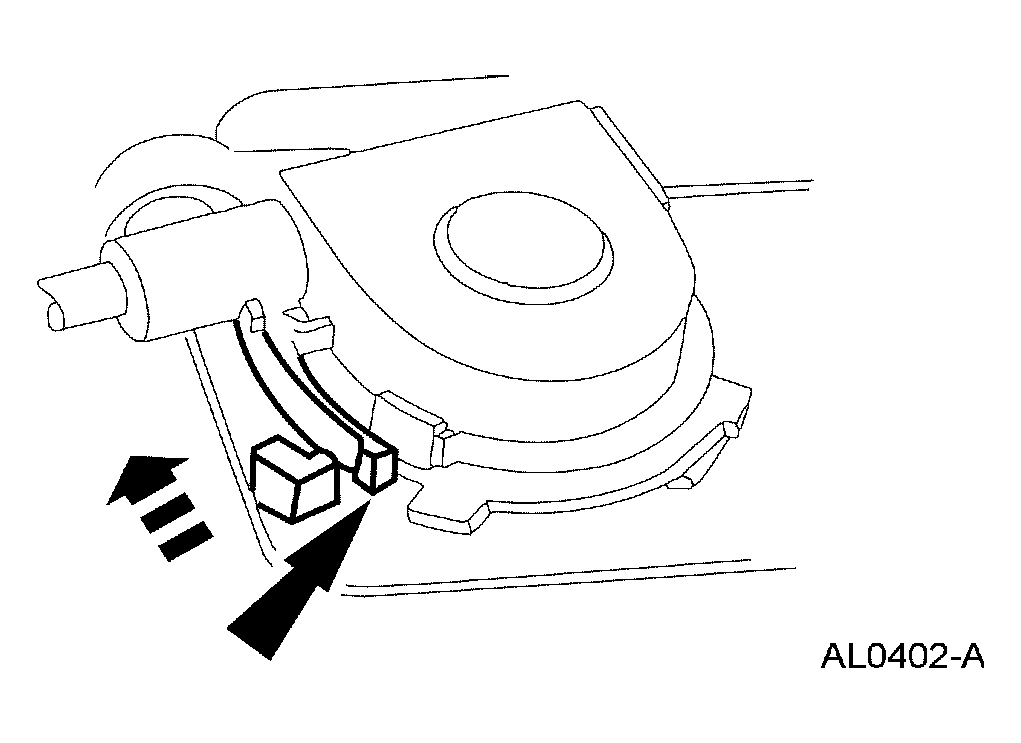

Fig 2: Rotating Speed Control Cable Cap

Courtesy of FORD MOTOR CO.

Align the tabs and rotate the speed control cable cap until the locking arm engages.

NOTE: Make sure both tabs on the speed control cable have engaged the bracket.

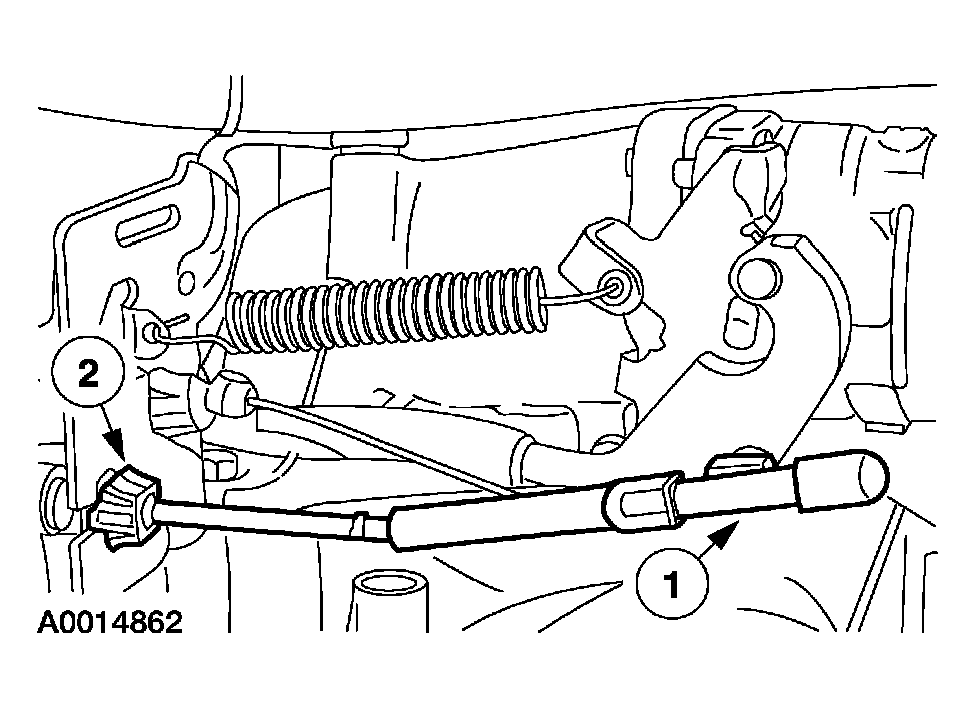

Fig 3: Connecting Speed Control Cable To Throttle Body Cam

Courtesy of FORD MOTOR CO.

Connect the speed control cable to the throttle body cam and accelerator cable bracket.
1. Connect the speed control cable to the throttle body cam by snapping it in place.
2. Position the speed control cable in the accelerator cable bracket.
Position the speed control actuator and bracket and install the bolts.

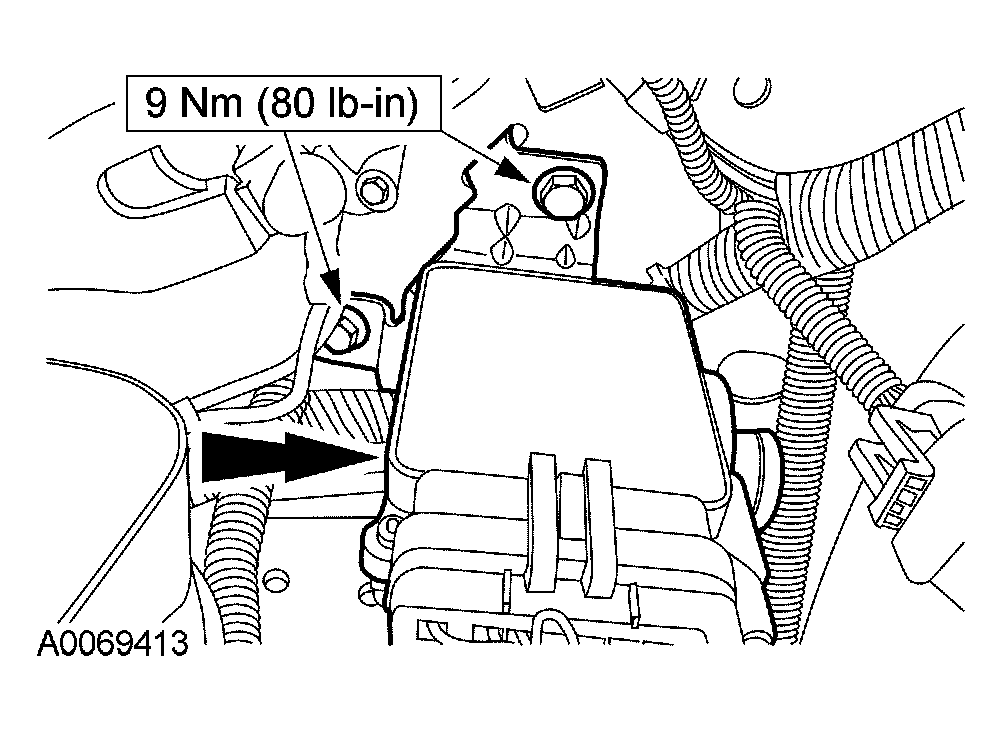

Fig 4: Installing Bolts With Torque Specification
Courtesy of FORD MOTOR CO.
Install the accelerator control splash shield.

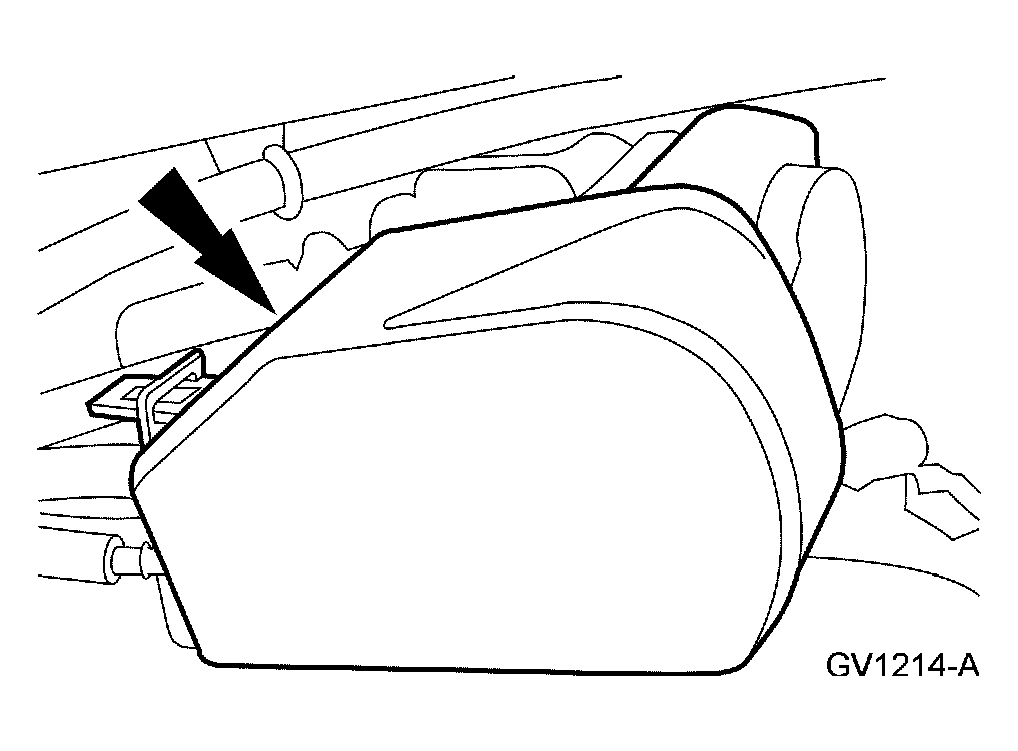

Fig 5: Installing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.
Install the air cleaner outlet tube. For additional information, REFER to INTAKE AIR DISTRIBUTION & FILTERING .
