Connector Views

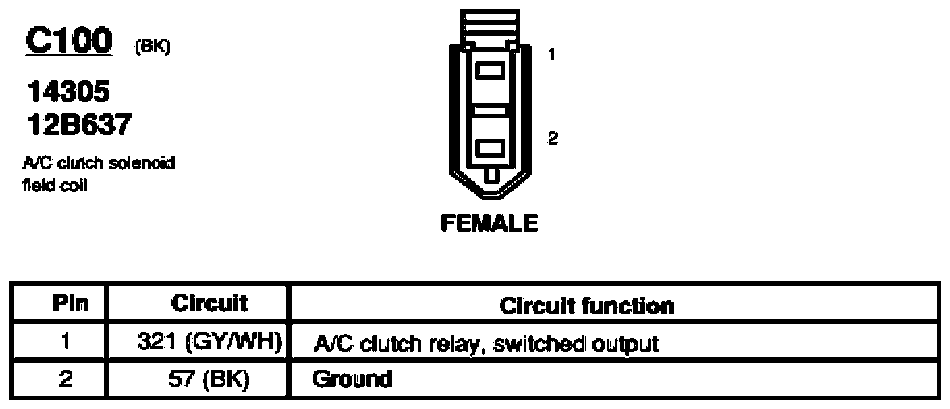

Fig 1: A/C Clutch Solenoid Field Coil Connector End View (C100)

G07842217

Courtesy of FORD MOTOR CO.

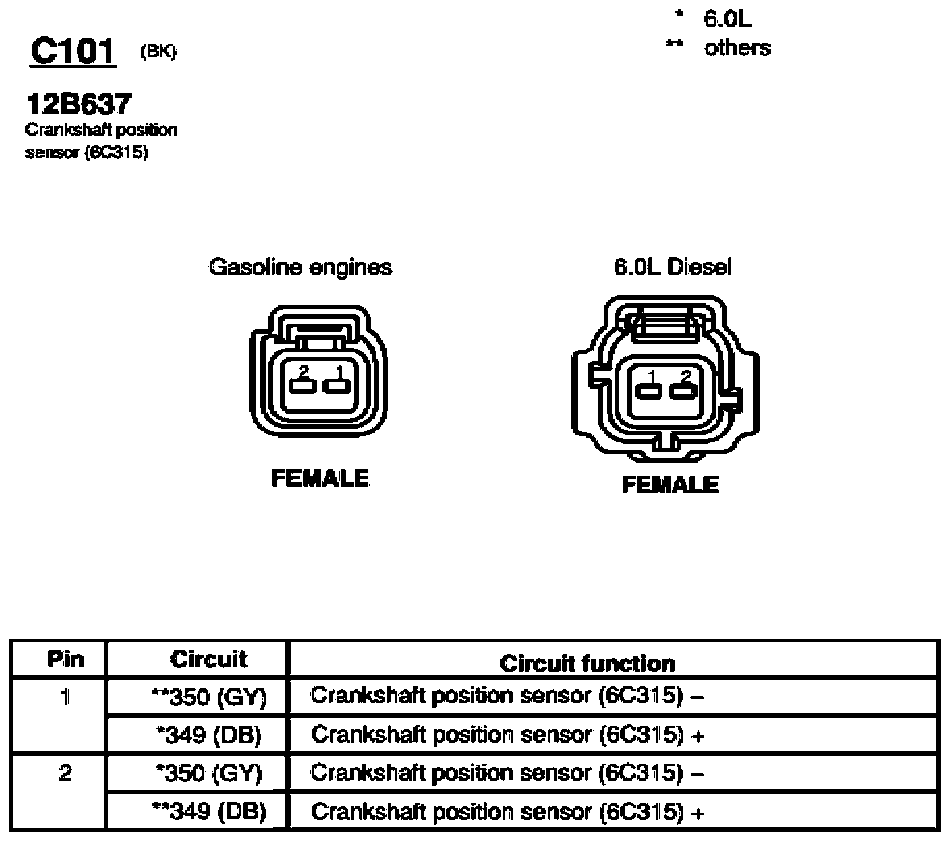

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07842218

Courtesy of FORD MOTOR CO.

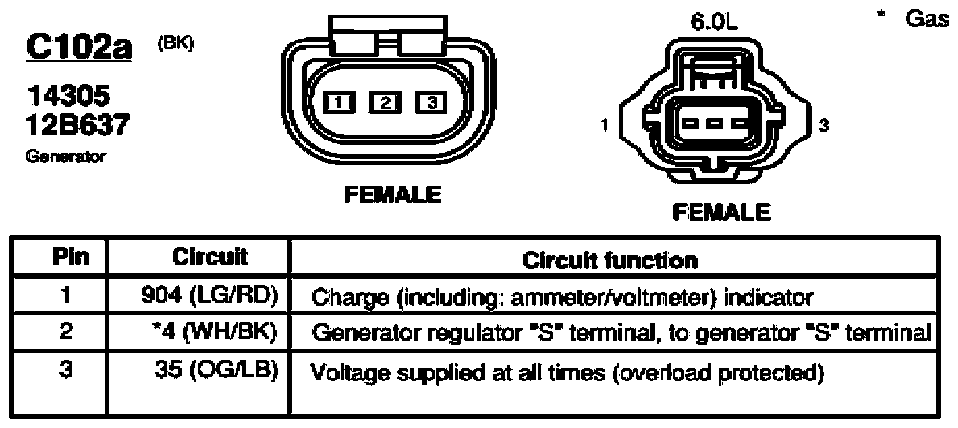

Fig 3: Generator Connector End View (C102a)

G07842219

Courtesy of FORD MOTOR CO.

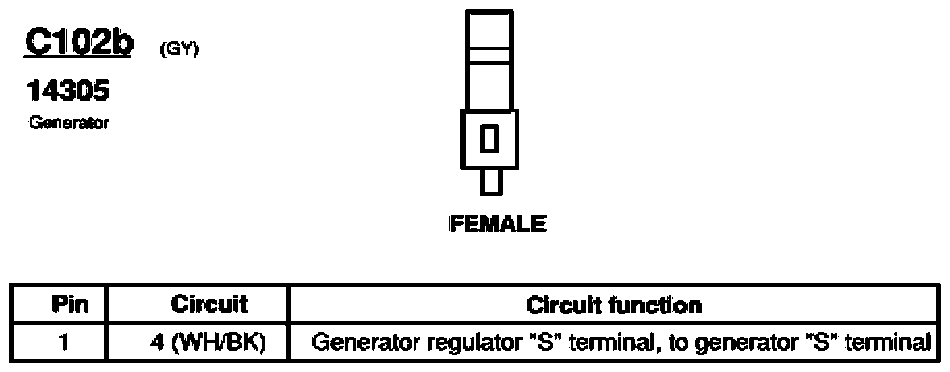

Fig 4: Generator Connector End View (C102b)

G07842220

Courtesy of FORD MOTOR CO.

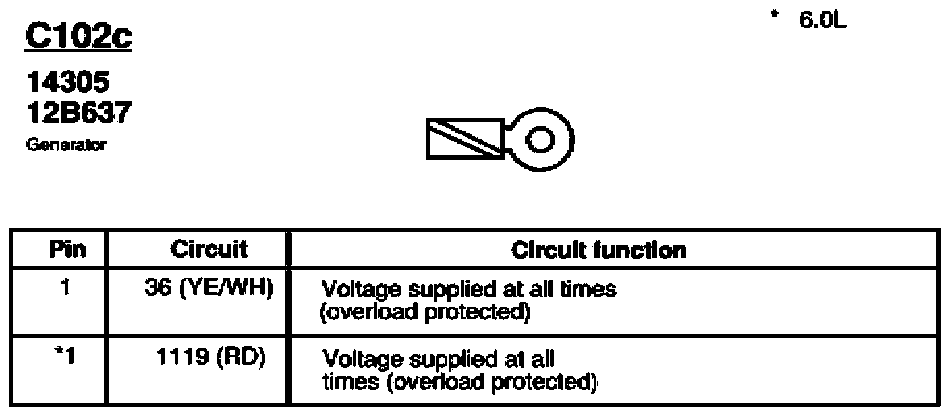

Fig 5: Generator Connector End View (C102c)

G07842221

Courtesy of FORD MOTOR CO.

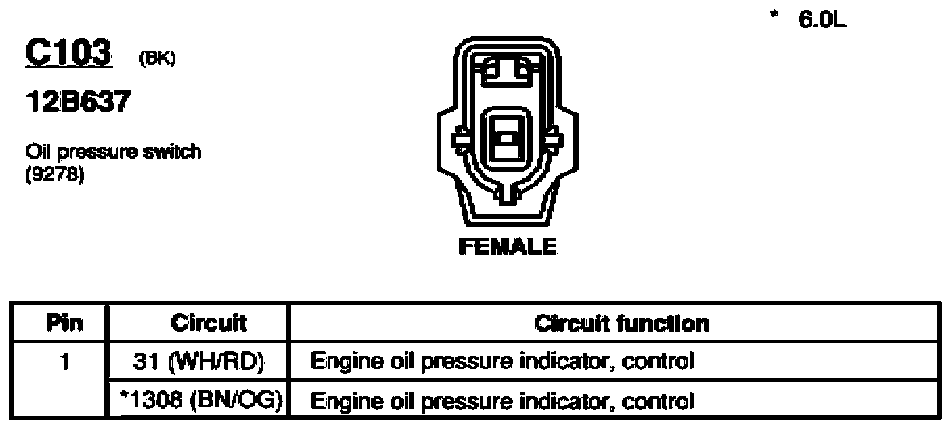

Fig 6: Oil Pressure Switch Connector End View (C103)

G07842222

Courtesy of FORD MOTOR CO.

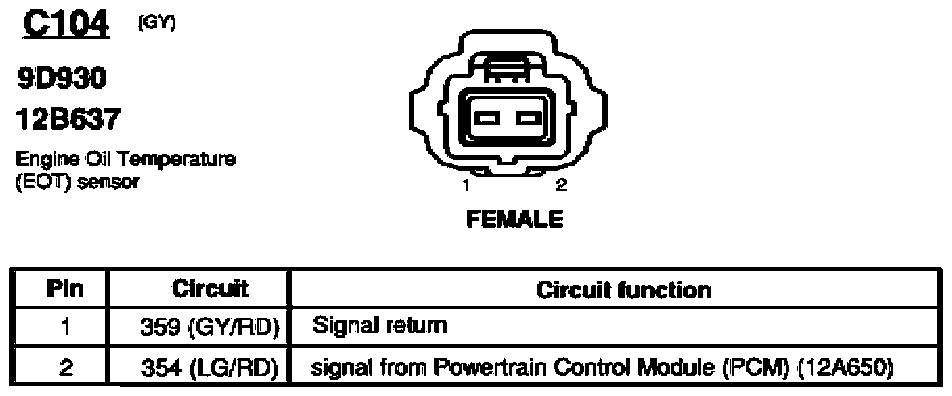

Fig 7: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07842223

Courtesy of FORD MOTOR CO.

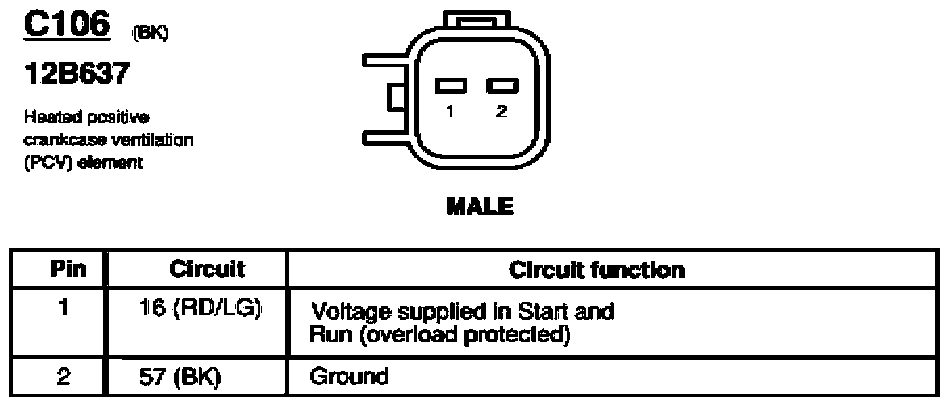

Fig 8: Heated Positive Crankcase Ventilation (PCV) Element Connector End View (C106)

G07842224

Courtesy of FORD MOTOR CO.

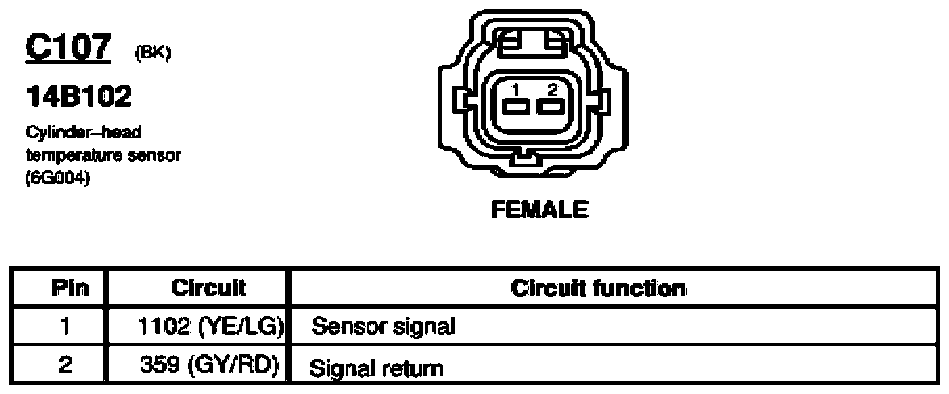

Fig 9: Cylinder-Head Temperature Sensor Connector End View (C107)

G07842225

Courtesy of FORD MOTOR CO.

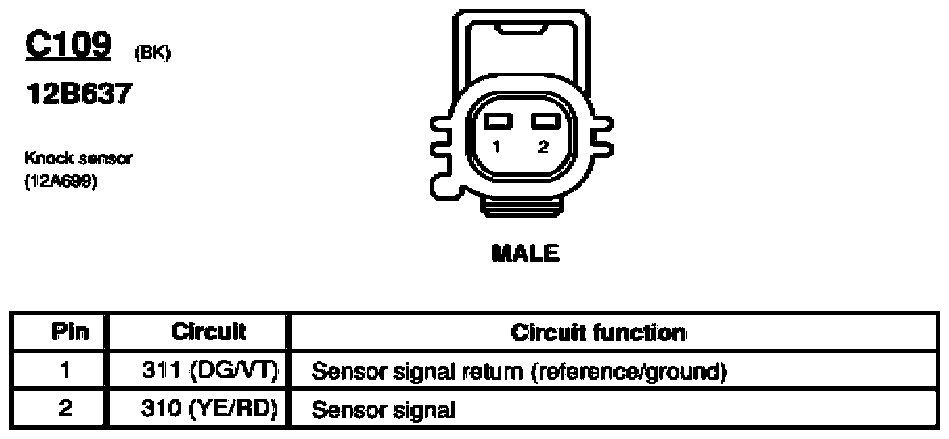

Fig 10: Knock Sensor Connector End View (C109)

G07842226

Courtesy of FORD MOTOR CO.

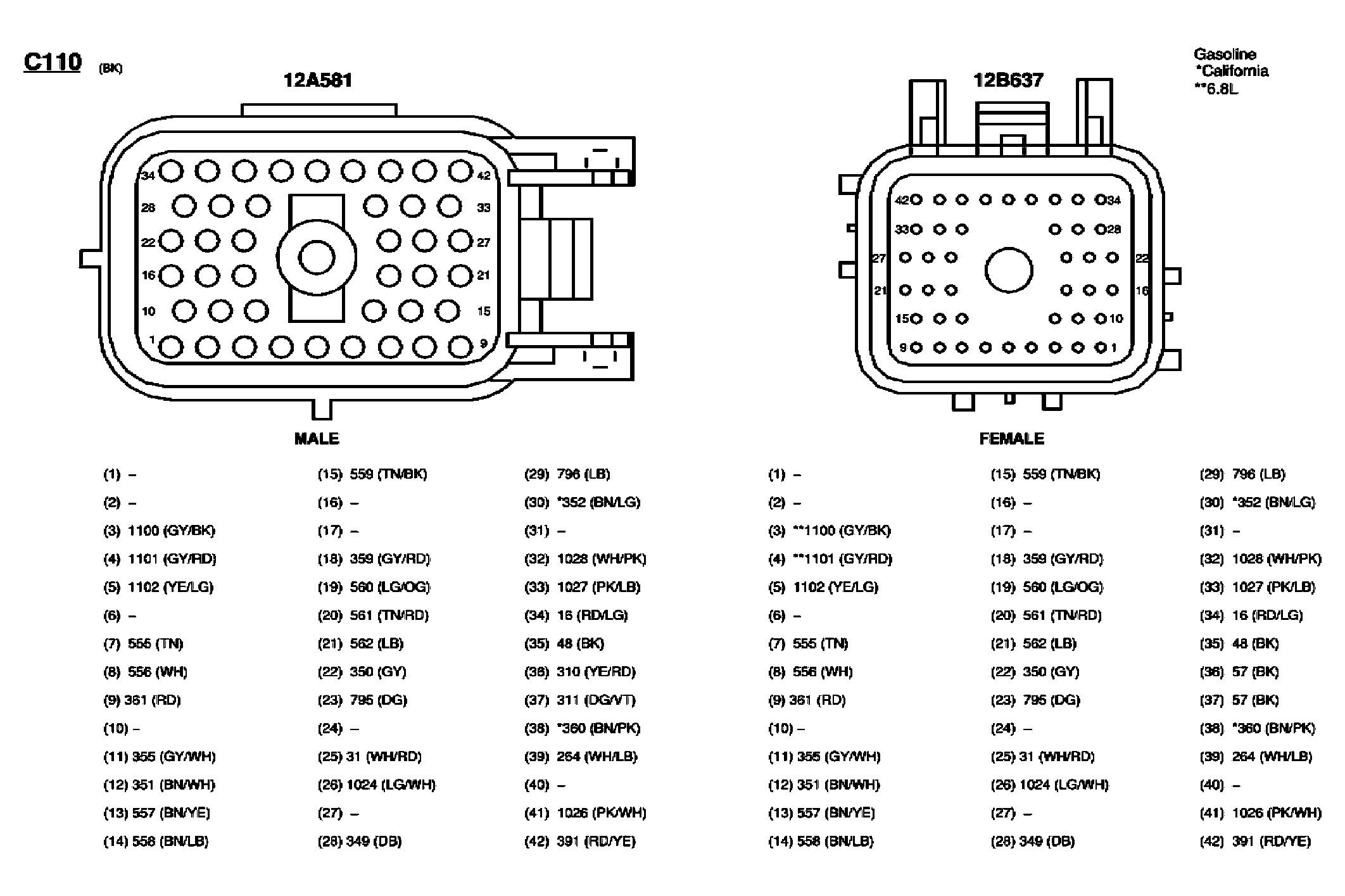

Fig 11: Inline Connector End View (C110)

G03987534

Courtesy of FORD MOTOR CO.

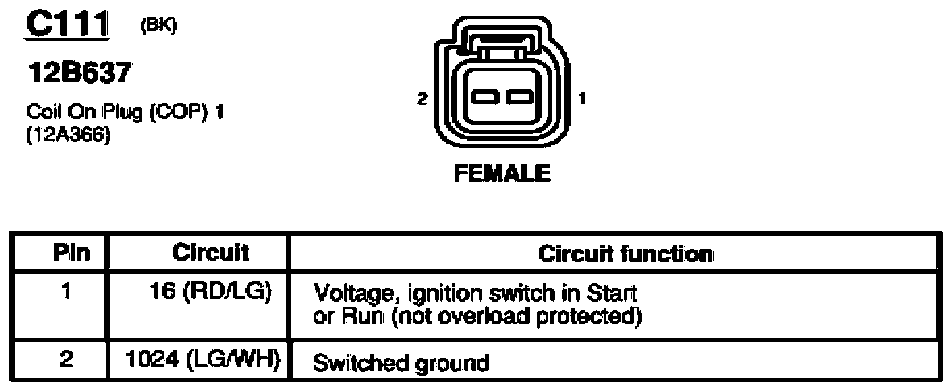

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)

G07842227

Courtesy of FORD MOTOR CO.

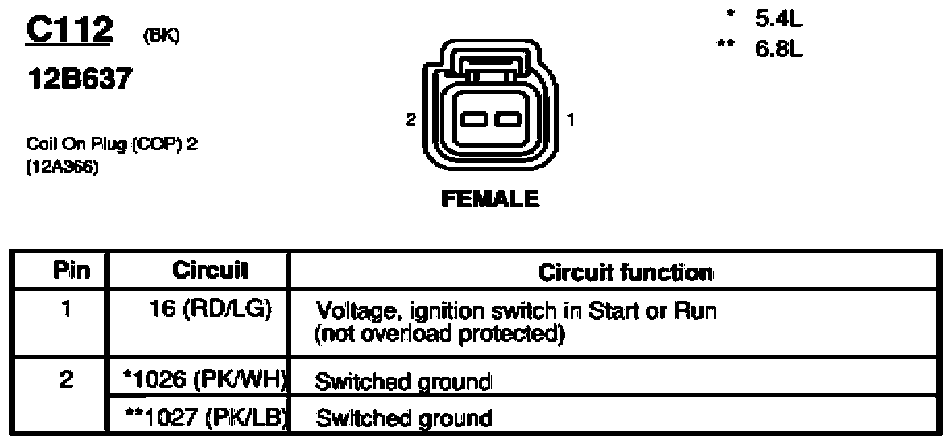

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)

G07842228

Courtesy of FORD MOTOR CO.

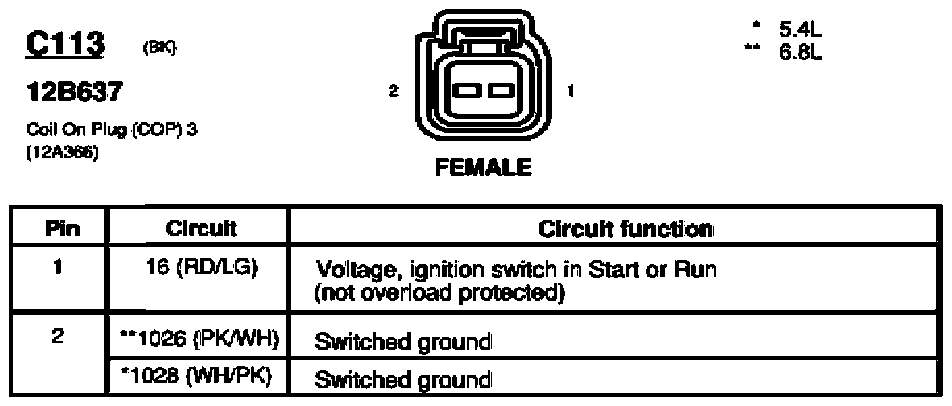

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)

G07842229

Courtesy of FORD MOTOR CO.

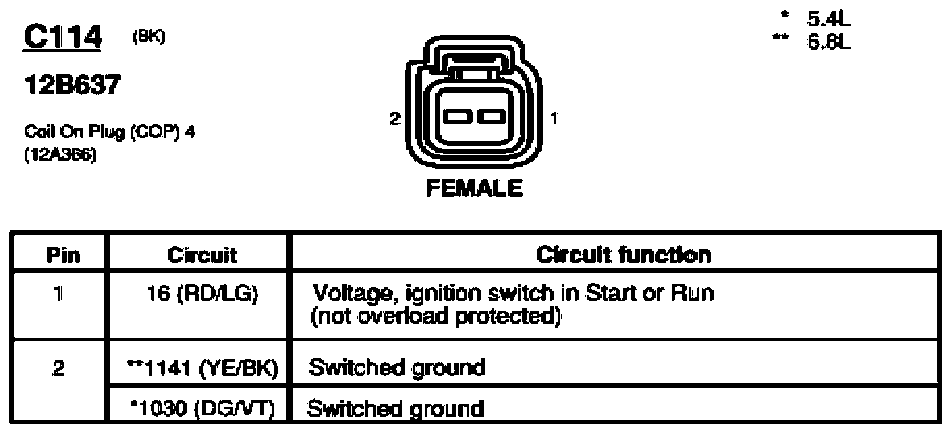

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)

G07842230

Courtesy of FORD MOTOR CO.

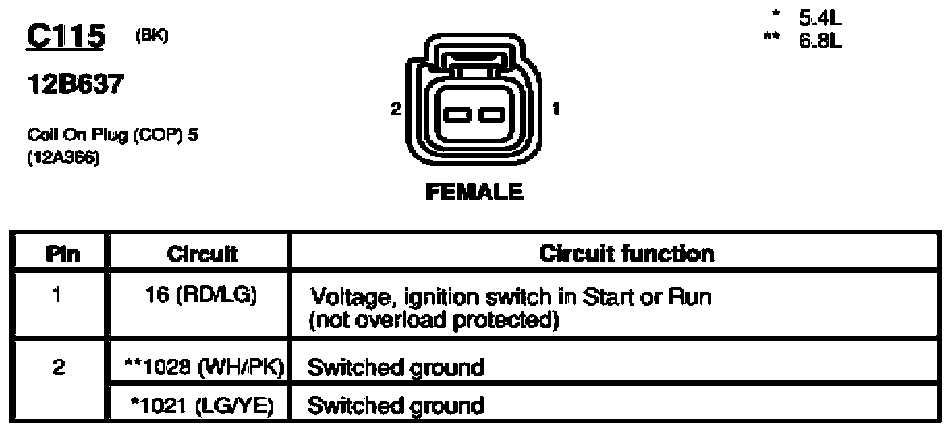

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)

G07842231

Courtesy of FORD MOTOR CO.

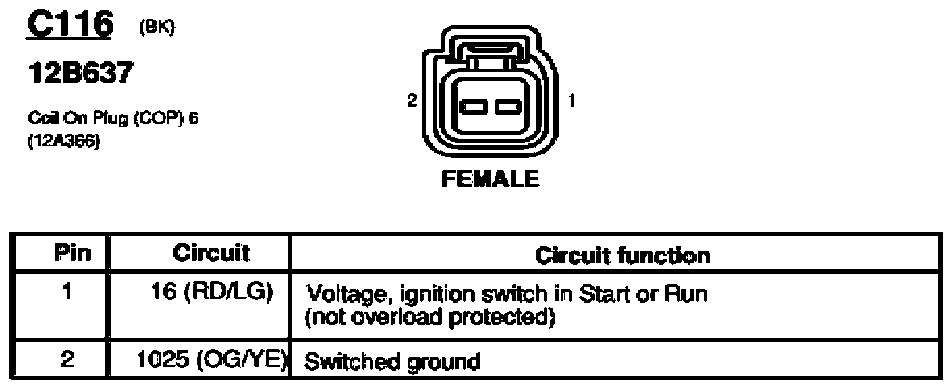

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)

G07842232

Courtesy of FORD MOTOR CO.

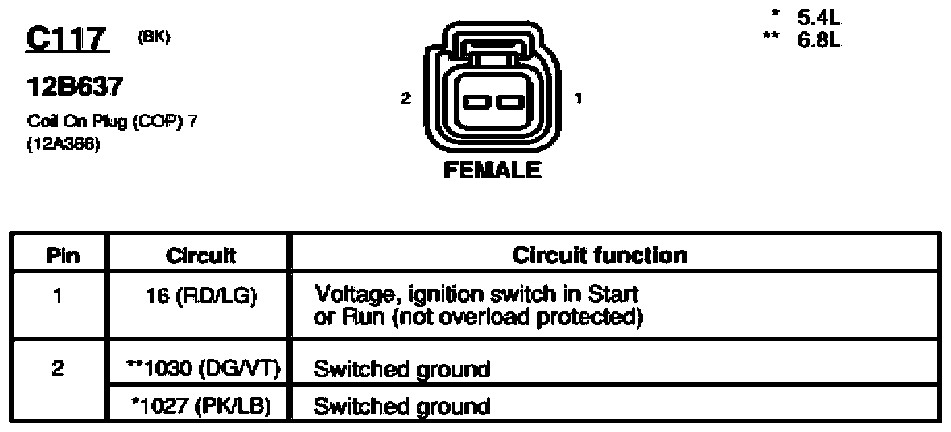

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)

G07842233

Courtesy of FORD MOTOR CO.

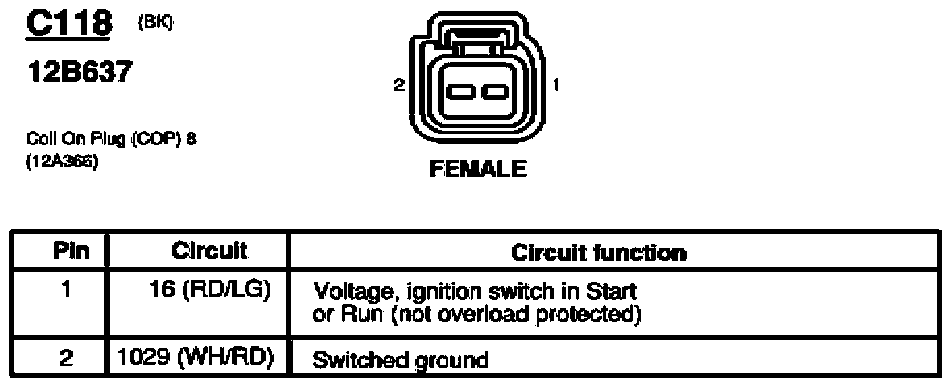

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)

G07842234

Courtesy of FORD MOTOR CO.

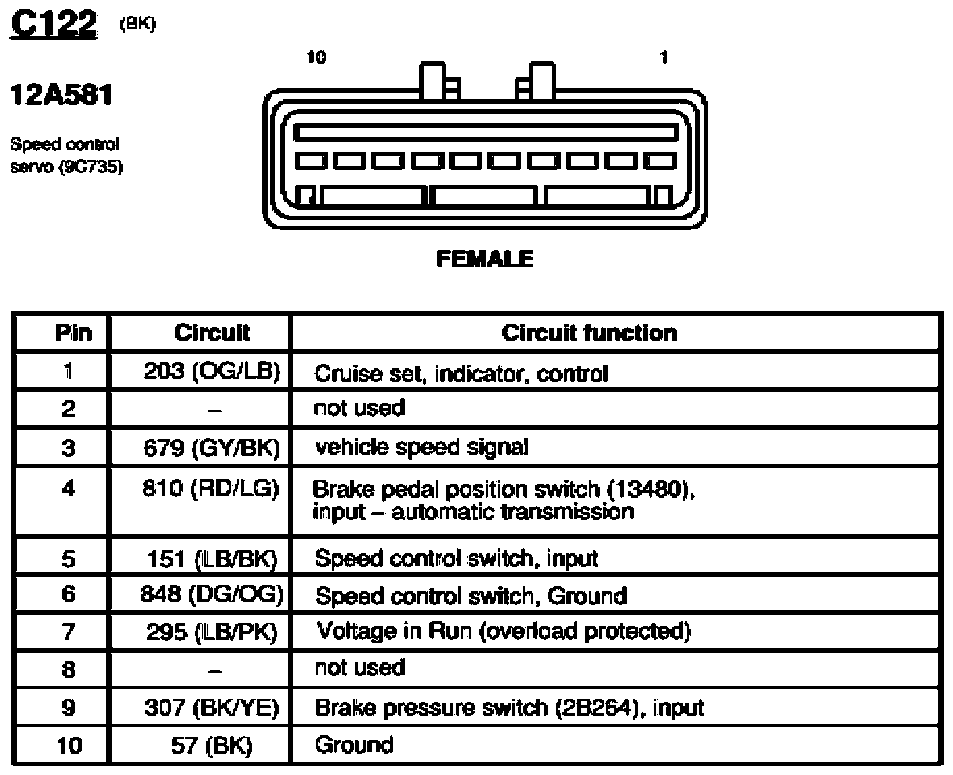

Fig 20: Speed Control Servo Connector End View (C122)

G07842235

Courtesy of FORD MOTOR CO.

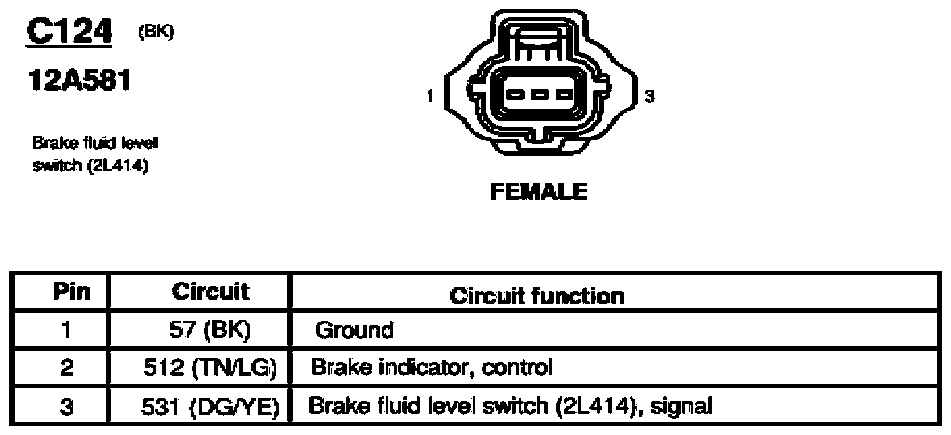

Fig 21: Brake Fluid Level Switch Connector End View (C124)

G07842236

Courtesy of FORD MOTOR CO.

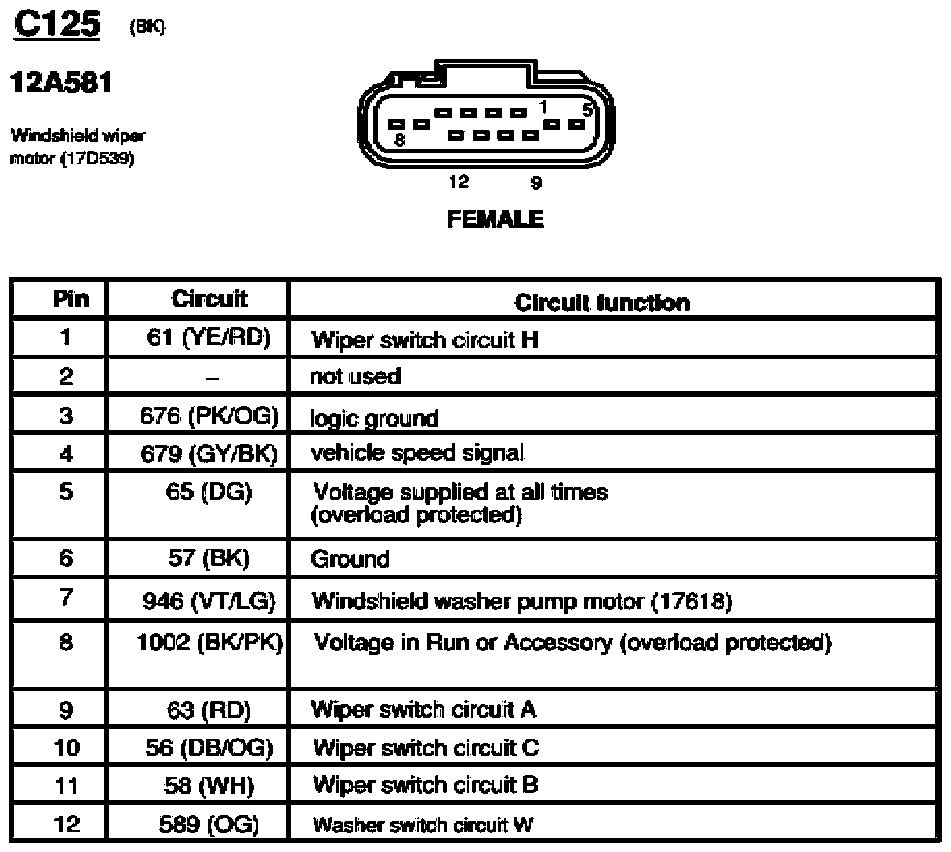

Fig 22: Windshield Wiper Motor Connector End View (C125)

G07842237

Courtesy of FORD MOTOR CO.

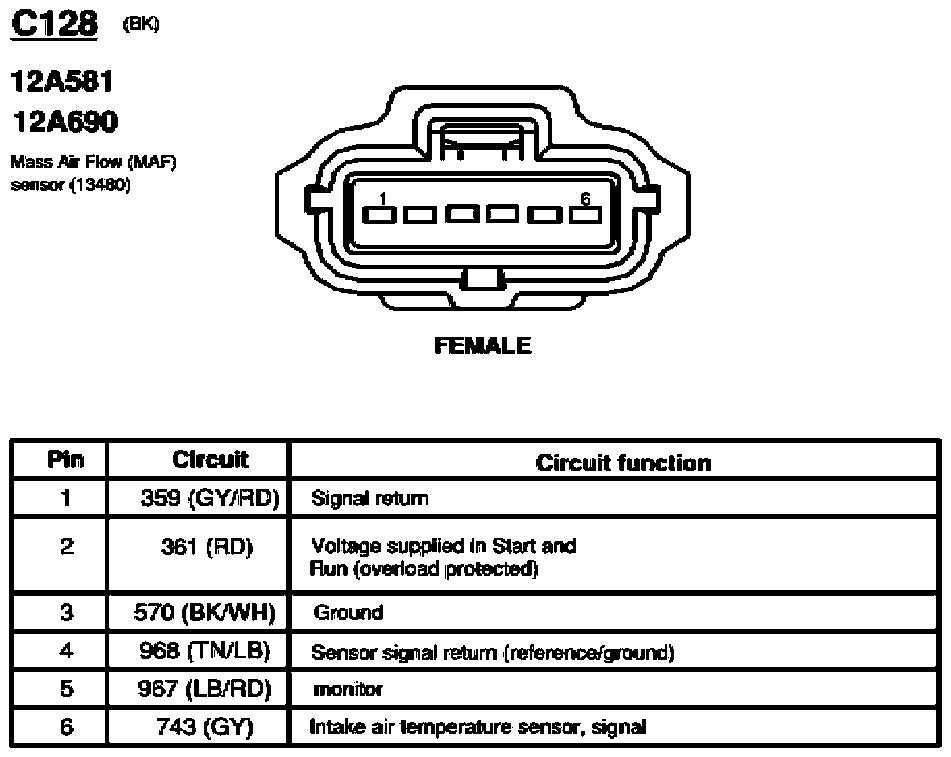

Fig 23: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07842238

Courtesy of FORD MOTOR CO.

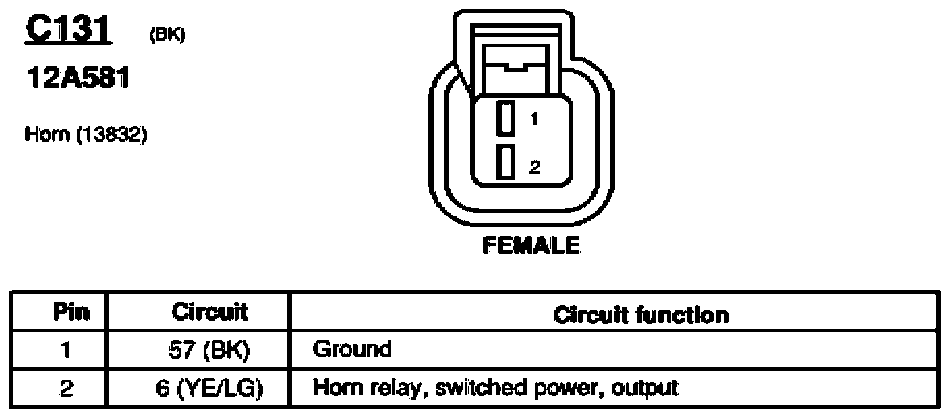

Fig 24: Horn Connector End View (C131)

G07842239

Courtesy of FORD MOTOR CO.

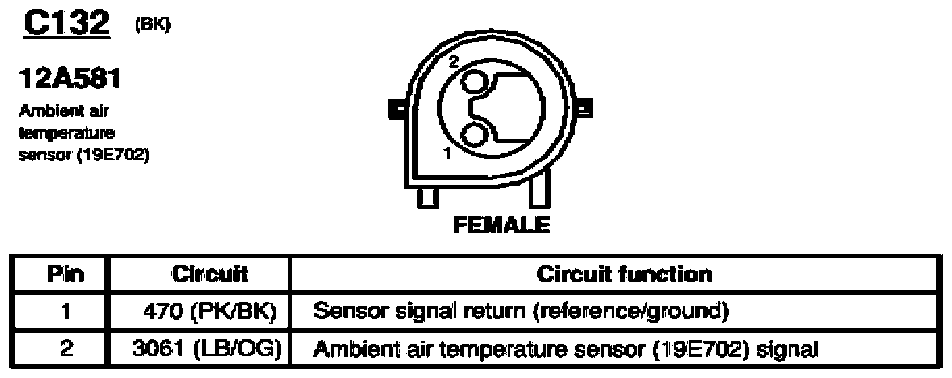

Fig 25: Ambient Air Temperature Sensor Connector End View (C132)

G07842240

Courtesy of FORD MOTOR CO.

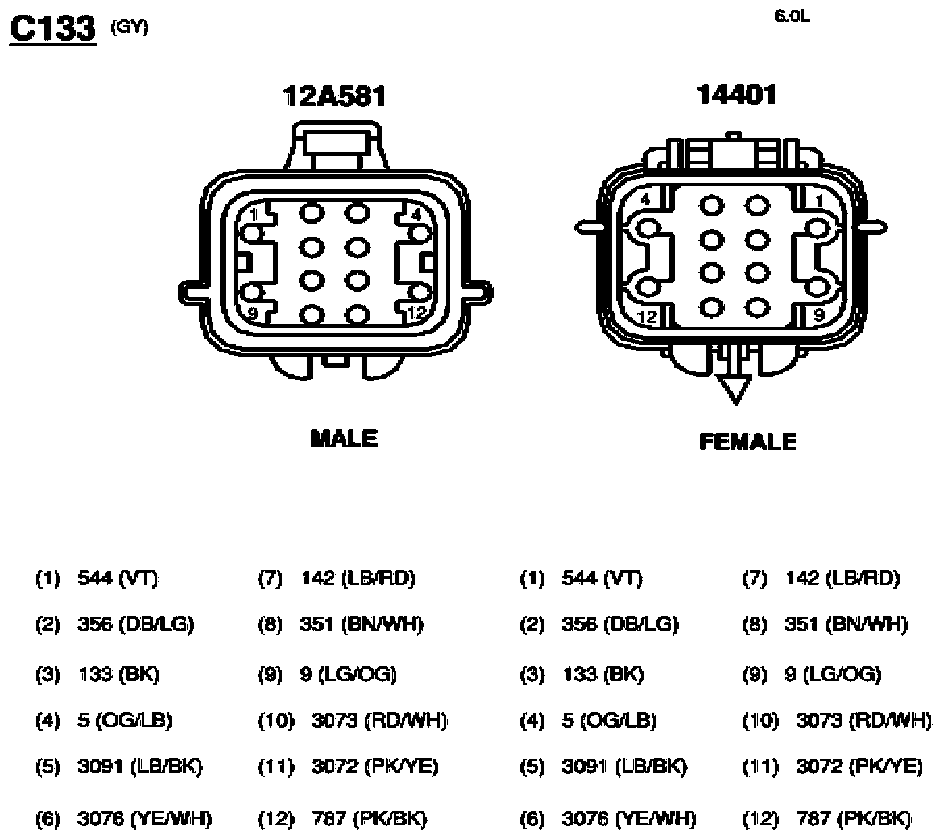

Fig 26: Inline Connector End View (C133)

G07842241

Courtesy of FORD MOTOR CO.

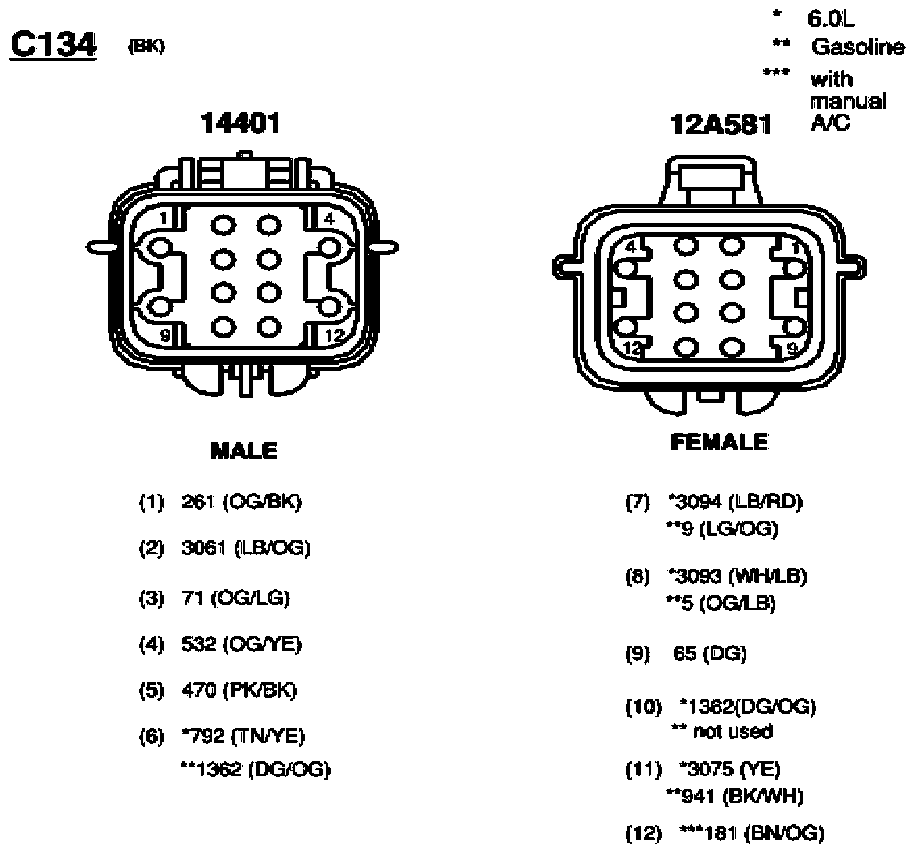

Fig 27: Inline Connector End View (C134)

G07842242

Courtesy of FORD MOTOR CO.

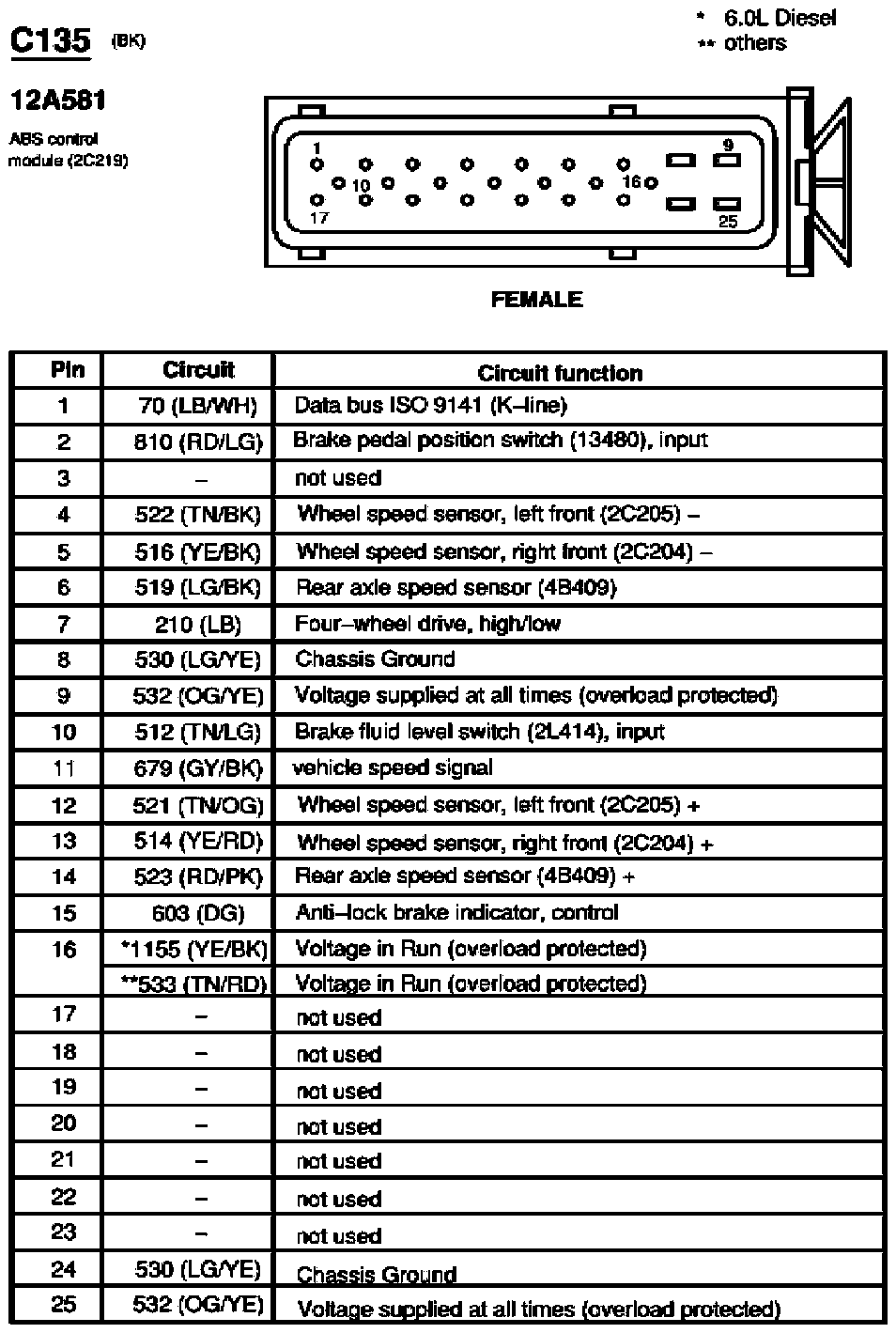

Fig 28: ABS Control Module Connector End View (C135)

G07842243

Courtesy of FORD MOTOR CO.

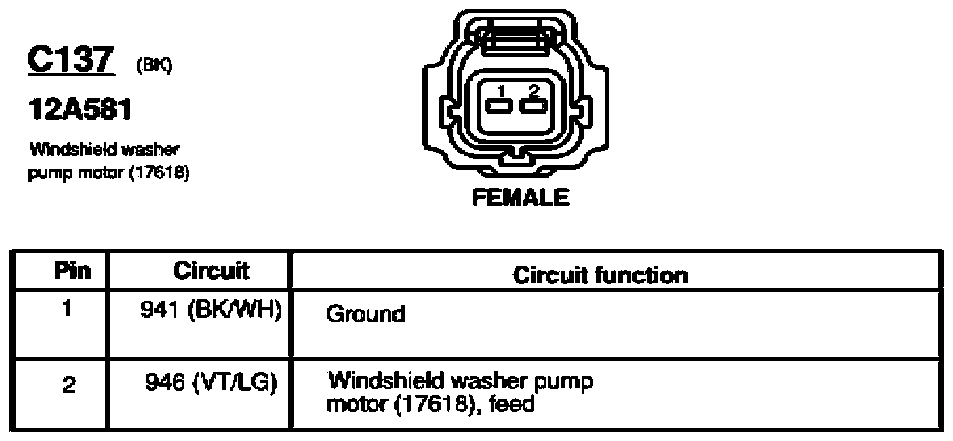

Fig 29: Windshield Washer Pump Motor Connector End View (C137)

G07842244

Courtesy of FORD MOTOR CO.

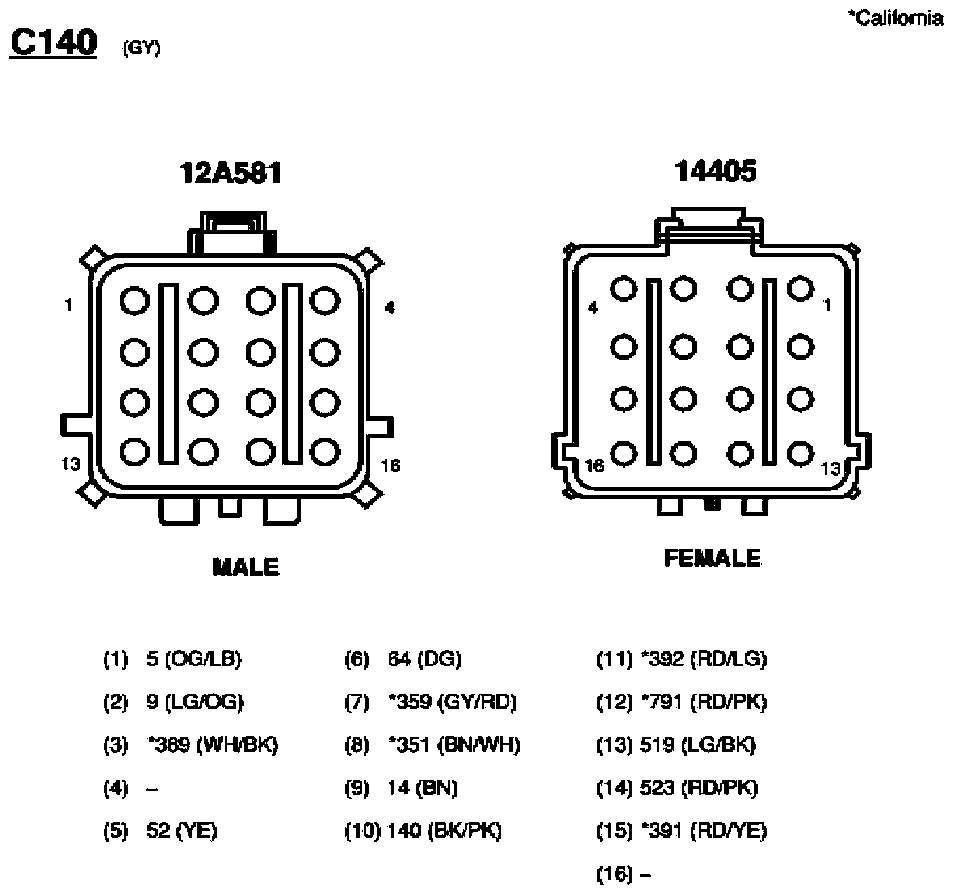

Fig 30: Inline Connector End View (C140)

G07842245

Courtesy of FORD MOTOR CO.

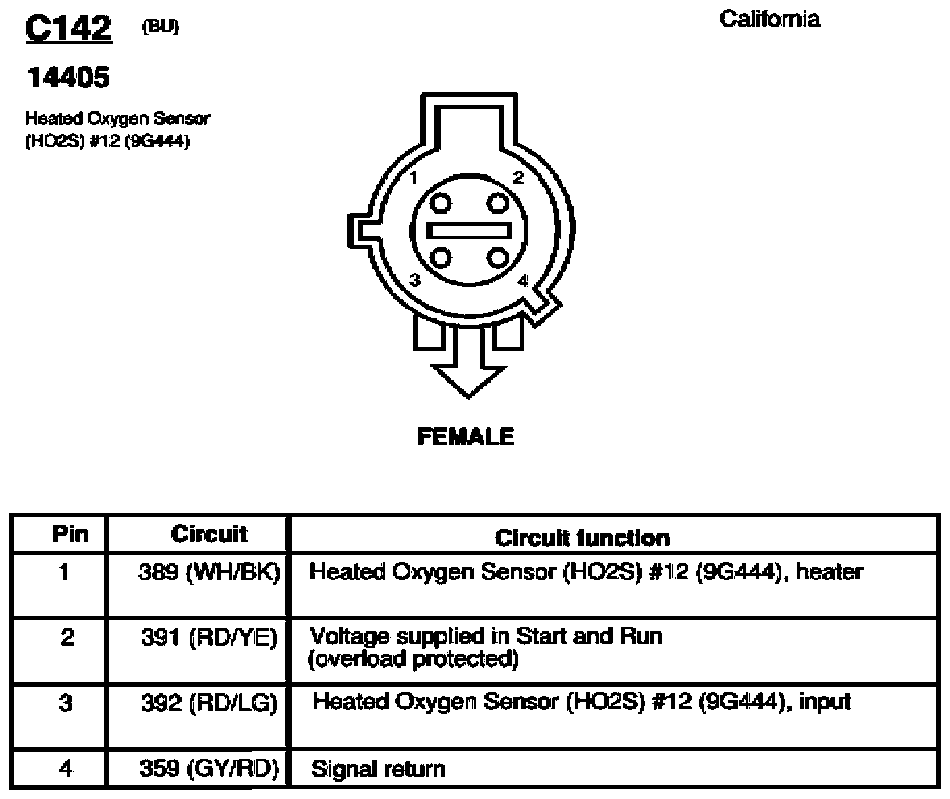

Fig 31: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07842246

Courtesy of FORD MOTOR CO.

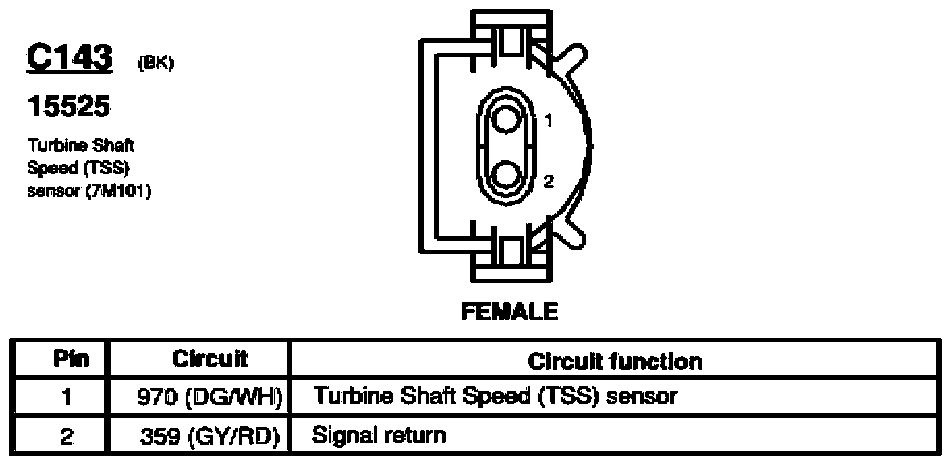

Fig 32: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07842247

Courtesy of FORD MOTOR CO.

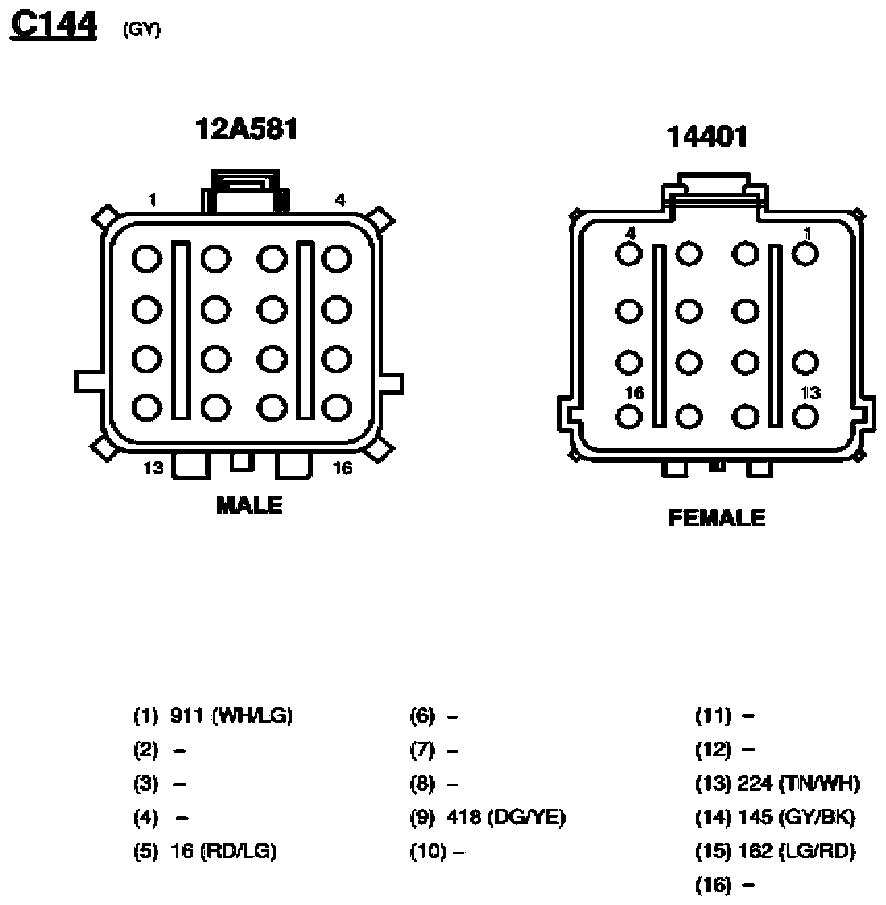

Fig 33: Inline Connector End View (C144)

G07842248

Courtesy of FORD MOTOR CO.

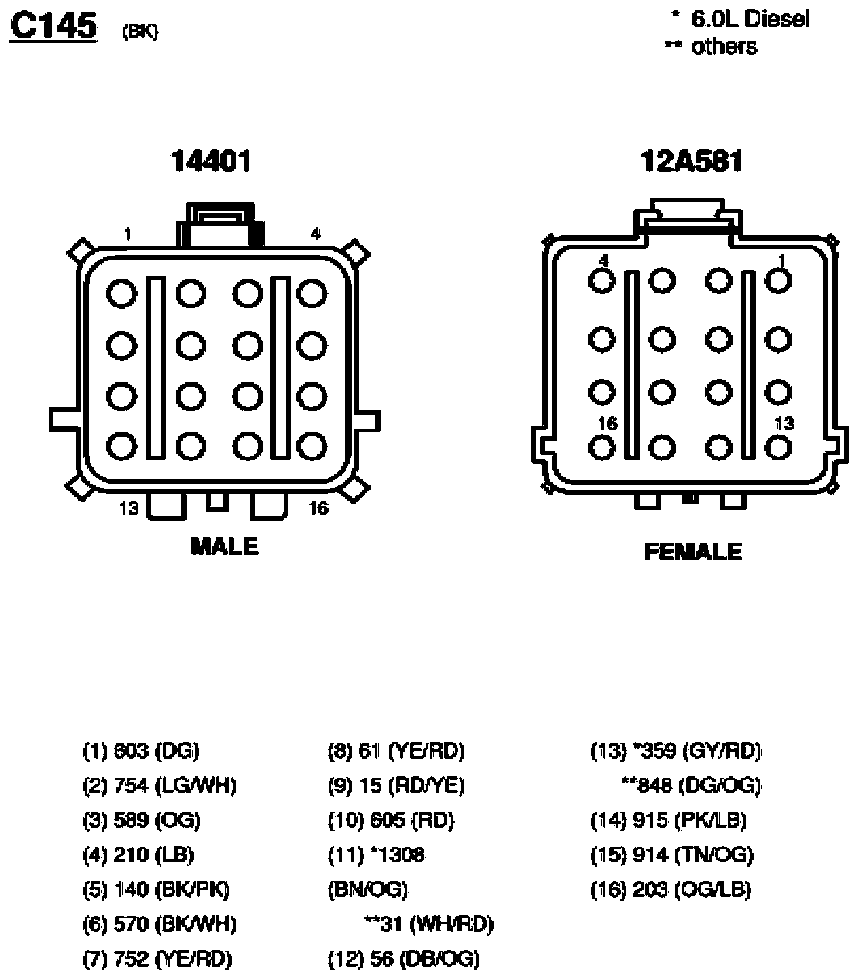

Fig 34: Inline Connector End View (C145)

G07842249

Courtesy of FORD MOTOR CO.

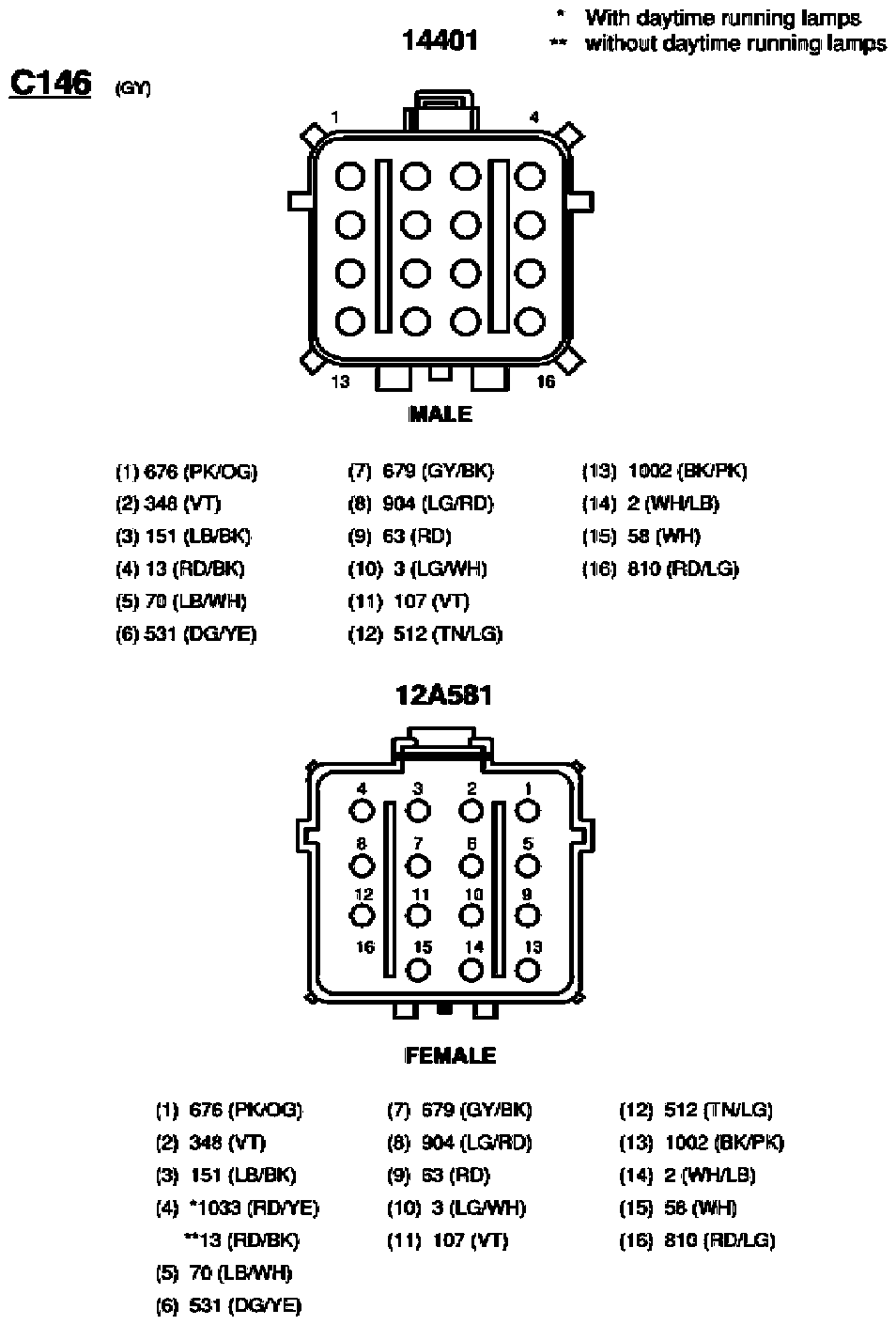

Fig 35: Inline Connector End View (C146)

G07842250

Courtesy of FORD MOTOR CO.

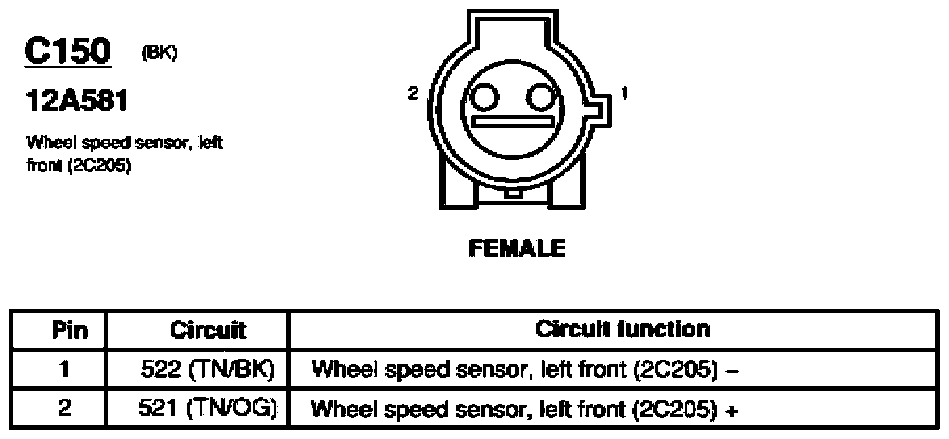

Fig 36: Wheel Speed Sensor, Left Front Connector End View (C150)

G07842251

Courtesy of FORD MOTOR CO.

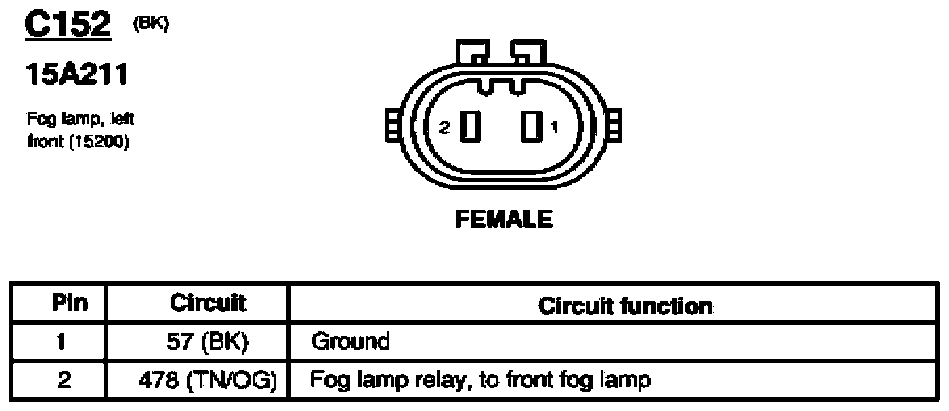

Fig 37: Fog Lamp, Left Front Connector End View (C152)

G07842252

Courtesy of FORD MOTOR CO.

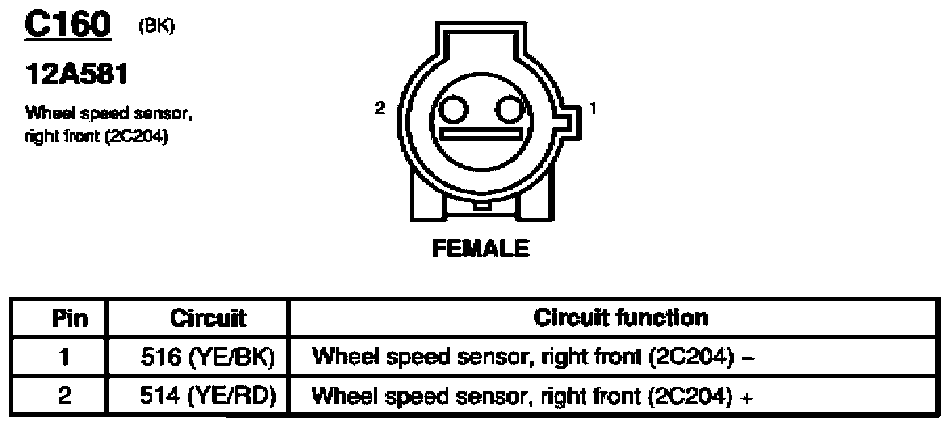

Fig 38: Wheel Speed Sensor, Right Front Connector End View (C160)

G07842253

Courtesy of FORD MOTOR CO.

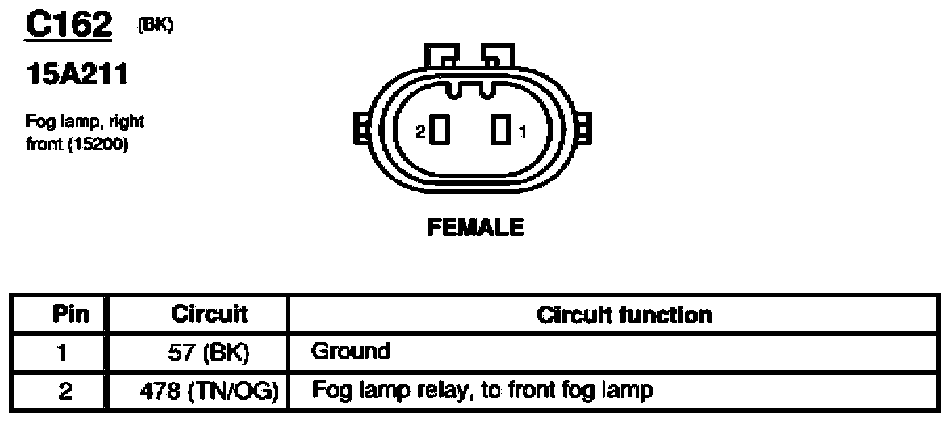

Fig 39: Fog Lamp, Right Front Connector End View (C162)

G07842254

Courtesy of FORD MOTOR CO.

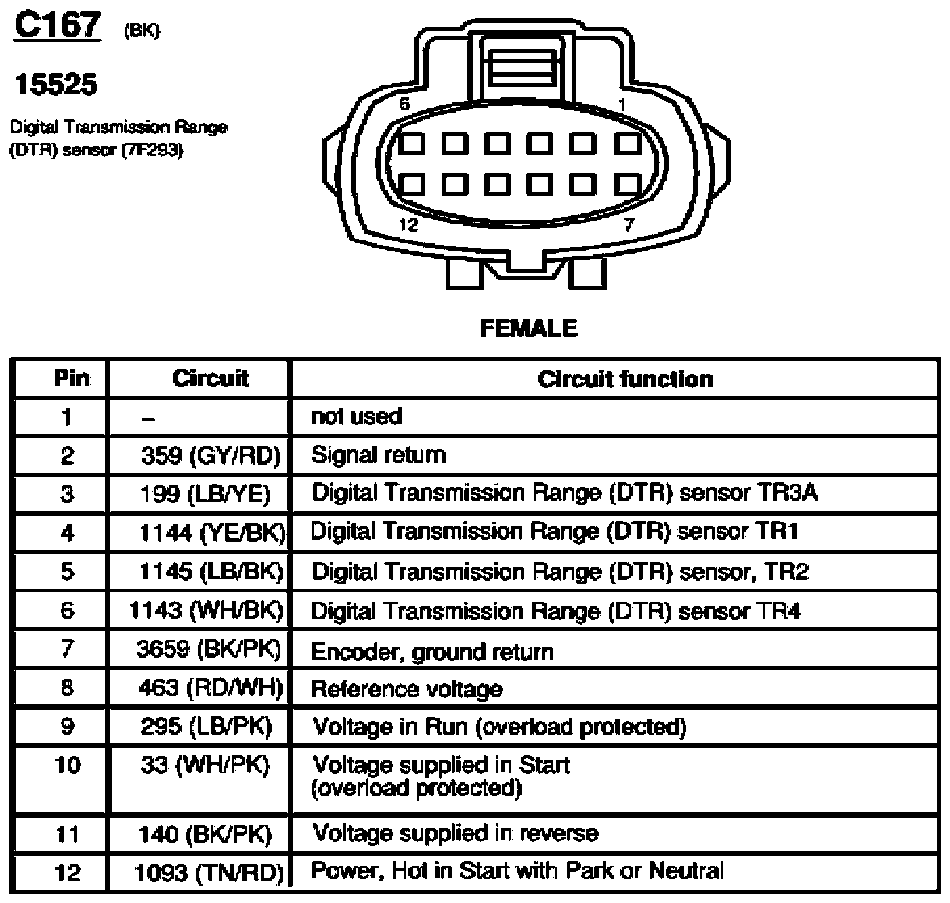

Fig 40: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07842255

Courtesy of FORD MOTOR CO.

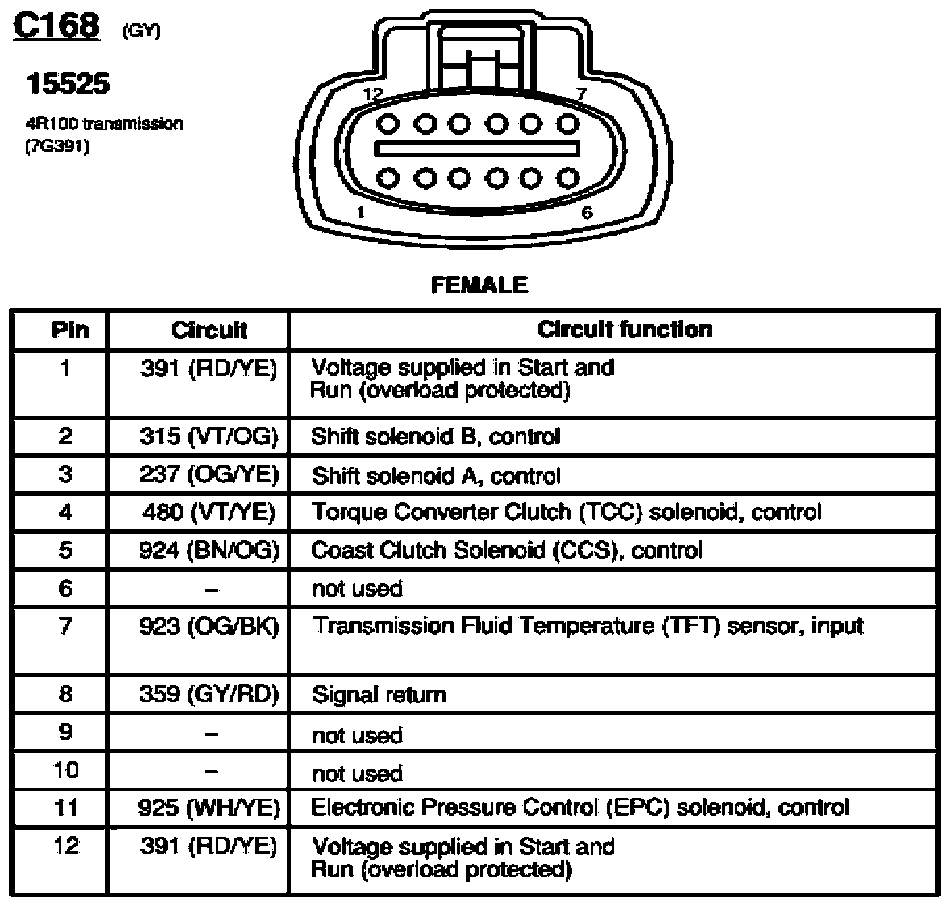

Fig 41: 4R100 Transmission Connector End View (C168)

G07842256

Courtesy of FORD MOTOR CO.

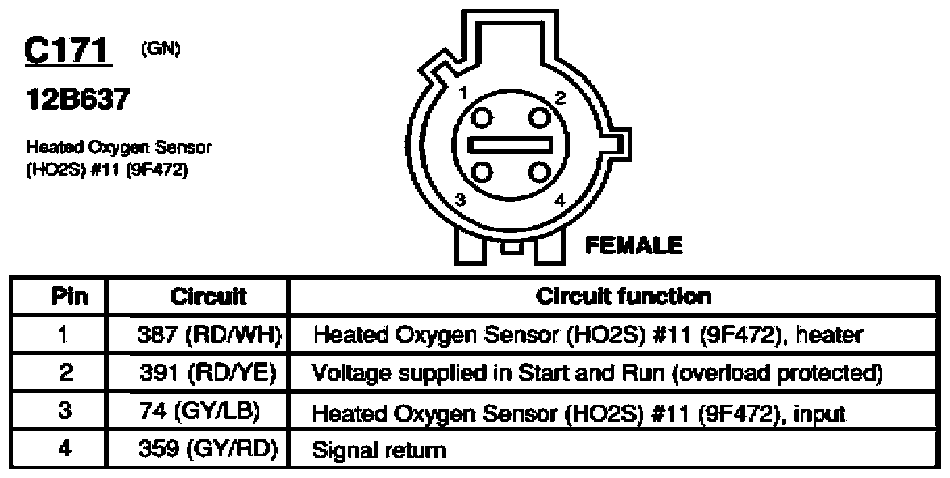

Fig 42: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07842257

Courtesy of FORD MOTOR CO.

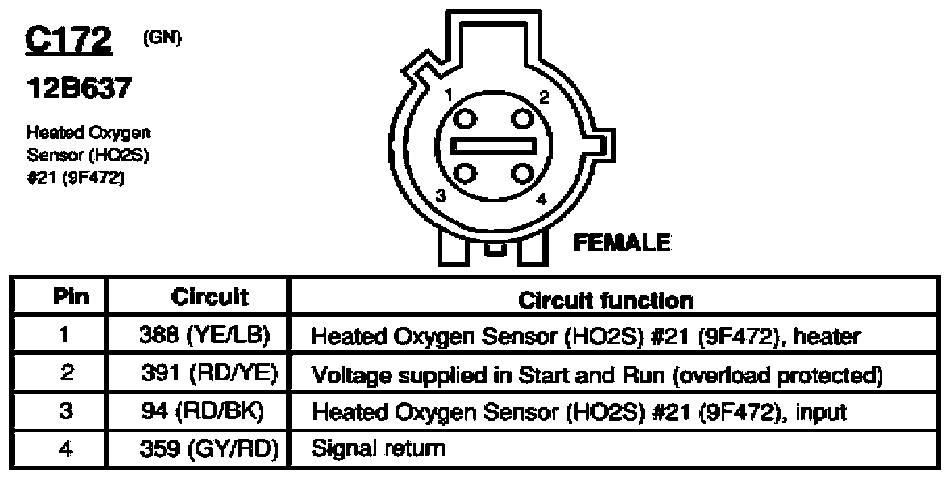

Fig 43: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07842258

Courtesy of FORD MOTOR CO.

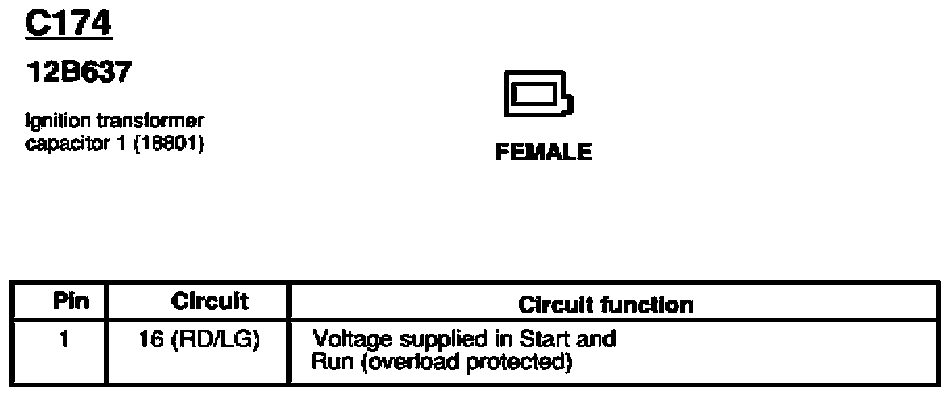

Fig 44: Ignition Transformer Capacitor 1 Connector End View (C174)

G07842259

Courtesy of FORD MOTOR CO.

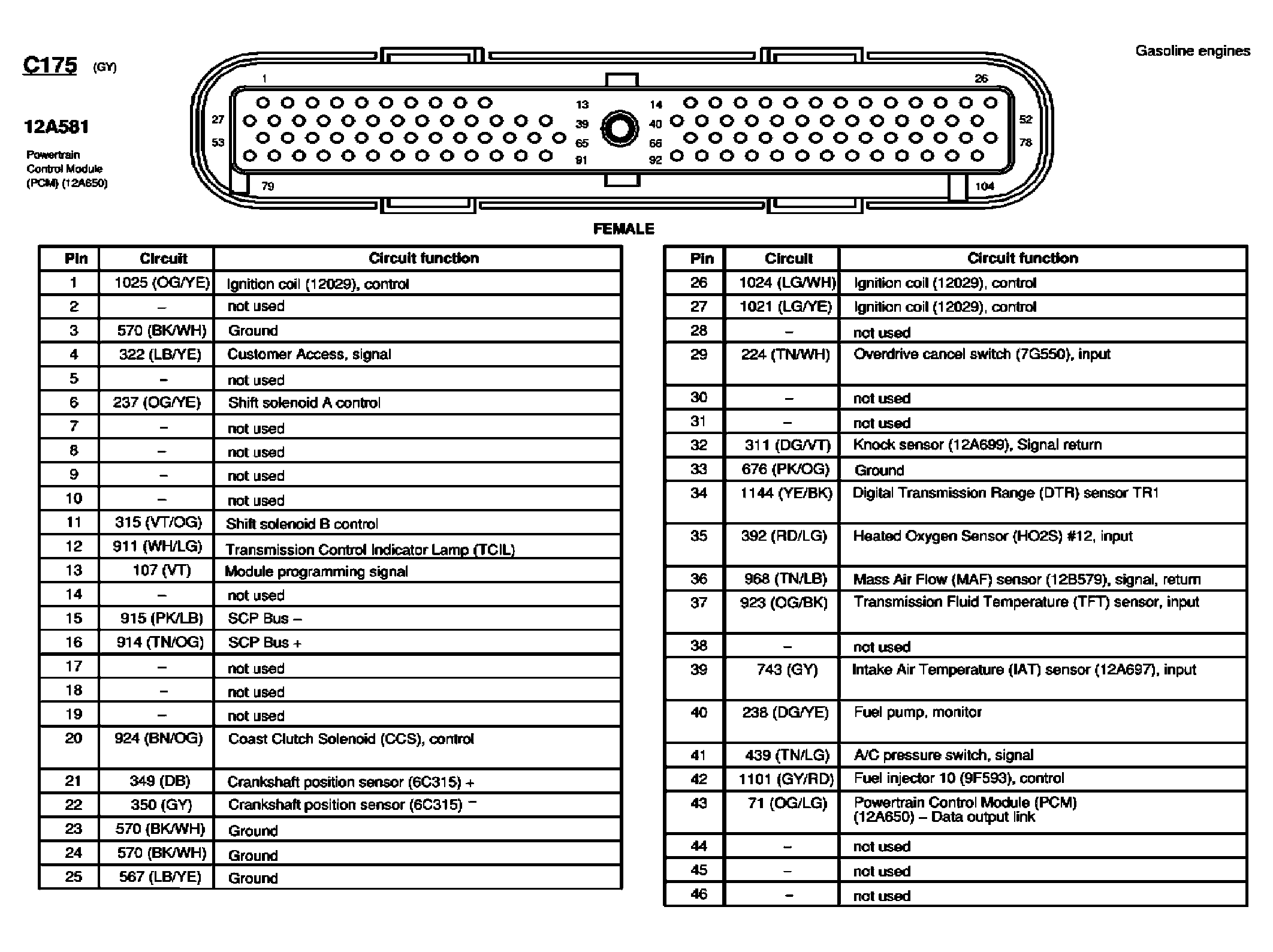

Fig 45: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03987544

Courtesy of FORD MOTOR CO.

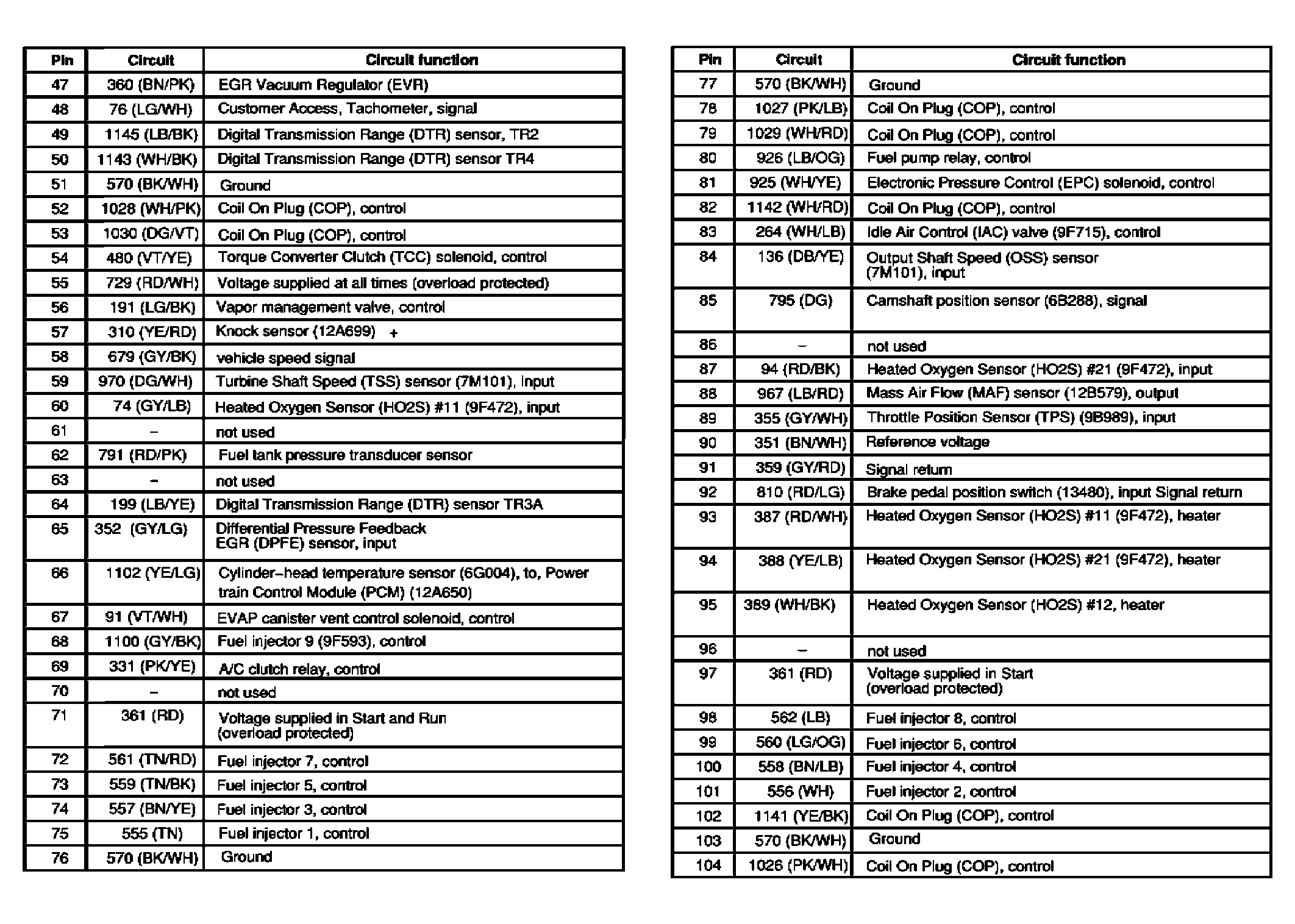

Fig 46: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03987545

Courtesy of FORD MOTOR CO.

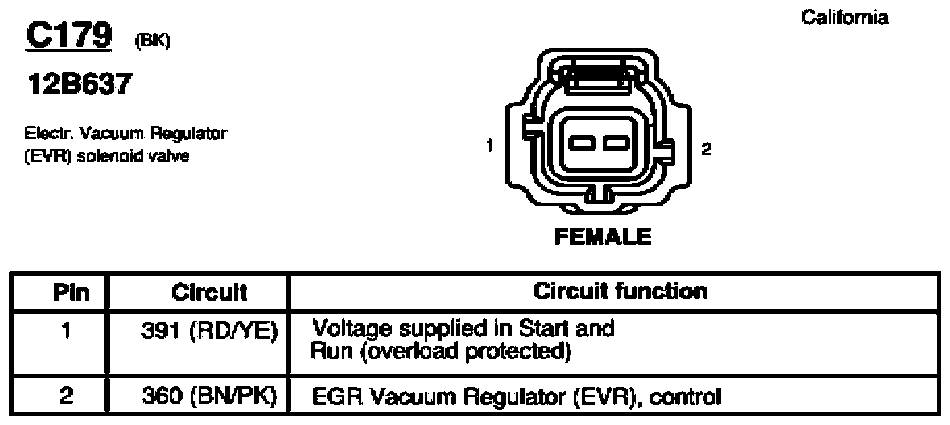

Fig 47: Electr. Vacuum Regulator (EVR) Solenoid Valve Connector End View (C179)

G07842260

Courtesy of FORD MOTOR CO.

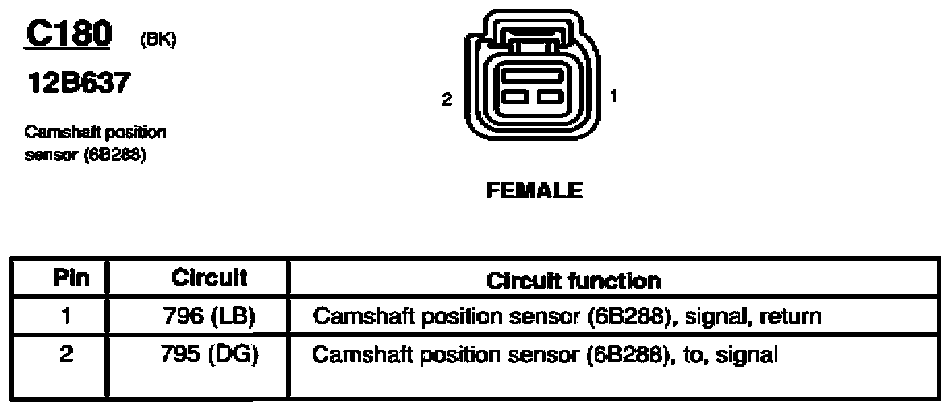

Fig 48: Camshaft Position Sensor Connector End View (C180)

G07842261

Courtesy of FORD MOTOR CO.

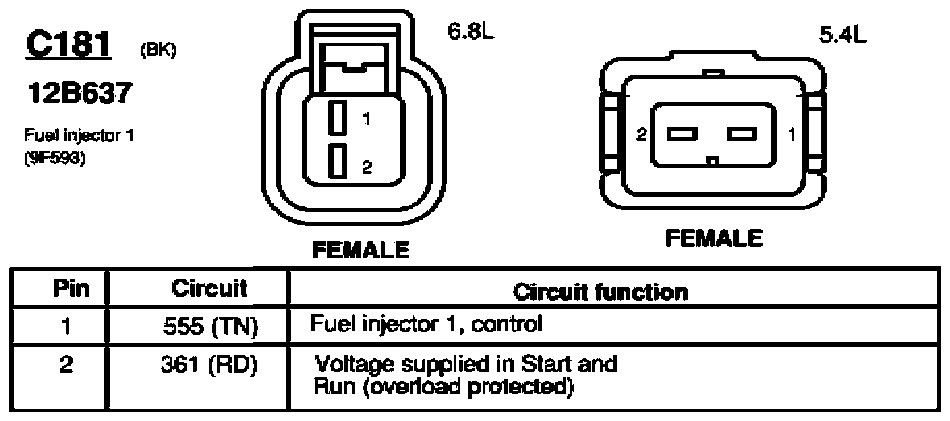

Fig 49: Fuel Injector 1 Connector End View (C181)

G07842262

Courtesy of FORD MOTOR CO.

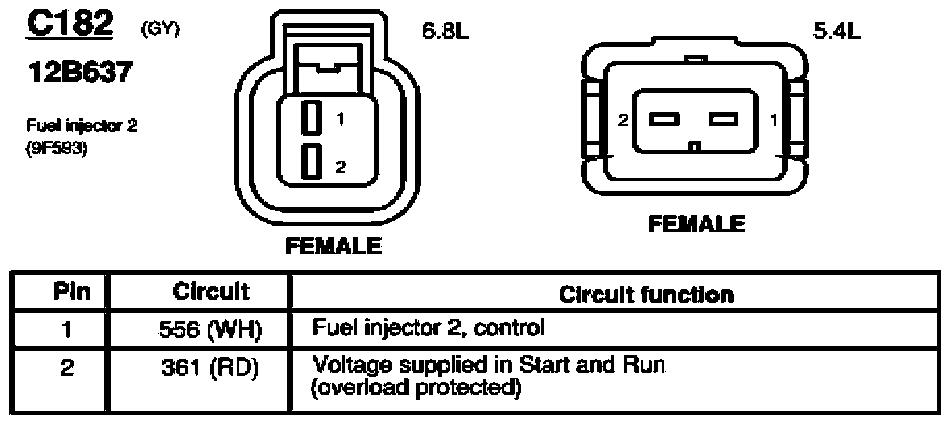

Fig 50: Fuel Injector 2 Connector End View (C182)

G07842263

Courtesy of FORD MOTOR CO.

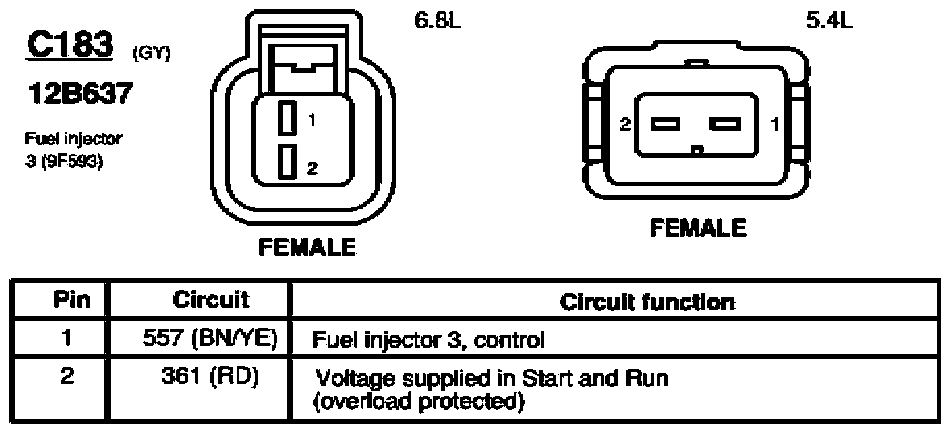

Fig 51: Fuel Injector 3 Connector End View (C183)

G07842264

Courtesy of FORD MOTOR CO.

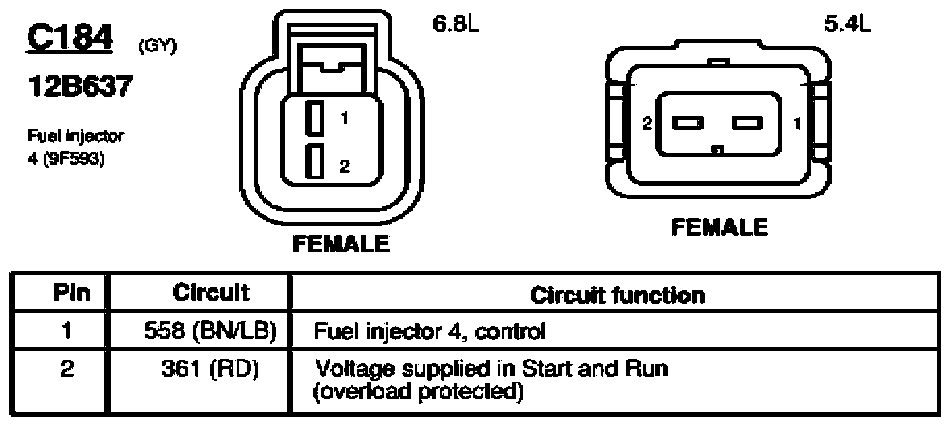

Fig 52: Fuel Injector 4 Connector End View (C184)

G07842265

Courtesy of FORD MOTOR CO.

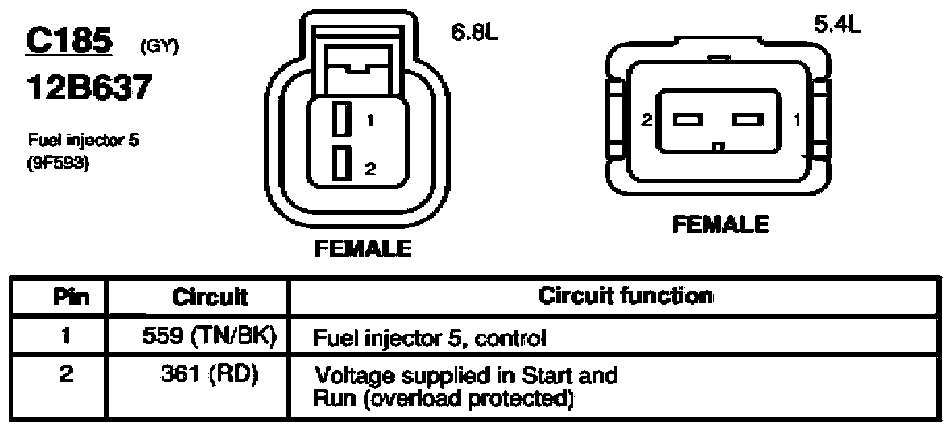

Fig 53: Fuel Injector 5 Connector End View (C185)

G07842266

Courtesy of FORD MOTOR CO.

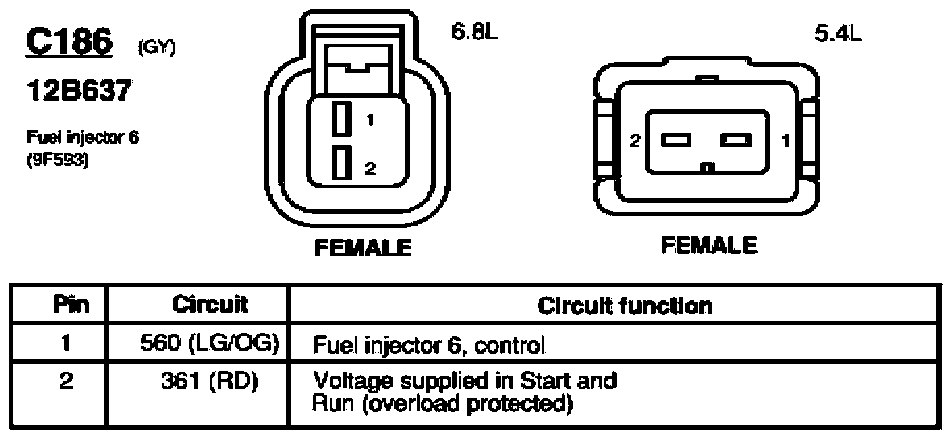

Fig 54: Fuel Injector 6 Connector End View (C186)

G07842267

Courtesy of FORD MOTOR CO.

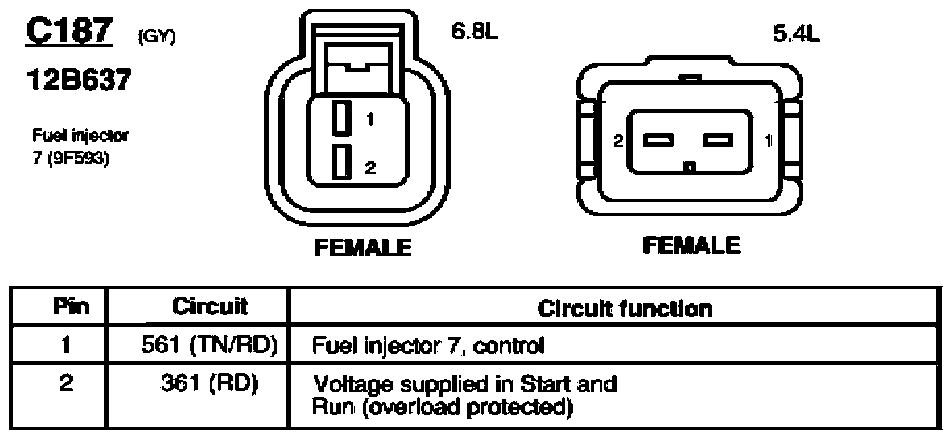

Fig 55: Fuel Injector 7 Connector End View (C187)

G07842268

Courtesy of FORD MOTOR CO.

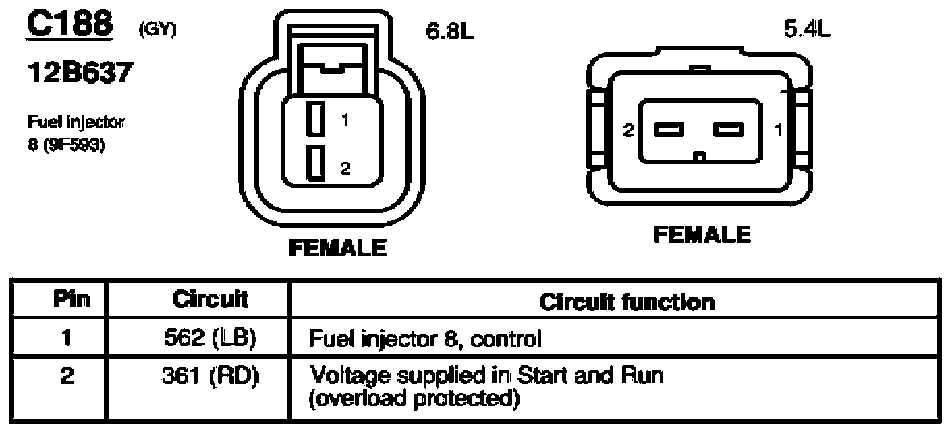

Fig 56: Fuel Injector 8 Connector End View (C188)

G07842269

Courtesy of FORD MOTOR CO.

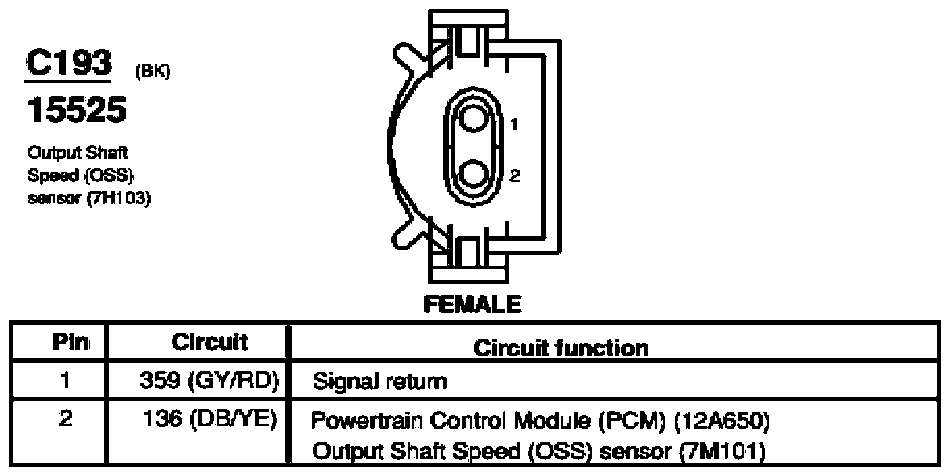

Fig 57: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07842270

Courtesy of FORD MOTOR CO.

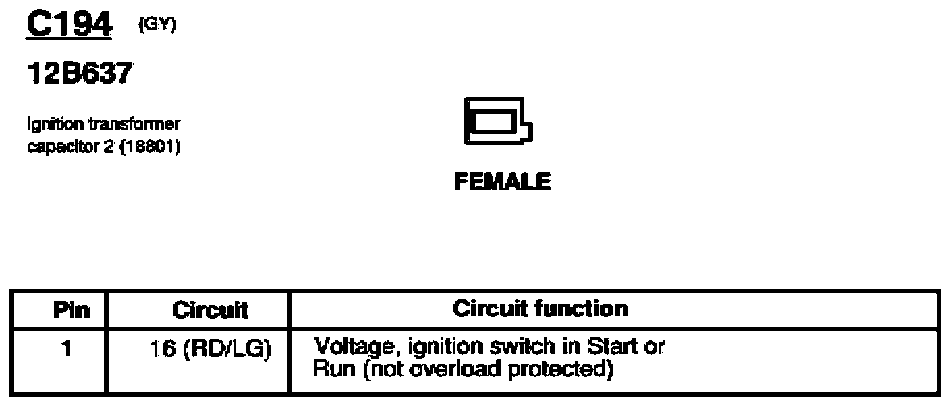

Fig 58: Ignition Transformer Capacitor 2 Connector End View (C194)

G07842271

Courtesy of FORD MOTOR CO.

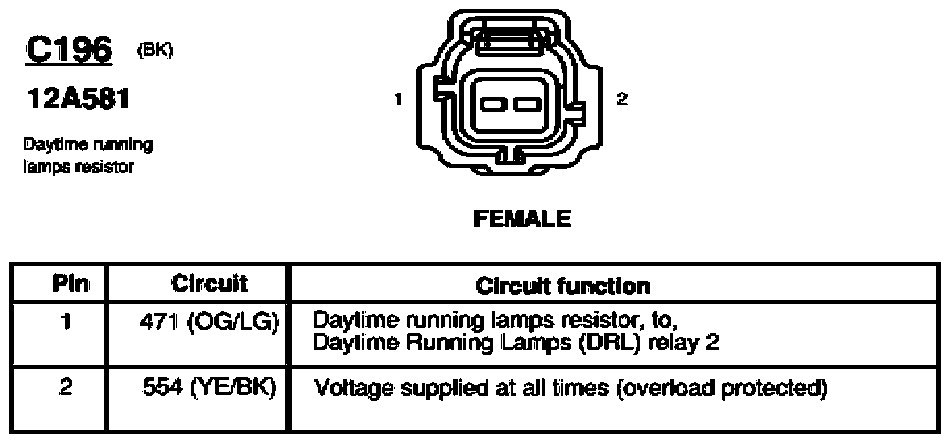

Fig 59: Daytime Running Lamps Resistor Connector End View (C196)

G07842272

Courtesy of FORD MOTOR CO.

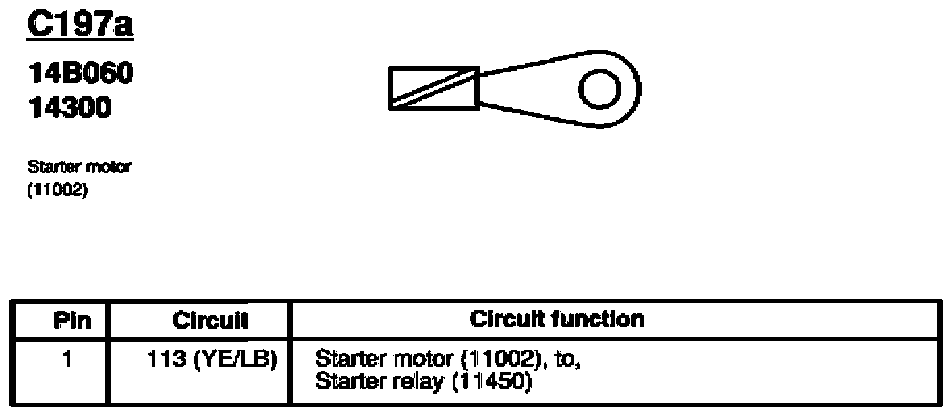

Fig 60: Starter Motor Connector End View (C197a)

G07842273

Courtesy of FORD MOTOR CO.

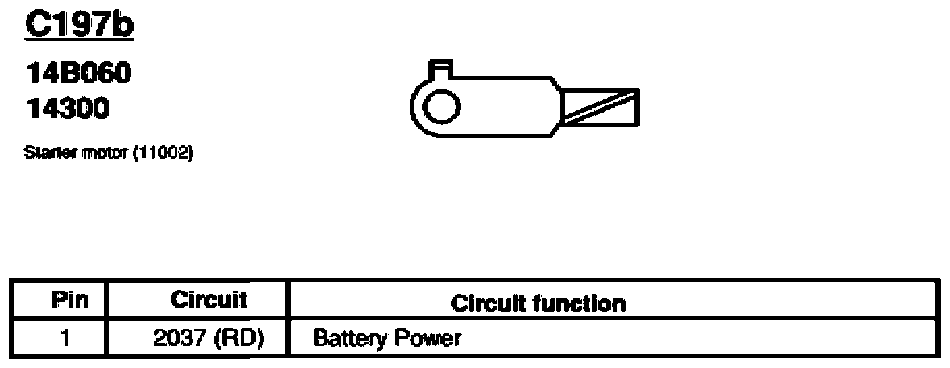

Fig 61: Starter Motor Connector End View (C197b)

G07842274

Courtesy of FORD MOTOR CO.

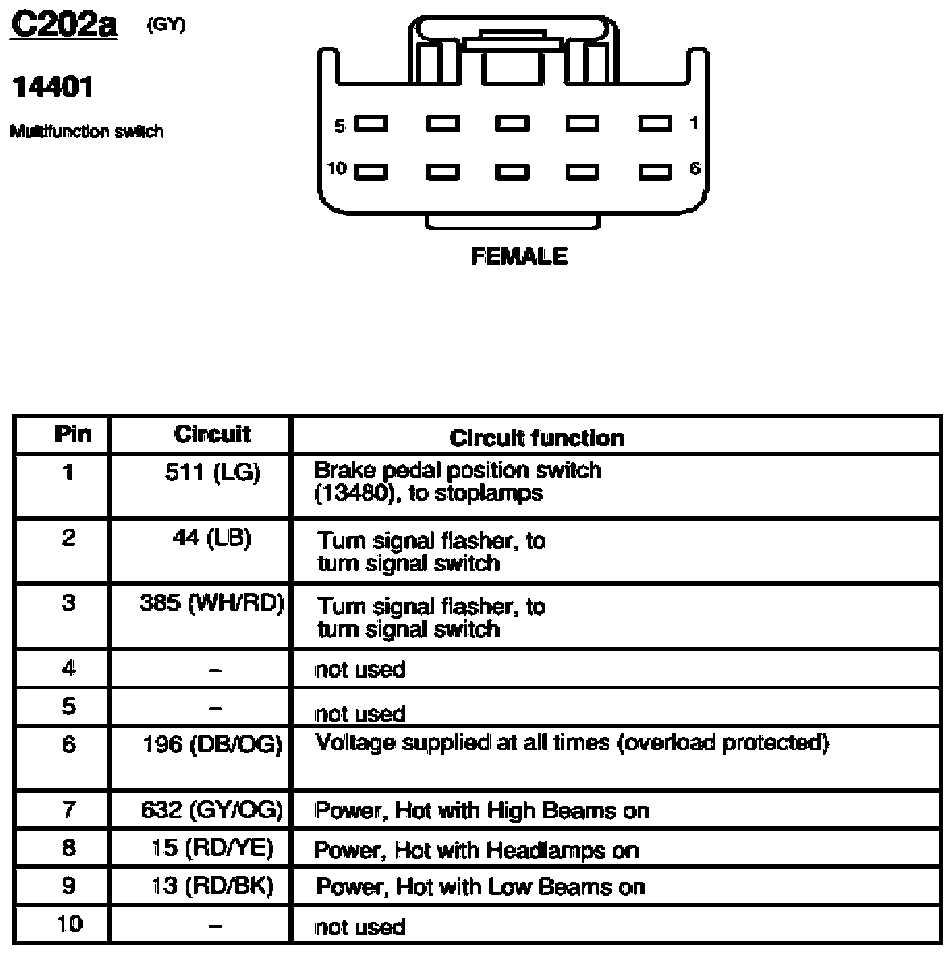

Fig 62: Multifunction Switch Connector End View (C202a)

G07842275

Courtesy of FORD MOTOR CO.

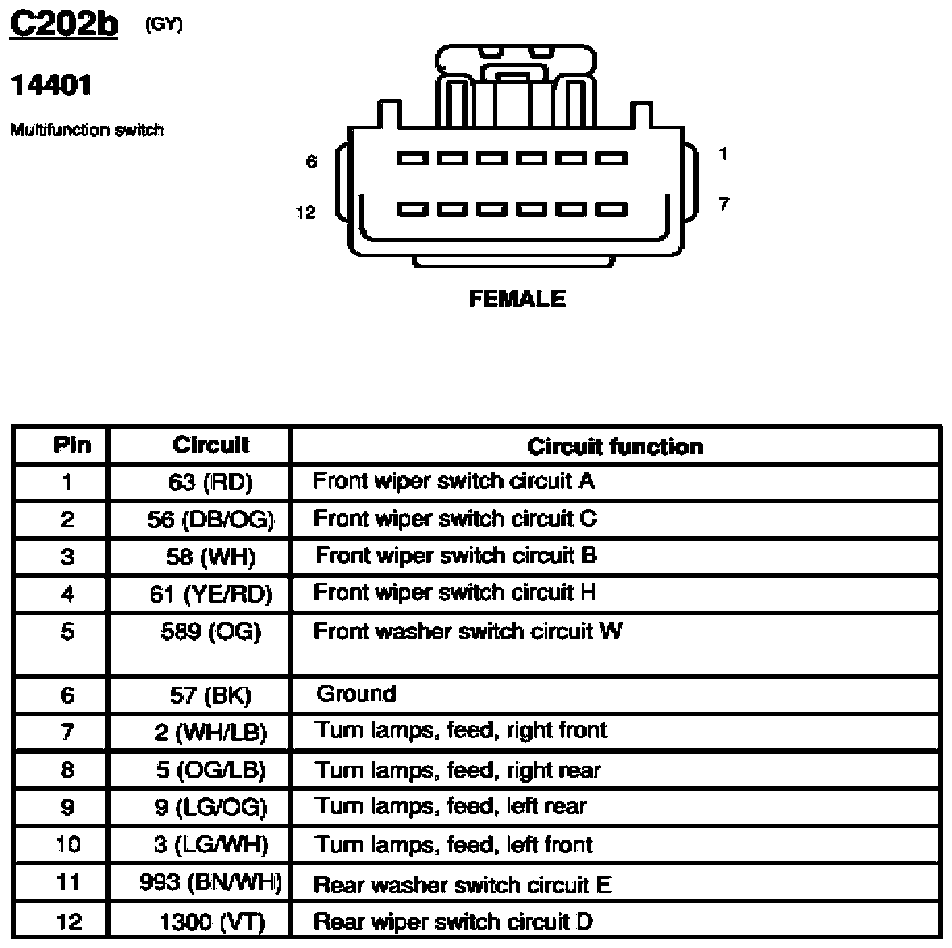

Fig 63: Multifunction Switch Connector End View (C202b)

G07842276

Courtesy of FORD MOTOR CO.

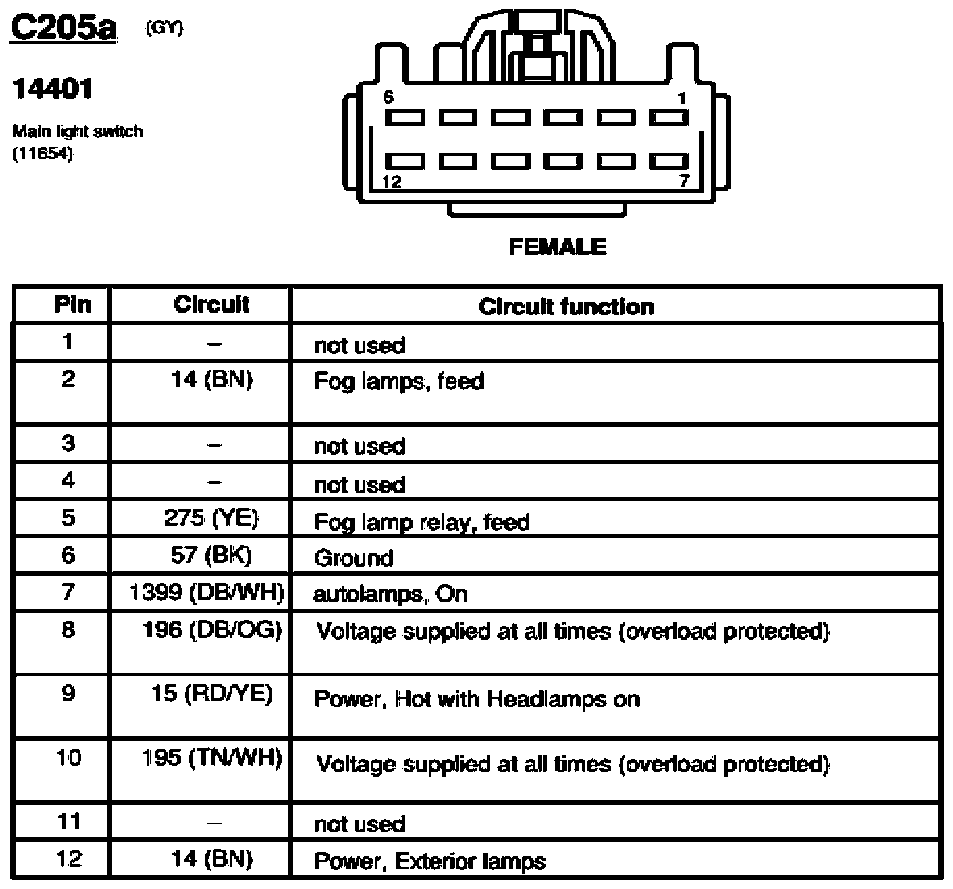

Fig 64: Main Light Switch Connector End View (C205a)

G07842277

Courtesy of FORD MOTOR CO.

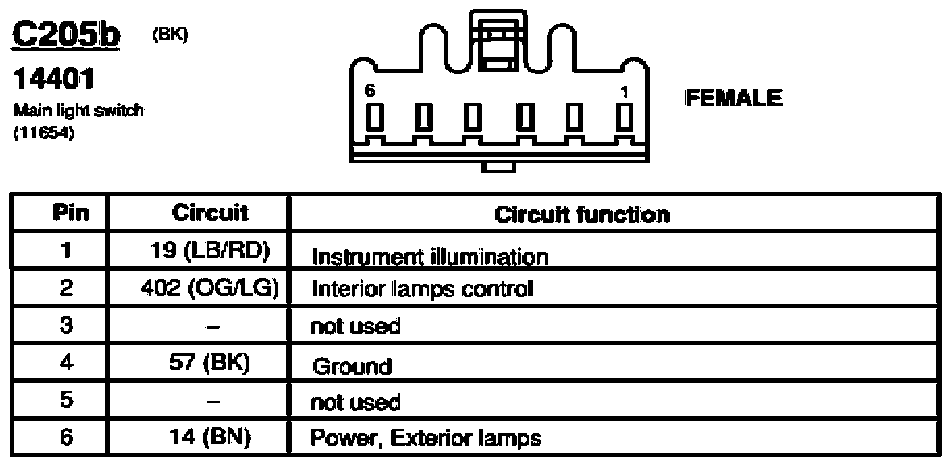

Fig 65: Main Light Switch Connector End View (C205b)

G07842278

Courtesy of FORD MOTOR CO.

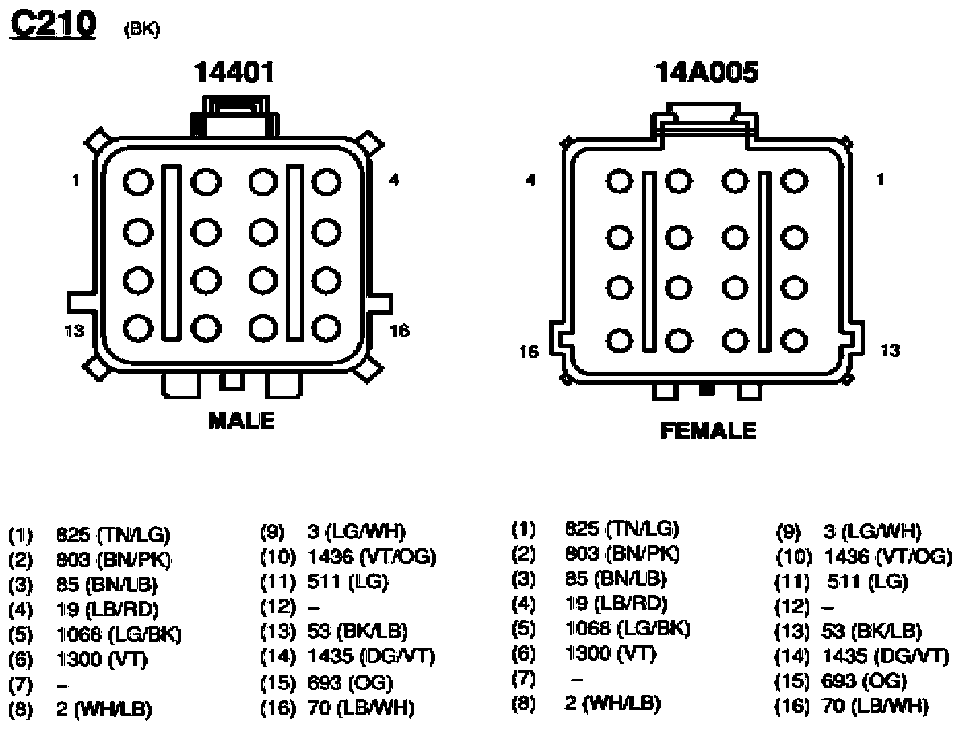

Fig 66: Inline Connector End View (C210)

G07842279

Courtesy of FORD MOTOR CO.

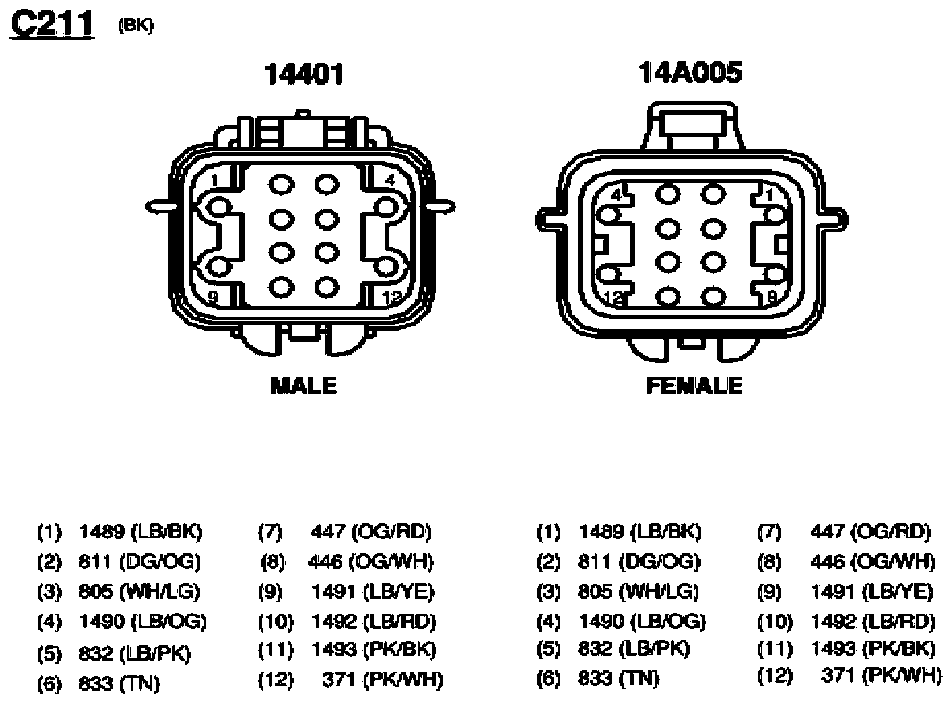

Fig 67: Inline Connector End View (C211)

G07842280

Courtesy of FORD MOTOR CO.

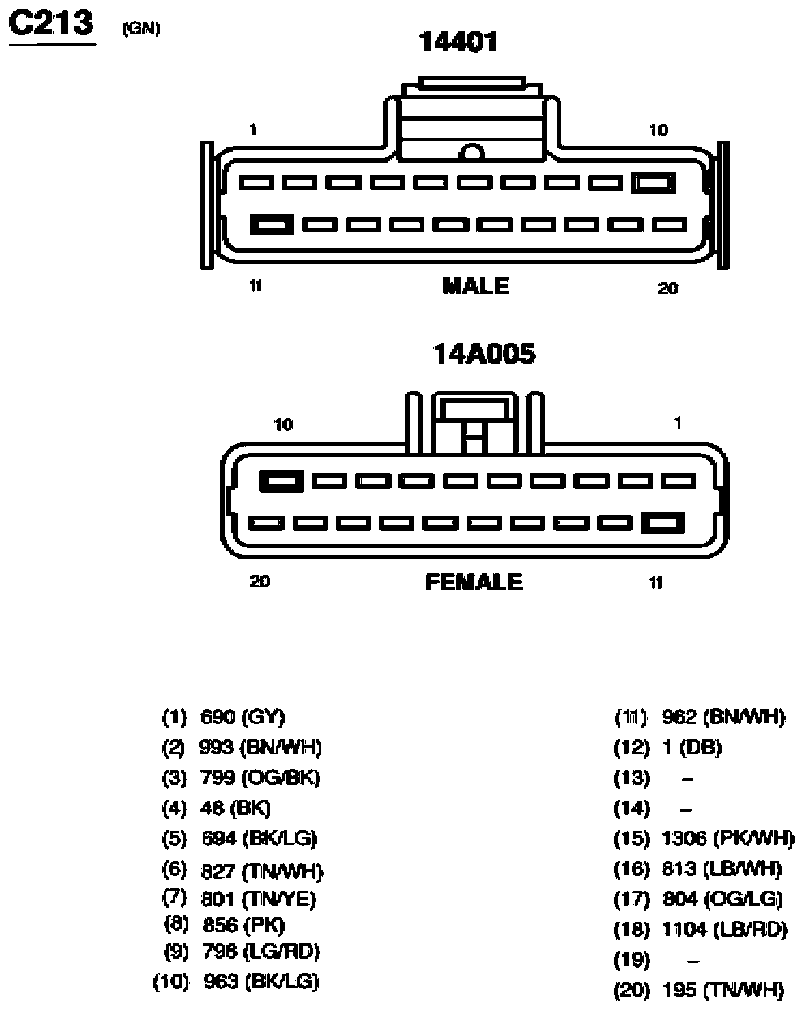

Fig 68: Inline Connector End View (C213)

G07842281

Courtesy of FORD MOTOR CO.

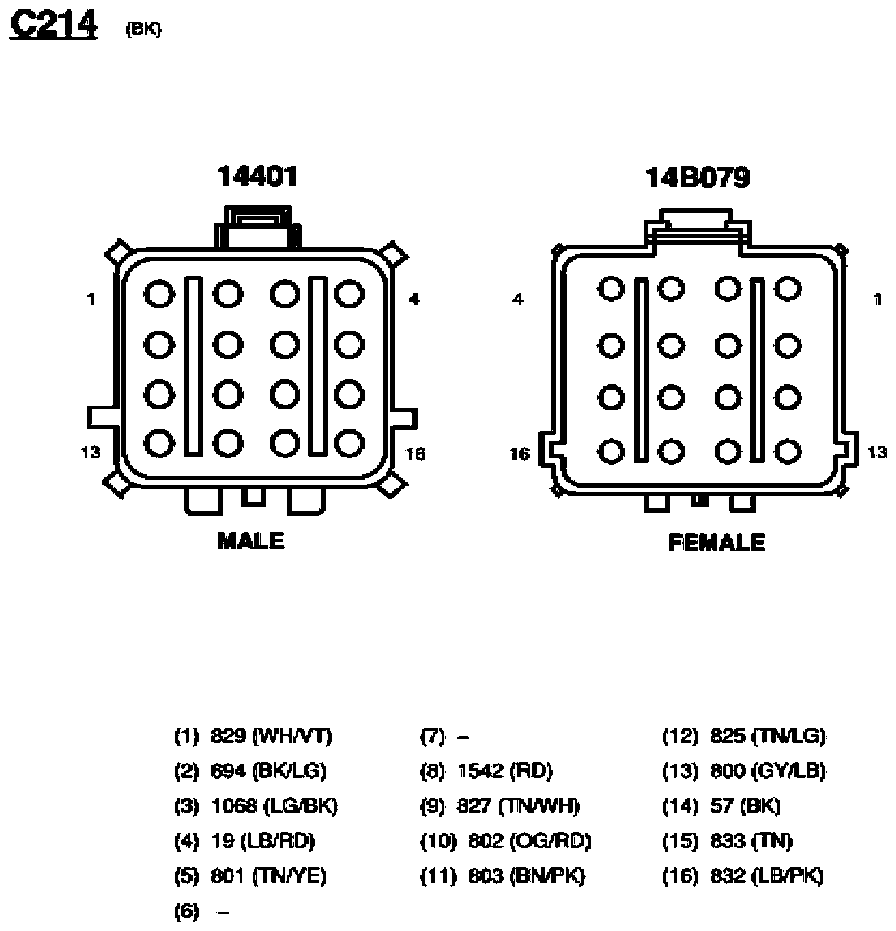

Fig 69: Inline Connector End View (C214)

G07842282

Courtesy of FORD MOTOR CO.

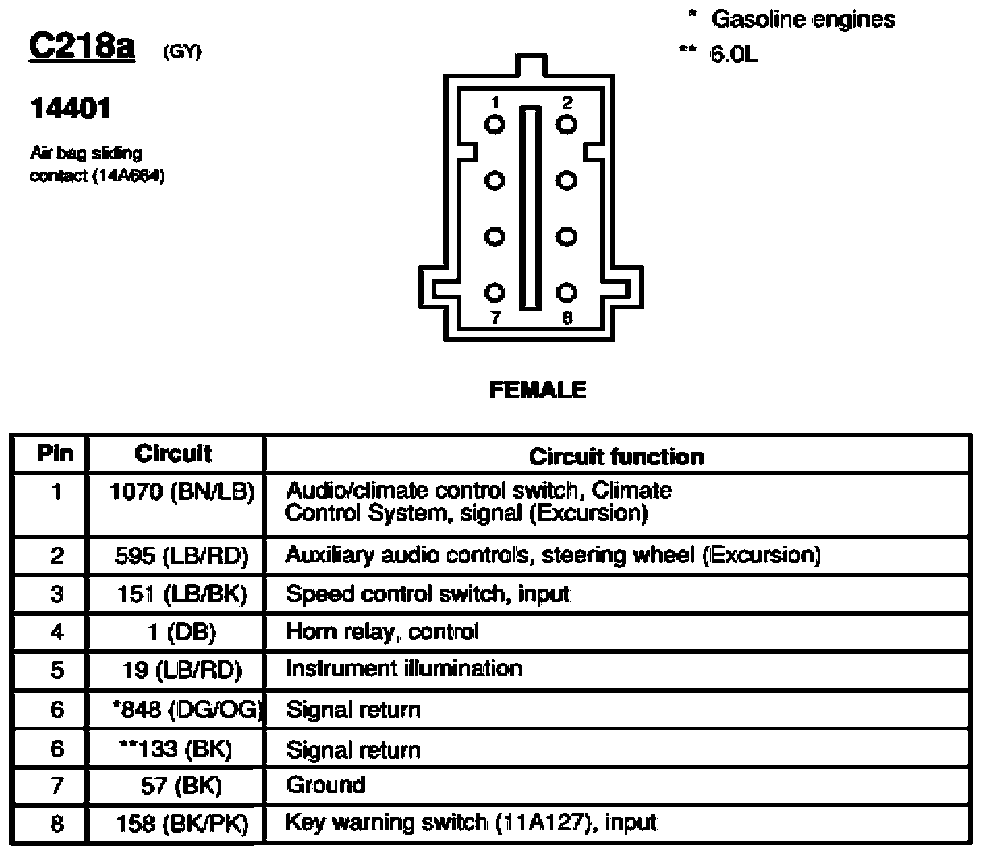

Fig 70: Air Bag Sliding Contact Connector End View (C218a)

G07842283

Courtesy of FORD MOTOR CO.

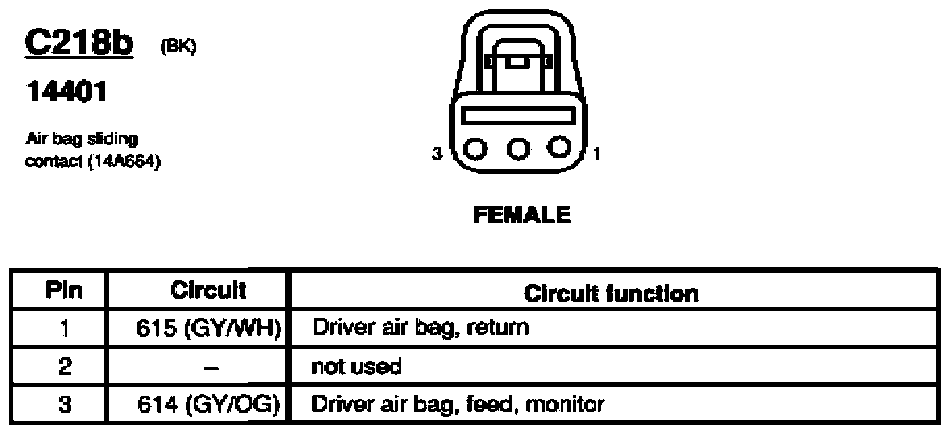

Fig 71: Air Bag Sliding Contact Connector End View (C218b)

G07842284

Courtesy of FORD MOTOR CO.

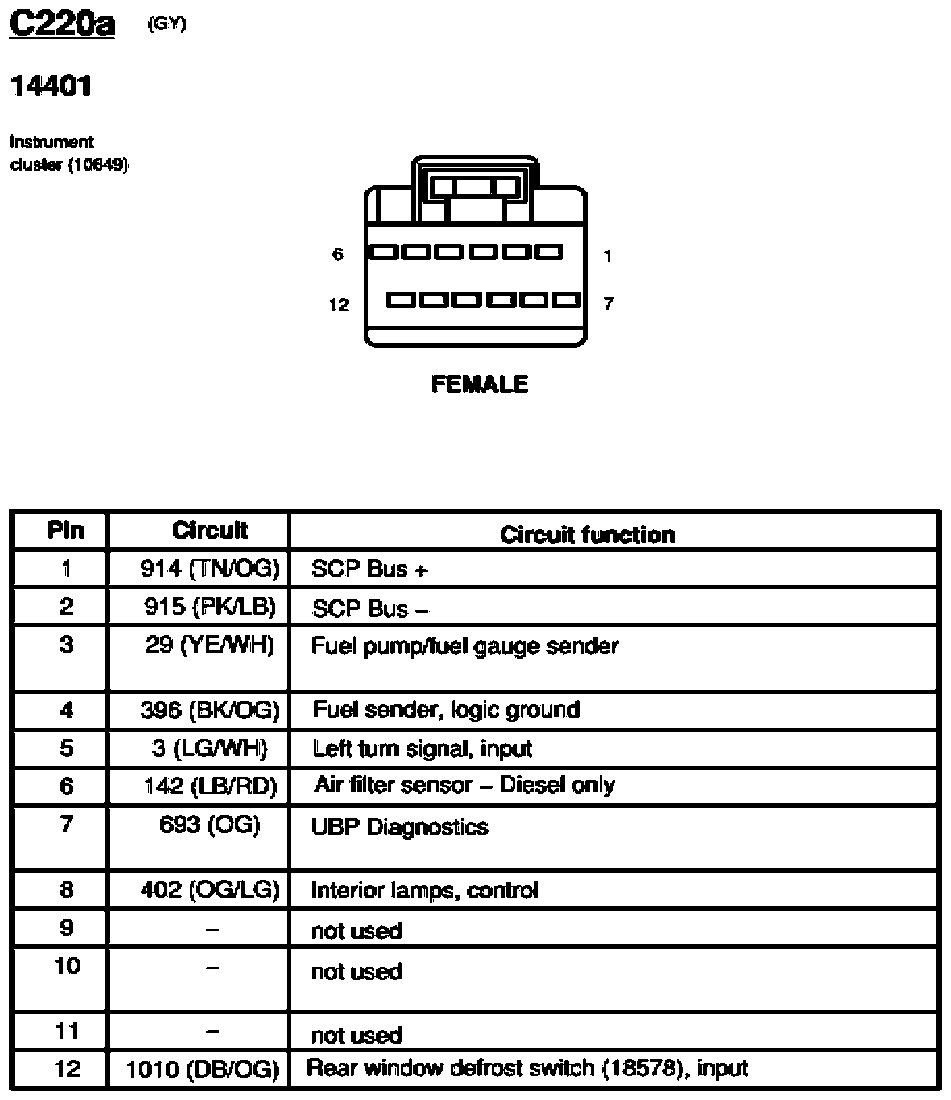

Fig 72: Instrument Cluster Connector End View (C220a)

G07842285

Courtesy of FORD MOTOR CO.

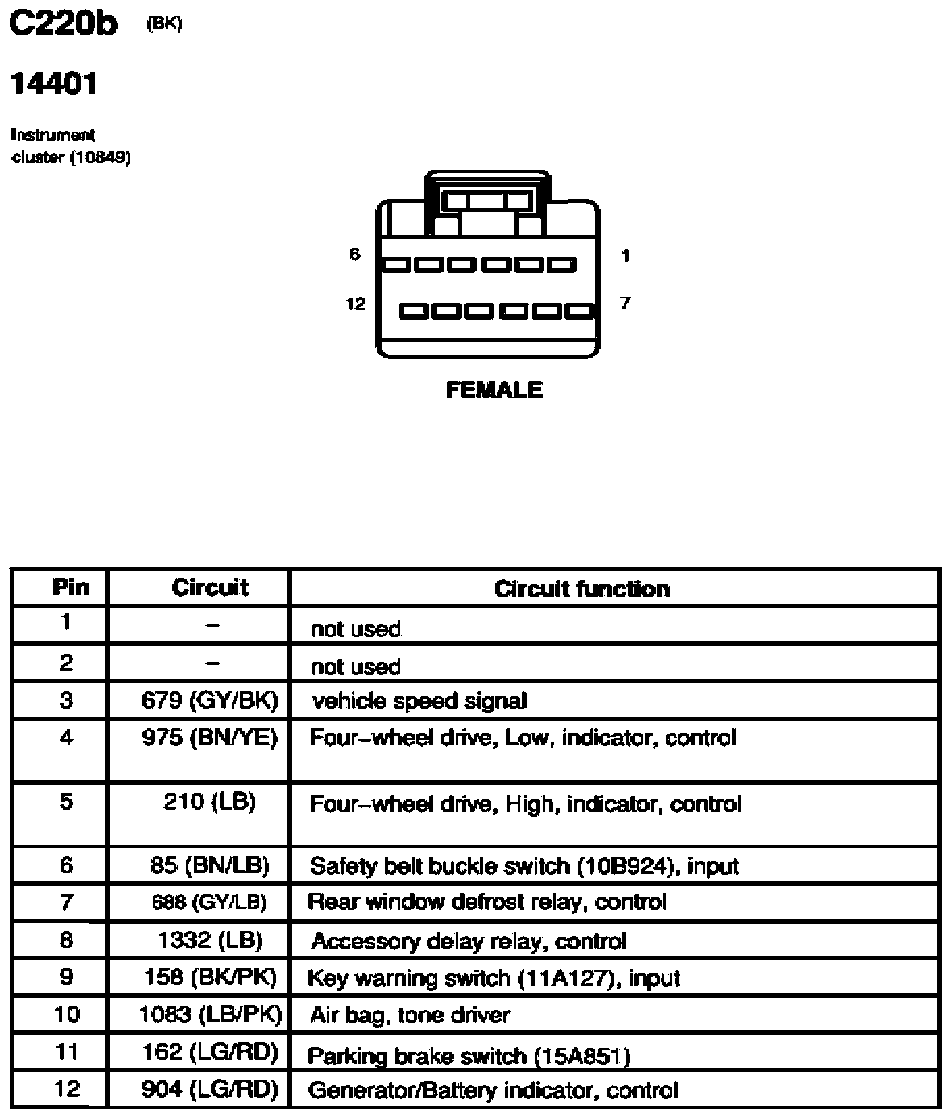

Fig 73: Instrument Cluster Connector End View (C220b)

G07842286

Courtesy of FORD MOTOR CO.

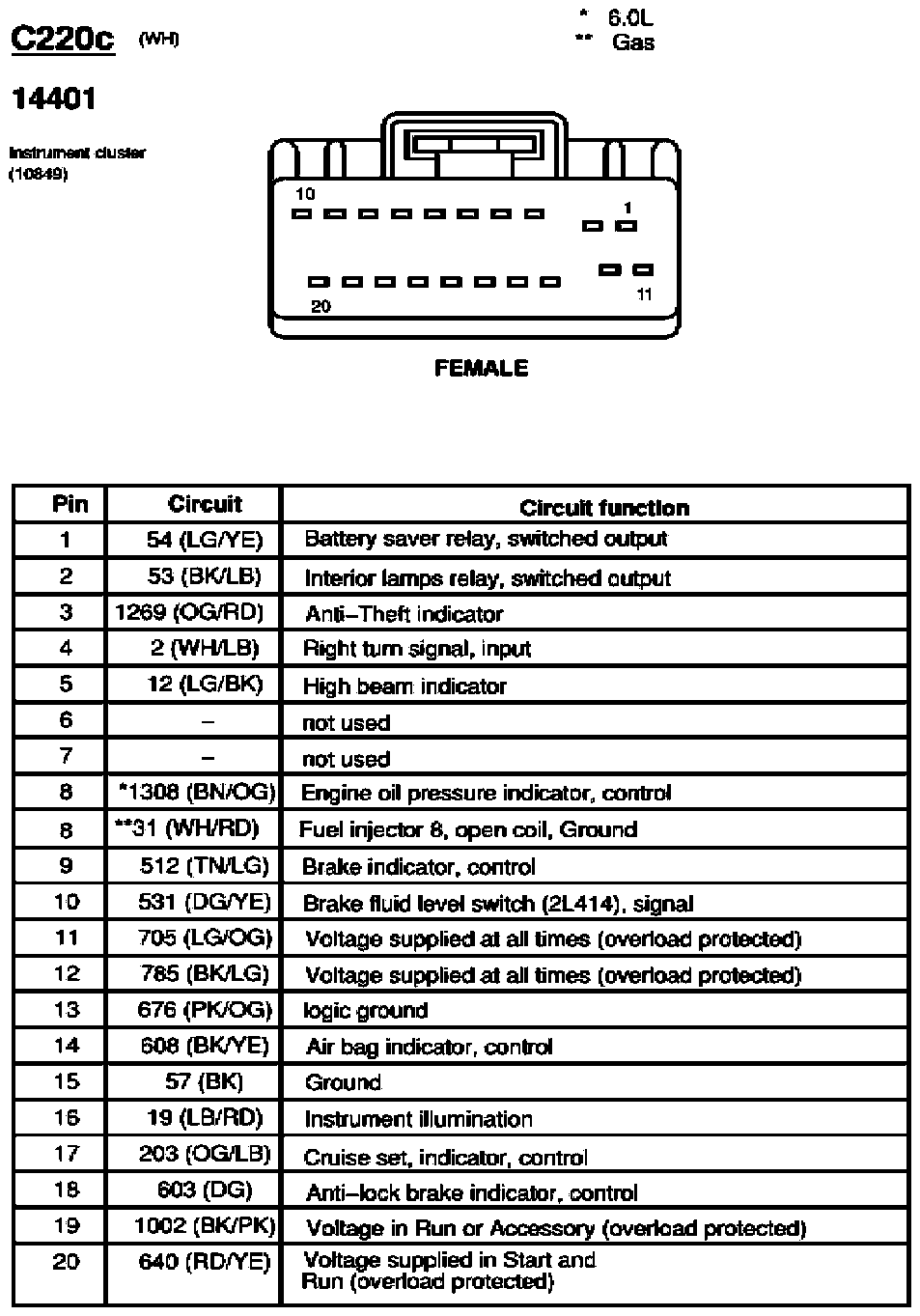

Fig 74: Instrument Cluster Connector End View (C220c)

G07842287

Courtesy of FORD MOTOR CO.

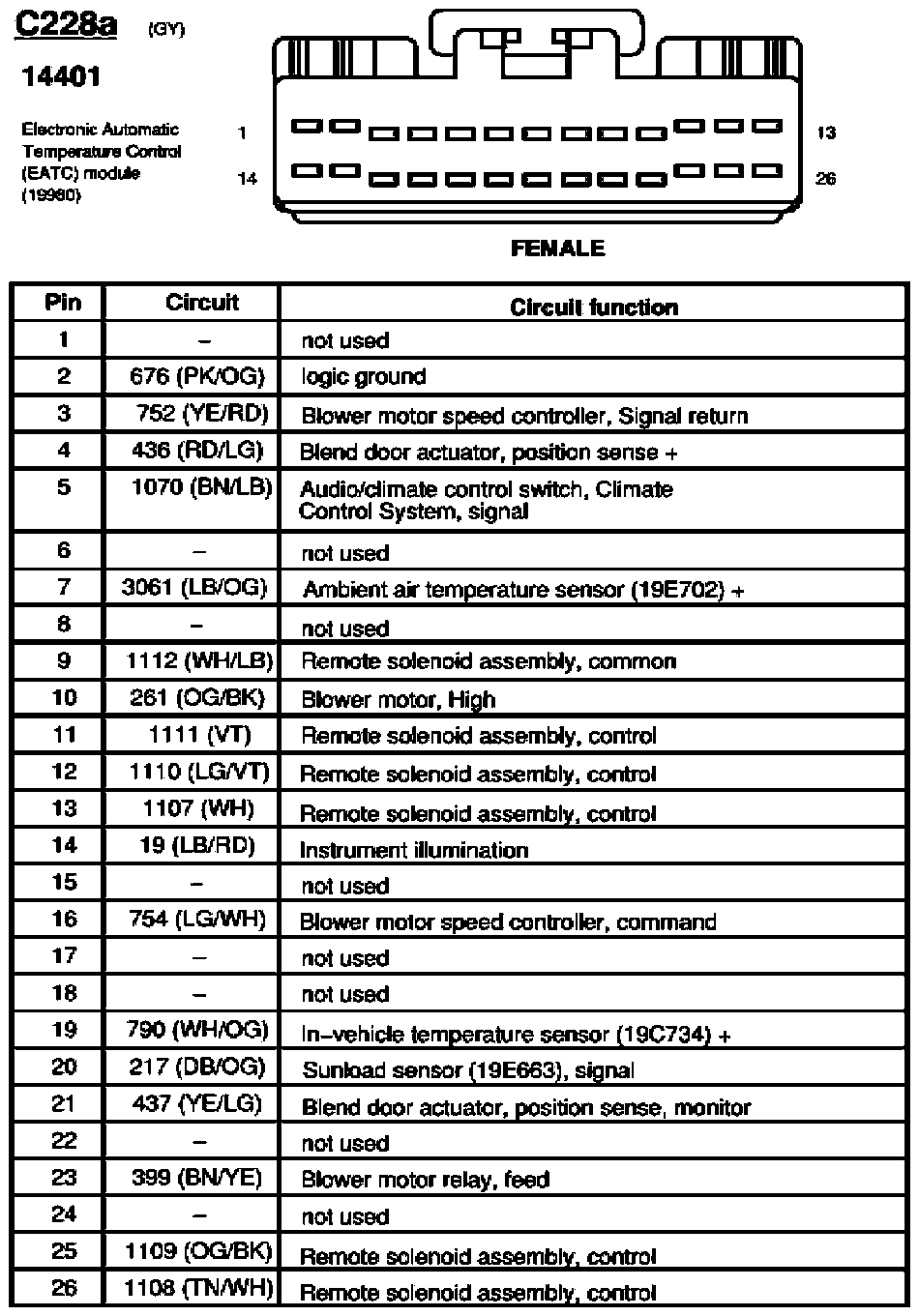

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G07842288

Courtesy of FORD MOTOR CO.

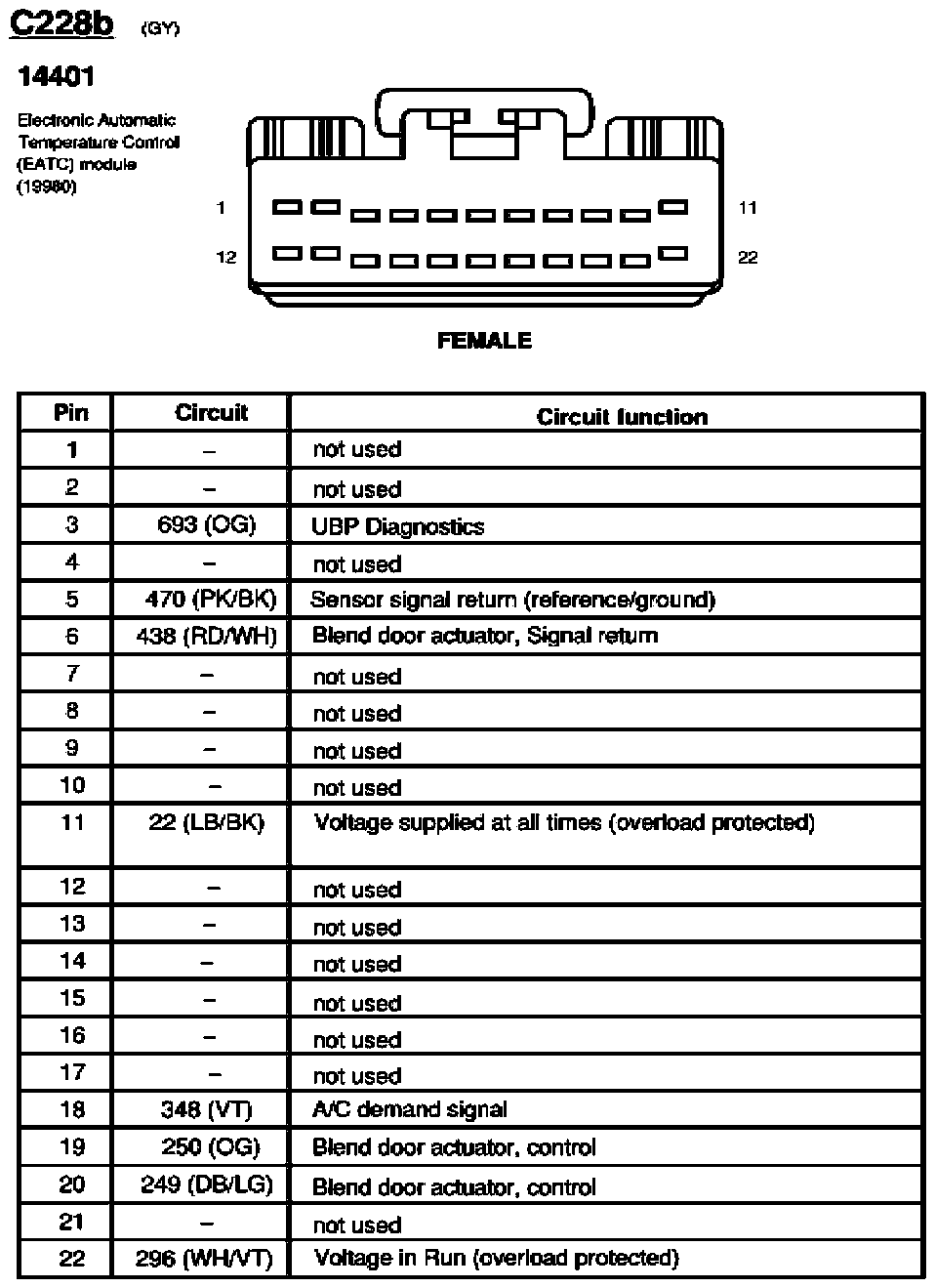

Fig 76: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G07842289

Courtesy of FORD MOTOR CO.

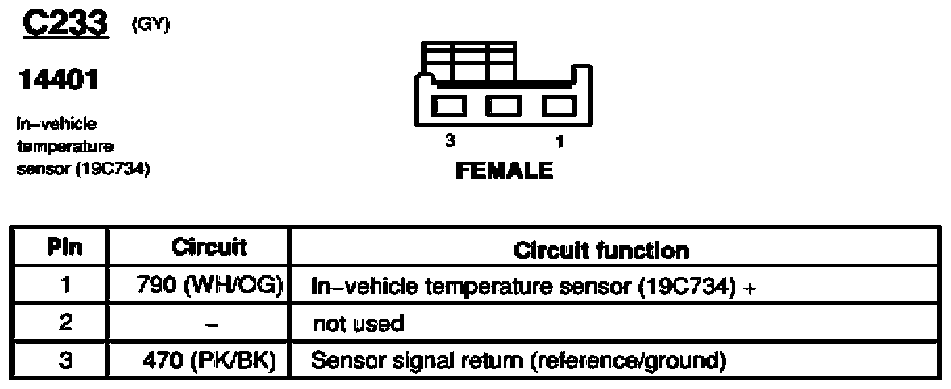

Fig 77: In-Vehicle Temperature Sensor Connector End View (C233)

G07842290

Courtesy of FORD MOTOR CO.

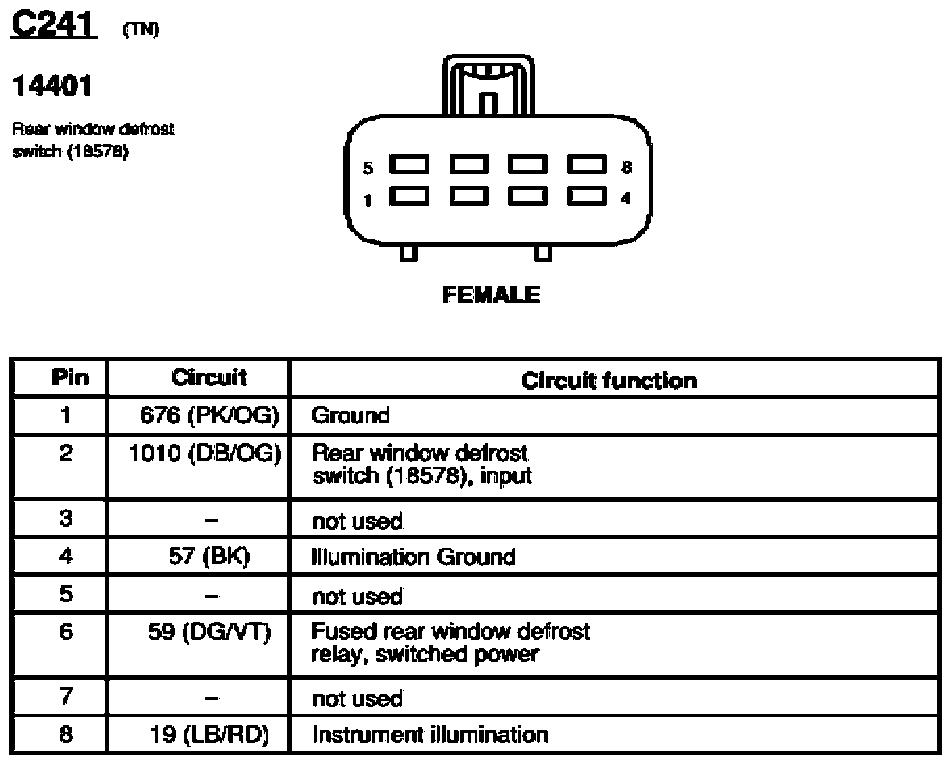

Fig 78: Rear Window Defrost Switch Connector End View (C241)

G07842291

Courtesy of FORD MOTOR CO.

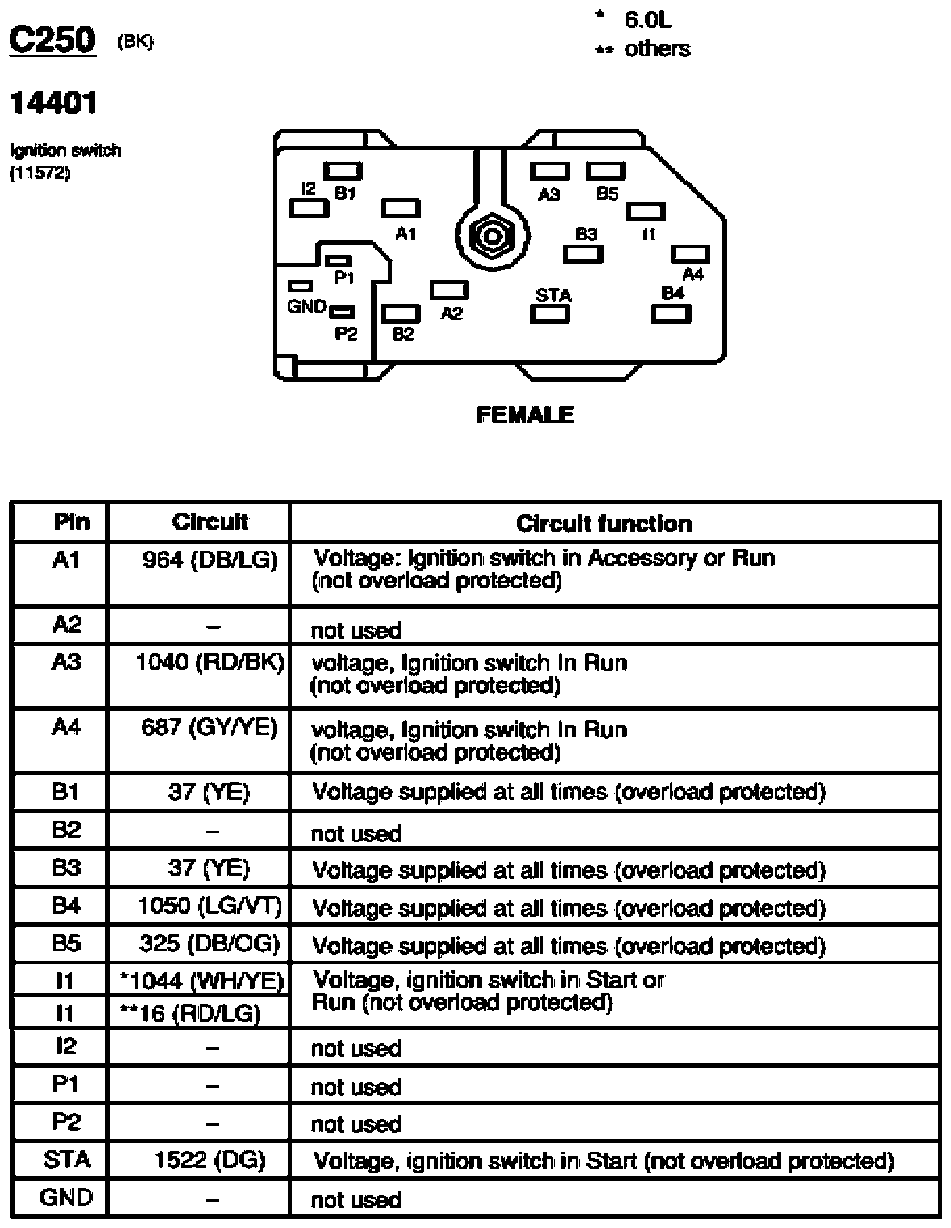

Fig 79: Ignition Switch Connector End View (C250)

G07842292

Courtesy of FORD MOTOR CO.

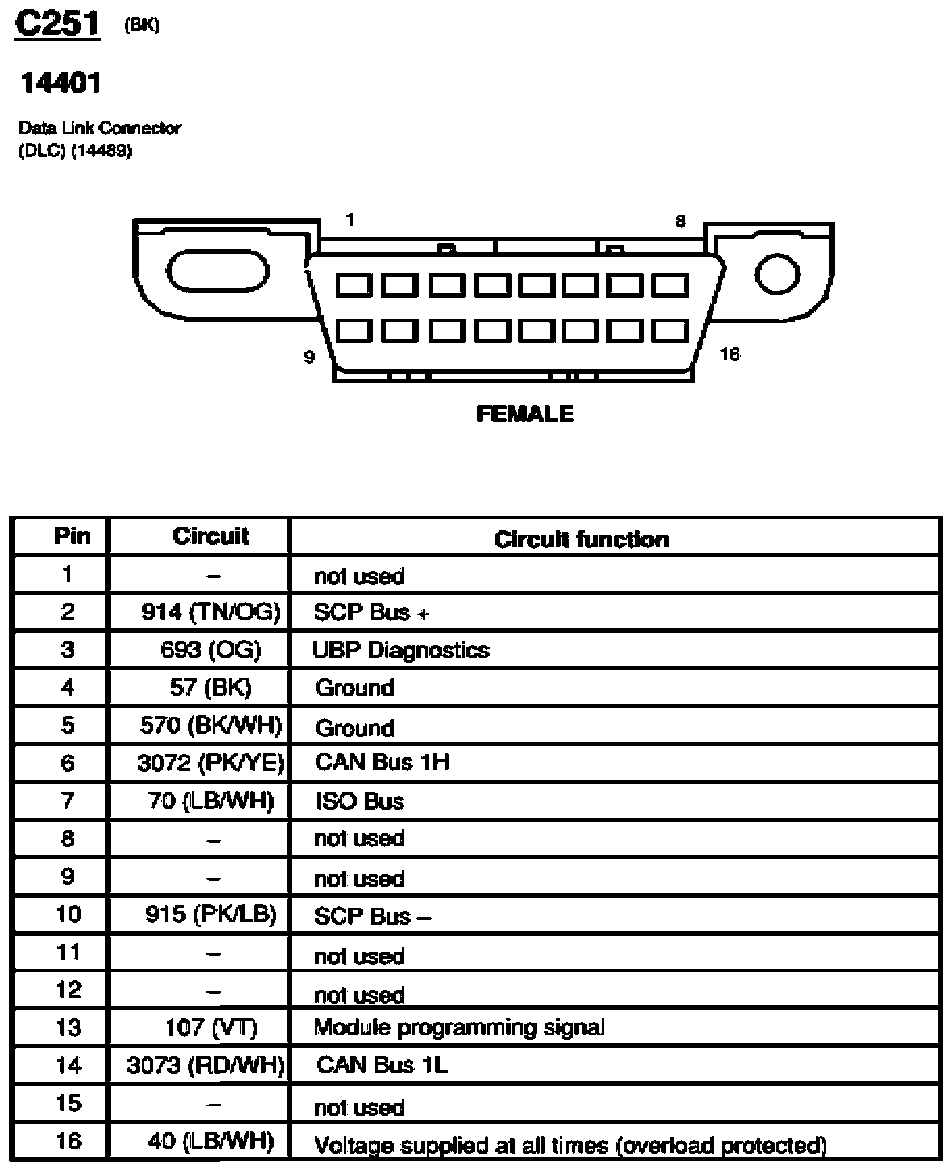

Fig 80: Data Link Connector (DLC) Connector End View (C251)

G07842293

Courtesy of FORD MOTOR CO.

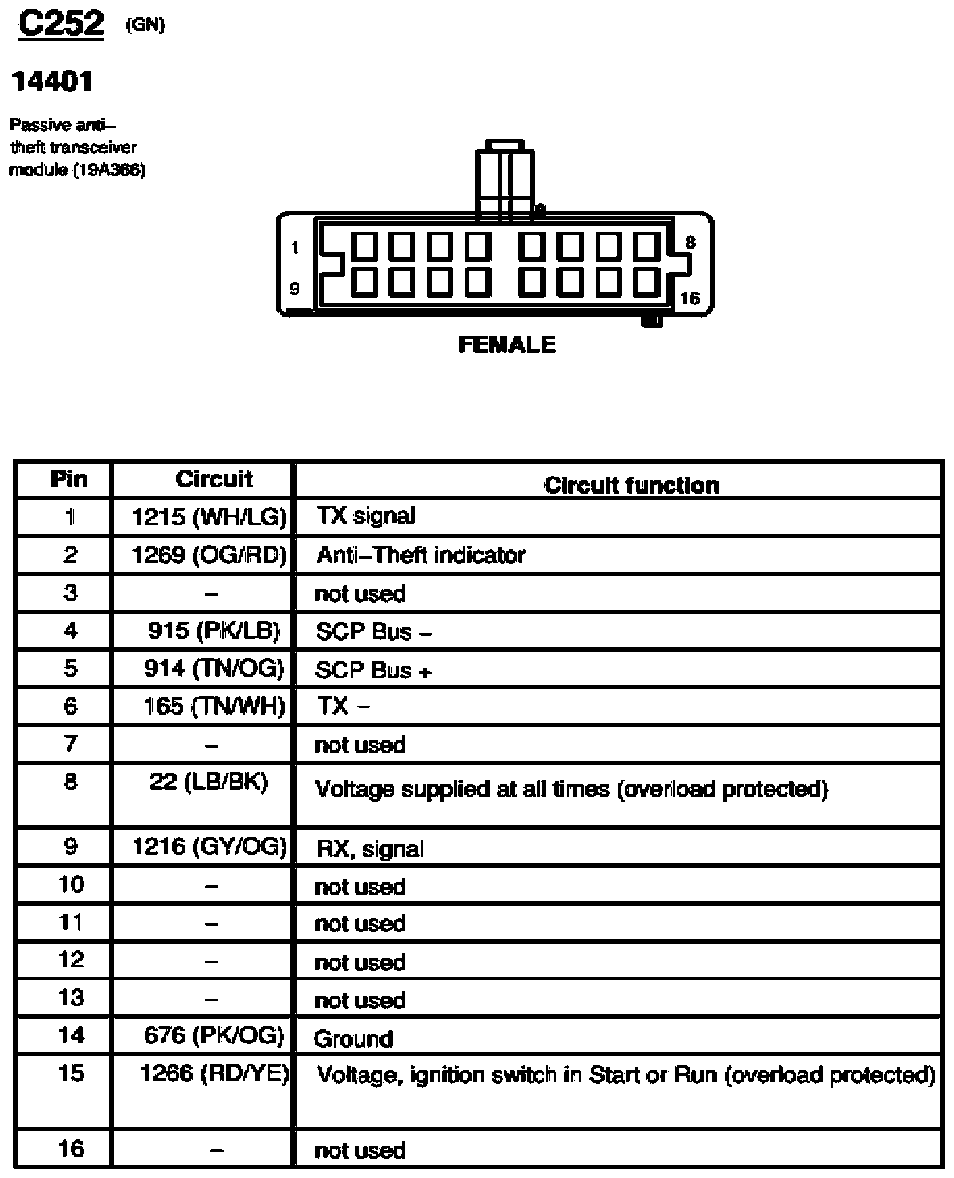

Fig 81: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07842294

Courtesy of FORD MOTOR CO.

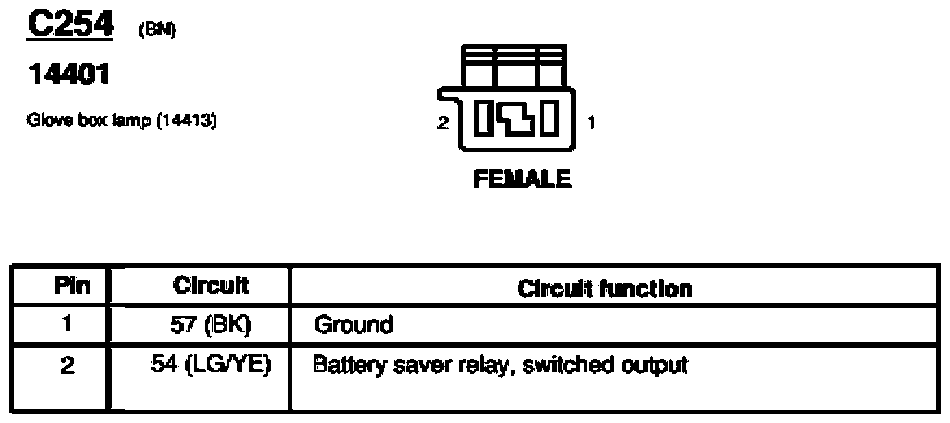

Fig 82: Glove Box Lamp Connector End View (C254)

G07842295

Courtesy of FORD MOTOR CO.

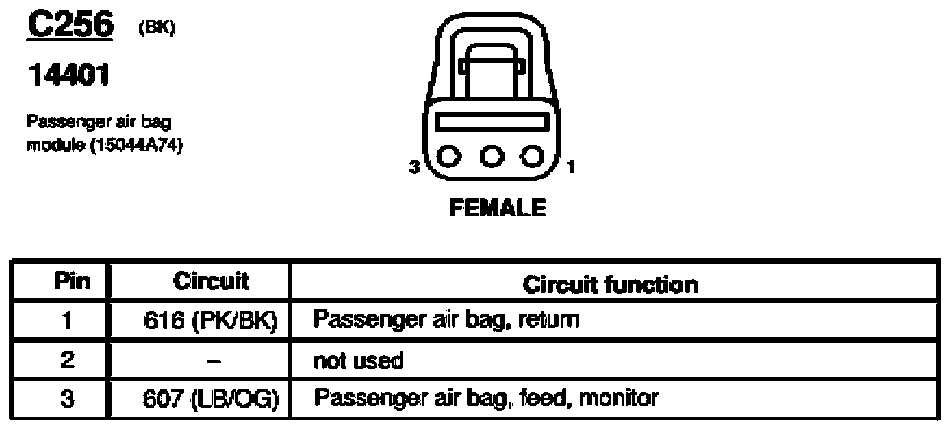

Fig 83: Passenger Air Bag Module Connector End View (C256)

G07842296

Courtesy of FORD MOTOR CO.

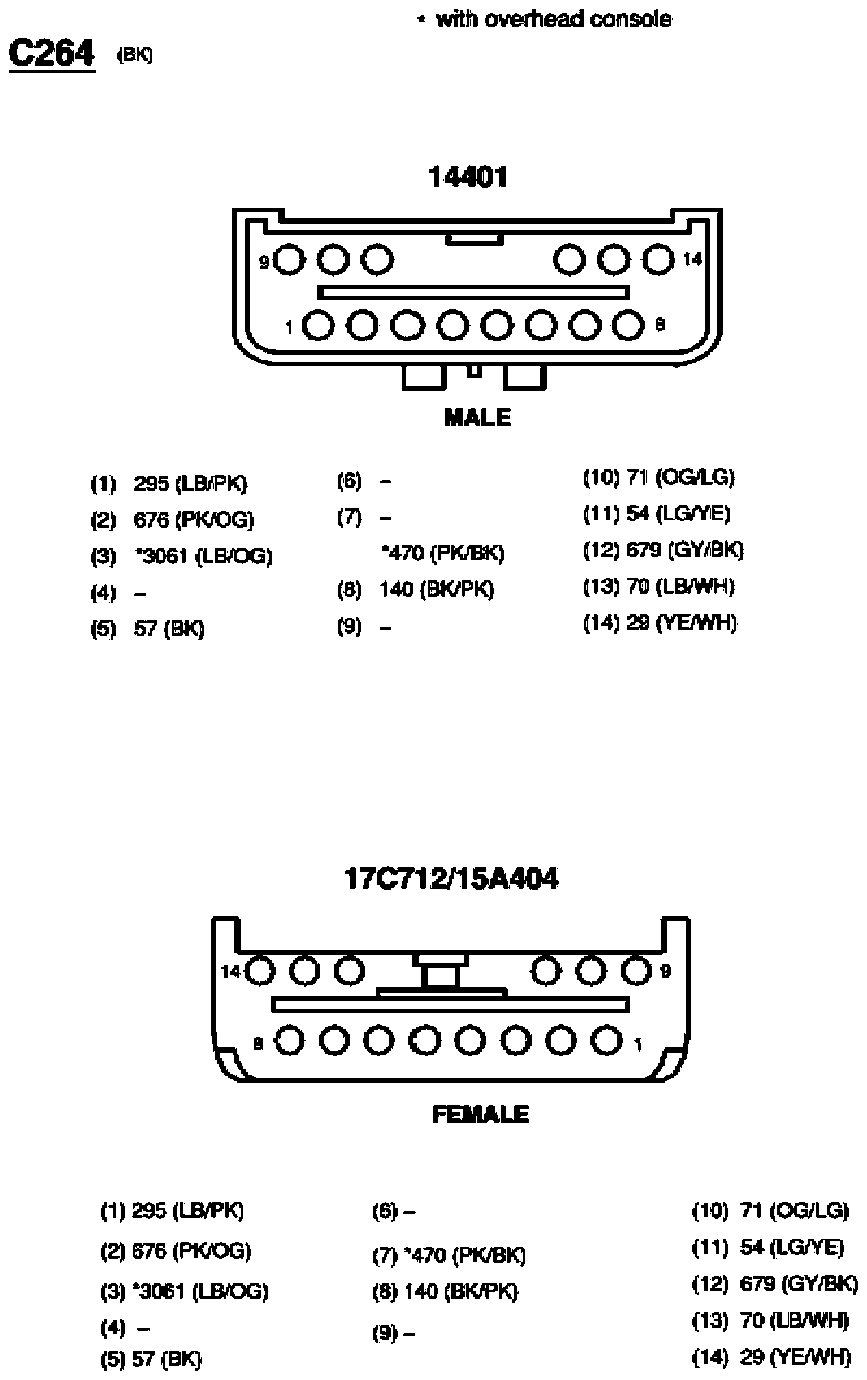

Fig 84: Inline Connector End View (C264)

G07842297

Courtesy of FORD MOTOR CO.

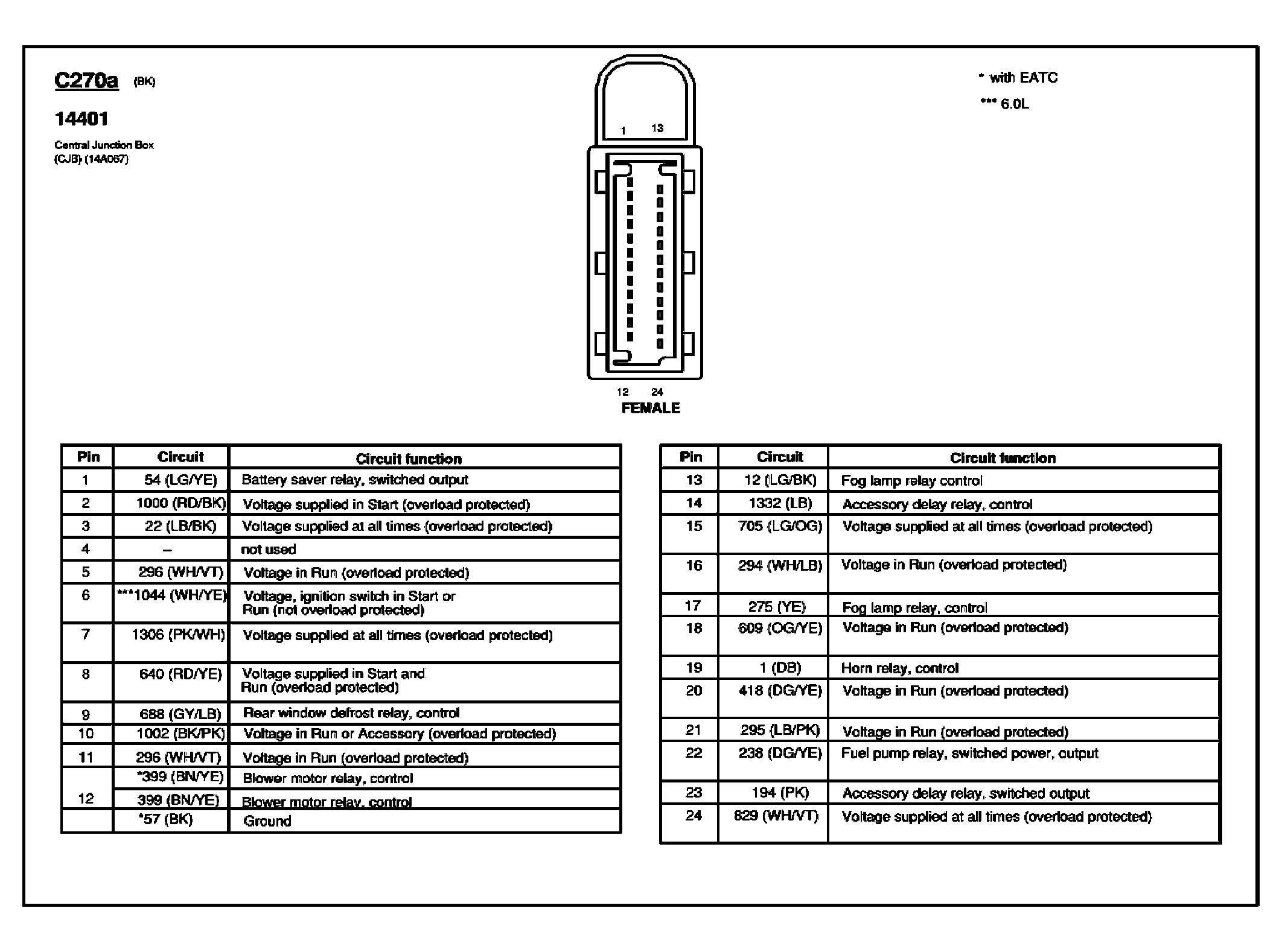

Fig 85: Central Junction Box (CJB) Connector End View (C270a)

G03987558

Courtesy of FORD MOTOR CO.

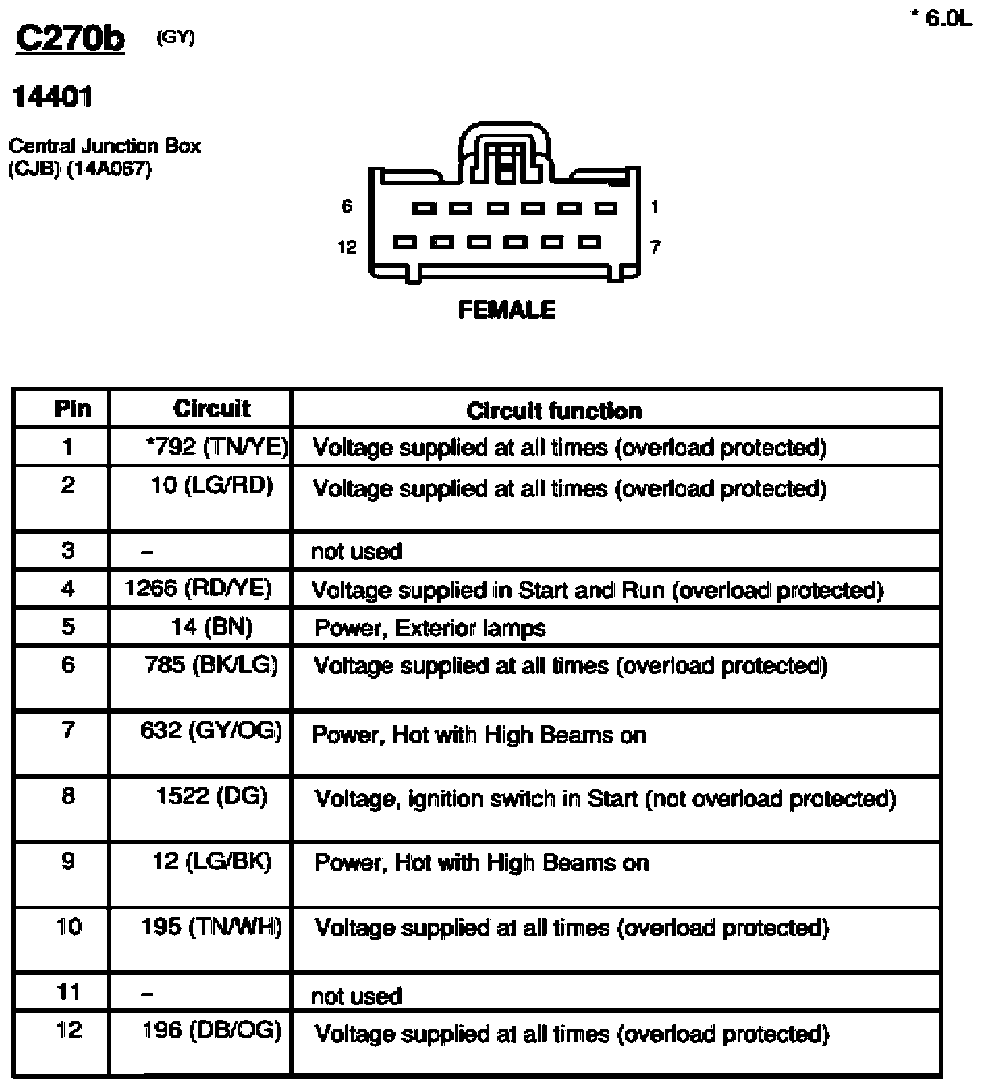

Fig 86: Central Junction Box (CJB) Connector End View (C270b)

G07842298

Courtesy of FORD MOTOR CO.

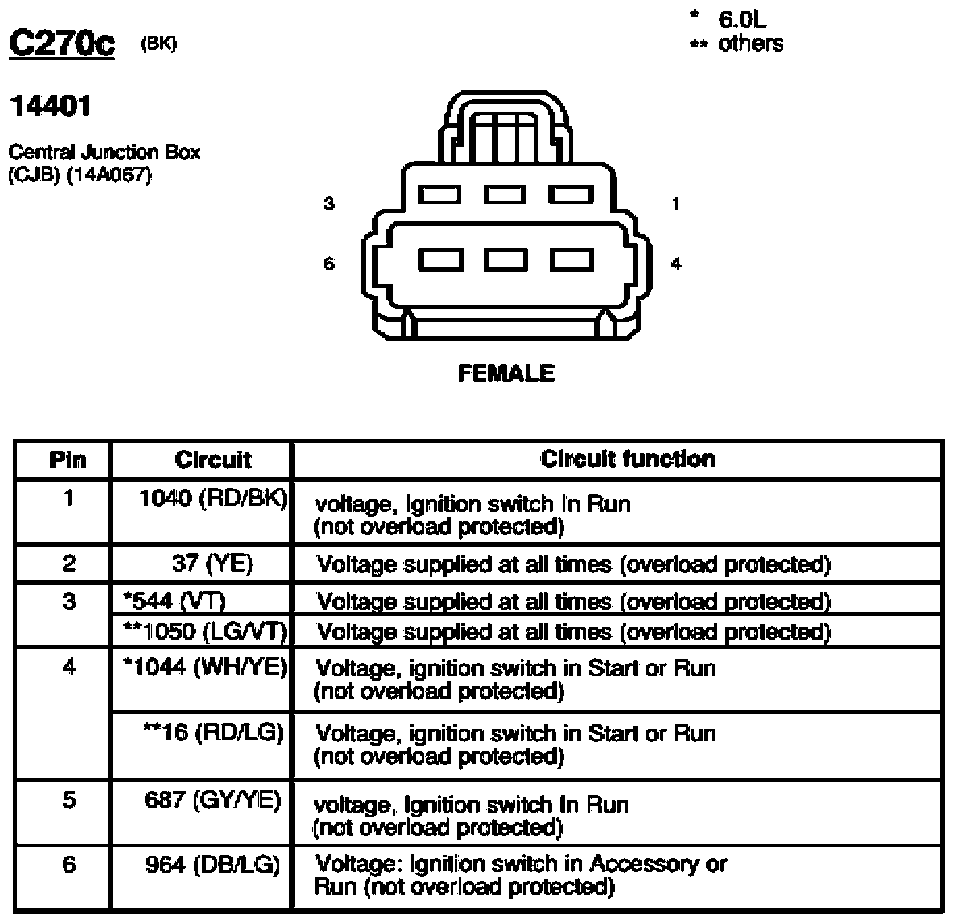

Fig 87: Central Junction Box (CJB) Connector End View (C270c)

G07842299

Courtesy of FORD MOTOR CO.

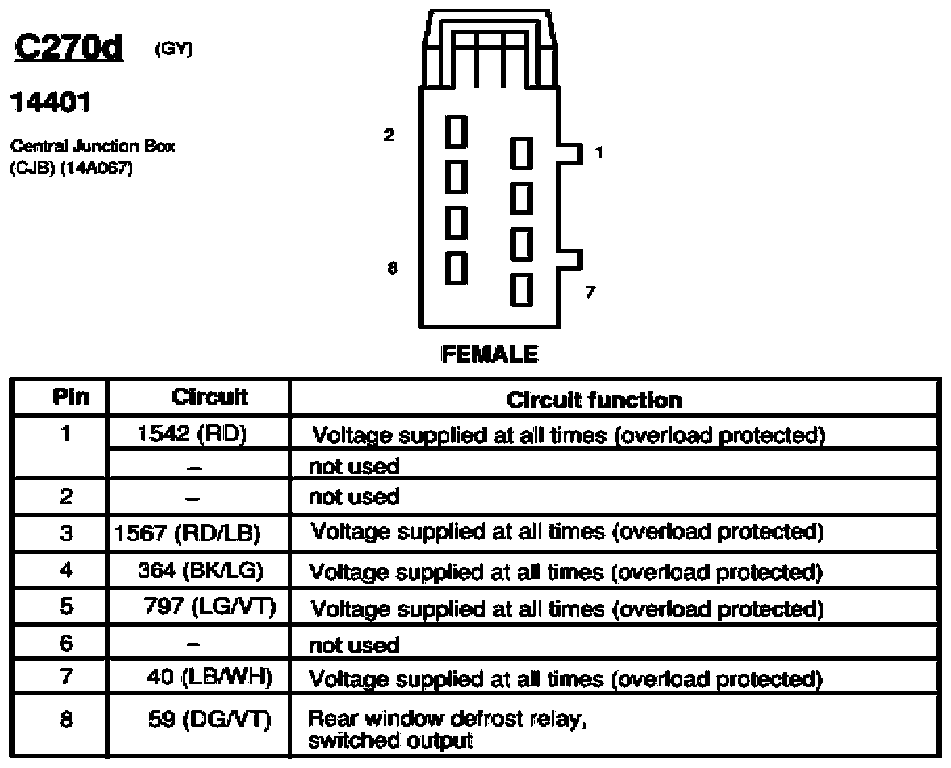

Fig 88: Central Junction Box (CJB) Connector End View (C270d)

G07842300

Courtesy of FORD MOTOR CO.

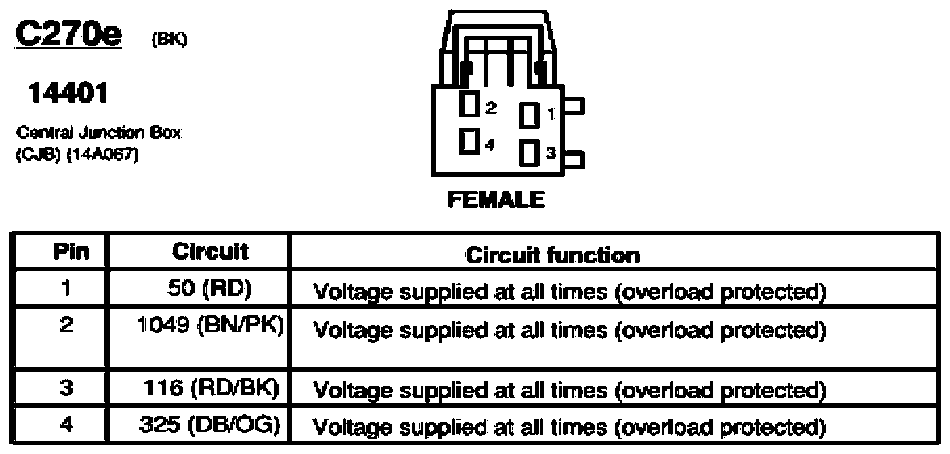

Fig 89: Central Junction Box (CJB) Connector End View (C270e)

G07842301

Courtesy of FORD MOTOR CO.

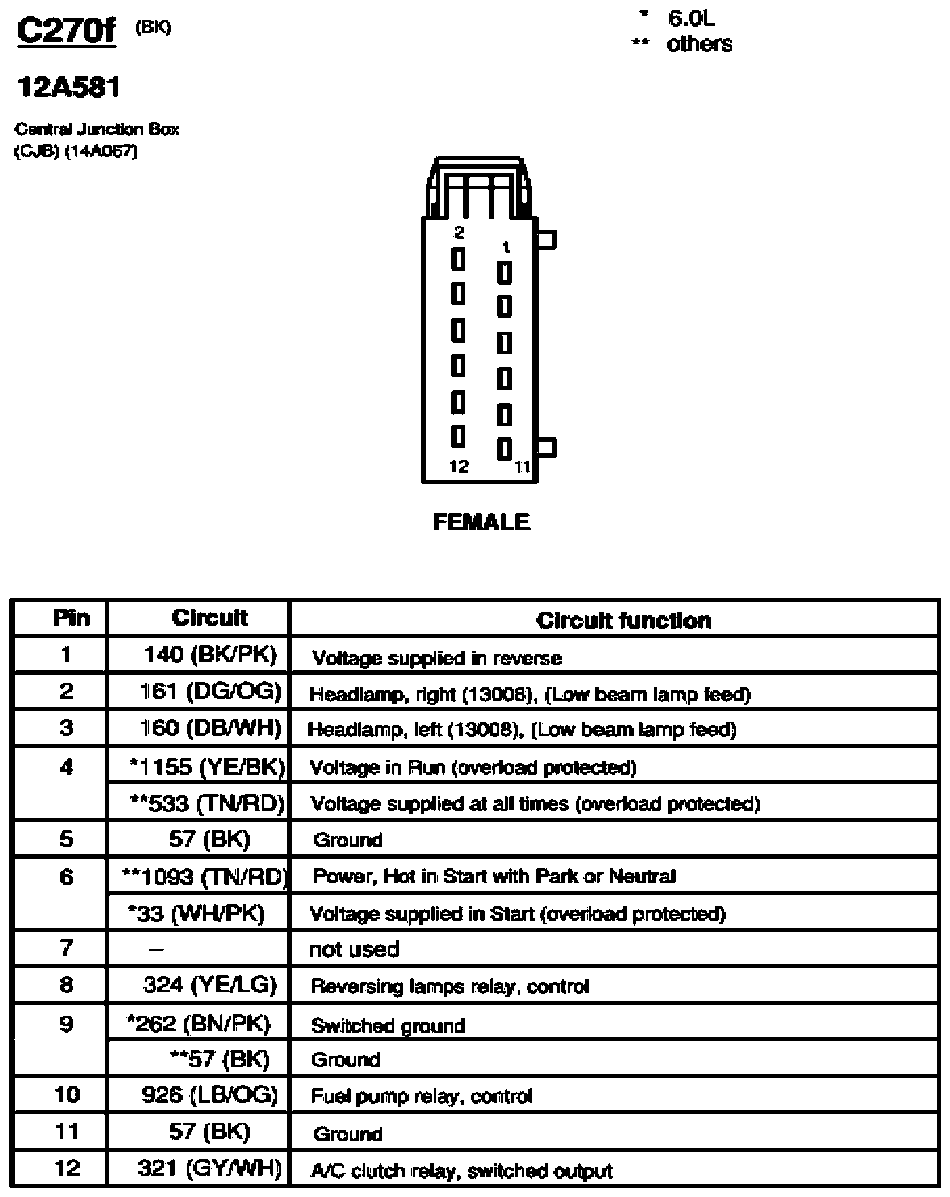

Fig 90: Central Junction Box (CJB) Connector End View (C270f)

G07842302

Courtesy of FORD MOTOR CO.

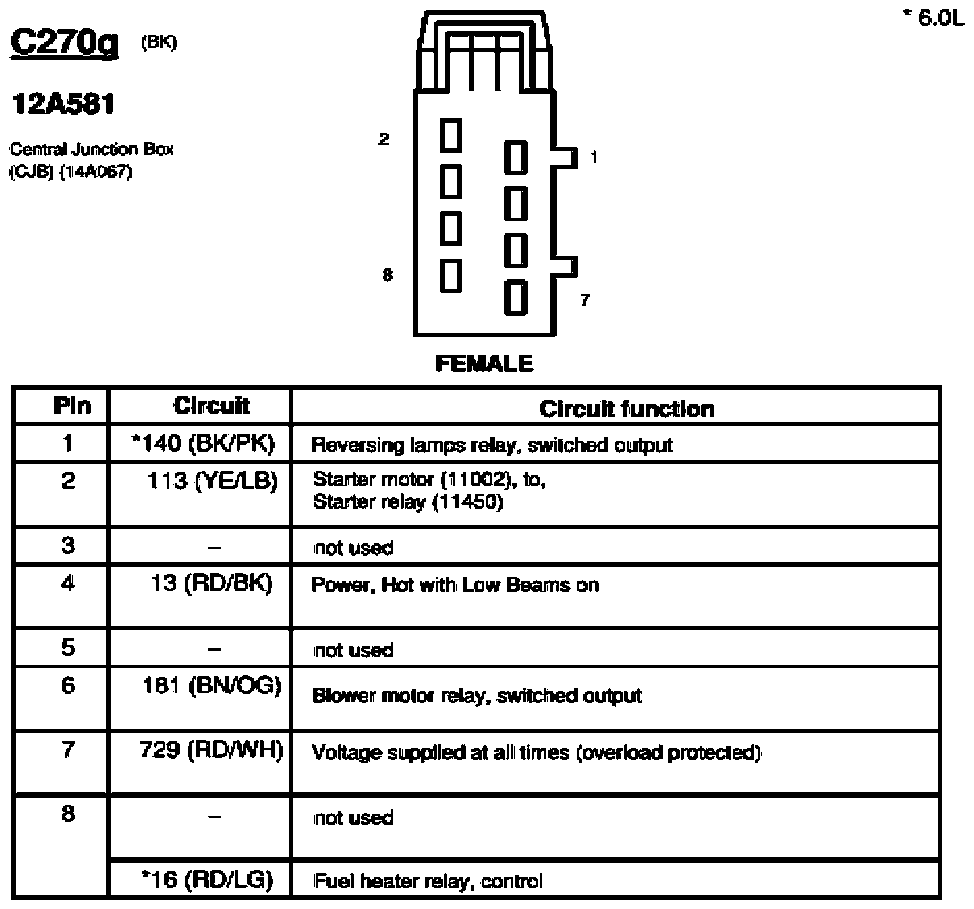

Fig 91: Central Junction Box (CJB) Connector End View (C270g)

G07842303

Courtesy of FORD MOTOR CO.

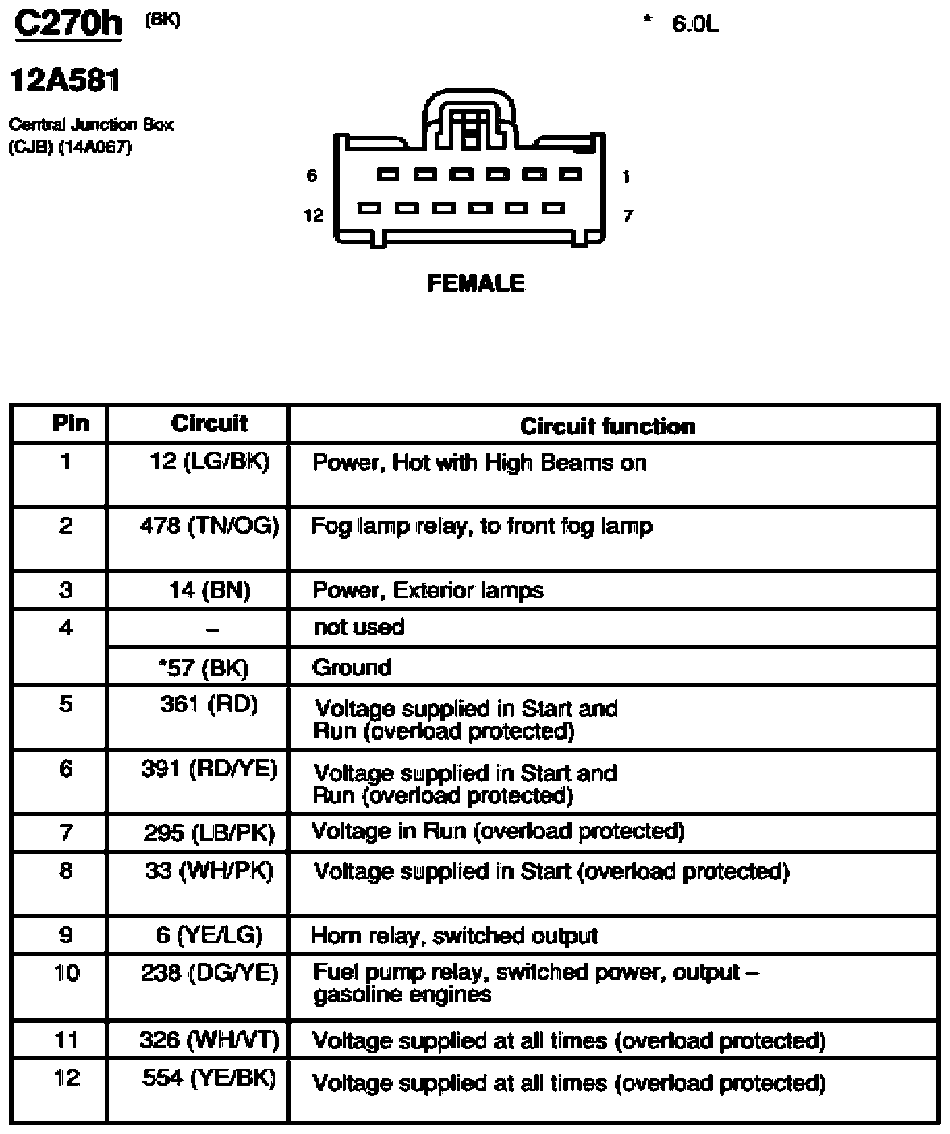

Fig 92: Central Junction Box (CJB) Connector End View (C270h)

G07842304

Courtesy of FORD MOTOR CO.

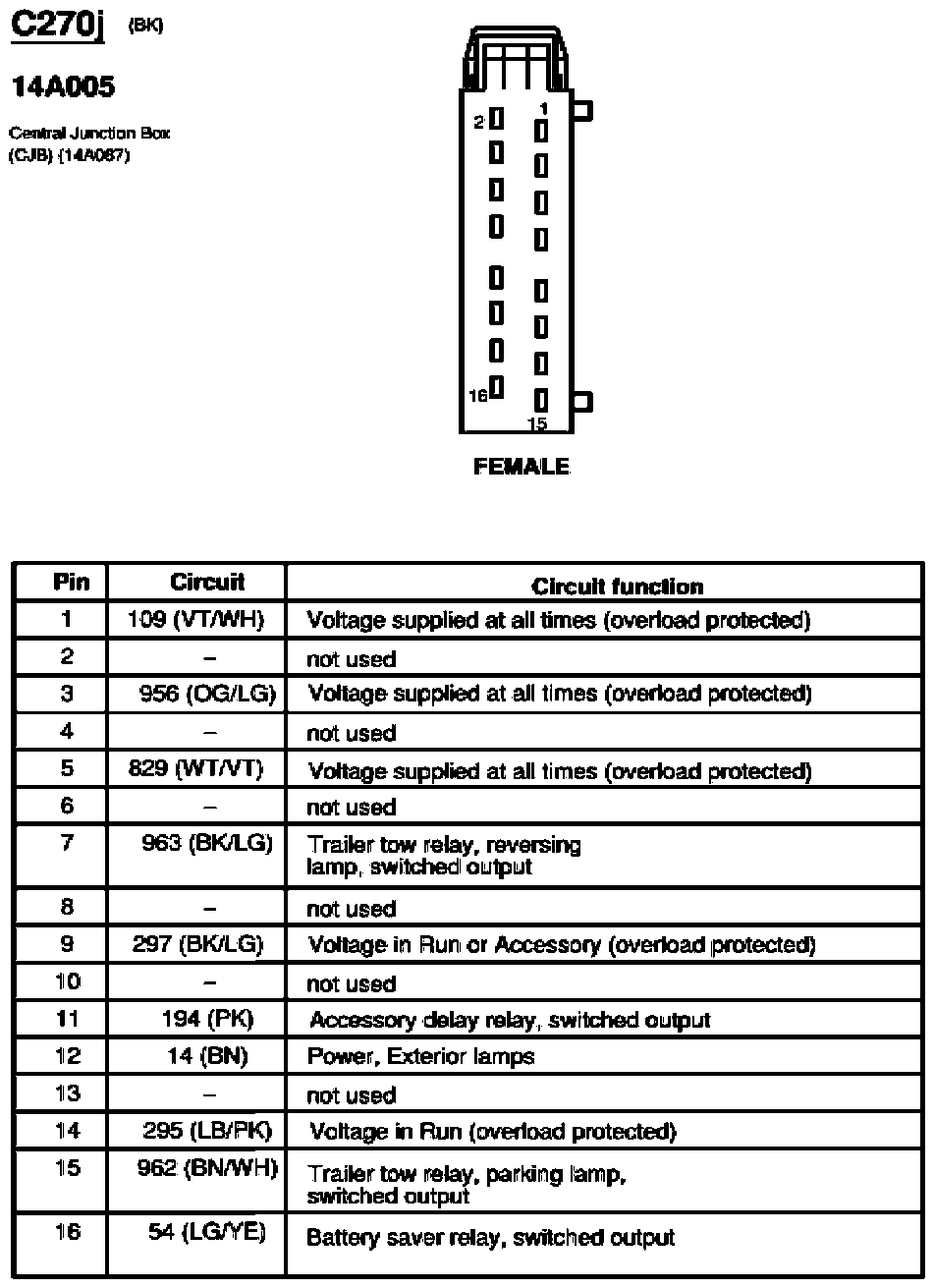

Fig 93: Central Junction Box (CJB) Connector End View (C270j)

G07842305

Courtesy of FORD MOTOR CO.

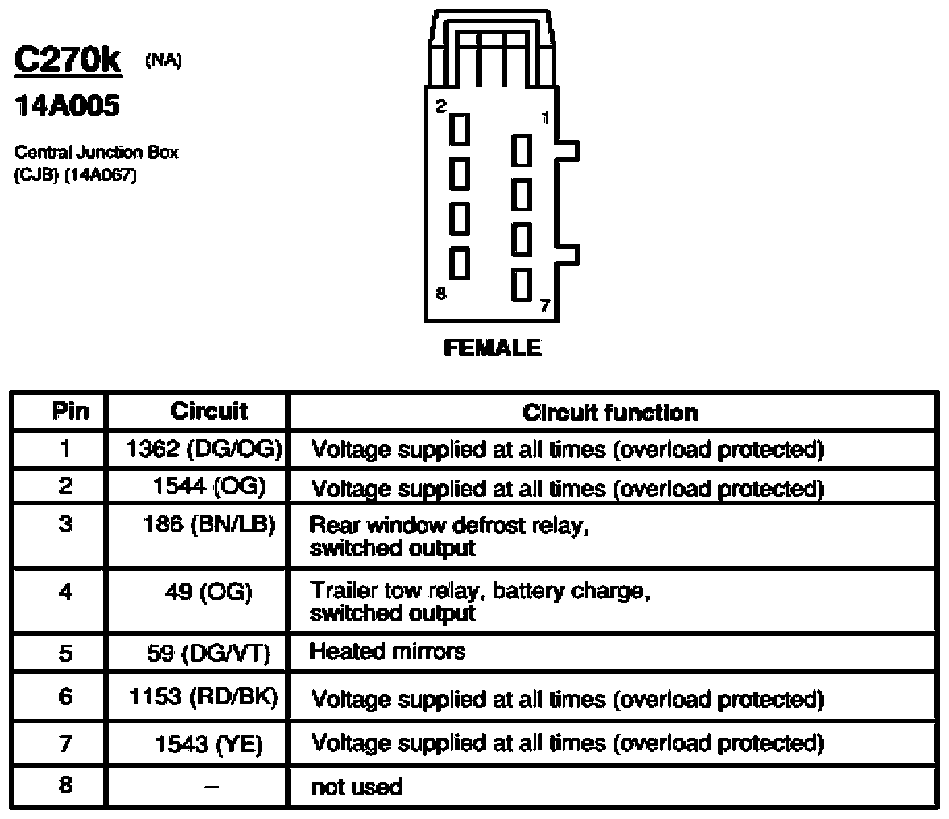

Fig 94: Central Junction Box (CJB) Connector End View (C270k)

G07842306

Courtesy of FORD MOTOR CO.

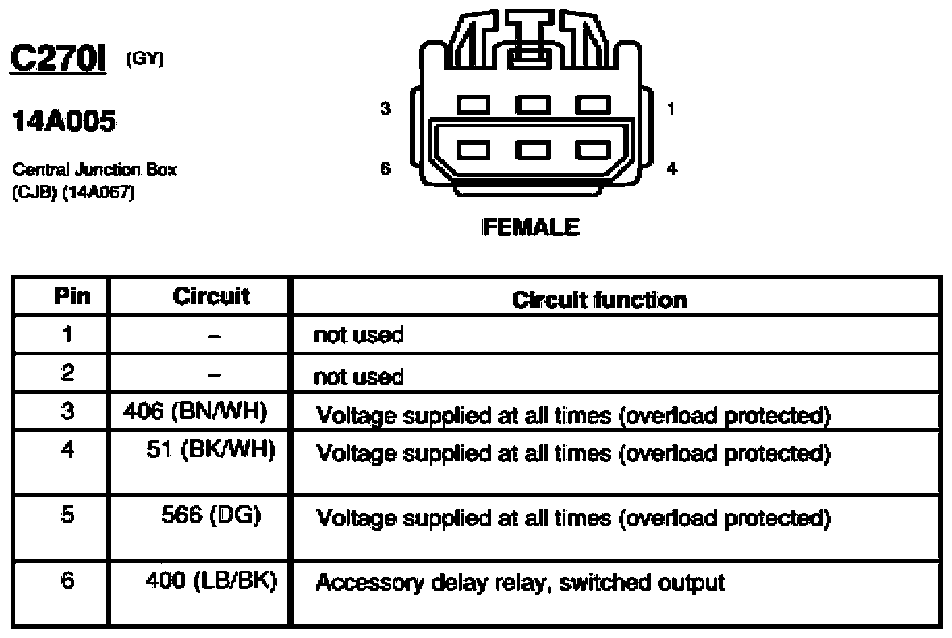

Fig 95: Central Junction Box (CJB) Connector End View (C270l)

G07842307

Courtesy of FORD MOTOR CO.

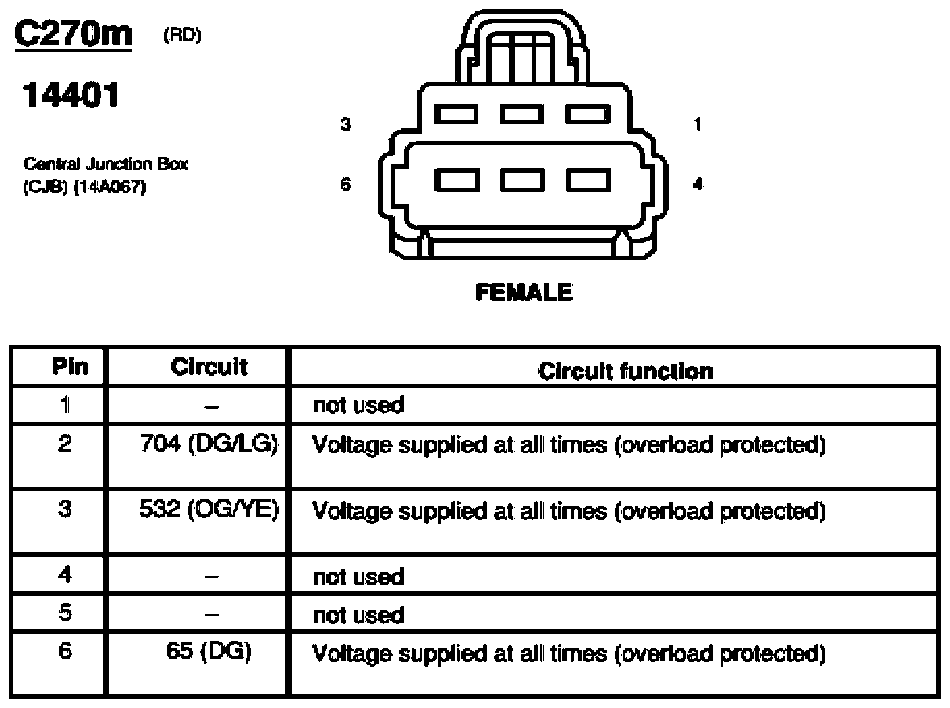

Fig 96: Central Junction Box (CJB) Connector End View (C270m)

G07842308

Courtesy of FORD MOTOR CO.

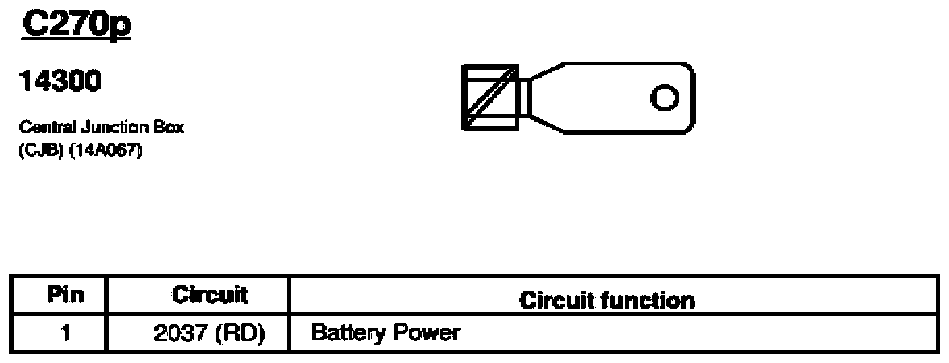

Fig 97: Central Junction Box (CJB) Connector End View (C270p)

G07842309

Courtesy of FORD MOTOR CO.

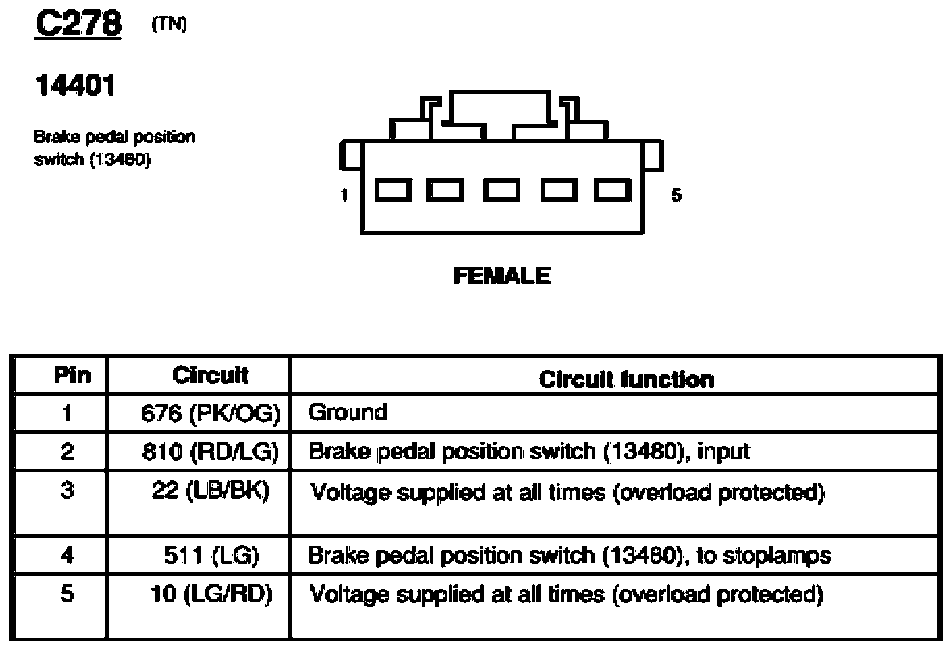

Fig 98: Brake Pedal Position Switch Connector End View (C278)

G07842310

Courtesy of FORD MOTOR CO.

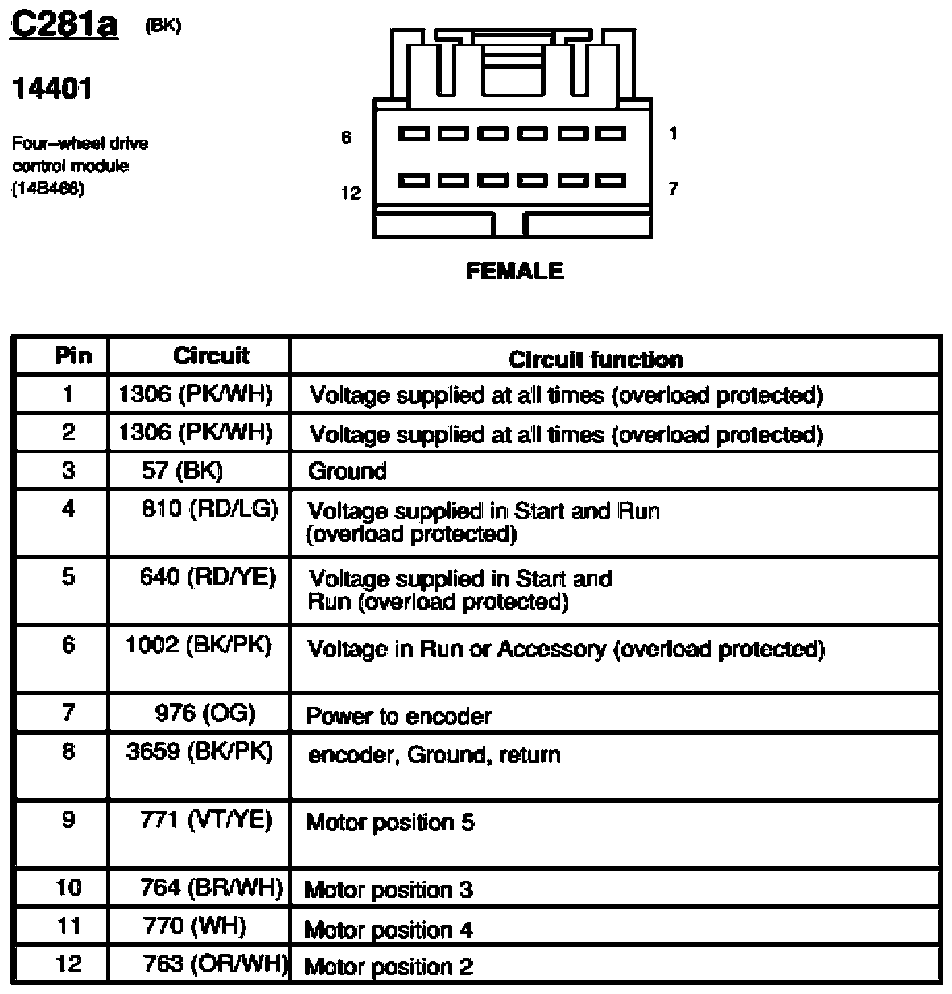

Fig 99: Four-Wheel Drive Control Module Connector End View (C281a)

G07842311

Courtesy of FORD MOTOR CO.

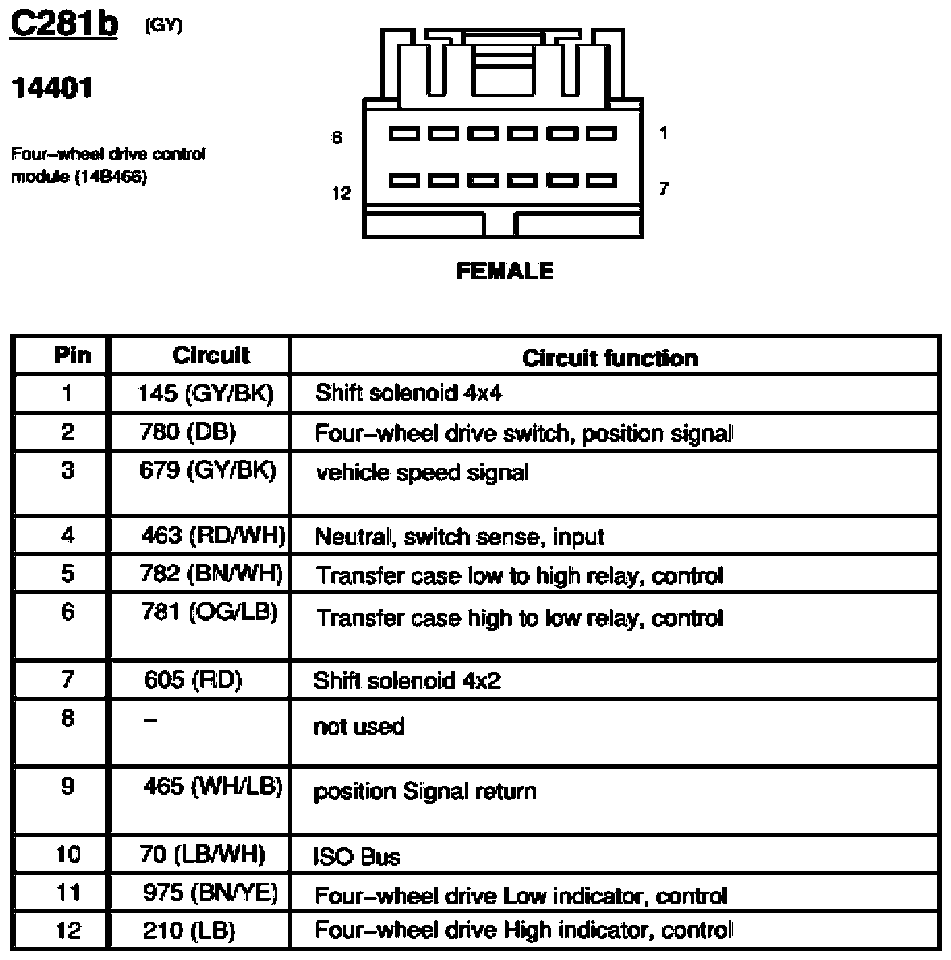

Fig 100: Four-Wheel Drive Control Module Connector End View (C281b)

G07842312

Courtesy of FORD MOTOR CO.

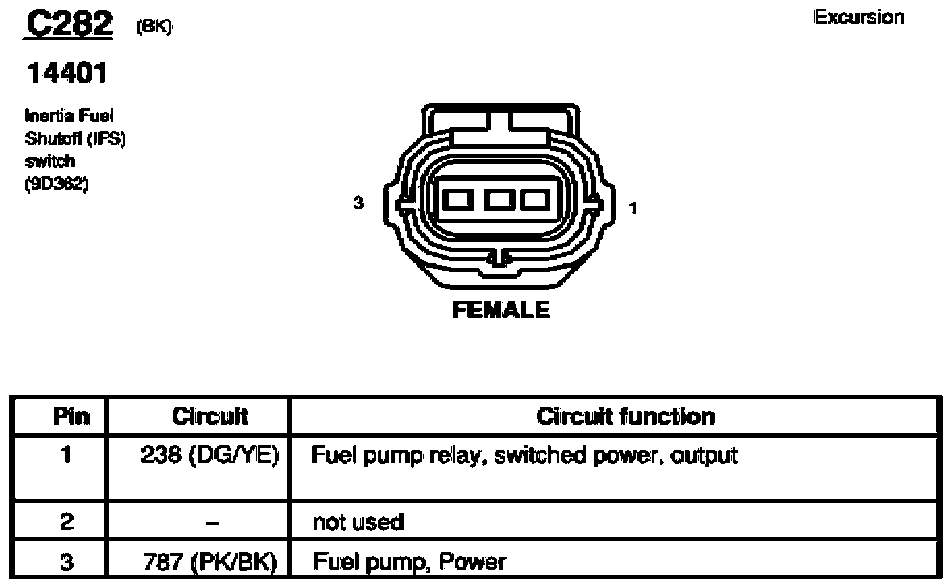

Fig 101: Inertia Fuel Shutoff (IFS, Switch) Connector End View (C282)

G07842313

Courtesy of FORD MOTOR CO.

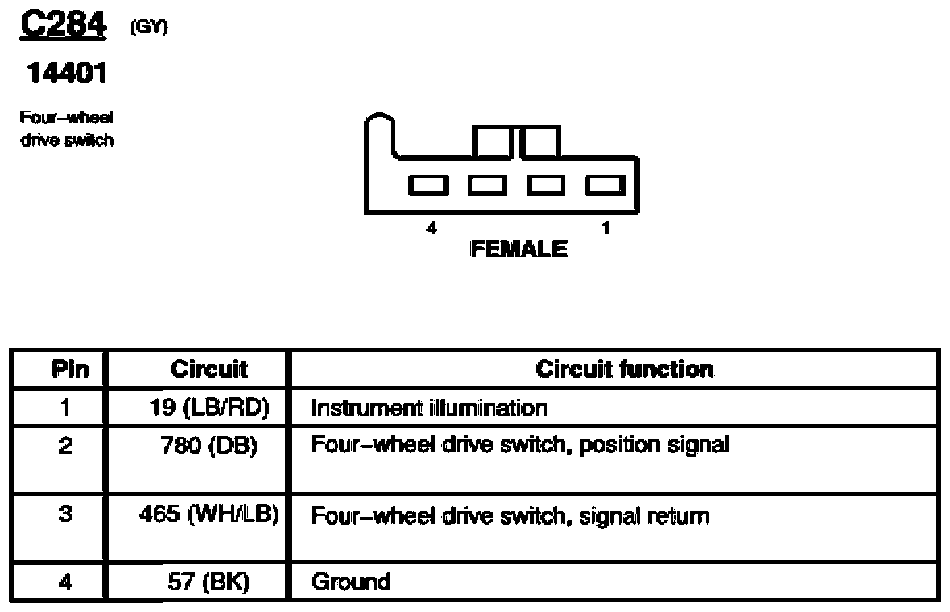

Fig 102: Four-Wheel Drive Switch Connector End View (C284)

G07842314

Courtesy of FORD MOTOR CO.

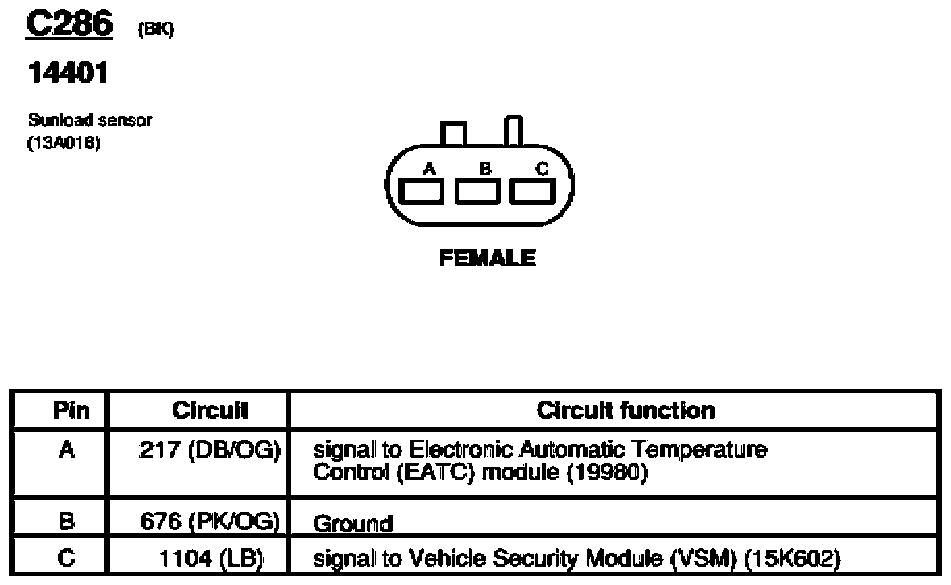

Fig 103: Sunload Sensor Connector End View (C286)

G07842315

Courtesy of FORD MOTOR CO.

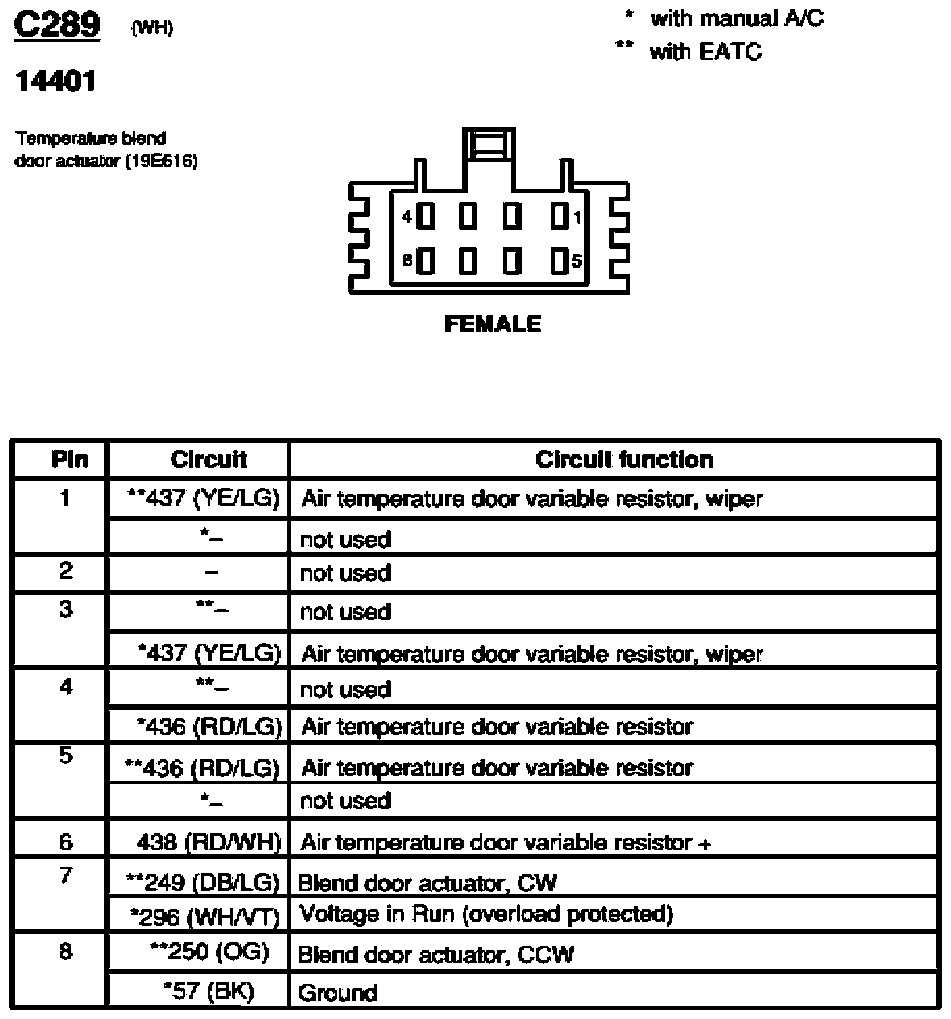

Fig 104: Temperature Blend Door Actuator Connector End View (C289)

G07842316

Courtesy of FORD MOTOR CO.

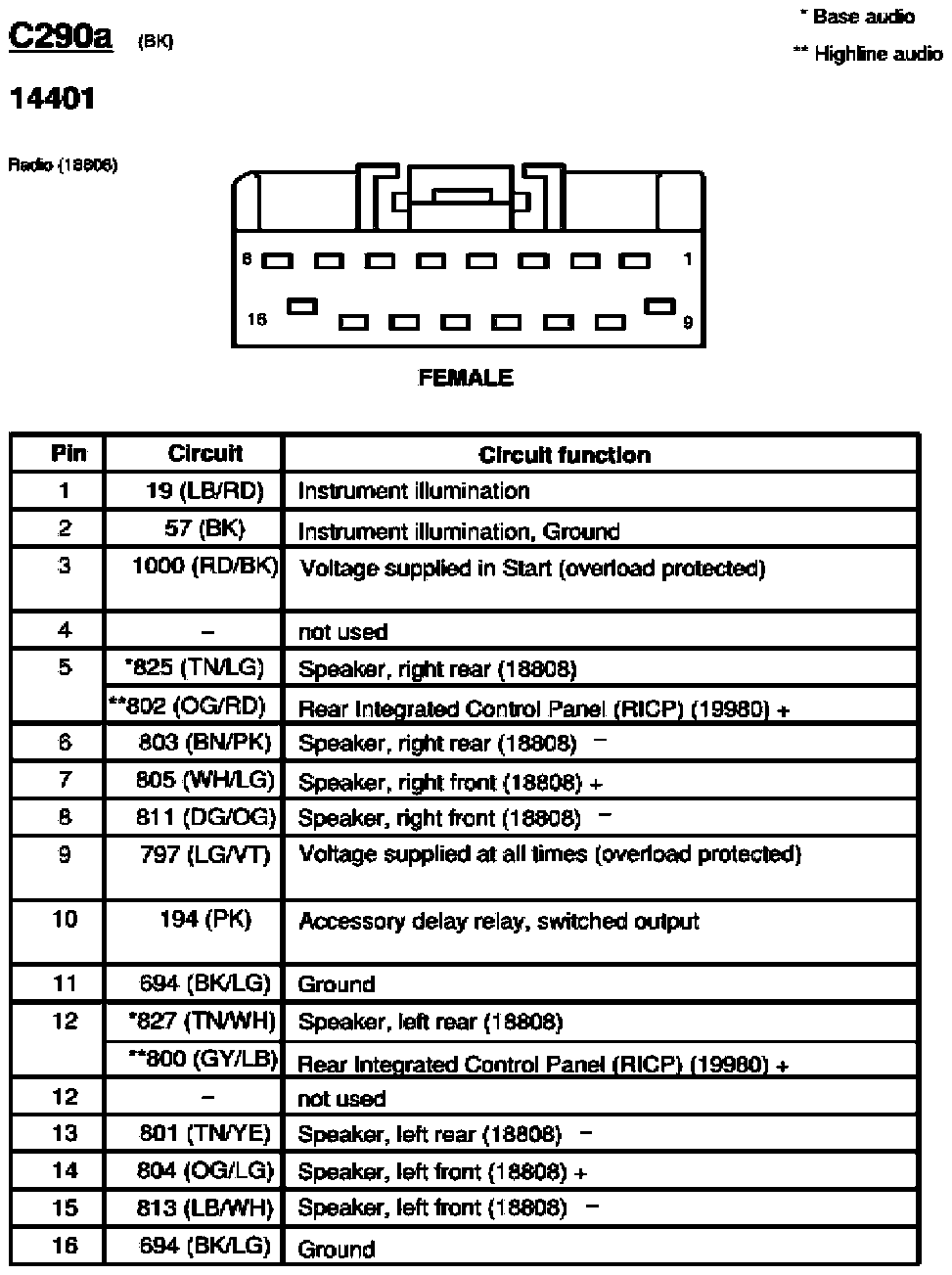

Fig 105: Radio Connector End View (C290a)

G07842317

Courtesy of FORD MOTOR CO.

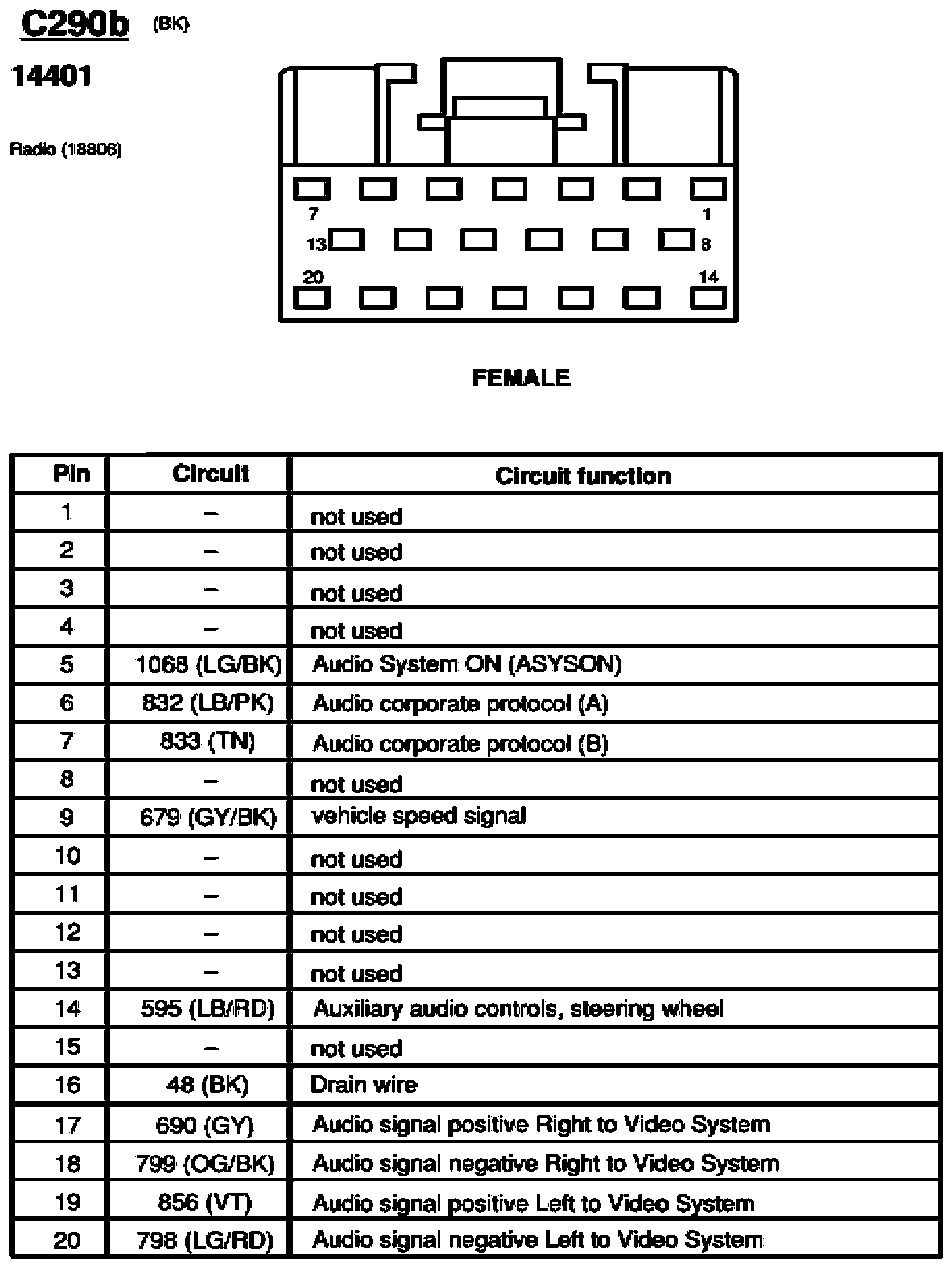

Fig 106: Radio Connector End View (C290b)

G07842318

Courtesy of FORD MOTOR CO.

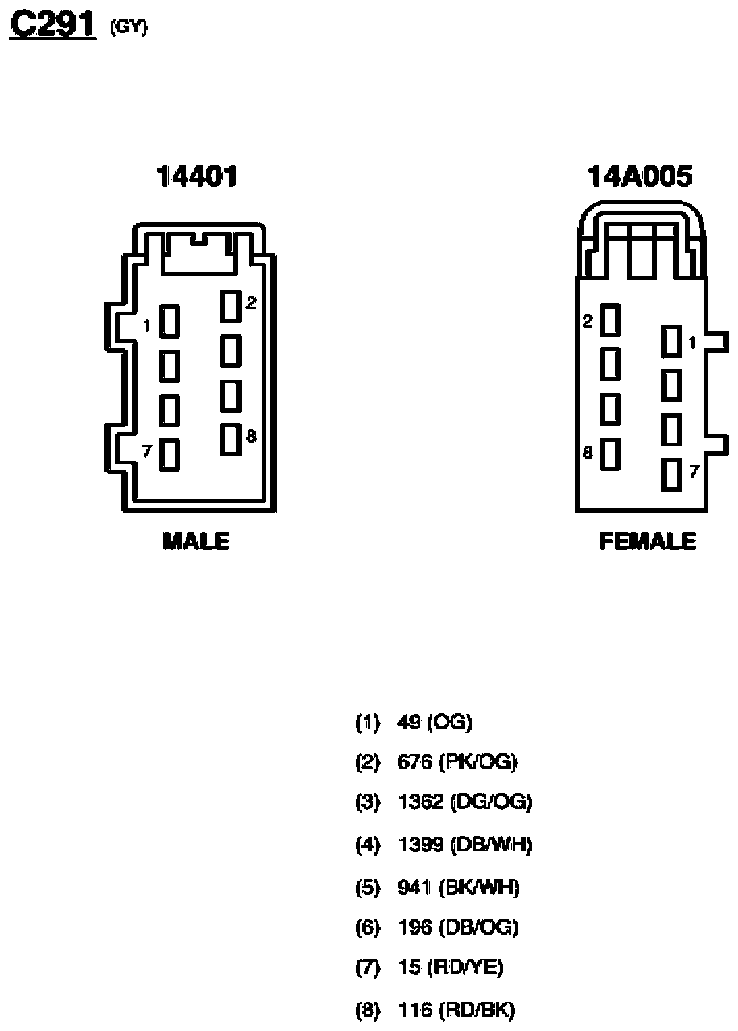

Fig 107: Inline Connector End View (C291)

G07842319

Courtesy of FORD MOTOR CO.

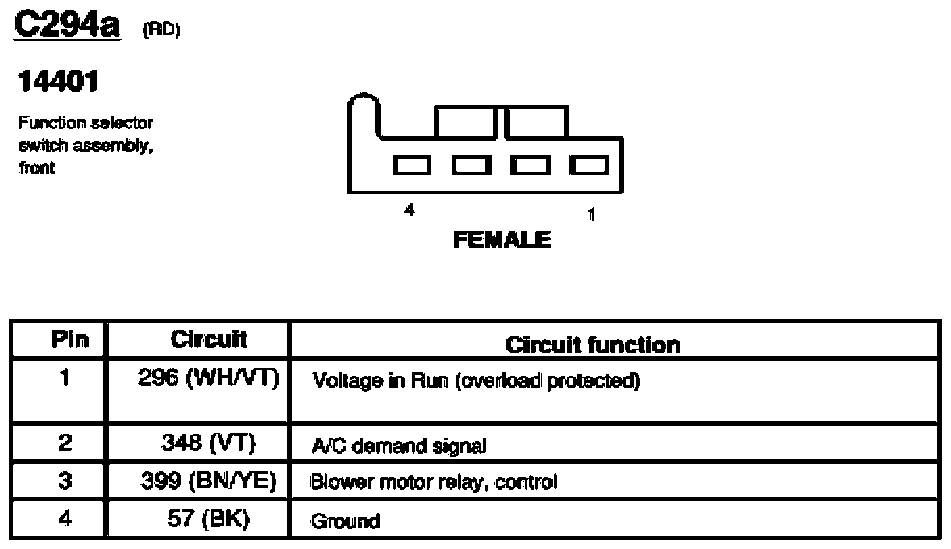

Fig 108: Function Selector Switch Assembly, Front Connector End View (C294a)

G07842320

Courtesy of FORD MOTOR CO.

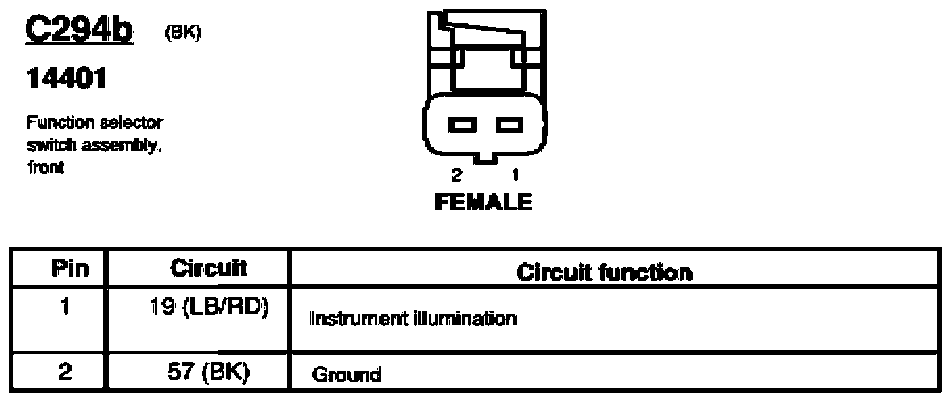

Fig 109: Function Selector Switch Assembly, Front Connector End View (C294b)

G07842321

Courtesy of FORD MOTOR CO.

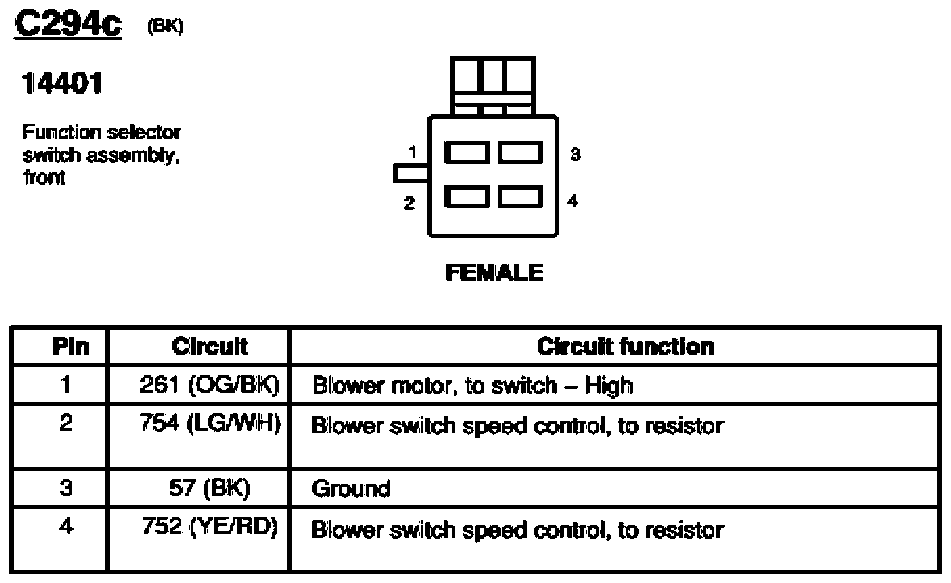

Fig 110: Function Selector Switch Assembly, Front Connector End View (C294c)

G07842322

Courtesy of FORD MOTOR CO.

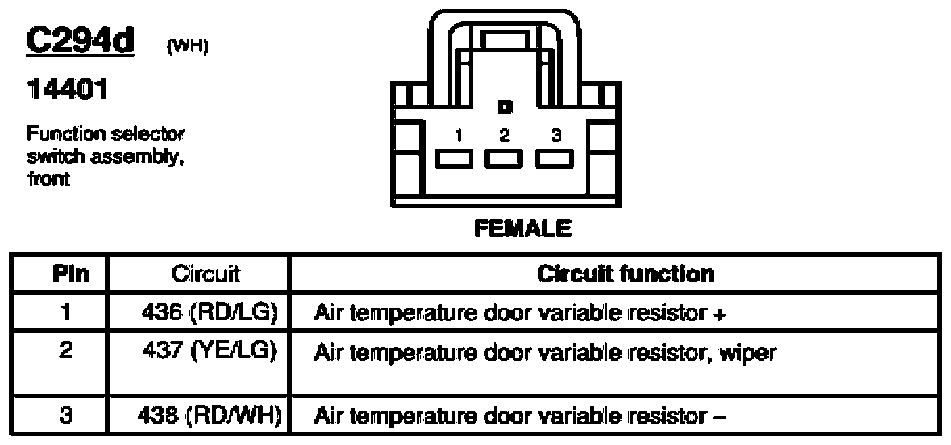

Fig 111: Function Selector Switch Assembly, Front Connector End View (C294d)

G07842323

Courtesy of FORD MOTOR CO.

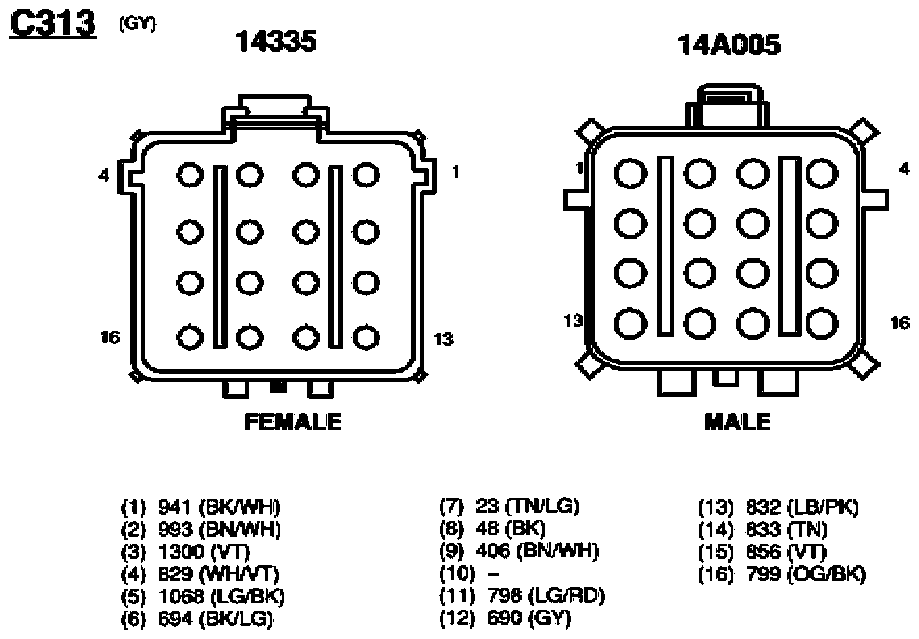

Fig 112: Inline Connector End View (C313)

G07842324

Courtesy of FORD MOTOR CO.

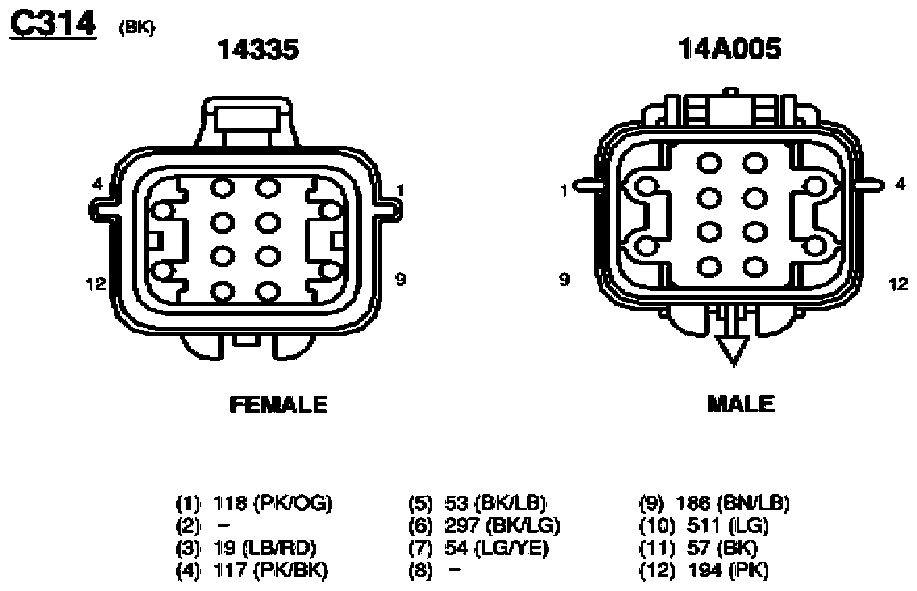

Fig 113: Inline Connector End View (C314)

G07842325

Courtesy of FORD MOTOR CO.

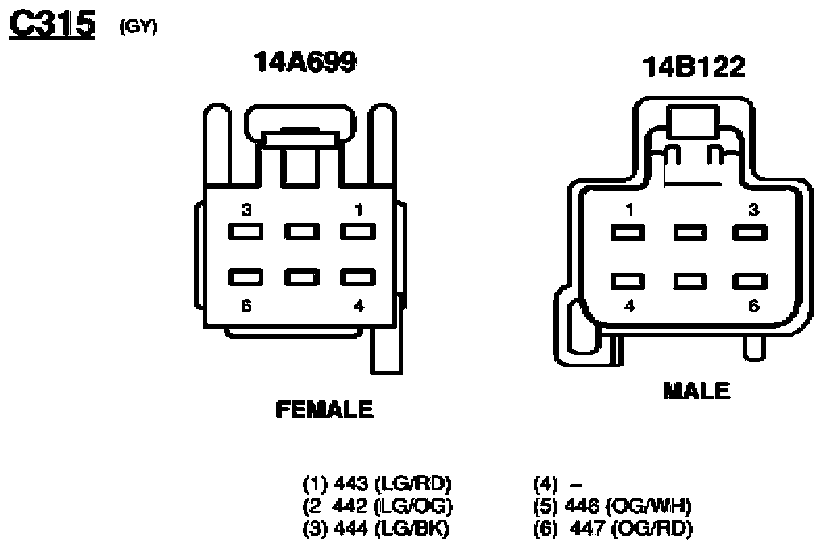

Fig 114: Inline Connector End View (C315)

G07842326

Courtesy of FORD MOTOR CO.

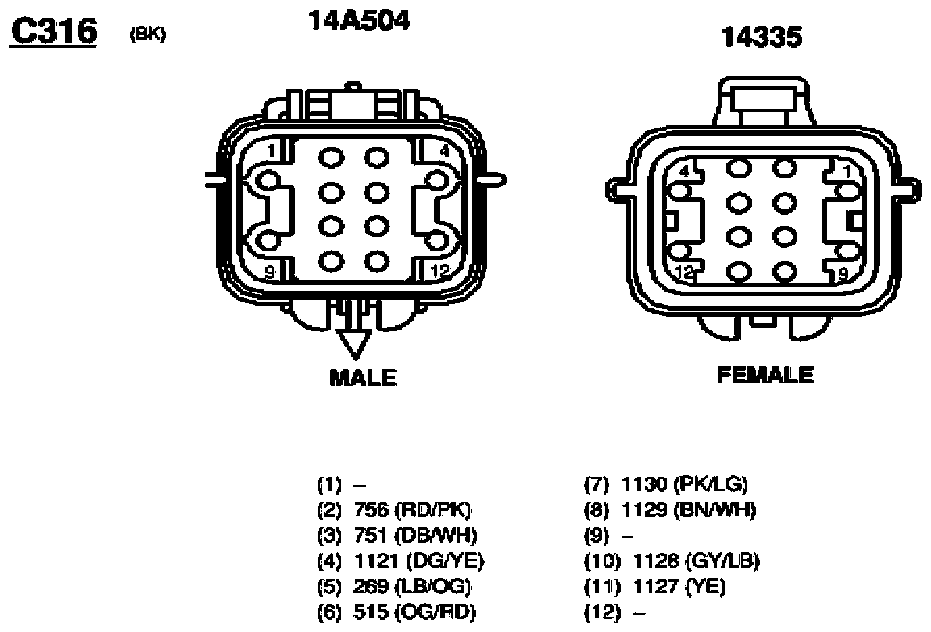

Fig 115: Inline Connector End View (C316)

G07842327

Courtesy of FORD MOTOR CO.

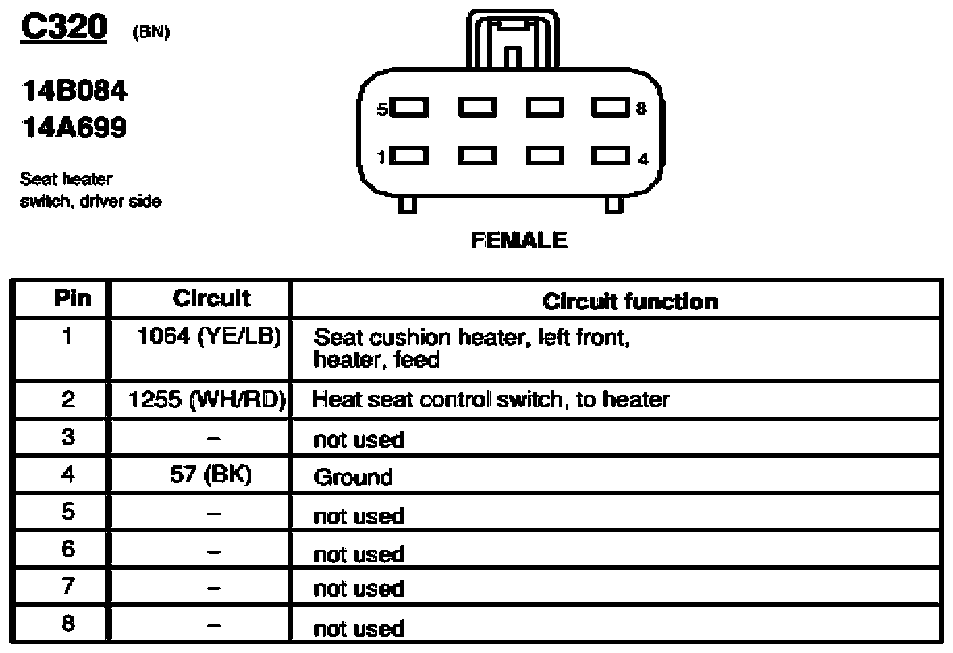

Fig 116: Seat Heater Switch, Driver Side Connector End View (C320)

G07842328

Courtesy of FORD MOTOR CO.

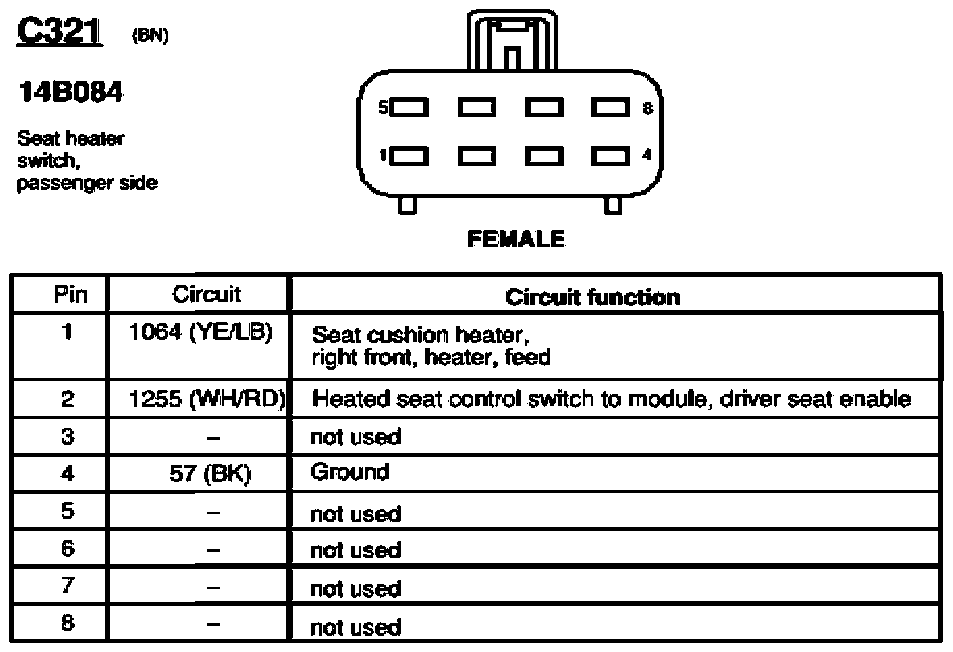

Fig 117: Seat Heater Switch, Passenger Side Connector End View (C321)

G07842329

Courtesy of FORD MOTOR CO.

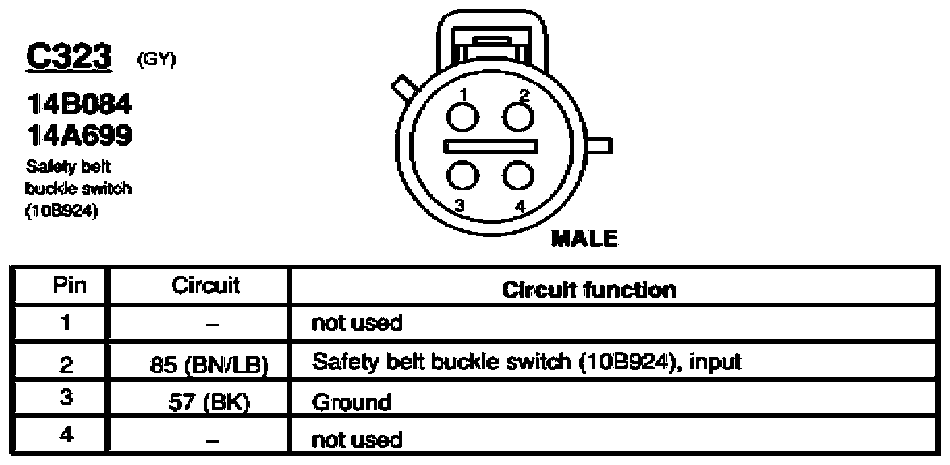

Fig 118: Safety Belt Buckle Switch Connector End View (C323)

G07842330

Courtesy of FORD MOTOR CO.

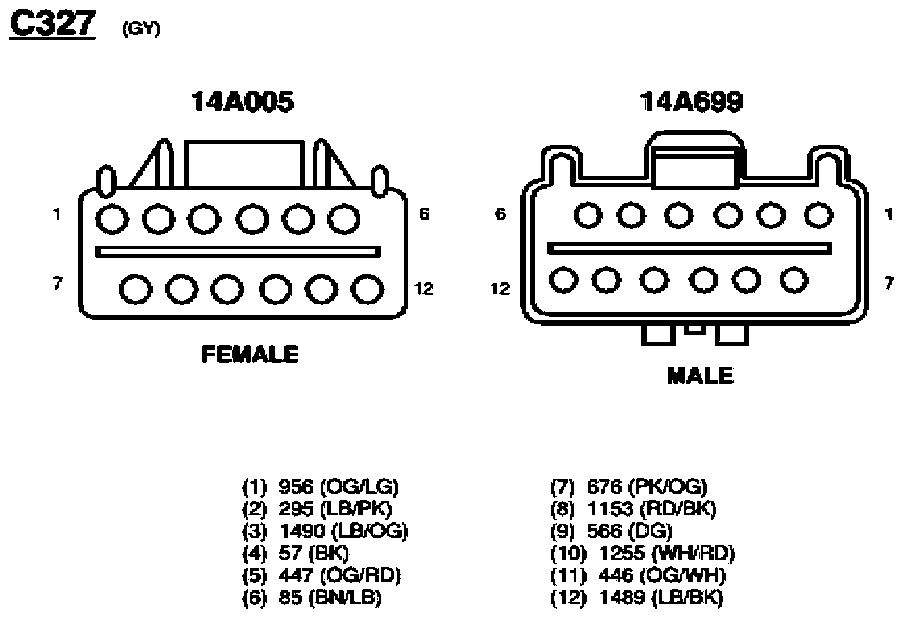

Fig 119: Inline Connector End View (C327)

G07842331

Courtesy of FORD MOTOR CO.

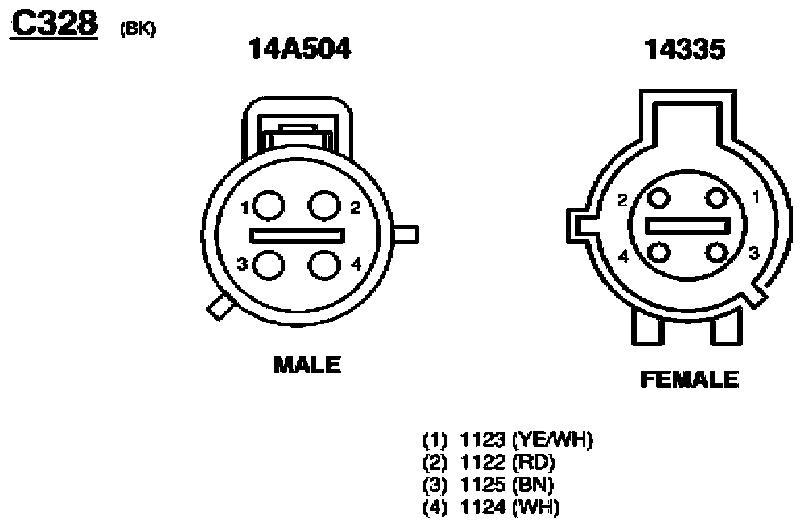

Fig 120: Inline Connector End View (C328)

G07842332

Courtesy of FORD MOTOR CO.

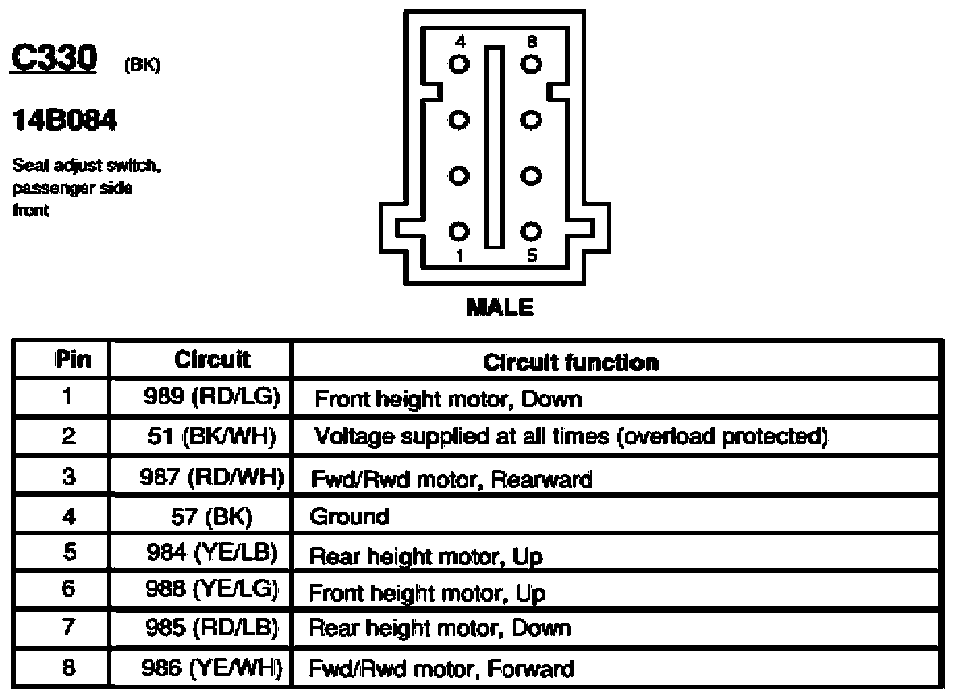

Fig 121: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07842333

Courtesy of FORD MOTOR CO.

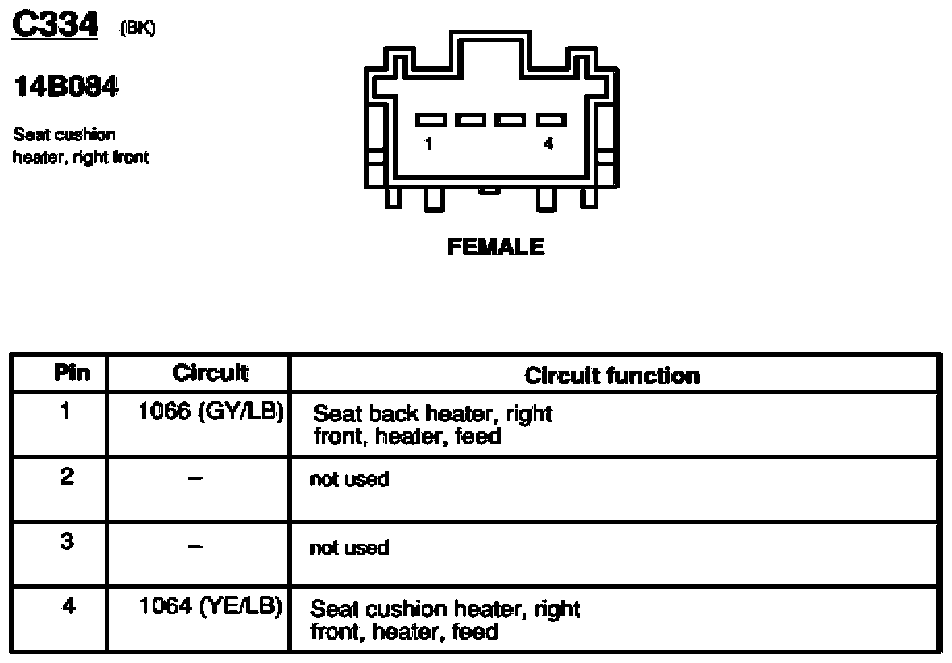

Fig 122: Seat Cushion Heater, Right Front Connector End View (C334)

G07842334

Courtesy of FORD MOTOR CO.

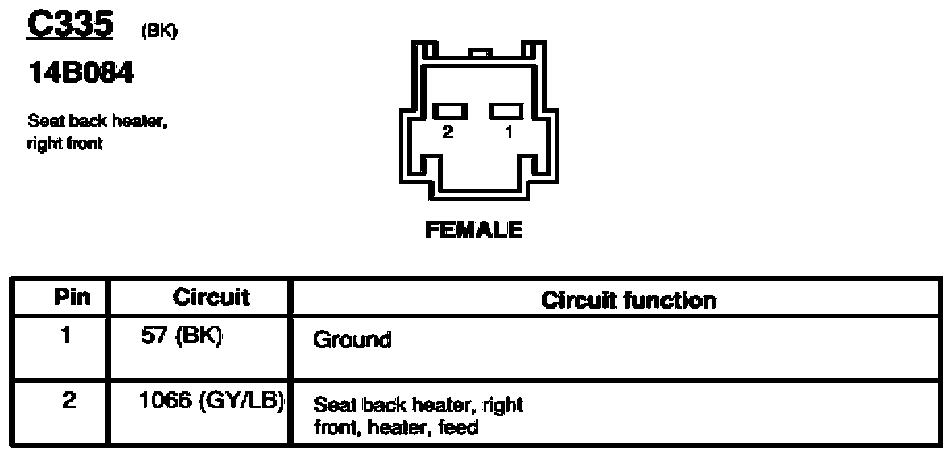

Fig 123: Seat Back Heater, Right Front Connector End View (C335)

G07842335

Courtesy of FORD MOTOR CO.

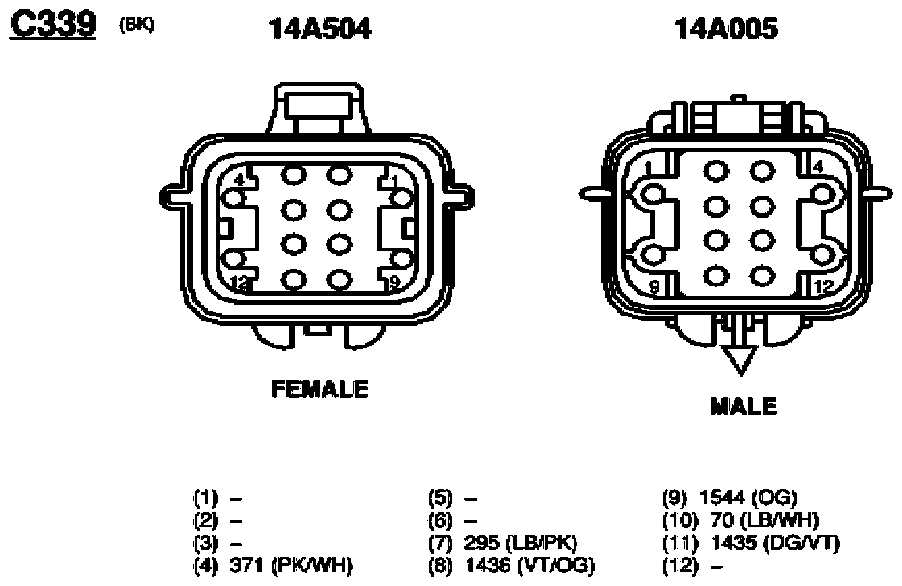

Fig 124: Inline Connector End View (C339)

G07842336

Courtesy of FORD MOTOR CO.

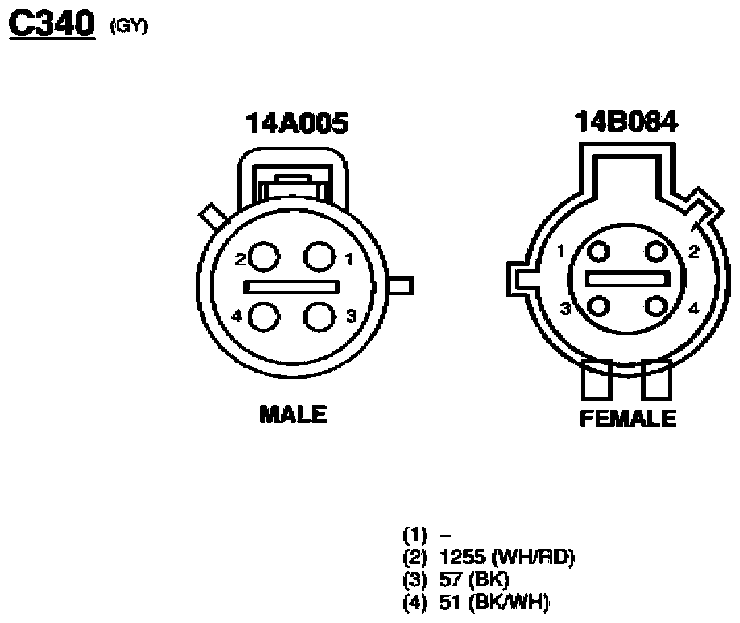

Fig 125: Inline Connector End View (C340)

G07842337

Courtesy of FORD MOTOR CO.

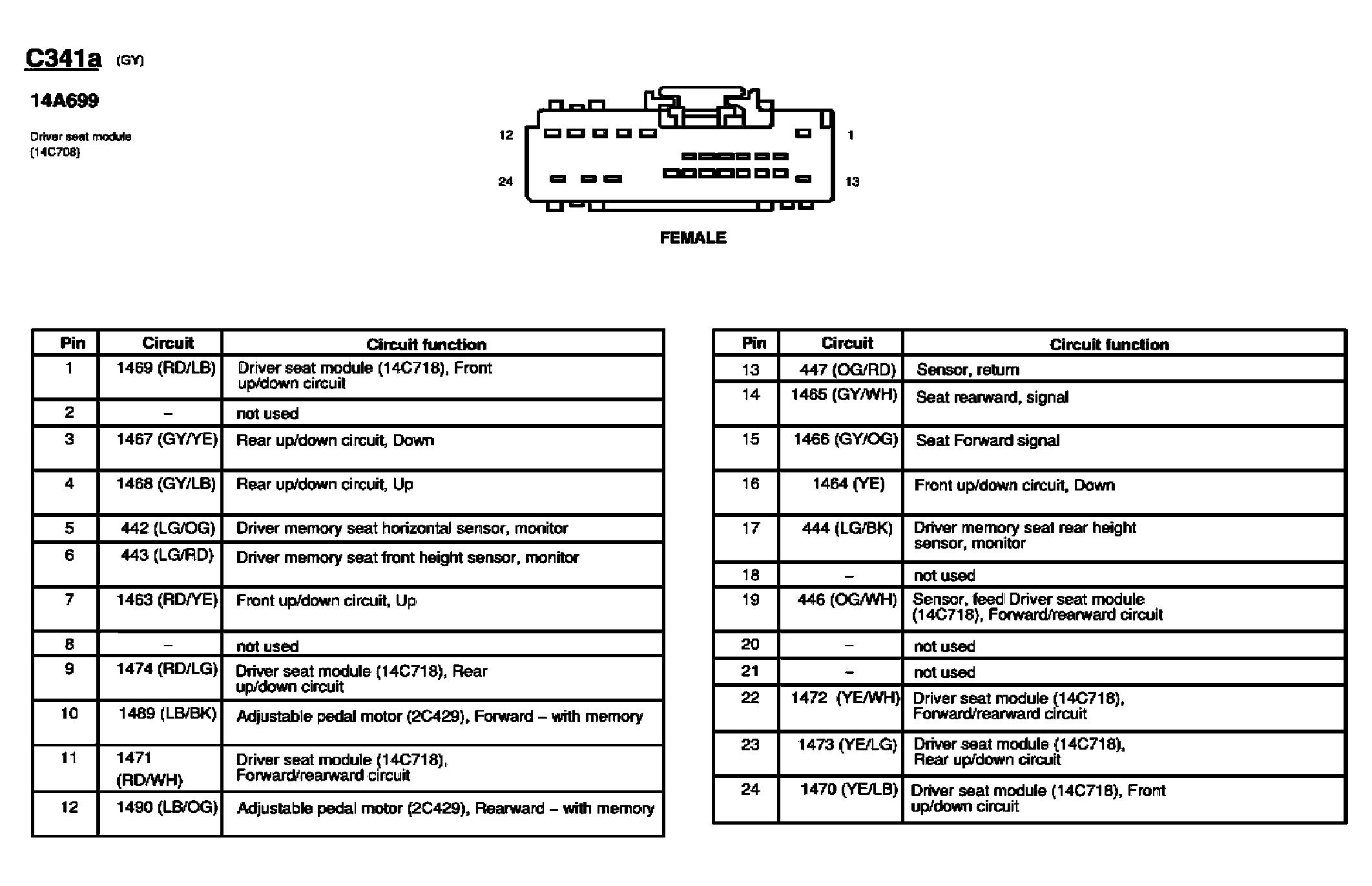

Fig 126: Driver Seat Module Connector End View (C341a)

G03987573

Courtesy of FORD MOTOR CO.

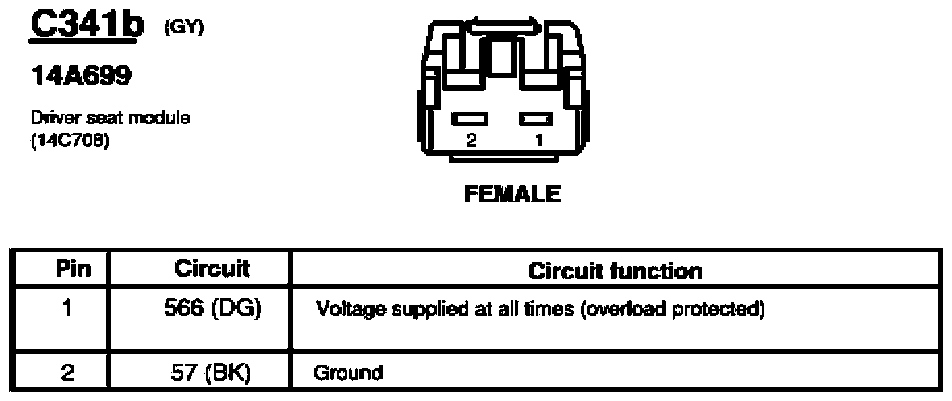

Fig 127: Driver Seat Module Connector End View (C341b)

G07842338

Courtesy of FORD MOTOR CO.

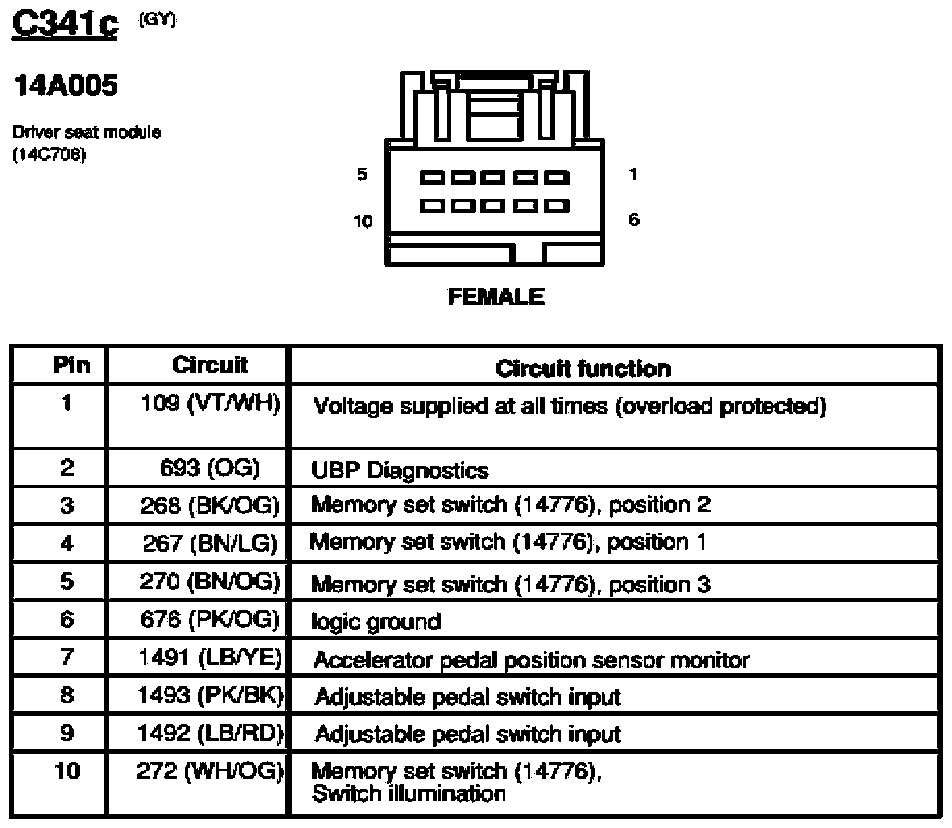

Fig 128: Driver Seat Module Connector End View (C341c)

G07842339

Courtesy of FORD MOTOR CO.

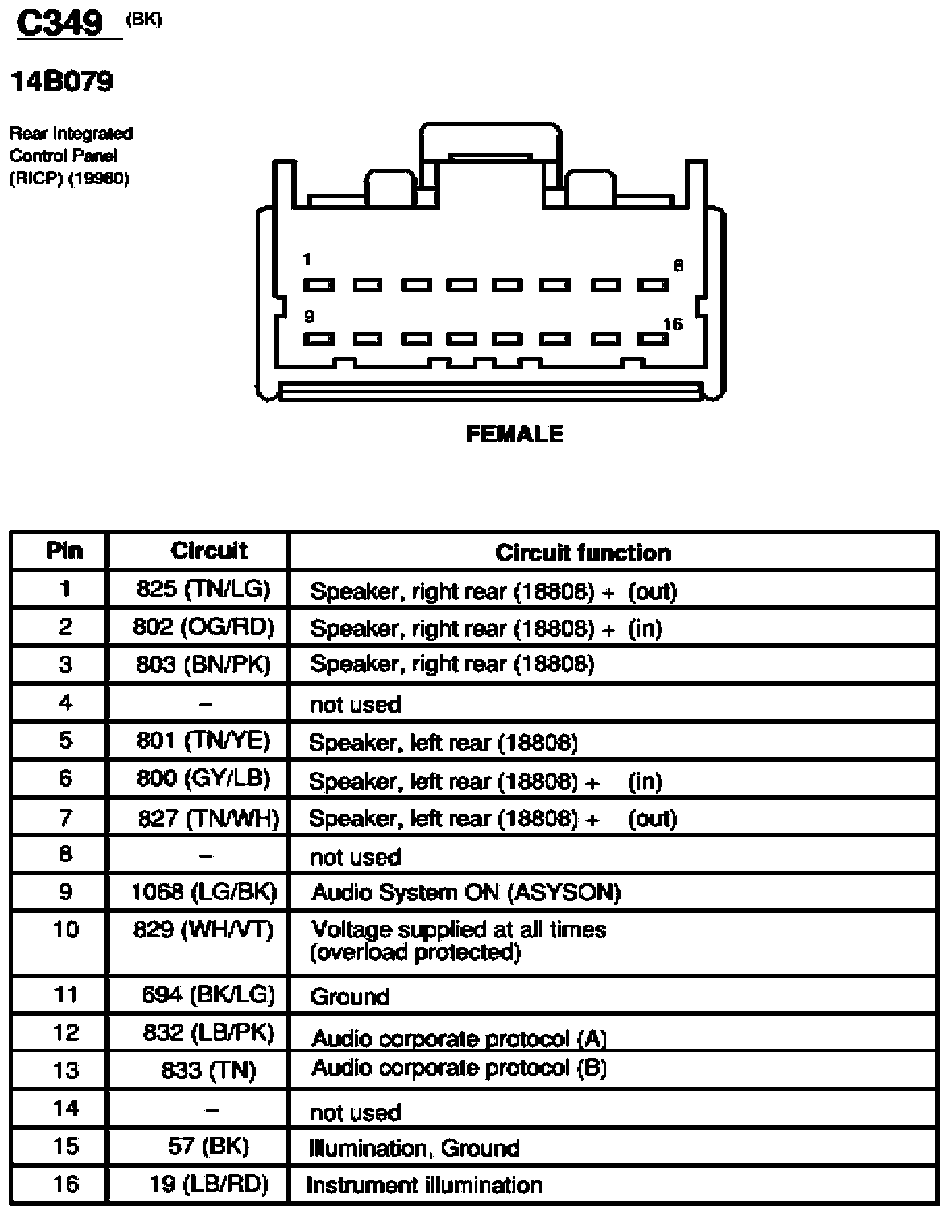

Fig 129: Rear Integrated Control Panel (RICP) Connector End View (C349)

G07842340

Courtesy of FORD MOTOR CO.

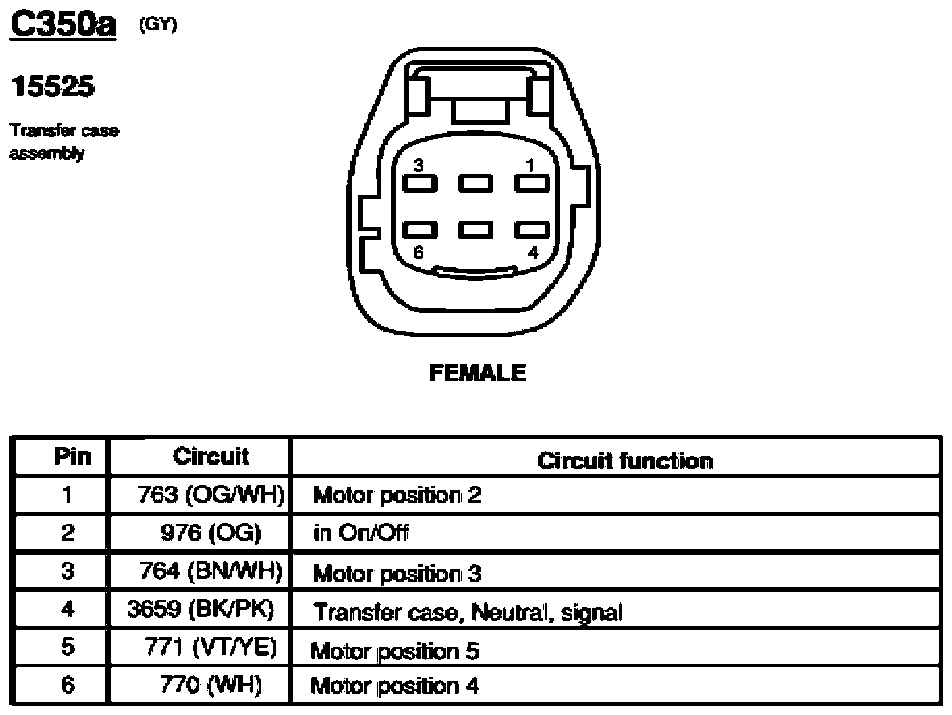

Fig 130: Transfer Case Assembly Connector End View (C350a)

G07842341

Courtesy of FORD MOTOR CO.

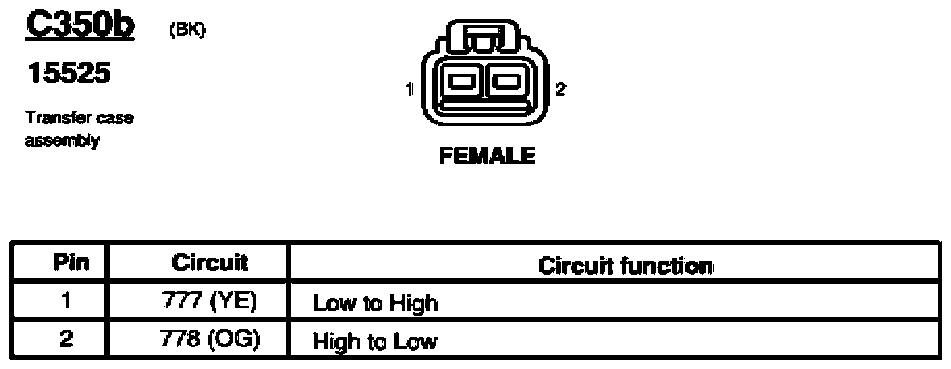

Fig 131: Transfer Case Assembly Connector End View (C350b)

G07842342

Courtesy of FORD MOTOR CO.

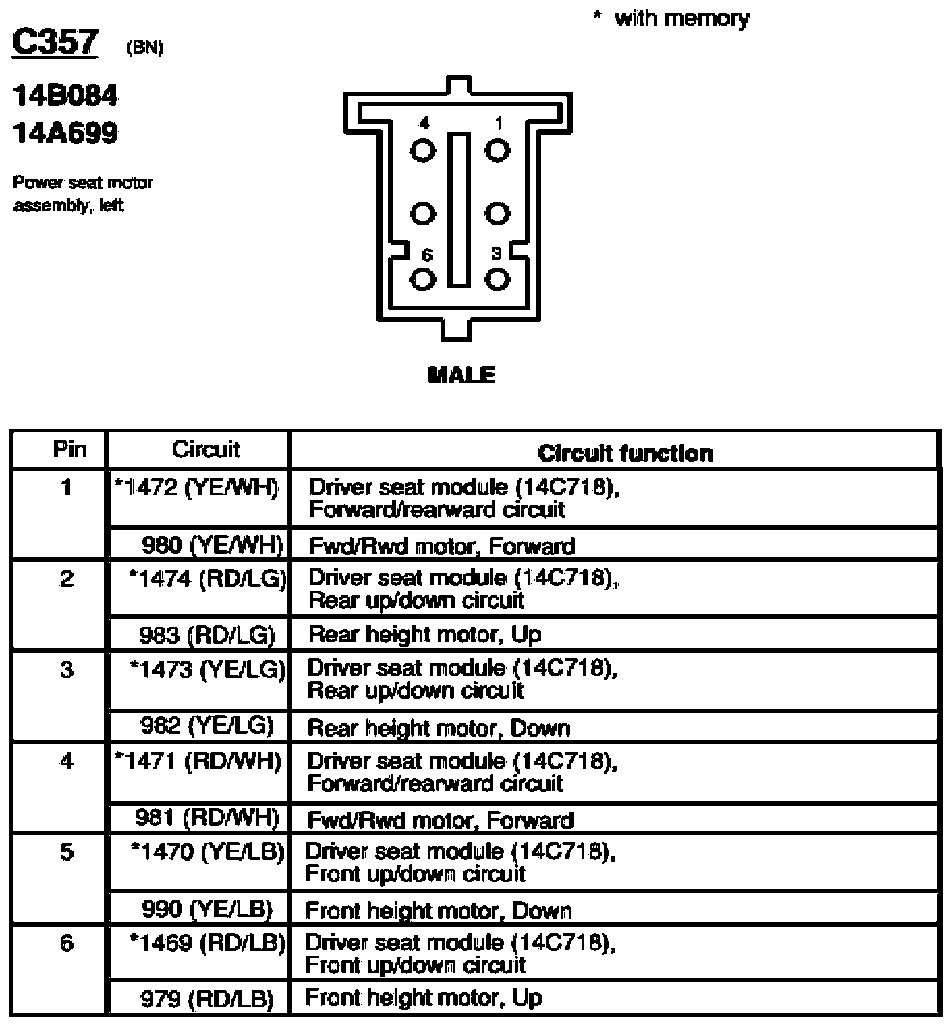

Fig 132: Power Seat Motor Assembly, Left Connector End View (C357)

G07842343

Courtesy of FORD MOTOR CO.

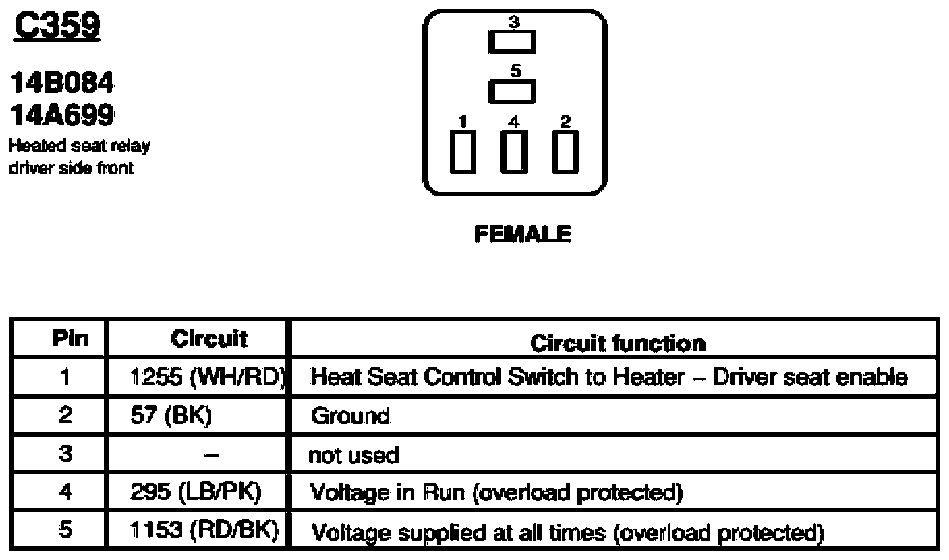

Fig 133: Heated Seat Relay Driver Side Front Connector End View (C359)

G07842344

Courtesy of FORD MOTOR CO.

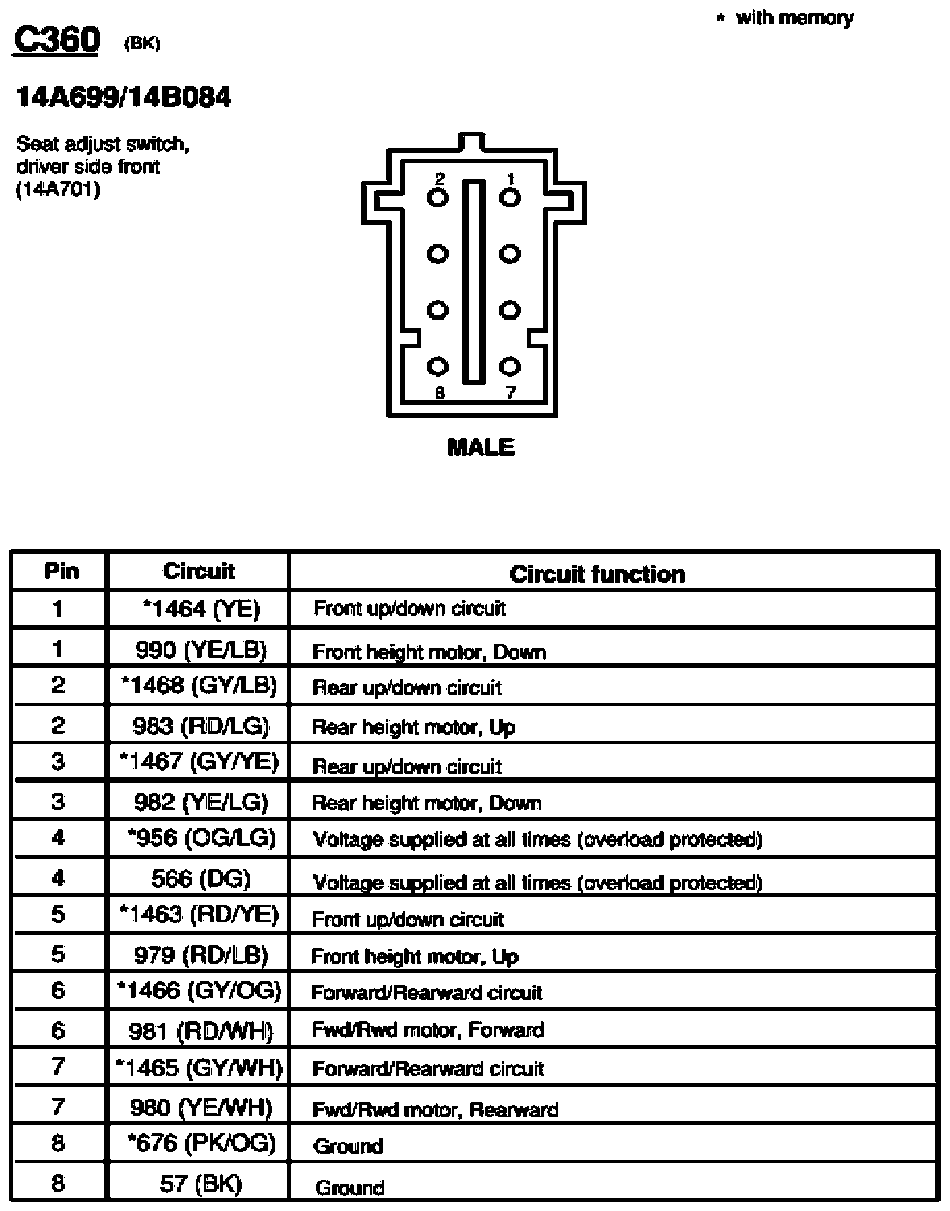

Fig 134: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07842345

Courtesy of FORD MOTOR CO.

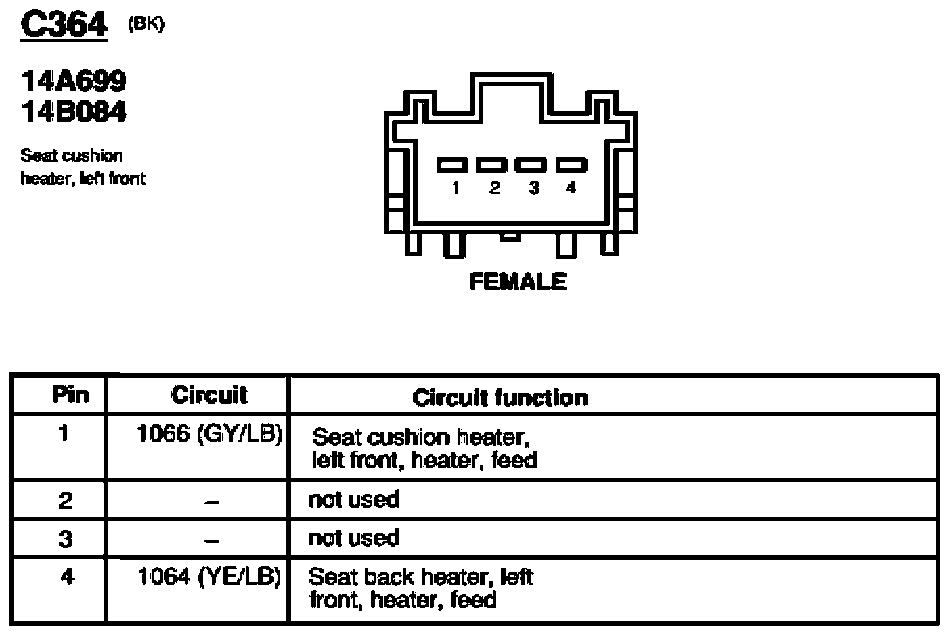

Fig 135: Seat Cushion Heater, Left Front Connector End View (C364)

G07842346

Courtesy of FORD MOTOR CO.

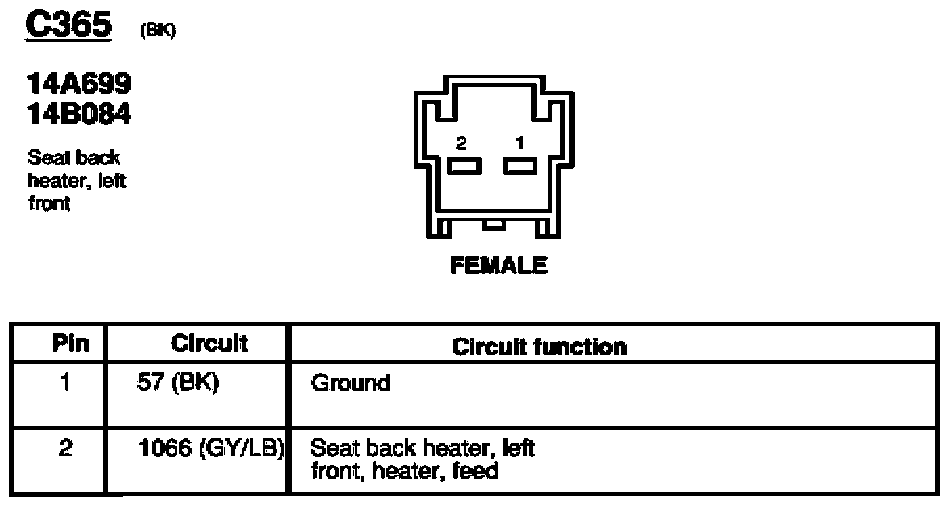

Fig 136: Seat Back Heater, Left Front Connector End View (C365)

G07842347

Courtesy of FORD MOTOR CO.

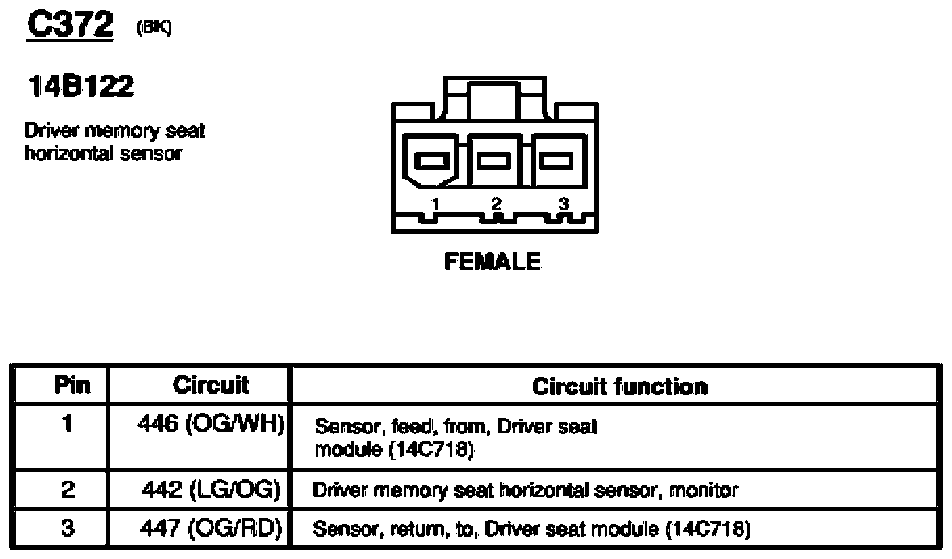

Fig 137: Driver Memory Seat Horizontal Sensor Connector End View (C372)

G07842348

Courtesy of FORD MOTOR CO.

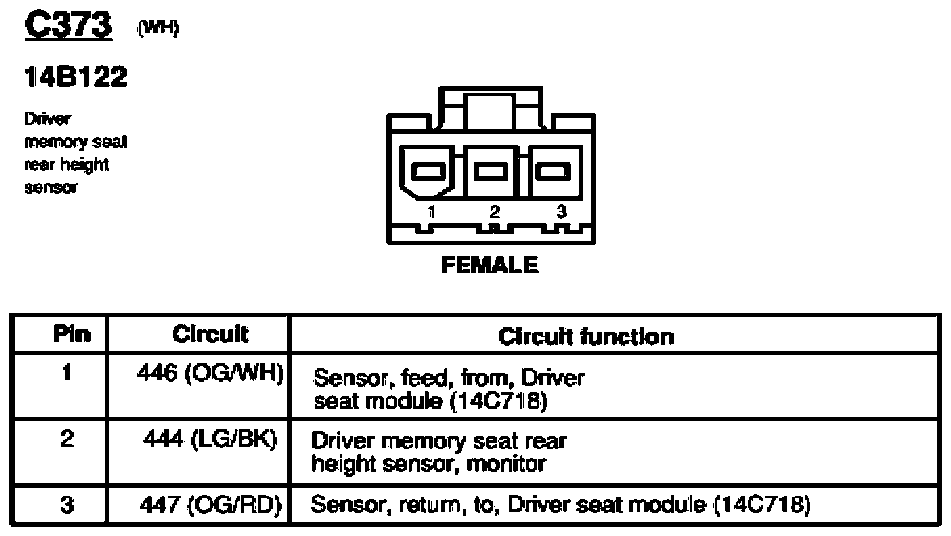

Fig 138: Driver Memory Seat Rear Height Sensor Connector End View (C373)

G07842349

Courtesy of FORD MOTOR CO.

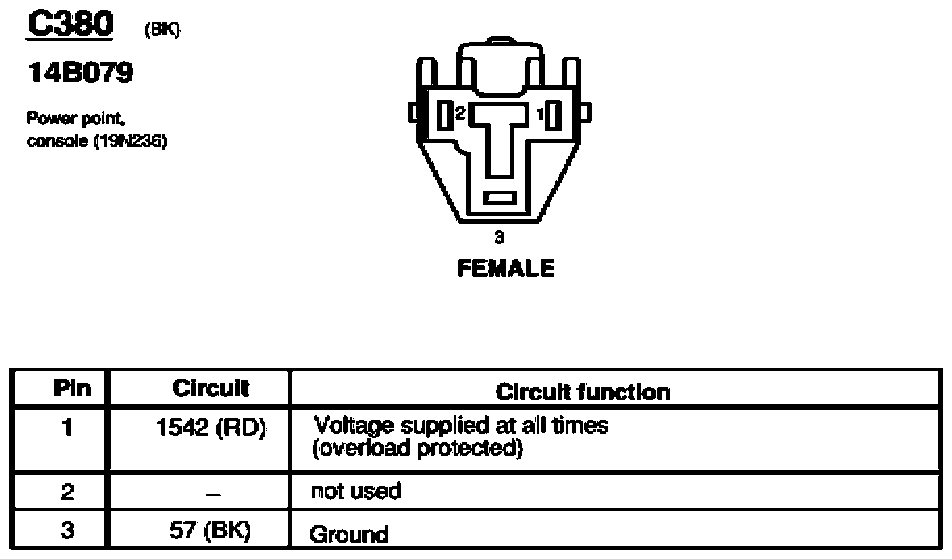

Fig 139: Power Point, Console Connector End View (C380)

G07842350

Courtesy of FORD MOTOR CO.

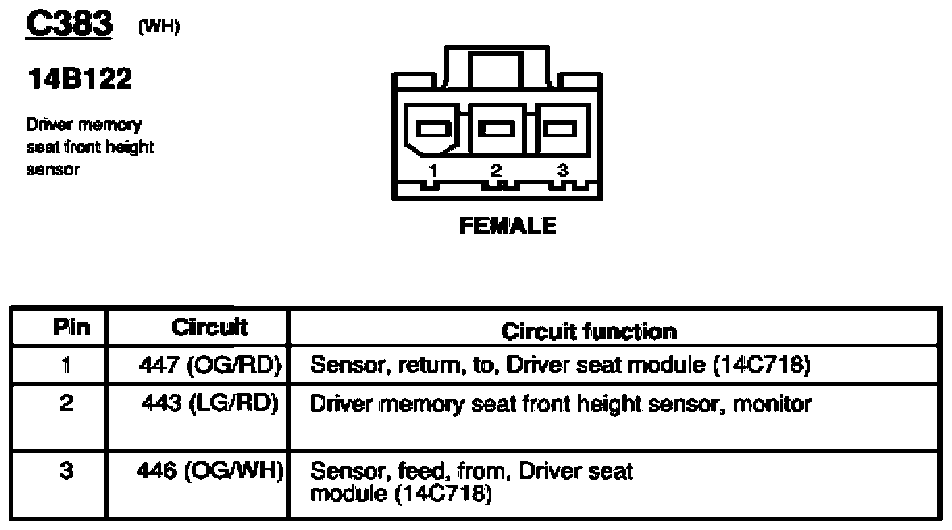

Fig 140: Driver Memory Seat Front Height Sensor Connector End View (C383)

G07842351

Courtesy of FORD MOTOR CO.

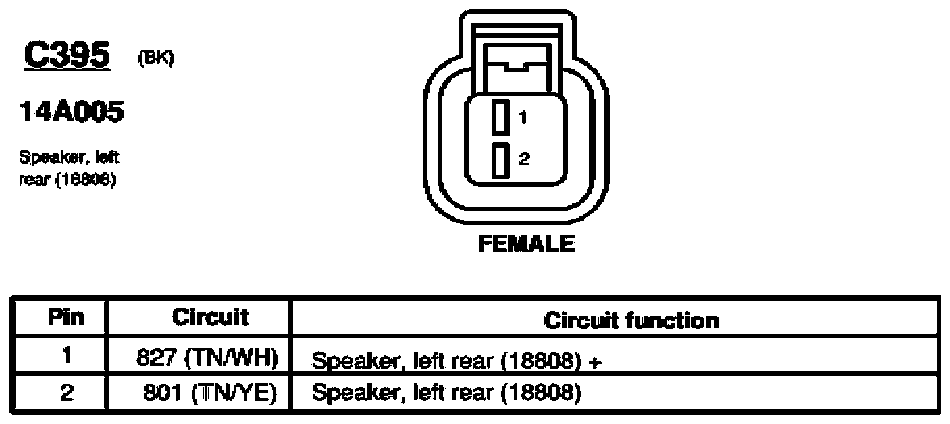

Fig 141: Speaker, Left Rear Connector End View (C395)

G07842352

Courtesy of FORD MOTOR CO.

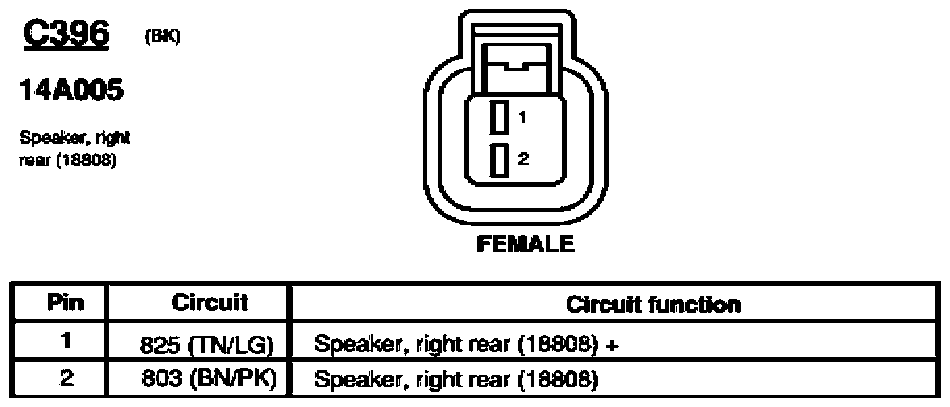

Fig 142: Speaker, Right Rear Connector End View (C396)

G07842353

Courtesy of FORD MOTOR CO.

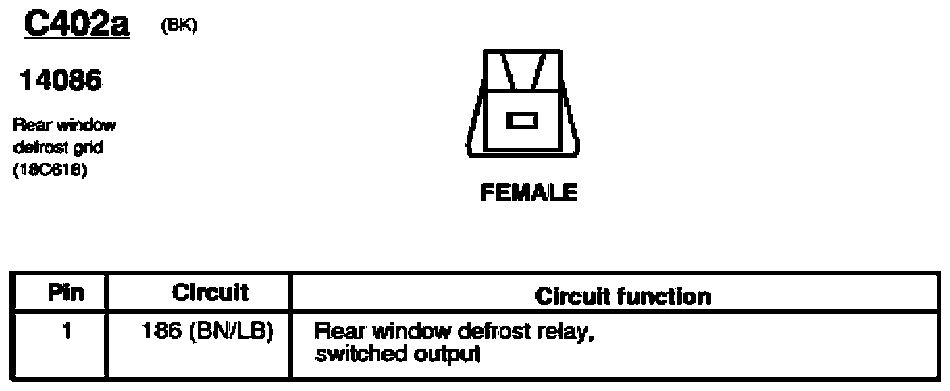

Fig 143: Rear Window Defrost Grid Connector End View (C402a)

G07842354

Courtesy of FORD MOTOR CO.

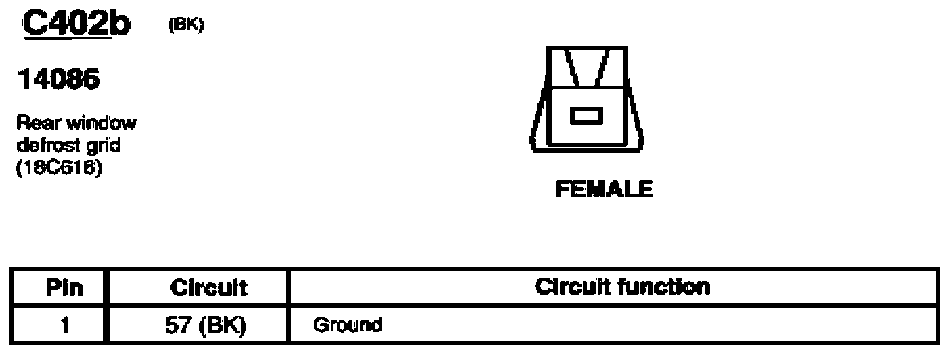

Fig 144: Rear Window Defrost Grid Connector End View (C402b)

G07842355

Courtesy of FORD MOTOR CO.

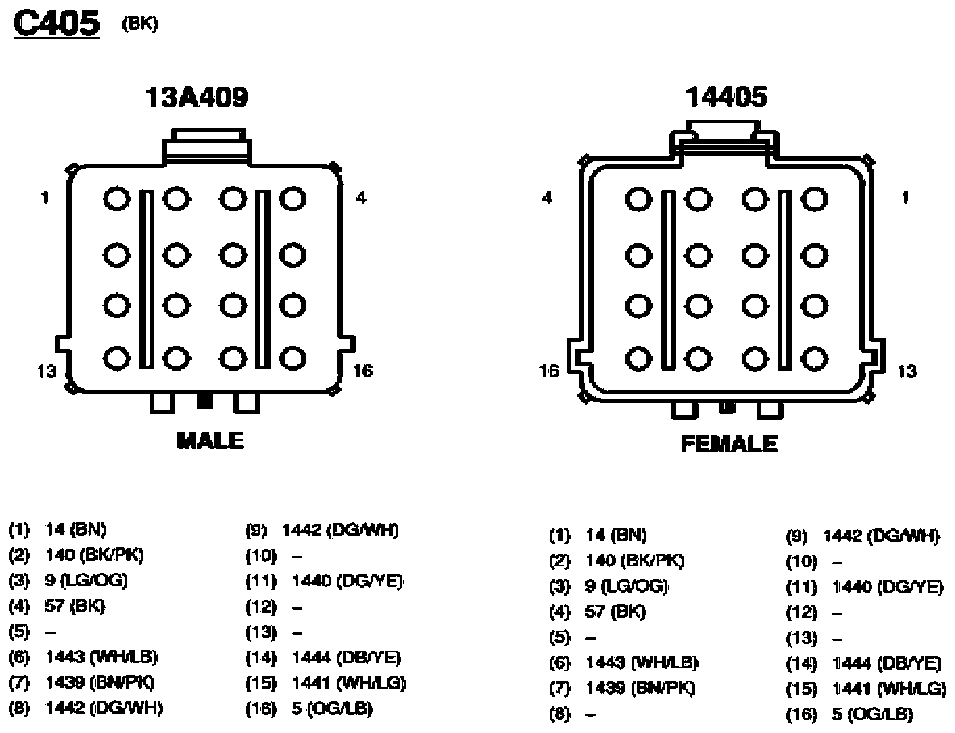

Fig 145: Inline Connector End View (C405)

G07842356

Courtesy of FORD MOTOR CO.

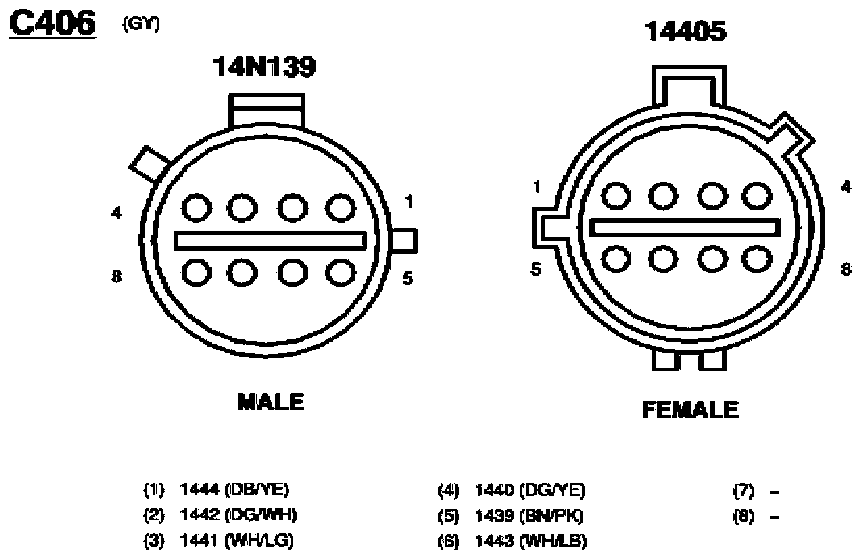

Fig 146: Inline Connector End View (C406)

G07842357

Courtesy of FORD MOTOR CO.

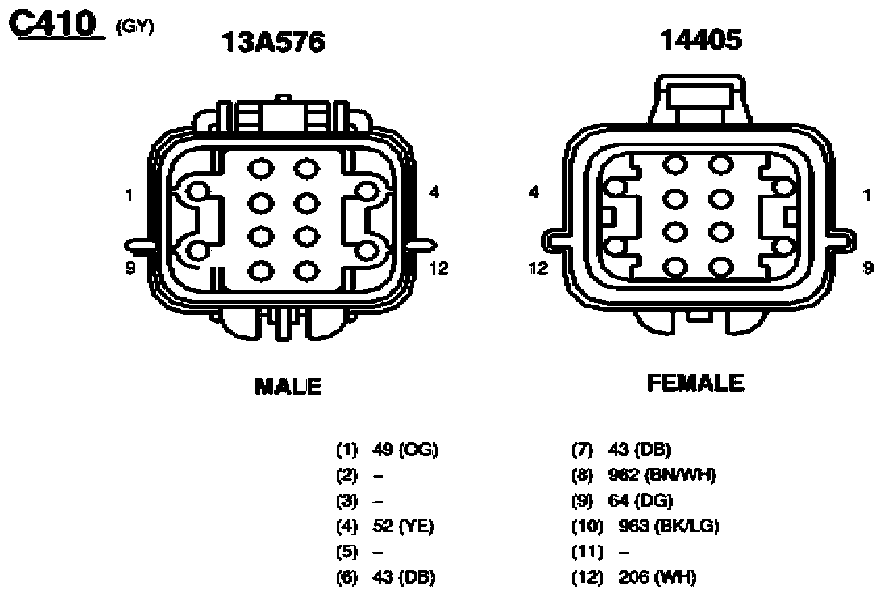

Fig 147: Inline Connector End View (C410)

G07842358

Courtesy of FORD MOTOR CO.

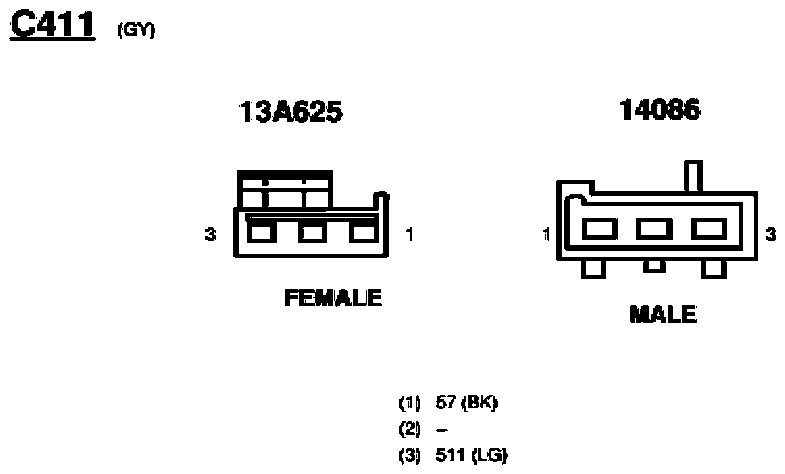

Fig 148: Inline Connector End View (C411)

G07842359

Courtesy of FORD MOTOR CO.

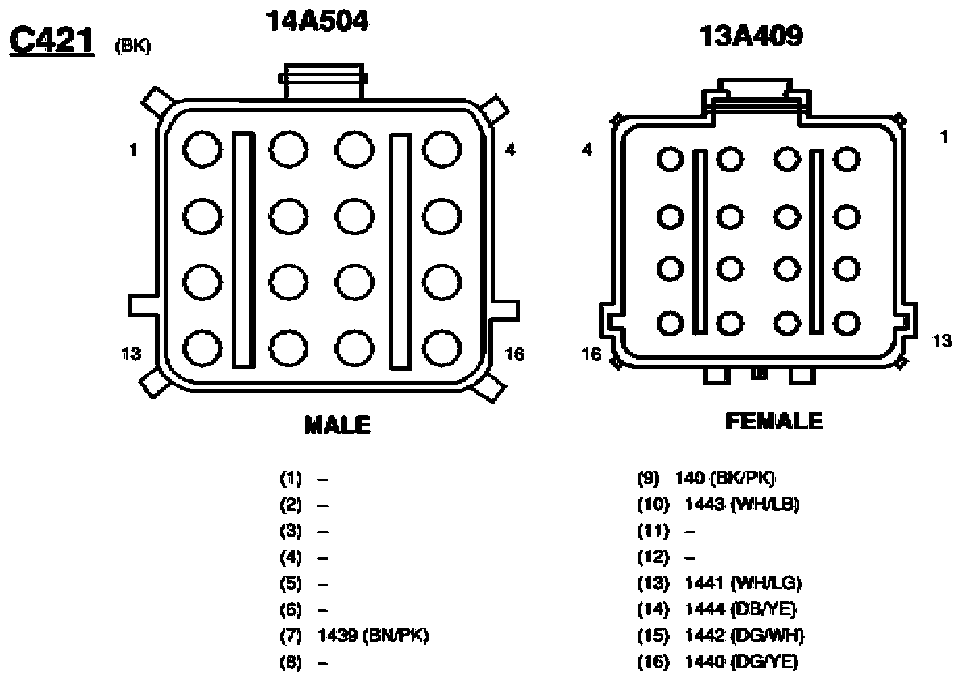

Fig 149: Inline Connector End View (C421)

G07842360

Courtesy of FORD MOTOR CO.

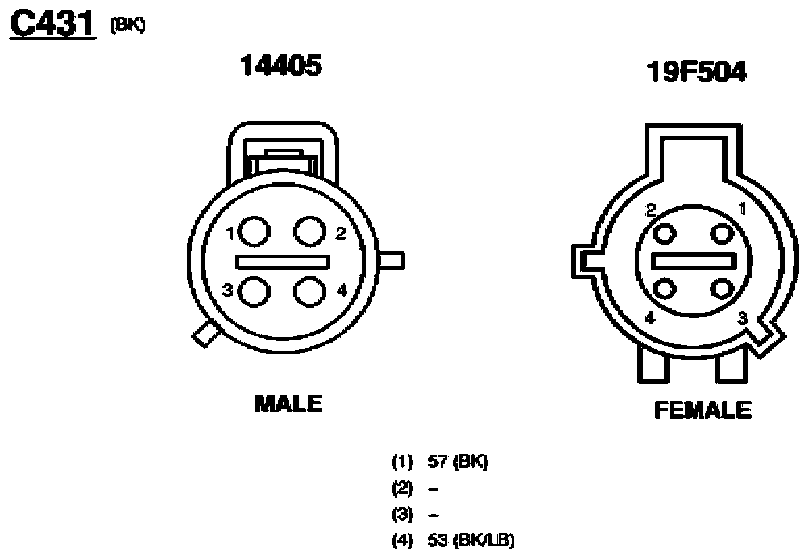

Fig 150: Inline Connector End View (C431)

G07842361

Courtesy of FORD MOTOR CO.

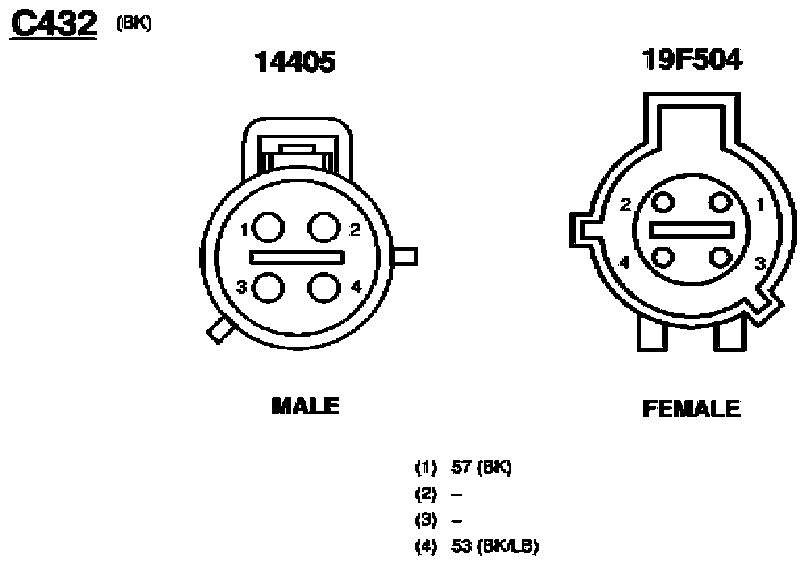

Fig 151: Inline Connector End View (C432)

G07842362

Courtesy of FORD MOTOR CO.

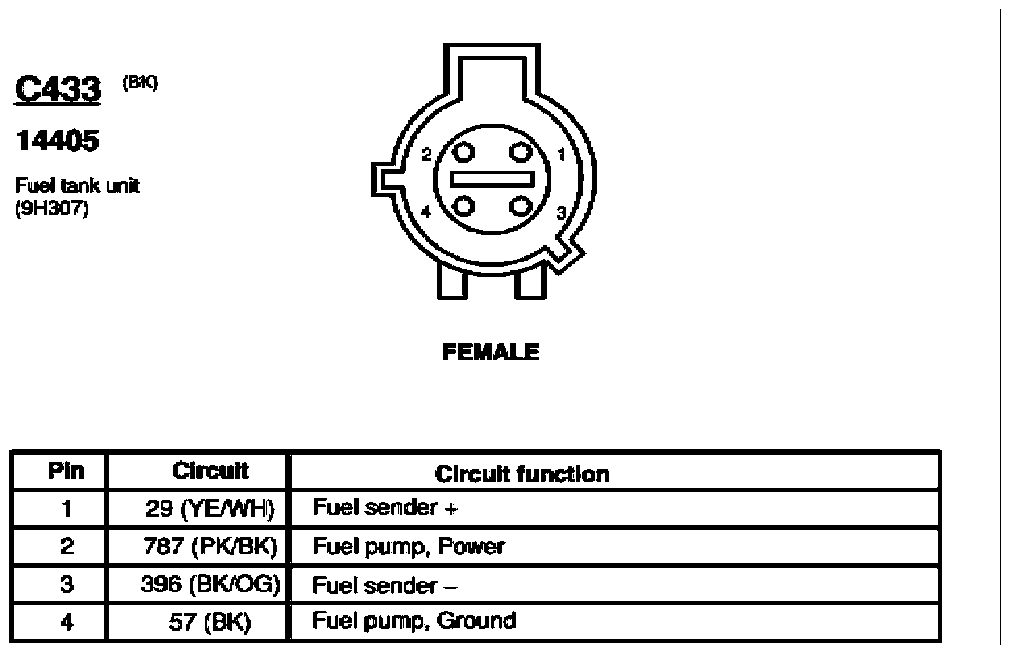

Fig 152: Fuel Tank Unit Connector End View (C433)

G07842363

Courtesy of FORD MOTOR CO.

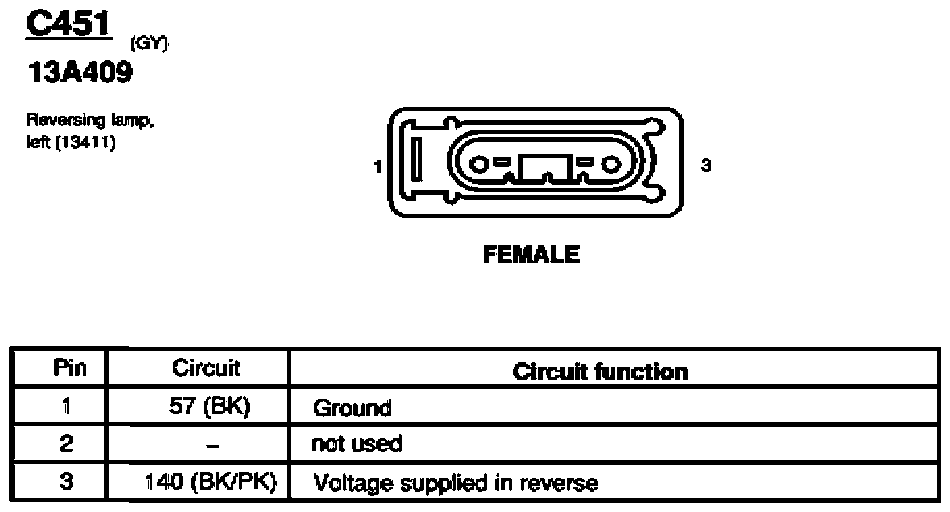

Fig 153: Reversing Lamp, Left Connector End View (C451)

G07842364

Courtesy of FORD MOTOR CO.

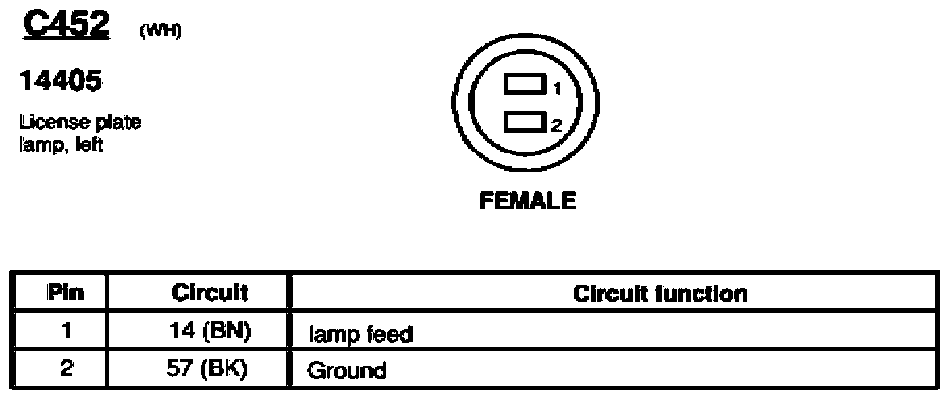

Fig 154: License Plate Lamp, Left Connector End View (C452)

G07842365

Courtesy of FORD MOTOR CO.

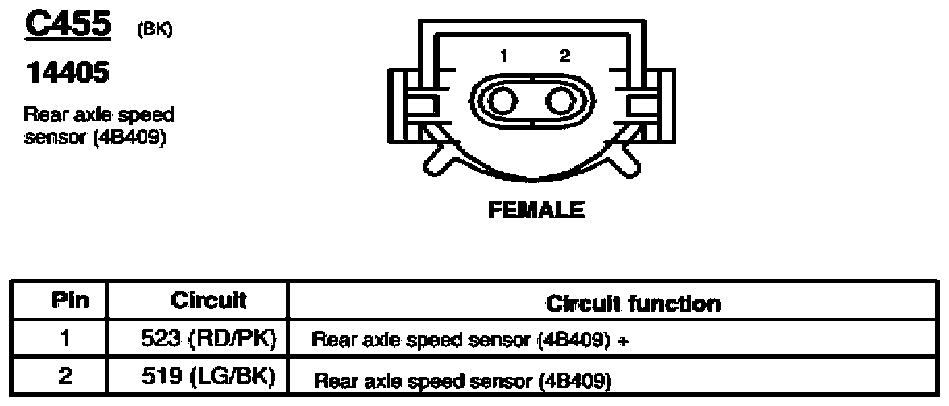

Fig 155: Rear Axle Speed Sensor Connector End View (C455)

G07842366

Courtesy of FORD MOTOR CO.

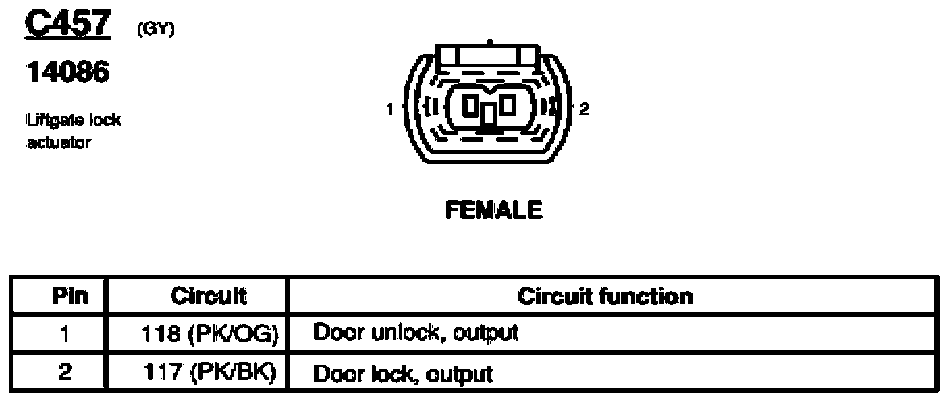

Fig 156: Liftgate Lock Actuator Connector End View (C457)

G07842367

Courtesy of FORD MOTOR CO.

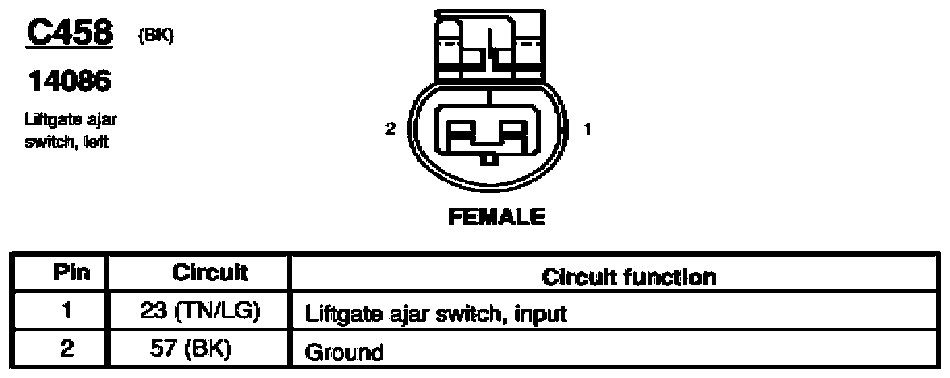

Fig 157: Liftgate Ajar Switch, Left Connector End View (C458)

G07842368

Courtesy of FORD MOTOR CO.

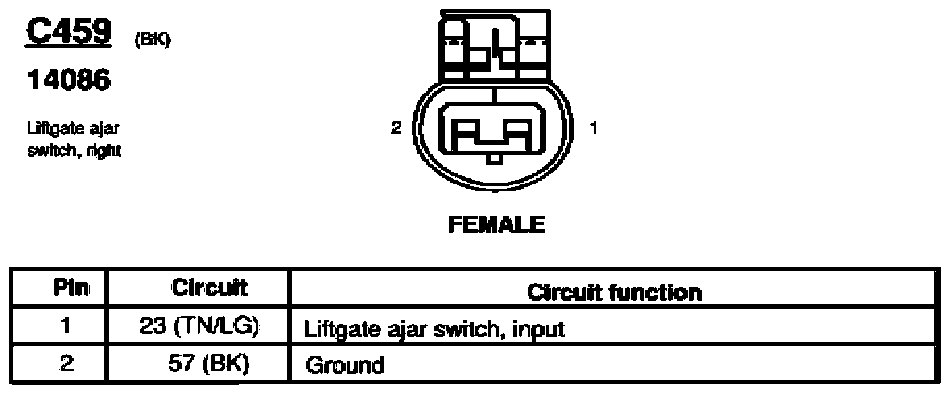

Fig 158: Liftgate Ajar Switch, Right Connector End View (C459)

G07842369

Courtesy of FORD MOTOR CO.

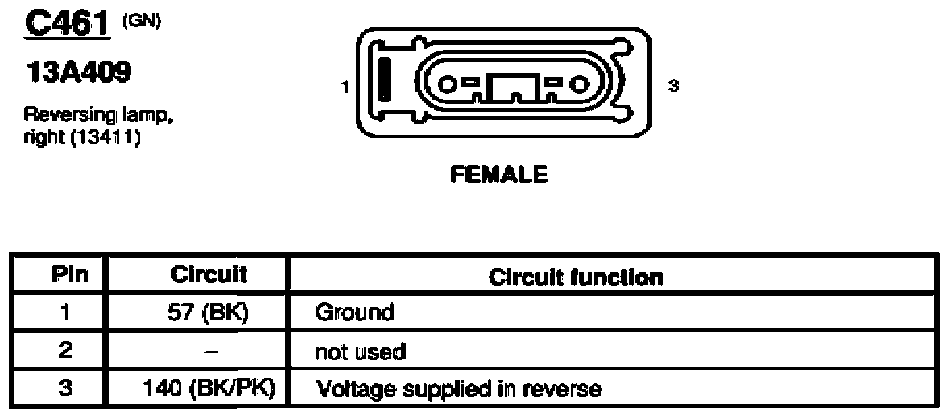

Fig 159: Reversing Lamp, Right Connector End View (C461)

G07842370

Courtesy of FORD MOTOR CO.

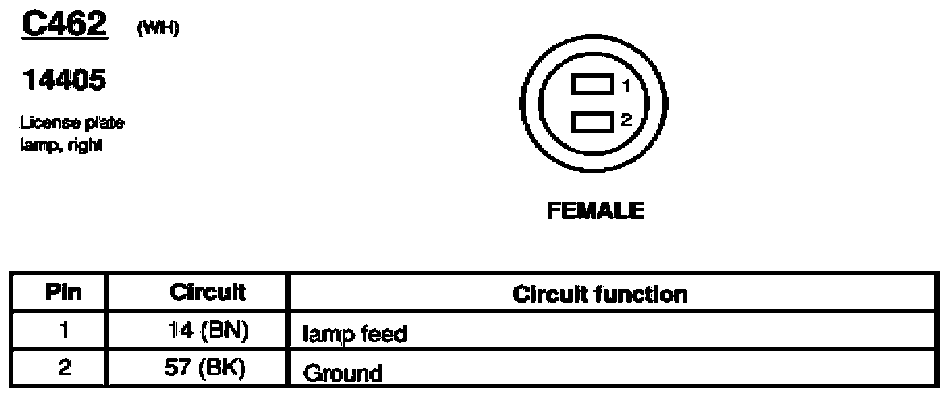

Fig 160: License Plate Lamp, Right Connector End View (C462)

G07842371

Courtesy of FORD MOTOR CO.

Fig 161: Power Point, Rear Connector End View (C474)

G07842372

Courtesy of FORD MOTOR CO.

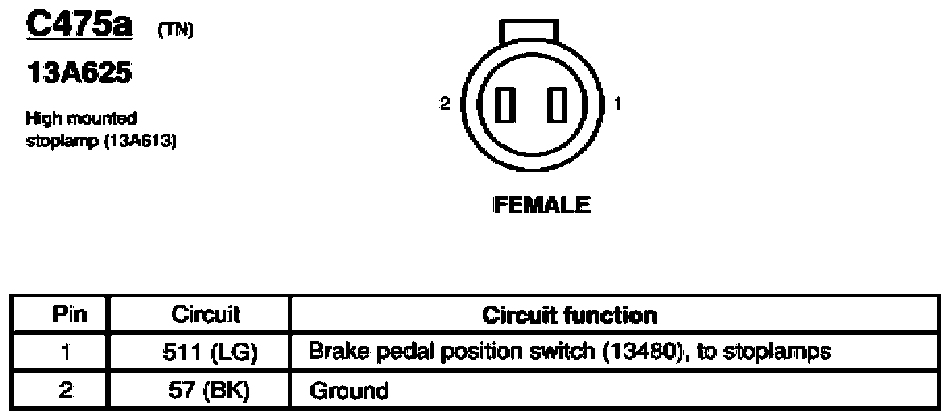

Fig 162: High Mounted Stoplamp Connector End View (C475a)

G07842373

Courtesy of FORD MOTOR CO.

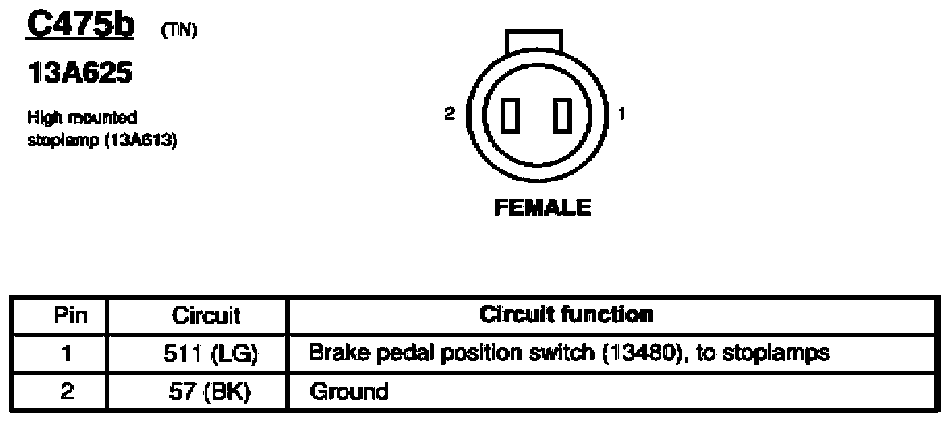

Fig 163: High Mounted Stoplamp Connector End View (C475b)

G07842374

Courtesy of FORD MOTOR CO.

Fig 164: High Mounted Stoplamp Connector End View (C475c)

G07842375

Courtesy of FORD MOTOR CO.

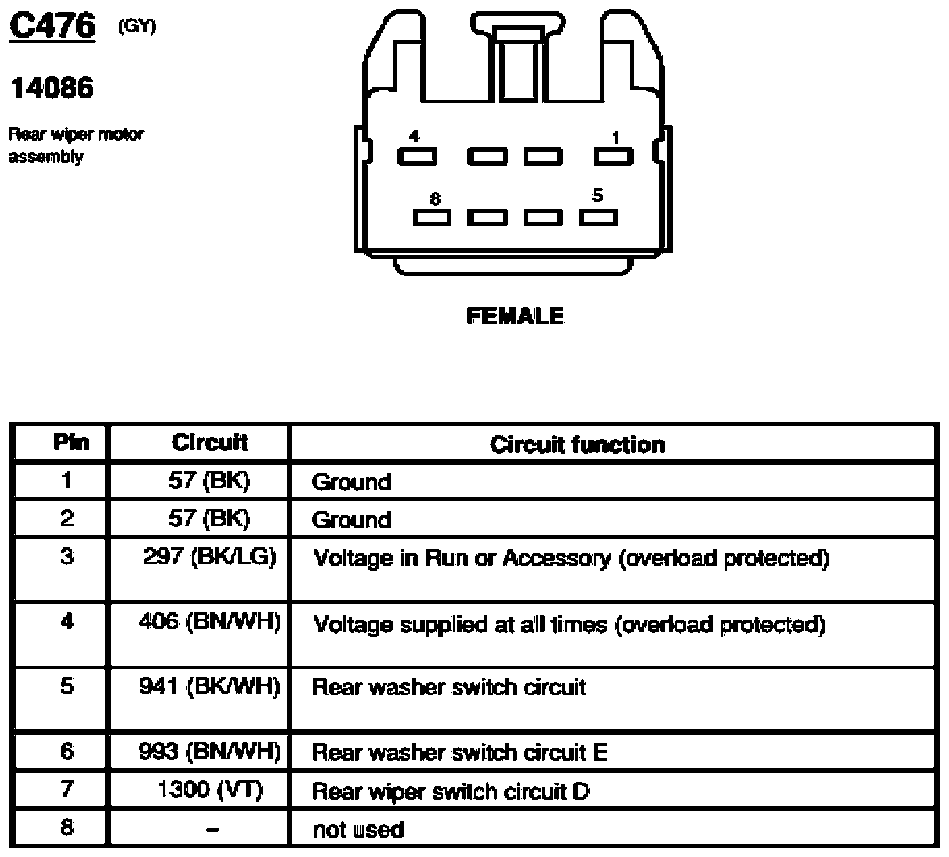

Fig 165: Rear Wiper Motor Assembly Connector End View (C476)

G07842376

Courtesy of FORD MOTOR CO.

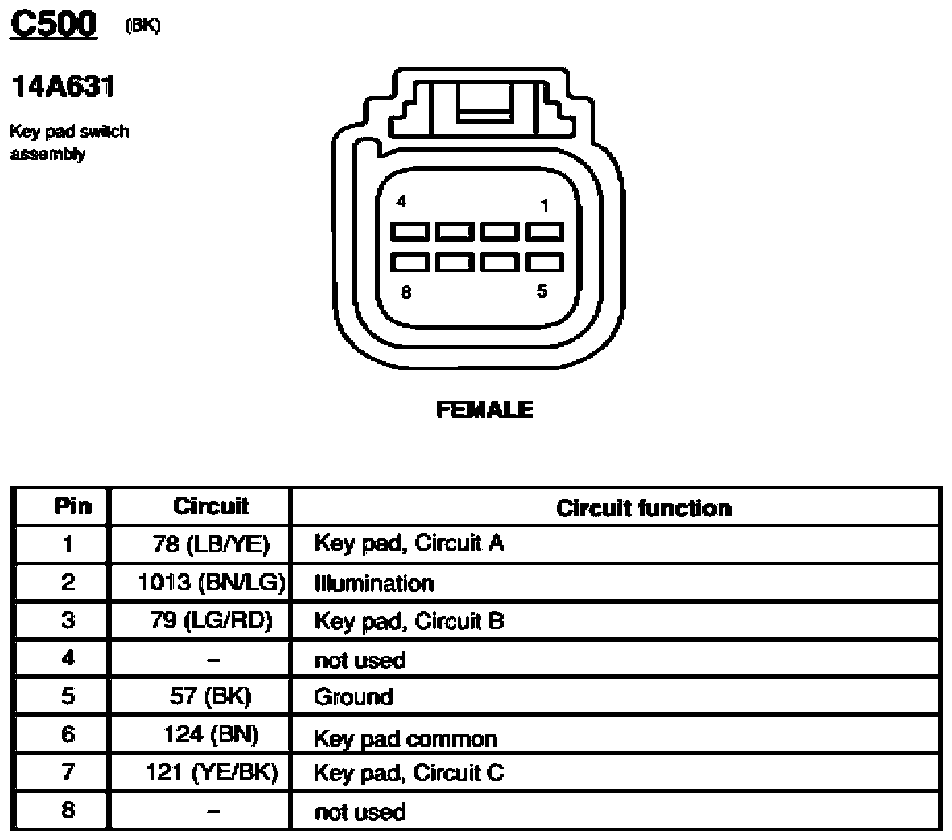

Fig 166: Key Pad Switch Assembly Connector End View (C500)

G07842377

Courtesy of FORD MOTOR CO.

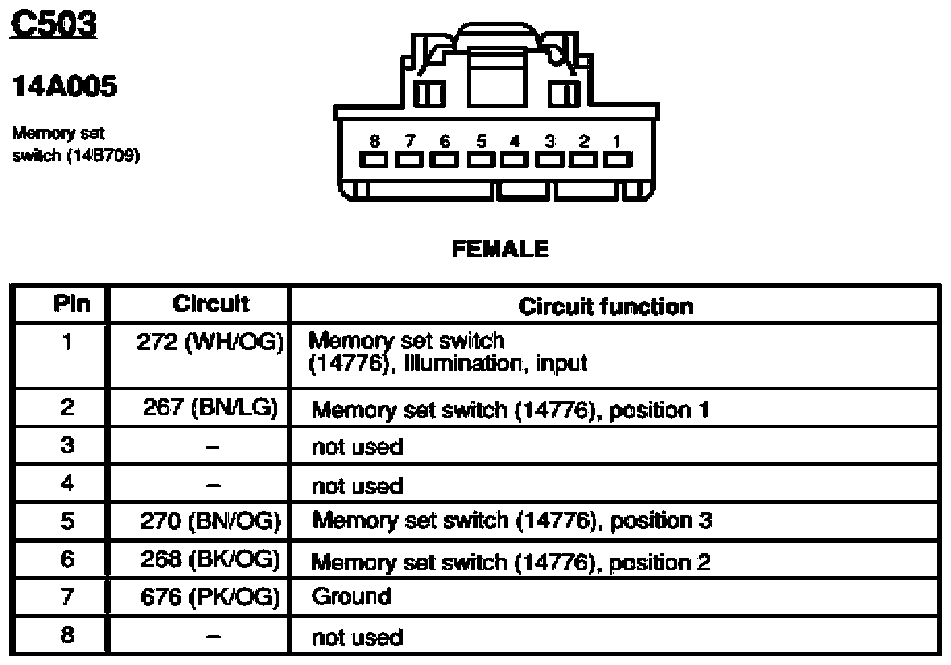

Fig 167: Memory Set Switch Connector End View (C503)

G07842378

Courtesy of FORD MOTOR CO.

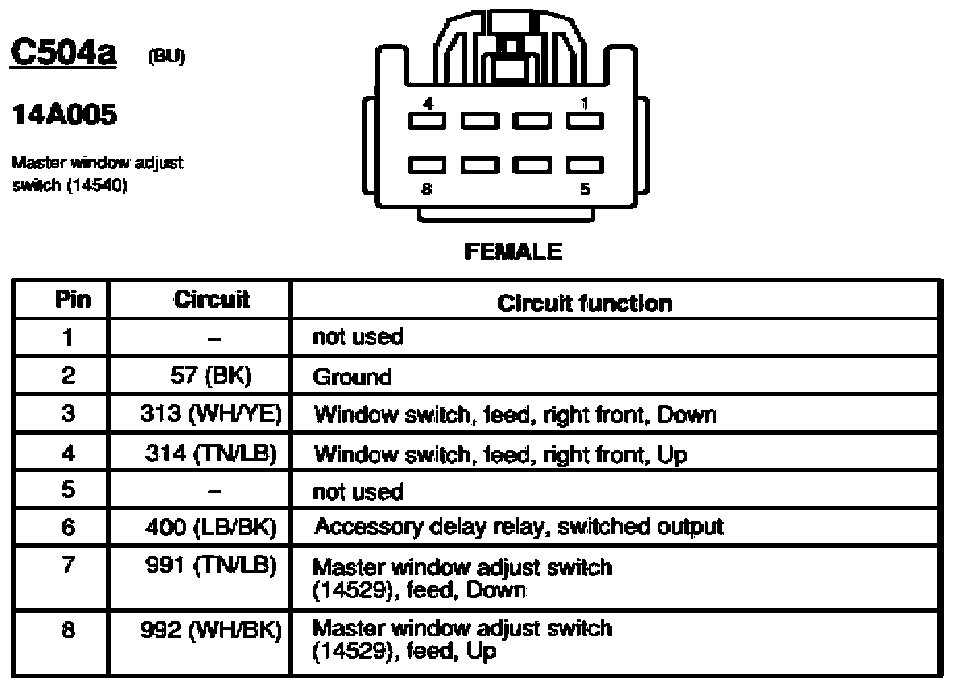

Fig 168: Master Window Adjust Switch Connector End View (C504a)

G07842379

Courtesy of FORD MOTOR CO.

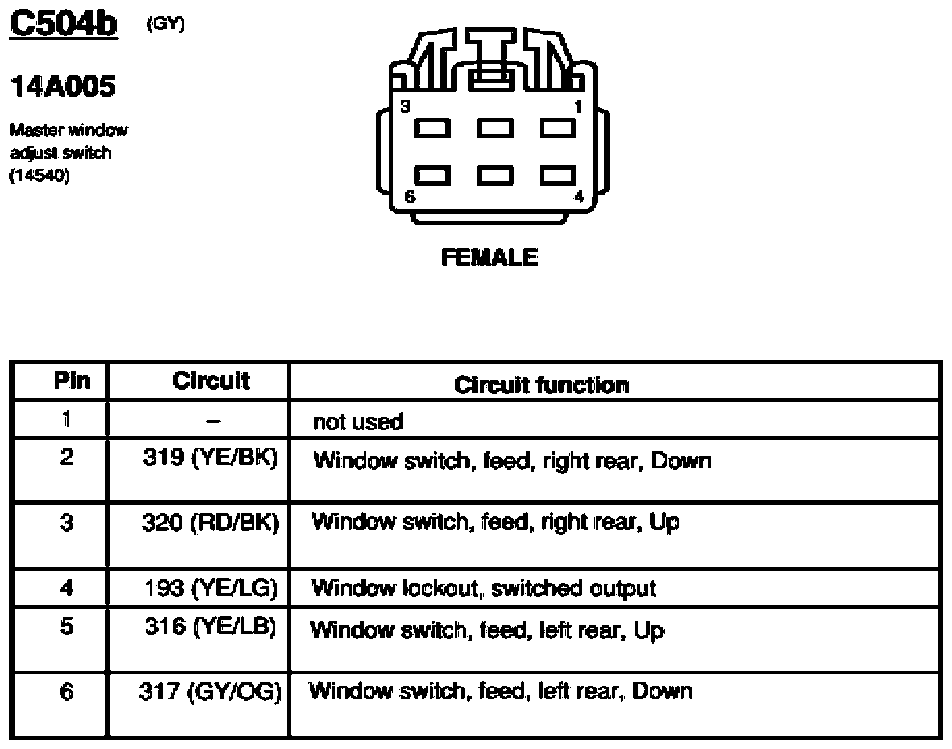

Fig 169: Master Window Adjust Switch Connector End View (C504b)

G07842380

Courtesy of FORD MOTOR CO.

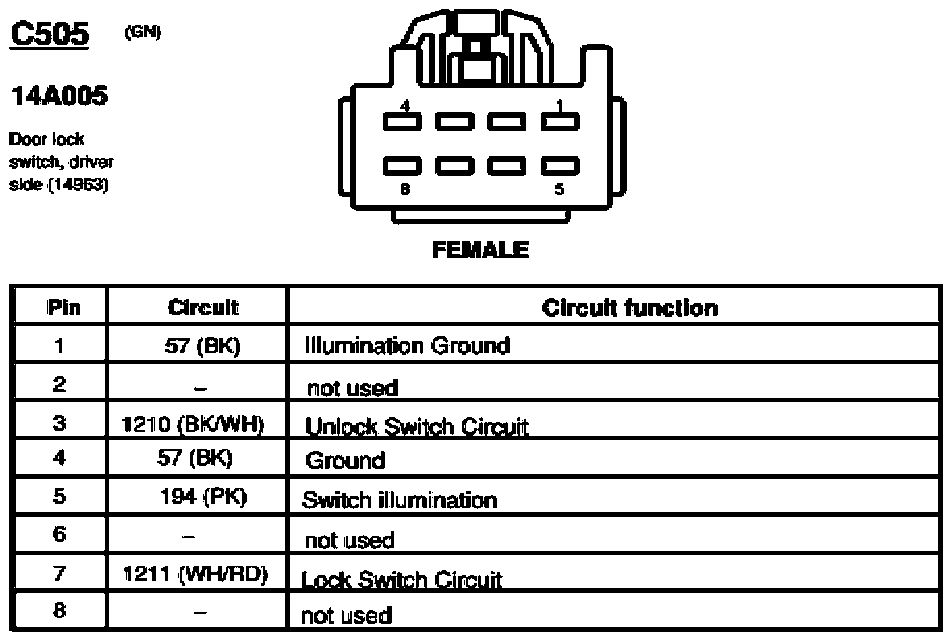

Fig 170: Door Lock Switch, Driver Side Connector End View (C505)

G07842381

Courtesy of FORD MOTOR CO.

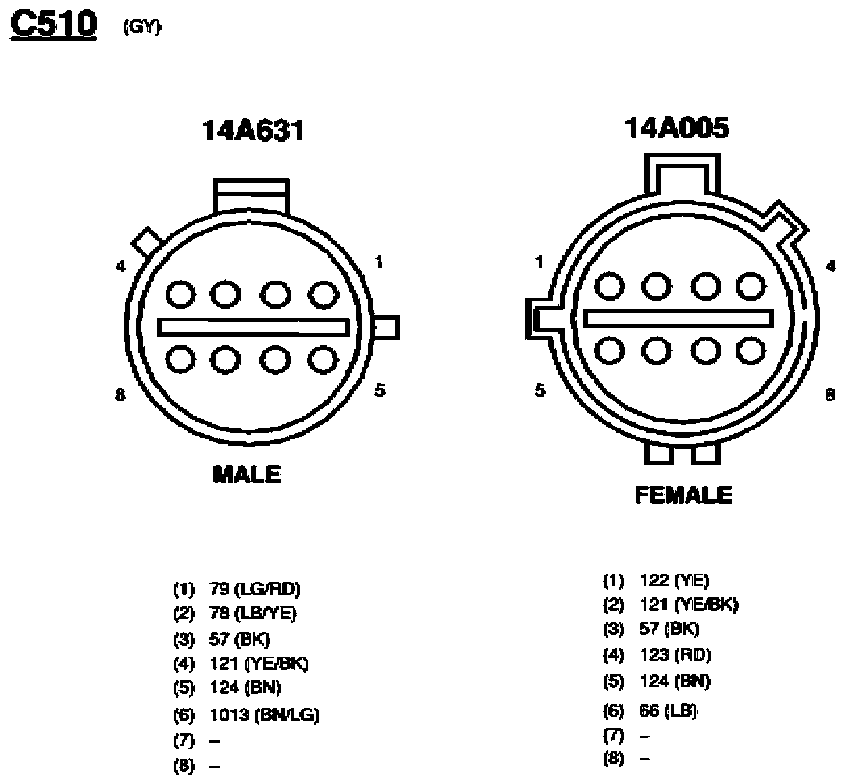

Fig 171: Inline Connector End View (C510)

G07842382

Courtesy of FORD MOTOR CO.

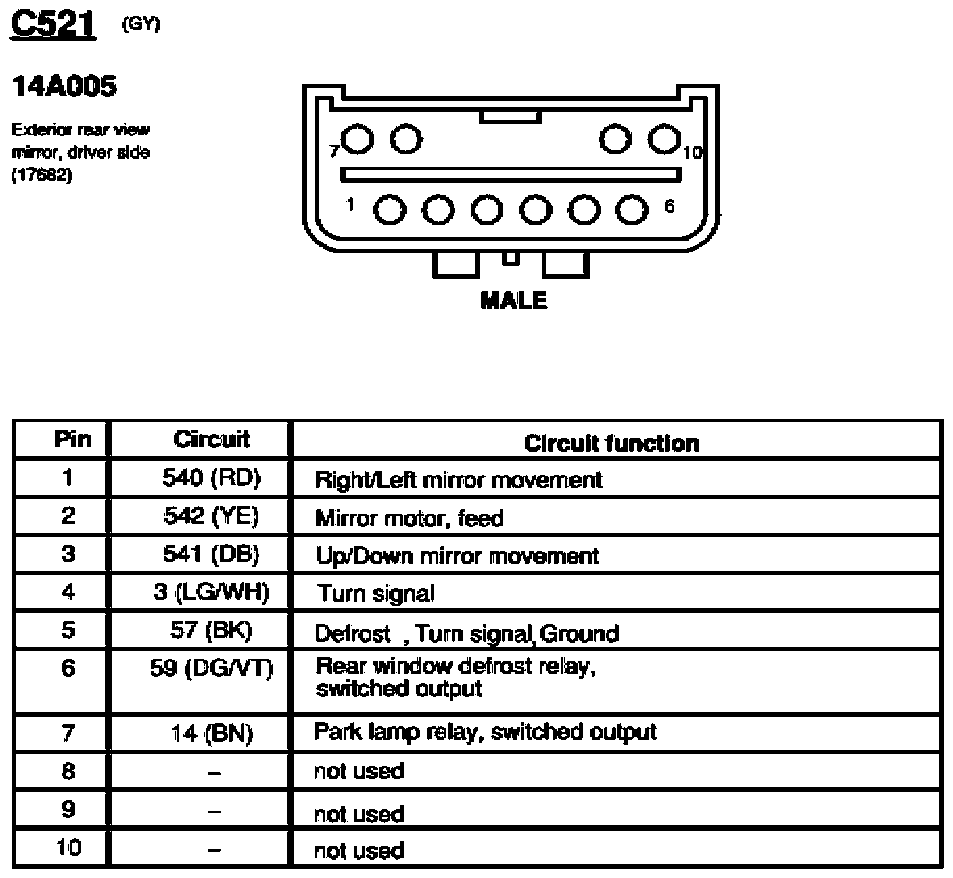

Fig 172: Exterior Rear View Mirror, Driver Side Connector End View (C521)

G07842383

Courtesy of FORD MOTOR CO.

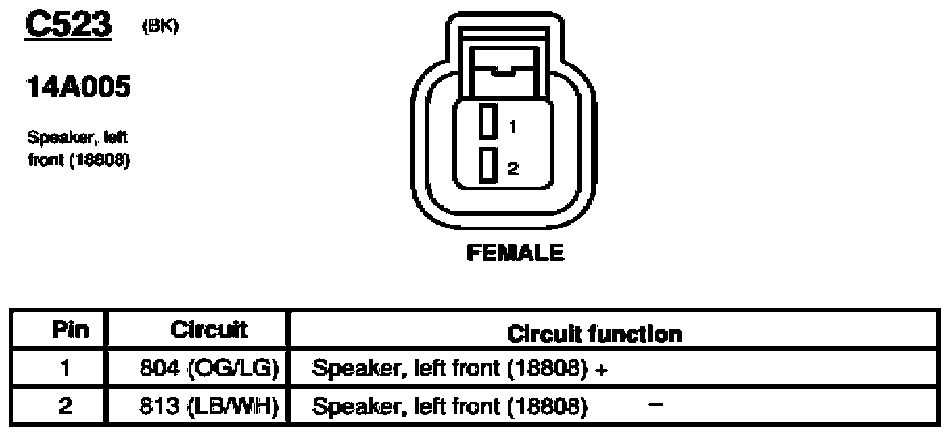

Fig 173: Speaker, Left Front Connector End View (C523)

G07842384

Courtesy of FORD MOTOR CO.

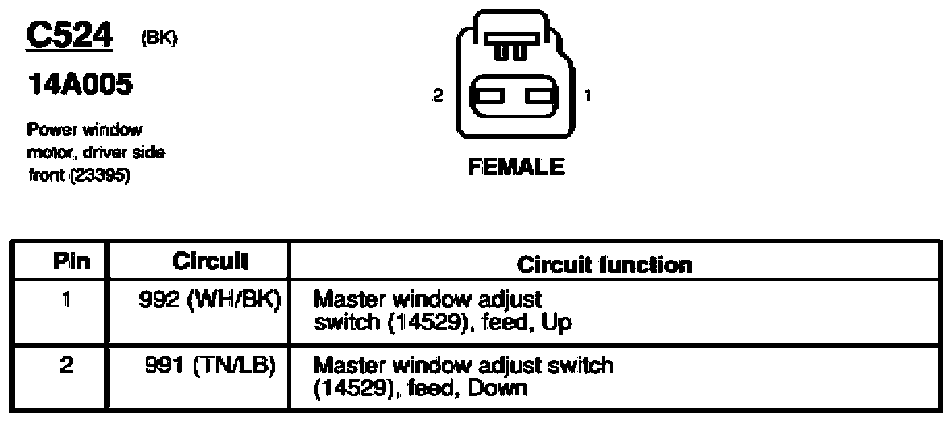

Fig 174: Power Window Motor, Driver Side Front Connector End View (C524)

G07842385

Courtesy of FORD MOTOR CO.

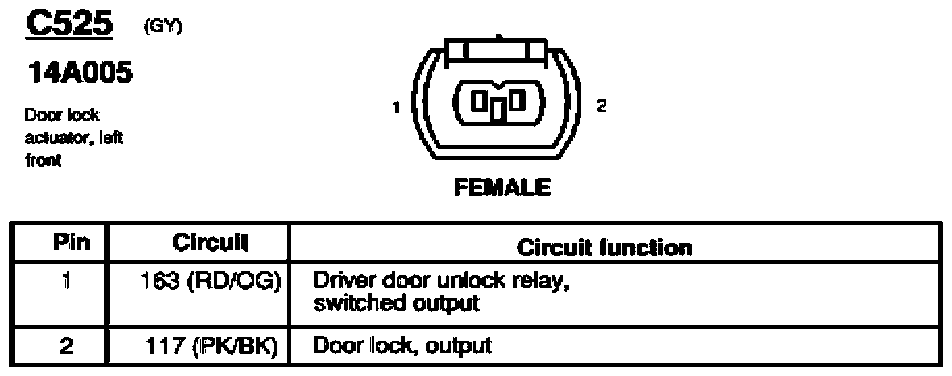

Fig 175: Door Lock Actuator, Left Front Connector End View (C525)

G07842386

Courtesy of FORD MOTOR CO.

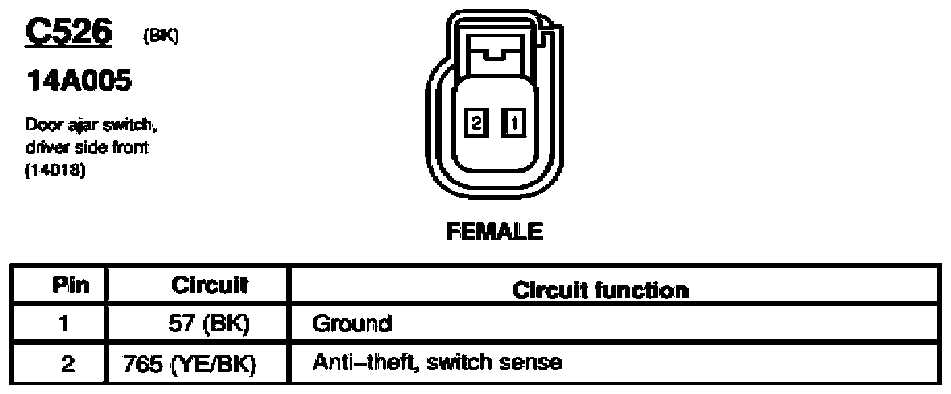

Fig 176: Door Ajar Switch, Driver Side Front Connector End View (C526)

G07842387

Courtesy of FORD MOTOR CO.

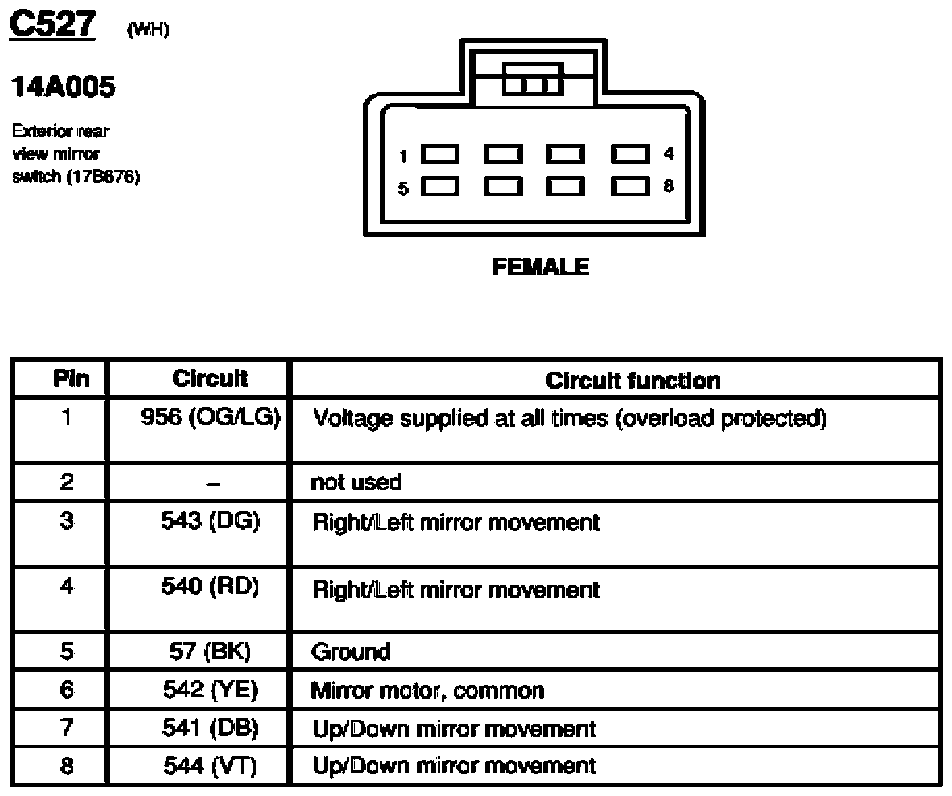

Fig 177: Exterior Rear View Mirror Switch Connector End View (C527)

G07842388

Courtesy of FORD MOTOR CO.

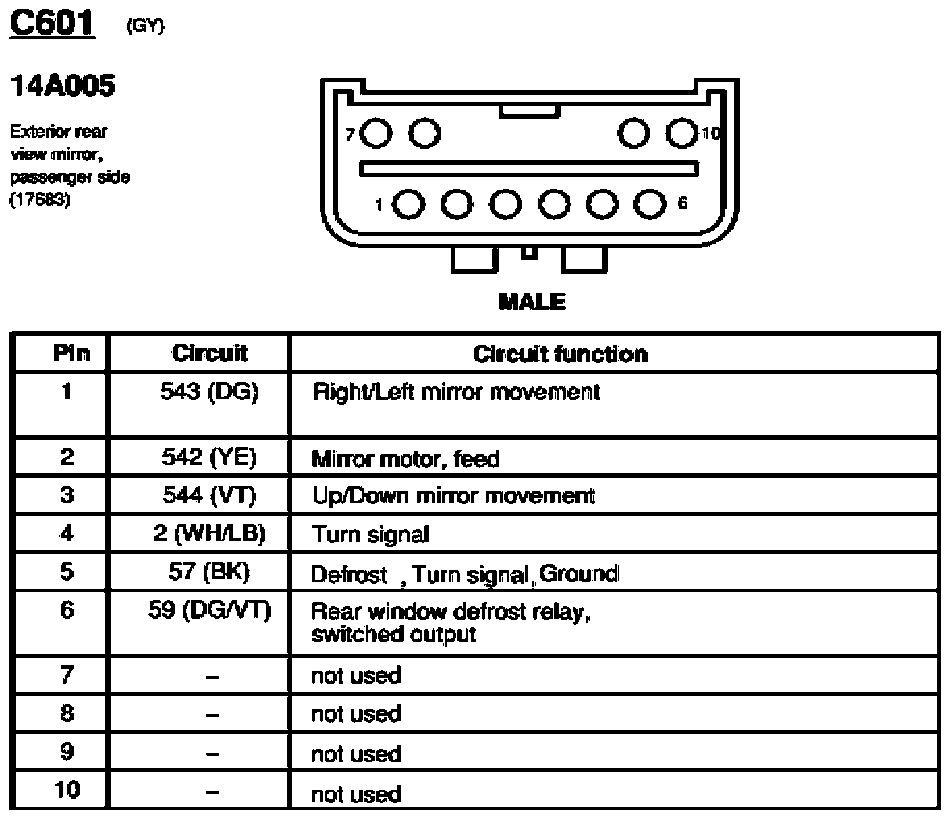

Fig 178: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07842389

Courtesy of FORD MOTOR CO.

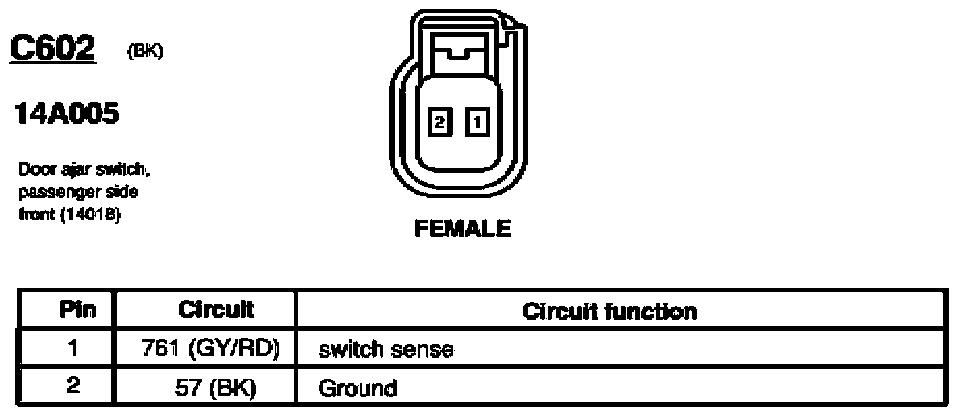

Fig 179: Door Ajar Switch, Passenger Side Front Connector End View (C602)

G07842390

Courtesy of FORD MOTOR CO.

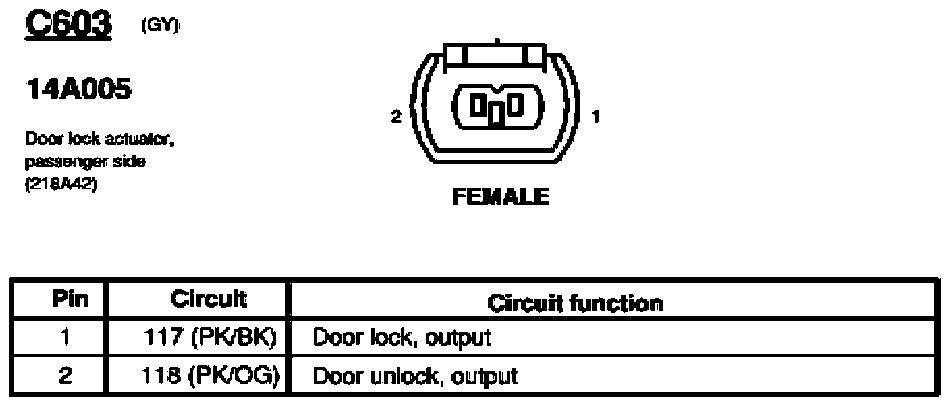

Fig 180: Door Lock Actuator, Passenger Side Connector End View (C603)

G07842391

Courtesy of FORD MOTOR CO.

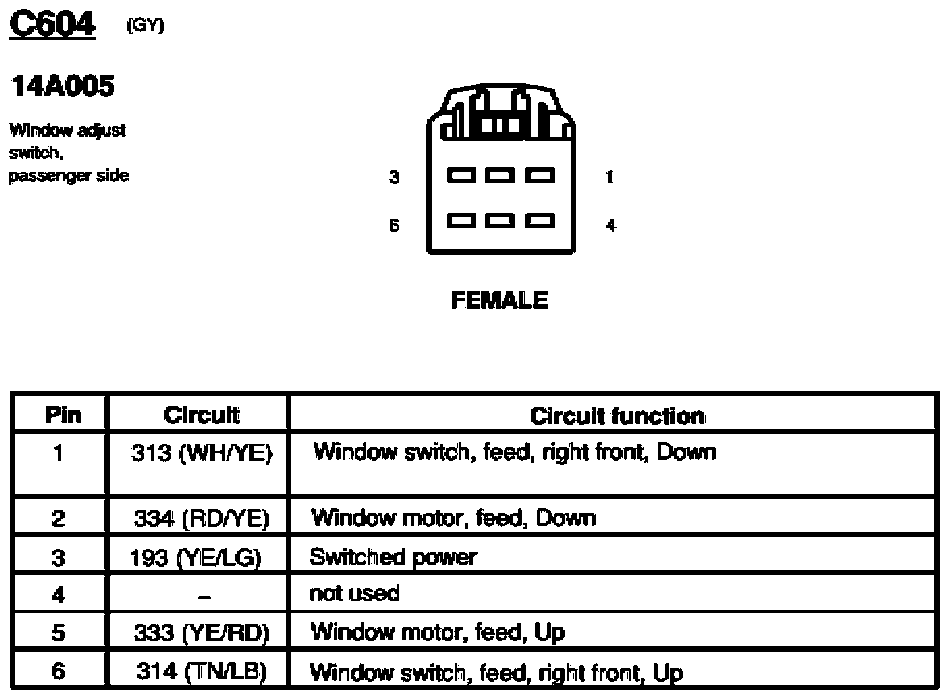

Fig 181: Window Adjust Switch, Passenger Side Connector End View (C604)

G07842392

Courtesy of FORD MOTOR CO.

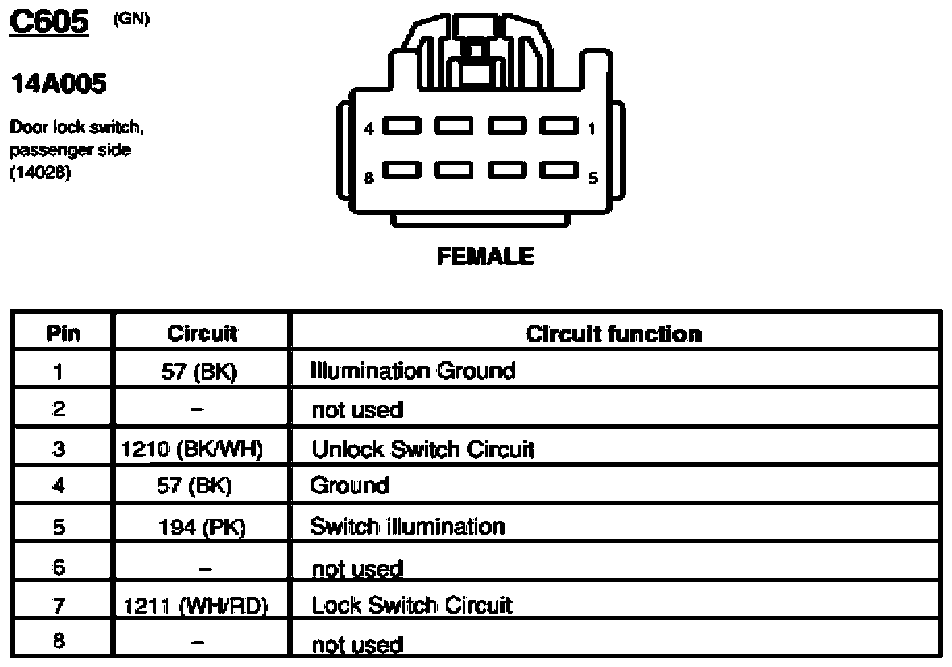

Fig 182: Door Lock Switch, Passenger Side Connector End View (C605)

G07842393

Courtesy of FORD MOTOR CO.

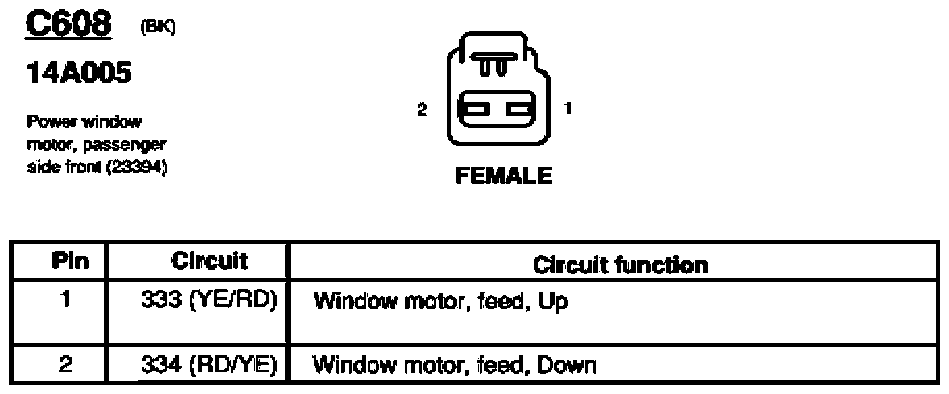

Fig 183: Power Window Motor, Passenger Side Front Connector End View (C608)

G07842394

Courtesy of FORD MOTOR CO.

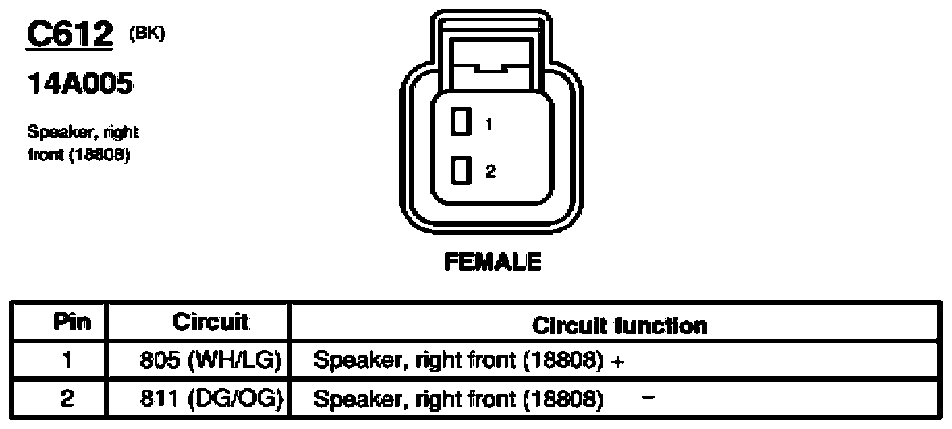

Fig 184: Speaker, Right Front Connector End View (C612)

G07842395

Courtesy of FORD MOTOR CO.

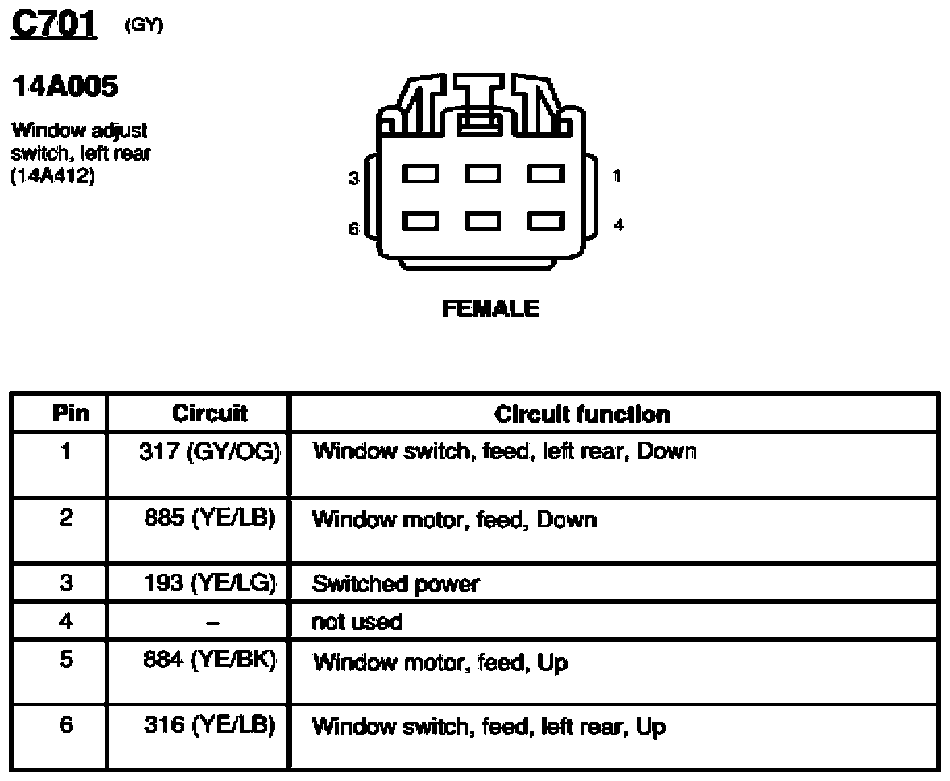

Fig 185: Window Adjust Switch, Left Rear Connector End View (C701)

G07842396

Courtesy of FORD MOTOR CO.

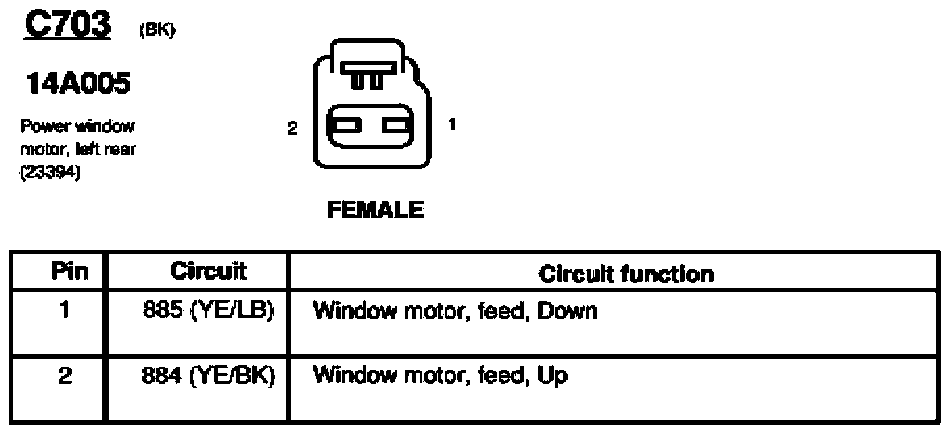

Fig 186: Power Window Motor, Left Rear Connector End View (C703)

G07842397

Courtesy of FORD MOTOR CO.

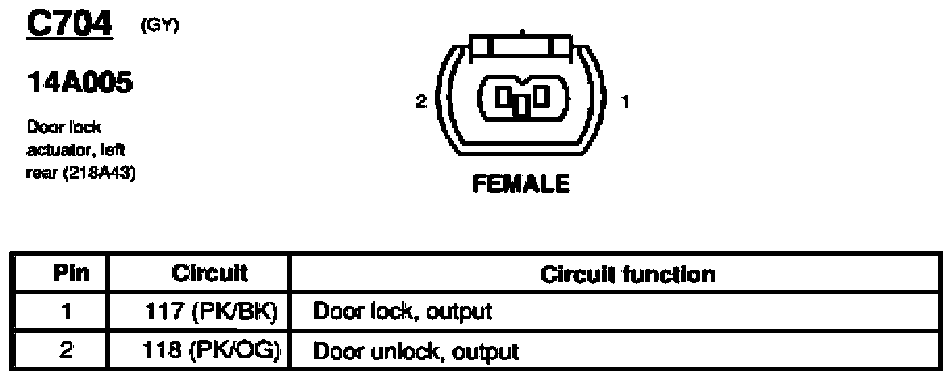

Fig 187: Door Lock Actuator, Left Rear Connector End View (C704)

G07842398

Courtesy of FORD MOTOR CO.

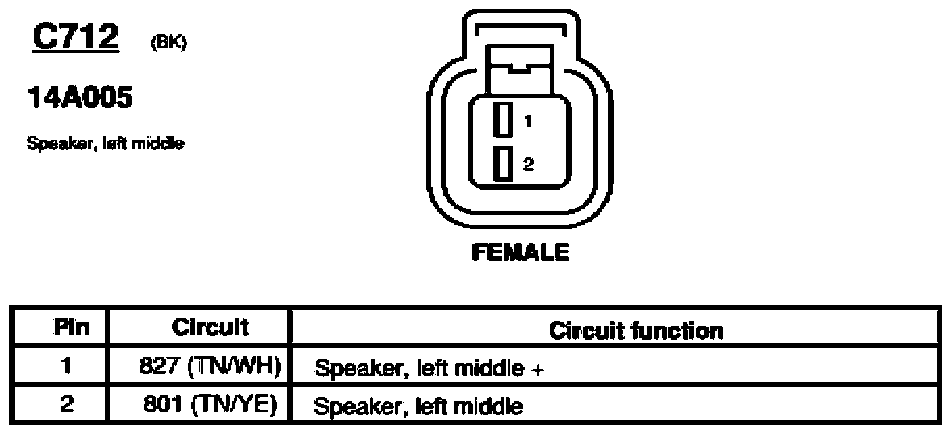

Fig 188: Speaker, Left Middle Connector End View (C712)

G07842399

Courtesy of FORD MOTOR CO.

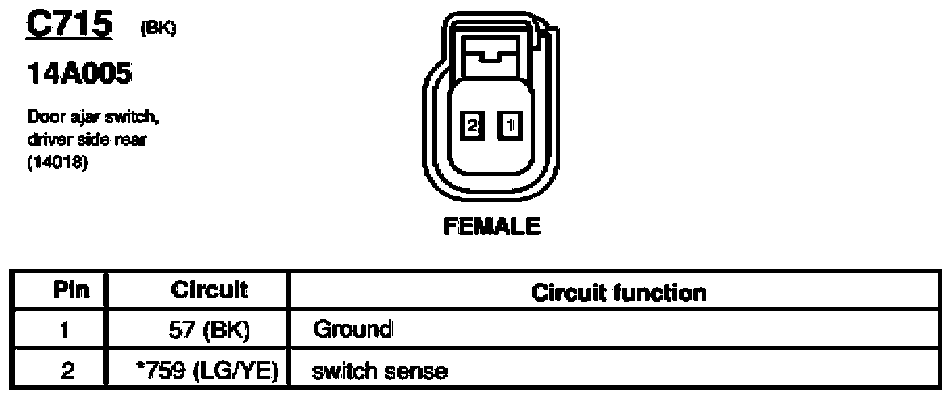

Fig 189: Door Ajar Switch, Driver Side Rear Connector End View (C715)

G07842400

Courtesy of FORD MOTOR CO.

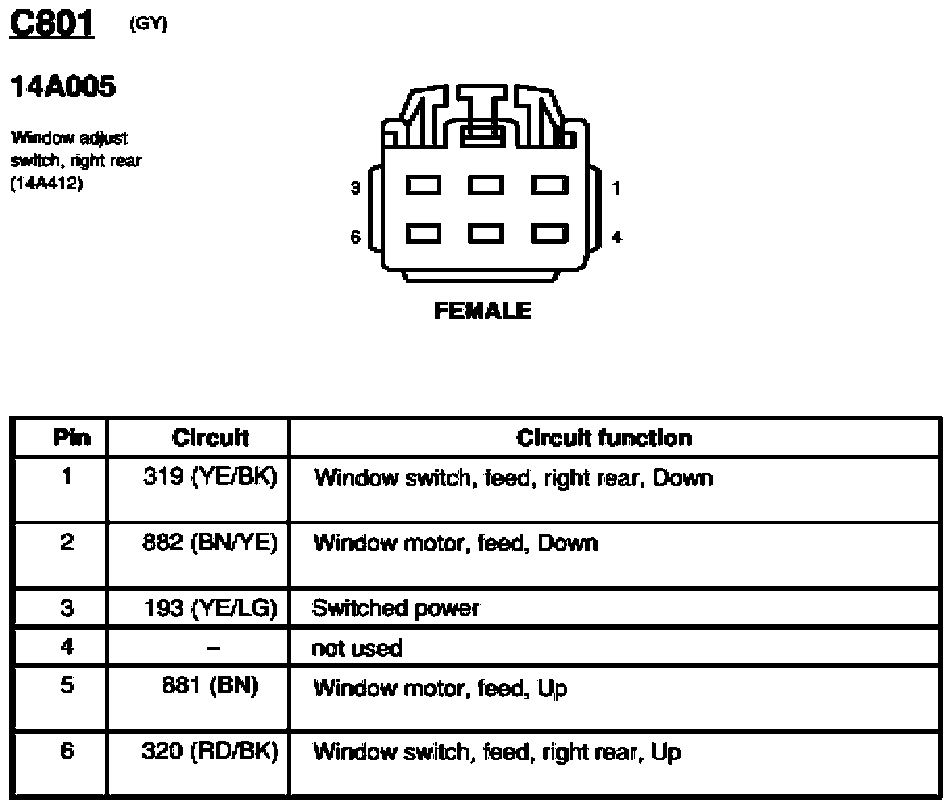

Fig 190: Window Adjust Switch, Right Rear Connector End View (C801)

G07842401

Courtesy of FORD MOTOR CO.

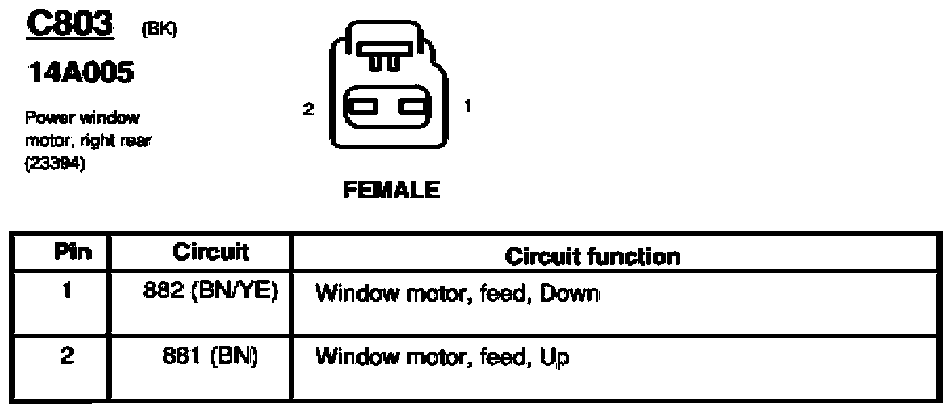

Fig 191: Power Window Motor, Right Rear Connector End View (C803)

G07842402

Courtesy of FORD MOTOR CO.

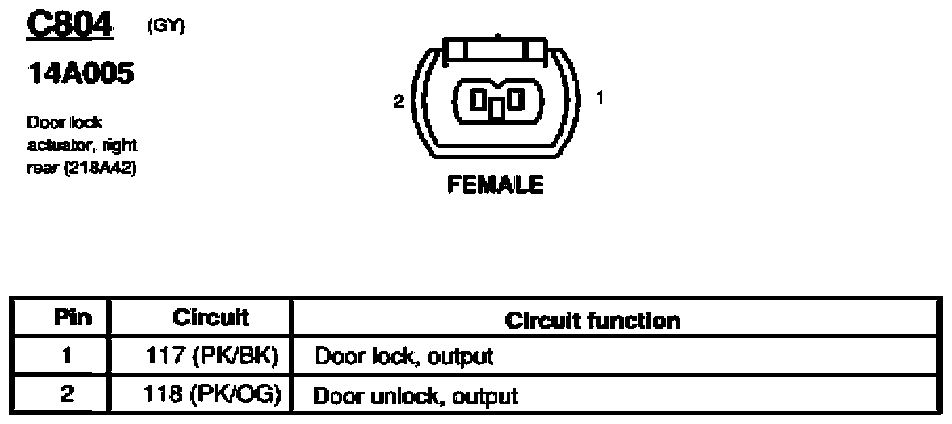

Fig 192: Door Lock Actuator, Right Rear Connector End View (C804)

G07842403

Courtesy of FORD MOTOR CO.

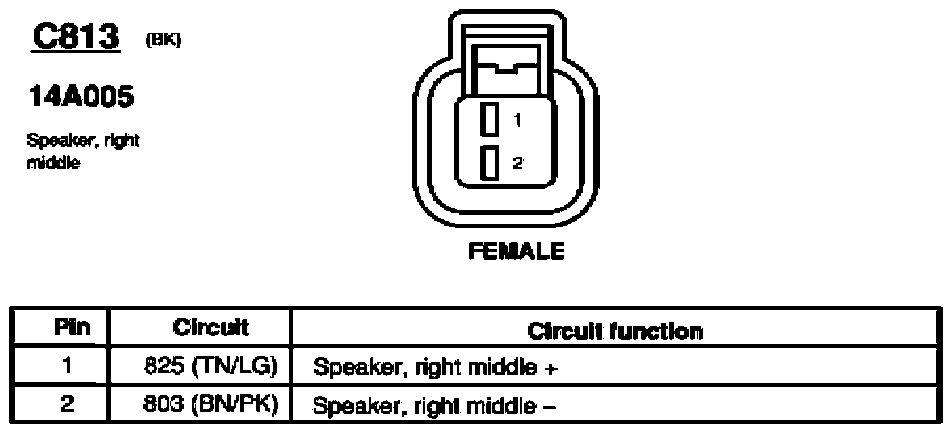

Fig 193: Speaker, Right Middle Connector End View (C813)

G07842404

Courtesy of FORD MOTOR CO.

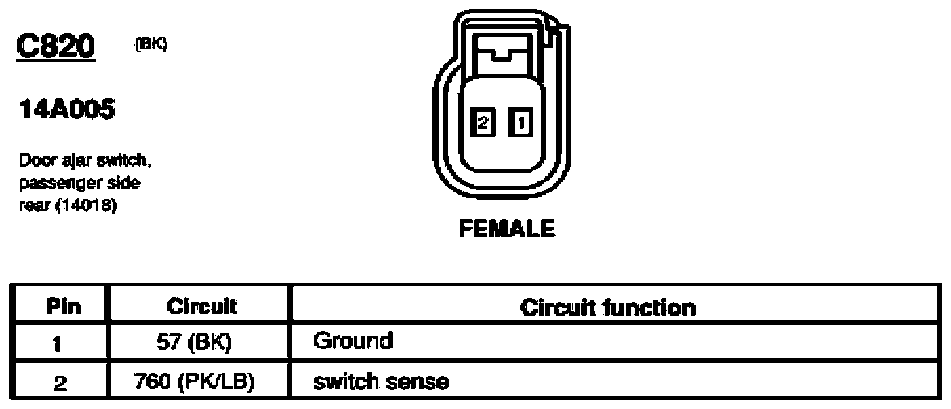

Fig 194: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G07842405

Courtesy of FORD MOTOR CO.

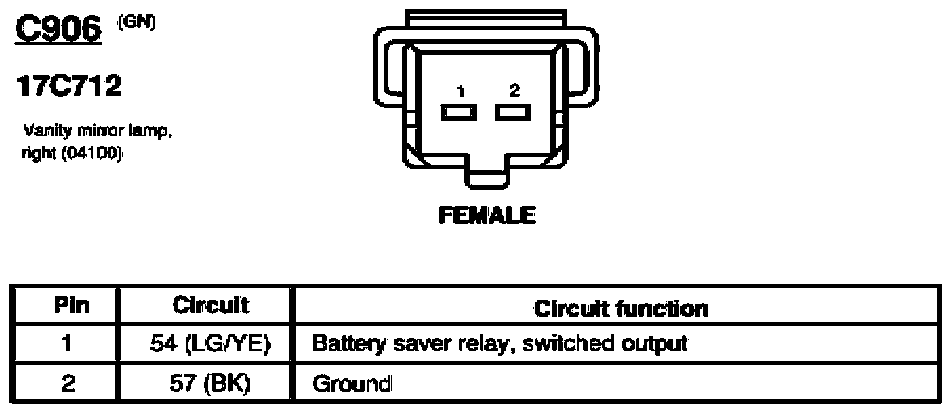

Fig 195: Vanity Mirror Lamp, Right Connector End View (C906)

G07842406

Courtesy of FORD MOTOR CO.

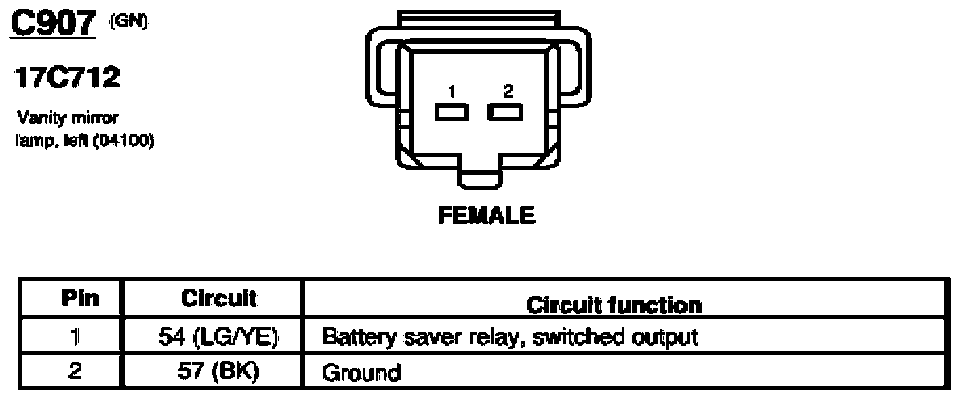

Fig 196: Vanity Mirror Lamp, Left Connector End View (C907)

G07842407

Courtesy of FORD MOTOR CO.

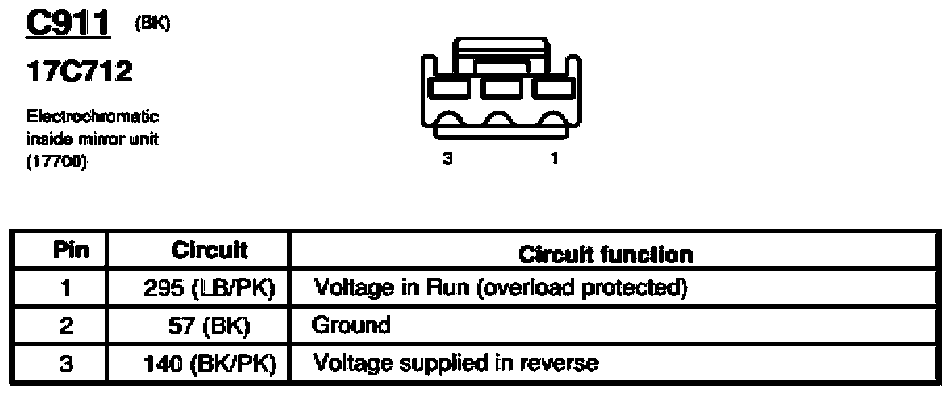

Fig 197: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07842408

Courtesy of FORD MOTOR CO.

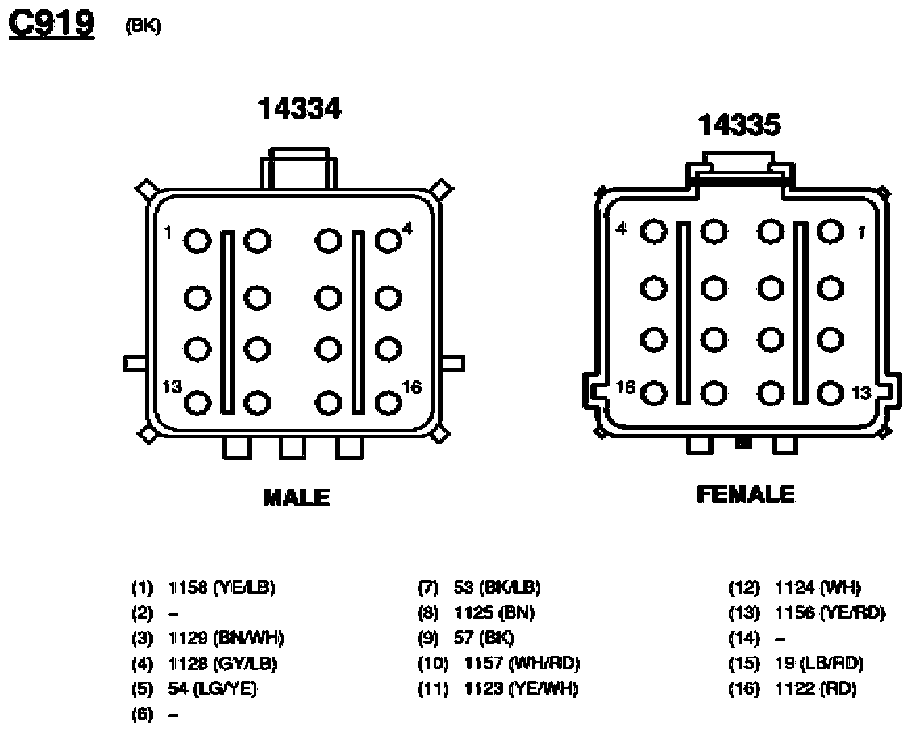

Fig 198: Inline Connector End View (C919)

G07842409

Courtesy of FORD MOTOR CO.

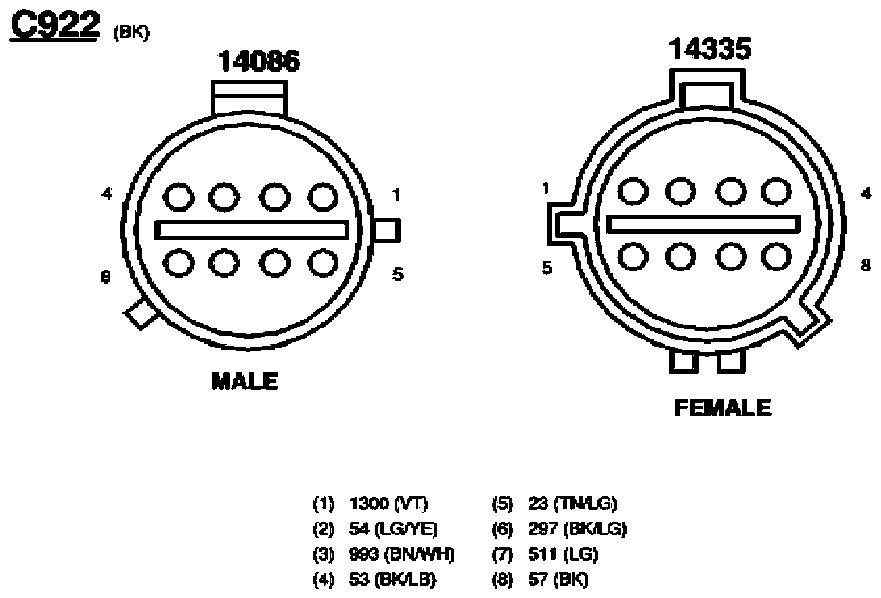

Fig 199: Inline Connector End View (C922)

G07842410

Courtesy of FORD MOTOR CO.

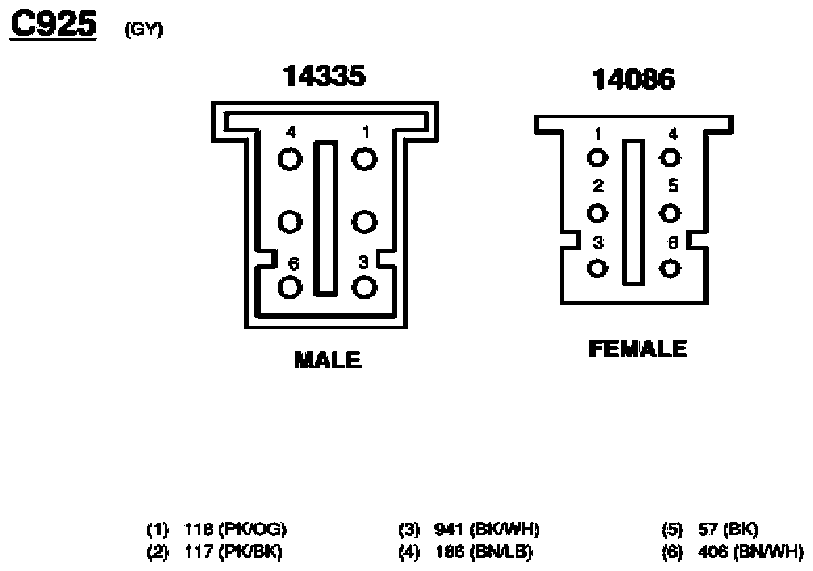

Fig 200: Inline Connector End View (C925)

G07842411

Courtesy of FORD MOTOR CO.

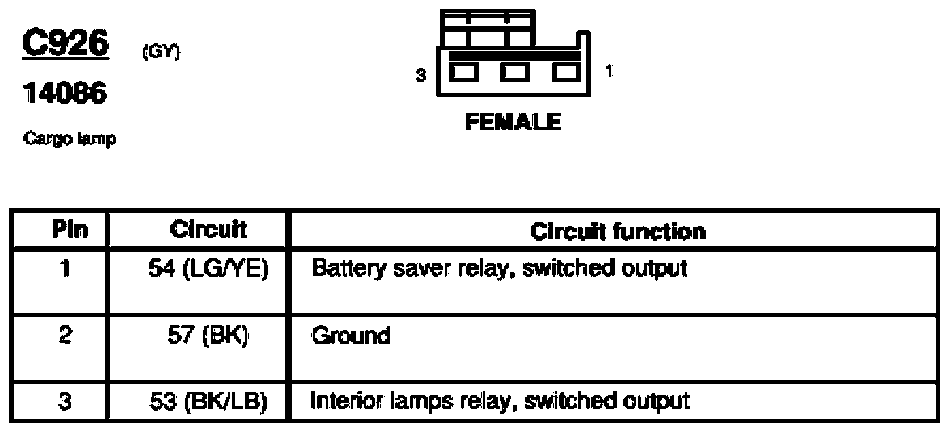

Fig 201: Cargo Lamp Connector End View (C926)

G07842412

Courtesy of FORD MOTOR CO.

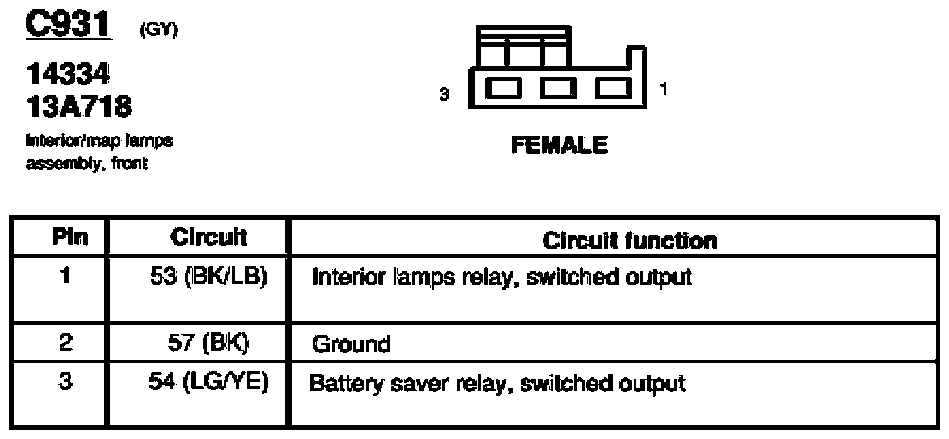

Fig 202: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07842413

Courtesy of FORD MOTOR CO.

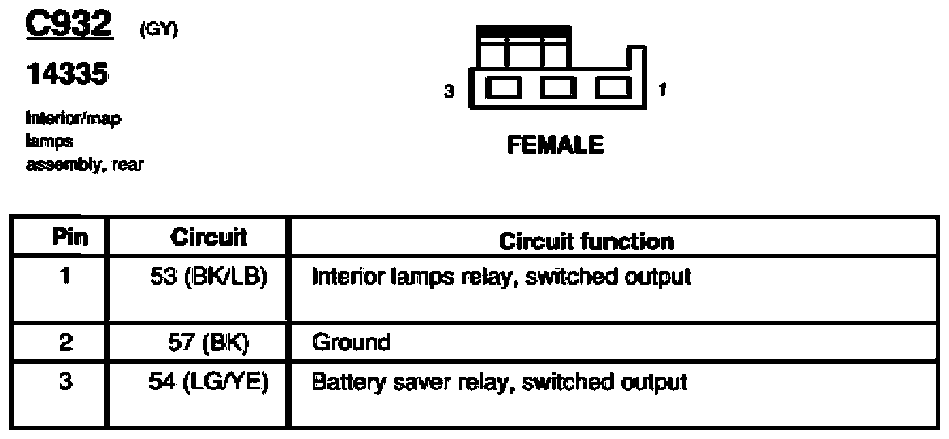

Fig 203: Interior/Map Lamps Assembly, Rear Connector End View (C932)

G07842414

Courtesy of FORD MOTOR CO.

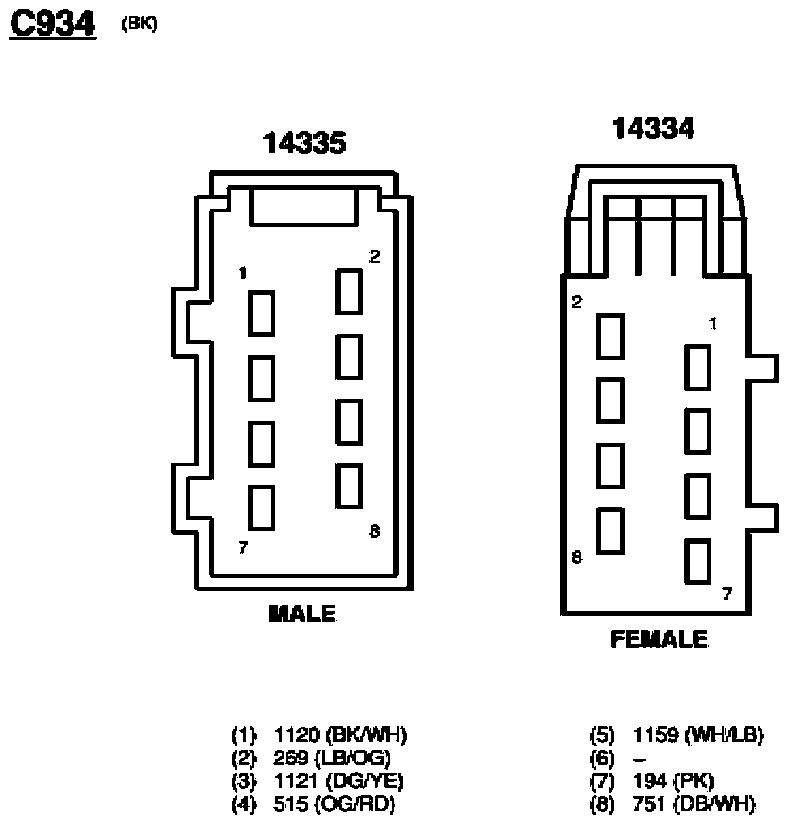

Fig 204: Inline Connector End View (C934)

G07842415

Courtesy of FORD MOTOR CO.

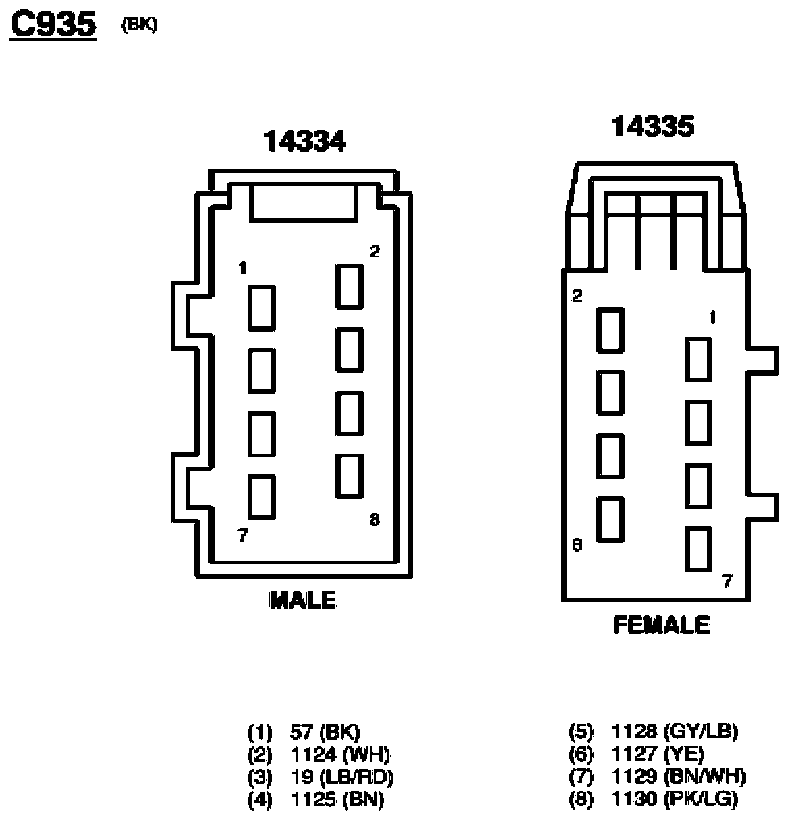

Fig 205: Inline Connector End View (C935)

G07842416

Courtesy of FORD MOTOR CO.

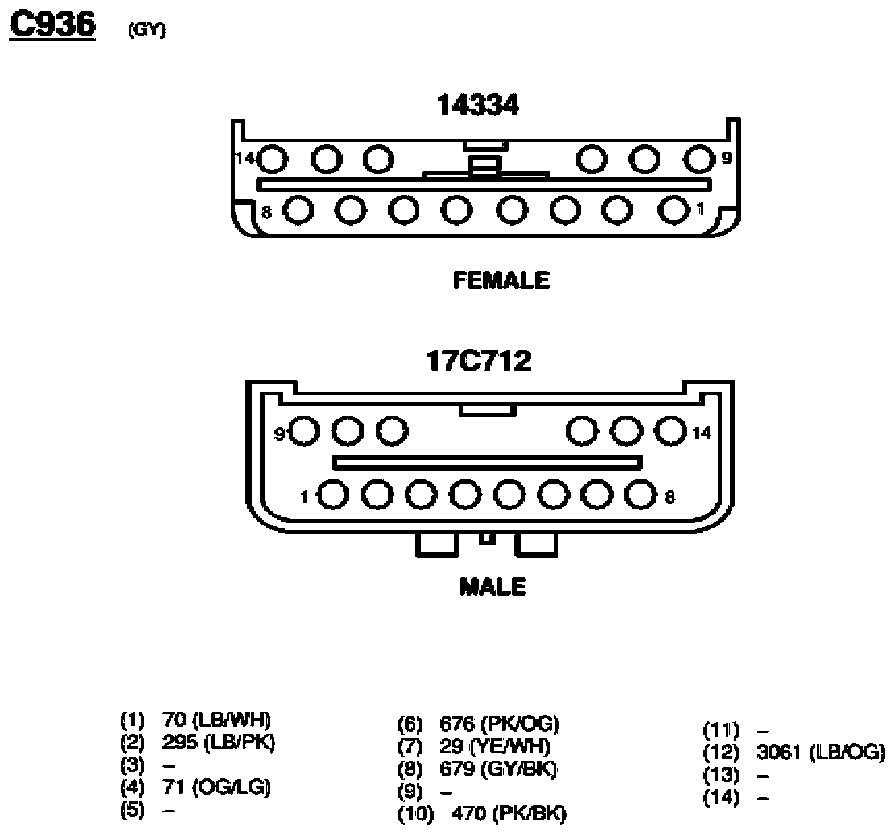

Fig 206: Inline Connector End View (C936)

G07842417

Courtesy of FORD MOTOR CO.

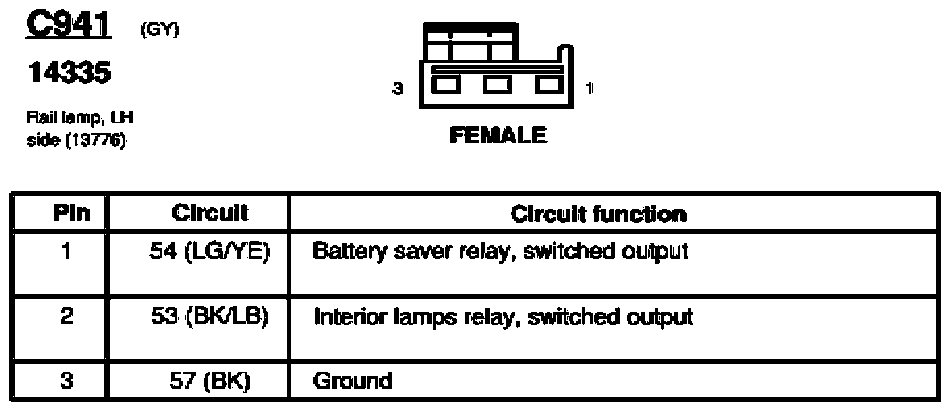

Fig 207: Rail Lamp, LH Side Connector End View (C941)

G07842418

Courtesy of FORD MOTOR CO.

Fig 208: Rail Lamp, RH Side Connector End View (C942)

G07842419

Courtesy of FORD MOTOR CO.

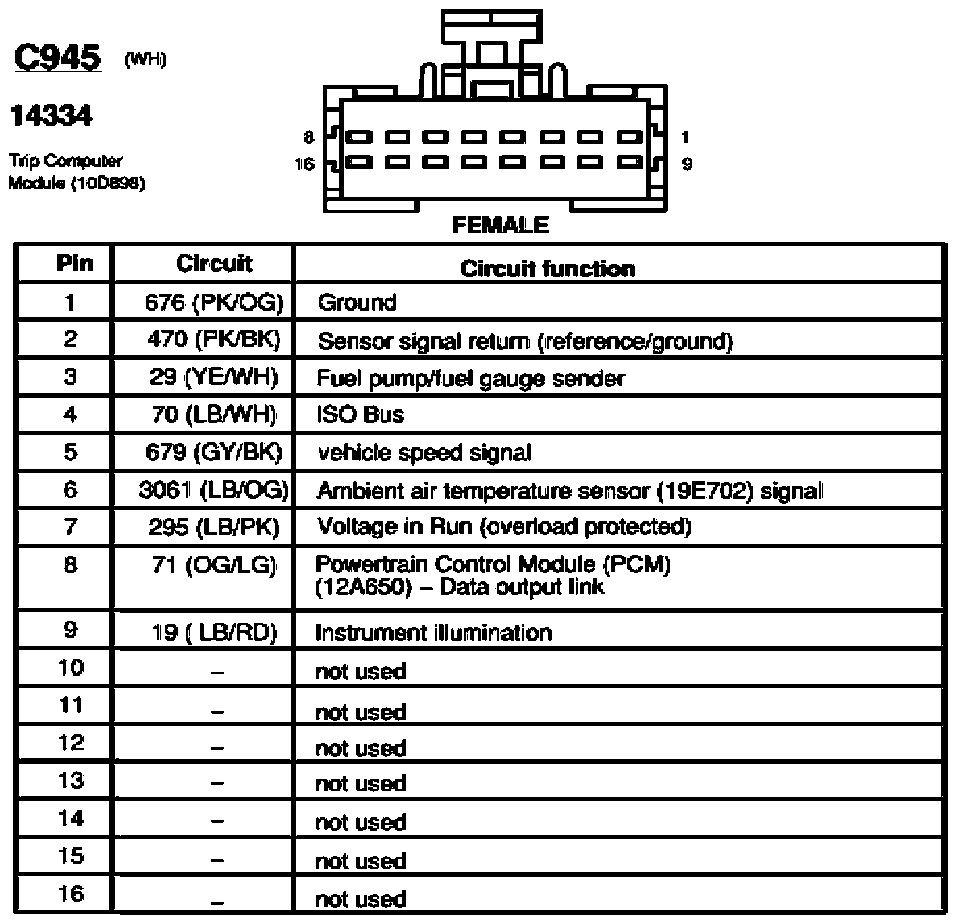

Fig 209: Trip Computer Module Connector End View (C945)

G07842420

Courtesy of FORD MOTOR CO.

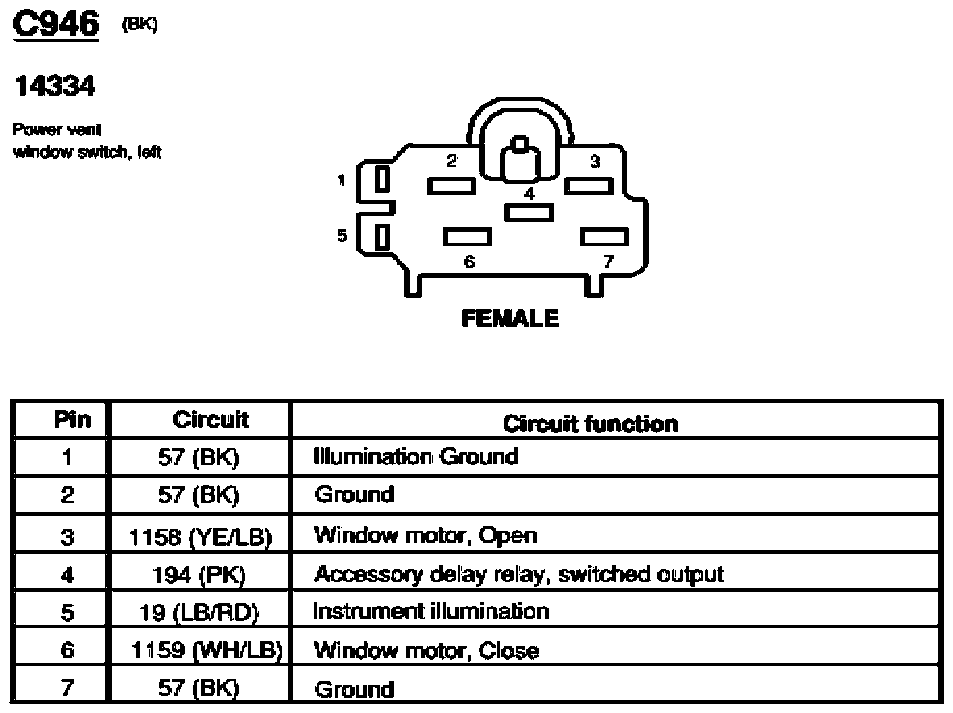

Fig 210: Power Vent Window Switch, Left Connector End View (C946)

G07842421

Courtesy of FORD MOTOR CO.

Fig 211: Power Vent Window Motor, Left Connector End View (C947)

G07842422

Courtesy of FORD MOTOR CO.

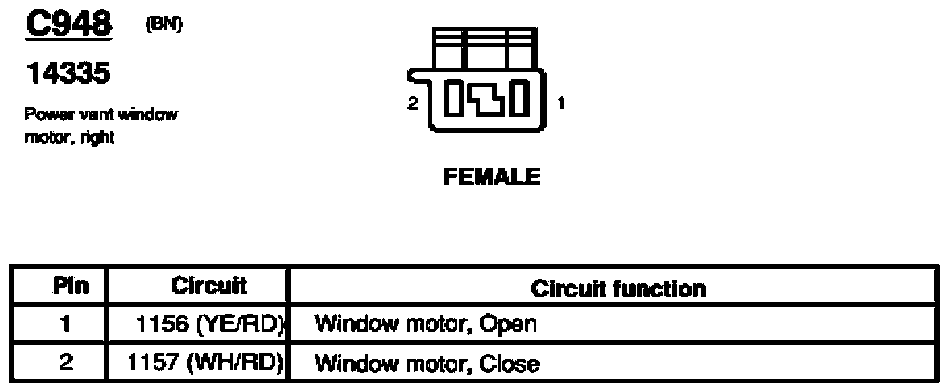

Fig 212: Power Vent Window Motor, Right Connector End View (C948)

G07842423

Courtesy of FORD MOTOR CO.

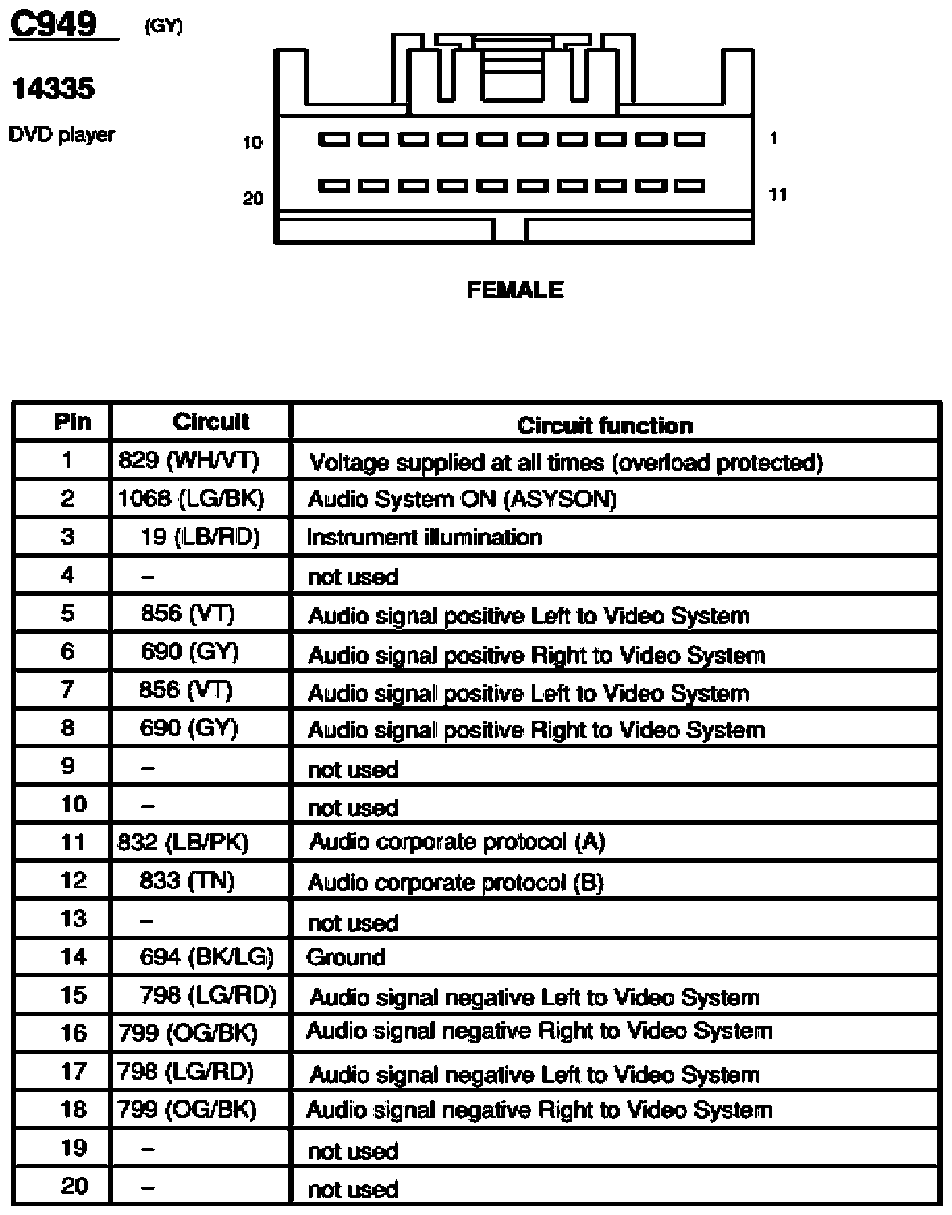

Fig 213: DVD Player Connector End View (C949)

G07842424

Courtesy of FORD MOTOR CO.

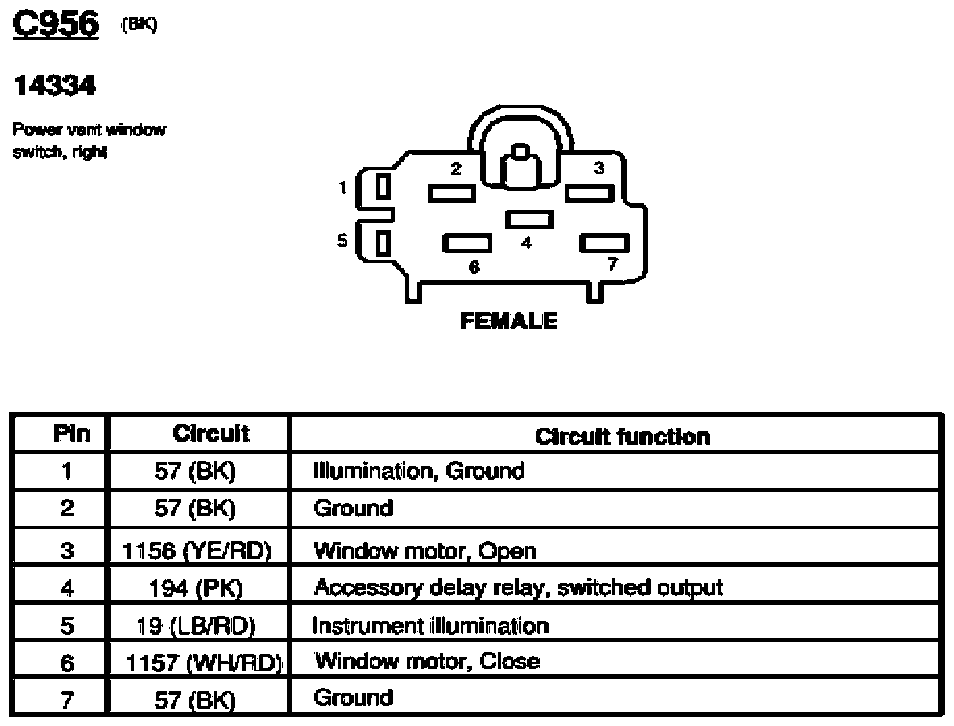

Fig 214: Power Vent Window Switch, Right Connector End View (C956)

G07842425

Courtesy of FORD MOTOR CO.

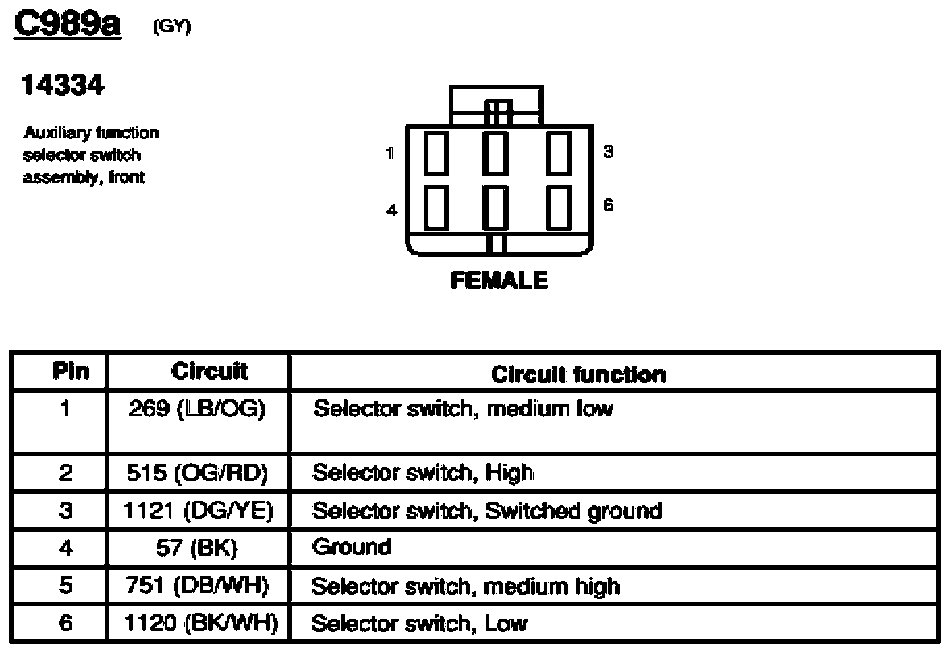

Fig 215: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989a)

G07842426

Courtesy of FORD MOTOR CO.

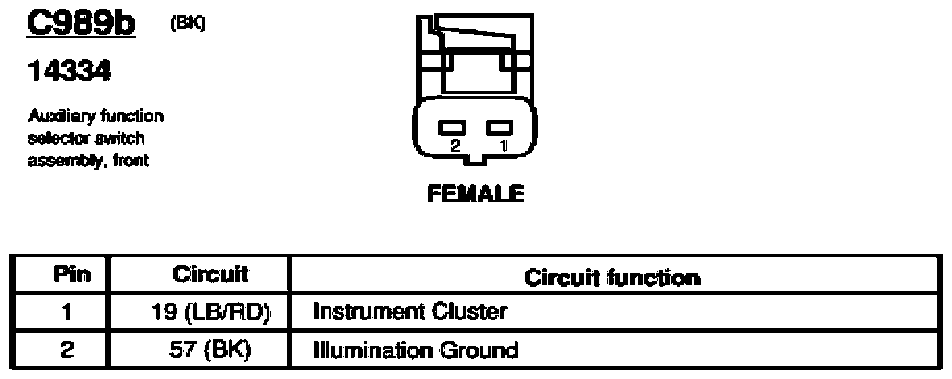

Fig 216: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989b)

G07842427

Courtesy of FORD MOTOR CO.

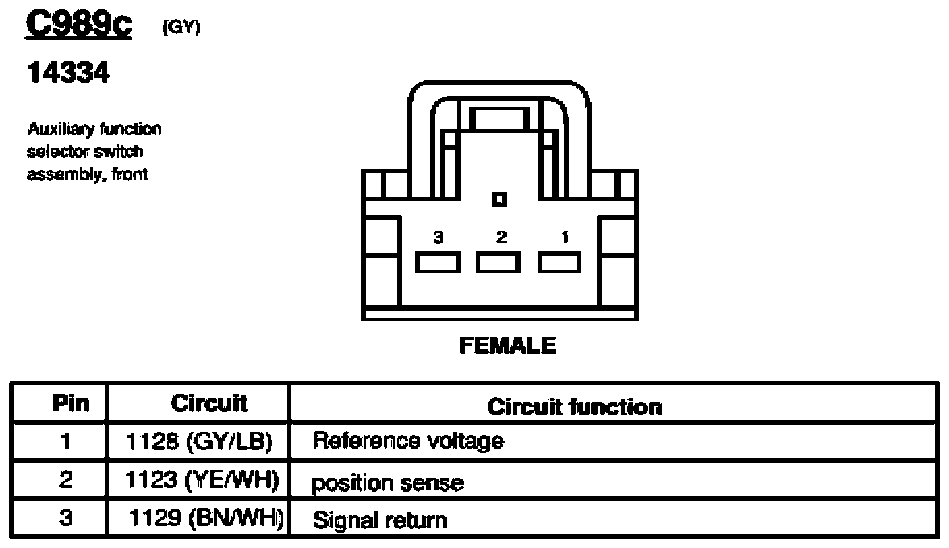

Fig 217: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989c)

G07842428

Courtesy of FORD MOTOR CO.

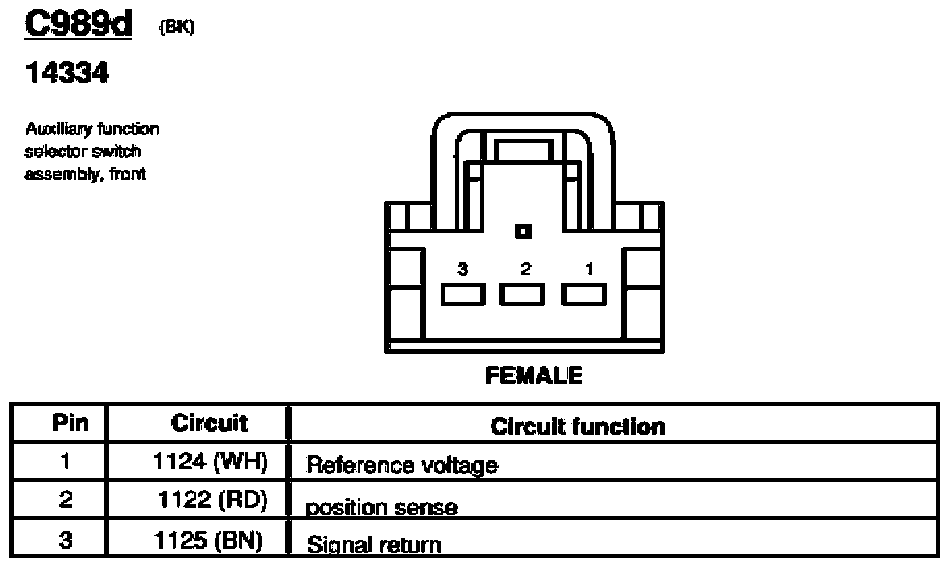

Fig 218: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989d)

G07842429

Courtesy of FORD MOTOR CO.

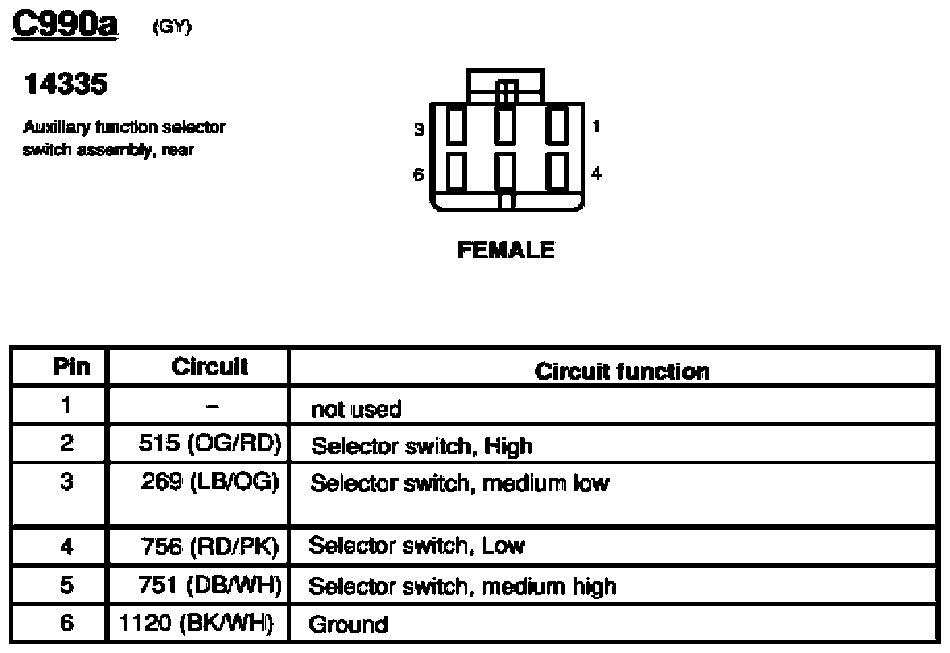

Fig 219: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C990a)

G07842430

Courtesy of FORD MOTOR CO.

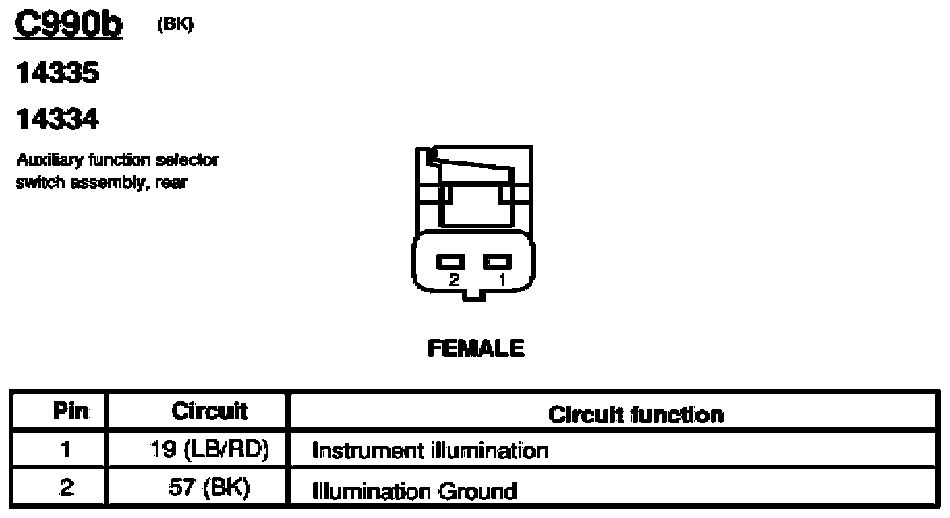

Fig 220: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C990b)

G07842431

Courtesy of FORD MOTOR CO.

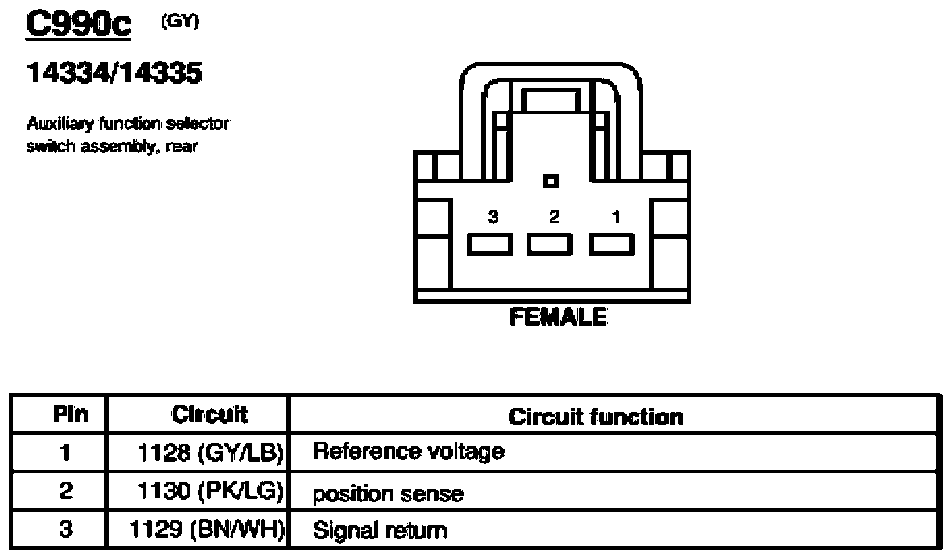

Fig 221: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C990c)

G07842432

Courtesy of FORD MOTOR CO.

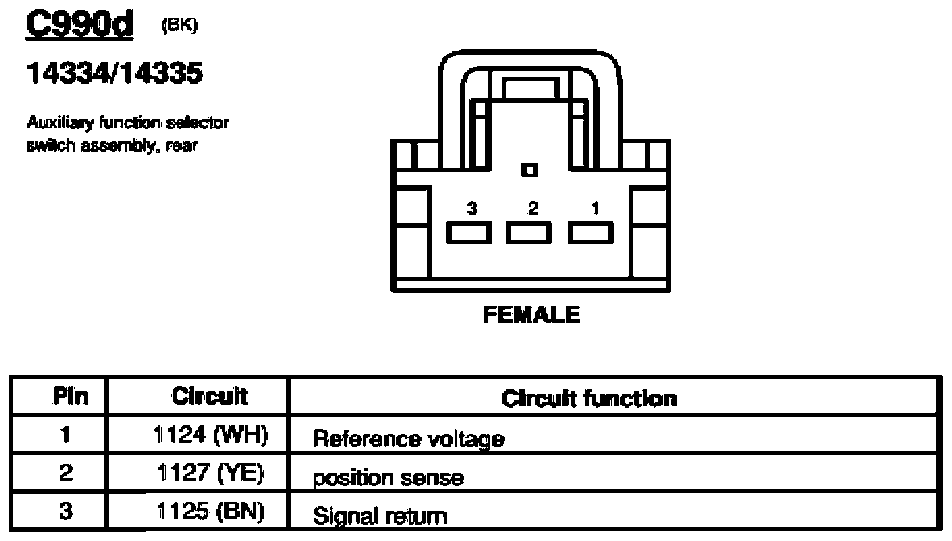

Fig 222: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C990d)

G07842433

Courtesy of FORD MOTOR CO.

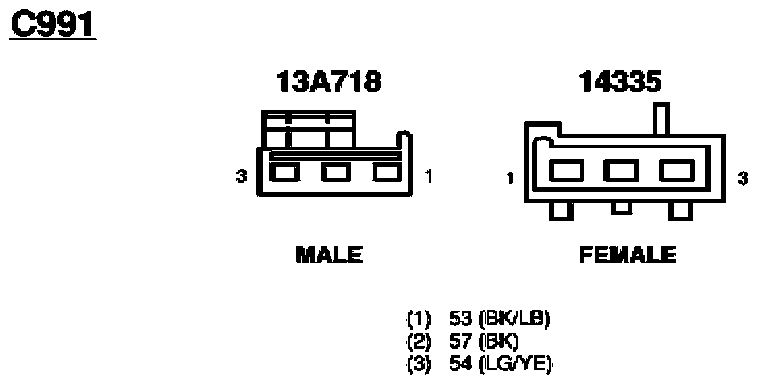

Fig 223: Inline Connector End View (C991)

G07842434

Courtesy of FORD MOTOR CO.

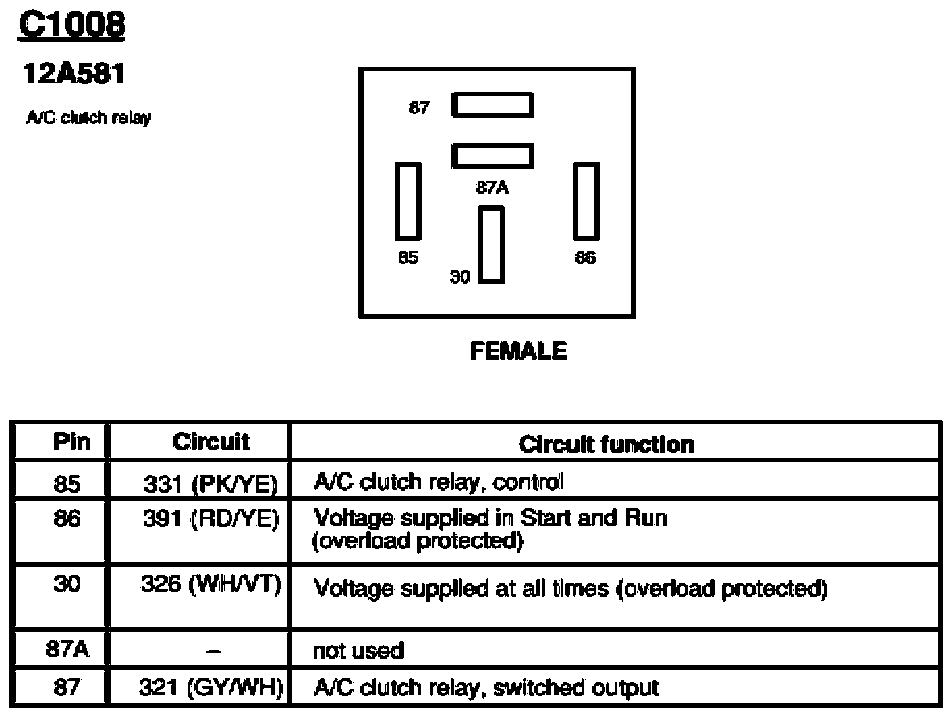

Fig 224: A/C Clutch Relay Connector End View (C1008)

G07842435

Courtesy of FORD MOTOR CO.

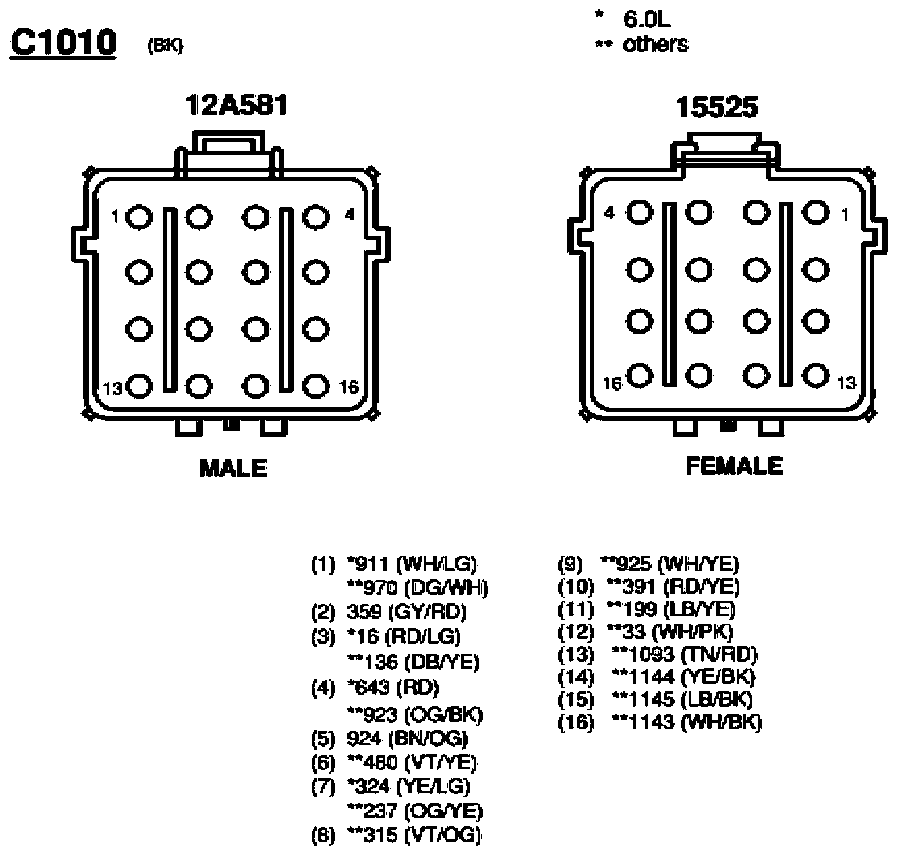

Fig 225: Inline Connector End View (C1010)

G07842436

Courtesy of FORD MOTOR CO.

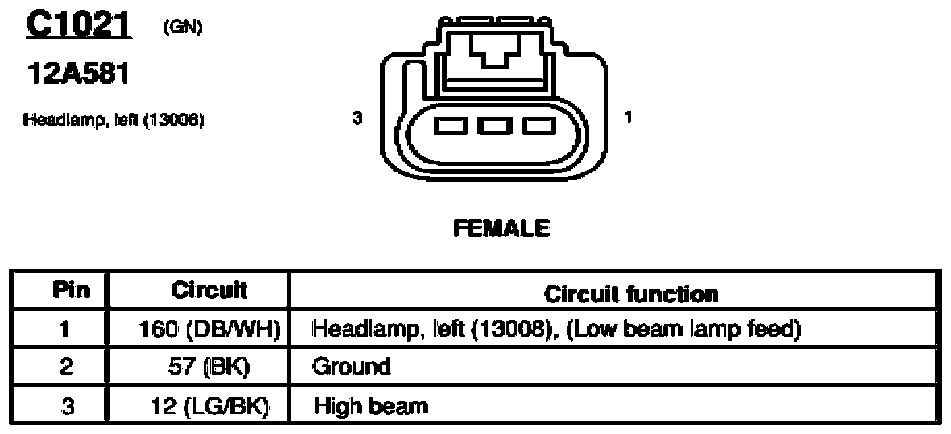

Fig 226: Headlamp, Left Connector End View (C1021)

G07842437

Courtesy of FORD MOTOR CO.

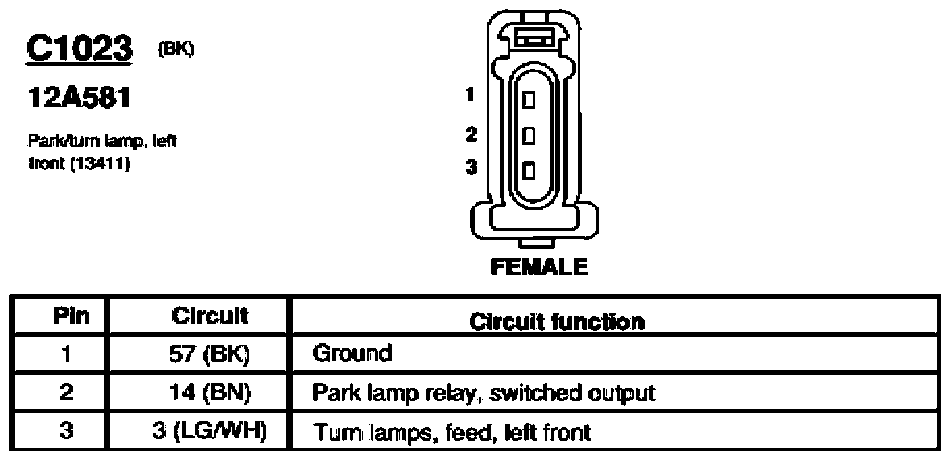

Fig 227: Park/Turn Lamp, Left Front Connector End View (C1023)

G07842438

Courtesy of FORD MOTOR CO.

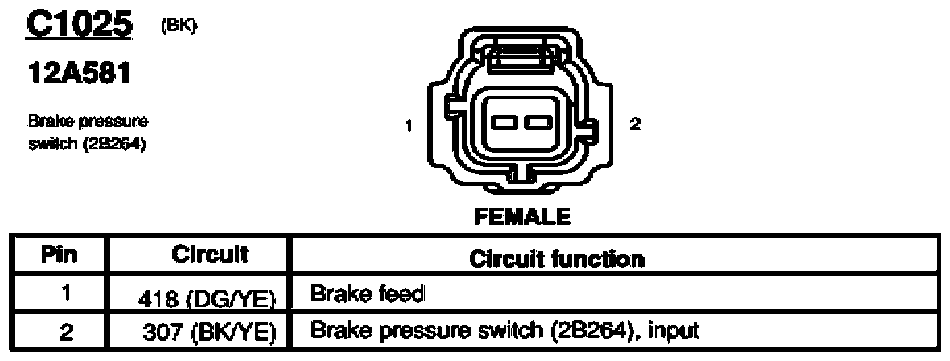

Fig 228: Brake Pressure Switch Connector End View (C1025)

G07842439

Courtesy of FORD MOTOR CO.

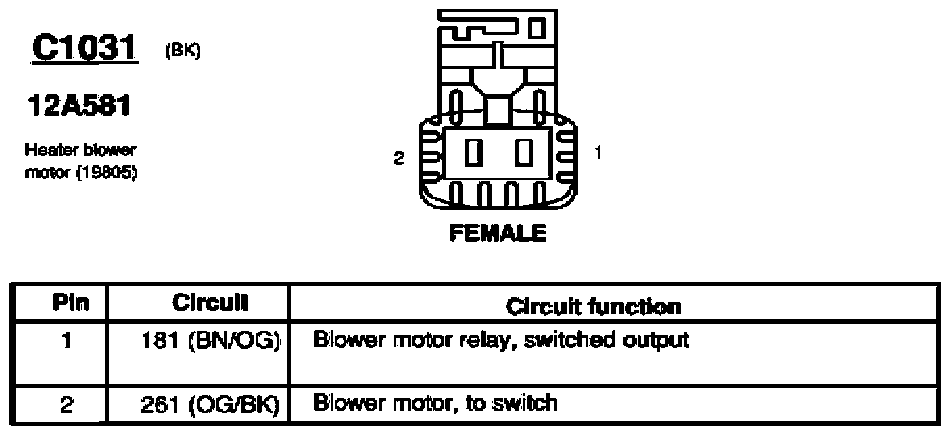

Fig 229: Heater Blower Motor Connector End View (C1031)

G07842440

Courtesy of FORD MOTOR CO.

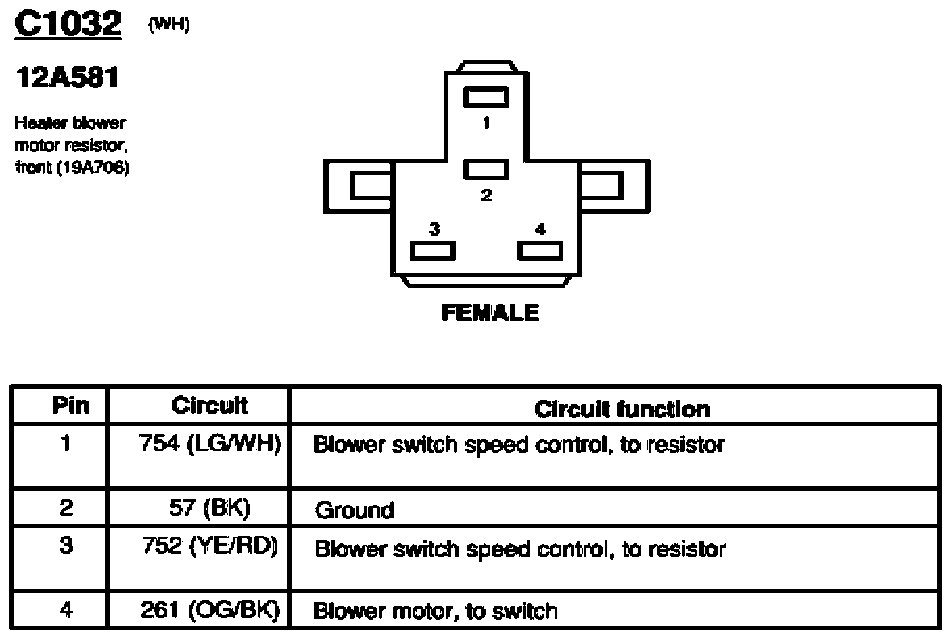

Fig 230: Heater Blower Motor Resistor, Front Connector End View (C1032)

G07842441

Courtesy of FORD MOTOR CO.

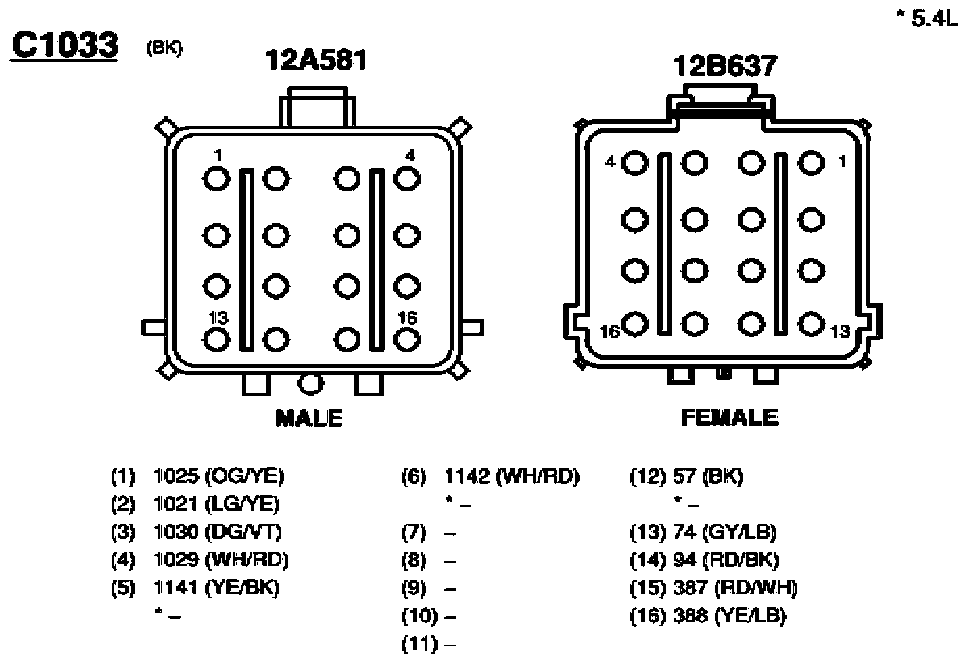

Fig 231: Inline Connector End View (C1033)

G07842442

Courtesy of FORD MOTOR CO.

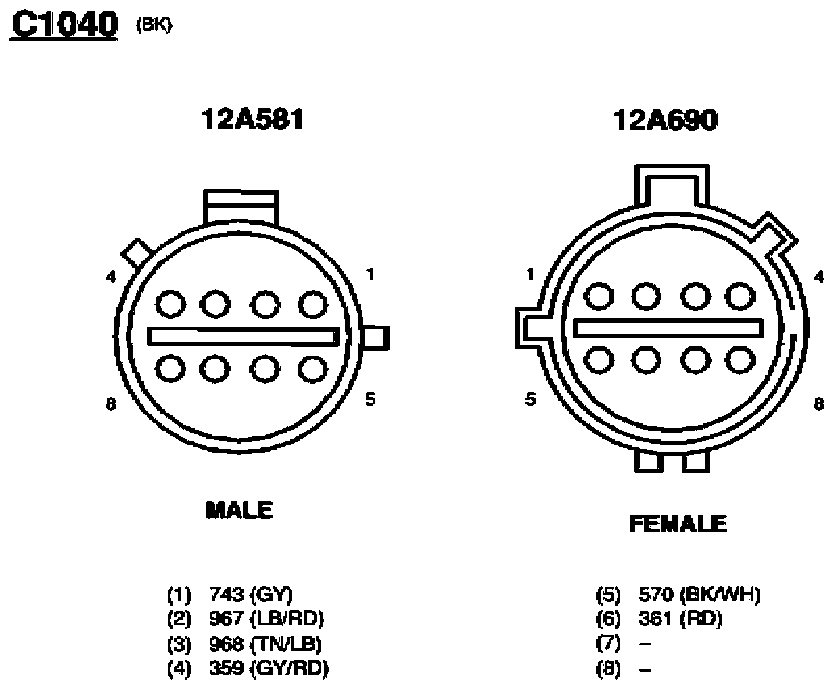

Fig 232: Inline Connector End View (C1040)

G07842443

Courtesy of FORD MOTOR CO.

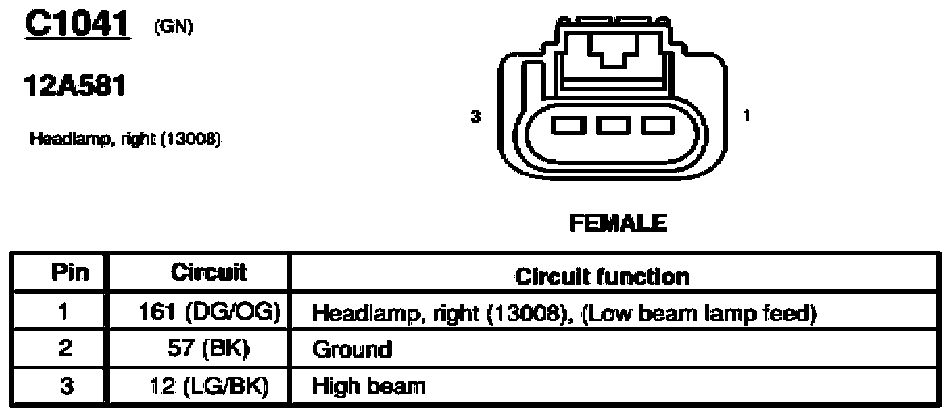

Fig 233: Headlamp, Right Connector End View (C1041)

G07842444

Courtesy of FORD MOTOR CO.

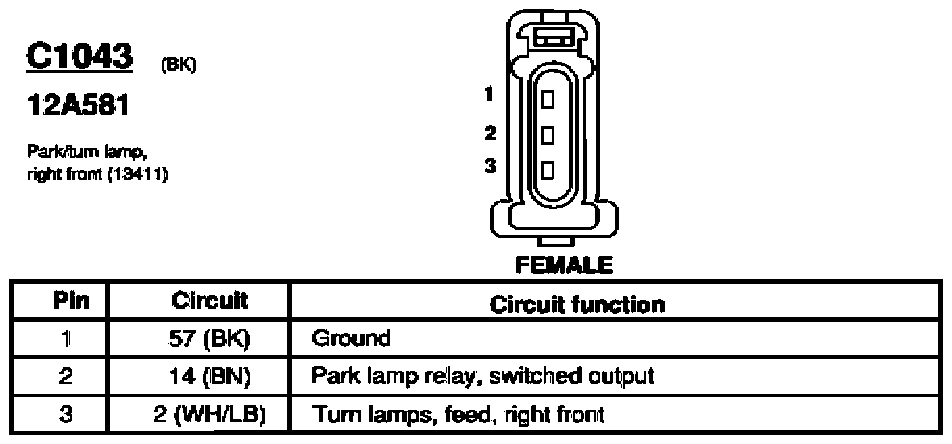

Fig 234: Park/Turn Lamp, Right Front Connector End View (C1043)

G07842445

Courtesy of FORD MOTOR CO.

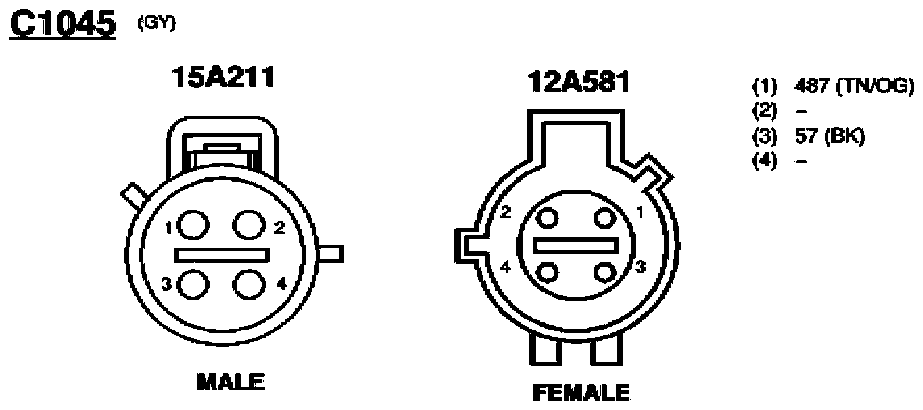

Fig 235: Inline Connector End View (C1045)

G07842446

Courtesy of FORD MOTOR CO.

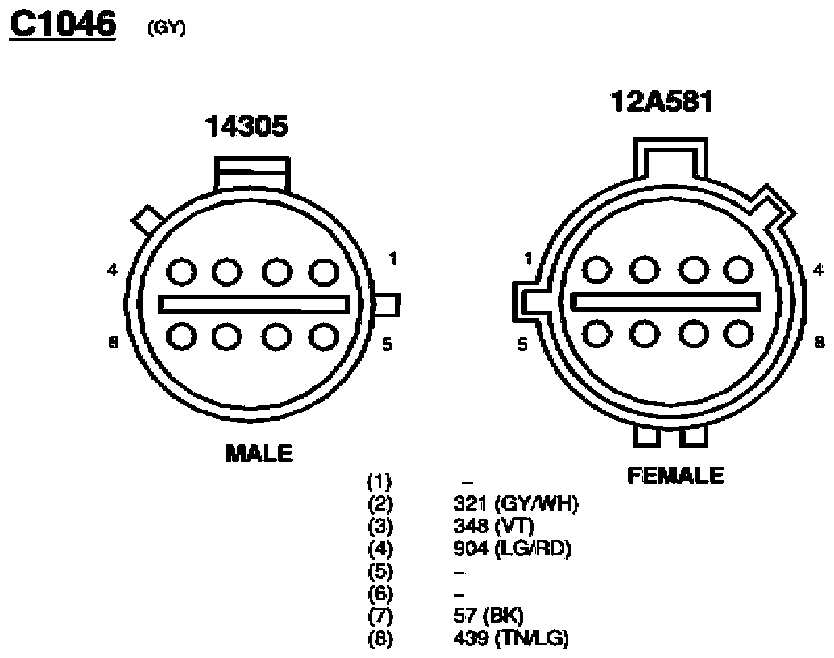

Fig 236: Inline Connector End View (C1046)

G07842447

Courtesy of FORD MOTOR CO.

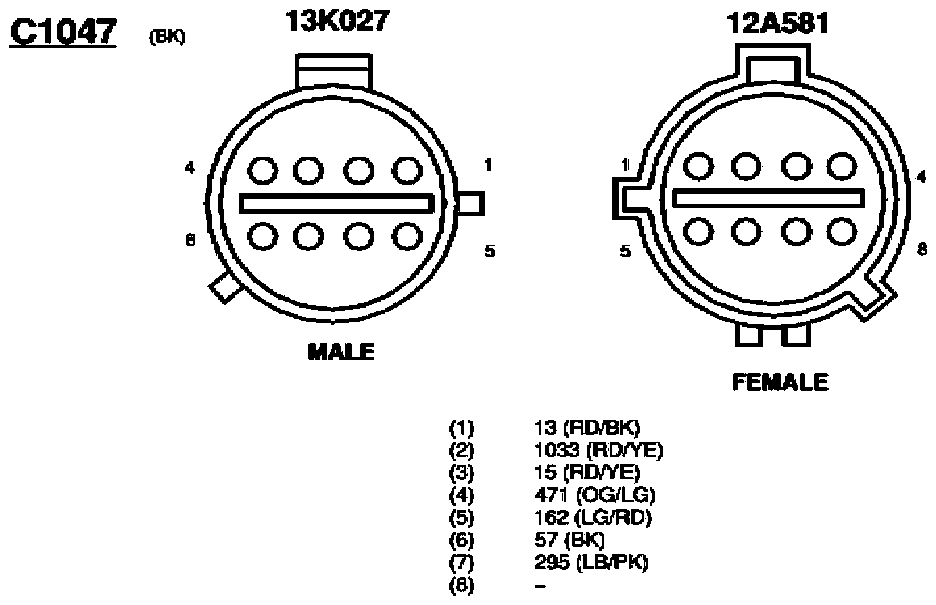

Fig 237: Inline Connector End View (C1047)

G07842448

Courtesy of FORD MOTOR CO.

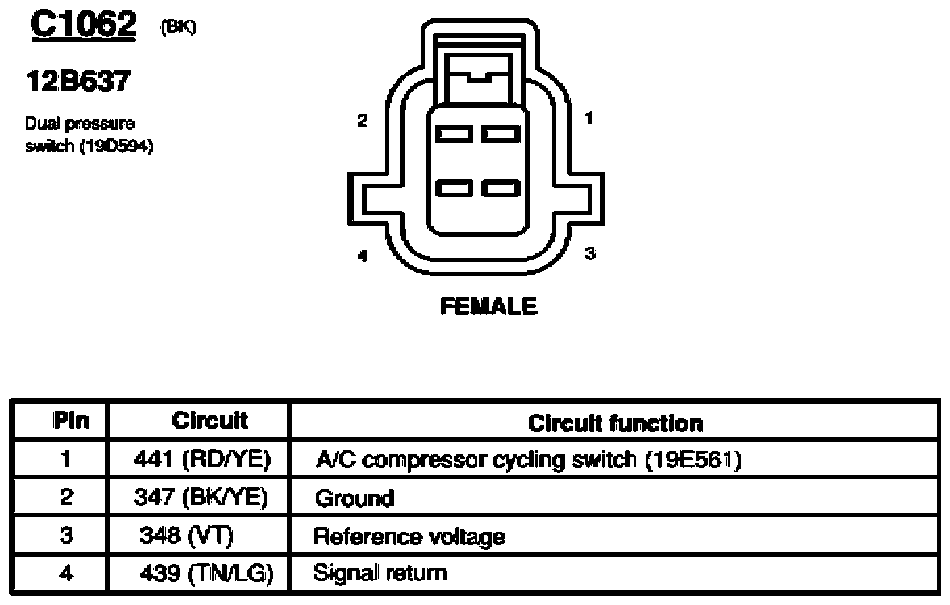

Fig 238: Dual Pressure Switch Connector End View (C1062)

G07842449

Courtesy of FORD MOTOR CO.

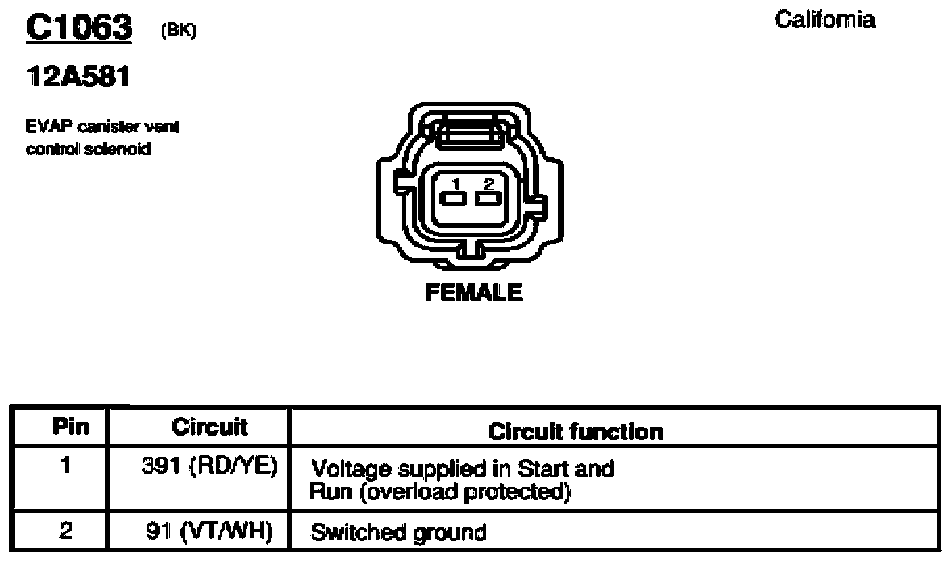

Fig 239: EVAP Canister Vent Control Solenoid Connector End View (C1063)

G07842450

Courtesy of FORD MOTOR CO.

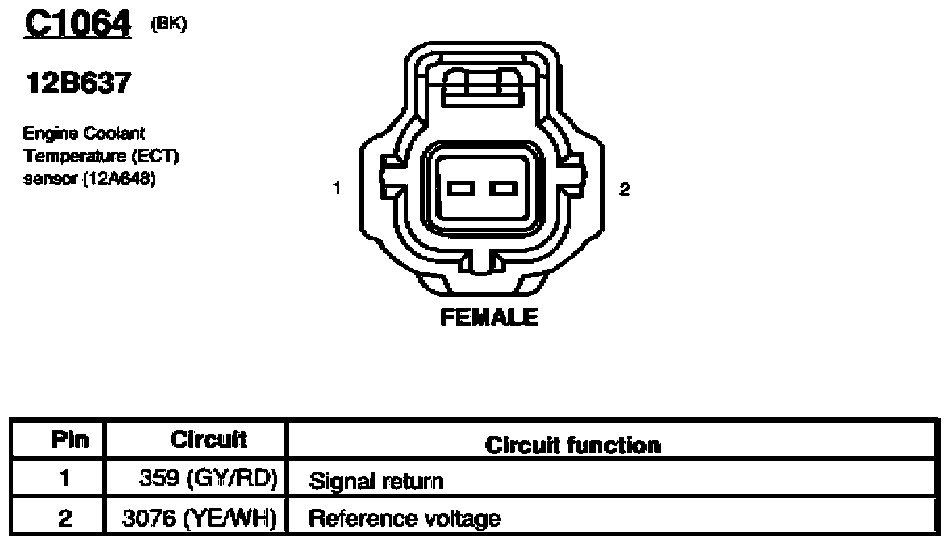

Fig 240: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07842451

Courtesy of FORD MOTOR CO.

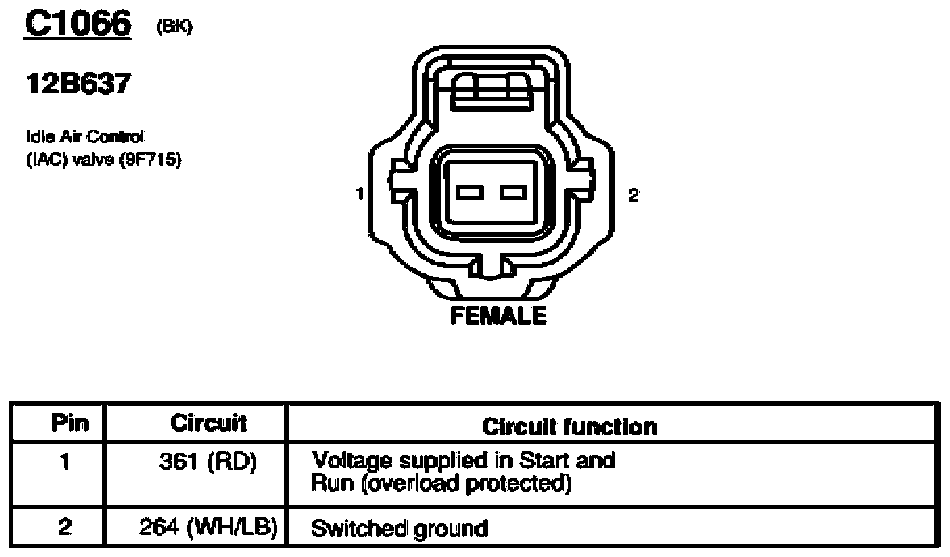

Fig 241: Idle Air Control (IAC) Valve Connector End View (C1066)

G07842452

Courtesy of FORD MOTOR CO.

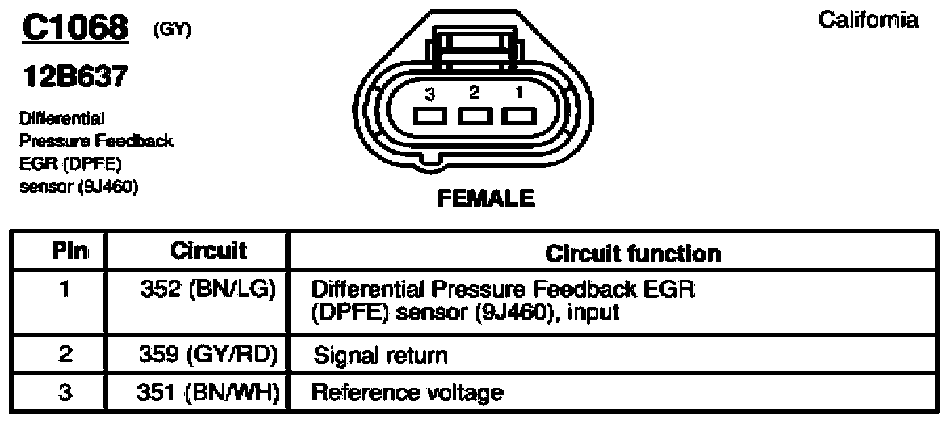

Fig 242: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07842453

Courtesy of FORD MOTOR CO.

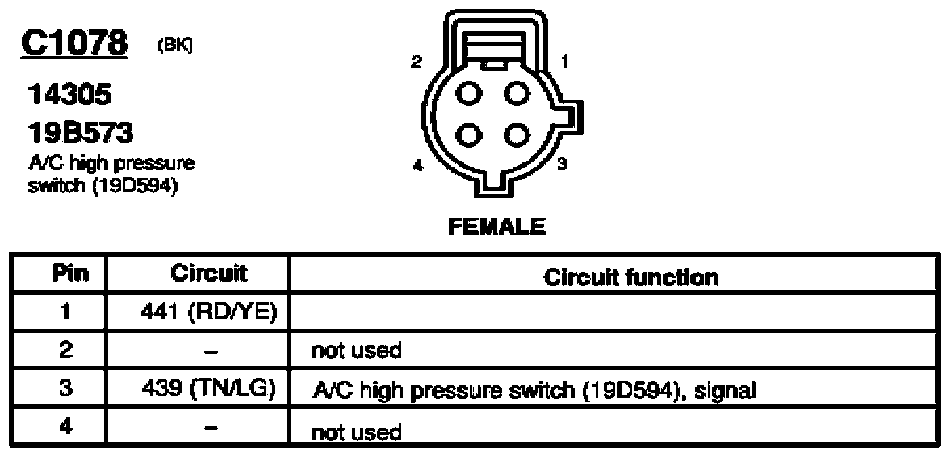

Fig 243: A/C High Pressure Switch Connector End View (C1078)

G07842454

Courtesy of FORD MOTOR CO.

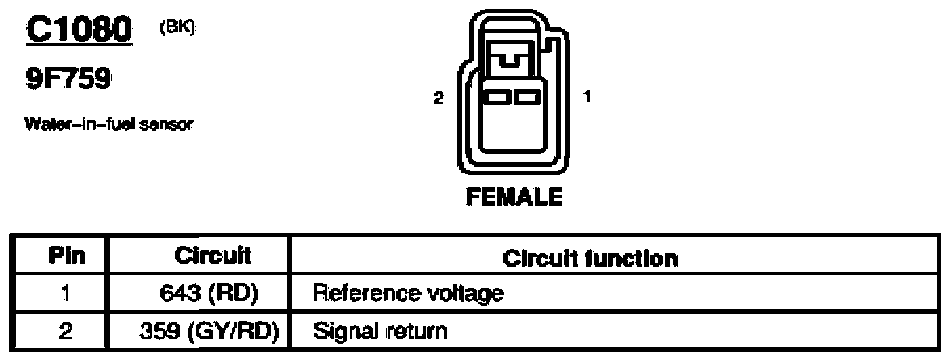

Fig 244: Water-In-Fuel Sensor Connector End View (C1080)

G07842455

Courtesy of FORD MOTOR CO.

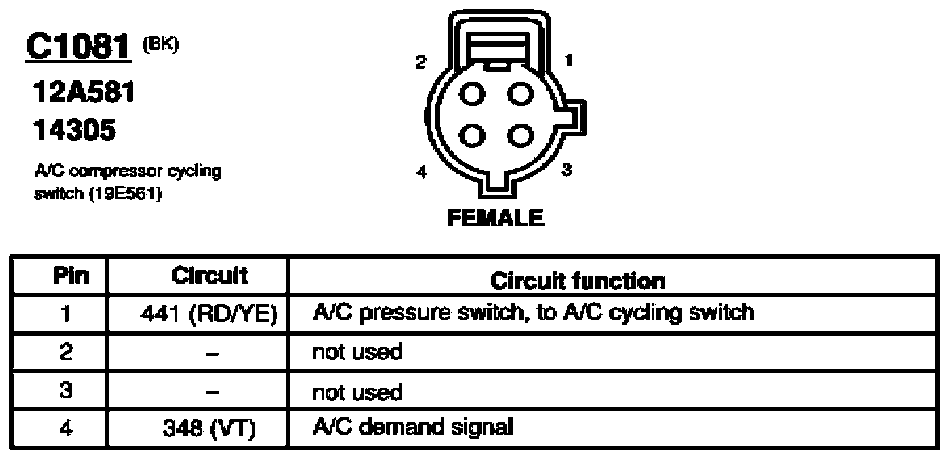

Fig 245: A/C Compressor Cycling Switch Connector End View (C1081)

G07842456

Courtesy of FORD MOTOR CO.

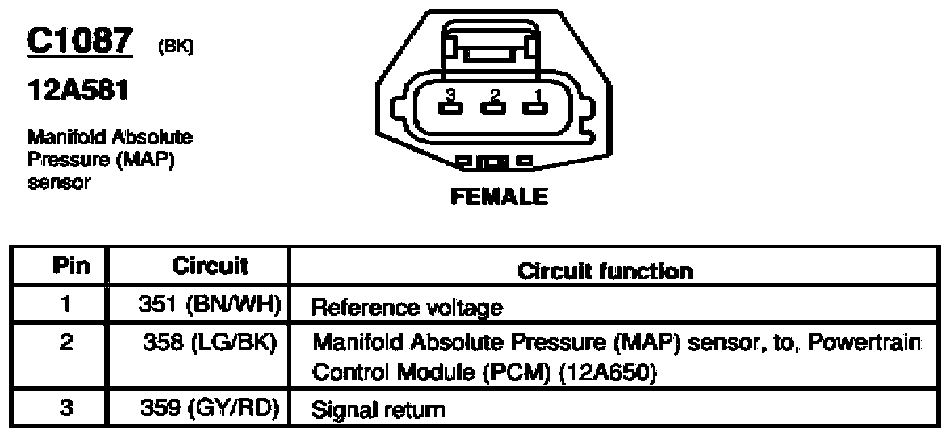

Fig 246: Manifold Absolute Pressure (MAP) Sensor Connector End View (C1087)

G07842457

Courtesy of FORD MOTOR CO.

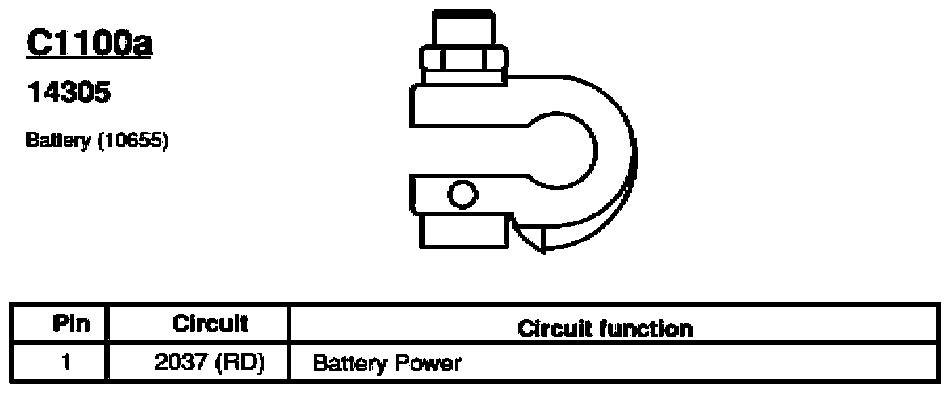

Fig 247: Battery Connector End View (C1100a)

G07842458

Courtesy of FORD MOTOR CO.

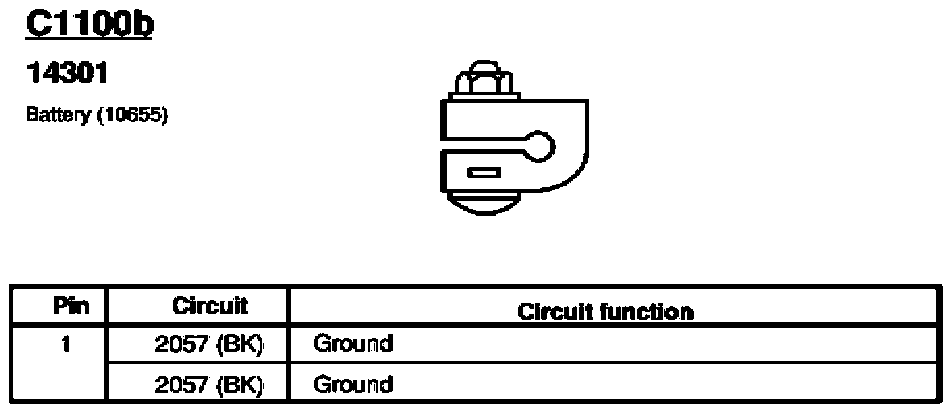

Fig 248: Battery Connector End View (C1100b)

G07842459

Courtesy of FORD MOTOR CO.

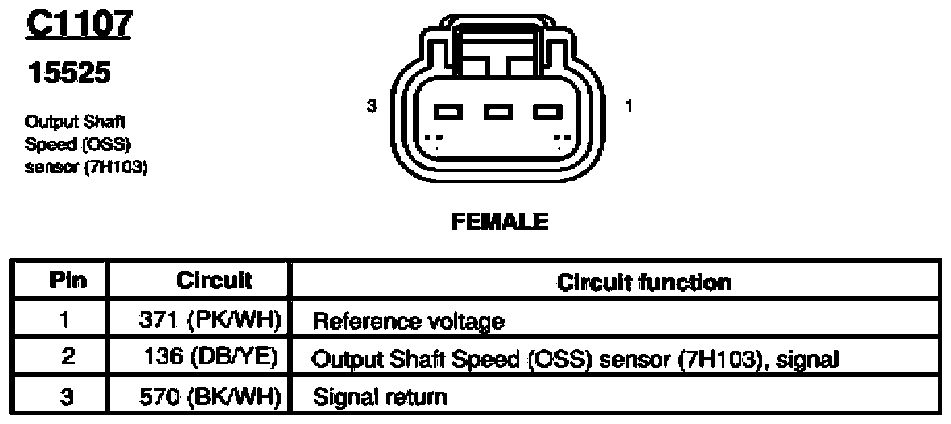

Fig 249: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G07842460

Courtesy of FORD MOTOR CO.

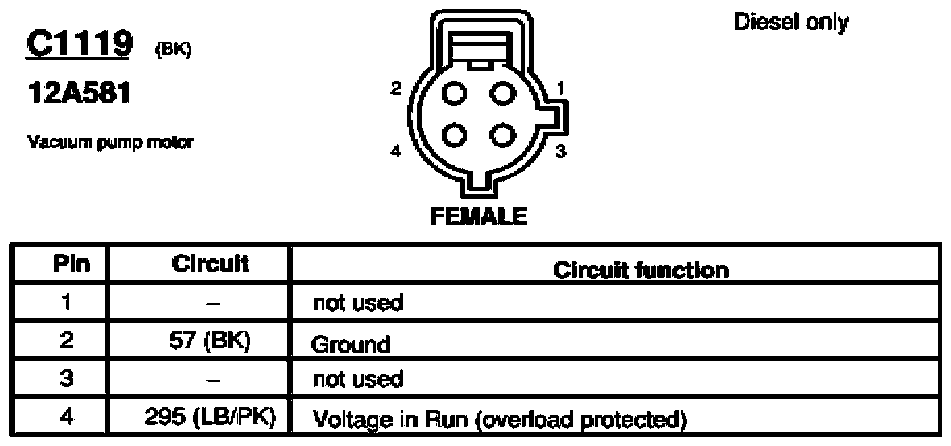

Fig 250: Vacuum Pump Motor Connector End View (C1119)

G07842461

Courtesy of FORD MOTOR CO.

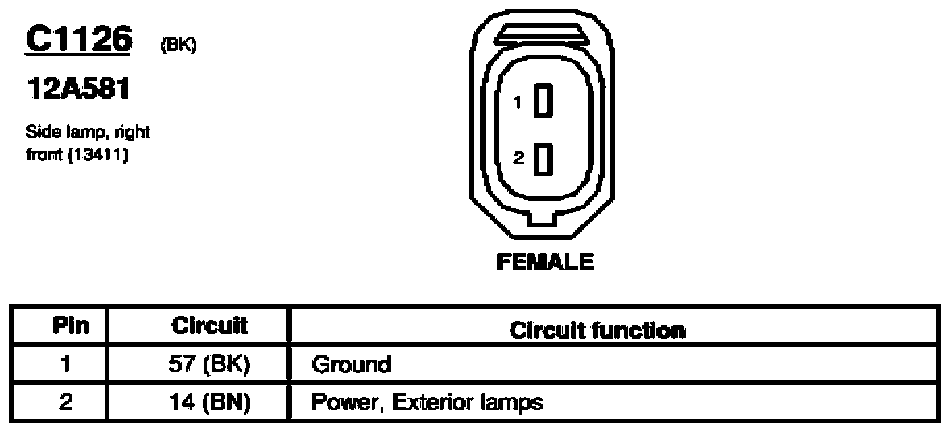

Fig 251: Side Lamp, Right Front Connector End View (C1126)

G07842462

Courtesy of FORD MOTOR CO.

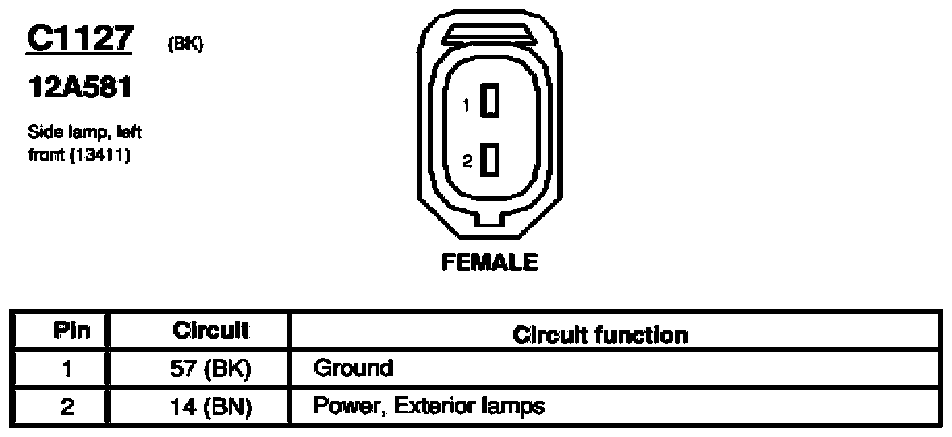

Fig 252: Side Lamp, Left Front Connector End View (C1127)

G07842463

Courtesy of FORD MOTOR CO.

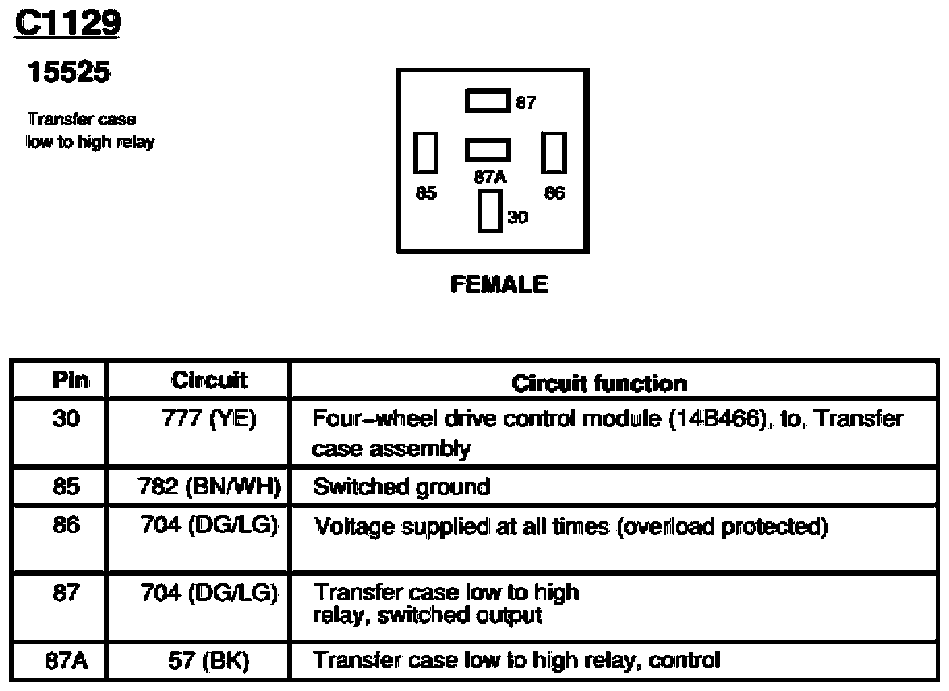

Fig 253: Transfer Case Low To High Relay Connector End View (C1129)

G07842464

Courtesy of FORD MOTOR CO.

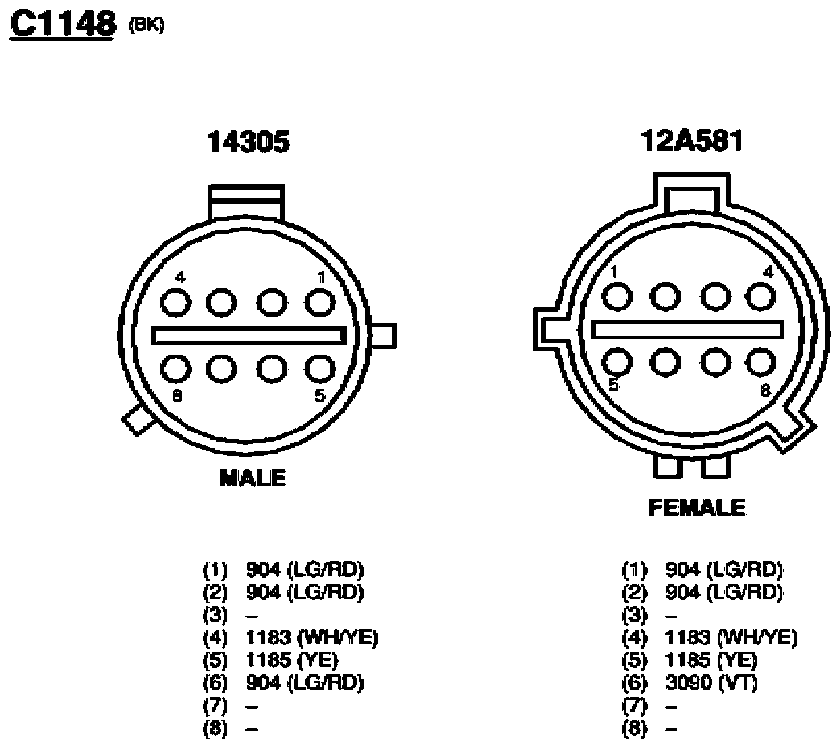

Fig 254: Inline Connector End View (C1148)

G07842465

Courtesy of FORD MOTOR CO.

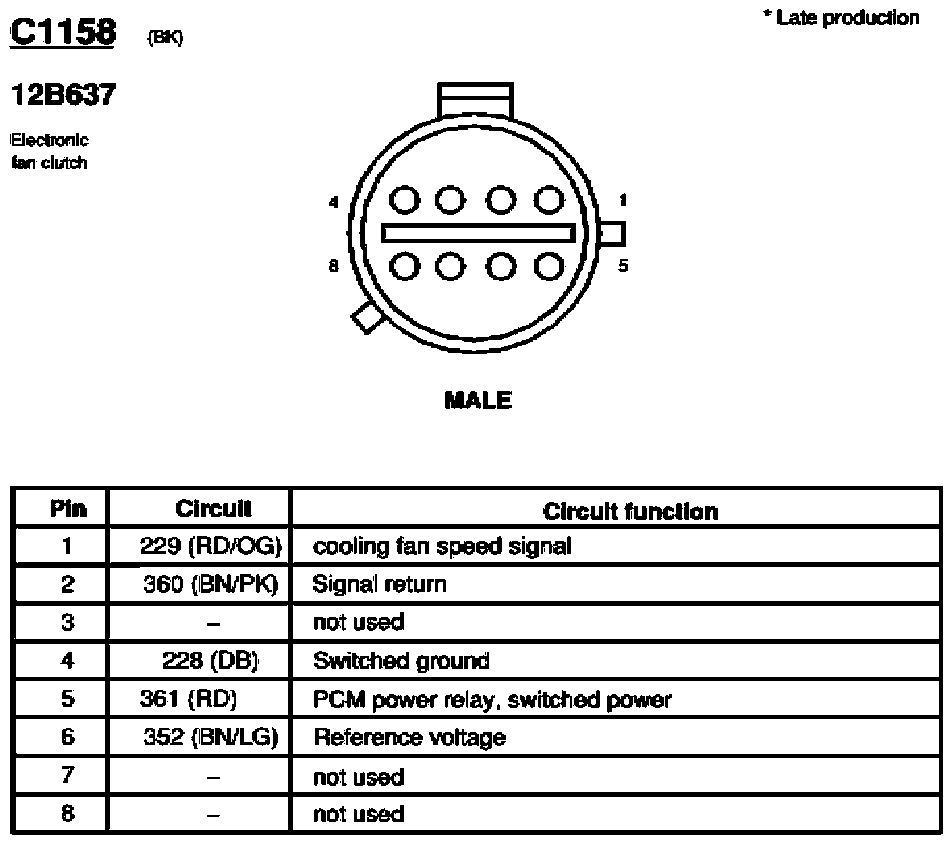

Fig 255: Electronic Fan Clutch Connector End View (C1158)

G07842466

Courtesy of FORD MOTOR CO.

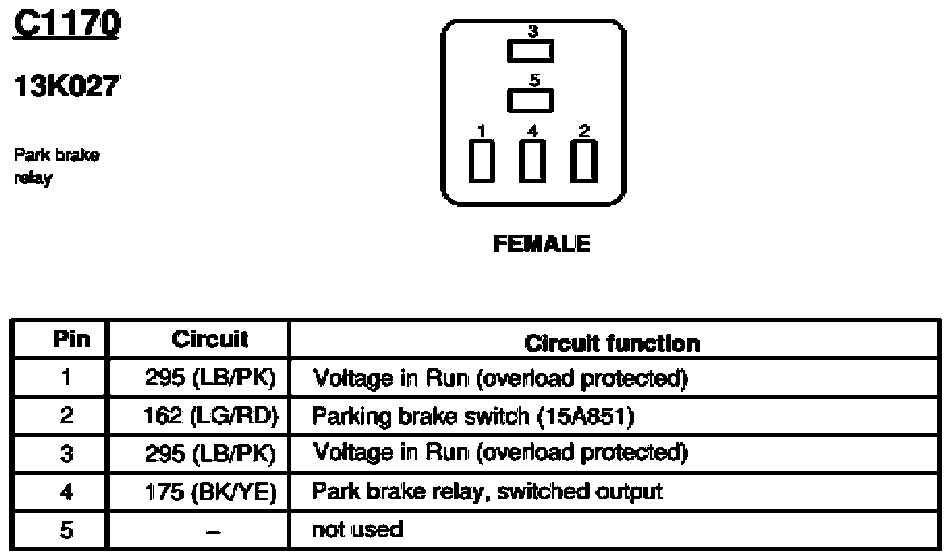

Fig 256: Park Brake Relay Connector End View (C1170)

G07842467

Courtesy of FORD MOTOR CO.

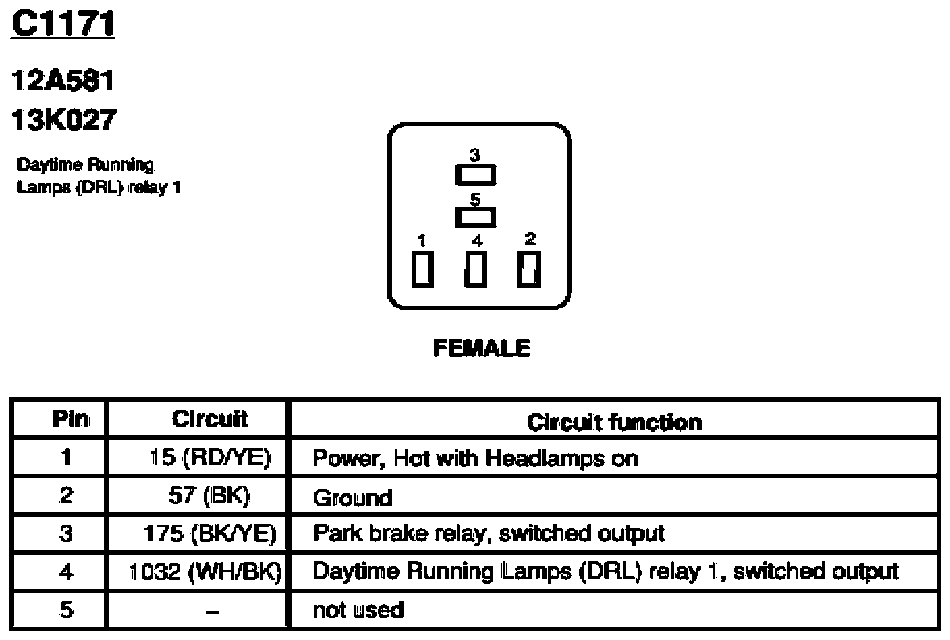

Fig 257: Daytime Running Lamps (DRL) Relay 1 Connector End View (C1171)

G07842468

Courtesy of FORD MOTOR CO.

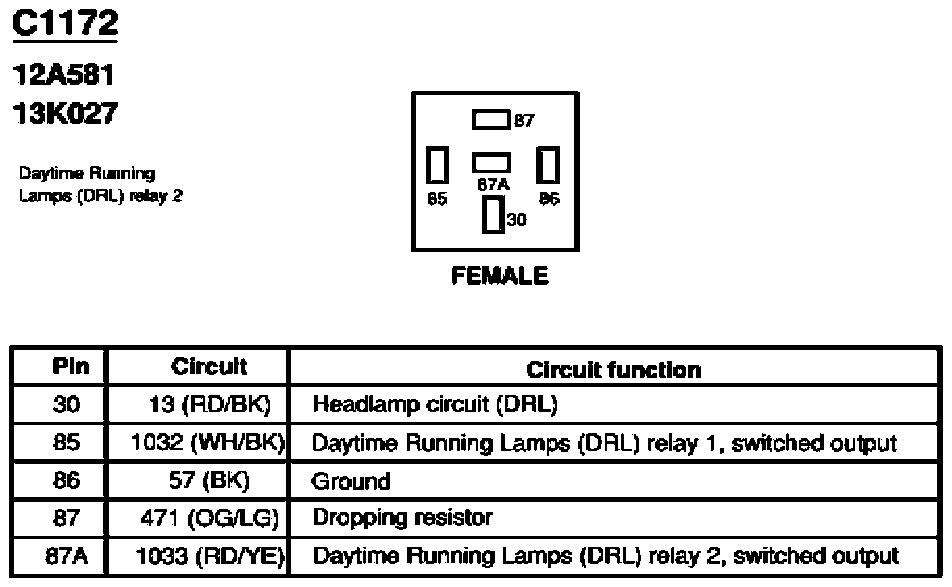

Fig 258: Daytime Running Lamps (DRL) Relay 2 Connector End View (C1172)

G07842469

Courtesy of FORD MOTOR CO.

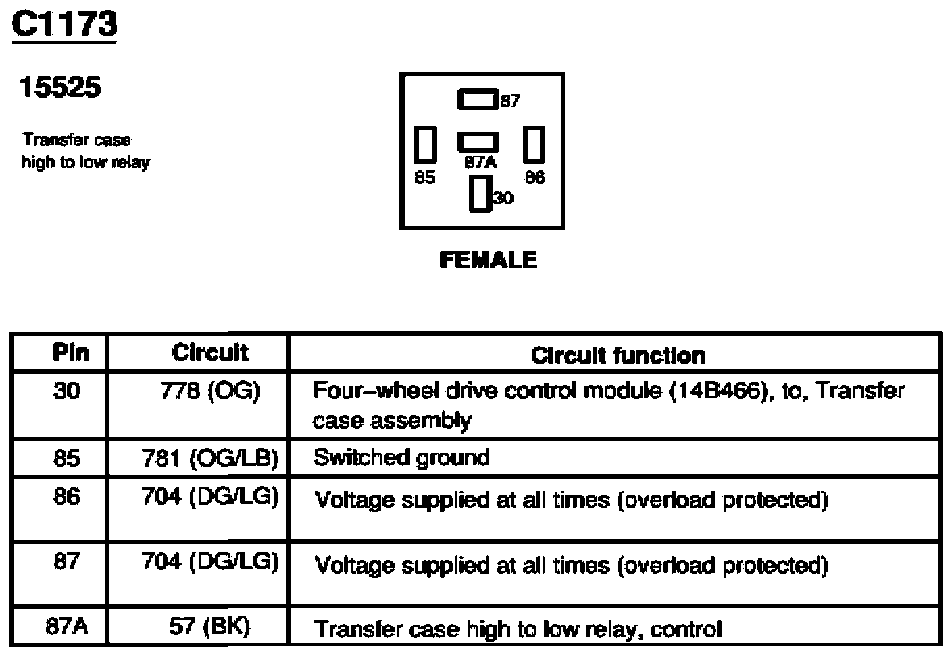

Fig 259: Transfer Case High To Low Relay Connector End View (C1173)

G07842470

Courtesy of FORD MOTOR CO.

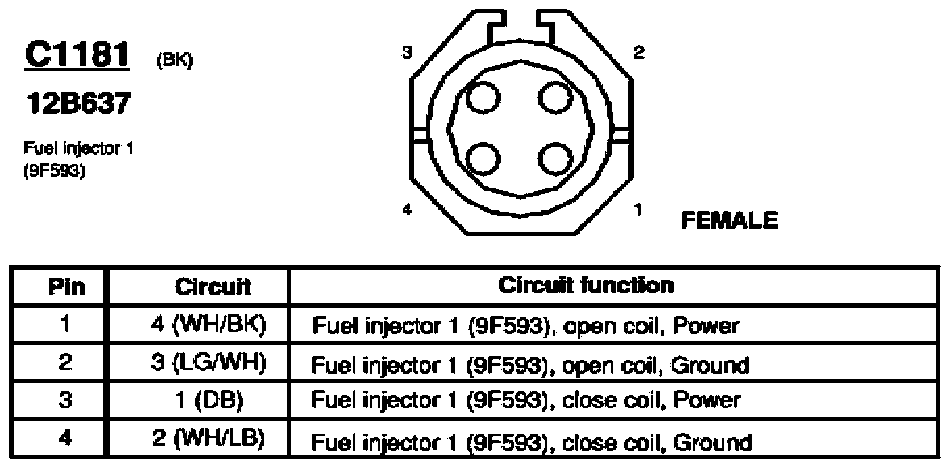

Fig 260: Fuel Injector 1 Connector End View (C1181)

G07842471

Courtesy of FORD MOTOR CO.

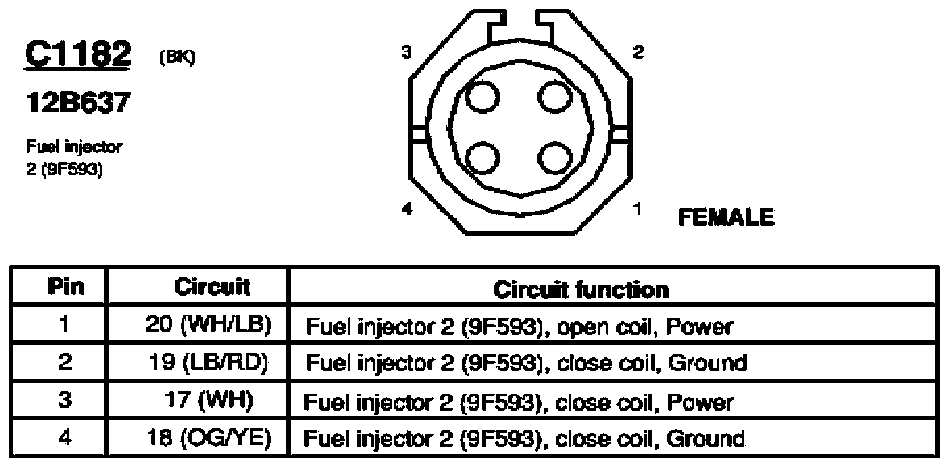

Fig 261: Fuel Injector 2 Connector End View (C1182)

G07842472

Courtesy of FORD MOTOR CO.

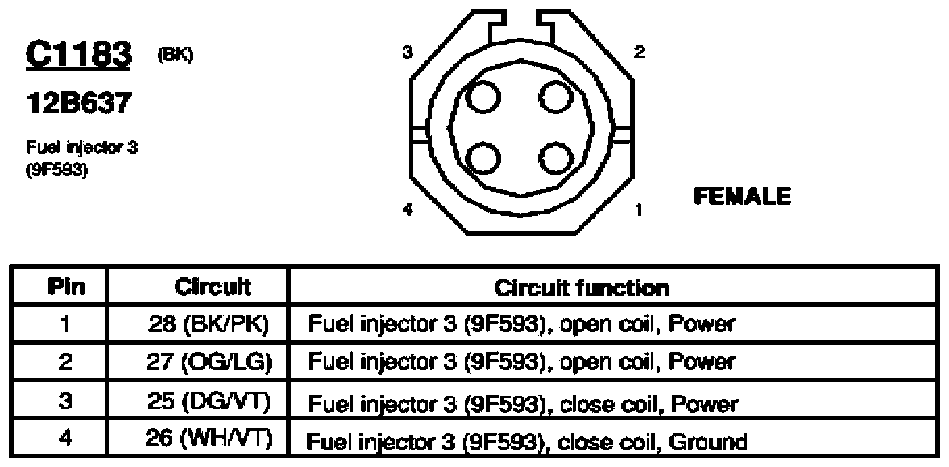

Fig 262: Fuel Injector 3 Connector End View (C1183)

G07842473

Courtesy of FORD MOTOR CO.

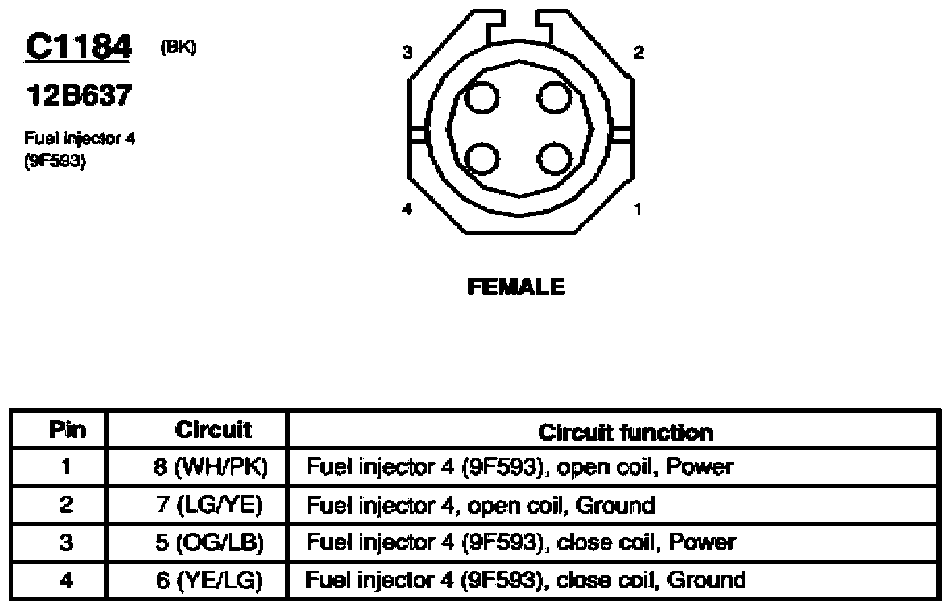

Fig 263: Fuel Injector 4 Connector End View (C1184)

G07842474

Courtesy of FORD MOTOR CO.

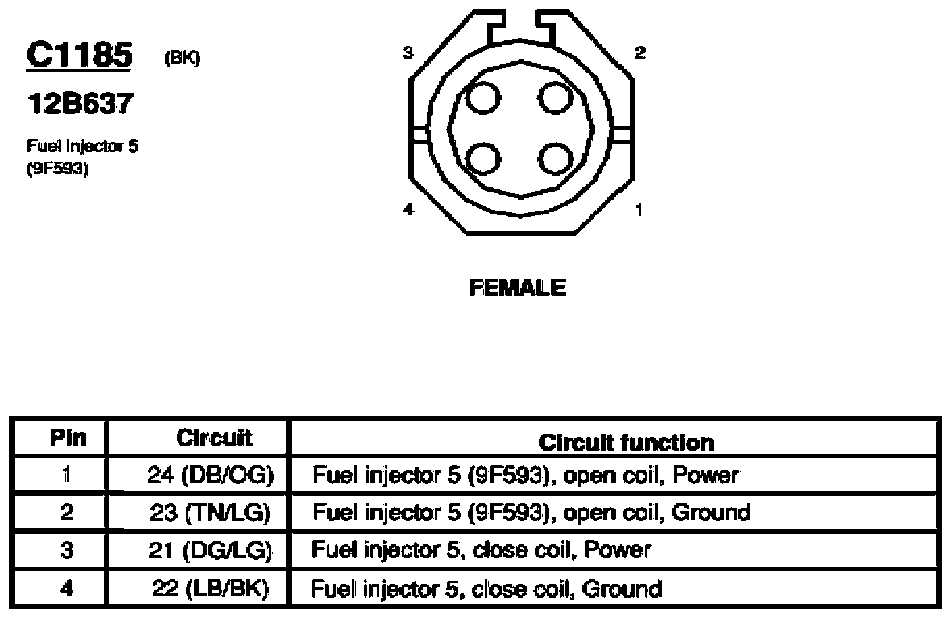

Fig 264: Fuel Injector 5 Connector End View (C1185)

G07842475

Courtesy of FORD MOTOR CO.

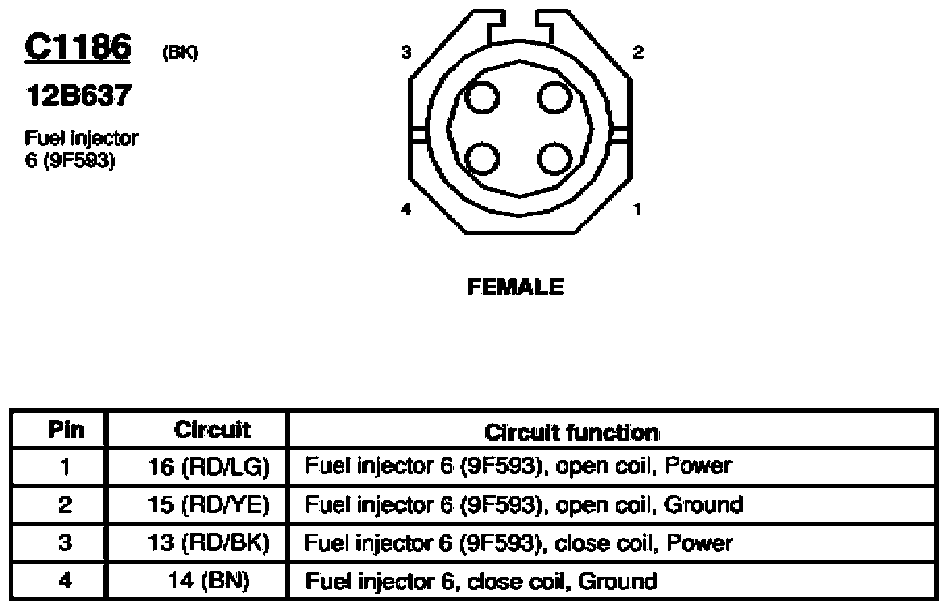

Fig 265: Fuel Injector 6 Connector End View (C1186)

G07842476

Courtesy of FORD MOTOR CO.

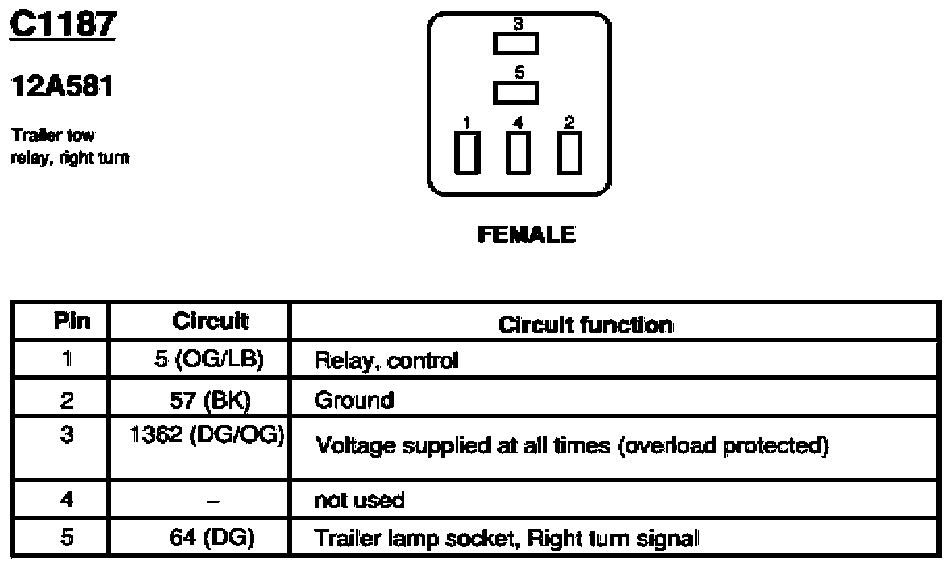

Fig 266: Trailer Tow Relay, Right Turn Connector End View (C1187)

G07842477

Courtesy of FORD MOTOR CO.

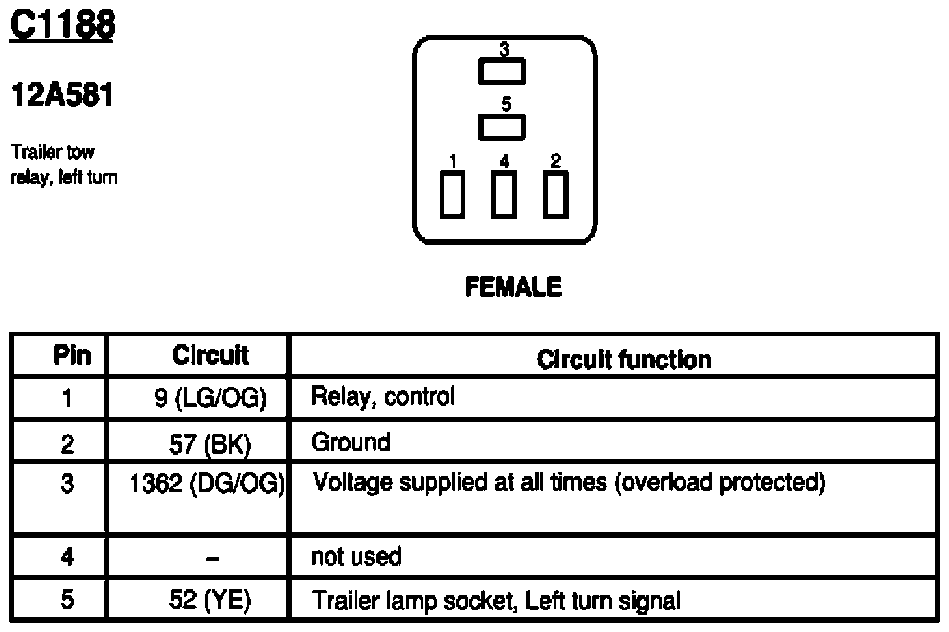

Fig 267: Trailer Tow Relay, Left Turn Connector End View (C1188)

G07842478

Courtesy of FORD MOTOR CO.

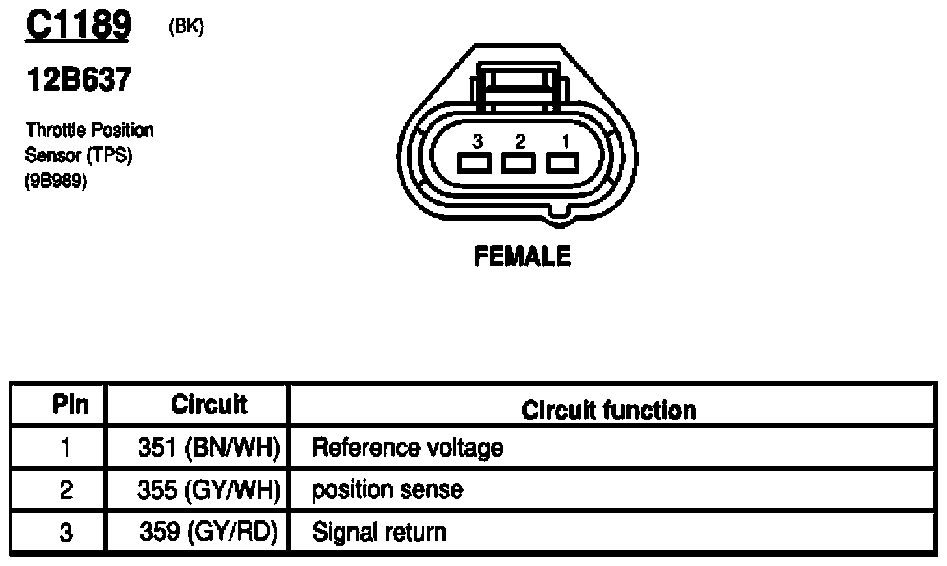

Fig 268: Throttle Position Sensor (TPS) Connector End View (C1189)

G07842479

Courtesy of FORD MOTOR CO.

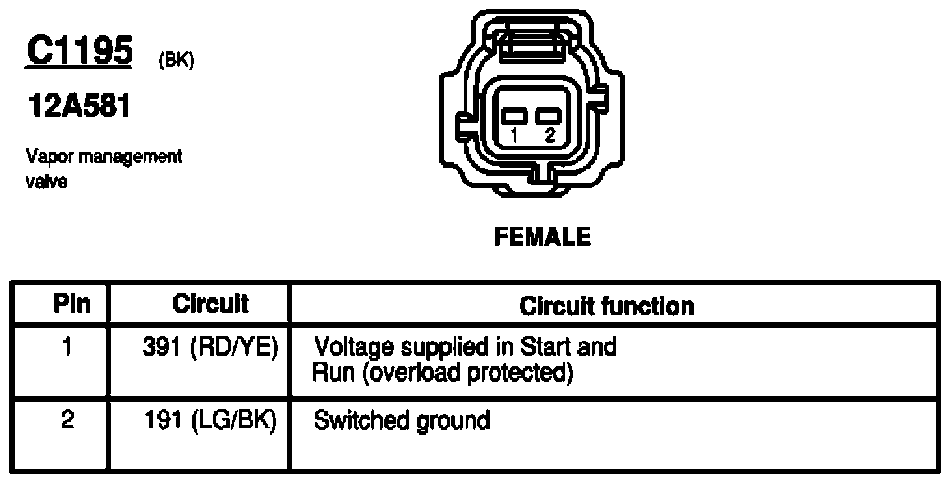

Fig 269: Vapor Management Valve Connector End View (C1195)

G07842480

Courtesy of FORD MOTOR CO.

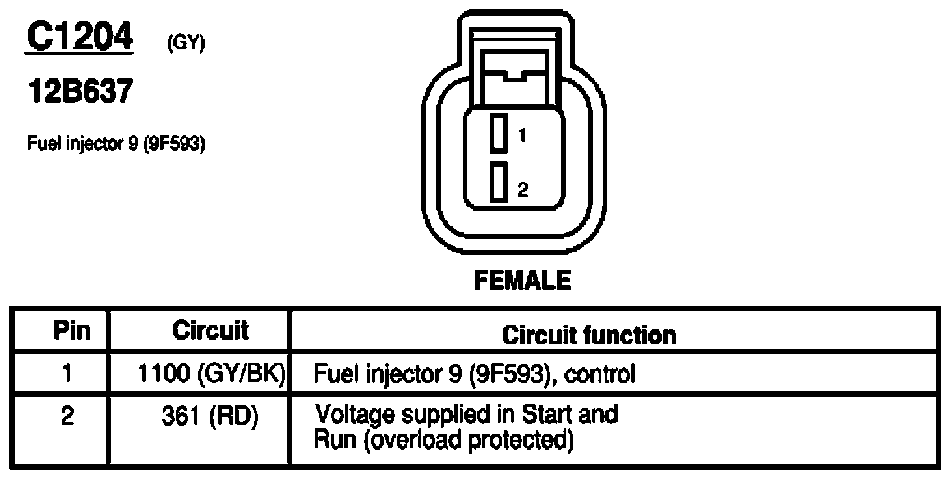

Fig 270: Fuel Injector 9 Connector End View (C1204)

G07842481

Courtesy of FORD MOTOR CO.

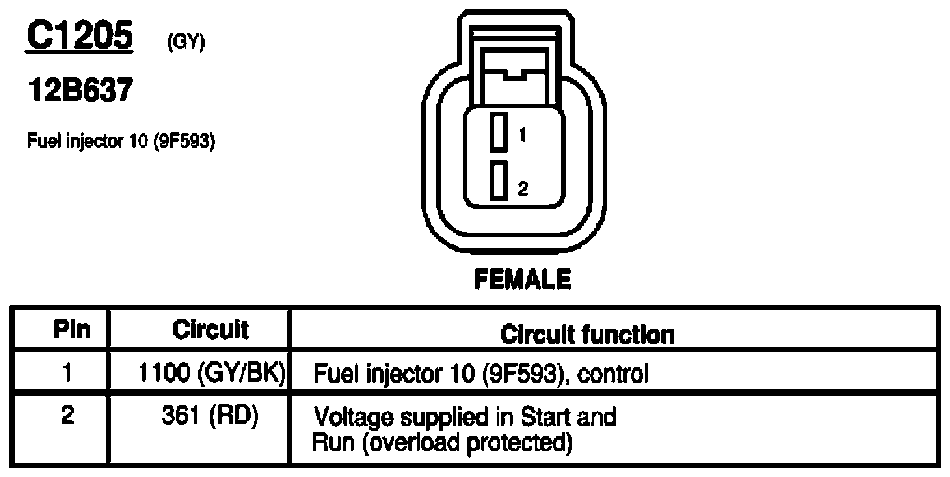

Fig 271: Fuel Injector 10 Connector End View (C1205)

G07842482

Courtesy of FORD MOTOR CO.

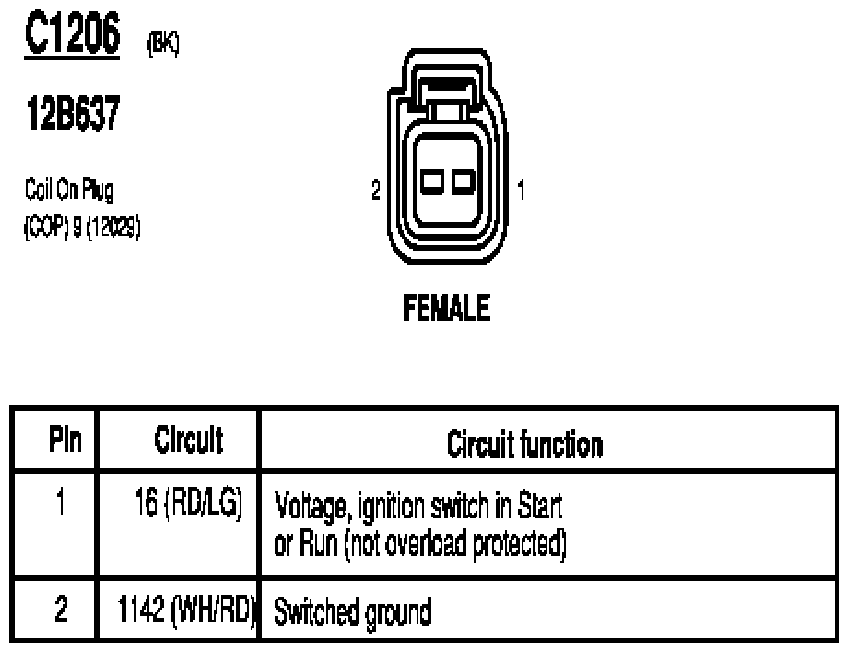

Fig 272: Coil On Plug (COP) 9 Connector End View (C1206)

G07842483

Courtesy of FORD MOTOR CO.

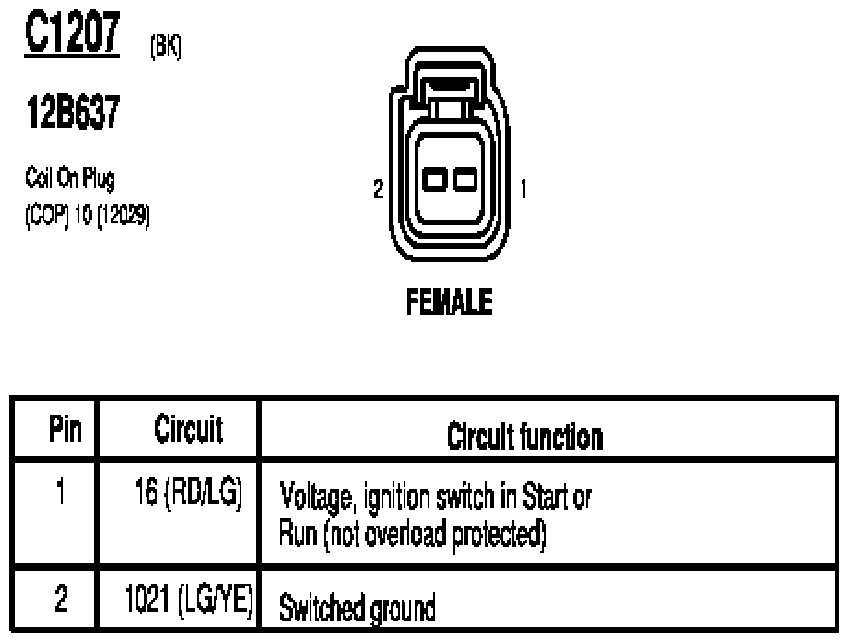

Fig 273: Coil On Plug (COP) 10 Connector End View (C1207)

G07842484

Courtesy of FORD MOTOR CO.

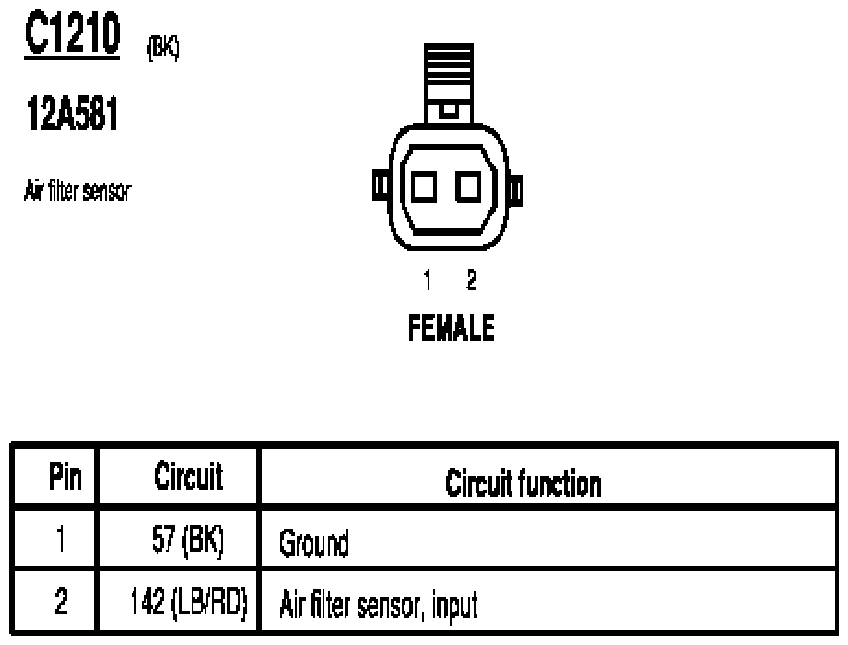

Fig 274: Air Filter Sensor Connector End View (C1210)

G07842485

Courtesy of FORD MOTOR CO.

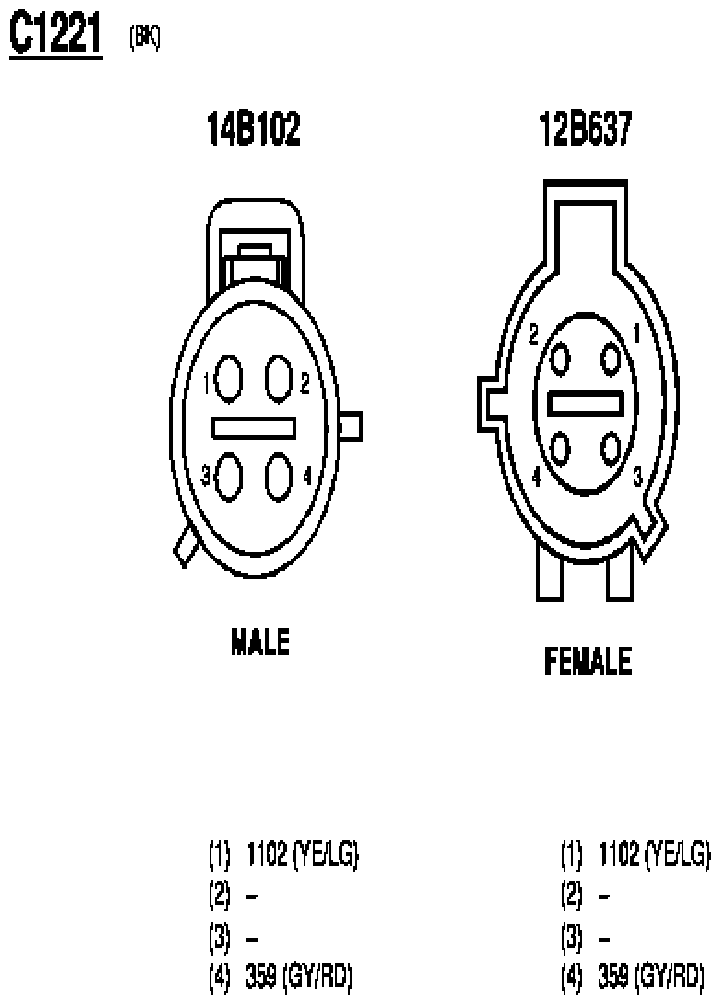

Fig 275: Inline Connector End View (C1221)

G07842486

Courtesy of FORD MOTOR CO.

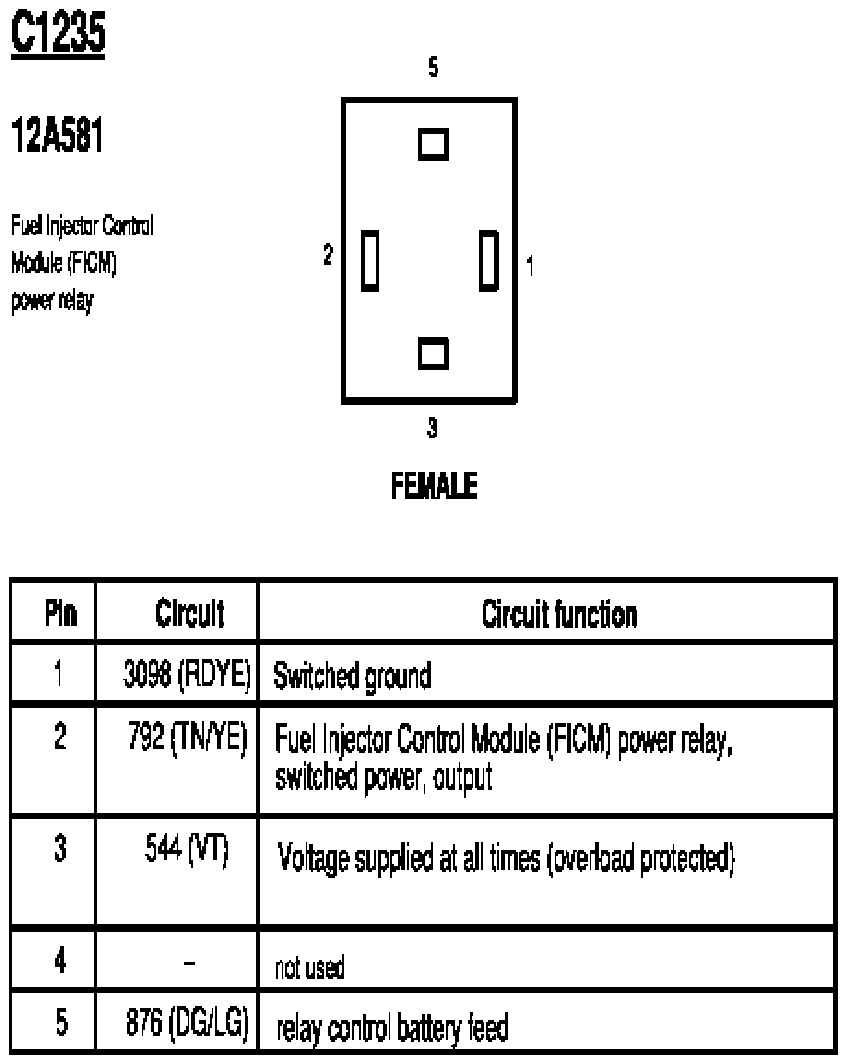

Fig 276: Fuel Injector Control Module (FICM) Power Relay Connector End View (C1235)

G07842487

Courtesy of FORD MOTOR CO.

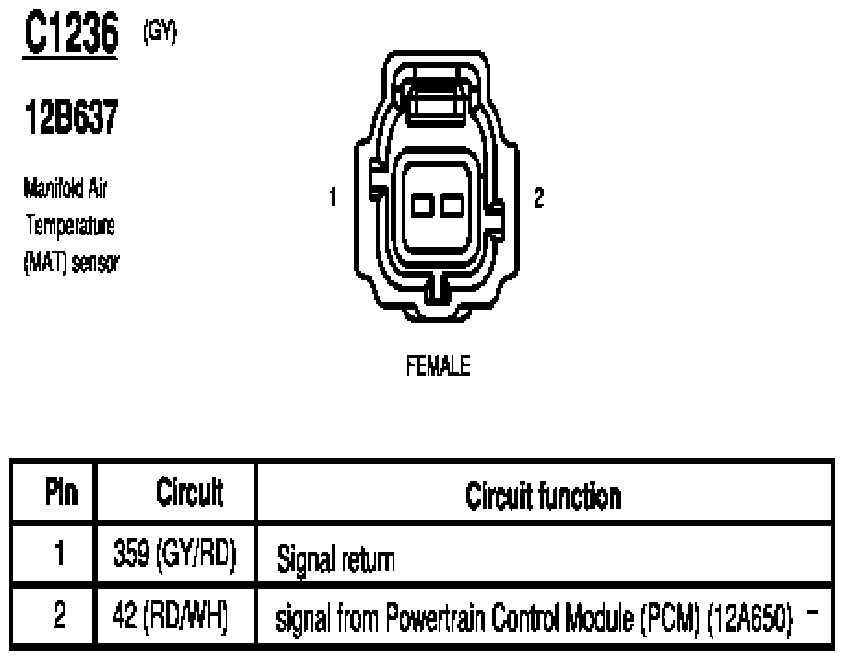

Fig 277: Manifold Air Temperature (MAT) Sensor Connector End View (C1236)

G07842488

Courtesy of FORD MOTOR CO.

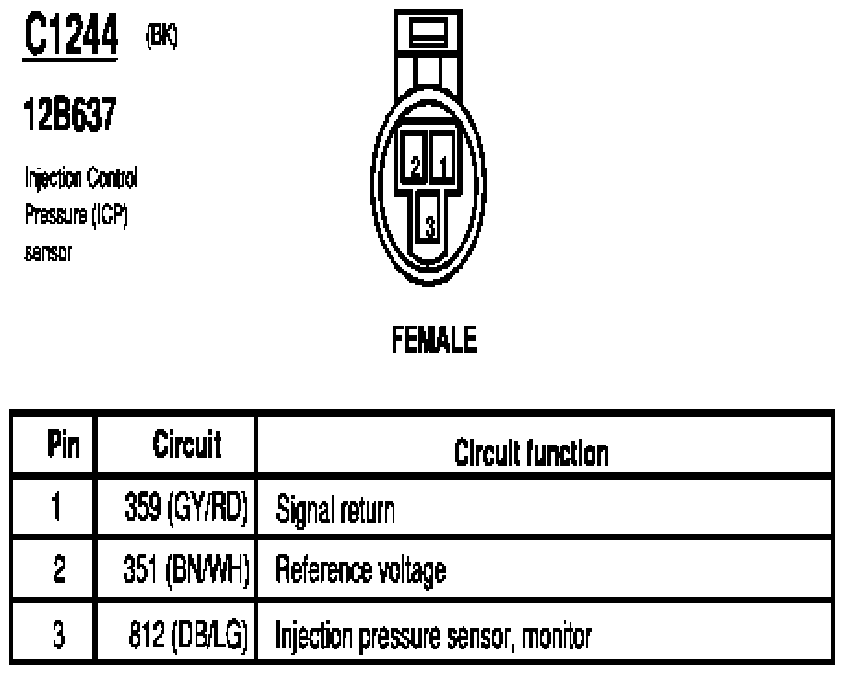

Fig 278: Injection Control Pressure (ICP) Sensor Connector End View (C1244)

G07842489

Courtesy of FORD MOTOR CO.

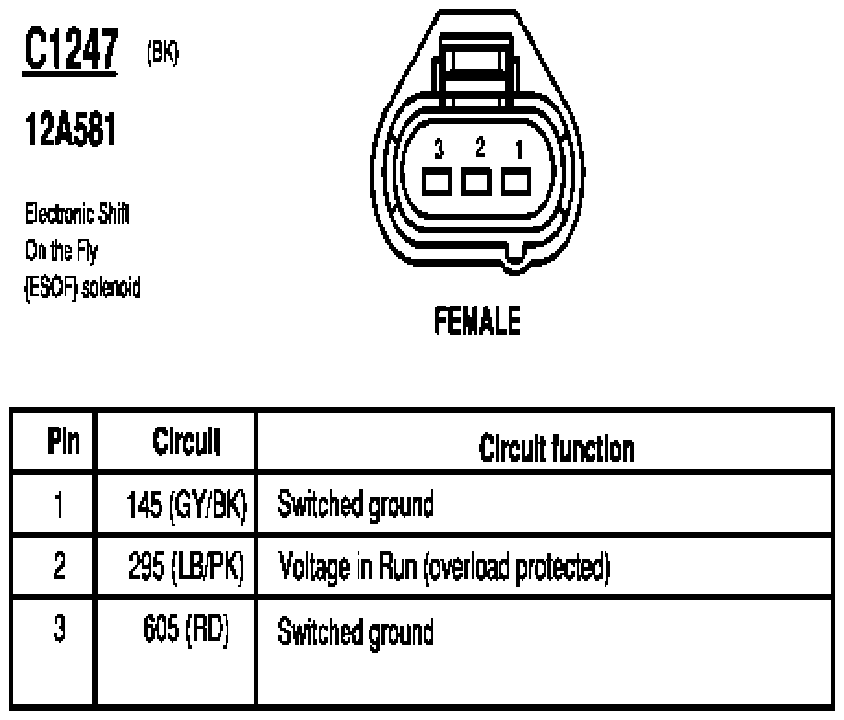

Fig 279: Electronic Shift On The Fly (ESOF) Solenoid Connector End View (C1247)

G07842490

Courtesy of FORD MOTOR CO.

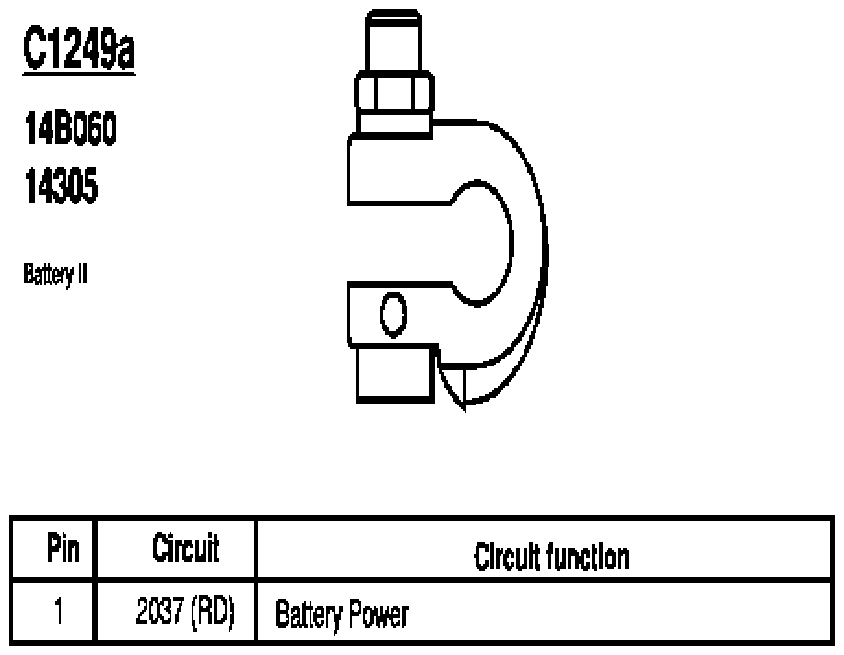

Fig 280: Battery II Connector End View (C1249a)

G07842491

Courtesy of FORD MOTOR CO.

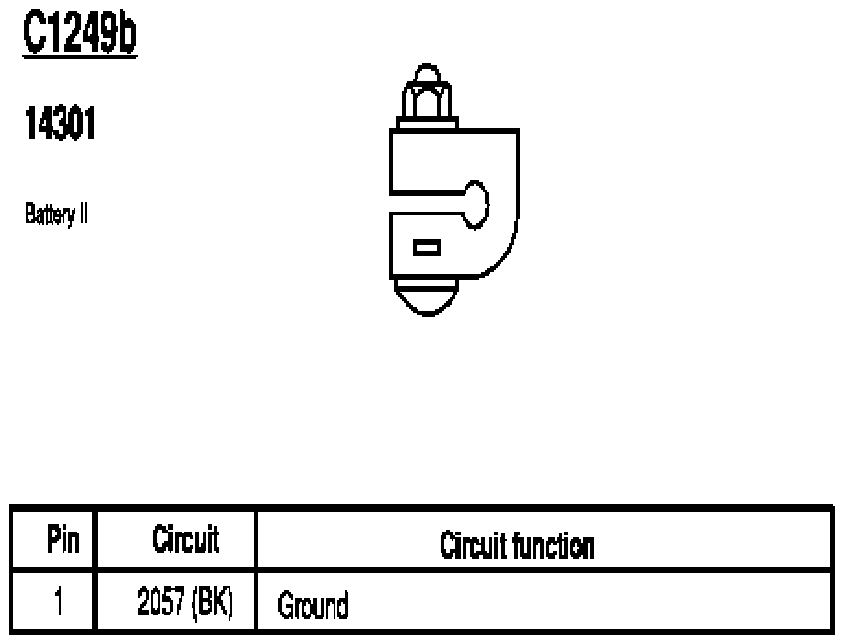

Fig 281: Battery II Connector End View (C1249b)

G07842492

Courtesy of FORD MOTOR CO.

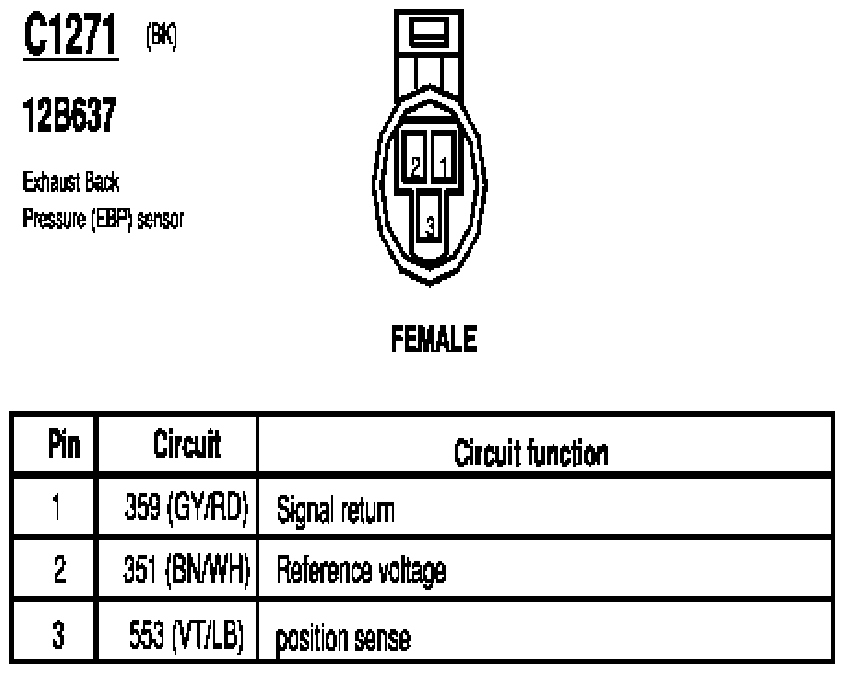

Fig 282: Exhaust Back Pressure (EBP) Sensor Connector End View (C1271)

G07842493

Courtesy of FORD MOTOR CO.

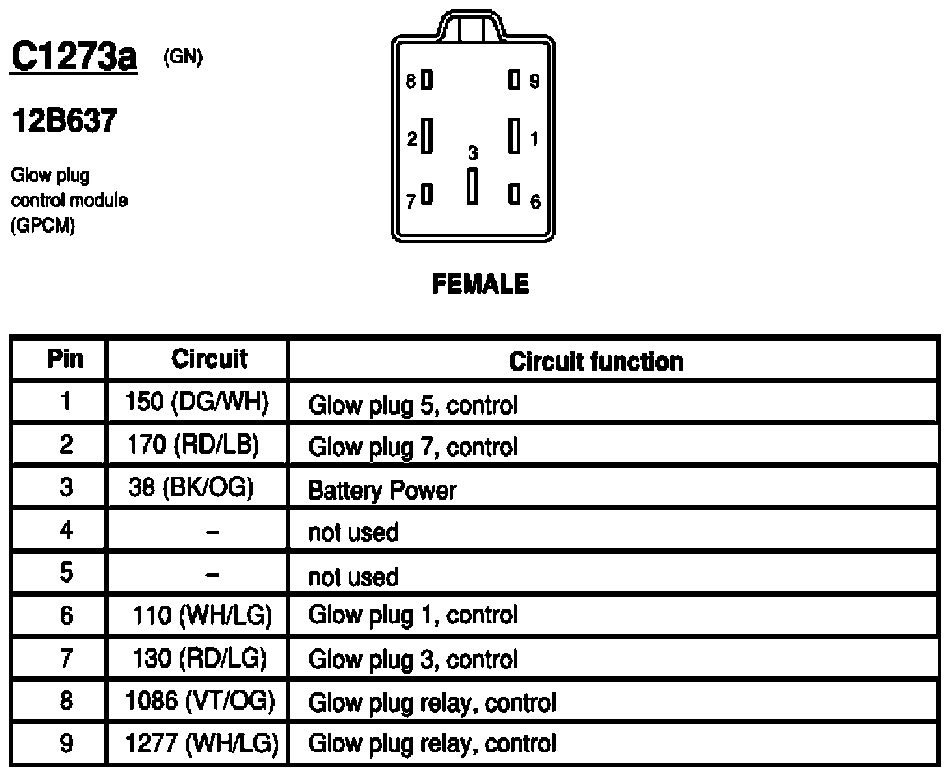

Fig 283: Glow Plug Control Module (GPCM) Connector End View (C1273a)

G07842494

Courtesy of FORD MOTOR CO.

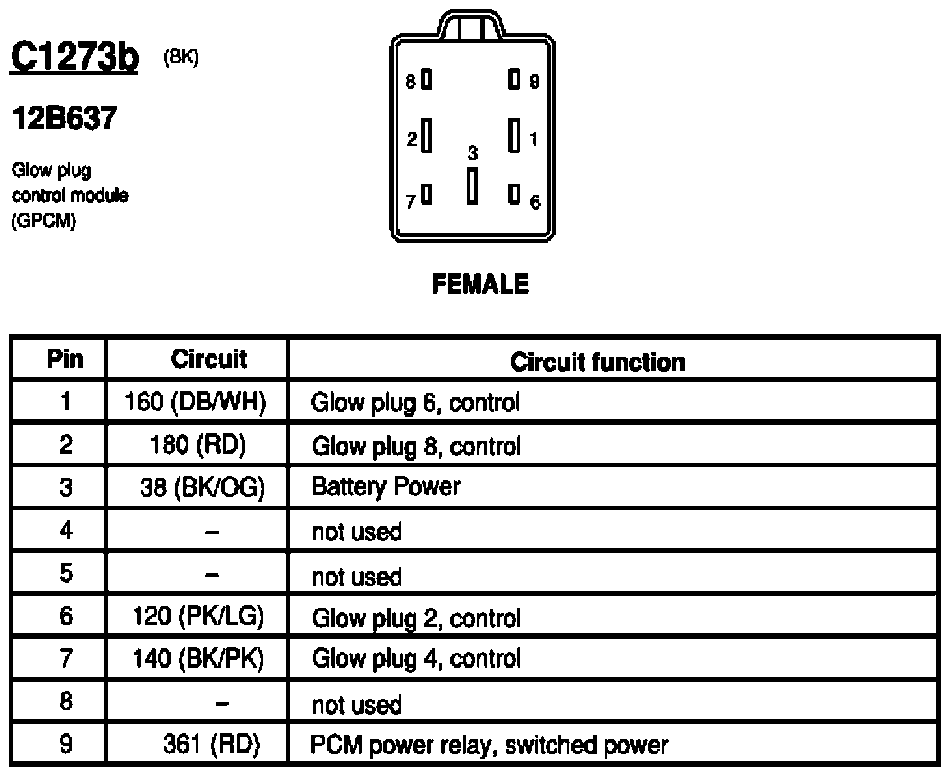

Fig 284: Glow Plug Control Module (GPCM) Connector End View (C1273b)

G07842495

Courtesy of FORD MOTOR CO.

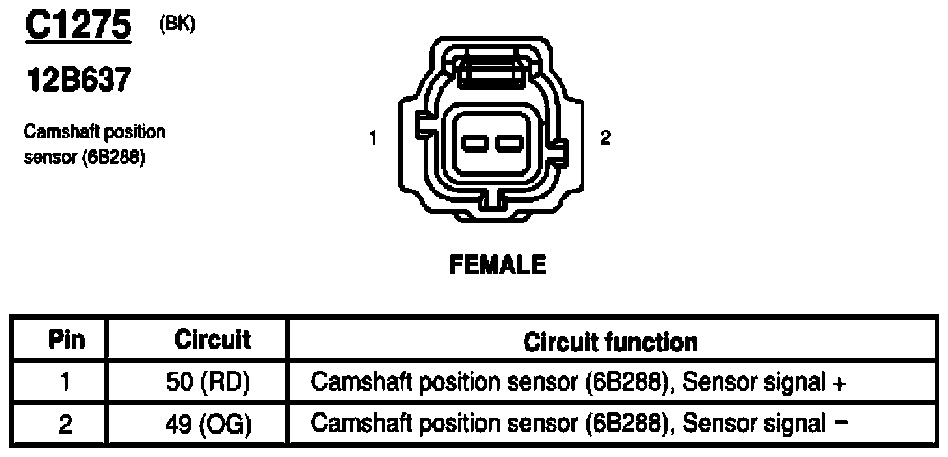

Fig 285: Camshaft Position Sensor Connector End View (C1275)

G07842496

Courtesy of FORD MOTOR CO.

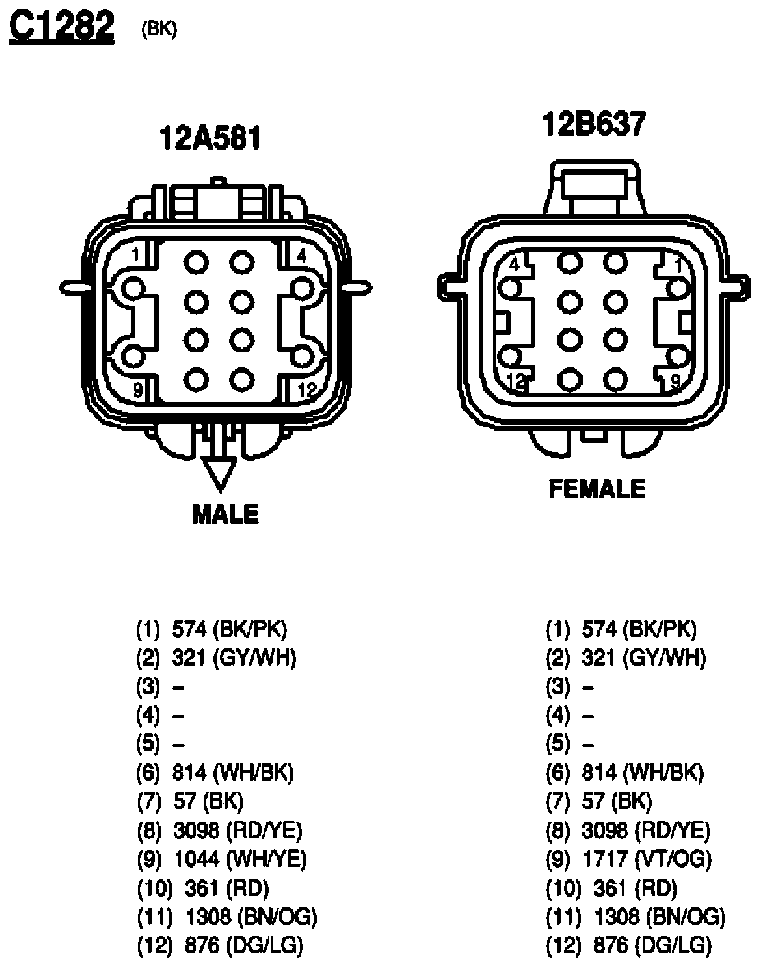

Fig 286: Inline Connector End View (C1282)

G07842497

Courtesy of FORD MOTOR CO.

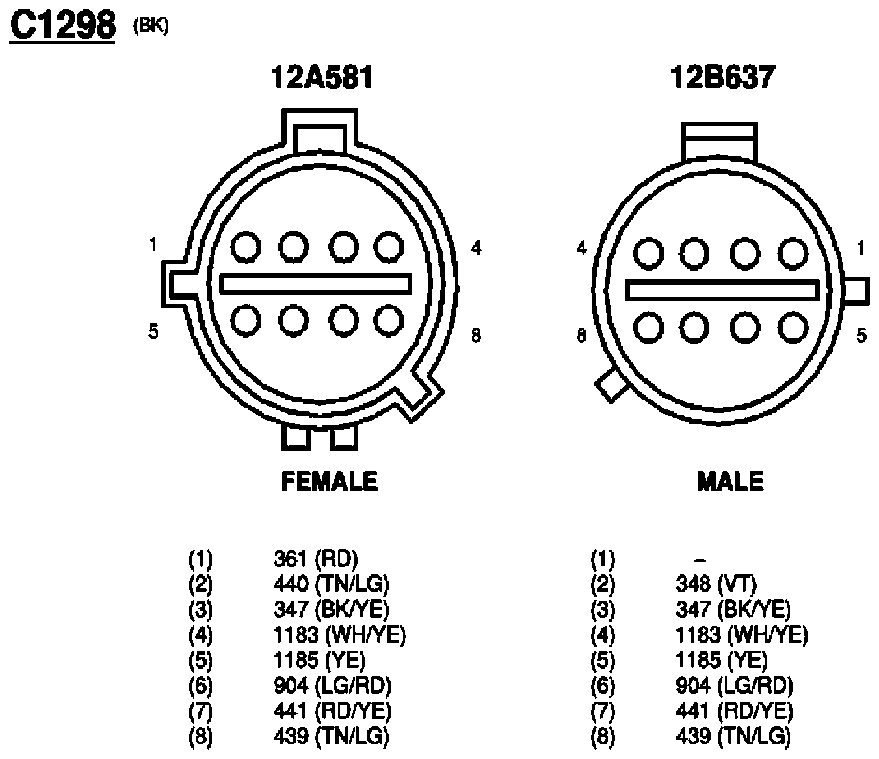

Fig 287: Inline Connector End View (C1298)

G07842498

Courtesy of FORD MOTOR CO.

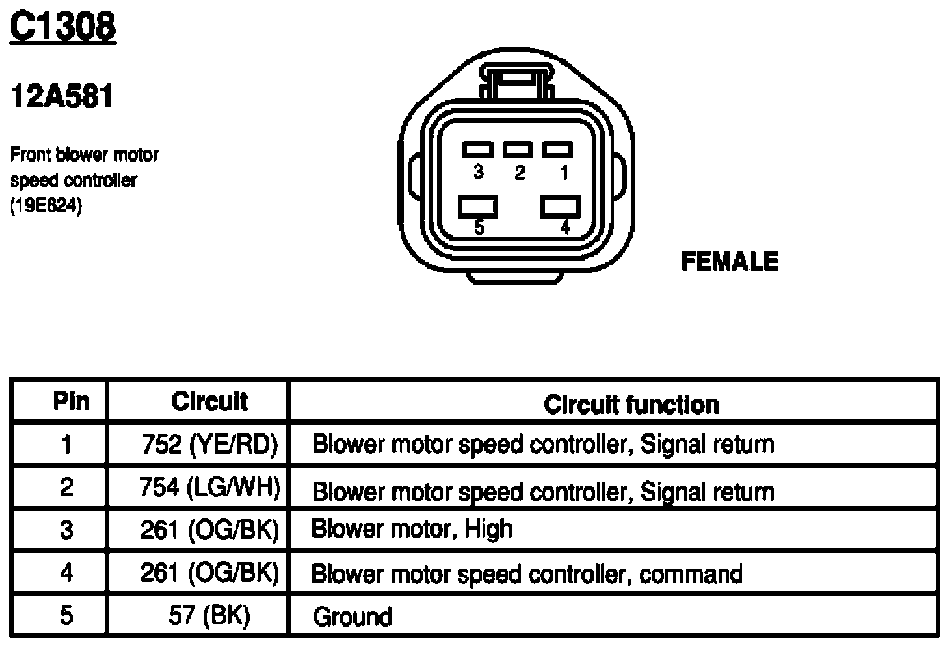

Fig 288: Front Blower Motor Speed Controller Connector End View (C1308)

G07842499

Courtesy of FORD MOTOR CO.

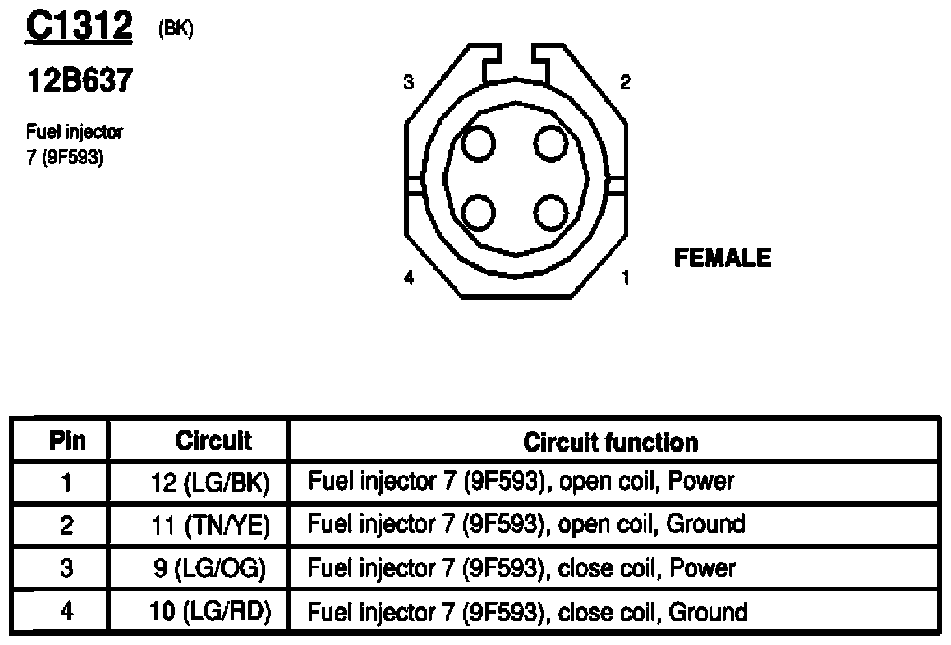

Fig 289: Fuel Injector 7 Connector End View (C1312)

G07842500

Courtesy of FORD MOTOR CO.

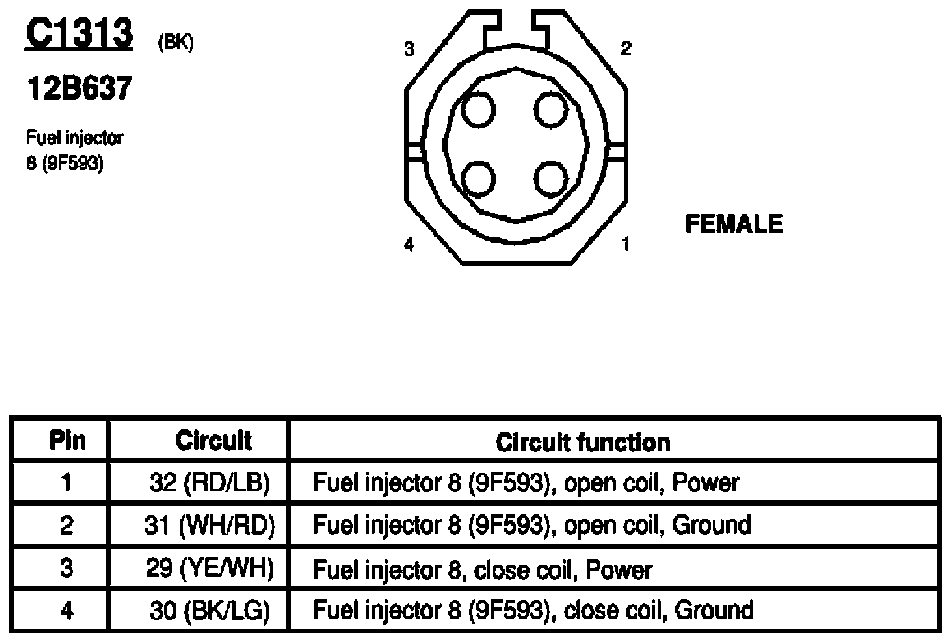

Fig 290: Fuel Injector 8 Connector End View (C1313)

G07842501

Courtesy of FORD MOTOR CO.

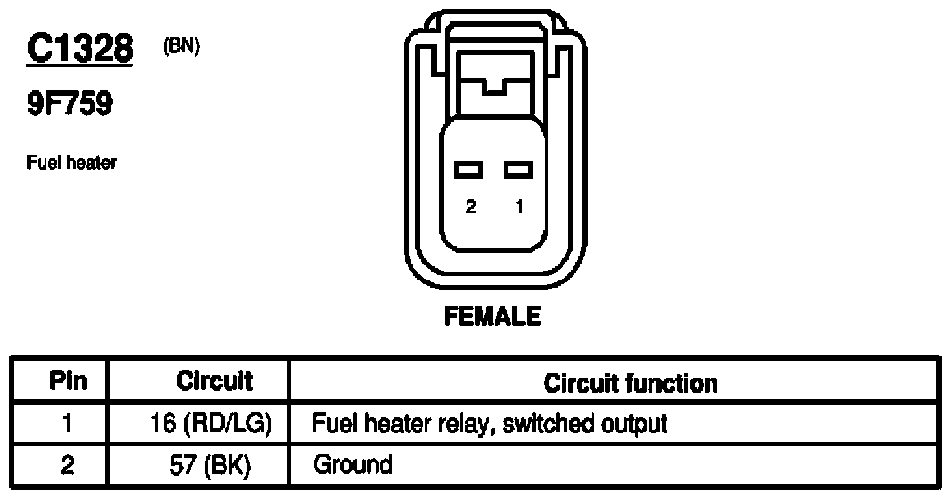

Fig 291: Fuel Heater Connector End View (C1328)

G07842502

Courtesy of FORD MOTOR CO.

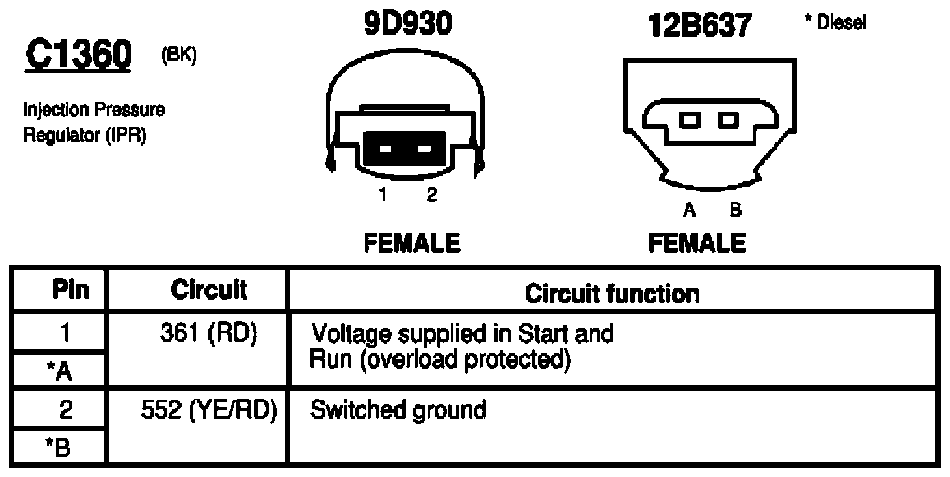

Fig 292: Injection Pressure Regulator (IPR) Connector End View (C1360)

G07842503

Courtesy of FORD MOTOR CO.

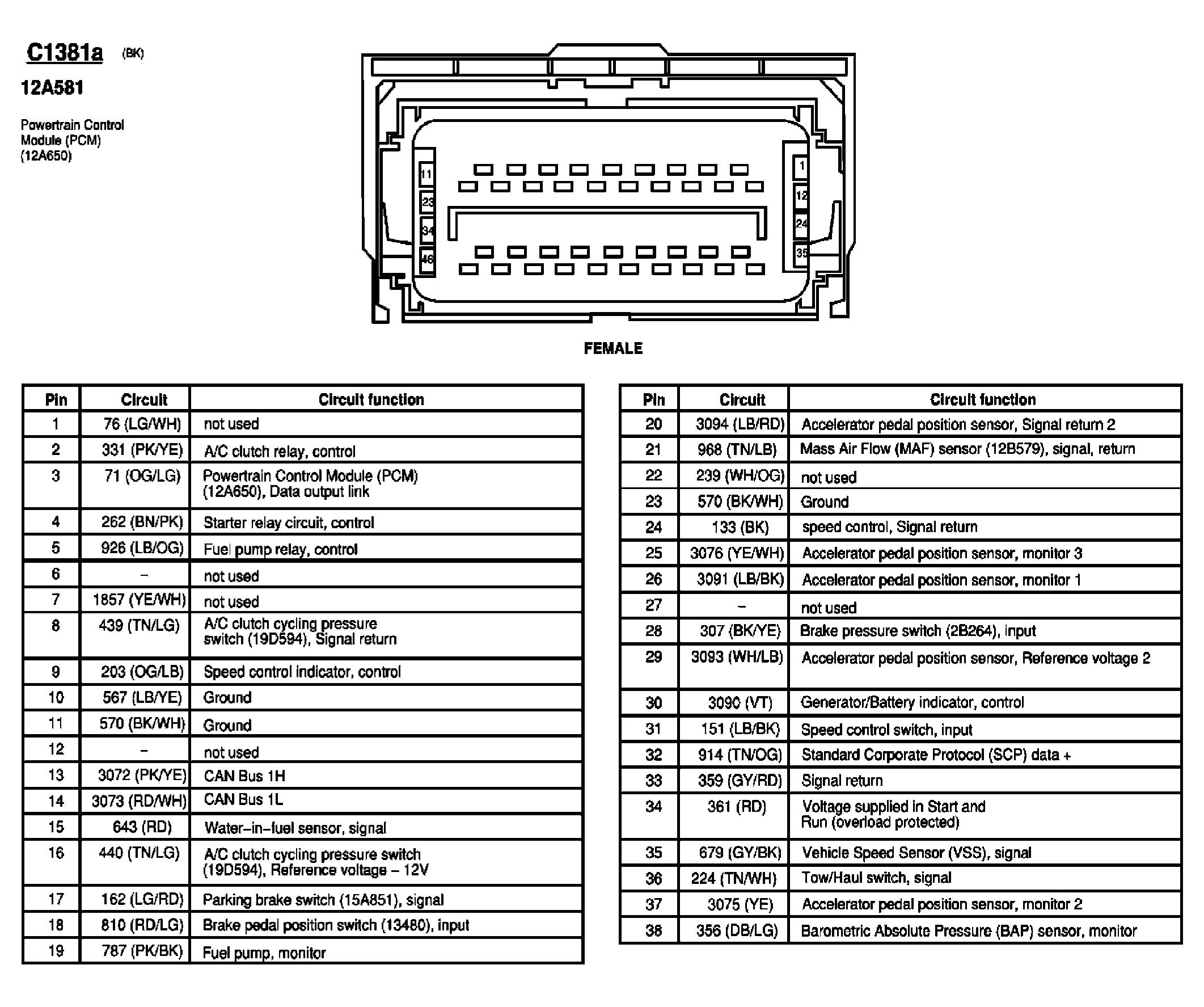

Fig 293: Powertrain Control Module (PCM) Connector End View (C1381a) (1 Of 2)

G03987616

Courtesy of FORD MOTOR CO.

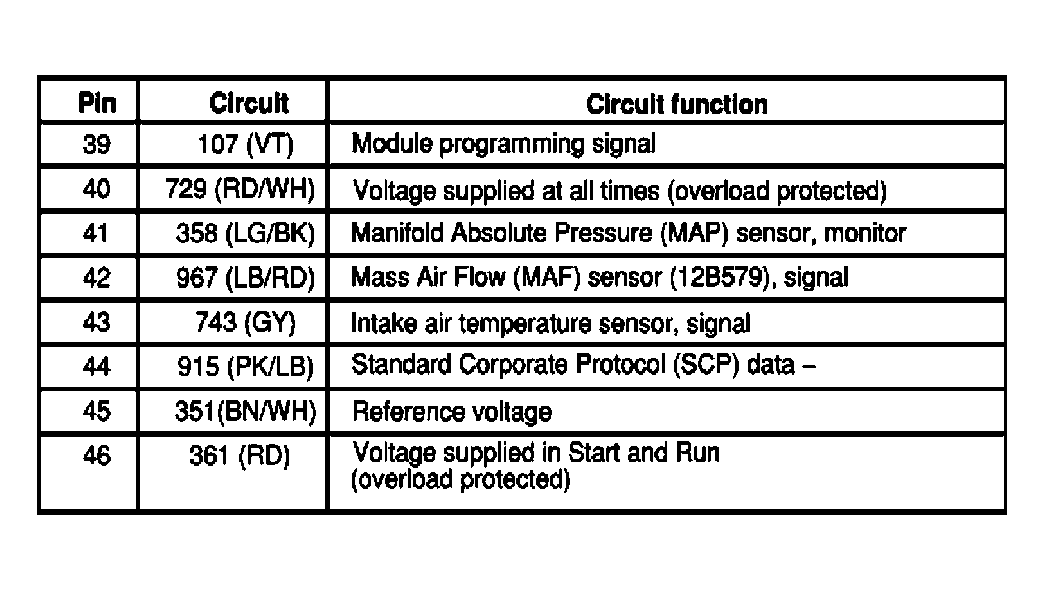

Fig 294: Powertrain Control Module (PCM) Connector End View (C1381a) (2 Of 2)

G03987617

Courtesy of FORD MOTOR CO.

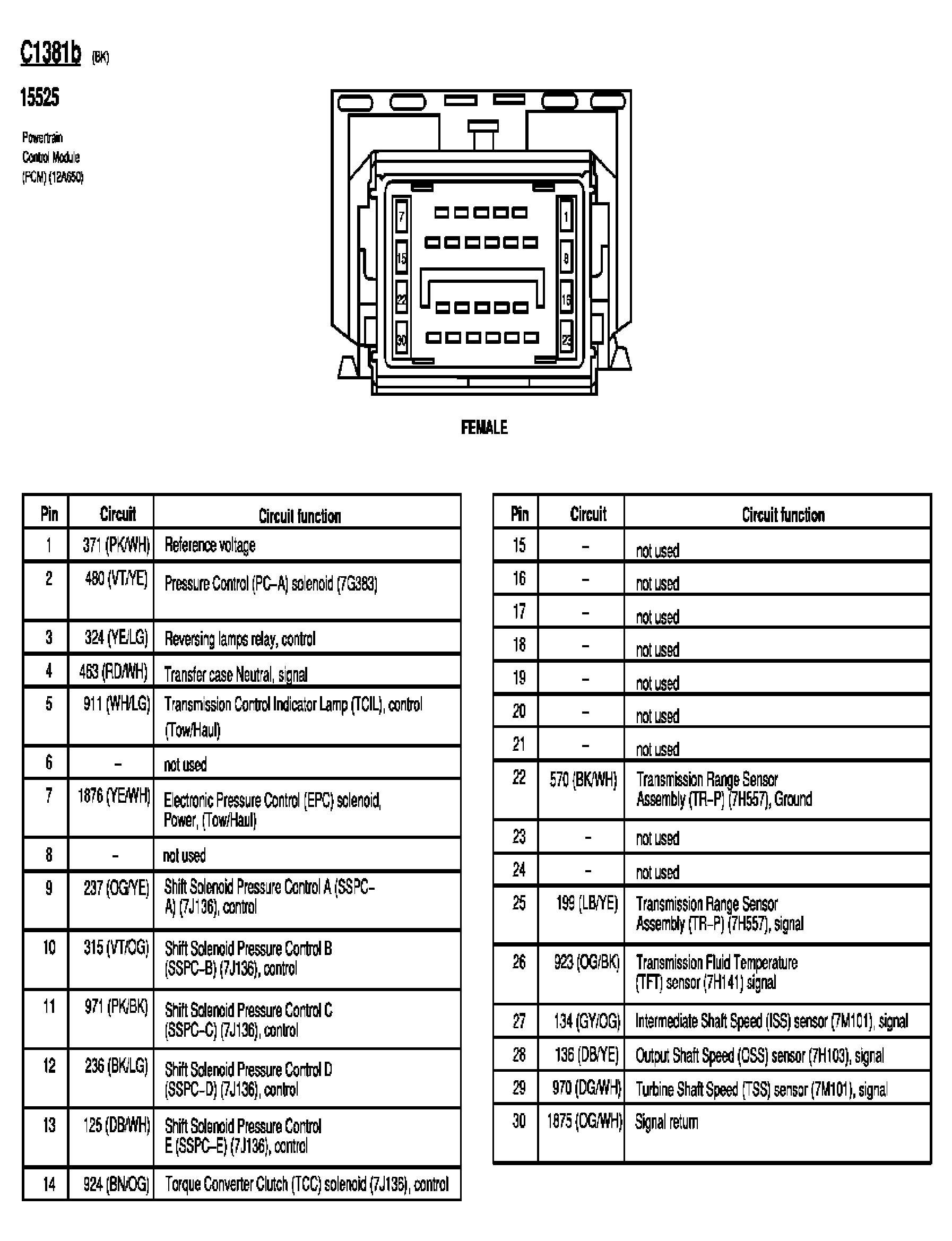

Fig 295: Powertrain Control Module (PCM) Connector End View (C1381b)

G03987618

Courtesy of FORD MOTOR CO.

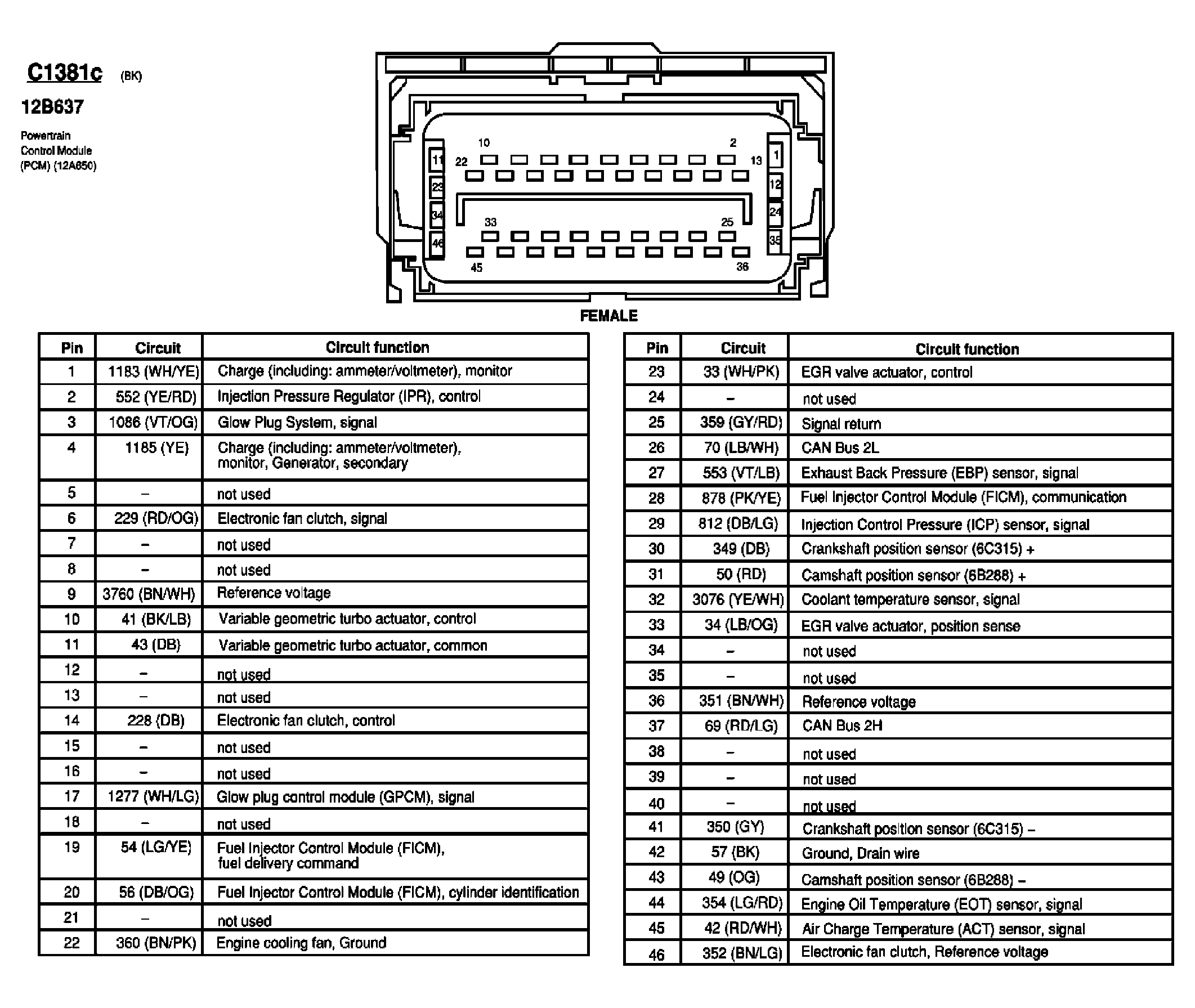

Fig 296: Powertrain Control Module (PCM) Connector End View (C1381c)

G03987619

Courtesy of FORD MOTOR CO.

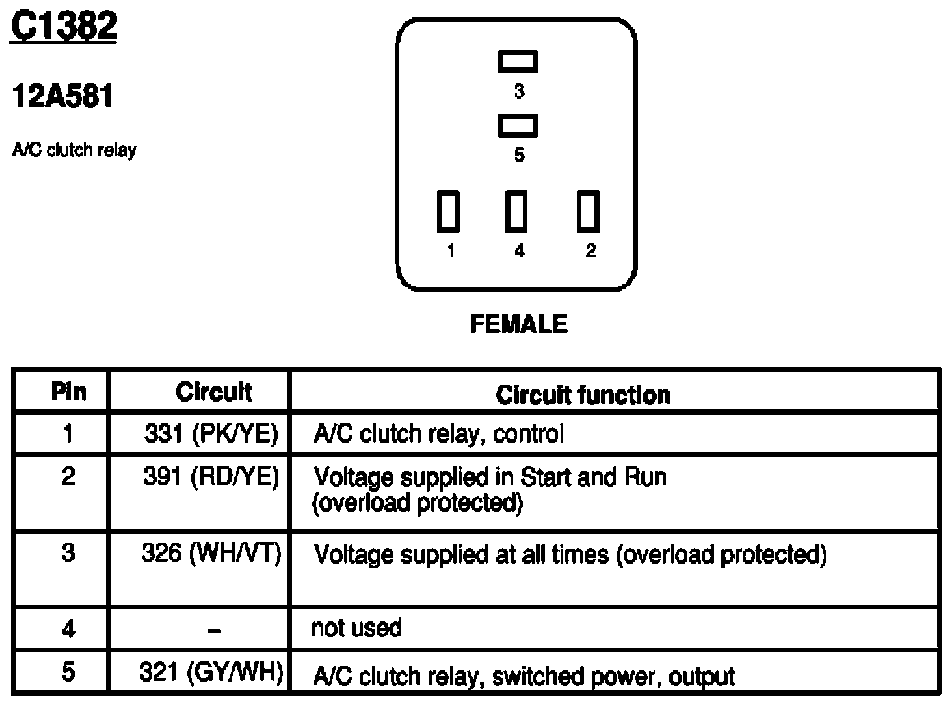

Fig 297: A/C Clutch Relay Connector End View (C1382)

G07842504

Courtesy of FORD MOTOR CO.

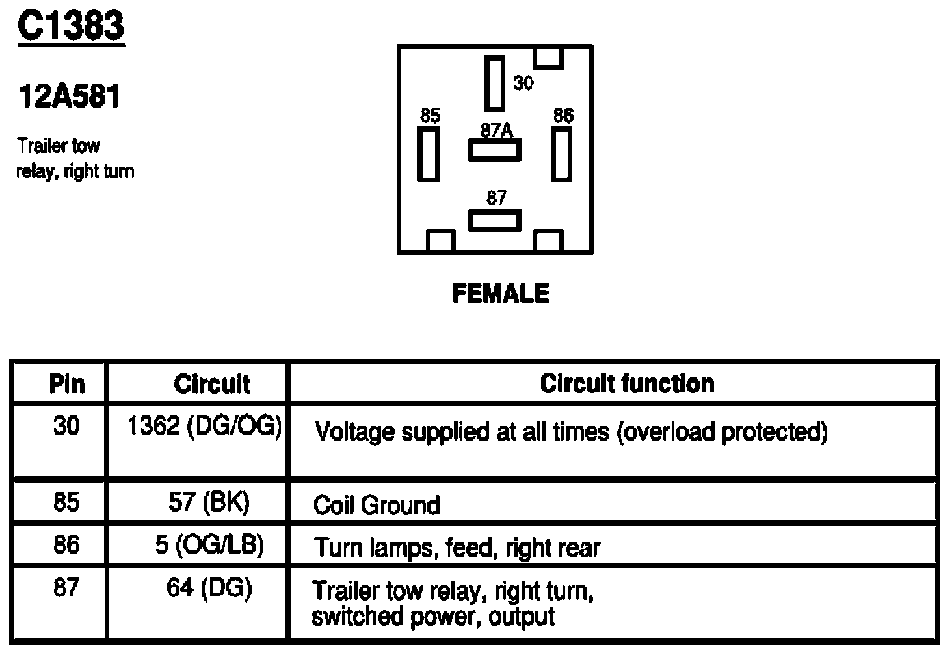

Fig 298: Trailer Tow Relay, Right Turn Connector End View (C1383)

G07842505

Courtesy of FORD MOTOR CO.

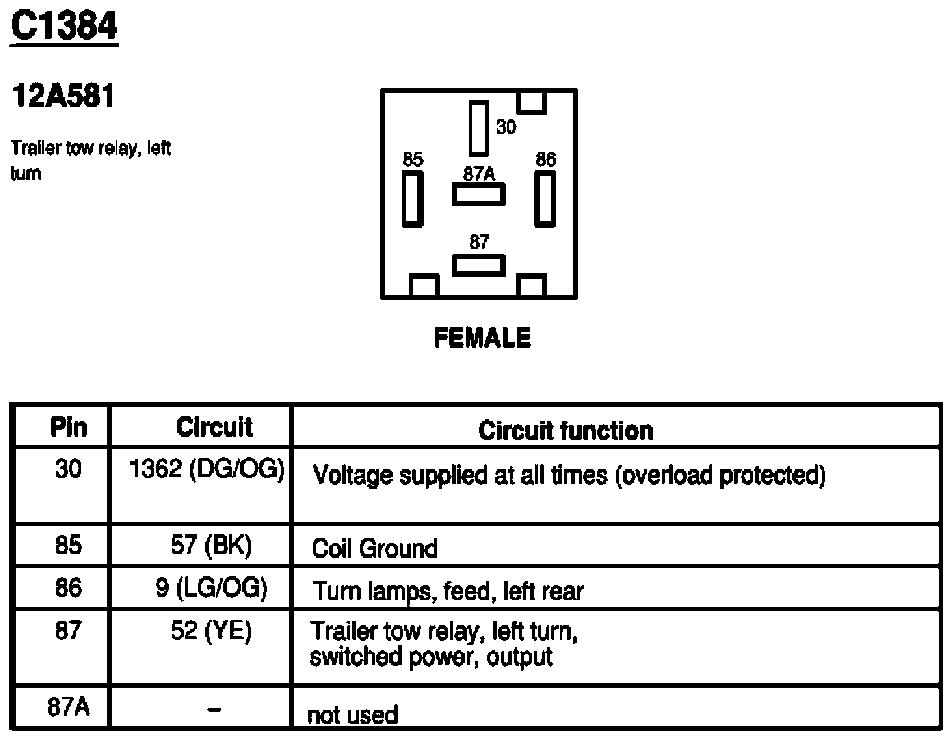

Fig 299: Trailer Tow Relay, Left Turn Connector End View (C1384)

G07842506

Courtesy of FORD MOTOR CO.

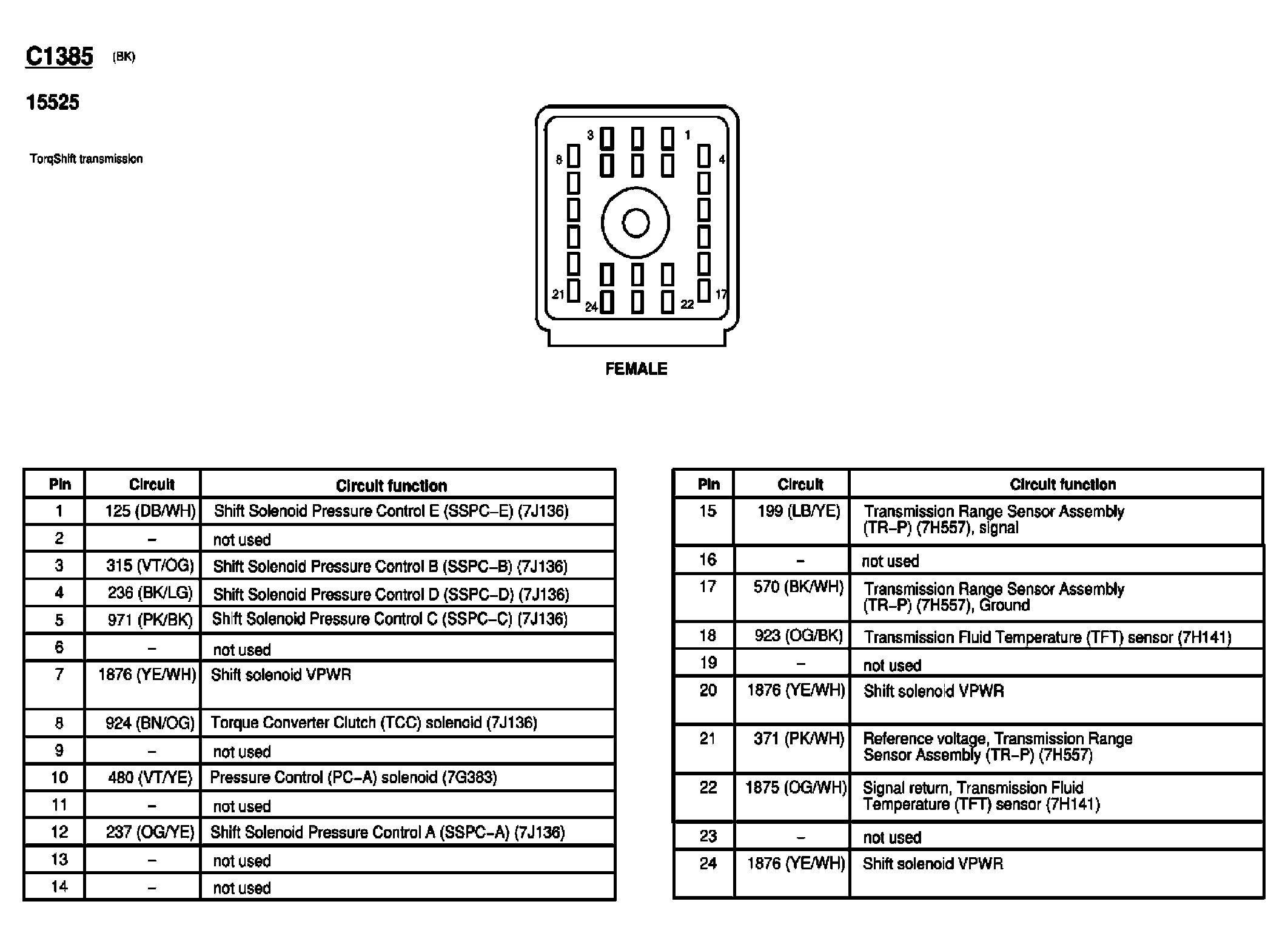

Fig 300: TorqShift Transmission Connector End View (C1385)

G03987621

Courtesy of FORD MOTOR CO.

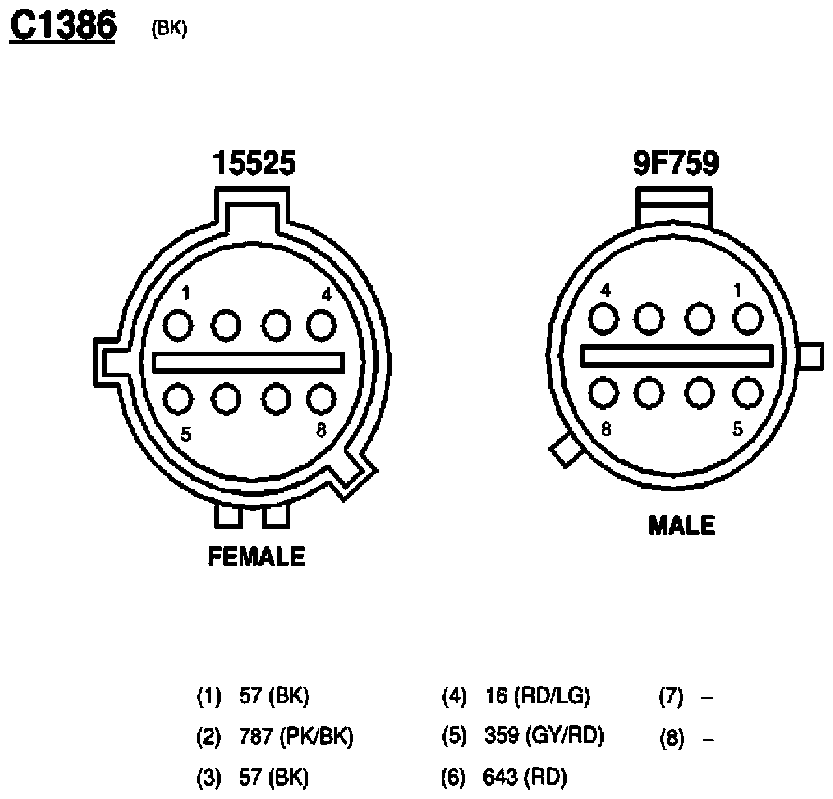

Fig 301: Inline Connector End View (C1386)

G07842507

Courtesy of FORD MOTOR CO.

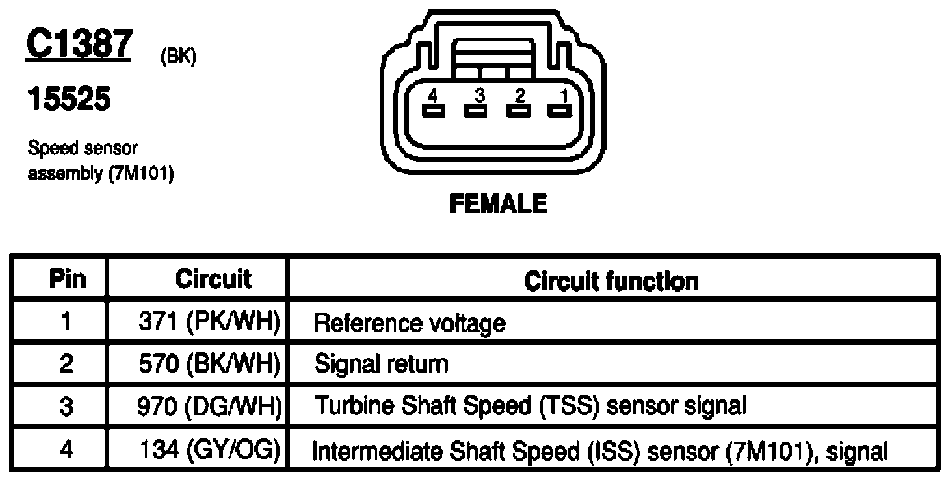

Fig 302: Speed Sensor Assembly Connector End View (C1387)

G07842508

Courtesy of FORD MOTOR CO.

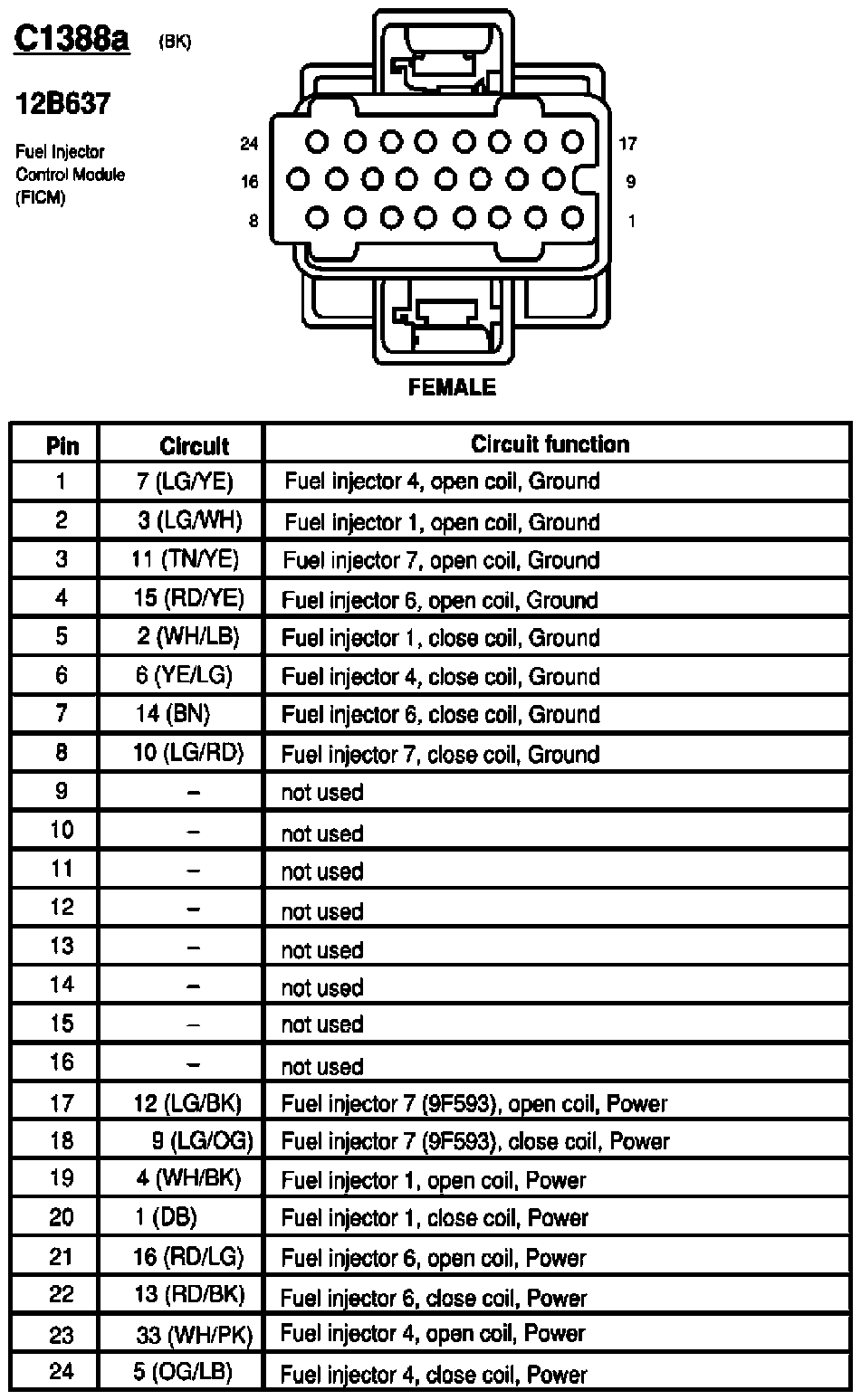

Fig 303: Fuel Injector Control Module (FICM) Connector End View (C1388a)

G07842509

Courtesy of FORD MOTOR CO.

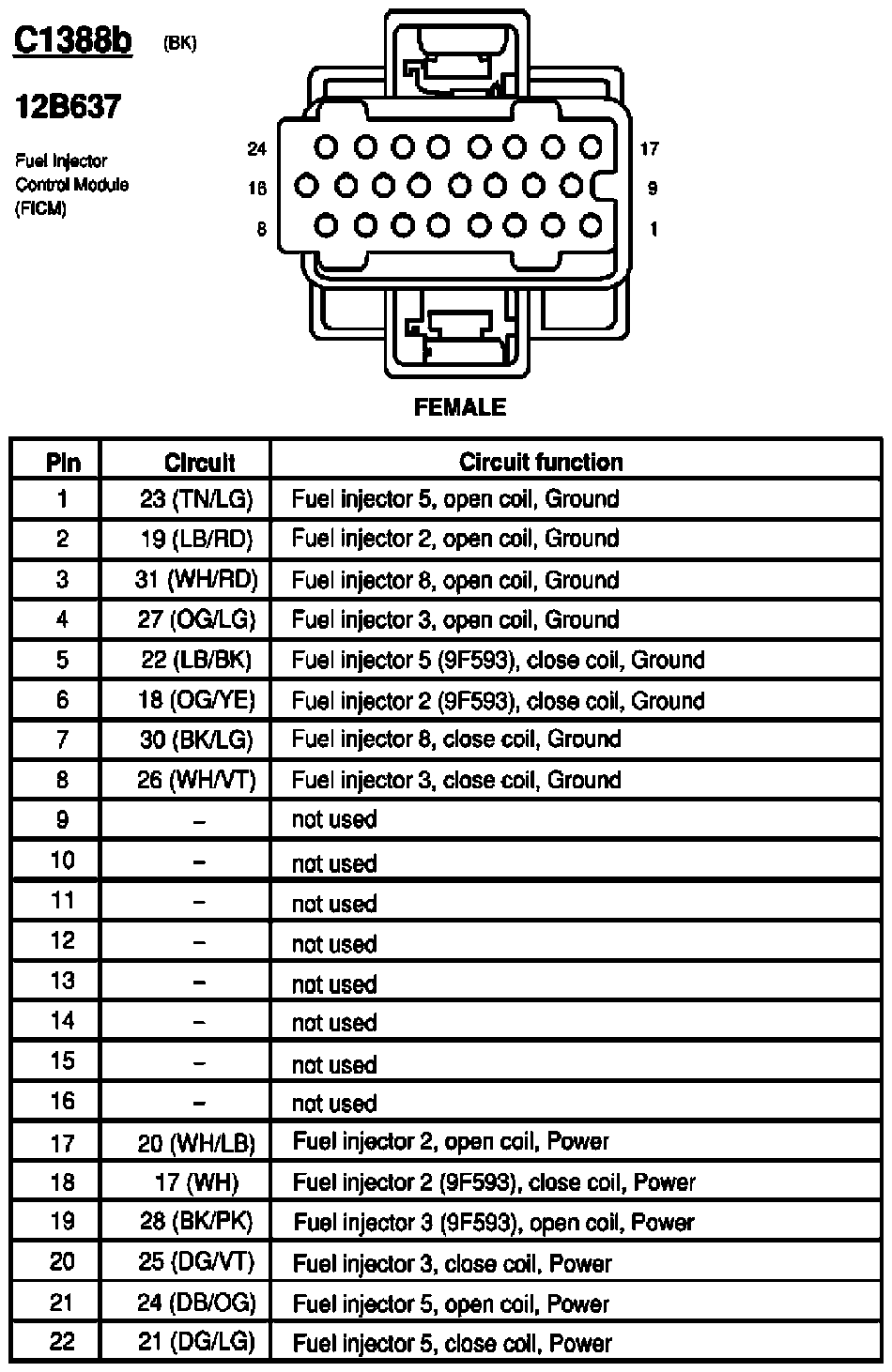

Fig 304: Fuel Injector Control Module (FICM) Connector End View (C1388b)

G03987623

Courtesy of FORD MOTOR CO.

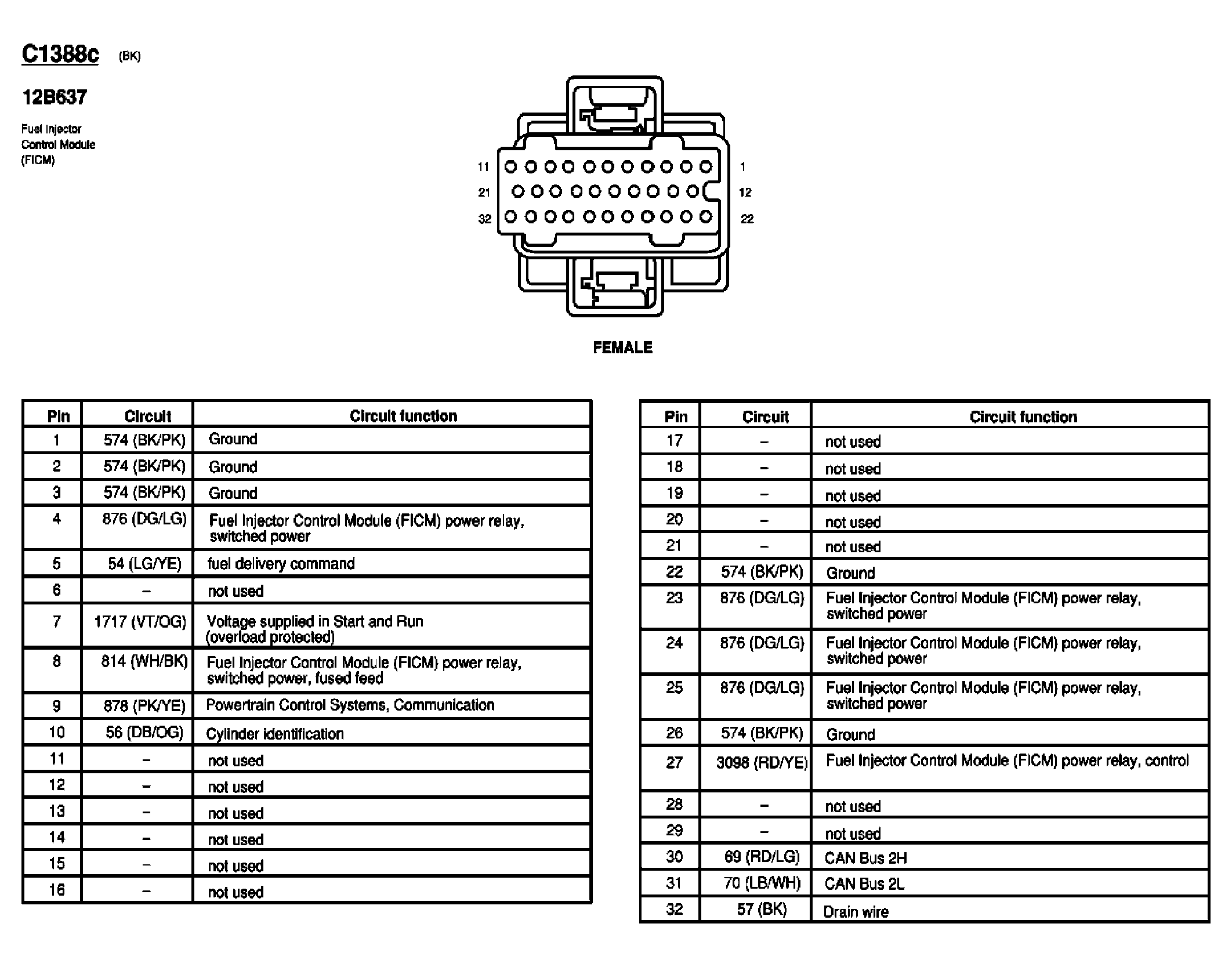

Fig 305: Fuel Injector Control Module (FICM) Connector End View (C1388c)

G03987624

Courtesy of FORD MOTOR CO.

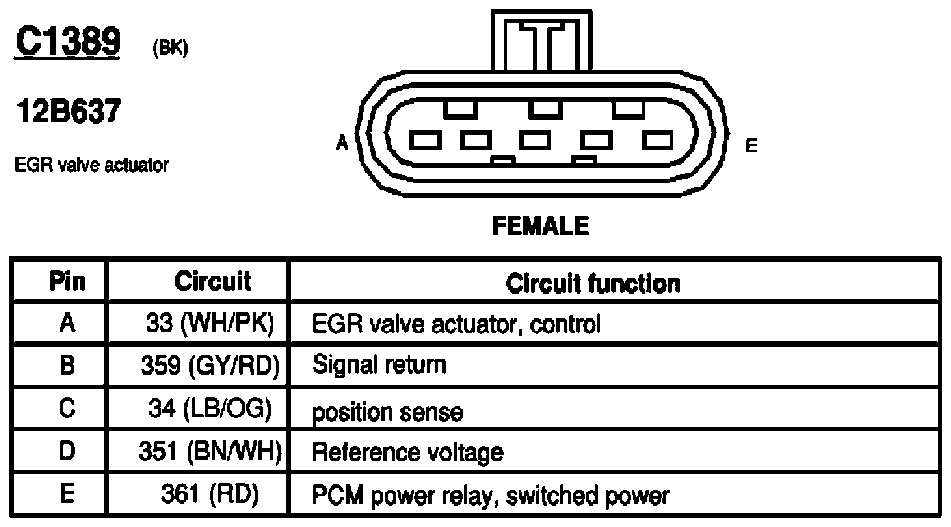

Fig 306: EGR Valve Actuator Connector End View (C1389)

G07842510

Courtesy of FORD MOTOR CO.

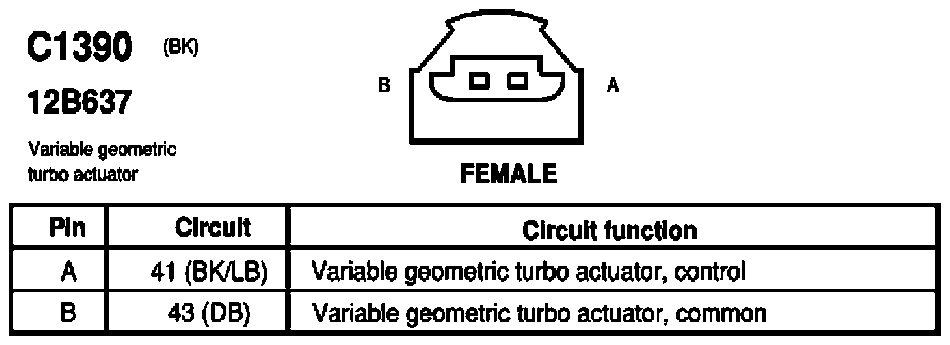

Fig 307: Variable Geometric Turbo Actuator Connector End View (C1390)

G07842511

Courtesy of FORD MOTOR CO.

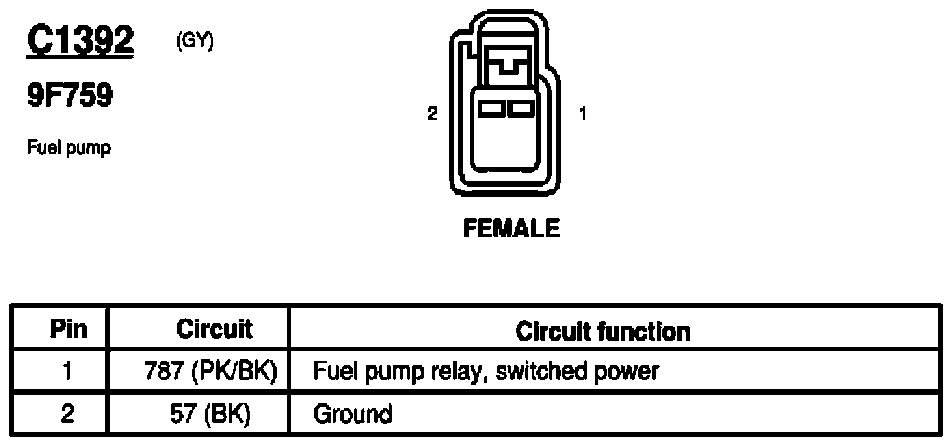

Fig 308: Fuel Pump Connector End View (C1392)

G07842512

Courtesy of FORD MOTOR CO.

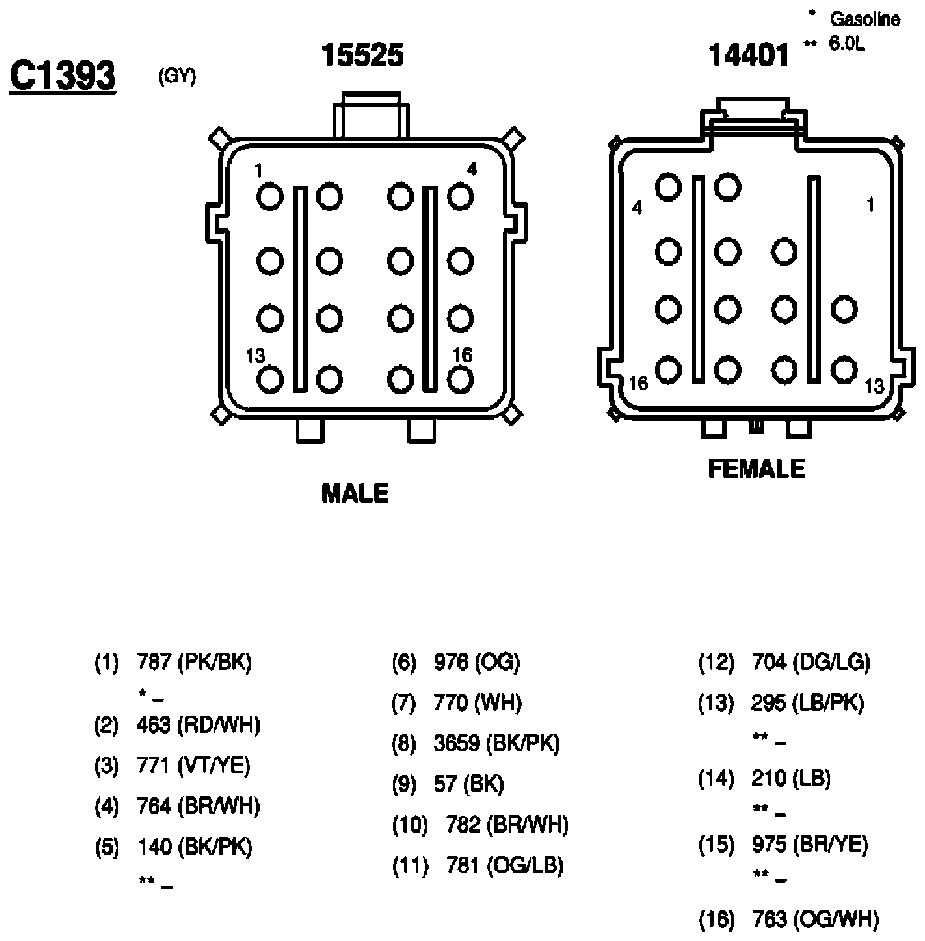

Fig 309: Inline Connector End View (C1393)

G07842513

Courtesy of FORD MOTOR CO.

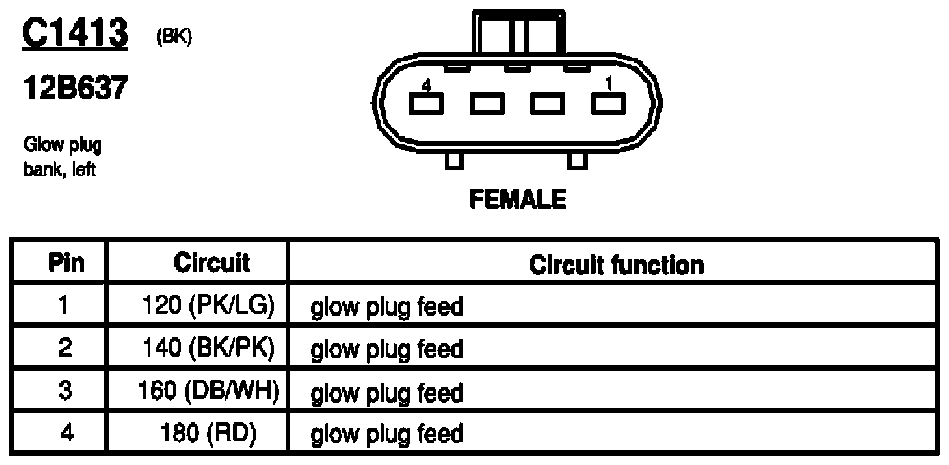

Fig 310: Glow Plug Bank, Left Connector End View (C1413)

G07842514

Courtesy of FORD MOTOR CO.

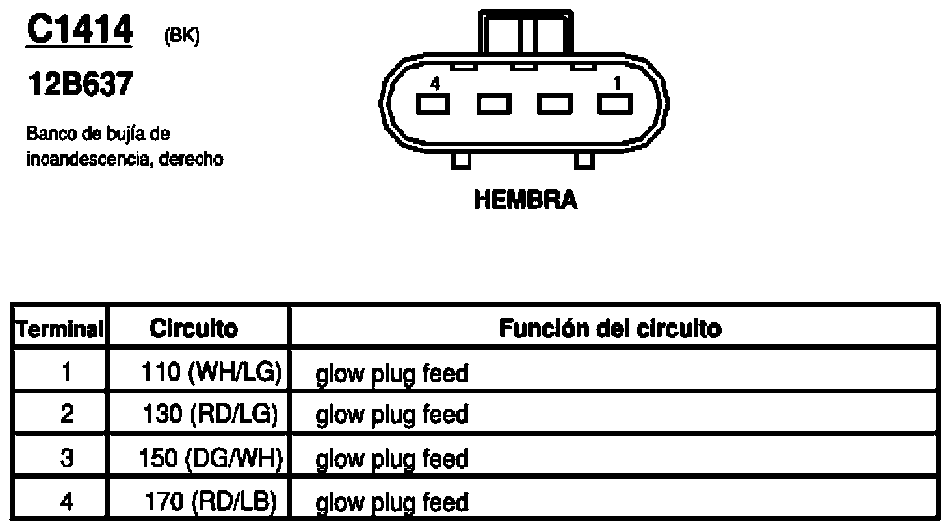

Fig 311: Inline Connector End View (C1414)

G07842515

Courtesy of FORD MOTOR CO.

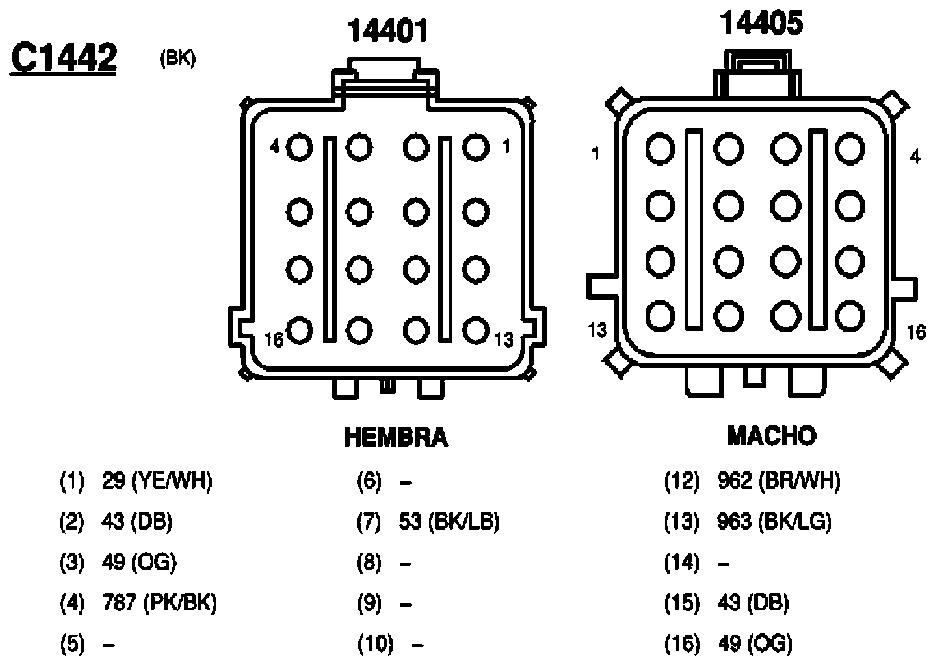

Fig 312: Inline Connector End View (C1442)

G07842516

Courtesy of FORD MOTOR CO.

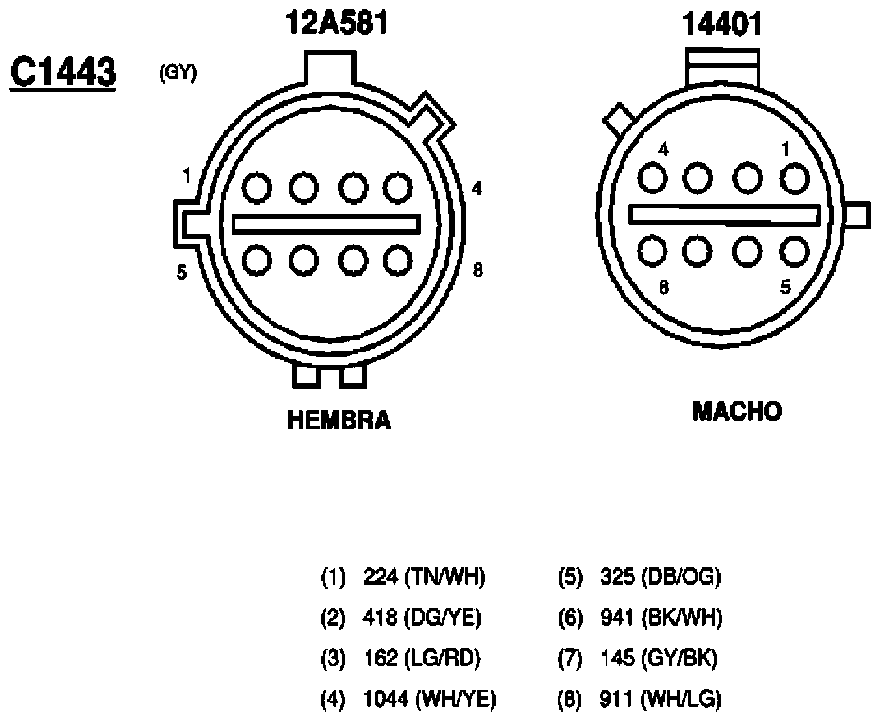

Fig 313: Inline Connector End View (C1443)

G07842517

Courtesy of FORD MOTOR CO.

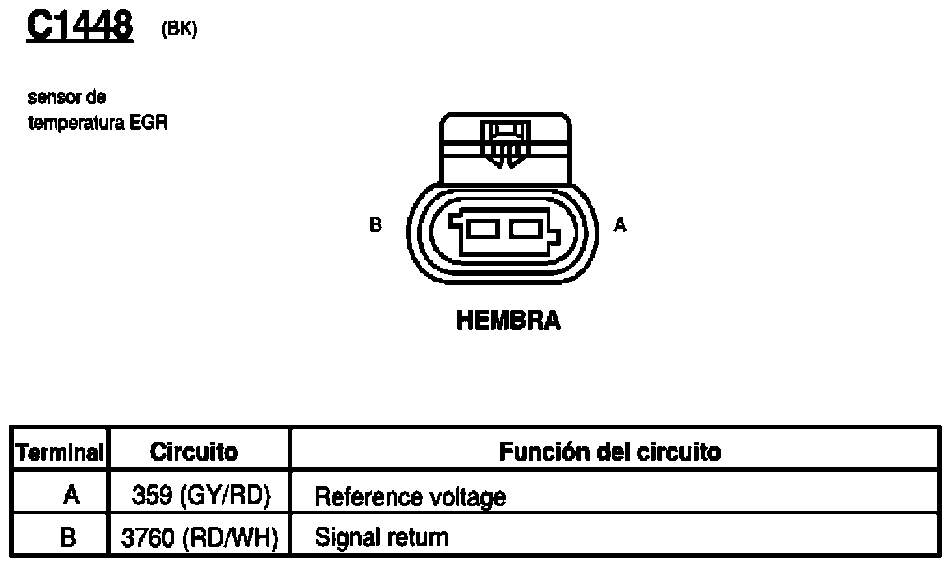

Fig 314: Sensor De Temperature EGR Connector End View (C1448)

G07842518

Courtesy of FORD MOTOR CO.

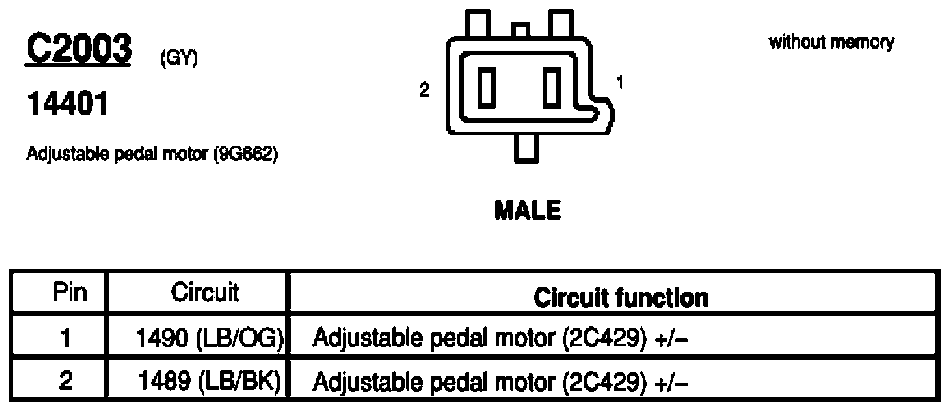

Fig 315: Adjustable Pedal Motor Connector End View (C2003)

G07842519

Courtesy of FORD MOTOR CO.

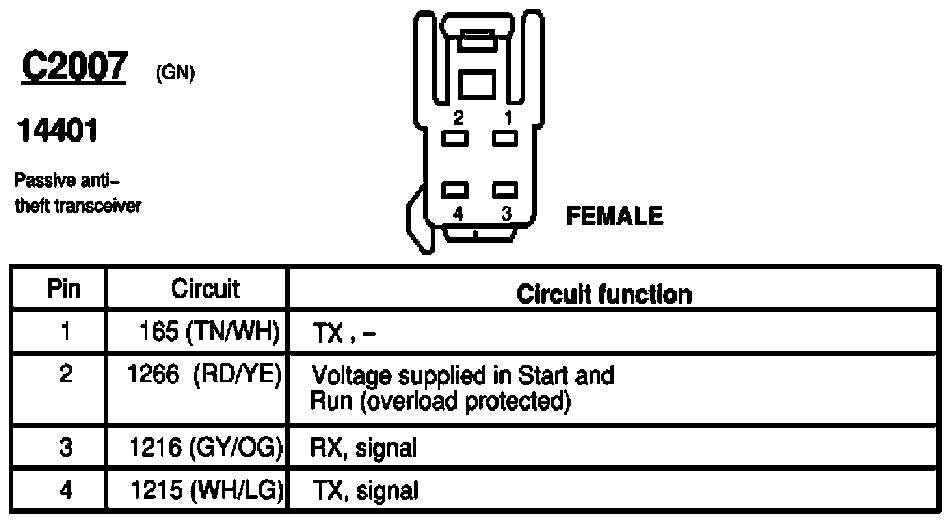

Fig 316: Passive Anti-Theft Transceiver Connector End View (C2007)

G07842520

Courtesy of FORD MOTOR CO.

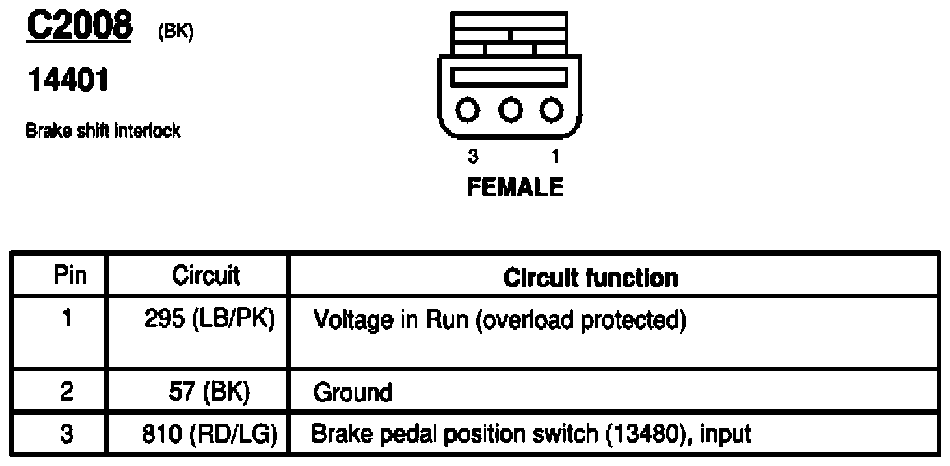

Fig 317: Brake Shift Interlock Connector End View (C2008)

G07842521

Courtesy of FORD MOTOR CO.

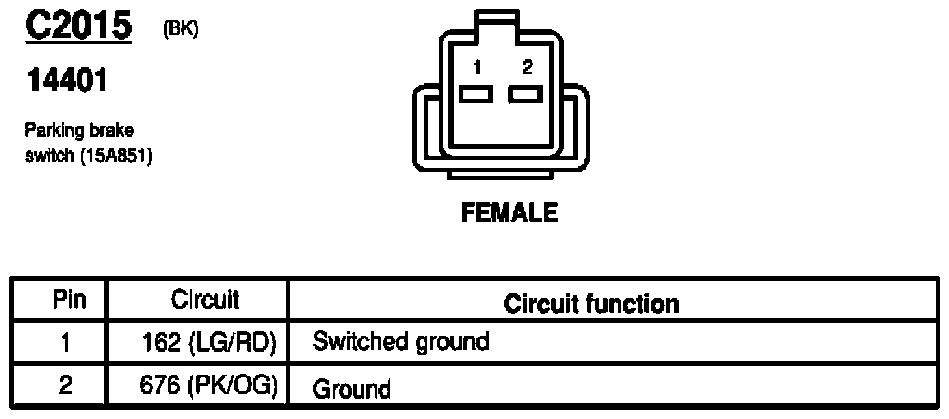

Fig 318: Parking Brake Switch Connector End View (C2015)

G07842522

Courtesy of FORD MOTOR CO.

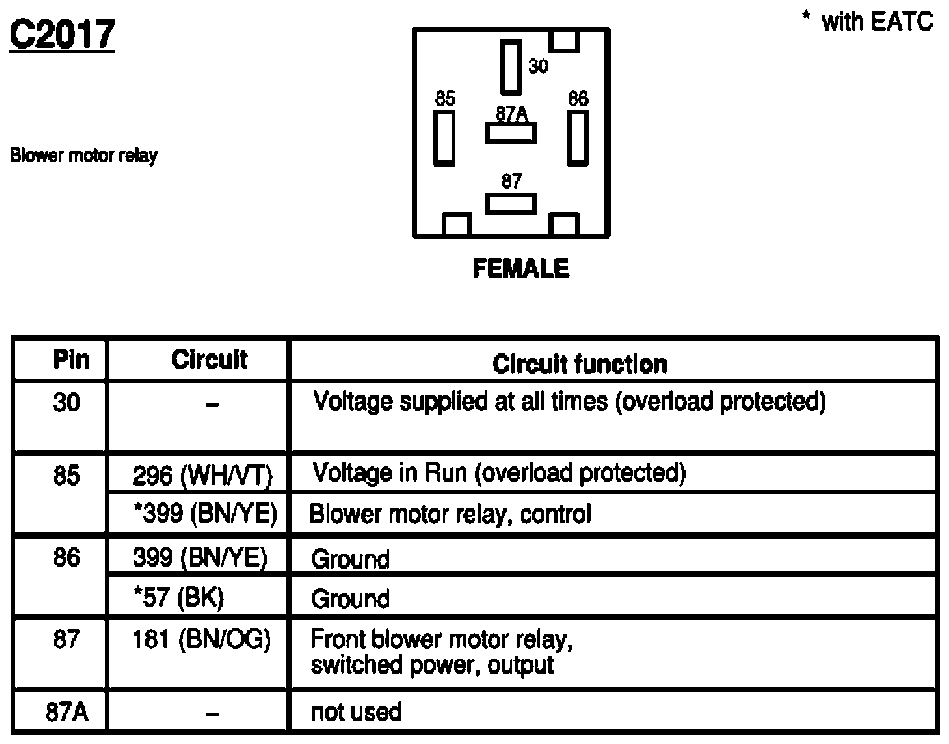

Fig 319: Blower Motor Relay Connector End View (C2017)

G07842523

Courtesy of FORD MOTOR CO.

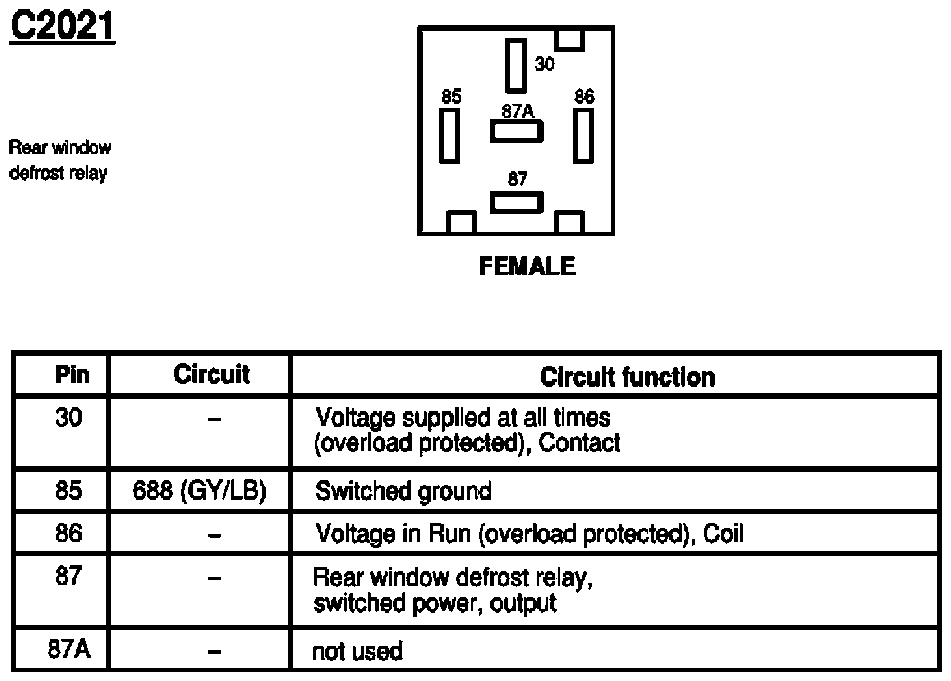

Fig 320: Rear Window Defrost Relay Connector End View (C2021)

G07842524

Courtesy of FORD MOTOR CO.

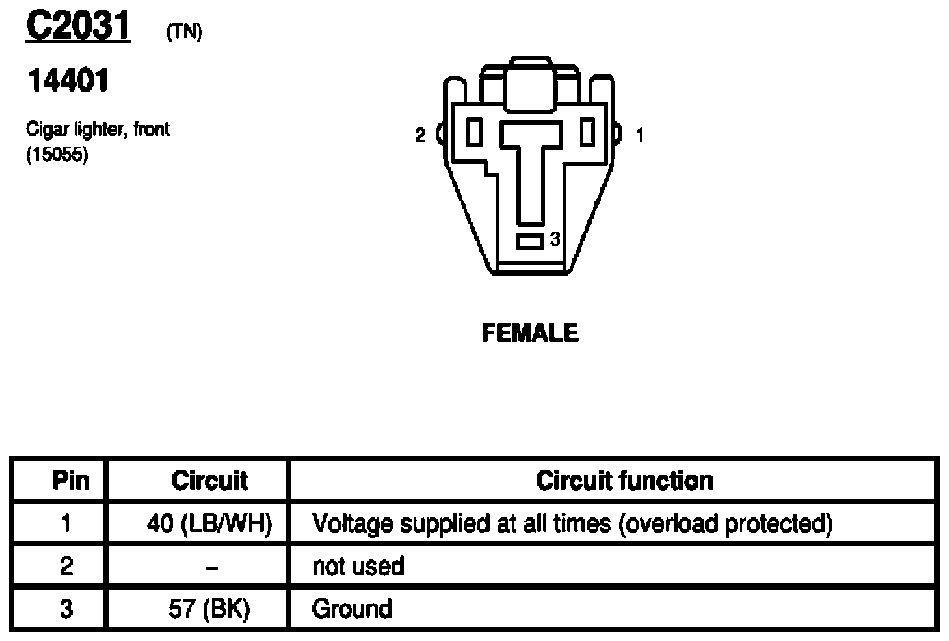

Fig 321: Cigar Lighter, Front Connector End View (C2031)

G07842525

Courtesy of FORD MOTOR CO.

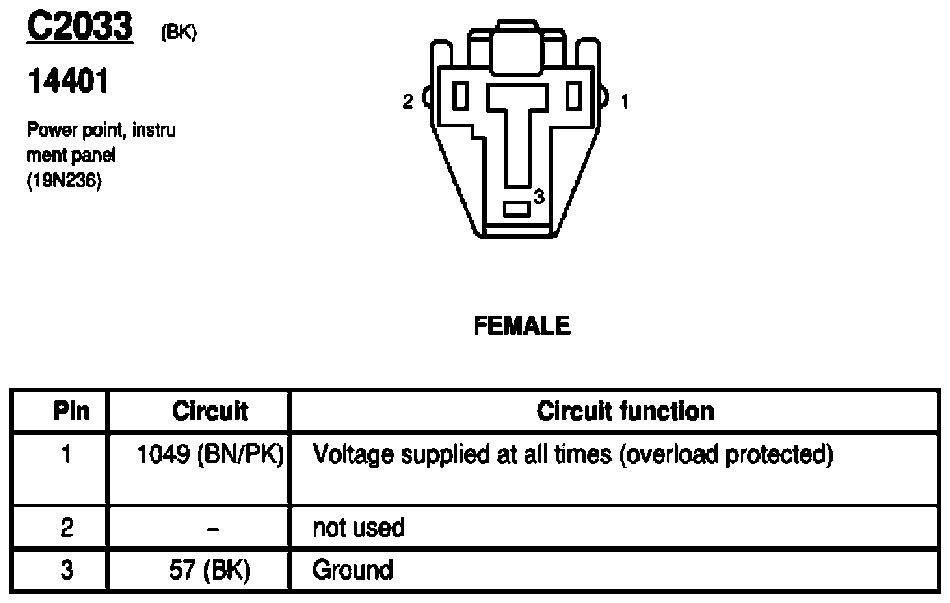

Fig 322: Power Point, Instrument Panel Connector End View (C2033)

G07842526

Courtesy of FORD MOTOR CO.

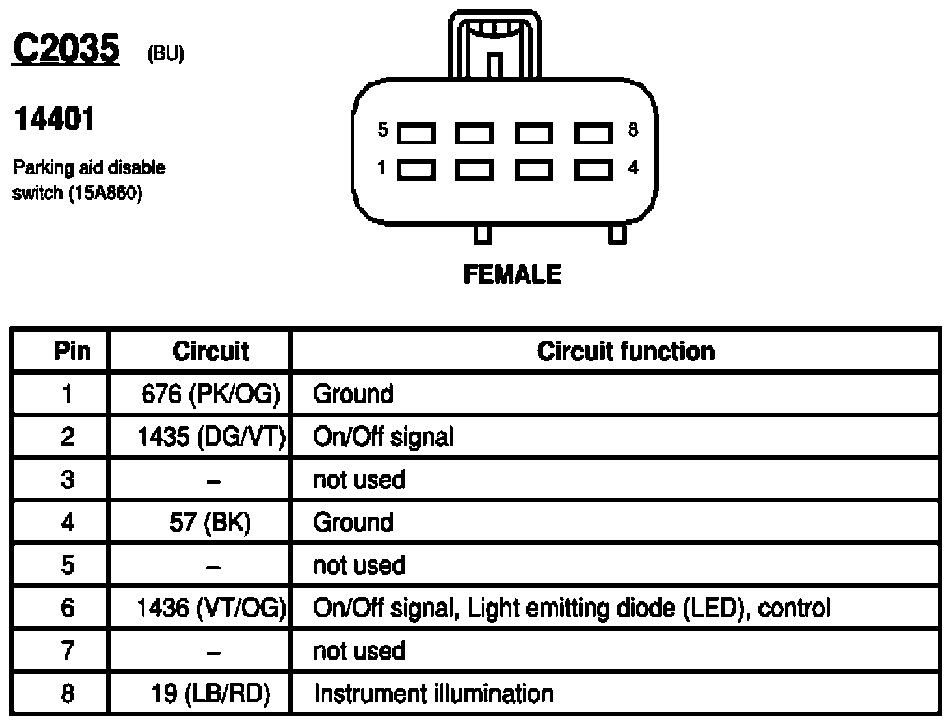

Fig 323: Parking Aid Disable Switch Connector End View (C2035)

G07842527

Courtesy of FORD MOTOR CO.

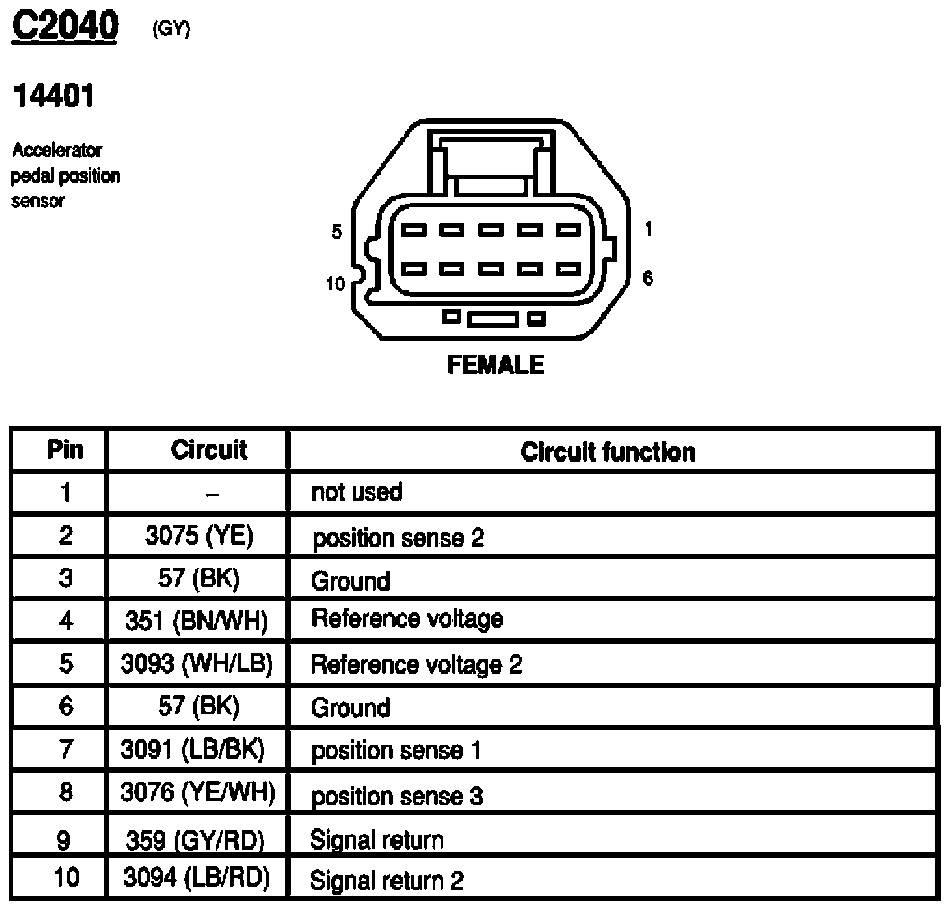

Fig 324: Accelerator Pedal Position Sensor Connector End View (C2040)

G03987629

Courtesy of FORD MOTOR CO.

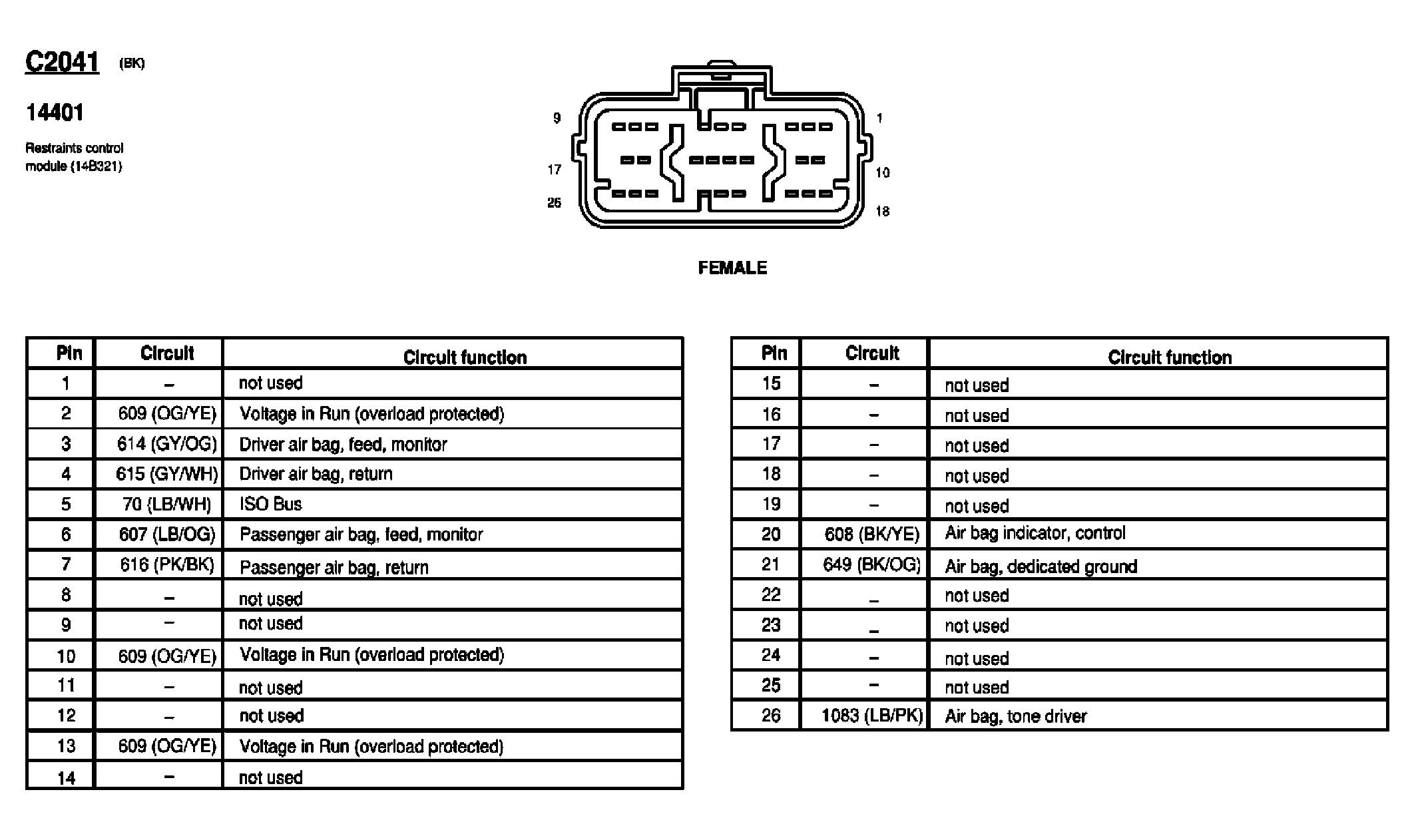

Fig 325: Restraints Control Module Connector End View (C2041)

G03987630

Courtesy of FORD MOTOR CO.

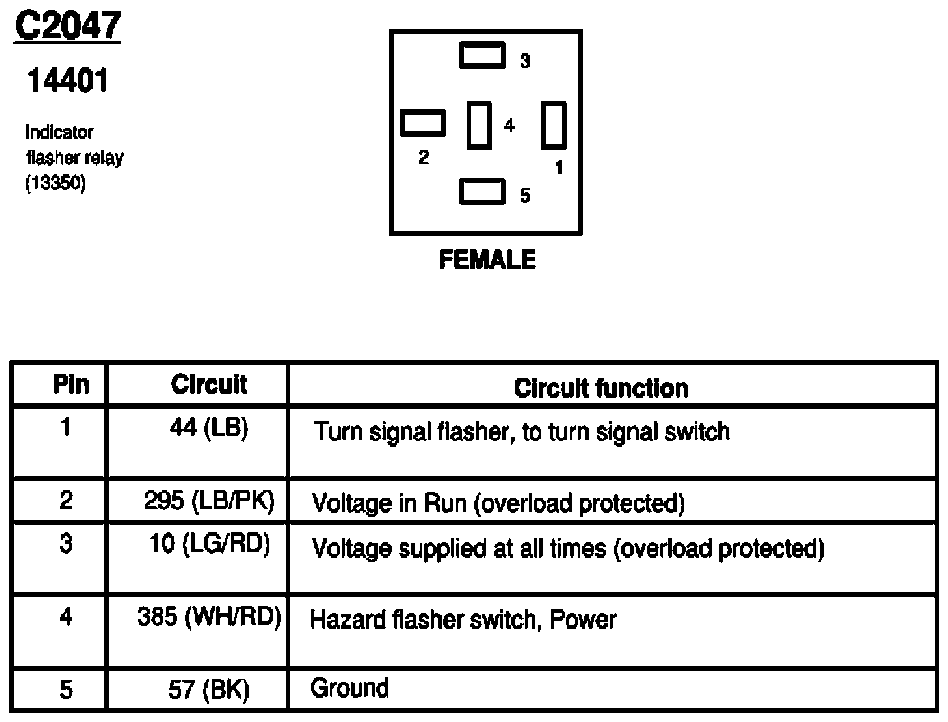

Fig 326: Indicator Flasher Relay Connector End View (C2047)

G07842528

Courtesy of FORD MOTOR CO.

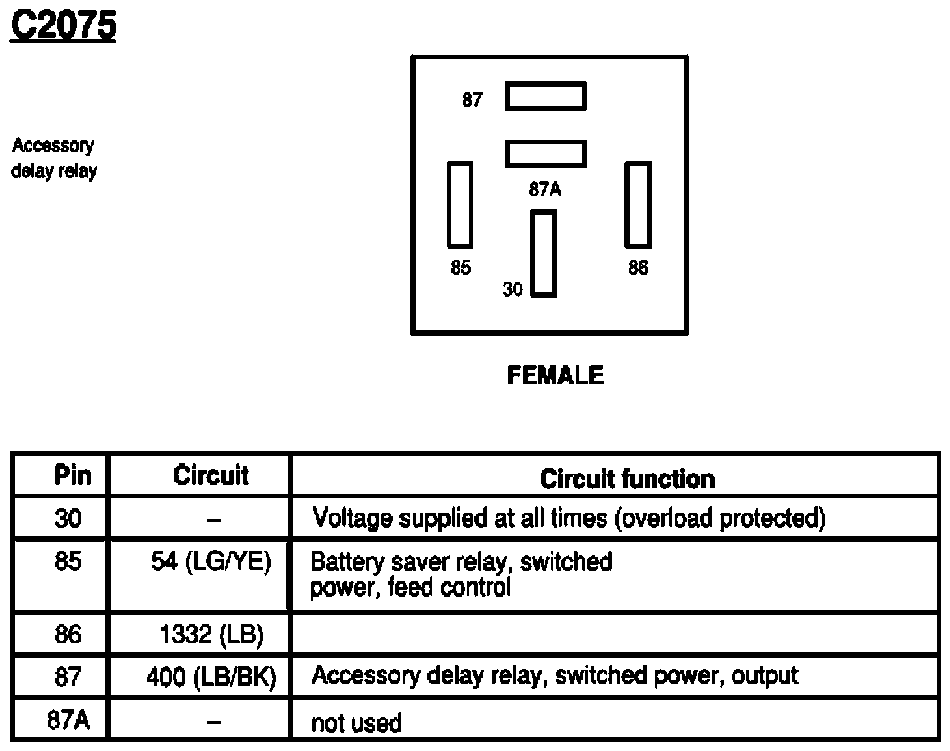

Fig 327: Accessory Delay Relay Connector End View (C2075)

G07842529

Courtesy of FORD MOTOR CO.

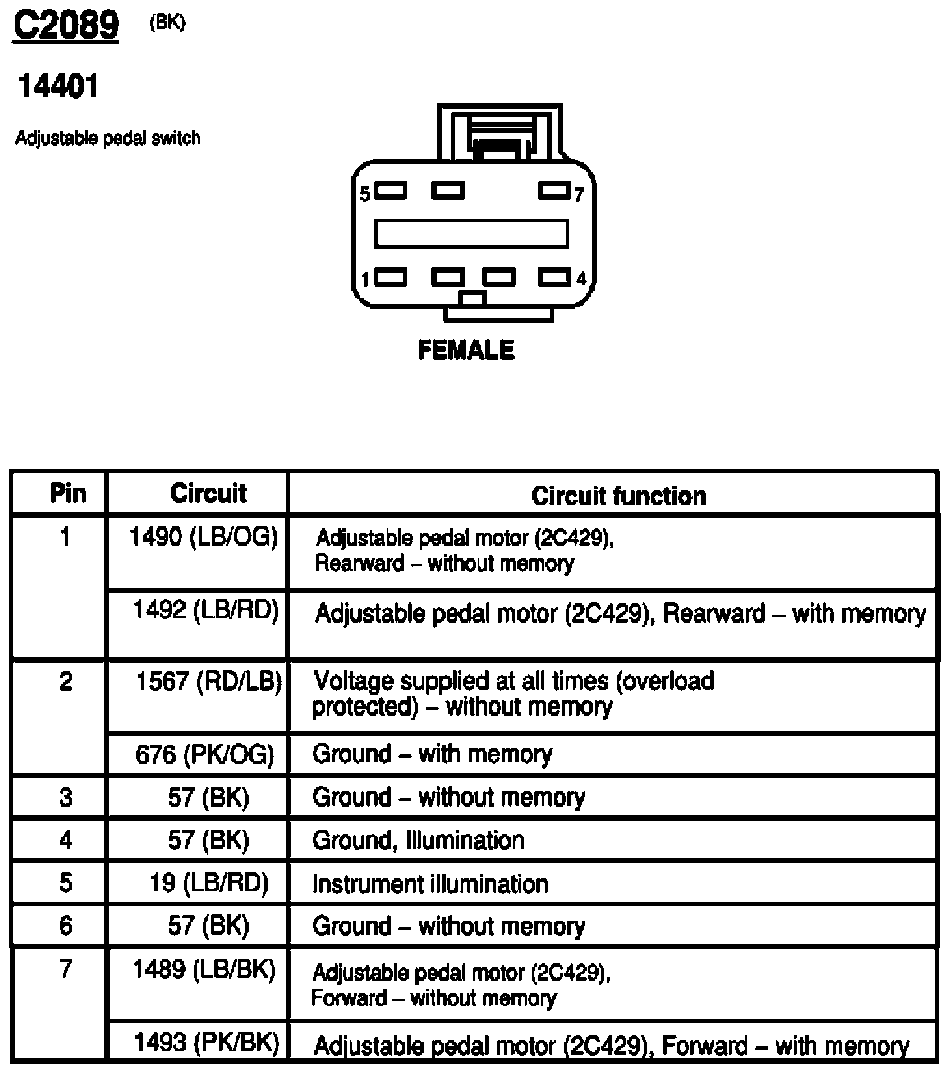

Fig 328: Adjustable Pedal Switch Connector End View (C2089)

G07842530

Courtesy of FORD MOTOR CO.

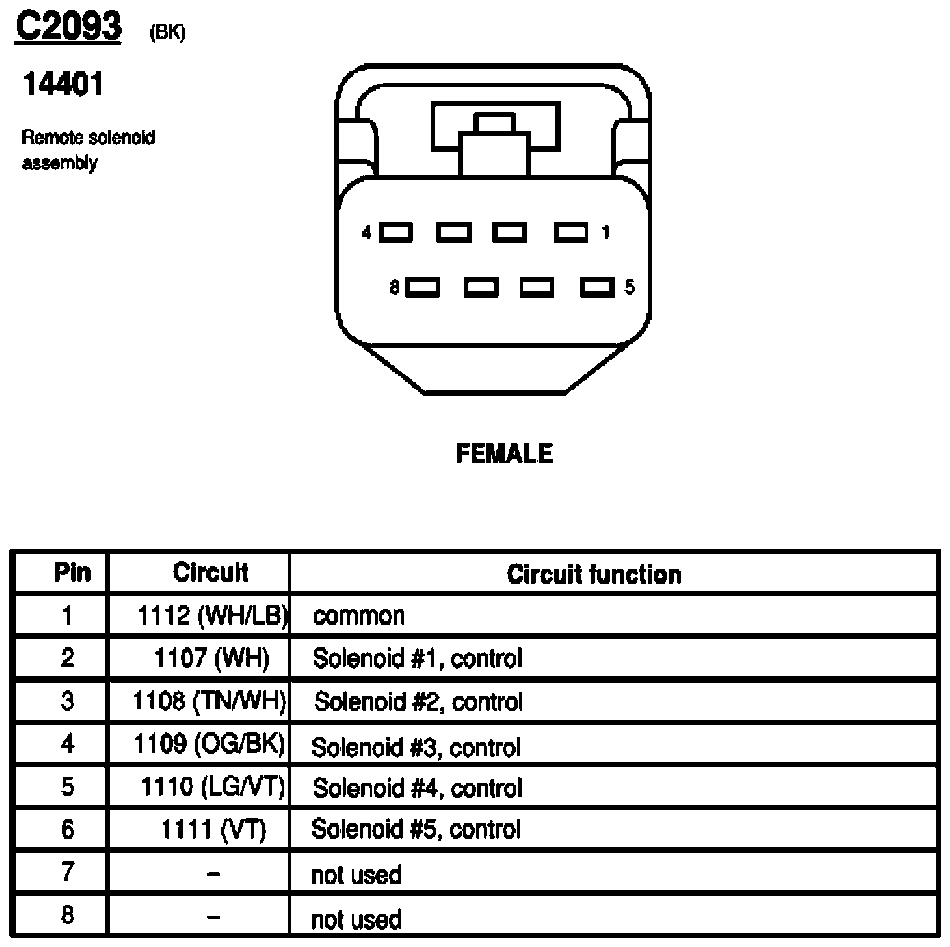

Fig 329: Remote Solenoid Assembly Connector End View (C2093)

G07842531

Courtesy of FORD MOTOR CO.

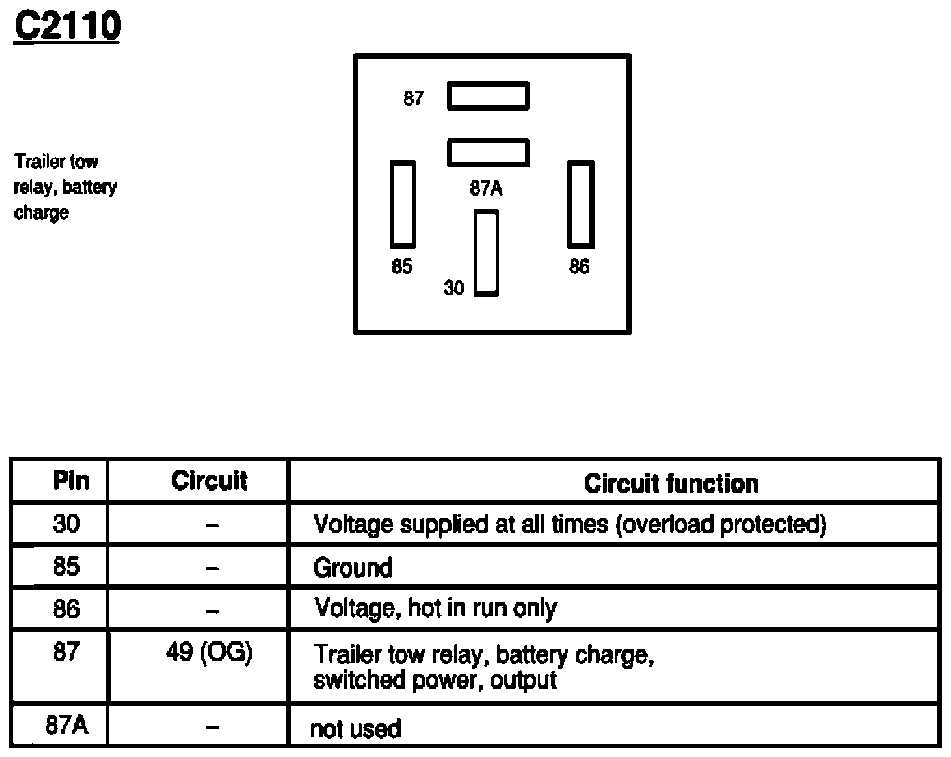

Fig 330: Trailer Tow Relay, Battery Charge Connector End View (C2110)

G07842532

Courtesy of FORD MOTOR CO.

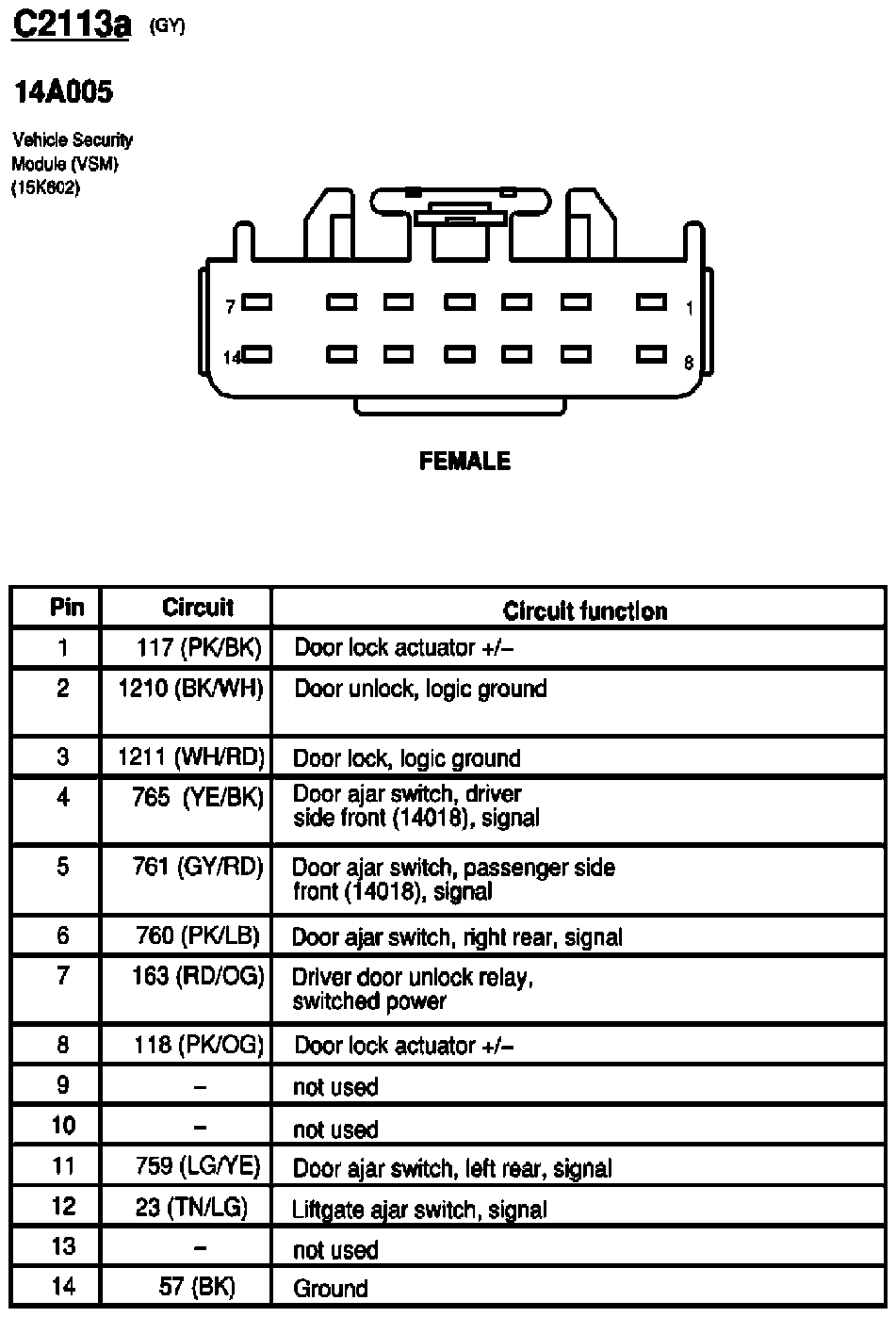

Fig 331: Vehicle Security Module (VSM) Connector End View (C2113a)

G07842533

Courtesy of FORD MOTOR CO.

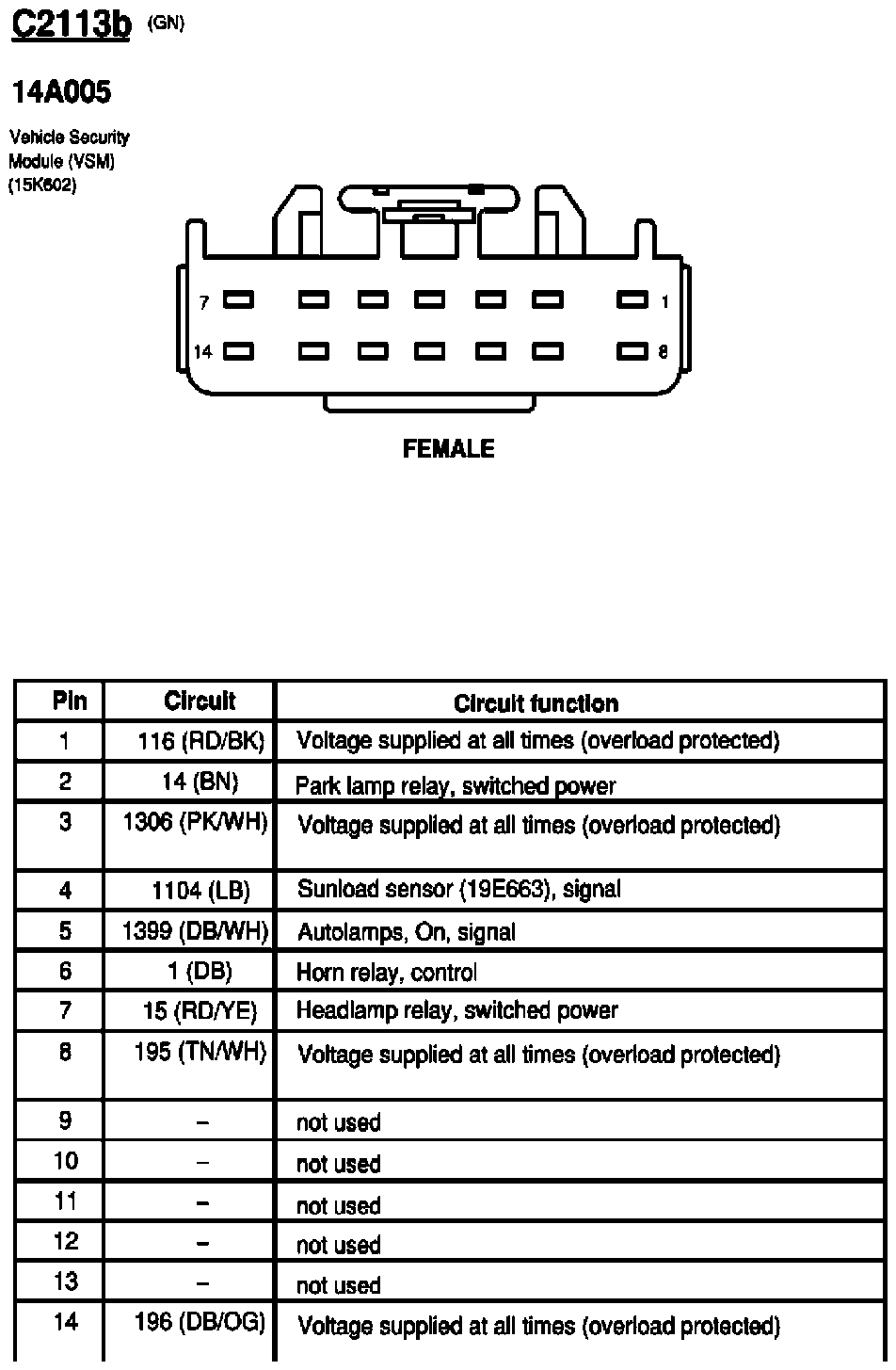

Fig 332: Vehicle Security Module (VSM) Connector End View (C2113b)

G07842534

Courtesy of FORD MOTOR CO.

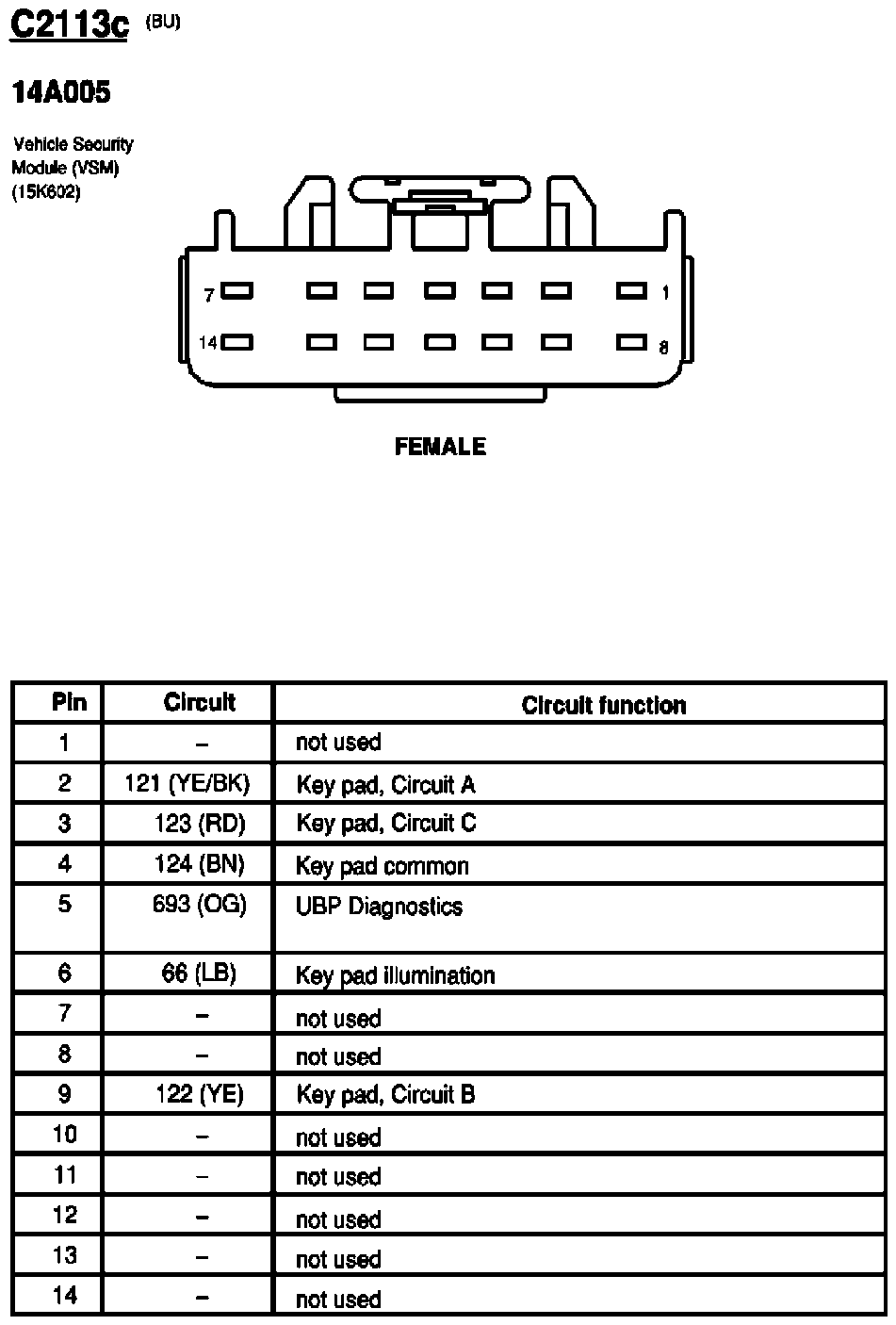

Fig 333: Vehicle Security Module (VSM) Connector End View (C2113c)

G07842535

Courtesy of FORD MOTOR CO.

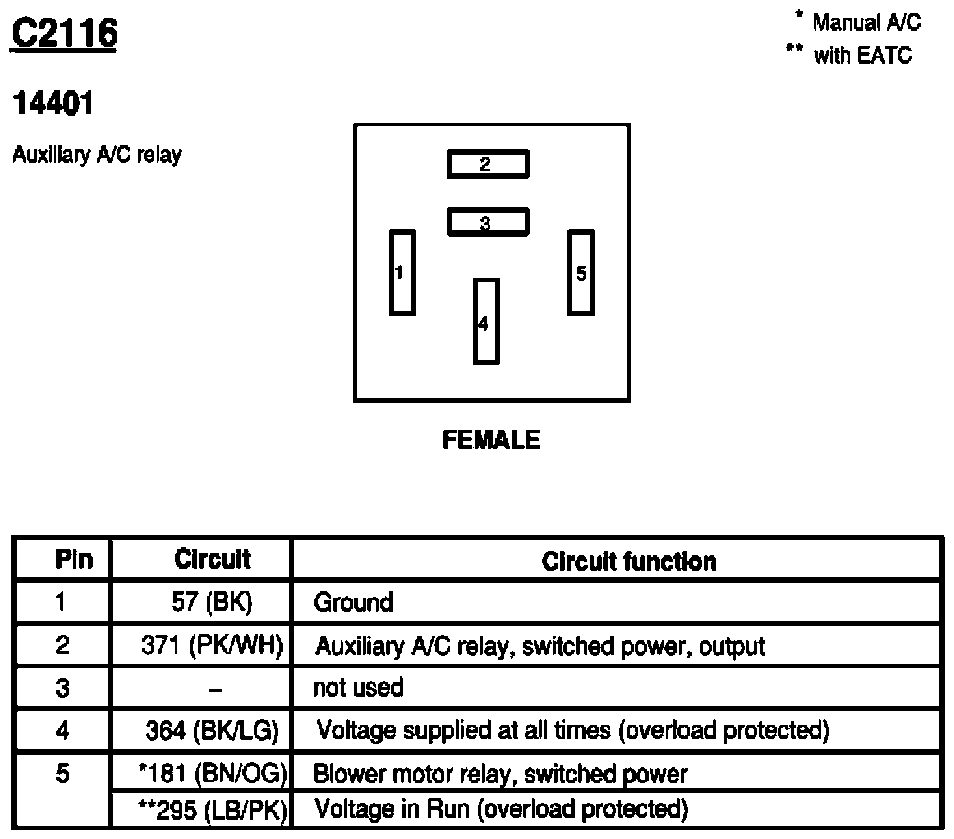

Fig 334: Auxiliary A/C Relay Connector End View (C2116)

G07842536

Courtesy of FORD MOTOR CO.

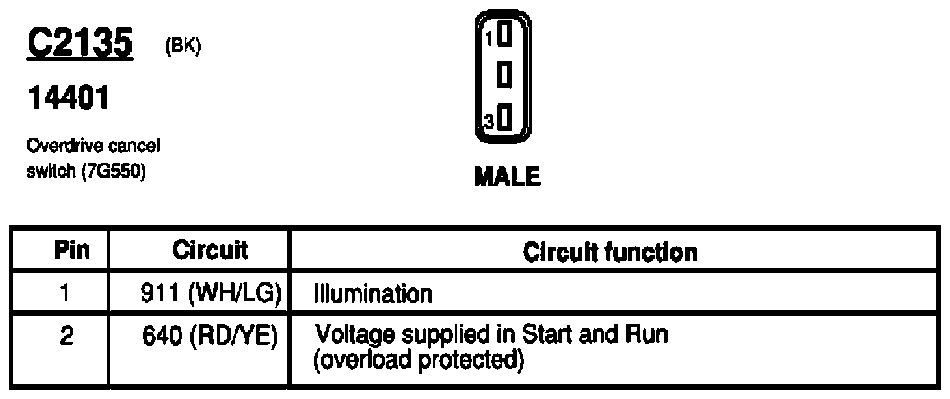

Fig 335: Overdrive Cancel Switch Connector End View (C2135)

G07842537

Courtesy of FORD MOTOR CO.

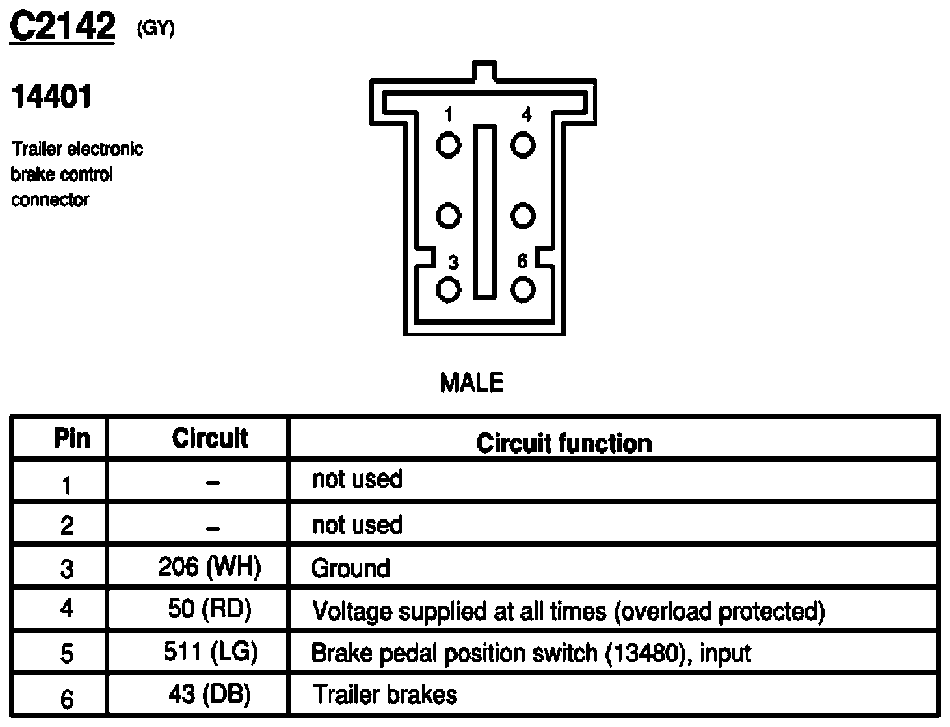

Fig 336: Trailer Electronic Brake Control Connector End View (C2142)

G07842538

Courtesy of FORD MOTOR CO.

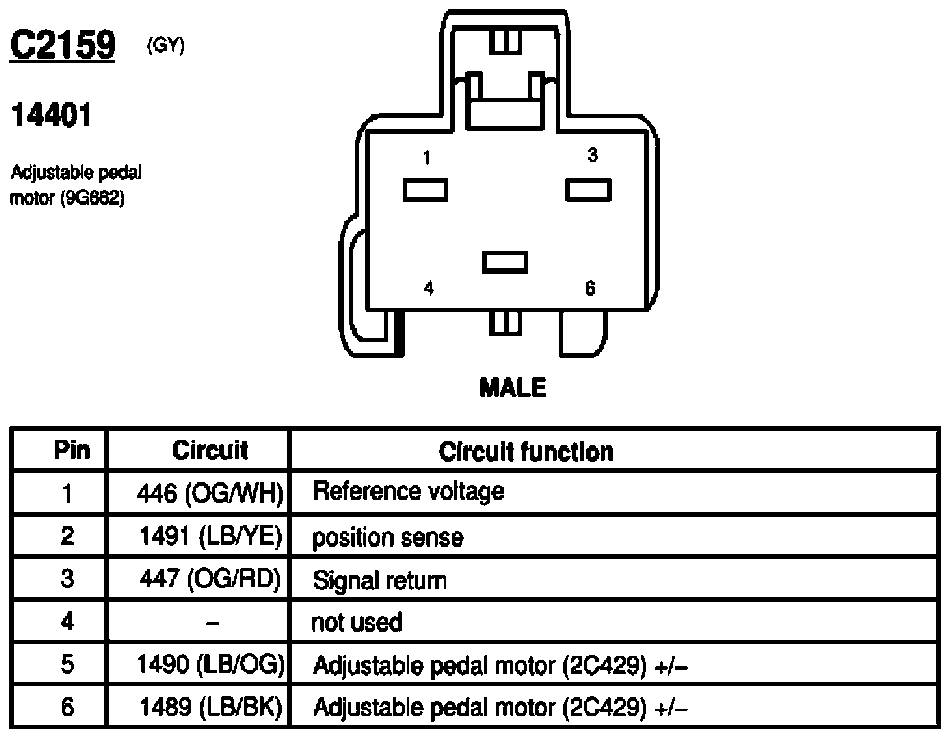

Fig 337: Adjustable Pedal Motor Connector End View (C2159)

G07842539

Courtesy of FORD MOTOR CO.

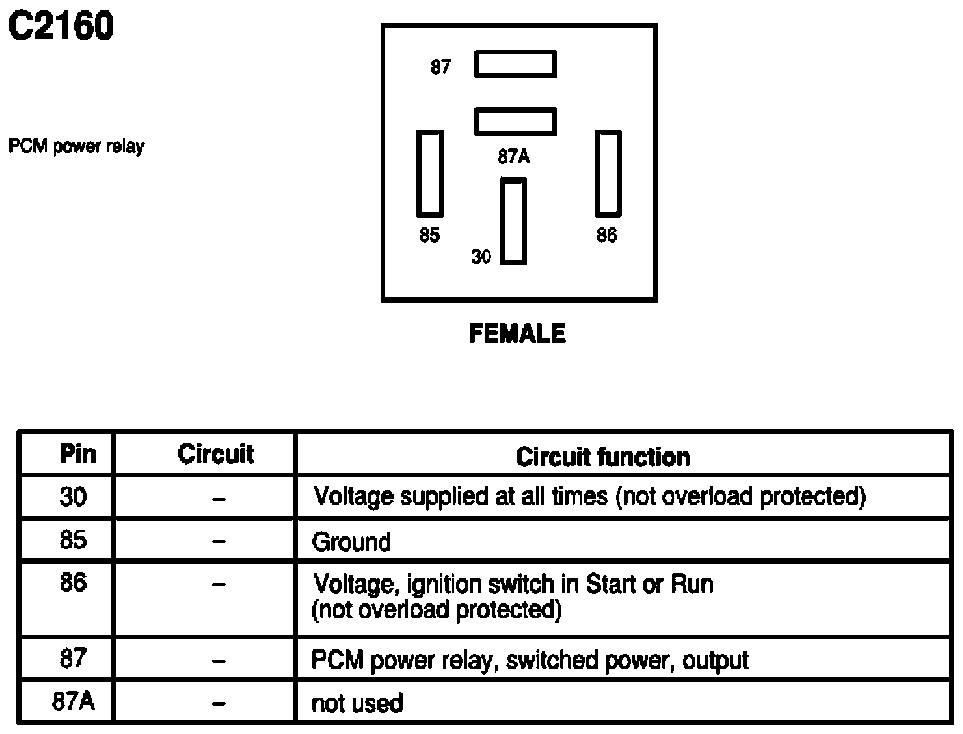

Fig 338: PCM Power Relay Connector End View (C2160)

G07842540

Courtesy of FORD MOTOR CO.

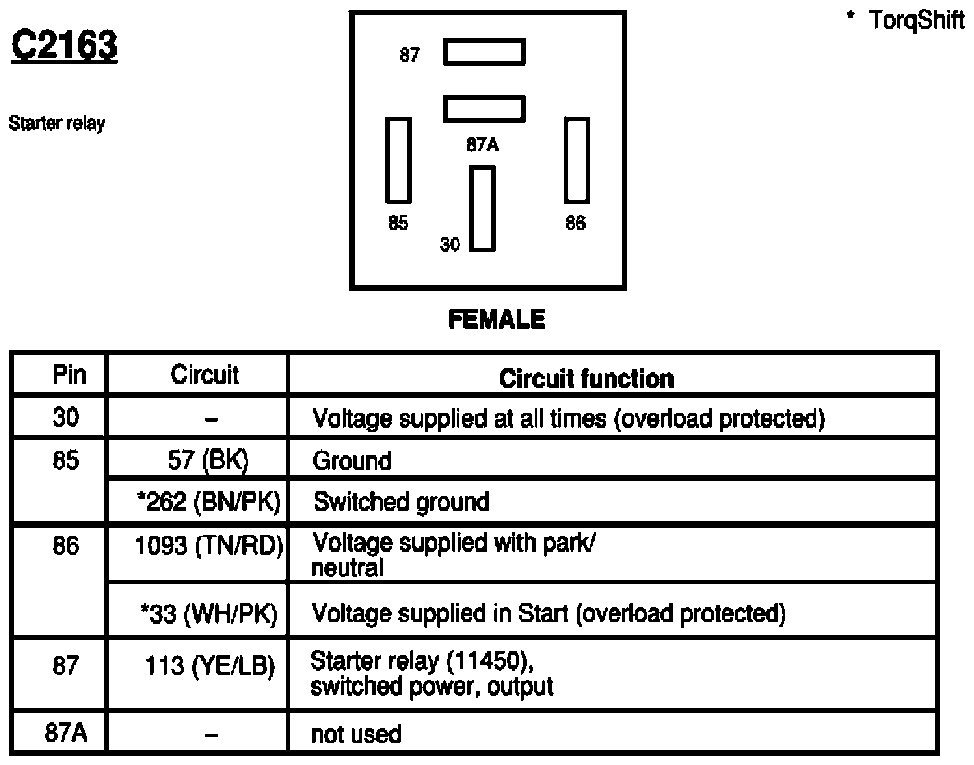

Fig 339: Starter Relay Connector End View (C2163)

G07842541

Courtesy of FORD MOTOR CO.

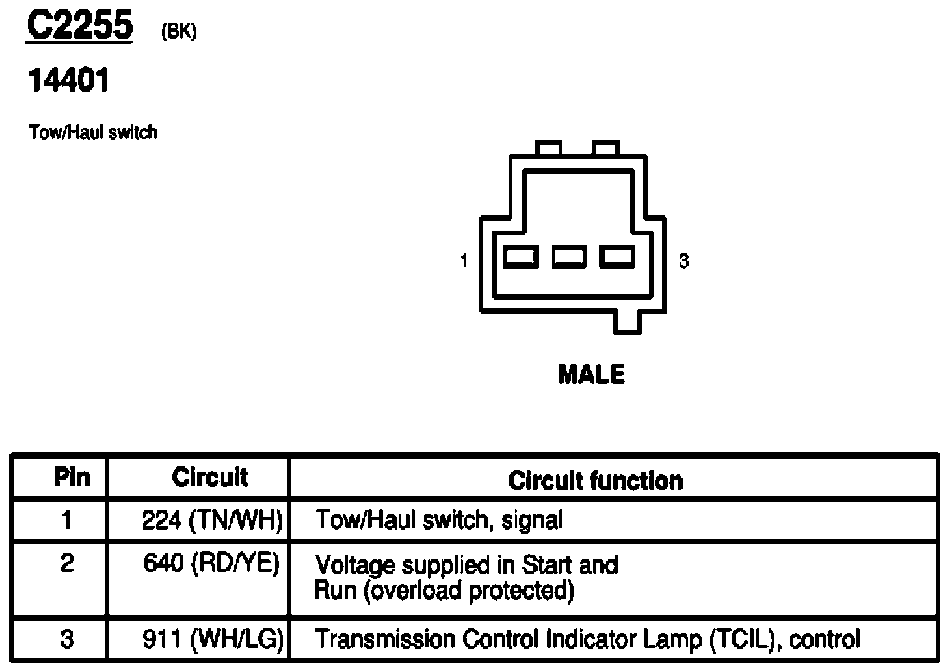

Fig 340: Tow/Haul Switch Connector End View (C2255)

G07842542

Courtesy of FORD MOTOR CO.

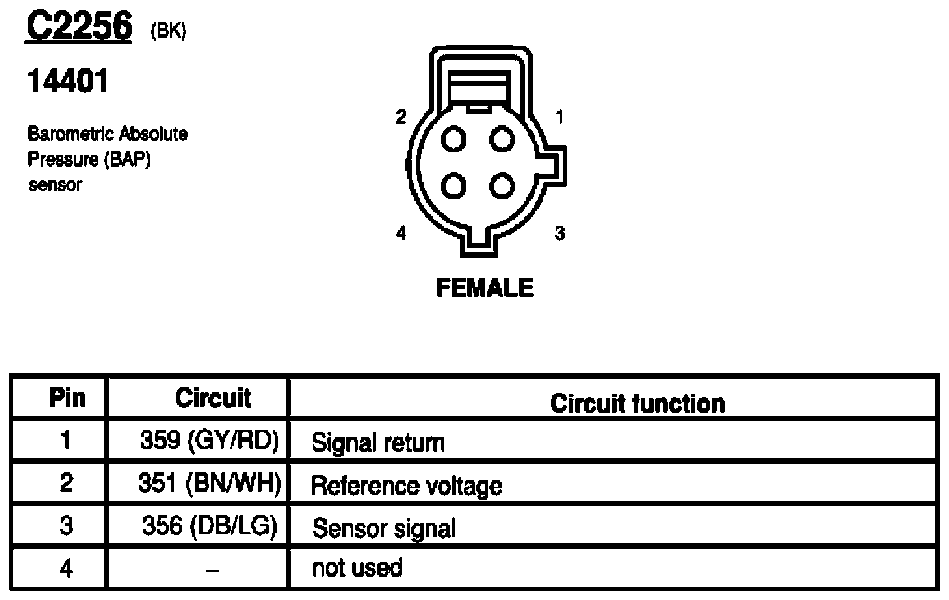

Fig 341: Barometric Absolute Pressure (BAP) Sensor Connector End View (C2256)

G07842543

Courtesy of FORD MOTOR CO.

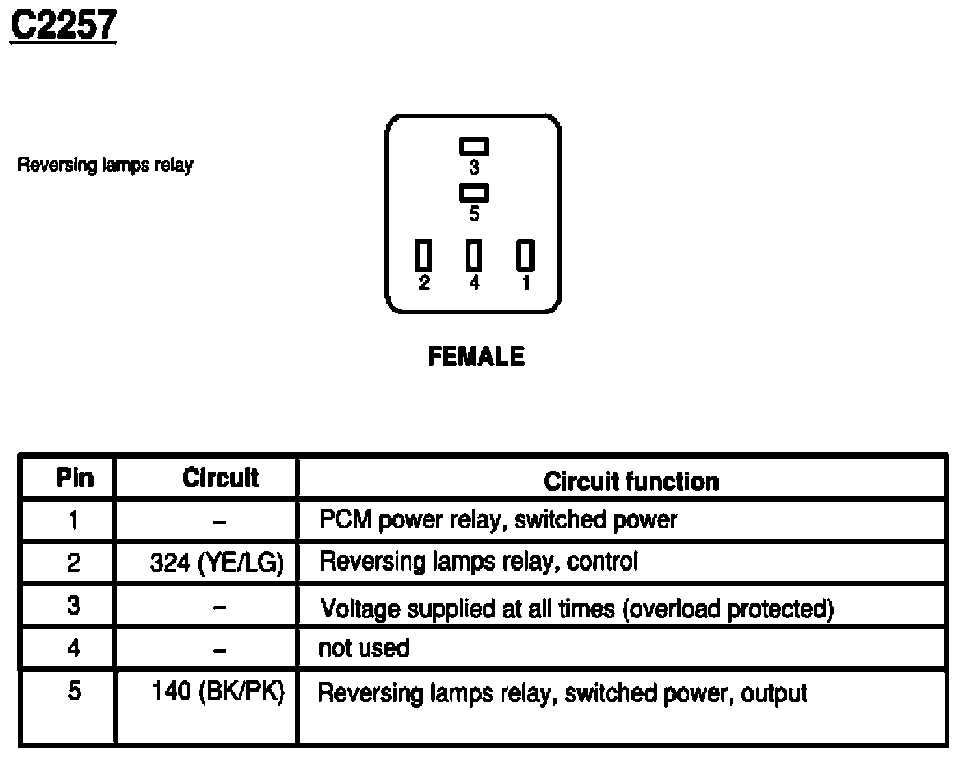

Fig 342: Reversing Lamps Relay Connector End View (C2257)

G07842544

Courtesy of FORD MOTOR CO.

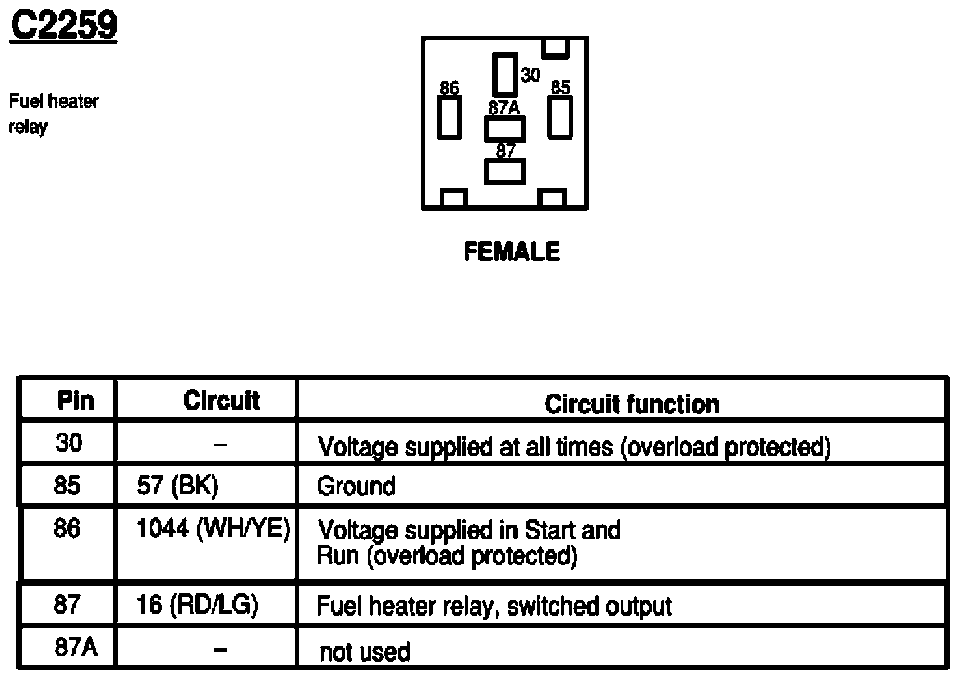

Fig 343: Fuel Heater Relay Connector End View (C2259)

G07842545

Courtesy of FORD MOTOR CO.

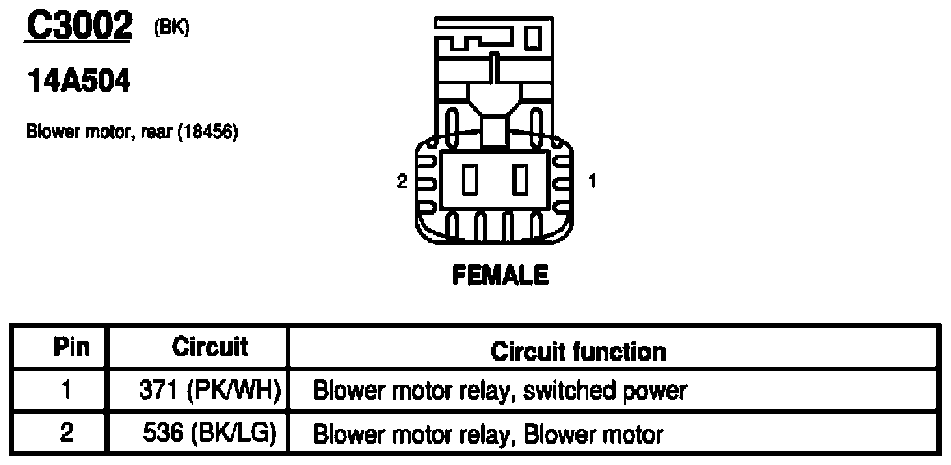

Fig 344: Blower Motor, Rear Connector End View (C3002)

G07842546

Courtesy of FORD MOTOR CO.

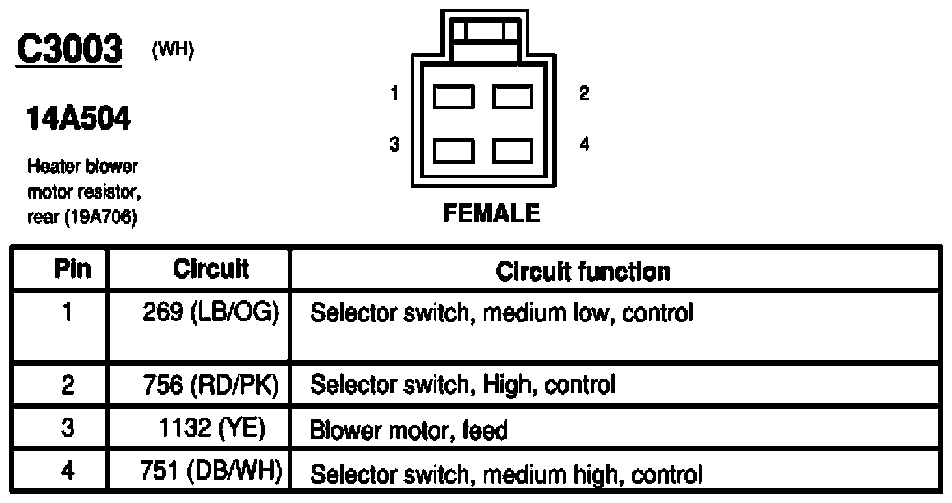

Fig 345: Heater Blower Motor Resistor, Rear Connector End View (C3003)

G07842547

Courtesy of FORD MOTOR CO.

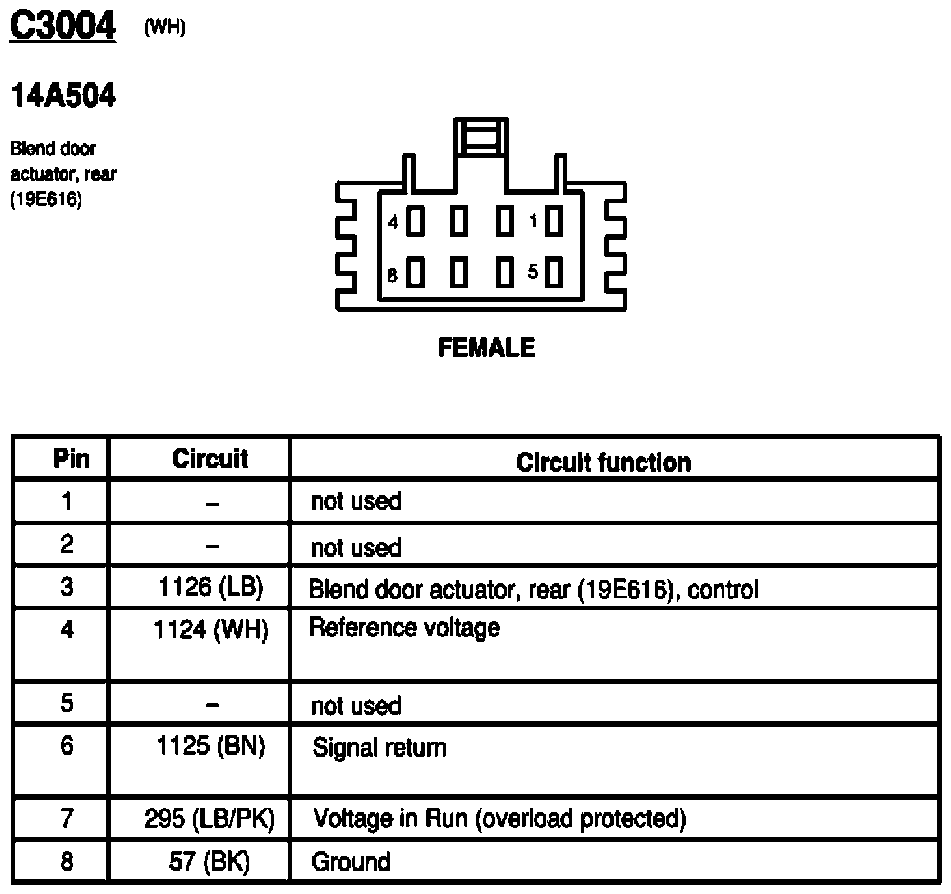

Fig 346: Blend Door Actuator, Rear Connector End View (C3004)

G07842548

Courtesy of FORD MOTOR CO.

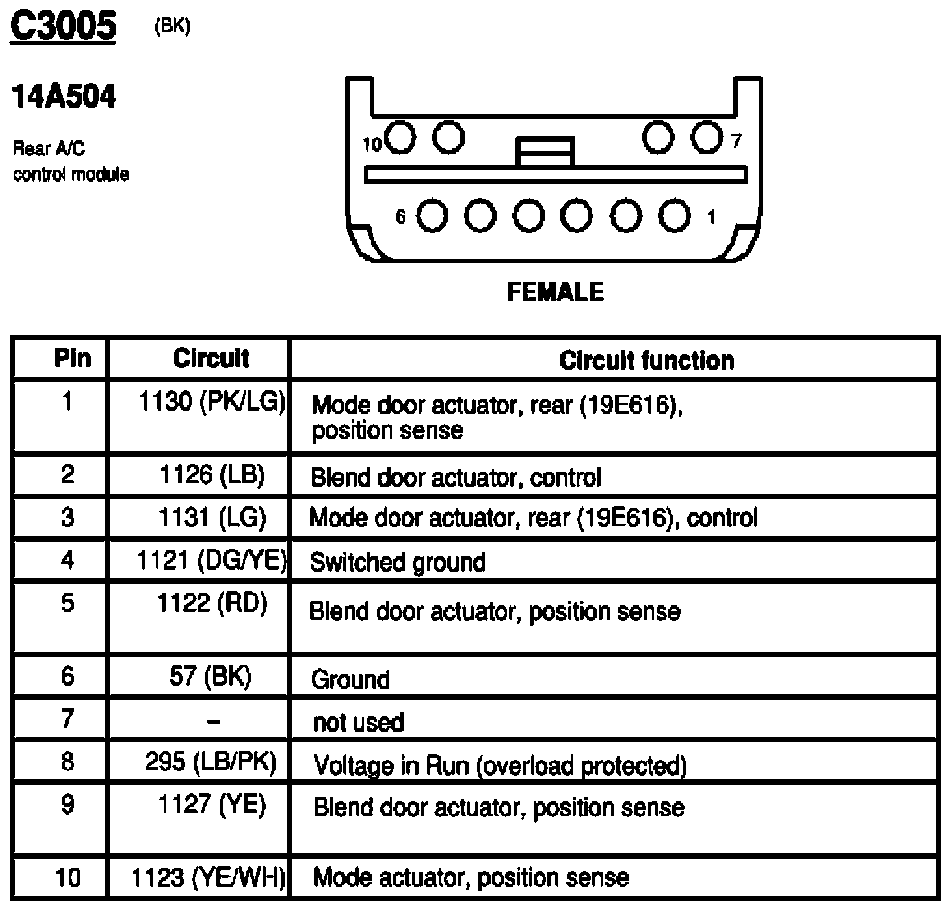

Fig 347: Rear A/C Control Module Connector End View (C3005)

G07842549

Courtesy of FORD MOTOR CO.

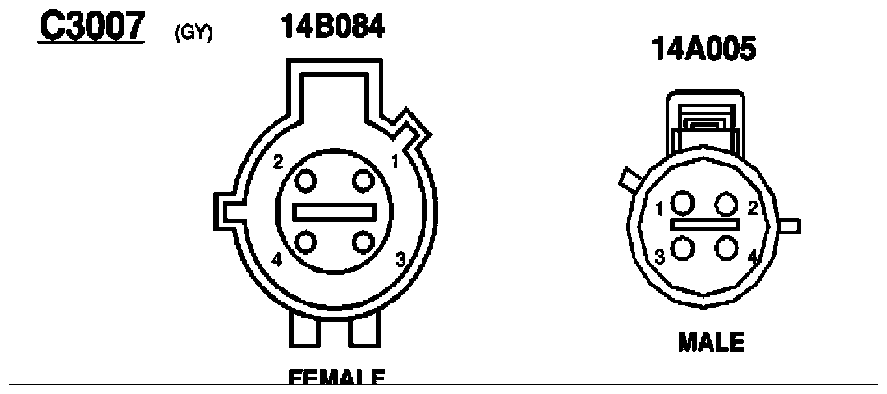

Fig 348: Inline Connector End View (C3007)

G07842550

Courtesy of FORD MOTOR CO.

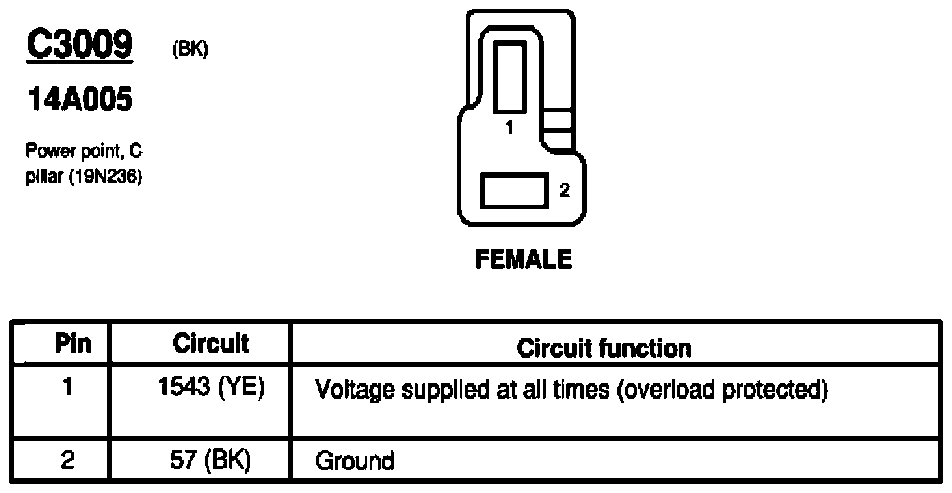

Fig 349: Power Point, C Pillar Connector End View (C3009)

G07842551

Courtesy of FORD MOTOR CO.

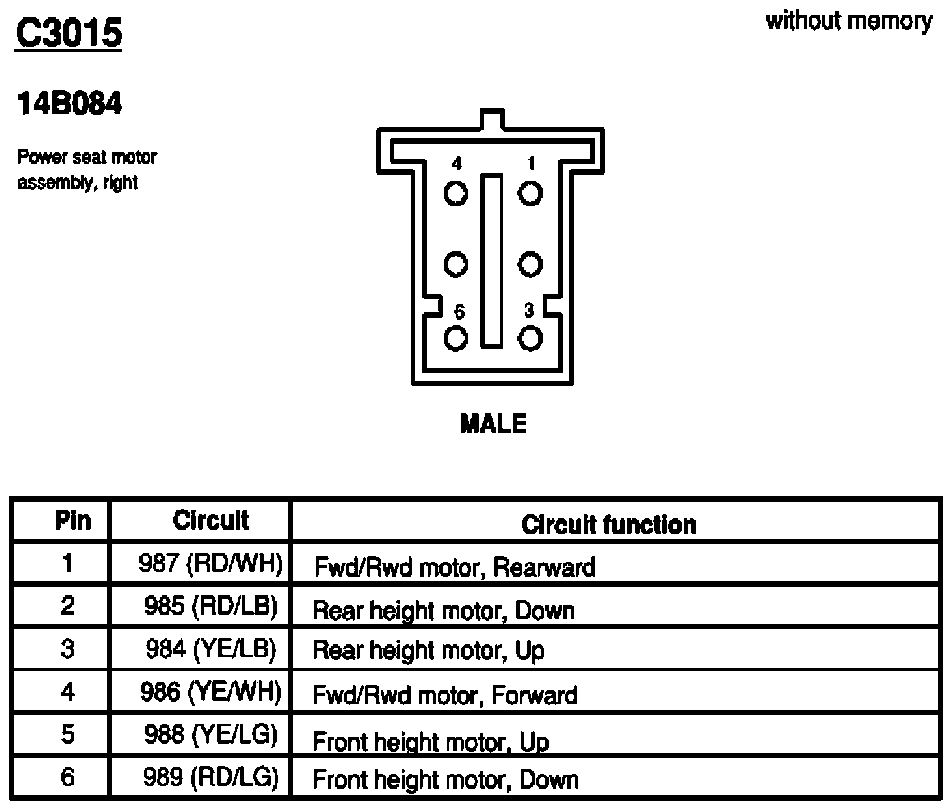

Fig 350: Power Seat Motor Assembly, Right Connector End View (C3015)

G07842552

Courtesy of FORD MOTOR CO.

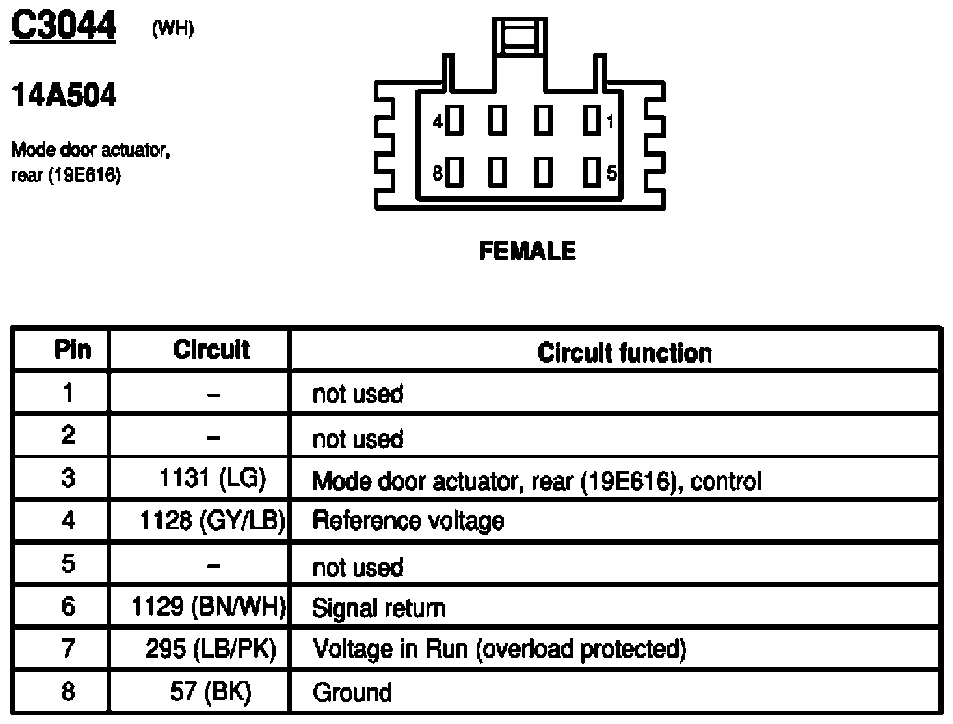

Fig 351: Mode Door Actuator, Rear Connector End View (C3044)

G07842553

Courtesy of FORD MOTOR CO.

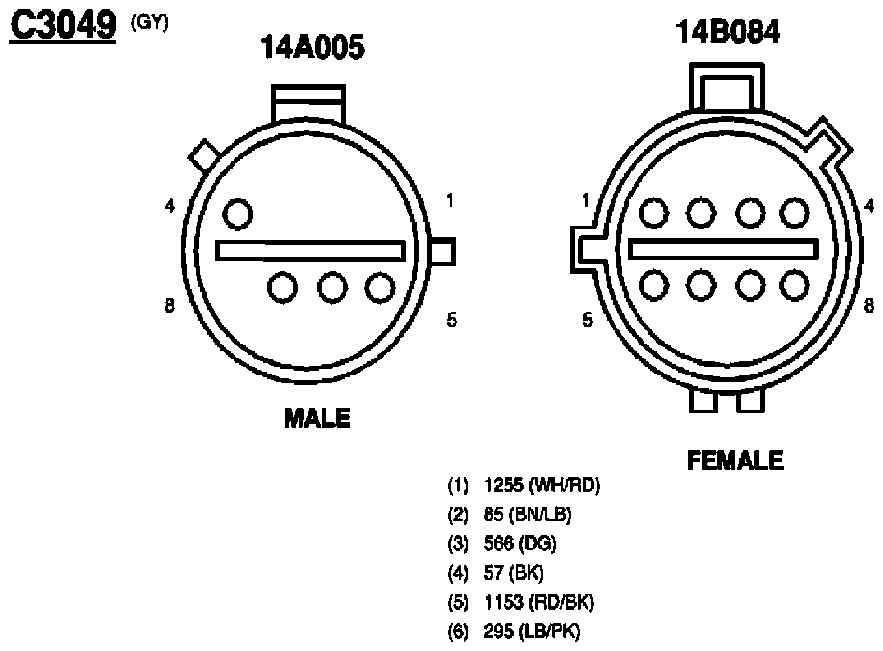

Fig 352: Inline Connector End View (C3049)

G07842554

Courtesy of FORD MOTOR CO.

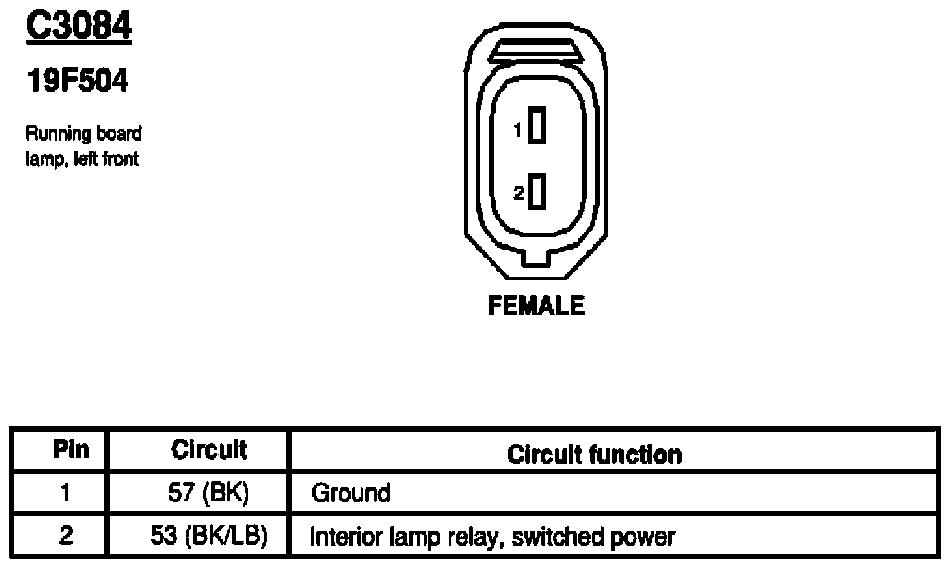

Fig 353: Running Board Lamp, Left Front Connector End View (C3084)

G07842555

Courtesy of FORD MOTOR CO.

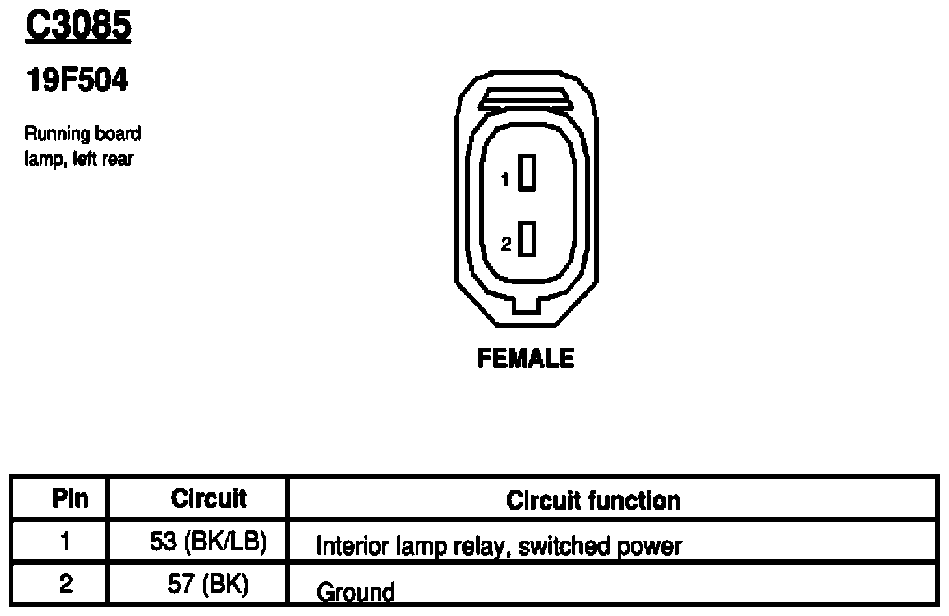

Fig 354: Running Board Lamp, Left Rear Connector End View (C3085)

G07842556

Courtesy of FORD MOTOR CO.

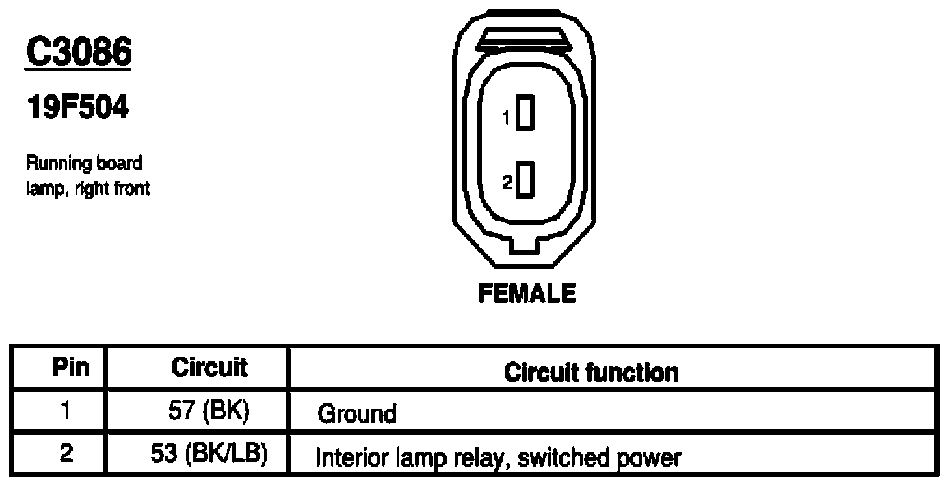

Fig 355: Running Board Lamp, Right Front Connector End View (C3086)

G07842557

Courtesy of FORD MOTOR CO.

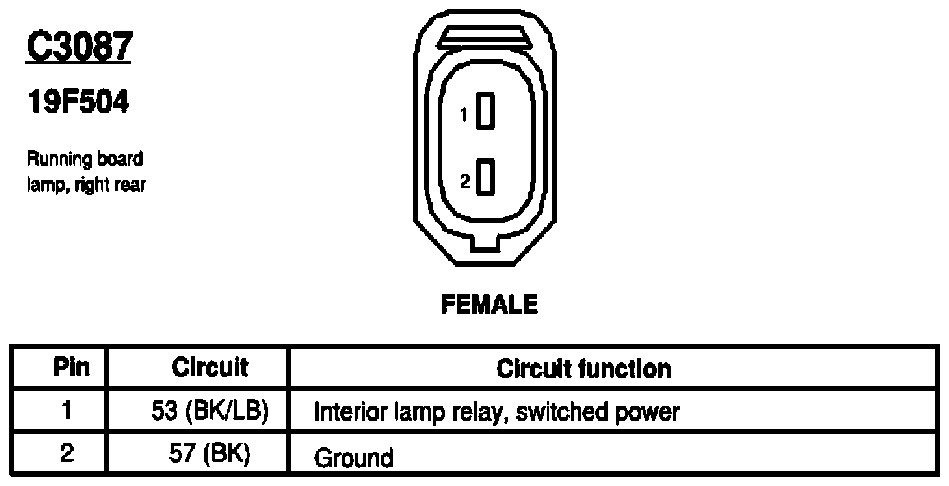

Fig 356: Running Board Lamp, Right Rear Connector End View (C3087)

G07842558

Courtesy of FORD MOTOR CO.

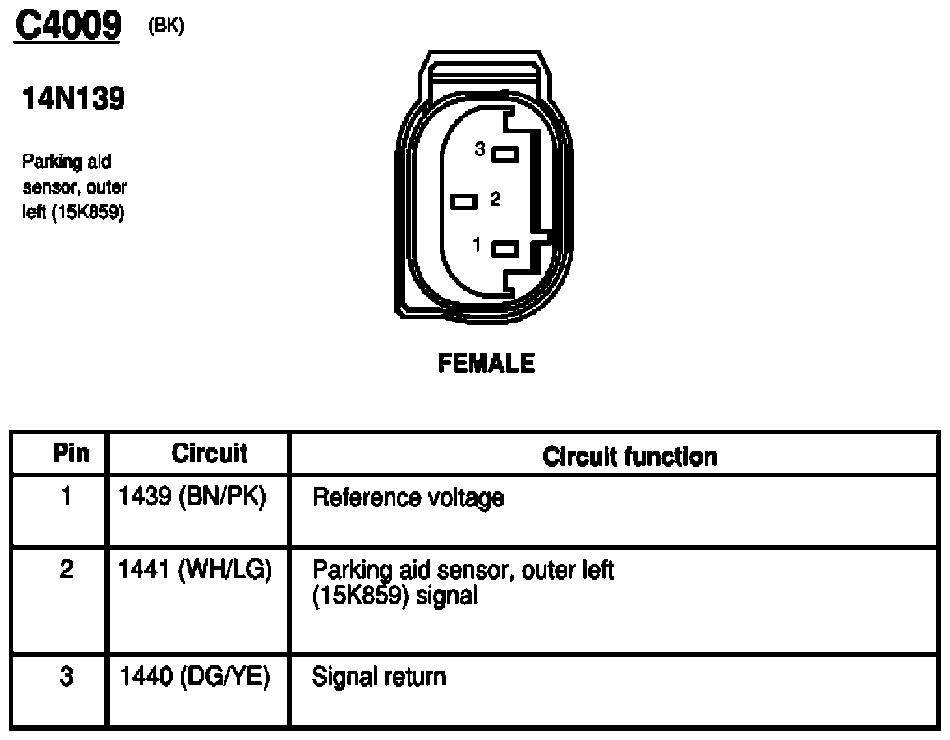

Fig 357: Parking Aid Sensor, Outer Left Connector End View (C4009)

G07842559

Courtesy of FORD MOTOR CO.

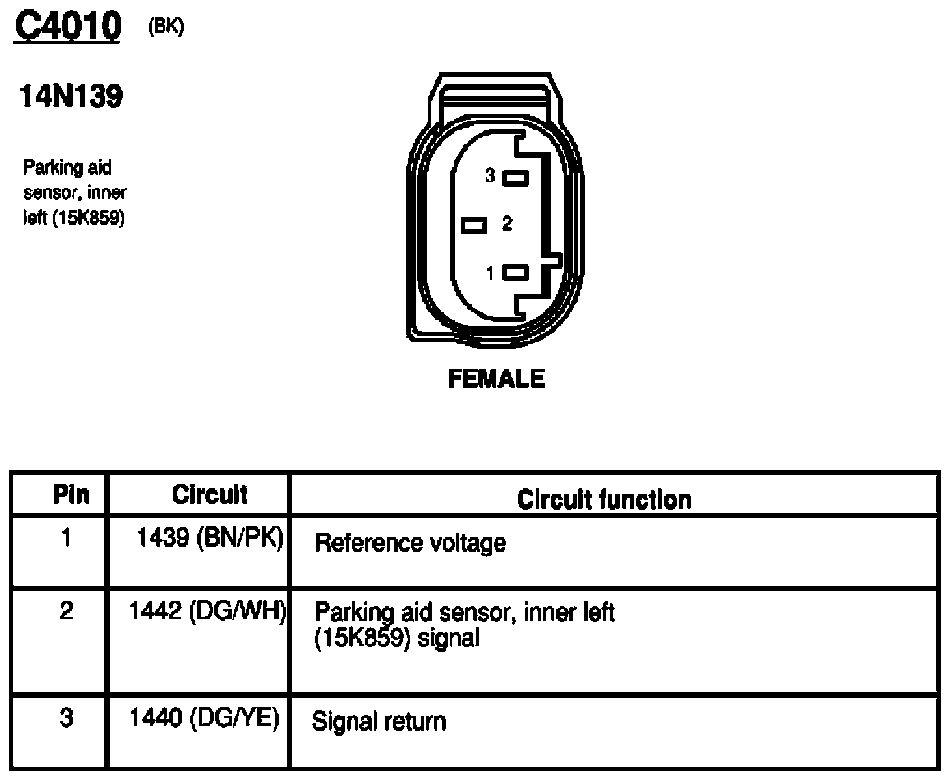

Fig 358: Parking Aid Sensor, Inner Left Connector End View (C4010)

G07842560

Courtesy of FORD MOTOR CO.

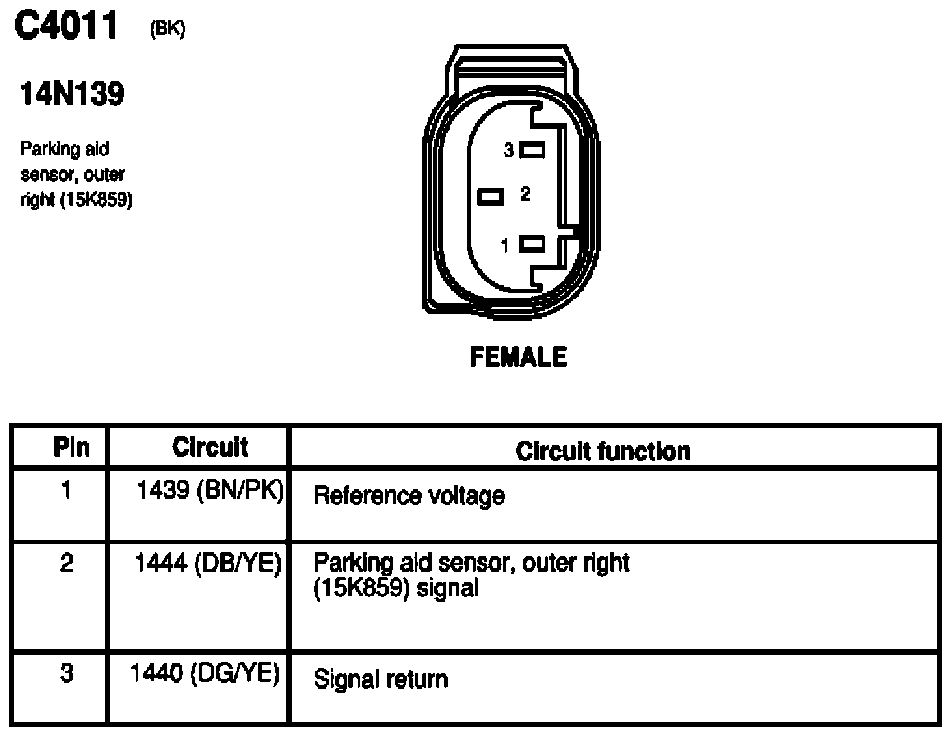

Fig 359: Parking Aid Sensor, Outer Right Connector End View (C4011)

G07842561

Courtesy of FORD MOTOR CO.

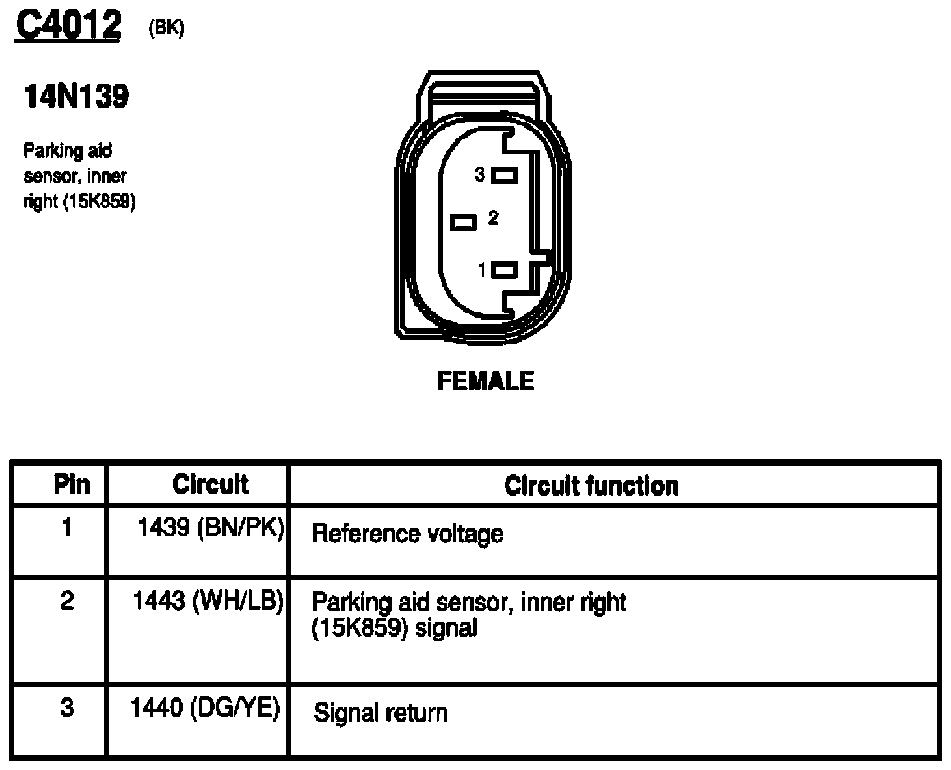

Fig 360: Parking Aid Sensor, Inner Right Connector End View (C4012)

G07842562

Courtesy of FORD MOTOR CO.

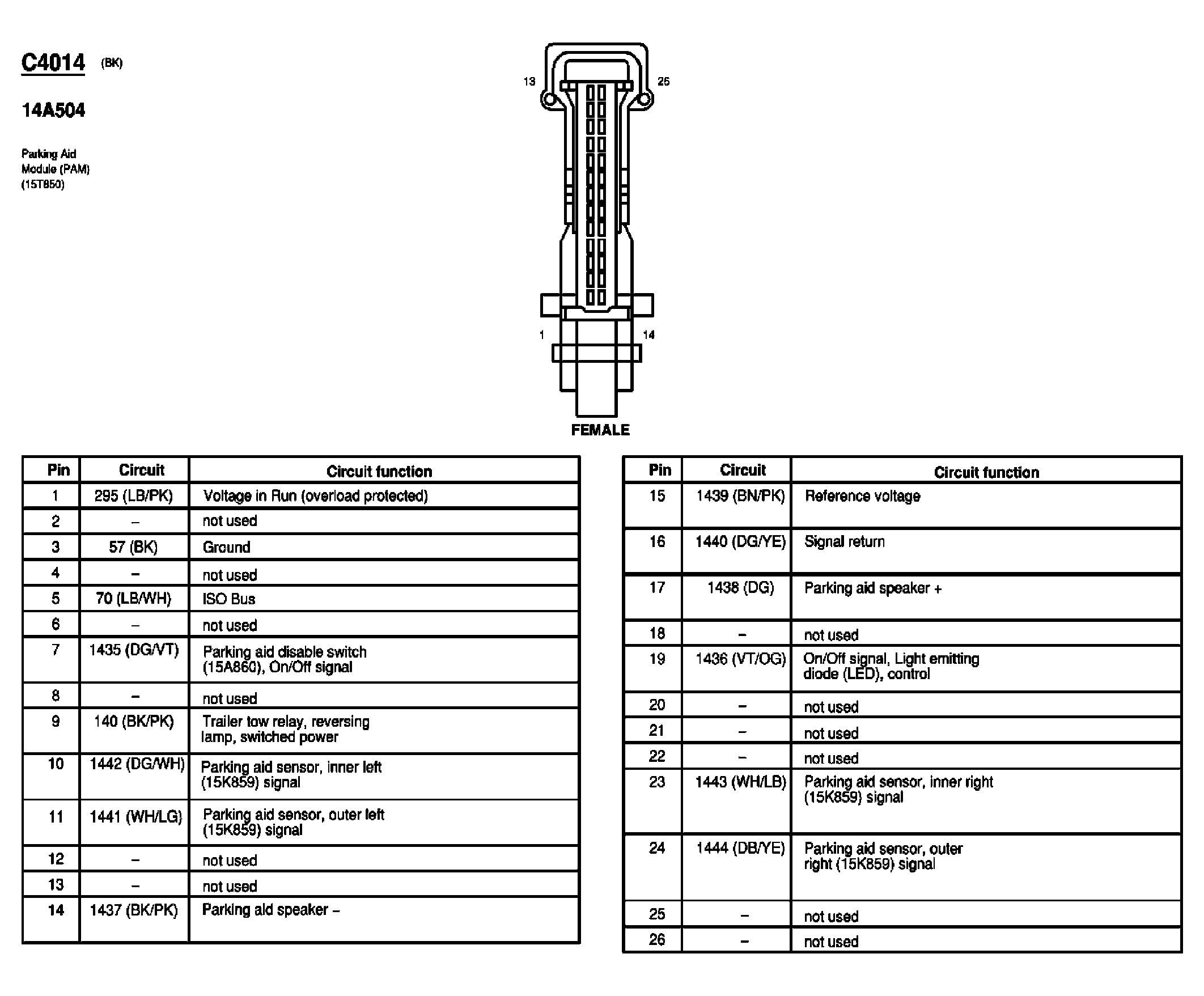

Fig 361: Parking Aid Module (PAM) Connector End View (C4014)

G03987642

Courtesy of FORD MOTOR CO.

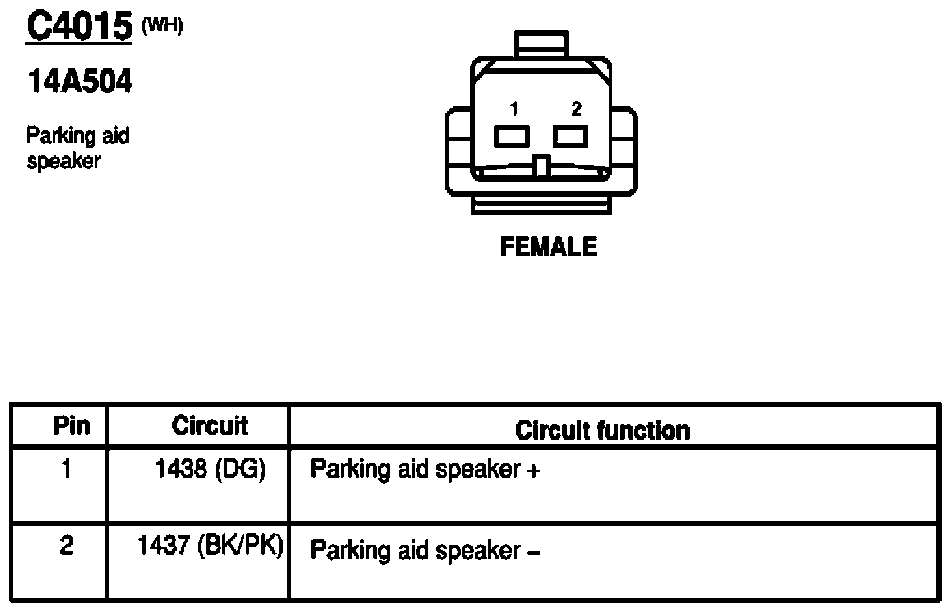

Fig 362: Parking Aid Speaker Connector End View (C4015)

G07842563

Courtesy of FORD MOTOR CO.

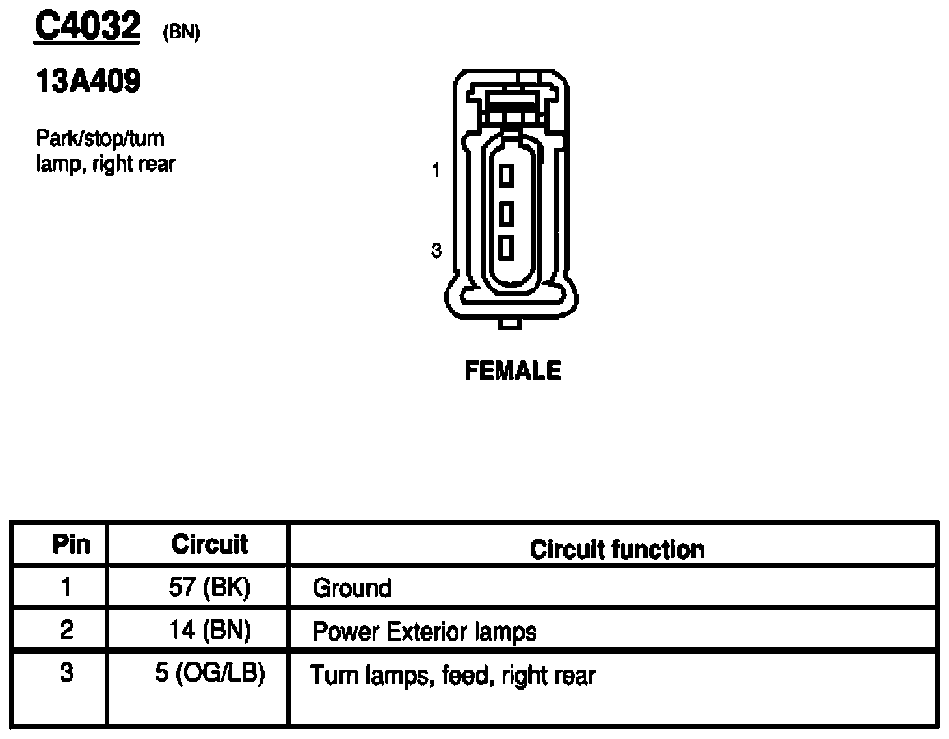

Fig 363: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07842564

Courtesy of FORD MOTOR CO.

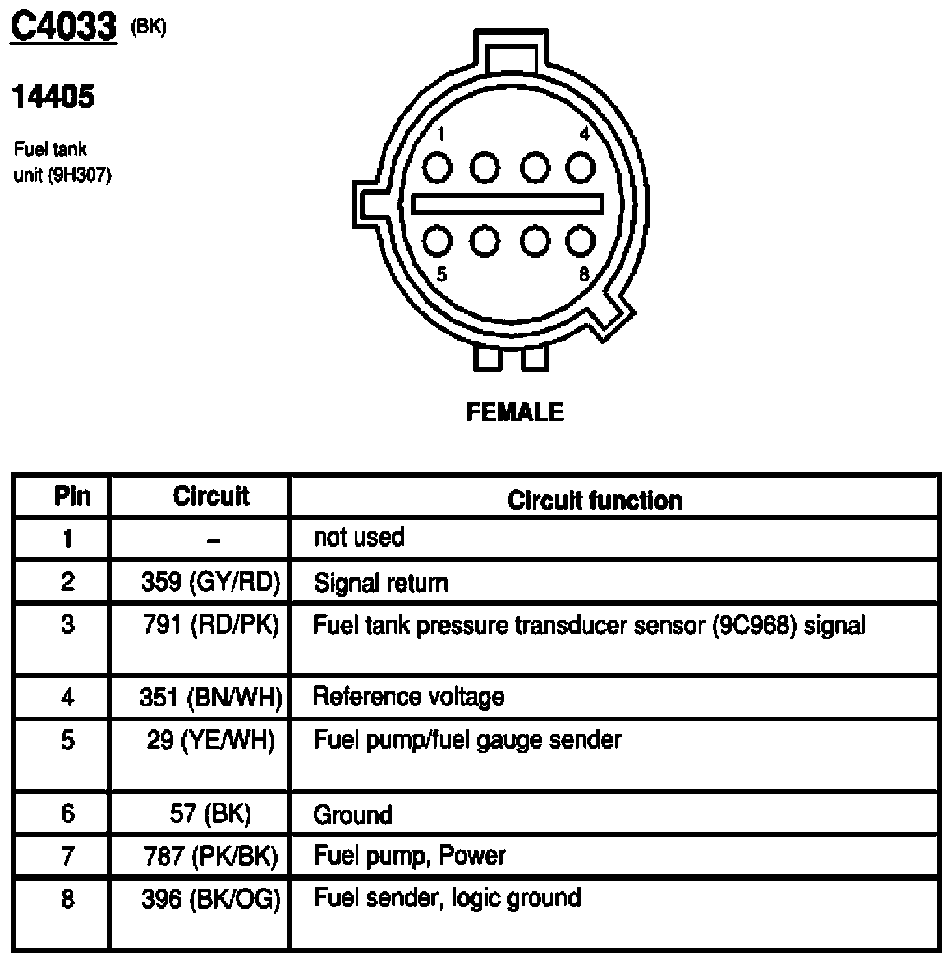

Fig 364: Fuel Tank Unit Connector End View (C4033)

G07842565

Courtesy of FORD MOTOR CO.

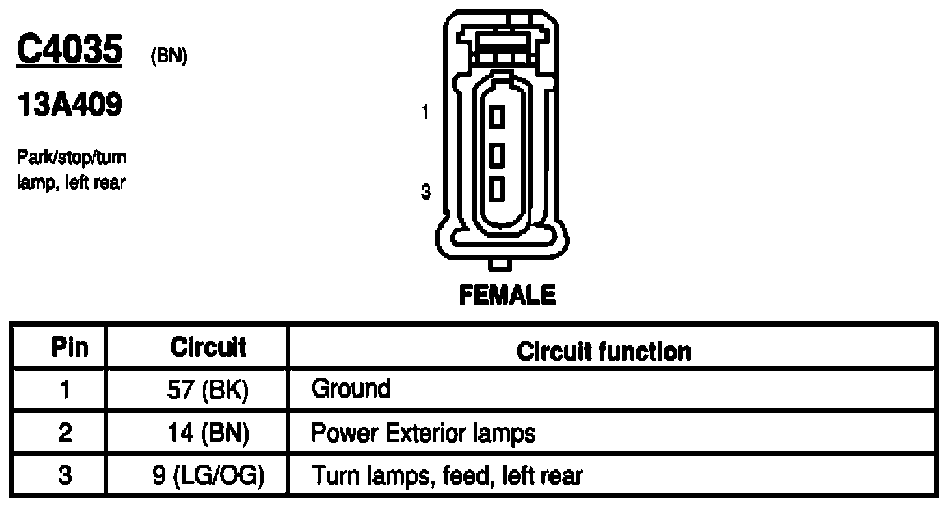

Fig 365: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G07842566

Courtesy of FORD MOTOR CO.

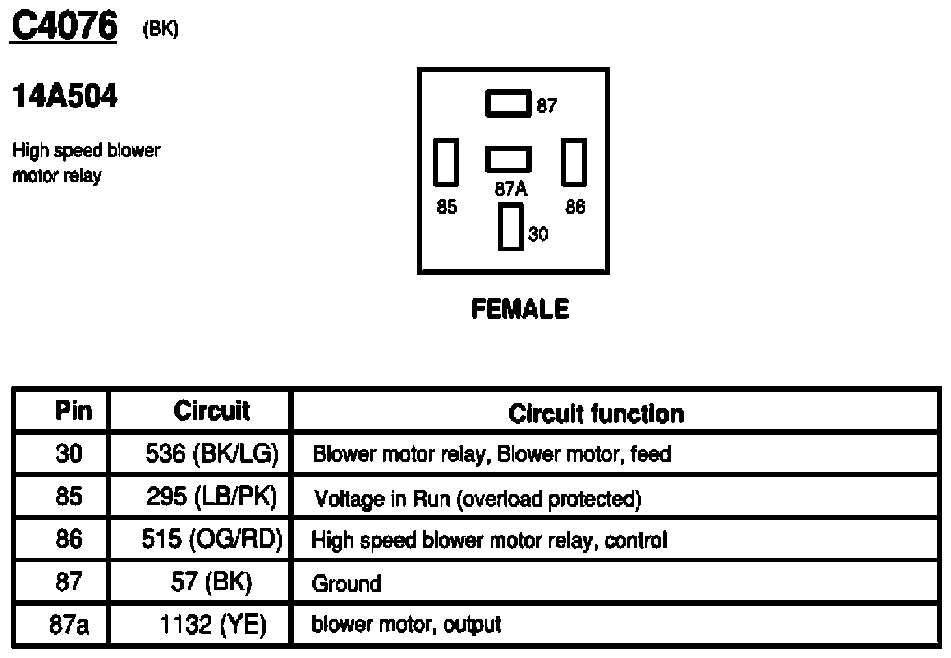

Fig 366: High Speed Blower Motor Relay Connector End View (C4076)

G07842567

Courtesy of FORD MOTOR CO.

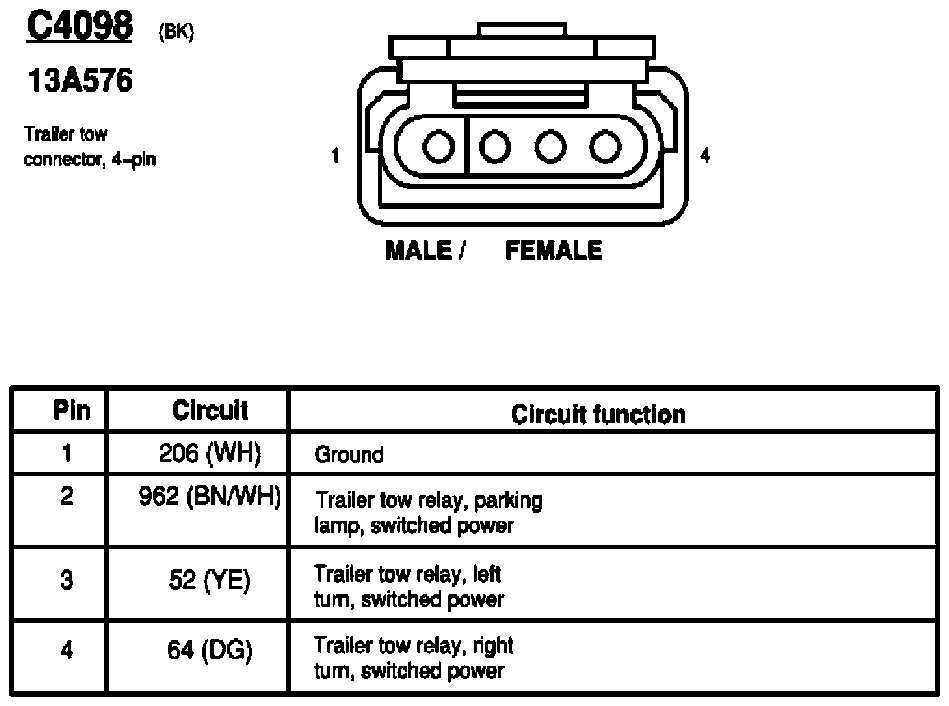

Fig 367: Trailer Tow Connector, 4-Pin Connector End View (C4098)

G07842568

Courtesy of FORD MOTOR CO.

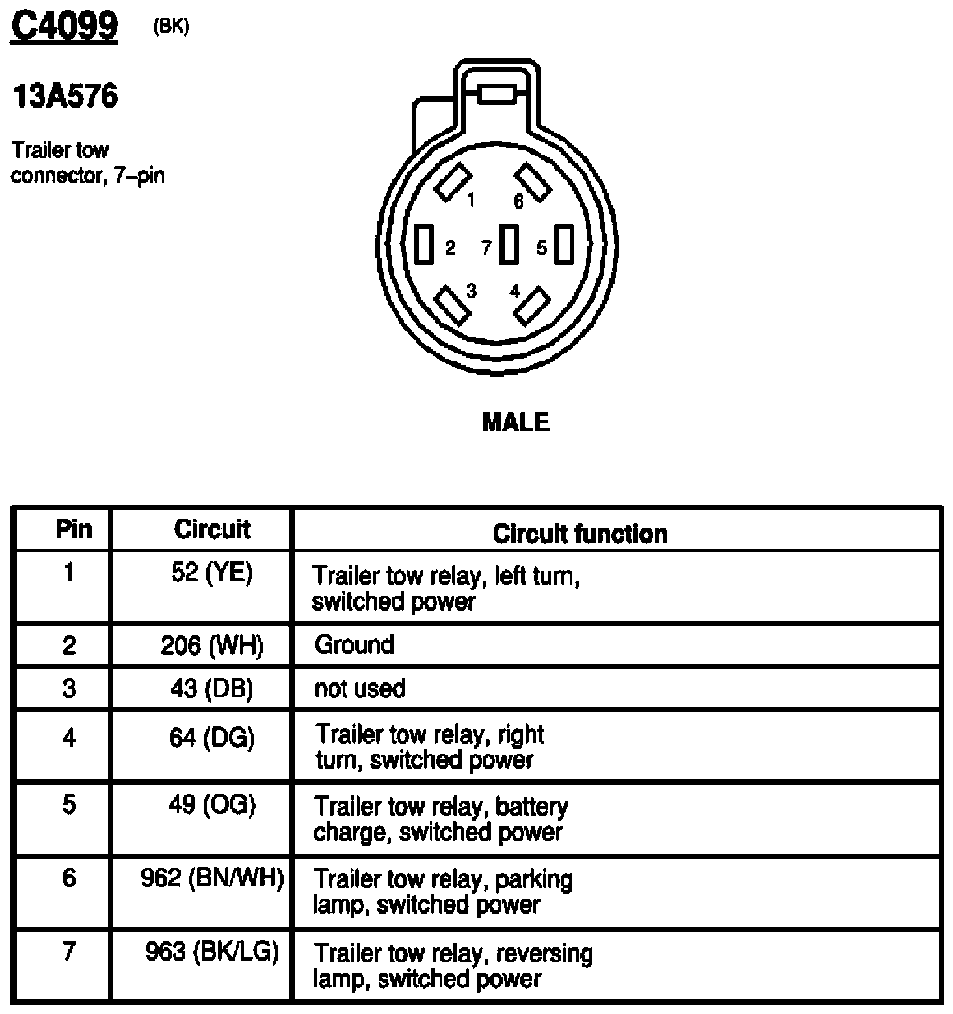

Fig 368: Trailer Tow Connector, 7-Pin Connector End View (C4099)

G07842569

Courtesy of FORD MOTOR CO.
