Principles of Operation: Notes

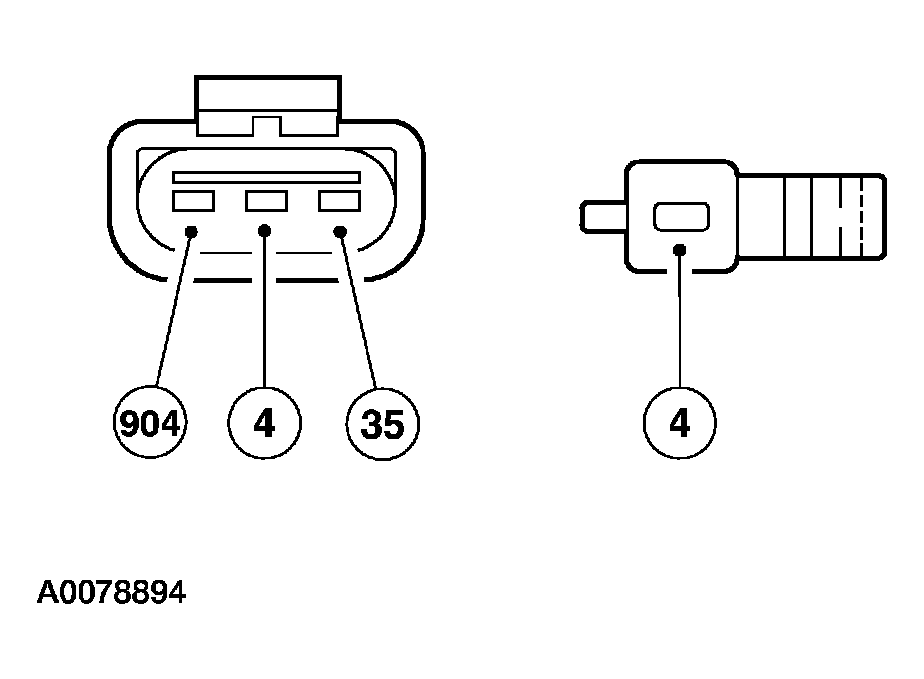

CONNECTOR C102A END VIEW AND C102B SIDE VIEW (GASOLINE ENGINES)

G03910824
I Circuit 904 (LG/RD)
S Circuit 4 (WH/BK)
A Circuit 35 (OG/LB)

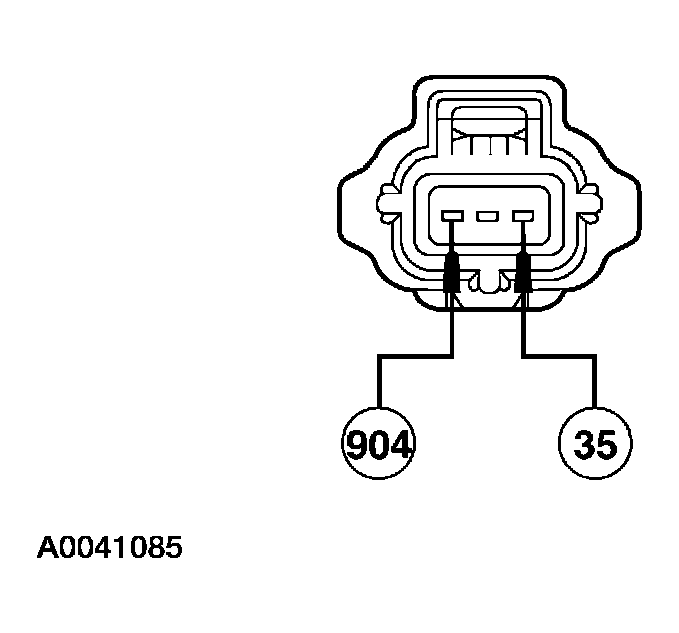

CONNECTOR C102A END VIEW (DIESEL ENGINES)

G03910825
I Circuit 904 (LG/RD)
A Circuit 35 (OG/LB)
