Forward Clutch Assembly: Notes

SPECIAL TOOL(S) CHART

G03952119
 Remover, O-Ring Seal 100-010 (T71P-19703-C)
G03908618

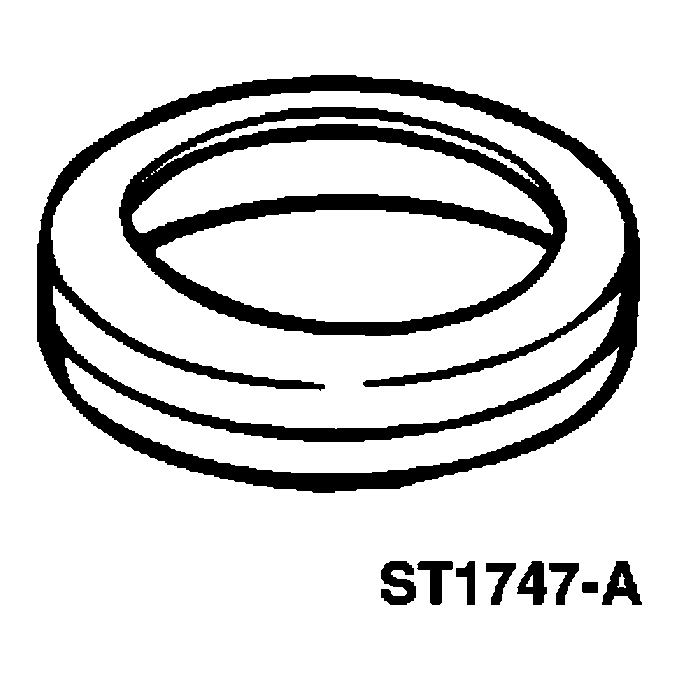

 Protector, Piston Seal 307-068 (T77L-77548-A)
MATERIAL SPECIFICATION CHART

Item Specification
Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX MERCON®

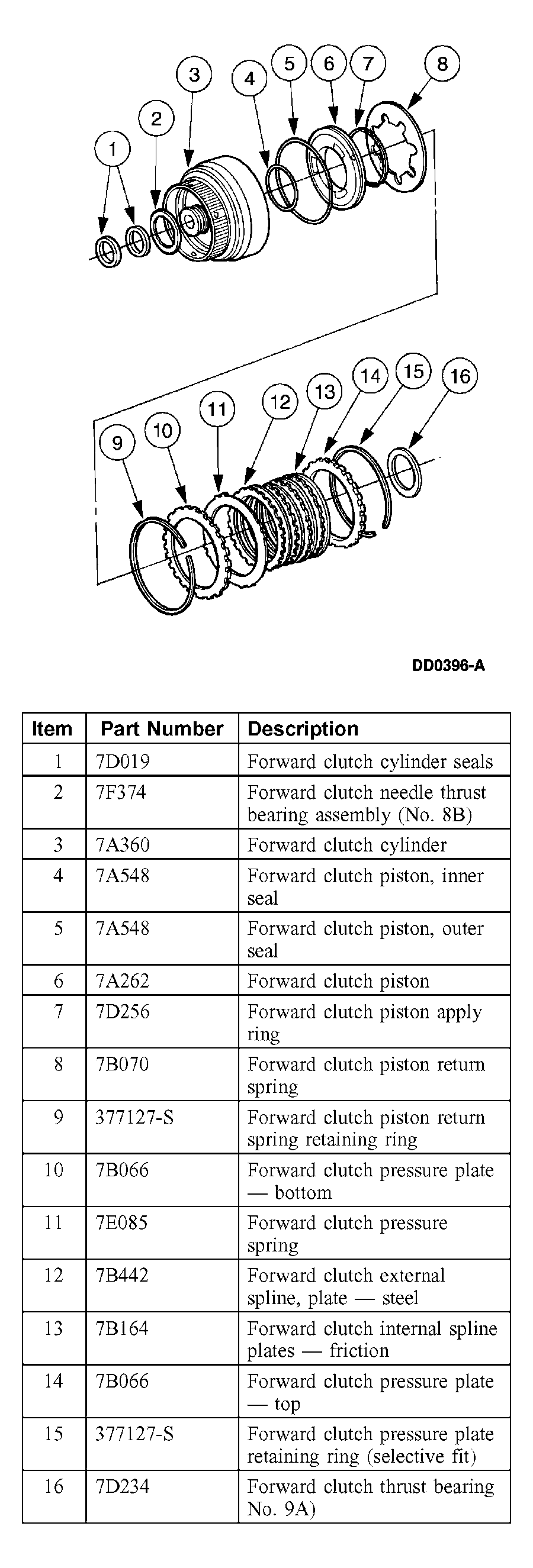

Fig 1: Exploded View Of Forward Clutch Assembly
G03908619Courtesy of FORD MOTOR CO.
