Forward Planet Assembly: Disassembly

NOTE: Individual parts of the planet assemblies are not repairable.

Remove the No. 9B forward clutch thrust bearing.

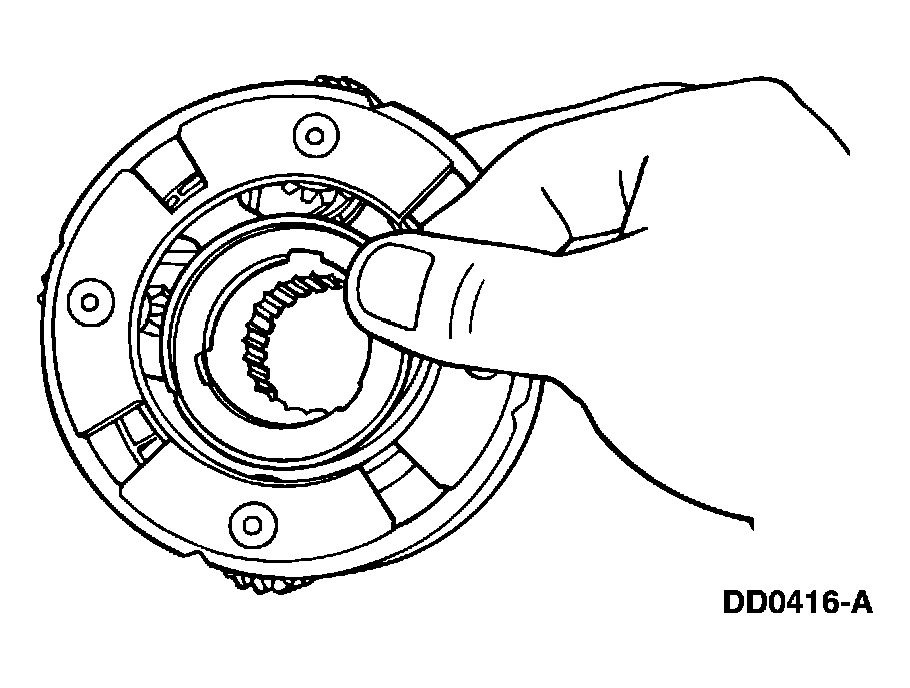

Fig 1: Removing No. 9B Forward Clutch Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the No. 10A forward planet assembly thrust bearing.
- The pins and shafts in the plant assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exist.
- Inspect the pinion gears for damaged or excessively worn teeth.
- Check for free rotation of the pinion gears.
- Check for damage in the overdrive planet assembly.

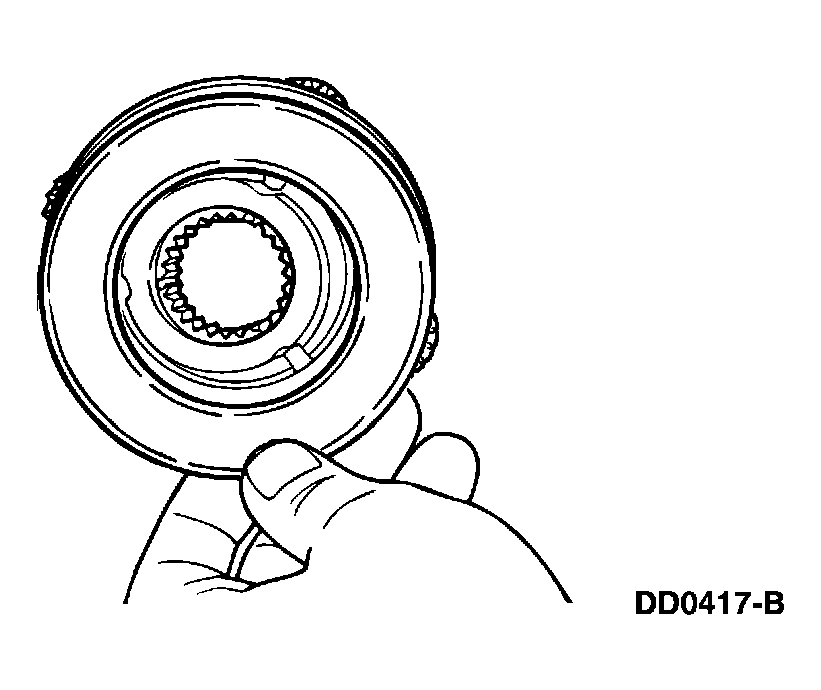

Fig 2: Checking For Free Rotation Of Pinion Gears
Courtesy of FORD MOTOR CO.
