Low One-Way Clutch Assembly: Notes

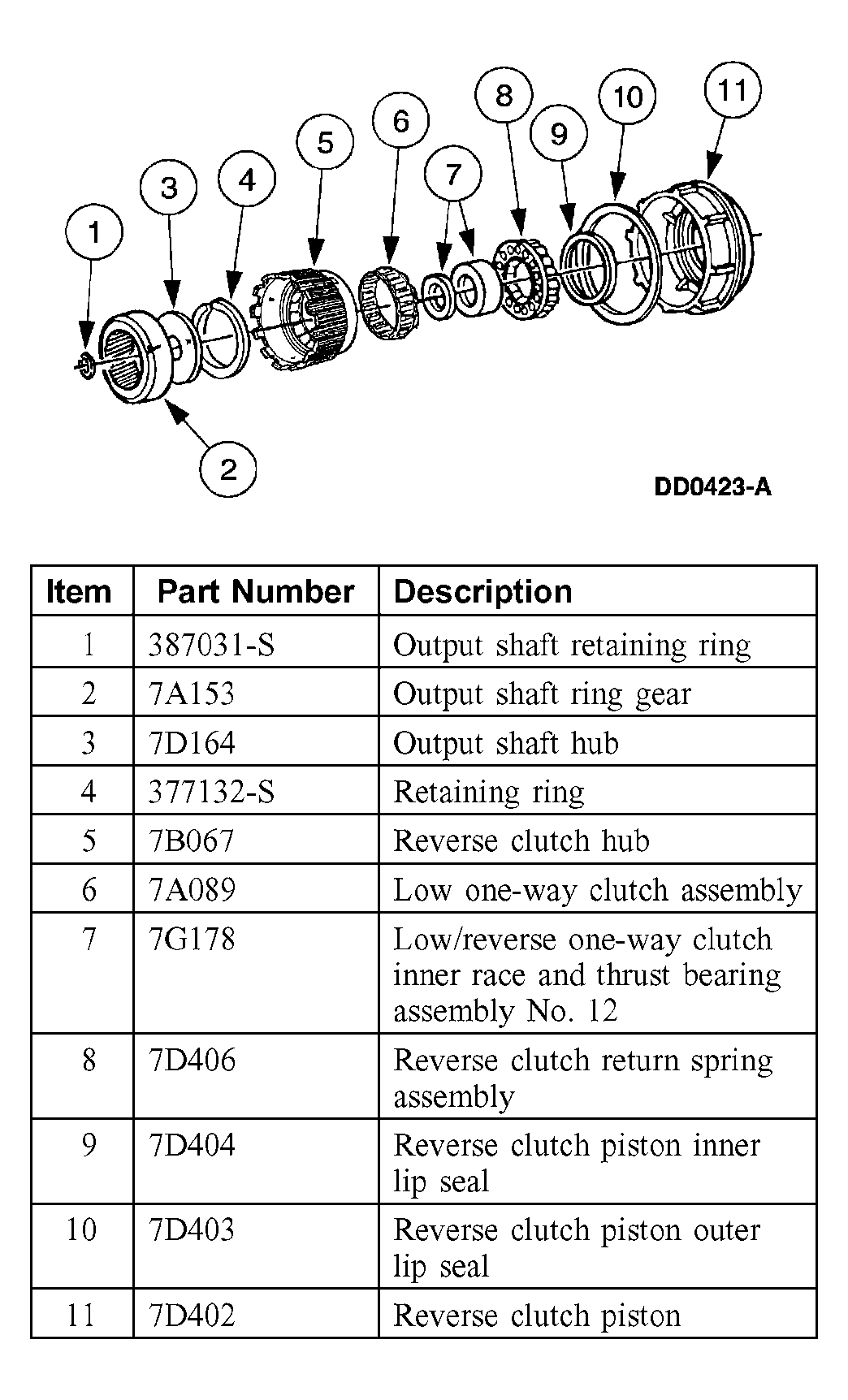

Fig 1: Exploded View Of Low/Reverse One-Way Clutch Assembly And Piston
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
