Fuel Charging and Controls

WARNING: This page is about a different variant/trim than selected.

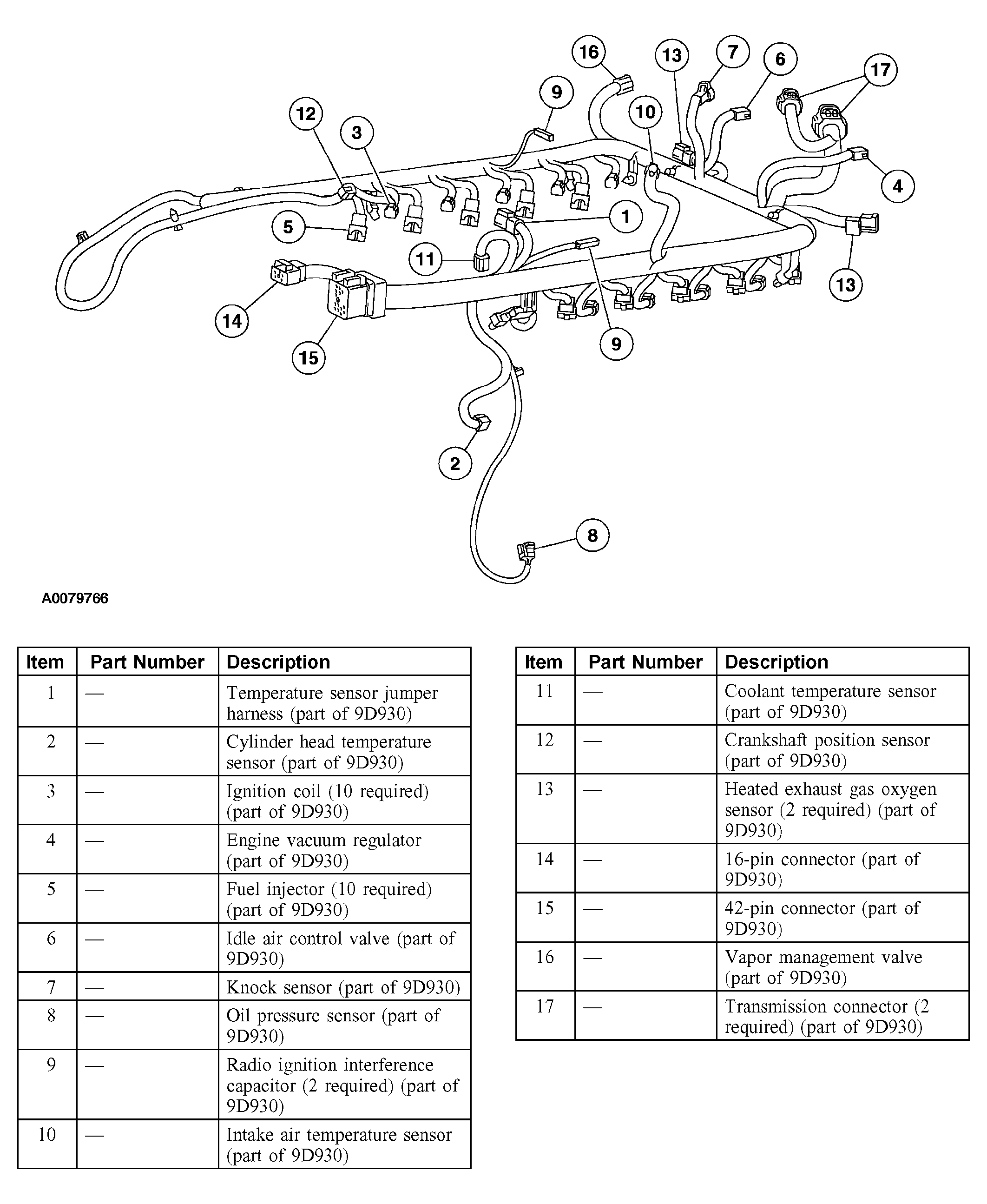

Fig 1: Identifying Fuel Charging And Controls System Components
G03907717Courtesy of FORD MOTOR CO.

The fuel charging wiring on the 6.8L engine is a single harness.

Refer to FUEL SYSTEM-GENERAL INFORMATION - GASOLINE AND DIESEL for description and operation of the fuel charging system.
