Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

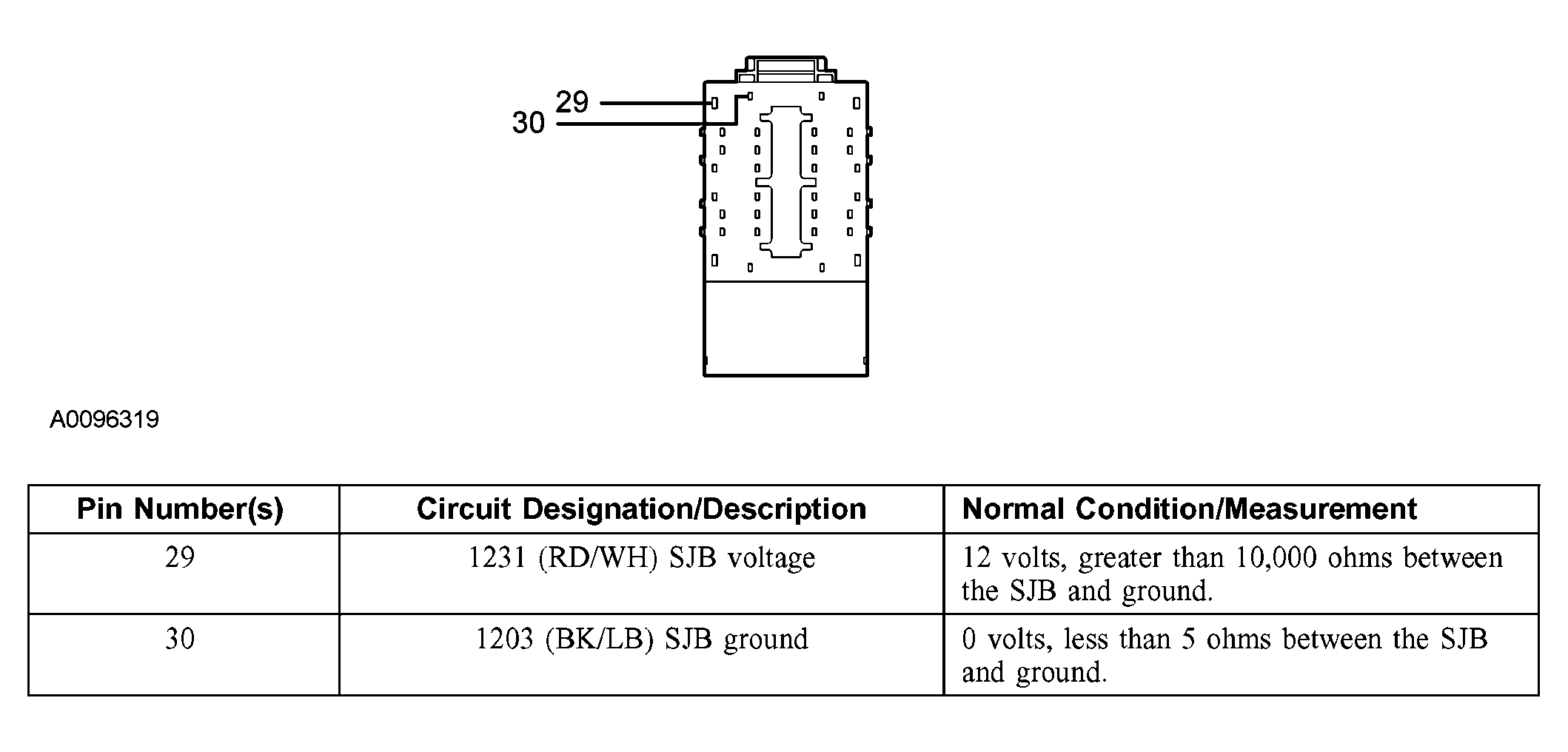

Fig 1: Smart Junction Box (SJB) C2280a Connector Circuit
G03993015Courtesy of FORD MOTOR CO.

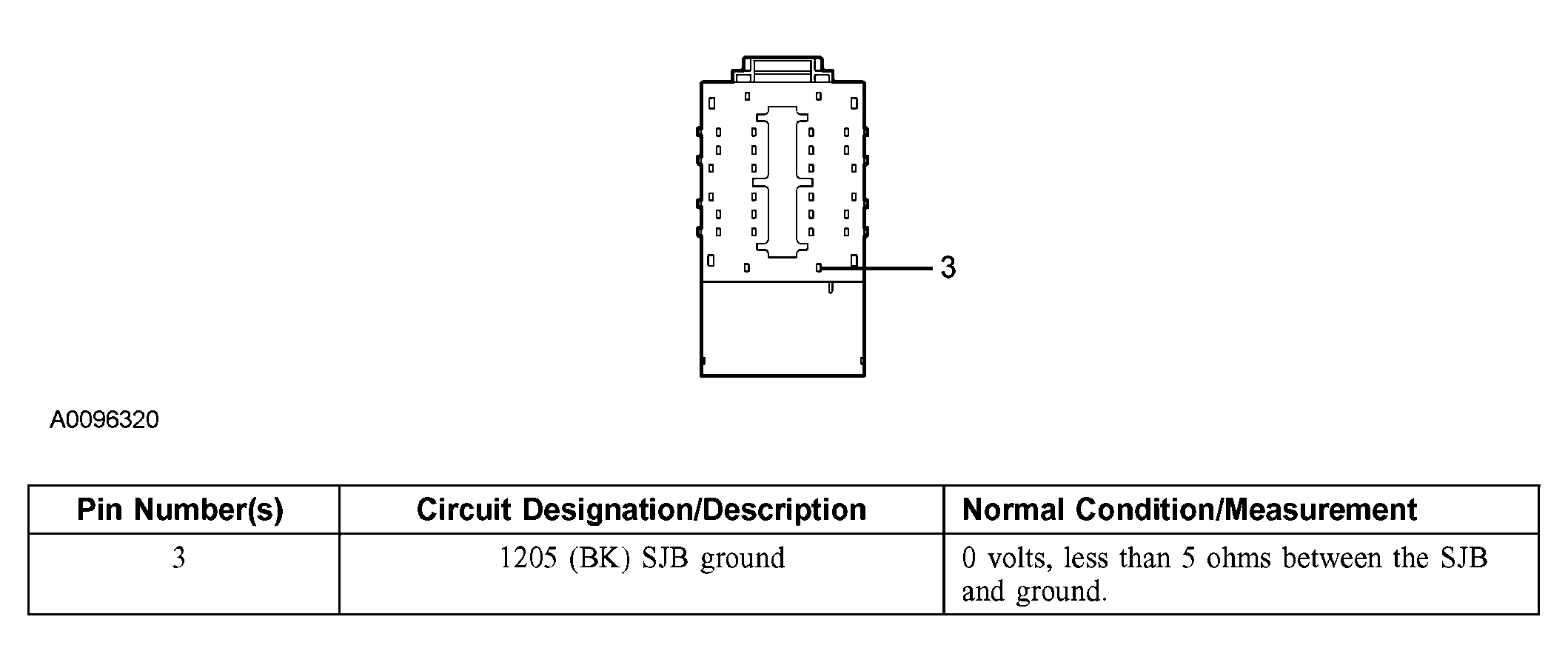

Fig 2: Smart Junction Box (SJB) C2280E Connector Circuit
G03993016Courtesy of FORD MOTOR CO.

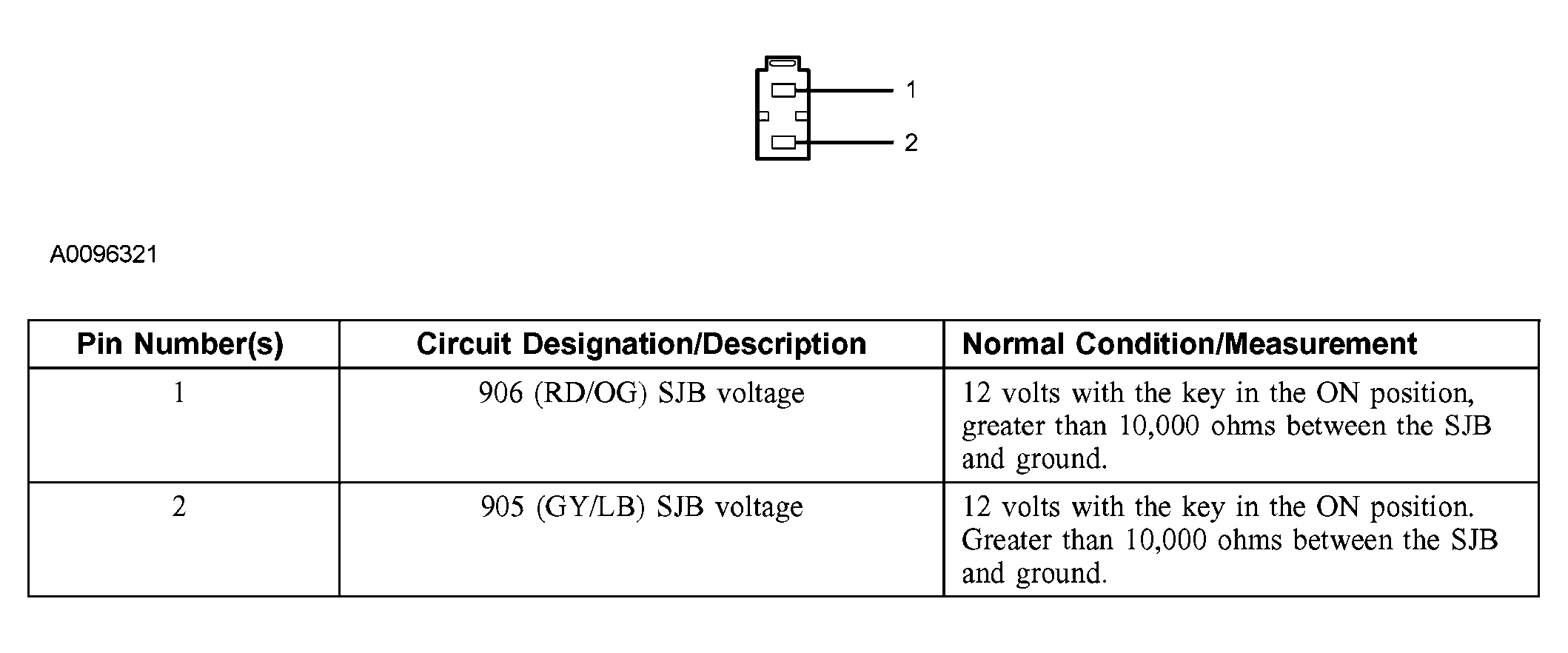

Fig 3: Smart Junction Box (SJB) C2280g Connector Circuit
G03993017Courtesy of FORD MOTOR CO.
