Jacking Points

WARNING: Do not run the engine when jacking the vehicle. The wheels contacting the ground could cause the vehicle to move.

WARNING: Make sure the jack is correctly positioned to prevent the vehicle from falling.

WARNING: Wheel chocks should be used to prevent the vehicle from rolling and falling off the jack.

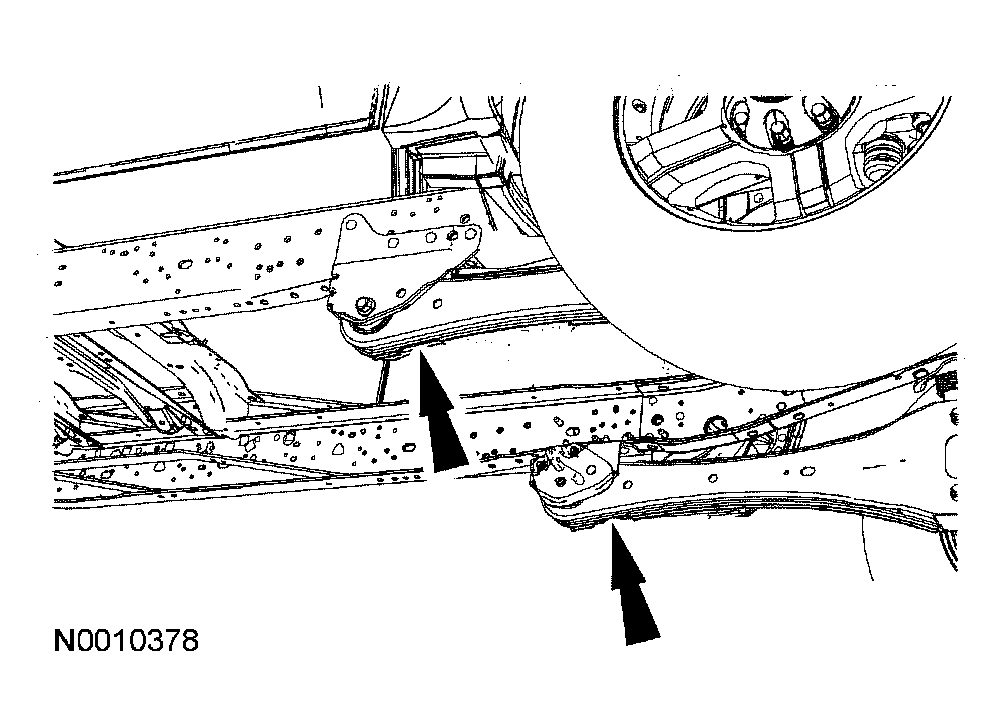

Fig 1: Identifying Jacking Points (Front-4x2)

Courtesy of FORD MOTOR CO.

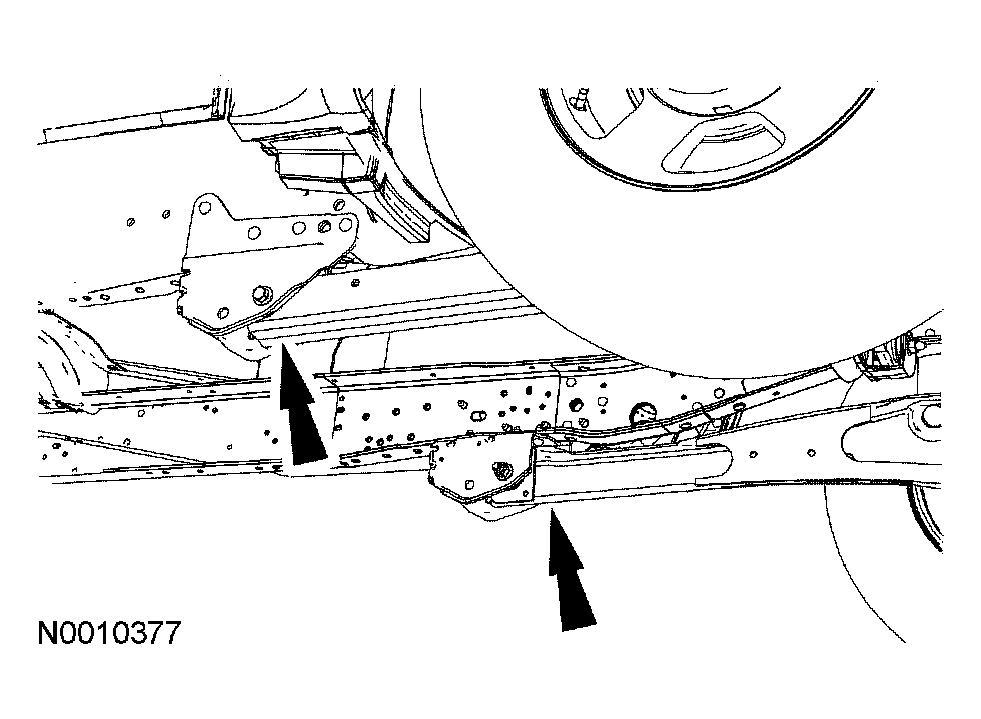

Fig 2: Identifying Jacking Points (Front-4x4)

Courtesy of FORD MOTOR CO.

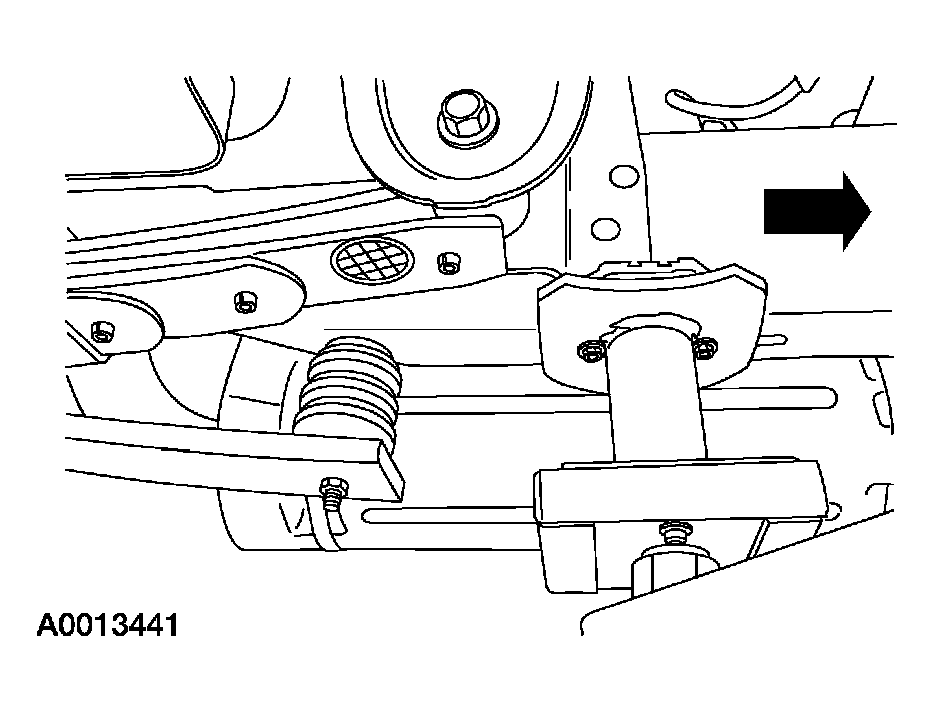

Fig 3: Identifying Jacking Points (Rear-Frame, Right Side Shown)

Courtesy of FORD MOTOR CO.

Refer to the Owner Guide for additional information on vehicle jacking.
