Removal and Installation

WARNING: This page is about a different variant/trim than selected.

    All vehicles

    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
    2. WARNING: Never remove the pressure relief cap while the engine is operating or when the cooling system is hot. Failure to follow these instructions can result in damage to the cooling system or engine or result in personal injury. To avoid having scalding hot coolant or steam blow out of the degas bottle when removing the pressure relief cap, wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the pressure is released from the cooling system. When certain all the pressure has been released, (still with a cloth) turn and remove the pressure relief cap. Failure to follow these instructions can result in personal injury.

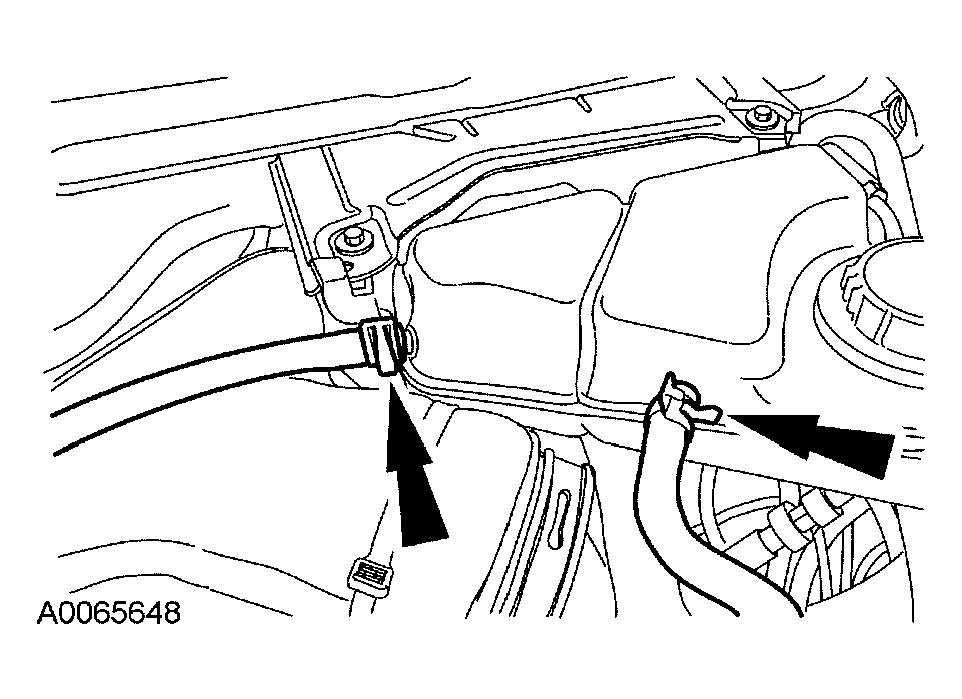

    Fig 1: Disconnecting Engine Vent Hose And Radiator Vent Hose
    G03906829Courtesy of FORD MOTOR CO.
  2. Relieve the cooling system pressure. Disconnect and plug or cap the engine vent hose and radiator vent hose.
  3. Remove the bolts and position the degas bottle aside.

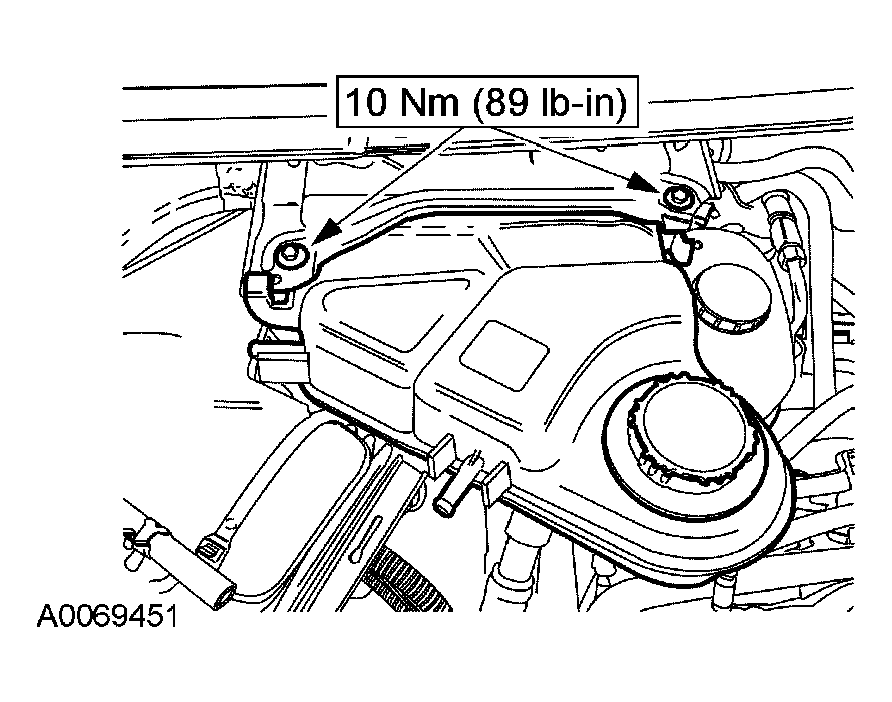

    Fig 2: Removing Degas Bottle With Torque Specifications
    G03907661Courtesy of FORD MOTOR CO.

    4. Late build vehicles

  4. Disconnect the two exhaust pressure (EP) sensor harness pin-type retainers.

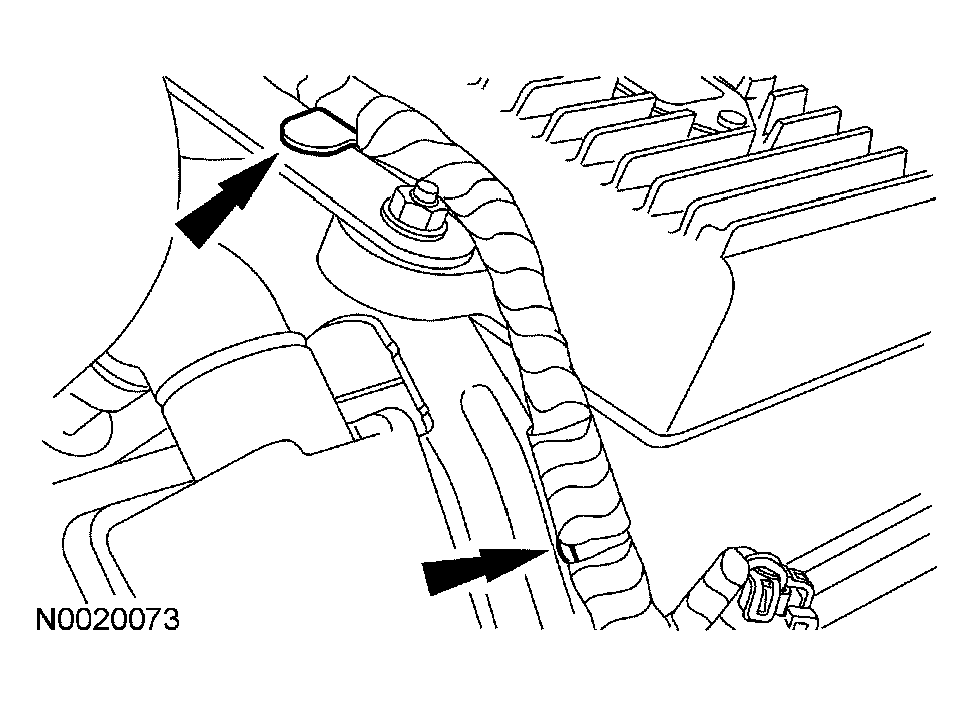

    Fig 3: Disconnecting Exhaust Pressure Sensor Harness Pin-Type Retainers
    G03906831Courtesy of FORD MOTOR CO.
  5. Disconnect the EP sensor electrical connector and position the harness aside.

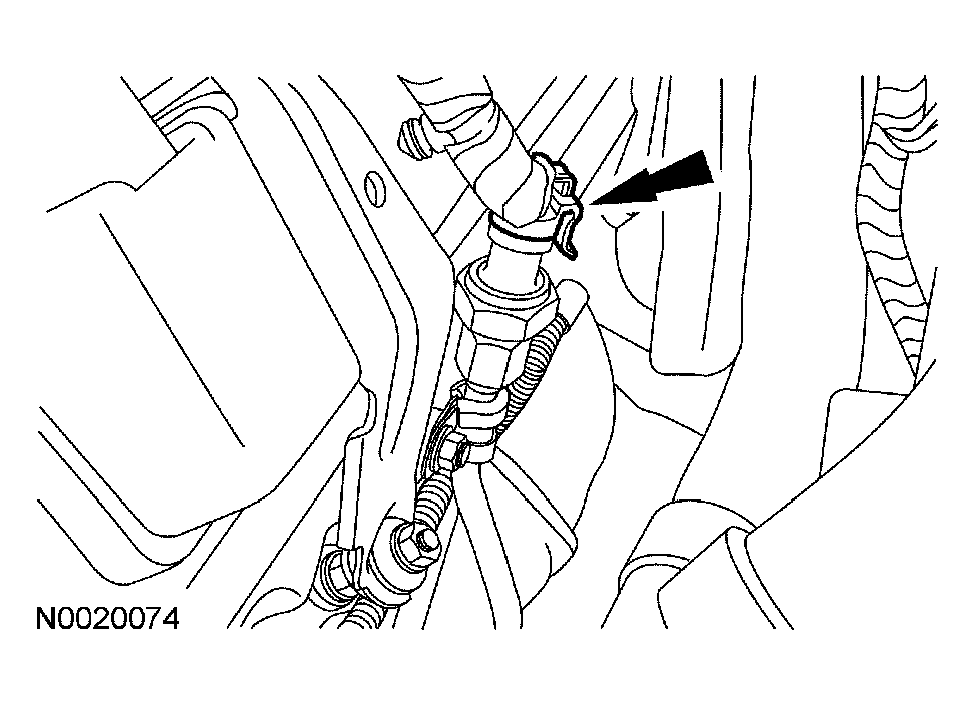

    Fig 4: Disconnecting EP Sensor Electrical Connector
    G03906832Courtesy of FORD MOTOR CO.

    6. All vehicles

  6. Remove the two bolts, two nuts and turbocharger intake tube bracket.

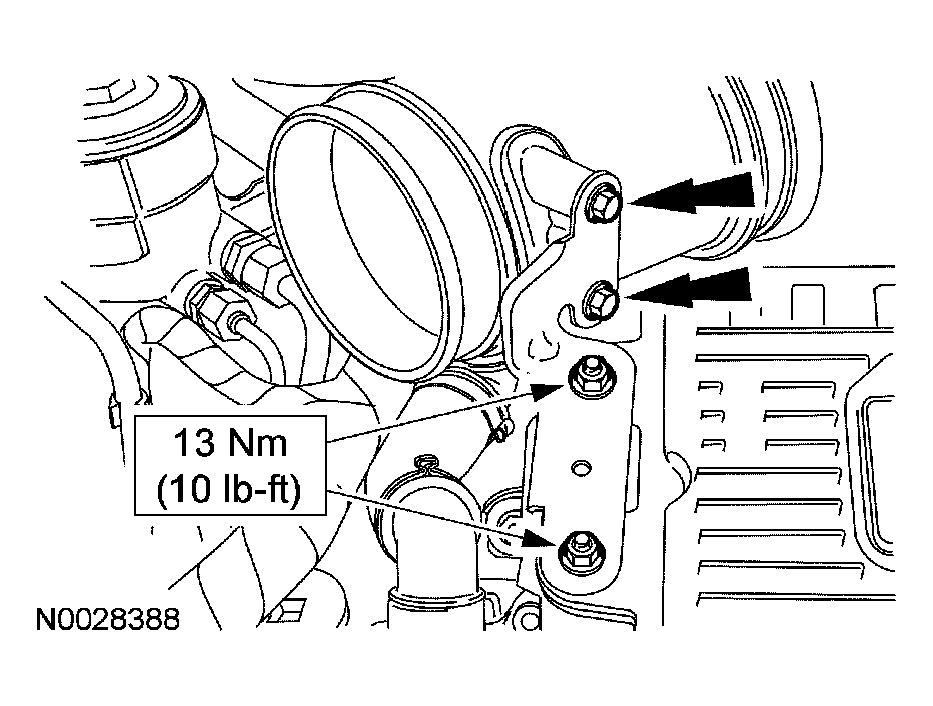

    Fig 5: Removing Turbocharger Intake Tube Bracket With Torque Specifications
    G03908114Courtesy of FORD MOTOR CO.
  7. Remove the fuel injector control module (FICM) bolts.

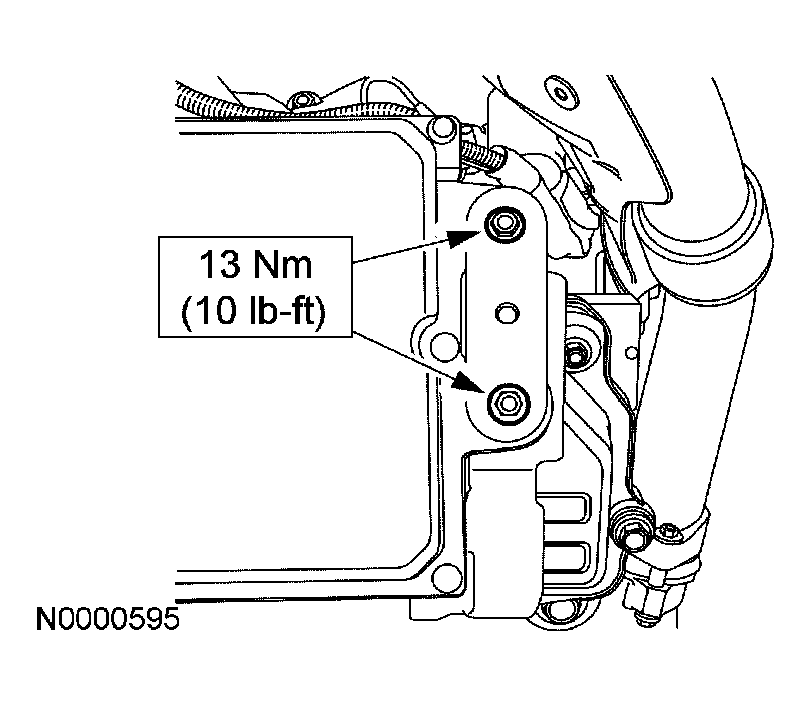

    Fig 6: Removing Fuel Injector Control Module Bolts With Torque Specifications
    G03906836Courtesy of FORD MOTOR CO.
    8. CAUTION: Make sure both latches are released before removing the electrical connectors or connector damage can occur.

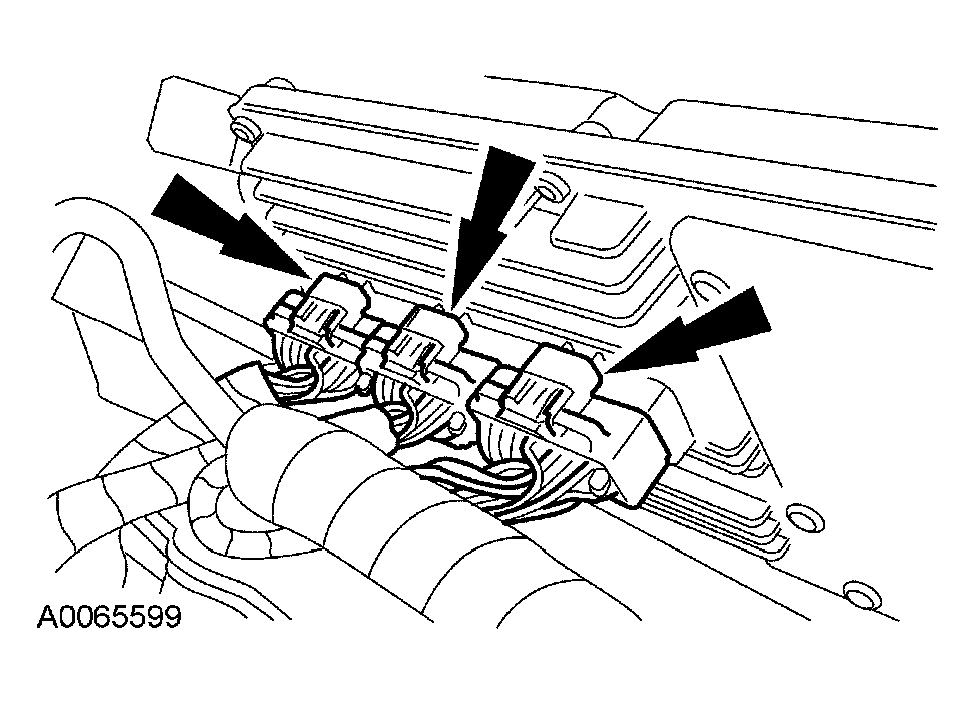

    Fig 7: Removing Electrical Connectors And FICM
    G03906837Courtesy of FORD MOTOR CO.
  8. Position out the FICM and disconnect the electrical connectors. Remove the FICM.
    9. CAUTION: With the engine cold, fill vehicles without a yellow fill level decal on the degas bottle only to the MIN line. The correct fill level on these vehicles is between the MIN line and 15 mm (0.59 in) below the MIN line. Fill vehicles with a yellow fill level decal to within the yellow cold fill range shown on the decal. These fill levels will allow for coolant expansion. Overfilling the degas bottle may result in damage to the pressure cap, which can cause the engine to overheat.
  9. To install, reverse the removal procedure.
