Connector Views

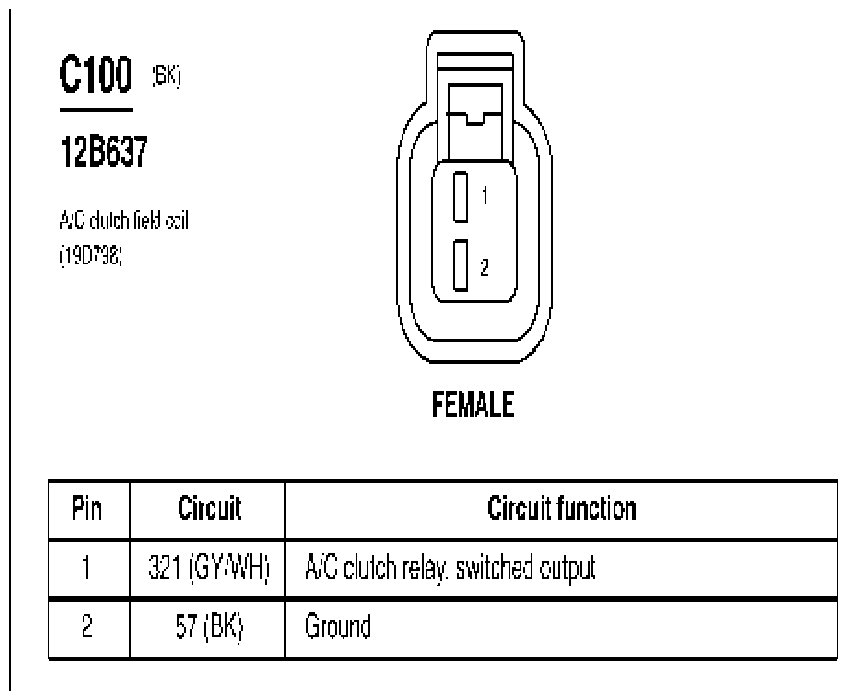

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07843616

Courtesy of FORD MOTOR CO.

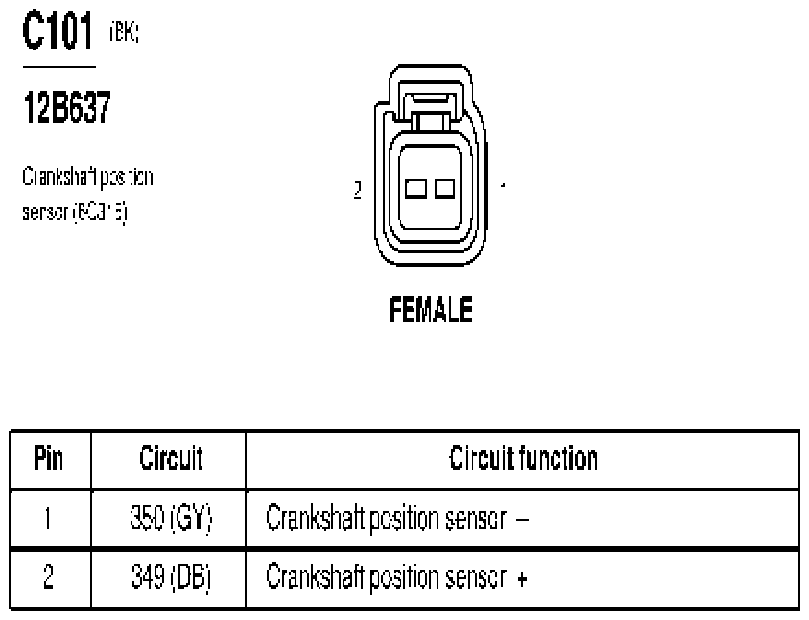

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07843617

Courtesy of FORD MOTOR CO.

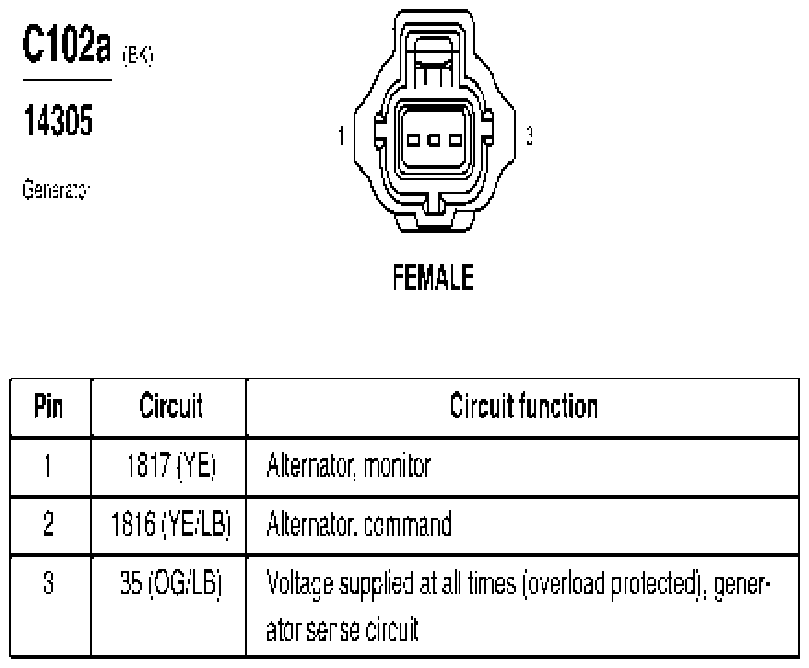

Fig 3: Generator Connector End View (C102a)

G07843618

Courtesy of FORD MOTOR CO.

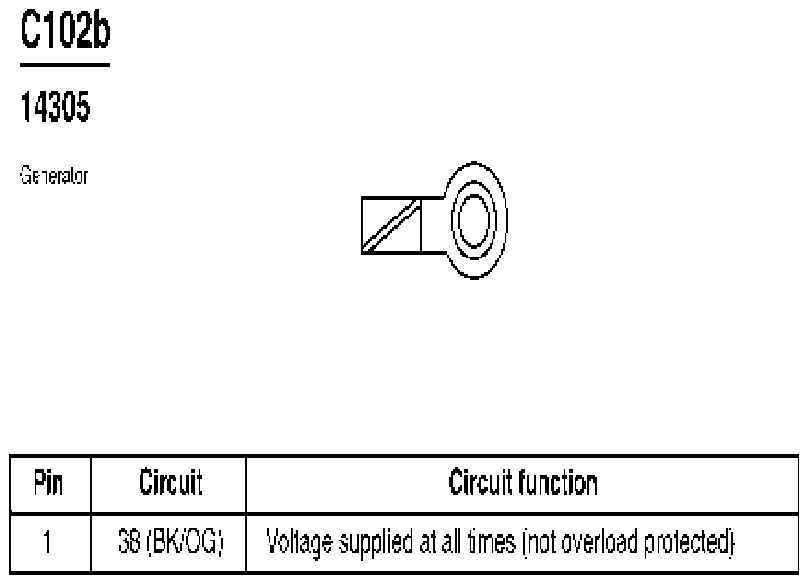

Fig 4: Generator Connector End View (C102b)

G07843619

Courtesy of FORD MOTOR CO.

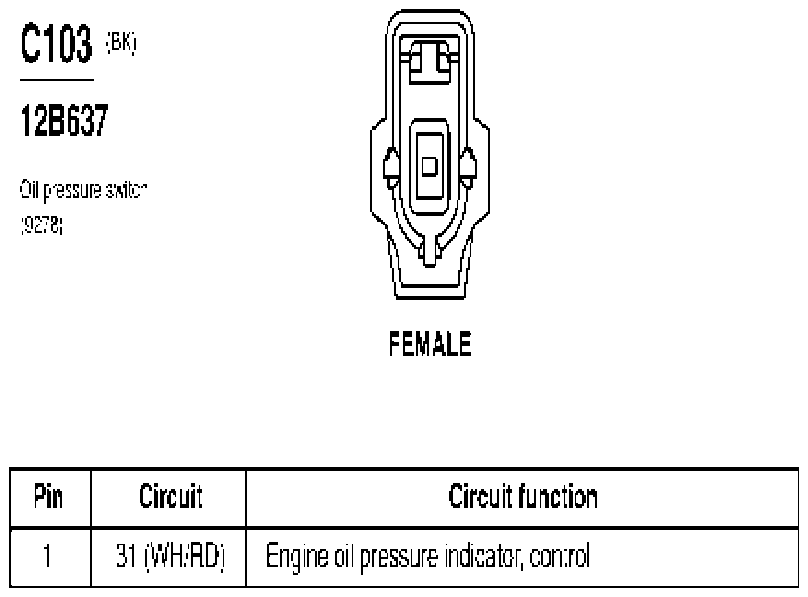

Fig 5: Oil Pressure Switch Connector End View (C103)

G07843620

Courtesy of FORD MOTOR CO.

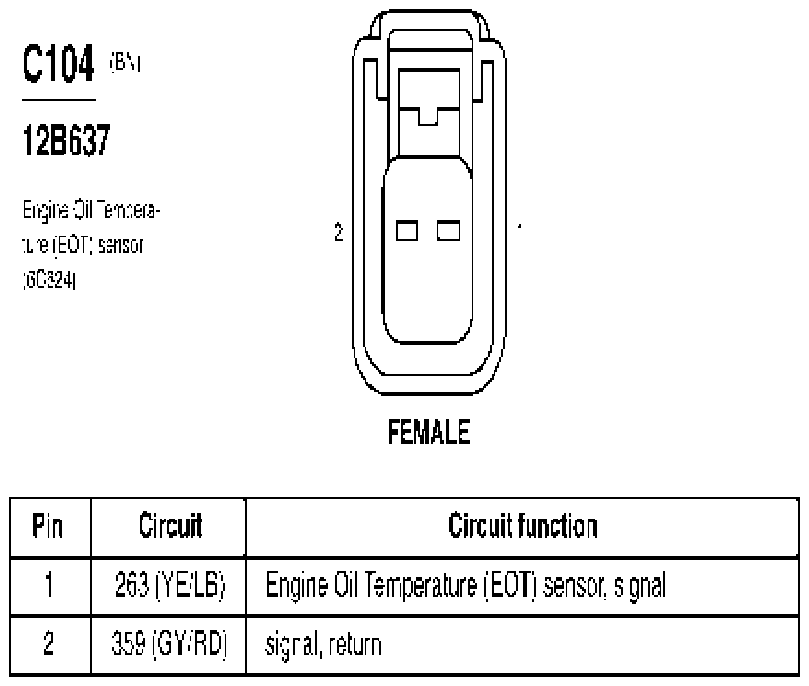

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07843621

Courtesy of FORD MOTOR CO.

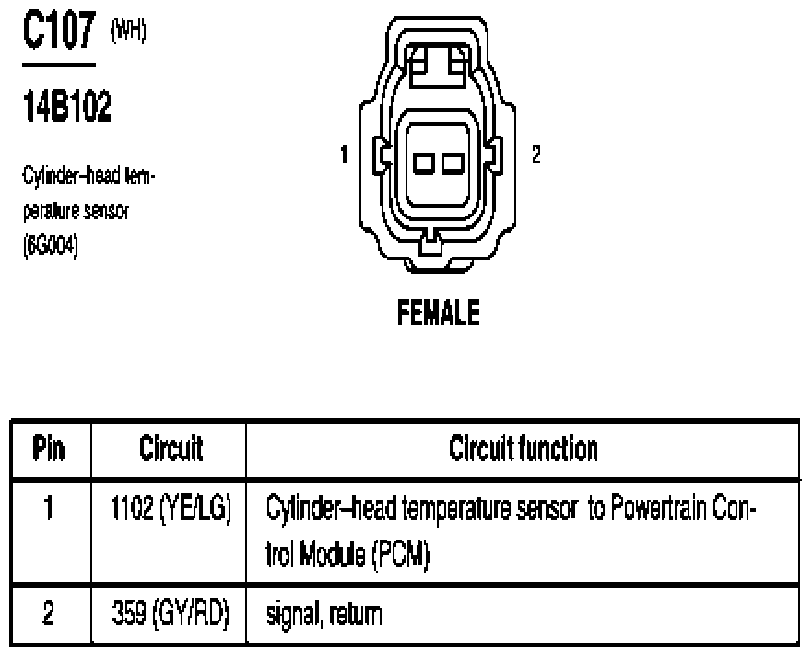

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)

G07843622

Courtesy of FORD MOTOR CO.

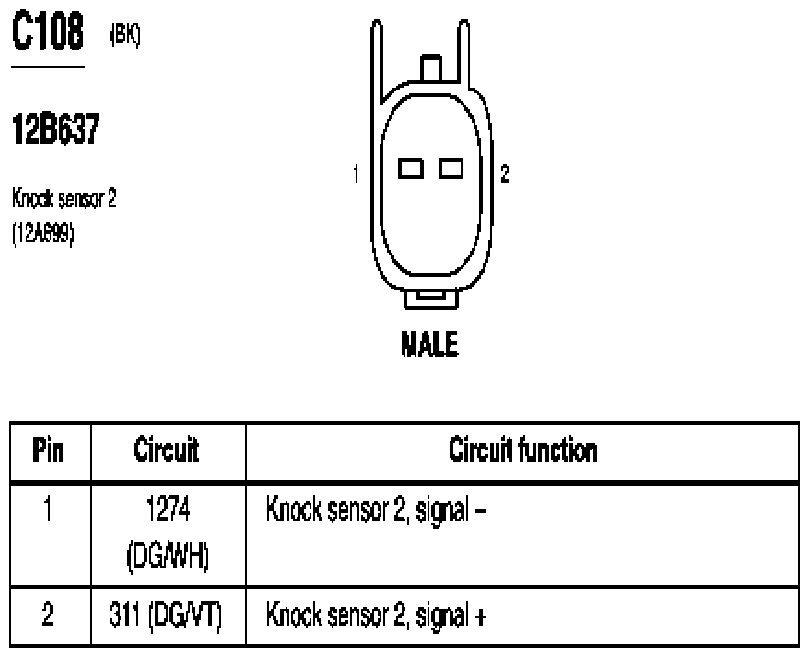

Fig 8: Knock Sensor 2 Connector End View (C108)

G07843623

Courtesy of FORD MOTOR CO.

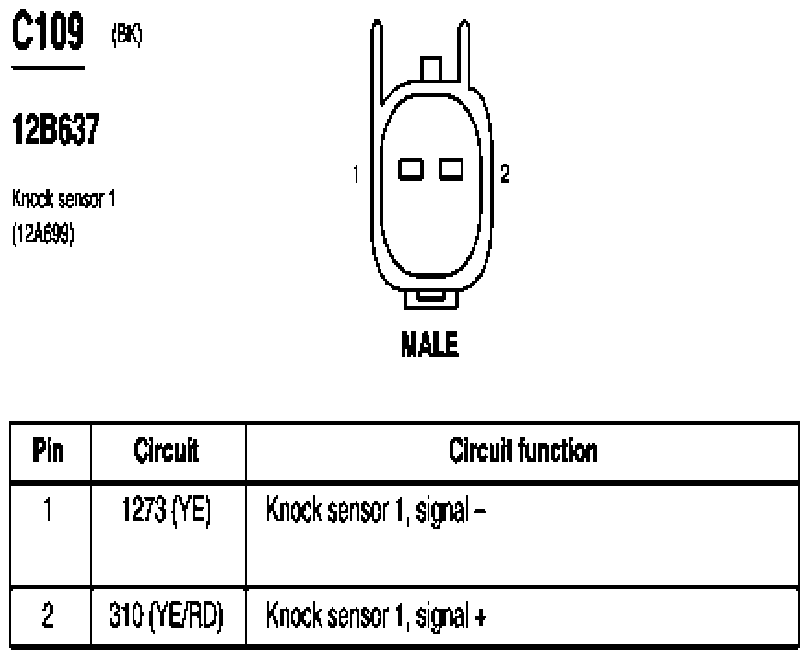

Fig 9: Knock Sensor 1 Connector End View (C109)

G07843624

Courtesy of FORD MOTOR CO.

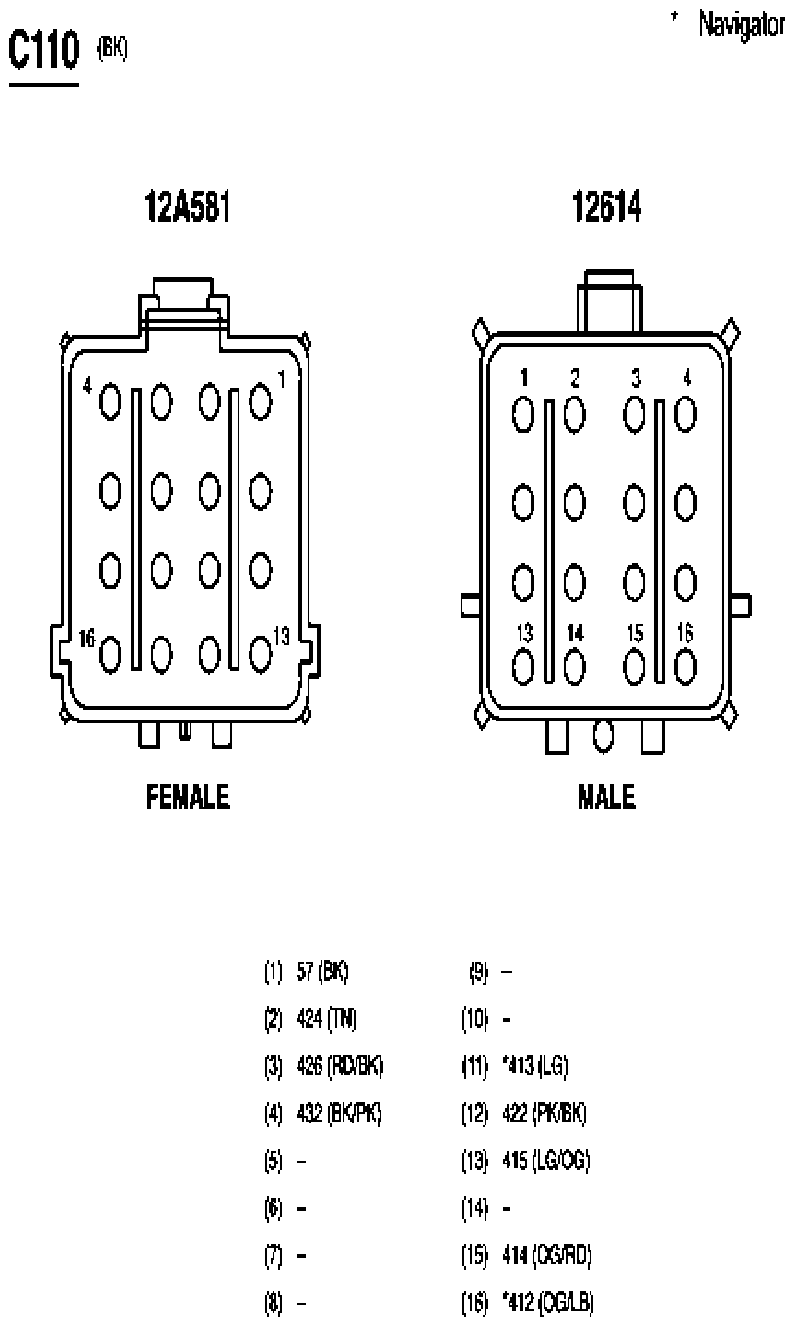

Fig 10: Inline Connector End View (C110)

G07843625

Courtesy of FORD MOTOR CO.

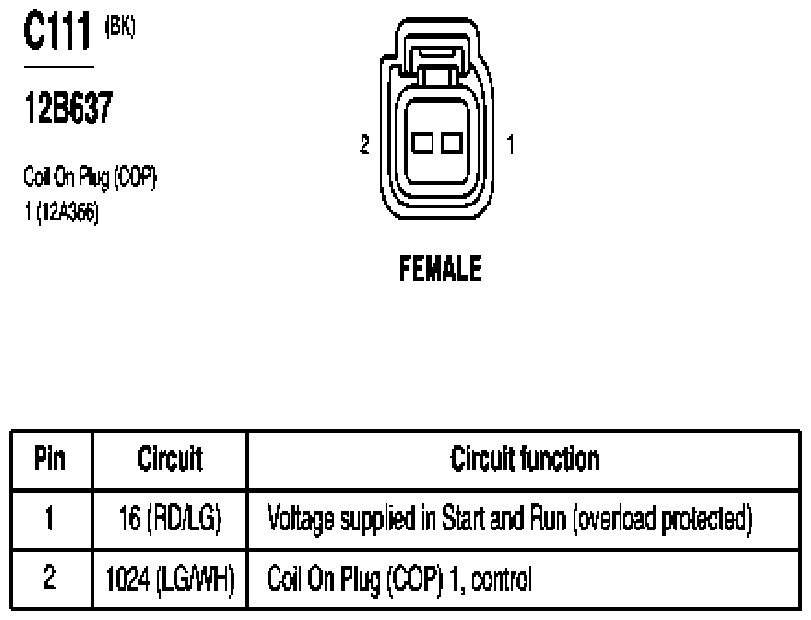

Fig 11: Coil On Plug (COP) 1 Connector End View (C111)

G07843626

Courtesy of FORD MOTOR CO.

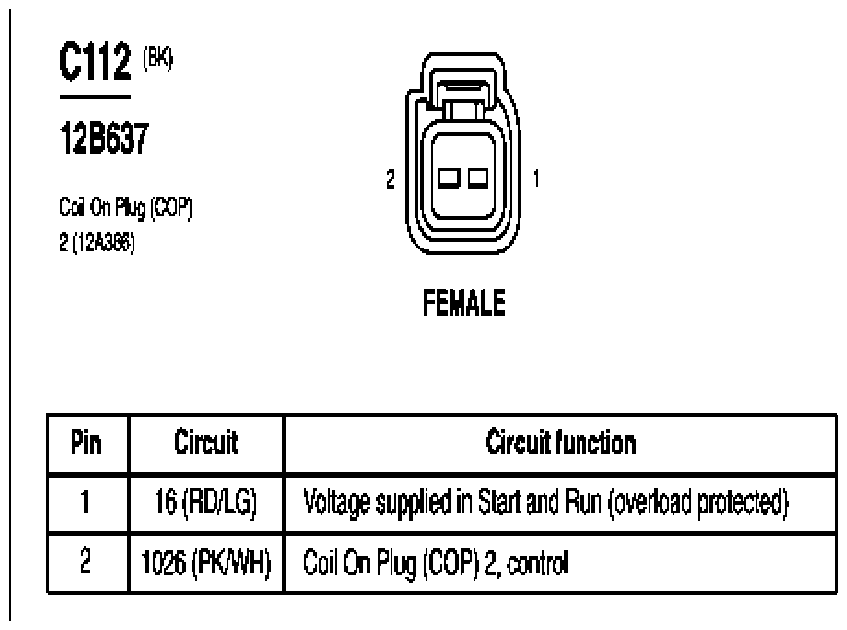

Fig 12: Coil On Plug (COP) 2 Connector End View (C112)

G07843627

Courtesy of FORD MOTOR CO.

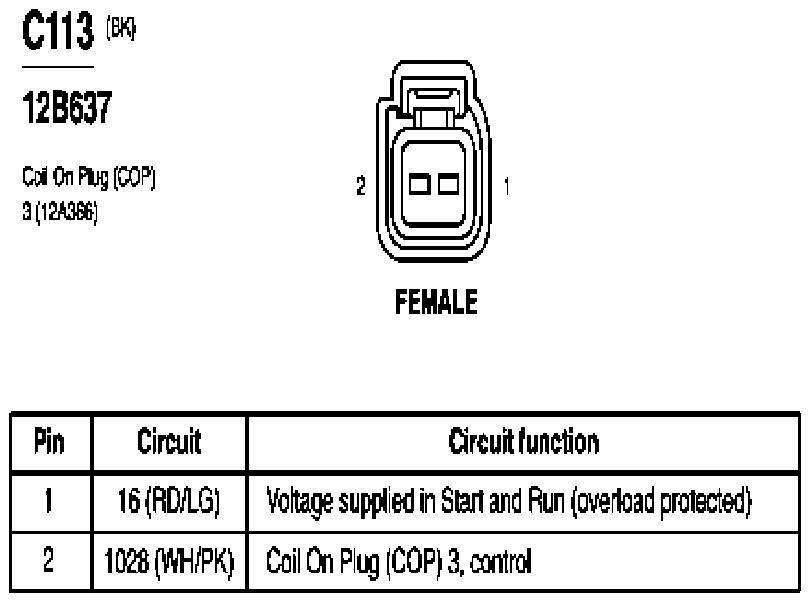

Fig 13: Coil On Plug (COP) 3 Connector End View (C113)

G07843628

Courtesy of FORD MOTOR CO.

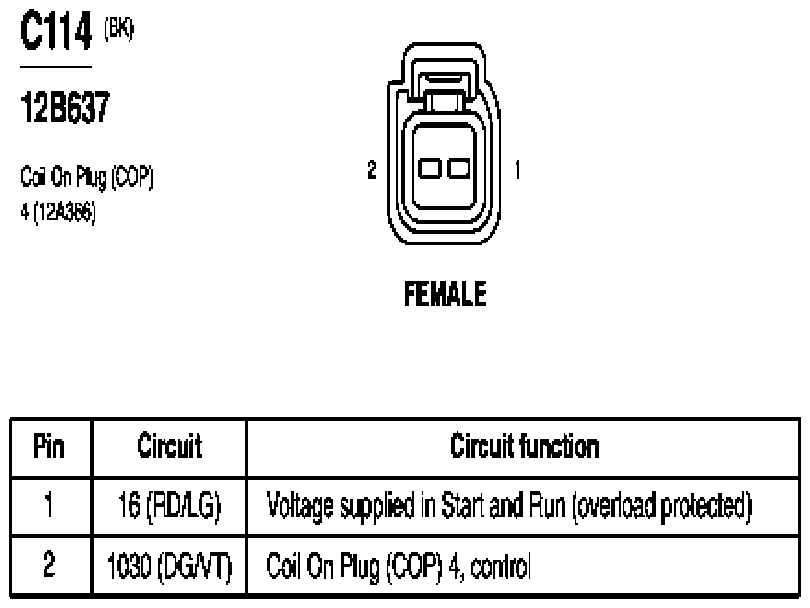

Fig 14: Coil On Plug (COP) 4 Connector End View (C114)

G07843629

Courtesy of FORD MOTOR CO.

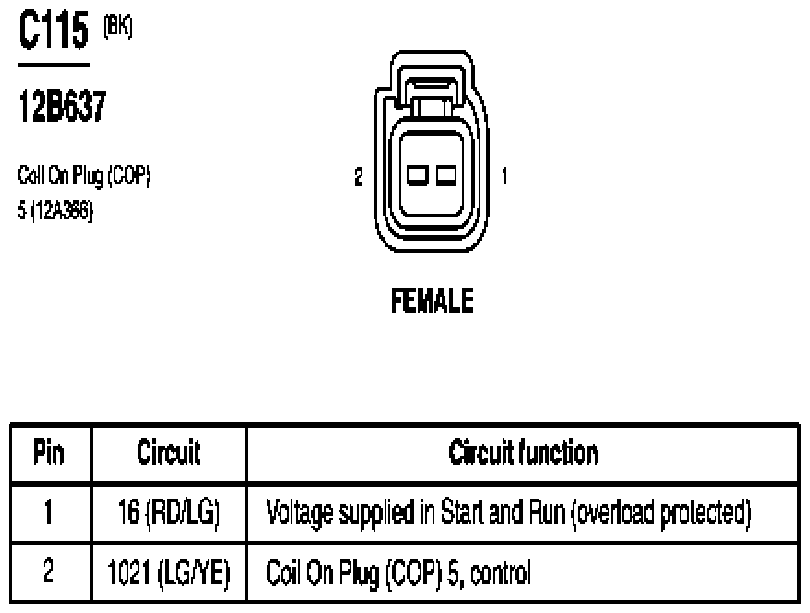

Fig 15: Coil On Plug (COP) 5 Connector End View (C115)

G07843630

Courtesy of FORD MOTOR CO.

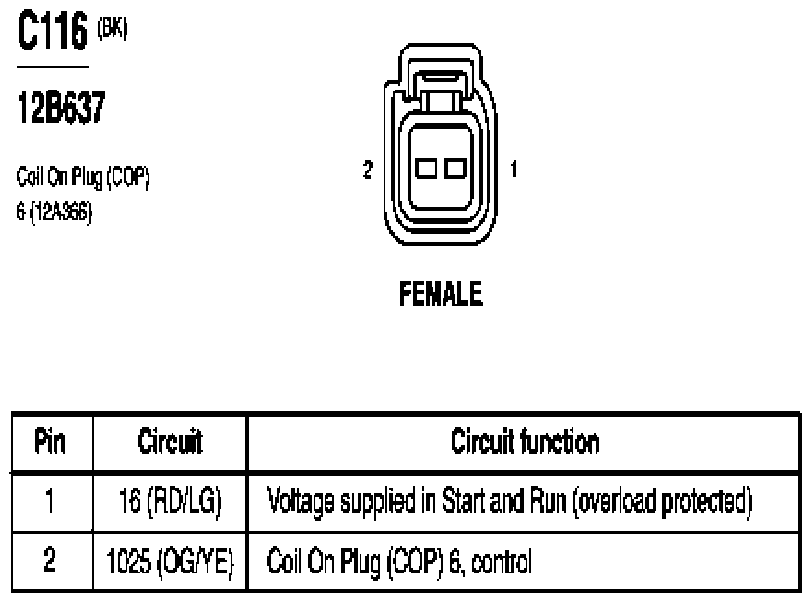

Fig 16: Coil On Plug (COP) 6 Connector End View (C116)

G07843631

Courtesy of FORD MOTOR CO.

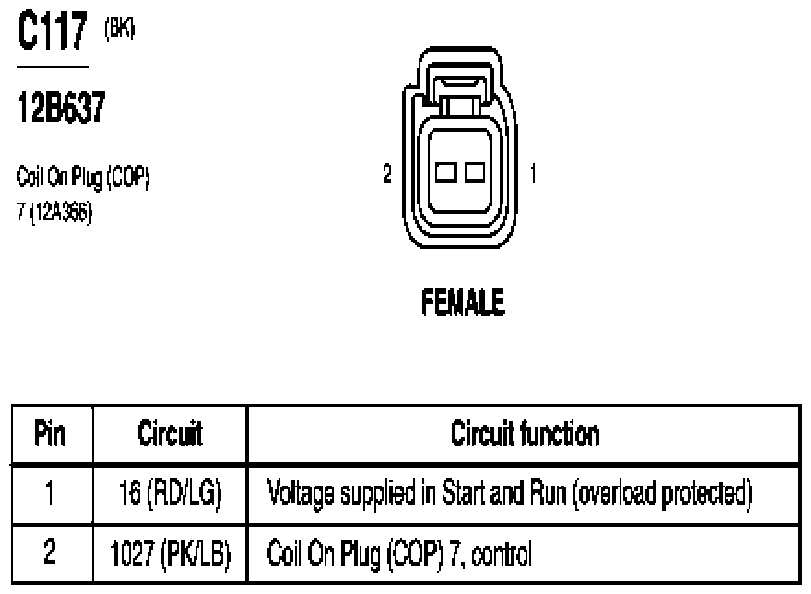

Fig 17: Coil On Plug (COP) 7 Connector End View (C117)

G07843632

Courtesy of FORD MOTOR CO.

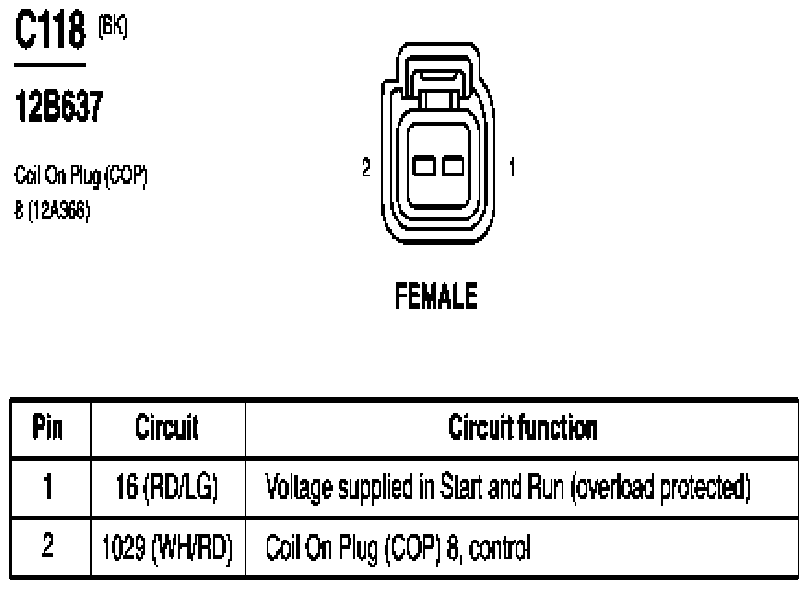

Fig 18: Coil On Plug (COP) 8 Connector End View (C118)

G07843633

Courtesy of FORD MOTOR CO.

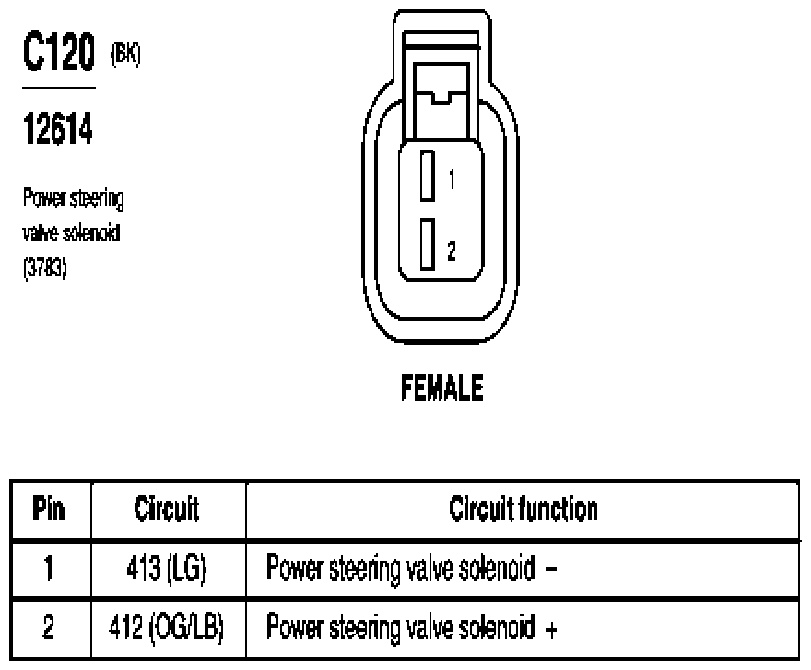

Fig 19: Power Steering Valve Solenoid Connector End View (C120)

G07843634

Courtesy of FORD MOTOR CO.

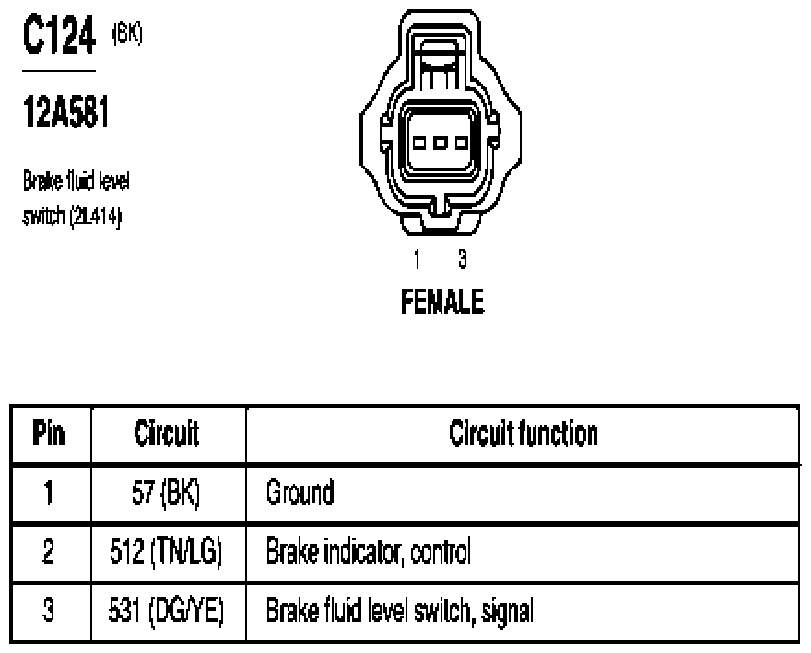

Fig 20: Brake Fluid Level Switch Connector End View (C124)

G07843635

Courtesy of FORD MOTOR CO.

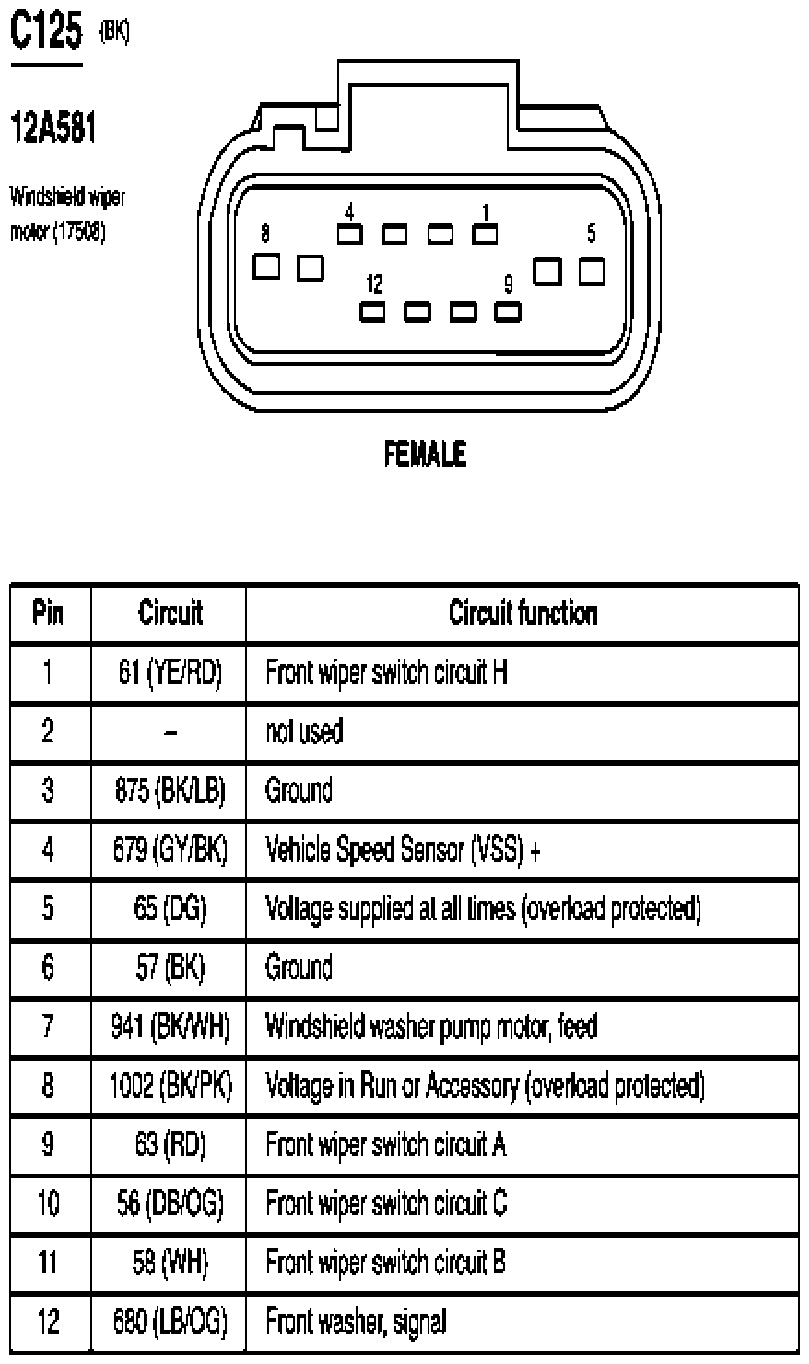

Fig 21: Windshield Wiper Motor Connector End View (C125)

G07843636

Courtesy of FORD MOTOR CO.

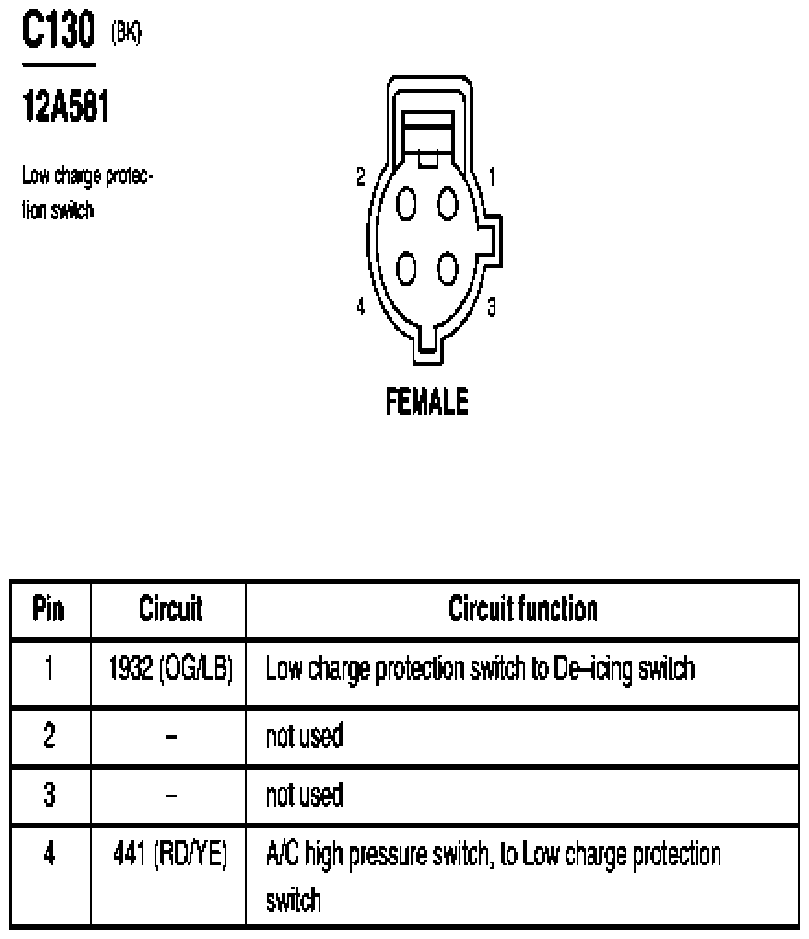

Fig 22: Low Charge Protection Switch Connector End View (C130)

G07843637

Courtesy of FORD MOTOR CO.

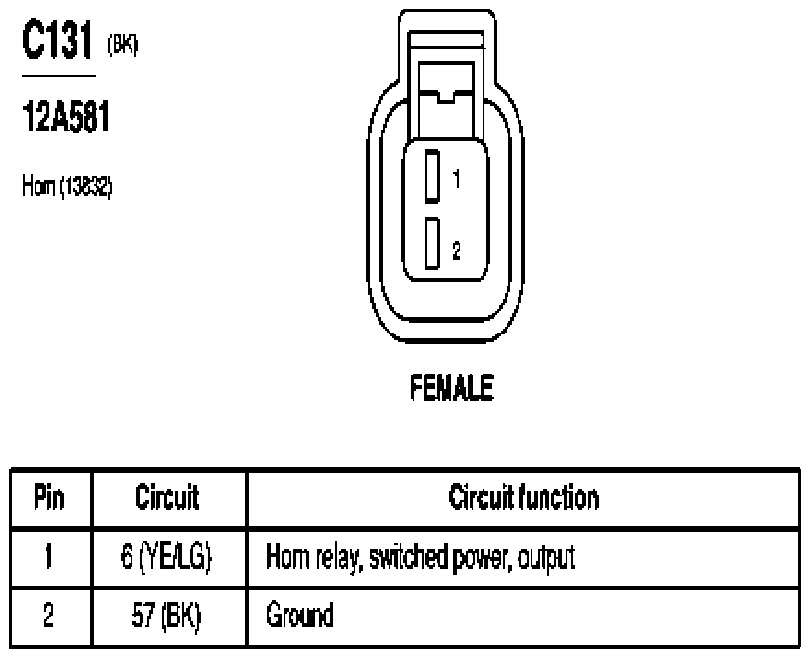

Fig 23: Horn Connector End View (C131)

G07843638

Courtesy of FORD MOTOR CO.

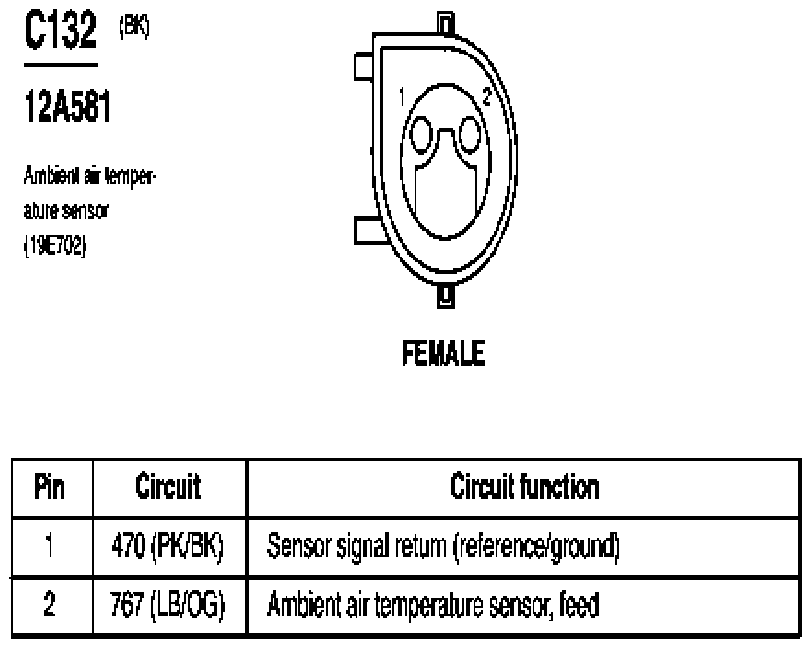

Fig 24: Ambient Air Temperature Sensor Connector End View (C132)

G07843639

Courtesy of FORD MOTOR CO.

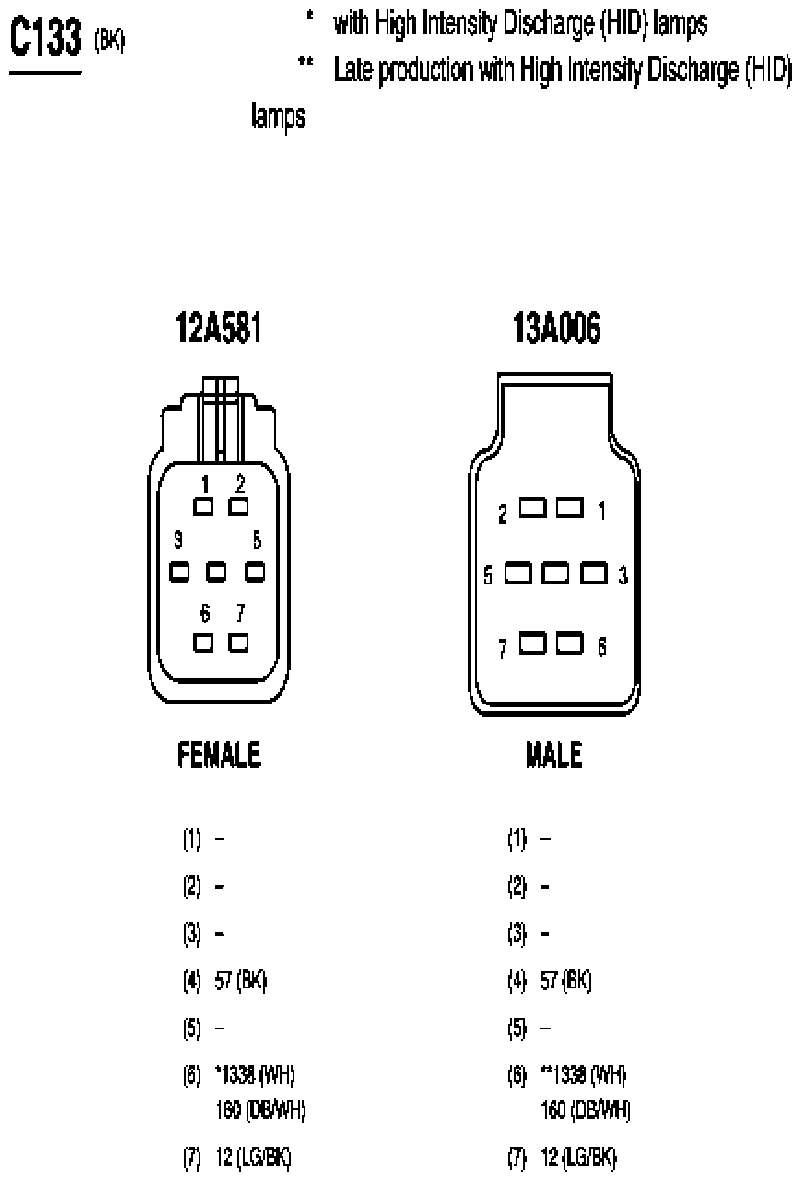

Fig 25: Inline Connector End View (C133)

G07843640

Courtesy of FORD MOTOR CO.

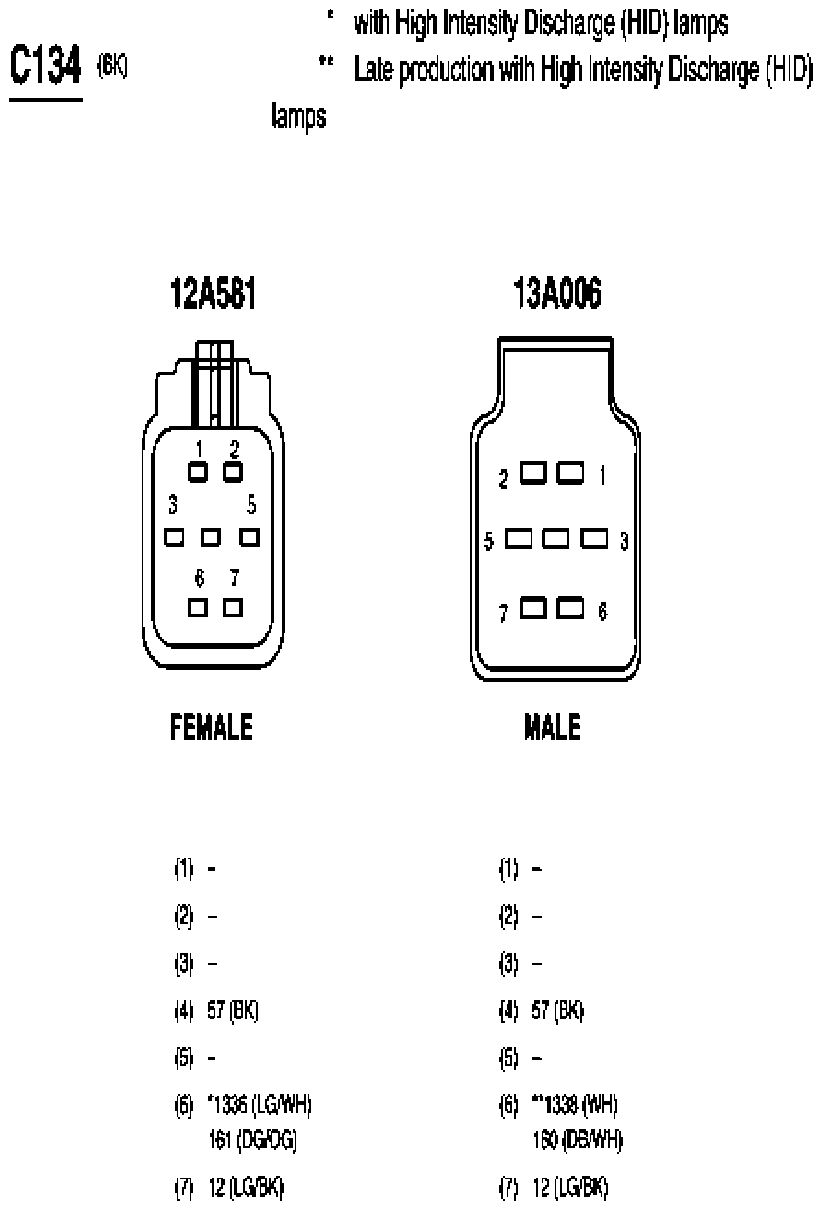

Fig 26: Inline Connector End View (C134)

G03993502

Courtesy of FORD MOTOR CO.

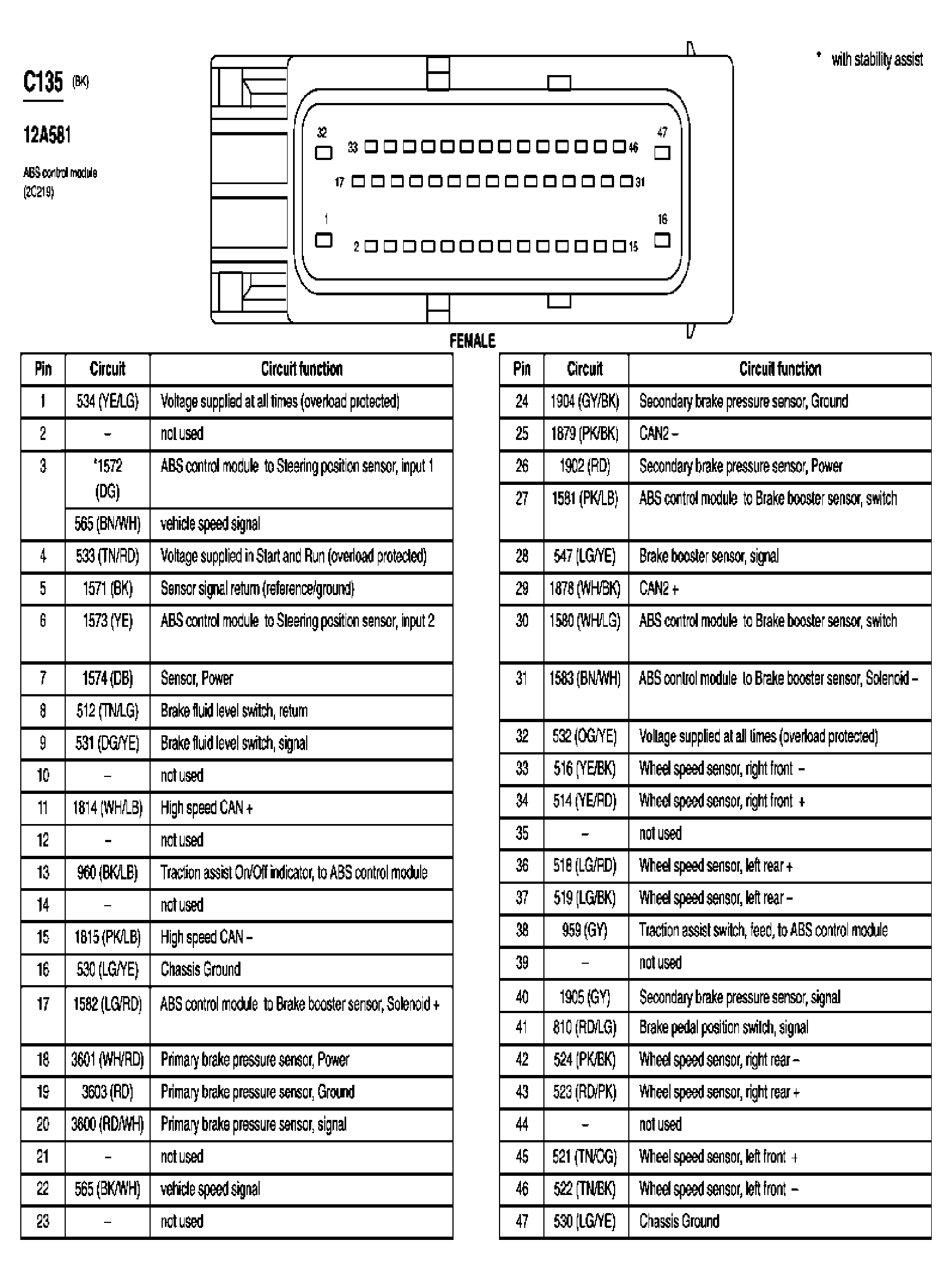

Fig 27: ABS Control Module Connector End View (C135)

G03993503

Courtesy of FORD MOTOR CO.

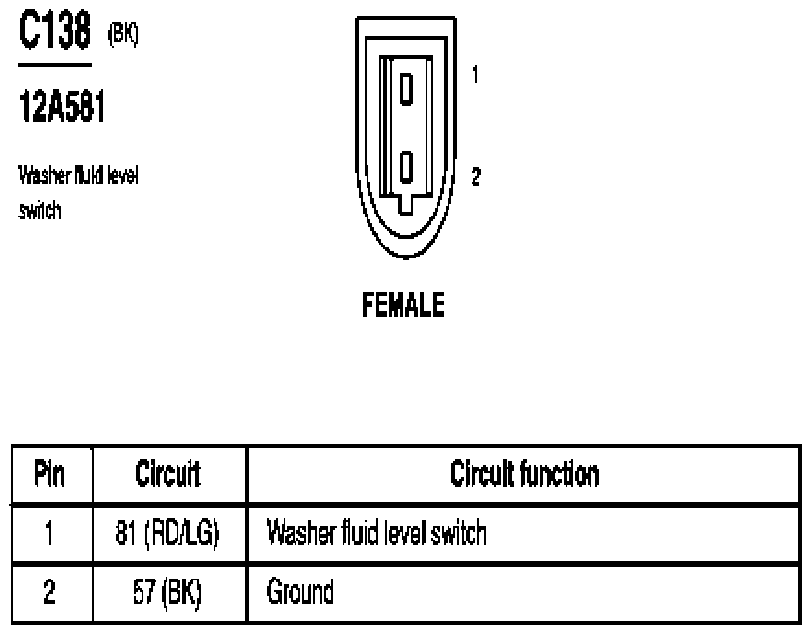

Fig 28: Washer Fluid Level Switch Connector End View (C138)

G07843641

Courtesy of FORD MOTOR CO.

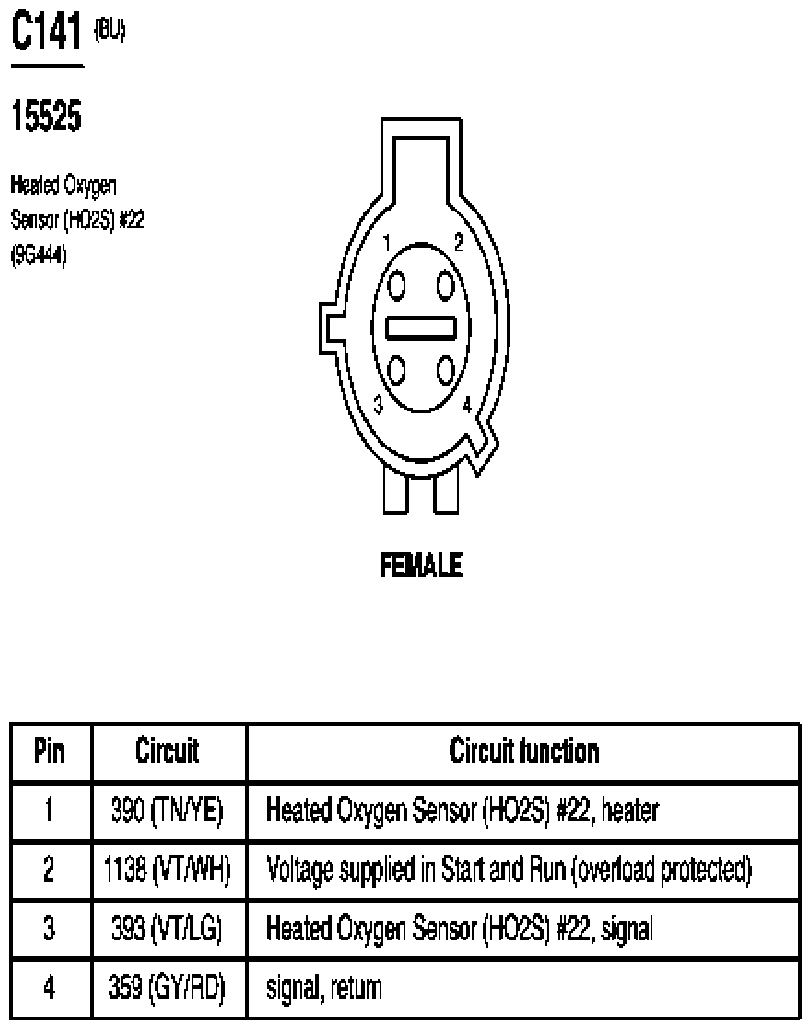

Fig 29: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07843642

Courtesy of FORD MOTOR CO.

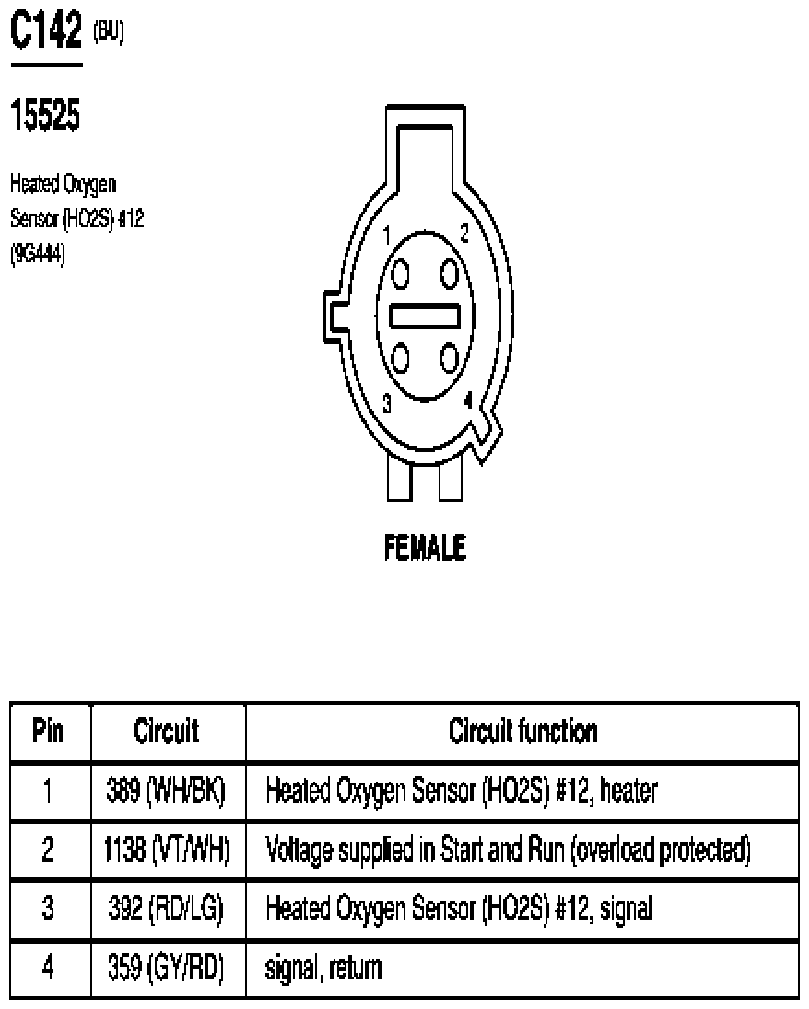

Fig 30: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07843643

Courtesy of FORD MOTOR CO.

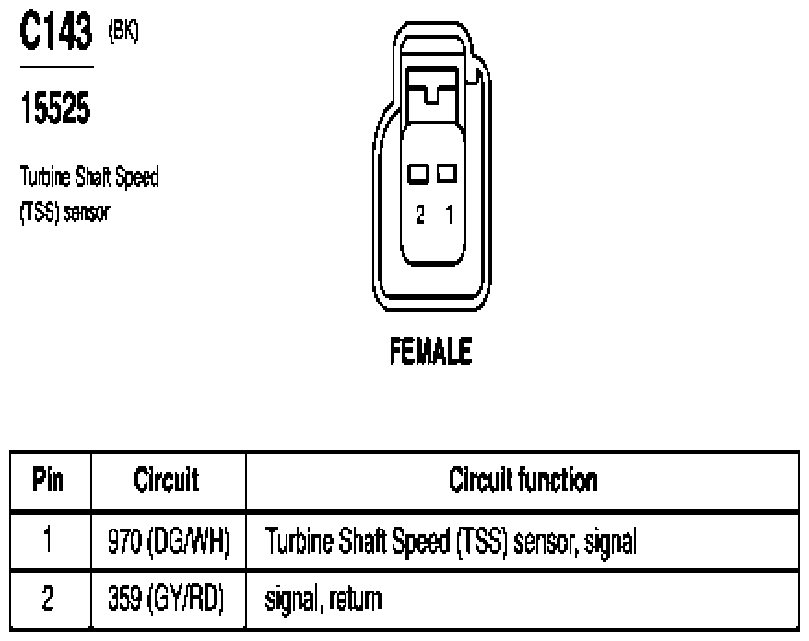

Fig 31: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07843644

Courtesy of FORD MOTOR CO.

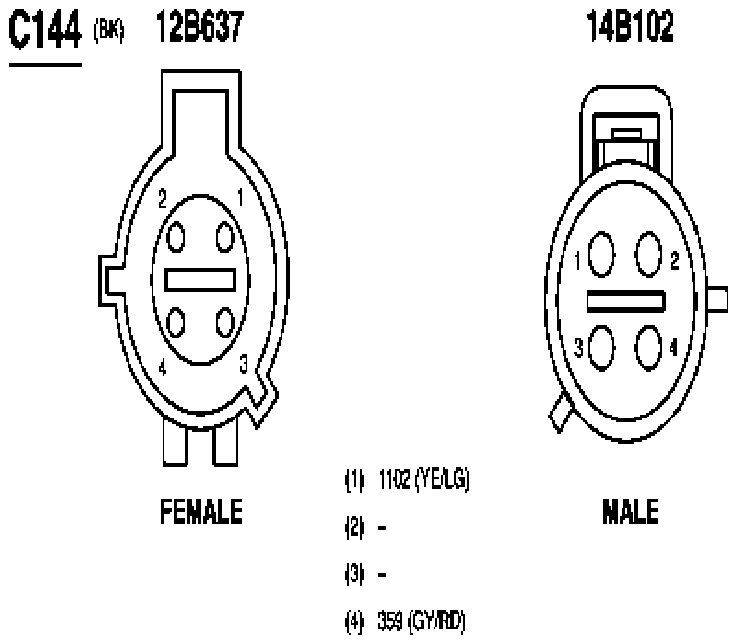

Fig 32: Inline Connector End View (C144)

G07843645

Courtesy of FORD MOTOR CO.

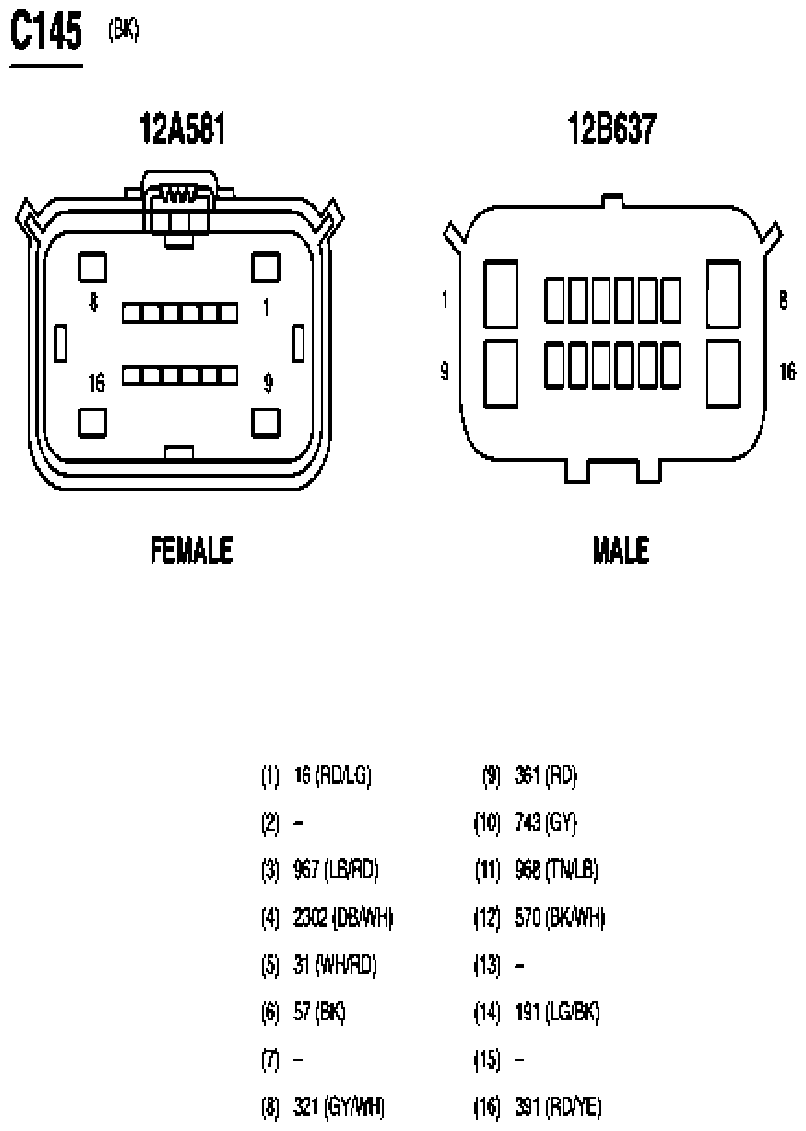

Fig 33: Inline Connector End View (C145)

G07843646

Courtesy of FORD MOTOR CO.

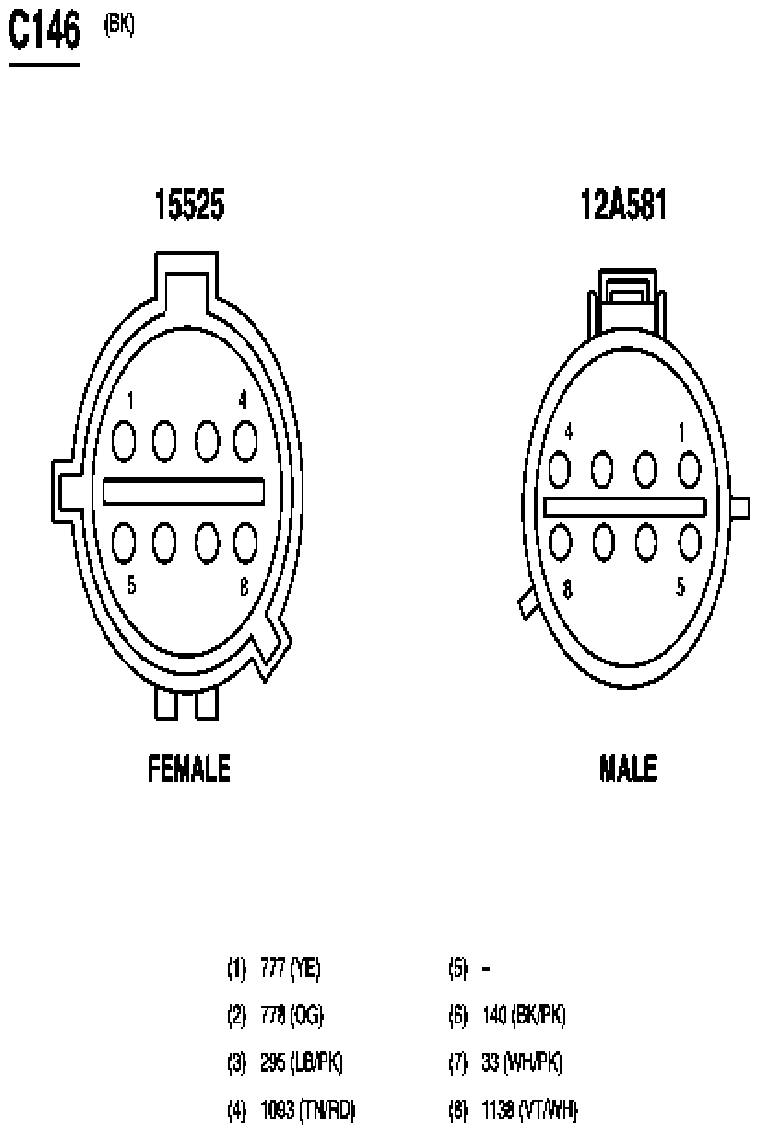

Fig 34: Inline Connector End View (C146)

G07843647

Courtesy of FORD MOTOR CO.

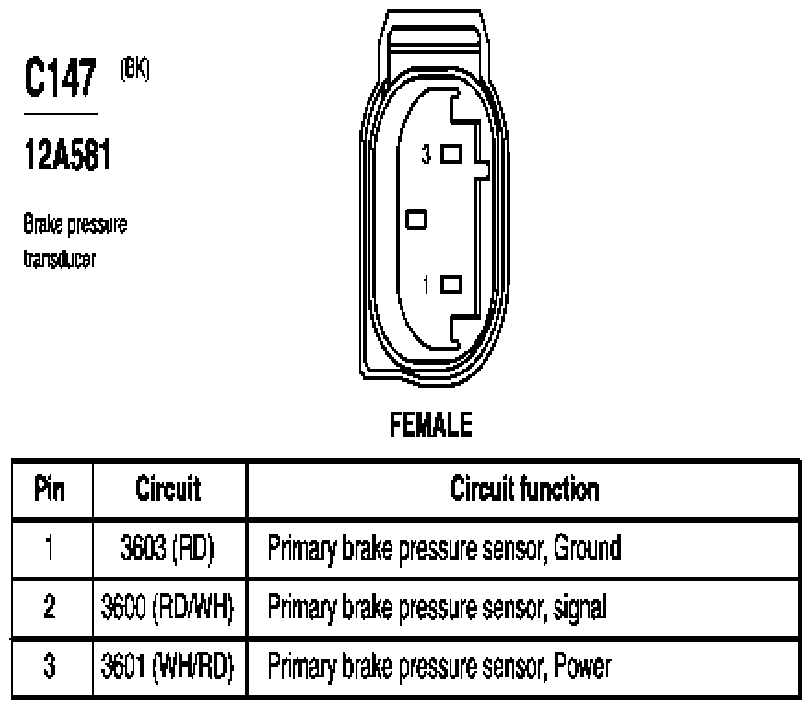

Fig 35: Brake Pressure Transducer Connector End View (C147)

G07843648

Courtesy of FORD MOTOR CO.

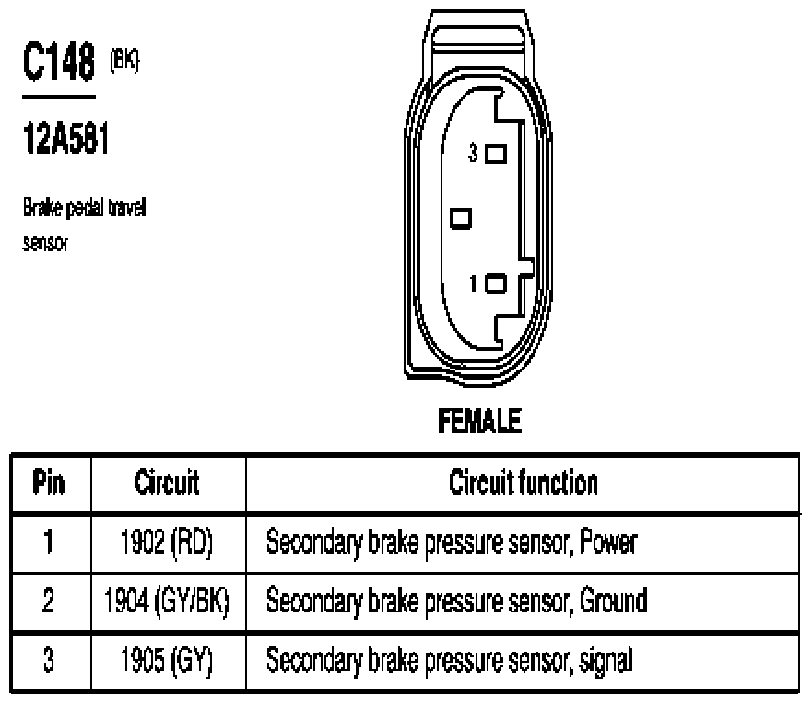

Fig 36: Brake Pedal Travel Sensor Connector End View (C148)

G07843649

Courtesy of FORD MOTOR CO.

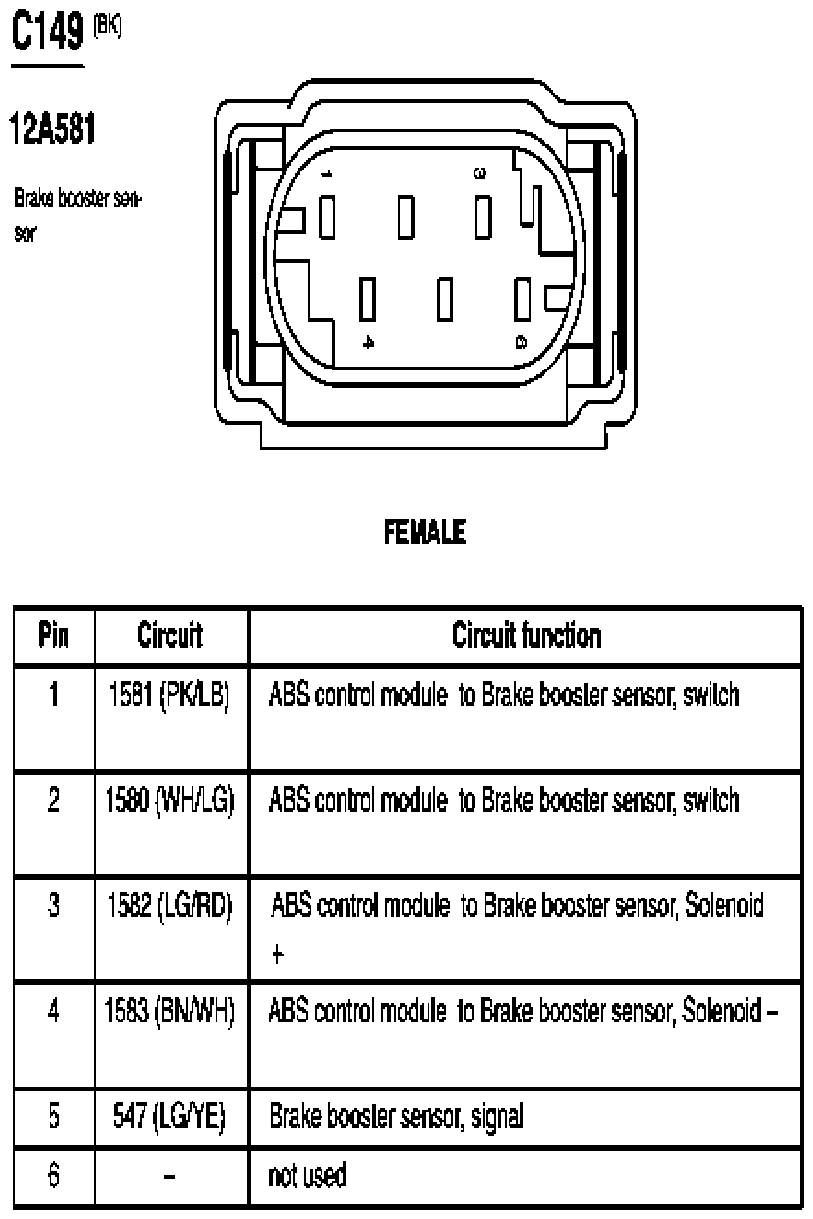

Fig 37: Brake Booster Sensor Connector End View (C149)

G07843650

Courtesy of FORD MOTOR CO.

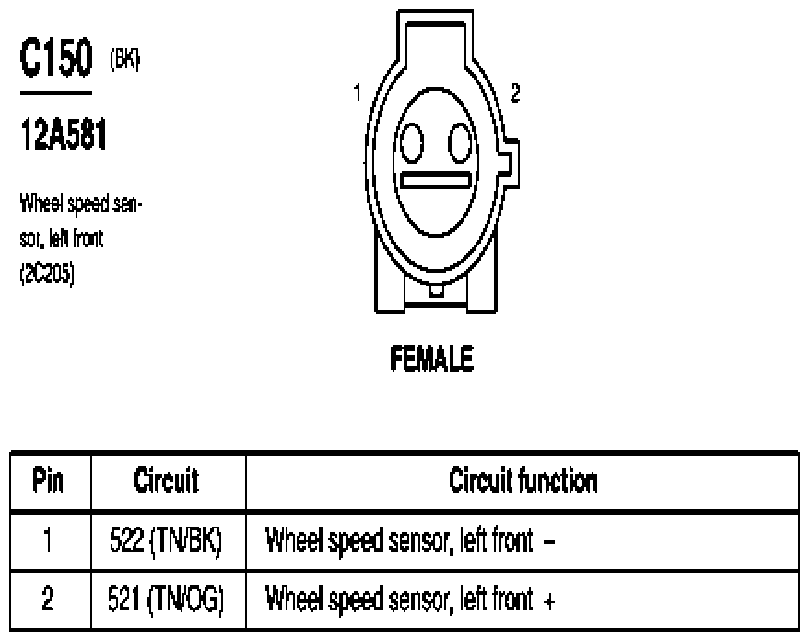

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07843651

Courtesy of FORD MOTOR CO.

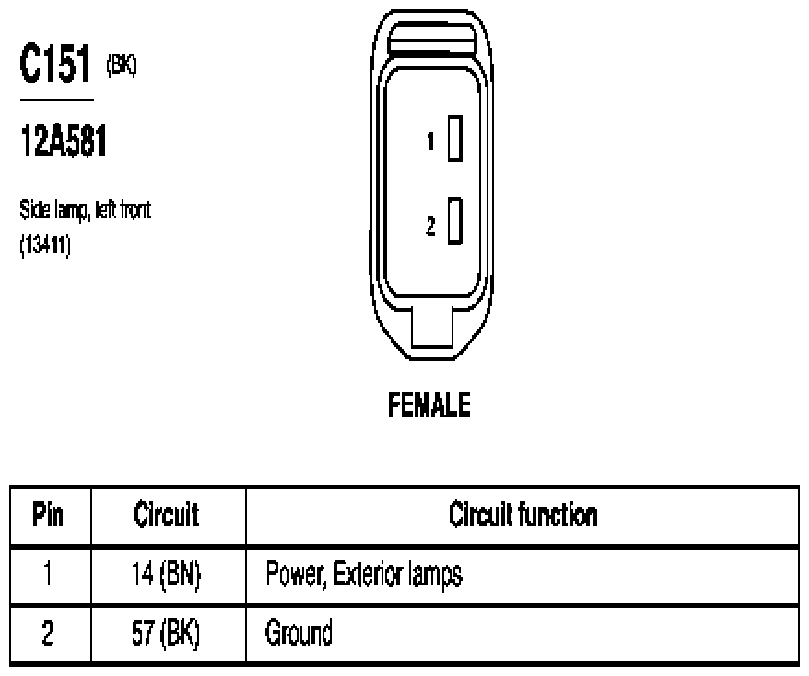

Fig 39: Side Lamp, Left Front Connector End View (C151)

G07843652

Courtesy of FORD MOTOR CO.

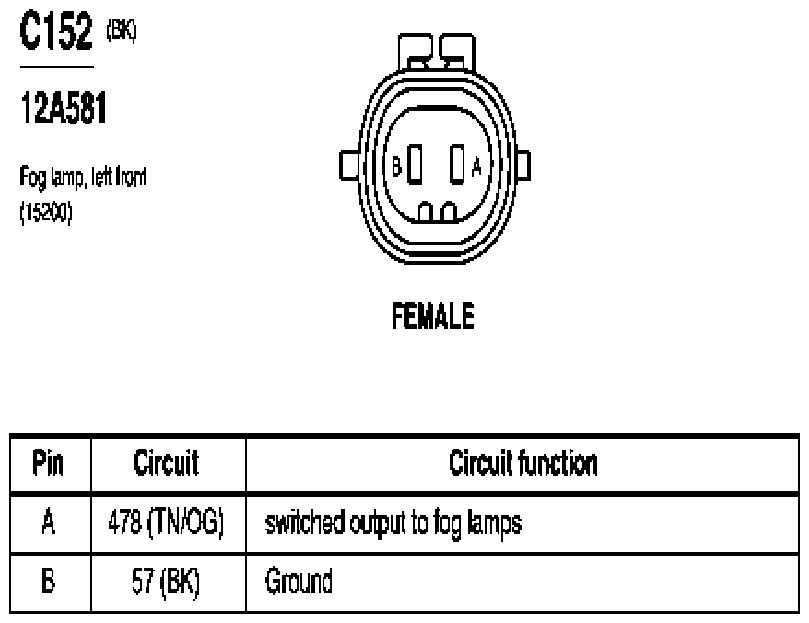

Fig 40: Fog Lamp, Left Front Connector End View (C152)

G07843653

Courtesy of FORD MOTOR CO.

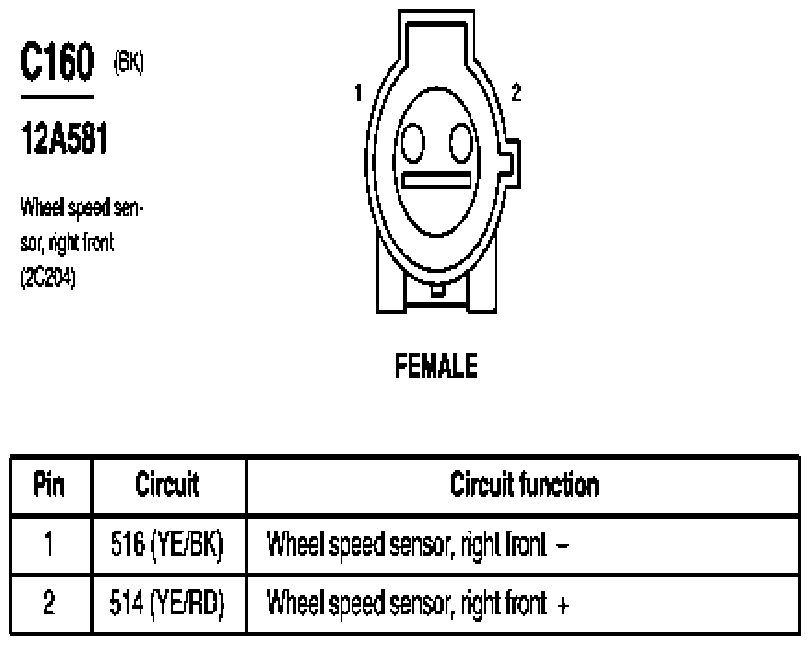

Fig 41: Wheel Speed Sensor, Right Front Connector End View (C160)

G07843654

Courtesy of FORD MOTOR CO.

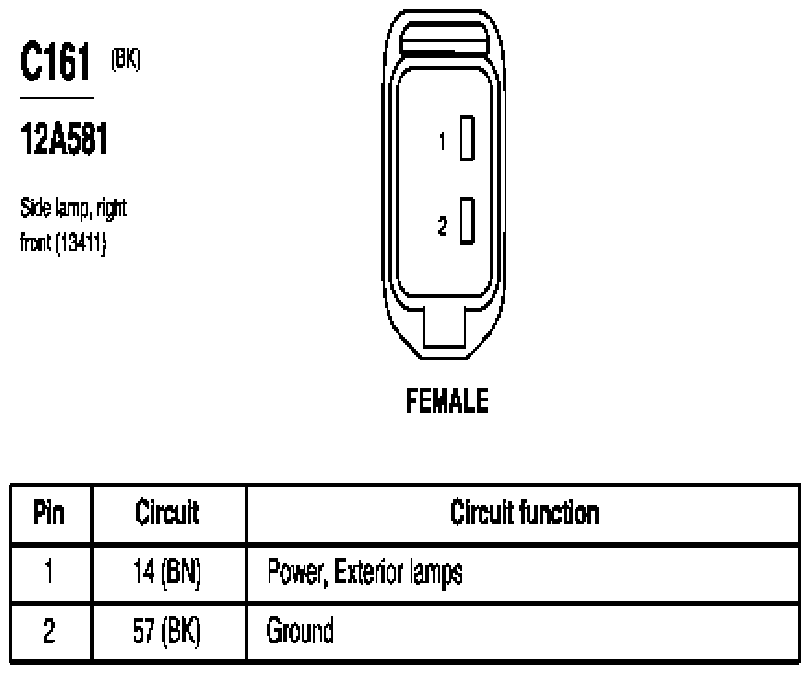

Fig 42: Side Lamp, Right Front Connector End View (C161)

G07843655

Courtesy of FORD MOTOR CO.

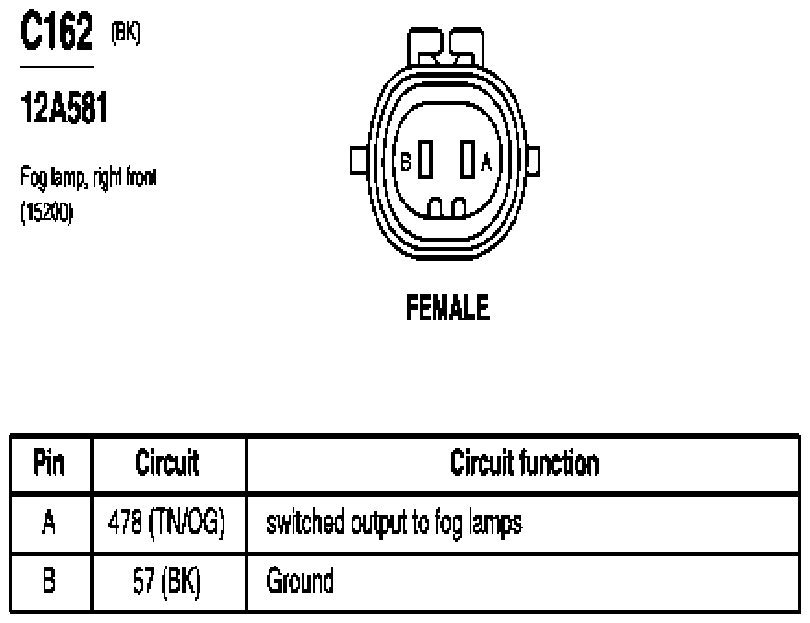

Fig 43: Fog Lamp, Right Front Connector End View (C162)

G07843656

Courtesy of FORD MOTOR CO.

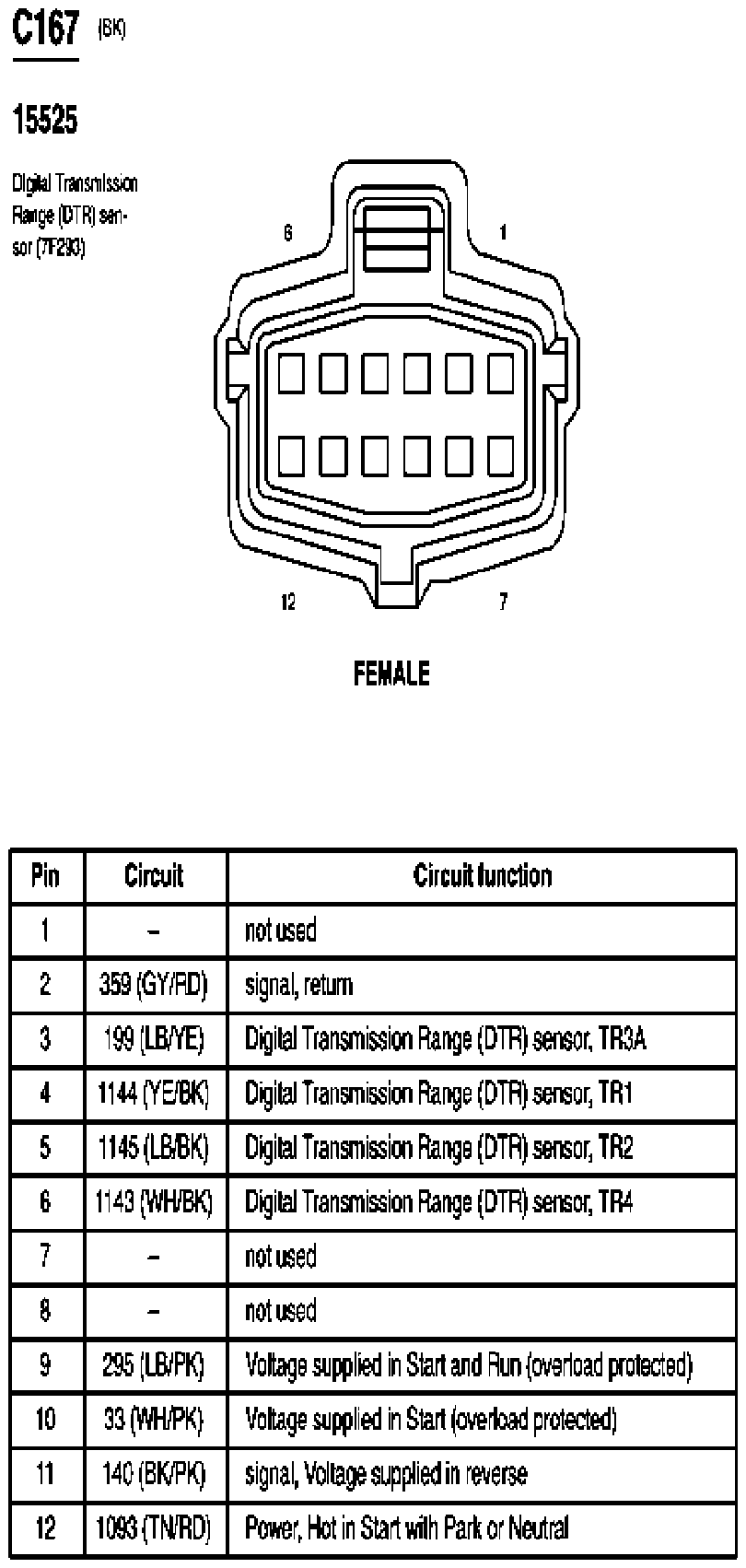

Fig 44: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07843657

Courtesy of FORD MOTOR CO.

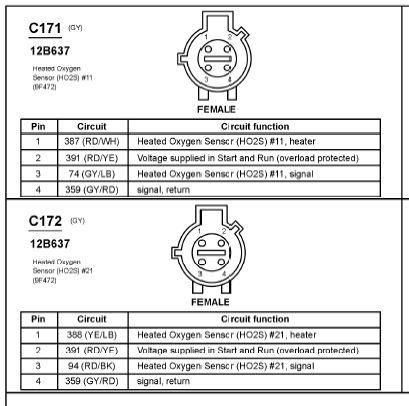

Fig 45: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G00584408

Courtesy of FORD MOTOR CO.

Fig 46: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G00584408

Courtesy of FORD MOTOR CO.

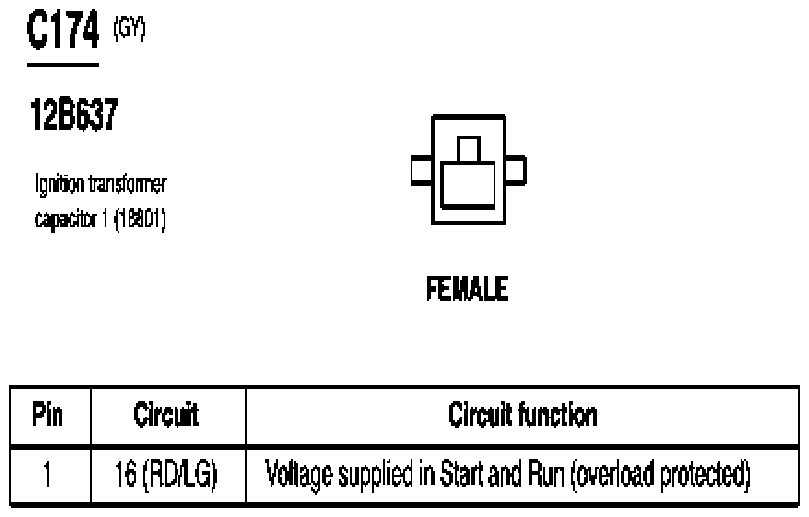

Fig 47: Ignition Transformer Capacitor 1 Connector End View (C174)

G07843660

Courtesy of FORD MOTOR CO.

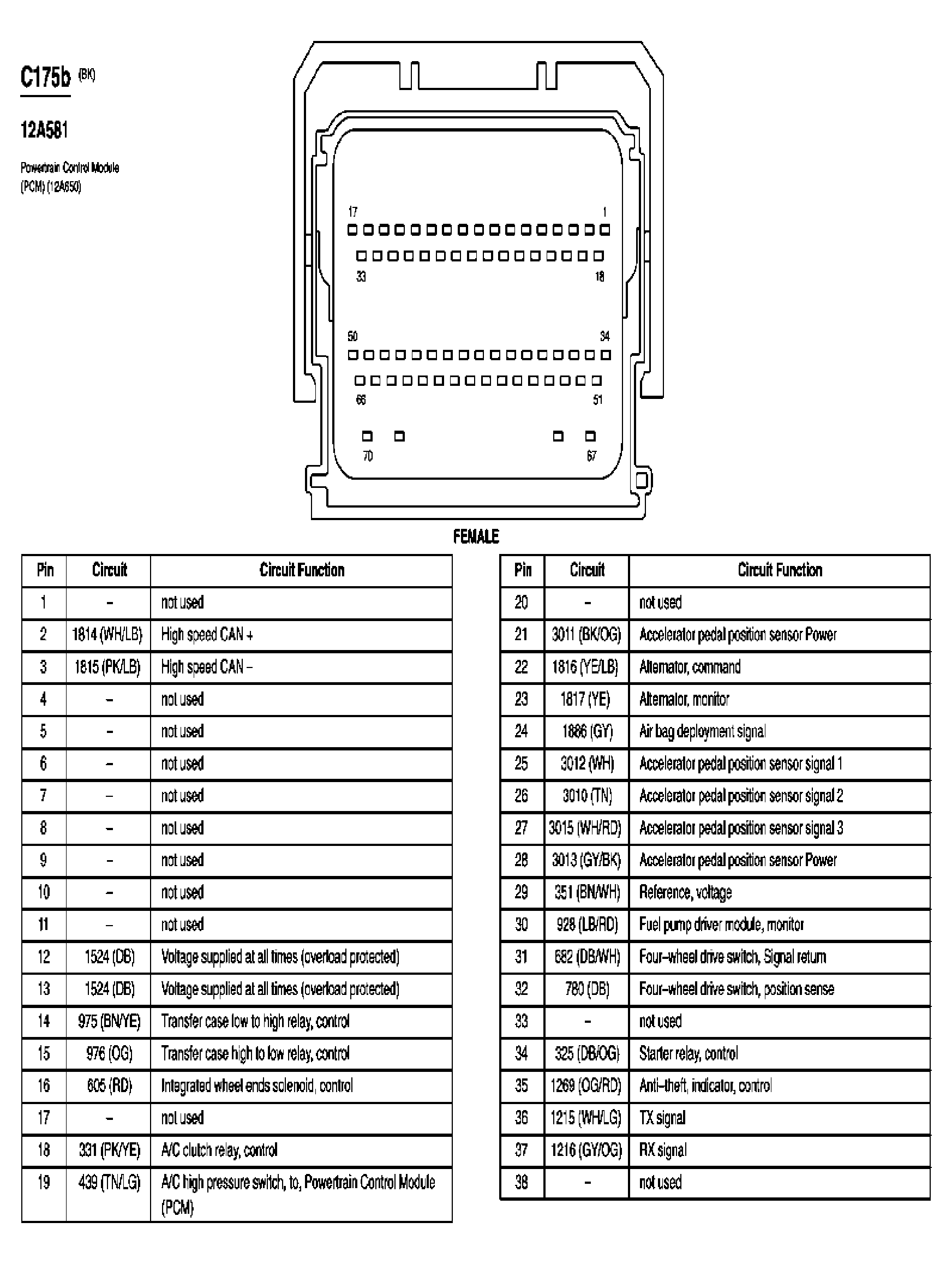

Fig 48: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)

G03993509

Courtesy of FORD MOTOR CO.

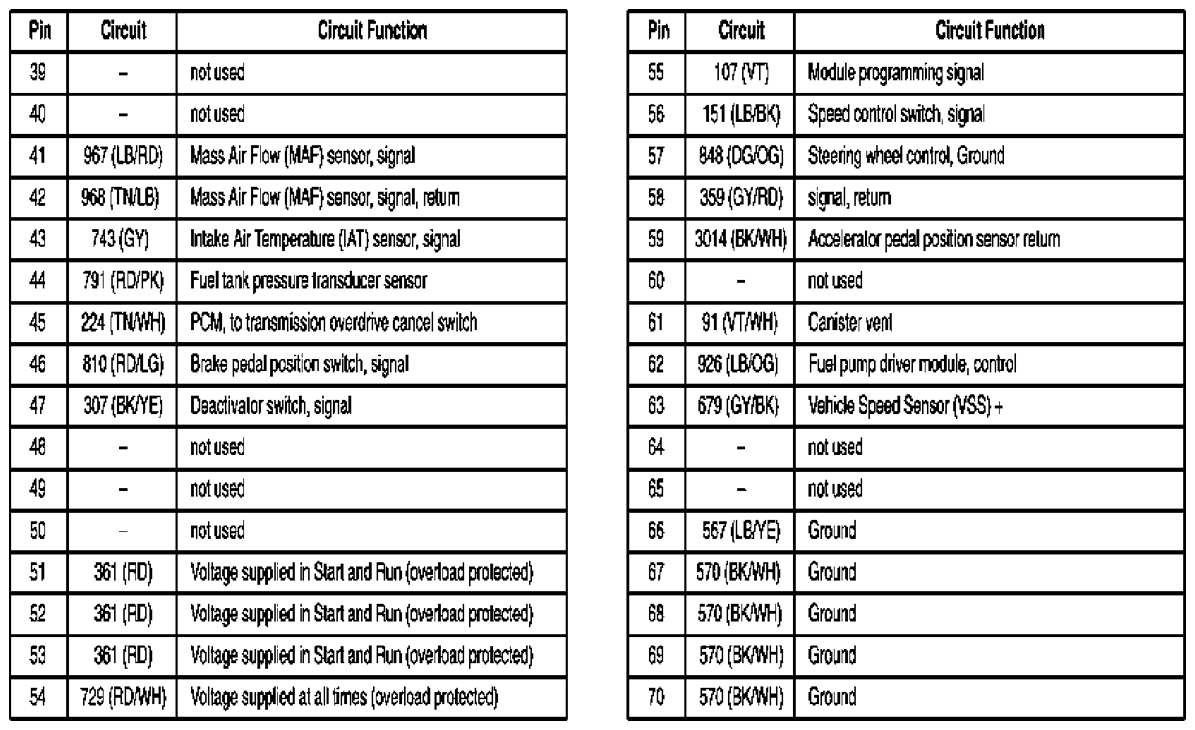

Fig 49: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)

G03993510

Courtesy of FORD MOTOR CO.

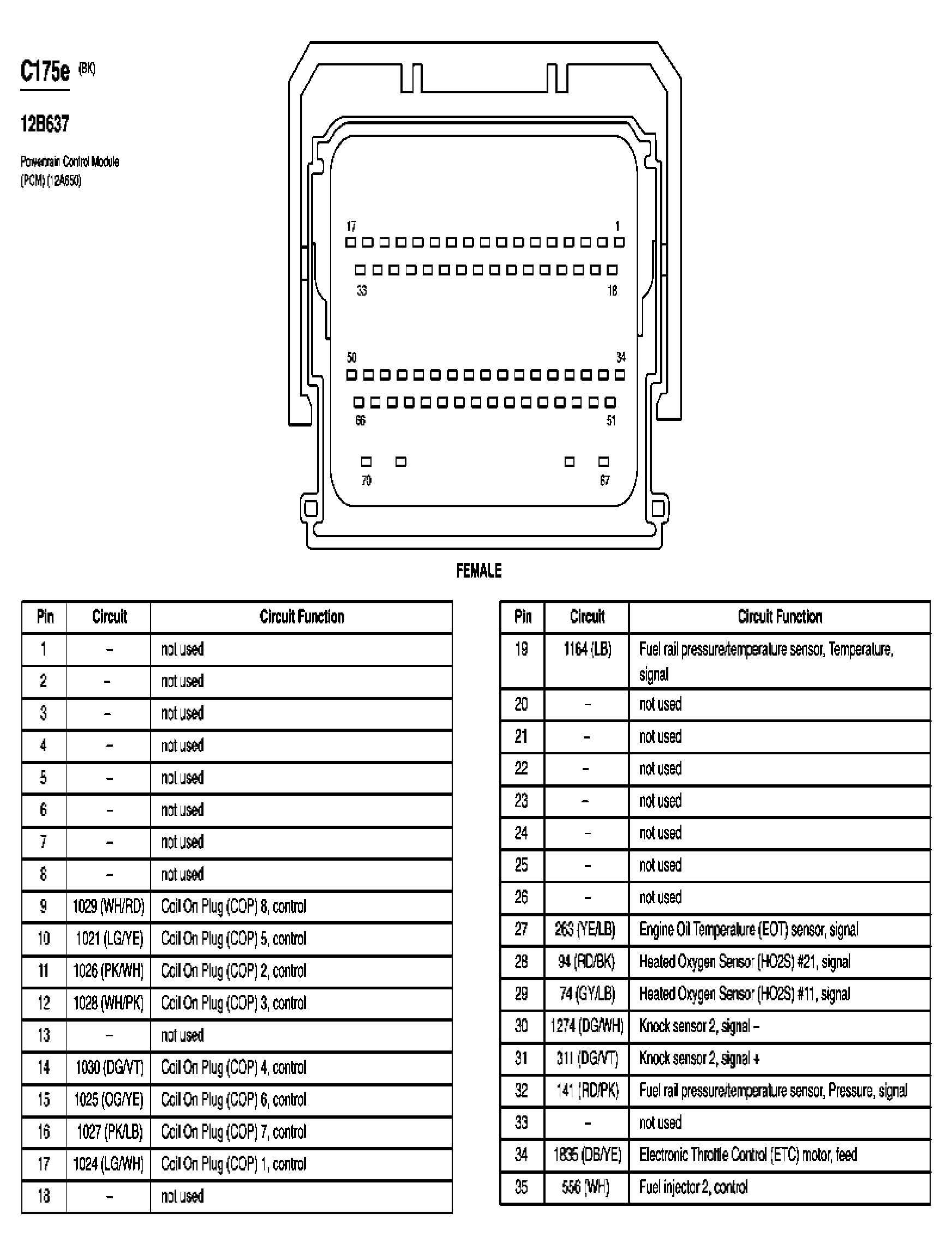

Fig 50: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)

G03993511

Courtesy of FORD MOTOR CO.

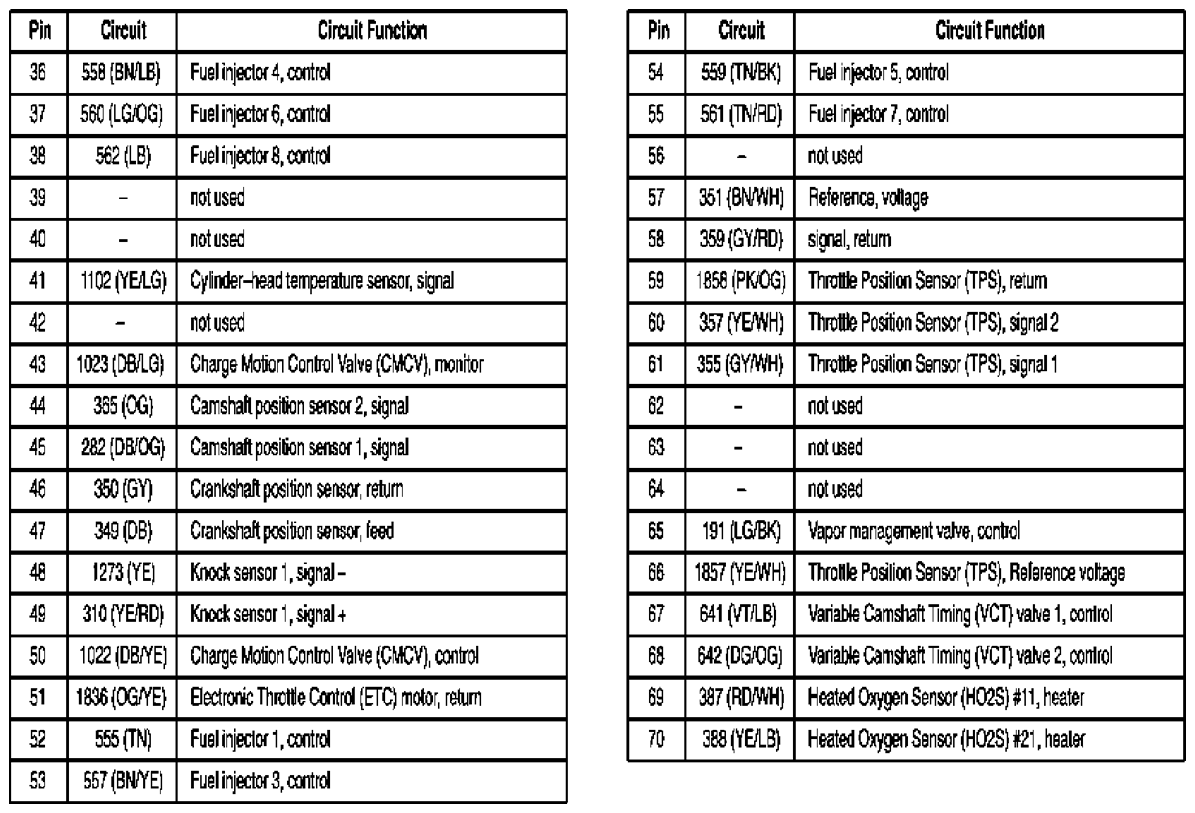

Fig 51: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)

G03993512

Courtesy of FORD MOTOR CO.

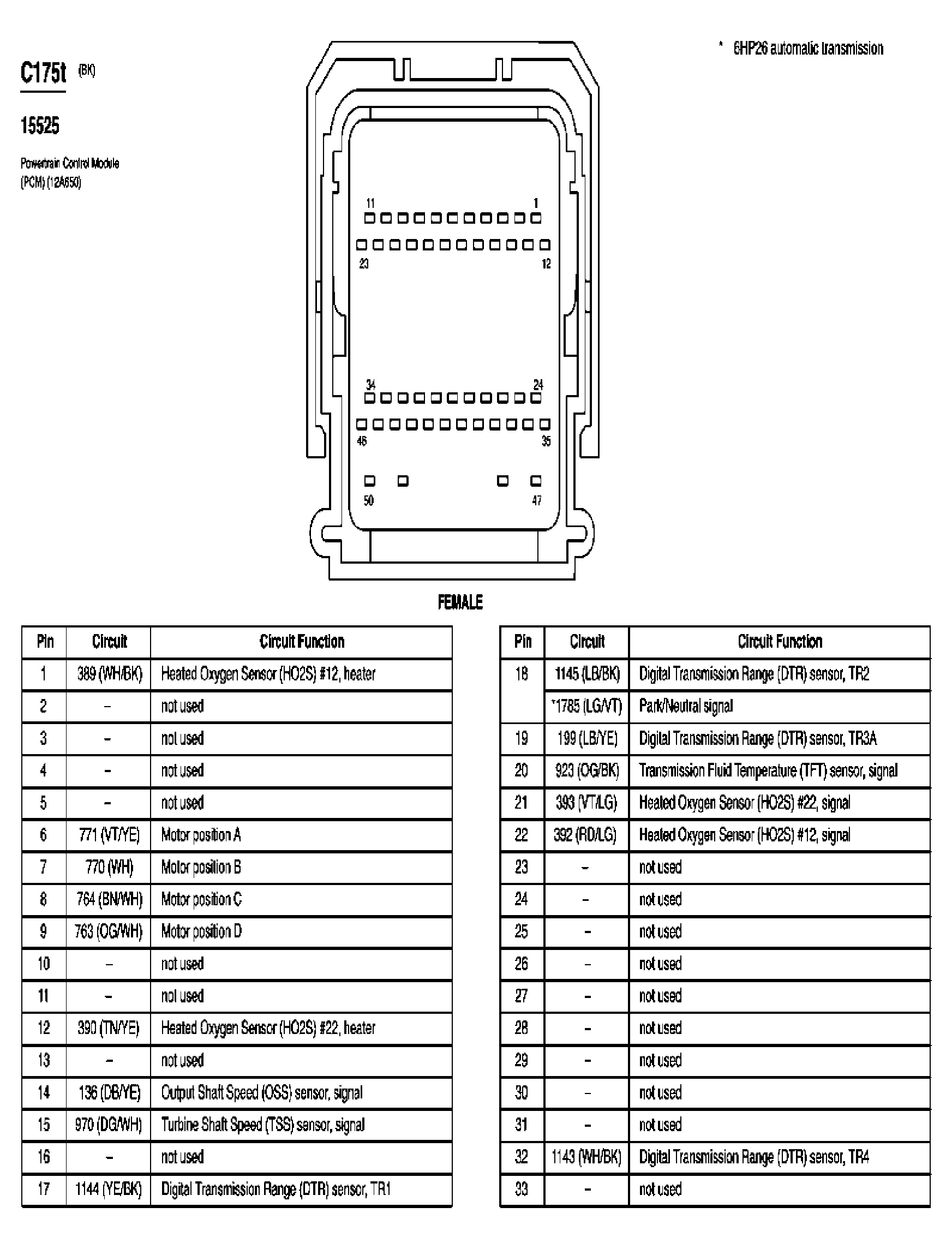

Fig 52: Powertrain Control Module (PCM) Connector End View (C175t) (1 Of 2)

G03993513

Courtesy of FORD MOTOR CO.

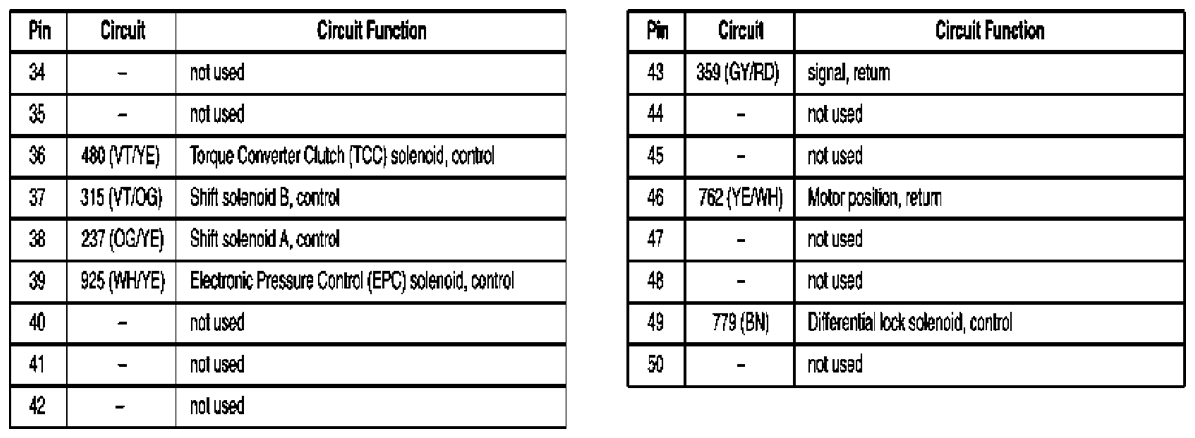

Fig 53: Powertrain Control Module (PCM) Connector End View (C175t) (2 Of 2)

G03993514

Courtesy of FORD MOTOR CO.

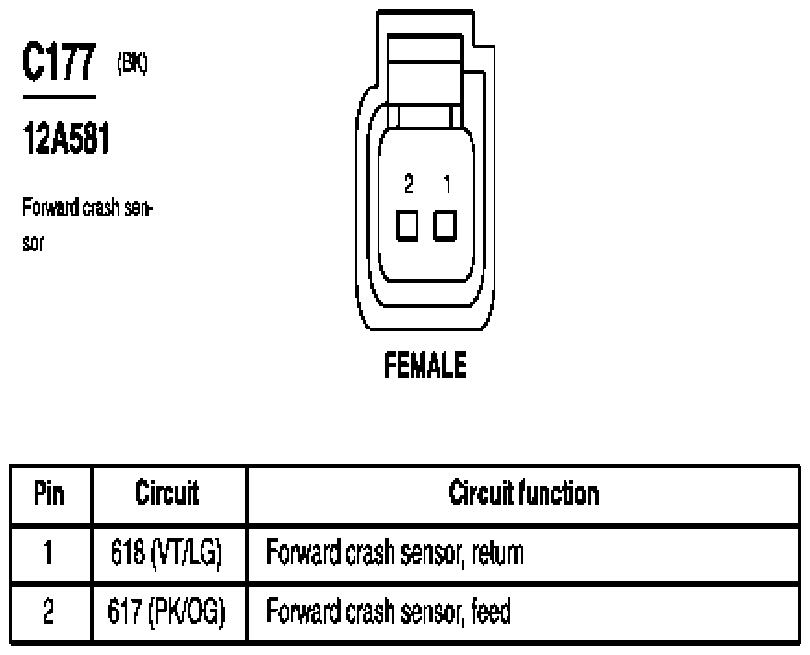

Fig 54: Forward Crash Sensor Connector End View (C177)

G07843661

Courtesy of FORD MOTOR CO.

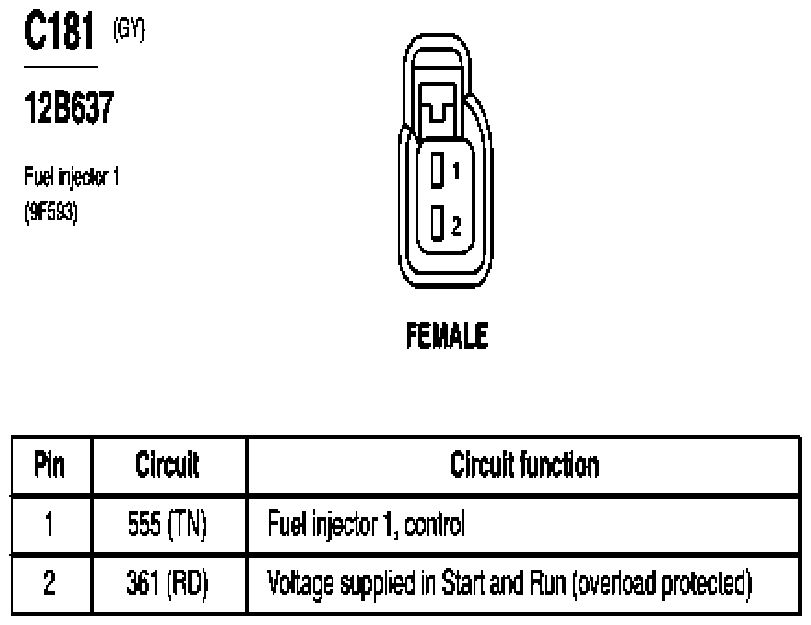

Fig 55: Fuel Injector 1 Connector End View (C181)

G07843662

Courtesy of FORD MOTOR CO.

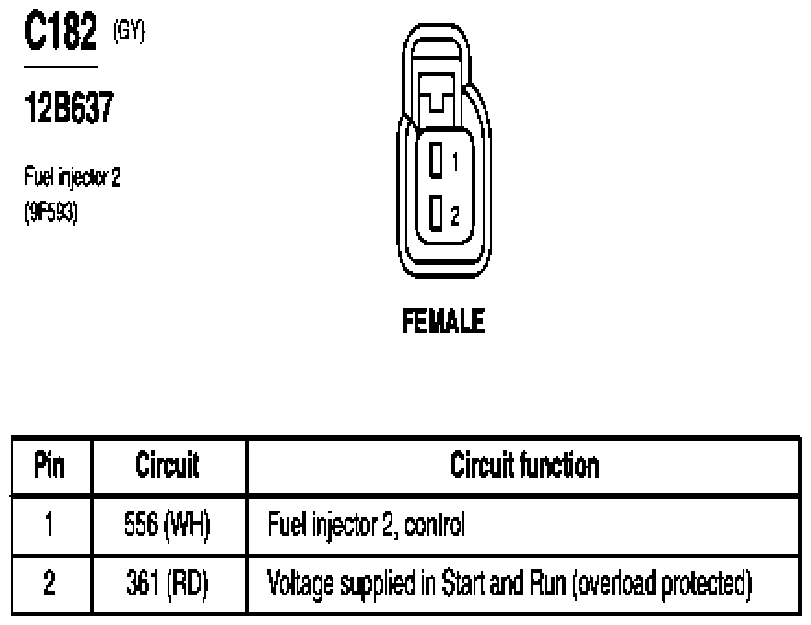

Fig 56: Fuel Injector 2 Connector End View (C182)

G07843663

Courtesy of FORD MOTOR CO.

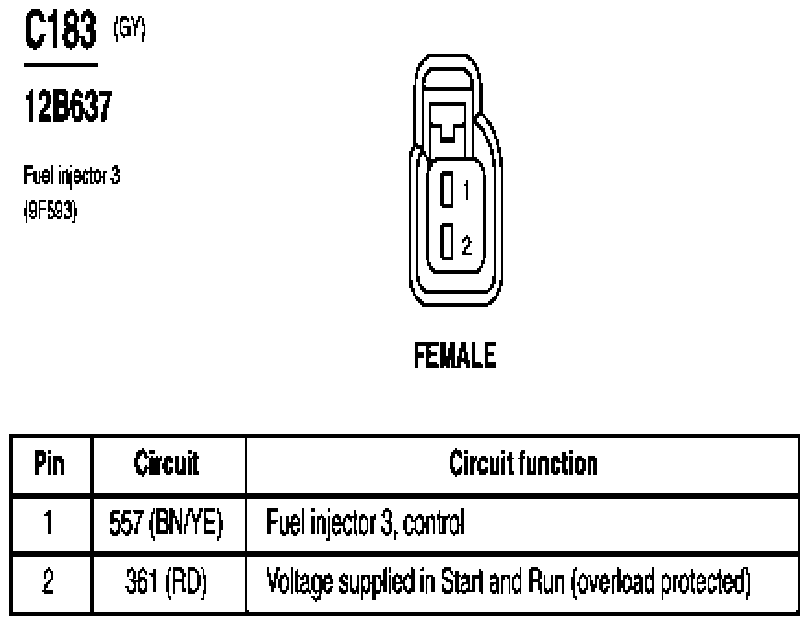

Fig 57: Fuel Injector 3 Connector End View (C183)

G07843664

Courtesy of FORD MOTOR CO.

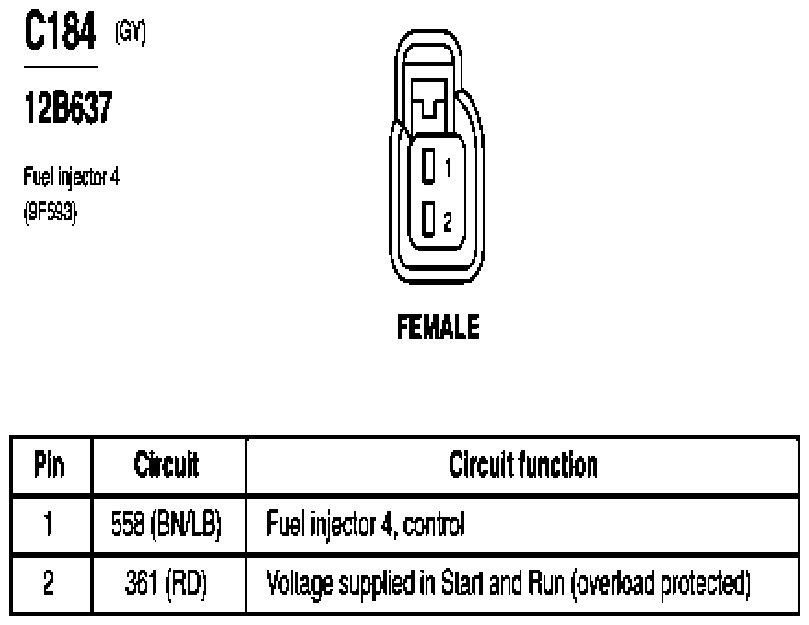

Fig 58: Fuel Injector 4 Connector End View (C184)

G07843665

Courtesy of FORD MOTOR CO.

Fig 59: Fuel Injector 5 Connector End View (C185)

G07843666

Courtesy of FORD MOTOR CO.

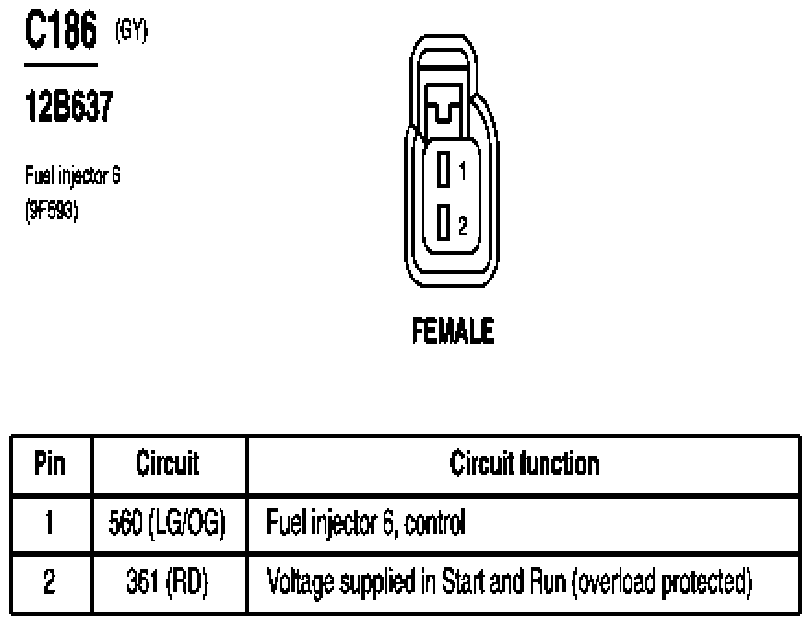

Fig 60: Fuel Injector 6 Connector End View (C186)

G07843667

Courtesy of FORD MOTOR CO.

Fig 61: Fuel Injector 7 Connector End View (C187)

G07843668

Courtesy of FORD MOTOR CO.

Fig 62: Fuel Injector 8 Connector End View (C188)

G07843669

Courtesy of FORD MOTOR CO.

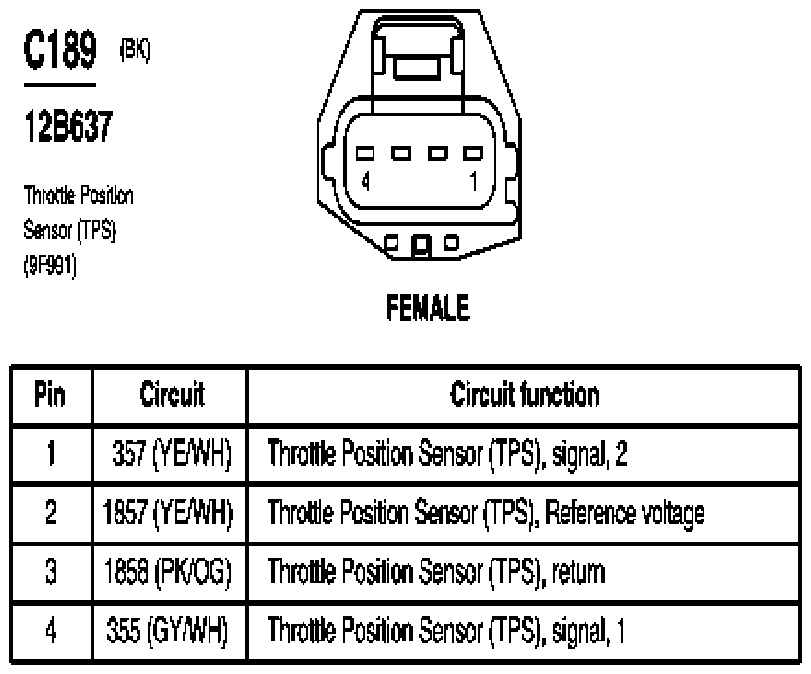

Fig 63: Throttle Position Sensor (TPS) Connector End View (C189)

G07843670

Courtesy of FORD MOTOR CO.

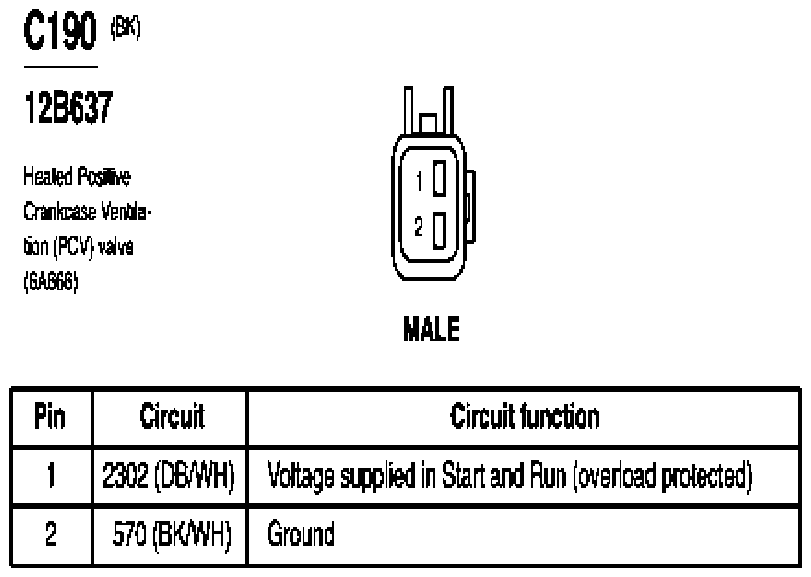

Fig 64: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G07843671

Courtesy of FORD MOTOR CO.

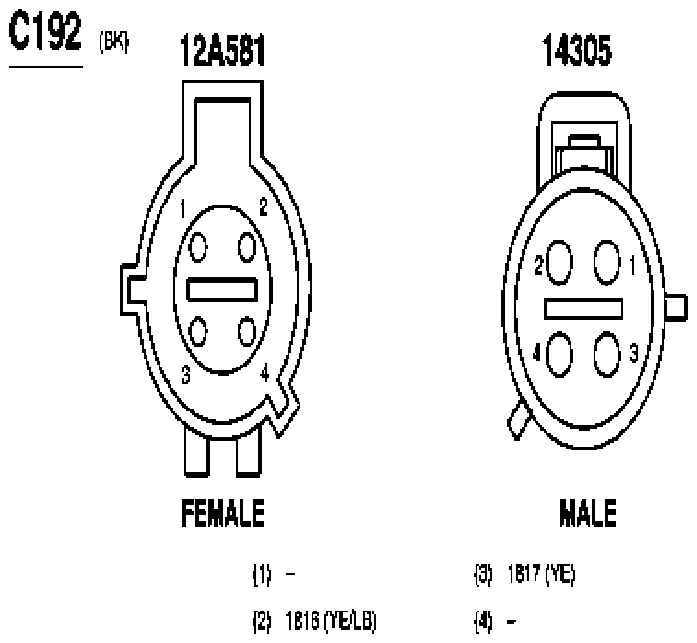

Fig 65: Inline Connector End View (C192)

G07843672

Courtesy of FORD MOTOR CO.

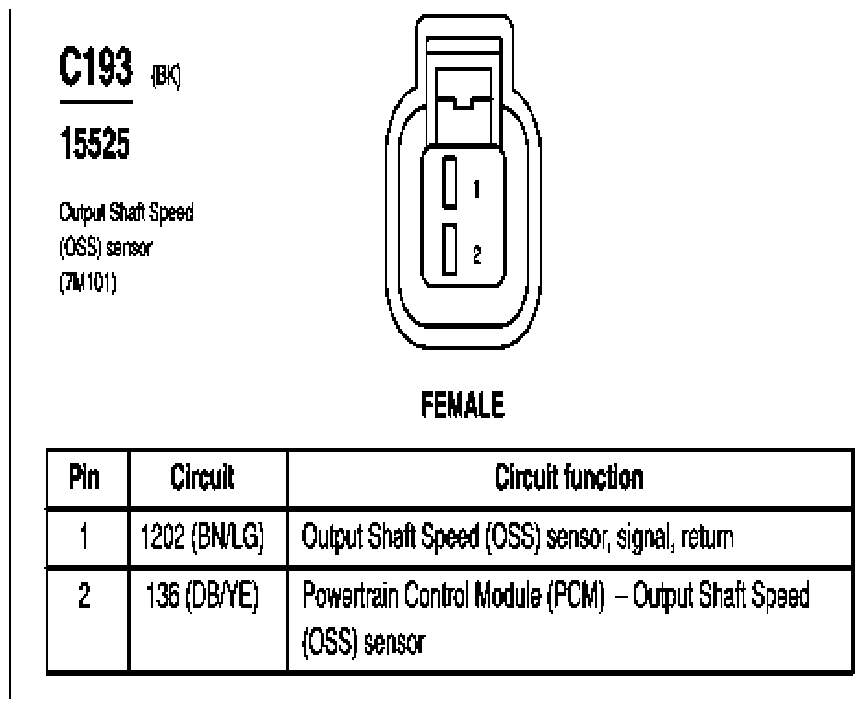

Fig 66: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07843673

Courtesy of FORD MOTOR CO.

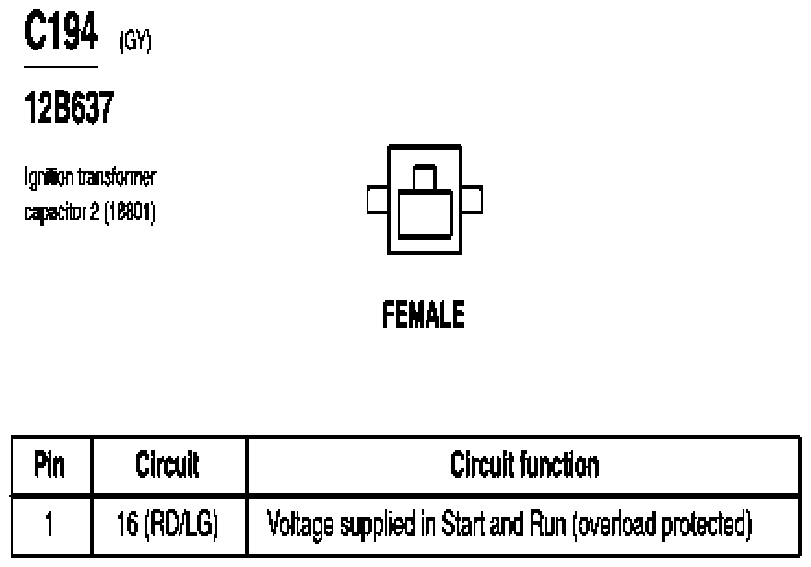

Fig 67: Ignition Transformer Capacitor 2 Connector End View (C194)

G07843674

Courtesy of FORD MOTOR CO.

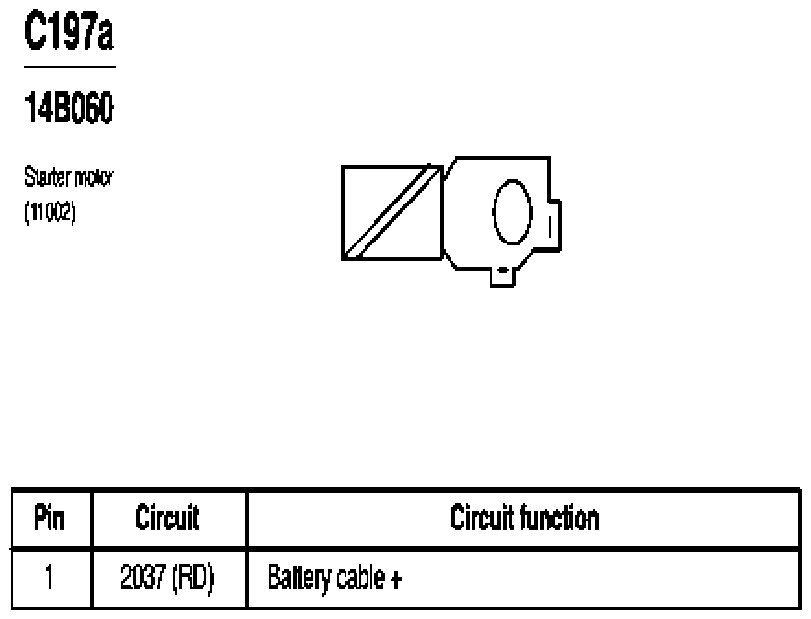

Fig 68: Starter Motor Connector End View (C197a)

G07843675

Courtesy of FORD MOTOR CO.

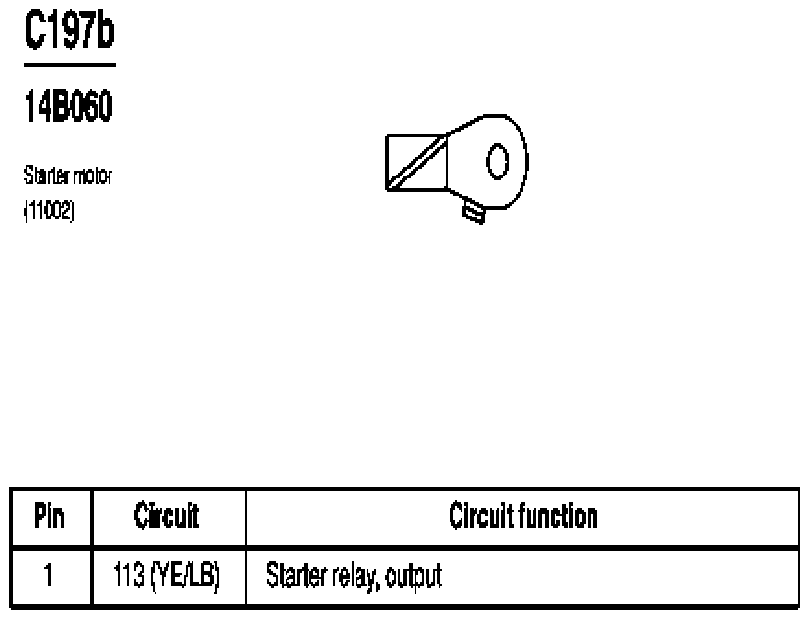

Fig 69: Starter Motor Connector End View (C197b)

G07843676

Courtesy of FORD MOTOR CO.

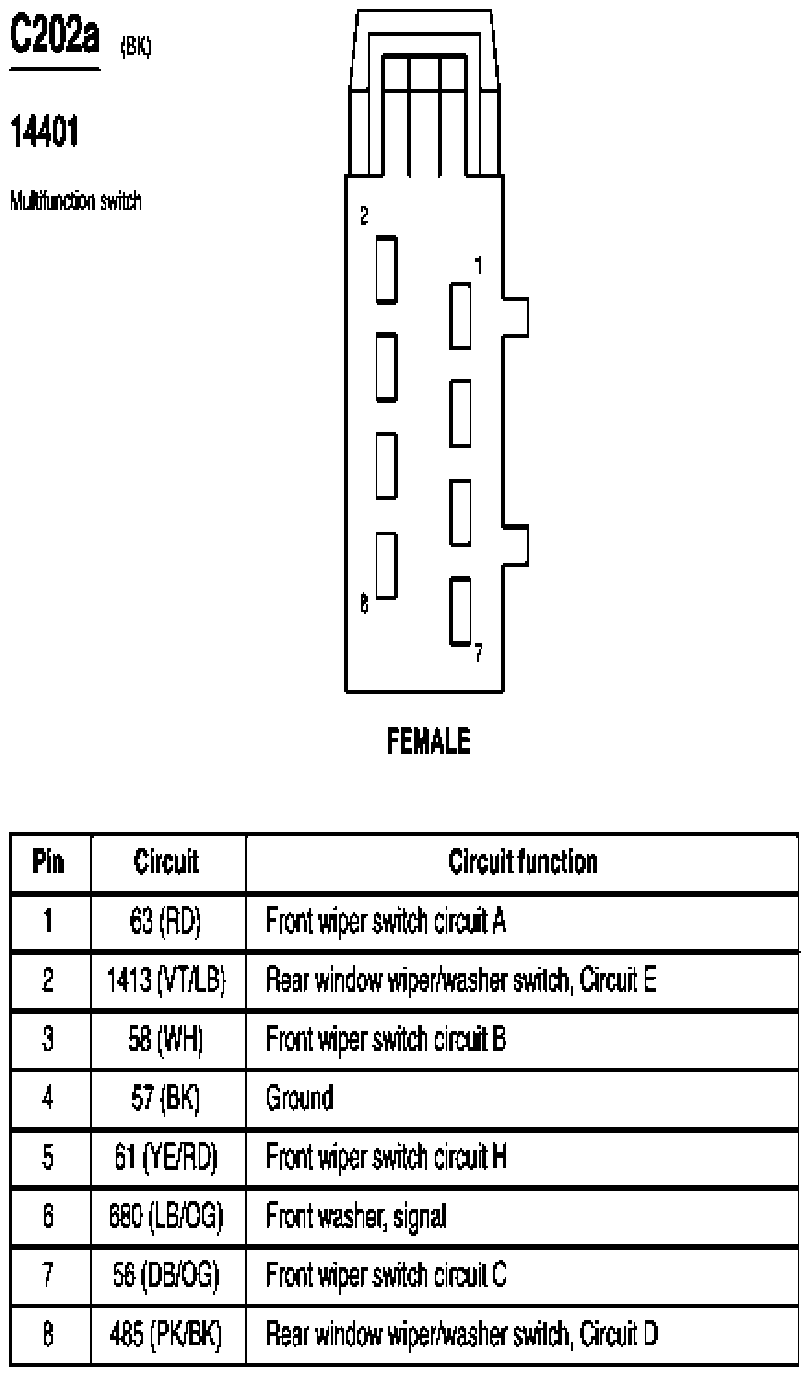

Fig 70: Multifunction Switch Connector End View (C202a)

G07843677

Courtesy of FORD MOTOR CO.

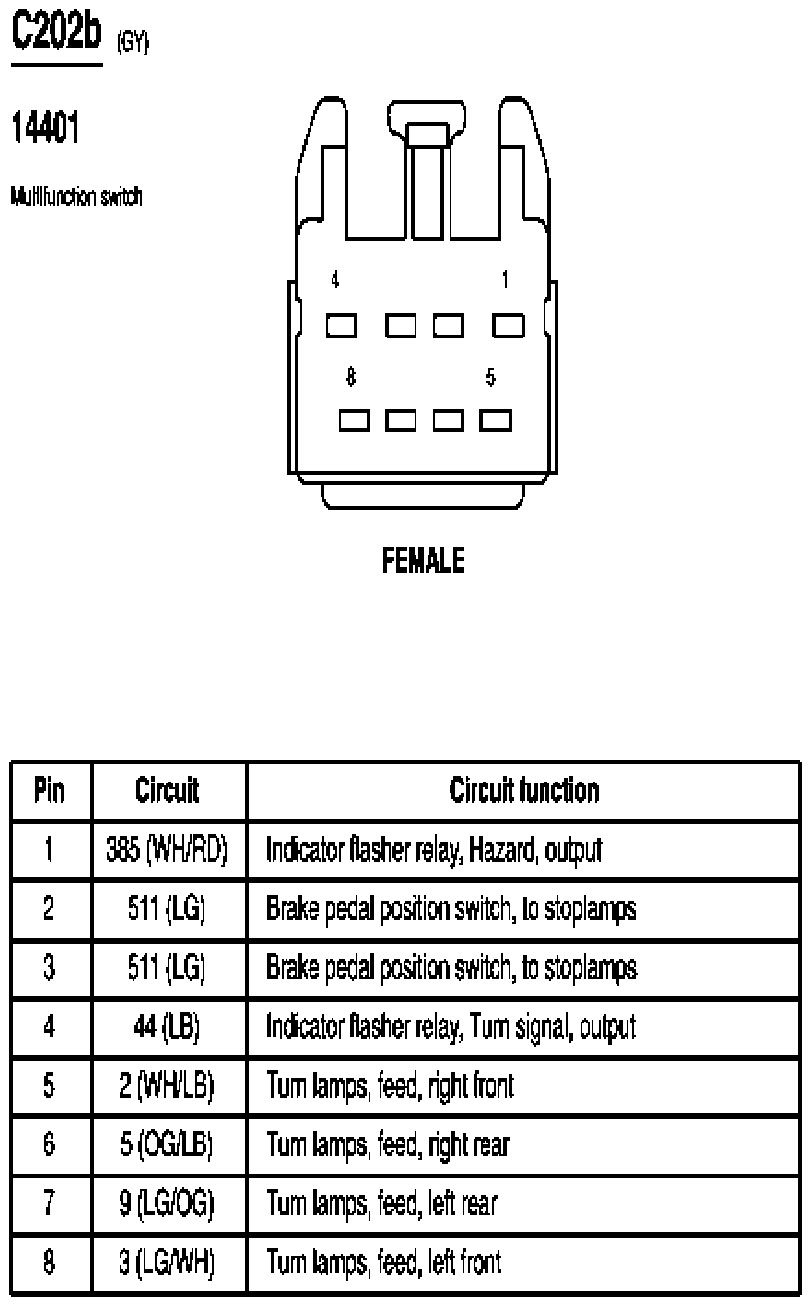

Fig 71: Multifunction Switch Connector End View (C202b)

G07843678

Courtesy of FORD MOTOR CO.

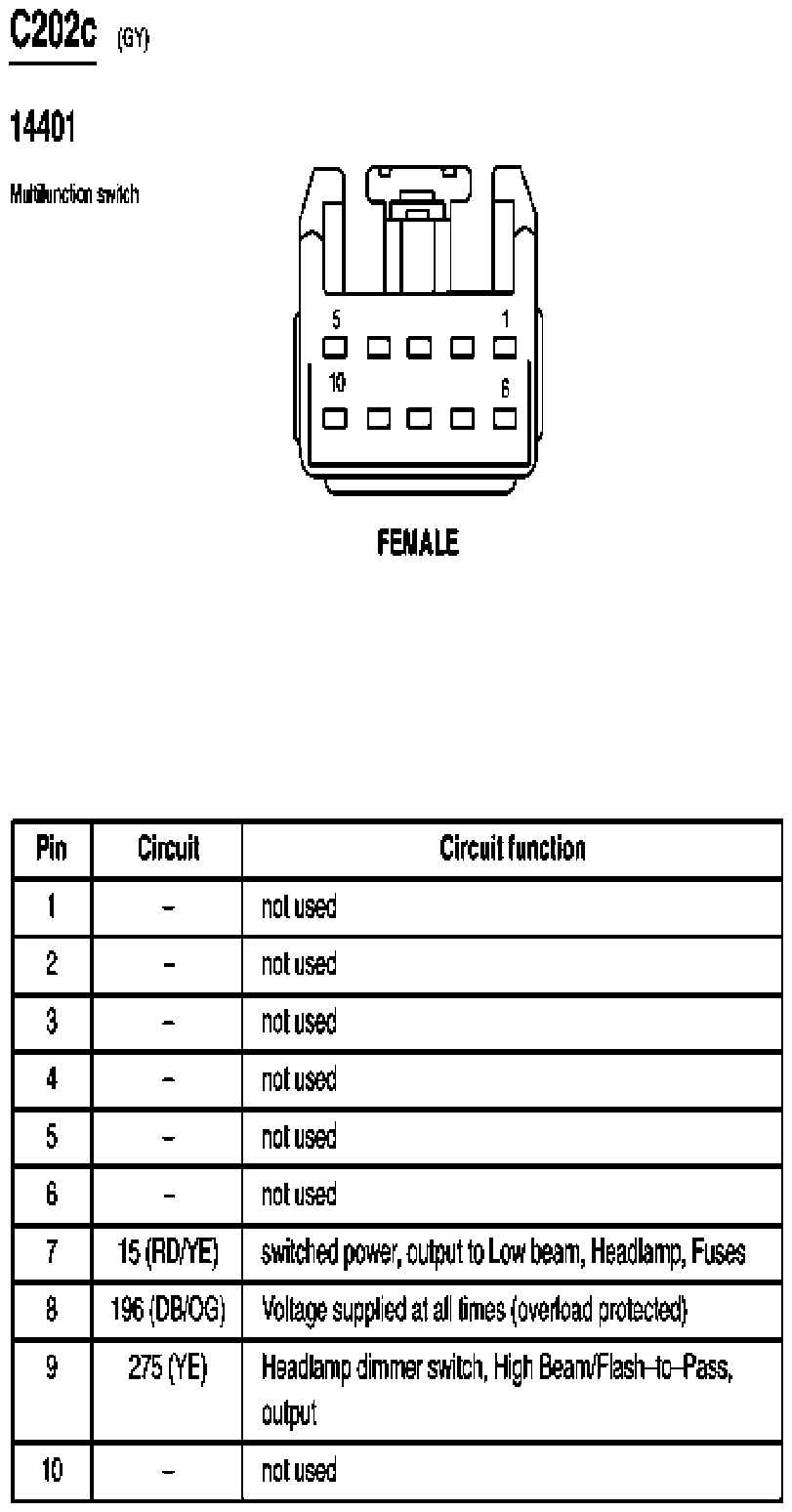

Fig 72: Multifunction Switch Connector End View (C202c)

G07843679

Courtesy of FORD MOTOR CO.

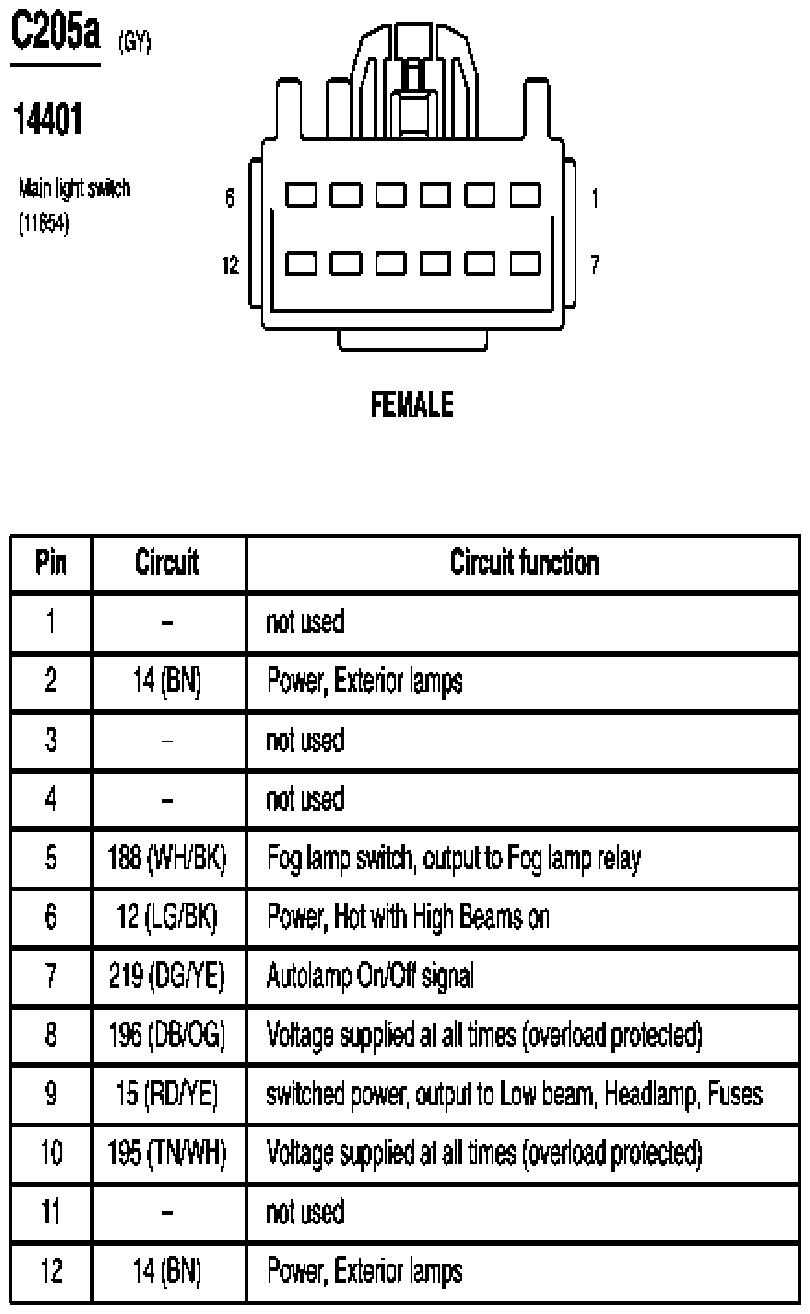

Fig 73: Main Light Switch Connector End View (C205a)

G07843680

Courtesy of FORD MOTOR CO.

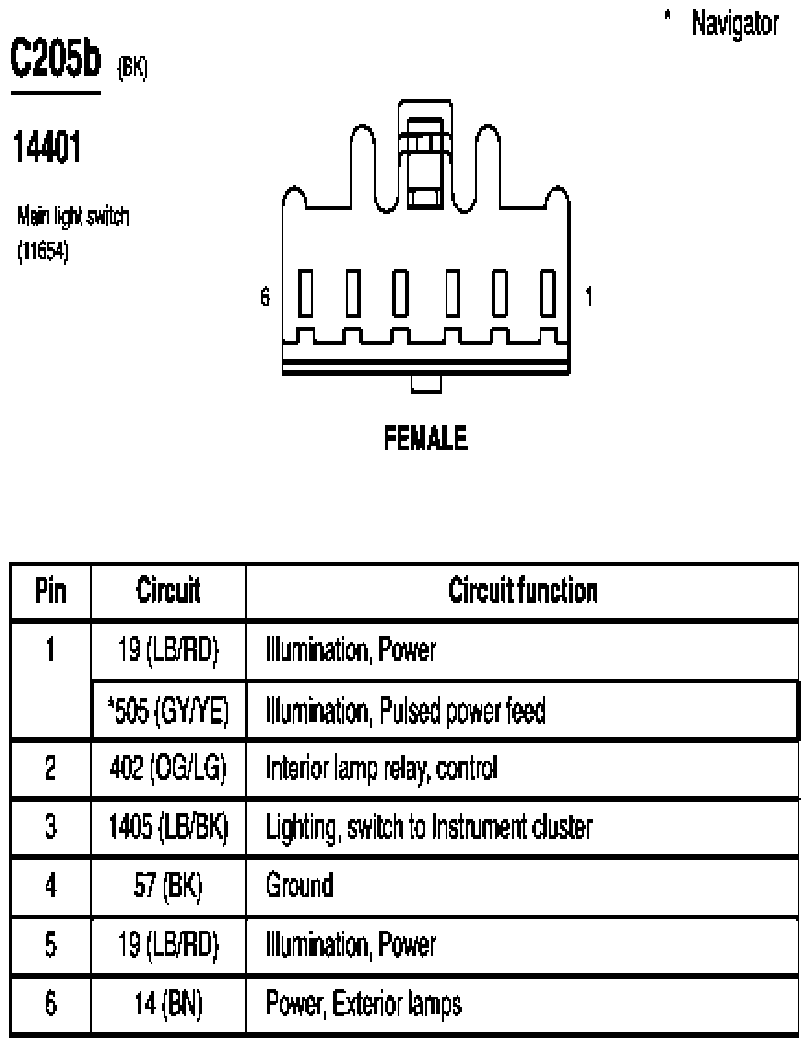

Fig 74: Main Light Switch Connector End View (C205b)

G07843681

Courtesy of FORD MOTOR CO.

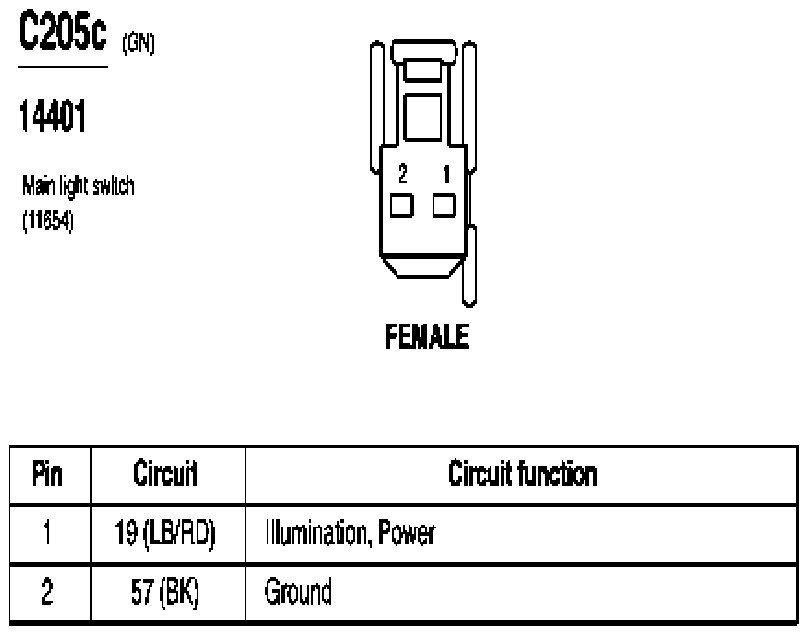

Fig 75: Main Light Switch Connector End View (C205c)

G07843682

Courtesy of FORD MOTOR CO.

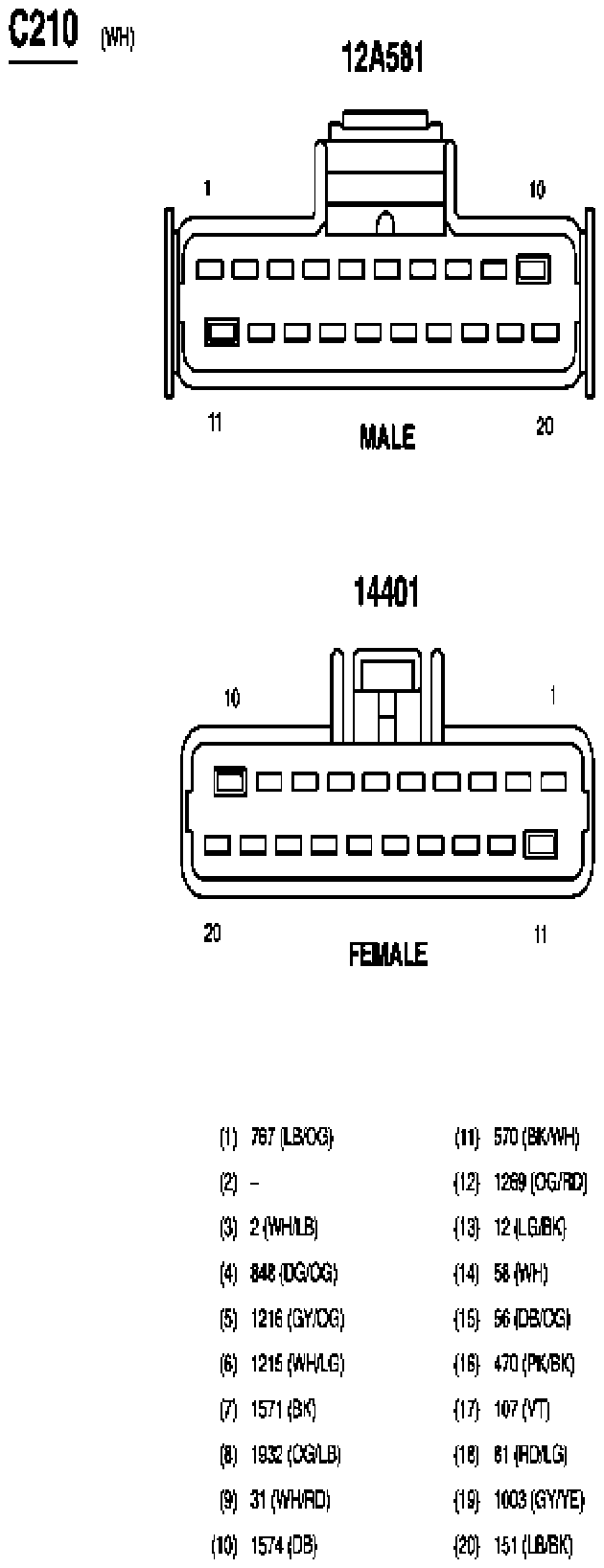

Fig 76: Inline Connector End View (C210)

G07843683

Courtesy of FORD MOTOR CO.

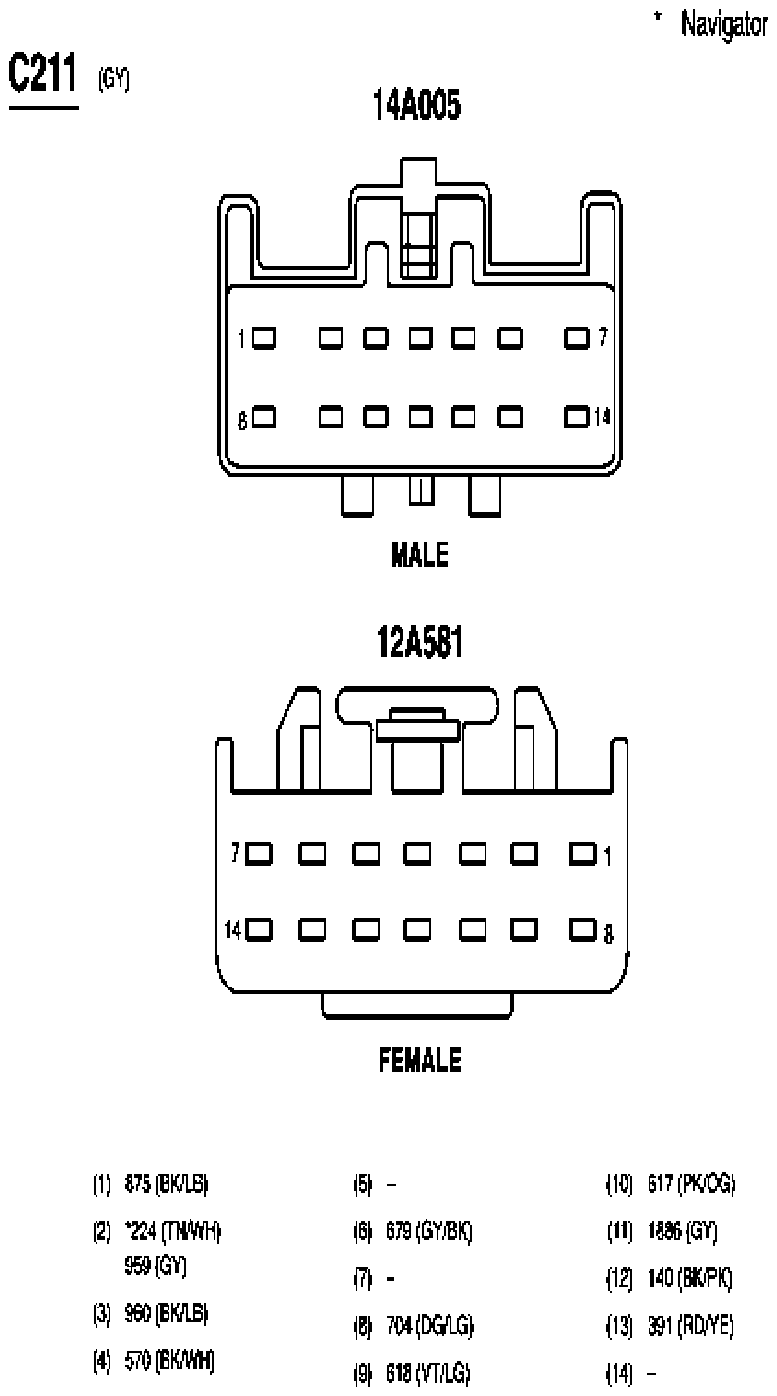

Fig 77: Inline Connector End View (C211)

G07843684

Courtesy of FORD MOTOR CO.

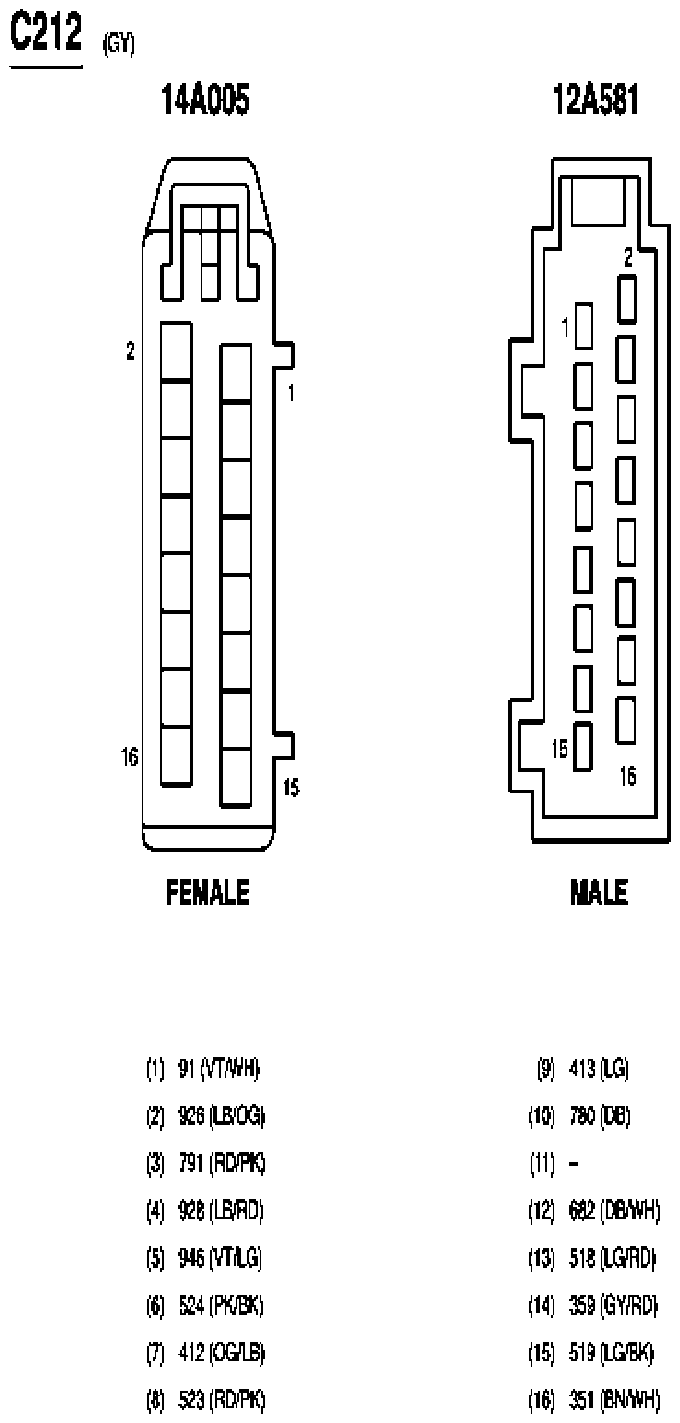

Fig 78: Inline Connector End View (C212)

G07843685

Courtesy of FORD MOTOR CO.

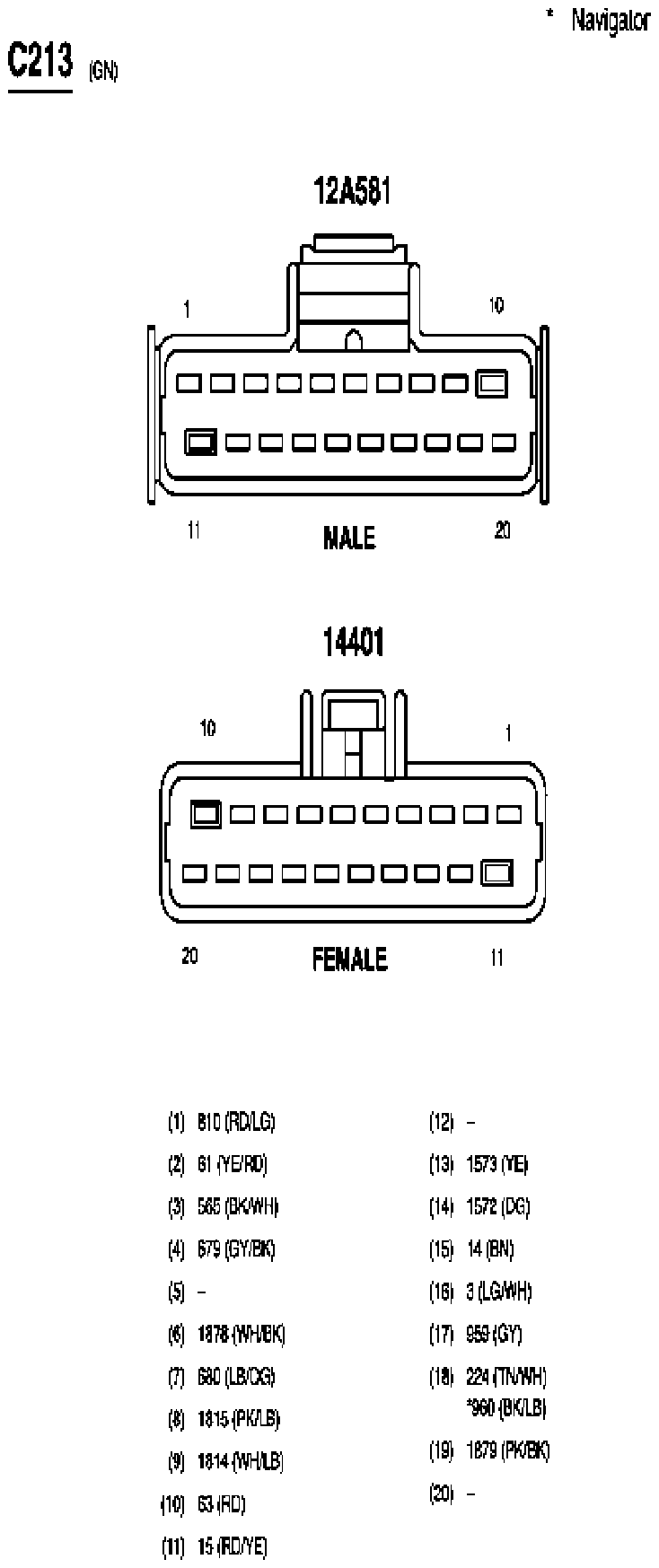

Fig 79: Inline Connector End View (C213)

G07843686

Courtesy of FORD MOTOR CO.

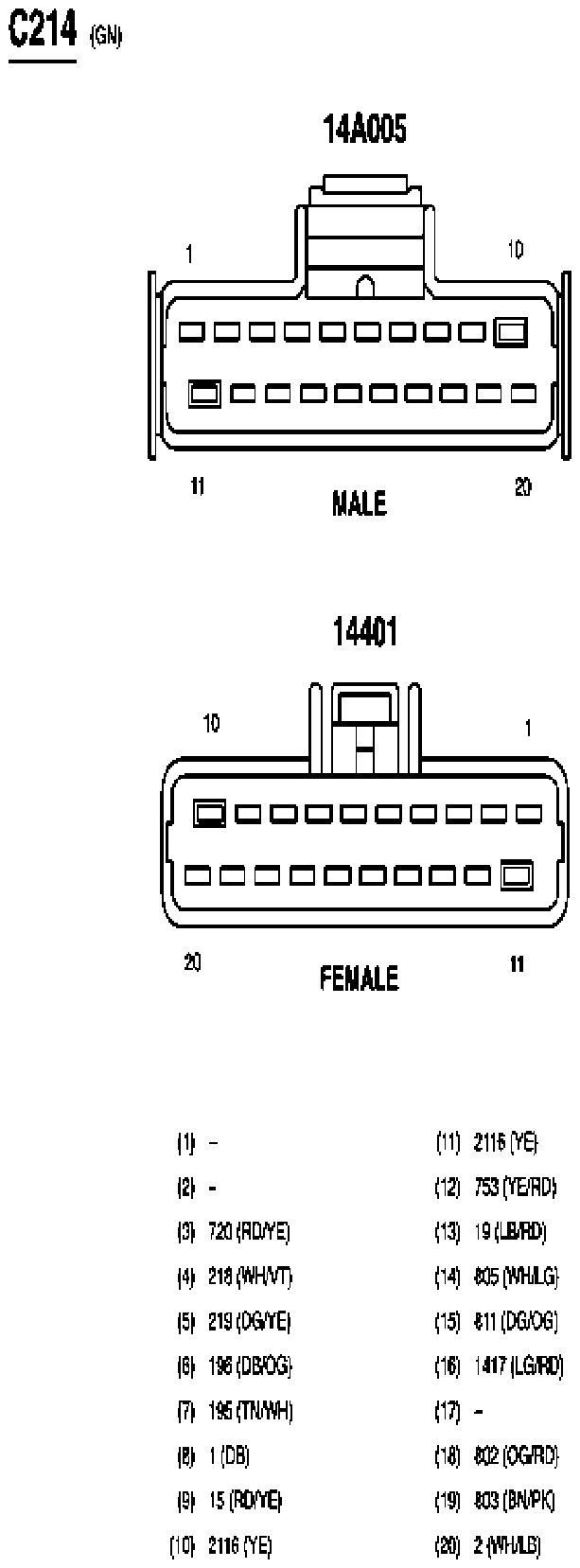

Fig 80: Inline Connector End View (C214)

G07843687

Courtesy of FORD MOTOR CO.

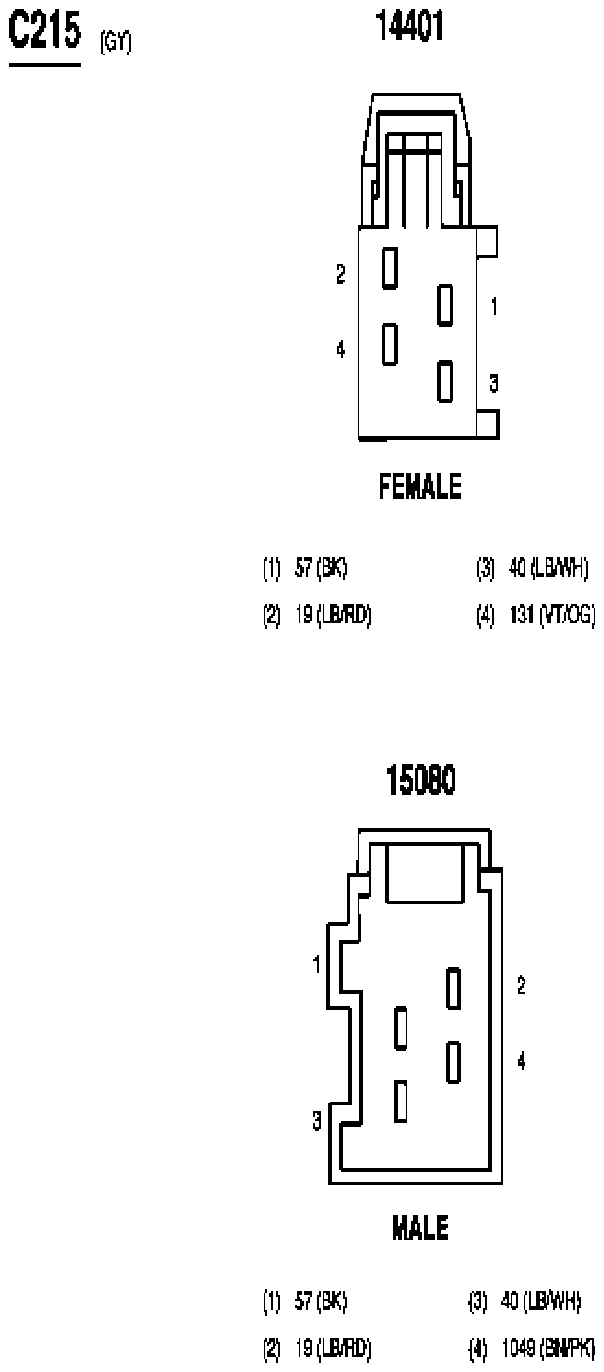

Fig 81: Inline Connector End View (C215)

G07843688

Courtesy of FORD MOTOR CO.

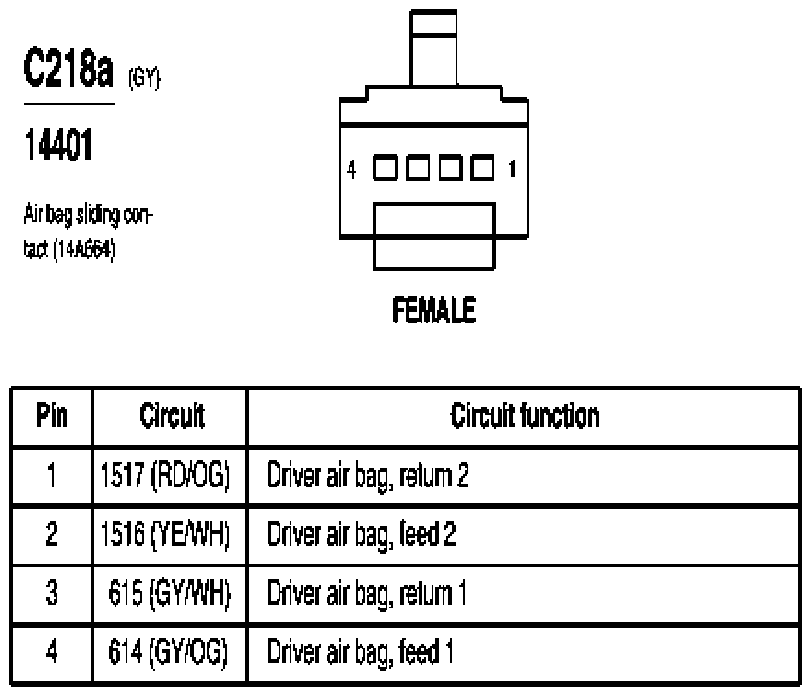

Fig 82: Airbag Sliding Contact Connector End View (C218a)

G07843689

Courtesy of FORD MOTOR CO.

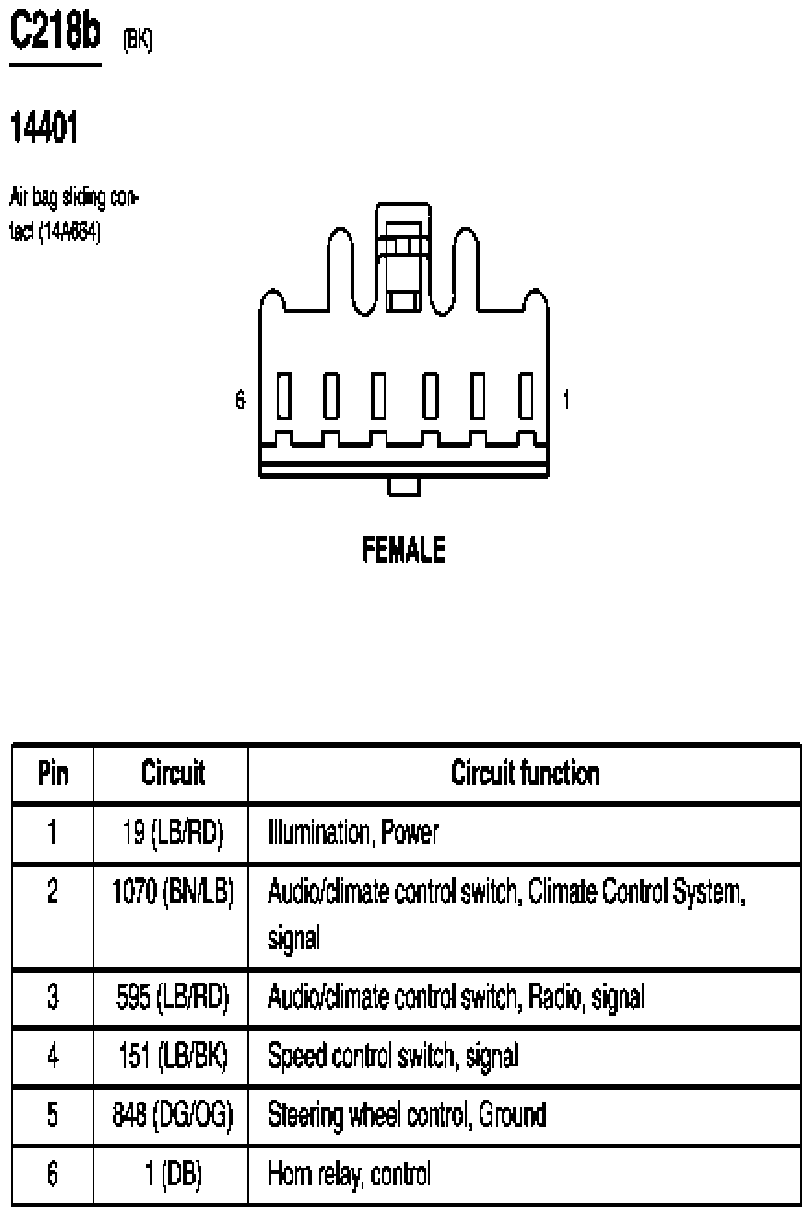

Fig 83: Airbag Sliding Contact Connector End View (C218b)

G07843690

Courtesy of FORD MOTOR CO.

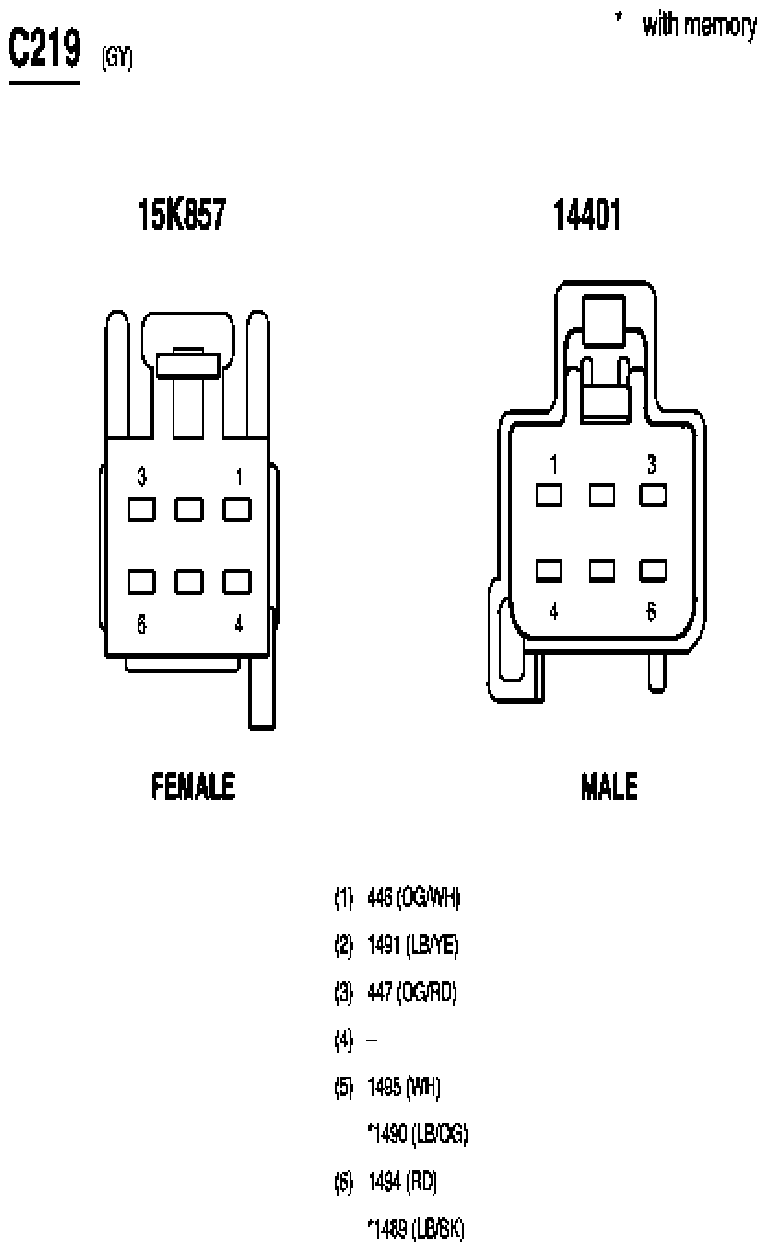

Fig 84: Inline Connector End View (C219)

G07843691

Courtesy of FORD MOTOR CO.

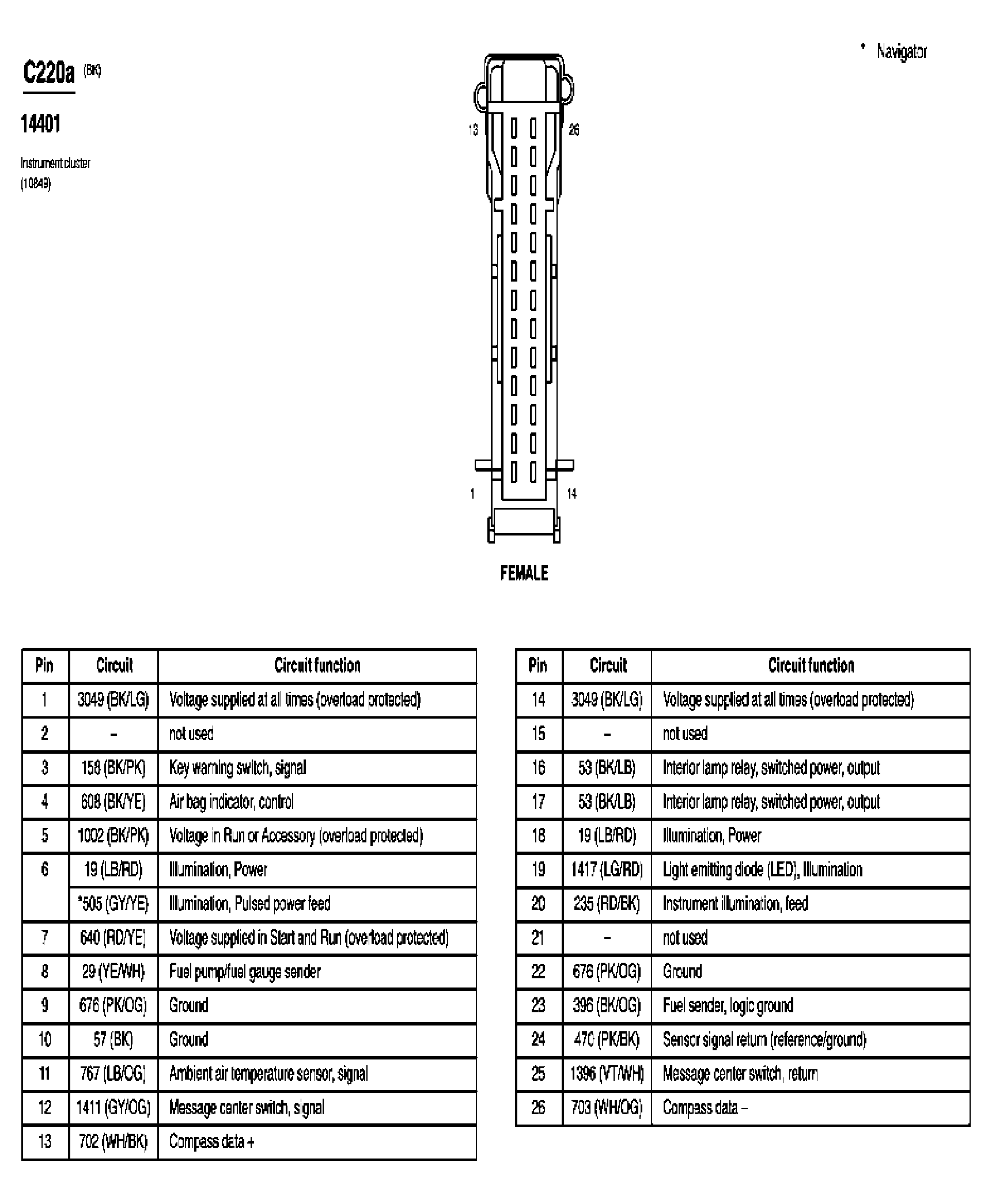

Fig 85: Instrument Cluster Connector End View (C220a)

G03993524

Courtesy of FORD MOTOR CO.

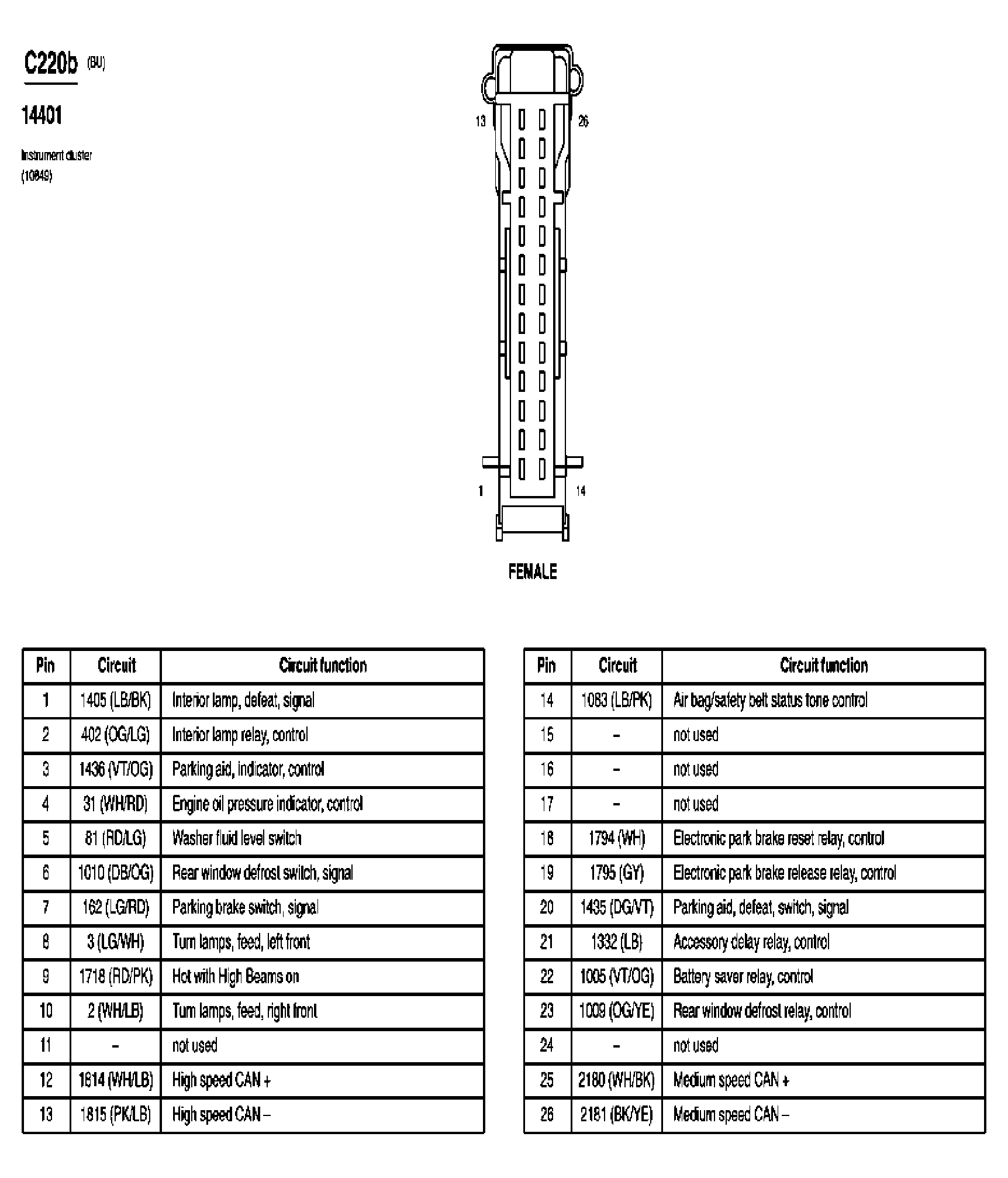

Fig 86: Instrument Cluster Connector End View (C220b)

G03993525

Courtesy of FORD MOTOR CO.

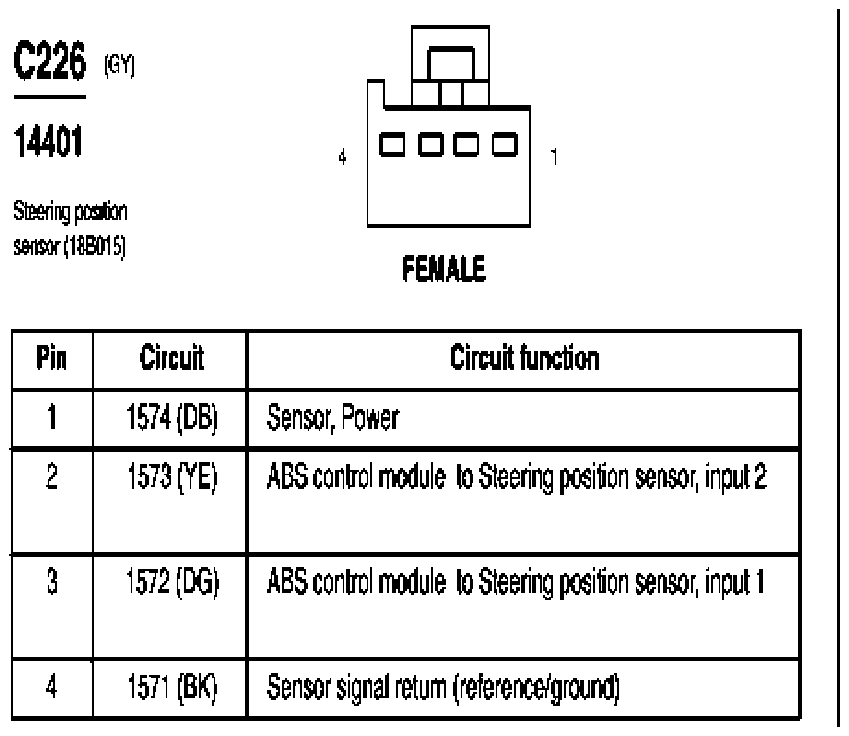

Fig 87: Steering Position Sensor Connector End View (C226)

G07843692

Courtesy of FORD MOTOR CO.

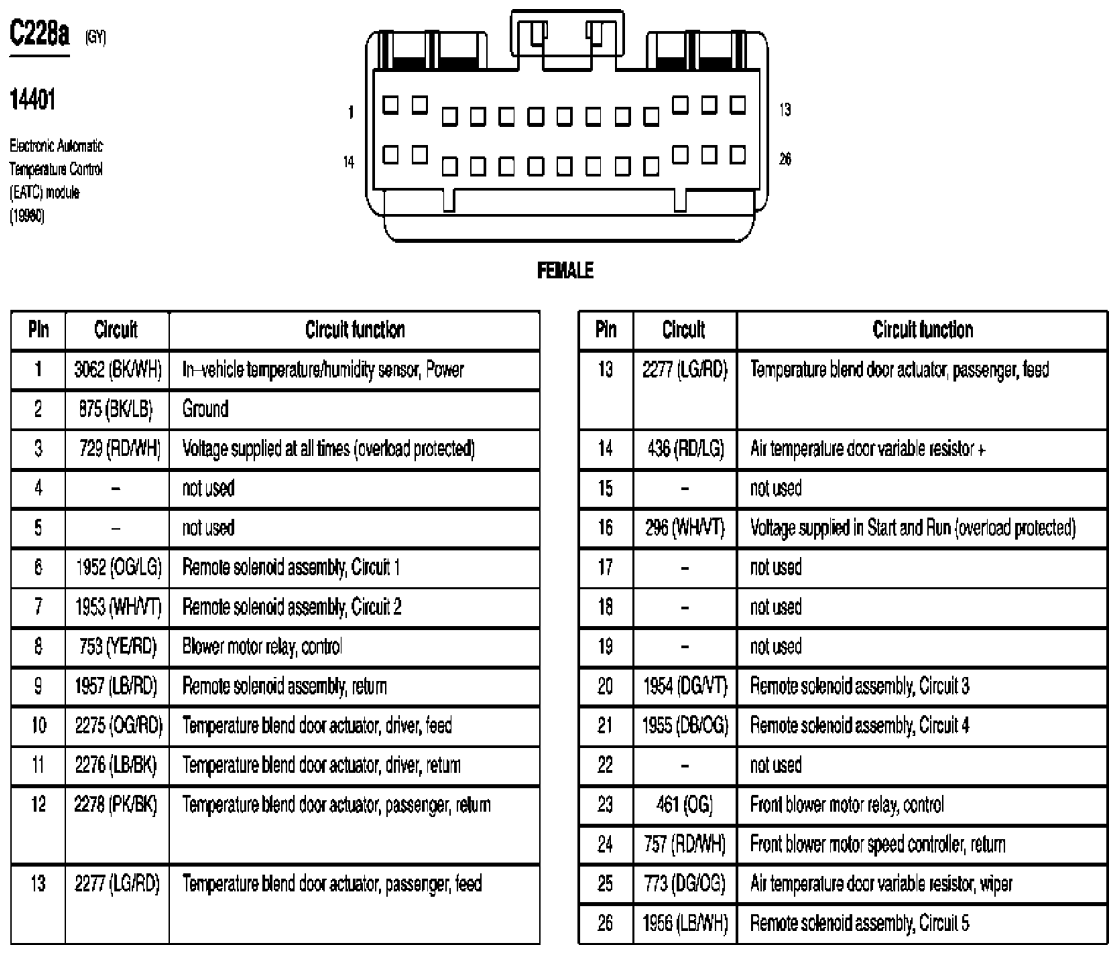

Fig 88: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G07843693

Courtesy of FORD MOTOR CO.

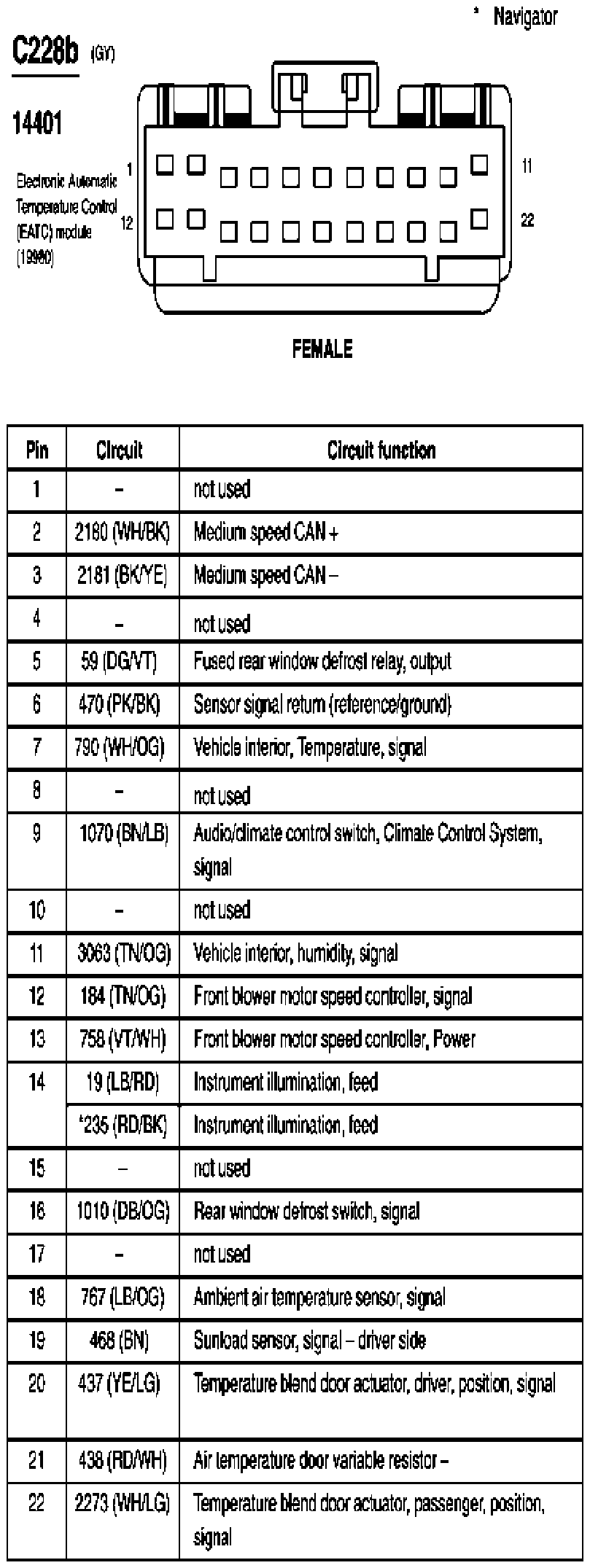

Fig 89: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G07843694

Courtesy of FORD MOTOR CO.

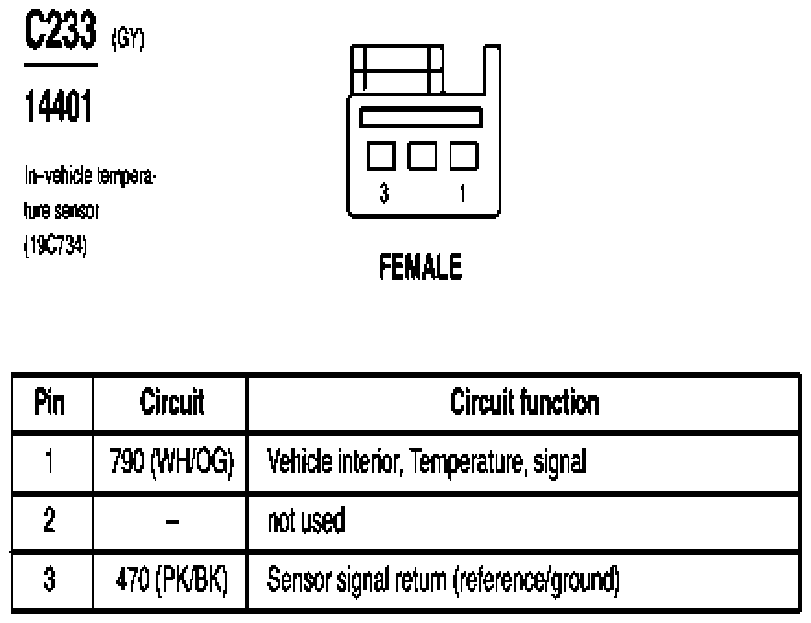

Fig 90: In-Vehicle Temperature Sensor Connector End View (C233)

G07843695

Courtesy of FORD MOTOR CO.

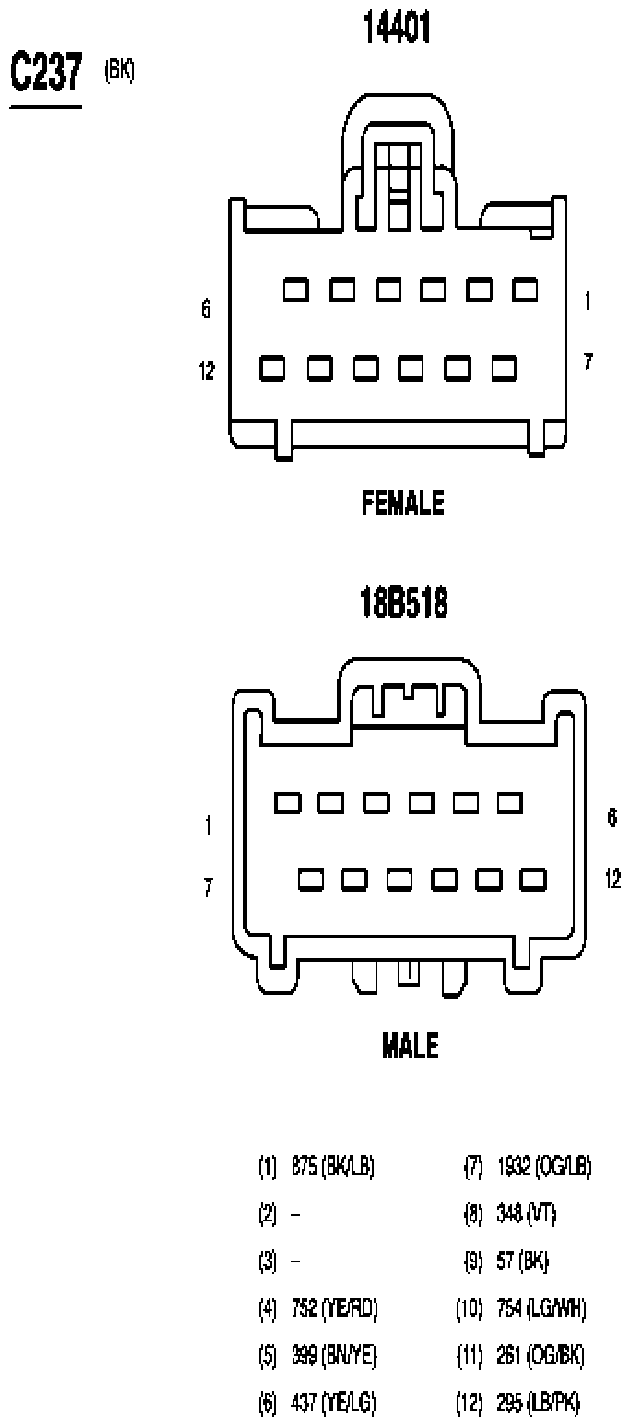

Fig 91: Inline Connector End View (C237)

G07843696

Courtesy of FORD MOTOR CO.

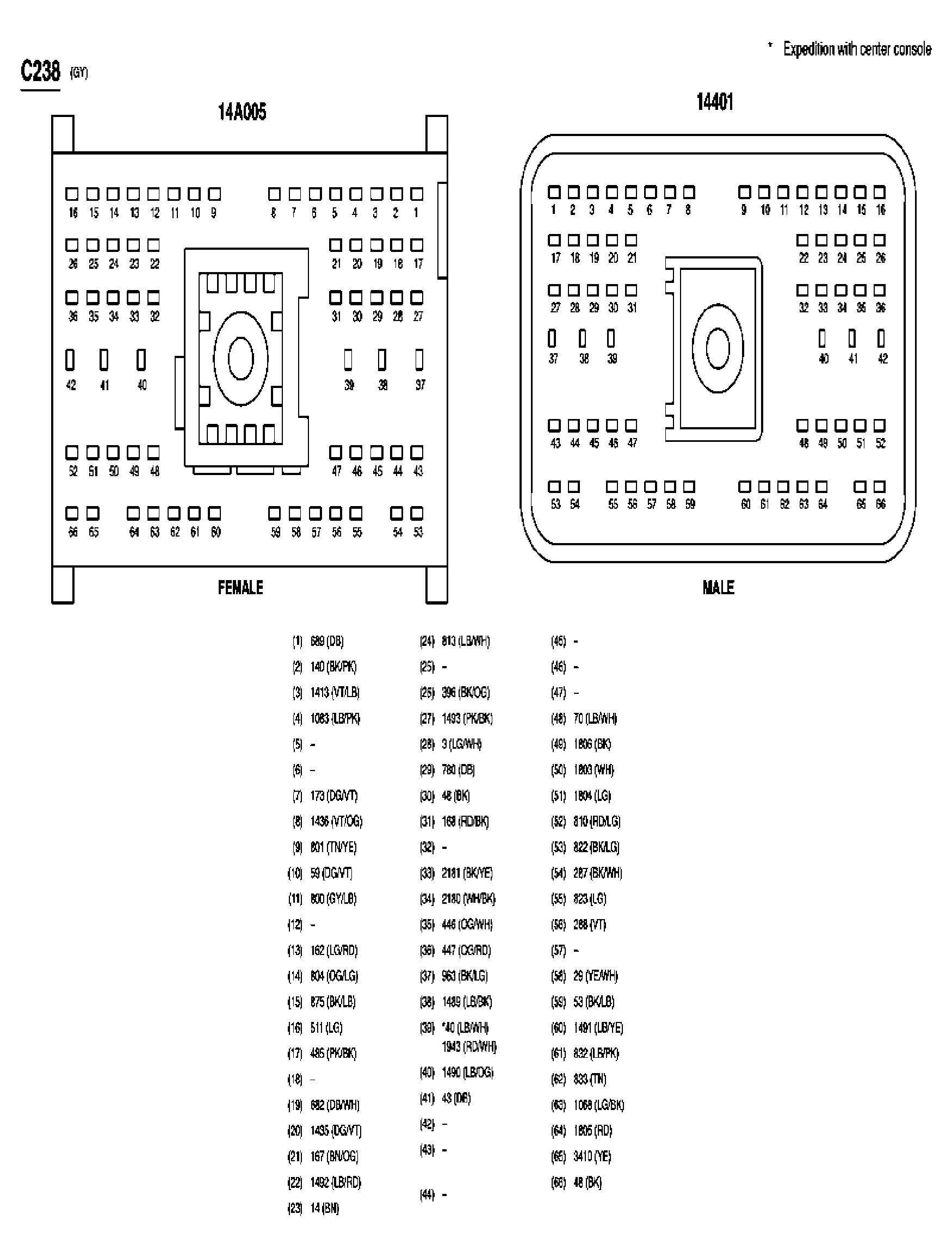

Fig 92: Inline Connector End View (C238)

G03993528

Courtesy of FORD MOTOR CO.

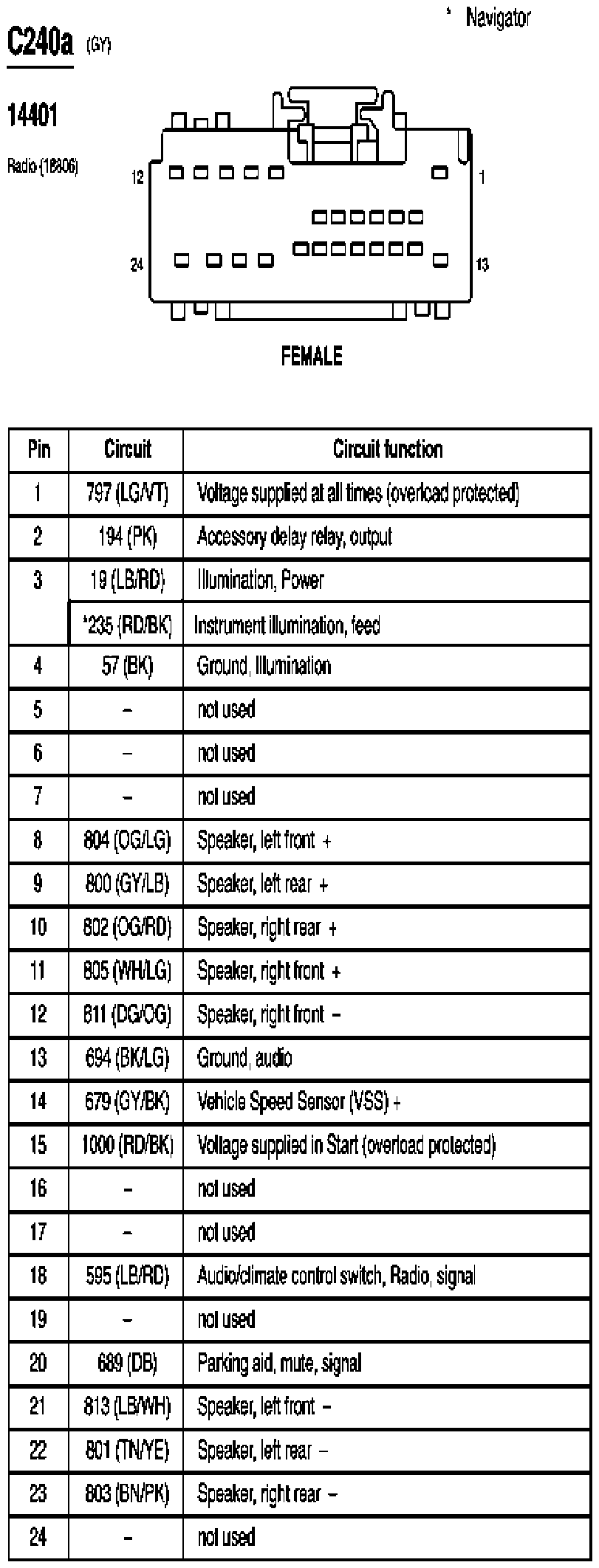

Fig 93: Radio Connector End View (C240a)

G07843697

Courtesy of FORD MOTOR CO.

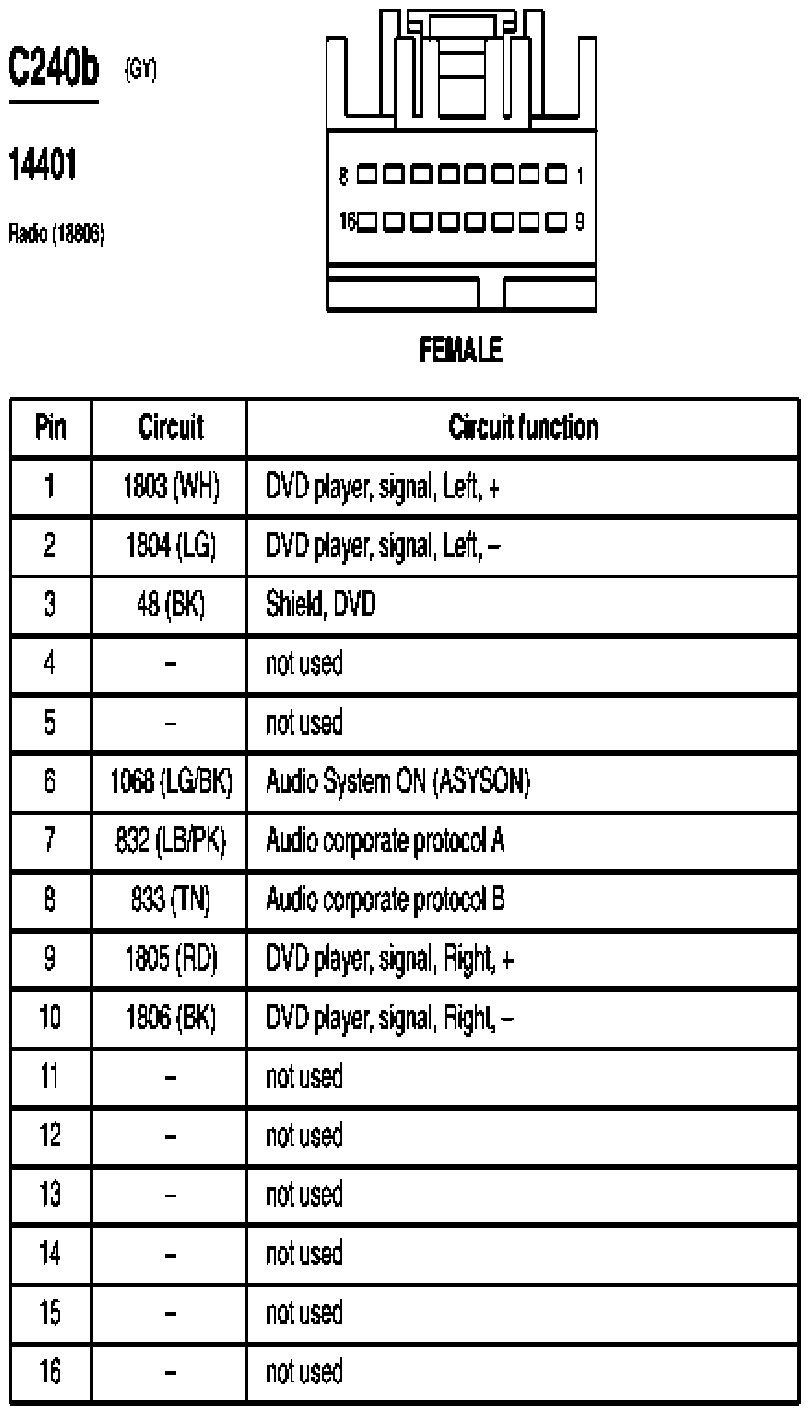

Fig 94: Radio Connector End View (C240b)

G07843698

Courtesy of FORD MOTOR CO.

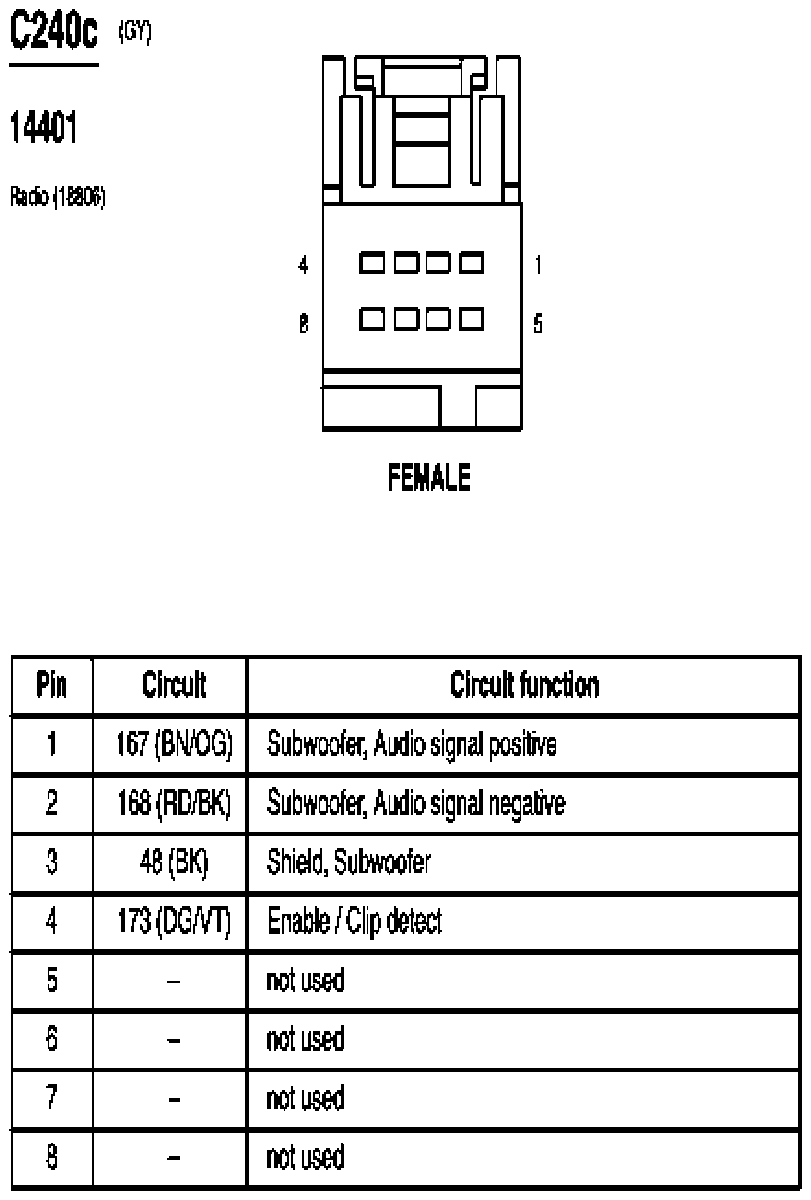

Fig 95: Radio Connector End View (C240c)

G07843699

Courtesy of FORD MOTOR CO.

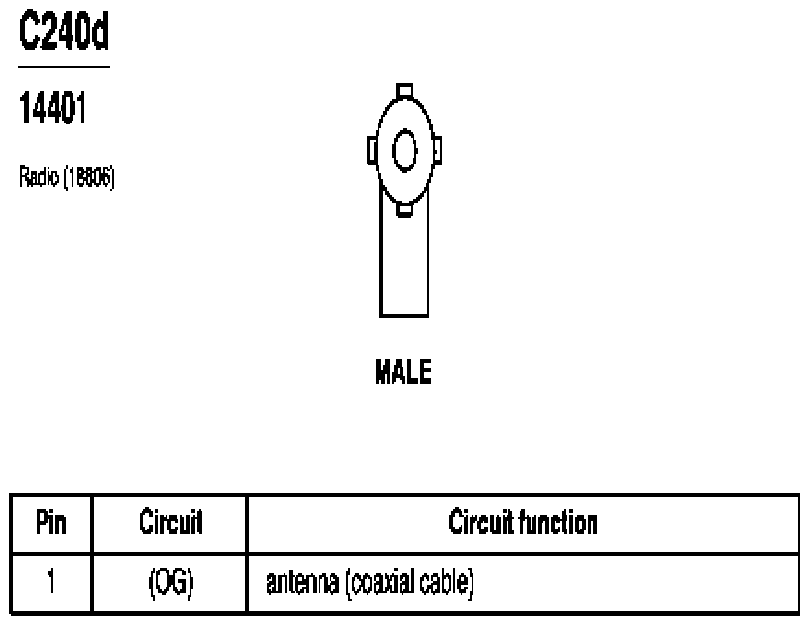

Fig 96: Radio Connector End View (C240d)

G07843700

Courtesy of FORD MOTOR CO.

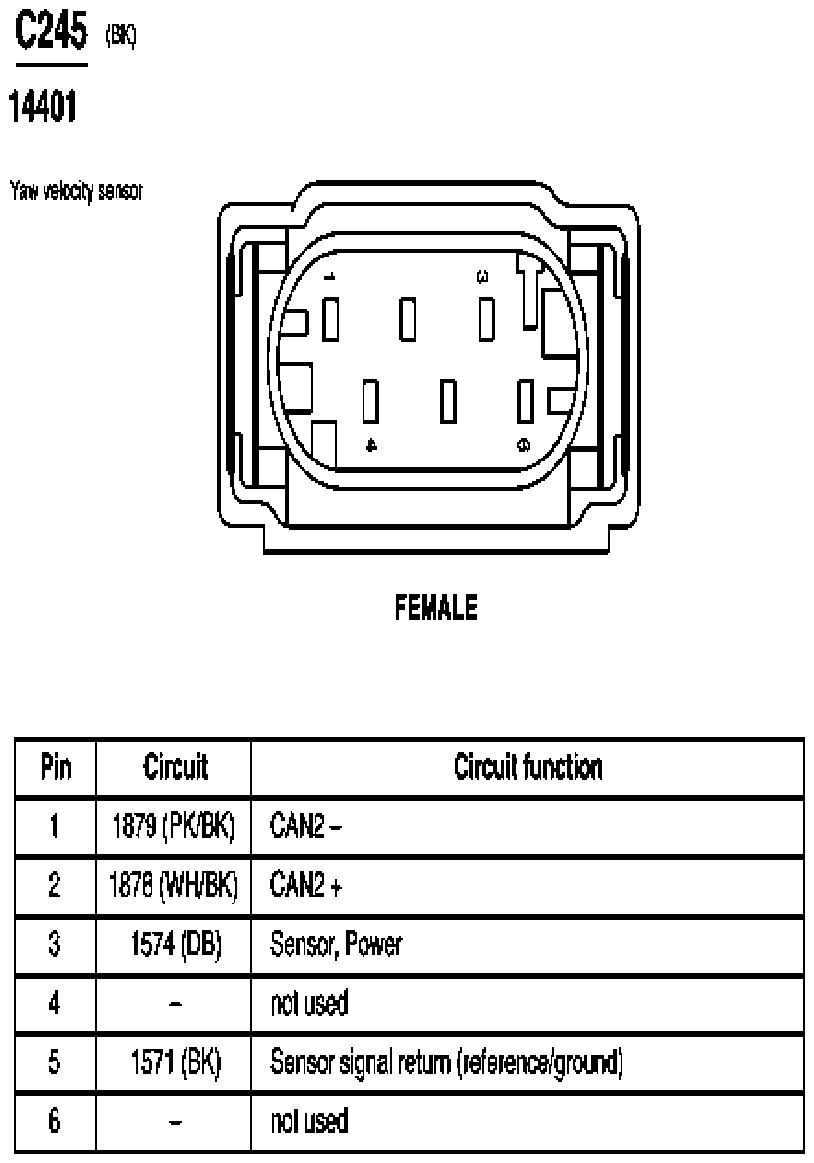

Fig 97: Yaw Velocity Sensor Connector End View (C245)

G07843701

Courtesy of FORD MOTOR CO.

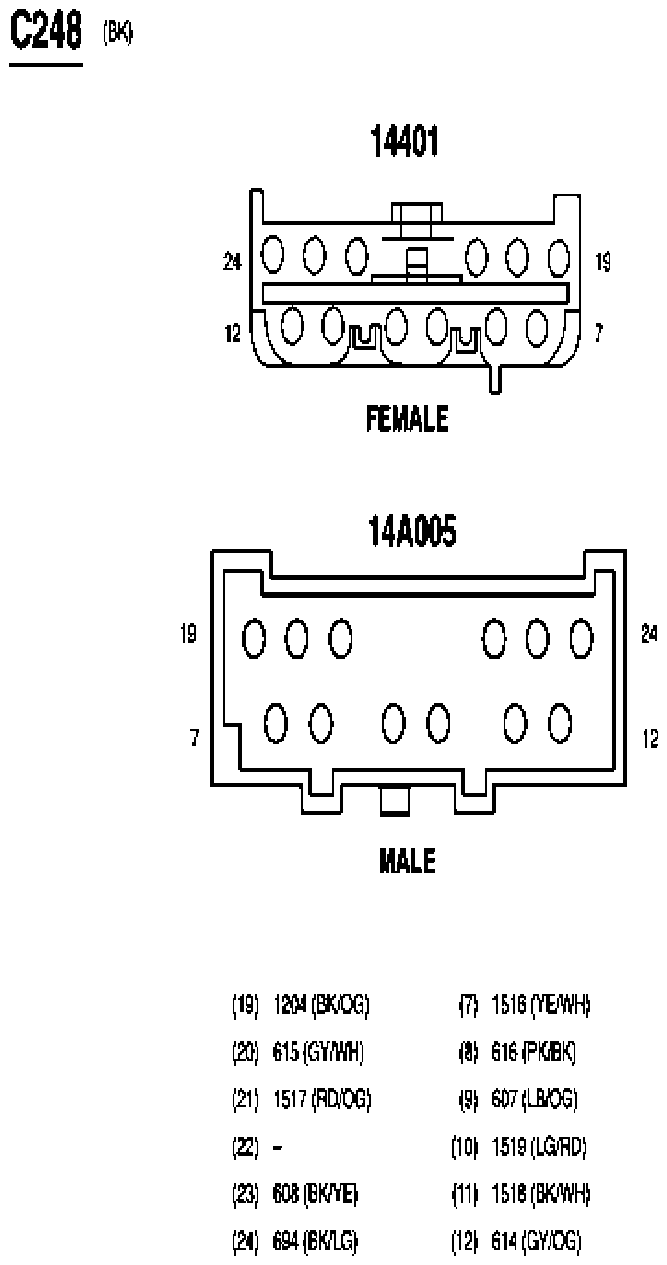

Fig 98: Inline Connector End View (C248)

G07843702

Courtesy of FORD MOTOR CO.

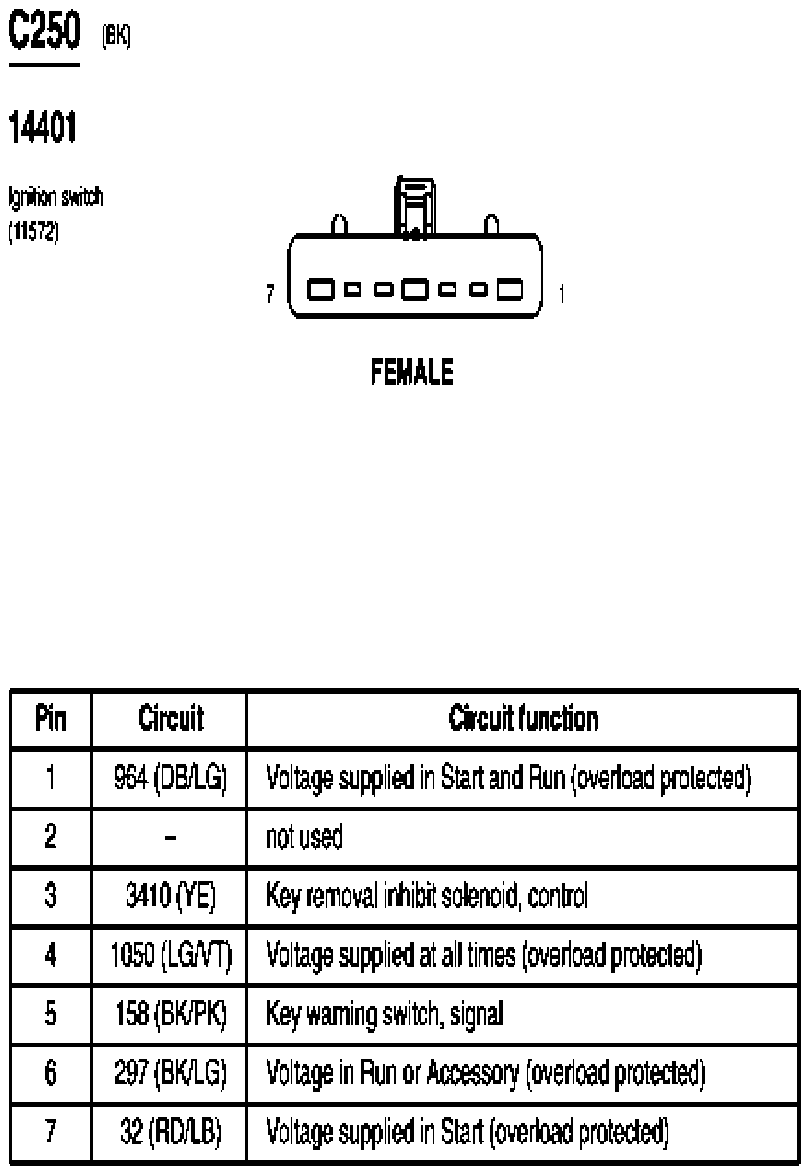

Fig 99: Ignition Switch Connector End View (C250)

G07843703

Courtesy of FORD MOTOR CO.

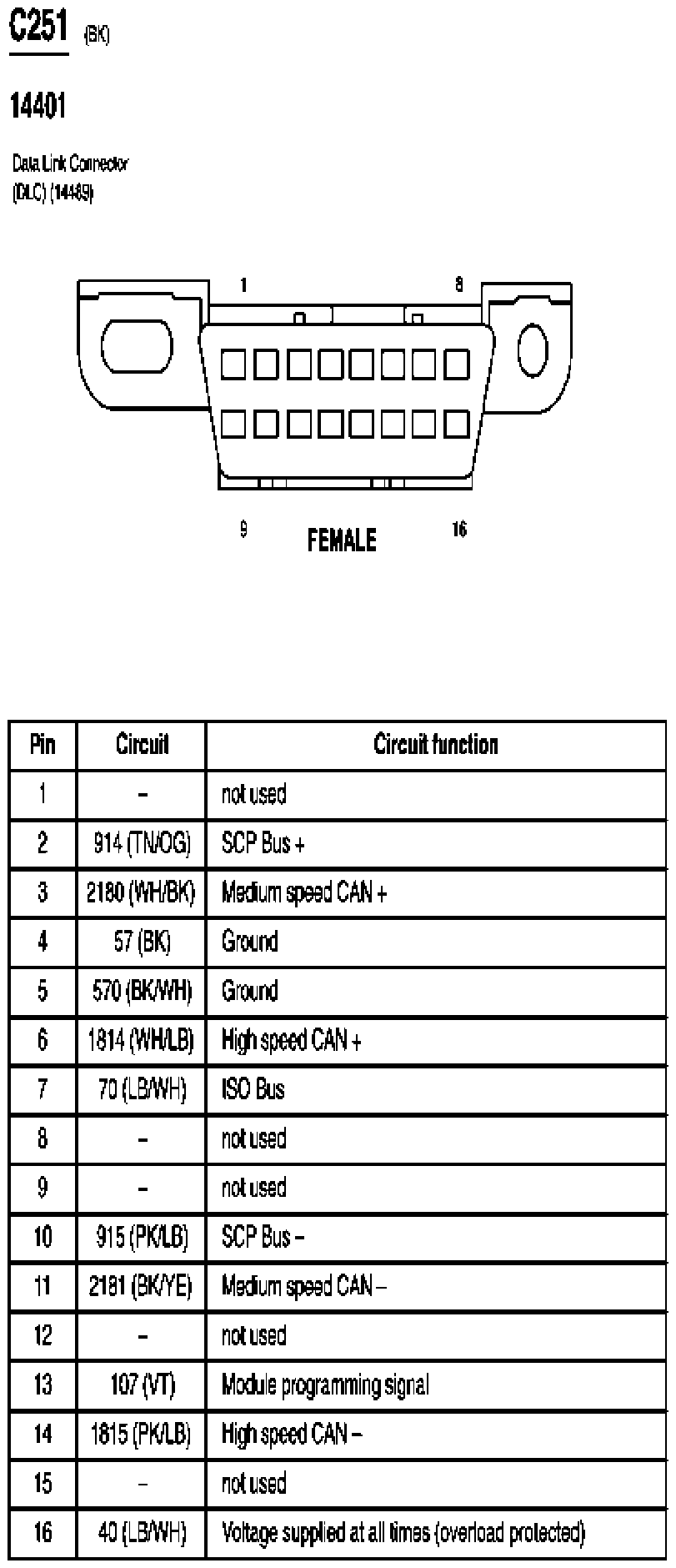

Fig 100: Data Link Connector (DLC) Connector End View (C251)

G07843704

Courtesy of FORD MOTOR CO.

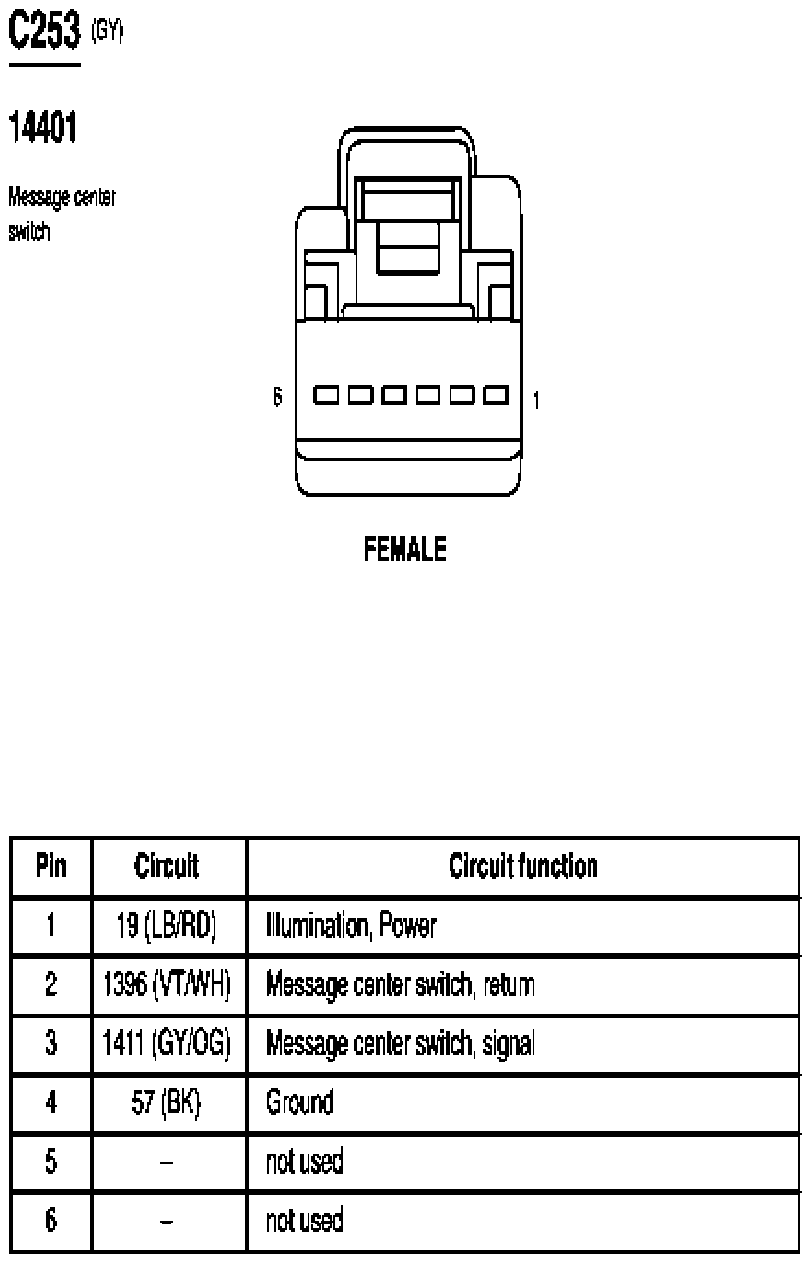

Fig 101: Message Center Switch Connector End View (C253)

G07843705

Courtesy of FORD MOTOR CO.

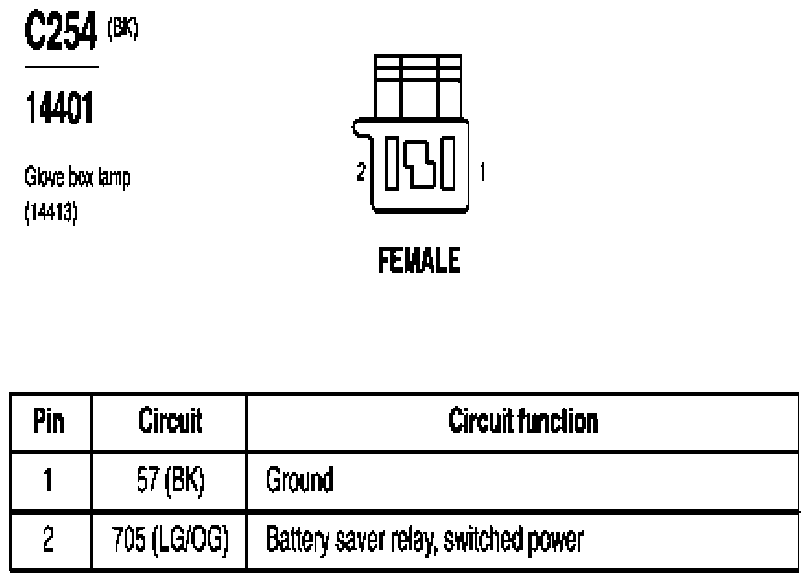

Fig 102: Glove Box Lamp Connector End View (C254)

G07843706

Courtesy of FORD MOTOR CO.

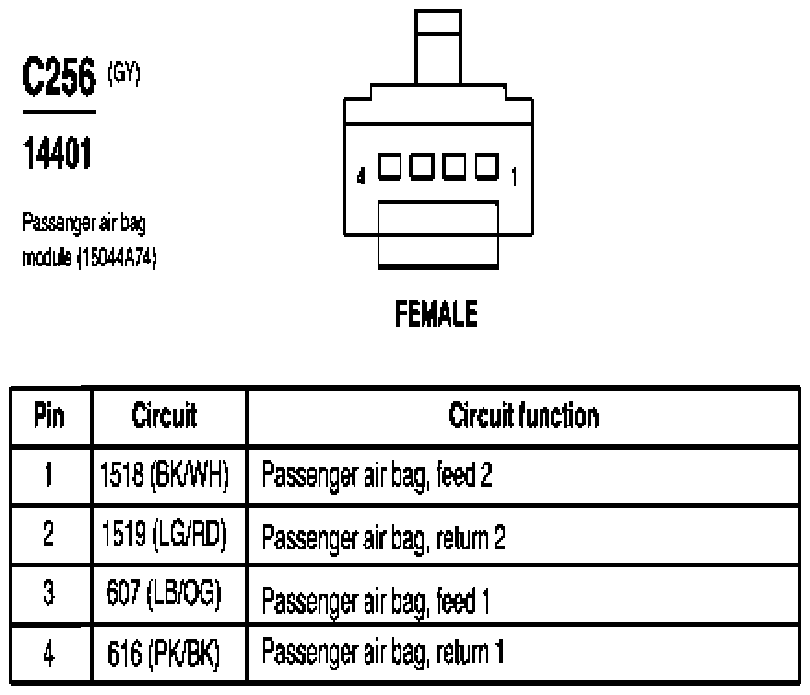

Fig 103: Passenger Air Bag Module Connector End View (C256)

G07843707

Courtesy of FORD MOTOR CO.

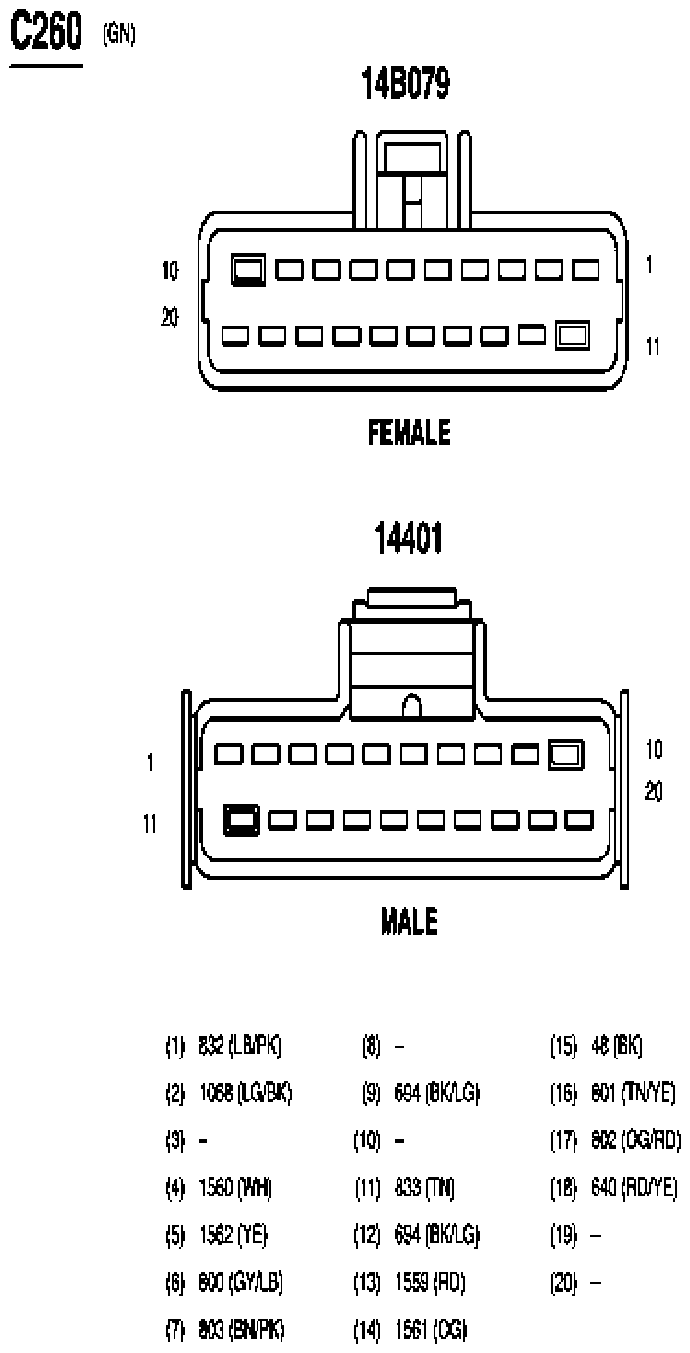

Fig 104: Inline Connector End View (C260)

G07843708

Courtesy of FORD MOTOR CO.

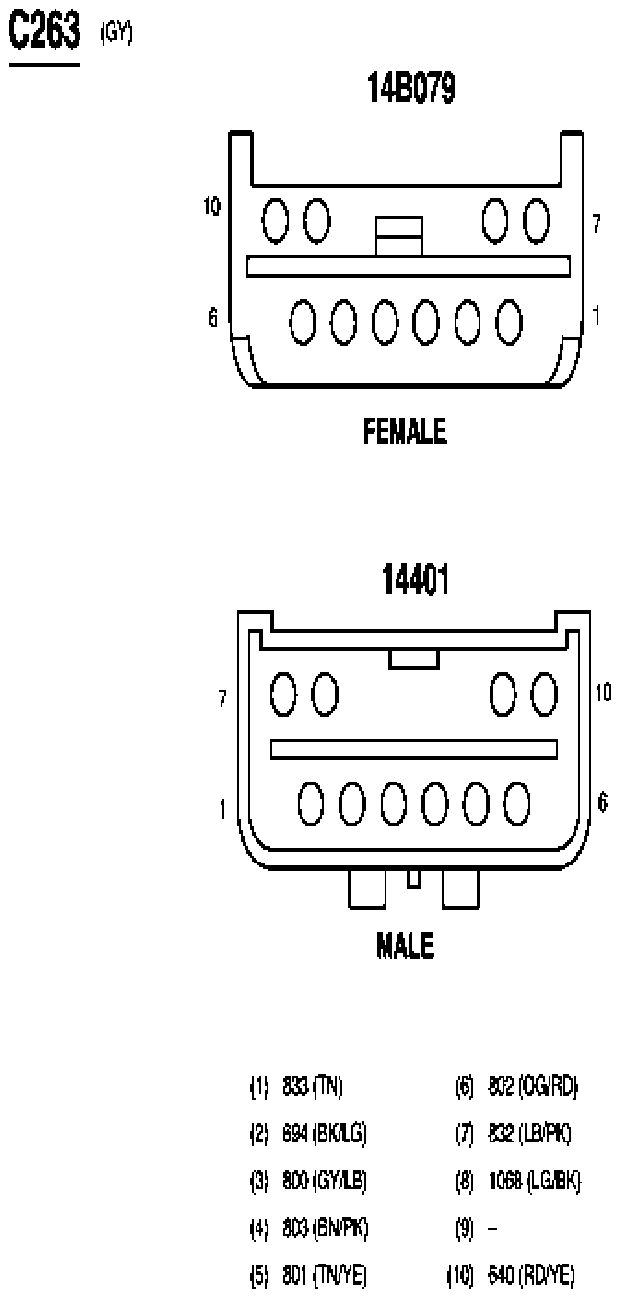

Fig 105: Inline Connector End View (C263)

G07843709

Courtesy of FORD MOTOR CO.

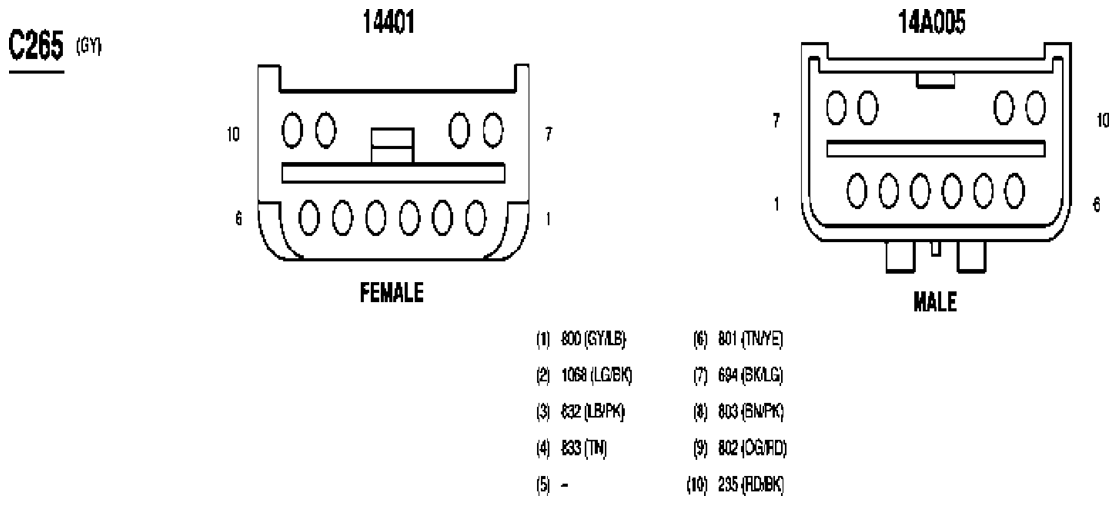

Fig 106: Inline Connector End View (C265)

G07843710

Courtesy of FORD MOTOR CO.

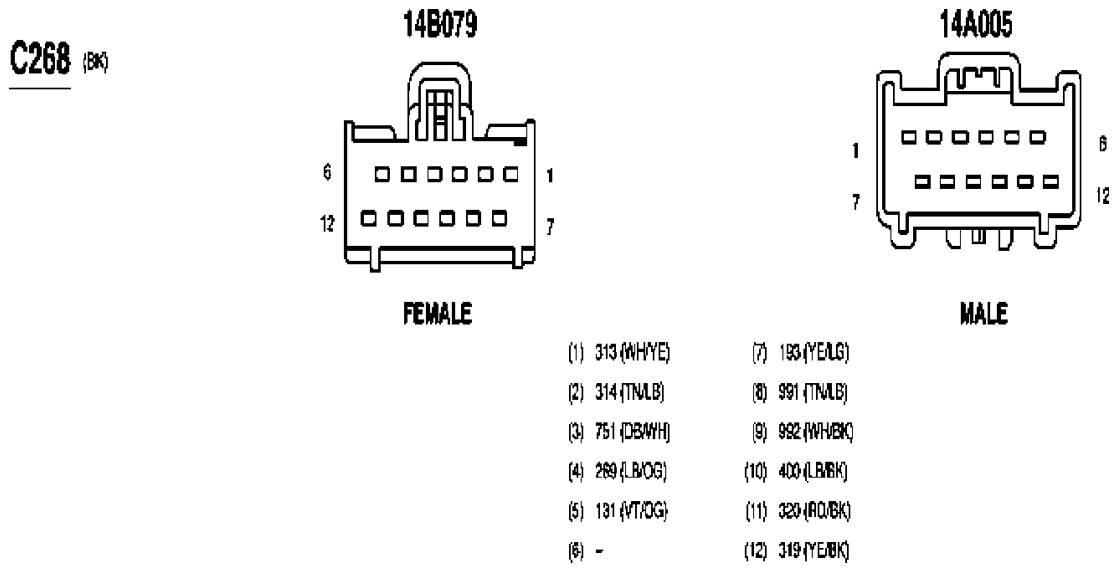

Fig 107: Inline Connector End View (C268)

G07843711

Courtesy of FORD MOTOR CO.

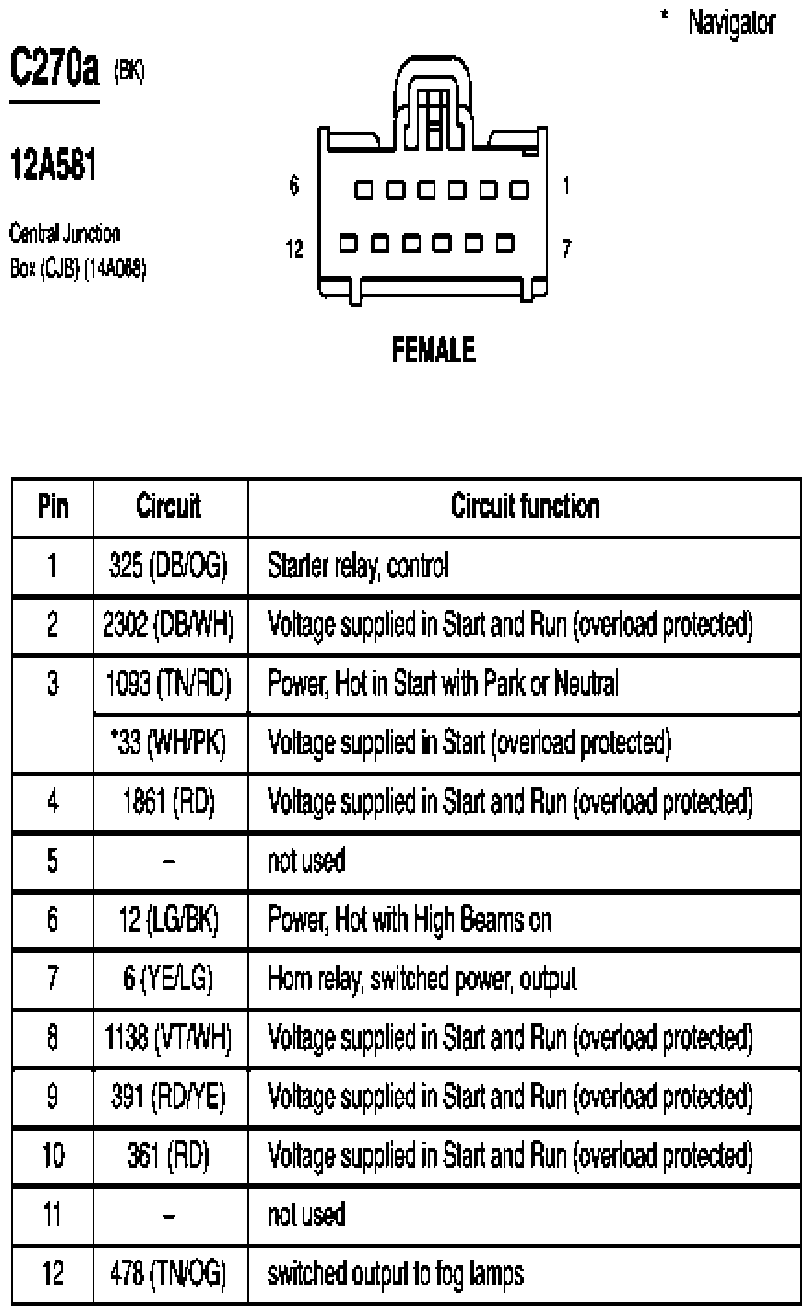

Fig 108: Central Junction Box (CJB) Connector End View (C270a)

G07843712

Courtesy of FORD MOTOR CO.

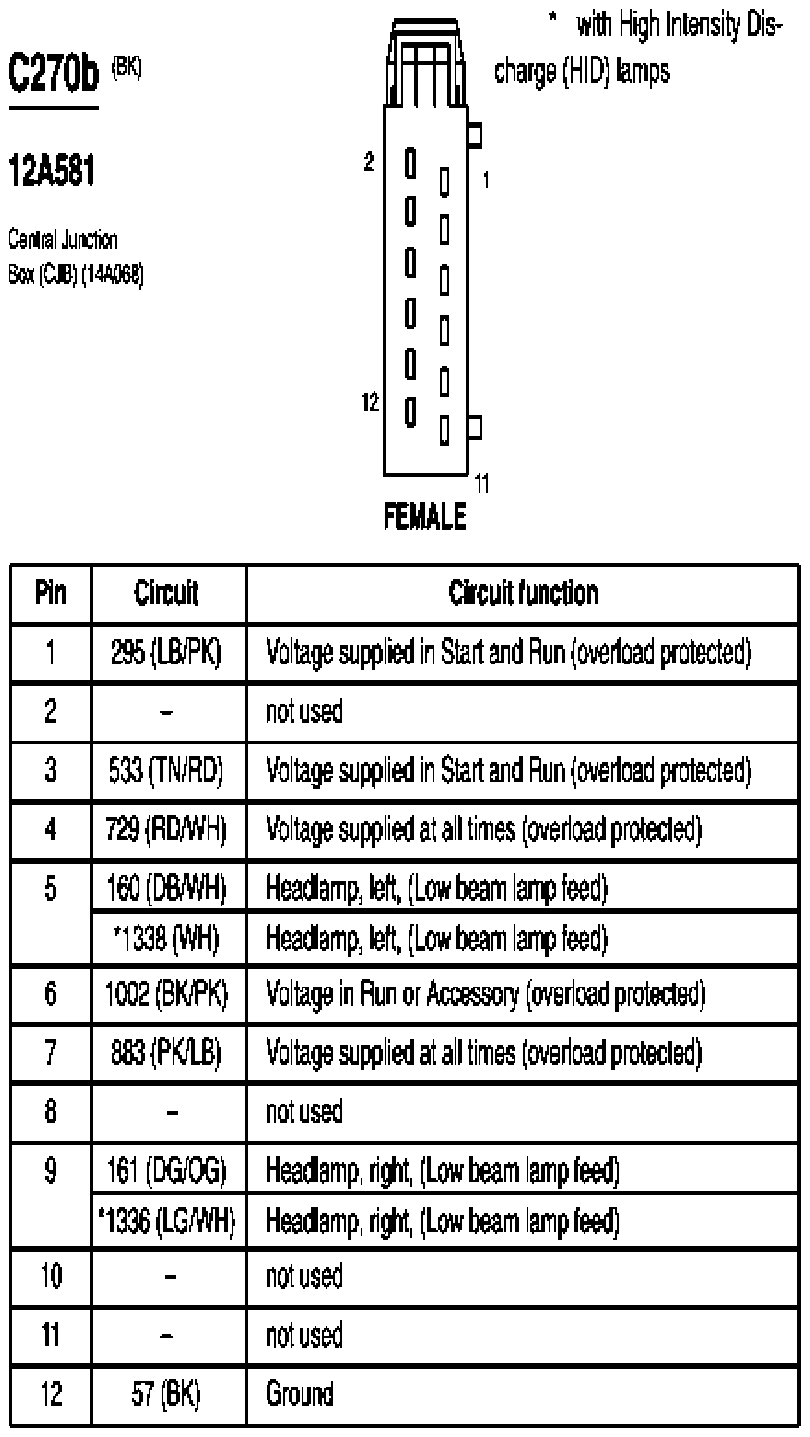

Fig 109: Central Junction Box (CJB) Connector End View (C270b)

G07843713

Courtesy of FORD MOTOR CO.

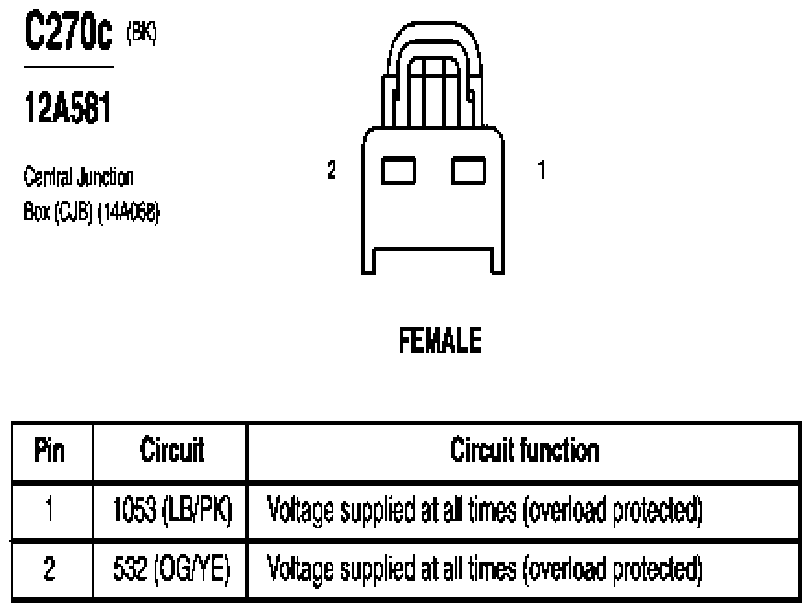

Fig 110: Central Junction Box (CJB) Connector End View (C270c)

G07843714

Courtesy of FORD MOTOR CO.

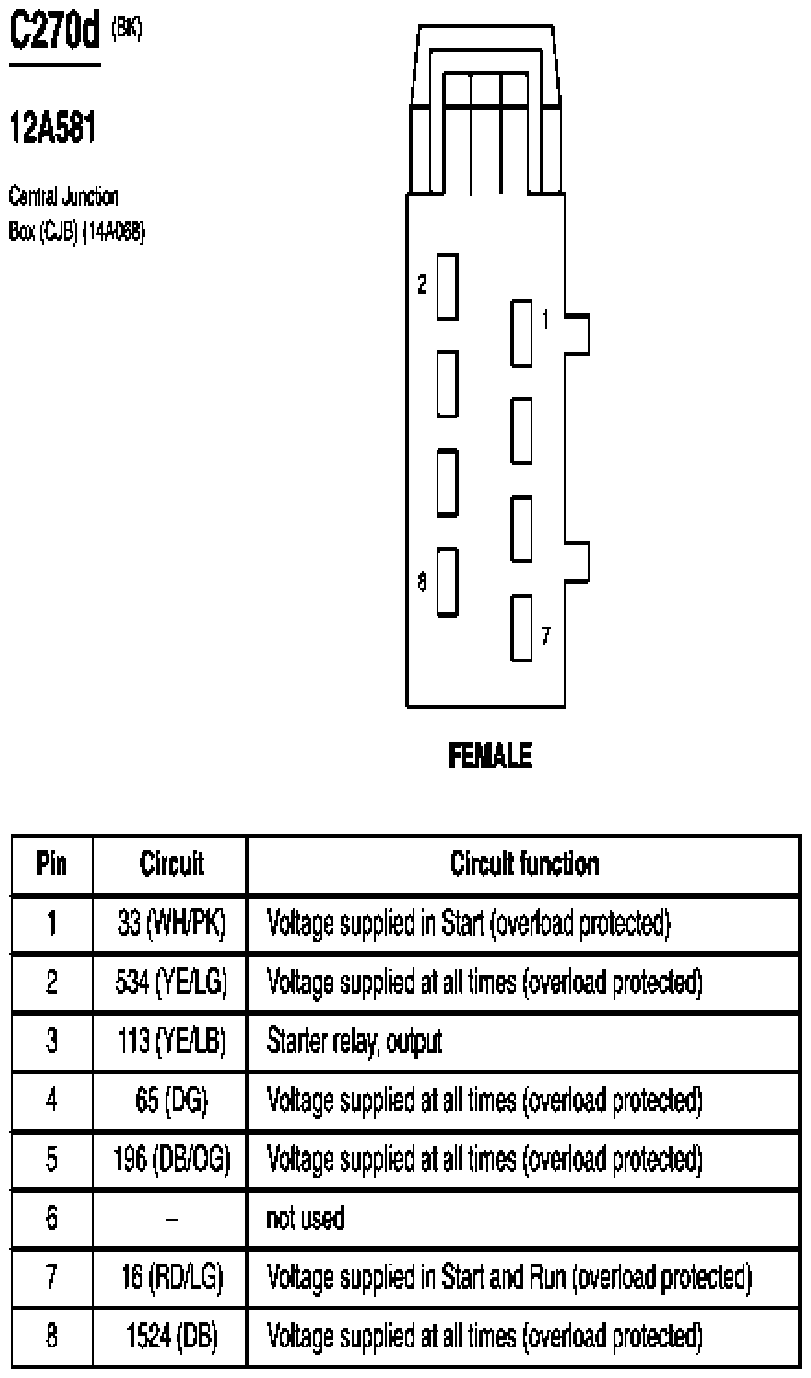

Fig 111: Central Junction Box (CJB) Connector End View (C207d)

G03993536

Courtesy of FORD MOTOR CO.

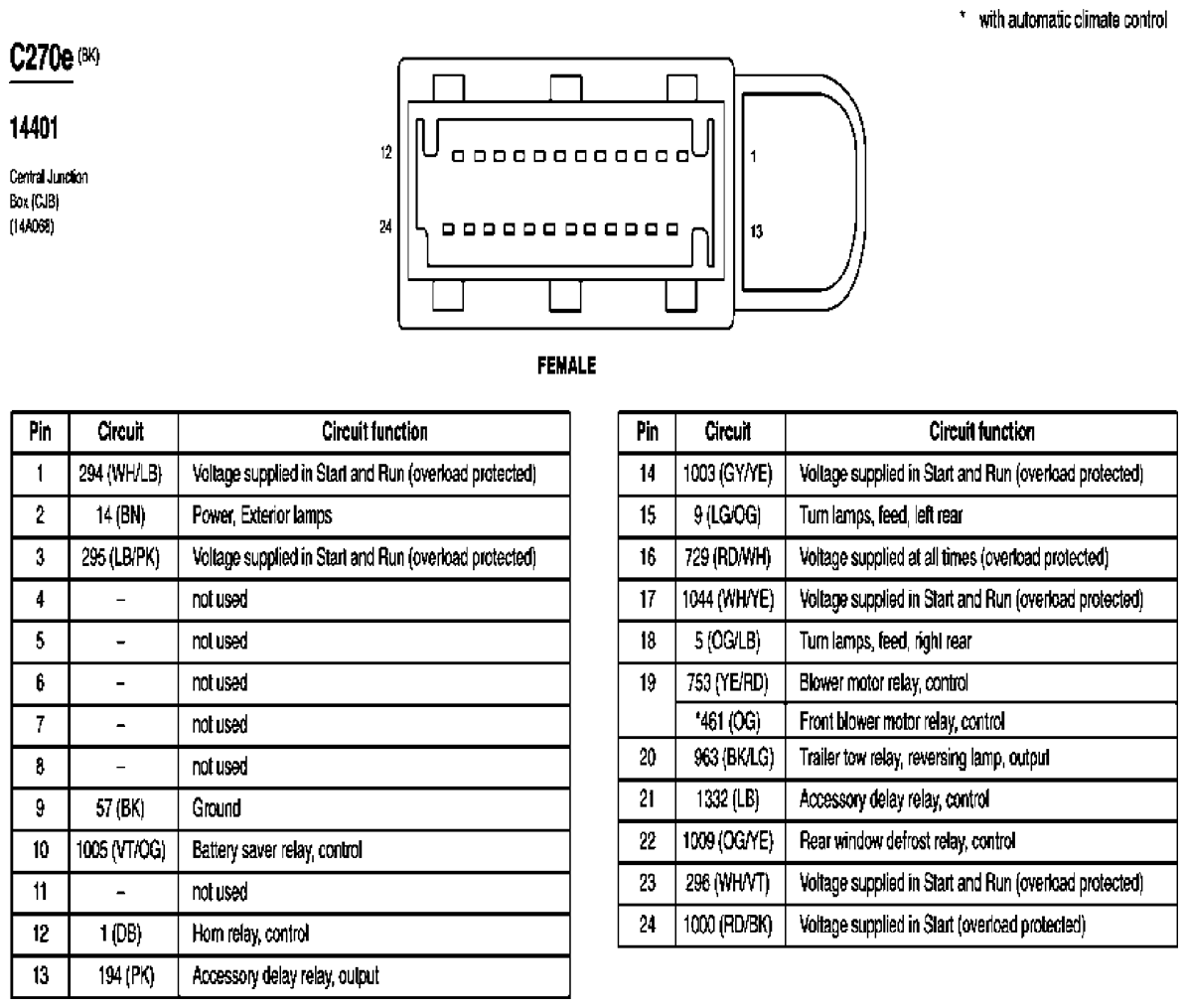

Fig 112: Central Junction Box (CJB) Connector End View (C270e)

G03993537

Courtesy of FORD MOTOR CO.

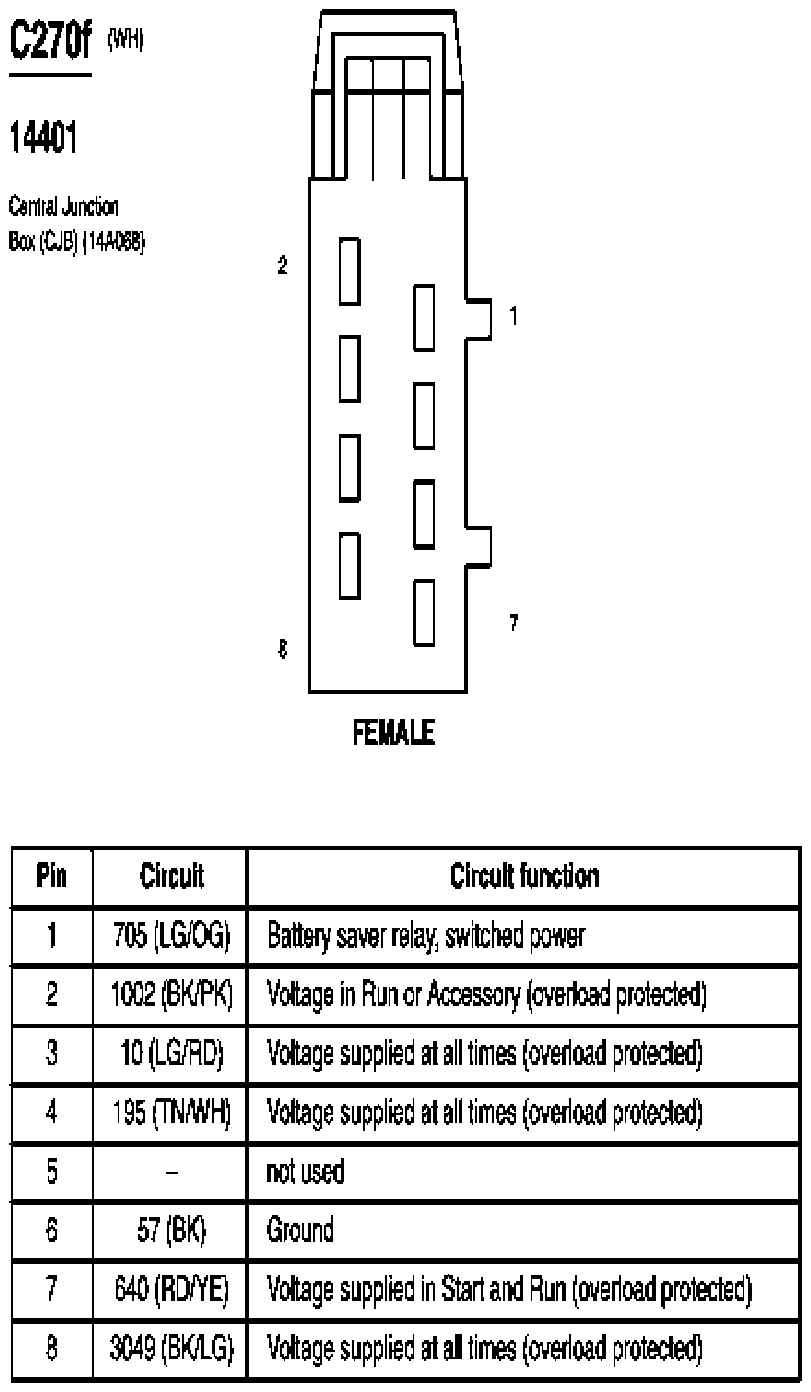

Fig 113: Central Junction Box (CJB) Connector End View (C270f)

G07843715

Courtesy of FORD MOTOR CO.

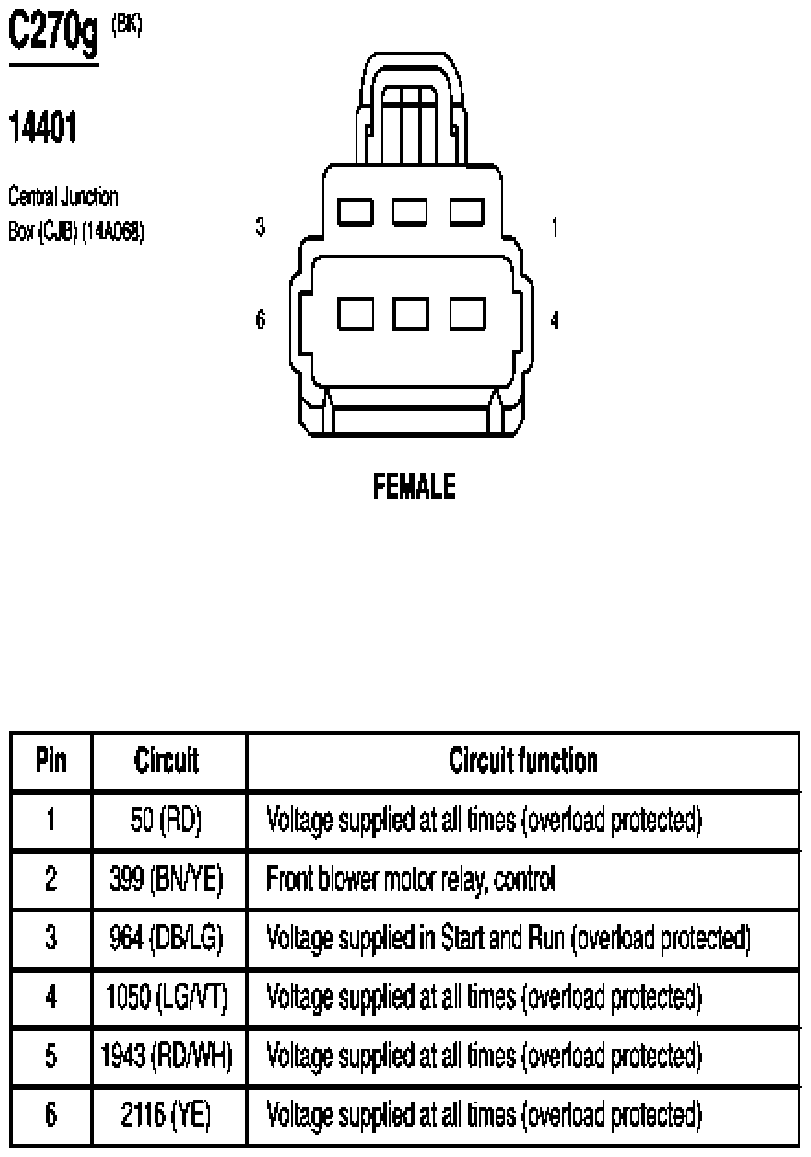

Fig 114: Central Junction Box (CJB) Connector End View (C270g)

G07843716

Courtesy of FORD MOTOR CO.

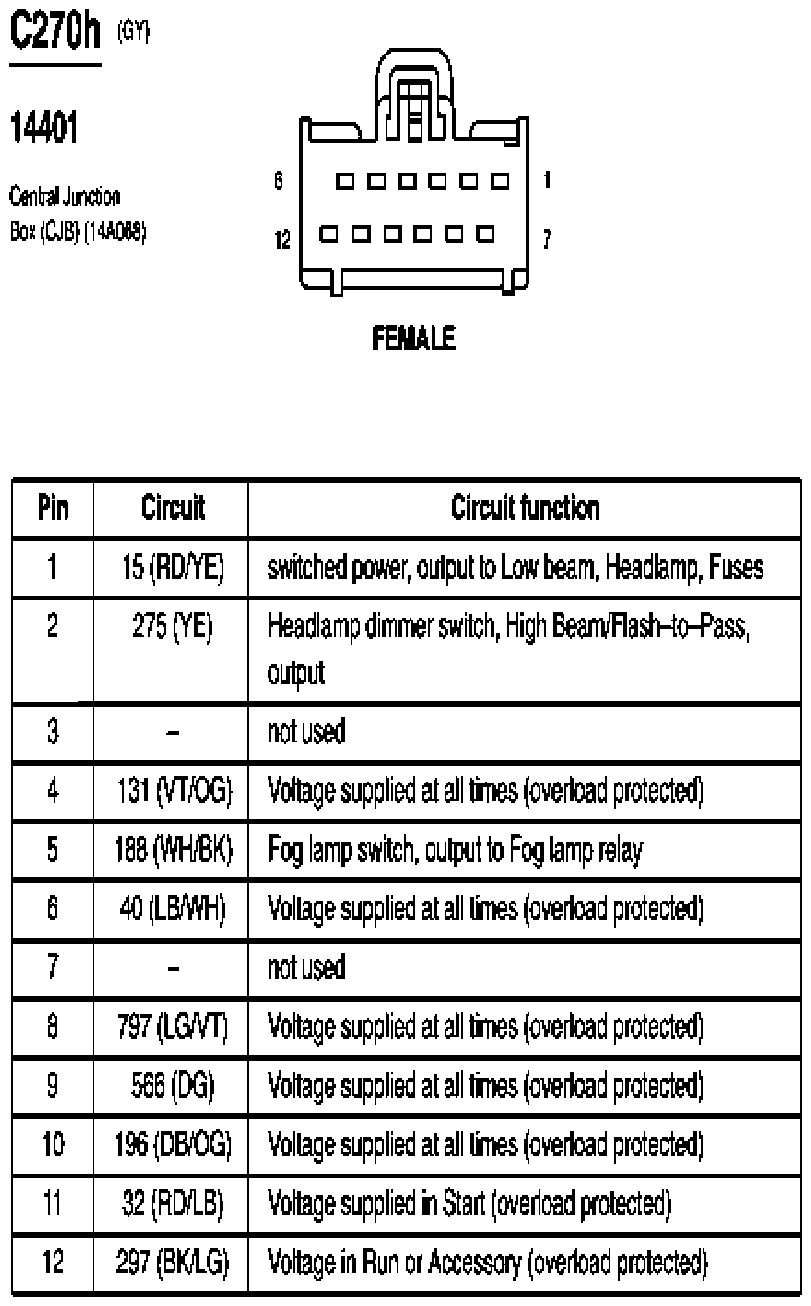

Fig 115: Central Junction Box (CJB) Connector End View (C270h)

G07843717

Courtesy of FORD MOTOR CO.

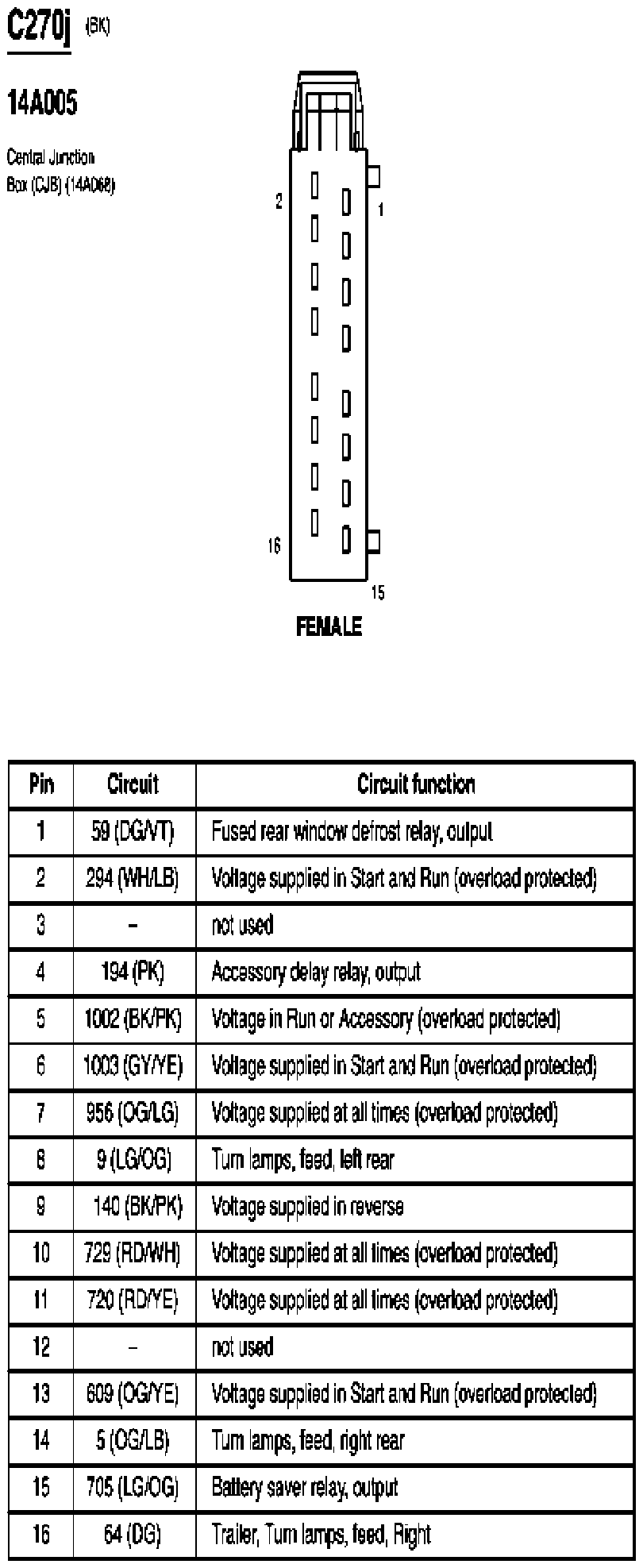

Fig 116: Central Junction Box (CJB) Connector End View (C270j)

G07843718

Courtesy of FORD MOTOR CO.

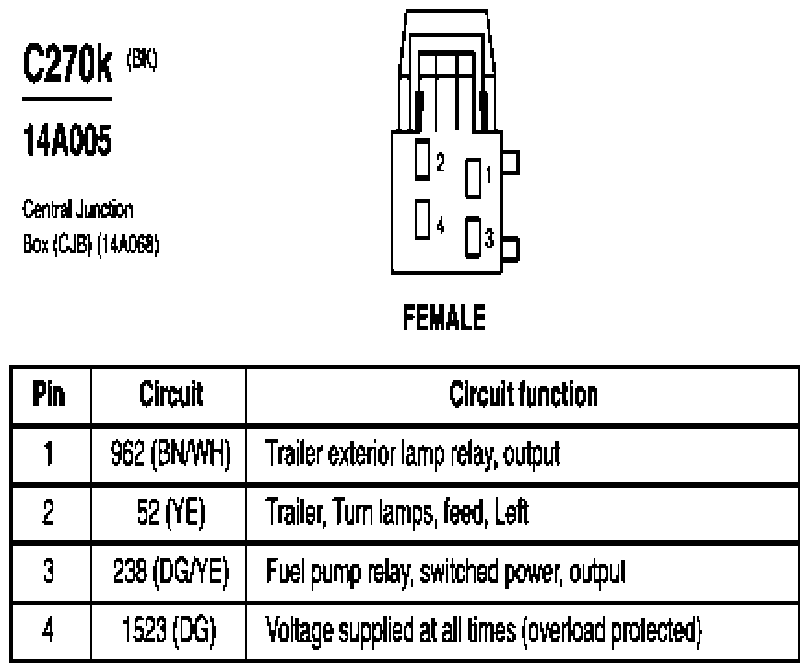

Fig 117: Central Junction Box (CJB) Connector End View (C270k)

G07843719

Courtesy of FORD MOTOR CO.

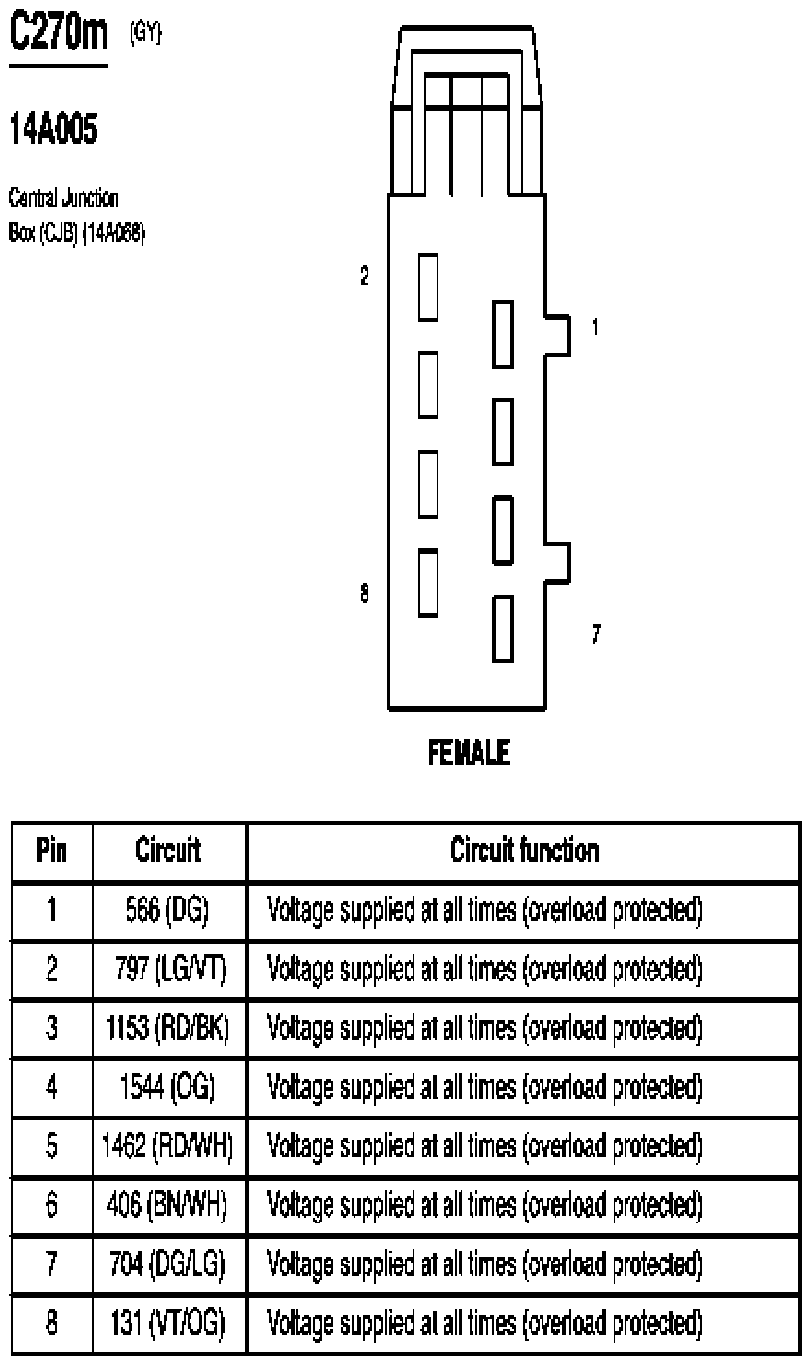

Fig 118: Central Junction Box (CJB) Connector End View (C270m)

G07843720

Courtesy of FORD MOTOR CO.

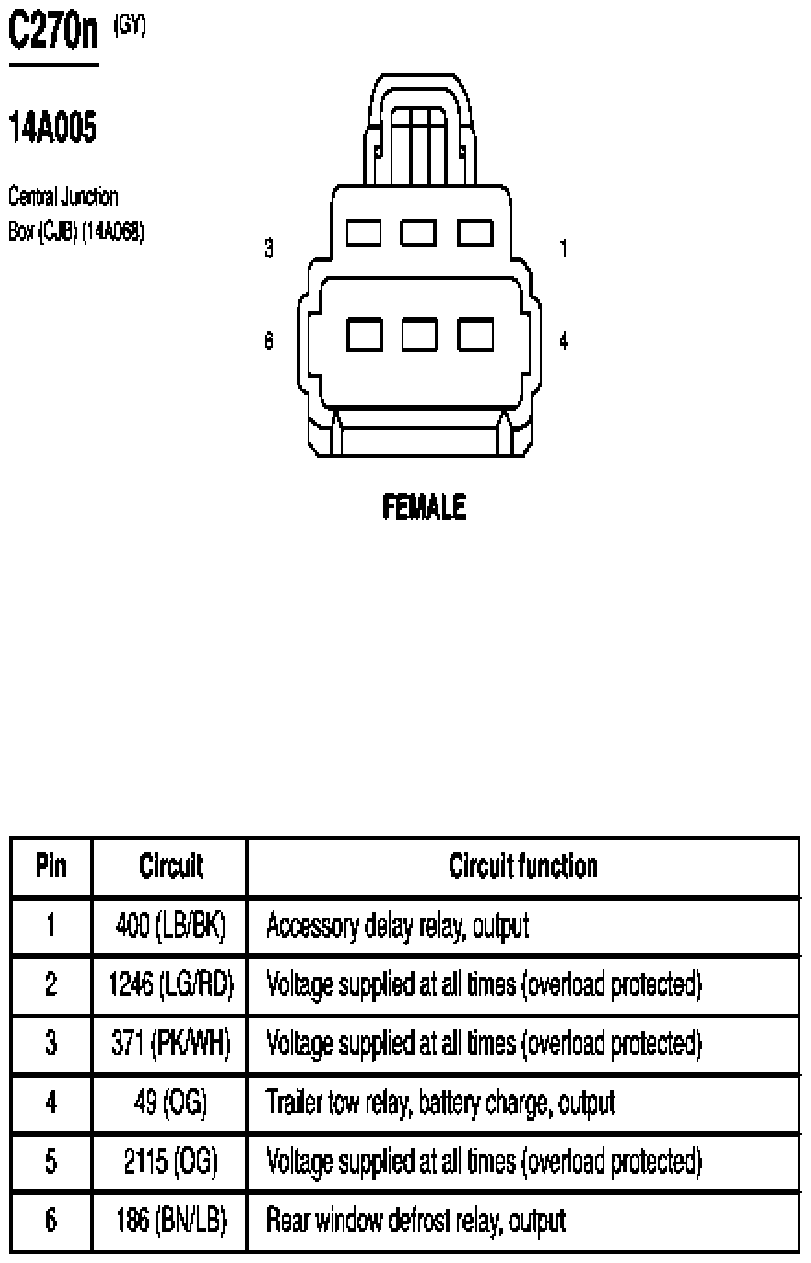

Fig 119: Central Junction Box (CJB) Connector End View (C270n)

G07843721

Courtesy of FORD MOTOR CO.

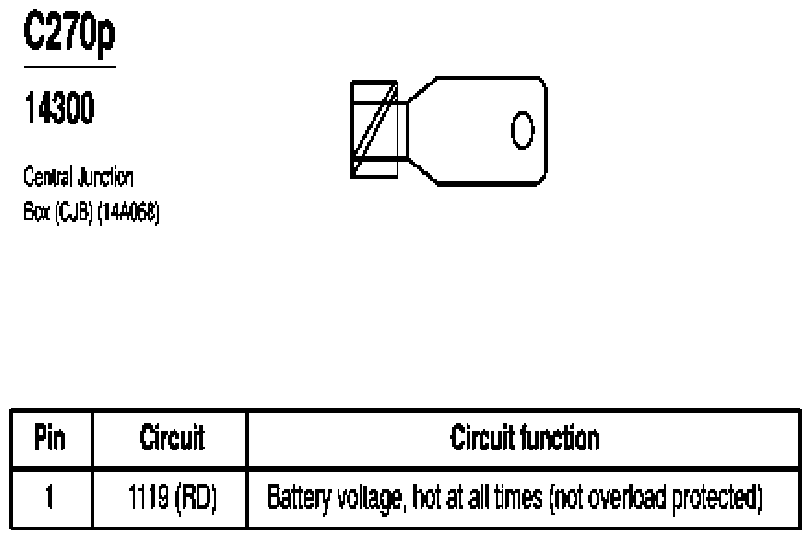

Fig 120: Central Junction Box (CJB) Connector End View (C270p)

G07843722

Courtesy of FORD MOTOR CO.

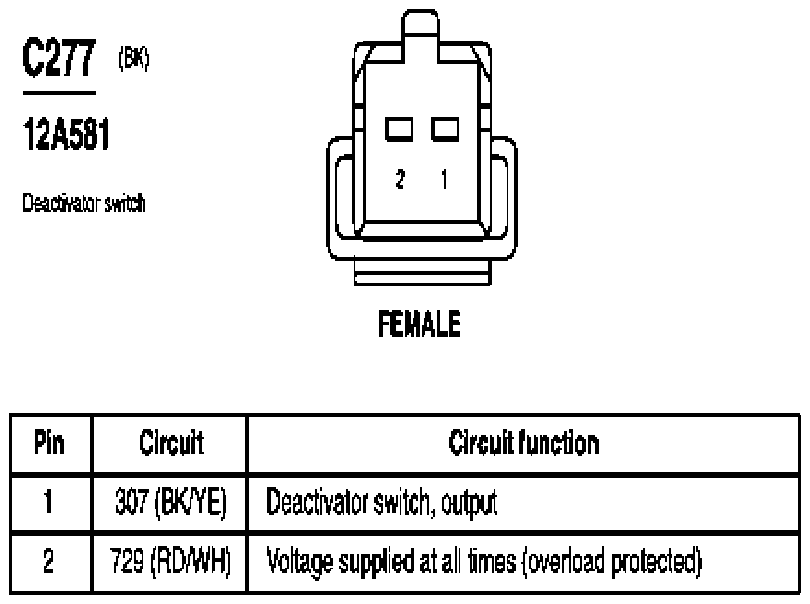

Fig 121: Deactivator Switch Connector End View (C277)

G07843723

Courtesy of FORD MOTOR CO.

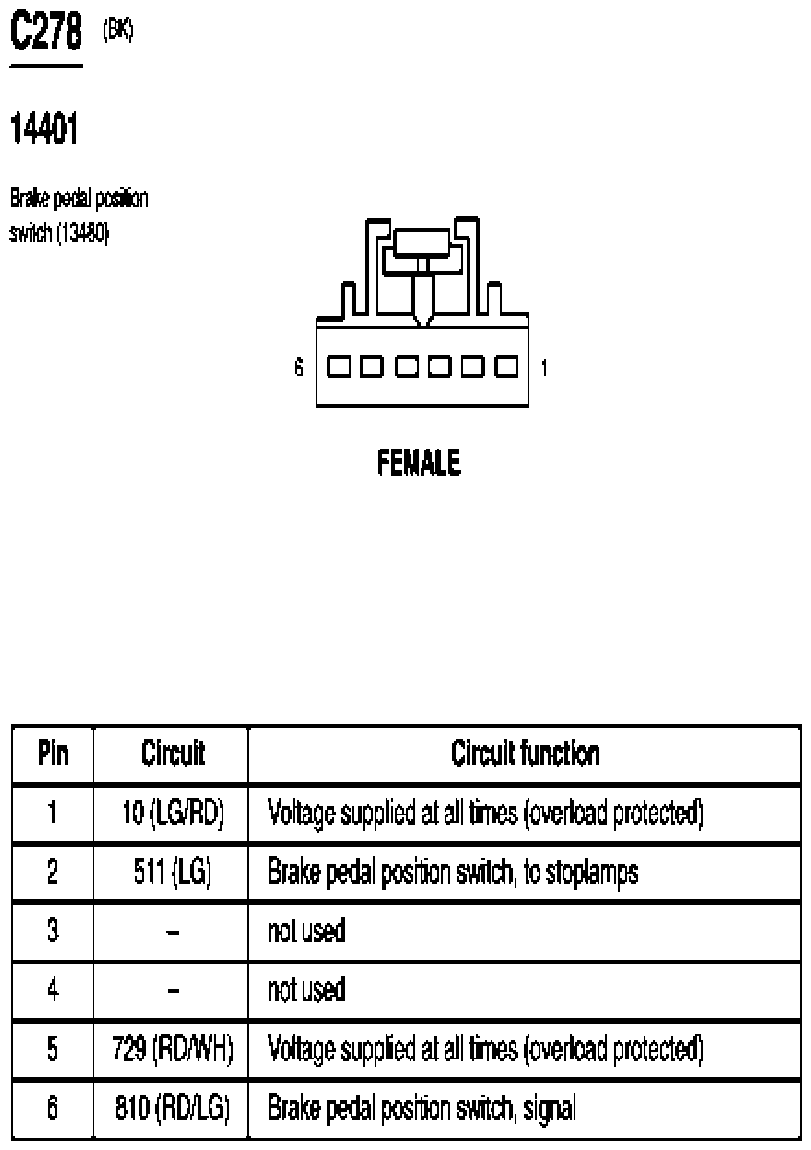

Fig 122: Brake Pedal Position Switch Connector End View (C278)

G07843724

Courtesy of FORD MOTOR CO.

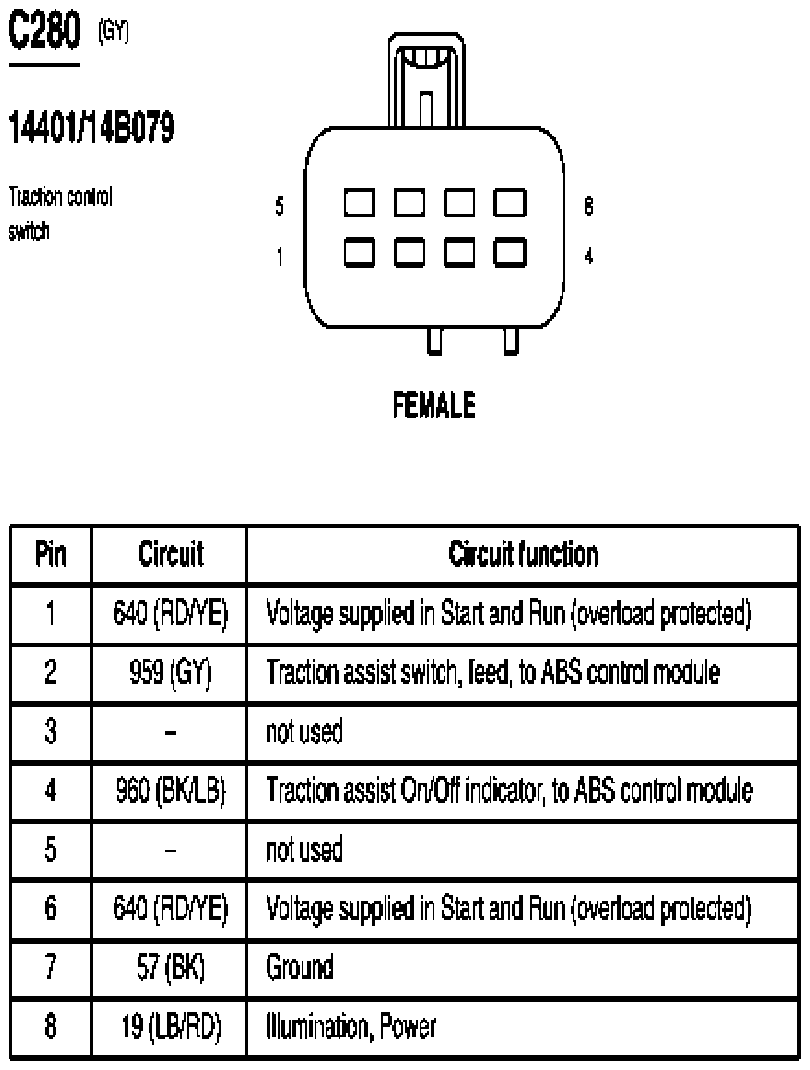

Fig 123: Traction Control Switch Connector End View (C280)

G07843725

Courtesy of FORD MOTOR CO.

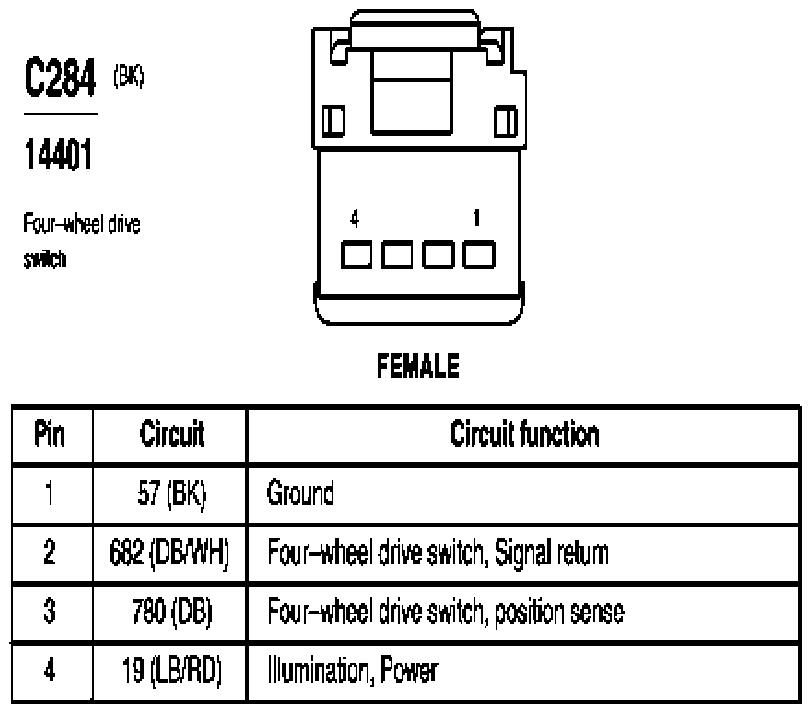

Fig 124: Four-Wheel Drive Switch Connector End View (C284)

G07843726

Courtesy of FORD MOTOR CO.

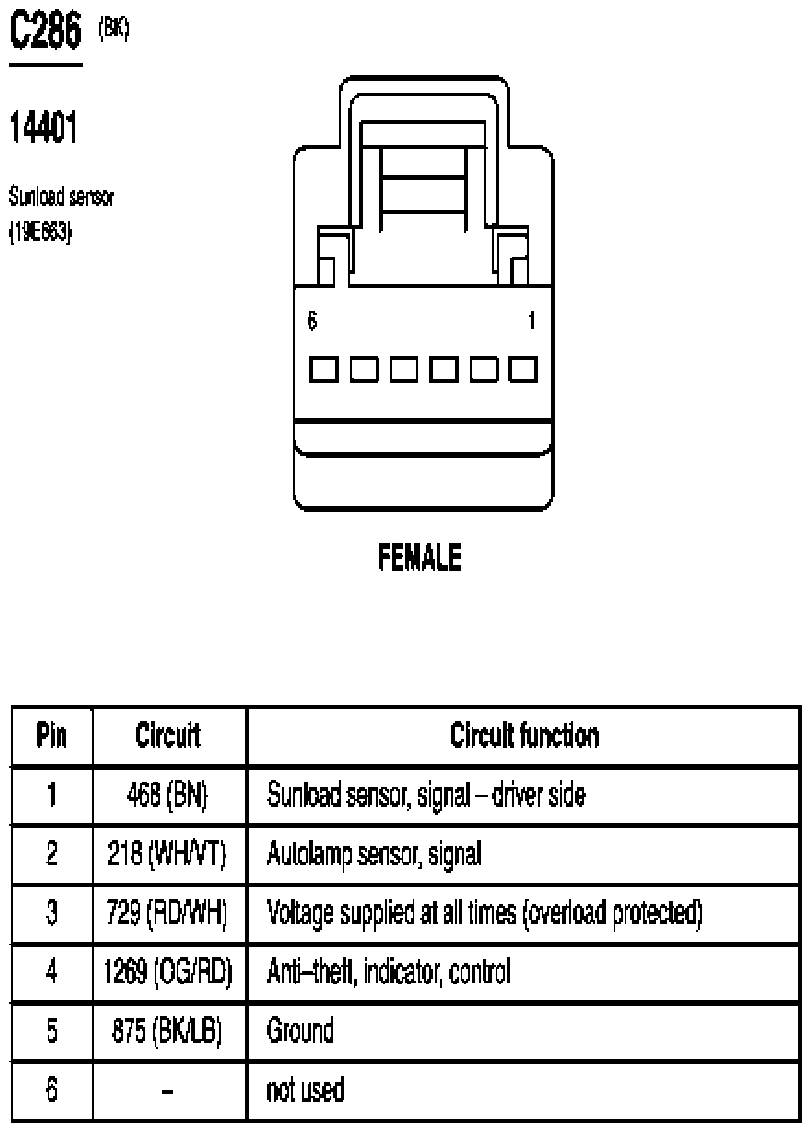

Fig 125: Sunload Sensor Connector End View (C286)

G07843727

Courtesy of FORD MOTOR CO.

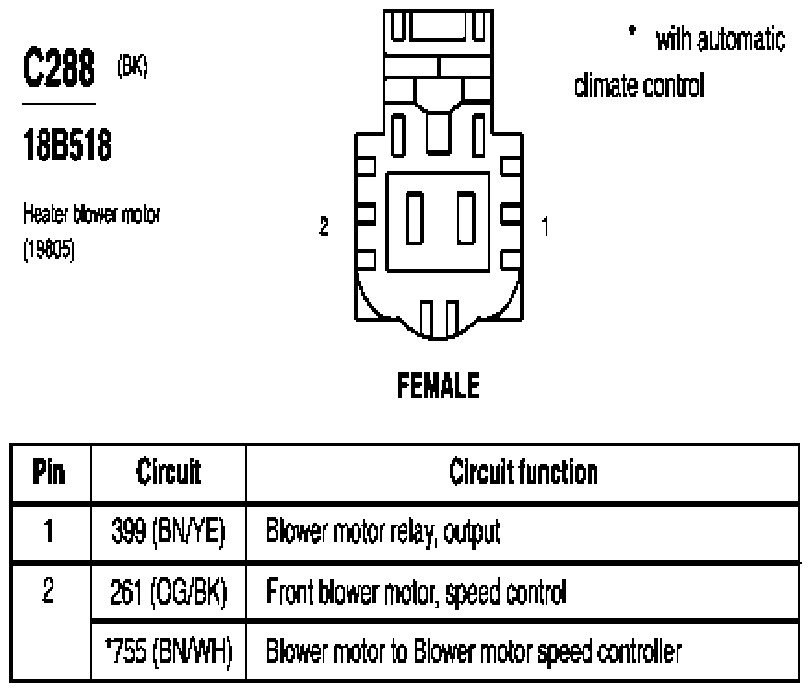

Fig 126: Heater Blower Motor Connector End View (C288)

G07843728

Courtesy of FORD MOTOR CO.

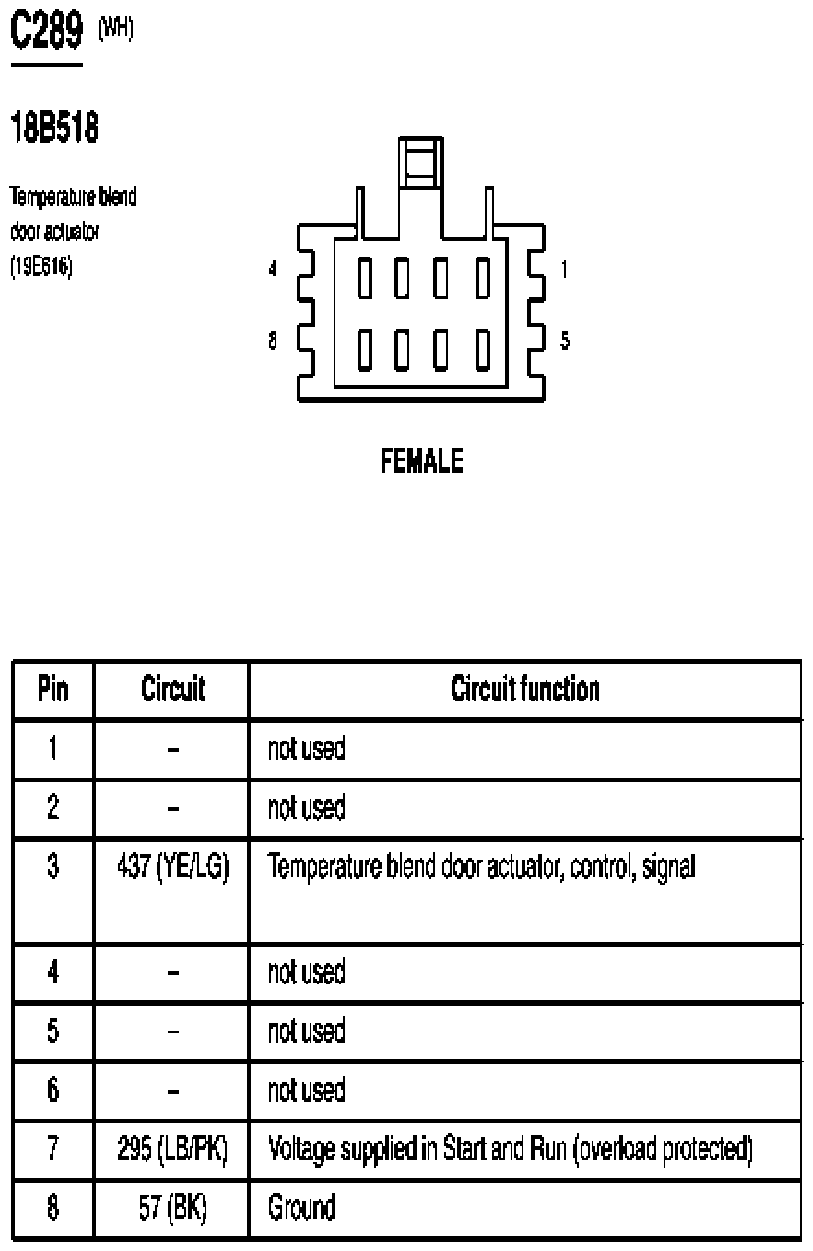

Fig 127: Temperature Blend Door Actuator Connector End View (C289)

G07843729

Courtesy of FORD MOTOR CO.

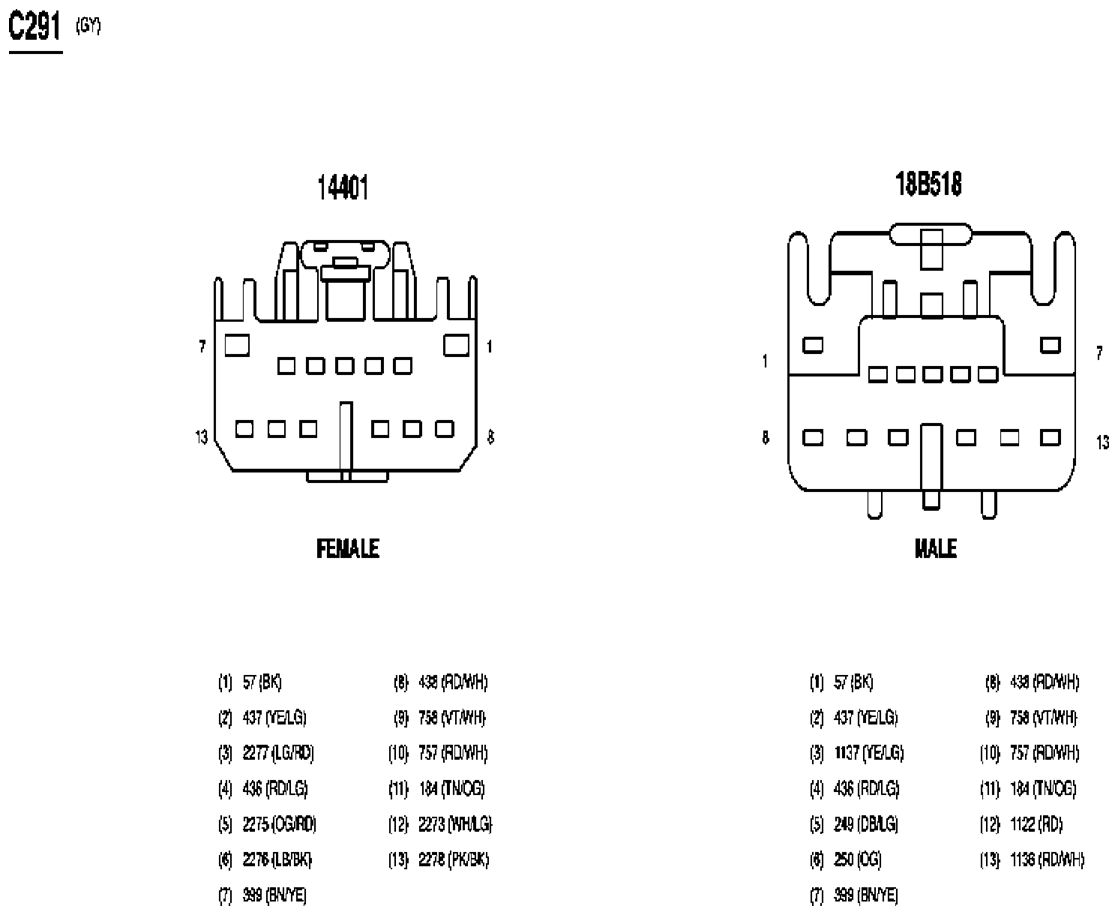

Fig 128: Inline Connector End View (C291)

G07843730

Courtesy of FORD MOTOR CO.

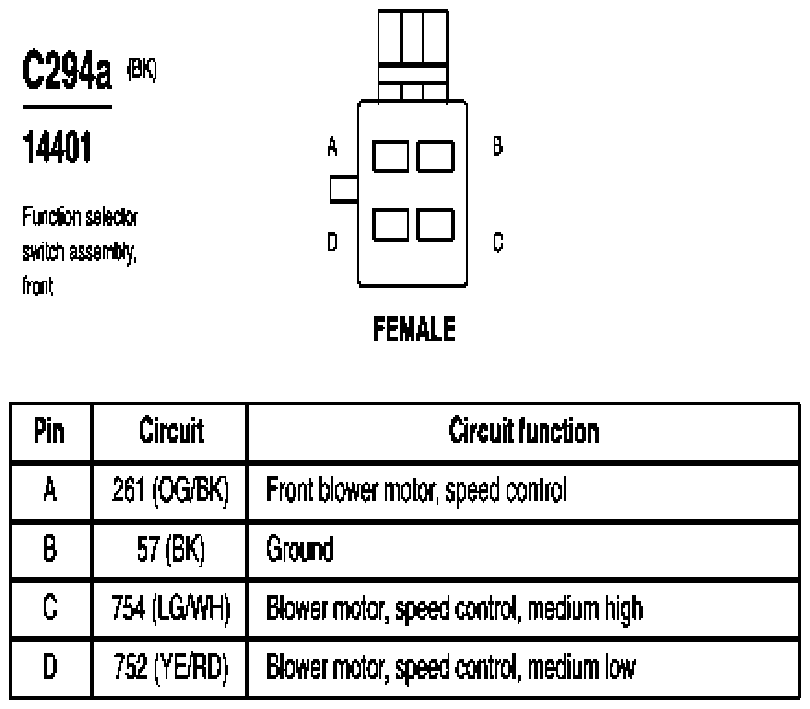

Fig 129: Function Selector Switch Assembly, Front Connector End View (C294a)

G07843731

Courtesy of FORD MOTOR CO.

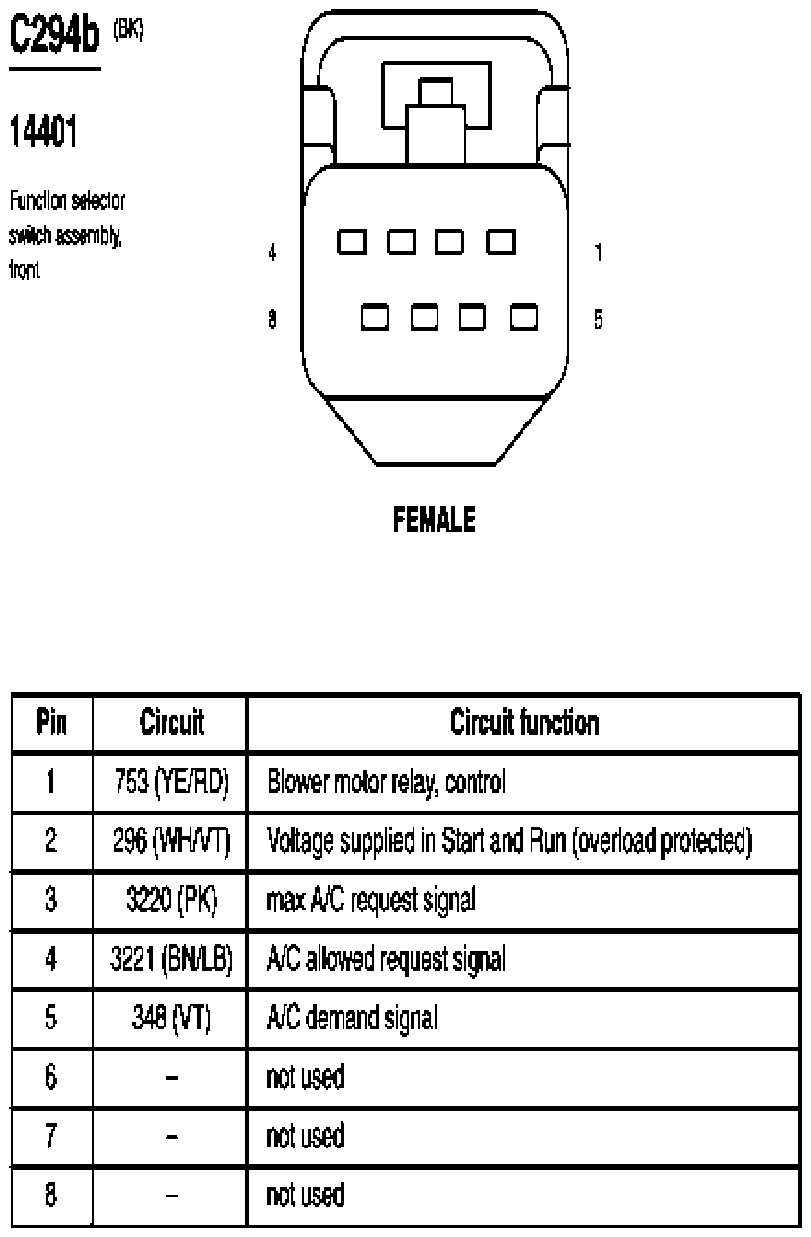

Fig 130: Function Selector Switch Assembly, Front Connector End View (C294b)

G07843732

Courtesy of FORD MOTOR CO.

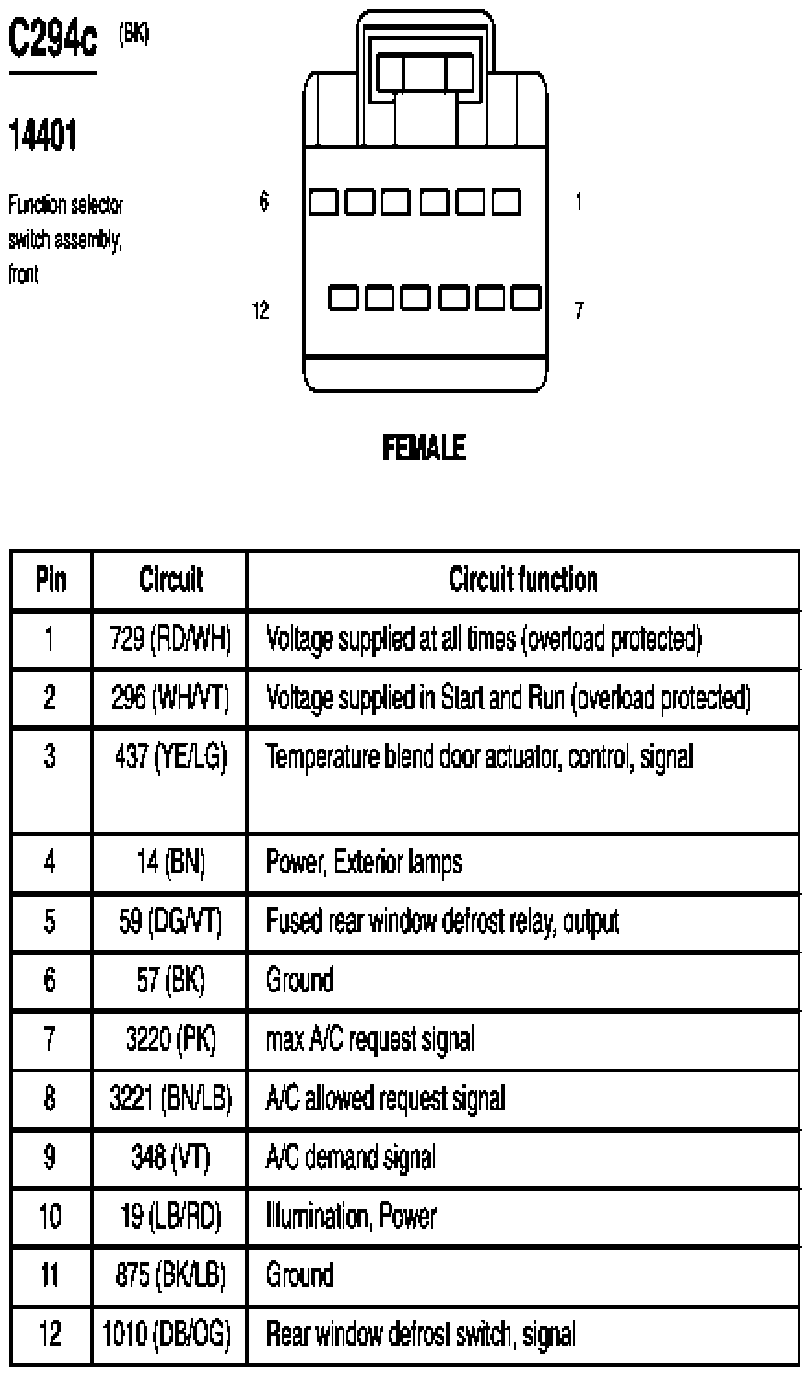

Fig 131: Function Selector Switch Assembly, Front Connector End View (C294c)

G07843733

Courtesy of FORD MOTOR CO.

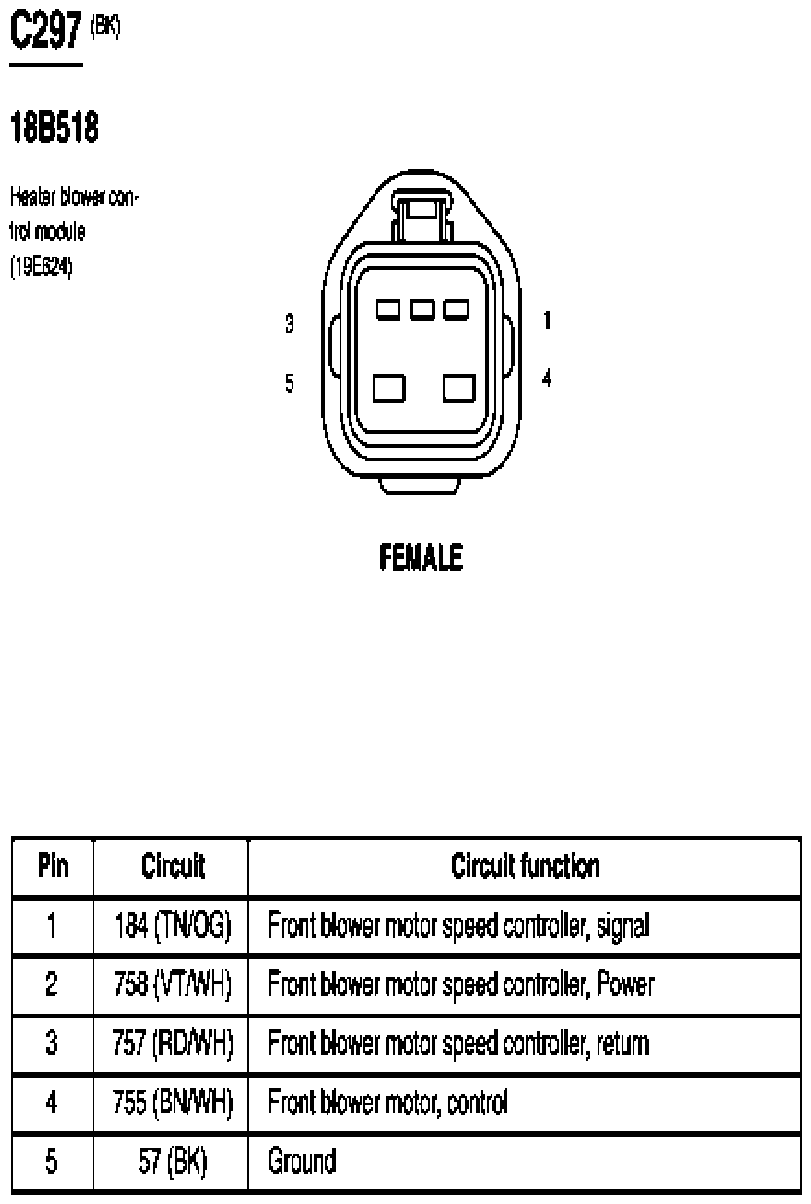

Fig 132: Heater Blower Control Module Connector End View (C297)

G07843734

Courtesy of FORD MOTOR CO.

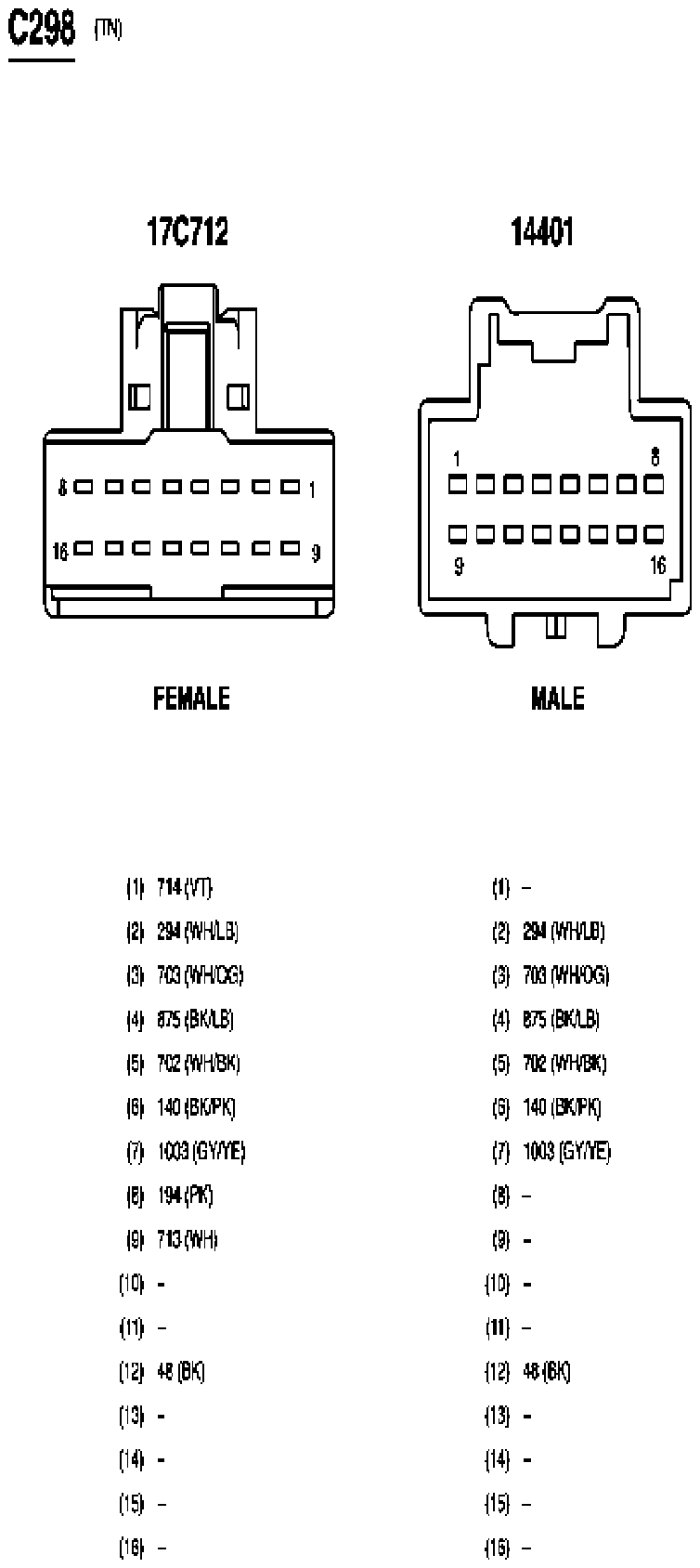

Fig 133: Inline Connector End View (C298)

G07843735

Courtesy of FORD MOTOR CO.

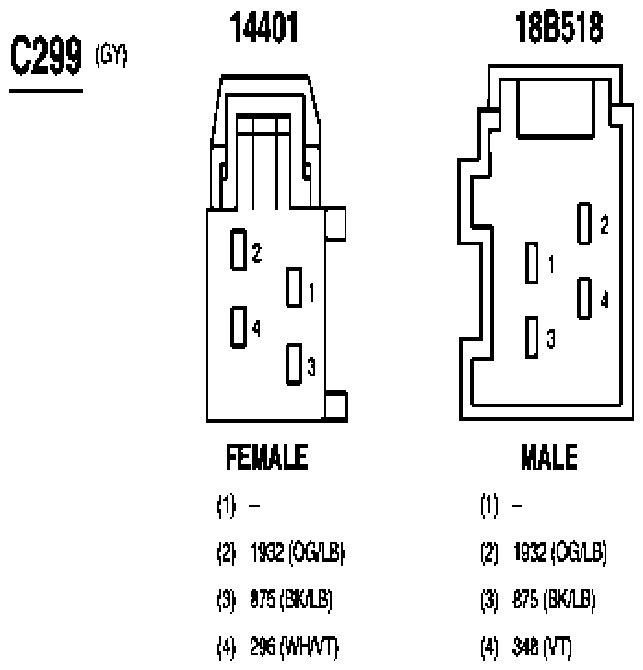

Fig 134: Inline Connector End View (C299)

G07843736

Courtesy of FORD MOTOR CO.

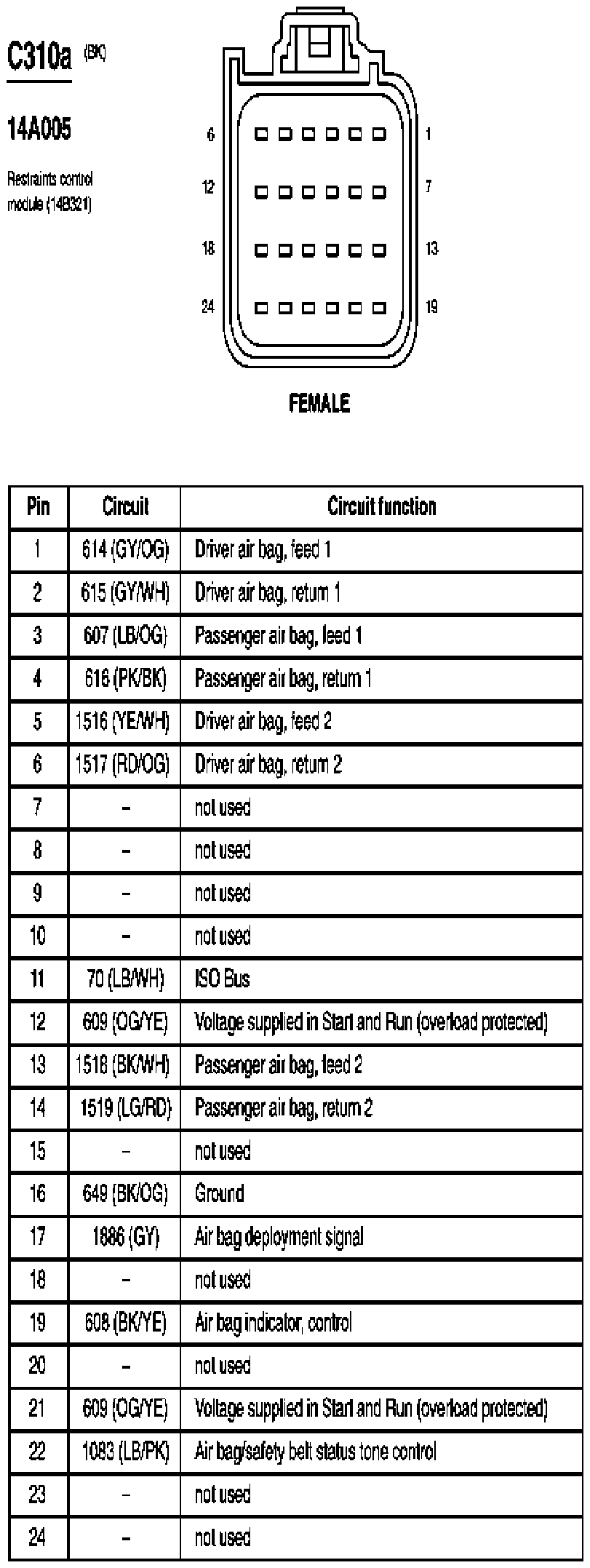

Fig 135: Restraints Control Module Connector End View (C310a)

G07843737

Courtesy of FORD MOTOR CO.

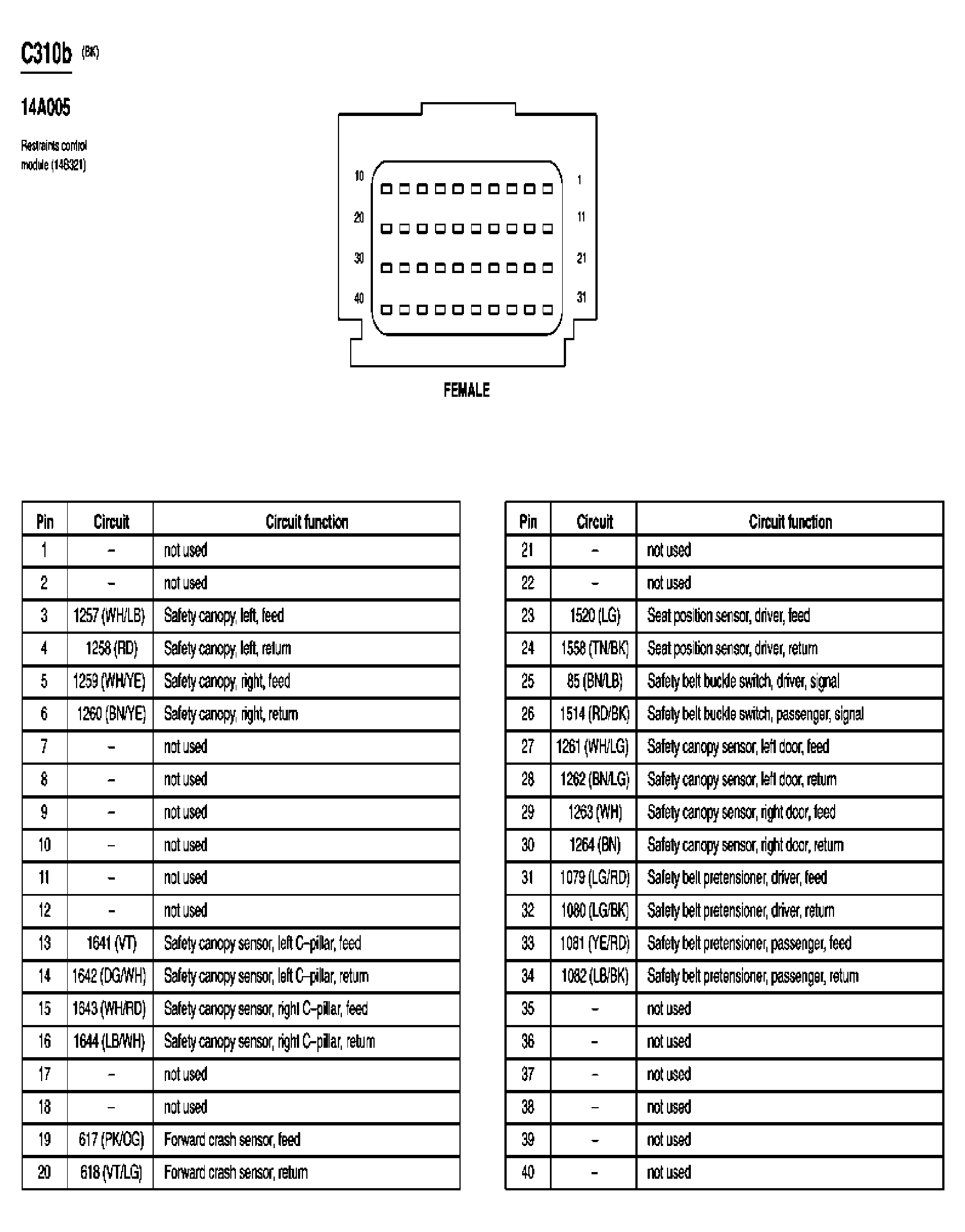

Fig 136: Restraints Control Module Connector End View (C310b)

G03993547

Courtesy of FORD MOTOR CO.

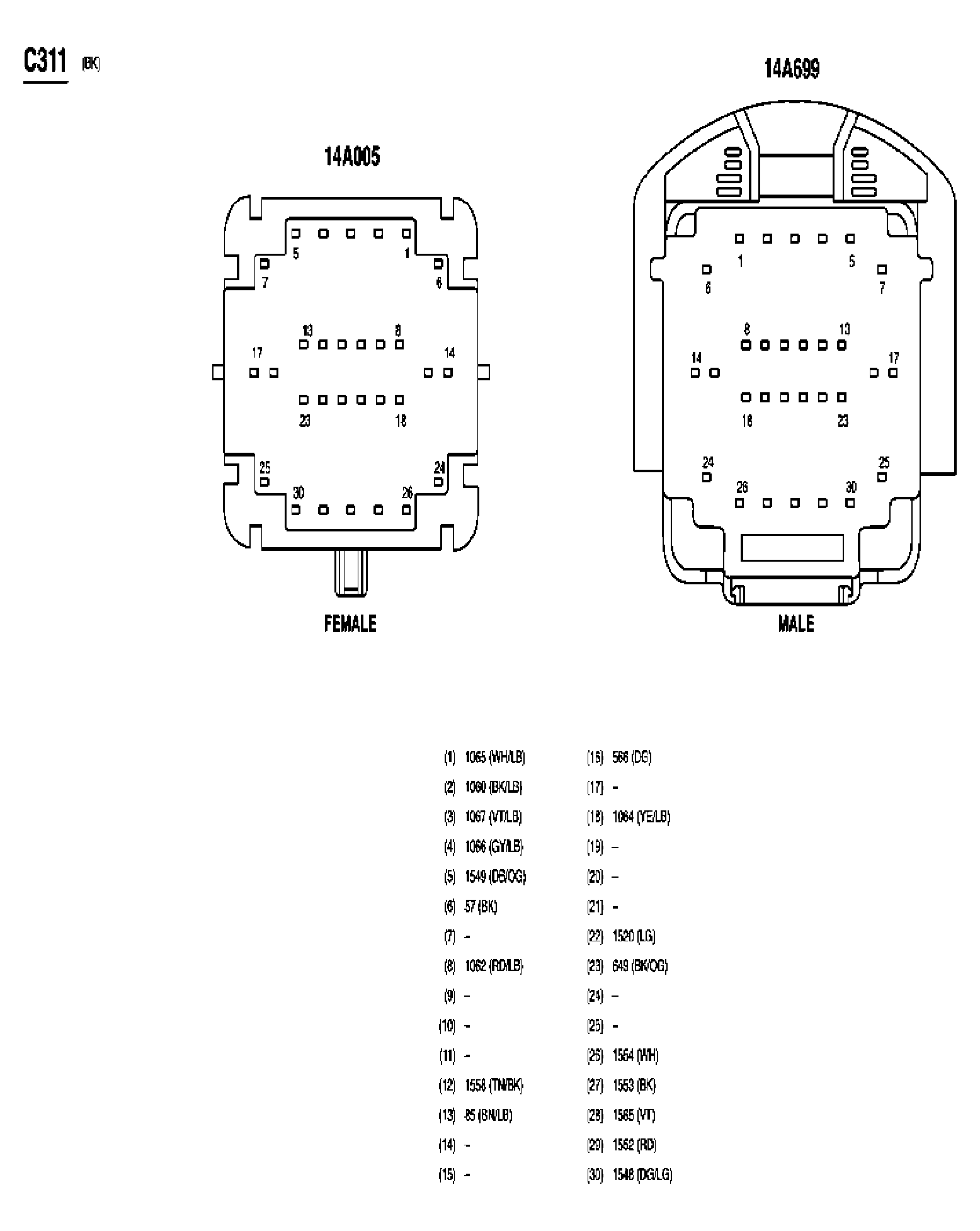

Fig 137: Inline Connector End View (C311)

G03993548

Courtesy of FORD MOTOR CO.

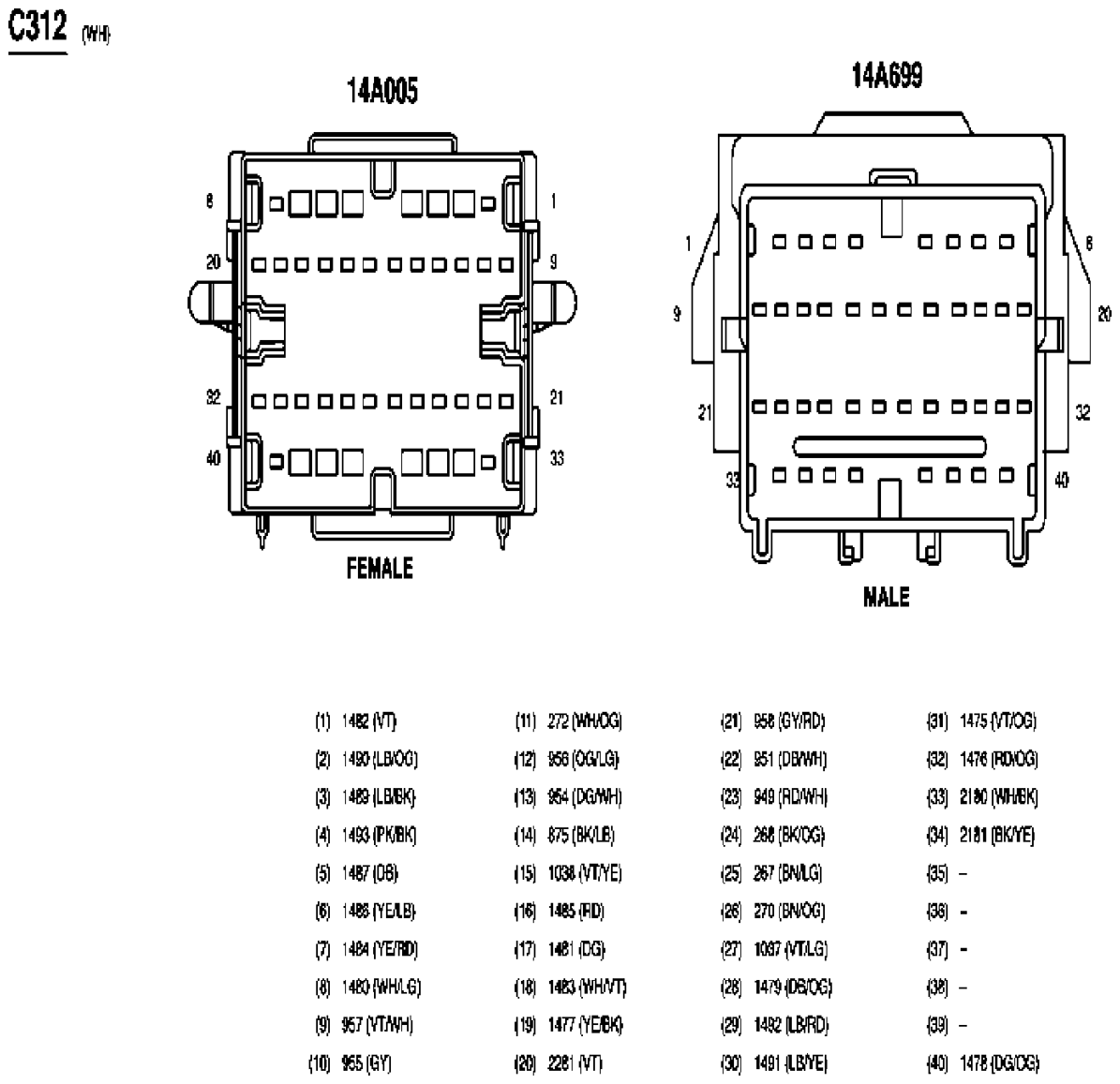

Fig 138: Inline Connector End View (C312)

G03993549

Courtesy of FORD MOTOR CO.

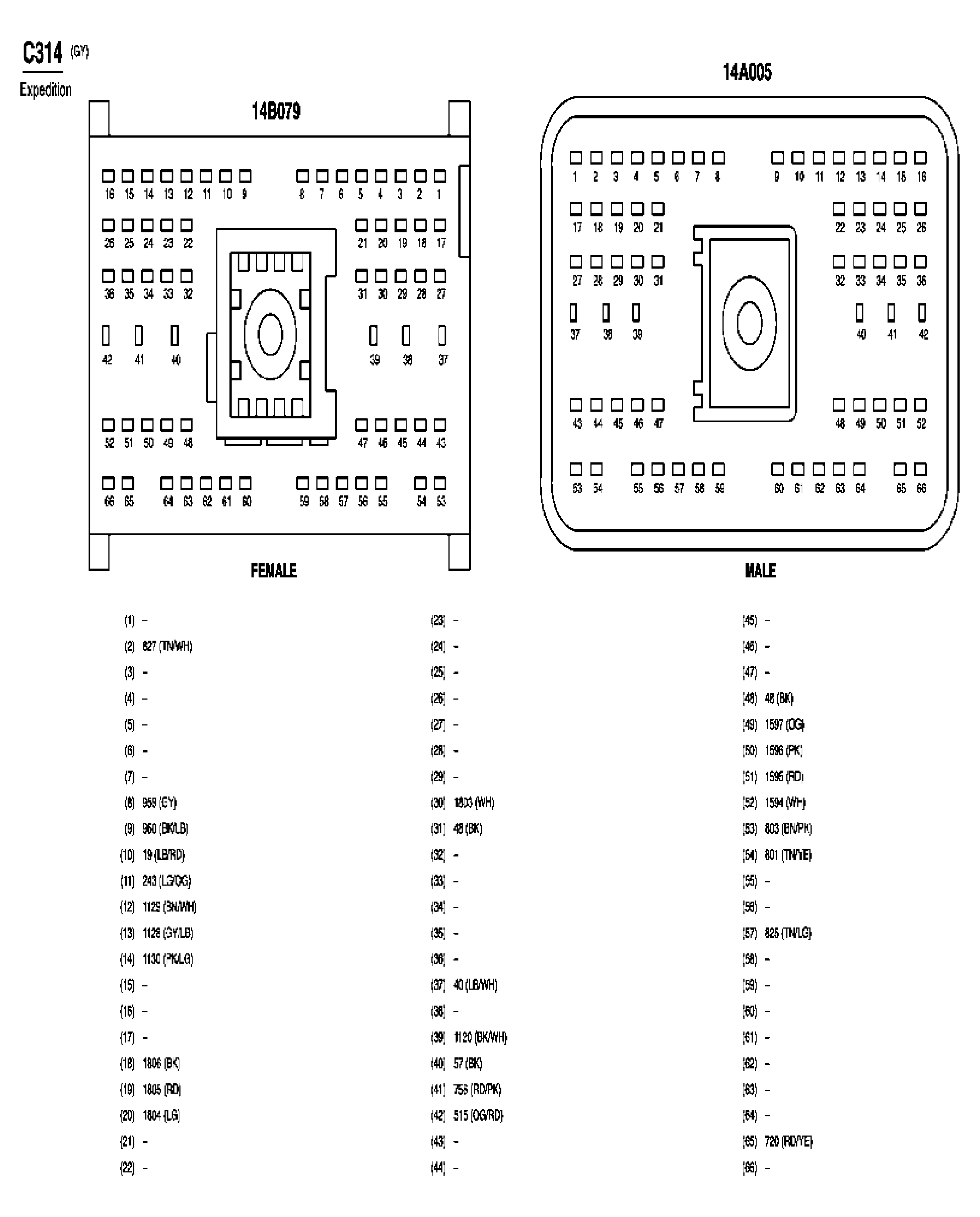

Fig 139: Expedition Connector End View (C314)

G03993550

Courtesy of FORD MOTOR CO.

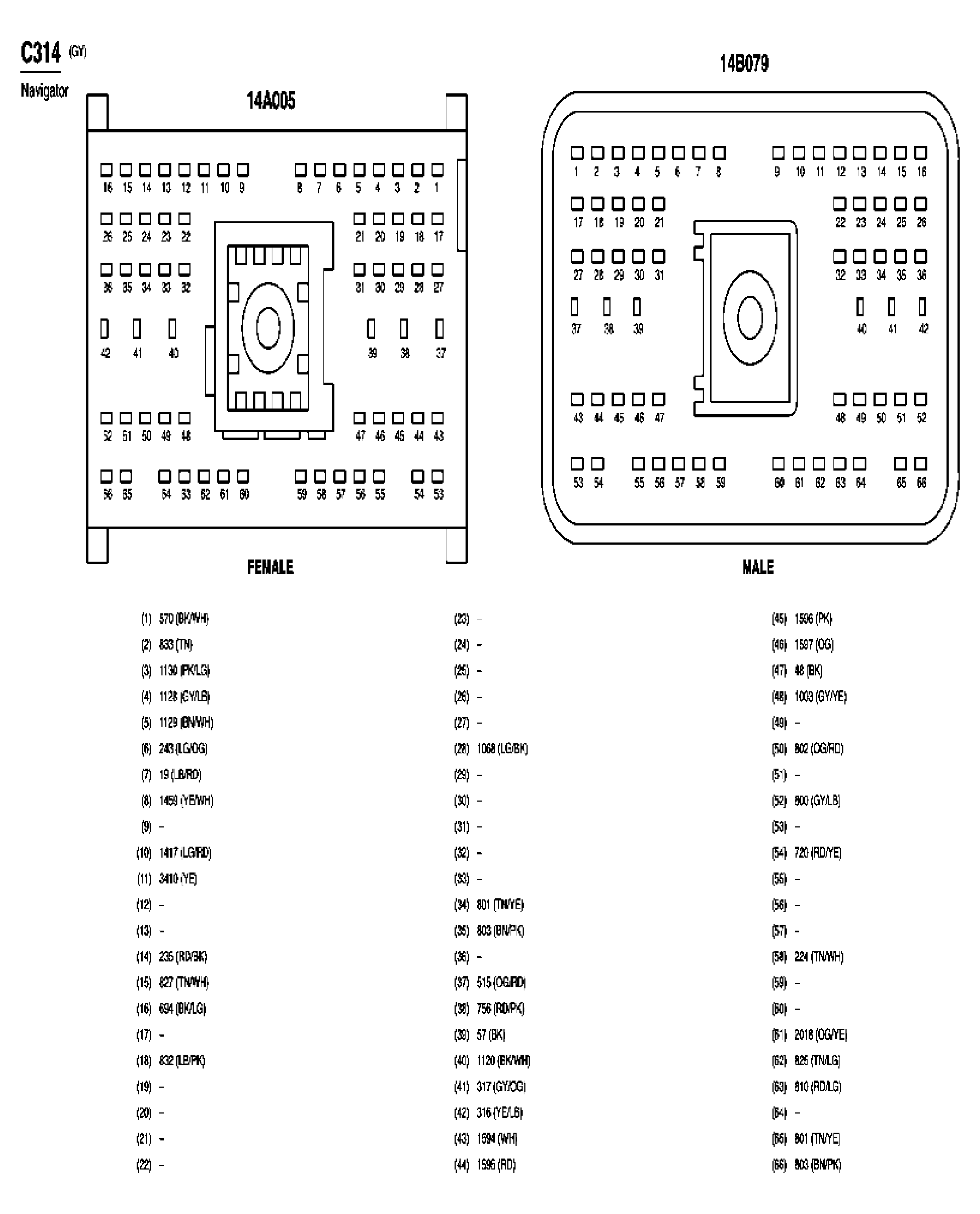

Fig 140: Navigator Connector End View (C314)

G03993551

Courtesy of FORD MOTOR CO.

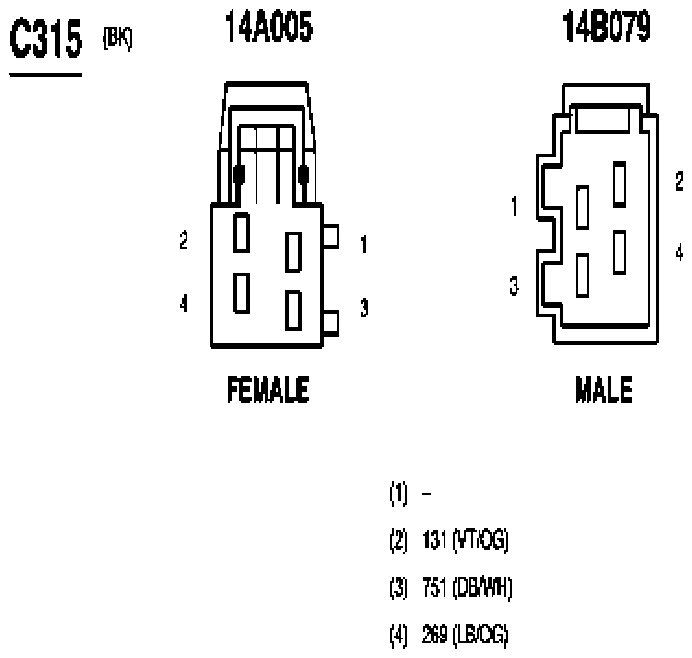

Fig 141: Inline Connector End View (C315)

G03993552

Courtesy of FORD MOTOR CO.

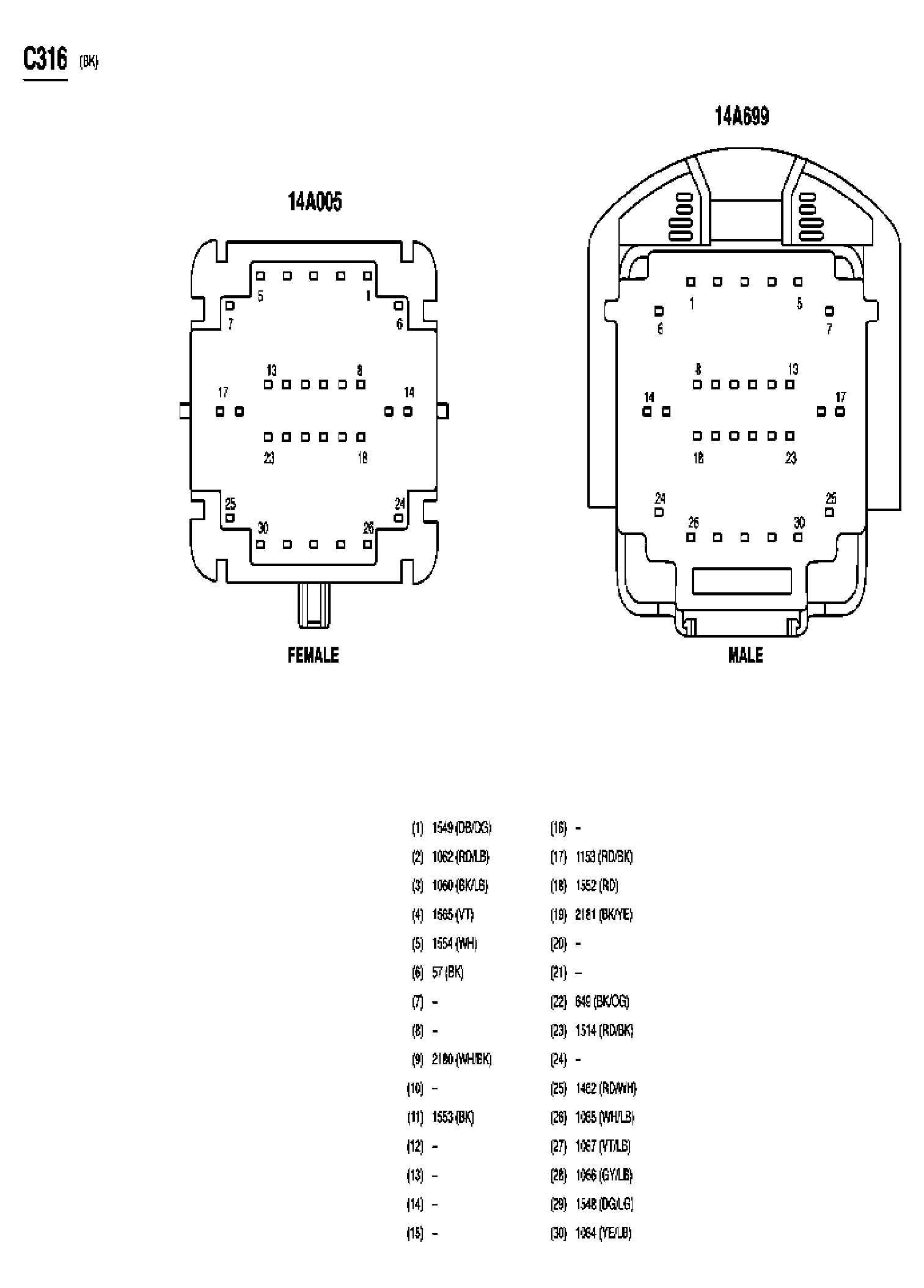

Fig 142: Inline Connector End View (C316)

G03993553

Courtesy of FORD MOTOR CO.

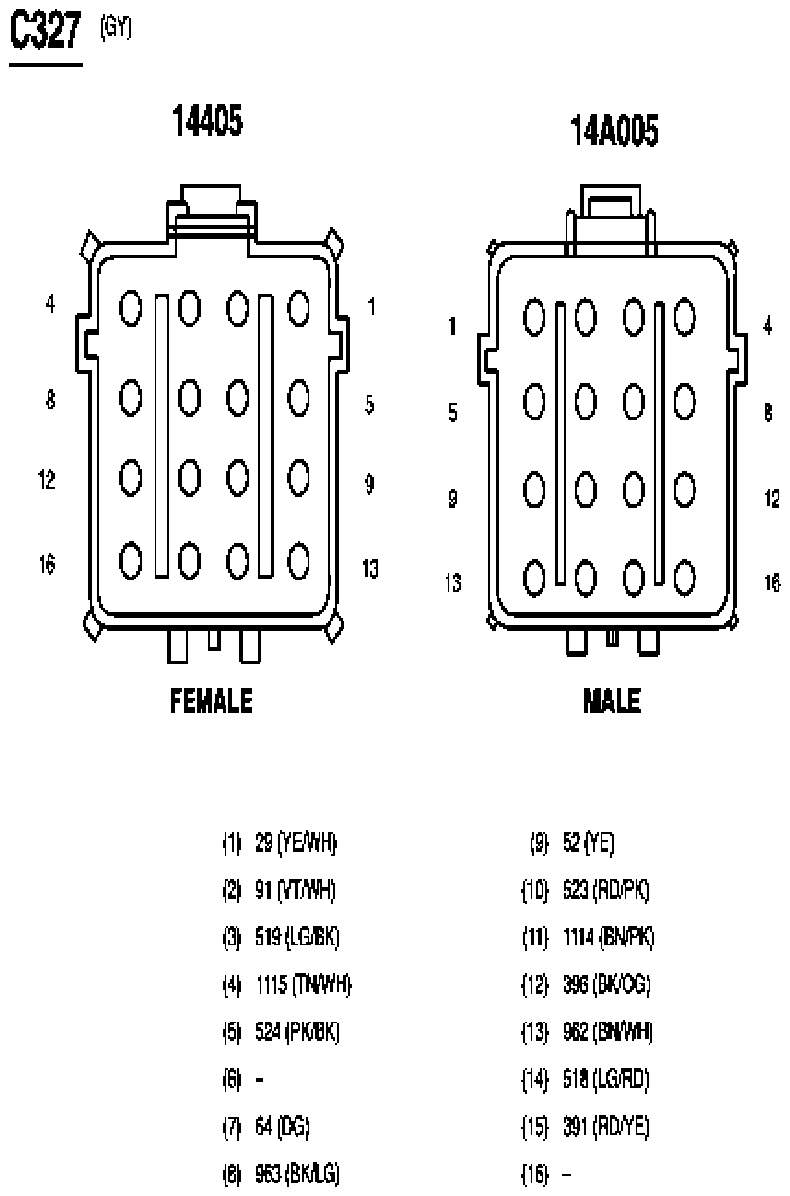

Fig 143: Inline Connector End View (C327)

G07843738

Courtesy of FORD MOTOR CO.

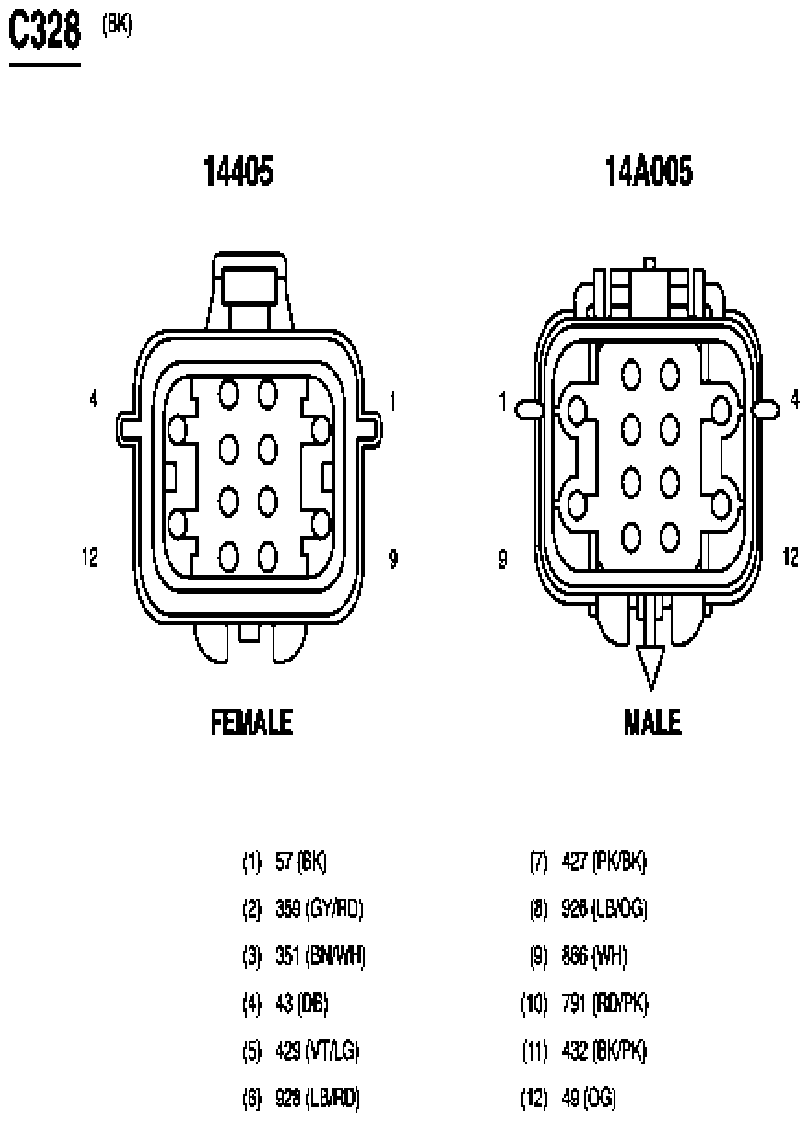

Fig 144: Inline Connector End View (C328)

G07843739

Courtesy of FORD MOTOR CO.

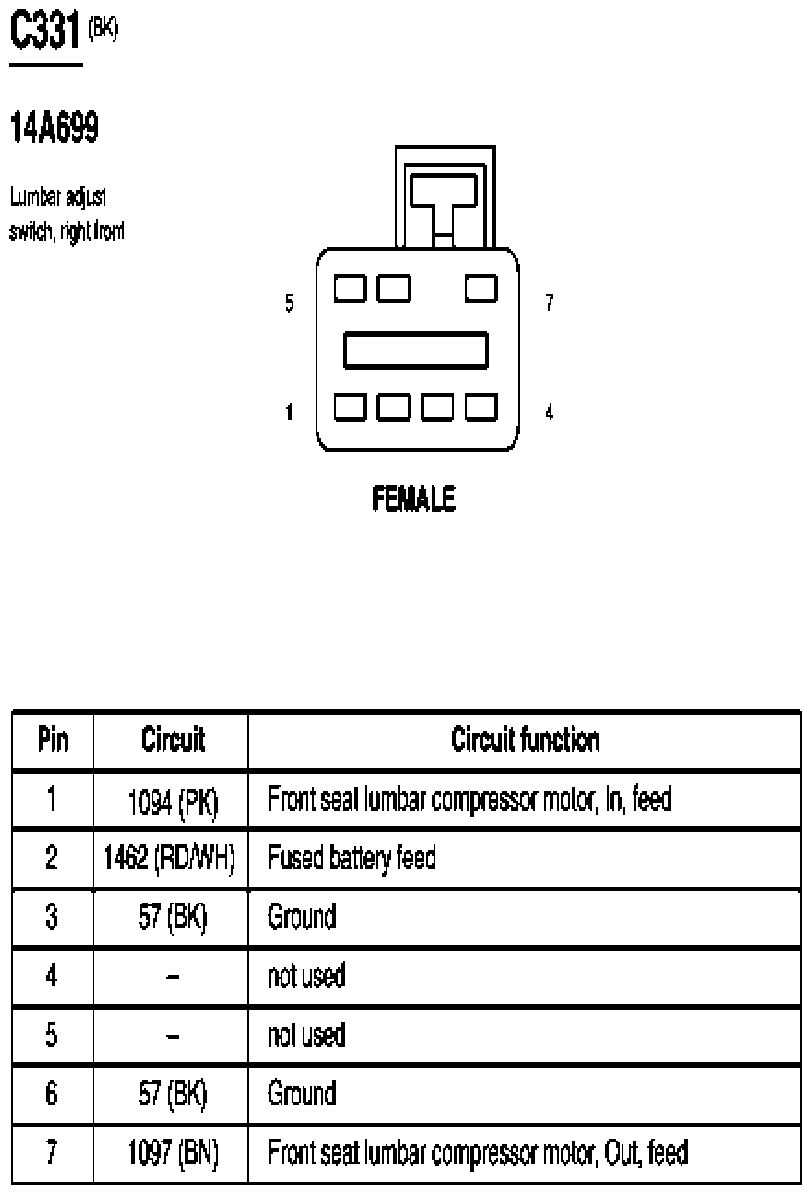

Fig 145: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07843740

Courtesy of FORD MOTOR CO.

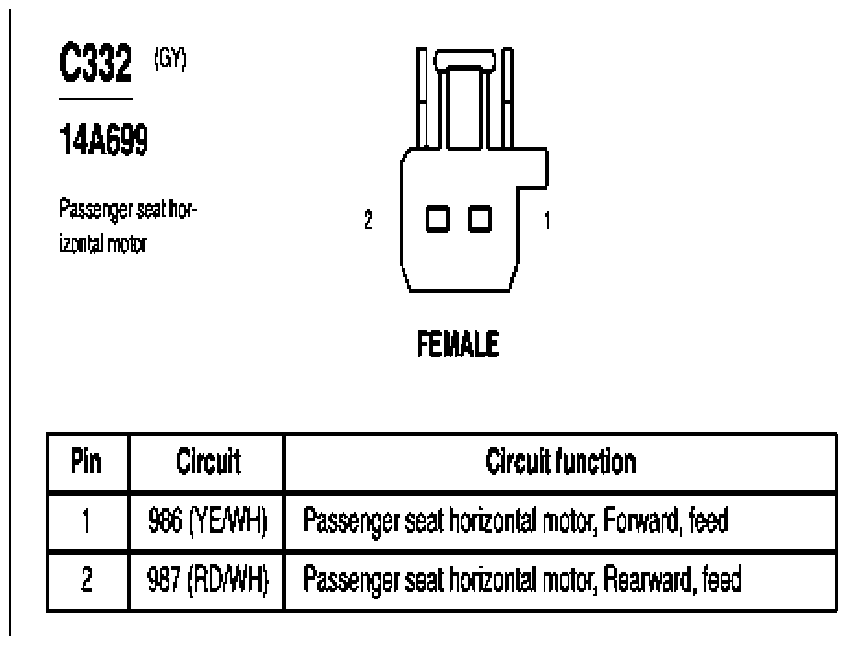

Fig 146: Passenger Seat Horizontal Motor Connector End View (C332)

G07843741

Courtesy of FORD MOTOR CO.

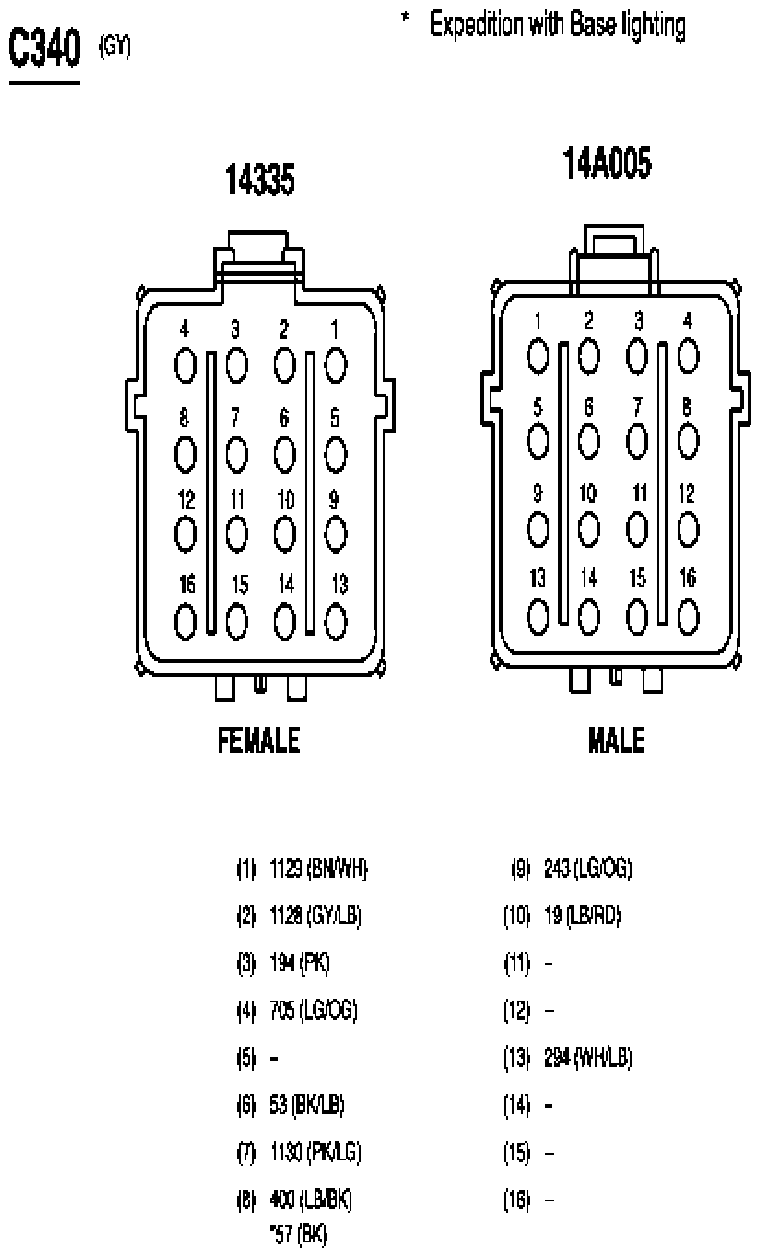

Fig 147: Inline Connector End View (C340)

G07843742

Courtesy of FORD MOTOR CO.

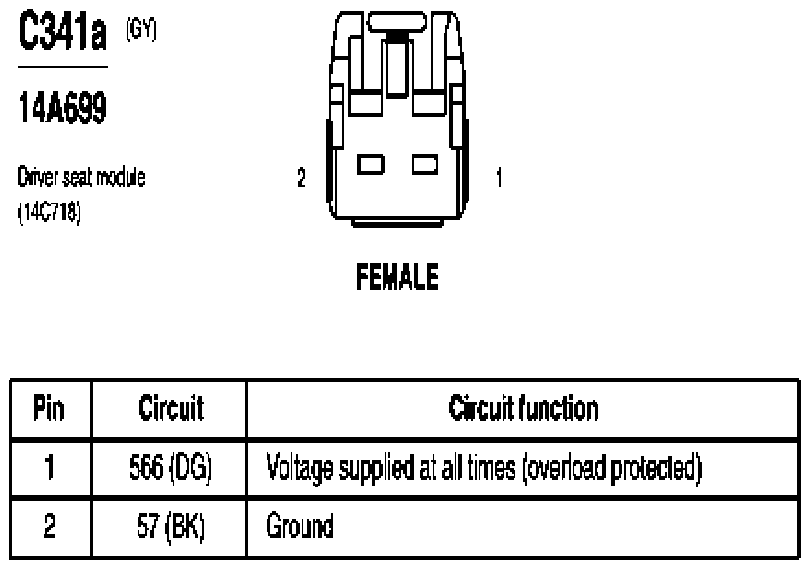

Fig 148: Driver Seat Module Connector End View (C341a)

G07843743

Courtesy of FORD MOTOR CO.

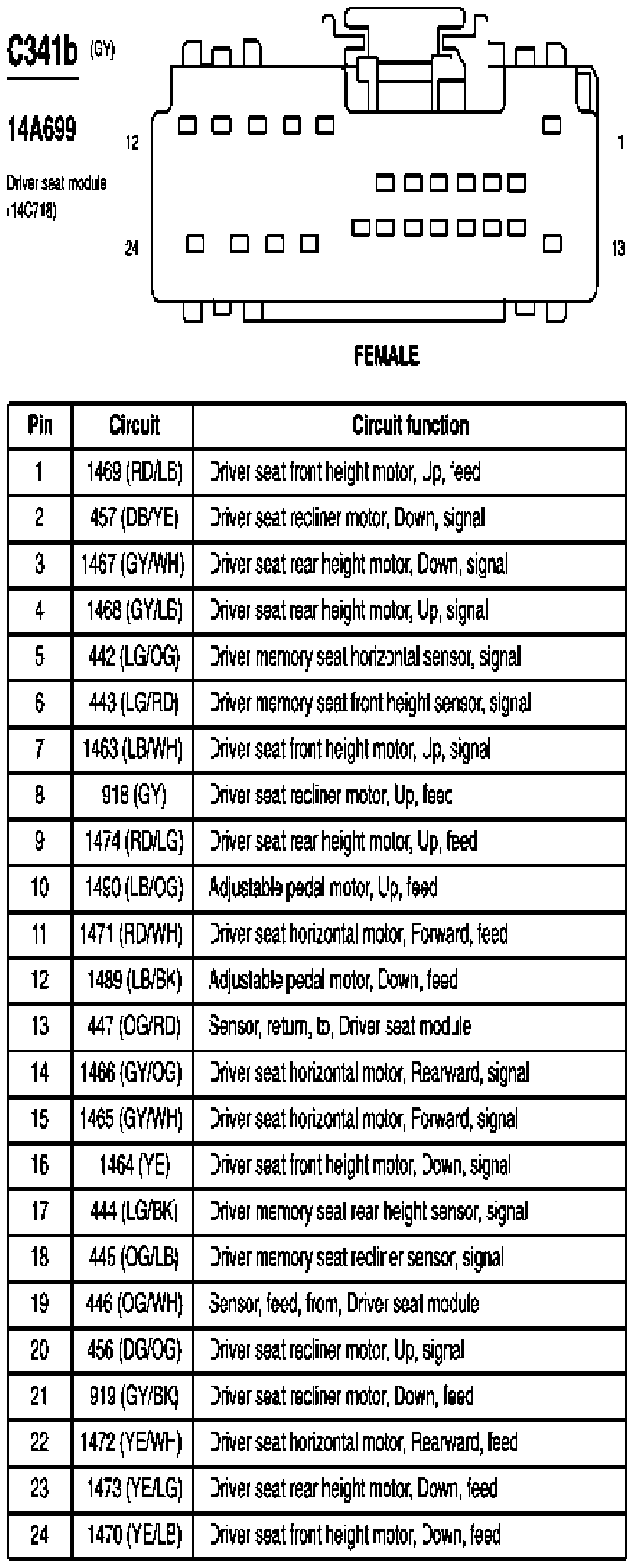

Fig 149: Driver Seat Module Connector End View (C341b)

G07843744

Courtesy of FORD MOTOR CO.

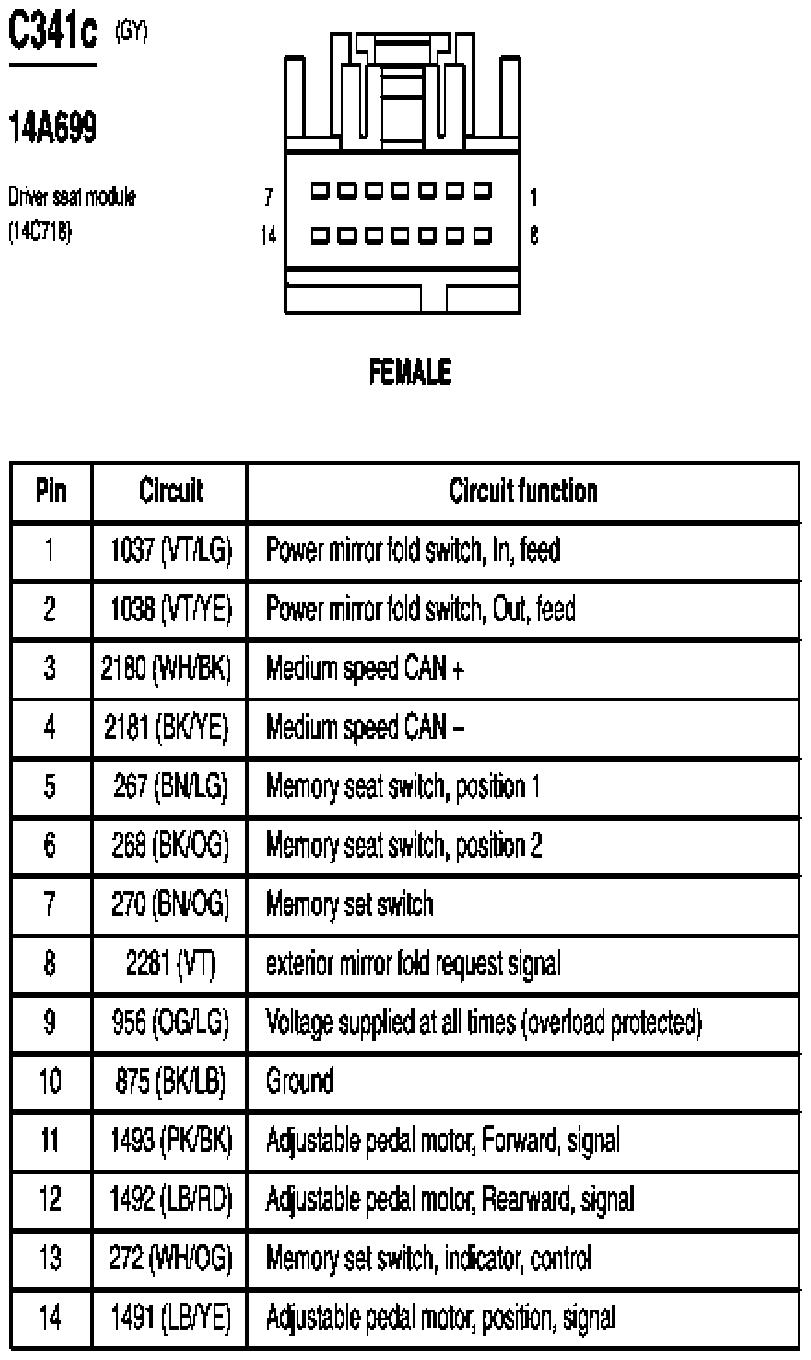

Fig 150: Driver Seat Module Connector End View (C341c)

G07843745

Courtesy of FORD MOTOR CO.

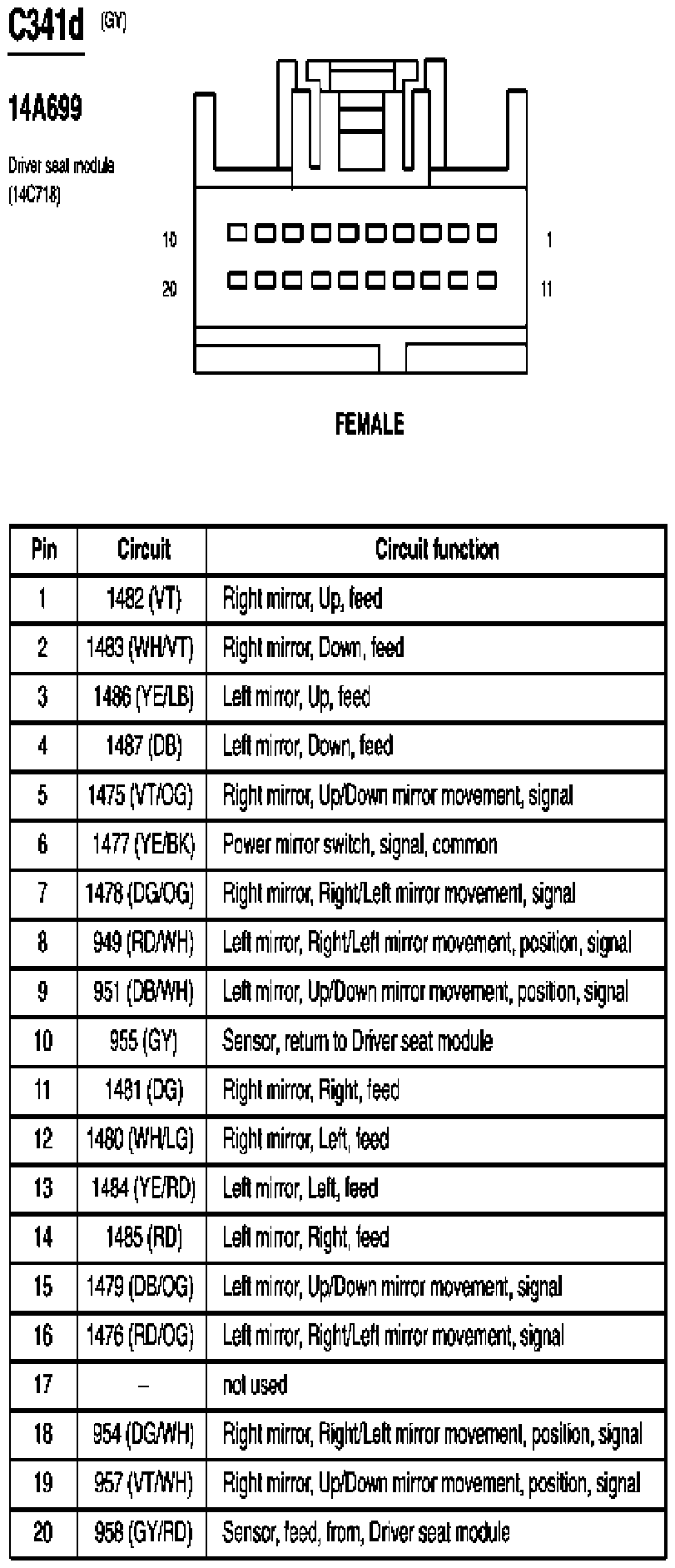

Fig 151: Driver Seat Module Connector End View (C341d)

G07843746

Courtesy of FORD MOTOR CO.

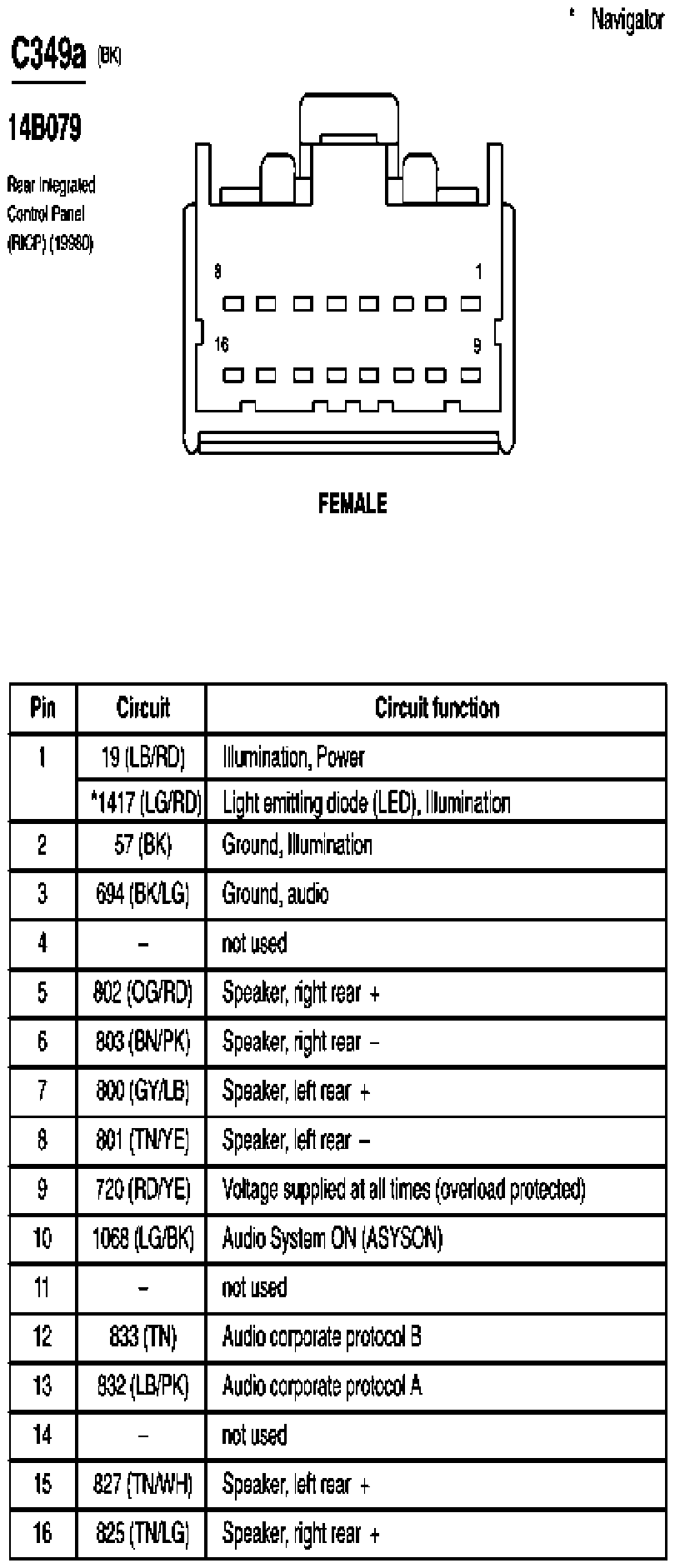

Fig 152: Rear Integrated Control Panel (RICP) Connector End View (C349a)

G07843747

Courtesy of FORD MOTOR CO.

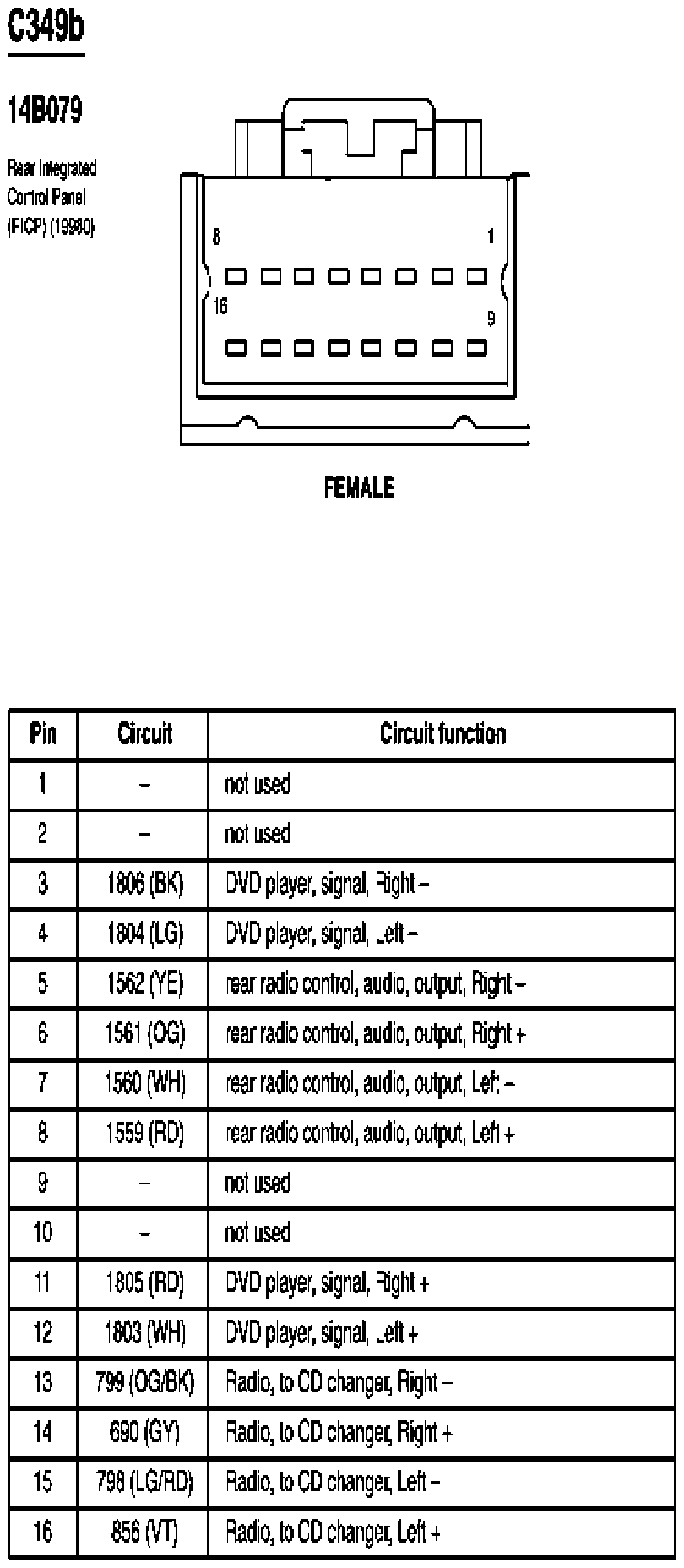

Fig 153: Rear Integrated Control Panel (RICP) Connector End View (C349b)

G07843748

Courtesy of FORD MOTOR CO.

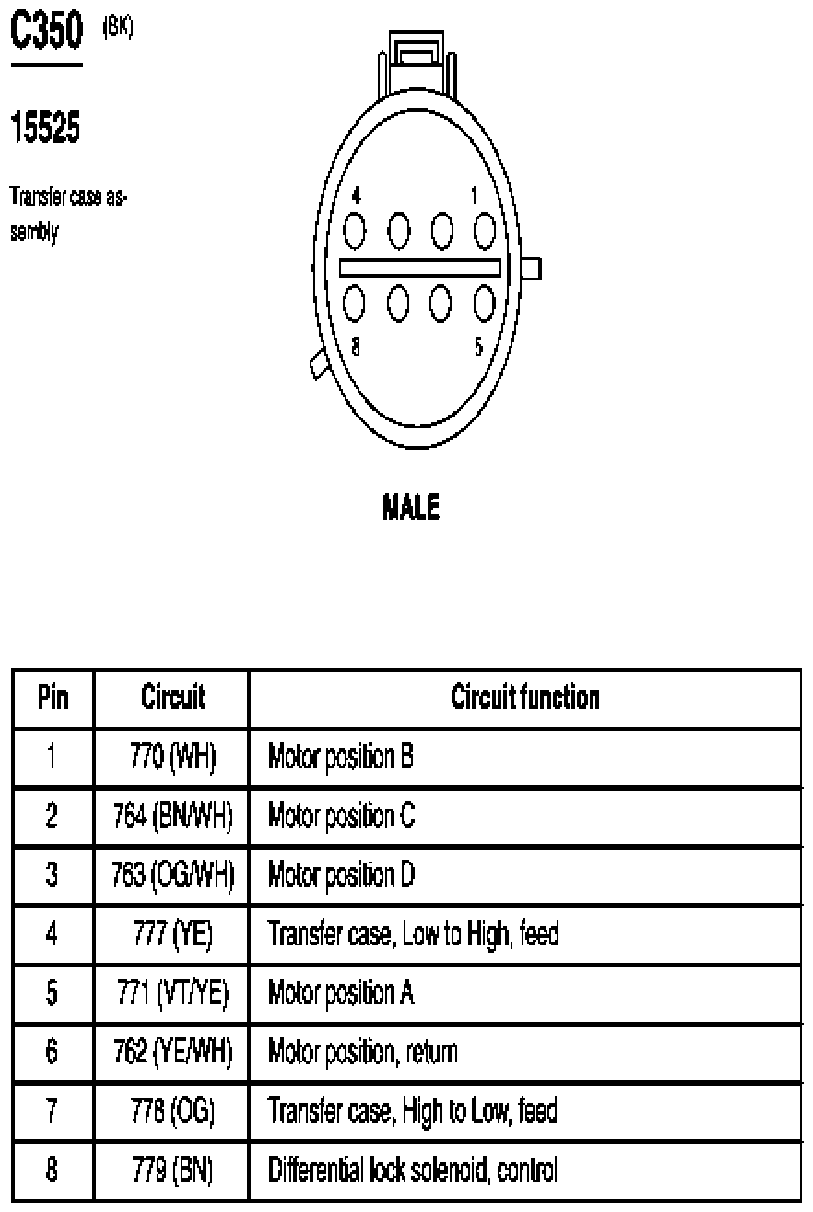

Fig 154: Transfer Case Assembly Connector End View (C350)

G07843749

Courtesy of FORD MOTOR CO.

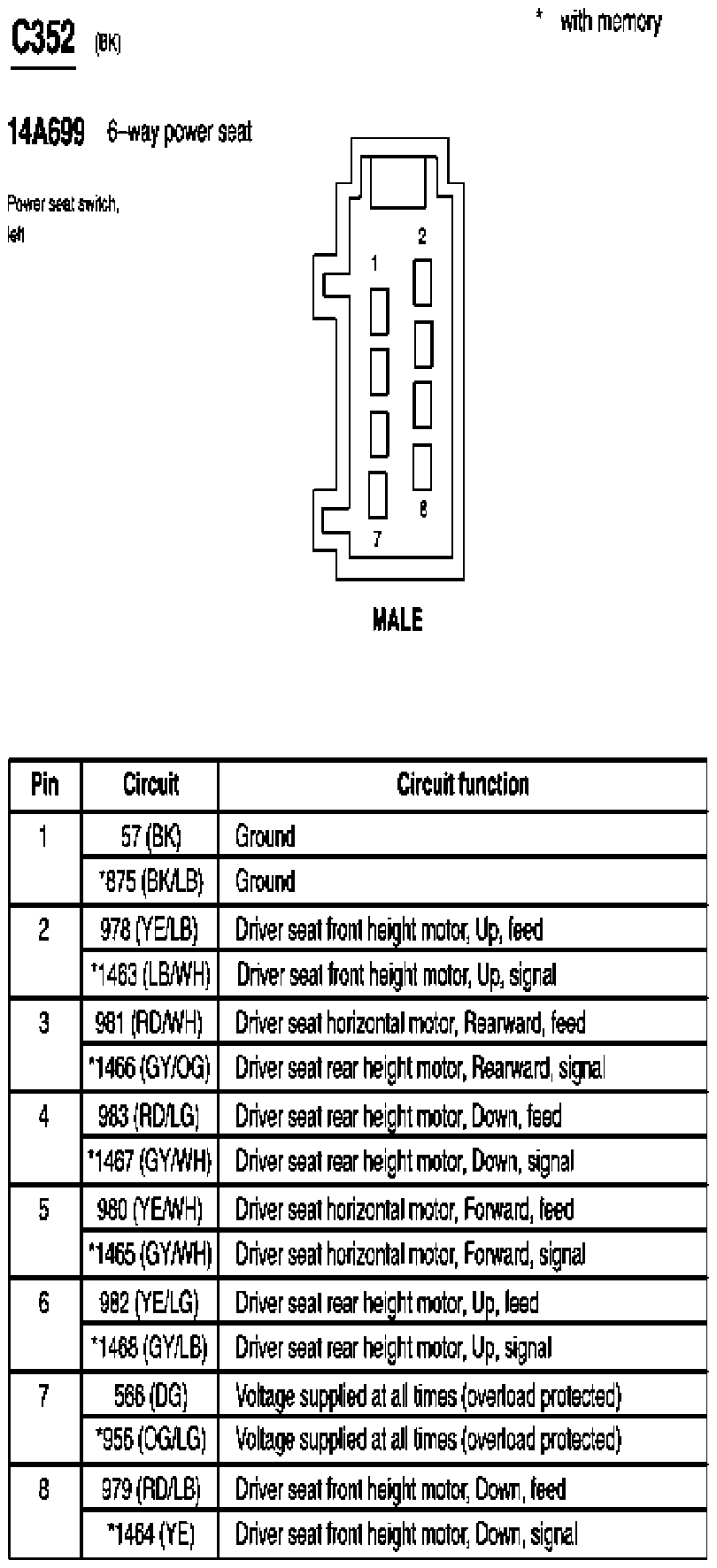

Fig 155: Power Seat Switch, Left Connector End View (C352)

G07843750

Courtesy of FORD MOTOR CO.

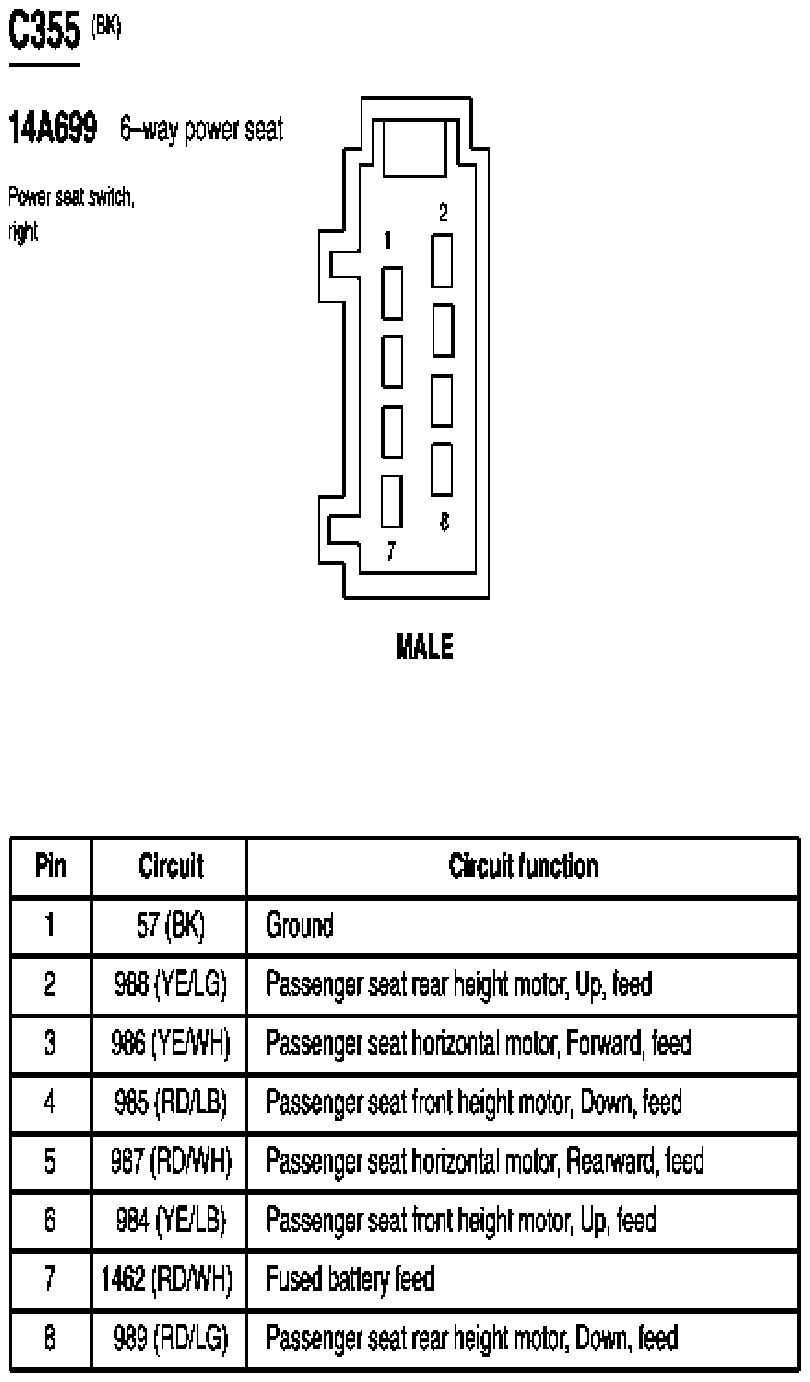

Fig 156: Power Seat Switch, Right Connector End View (C355)

G07843751

Courtesy of FORD MOTOR CO.

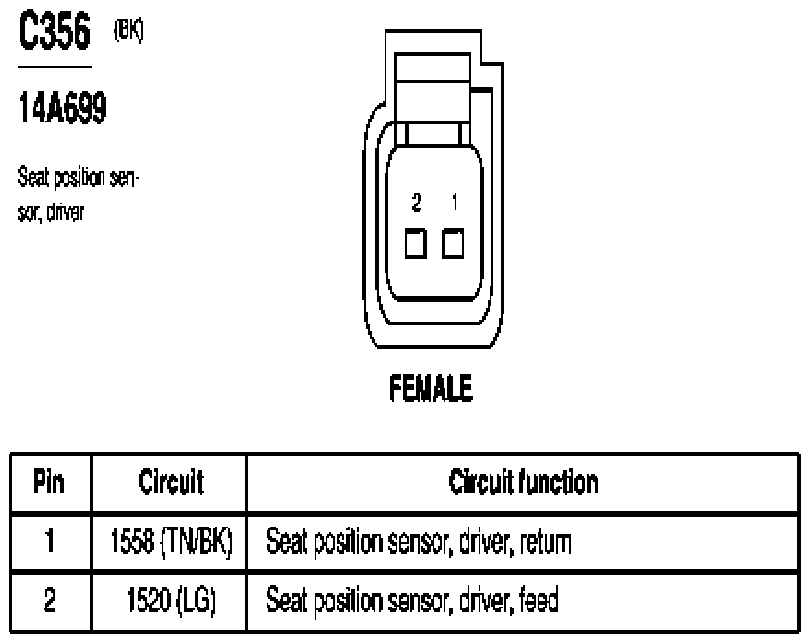

Fig 157: Seat Position Sensor, Driver Connector End View (C356)

G07843752

Courtesy of FORD MOTOR CO.

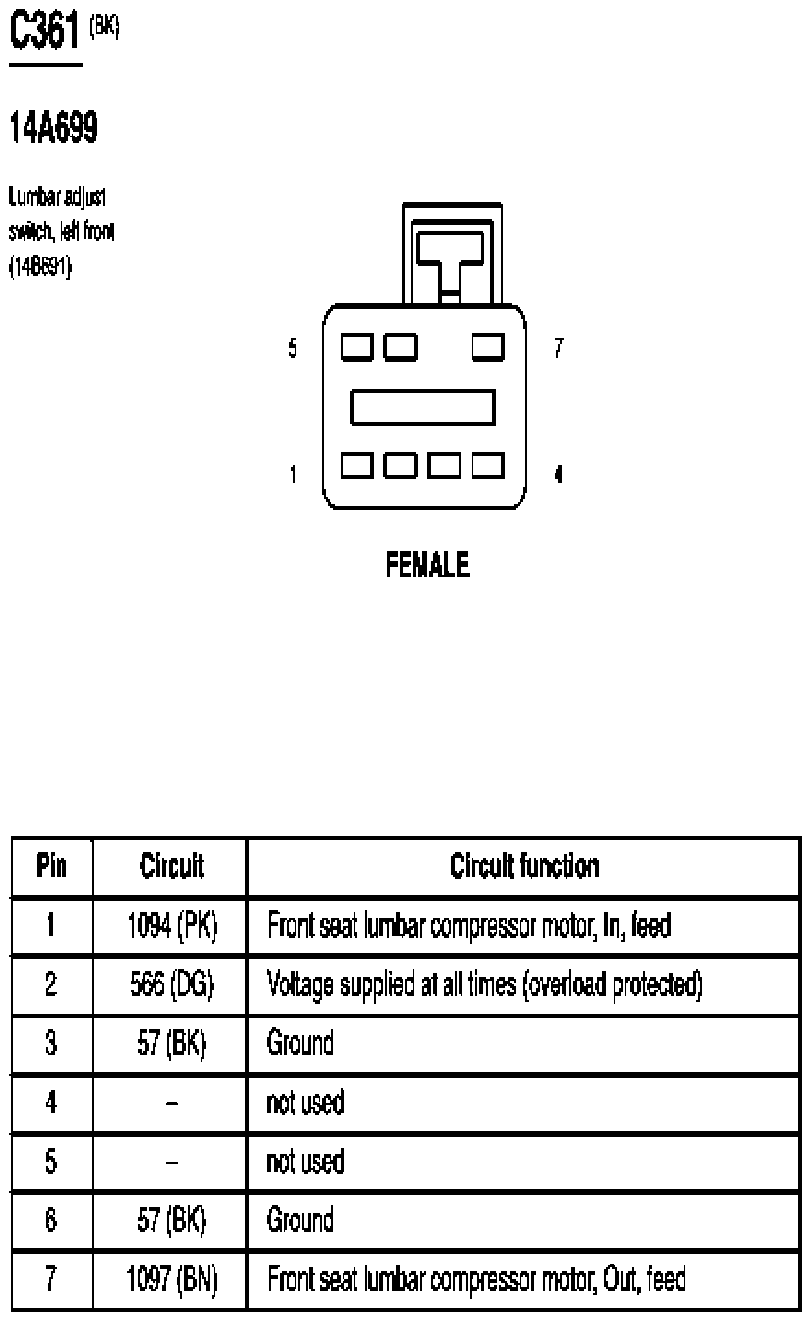

Fig 158: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07843753

Courtesy of FORD MOTOR CO.

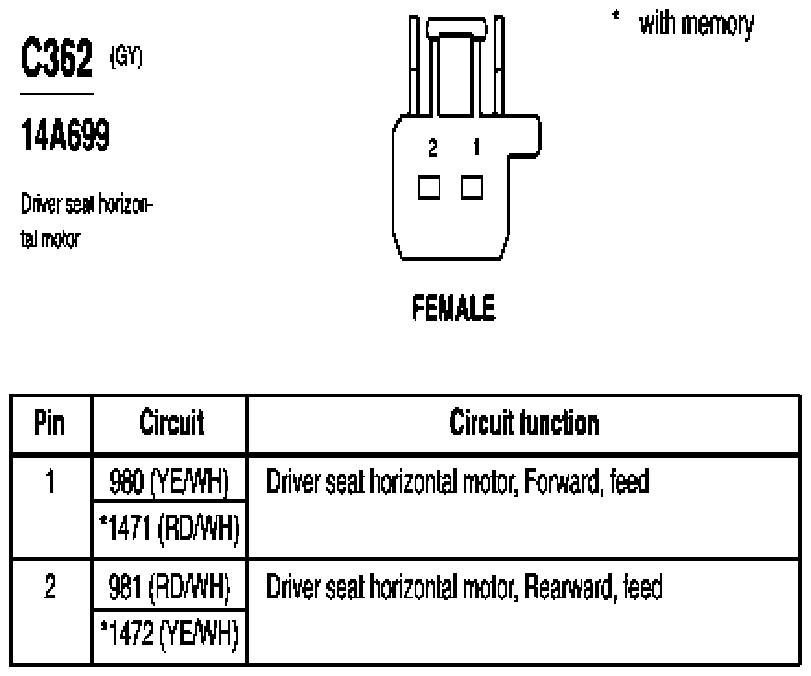

Fig 159: Driver Seat Horizontal Motor Connector End View (C362)

G07843754

Courtesy of FORD MOTOR CO.

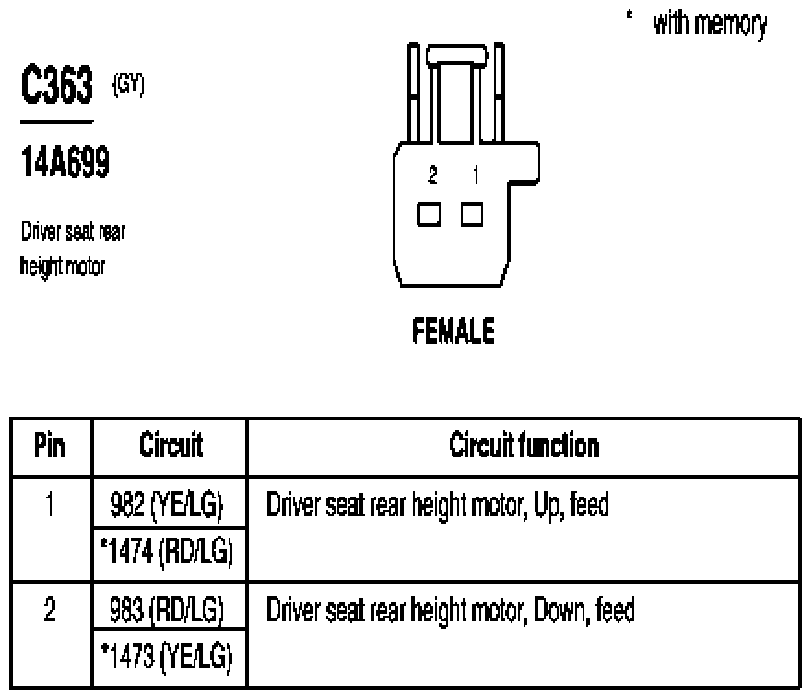

Fig 160: Driver Seat Rear Height Motor Connector End View (C363)

G07843755

Courtesy of FORD MOTOR CO.

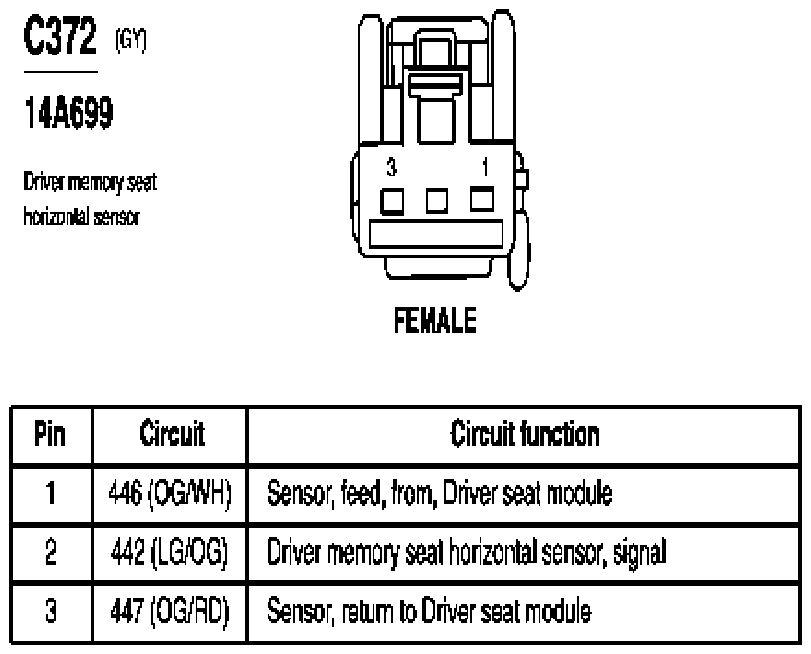

Fig 161: Driver Memory Seat Horizontal Sensor Connector End View (C372)

G07843756

Courtesy of FORD MOTOR CO.

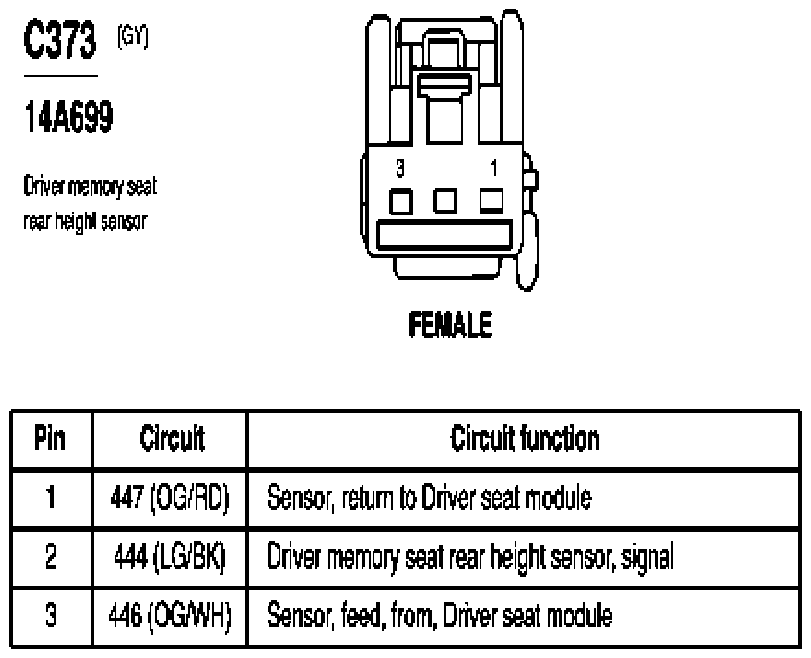

Fig 162: Driver Memory Seat Rear Height Sensor Connector End View (C373)

G07843757

Courtesy of FORD MOTOR CO.

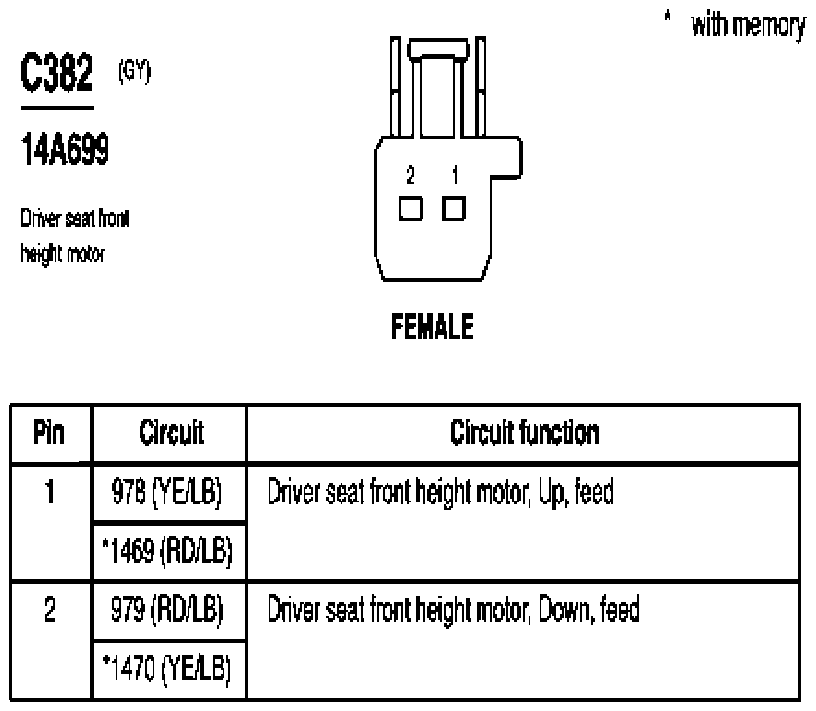

Fig 163: Driver Seat Front Height Motor Connector End View (C382)

G07843758

Courtesy of FORD MOTOR CO.

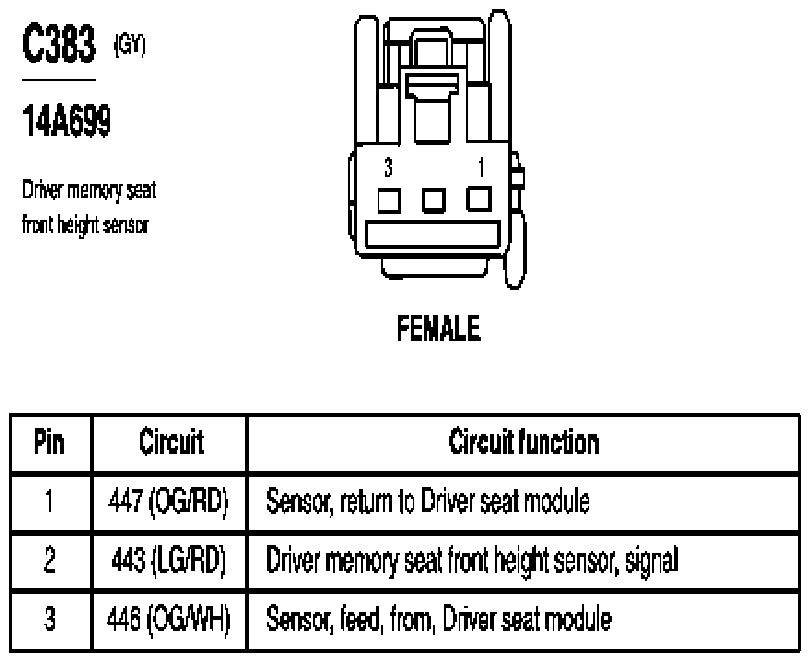

Fig 164: Driver Memory Seat Front Height Sensor Connector End View (C383)

G07843759

Courtesy of FORD MOTOR CO.

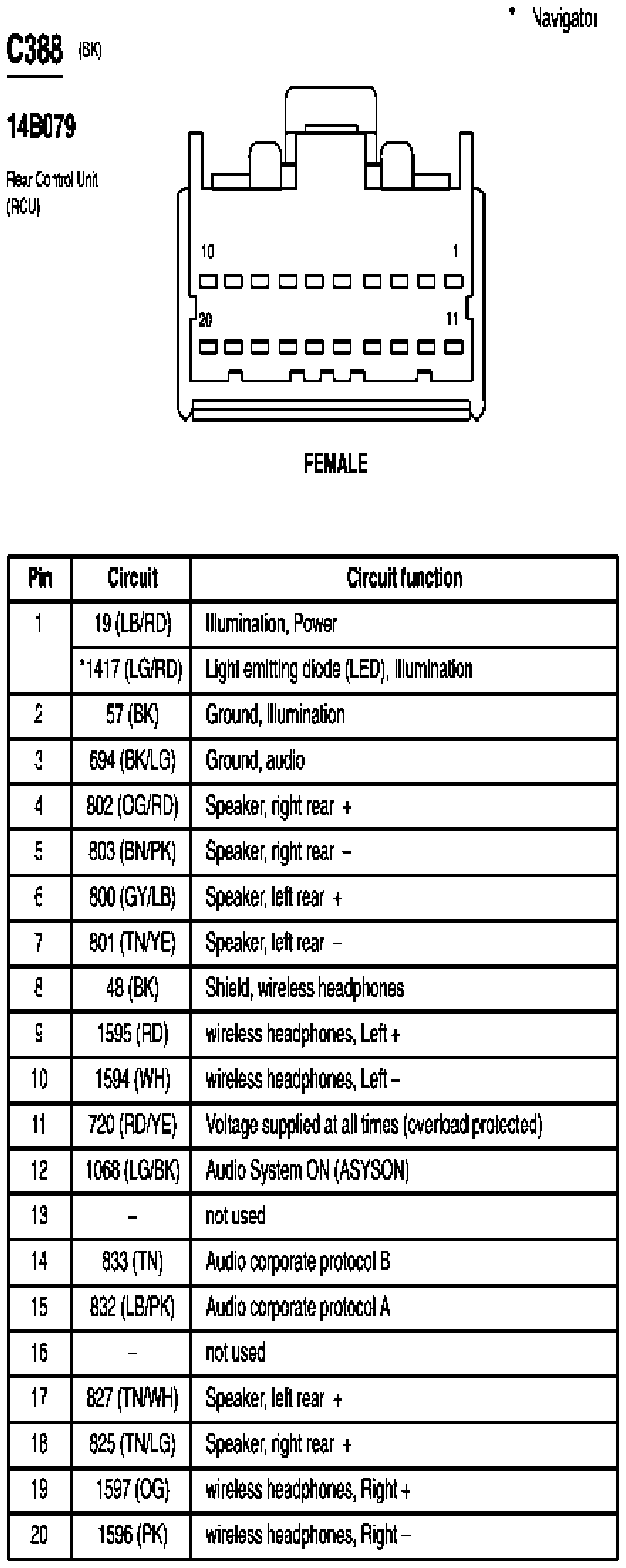

Fig 165: Rear Control Unit Connector End View (C388)

G07843760

Courtesy of FORD MOTOR CO.

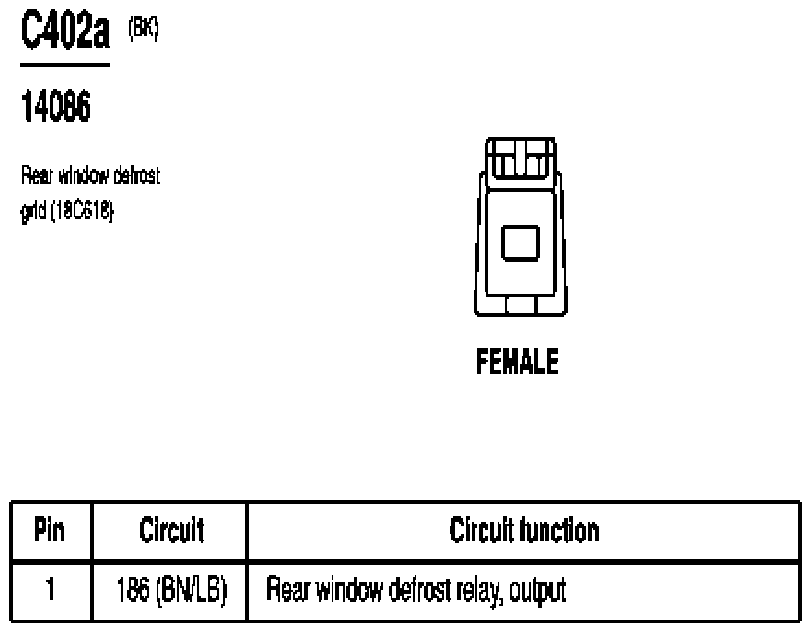

Fig 166: Rear Window Defrost Grid Connector End View (C402a)

G07843761

Courtesy of FORD MOTOR CO.

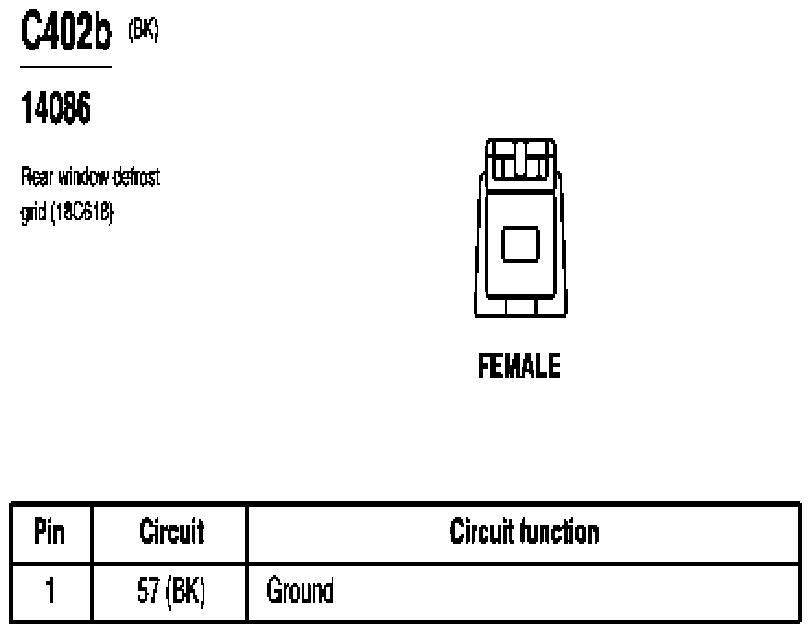

Fig 167: Rear Window Defrost Grid Connector End View (C402b)

G07843762

Courtesy of FORD MOTOR CO.

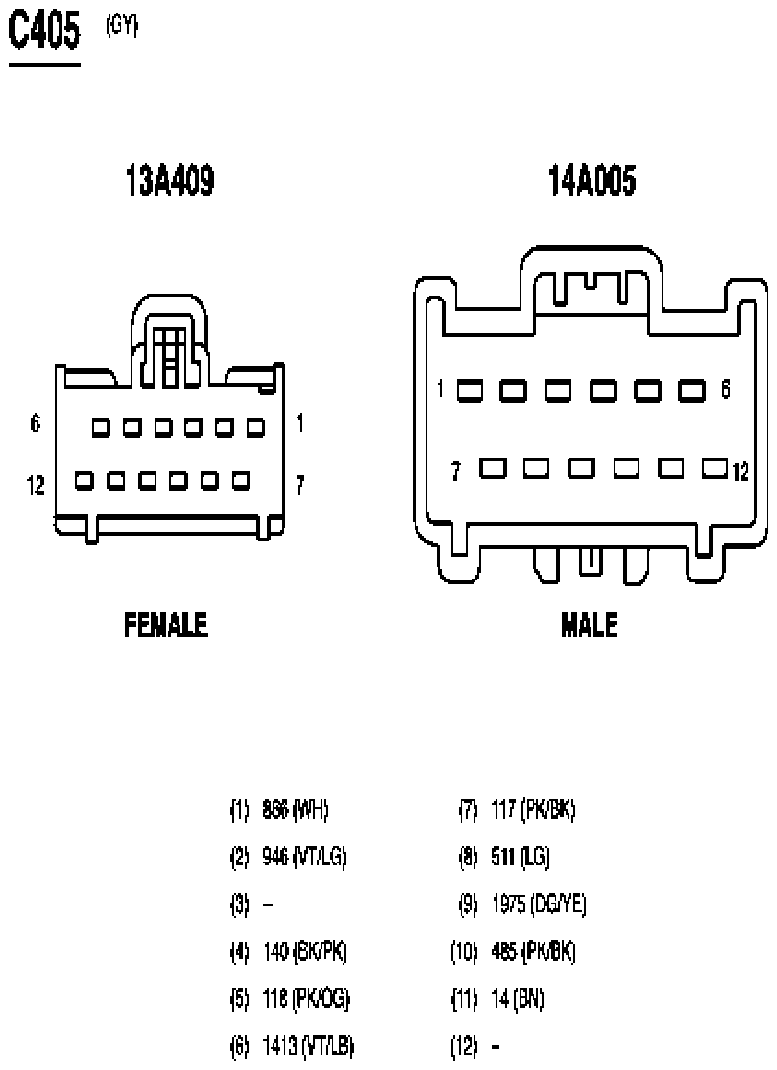

Fig 168: Inline Connector End View (C405)

G07843763

Courtesy of FORD MOTOR CO.

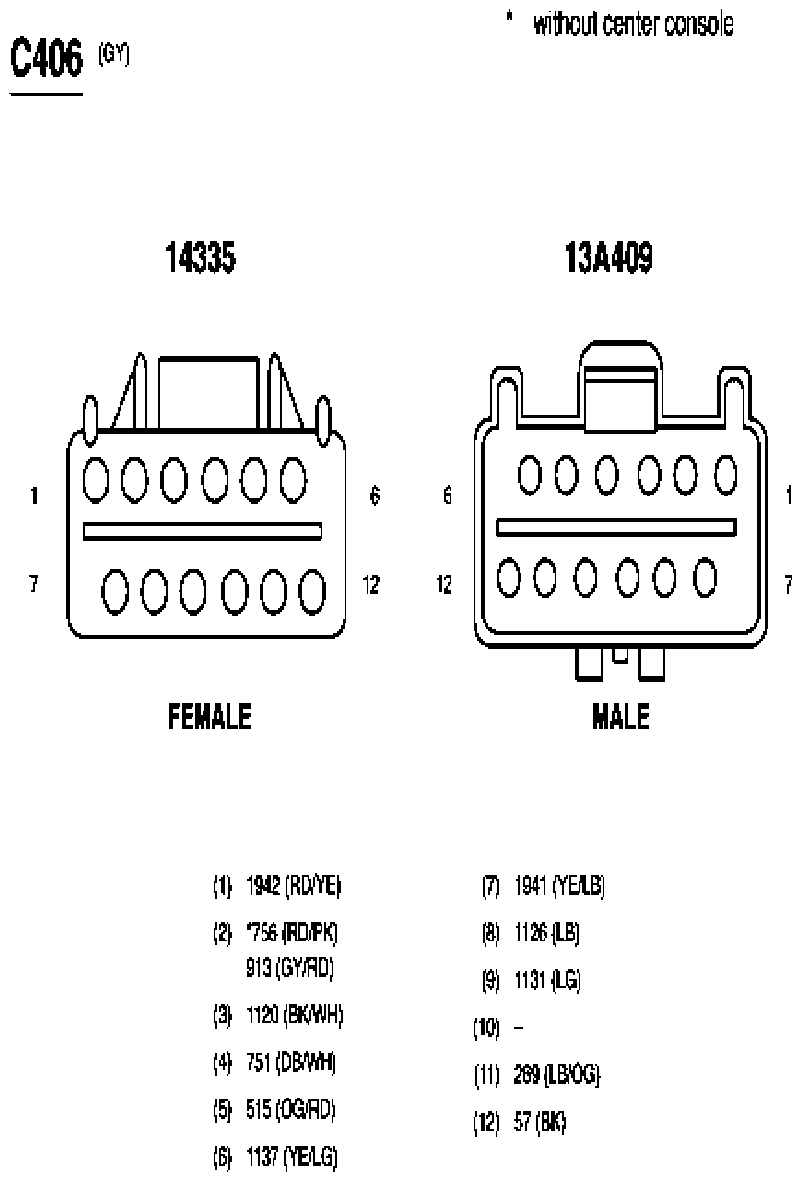

Fig 169: Inline Connector End View (C406)

G07843764

Courtesy of FORD MOTOR CO.

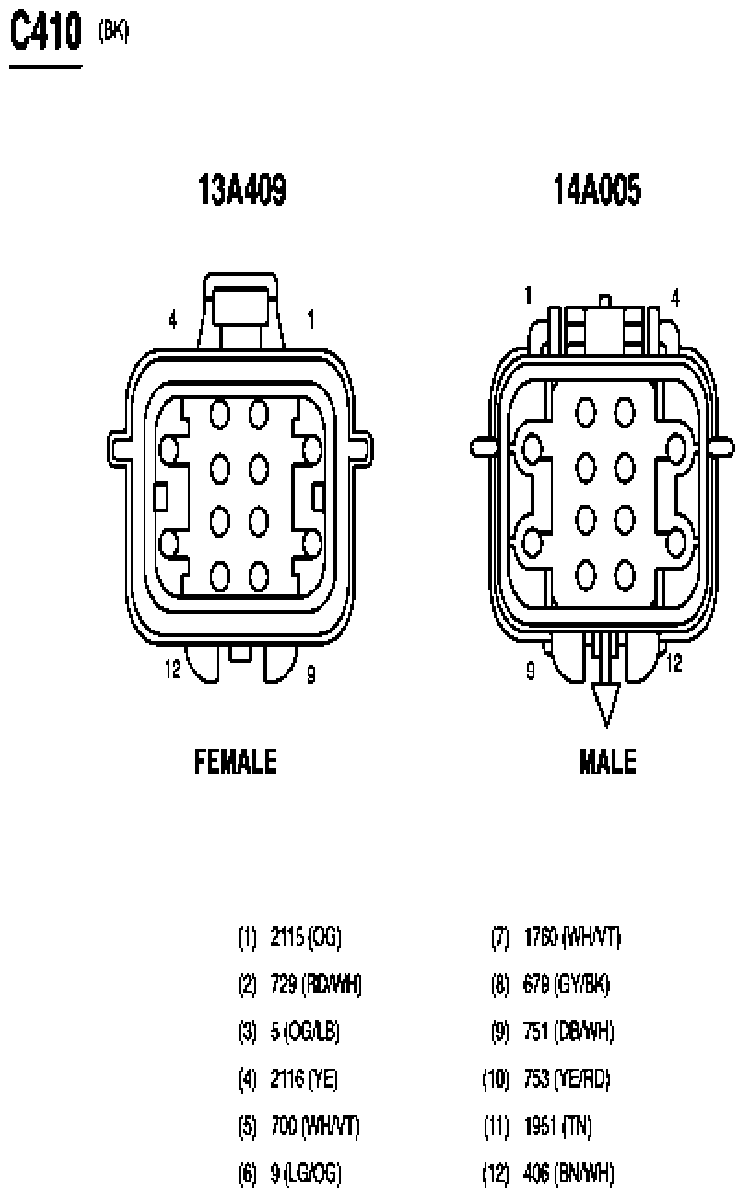

Fig 170: Inline Connector End View (C410)

G07843765

Courtesy of FORD MOTOR CO.

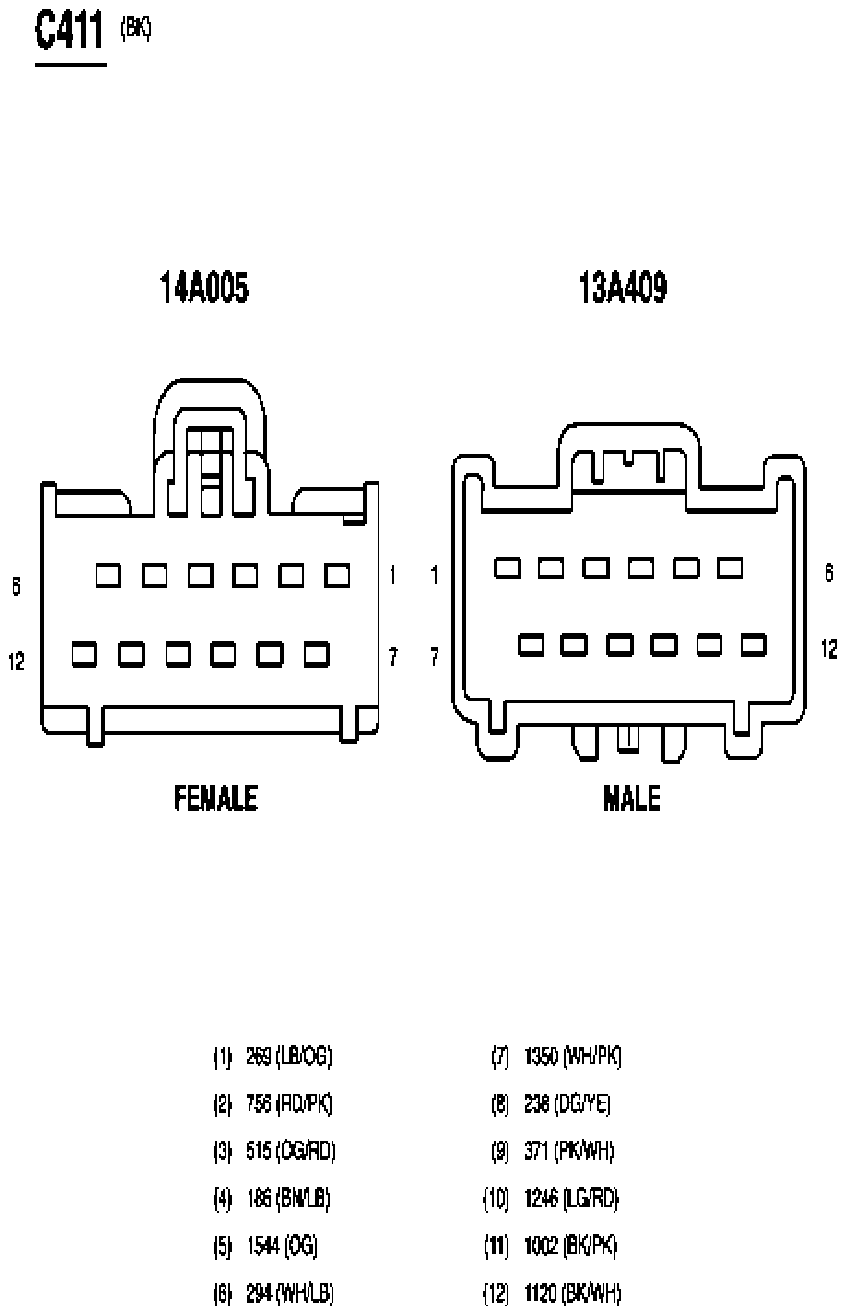

Fig 171: Inline Connector End View (C411)

G07843766

Courtesy of FORD MOTOR CO.

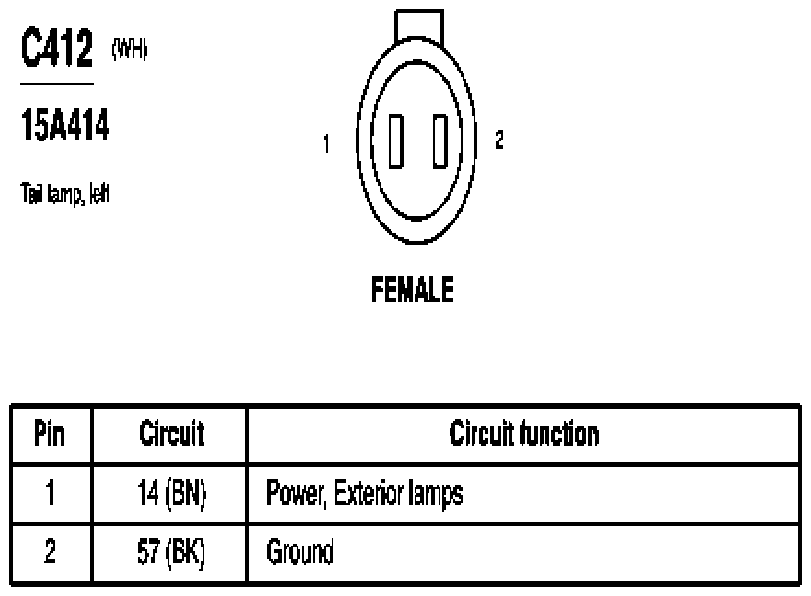

Fig 172: Tail Lamp, Left Connector End View (C412)

G07843767

Courtesy of FORD MOTOR CO.

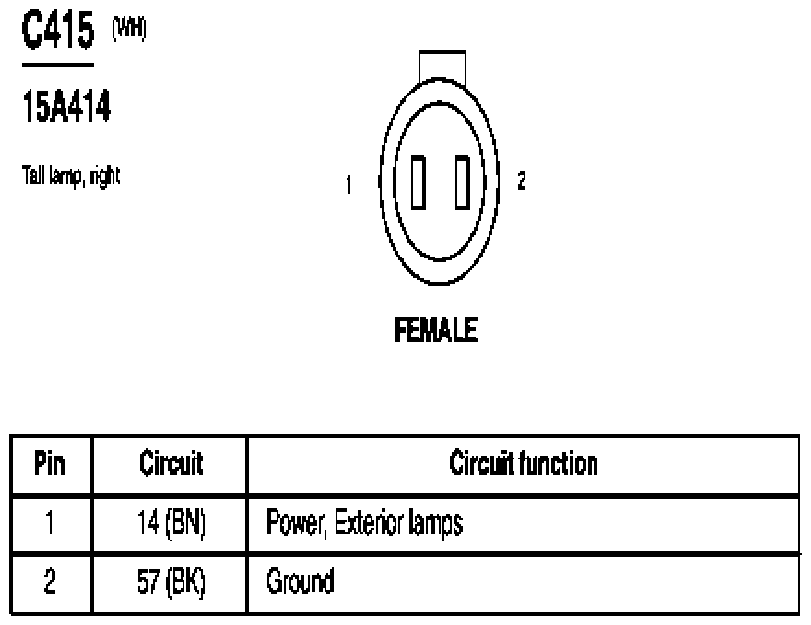

Fig 173: Tail Lamp, Right Connector End View (C415)

G07843768

Courtesy of FORD MOTOR CO.

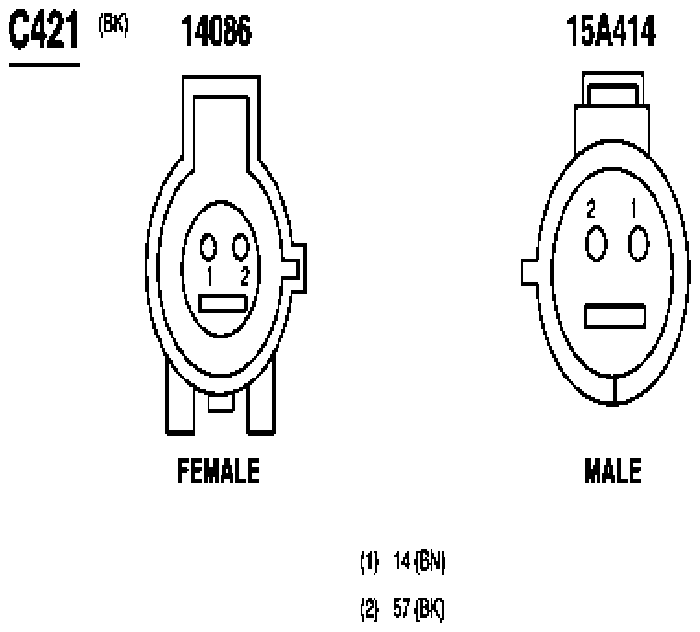

Fig 174: Inline Connector End View (C421)

G07843769

Courtesy of FORD MOTOR CO.

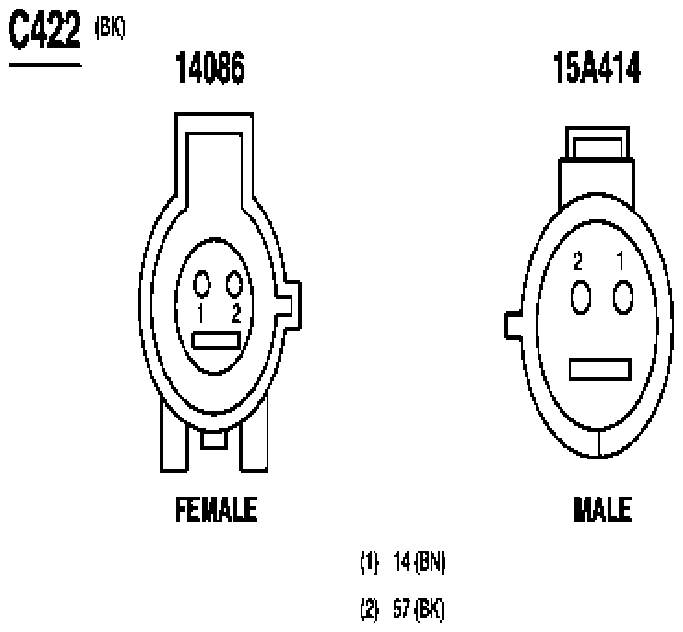

Fig 175: Inline Connector End View (C422)

G07843770

Courtesy of FORD MOTOR CO.

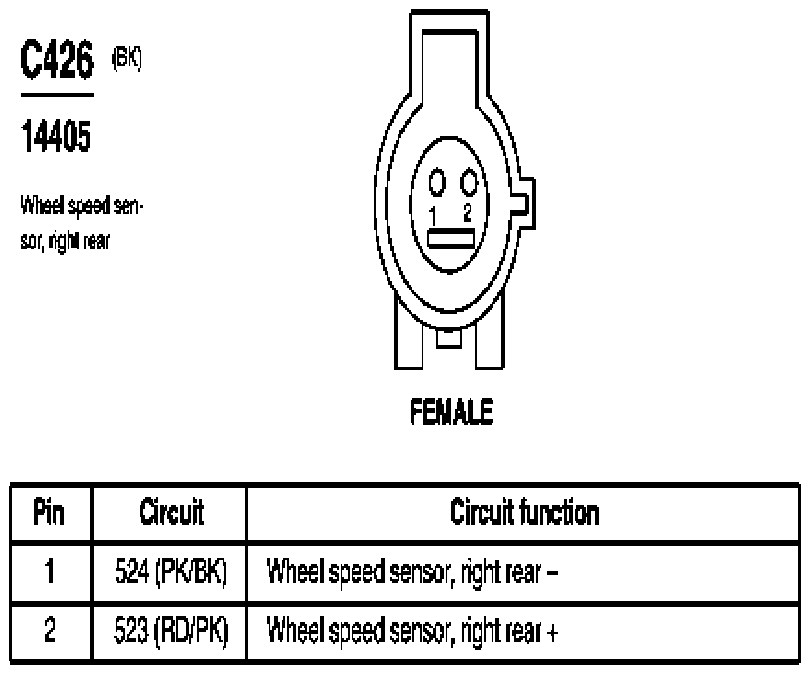

Fig 176: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07843771

Courtesy of FORD MOTOR CO.

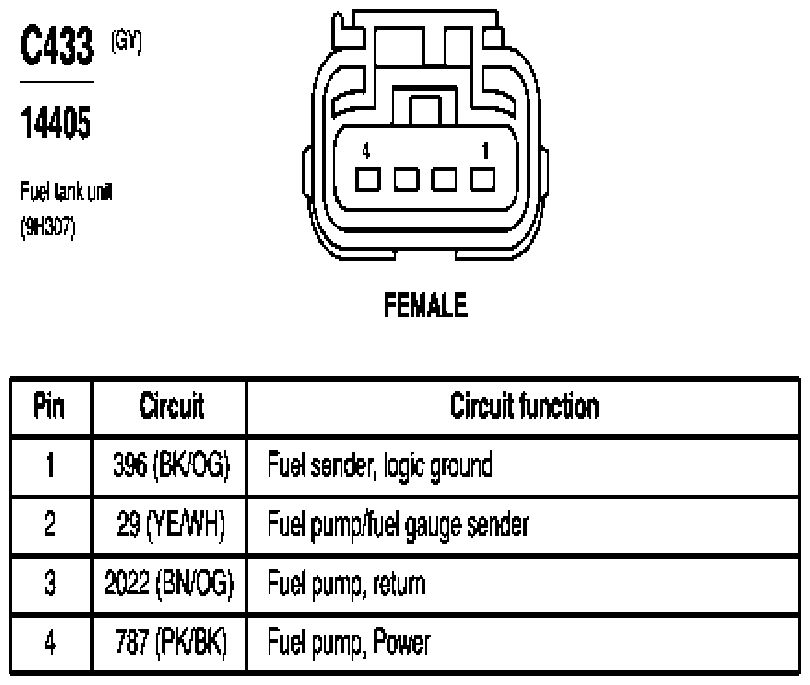

Fig 177: Fuel Tank Unit Connector End View (C433)

G07843772

Courtesy of FORD MOTOR CO.

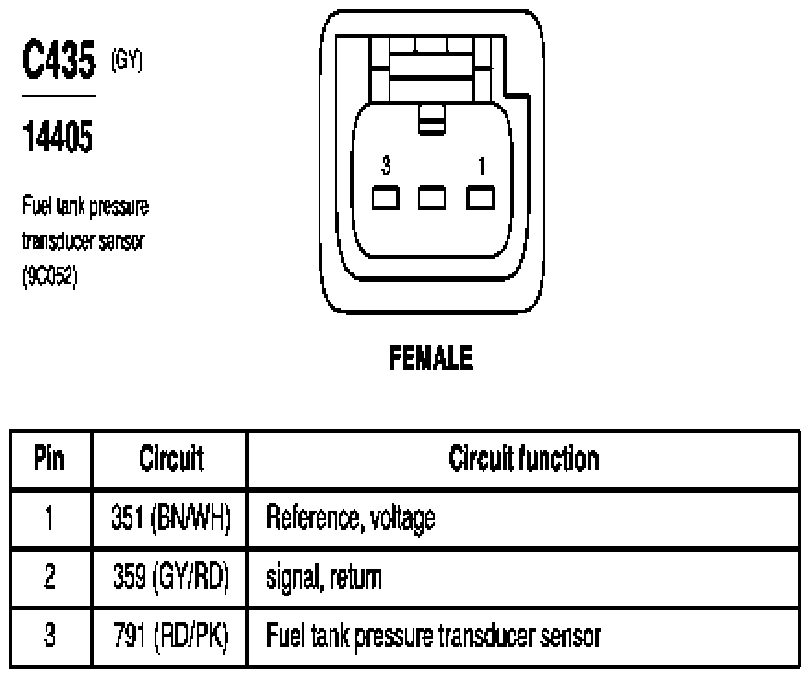

Fig 178: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07843773

Courtesy of FORD MOTOR CO.

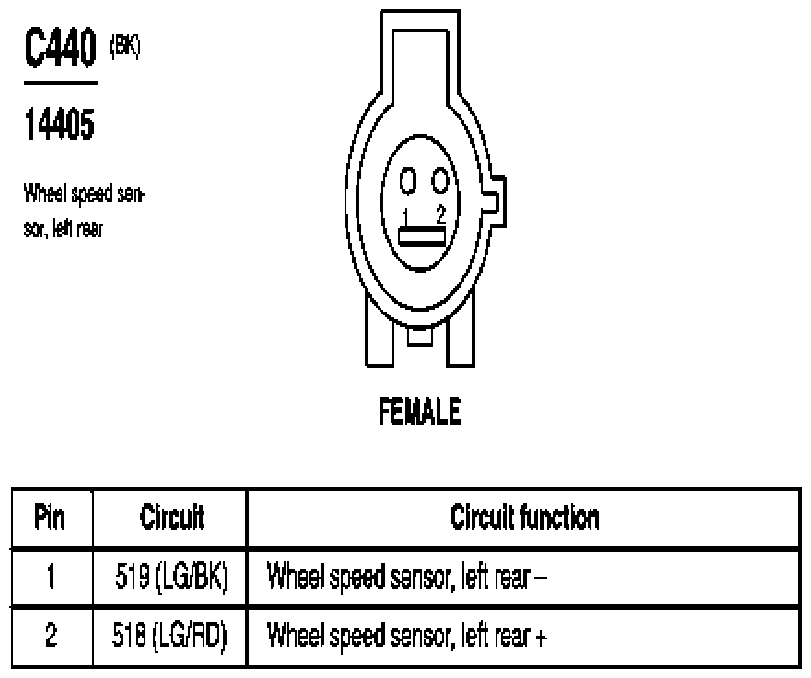

Fig 179: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07843774

Courtesy of FORD MOTOR CO.

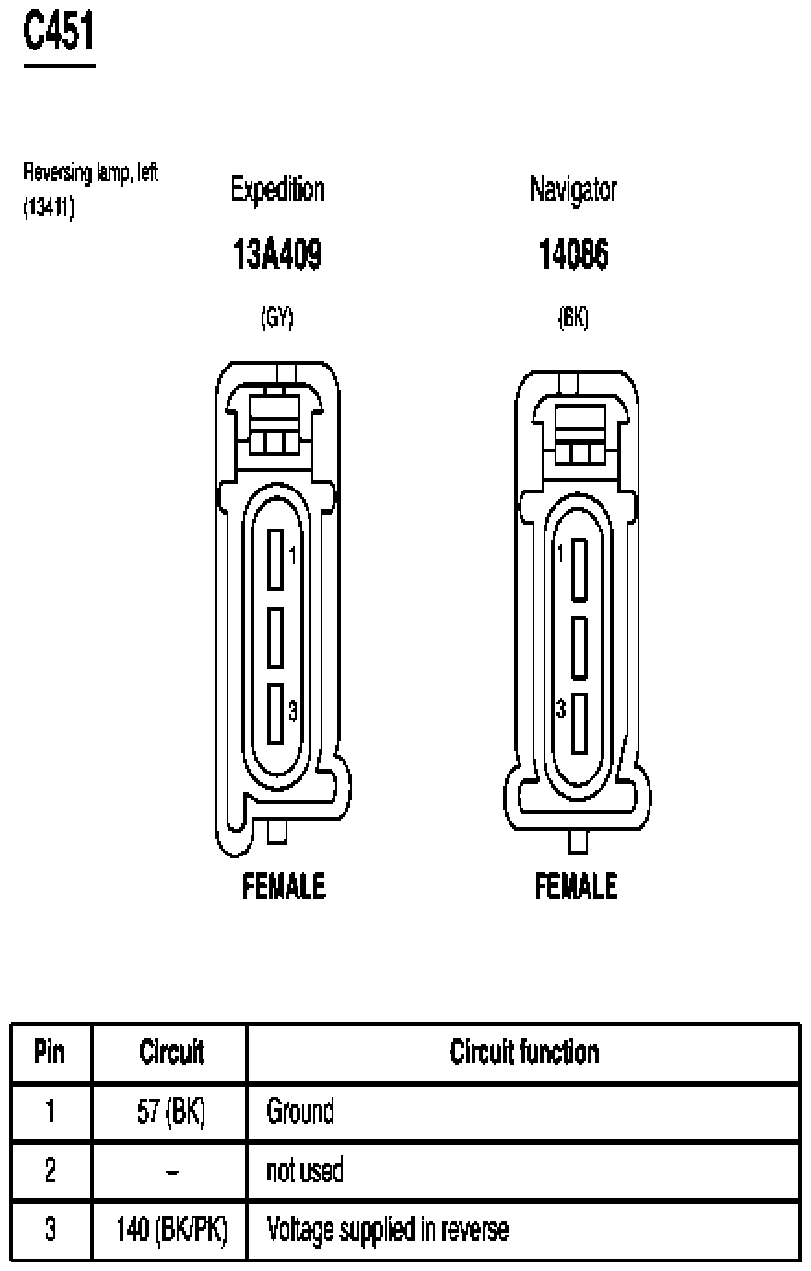

Fig 180: Reversing Lamp, Left Connector End View (C451)

G07843775

Courtesy of FORD MOTOR CO.

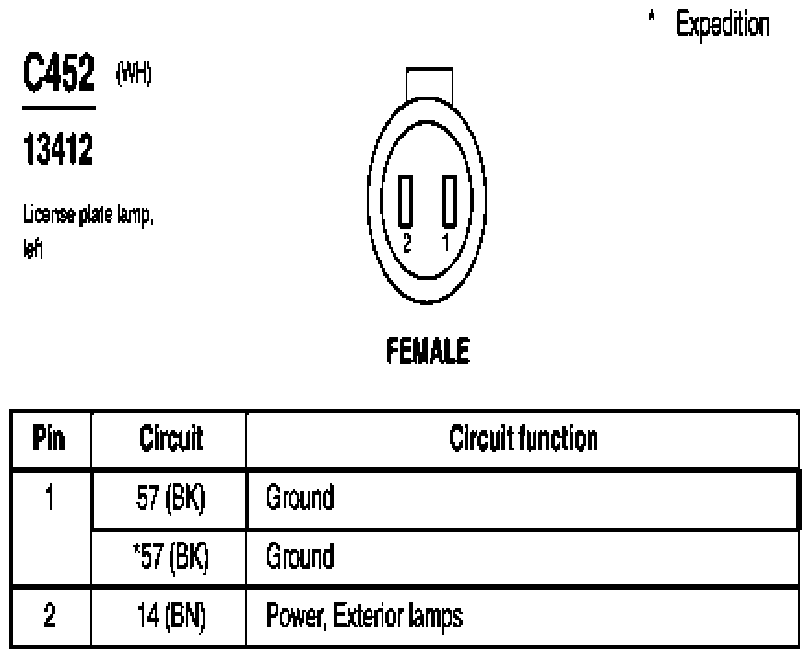

Fig 181: License Plate Lamp, Left Connector End View (C452)

G07843776

Courtesy of FORD MOTOR CO.

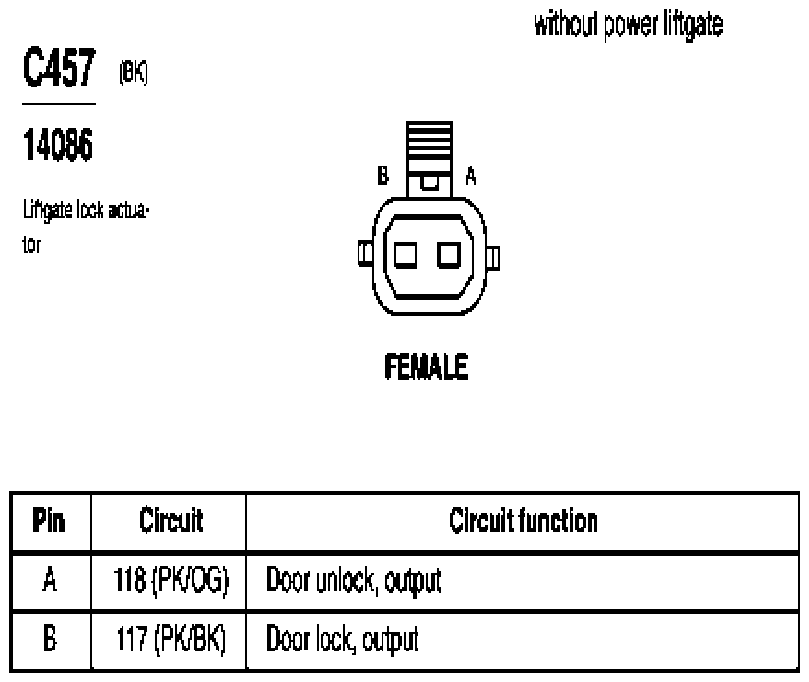

Fig 182: Liftgate Lock Actuator Connector End View (C457)

G07843777

Courtesy of FORD MOTOR CO.

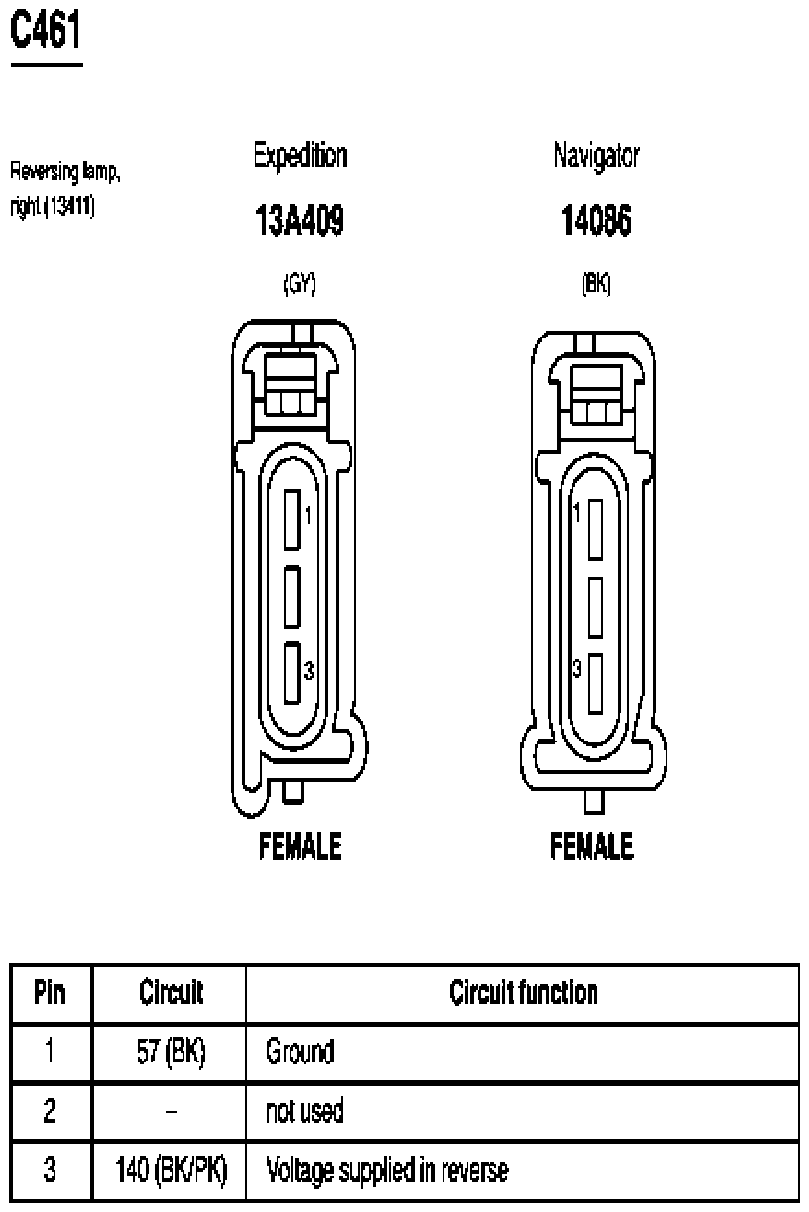

Fig 183: Reversing Lamp, Right Connector End View (C461)

G07843778

Courtesy of FORD MOTOR CO.

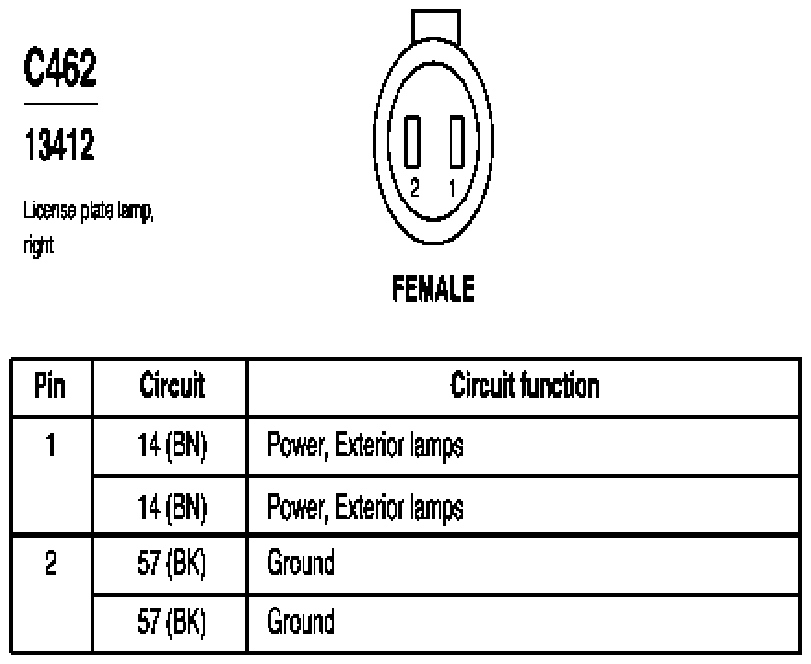

Fig 184: License Plate Lamp, Right Connector End View (C462)

G07843779

Courtesy of FORD MOTOR CO.

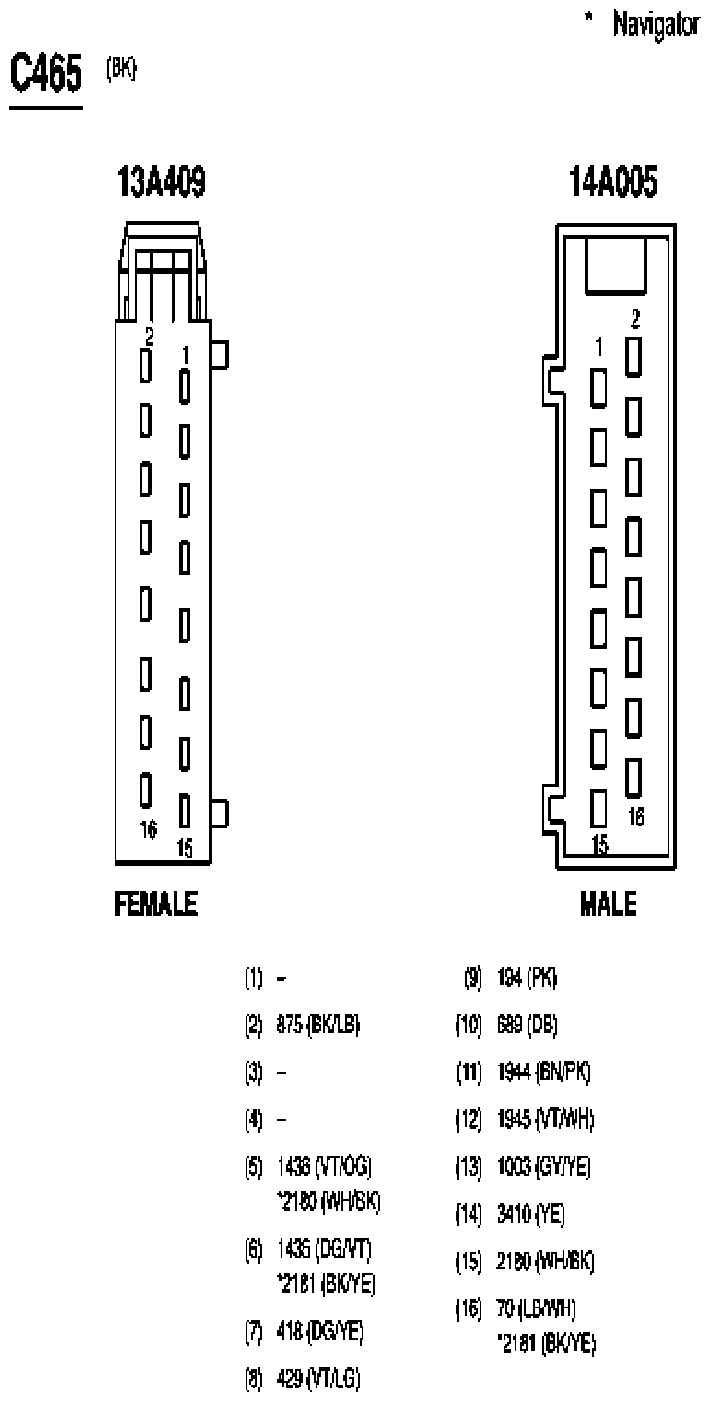

Fig 185: Inline Connector End View (C465)

G07843780

Courtesy of FORD MOTOR CO.

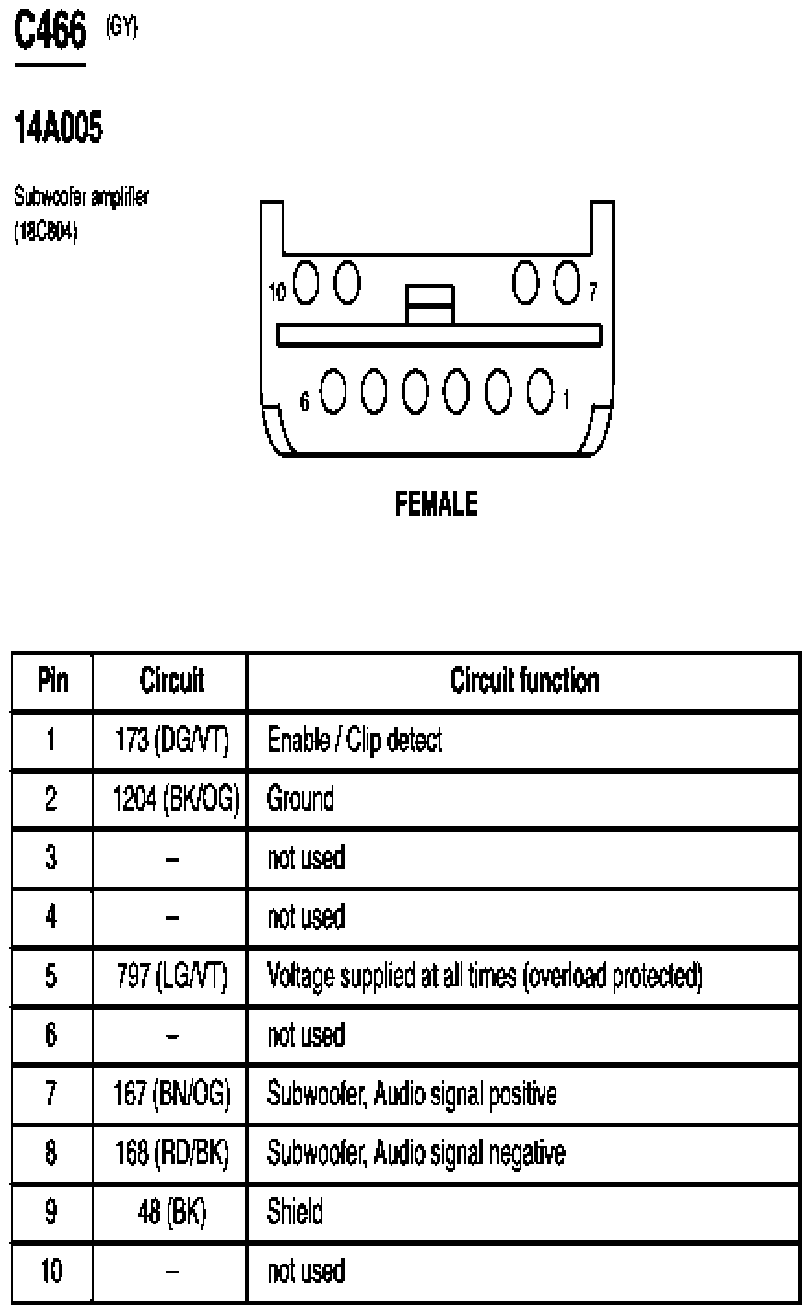

Fig 186: Subwoofer Amplifier Connector End View (C466)

G07843781

Courtesy of FORD MOTOR CO.

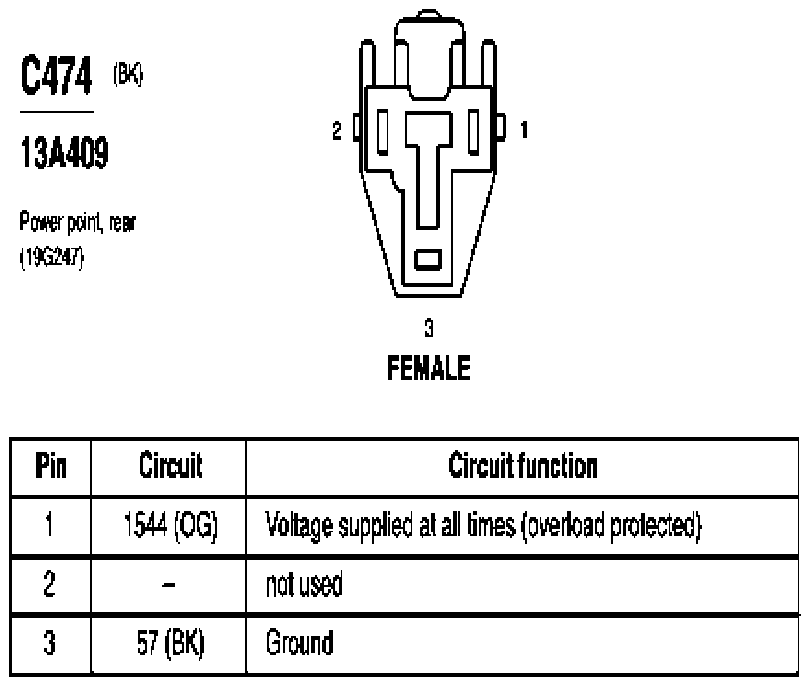

Fig 187: Power Point, Rear Connector End View (C474)

G07843782

Courtesy of FORD MOTOR CO.

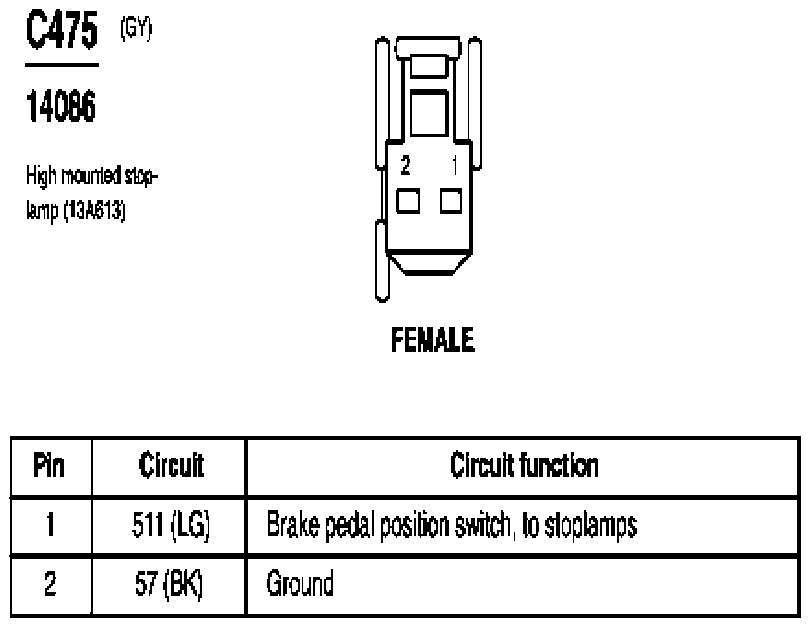

Fig 188: High Mounted Stoplamp Connector End View (C475)

G07843783

Courtesy of FORD MOTOR CO.

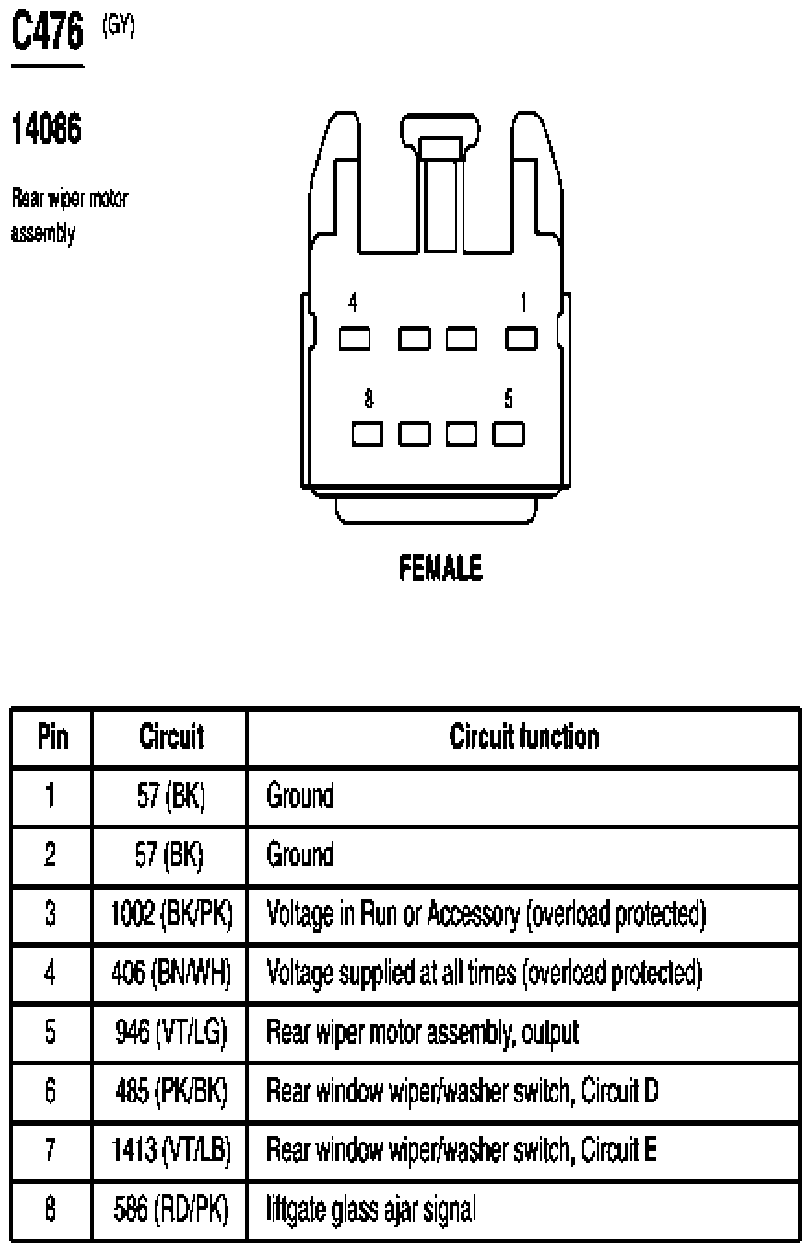

Fig 189: Rear Wiper Motor Assembly Connector End View (C476)

G07843784

Courtesy of FORD MOTOR CO.

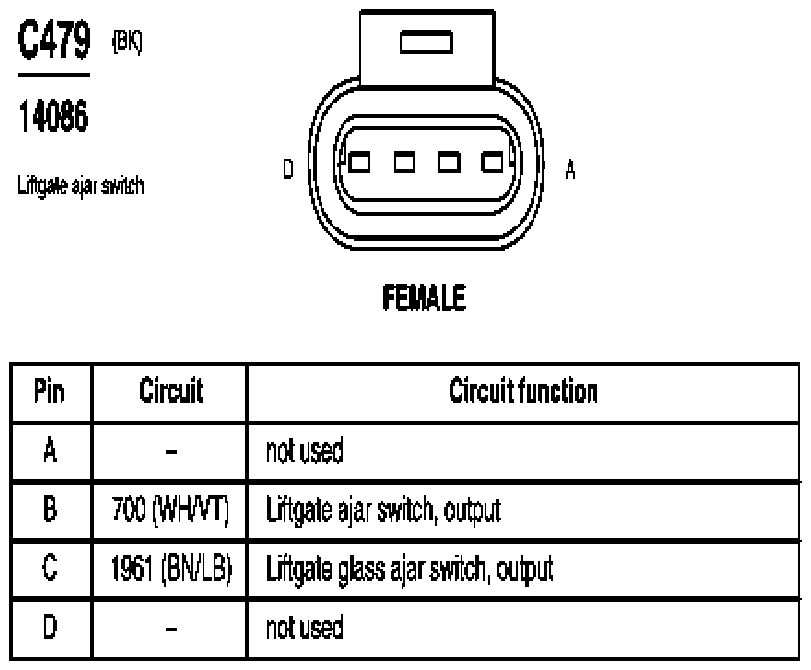

Fig 190: Liftgate Ajar Switch Connector End View (C479)

G07843785

Courtesy of FORD MOTOR CO.

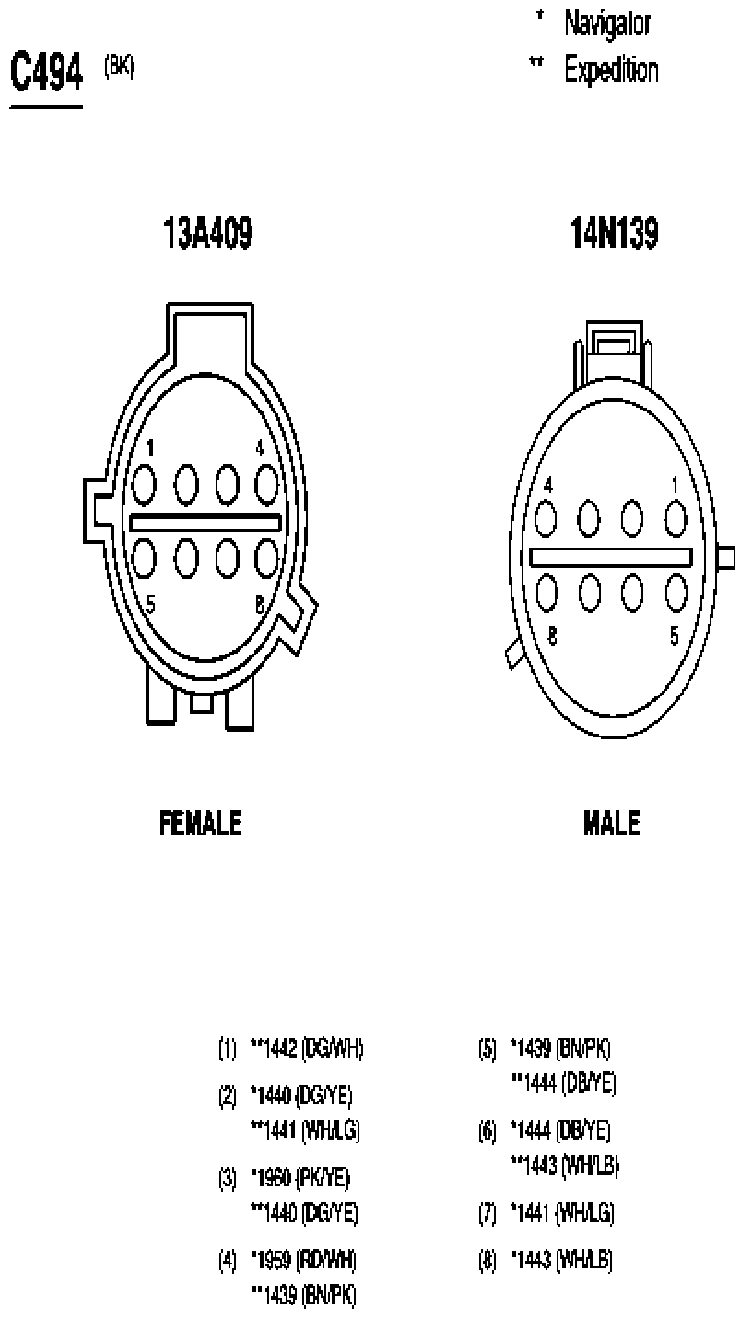

Fig 191: Inline Connector End View (C494)

G07843786

Courtesy of FORD MOTOR CO.

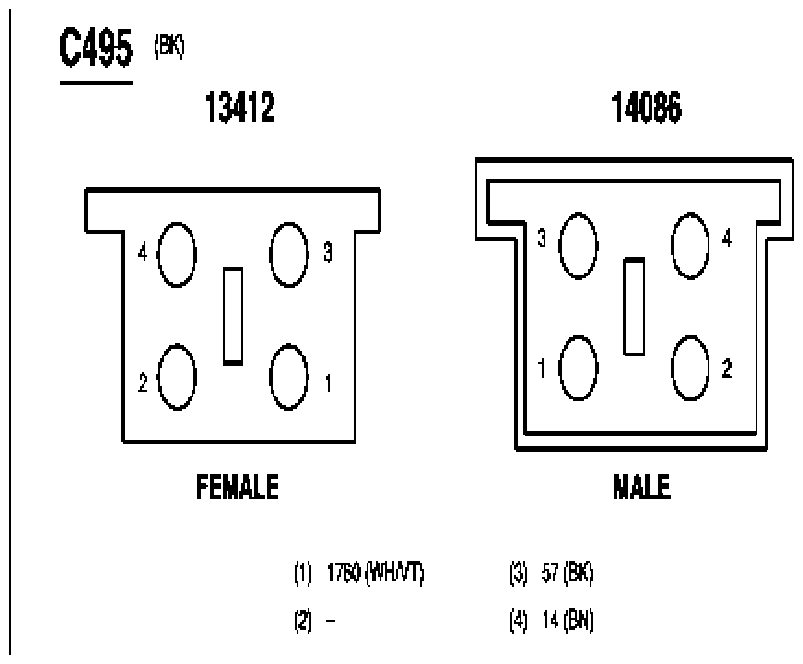

Fig 192: Inline Connector End View (C495)

G07843787

Courtesy of FORD MOTOR CO.

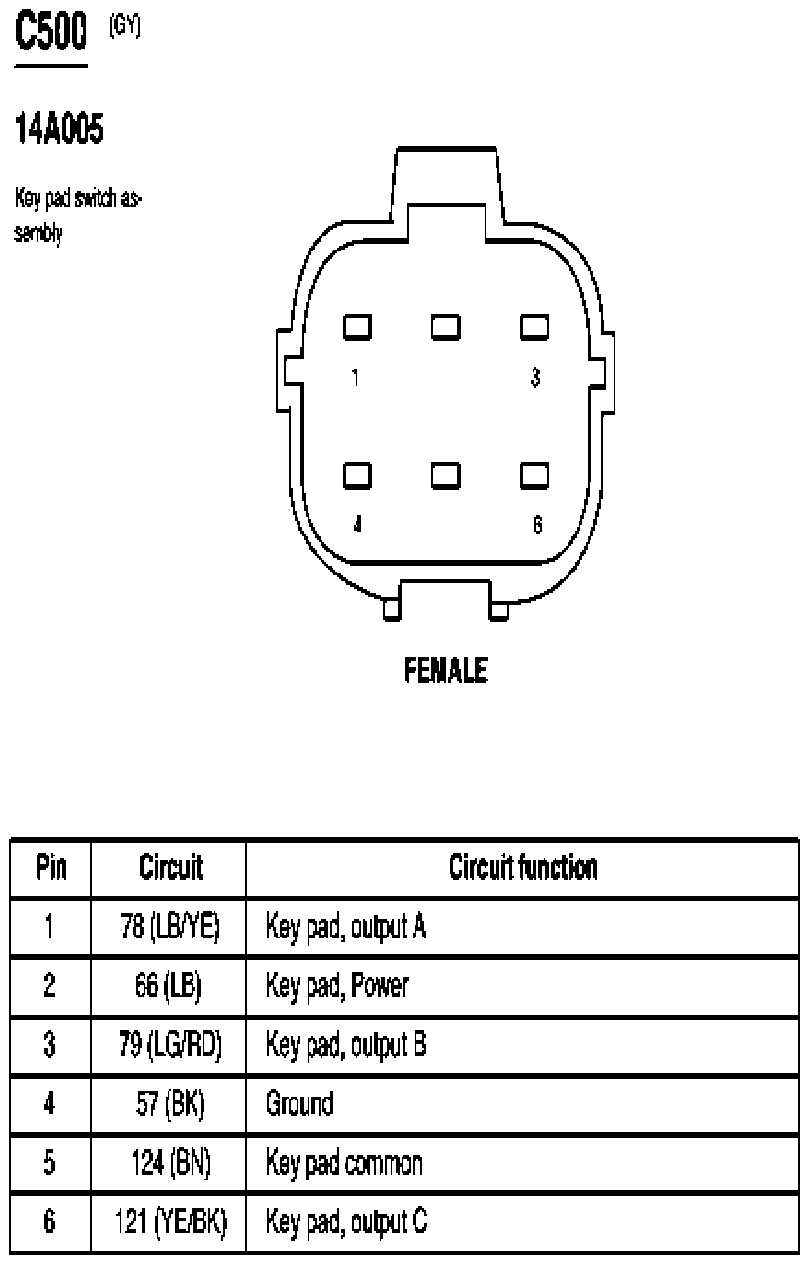

Fig 193: Key Pad Switch Assembly Connector End View (C500)

G07843788

Courtesy of FORD MOTOR CO.

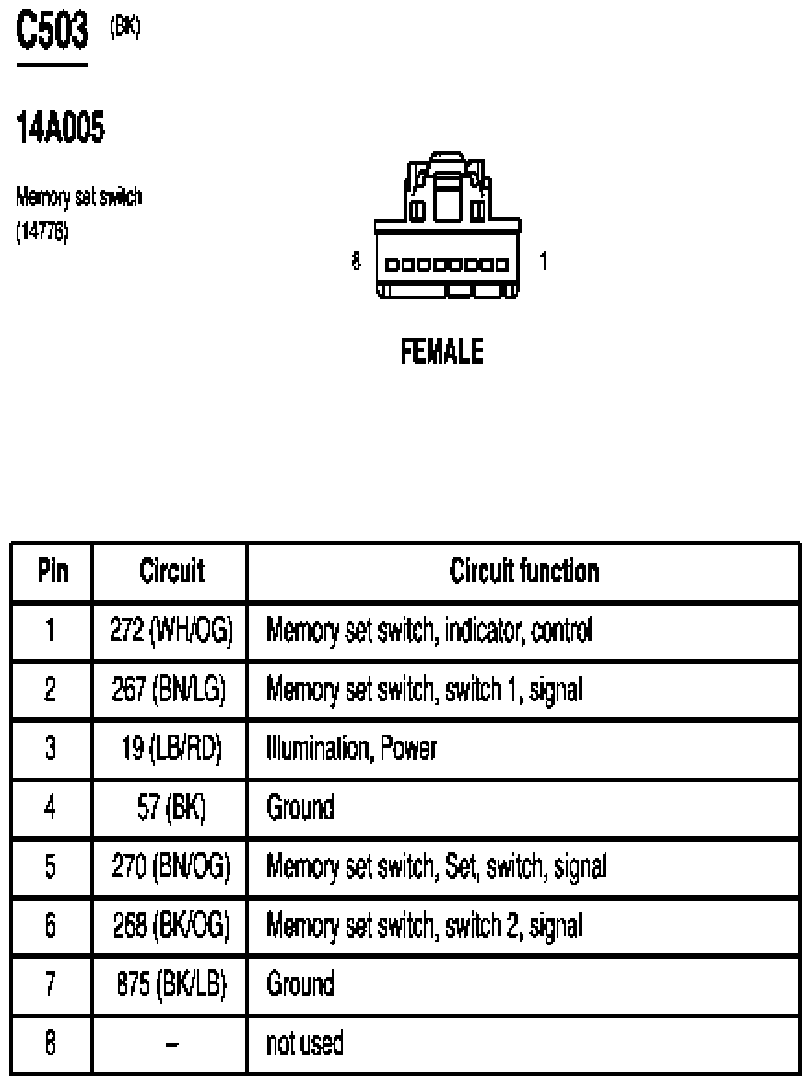

Fig 194: Memory Set Switch Connector End View (C503)

G07843789

Courtesy of FORD MOTOR CO.

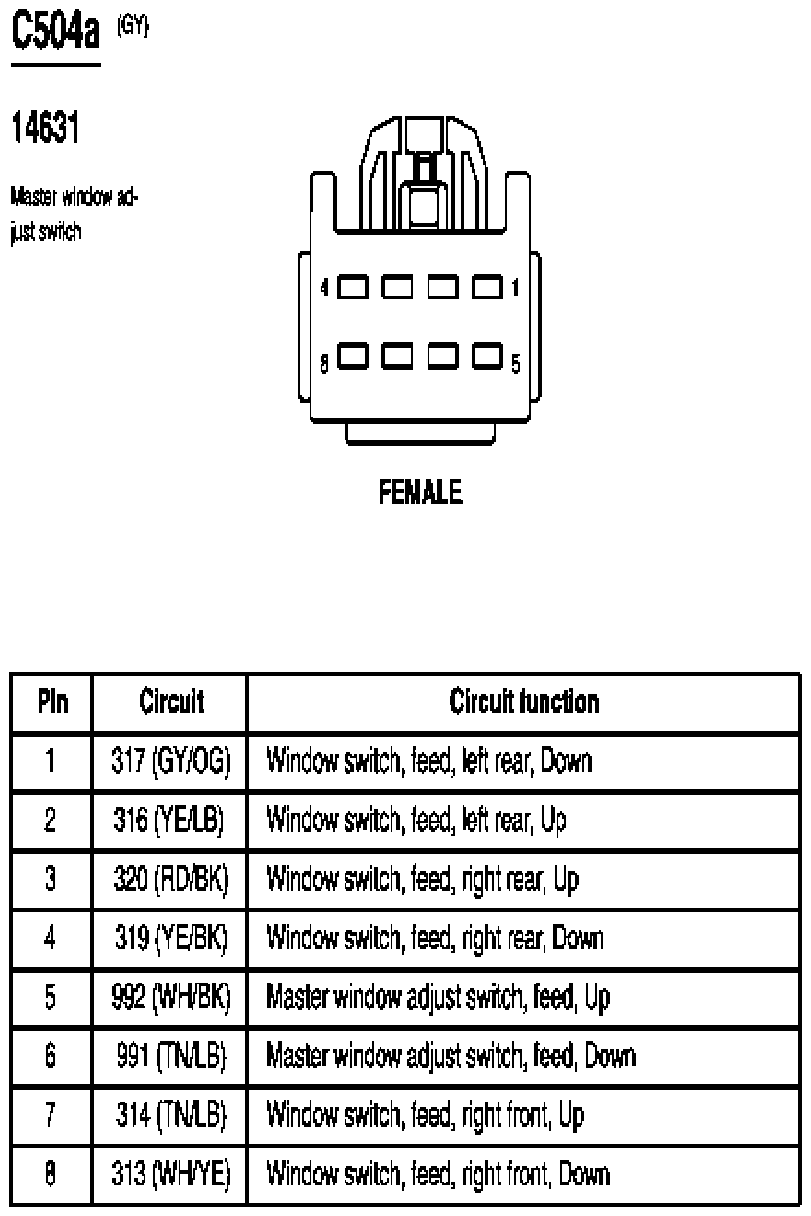

Fig 195: Master Window Adjust Switch Connector End View (C504a)

G07843790

Courtesy of FORD MOTOR CO.

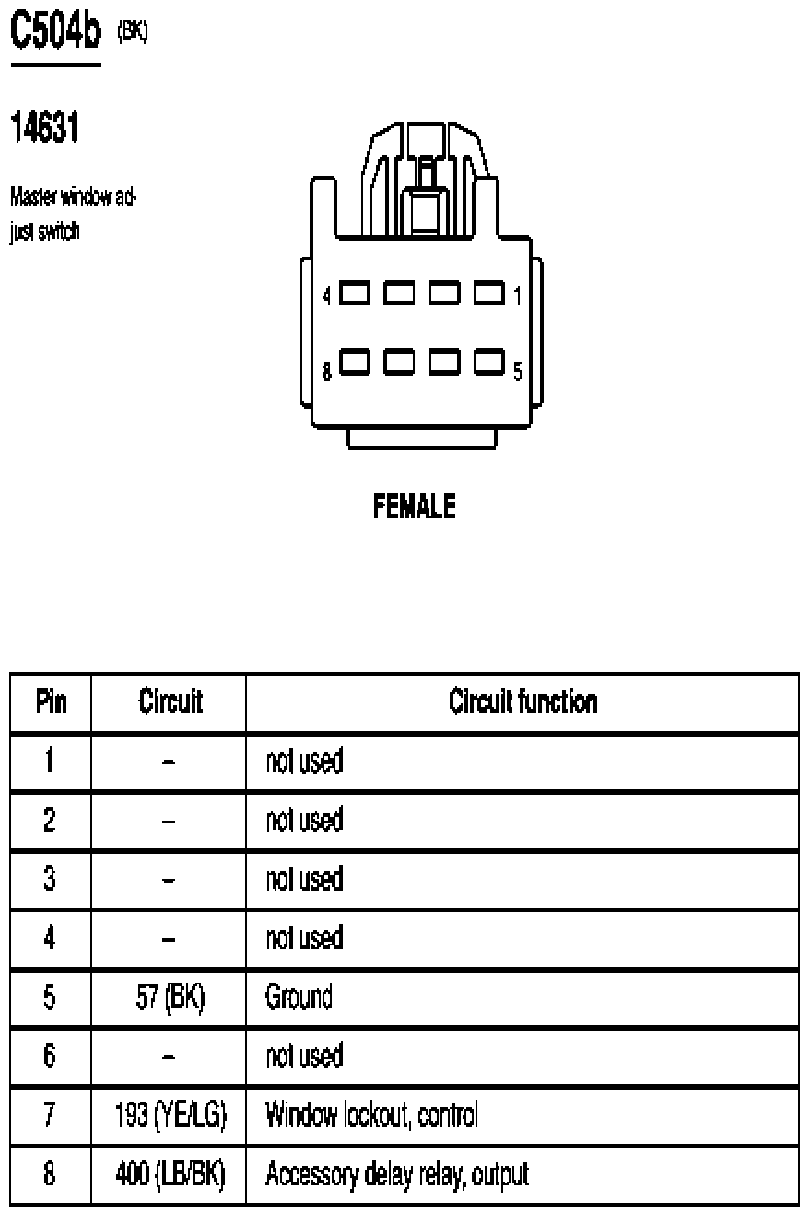

Fig 196: Master Window Adjust Switch Connector End View (C504b)

G07843791

Courtesy of FORD MOTOR CO.

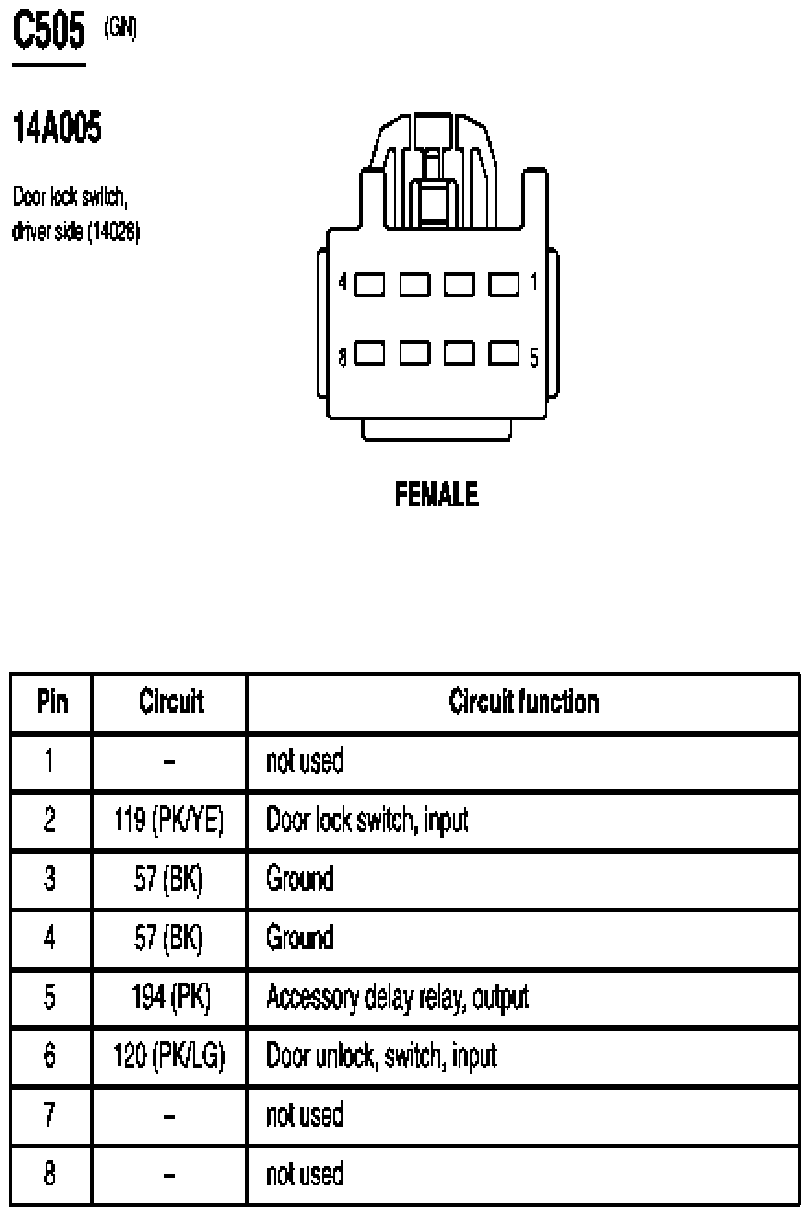

Fig 197: Door Lock Switch, Driver Side Connector End View (C505)

G07843792

Courtesy of FORD MOTOR CO.

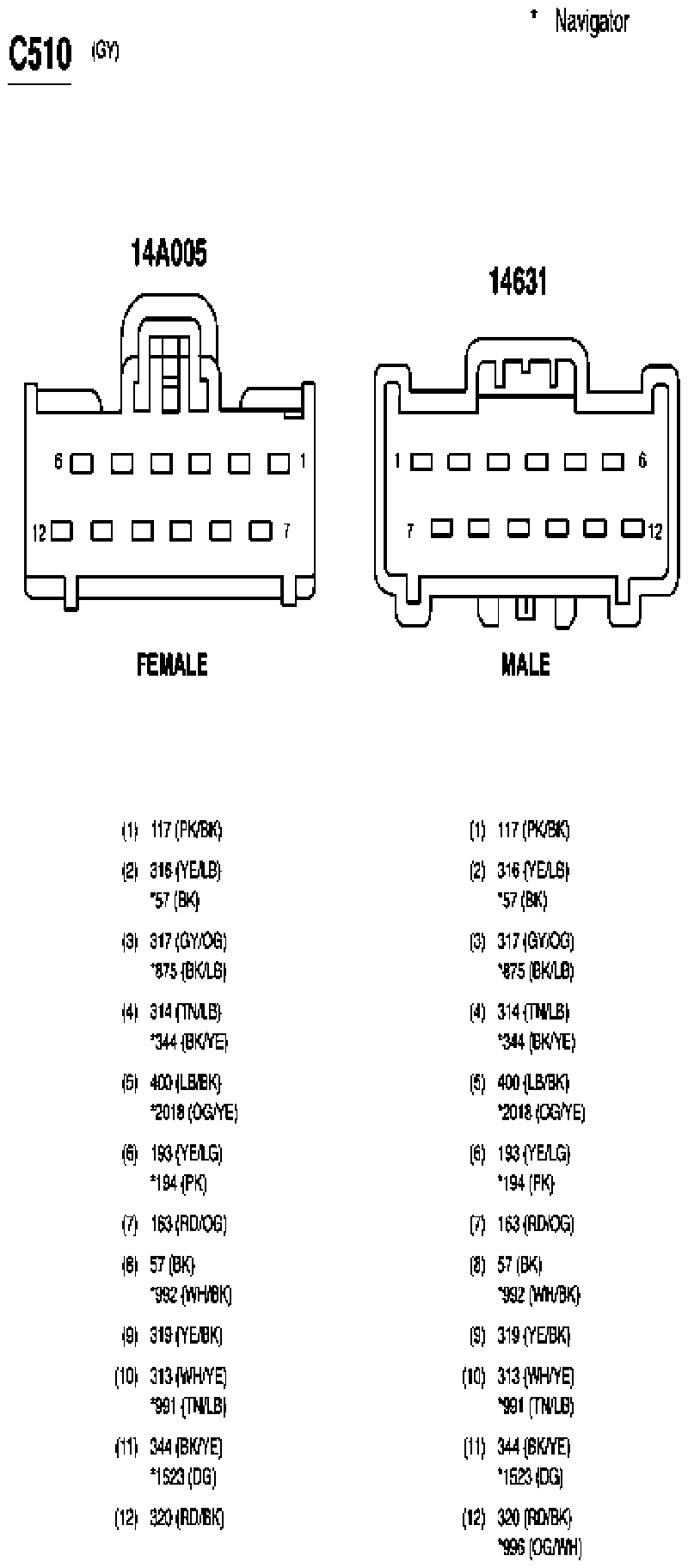

Fig 198: Inline Connector End View (C510)

G07843793

Courtesy of FORD MOTOR CO.

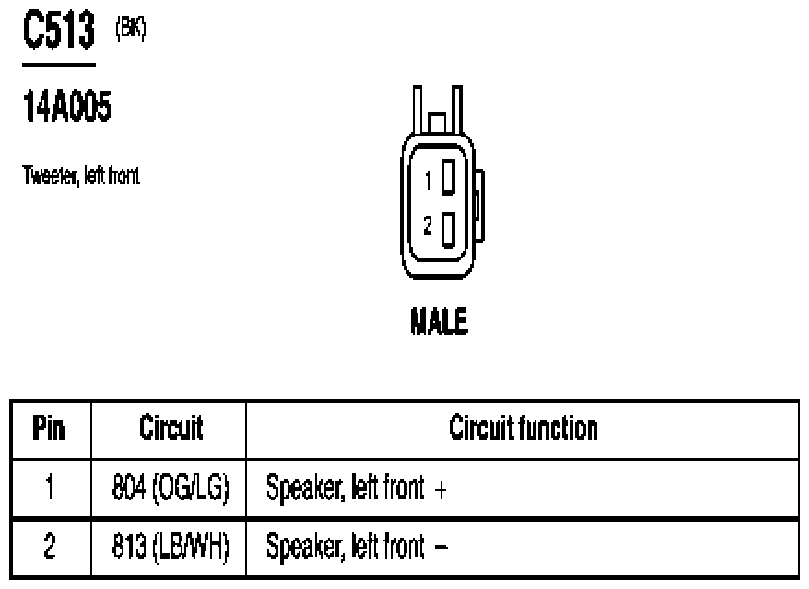

Fig 199: Tweeter, Left Front Connector End View (C513)

G07843794

Courtesy of FORD MOTOR CO.

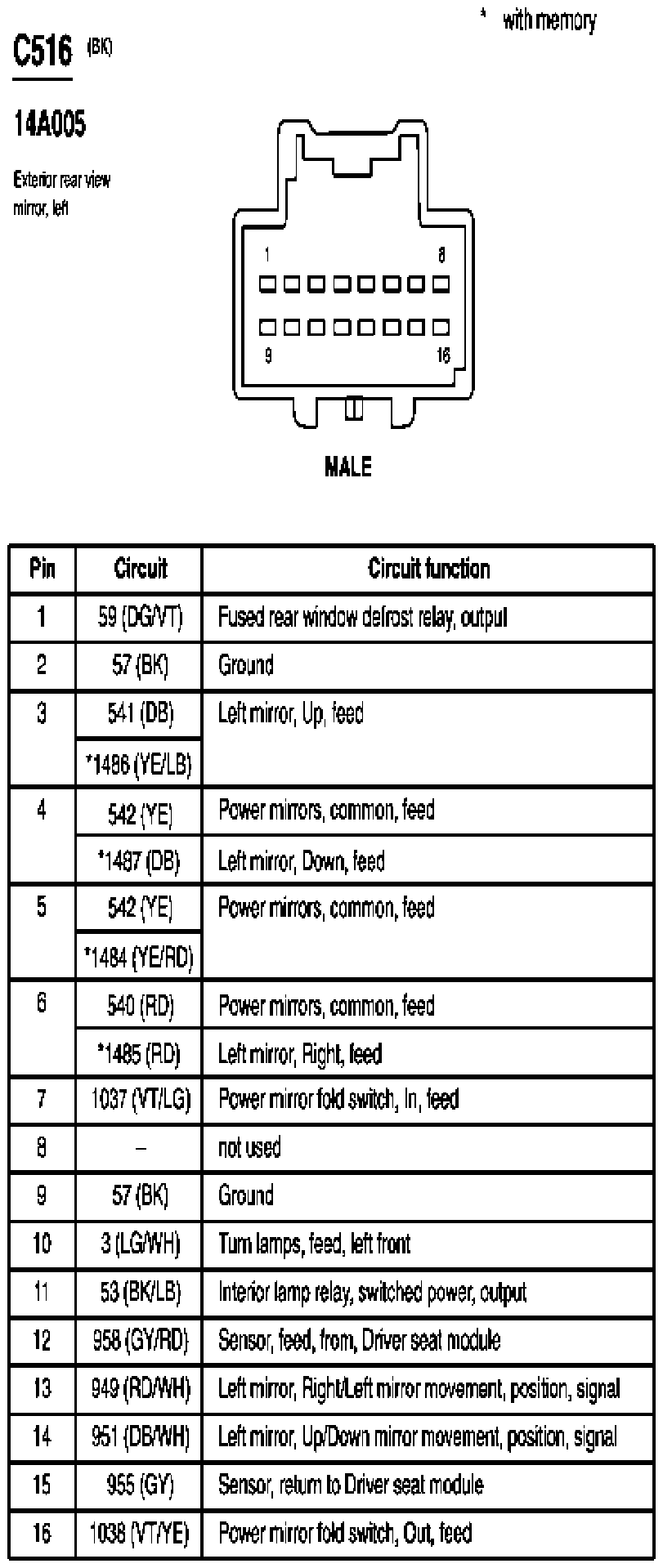

Fig 200: Exterior Rear View Mirror, Left Connector End View (C516)

G07843795

Courtesy of FORD MOTOR CO.

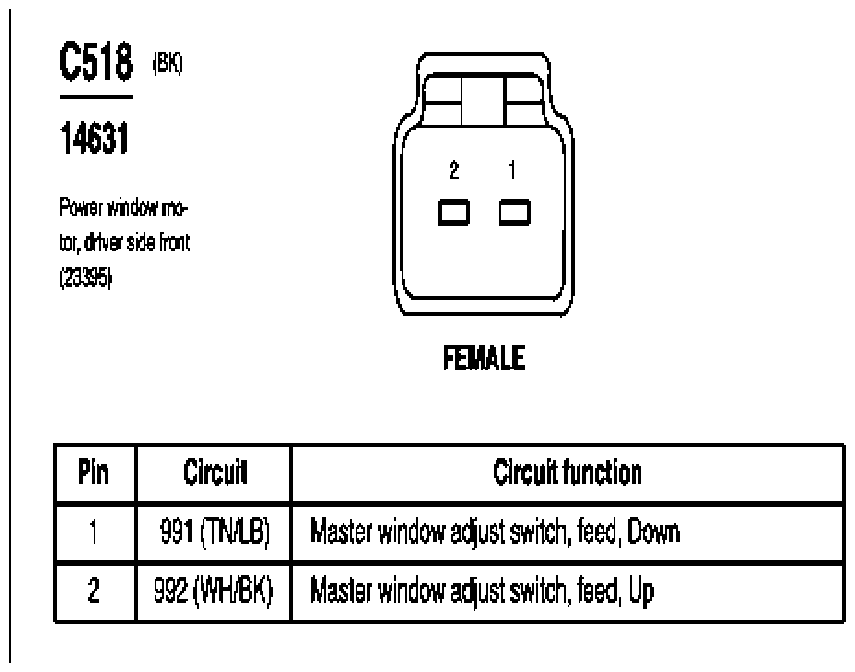

Fig 201: Power Window Motor, Driver Side Front Connector End View (C518)

G07843796

Courtesy of FORD MOTOR CO.

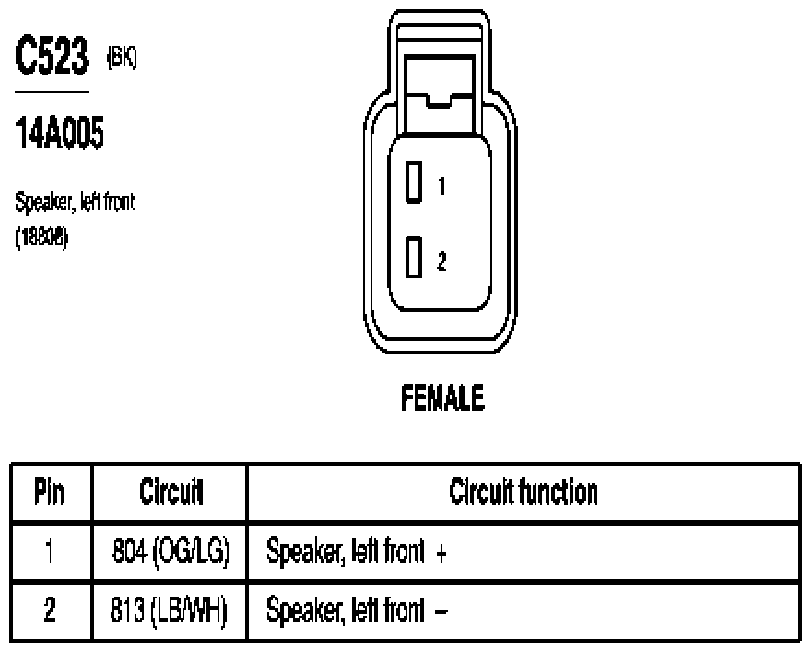

Fig 202: Speaker, Left Front Connector End View (C523)

G07843797

Courtesy of FORD MOTOR CO.

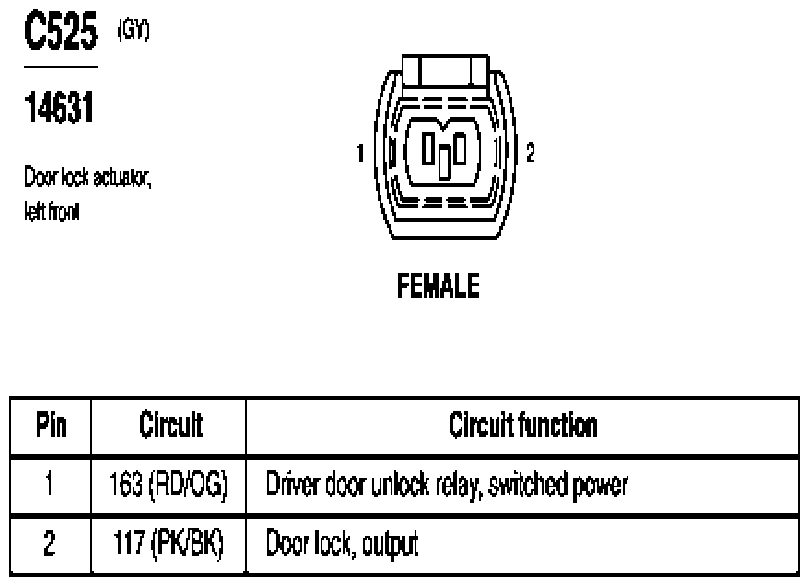

Fig 203: Door Lock Actuator, Left Front Connector End View (C525)

G07843798

Courtesy of FORD MOTOR CO.

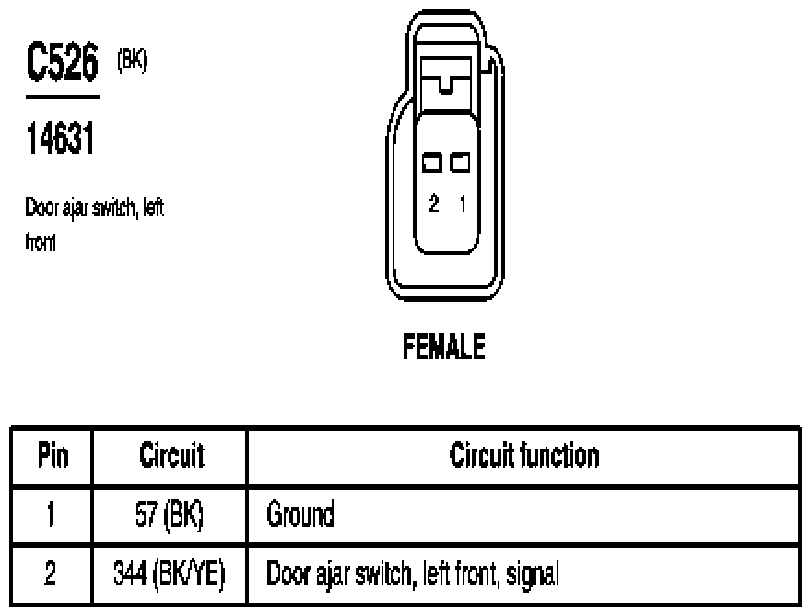

Fig 204: Door Ajar Switch, Left Front Connector End View (C526)

G07843799

Courtesy of FORD MOTOR CO.

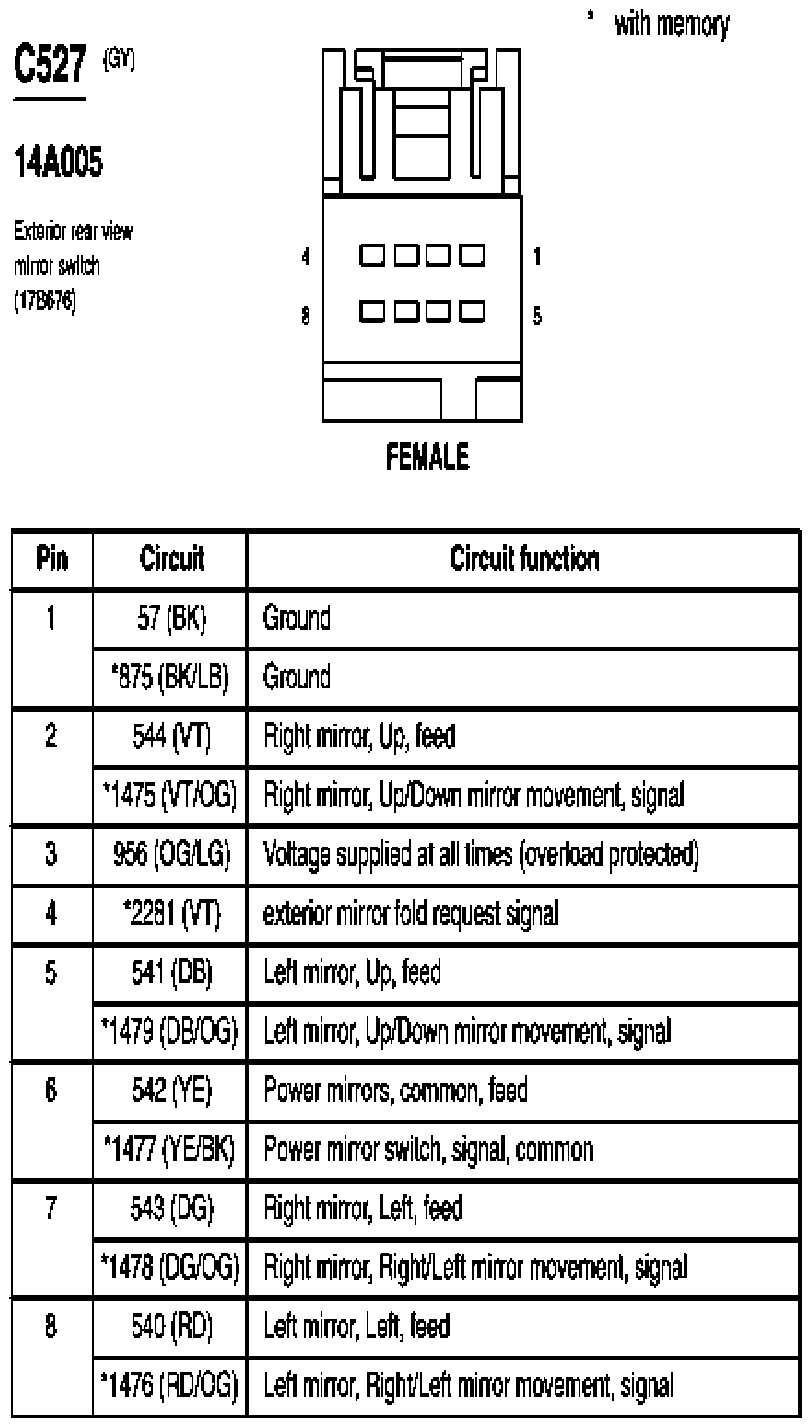

Fig 205: Exterior Rear View Mirror Switch Connector End View (C527)

G07843800

Courtesy of FORD MOTOR CO.

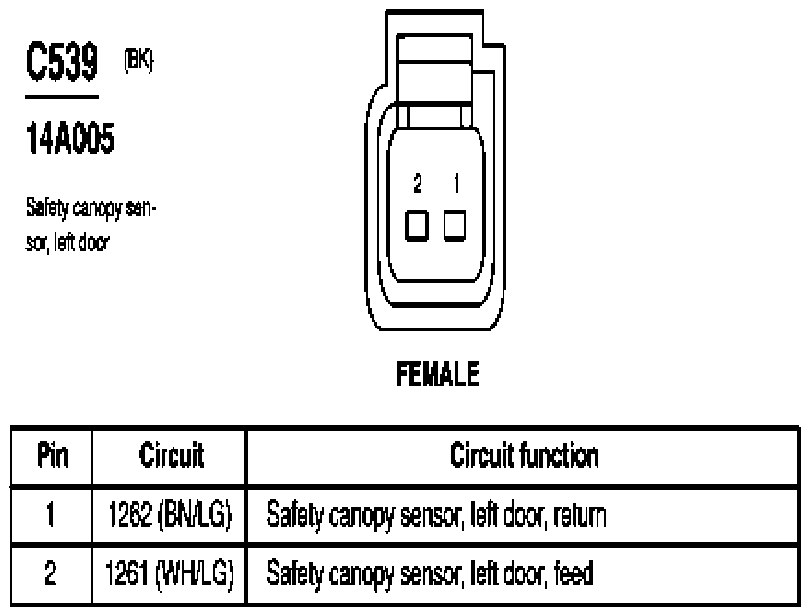

Fig 206: Safety Canopy Sensor, Left Door Connector End View (C539)

G07843801

Courtesy of FORD MOTOR CO.

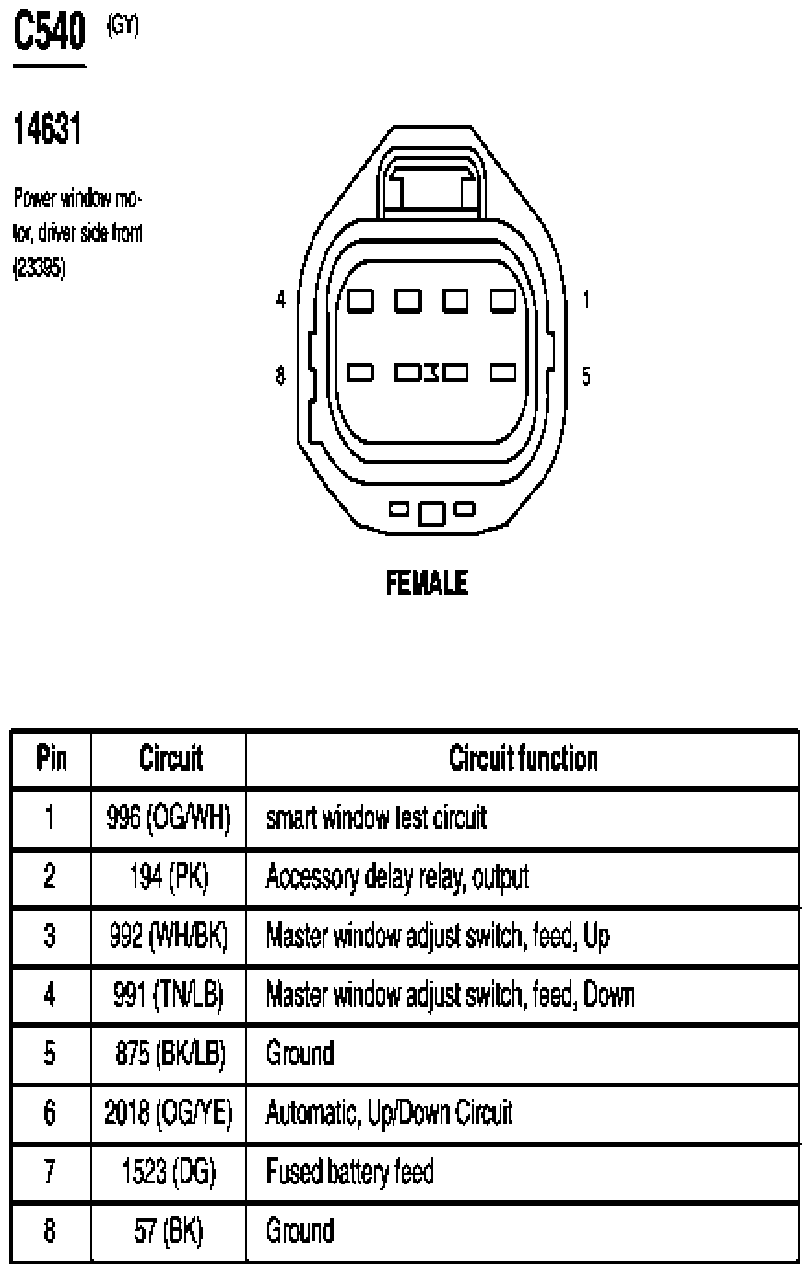

Fig 207: Power Window Motor, Driver Side Front Connector End View (C540)

G07843802

Courtesy of FORD MOTOR CO.

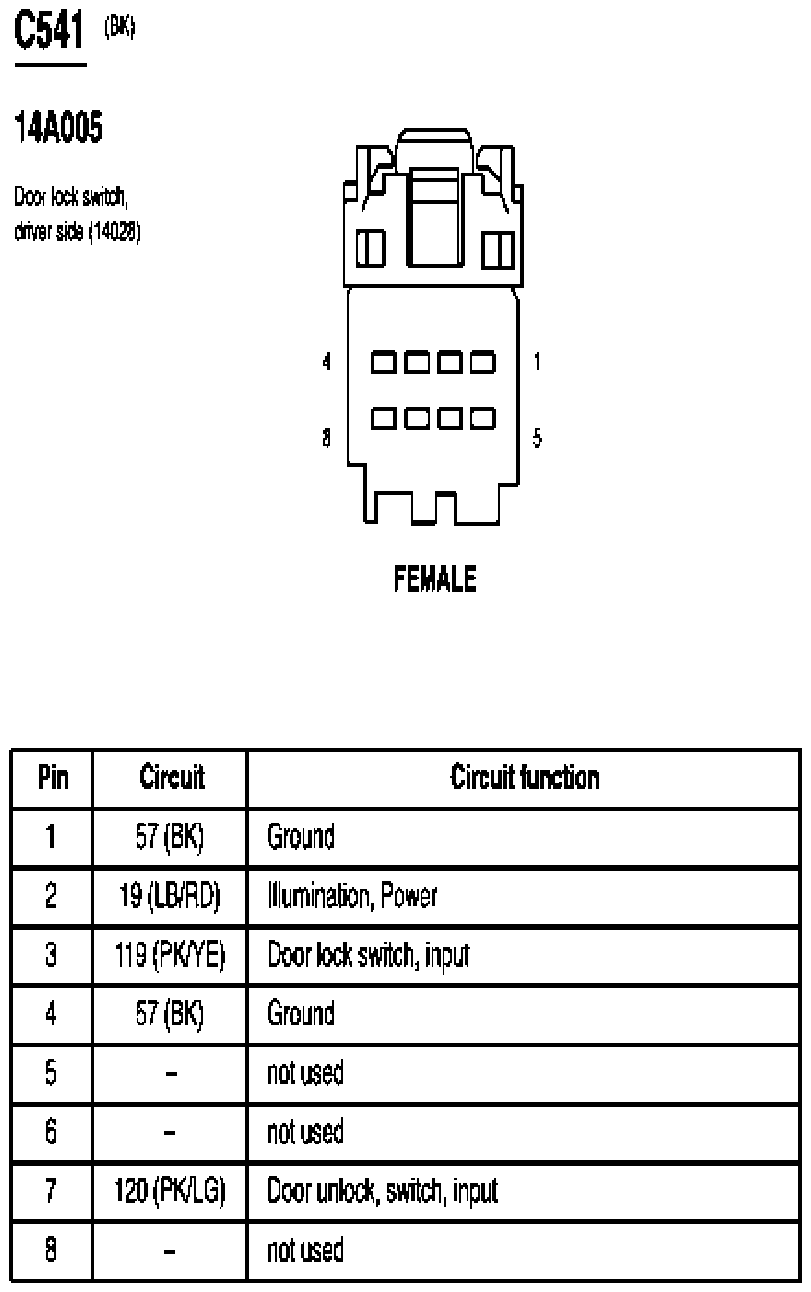

Fig 208: Door Lock Switch, Driver Side Connector End View (C541)

G07843803

Courtesy of FORD MOTOR CO.

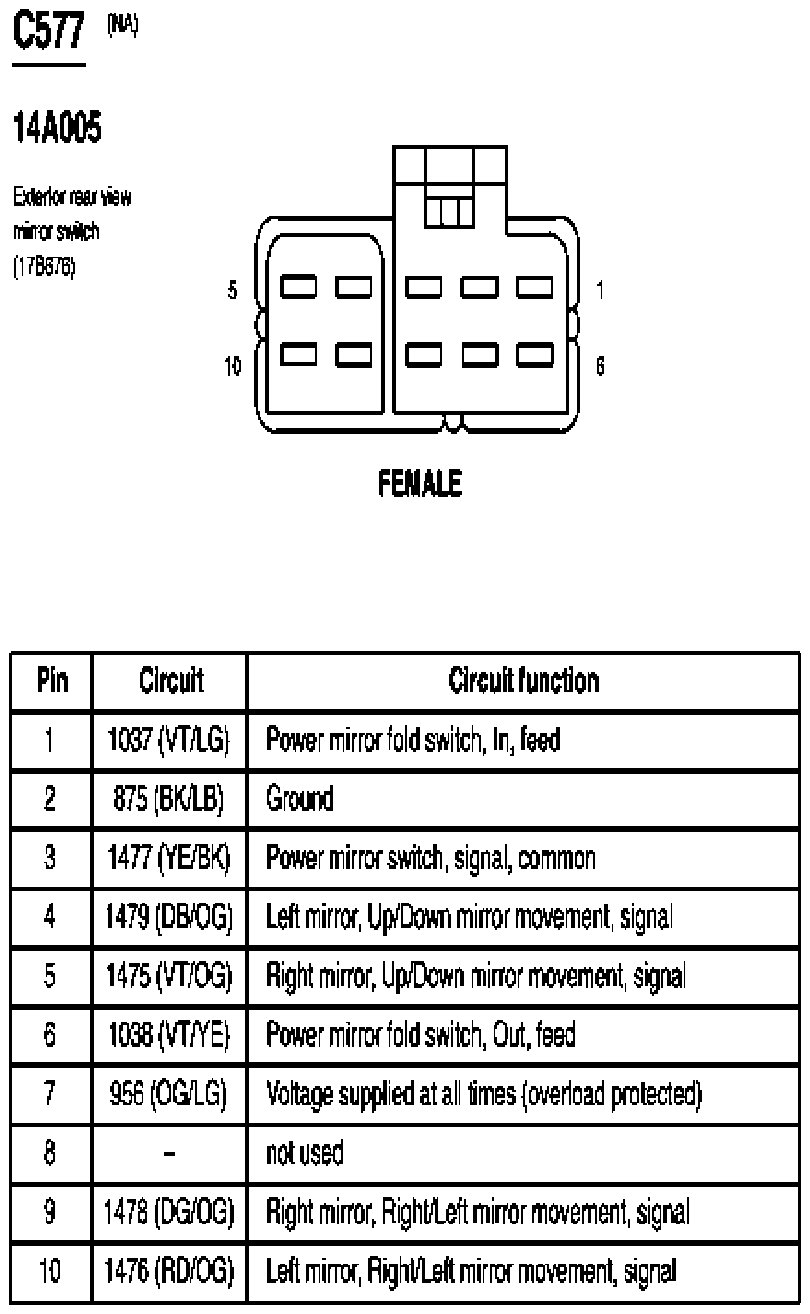

Fig 209: Exterior Rear View Mirror Switch Connector End View (C577)

G07843804

Courtesy of FORD MOTOR CO.

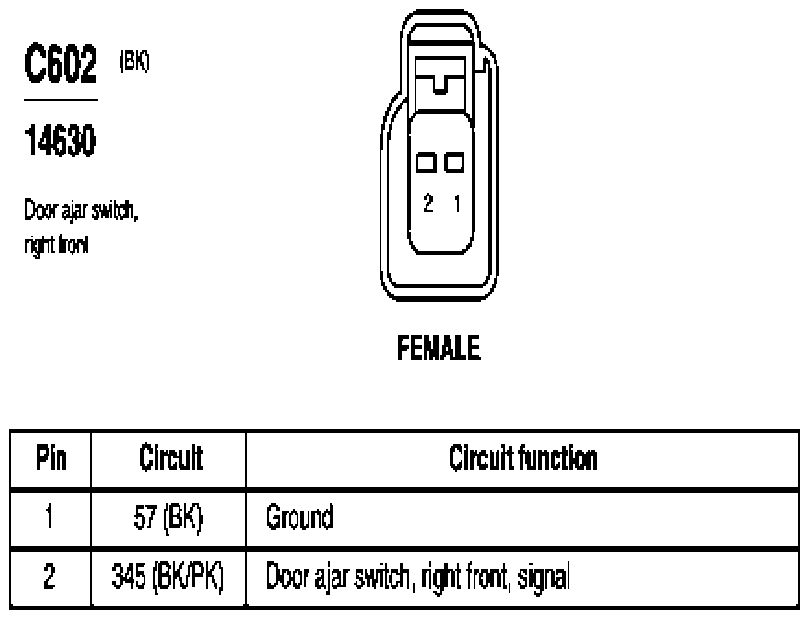

Fig 210: Door Ajar Switch, Right Front Connector End View (C602)

G07843805

Courtesy of FORD MOTOR CO.

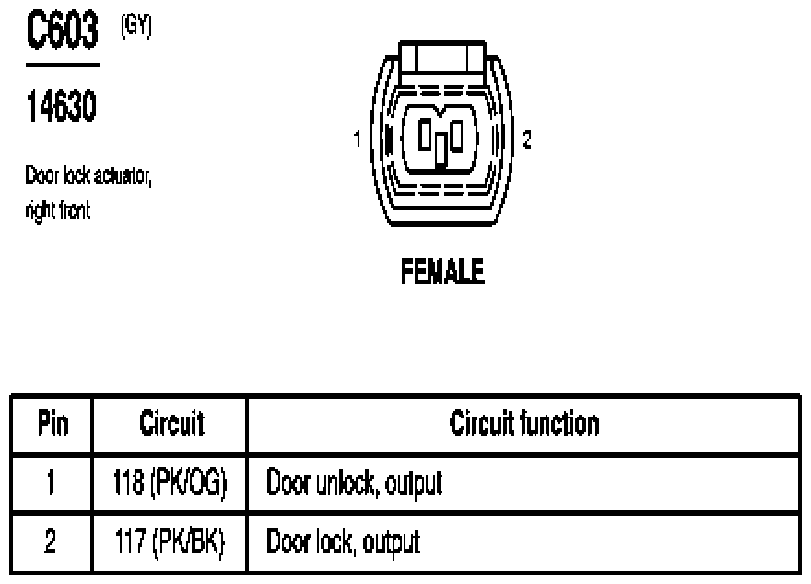

Fig 211: Door Lock Actuator, Right Front Connector End View (C603)

G07843806

Courtesy of FORD MOTOR CO.

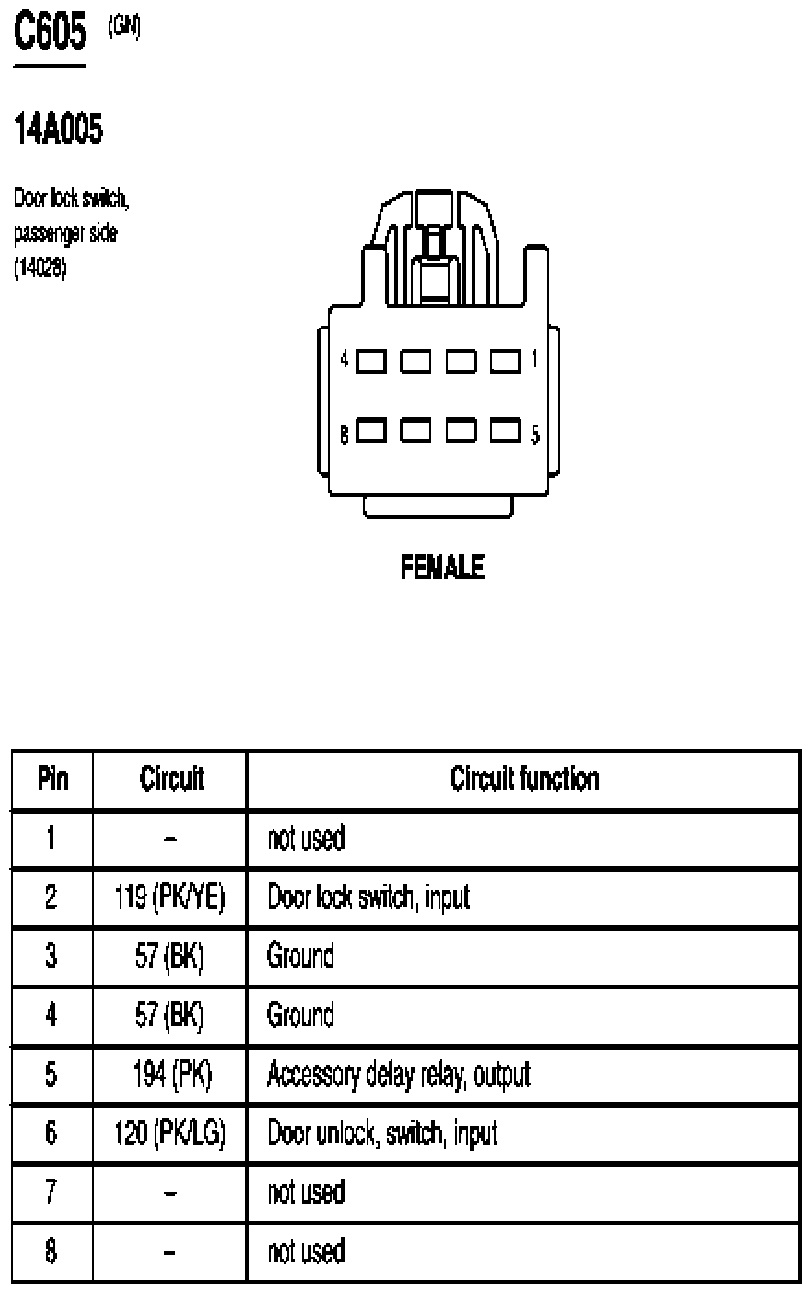

Fig 212: Door Lock Switch, Passenger Side Connector End View (C605)

G07843807

Courtesy of FORD MOTOR CO.

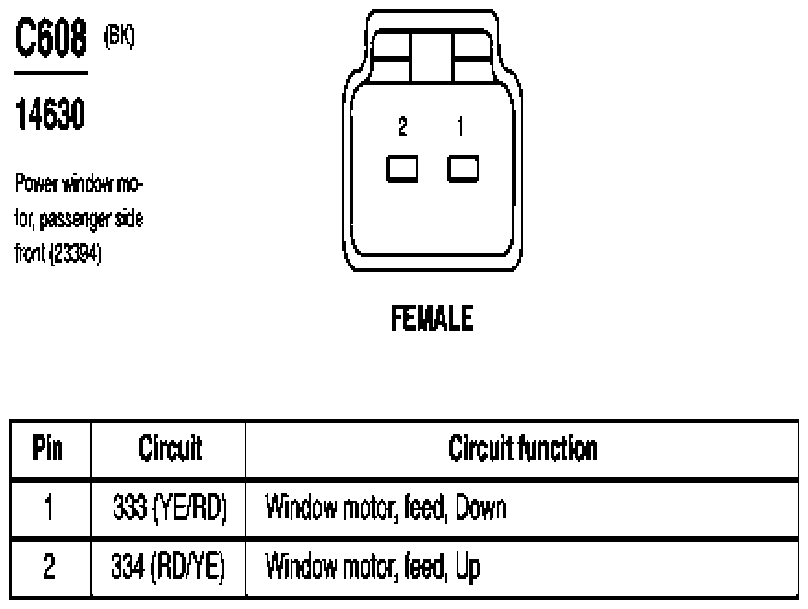

Fig 213: Power Window Motor, Passenger Side Front Connector End View (C608)

G07843808

Courtesy of FORD MOTOR CO.

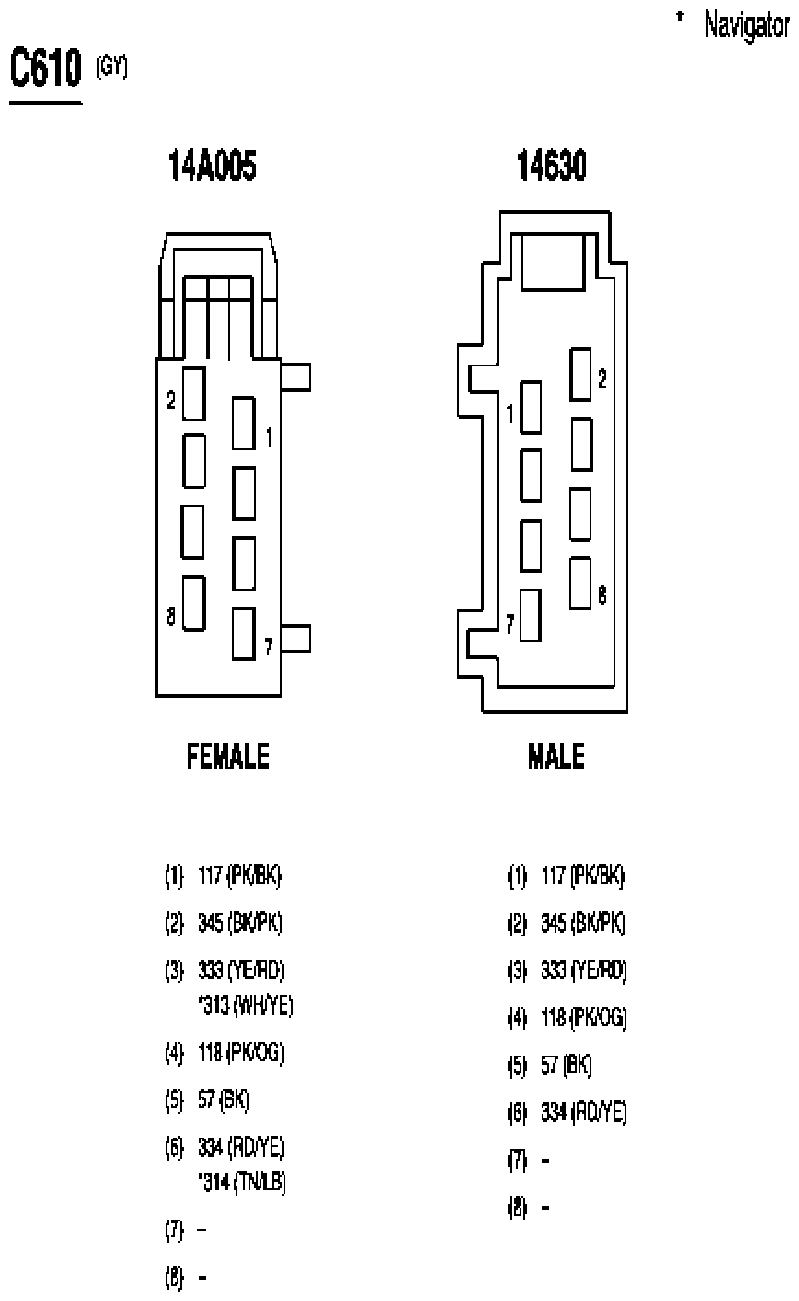

Fig 214: Inline Connector End View (C610)

G07843809

Courtesy of FORD MOTOR CO.

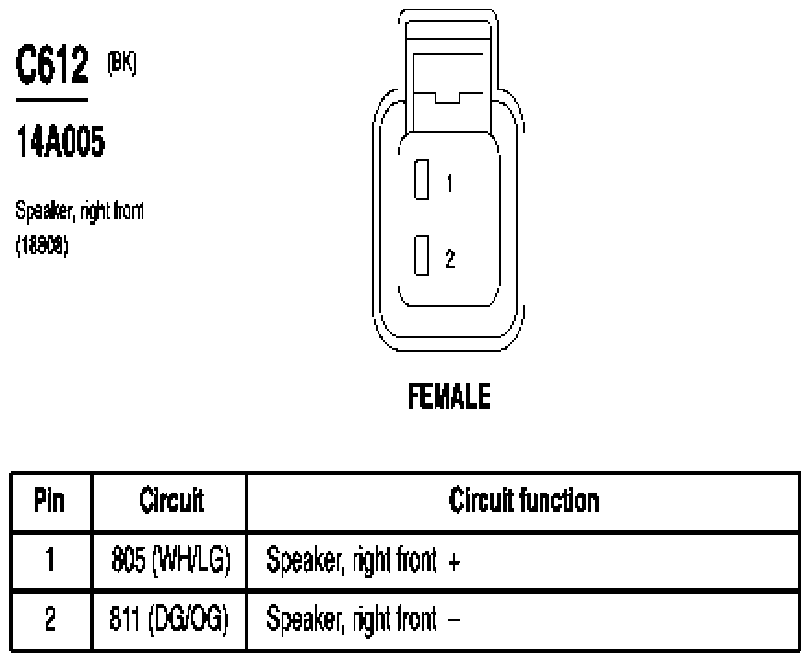

Fig 215: Speaker, Right Front Connector End View (C612)

G07843810

Courtesy of FORD MOTOR CO.

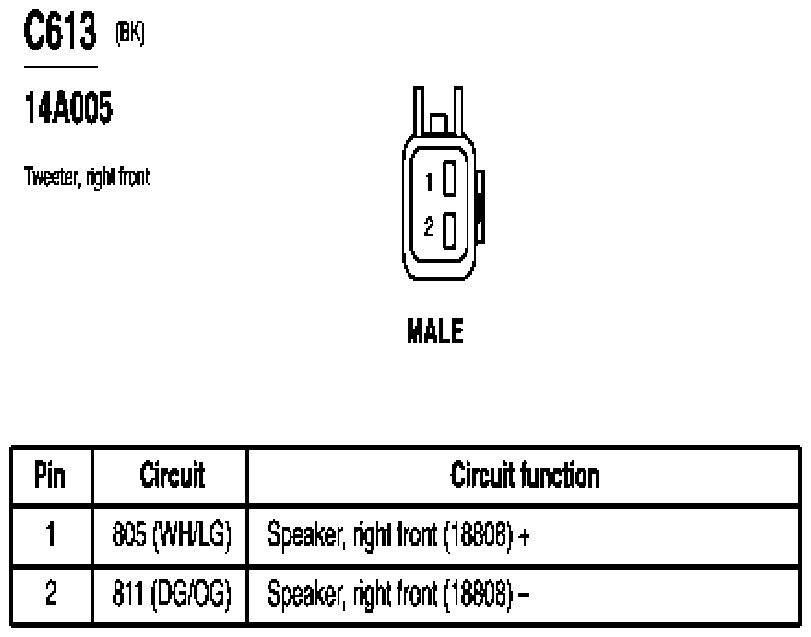

Fig 216: Tweeter, Right Front Connector End View (C613)

G07843811

Courtesy of FORD MOTOR CO.

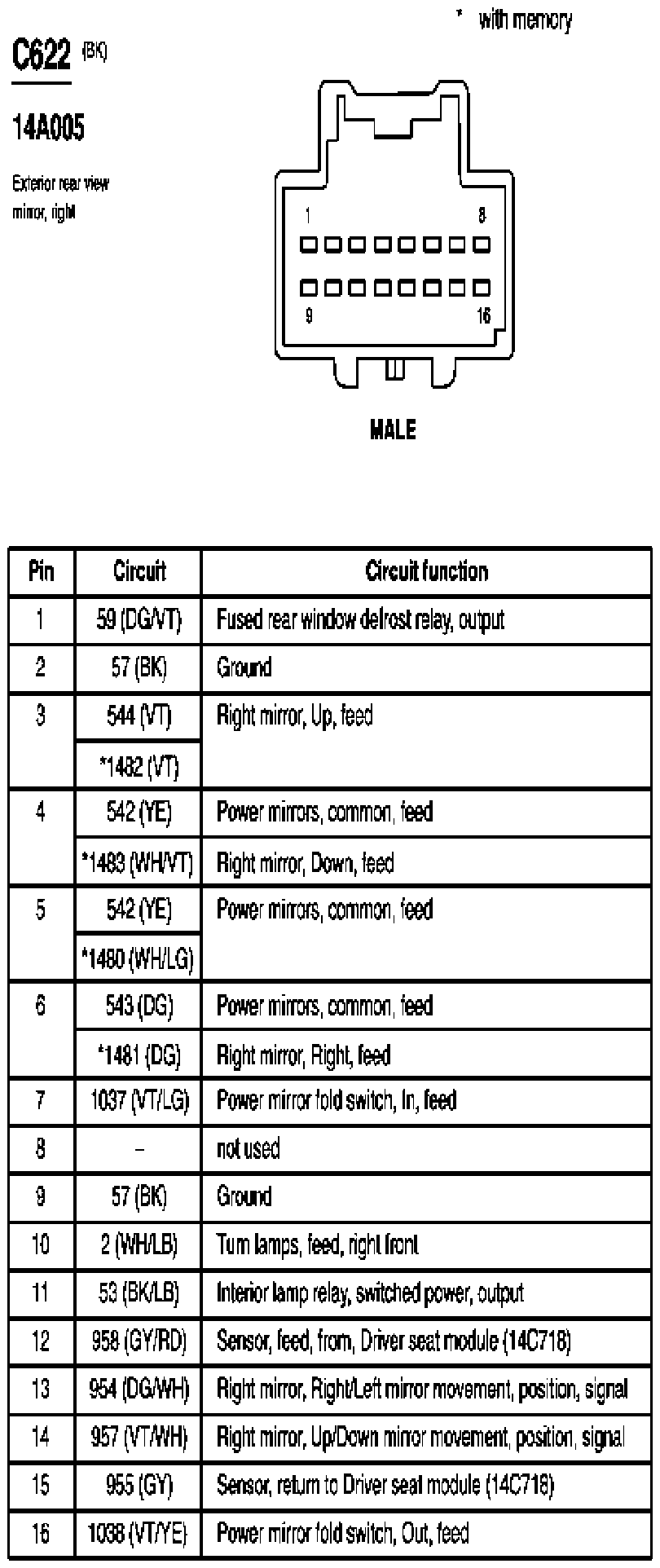

Fig 217: Exterior Rear View Mirror, Right Connector End View (C622)

G07843812

Courtesy of FORD MOTOR CO.

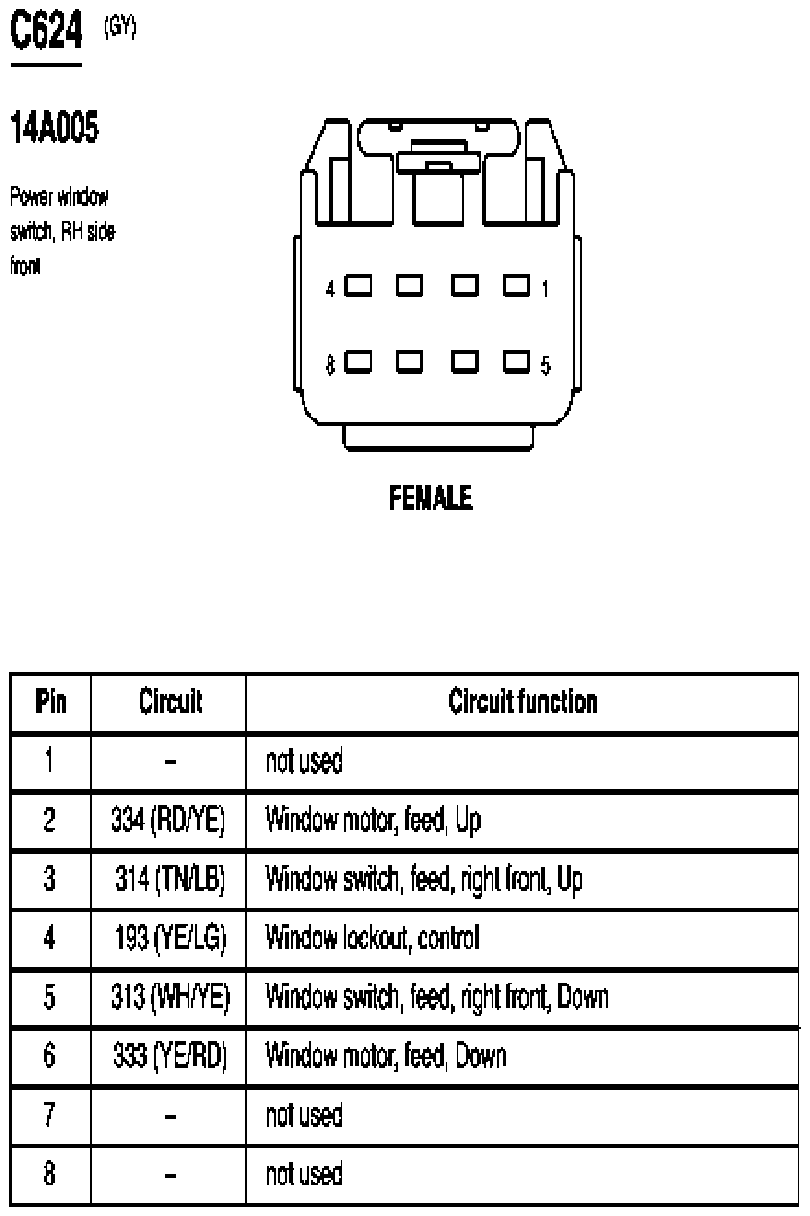

Fig 218: Power Window Switch, RH Side Front Connector End View (C624)

G07843813

Courtesy of FORD MOTOR CO.

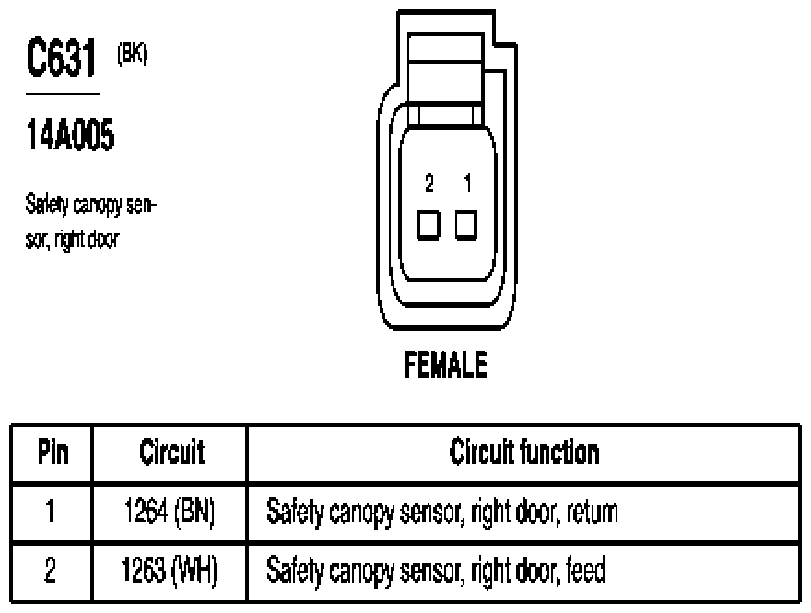

Fig 219: Safety Canopy Sensor, Right Door Connector End View (C631)

G07843814

Courtesy of FORD MOTOR CO.

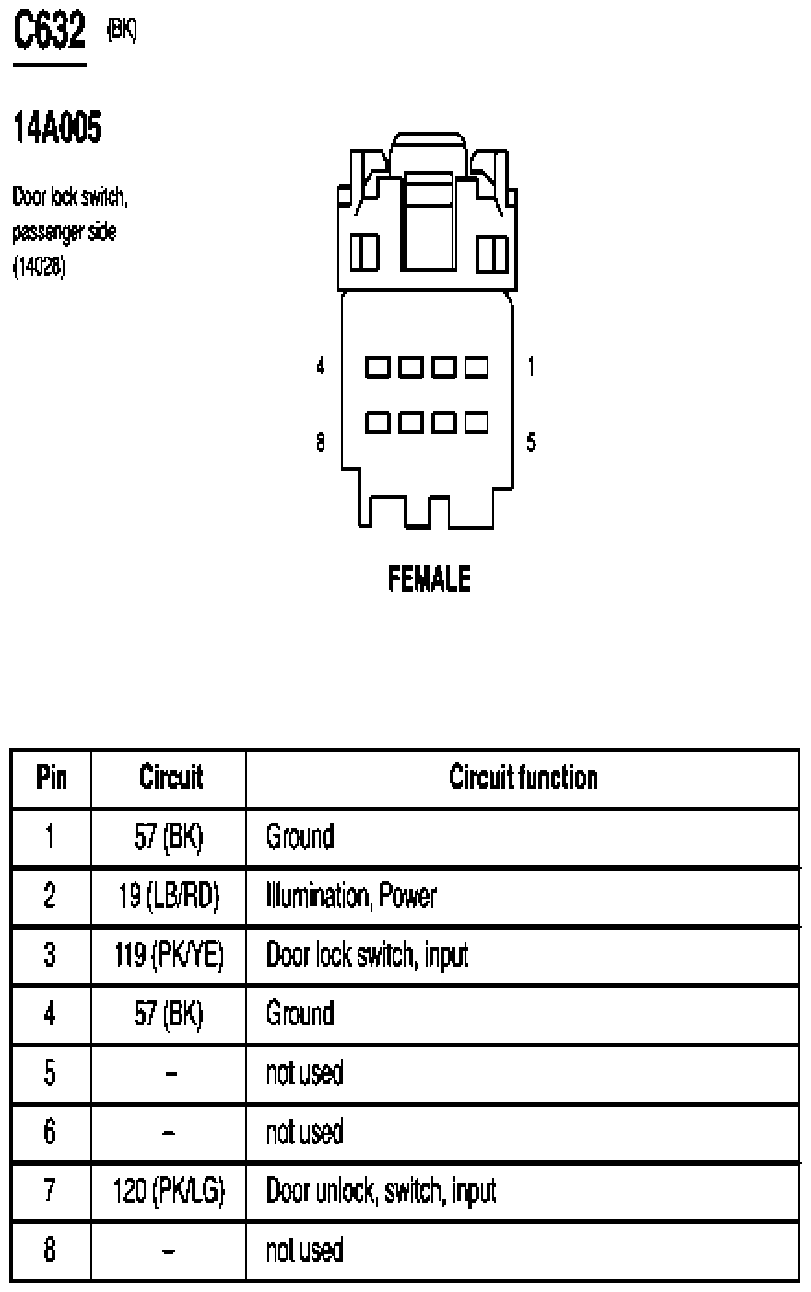

Fig 220: Door Lock Switch, Passenger Side Connector End View (C632)

G07843815

Courtesy of FORD MOTOR CO.

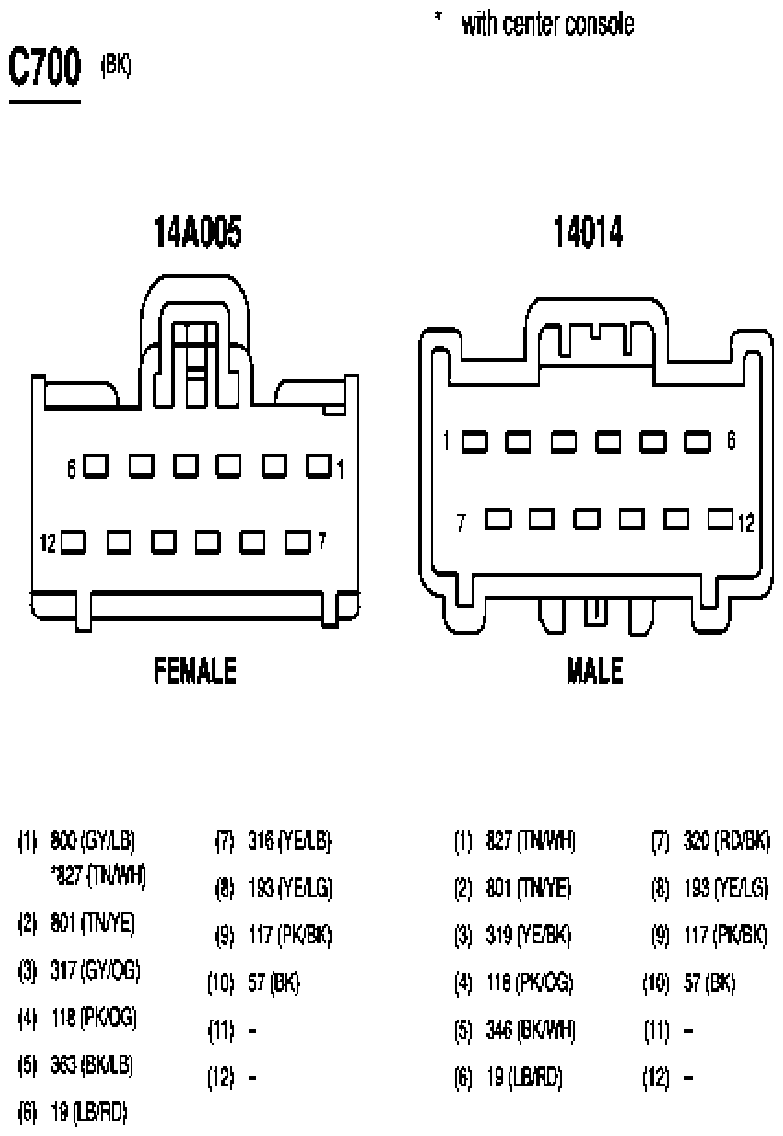

Fig 221: Inline Connector End View (C700)

G07843816

Courtesy of FORD MOTOR CO.

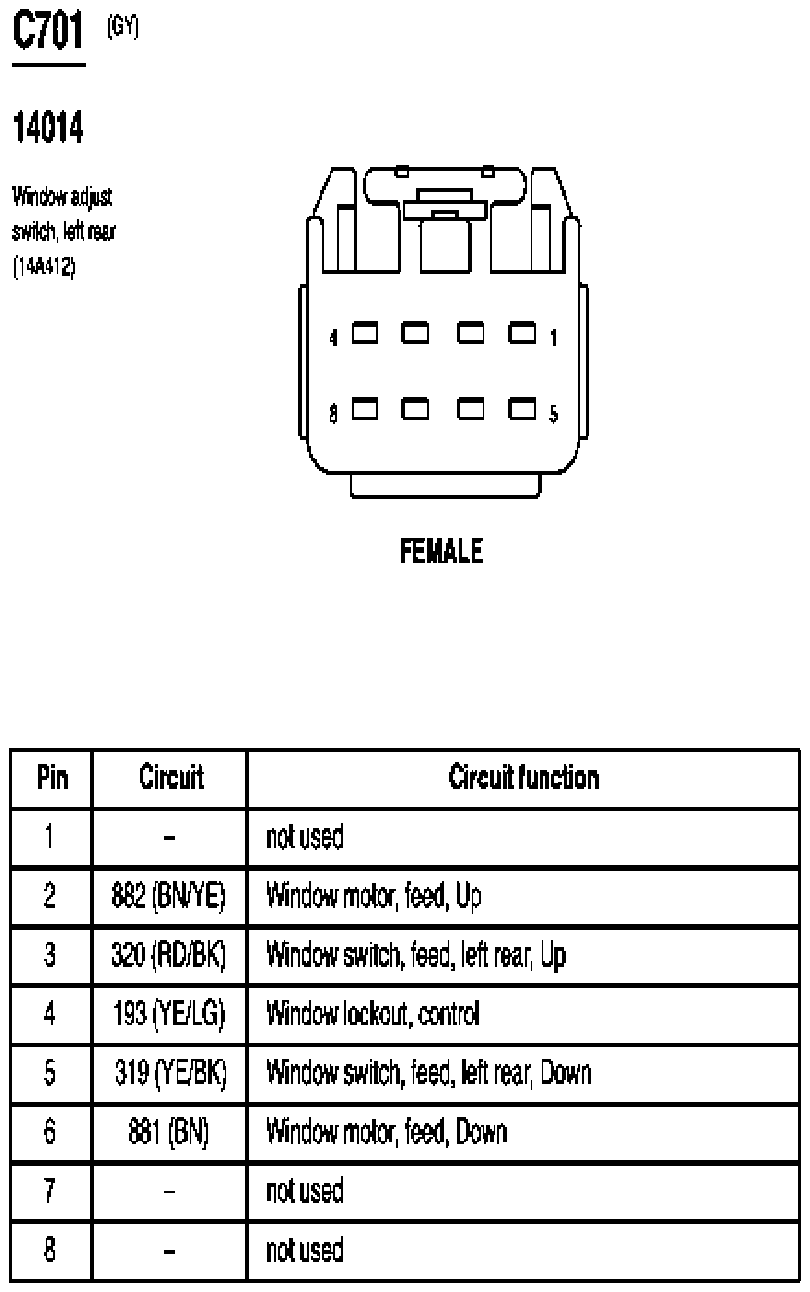

Fig 222: Window Adjust Switch, Left Rear Connector End View (C701)

G07843817

Courtesy of FORD MOTOR CO.

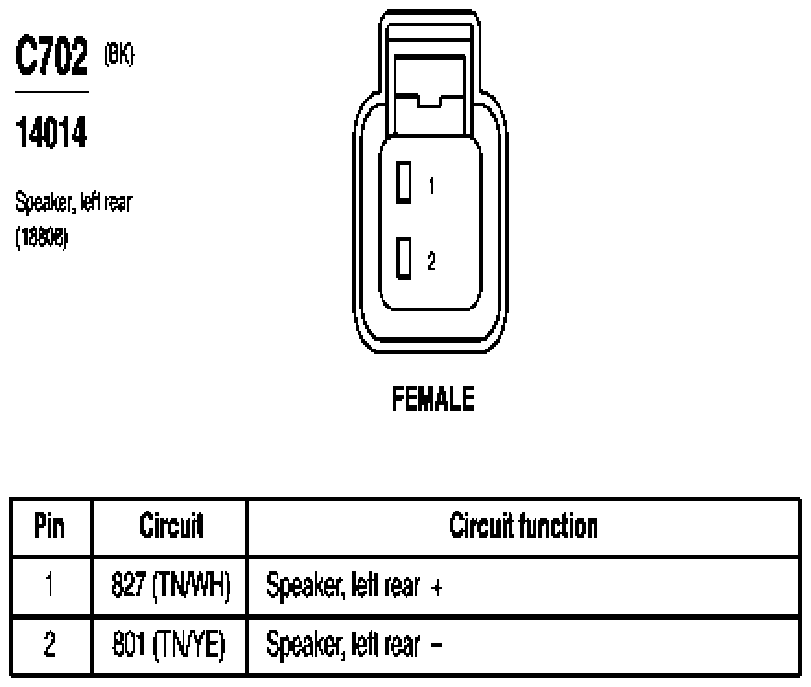

Fig 223: Speaker, Left Rear Connector End View (C702)

G07843818

Courtesy of FORD MOTOR CO.

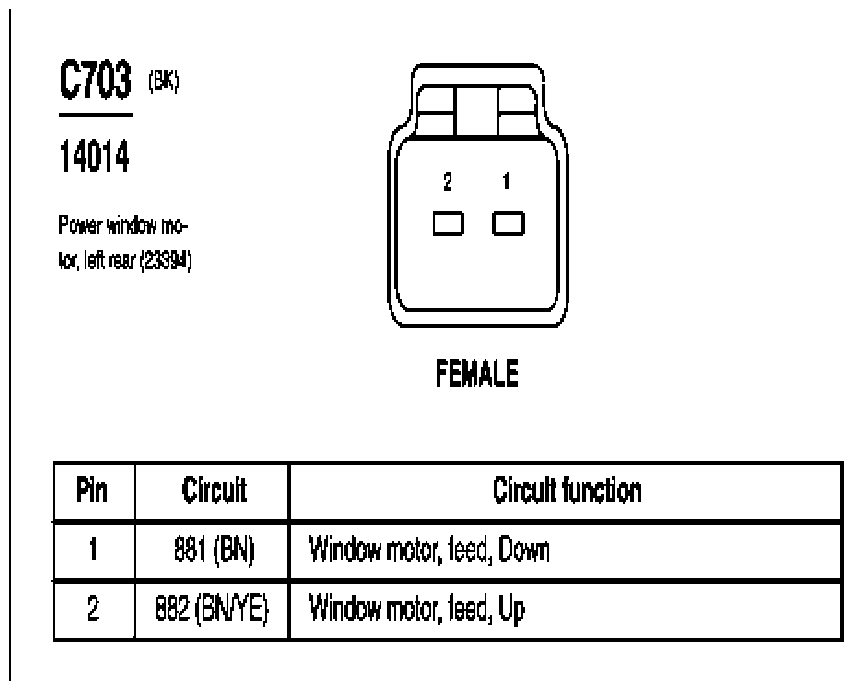

Fig 224: Power Window Motor, Left Rear Connector End View (C703)

G07843819

Courtesy of FORD MOTOR CO.

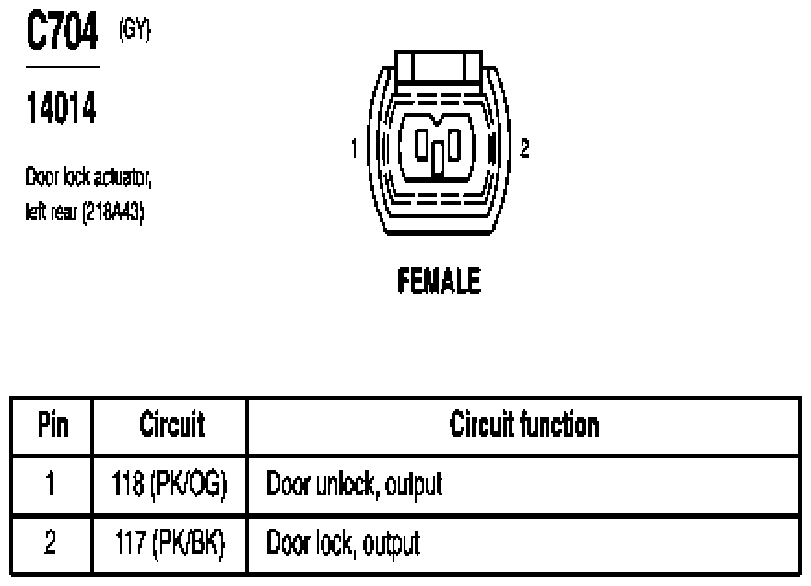

Fig 225: Door Lock Actuator, Left Rear Connector End View (C704)

G07843820

Courtesy of FORD MOTOR CO.

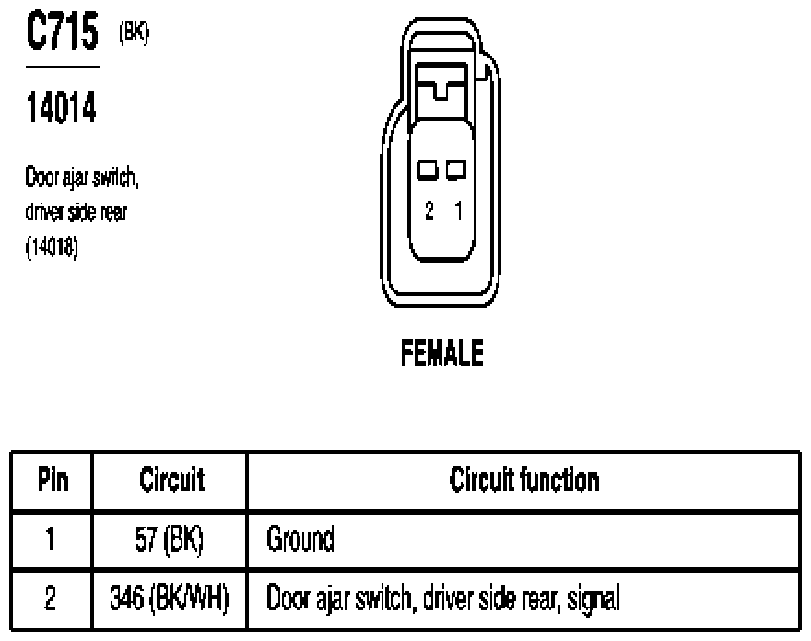

Fig 226: Door Ajar Switch, Driver Side Rear Connector End View (C715)

G07843821

Courtesy of FORD MOTOR CO.

Fig 227: Window Adjust Switch, Left Rear Connector End View (C717)

G07843822

Courtesy of FORD MOTOR CO.

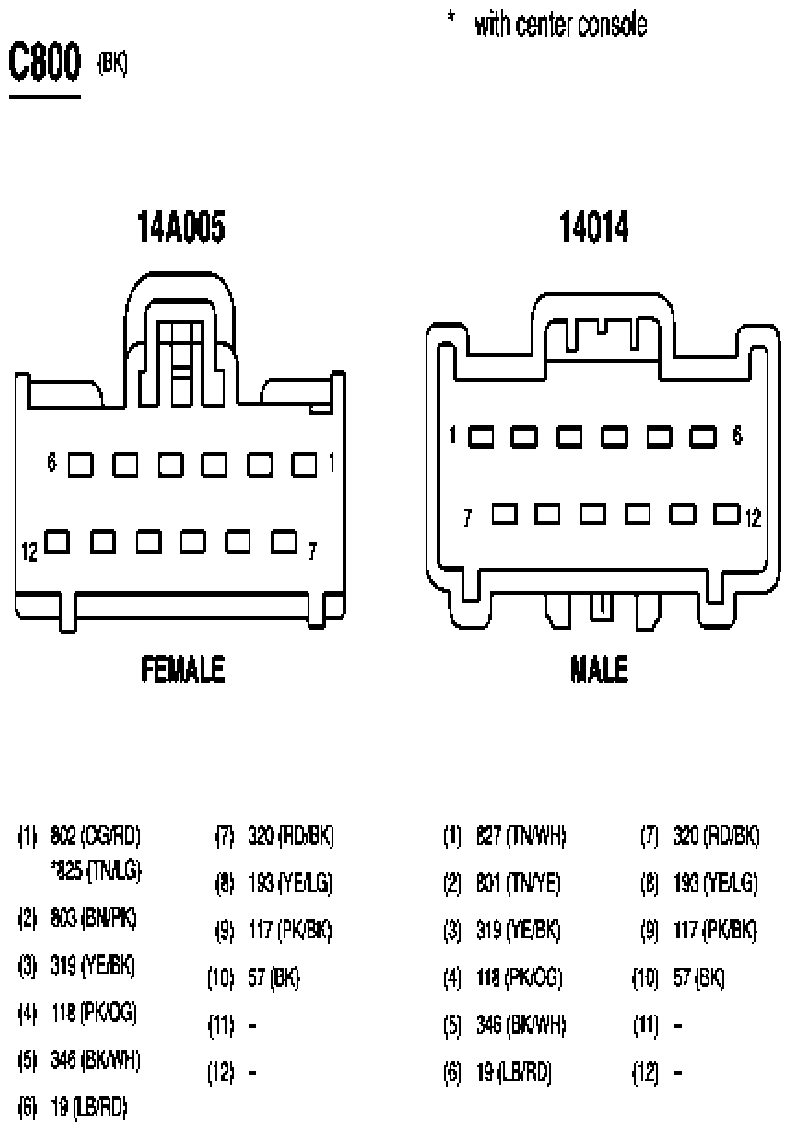

Fig 228: Inline Connector End View (C800)

G07843823

Courtesy of FORD MOTOR CO.

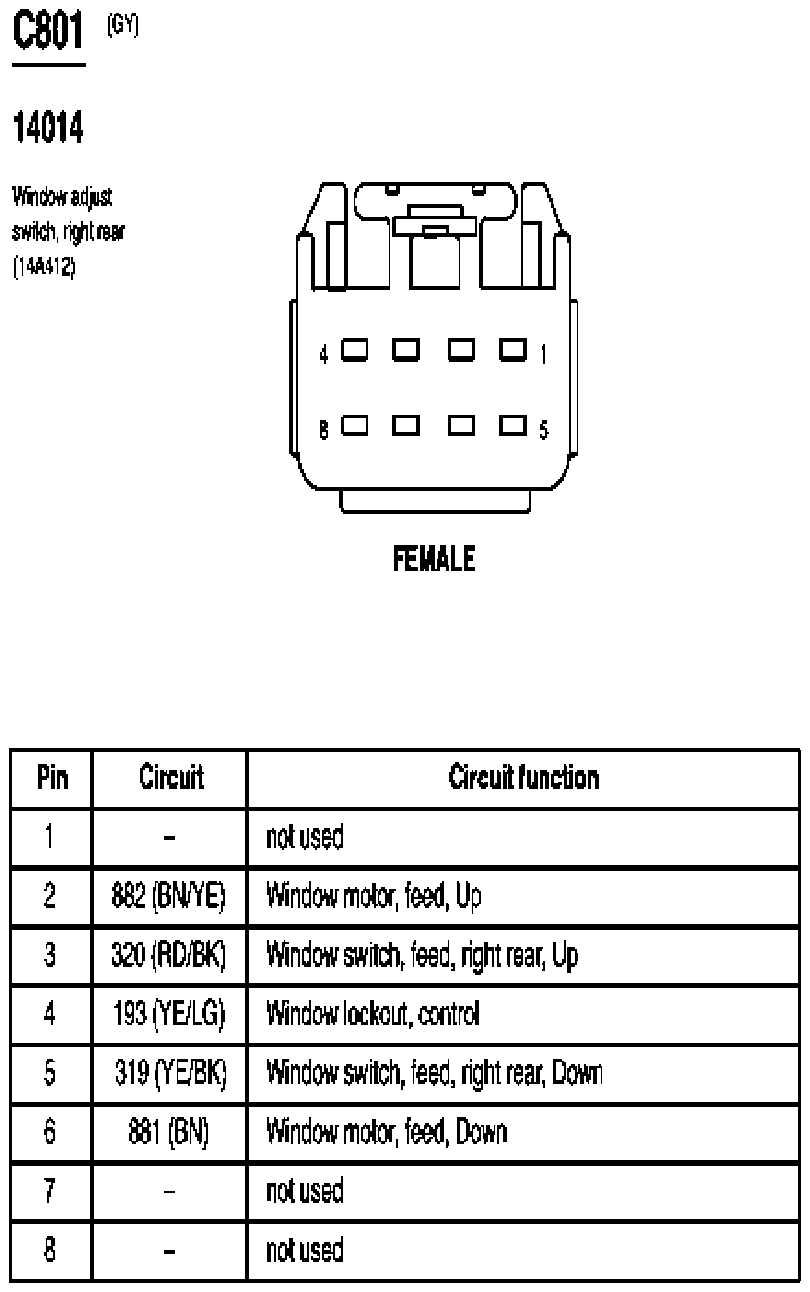

Fig 229: Window Adjust Switch, Right Rear Connector End View (C801)

G07843824

Courtesy of FORD MOTOR CO.

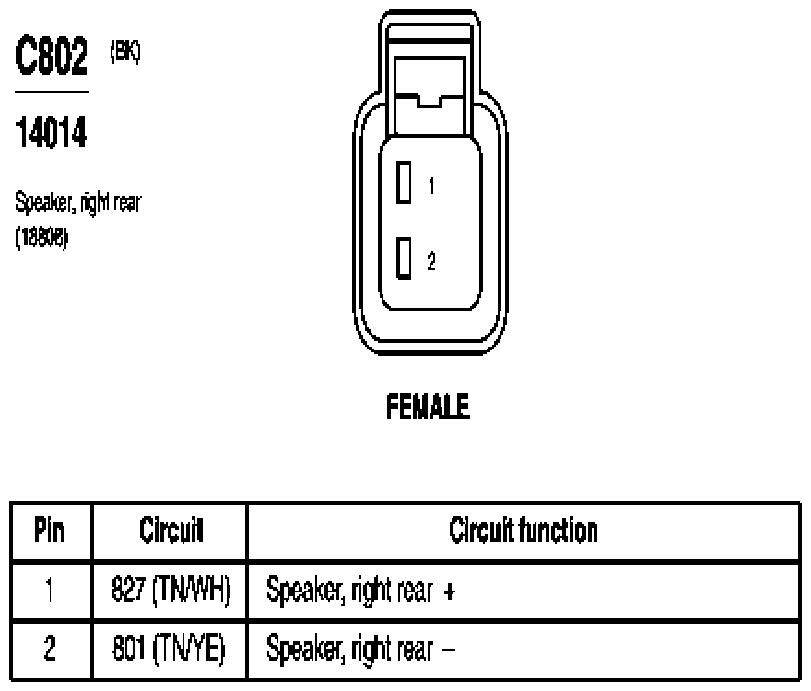

Fig 230: Speaker, Right Rear Connector End View (C802)

G07843825

Courtesy of FORD MOTOR CO.

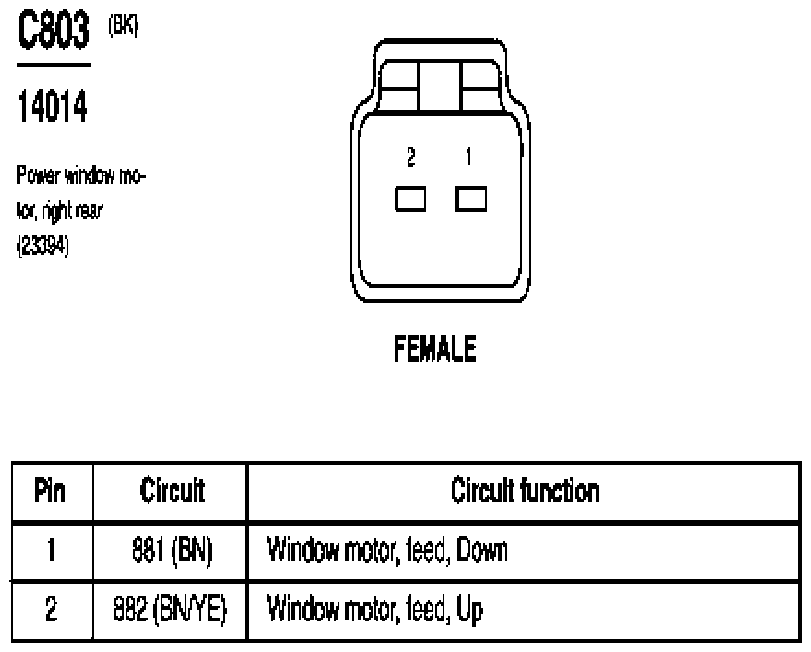

Fig 231: Power Window Motor, Right Rear Connector End View (C803)

G07843826

Courtesy of FORD MOTOR CO.

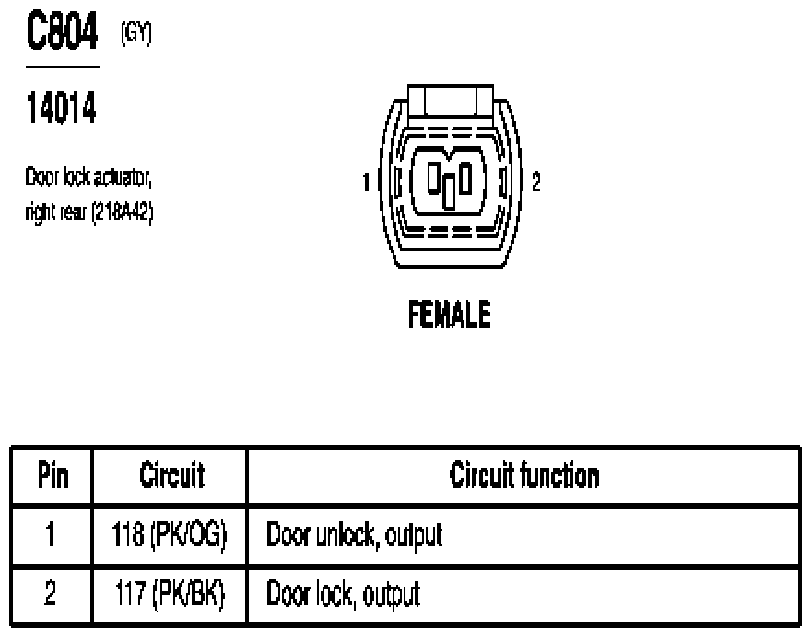

Fig 232: Door Lock Actuator, Right Rear Connector End View (C804)

G07843827

Courtesy of FORD MOTOR CO.

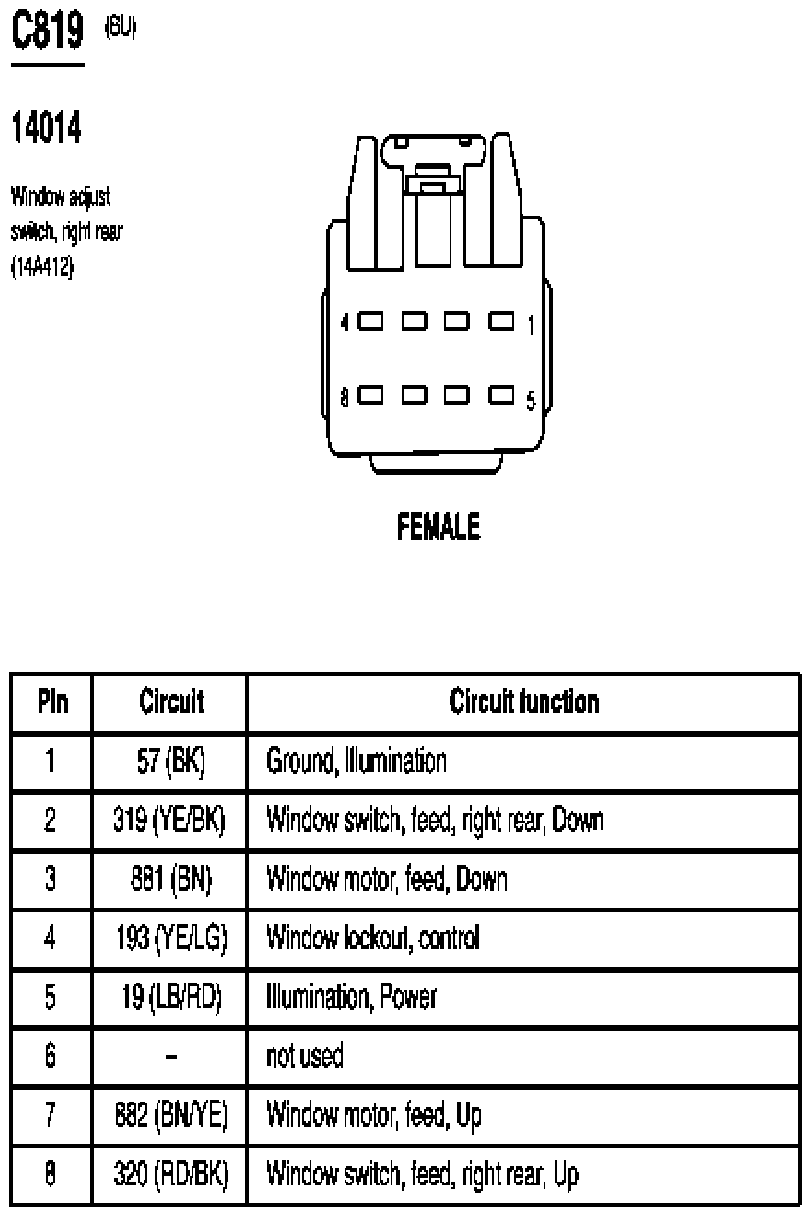

Fig 233: Window Adjust Switch, Right Rear Connector End View (C819)

G07843828

Courtesy of FORD MOTOR CO.

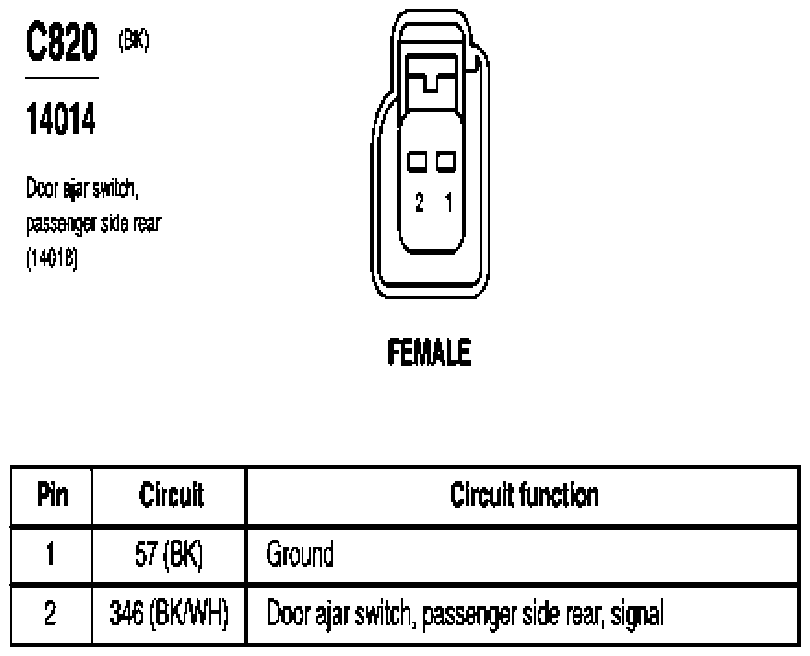

Fig 234: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G07843829

Courtesy of FORD MOTOR CO.

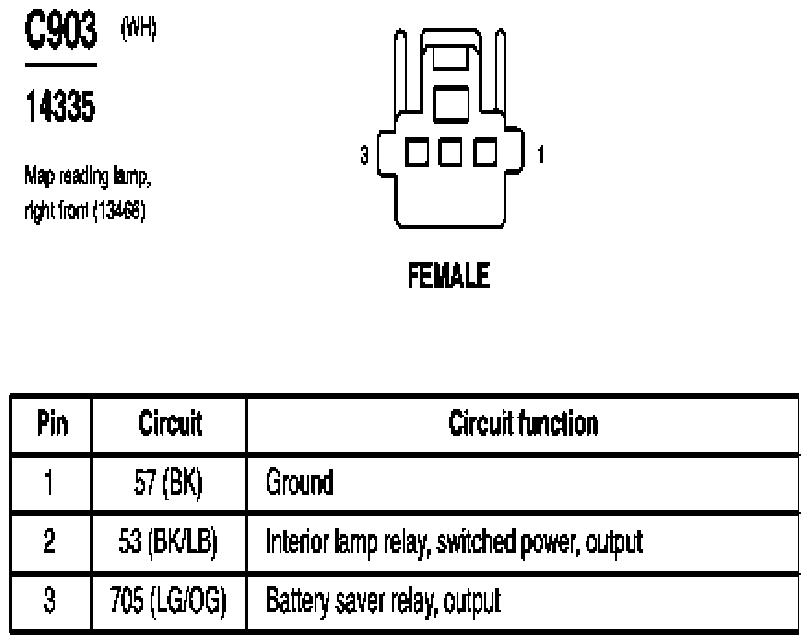

Fig 235: Map Reading Lamp, Right Front Connector End View (C903)

G07843830

Courtesy of FORD MOTOR CO.

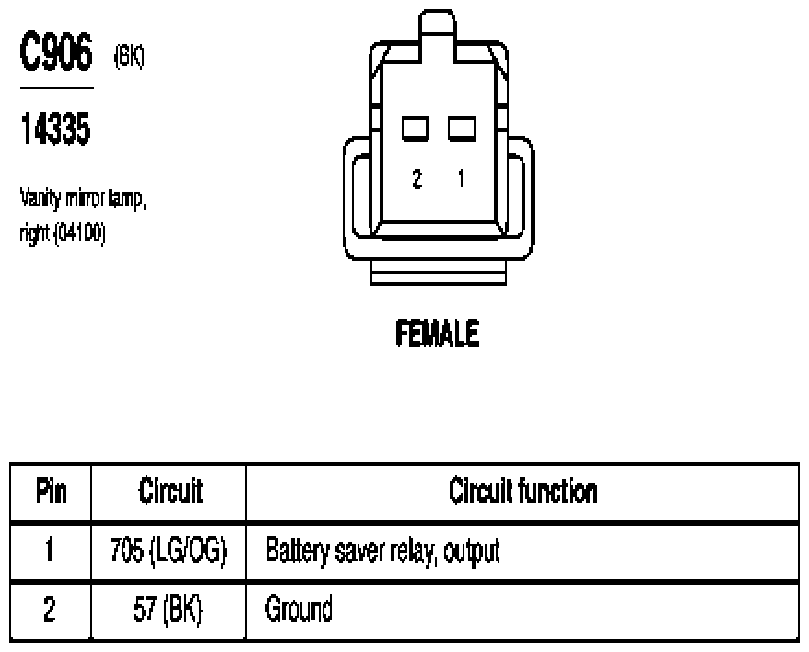

Fig 236: Vanity Mirror Lamp, Right Connector End View (C906)

G07843831

Courtesy of FORD MOTOR CO.

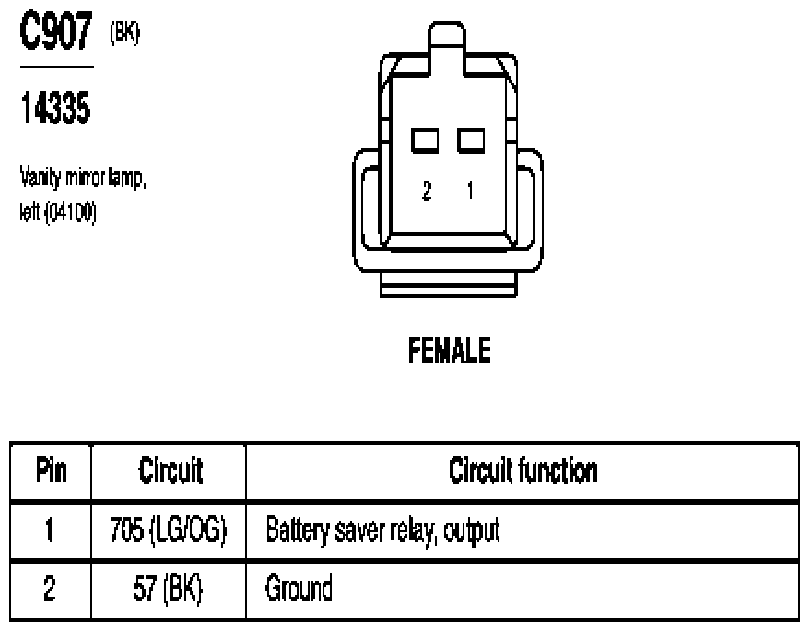

Fig 237: Vanity Mirror Lamp, Left Connector End View (C907)

G07843832

Courtesy of FORD MOTOR CO.

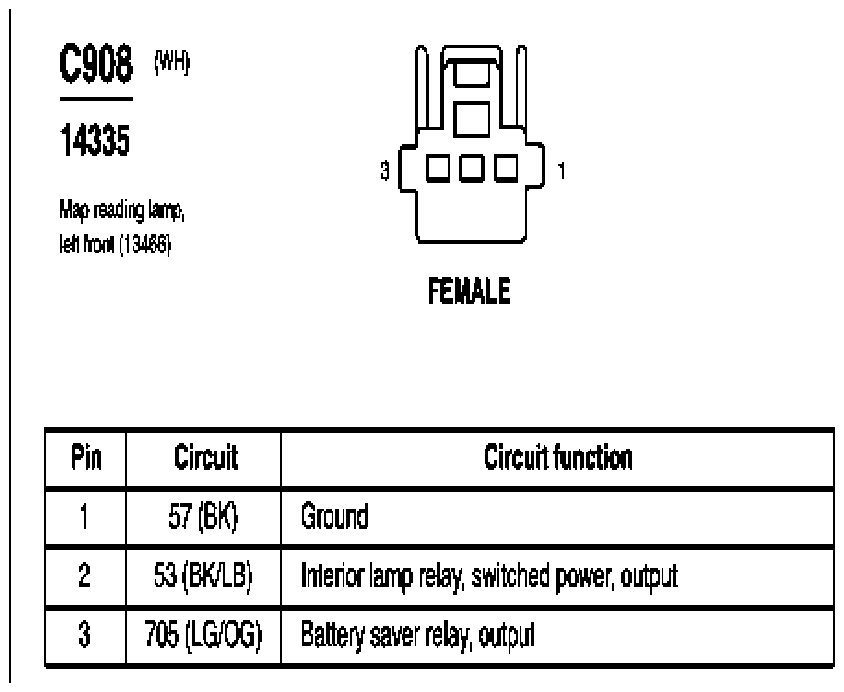

Fig 238: Map Reading Lamp, Left Front Connector End View (C908)

G07843833

Courtesy of FORD MOTOR CO.

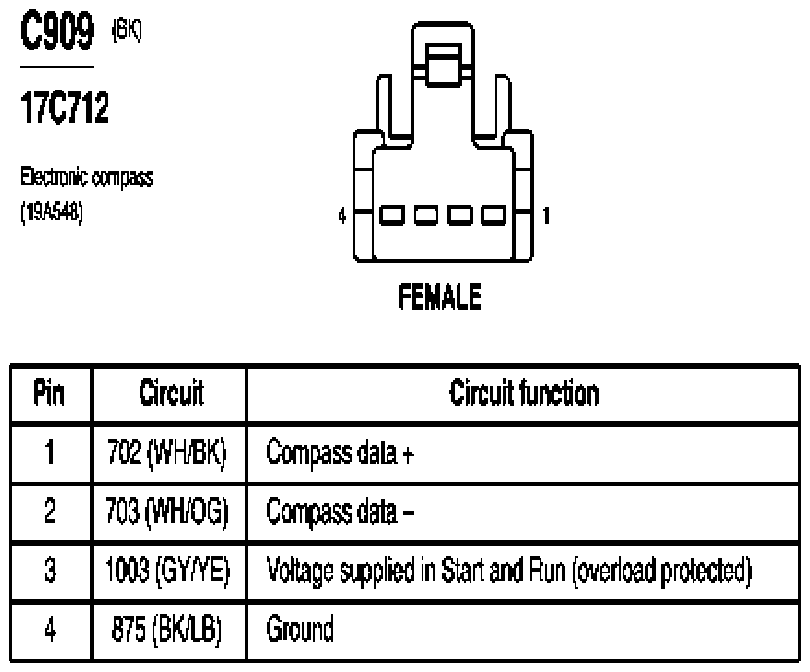

Fig 239: Electronic Compass Connector End View (C909)

G07843834

Courtesy of FORD MOTOR CO.

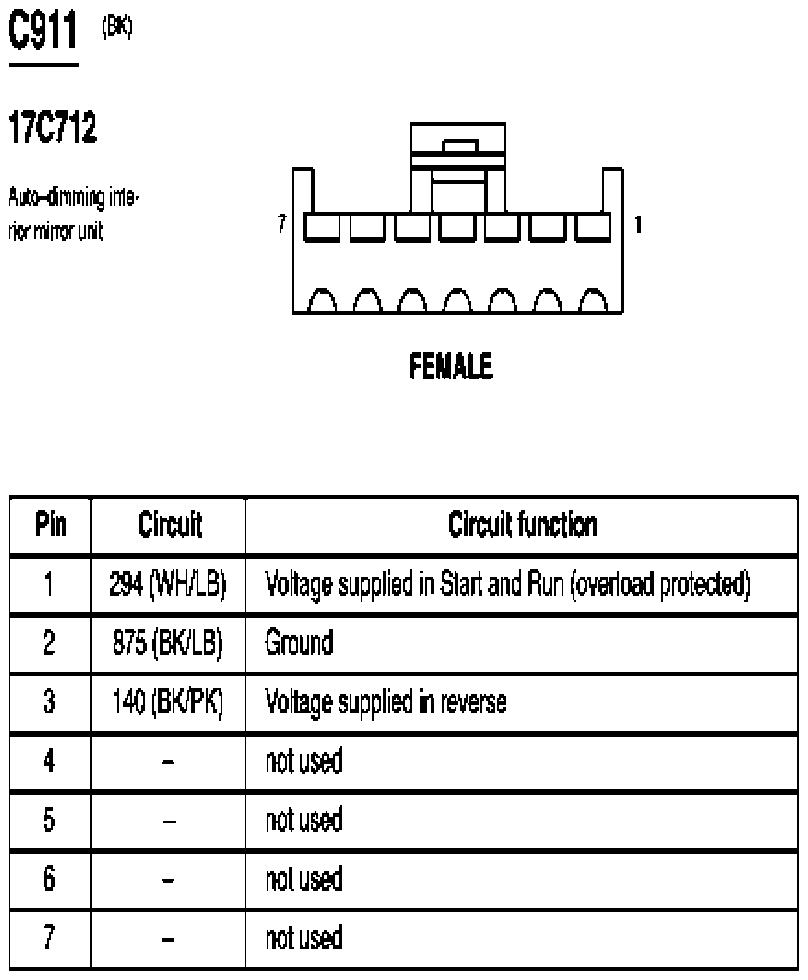

Fig 240: Auto-Dimming Interior Mirror Unit Connector End View (C911)

G07843835

Courtesy of FORD MOTOR CO.

Fig 241: Roof Opening Panel Switch Connector End View (C912)

G07843836

Courtesy of FORD MOTOR CO.

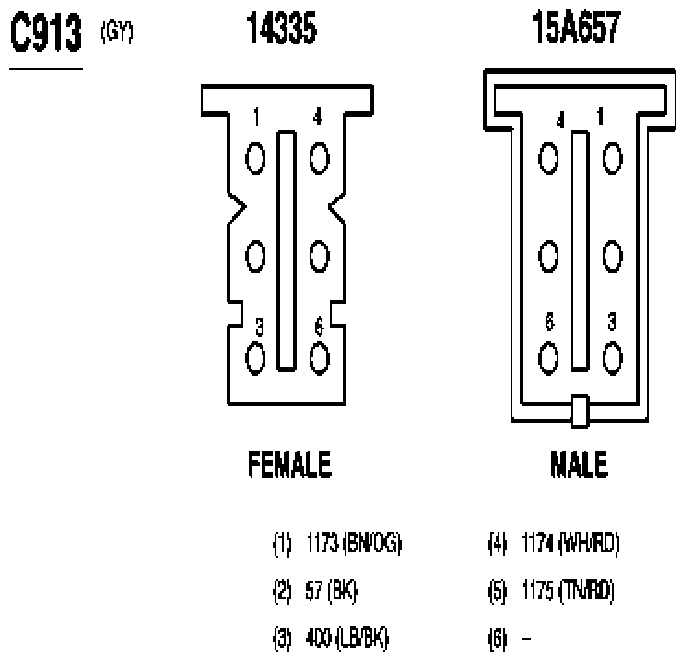

Fig 242: Inline Connector End View (C913)

G07843837

Courtesy of FORD MOTOR CO.

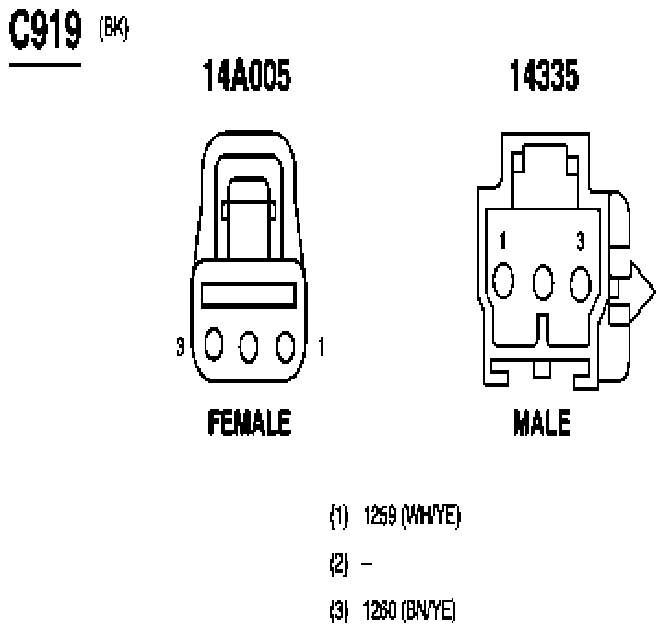

Fig 243: Inline Connector End View (C919)

G07843838

Courtesy of FORD MOTOR CO.

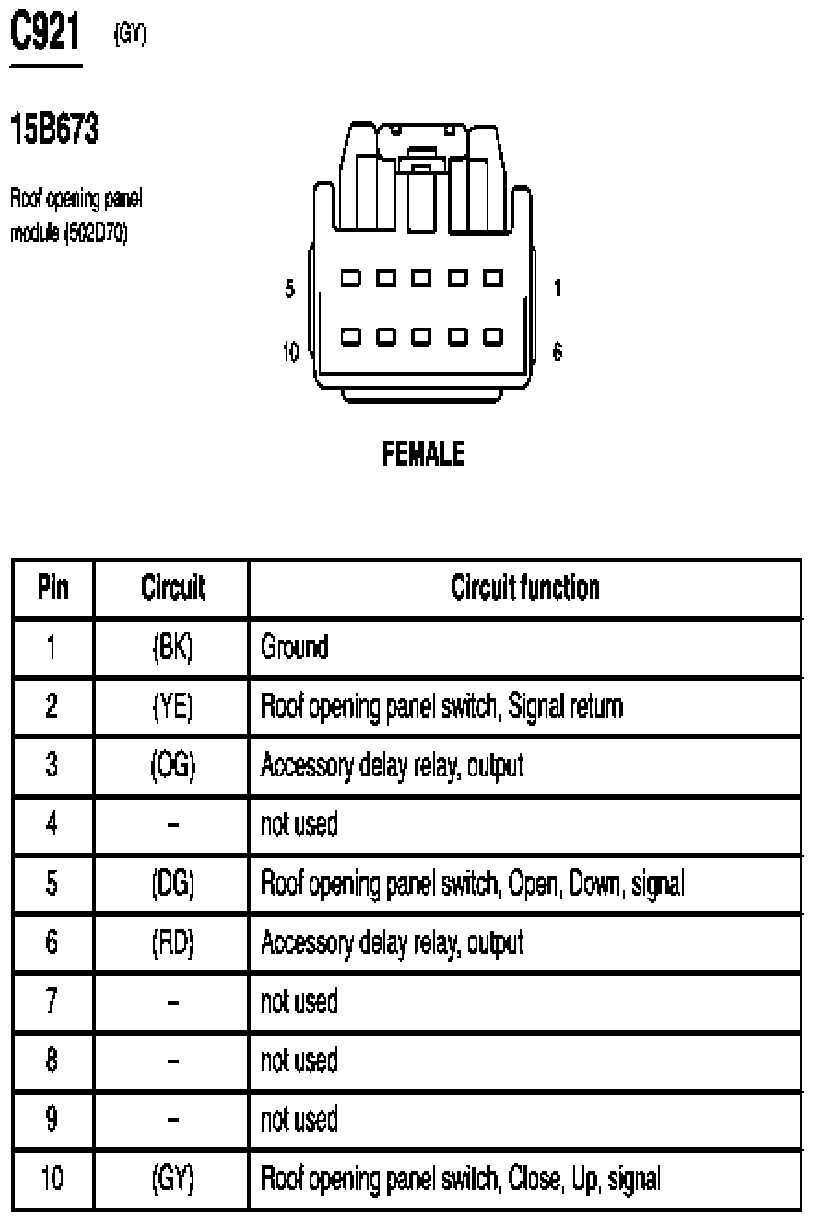

Fig 244: Roof Opening Panel Module Connector End View (C921)

G07843839

Courtesy of FORD MOTOR CO.

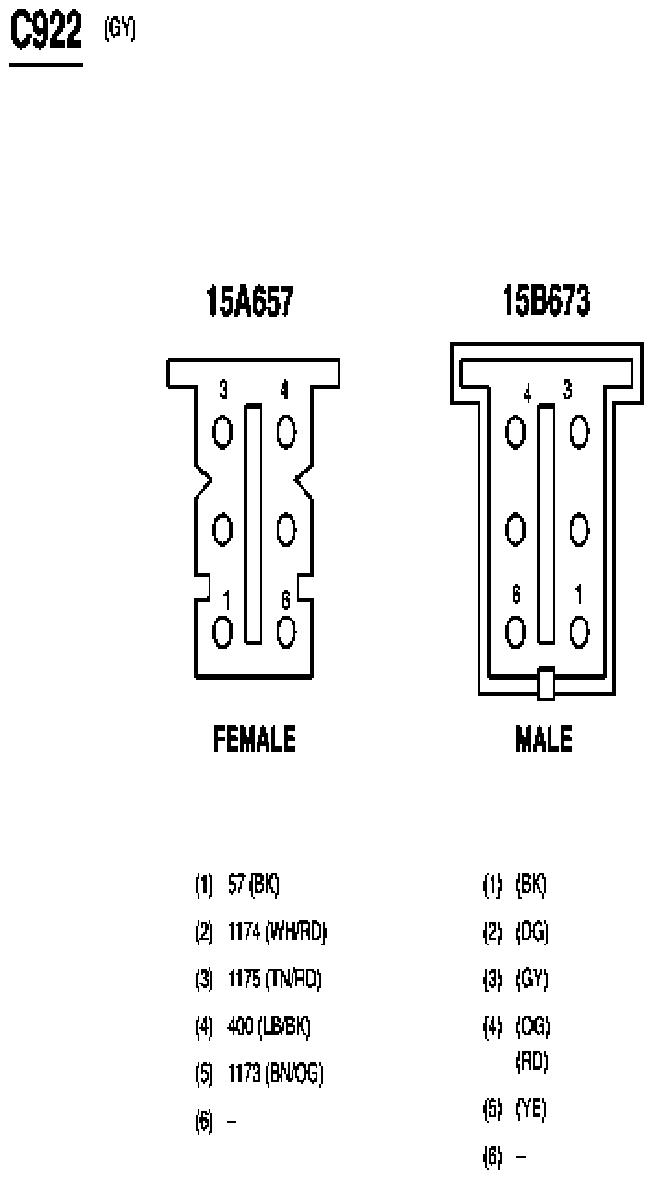

Fig 245: Inline Connector End View (C922)

G07843840

Courtesy of FORD MOTOR CO.

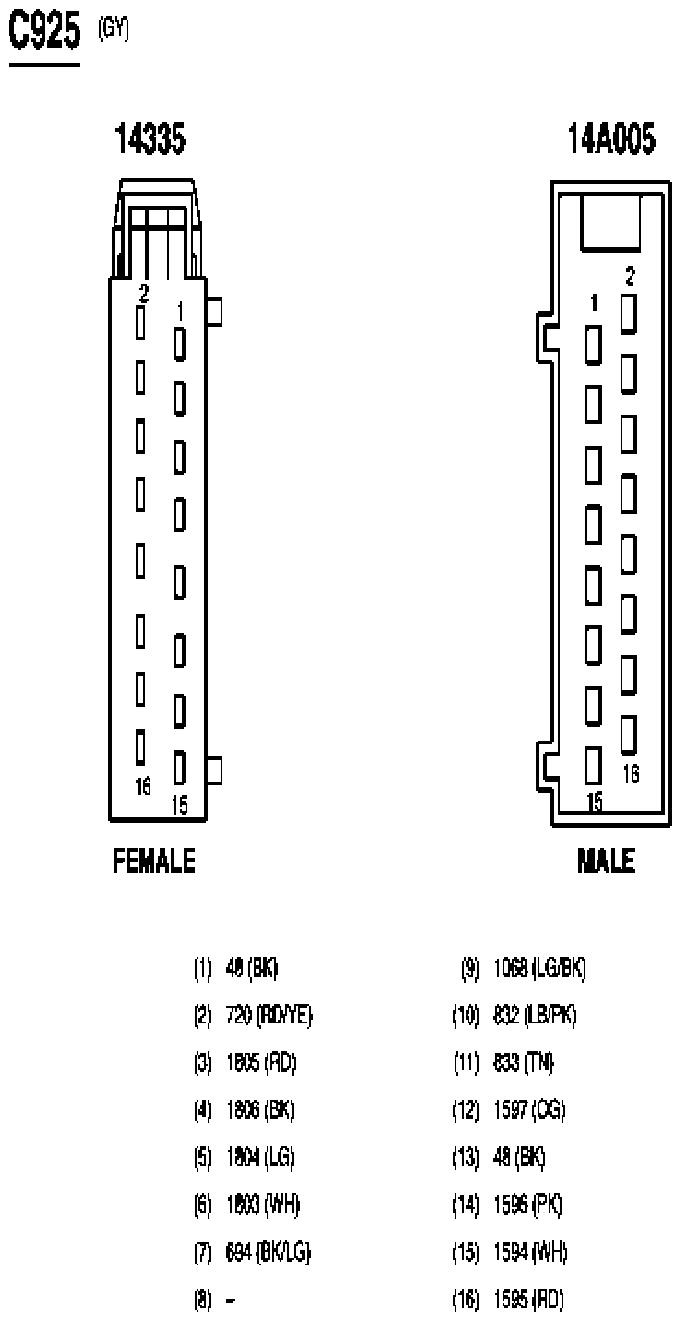

Fig 246: Inline Connector End View (C925)

G07843841

Courtesy of FORD MOTOR CO.

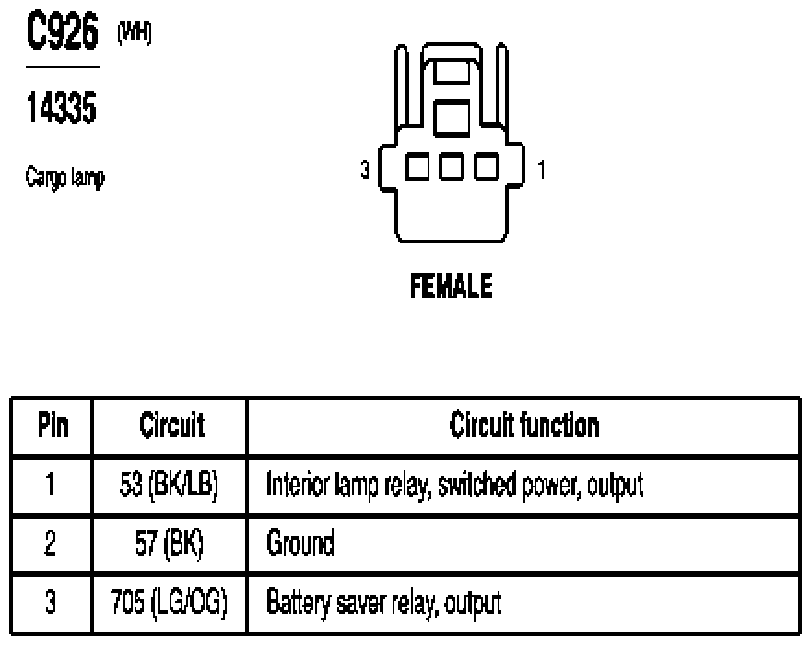

Fig 247: Cargo Lamp Connector End View (C926)

G07843842

Courtesy of FORD MOTOR CO.

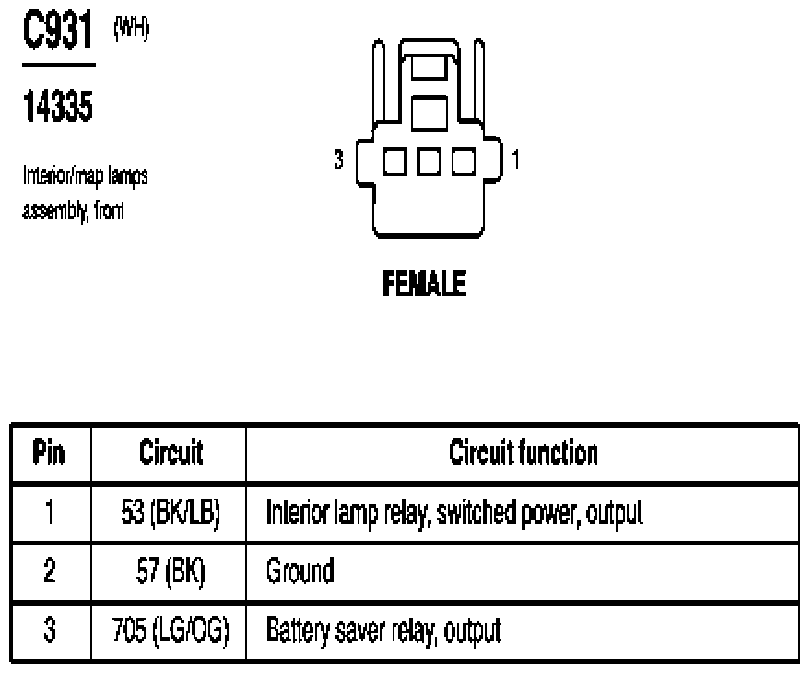

Fig 248: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07843843

Courtesy of FORD MOTOR CO.

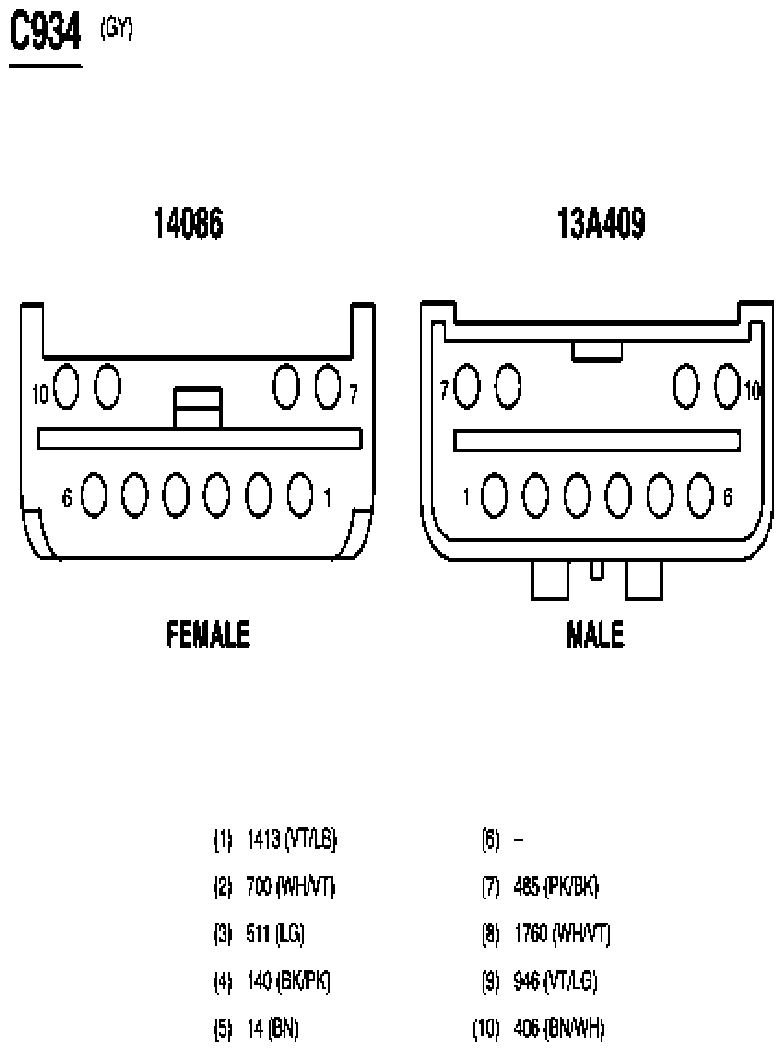

Fig 249: Inline Connector End View (C934)

G07843844

Courtesy of FORD MOTOR CO.

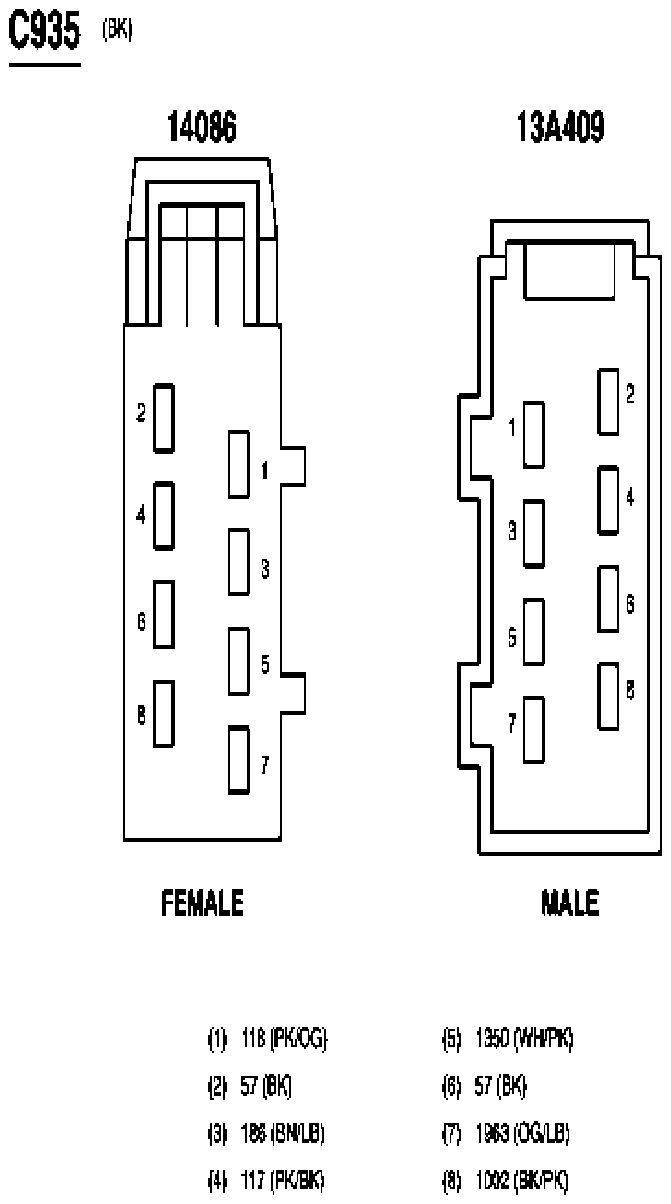

Fig 250: Inline Connector End View (C935)

G07843845

Courtesy of FORD MOTOR CO.

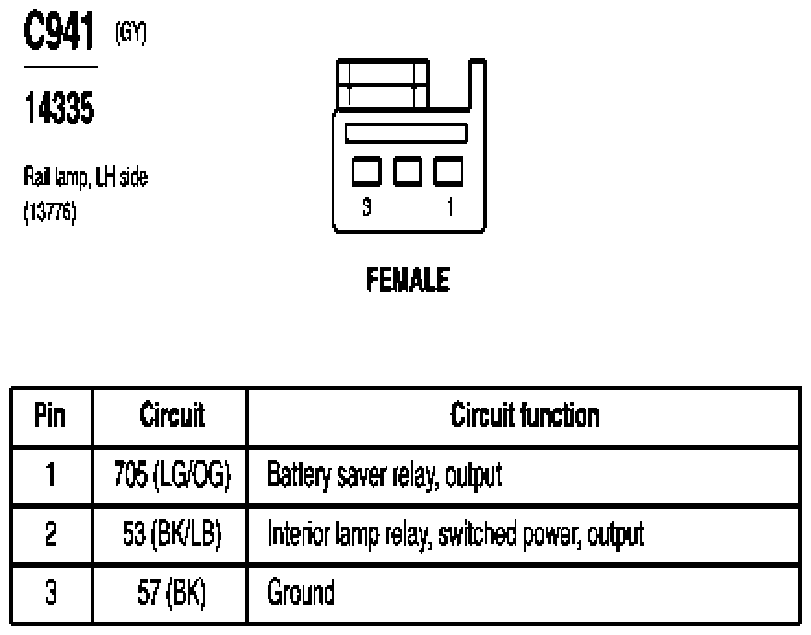

Fig 251: Rail Lamp, LH Side Connector End View (C941)

G07843846

Courtesy of FORD MOTOR CO.

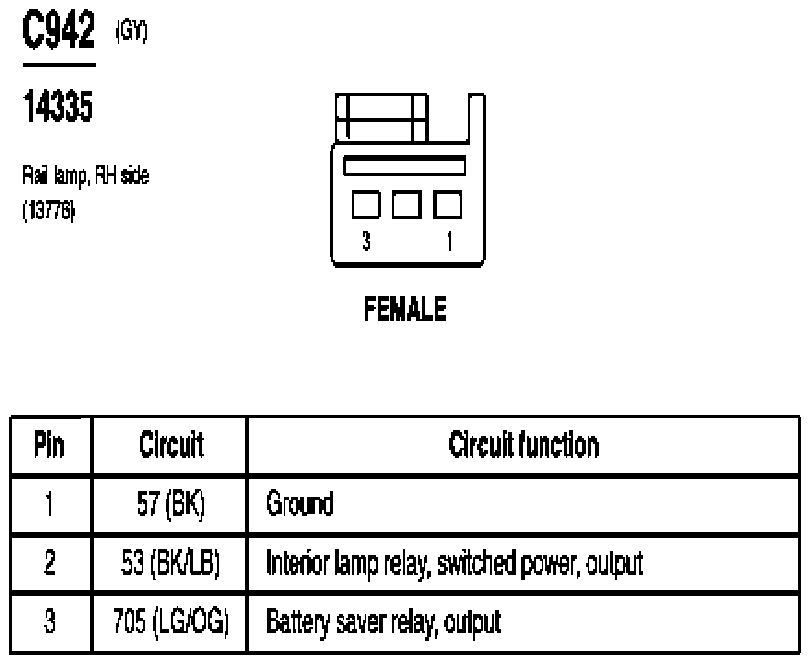

Fig 252: Rail Lamp, RH Side Connector End View (C942)

G07843847

Courtesy of FORD MOTOR CO.

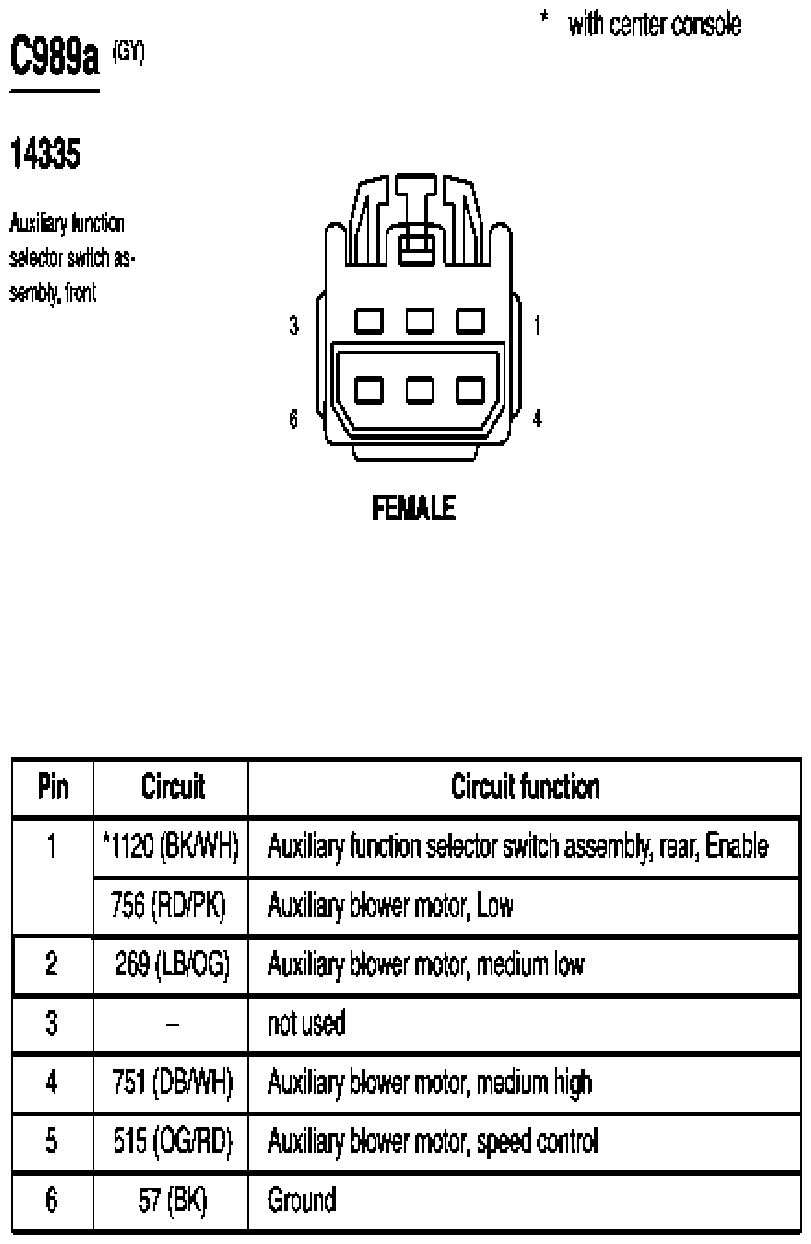

Fig 253: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989a)

G07843848

Courtesy of FORD MOTOR CO.

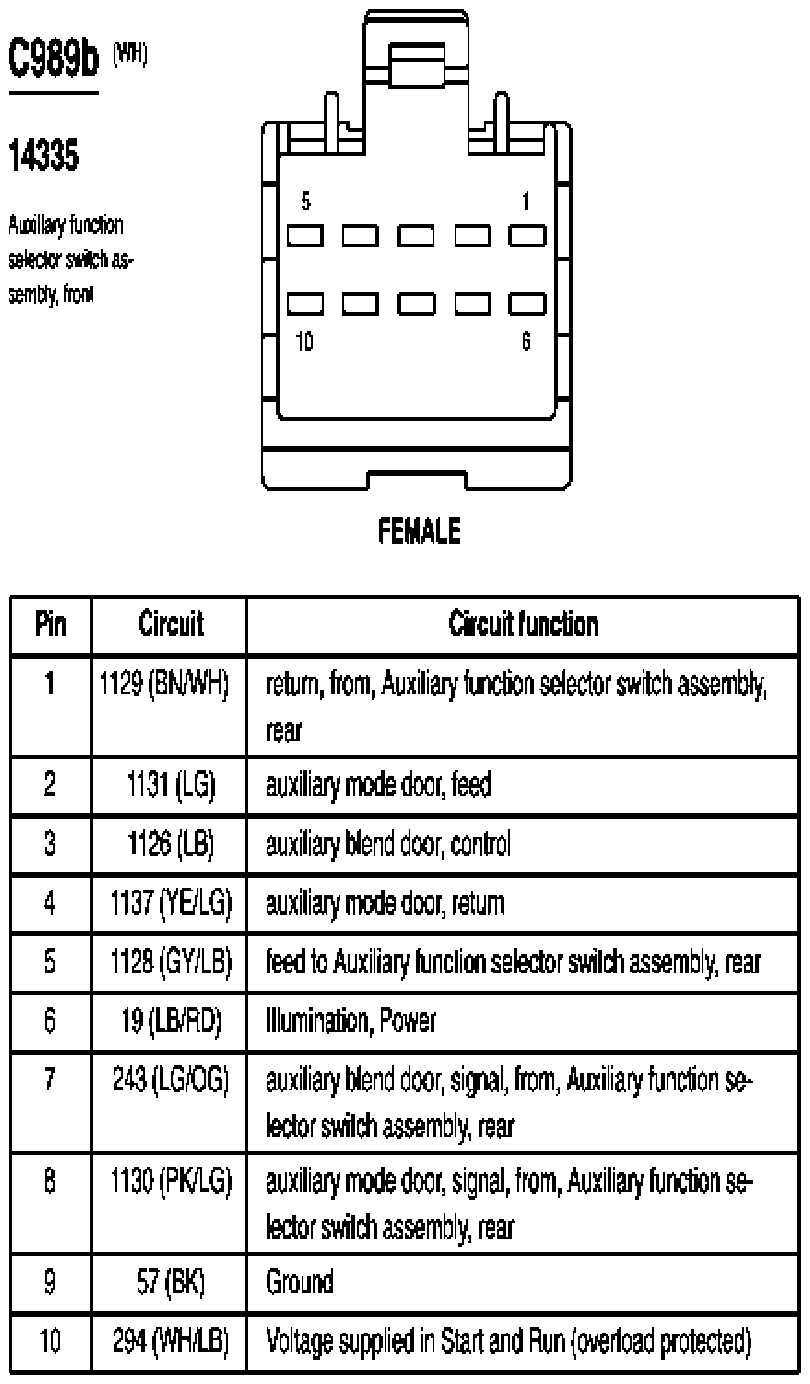

Fig 254: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989b)

G07843849

Courtesy of FORD MOTOR CO.

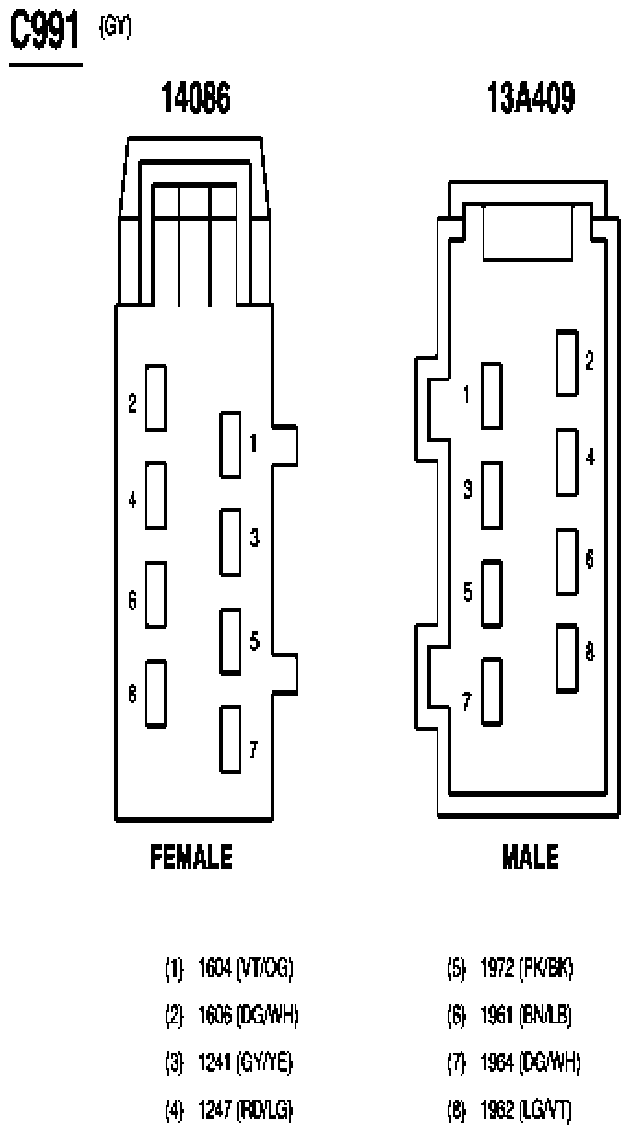

Fig 255: Inline Connector End View (C991)

G07843850

Courtesy of FORD MOTOR CO.

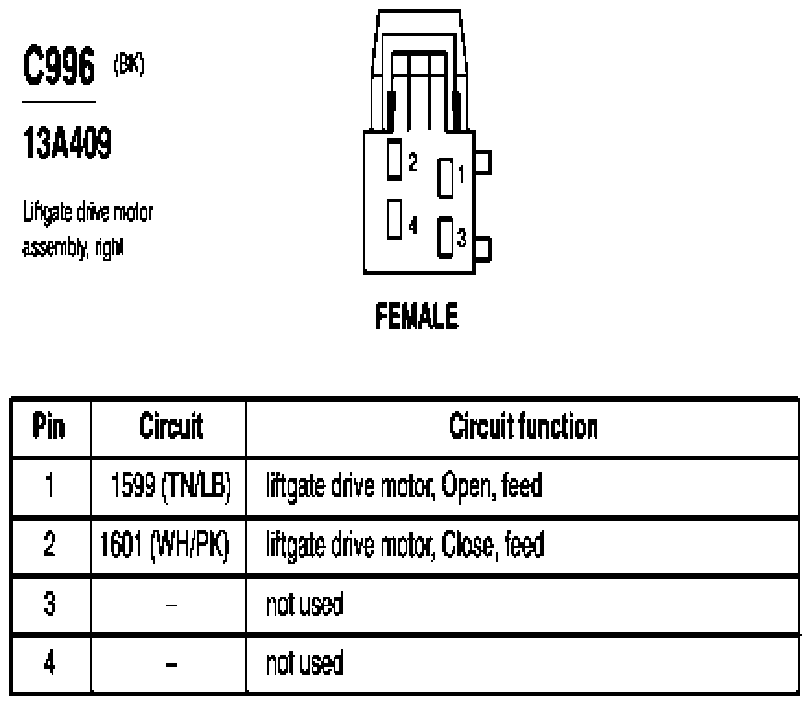

Fig 256: Liftgate Drive Motor Assembly, Right Connector End View (C996)

G07843851

Courtesy of FORD MOTOR CO.

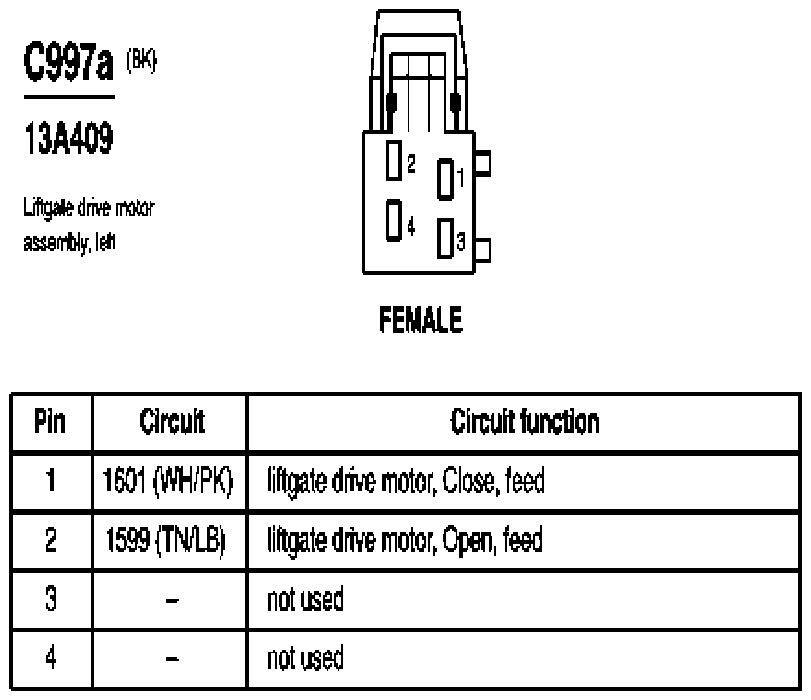

Fig 257: Liftgate Drive Motor Assembly, Left Connector End View (C997a)

G07843852

Courtesy of FORD MOTOR CO.

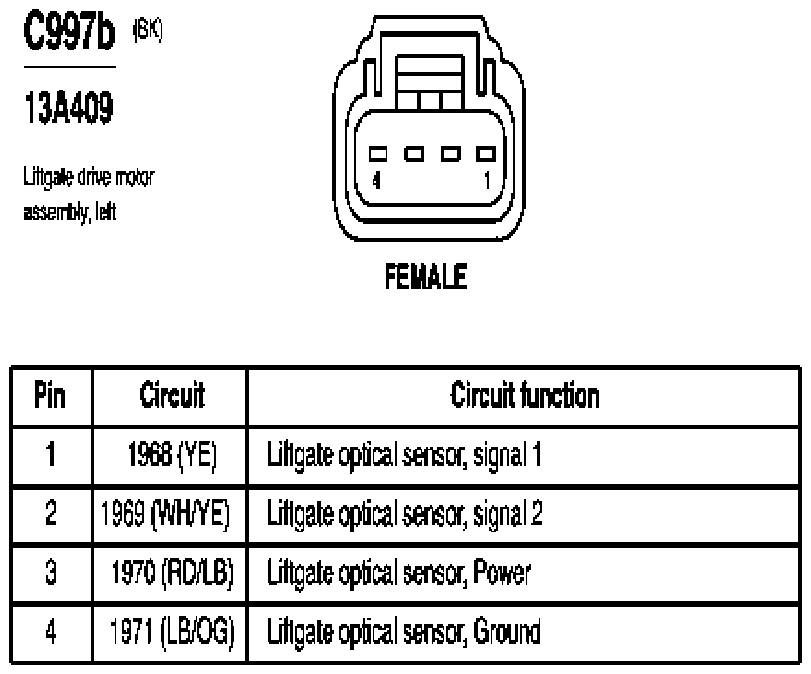

Fig 258: Liftgate Drive Motor Assembly, Left Connector End View (C997b)

G07843853

Courtesy of FORD MOTOR CO.

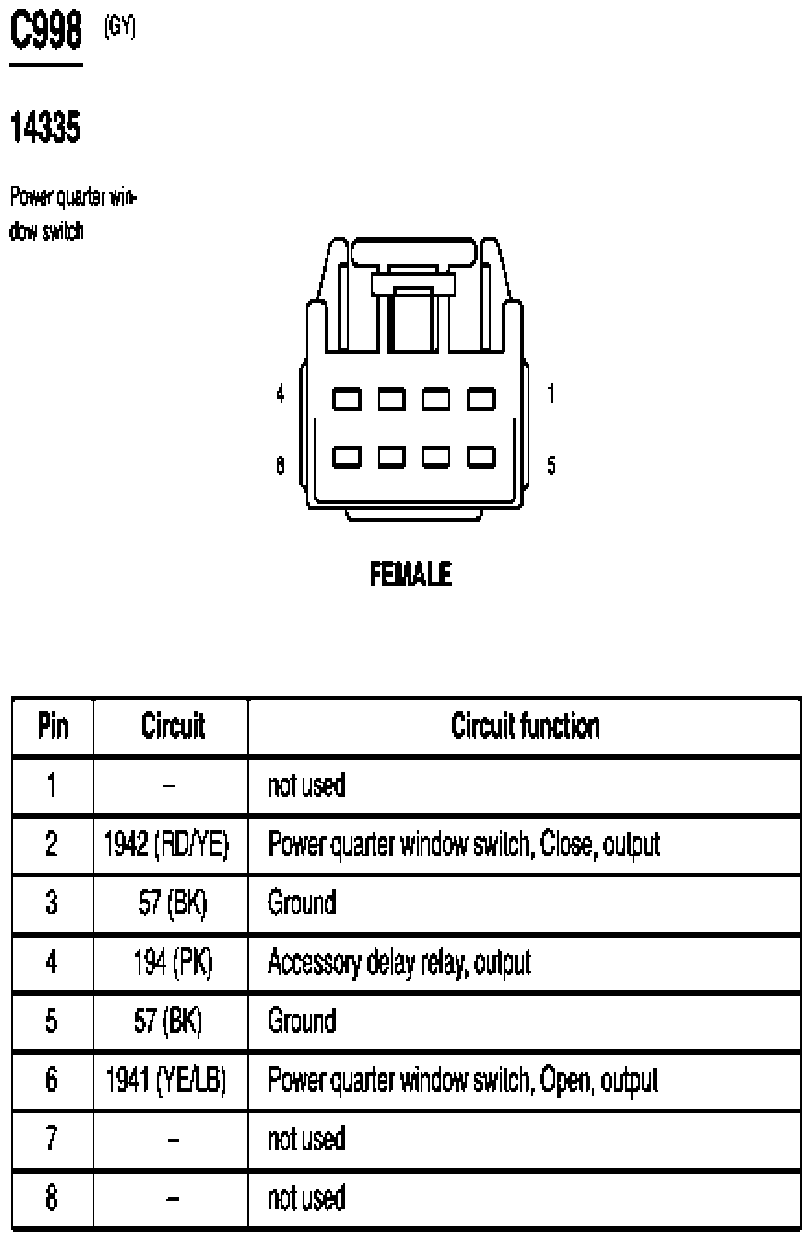

Fig 259: Power Quarter Window Switch Connector End View (C998)

G07843854

Courtesy of FORD MOTOR CO.

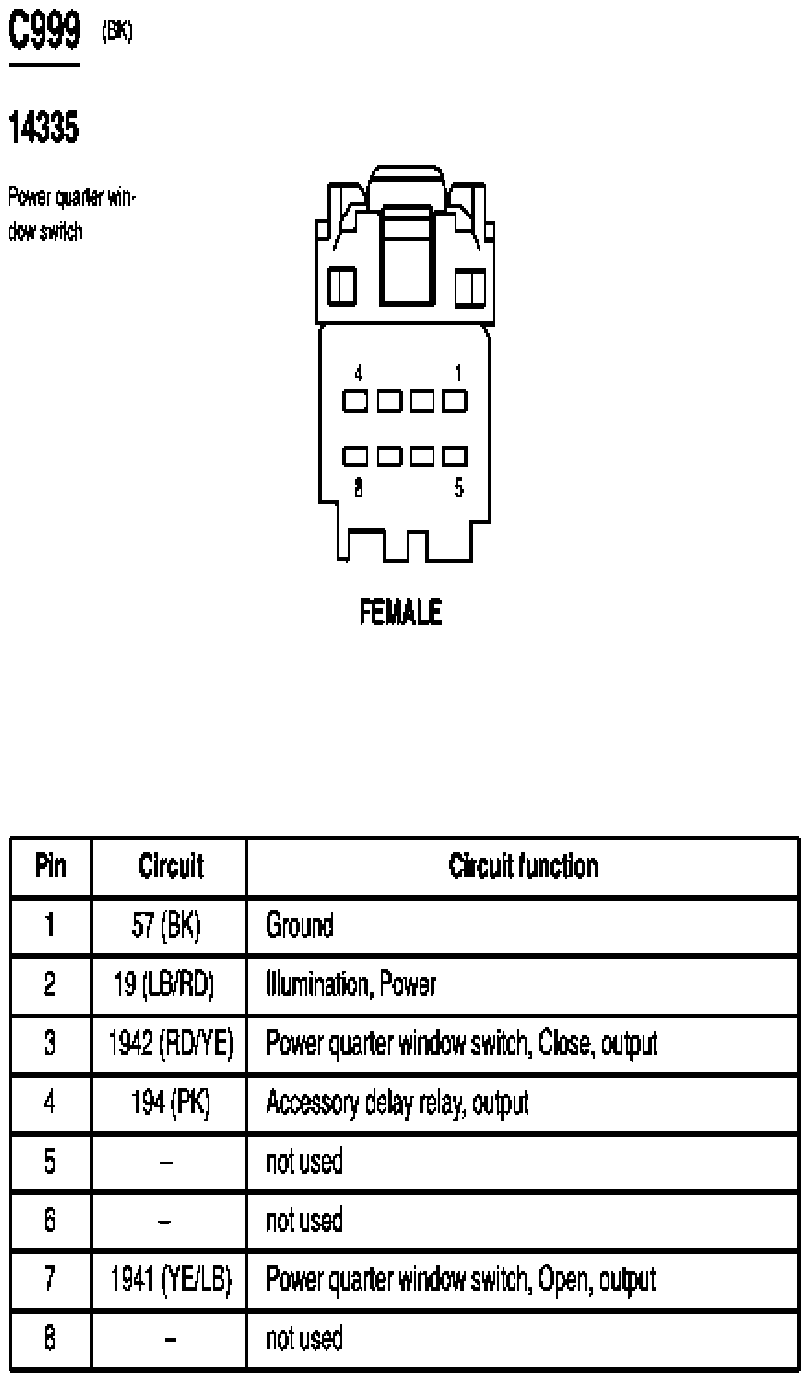

Fig 260: Power Quarter Window Switch Connector End View (C999)

G07843855

Courtesy of FORD MOTOR CO.

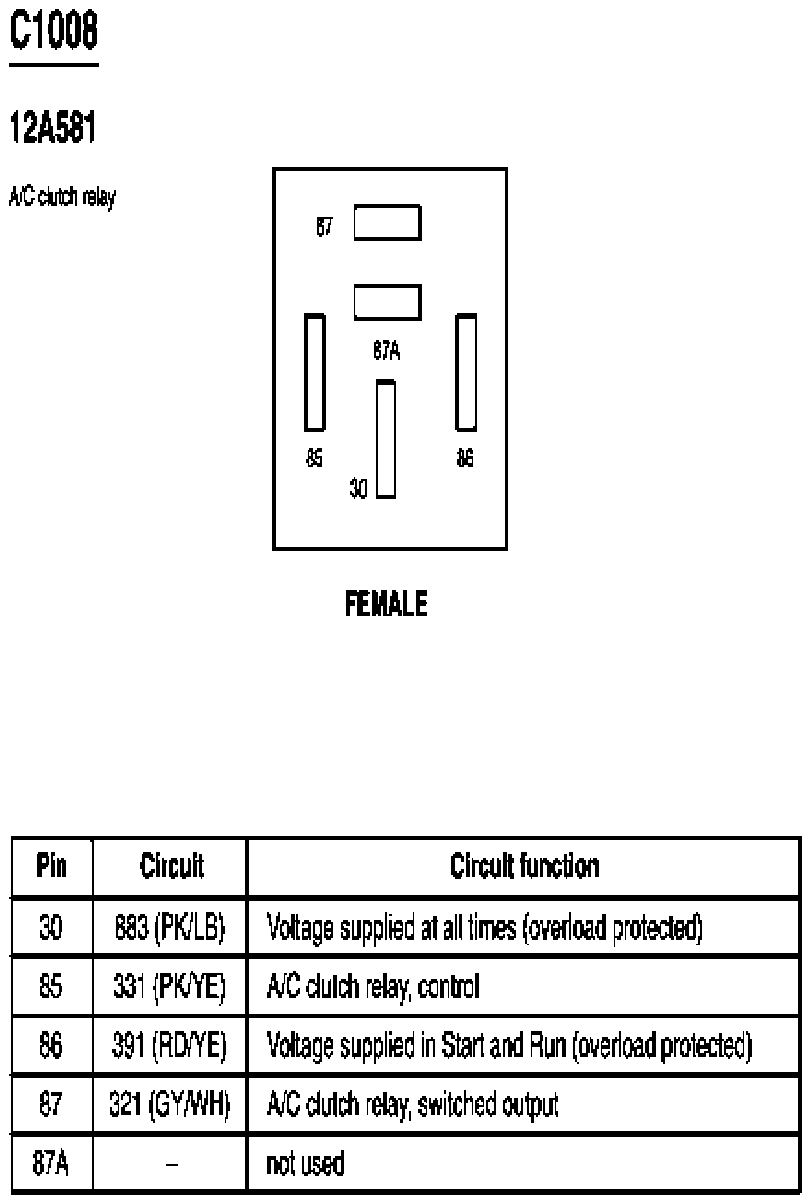

Fig 261: A/C Clutch Relay Connector End View (C1008)

G07843856

Courtesy of FORD MOTOR CO.

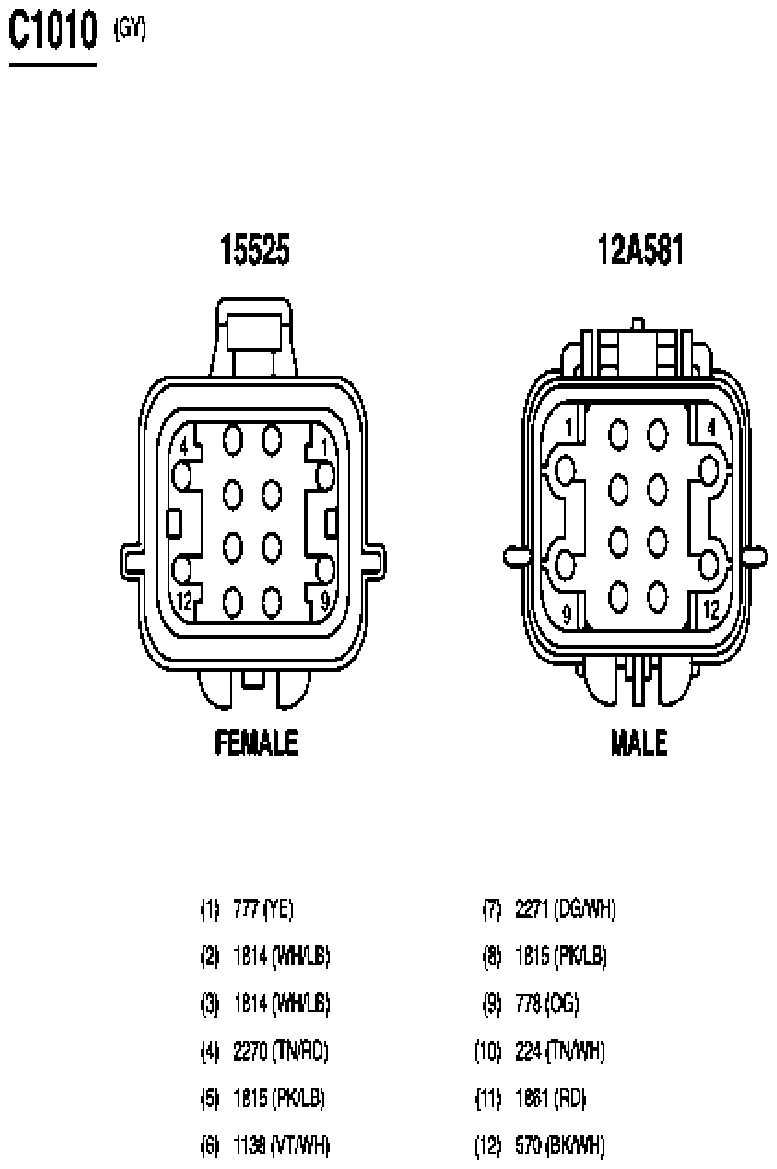

Fig 262: Inline Connector End View (C1010)

G07843857

Courtesy of FORD MOTOR CO.

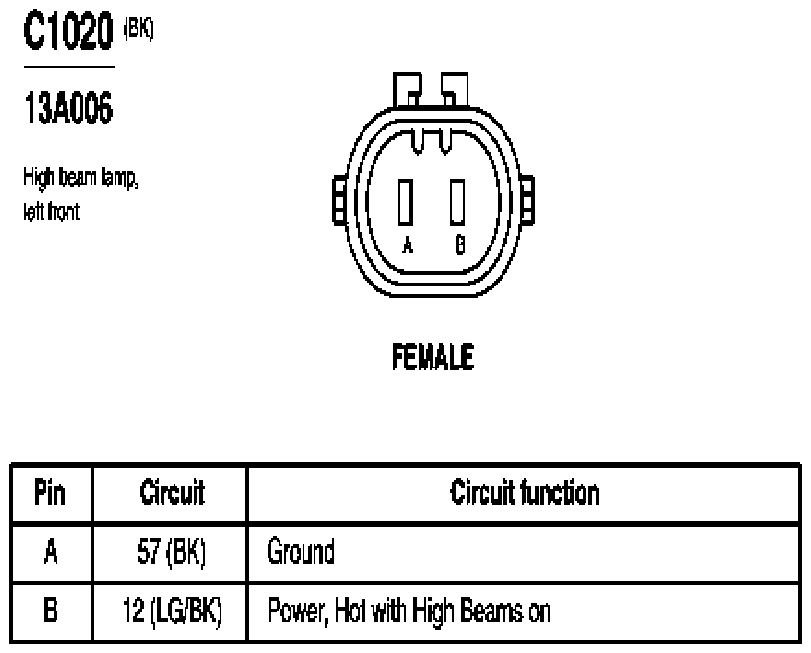

Fig 263: High Beam Lamp, Left Front Connector End View (C1020)

G07843858

Courtesy of FORD MOTOR CO.

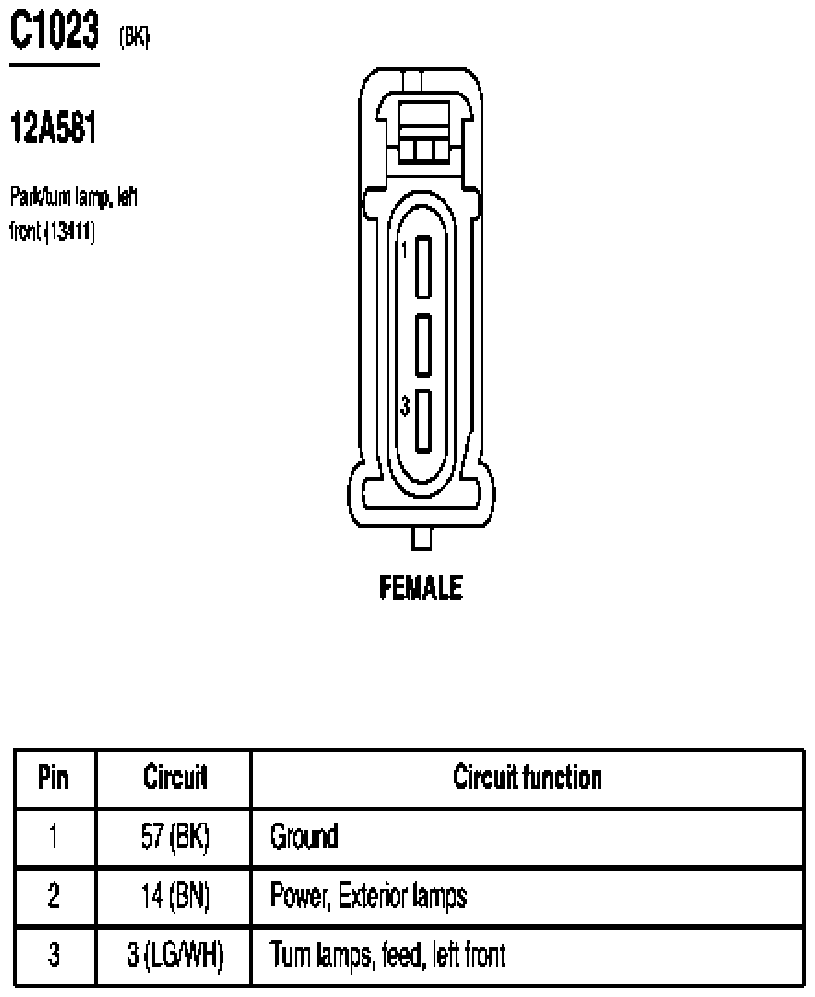

Fig 264: Park/Turn Lamp, Left Front Connector End View (C1023)

G07843859

Courtesy of FORD MOTOR CO.

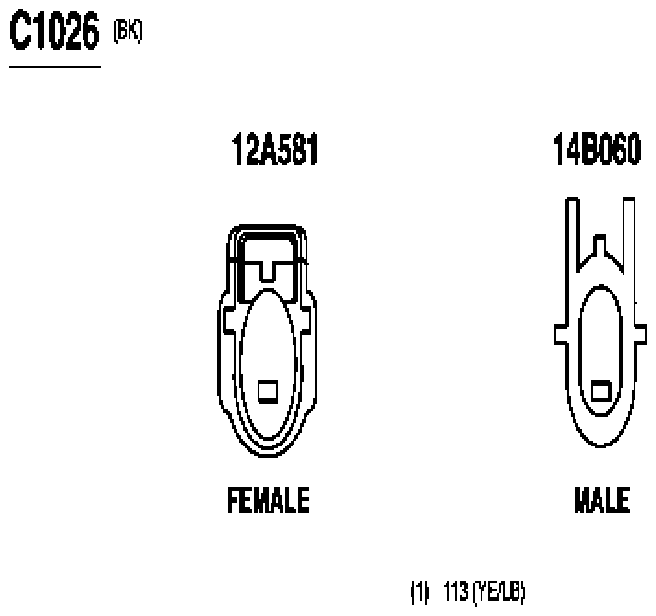

Fig 265: Inline Connector End View (C1026)

G07843860

Courtesy of FORD MOTOR CO.

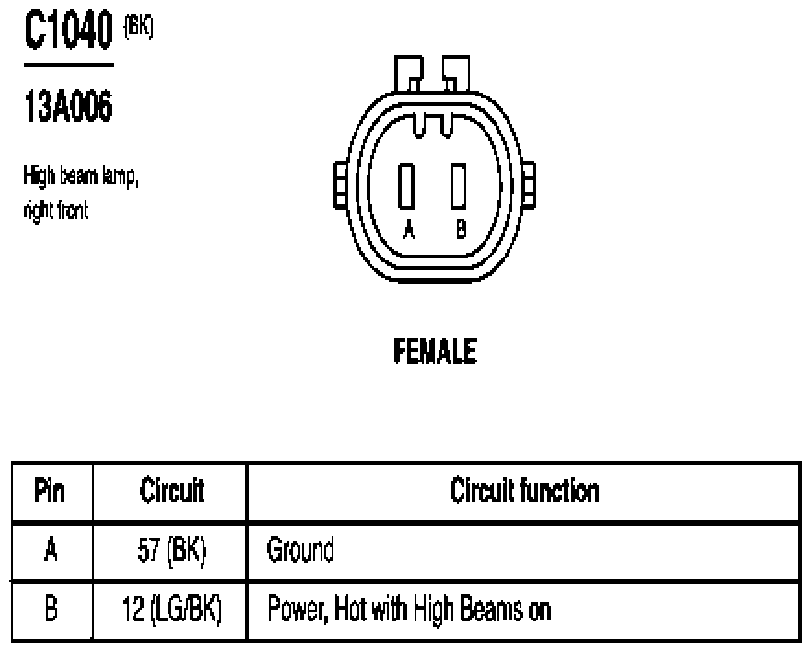

Fig 266: High Beam Lamp, Right Front Connector End View (C1040)

G07843861

Courtesy of FORD MOTOR CO.

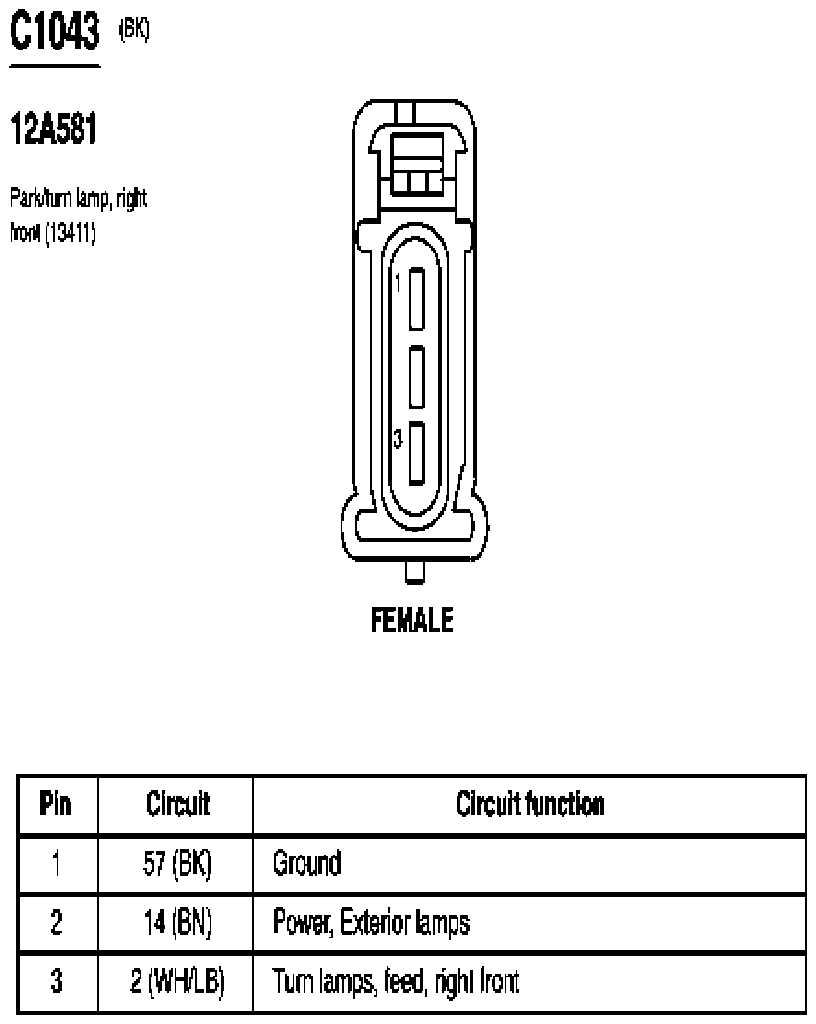

Fig 267: Park/Turn Lamp, Right Front Connector End View (C1043)

G07843862

Courtesy of FORD MOTOR CO.

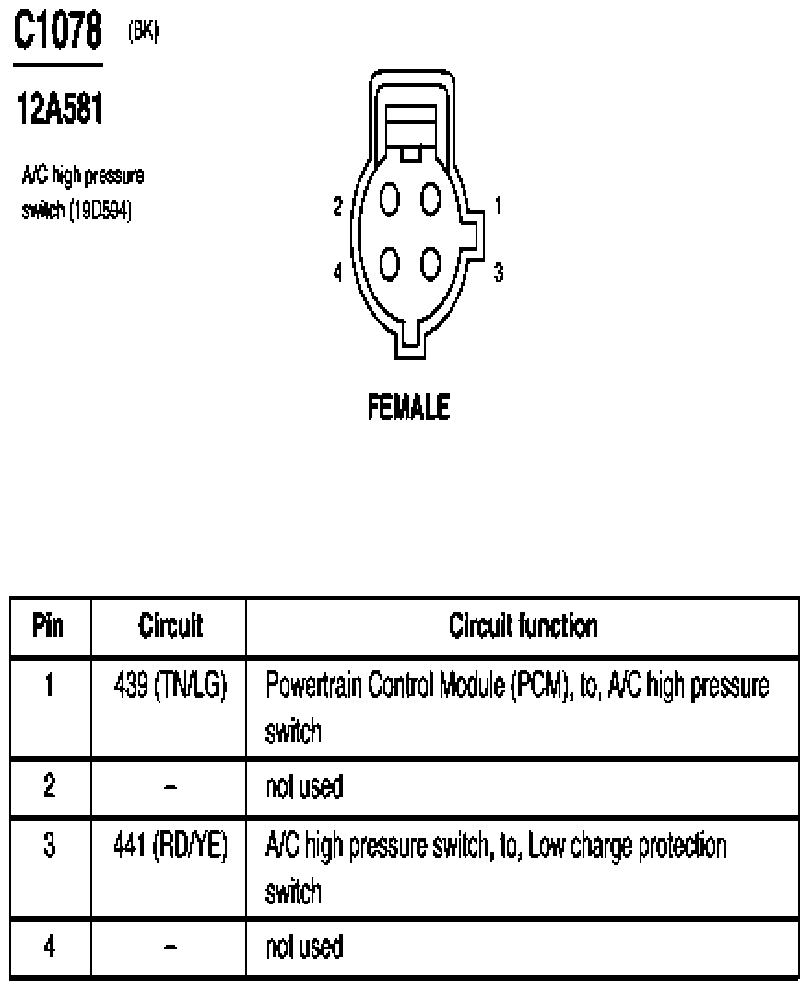

Fig 268: A/C High Pressure Switch Connector End View (C1078)

G07843863

Courtesy of FORD MOTOR CO.

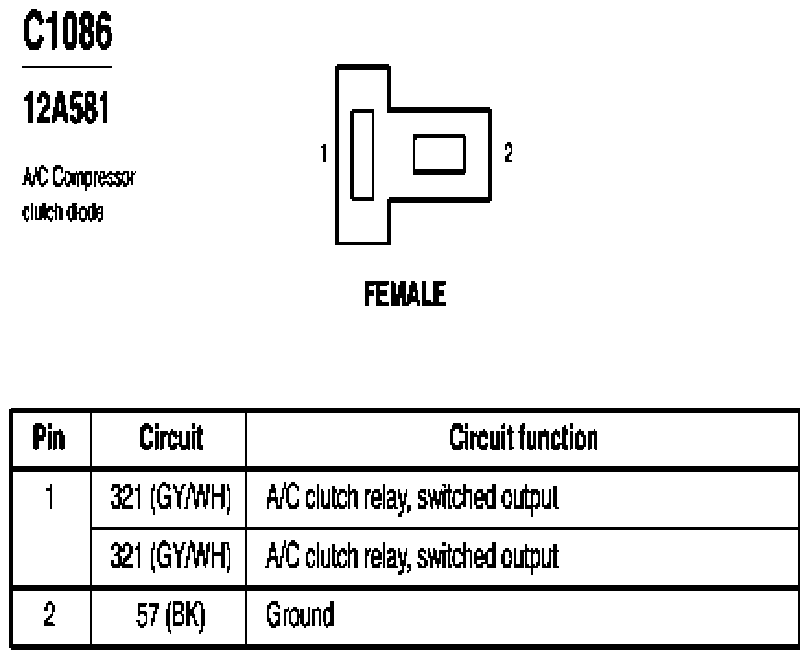

Fig 269: A/C Compressor Clutch Diode Connector End View (C1086)

G07843864

Courtesy of FORD MOTOR CO.

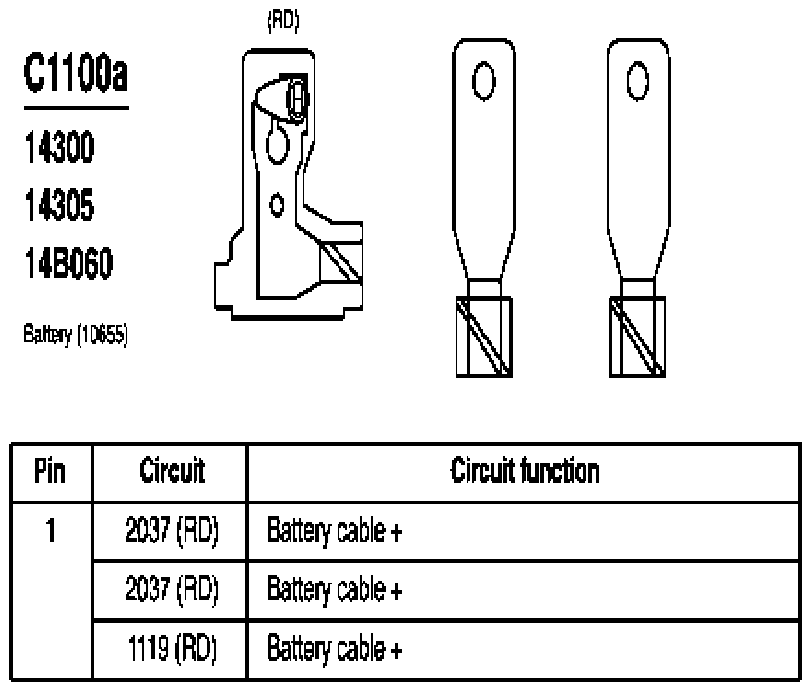

Fig 270: Battery Connector End View (C1100a)

G07843865

Courtesy of FORD MOTOR CO.

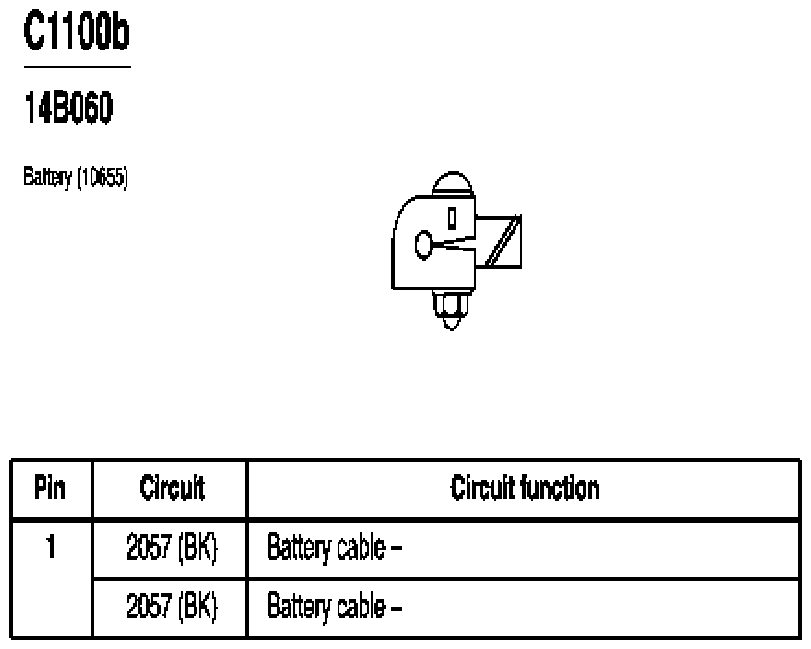

Fig 271: Battery Connector End View (C1100b)

G07843866

Courtesy of FORD MOTOR CO.

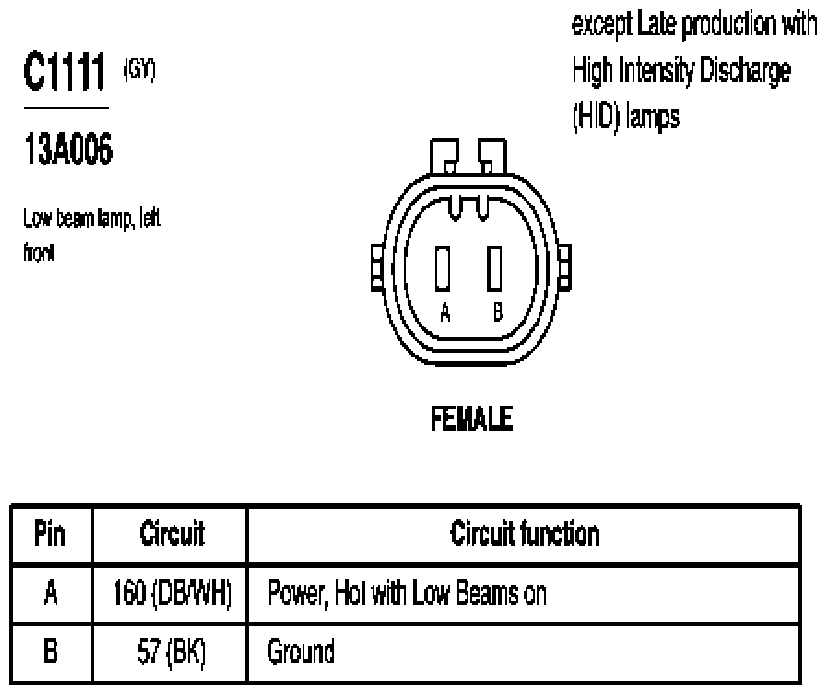

Fig 272: Low Beam Lamp, Left Front Connector End View (C1111)

G07843867

Courtesy of FORD MOTOR CO.

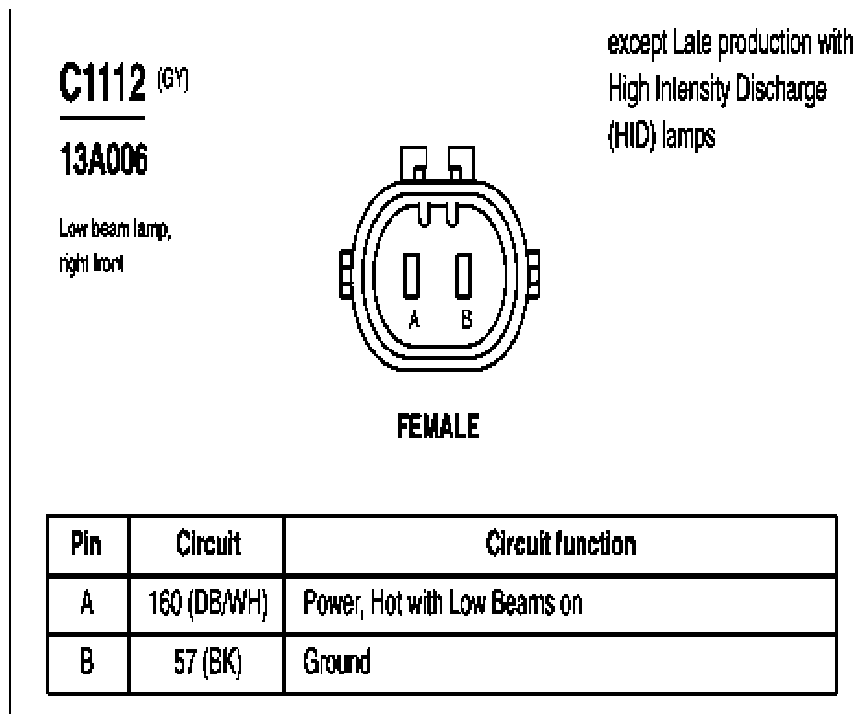

Fig 273: Low Beam Lamp, Right Front Connector End View (C1112)

G07843868

Courtesy of FORD MOTOR CO.

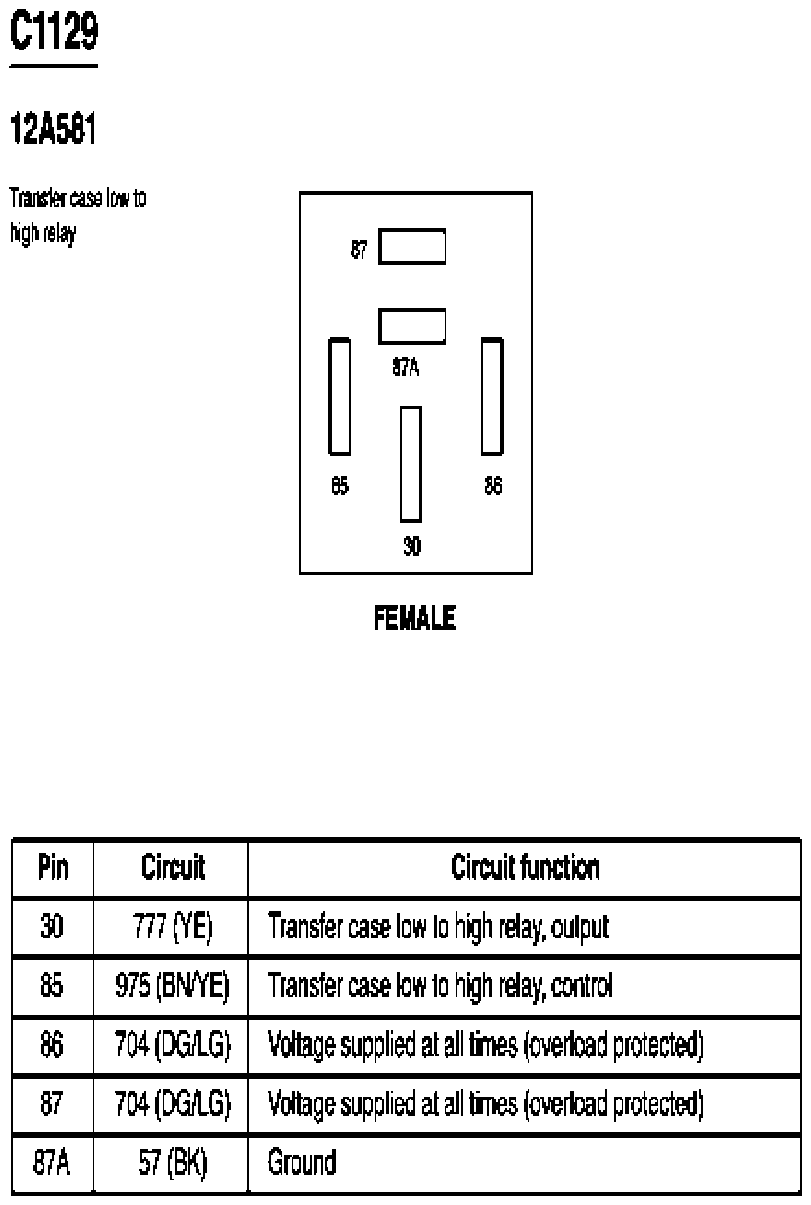

Fig 274: Transfer Case Low To High Relay Connector End View (C1129)

G07843869

Courtesy of FORD MOTOR CO.

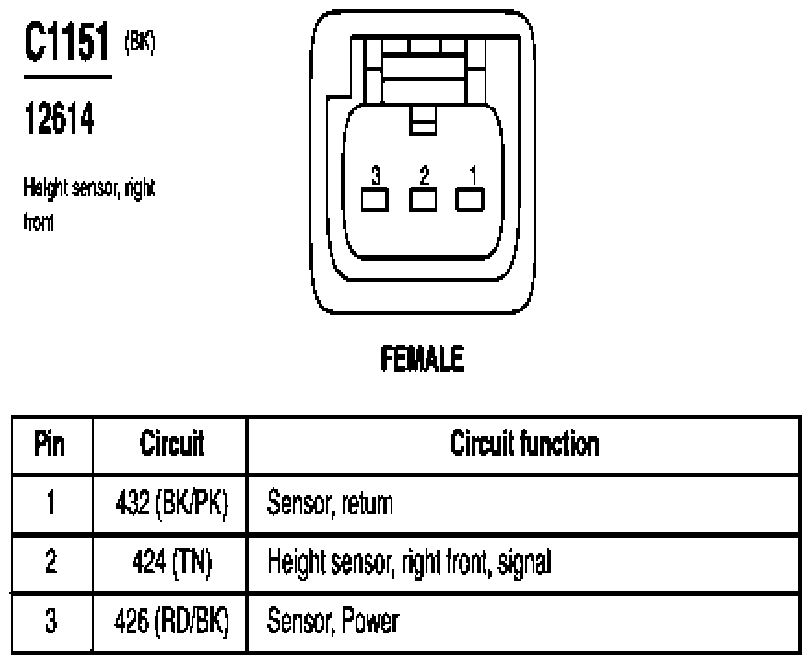

Fig 275: Height Sensor, Right Front Connector End View (C1151)

G07843870

Courtesy of FORD MOTOR CO.

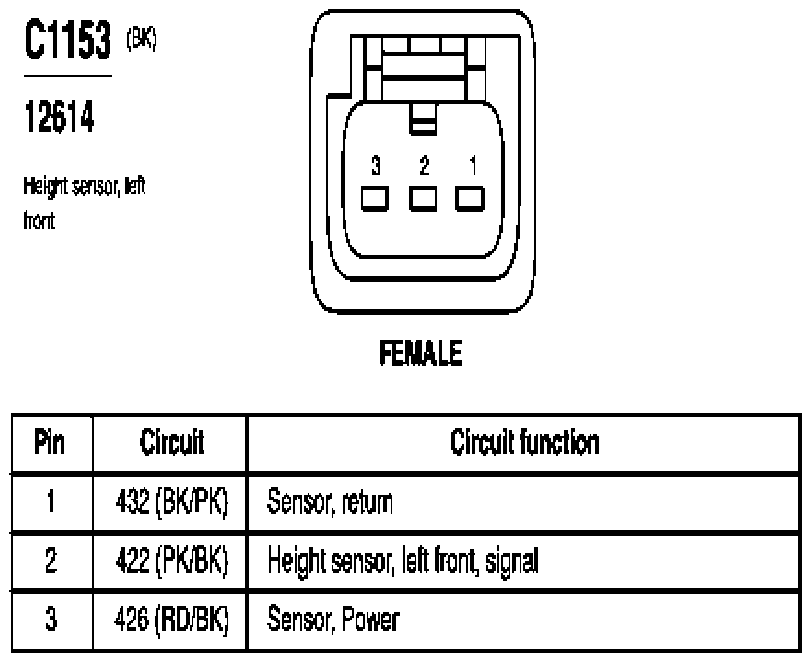

Fig 276: Height Sensor, Left Front Connector End View (C1153)

G07843871

Courtesy of FORD MOTOR CO.

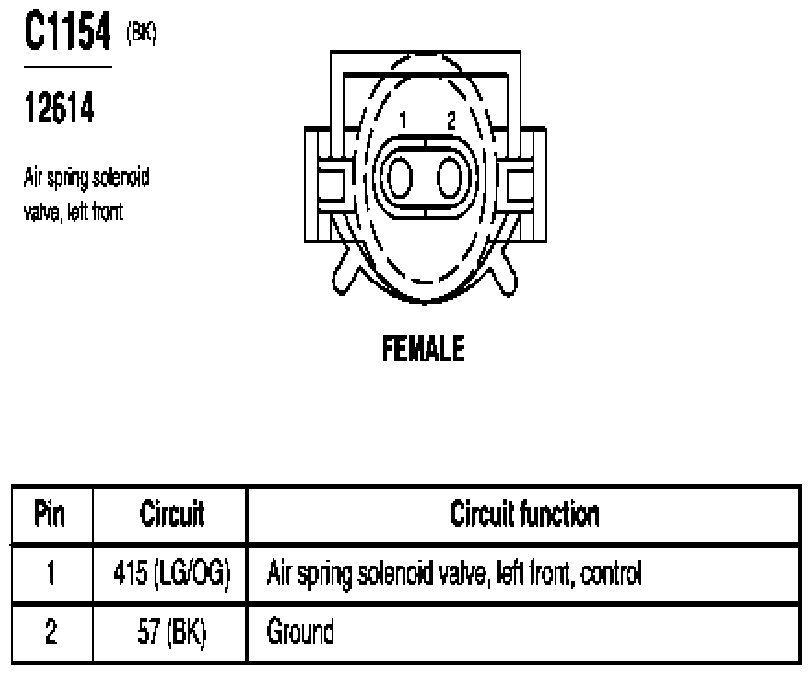

Fig 277: Air Spring Solenoid Valve, Left Front Connector End View (C1154)

G07843872

Courtesy of FORD MOTOR CO.

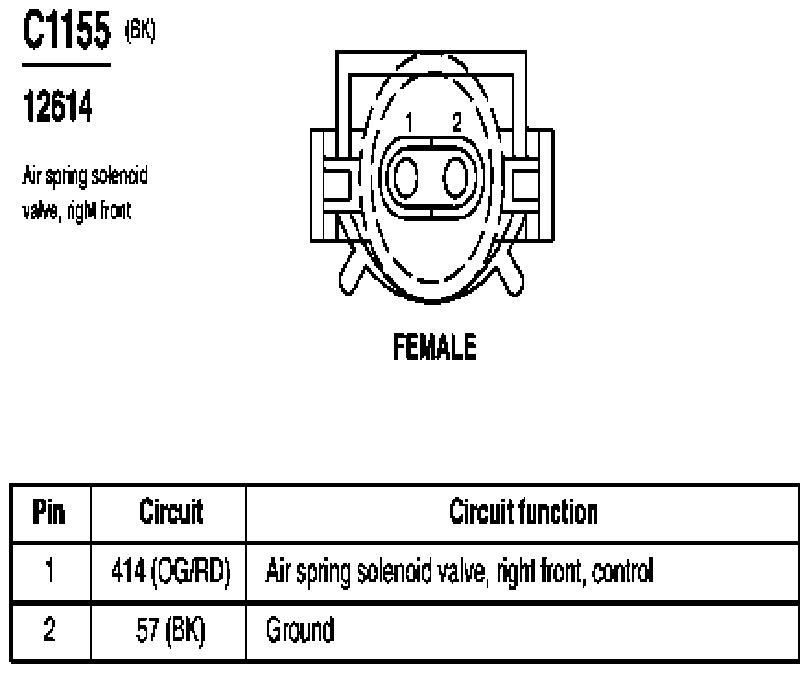

Fig 278: Air Spring Solenoid Valve, Right Front Connector End View (C1155)

G07843873

Courtesy of FORD MOTOR CO.

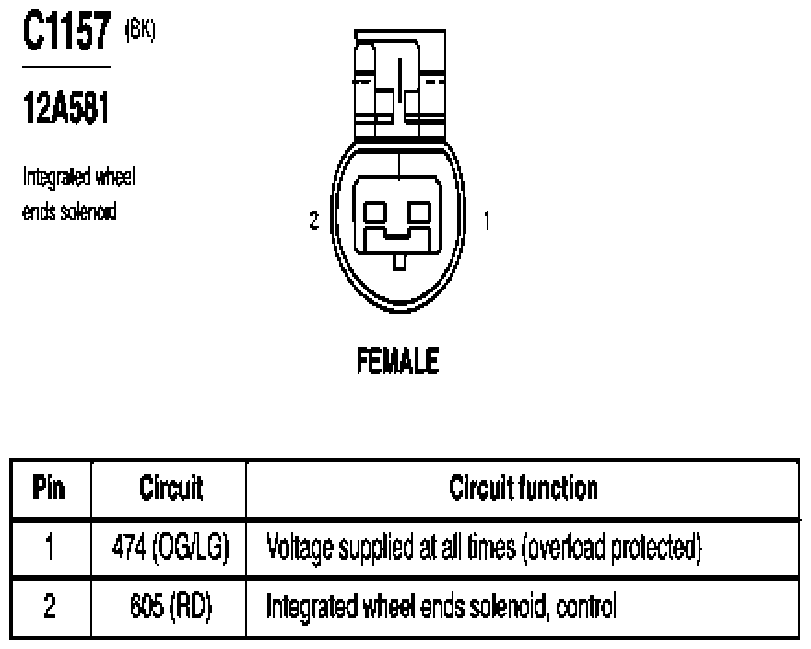

Fig 279: Integrated Wheel Ends Solenoid Connector End View (C1157)

G07843874

Courtesy of FORD MOTOR CO.

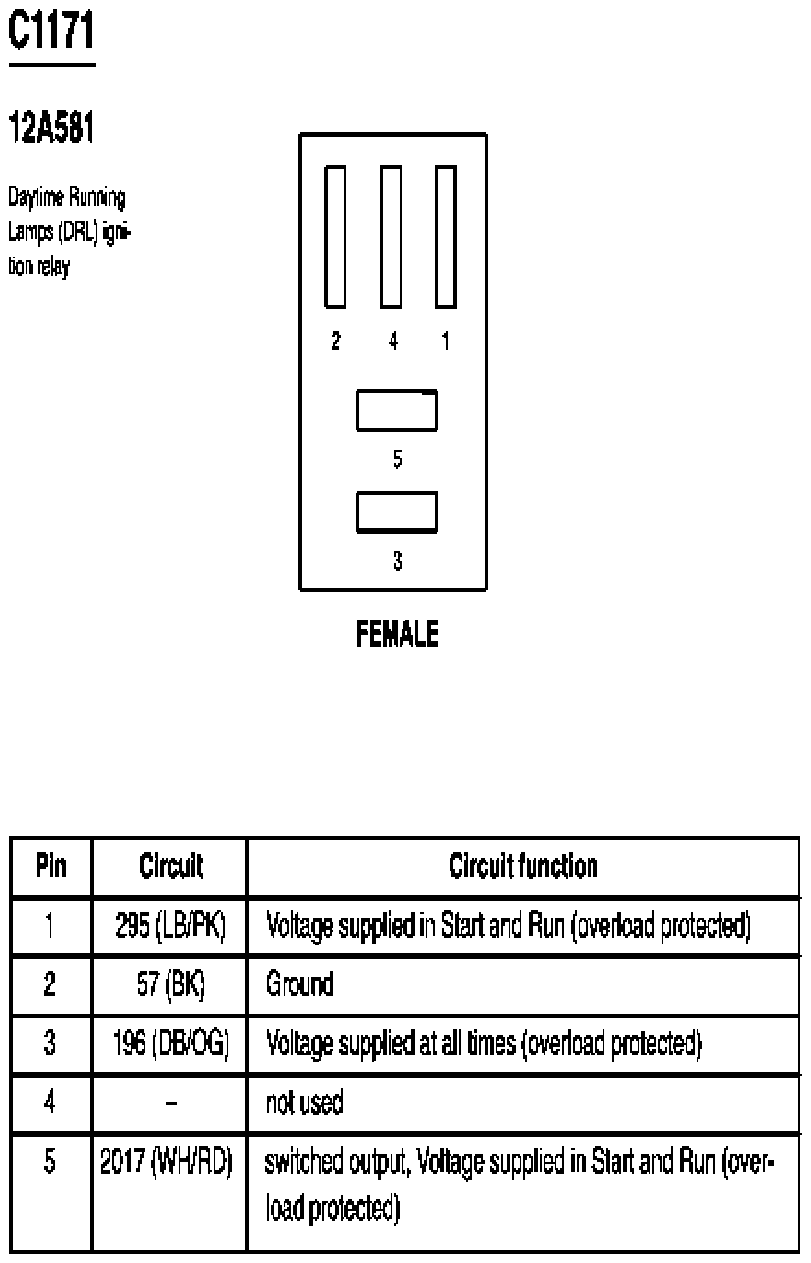

Fig 280: Daytime Running Lamps (DRL) Ignition Relay Connector End View (C1171)

G07843875

Courtesy of FORD MOTOR CO.

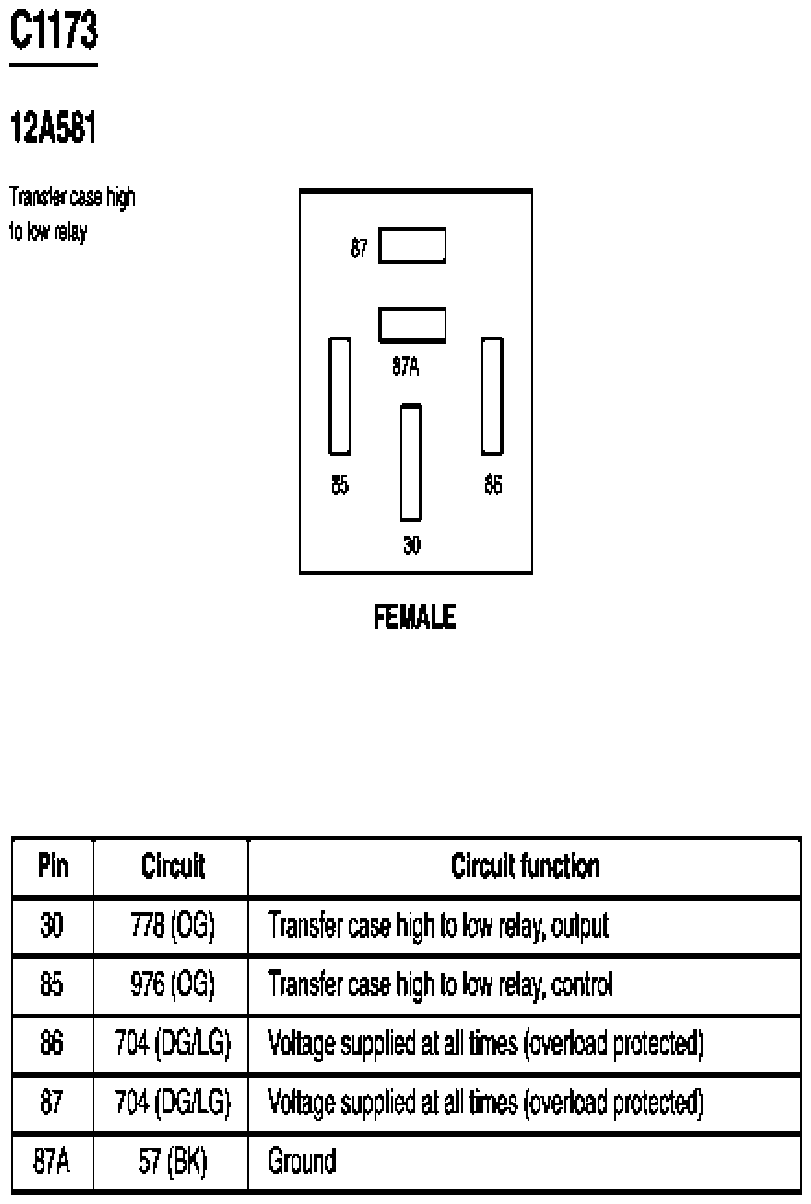

Fig 281: Transfer Case High To Low Relay Connector End View (C1173)

G07843876

Courtesy of FORD MOTOR CO.

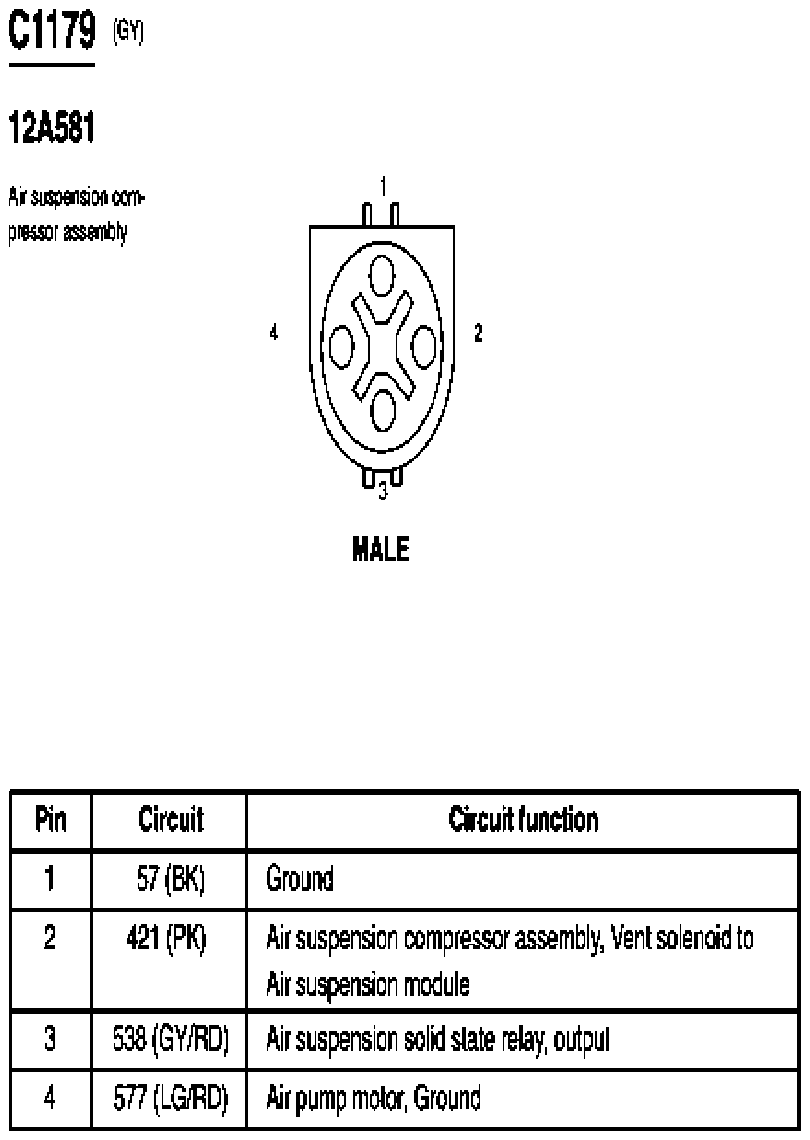

Fig 282: Air Suspension Compressor Assembly Connector End View (C1179)

G07843877

Courtesy of FORD MOTOR CO.

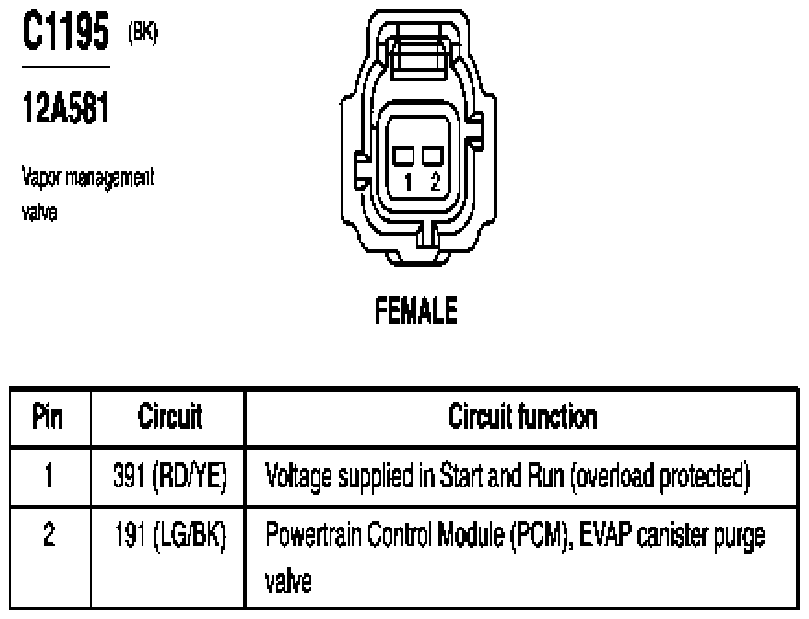

Fig 283: Vapor Management Valve Connector End View (C1195)

G07843878

Courtesy of FORD MOTOR CO.

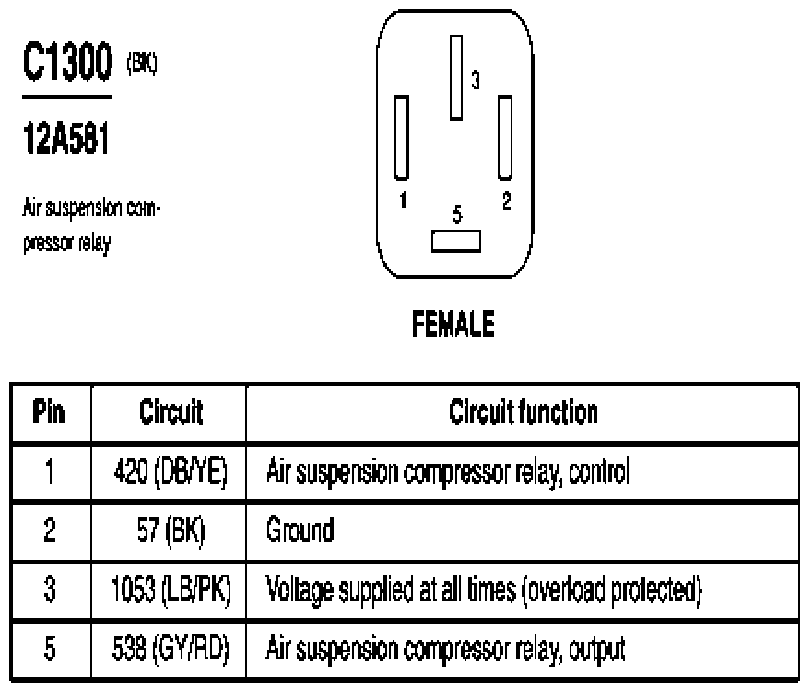

Fig 284: Air Suspension Compressor Relay Connector End View (C1300)

G07843879

Courtesy of FORD MOTOR CO.

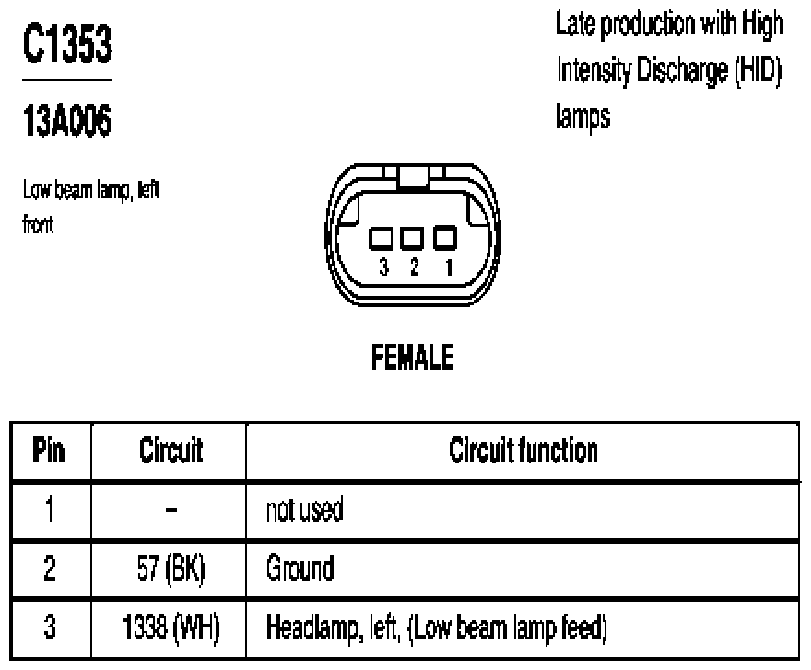

Fig 285: Low Beam Lamp, Left Front Connector End View (C1353)

G07843880

Courtesy of FORD MOTOR CO.

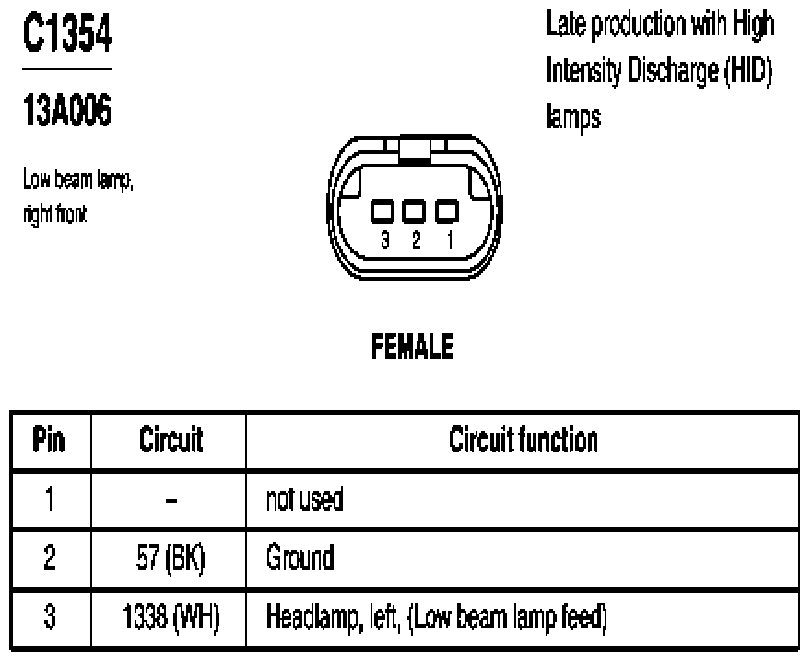

Fig 286: Low Beam Lamp, Right Front Connector End View (C1354)

G07843881

Courtesy of FORD MOTOR CO.

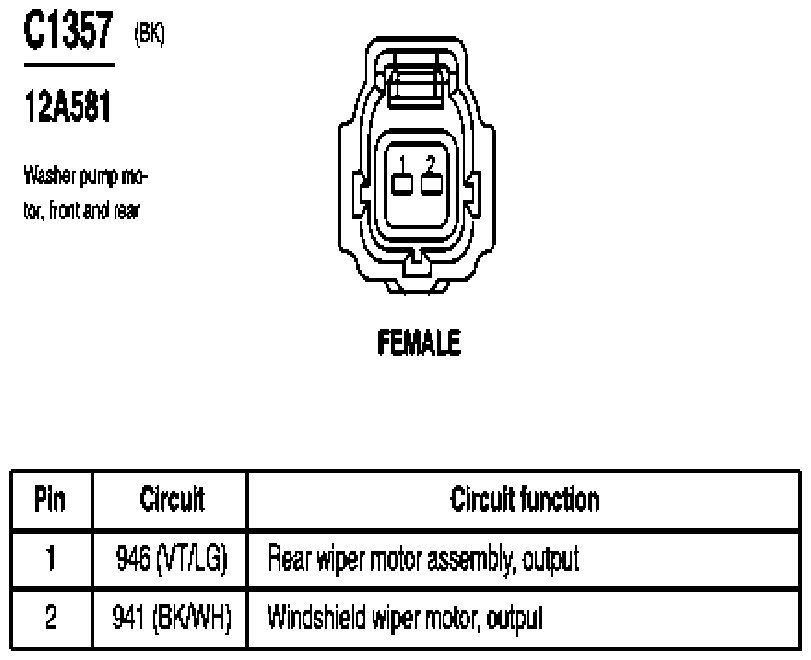

Fig 287: Washer Pump Motor, Front And Rear Connector End View (C1357)

G07843882

Courtesy of FORD MOTOR CO.

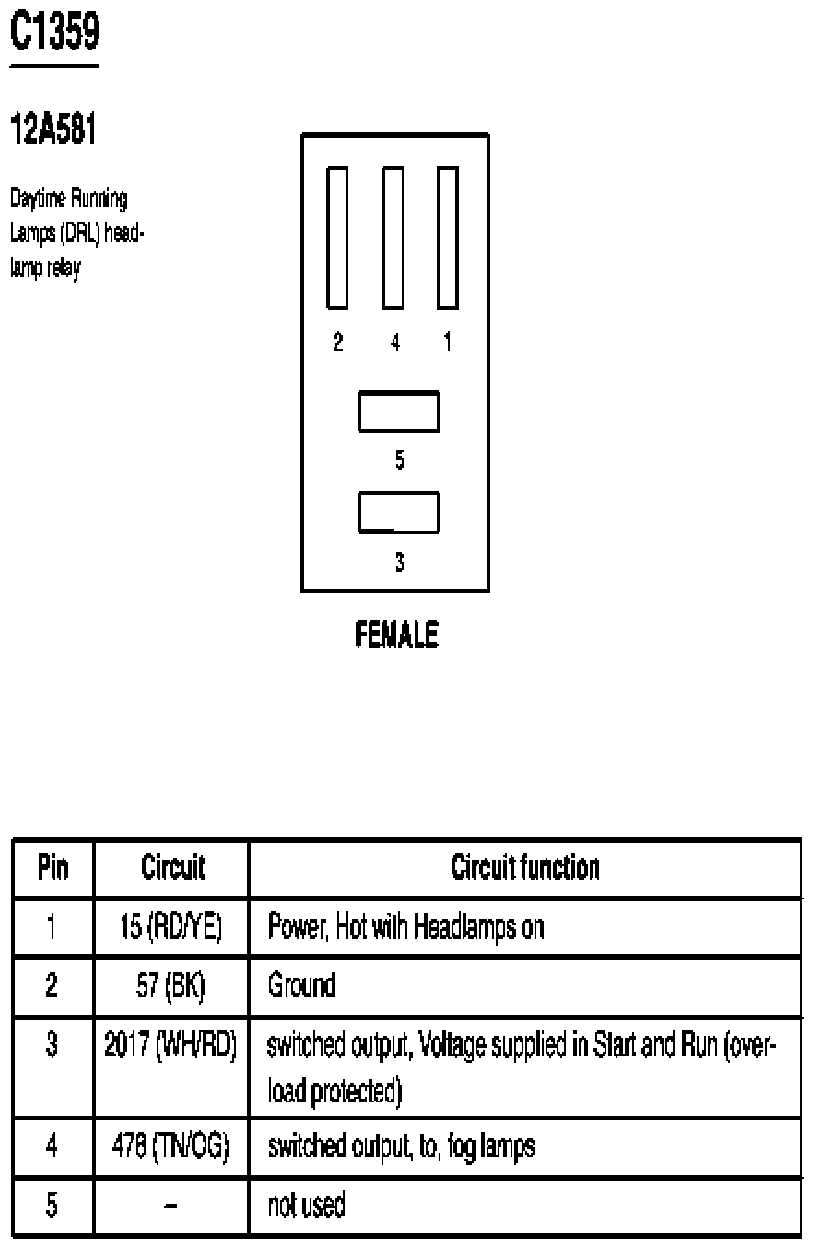

Fig 288: Daytime Running Lamps (DRL) Headlamp Relay Connector End View (C1359)

G07843883

Courtesy of FORD MOTOR CO.

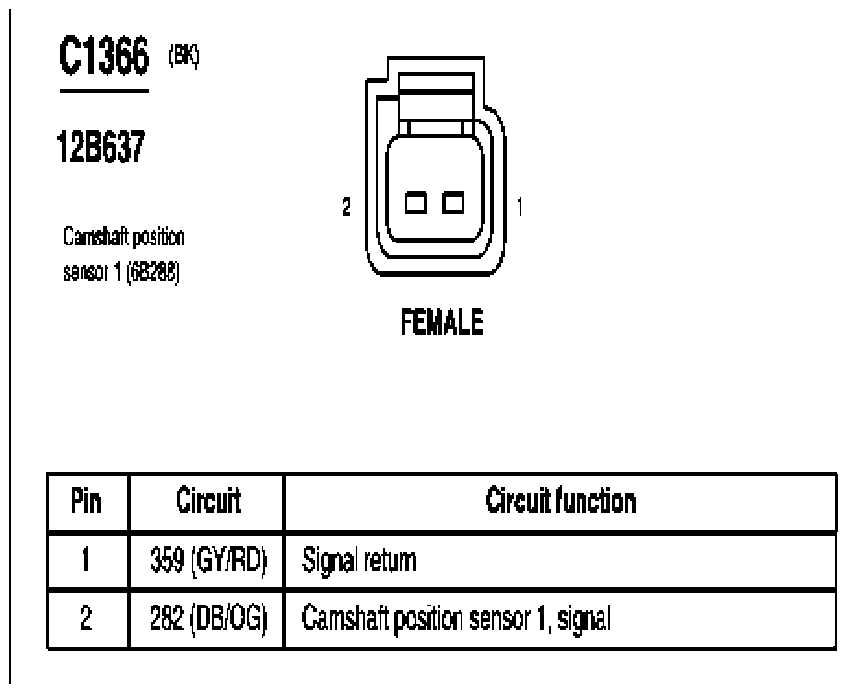

Fig 289: Camshaft Position Sensor 1 Connector End View (C1366)

G07843884

Courtesy of FORD MOTOR CO.

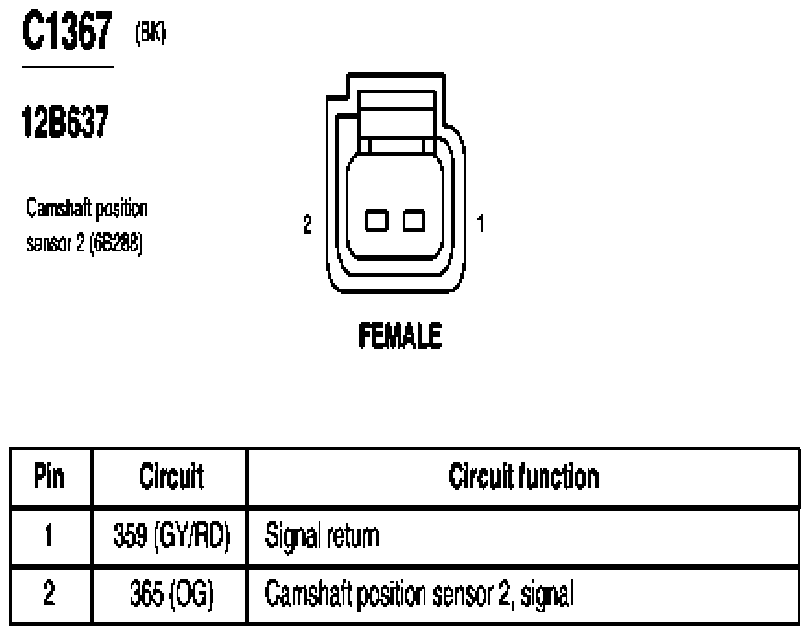

Fig 290: Camshaft Position Sensor 2 Connector End View (C1367)

G07843885

Courtesy of FORD MOTOR CO.

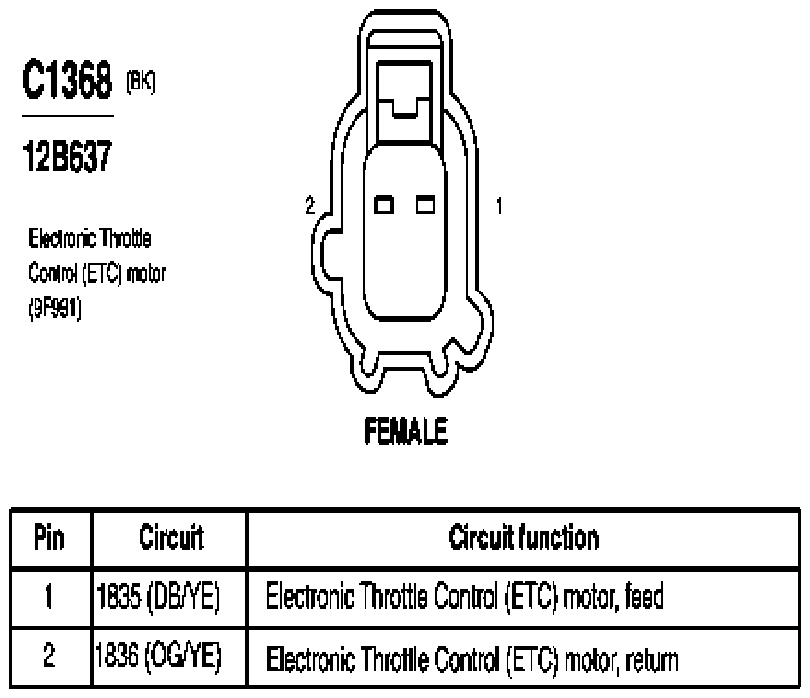

Fig 291: Electronic Throttle Control (ETC) Motor Connector End View (C1368)

G07843886

Courtesy of FORD MOTOR CO.

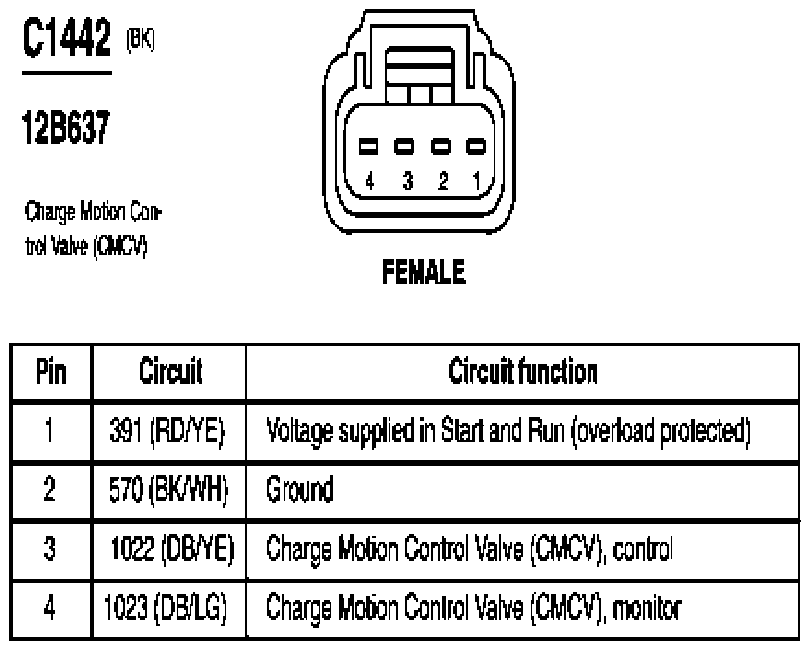

Fig 292: Charge Motion Control Valve (CMCV) Connector End View (C1442)

G07843887

Courtesy of FORD MOTOR CO.

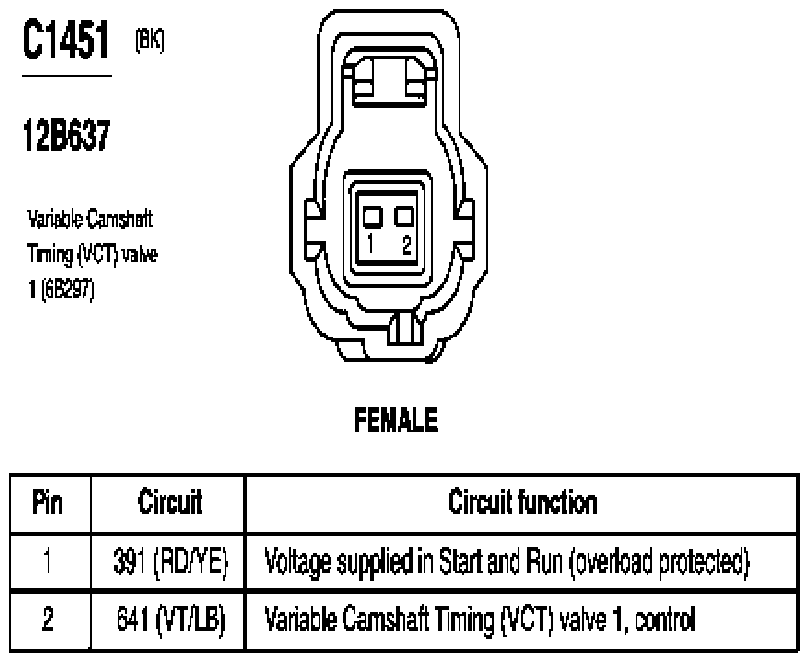

Fig 293: Variable Camshaft Timing (VCT) Valve 1 Connector End View (C1451)

G07843888

Courtesy of FORD MOTOR CO.

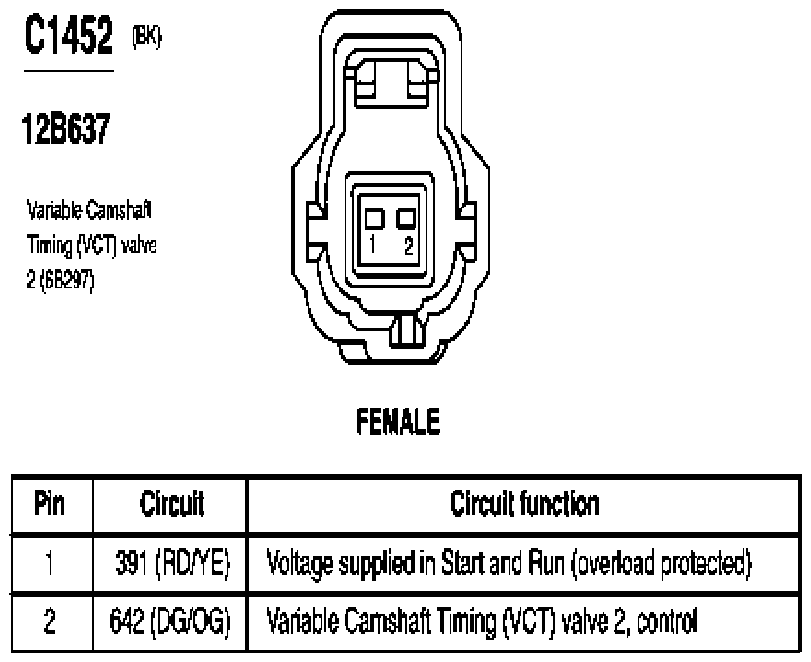

Fig 294: Variable Camshaft Timing (VCT) Valve 2 Connector End View (C1452)

G07843889

Courtesy of FORD MOTOR CO.

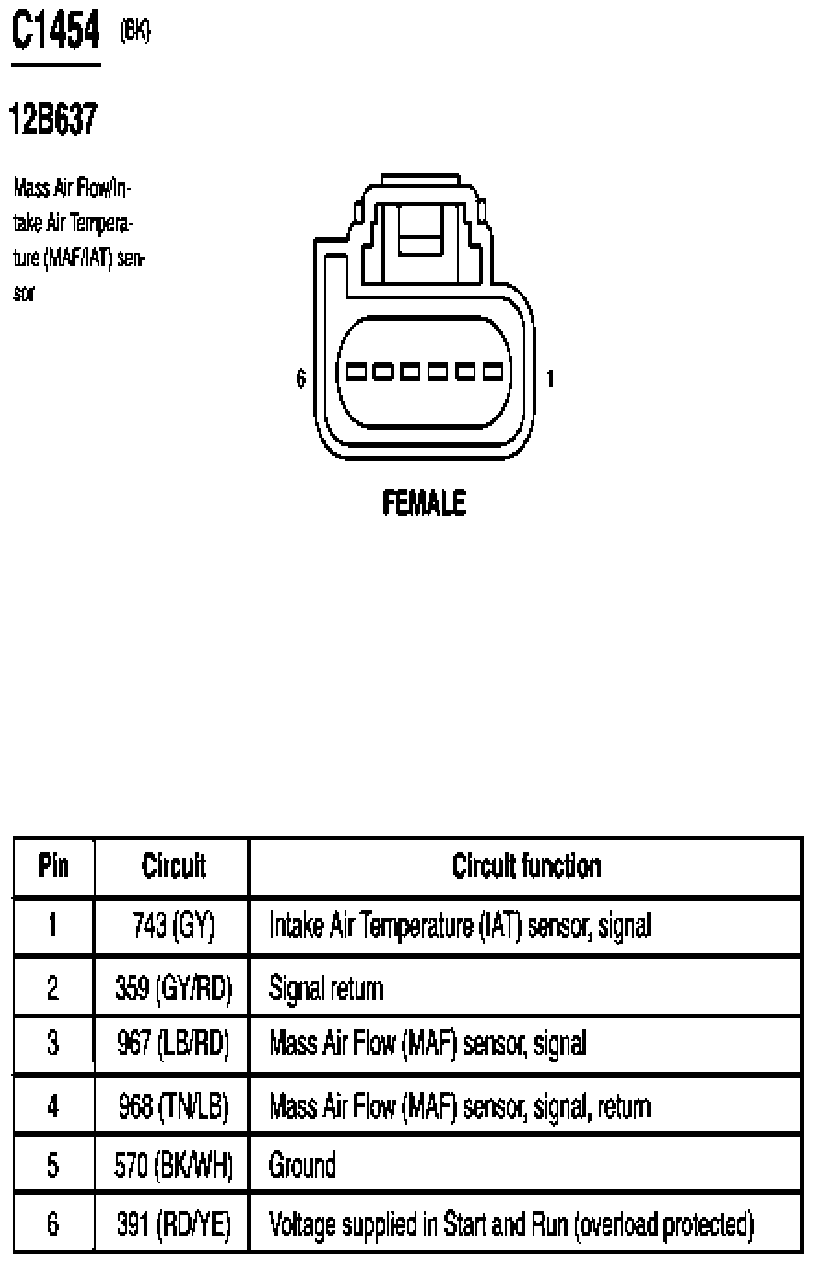

Fig 295: Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector End View (C1454)

G07843890

Courtesy of FORD MOTOR CO.

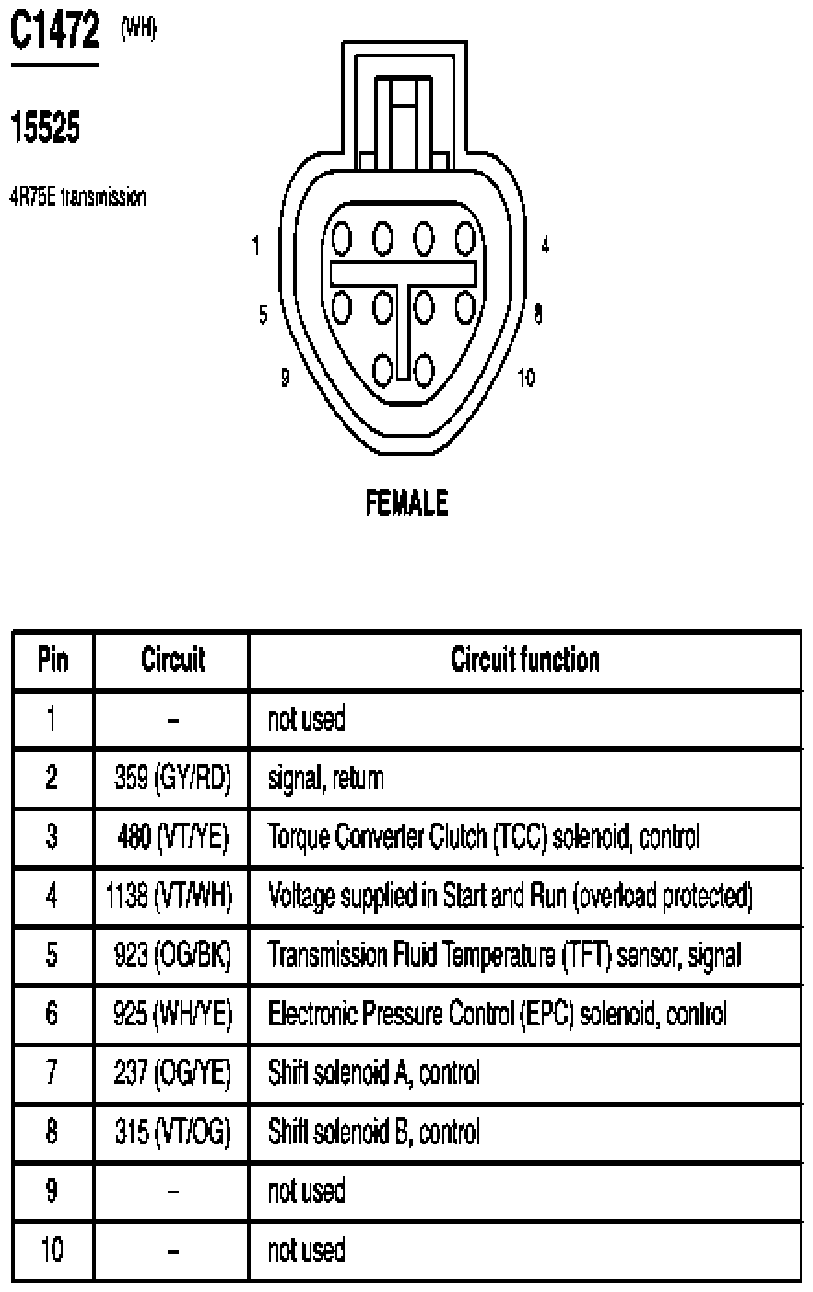

Fig 296: 4R75E Transmission Connector End View (C1472)

G07843891

Courtesy of FORD MOTOR CO.

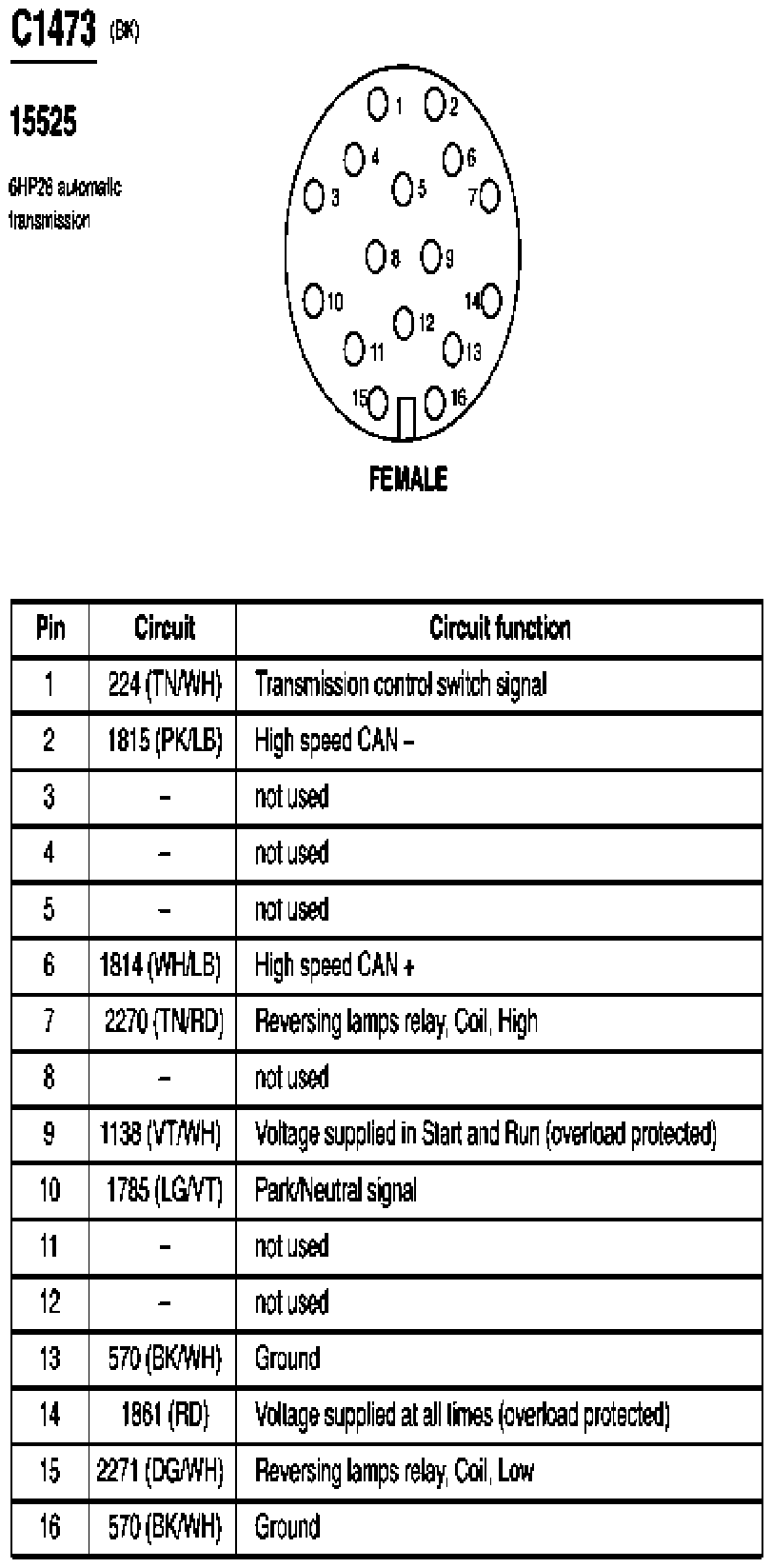

Fig 297: 6HP26 Automatic Transmission Connector End View (C1473)

G07843892

Courtesy of FORD MOTOR CO.

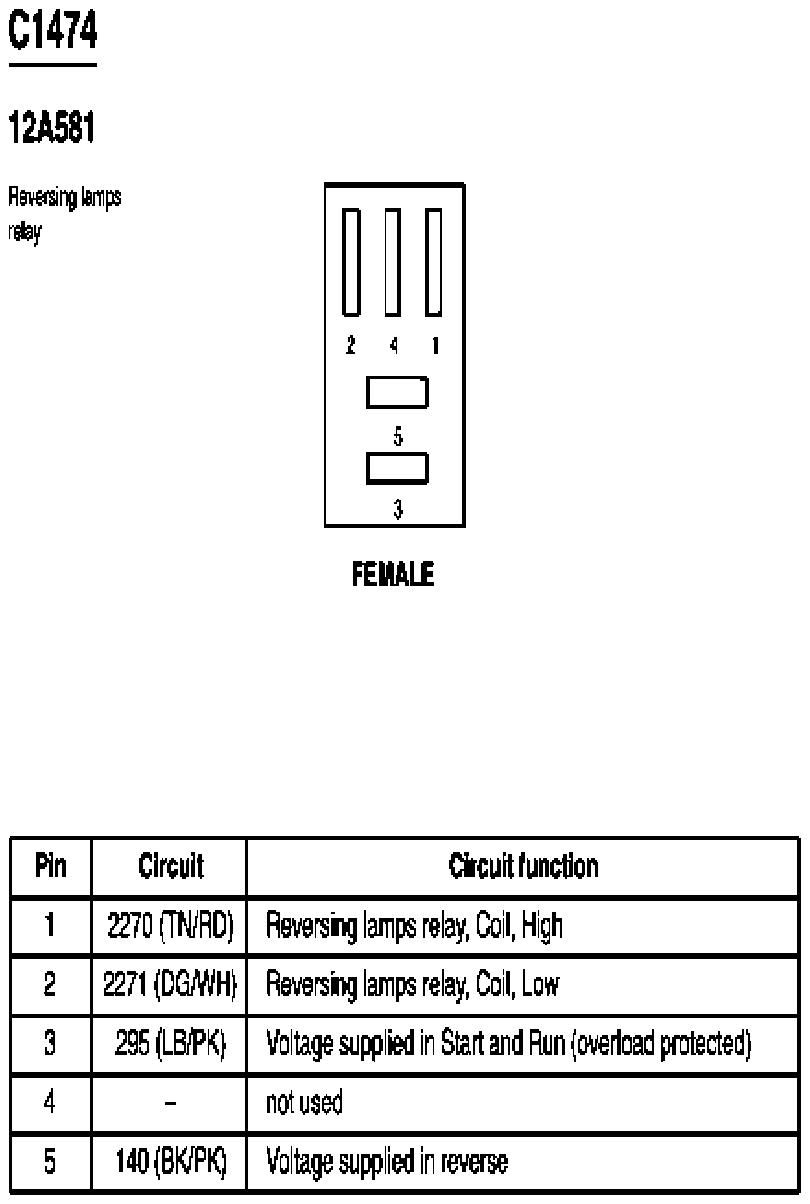

Fig 298: Reversing Lamps Relay Connector End View (C1474)

G07843893

Courtesy of FORD MOTOR CO.

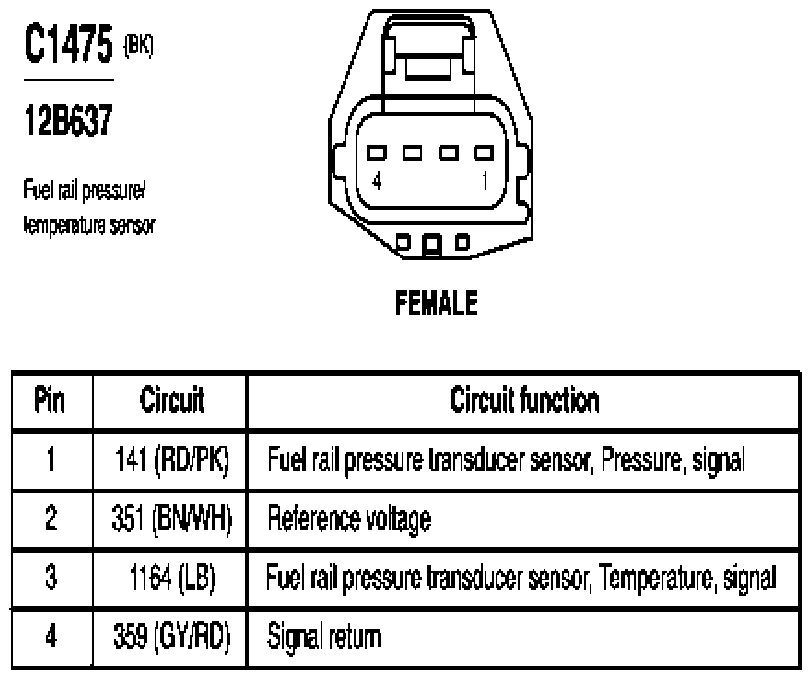

Fig 299: Fuel Rail Pressure/Temperature Sensor Connector End View (C1475)

G07843894

Courtesy of FORD MOTOR CO.

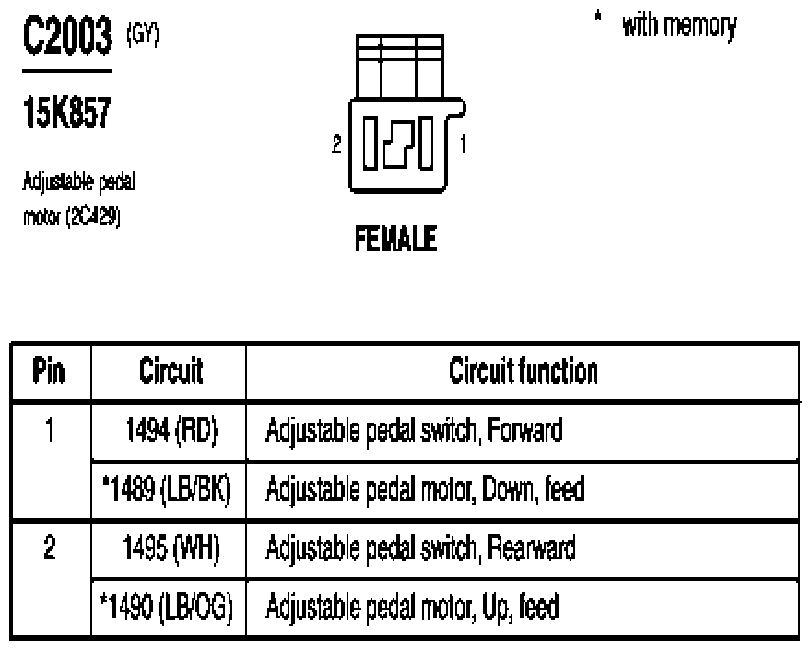

Fig 300: Adjustable Pedal Motor Connector End View (C2003)

G07843895

Courtesy of FORD MOTOR CO.

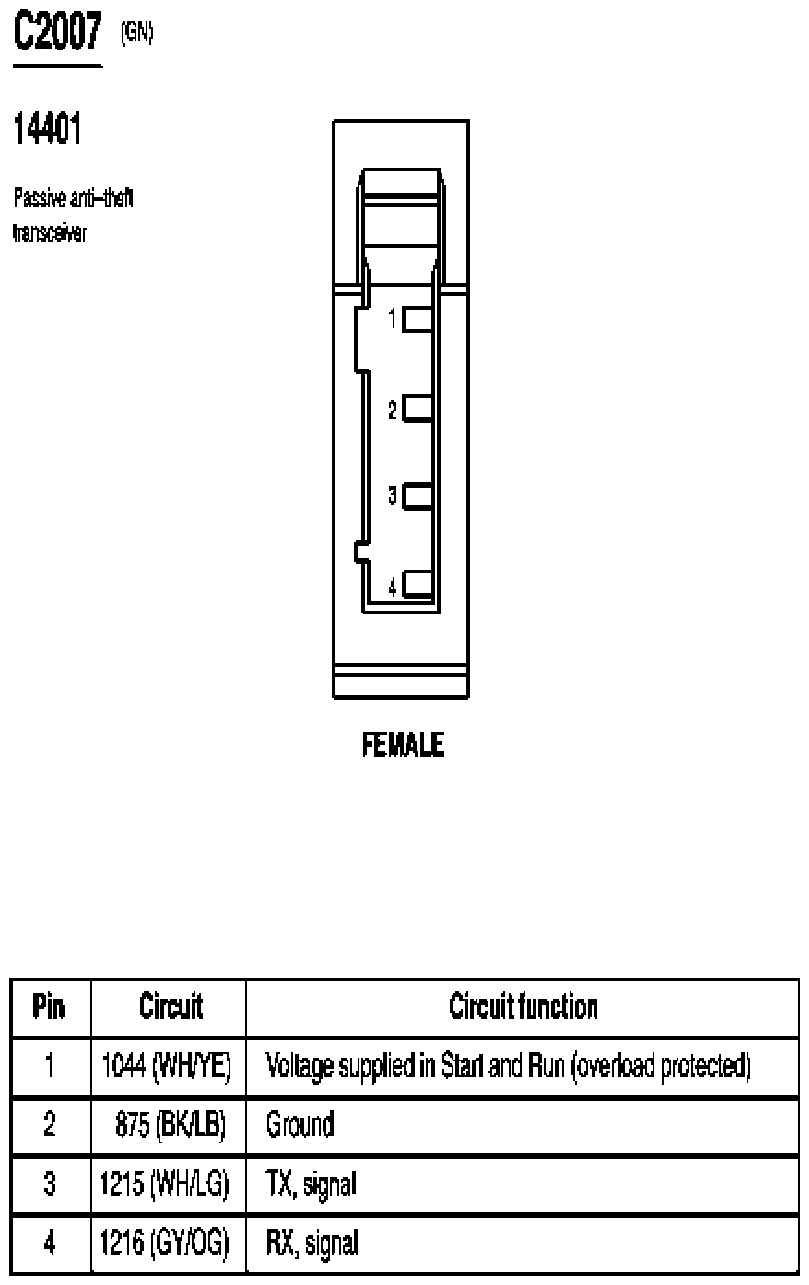

Fig 301: Passive Anti-Theft Transceiver Connector End View (C2007)

G07843896

Courtesy of FORD MOTOR CO.

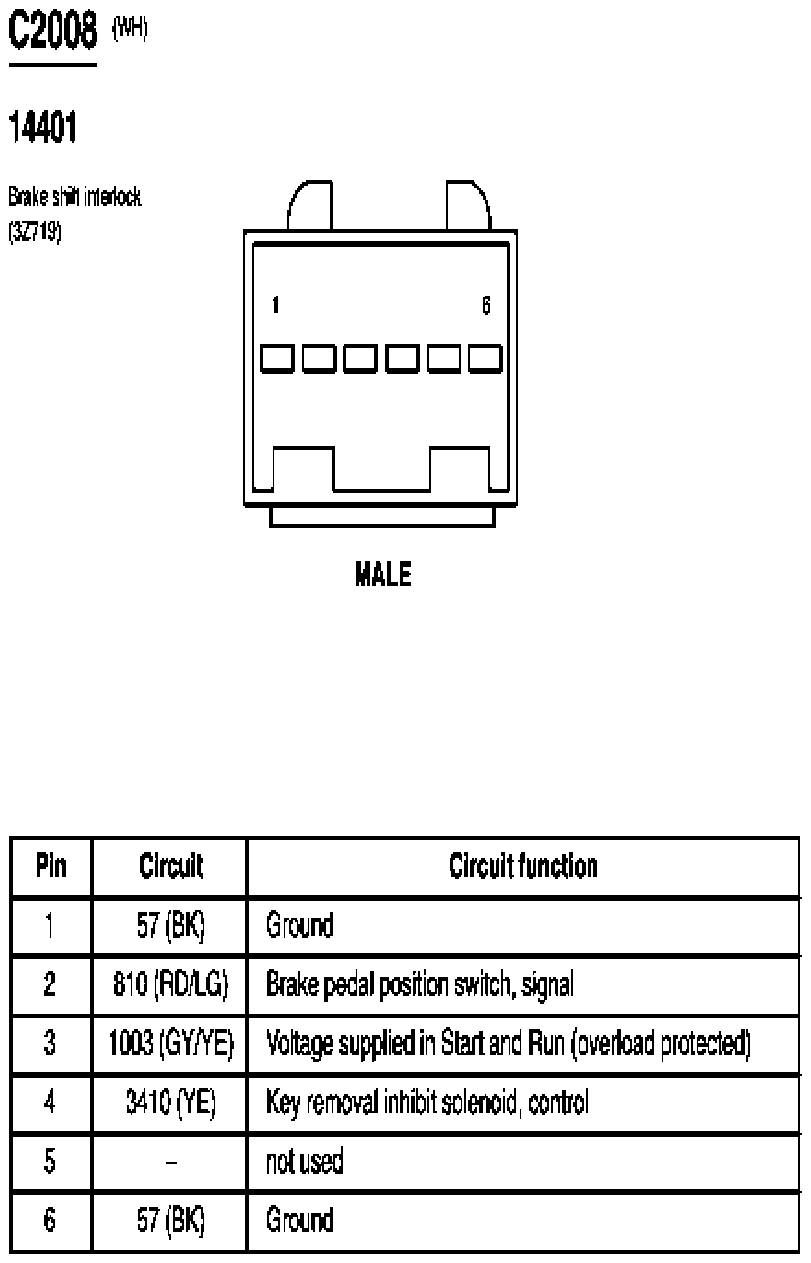

Fig 302: Brake Shift Interlock Connector End View (C2008)

G07843897

Courtesy of FORD MOTOR CO.

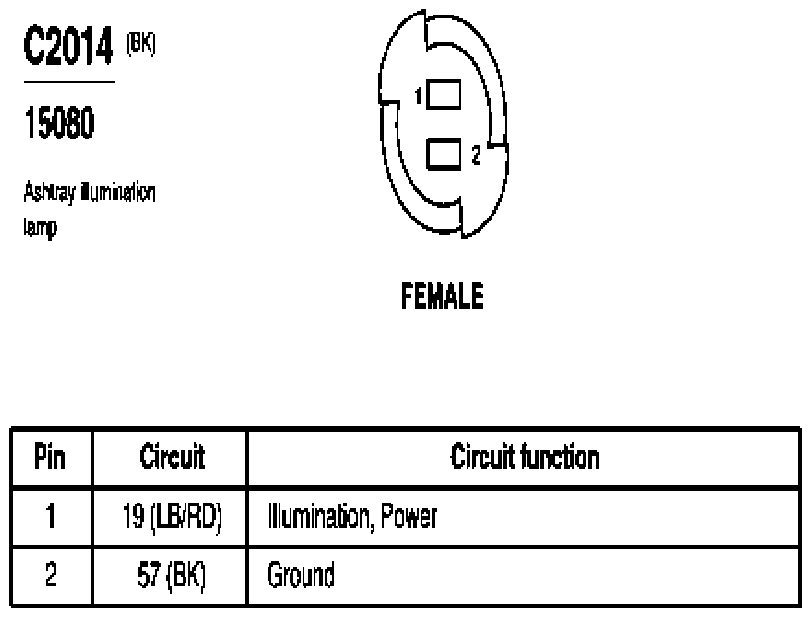

Fig 303: Ashtray Illumination Lamp Connector End View (C2014)

G07843898

Courtesy of FORD MOTOR CO.

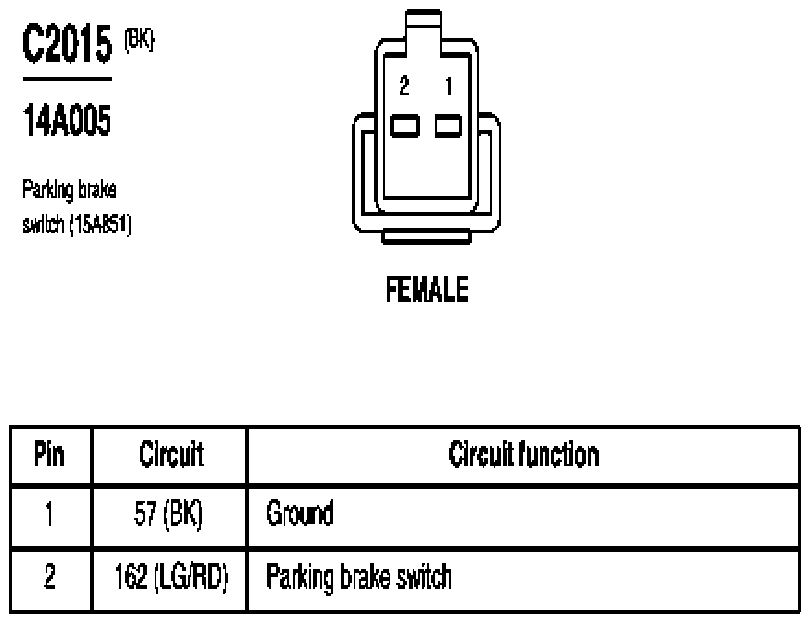

Fig 304: Parking Brake Switch Connector End View (C2015)

G07843899

Courtesy of FORD MOTOR CO.

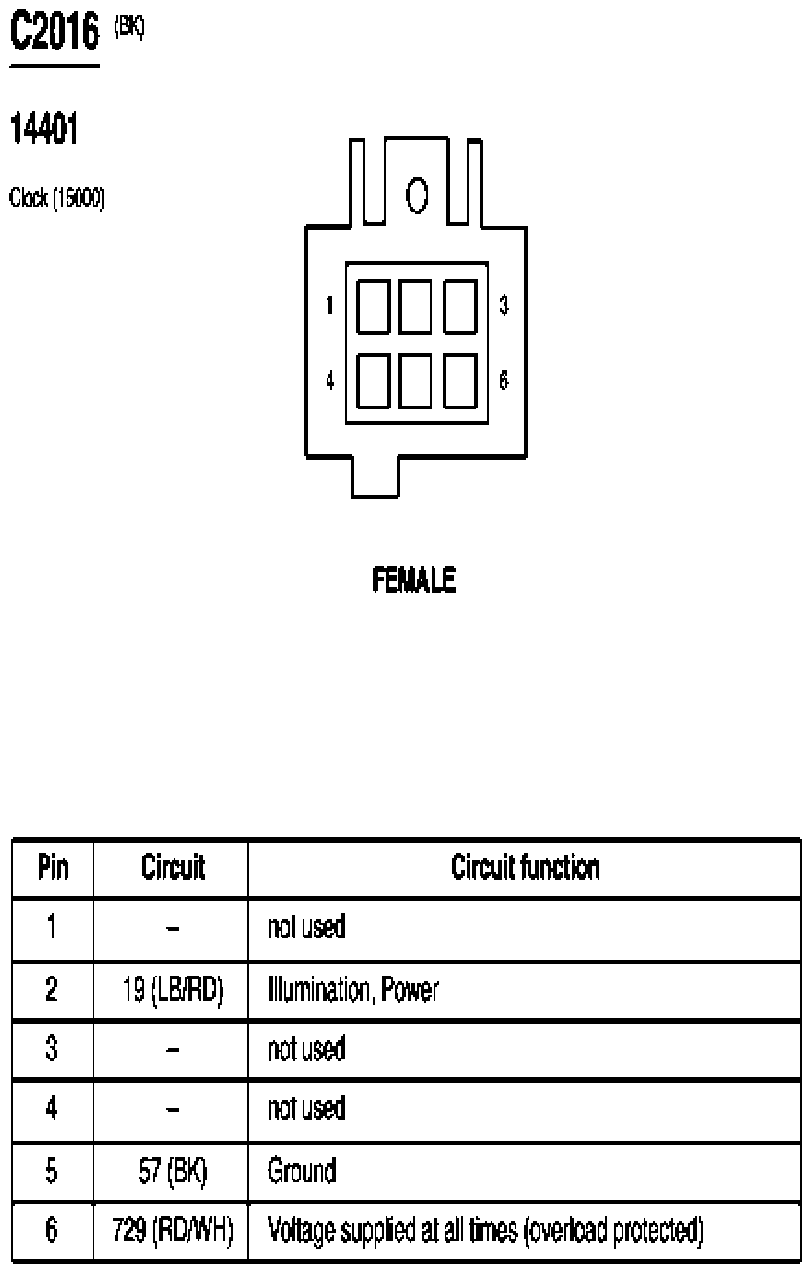

Fig 305: Clock Connector End View (C2016)

G07843900

Courtesy of FORD MOTOR CO.

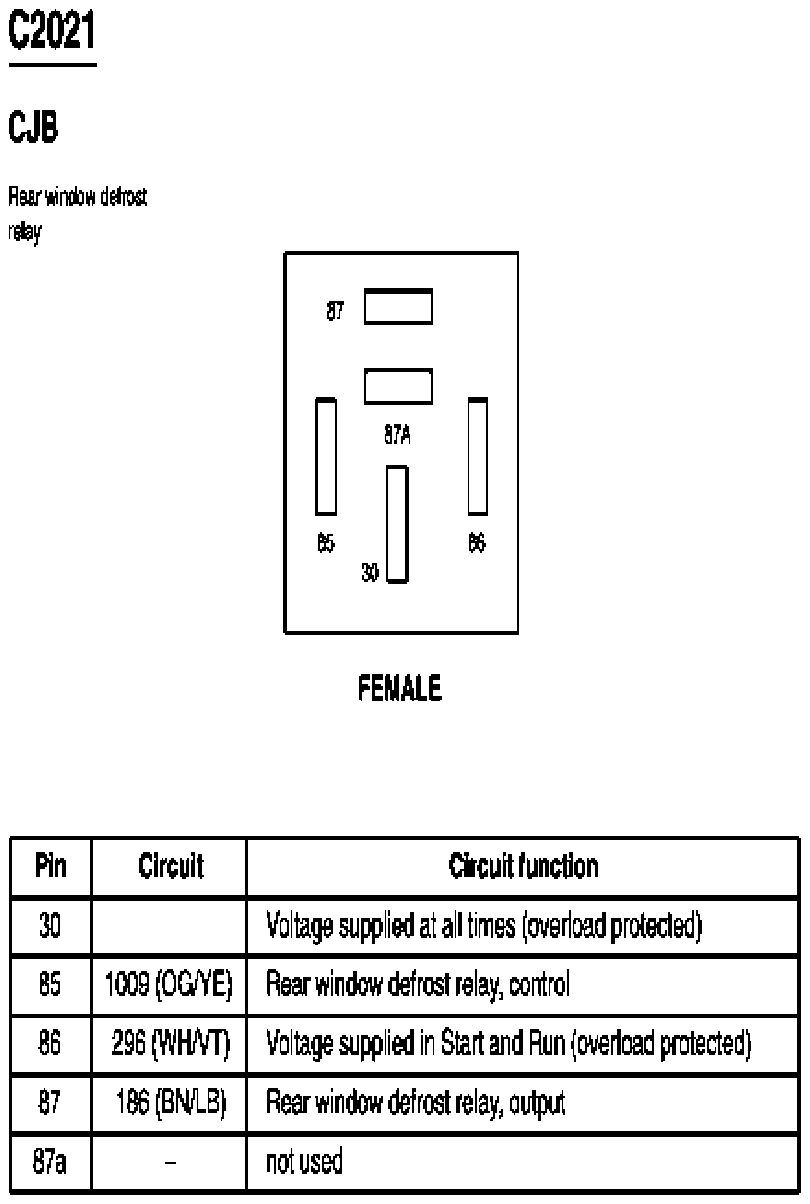

Fig 306: Rear Window Defrost Relay Connector End View (C2021)

G07843901

Courtesy of FORD MOTOR CO.

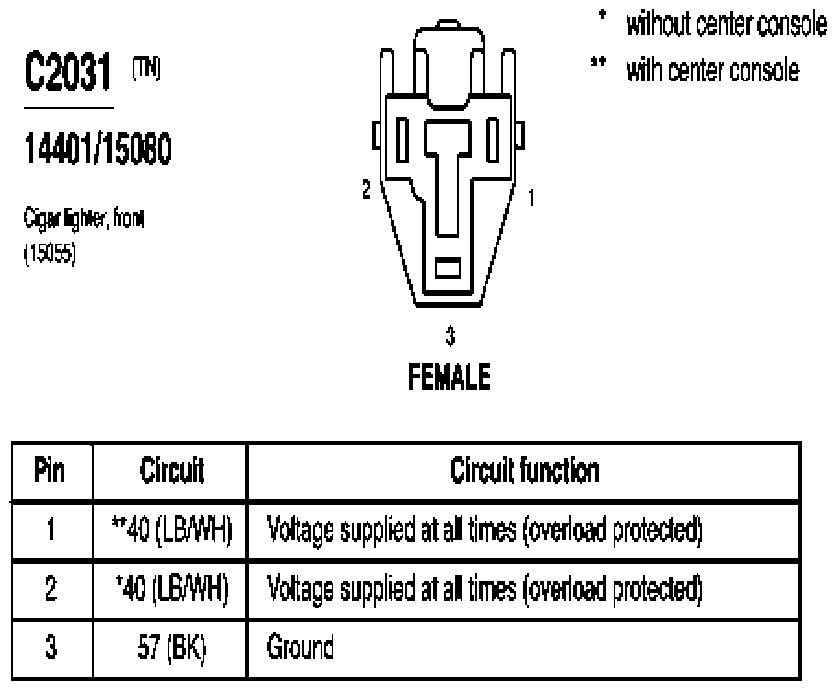

Fig 307: Cigar Lighter, Front Connector End View (C2031)

G07843902

Courtesy of FORD MOTOR CO.

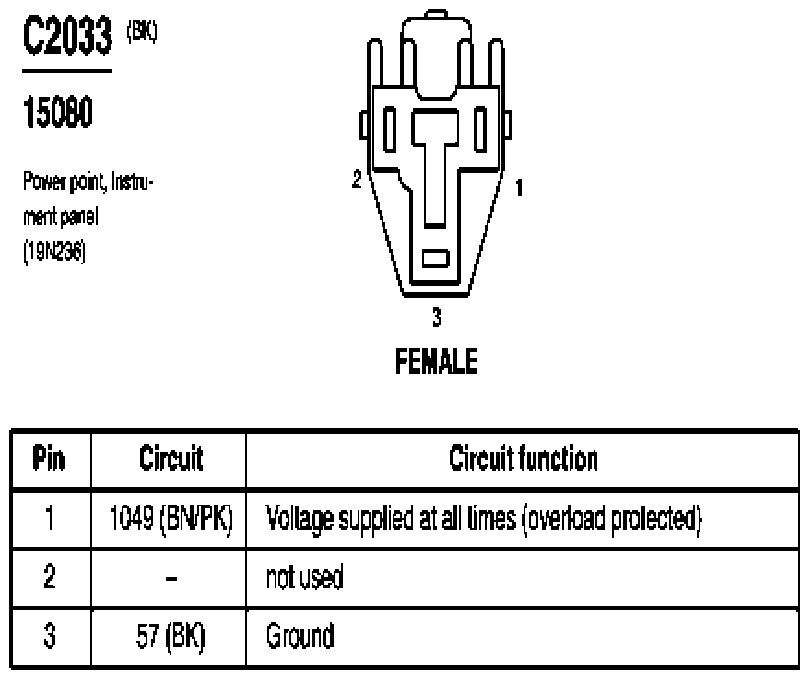

Fig 308: Power Point, Instrument Panel Connector End View (C2033)

G07843903

Courtesy of FORD MOTOR CO.

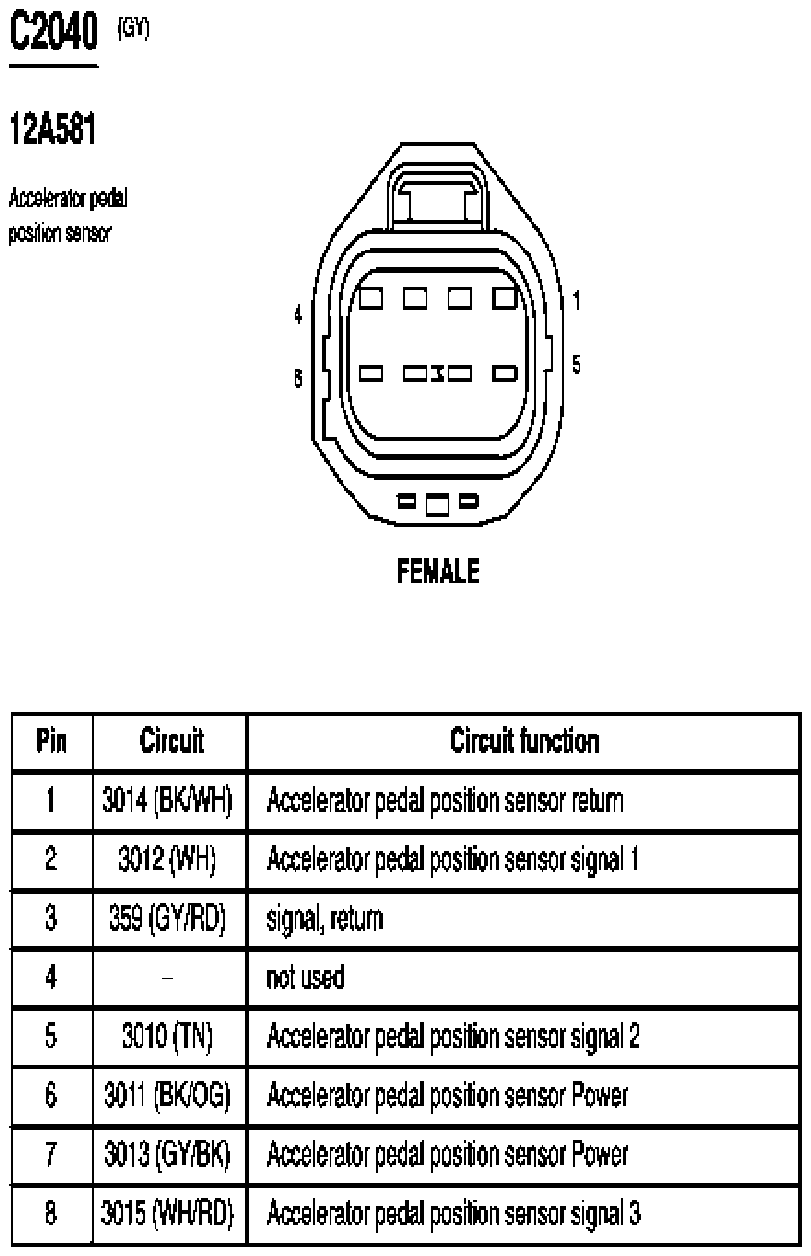

Fig 309: Accelerator Pedal Position Sensor Connector End View (C2040)

G07843904

Courtesy of FORD MOTOR CO.

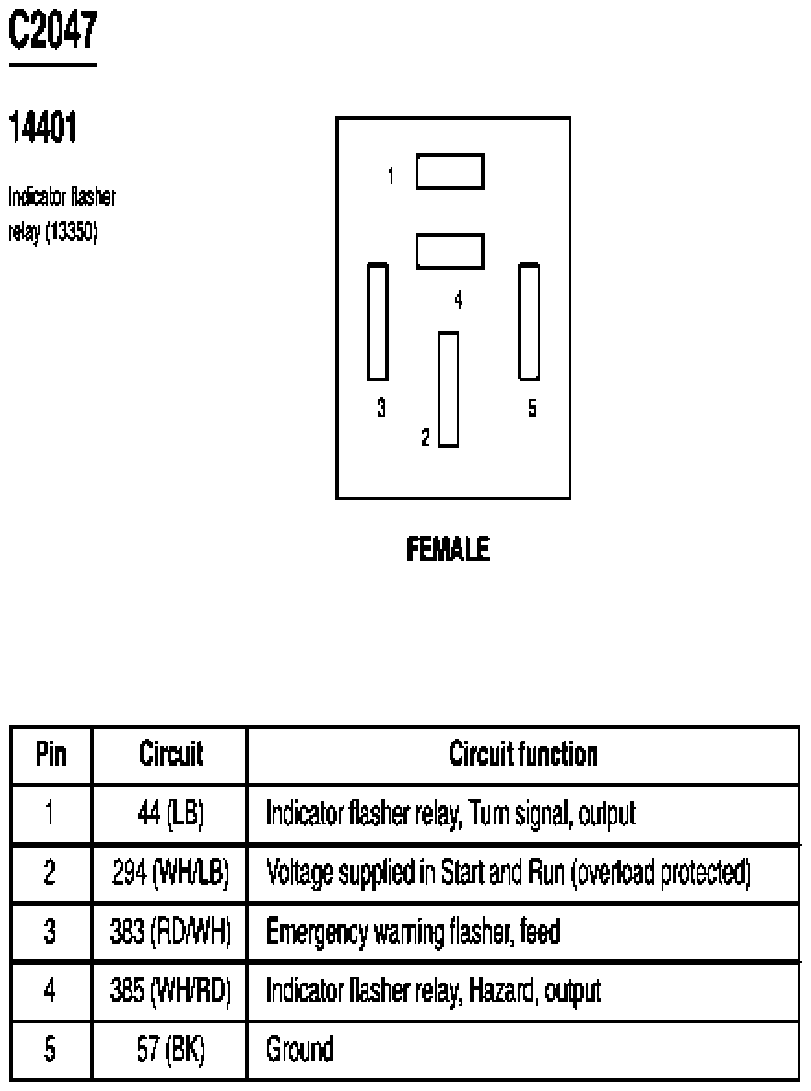

Fig 310: Indicator Flasher Relay Connector End View (C2047)

G07843905

Courtesy of FORD MOTOR CO.

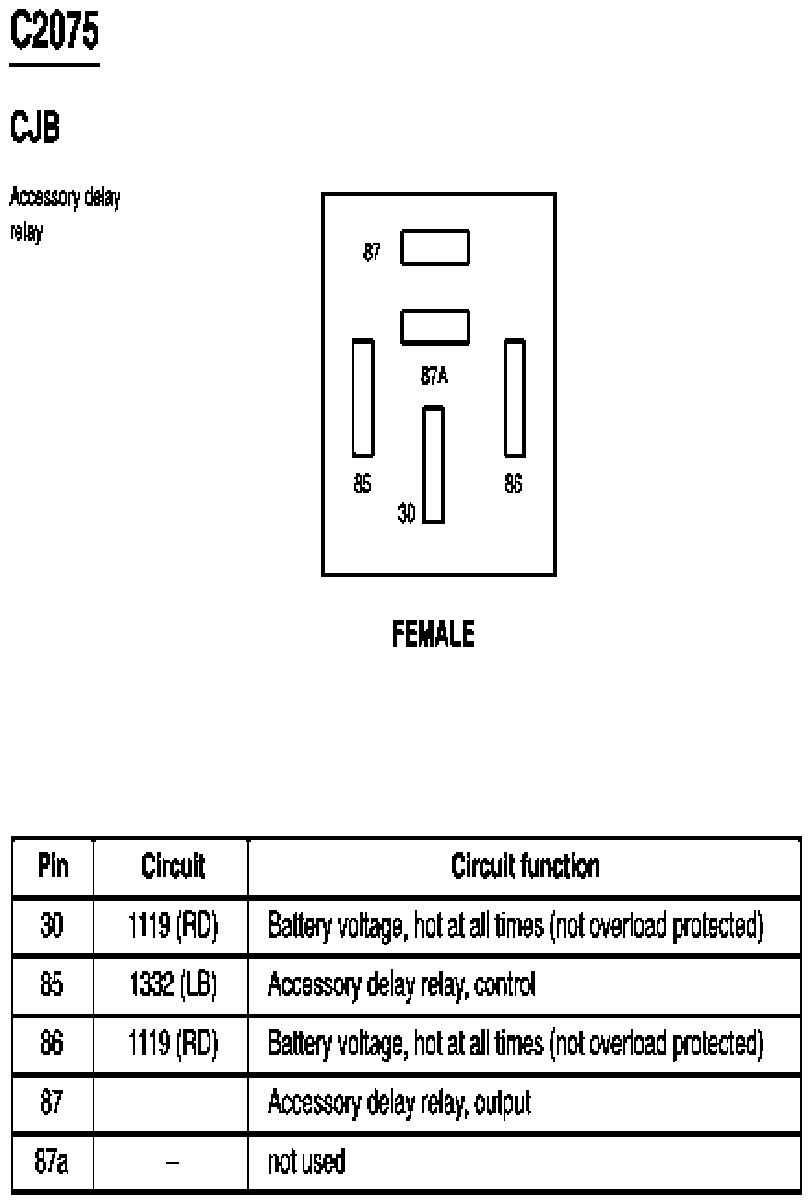

Fig 311: Accessory Delay Relay Connector End View (C2075)

G07843906

Courtesy of FORD MOTOR CO.

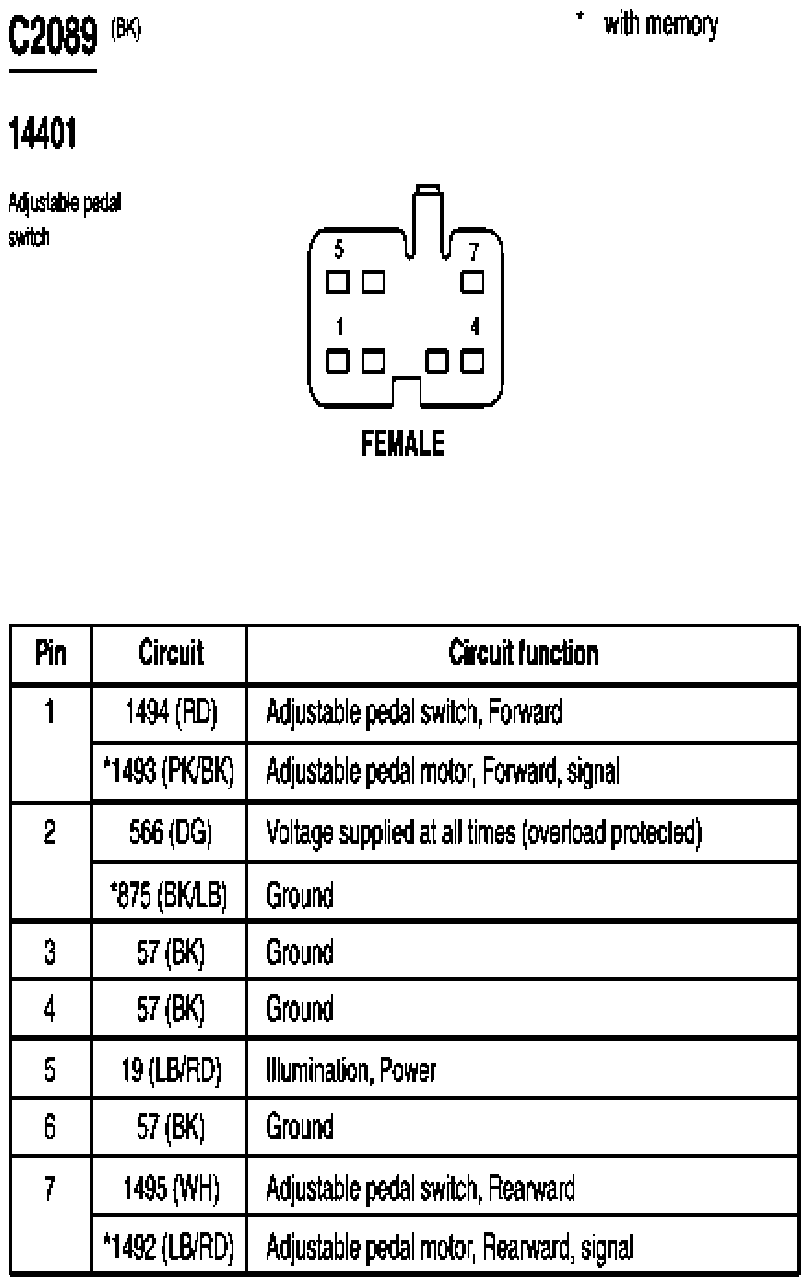

Fig 312: Adjustable Pedal Switch Connector End View (C2089)

G07843907

Courtesy of FORD MOTOR CO.

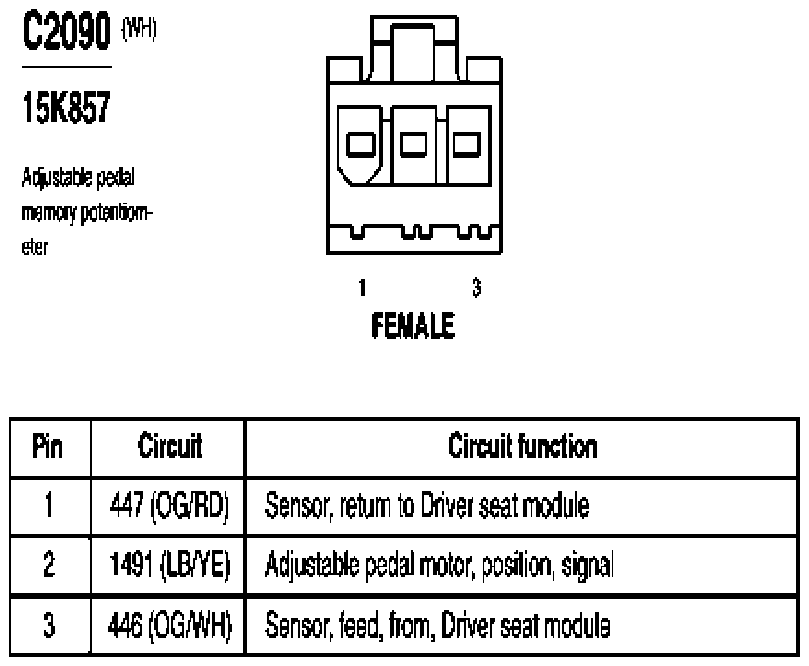

Fig 313: Adjustable Pedal Memory Potentiometer Connector End View (C2090)

G07843908

Courtesy of FORD MOTOR CO.

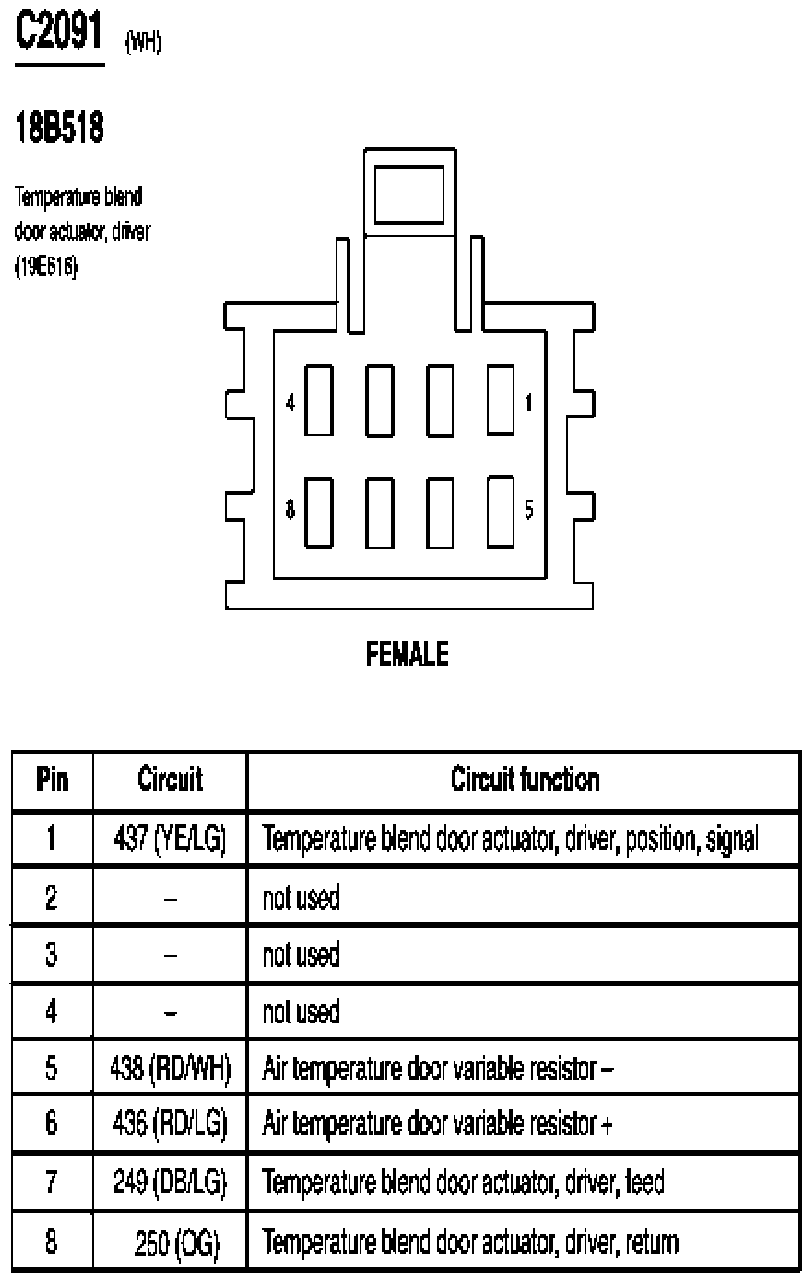

Fig 314: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G07843909

Courtesy of FORD MOTOR CO.

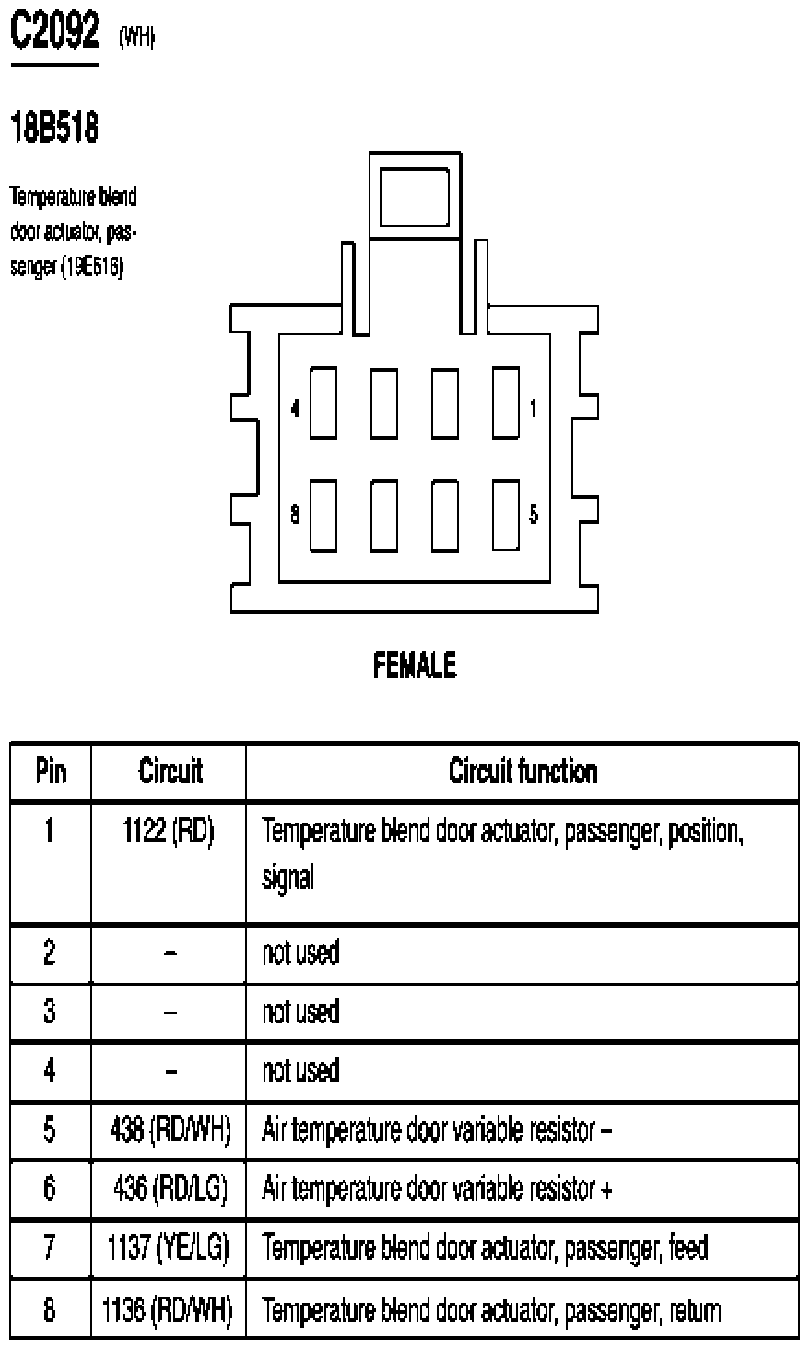

Fig 315: Temperature Blend Door Actuator Passenger Connector End View (C2092)

G07843910

Courtesy of FORD MOTOR CO.

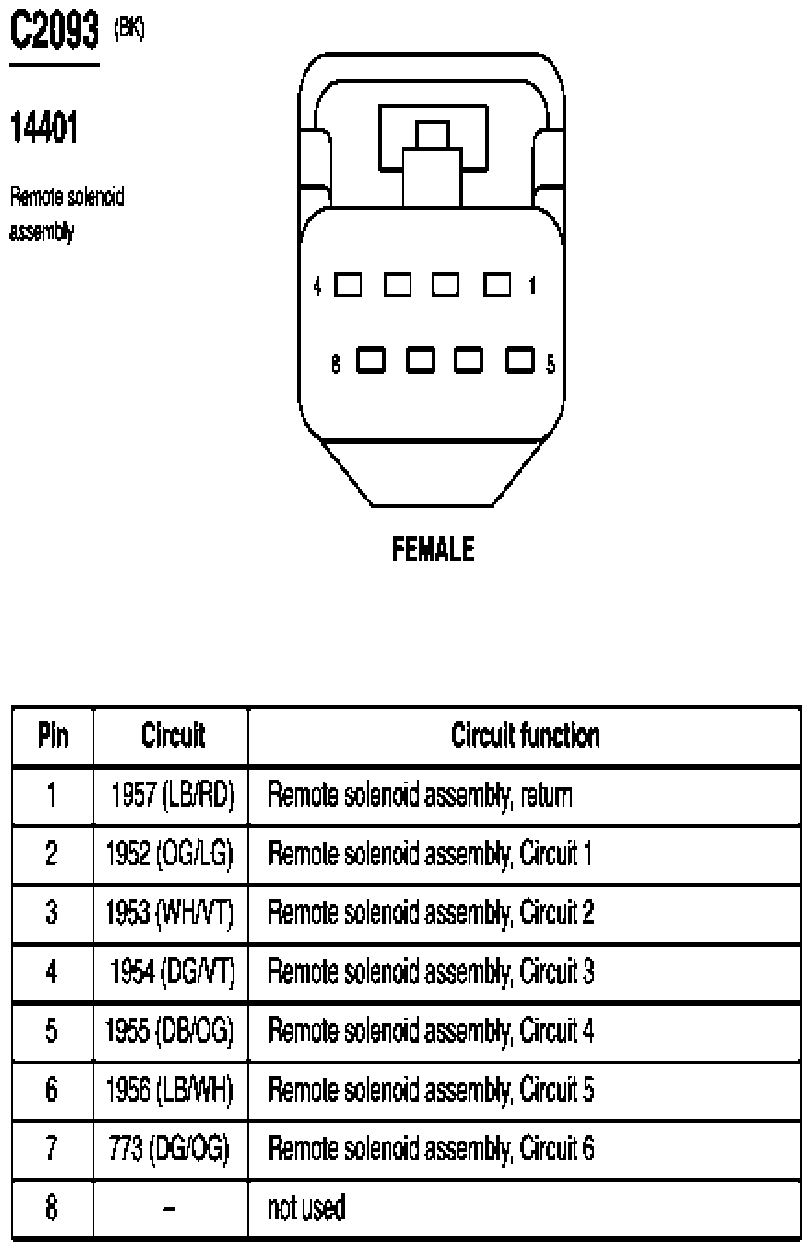

Fig 316: Remote Solenoid Assembly Connector End View (C2093)

G07843911

Courtesy of FORD MOTOR CO.

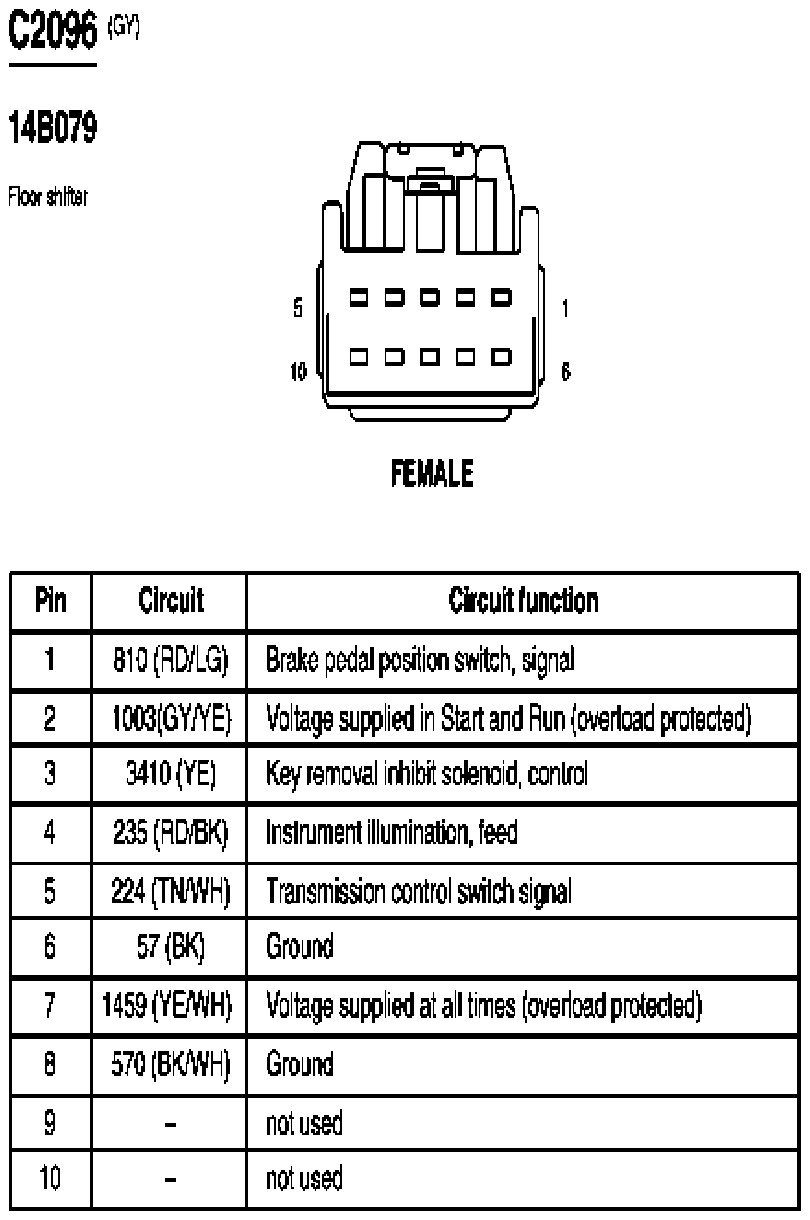

Fig 317: Floor Shifter Connector End View (C2096)

G07843912

Courtesy of FORD MOTOR CO.

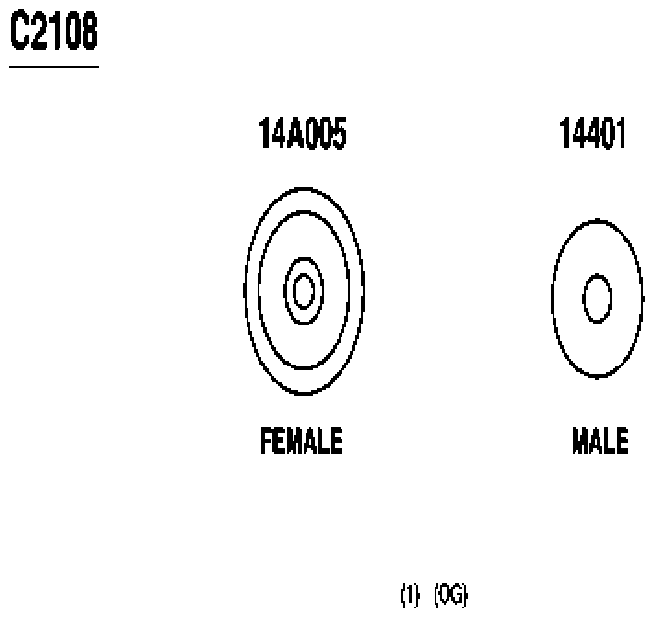

Fig 318: Inline Connector End View (C2108)

G07843913

Courtesy of FORD MOTOR CO.

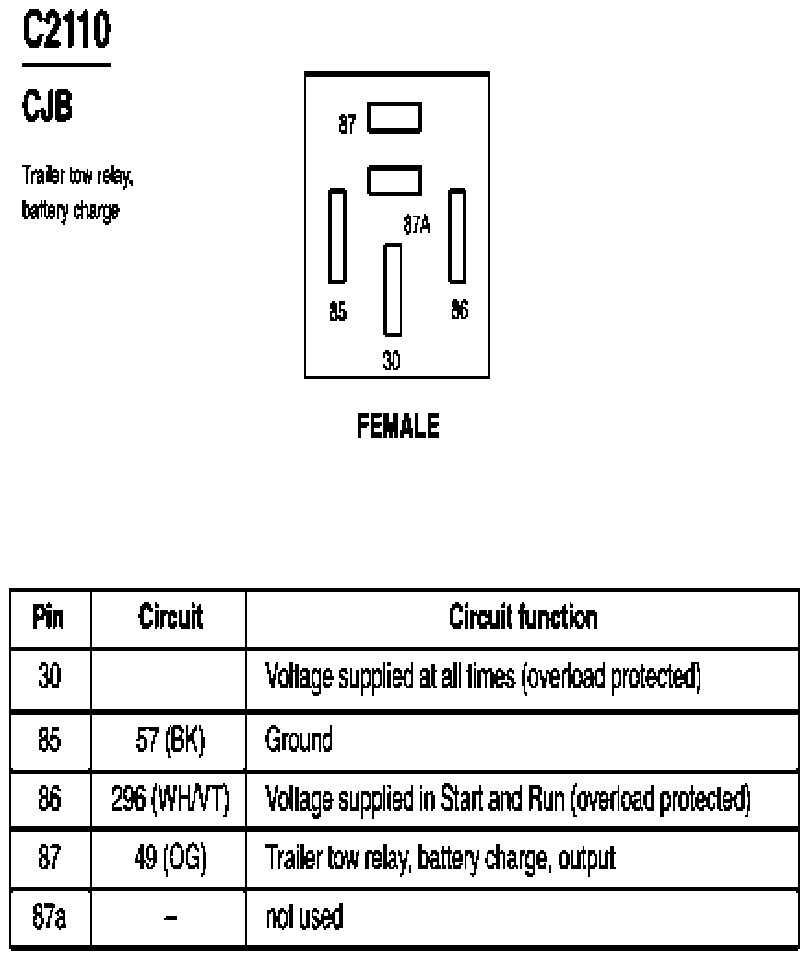

Fig 319: Trailer Tow Relay, Battery Charge Connector End View (C2110)

G07843914

Courtesy of FORD MOTOR CO.

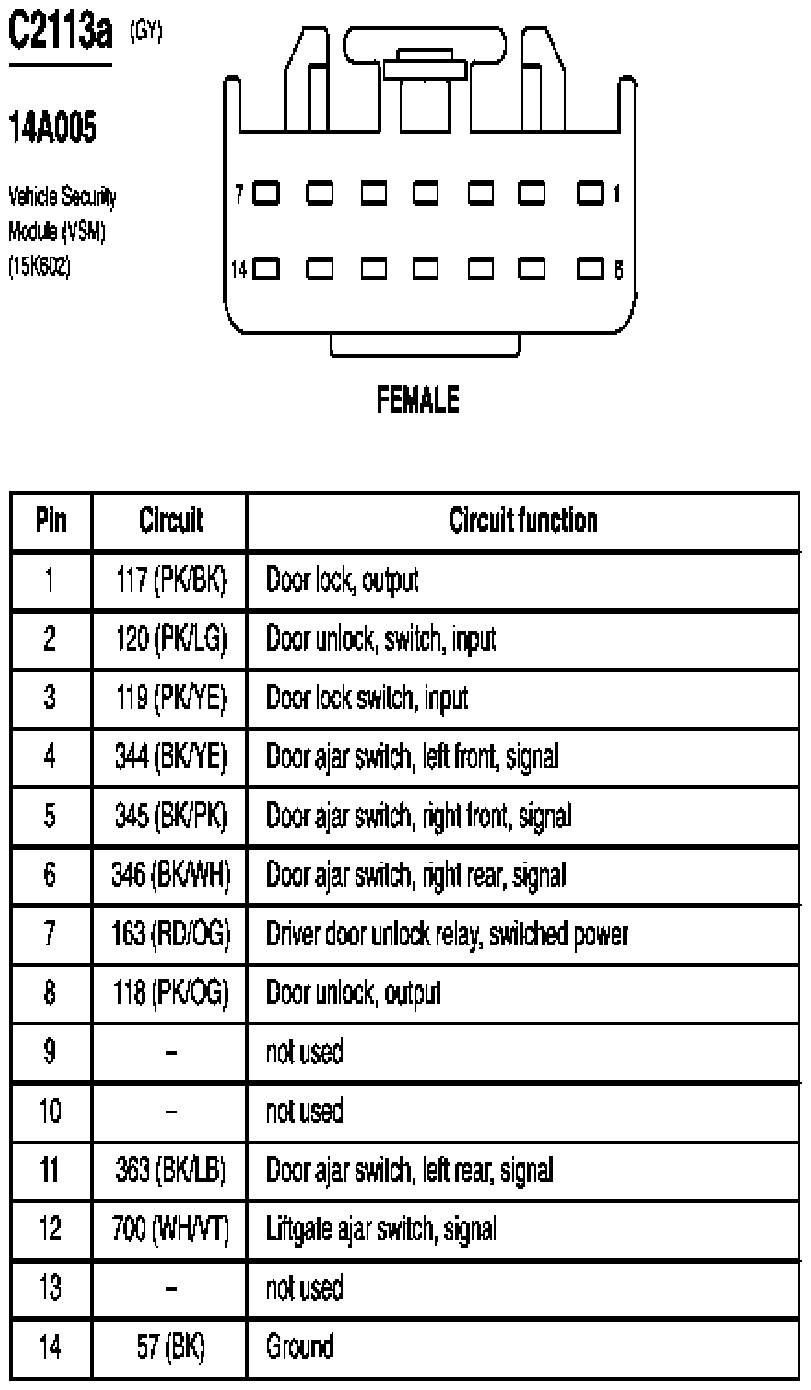

Fig 320: Vehicle Security Module (VSM) Connector End View (C2113a)

G07843915

Courtesy of FORD MOTOR CO.

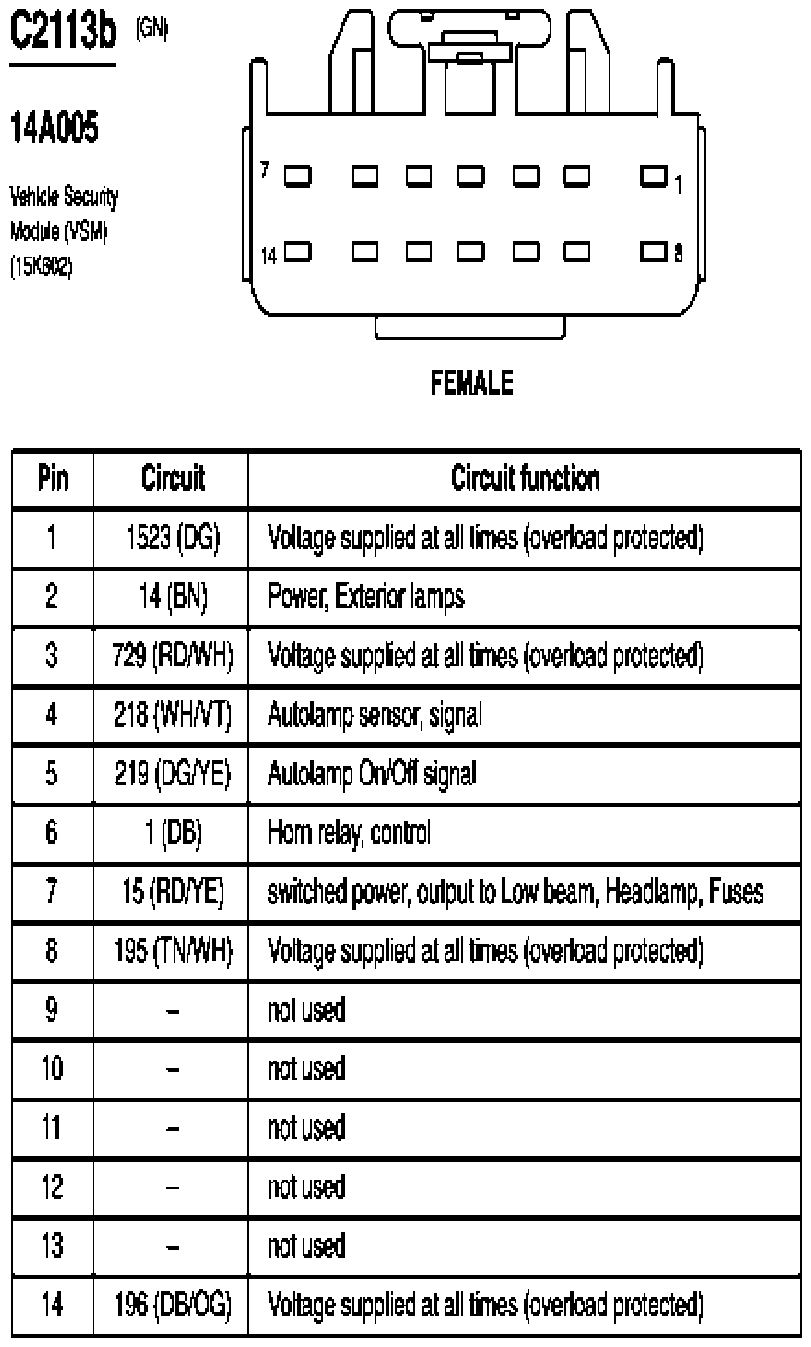

Fig 321: Vehicle Security Module (VSM) Connector End View (C2113b)

G07843916

Courtesy of FORD MOTOR CO.

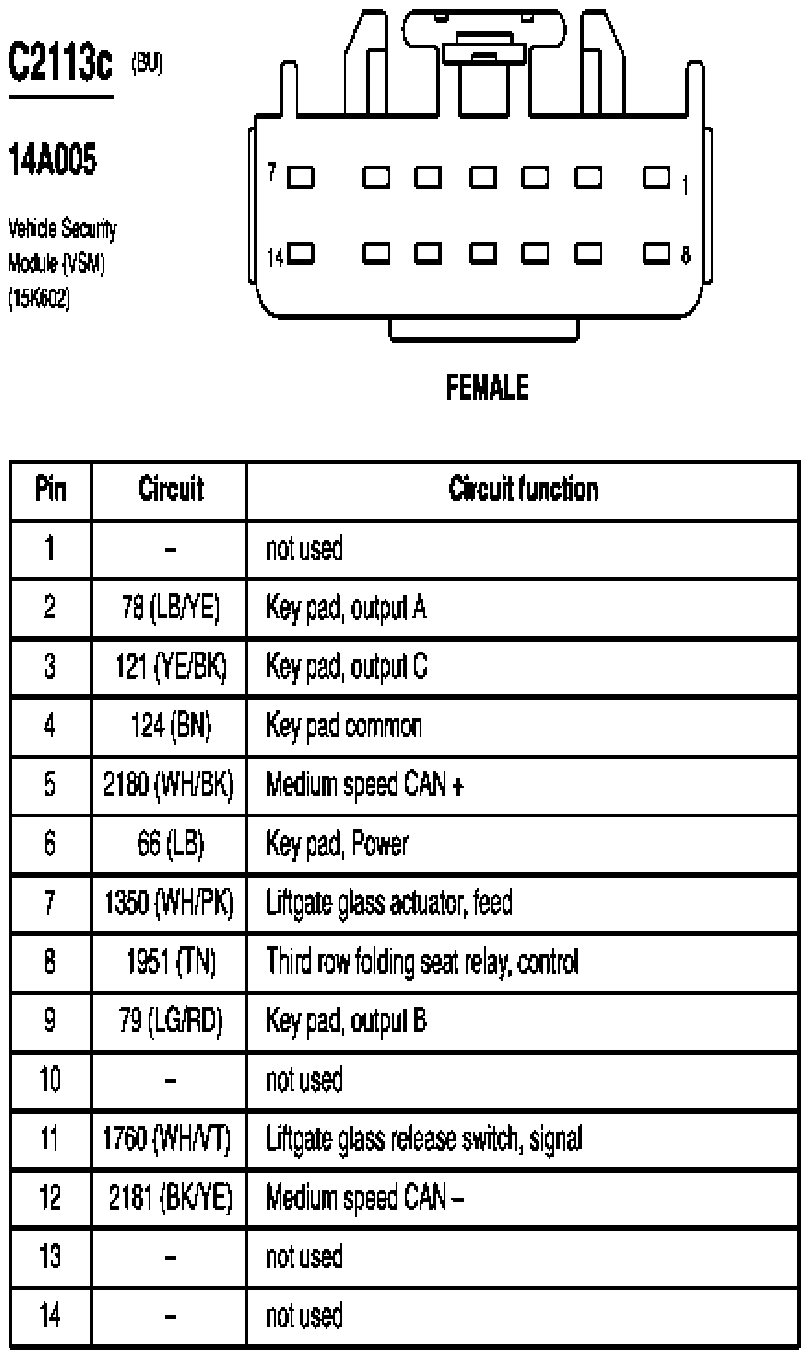

Fig 322: Vehicle Security Module (VSM) Connector End View (C2113c)

G07843917

Courtesy of FORD MOTOR CO.

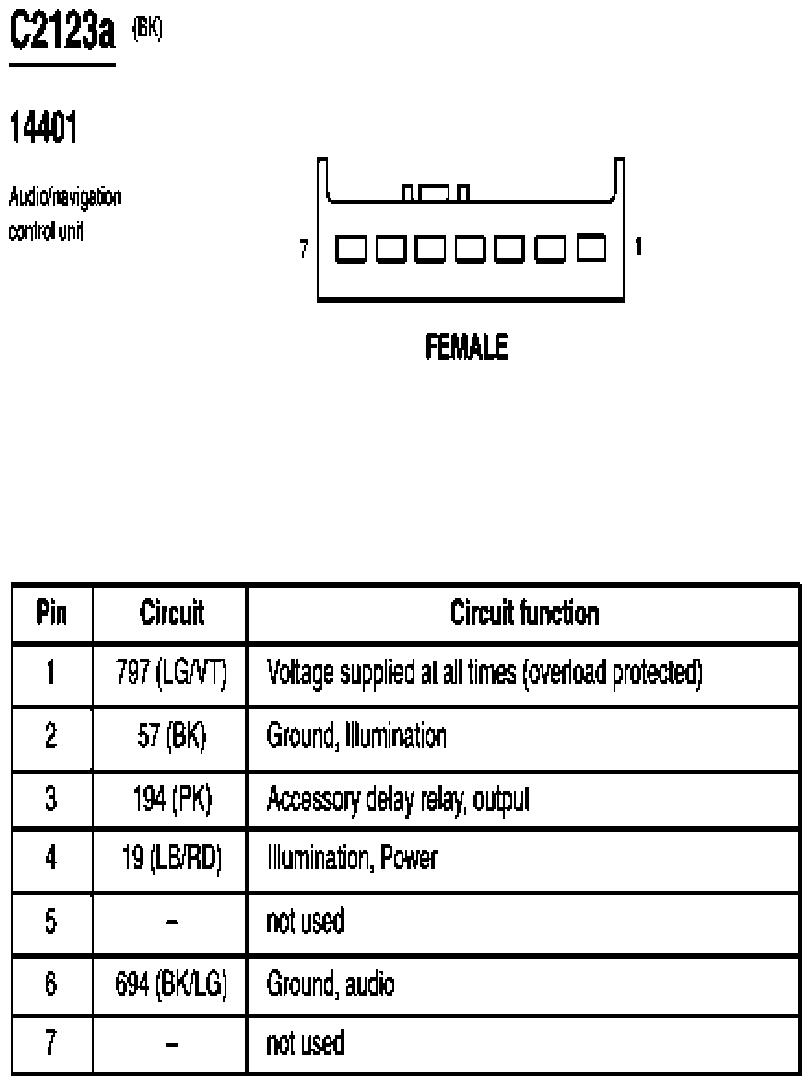

Fig 323: Audio/Navigation Control Unit Connector End View (C2123a)

G07843918

Courtesy of FORD MOTOR CO.

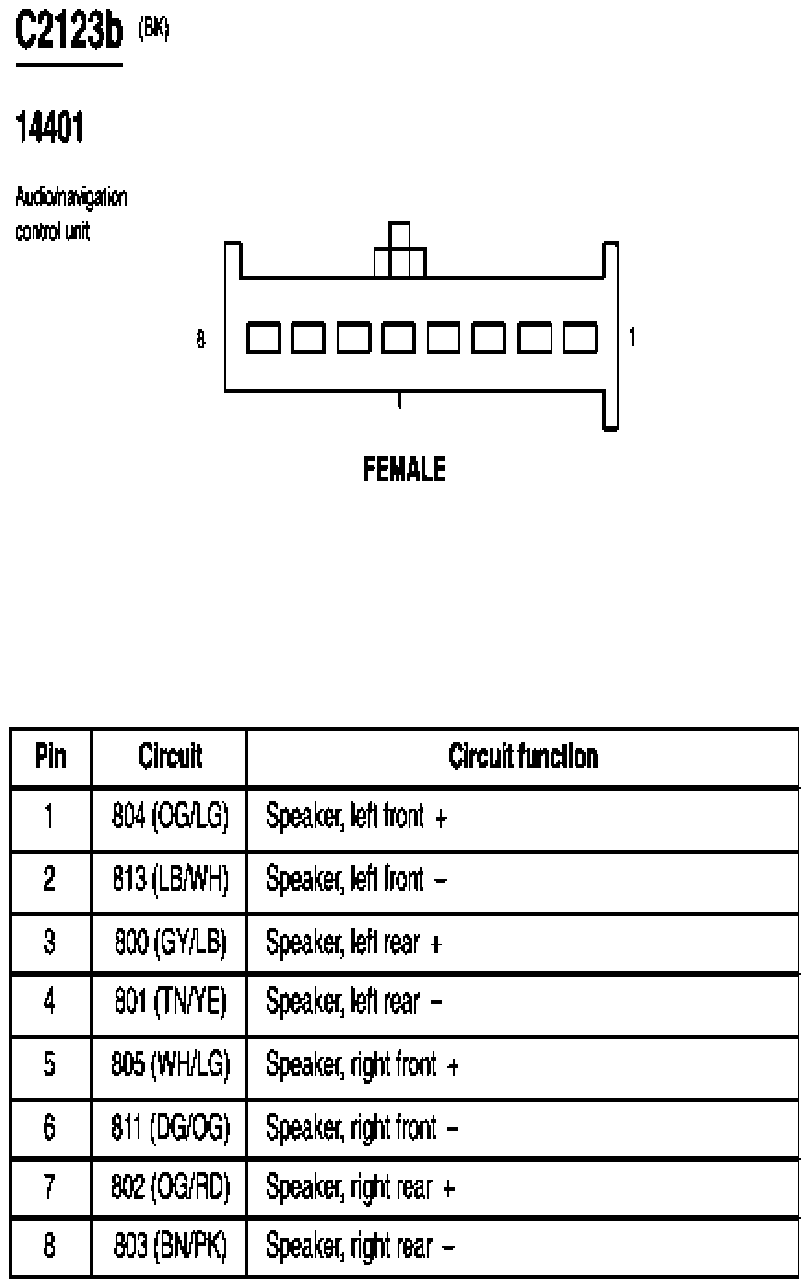

Fig 324: Audio/Navigation Control Unit Connector End View (C2123b)

G07843919

Courtesy of FORD MOTOR CO.

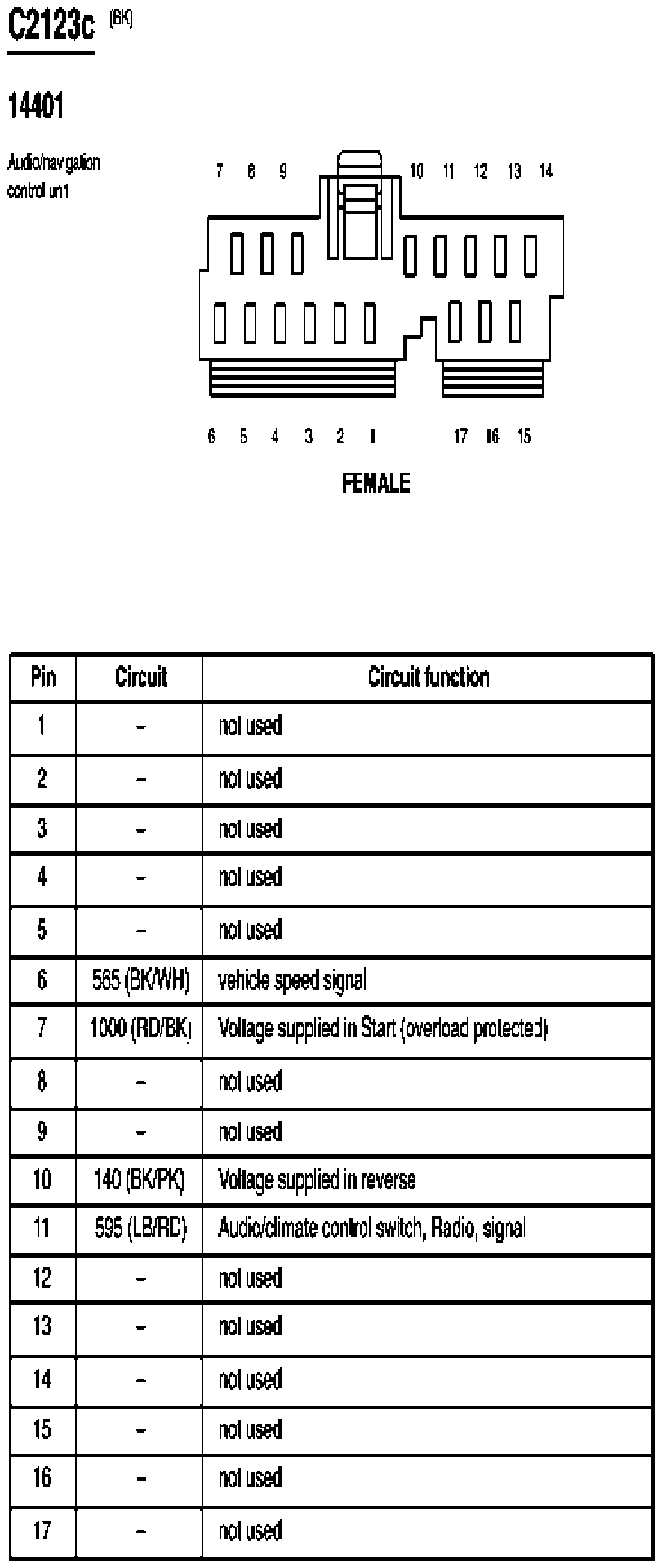

Fig 325: Audio/Navigation Control Unit Connector End View (C2123c)

G07843920

Courtesy of FORD MOTOR CO.

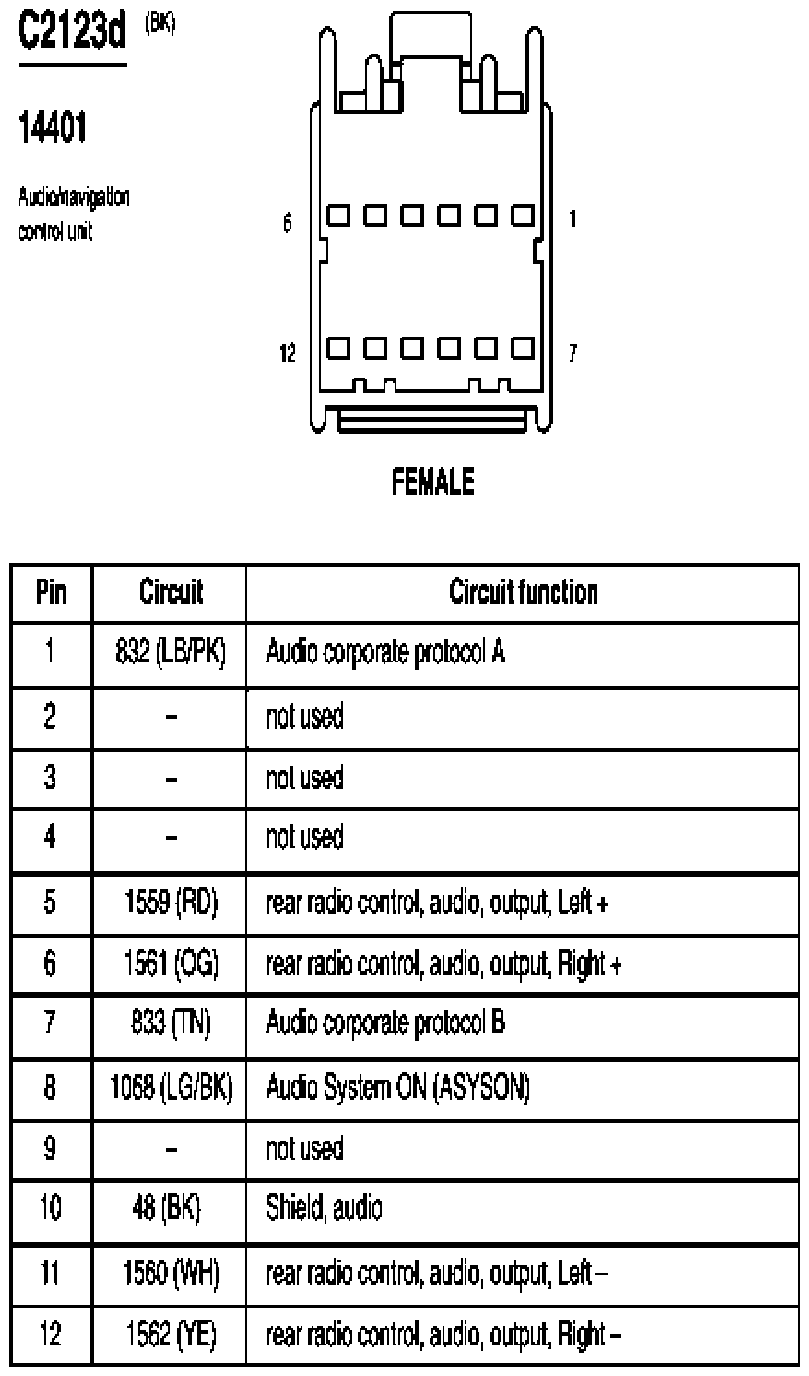

Fig 326: Audio/Navigation Control Unit Connector End View (C2123d)

G07843921

Courtesy of FORD MOTOR CO.

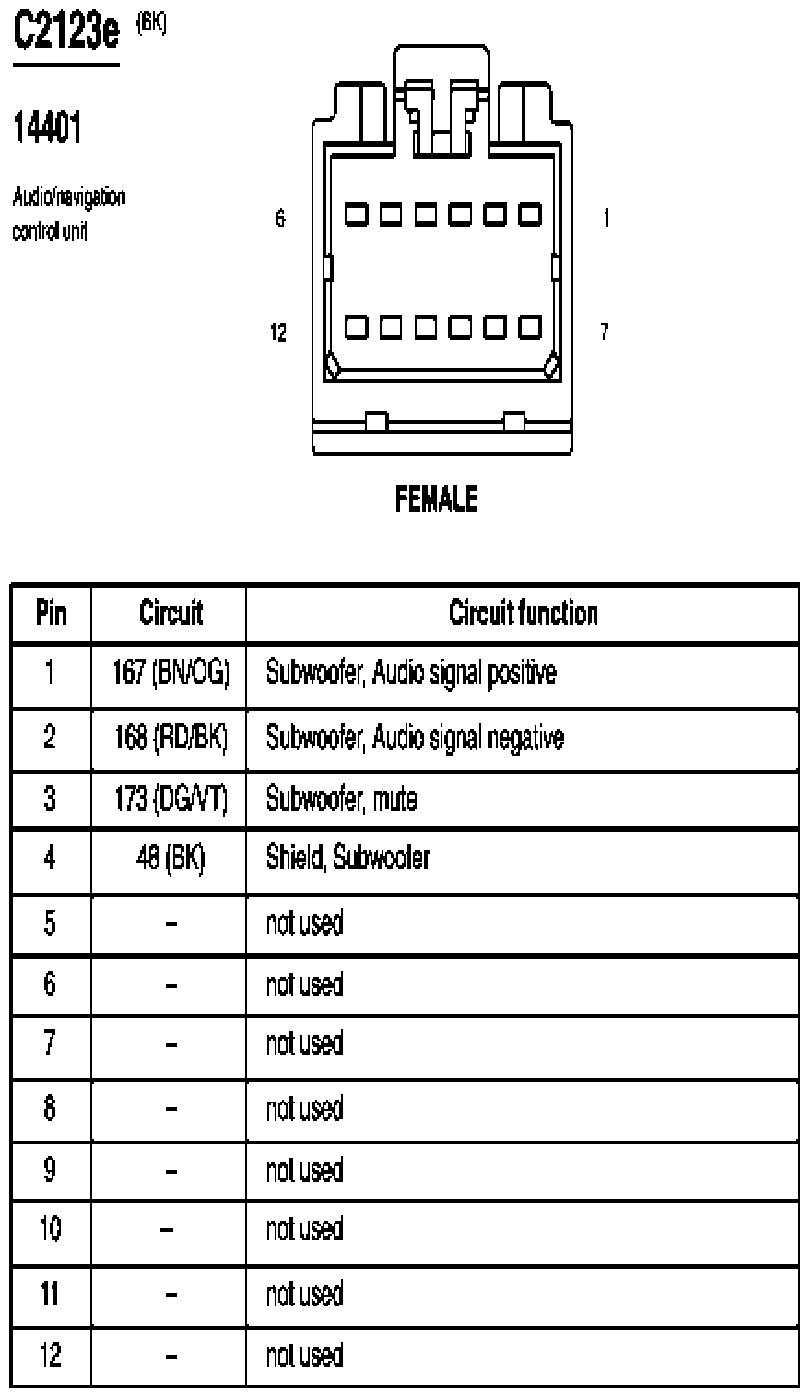

Fig 327: Audio/Navigation Control Unit Connector End View (C2123e)

G07843922

Courtesy of FORD MOTOR CO.

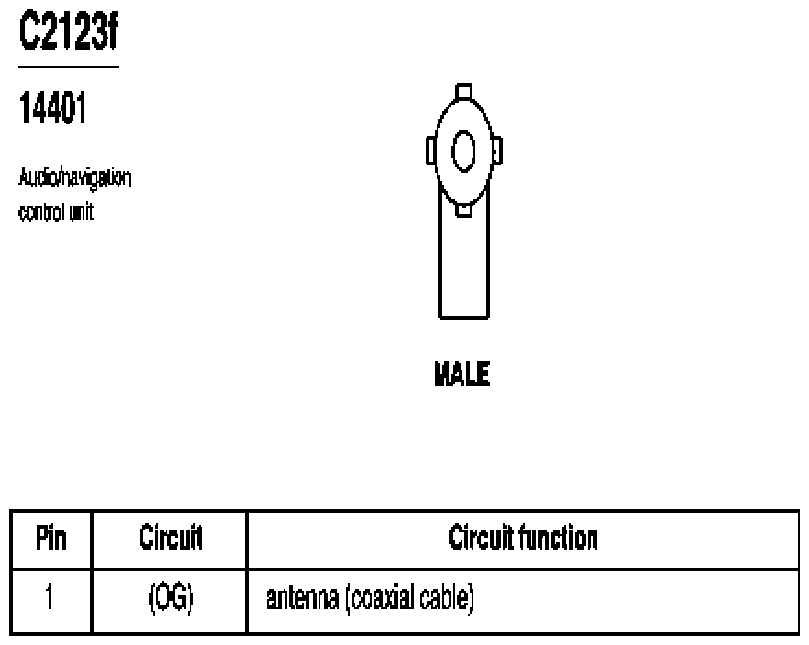

Fig 328: Audio/Navigation Control Unit Connector End View (C2123f)

G07843923

Courtesy of FORD MOTOR CO.

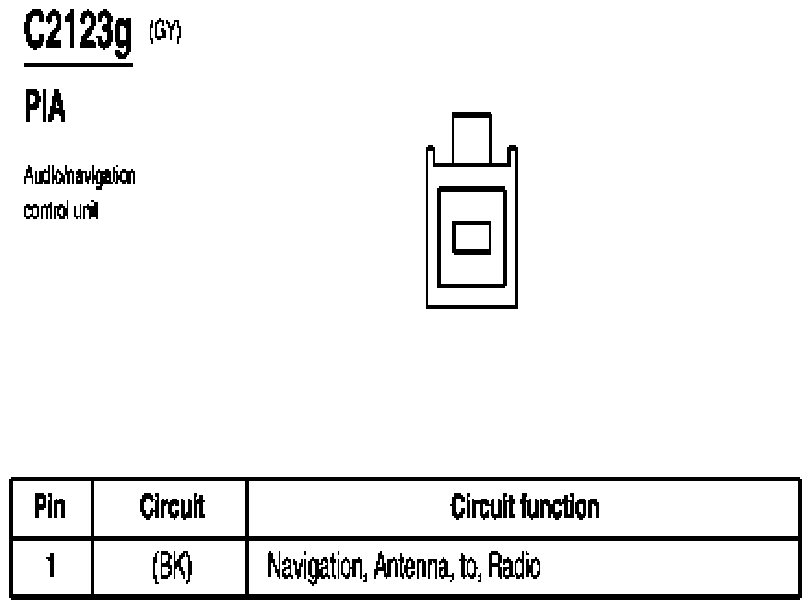

Fig 329: Audio/Navigation Control Unit Connector End View (C2123g)

G07843924

Courtesy of FORD MOTOR CO.

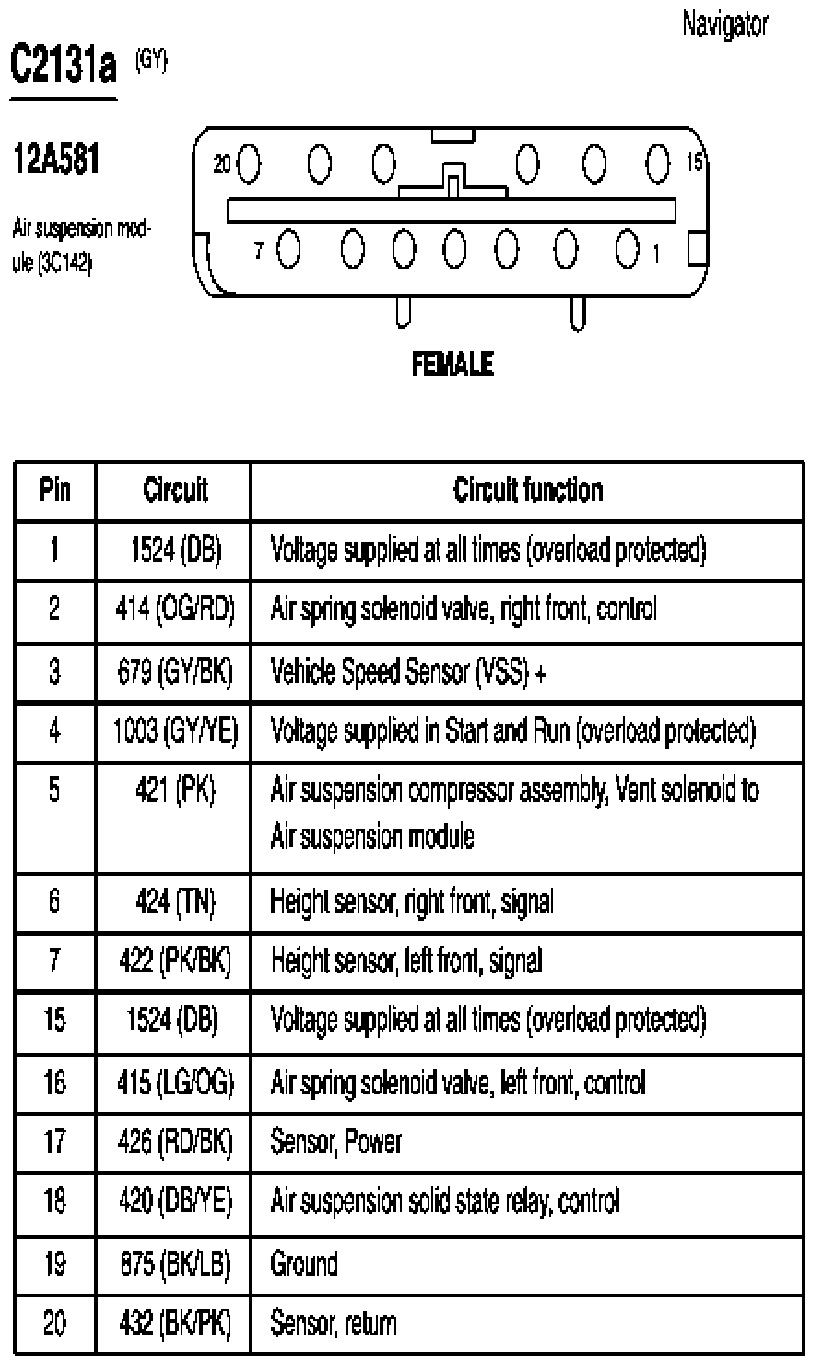

Fig 330: Air Suspension Module Connector End View (C2131a)

G07843925

Courtesy of FORD MOTOR CO.

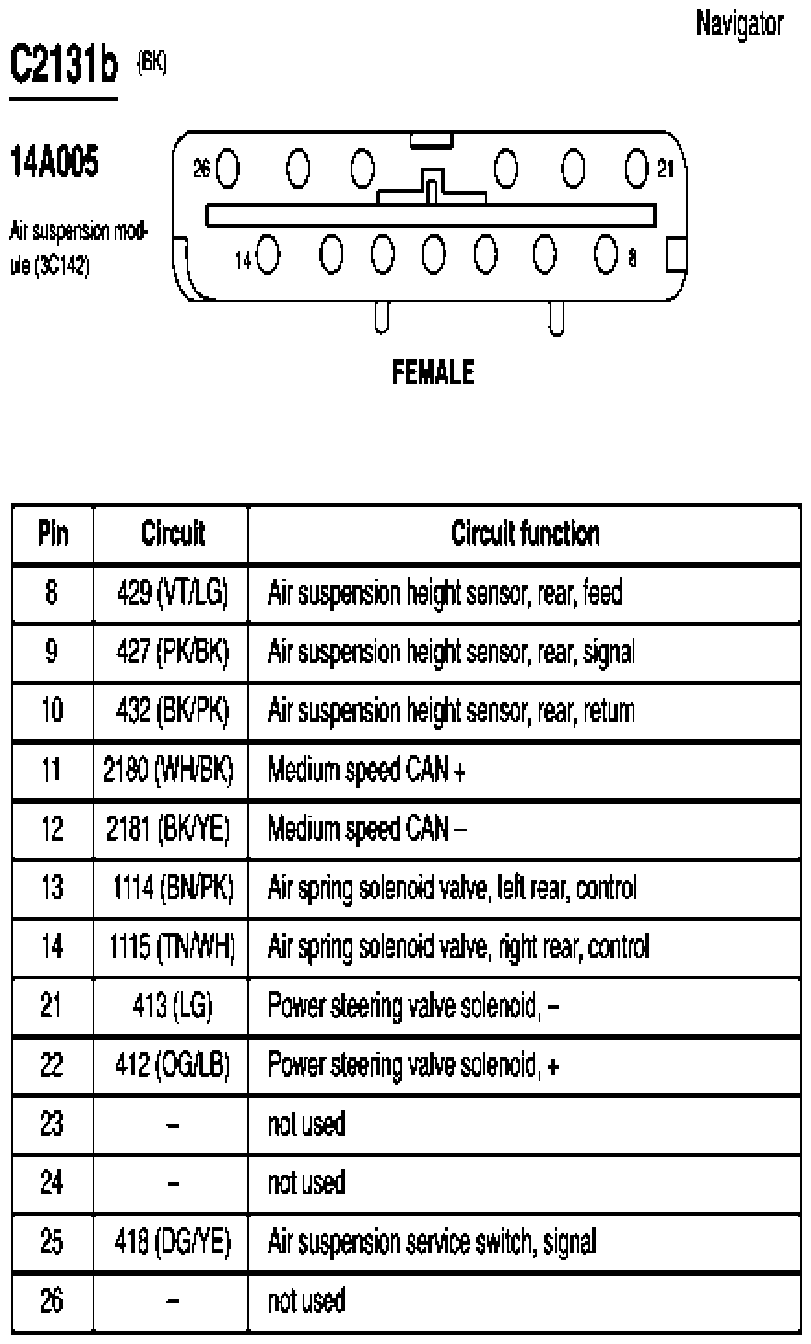

Fig 331: Air Suspension Module Connector End View (C2131b)

G07843926

Courtesy of FORD MOTOR CO.

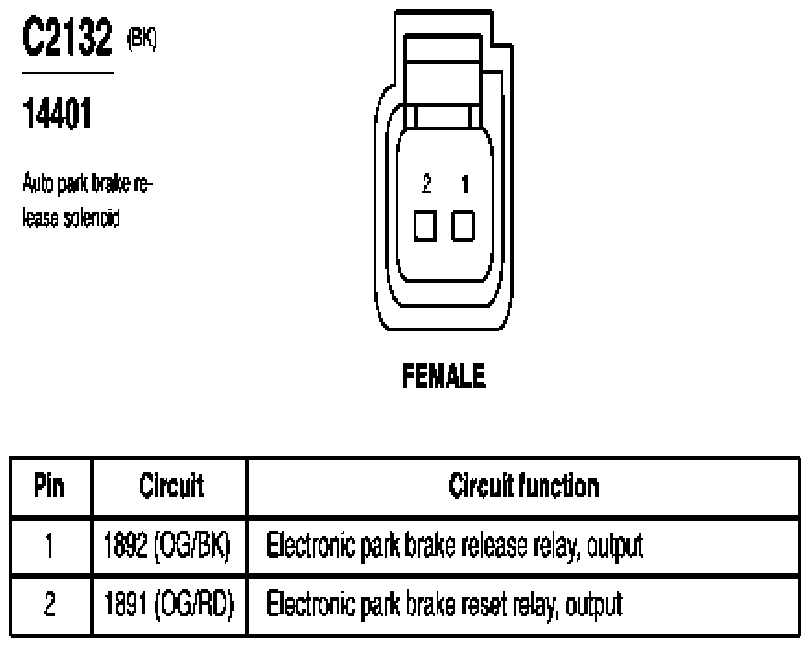

Fig 332: Auto Park Brake Release Solenoid Connector End View (C2132)

G07843927

Courtesy of FORD MOTOR CO.

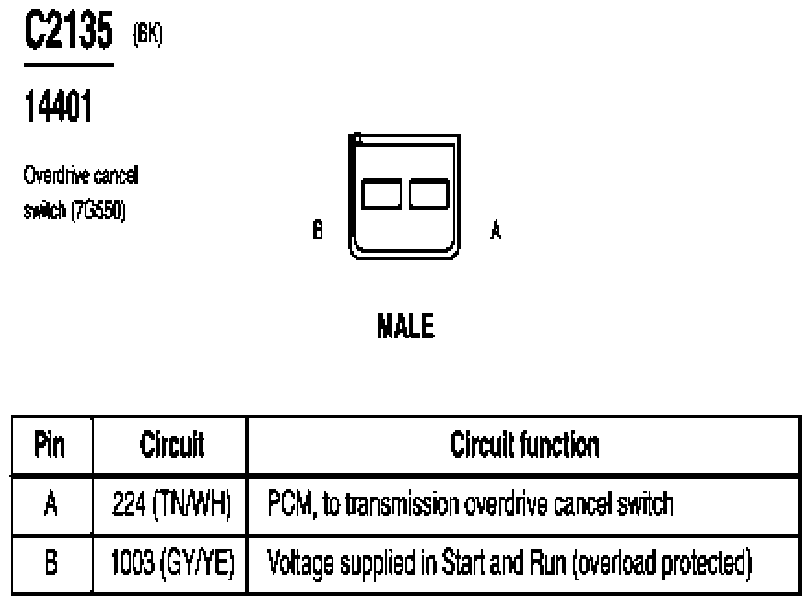

Fig 333: Overdrive Cancel Switch Connector End View (C2135)

G07843928

Courtesy of FORD MOTOR CO.

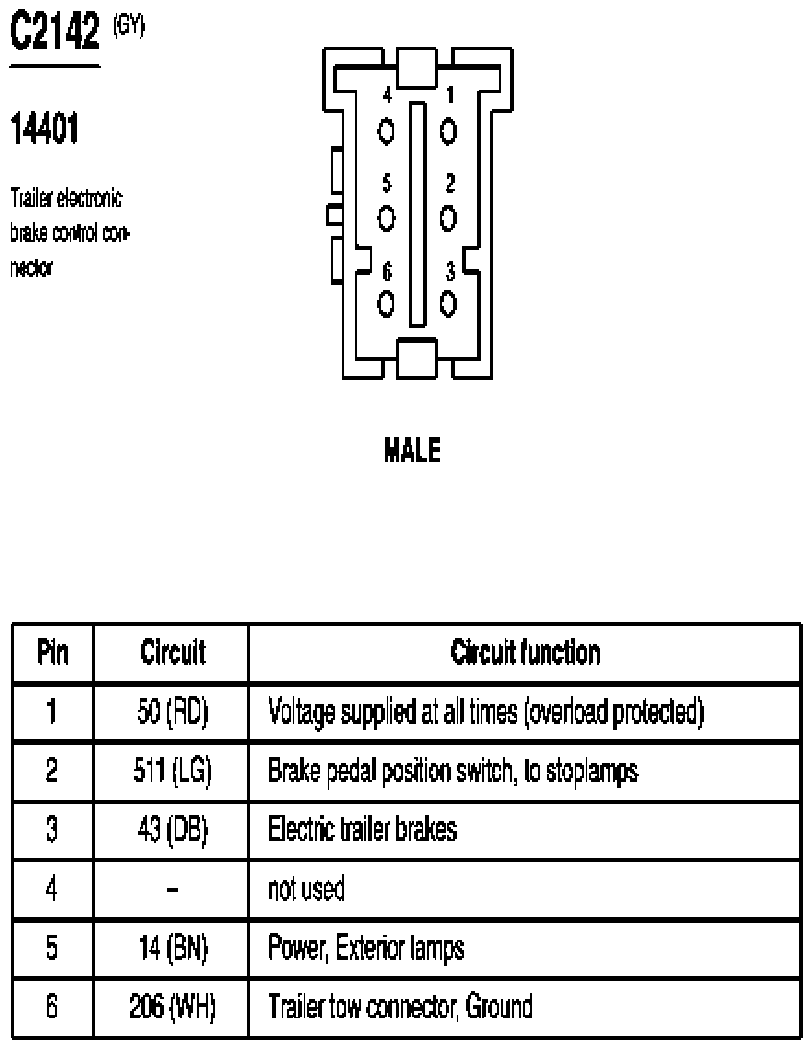

Fig 334: Trailer Electronic Brake Control Connector End View (C2142)

G07843929

Courtesy of FORD MOTOR CO.

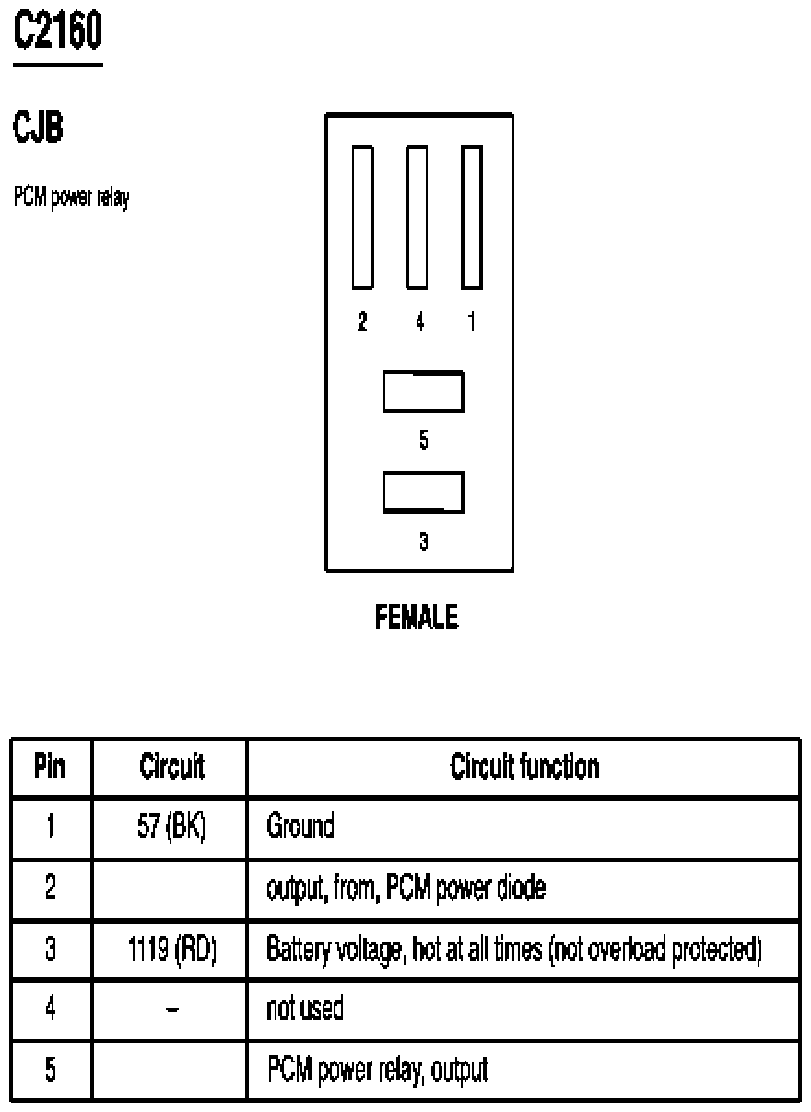

Fig 335: PCM Power Relay Connector End View (C2160)

G07843930

Courtesy of FORD MOTOR CO.

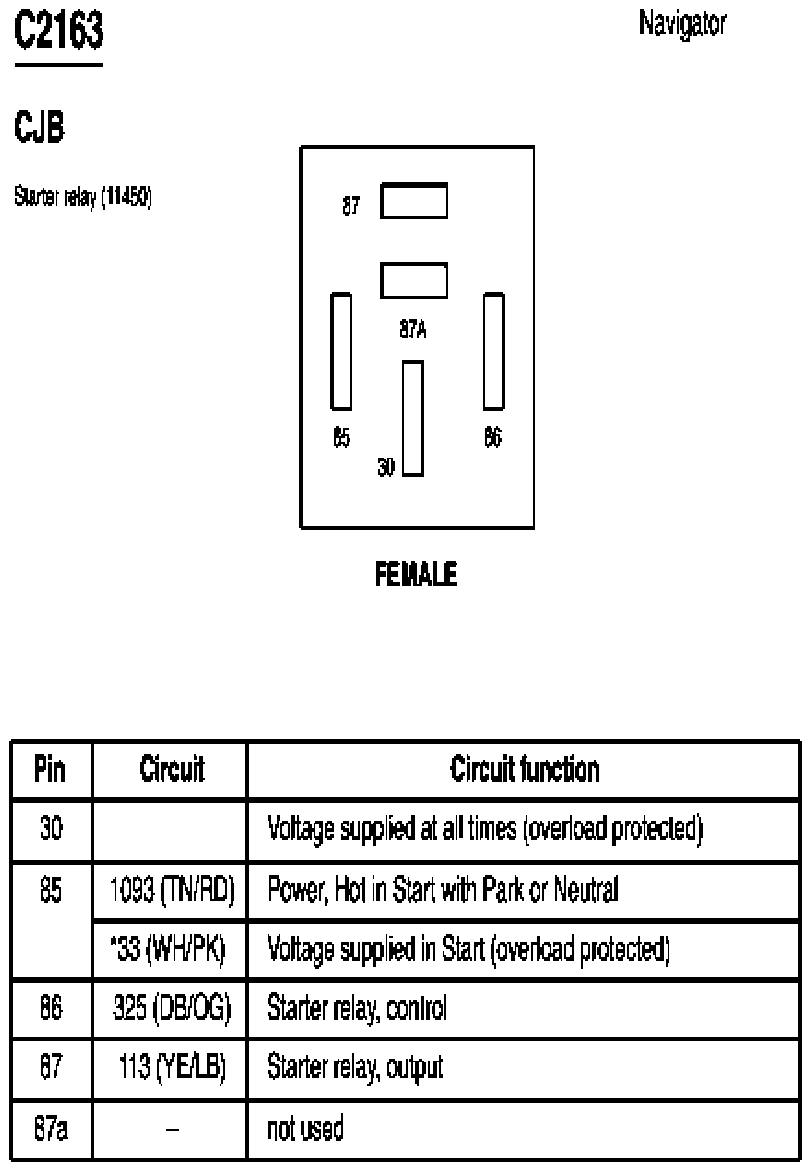

Fig 336: Starter Relay Connector End View (C2163)

G07843931

Courtesy of FORD MOTOR CO.

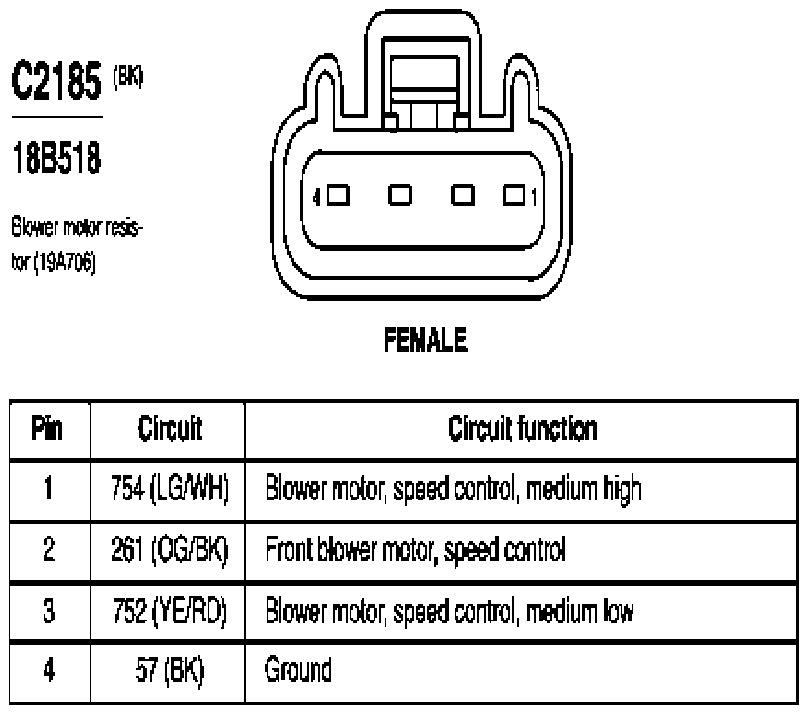

Fig 337: Blower Motor Resistor Connector End View (C2185)

G07843932

Courtesy of FORD MOTOR CO.

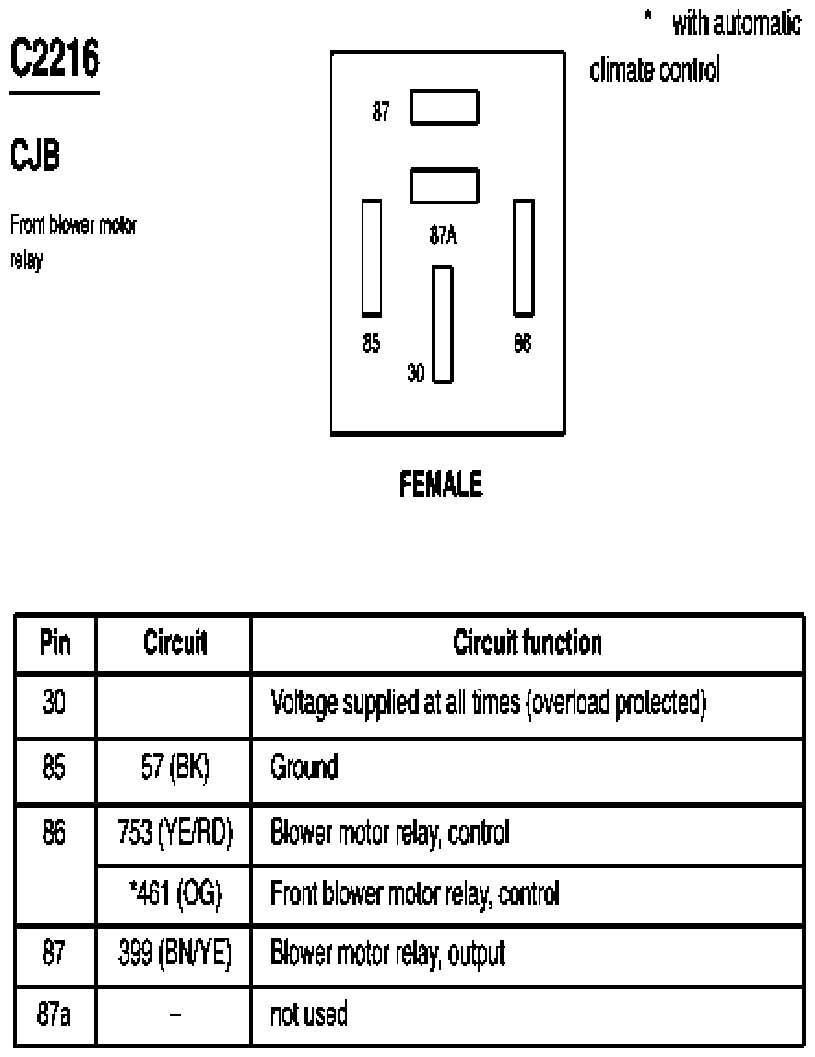

Fig 338: Front Blower Motor Relay Connector End View (C2216)

G07843933

Courtesy of FORD MOTOR CO.

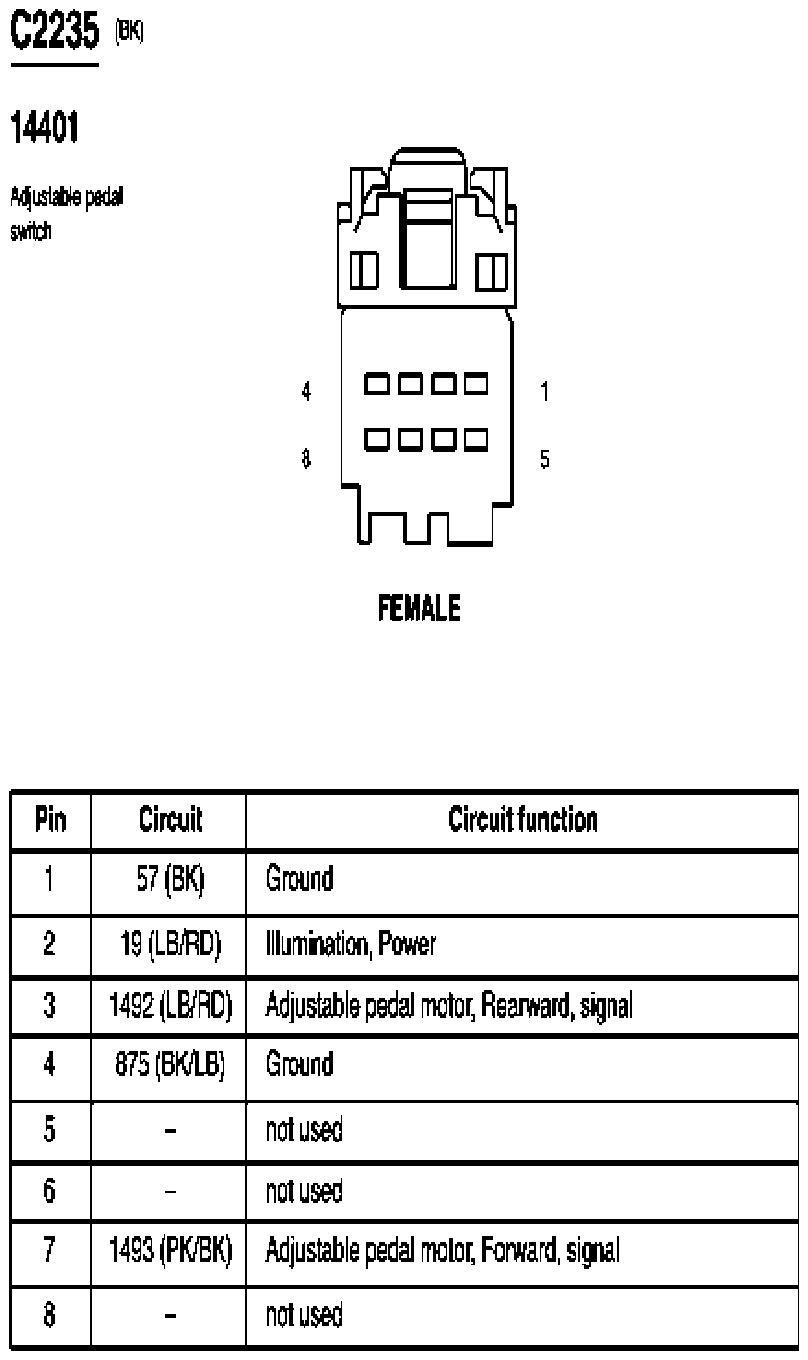

Fig 339: Adjustable Pedal Switch Connector End View (C2235)

G07843934

Courtesy of FORD MOTOR CO.

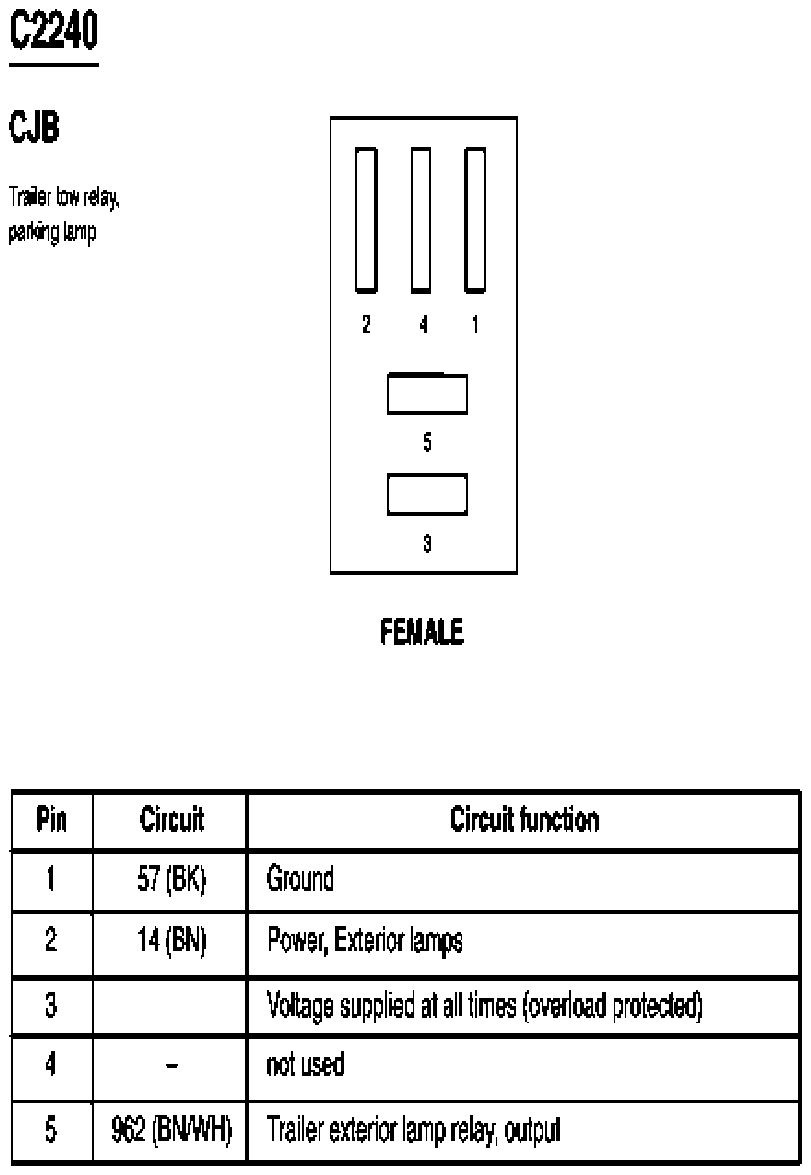

Fig 340: Trailer Tow Relay, Parking Pump Connector End View (C2240)

G07843935

Courtesy of FORD MOTOR CO.

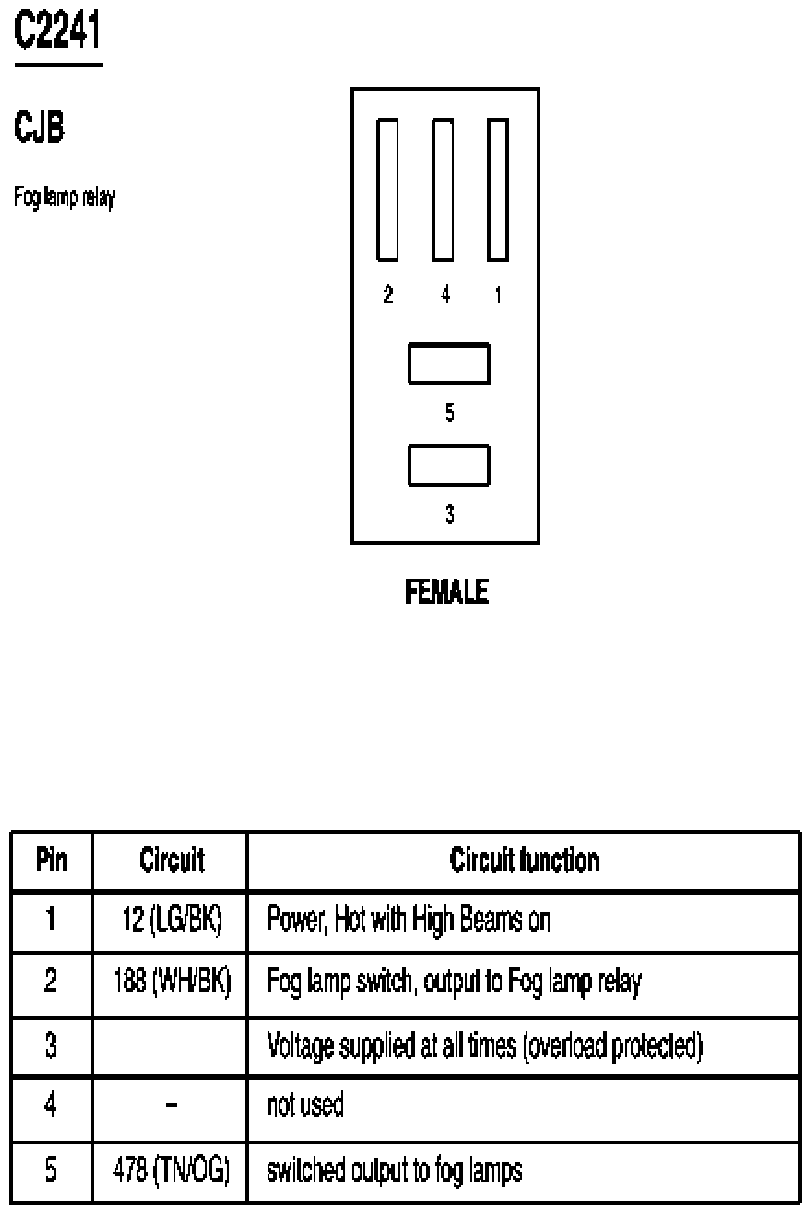

Fig 341: Fog Lamp Relay Connector End View (C2241)

G07843936

Courtesy of FORD MOTOR CO.

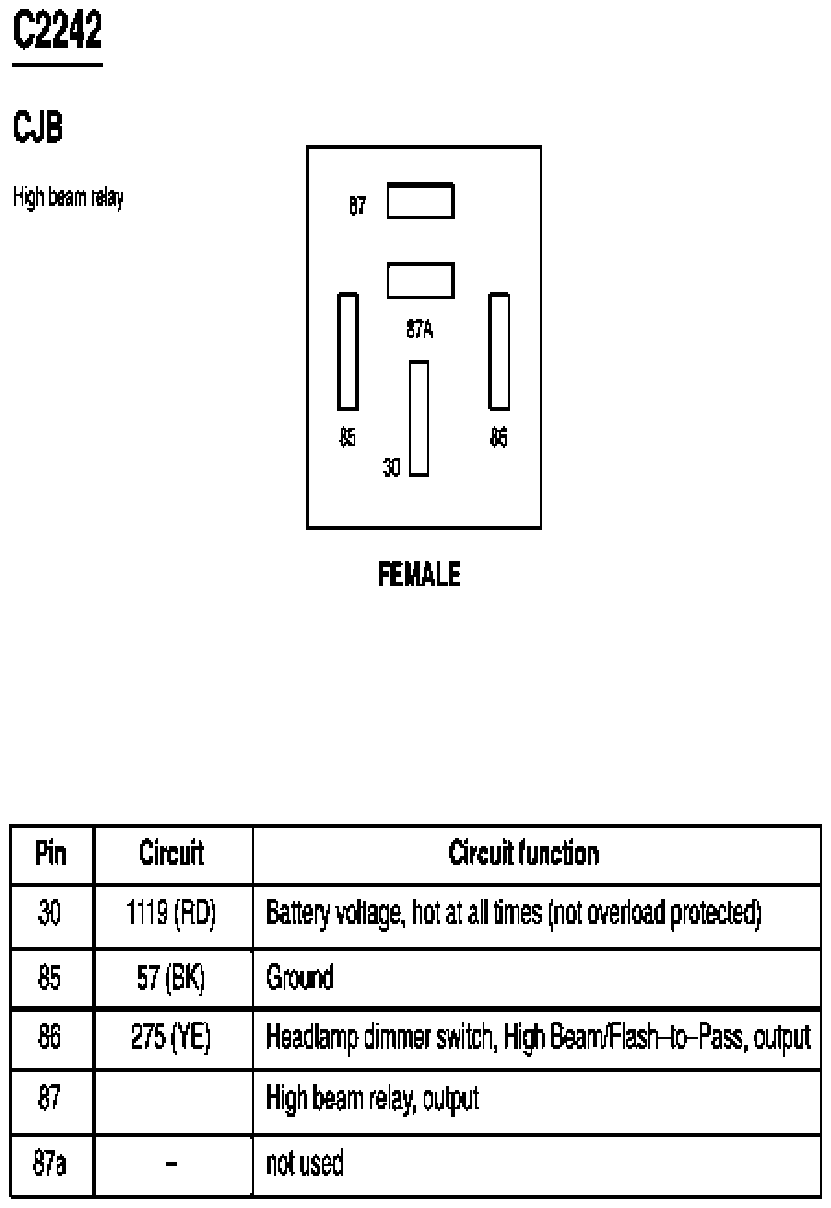

Fig 342: High Beam Relay Connector End View (C2242)

G07843937

Courtesy of FORD MOTOR CO.

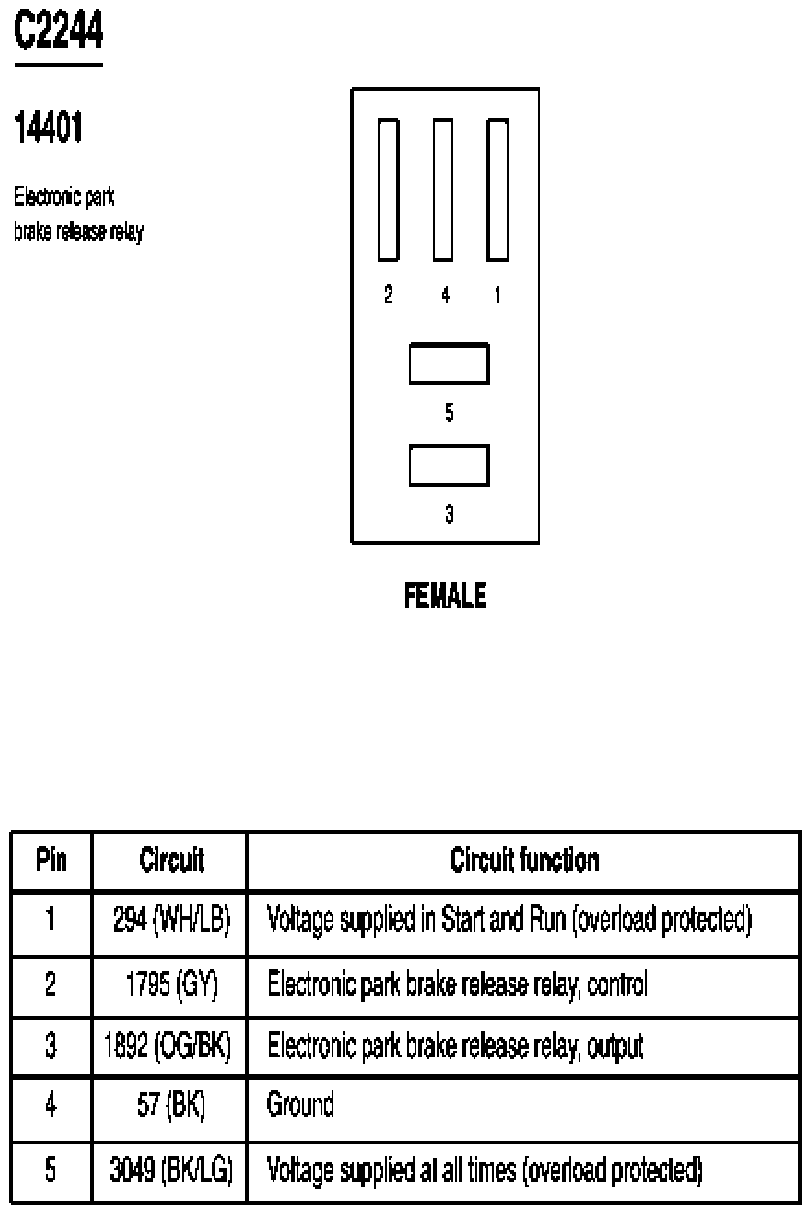

Fig 343: Electronic Park Brake Release Relay Connector End View (C2244)

G07843938

Courtesy of FORD MOTOR CO.

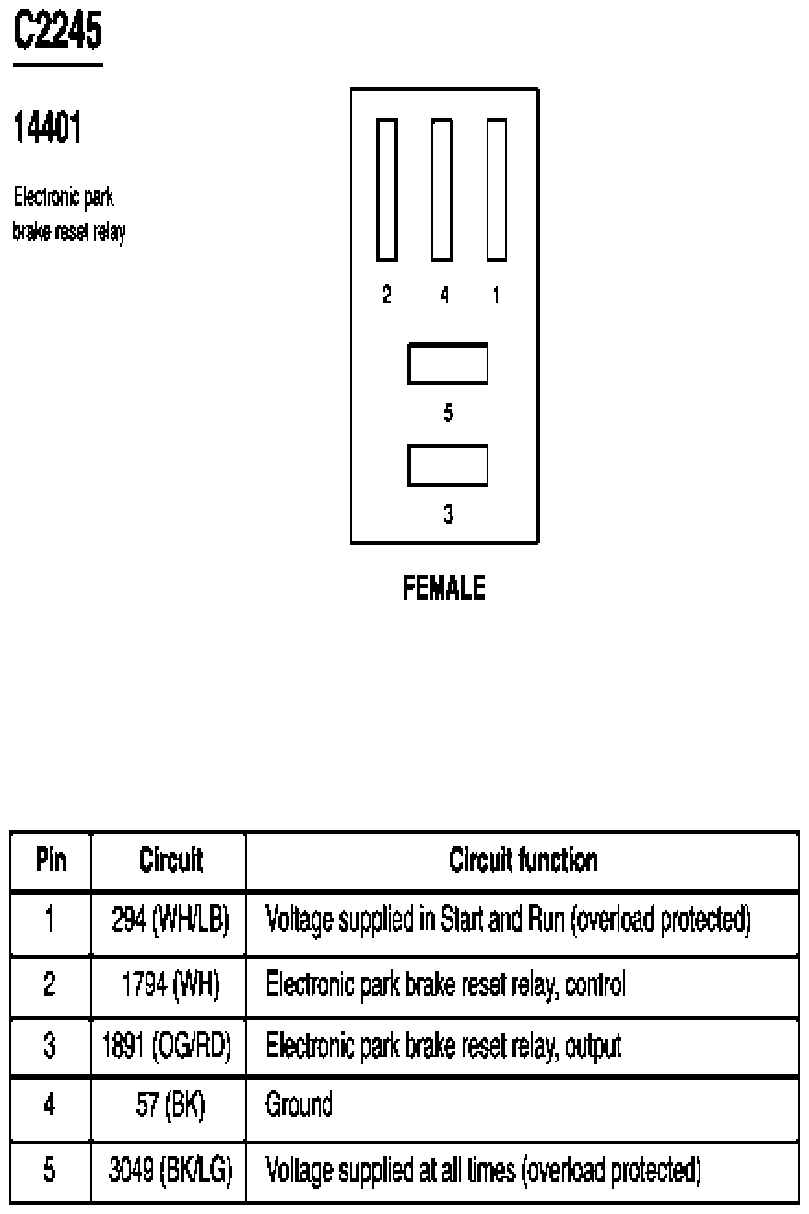

Fig 344: Electronic Park Brake Reset Relay Connector End View (C2245)

G07843939

Courtesy of FORD MOTOR CO.

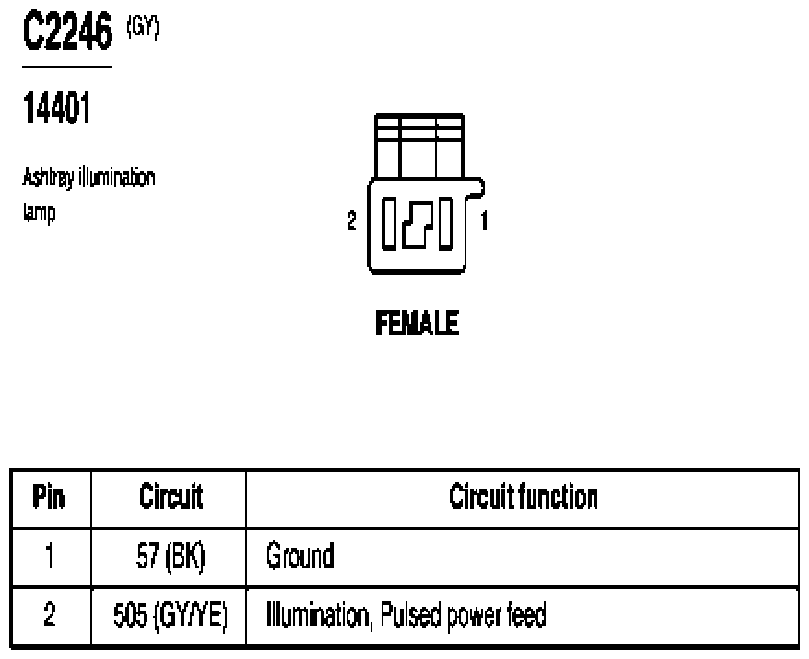

Fig 345: Ashtray Illumination Lamp Connector End View (C2246)

G07843940

Courtesy of FORD MOTOR CO.

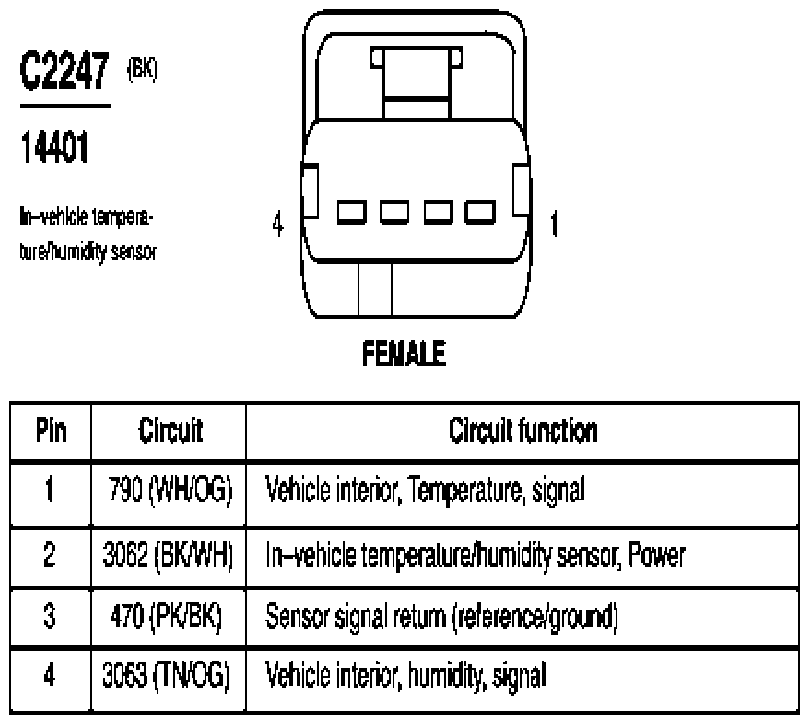

Fig 346: In-Vehicle Temperature/Humidity Sensor Connector End View (C2247)

G07843941

Courtesy of FORD MOTOR CO.

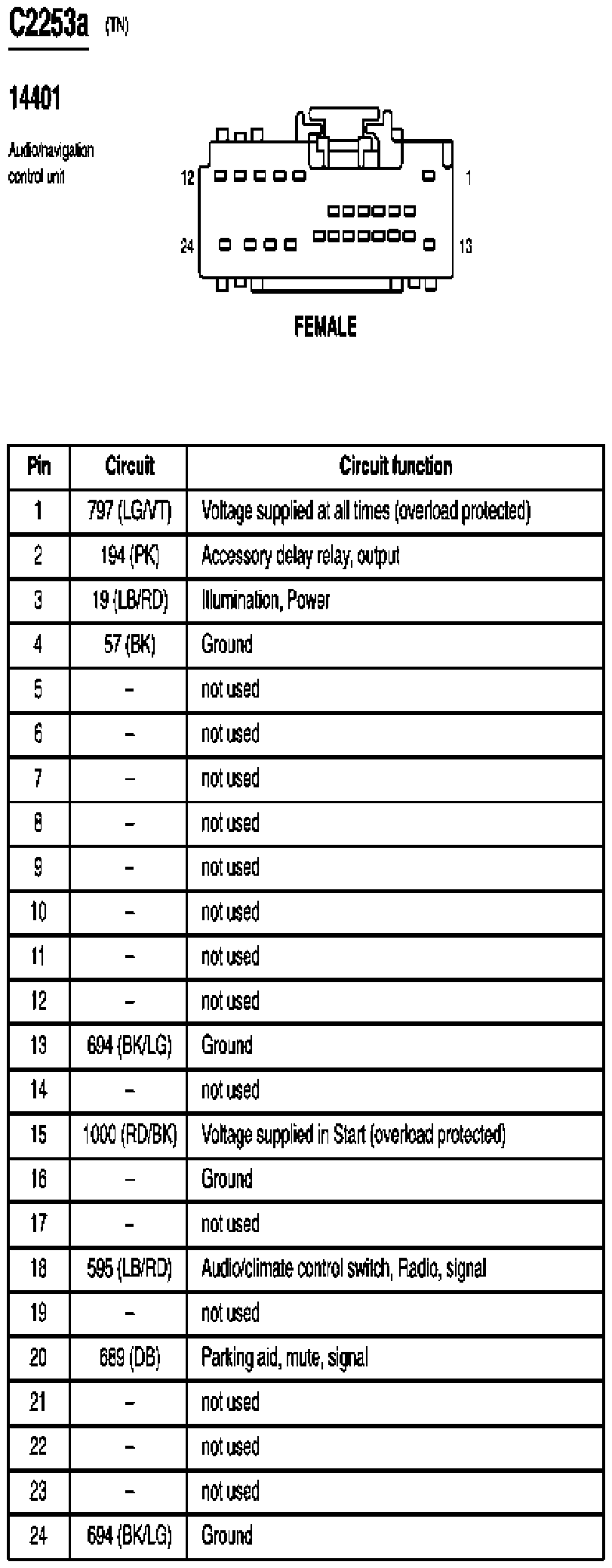

Fig 347: Audio/Navigation Control Unit Connector End View (C2253a)

G07843942

Courtesy of FORD MOTOR CO.

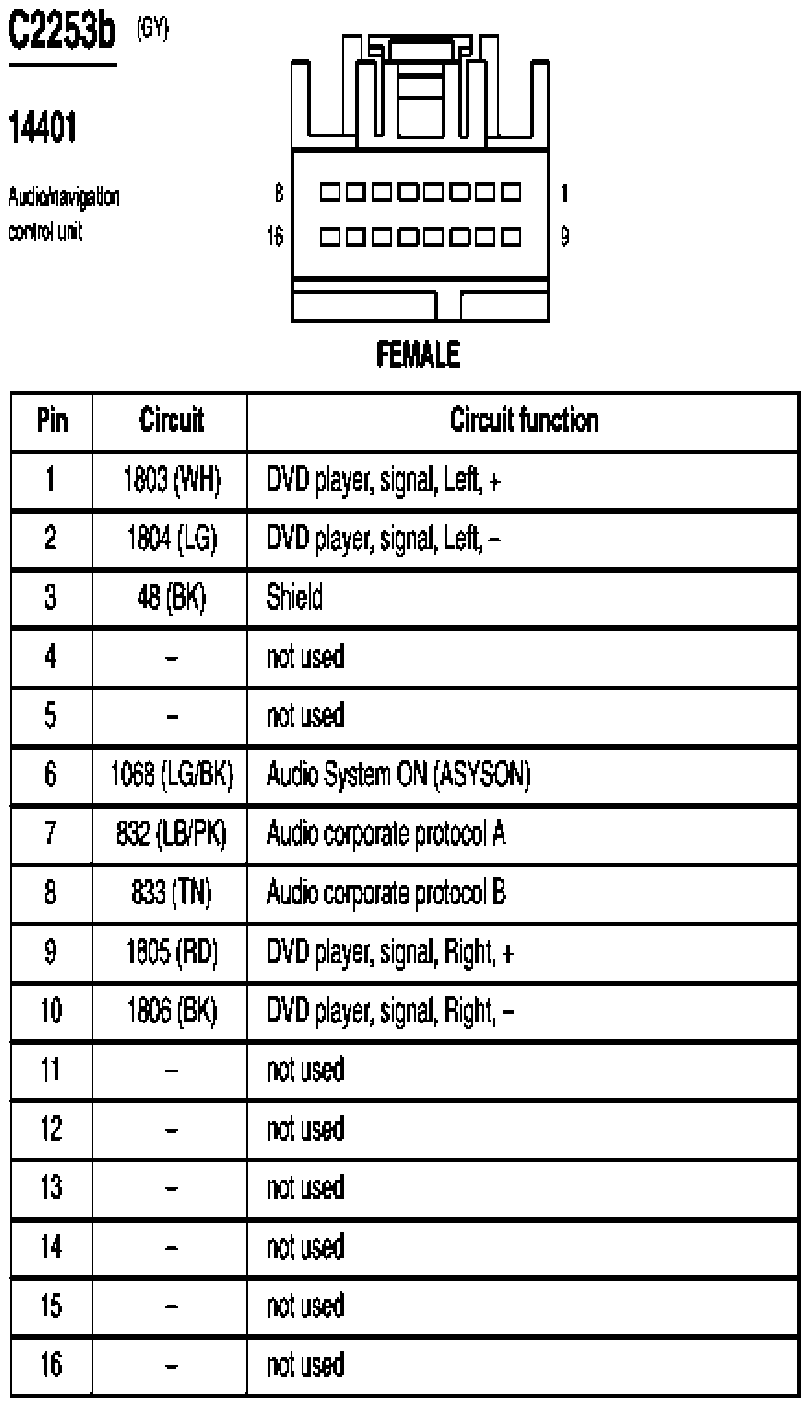

Fig 348: Audio/Navigation Control Unit Connector End View (C2253b)

G07843943

Courtesy of FORD MOTOR CO.

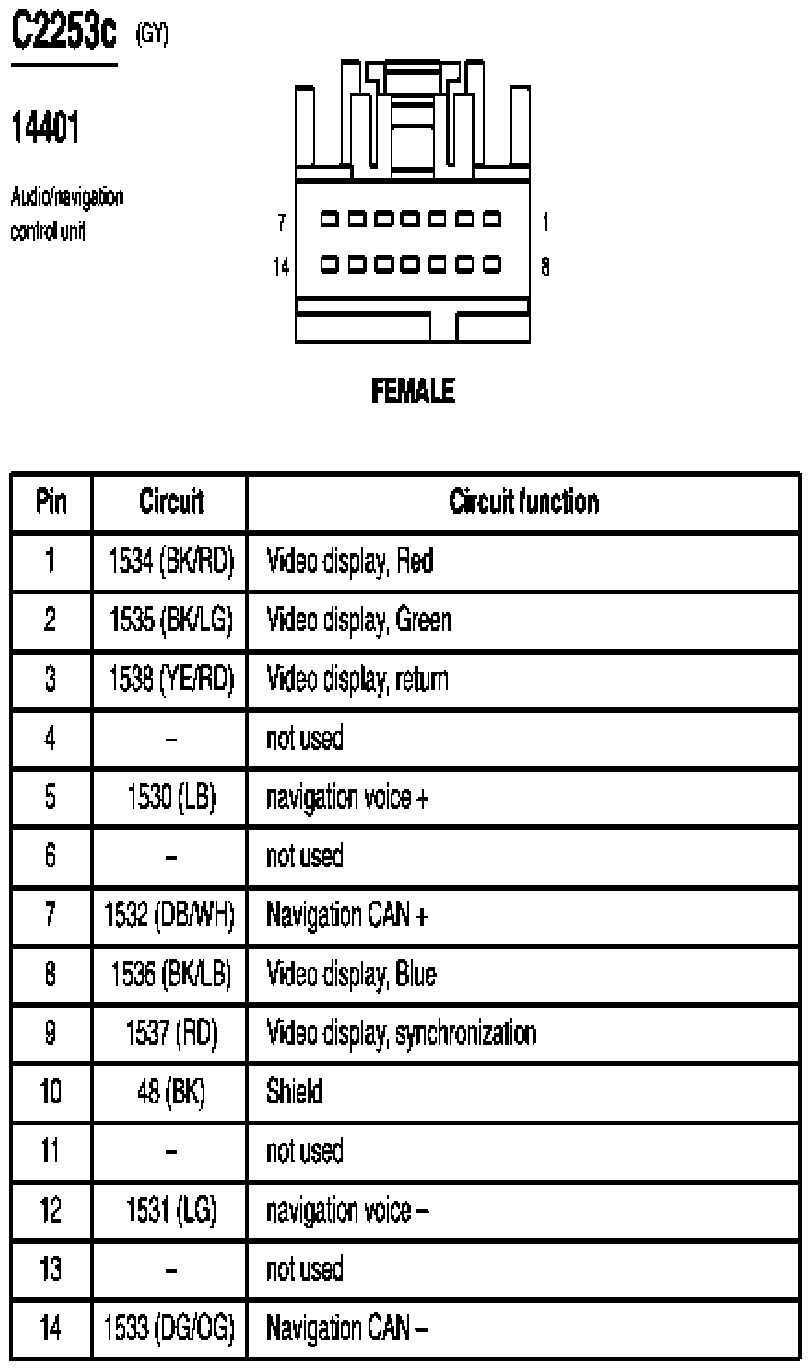

Fig 349: Audio/Navigation Control Unit Connector End View (C2253c)

G07843944

Courtesy of FORD MOTOR CO.

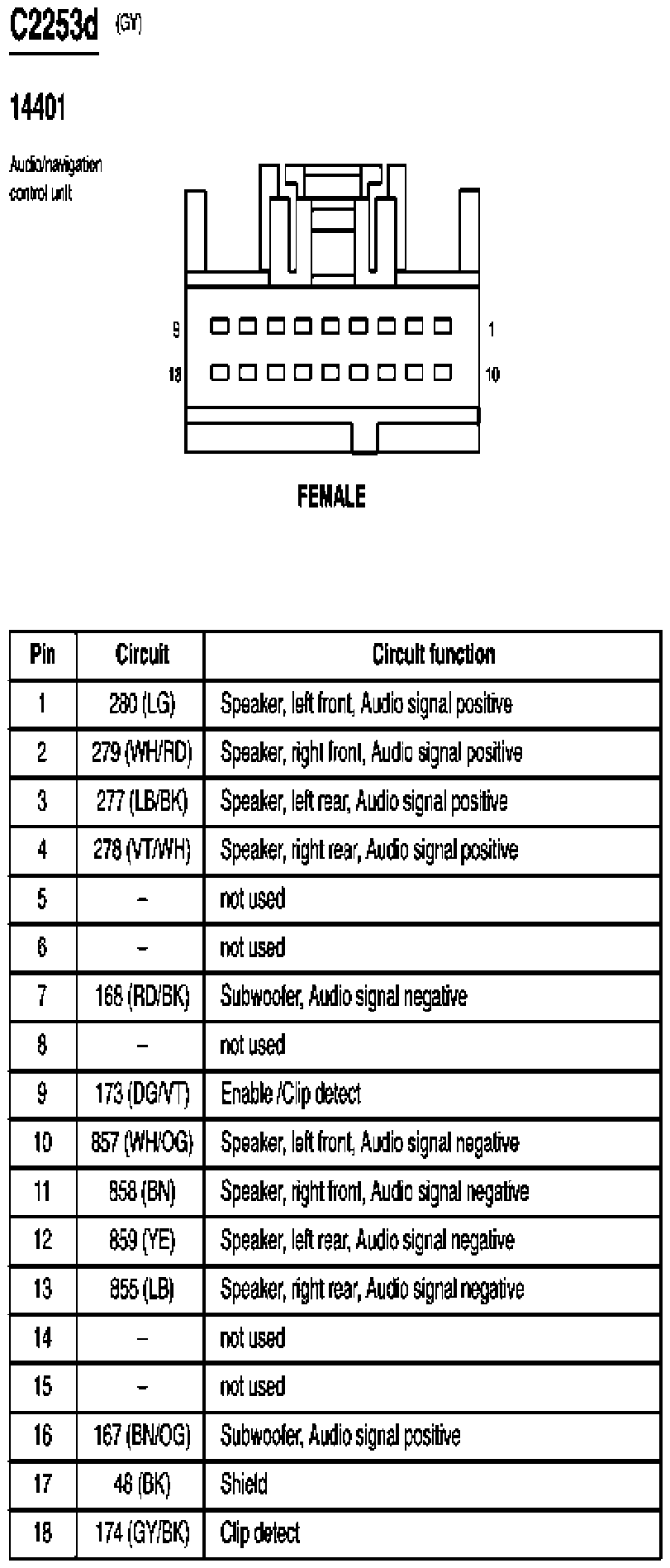

Fig 350: Audio/Navigation Control Unit Connector End View (C2253d)

G07843945

Courtesy of FORD MOTOR CO.

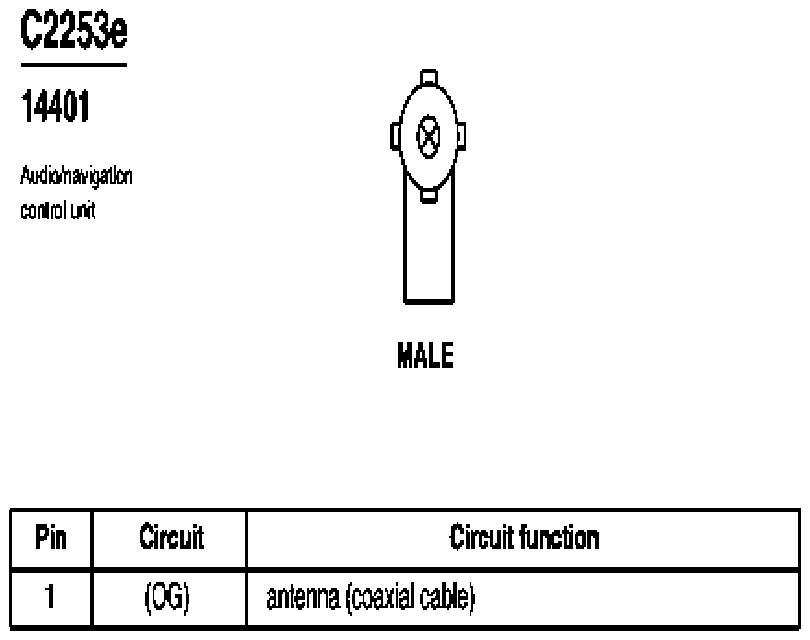

Fig 351: Audio/Navigation Control Unit Connector End View (C2253e)

G07843946

Courtesy of FORD MOTOR CO.

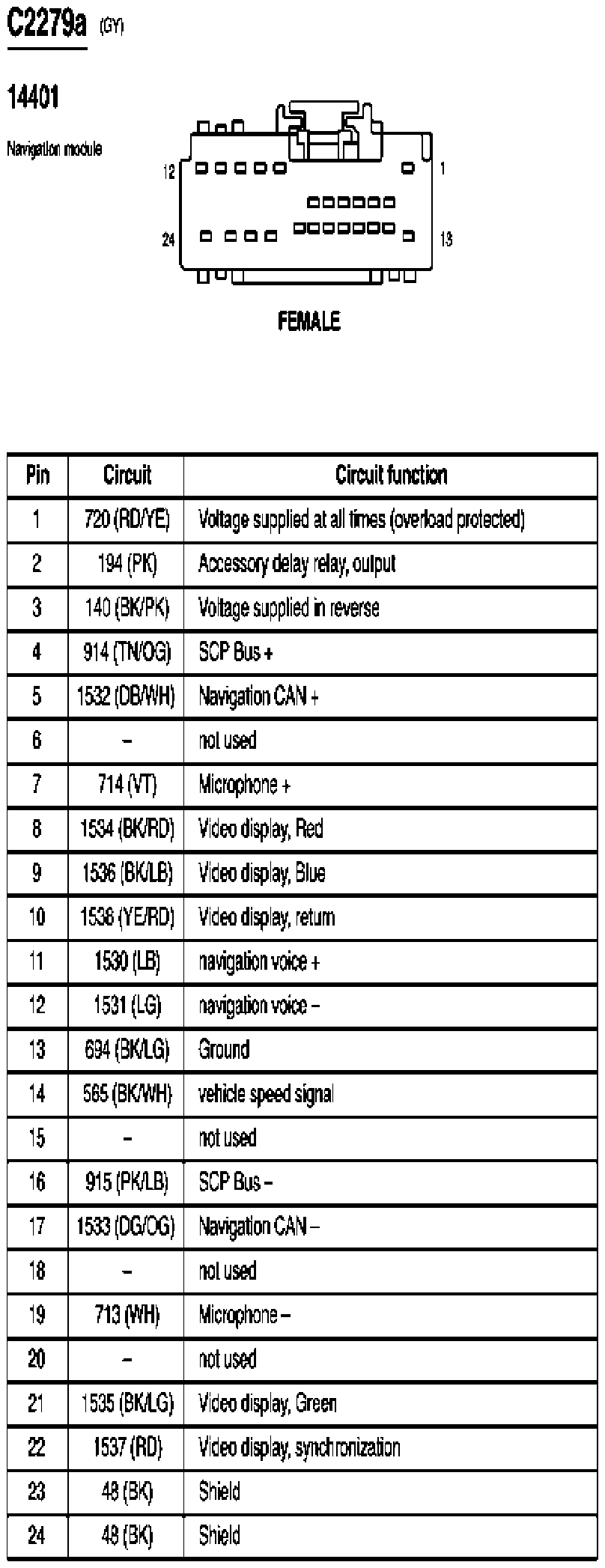

Fig 352: Navigation Module Connector End View (C2279a)

G07843947

Courtesy of FORD MOTOR CO.

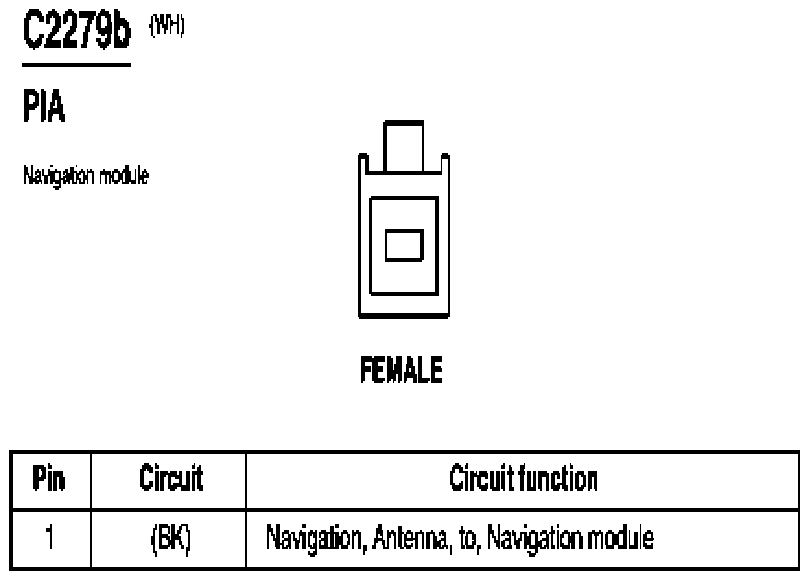

Fig 353: Navigation Module Connector End View (C2279b)

G07843948

Courtesy of FORD MOTOR CO.

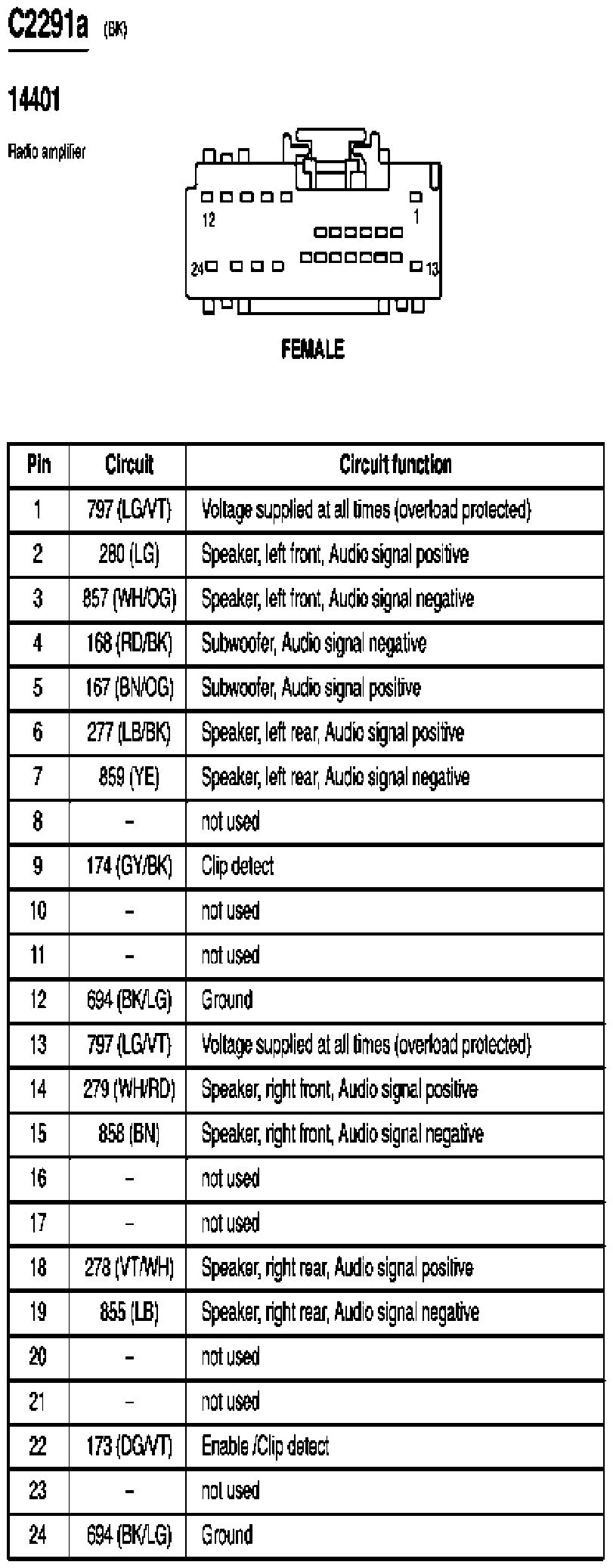

Fig 354: Radio Amplifier Connector End View (C2291a)

G07843949

Courtesy of FORD MOTOR CO.

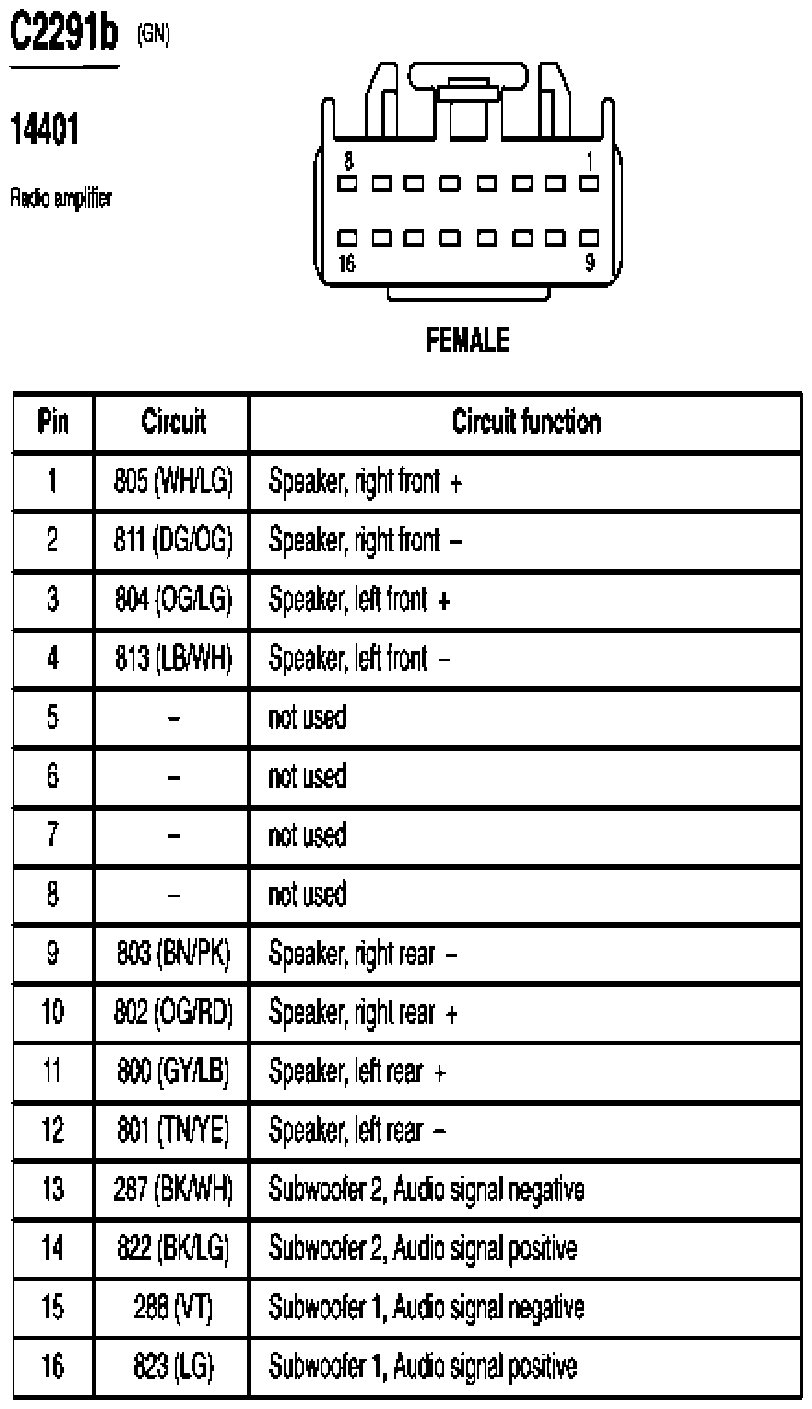

Fig 355: Radio Amplifier Connector End View (C2291b)

G07843950

Courtesy of FORD MOTOR CO.

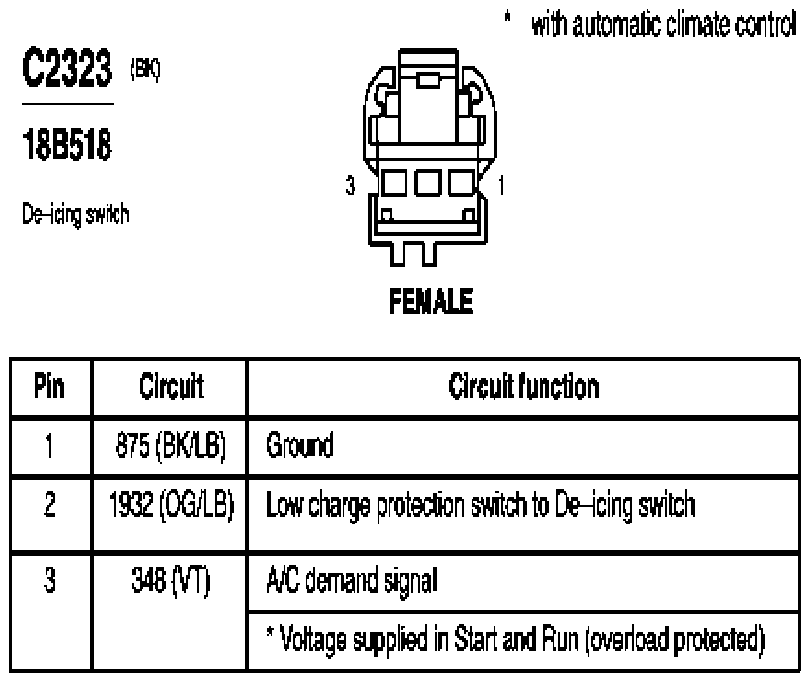

Fig 356: De-Icing Switch Connector End View (C2323)

G07843951

Courtesy of FORD MOTOR CO.

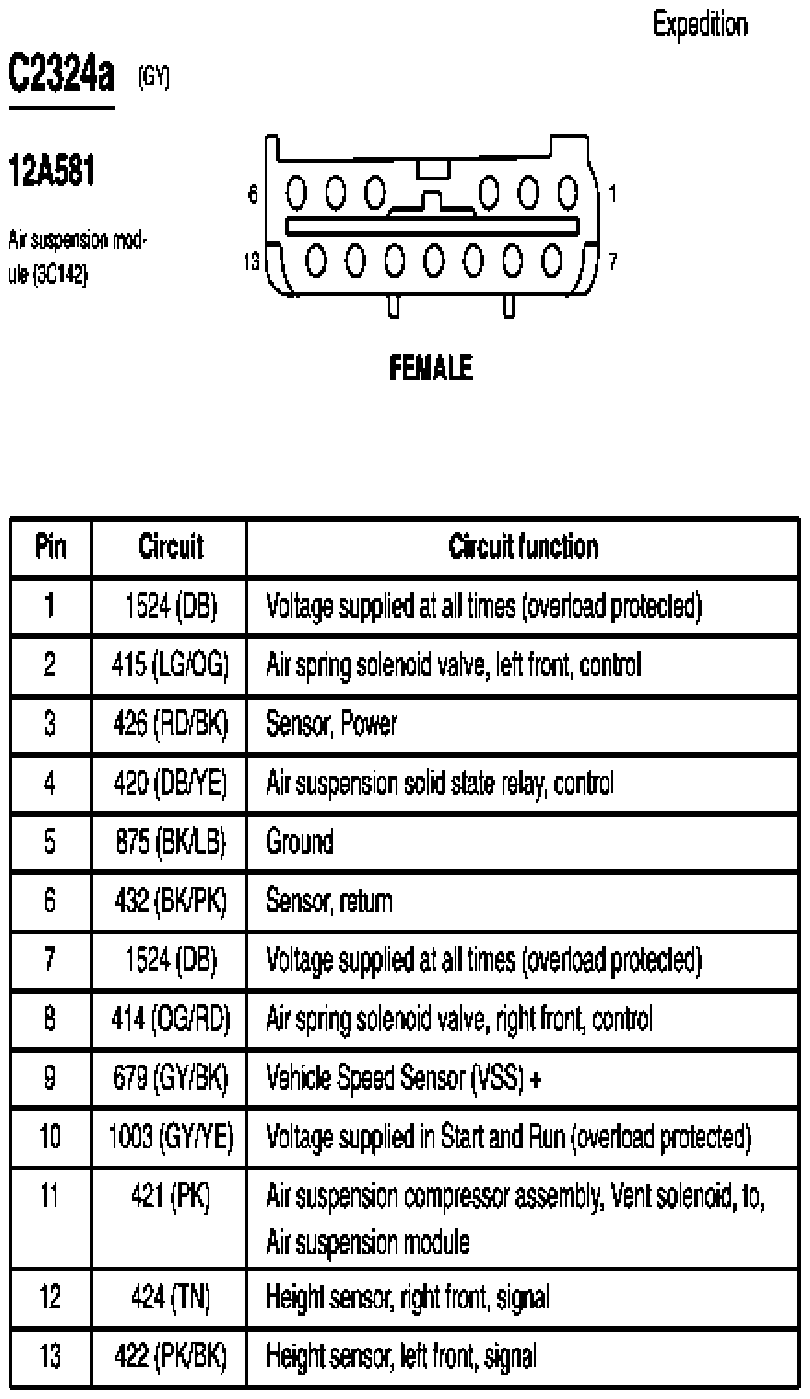

Fig 357: Air Suspension Module Connector End View (C2324a)

G07843952

Courtesy of FORD MOTOR CO.

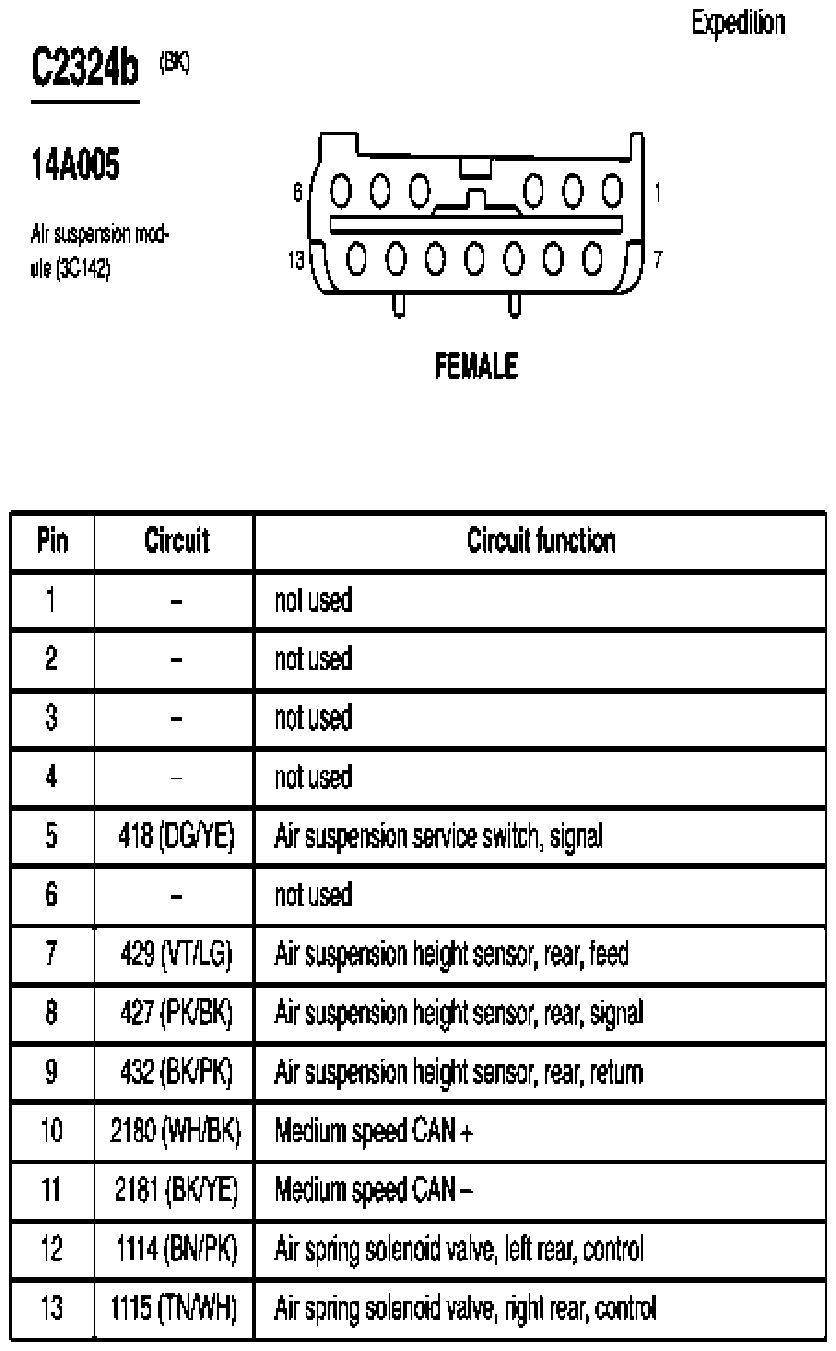

Fig 358: Air Suspension Module Connector End View (C2324b)

G07843953

Courtesy of FORD MOTOR CO.

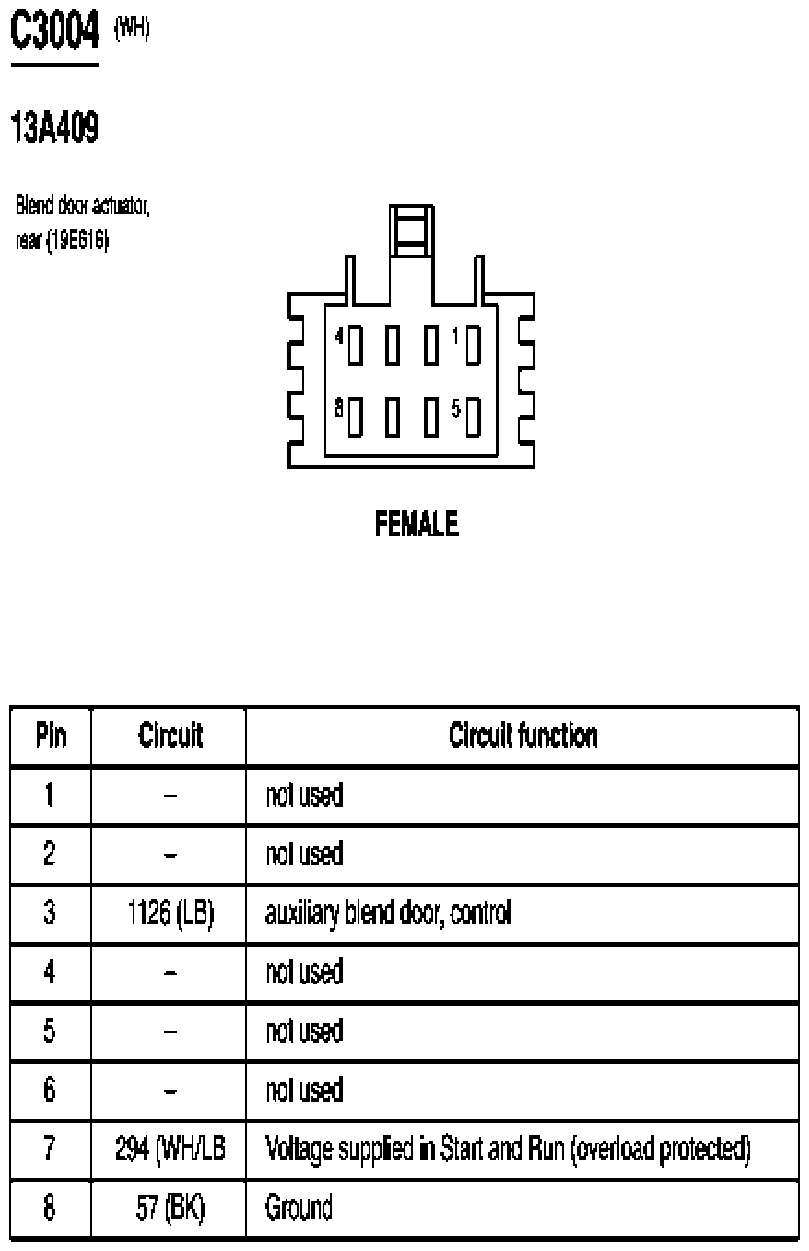

Fig 359: Blend Door Actuator, Rear Connector End View (C3004)

G07843954

Courtesy of FORD MOTOR CO.

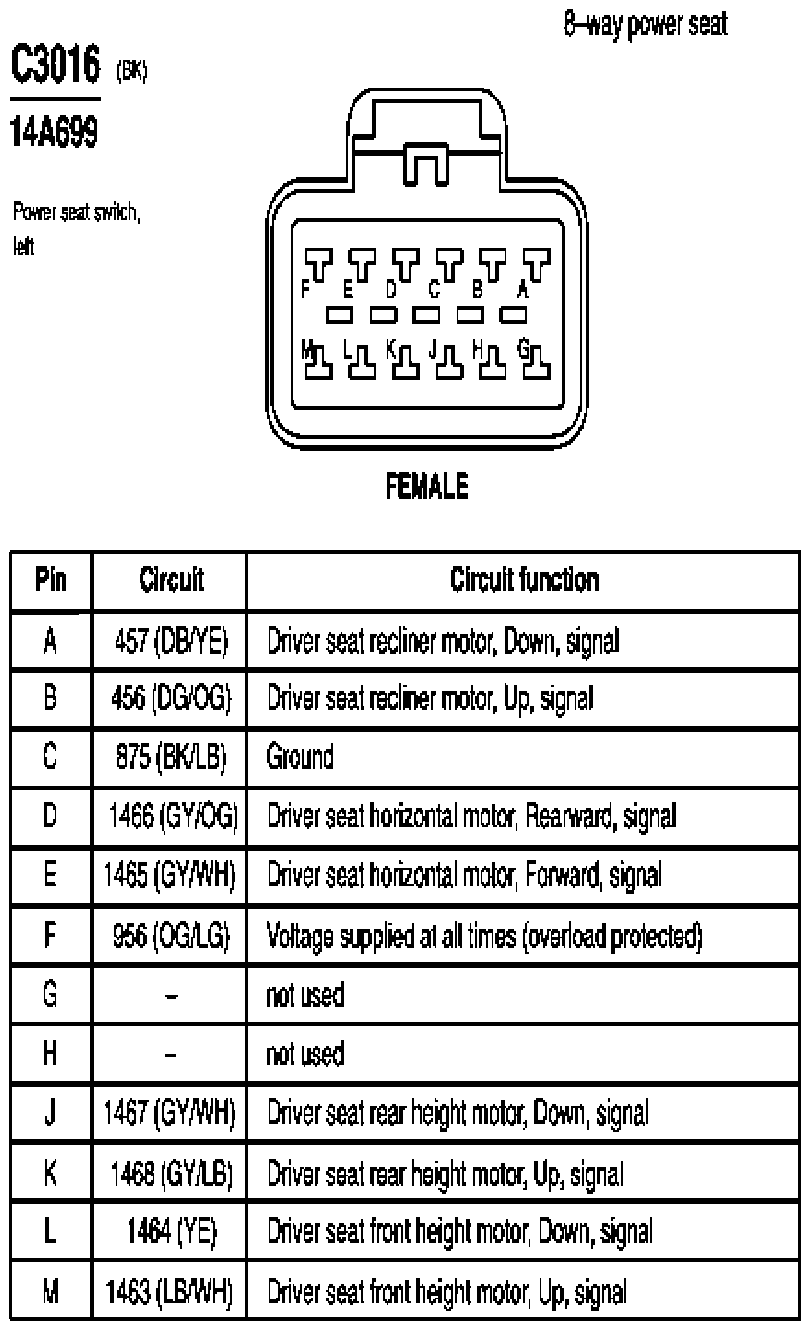

Fig 360: Power Seat Switch, Left Connector End View (C3016)

G07843955

Courtesy of FORD MOTOR CO.

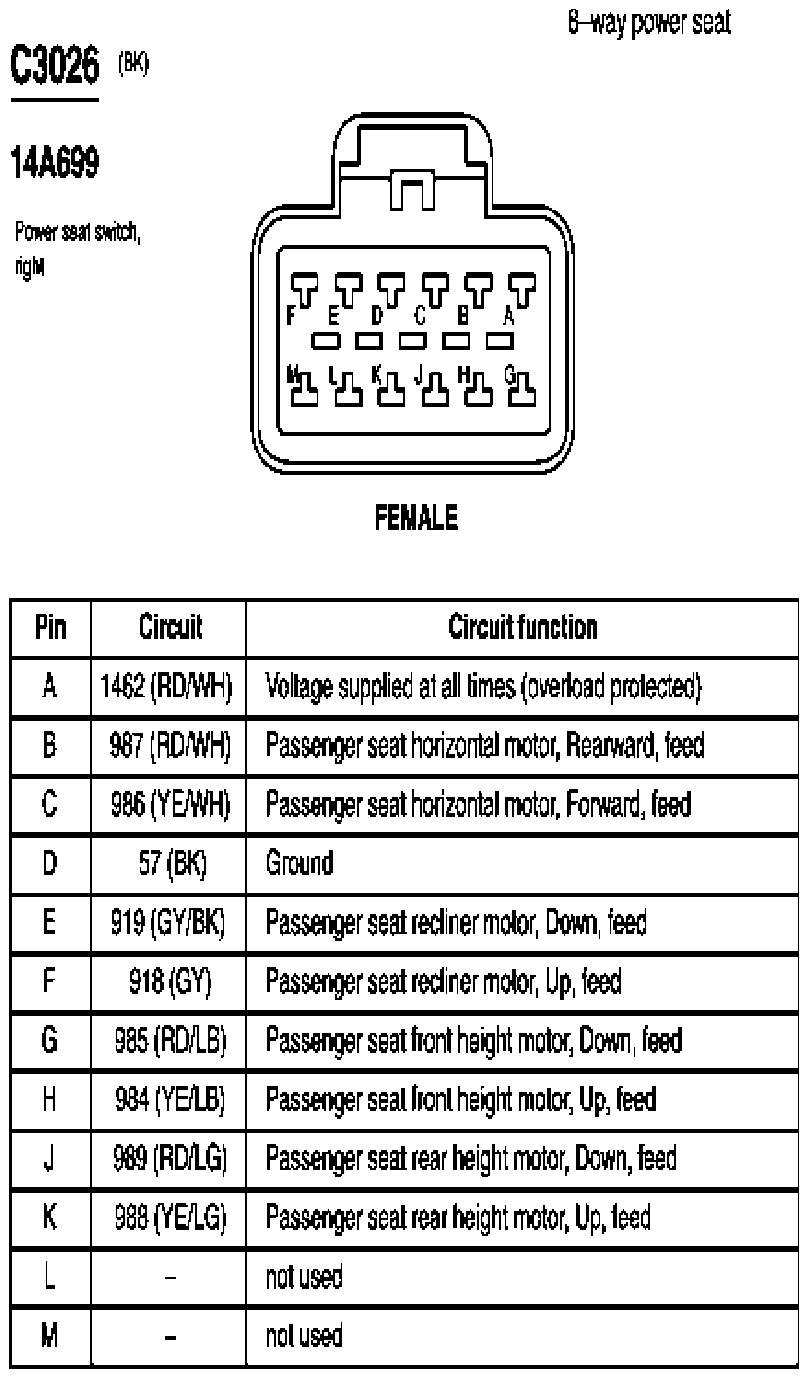

Fig 361: Power Seat Switch, Right Connector End View (C3026)

G07843956

Courtesy of FORD MOTOR CO.

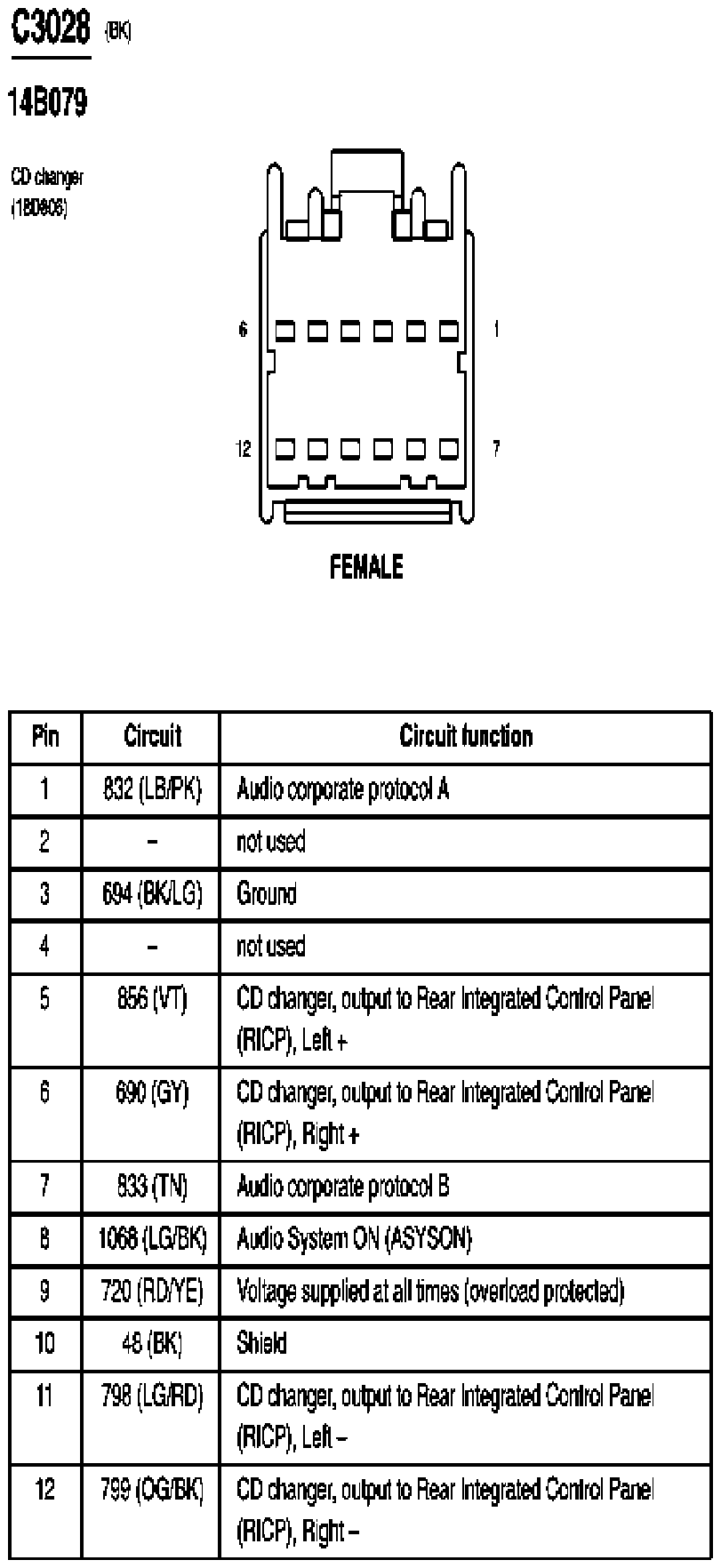

Fig 362: CD Changer Connector End View (C3028)

G07843957

Courtesy of FORD MOTOR CO.

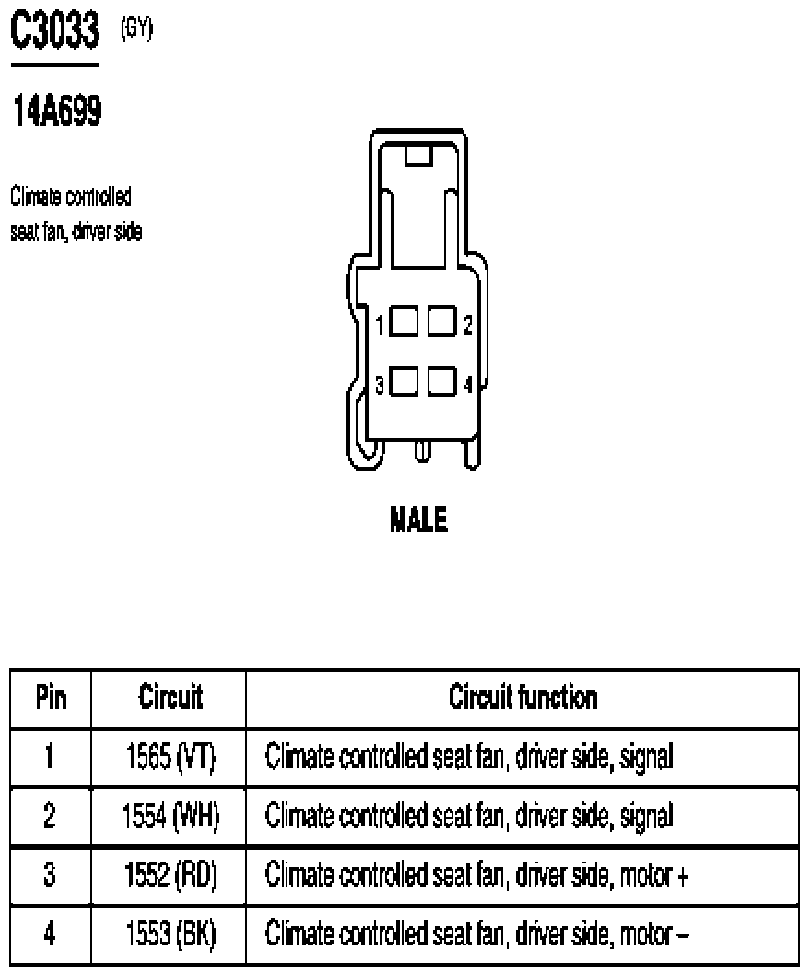

Fig 363: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)

G07843958

Courtesy of FORD MOTOR CO.

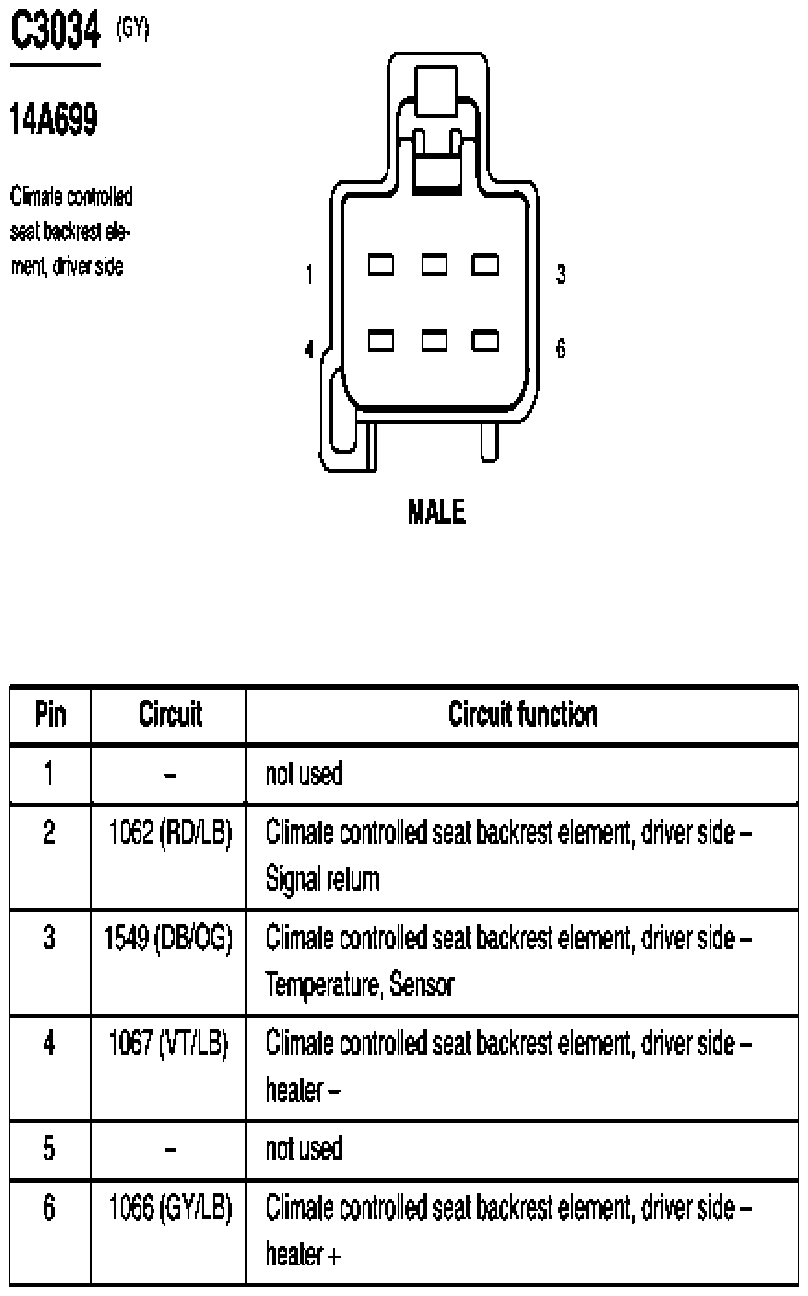

Fig 364: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)

G07843959

Courtesy of FORD MOTOR CO.

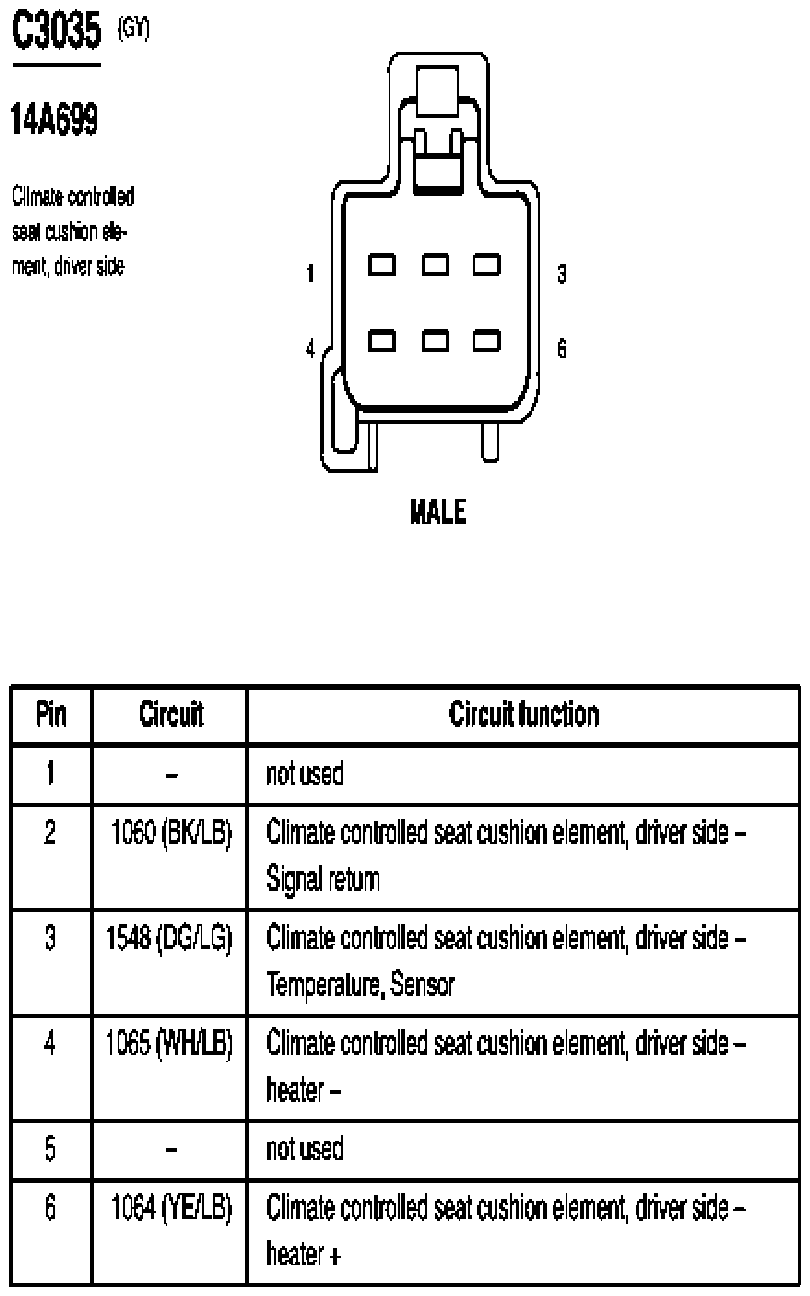

Fig 365: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)

G07843960

Courtesy of FORD MOTOR CO.

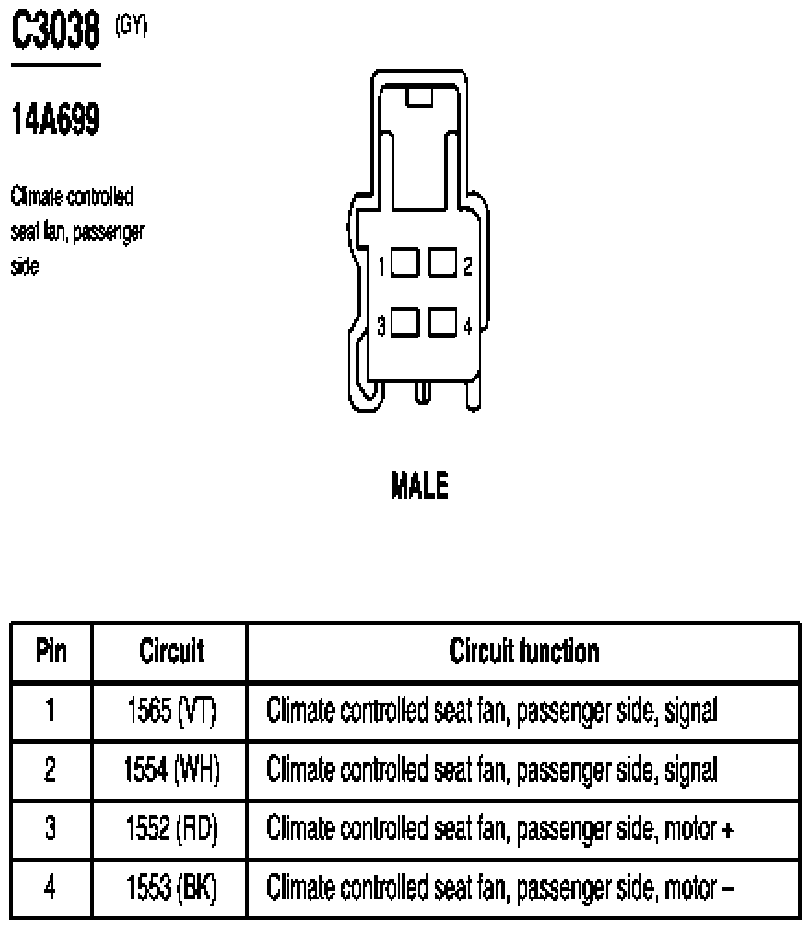

Fig 366: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)

G07843961

Courtesy of FORD MOTOR CO.

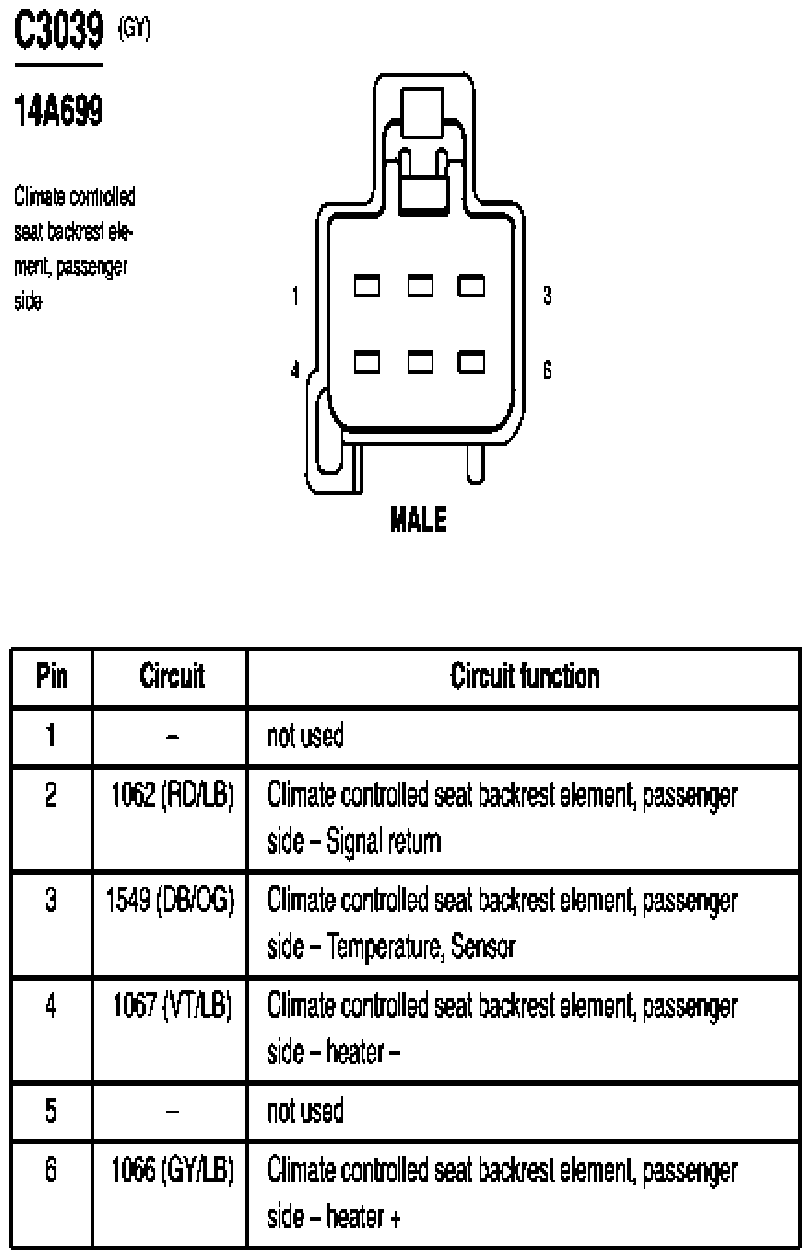

Fig 367: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)

G07843962

Courtesy of FORD MOTOR CO.

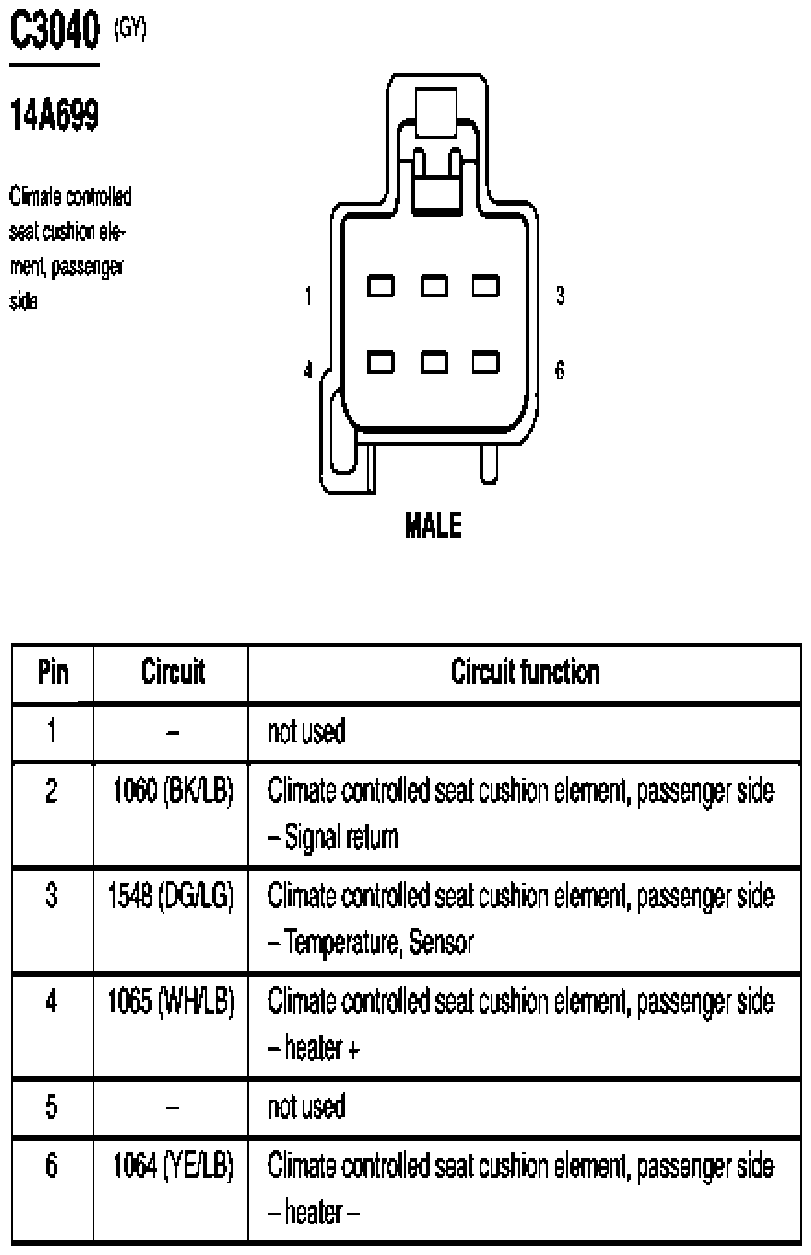

Fig 368: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)

G07843963

Courtesy of FORD MOTOR CO.

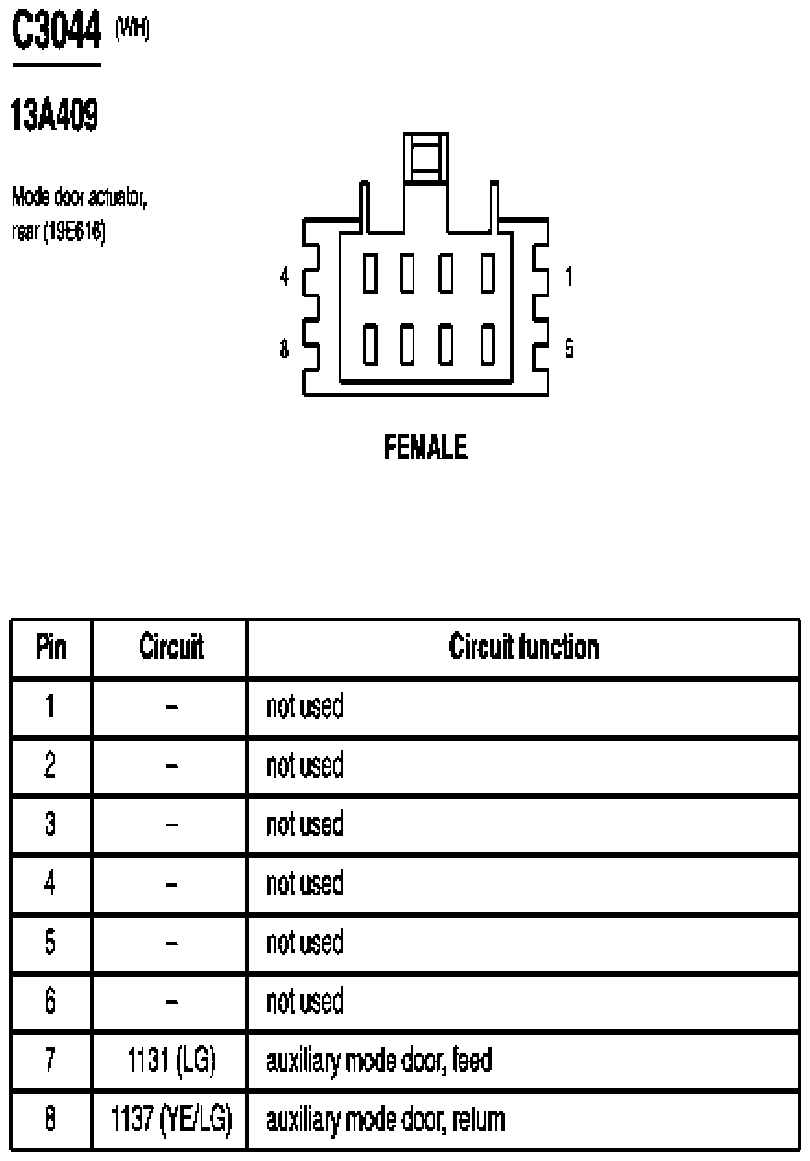

Fig 369: Mode Door Actuator, Rear Connector End View (C3044)

G07843964

Courtesy of FORD MOTOR CO.

Fig 370: Power Point, Console 1 Connector End View (C3063)

G07843965

Courtesy of FORD MOTOR CO.

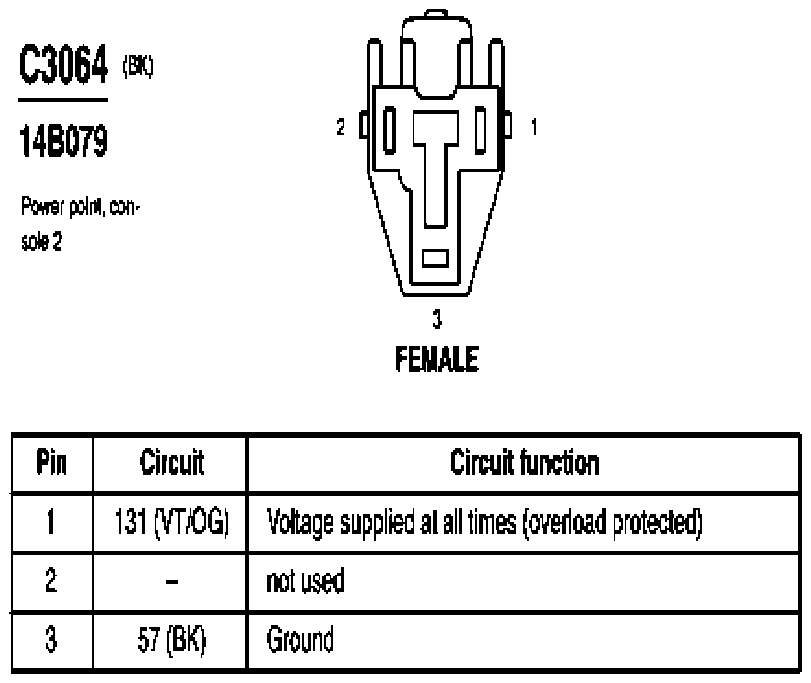

Fig 371: Power Point, Console 2 Connector End View (C3064)

G07843966

Courtesy of FORD MOTOR CO.

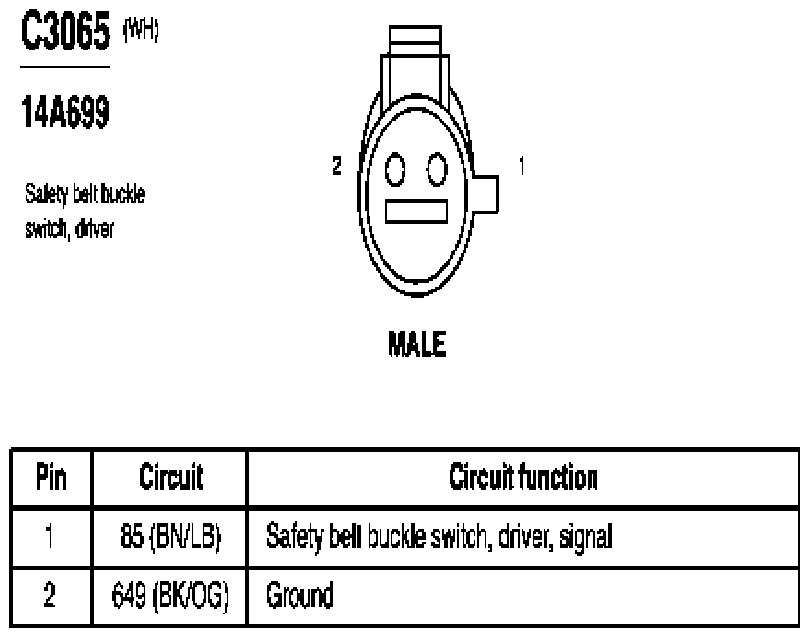

Fig 372: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07843967

Courtesy of FORD MOTOR CO.

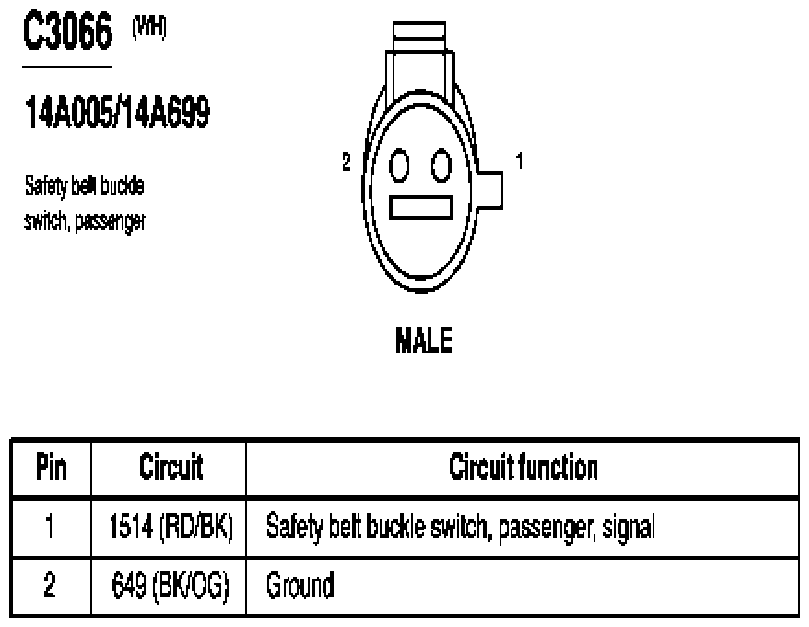

Fig 373: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07843968

Courtesy of FORD MOTOR CO.

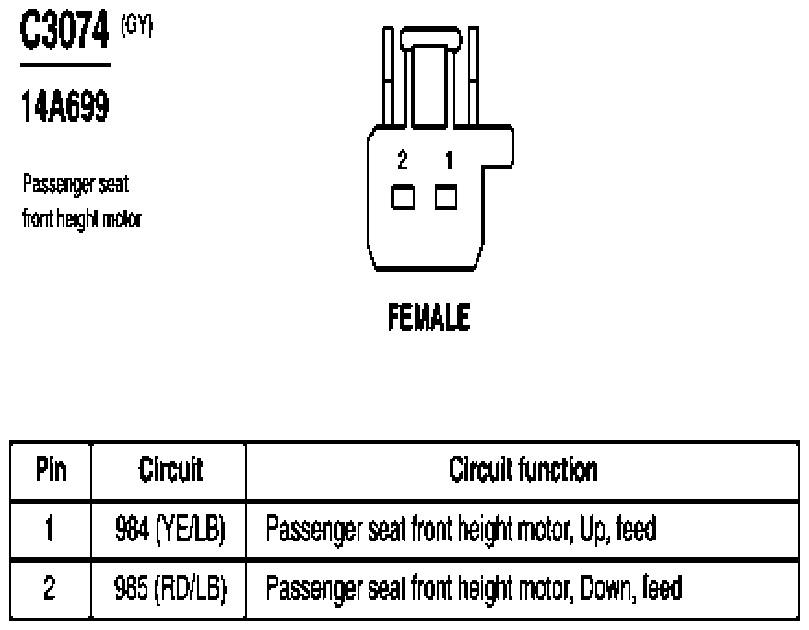

Fig 374: Passenger Seat Front Height Motor Connector End View (C3074)

G07843969

Courtesy of FORD MOTOR CO.

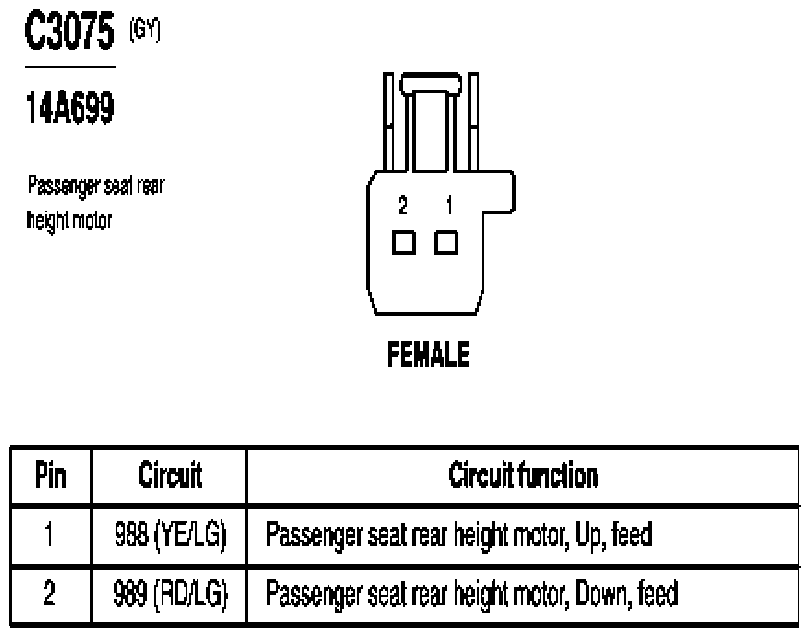

Fig 375: Passenger Seat Rear Height Motor Connector End View (C3075)

G07843970

Courtesy of FORD MOTOR CO.

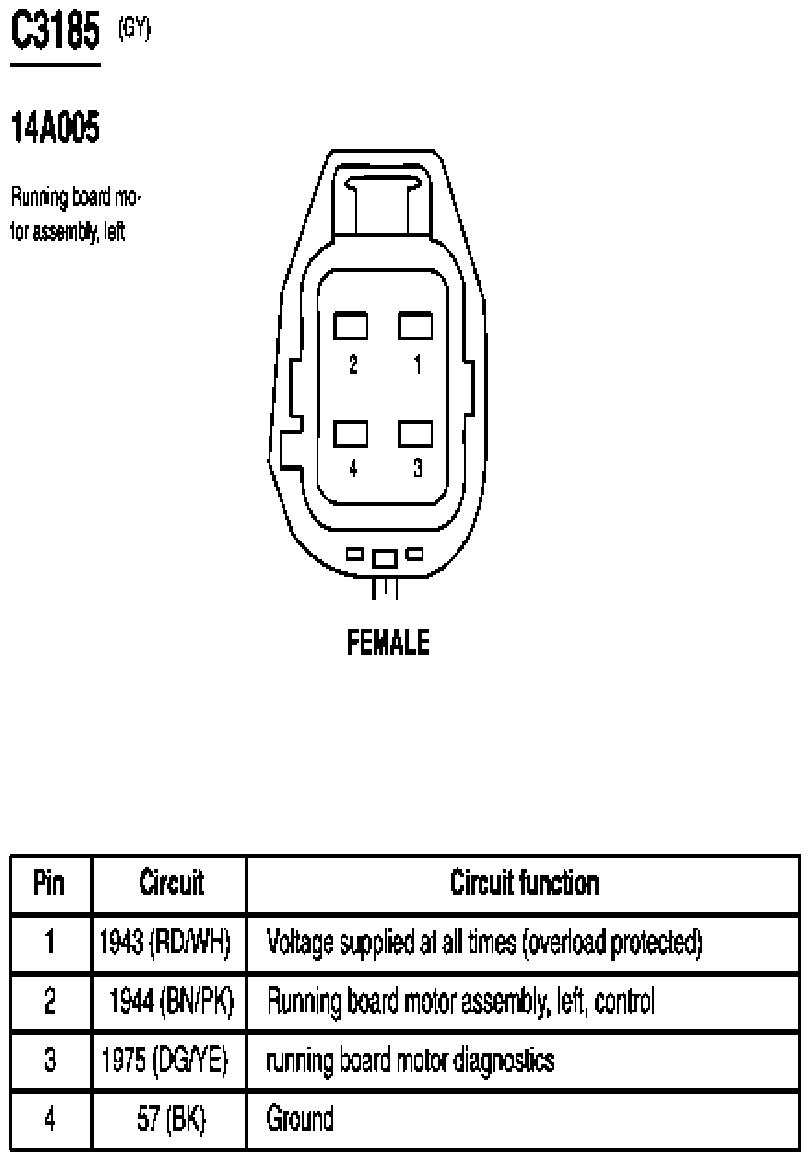

Fig 376: Running Board Motor Assembly, Left Connector End View (C3185)

G07843971

Courtesy of FORD MOTOR CO.

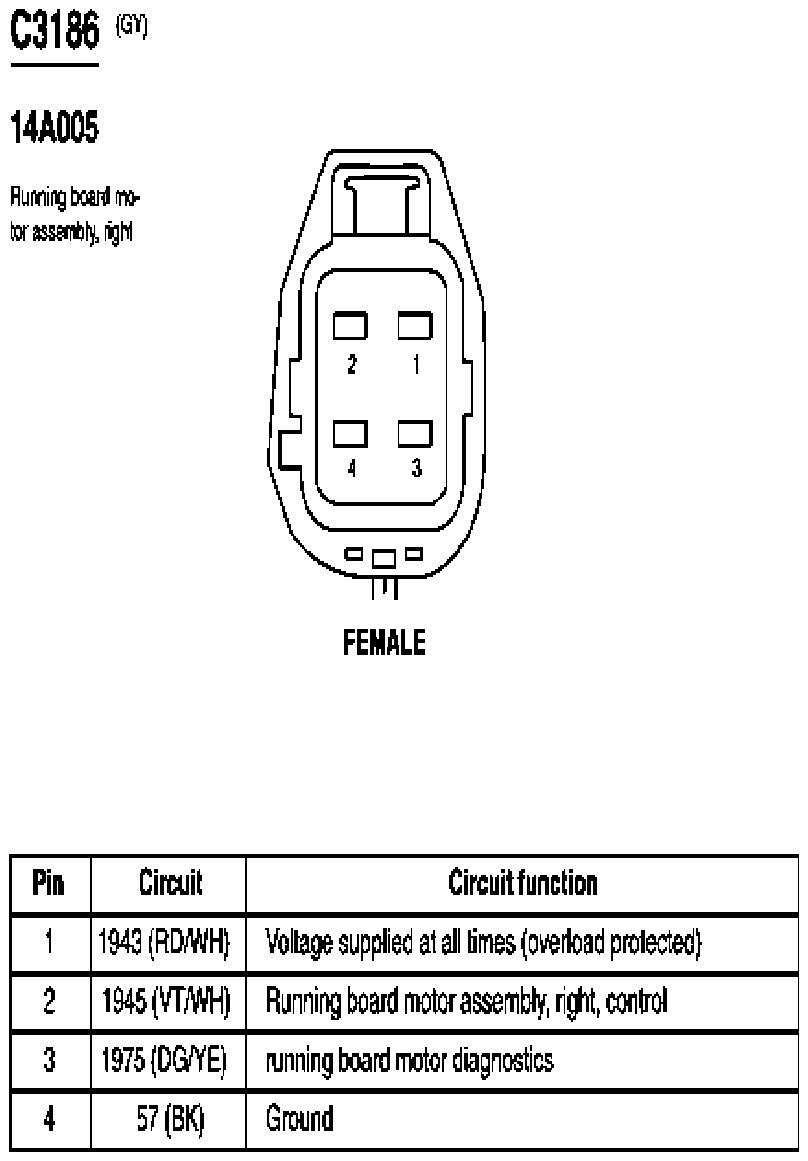

Fig 377: Running Board Motor Assembly, Right Connector End View (C3186)

G07843972

Courtesy of FORD MOTOR CO.

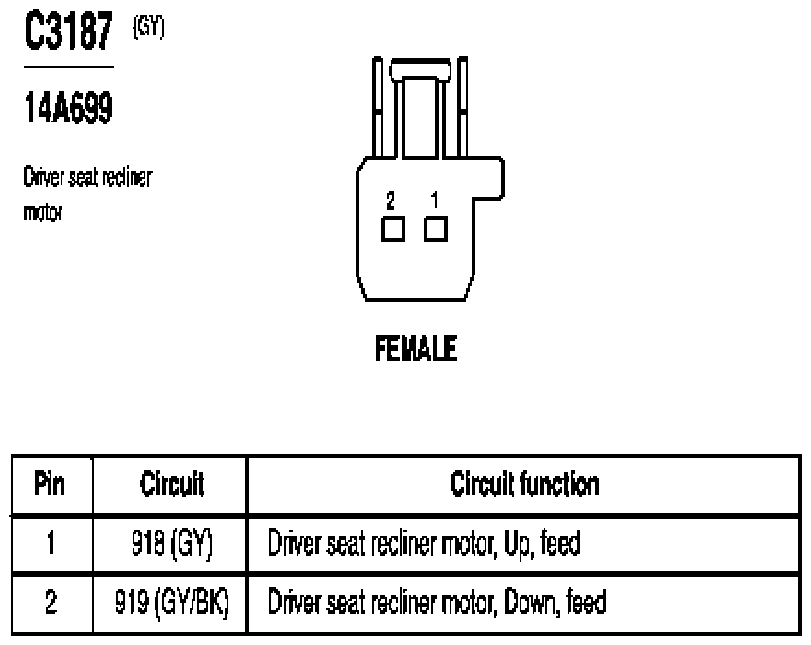

Fig 378: Driver Seat Recliner Motor Connector End View (C3187)

G07843973

Courtesy of FORD MOTOR CO.

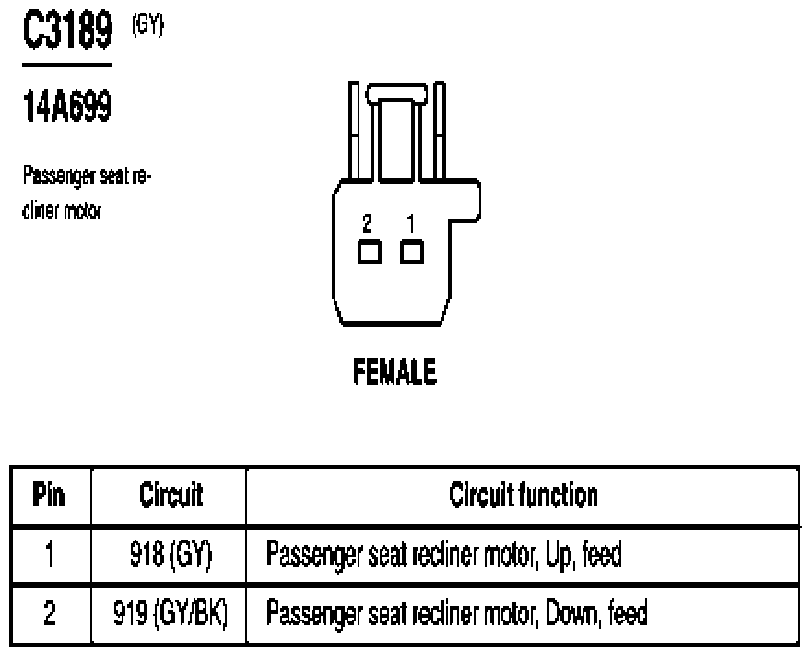

Fig 379: Passenger Seat Recliner Motor Connector End View (C3189)

G07843974

Courtesy of FORD MOTOR CO.

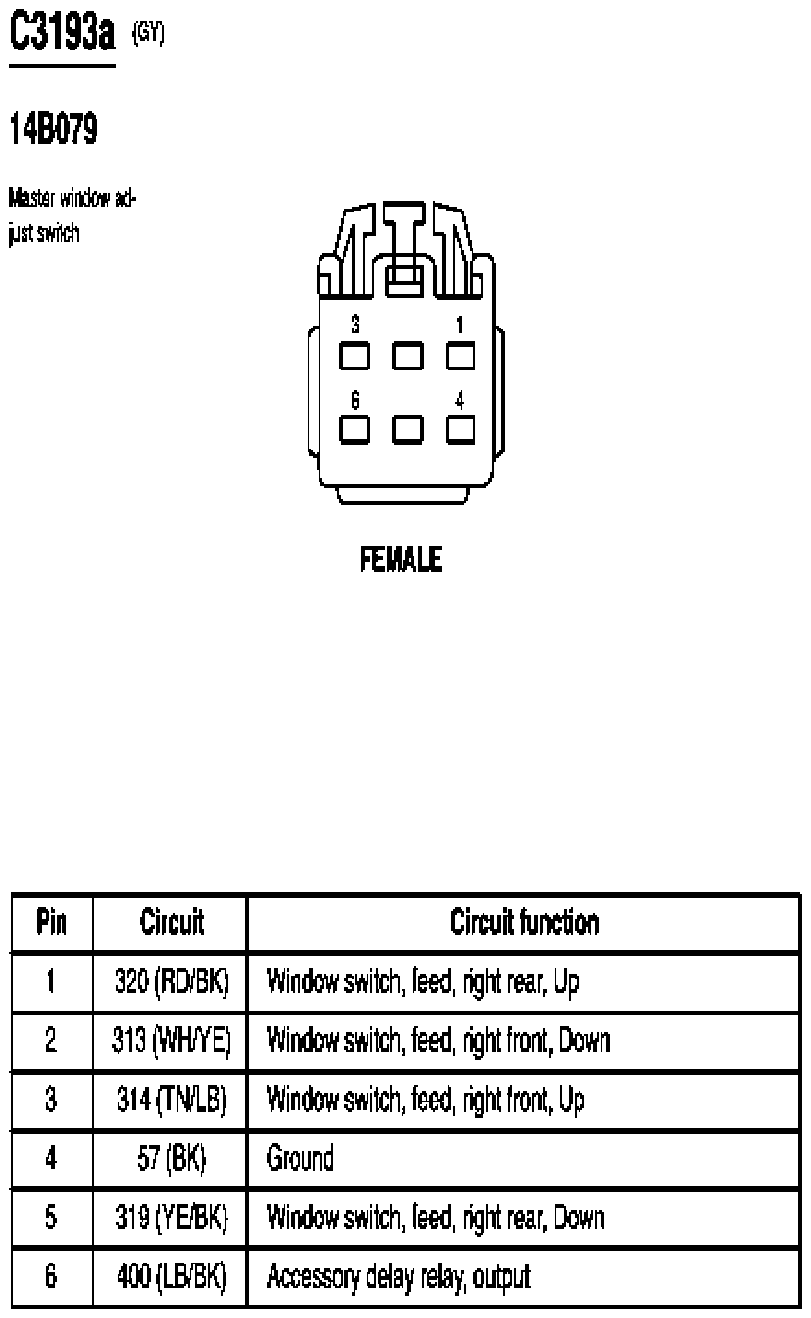

Fig 380: Master Window Adjust Switch Connector End View (C3193a)

G07843975

Courtesy of FORD MOTOR CO.

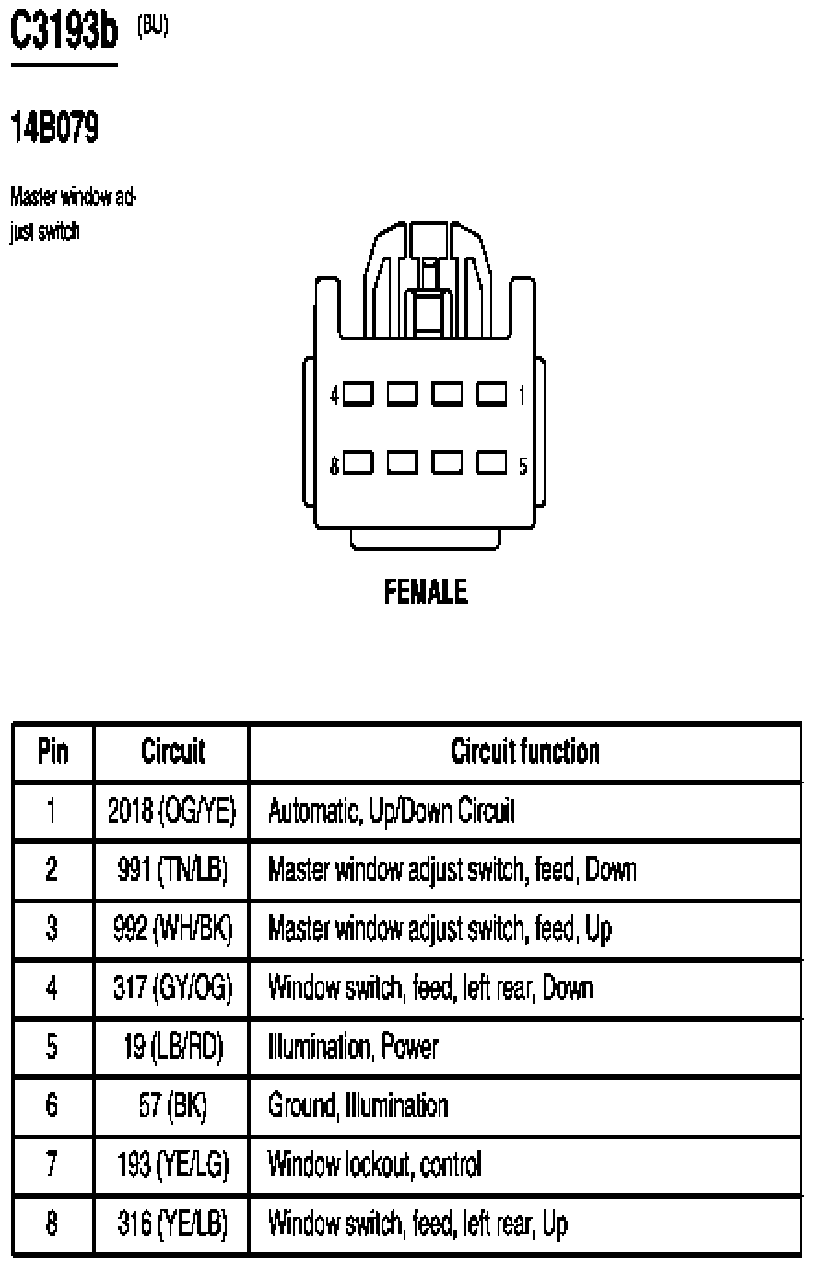

Fig 381: Master Window Adjust Switch Connector End View (C3193b)

G07843976

Courtesy of FORD MOTOR CO.

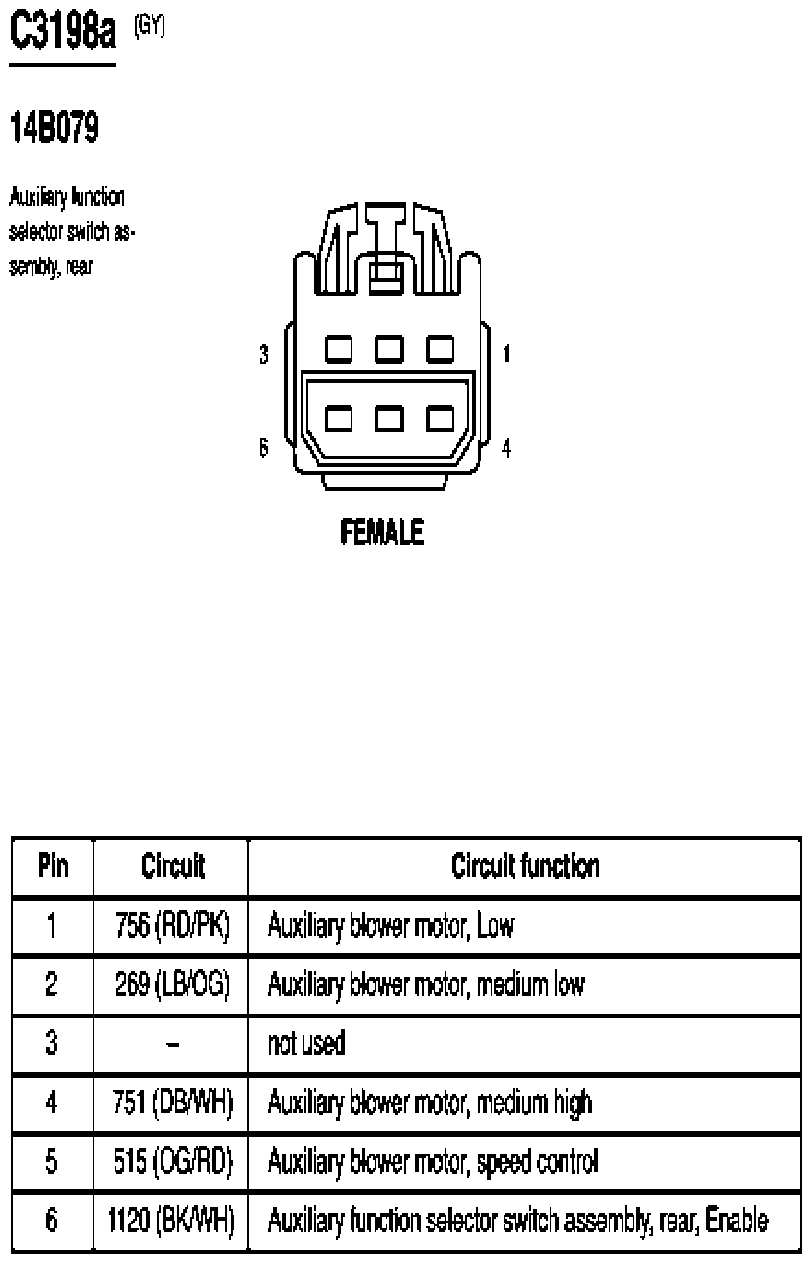

Fig 382: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198a)

G07843977

Courtesy of FORD MOTOR CO.

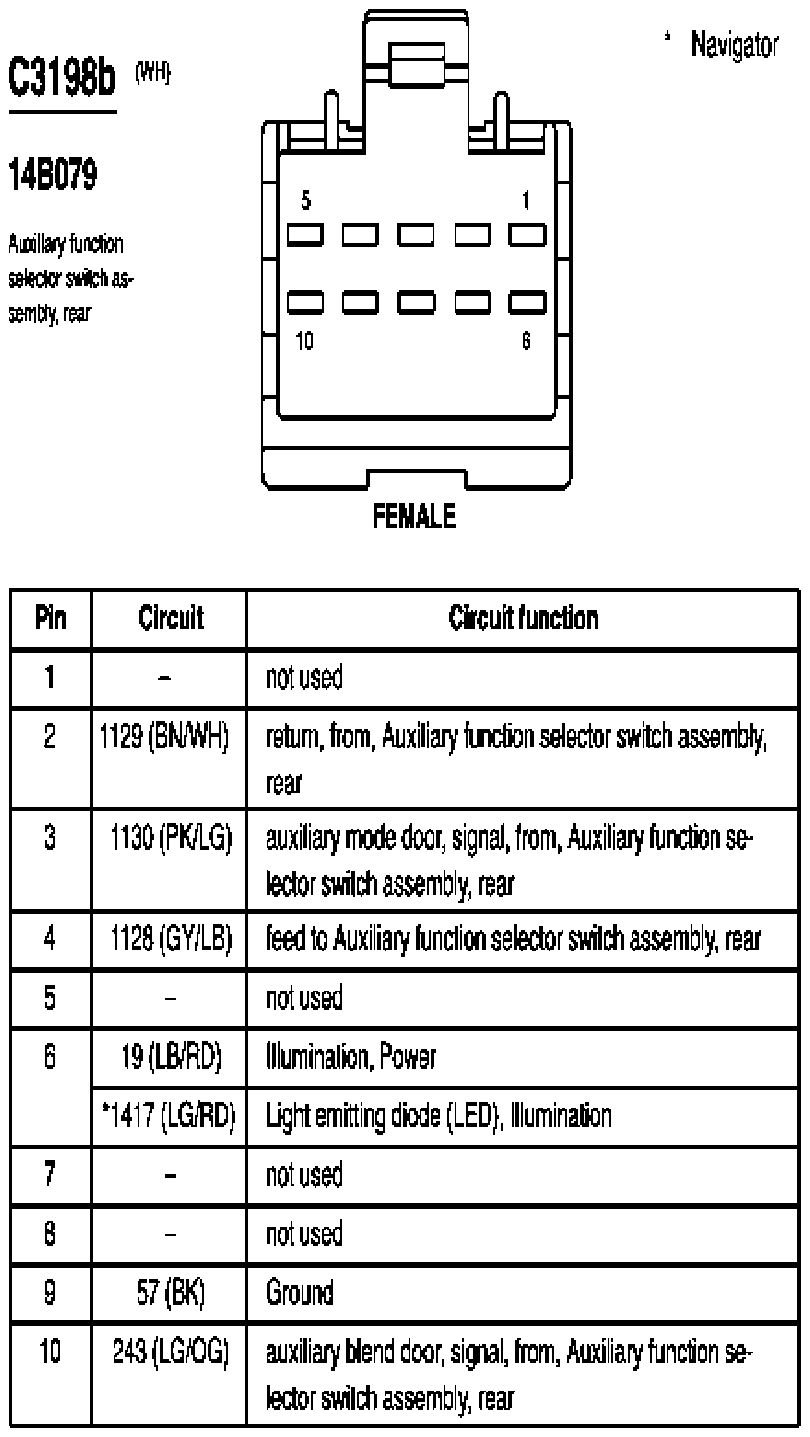

Fig 383: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198b)

G07843978

Courtesy of FORD MOTOR CO.

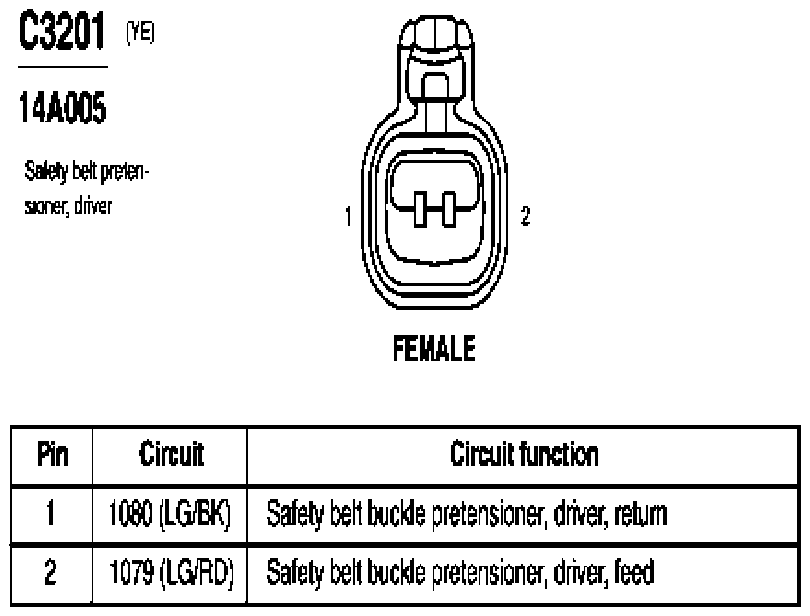

Fig 384: Safety Belt Pretensioner, Driver Connector End View (C3201)

G07843979

Courtesy of FORD MOTOR CO.

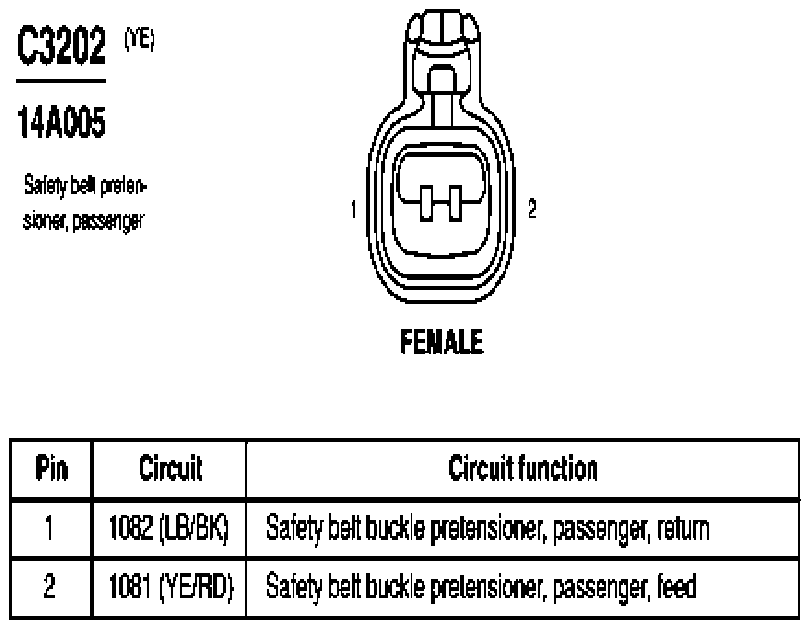

Fig 385: Safety Belt Pretensioner, Passenger Connector End View (C3202)

G07843980

Courtesy of FORD MOTOR CO.

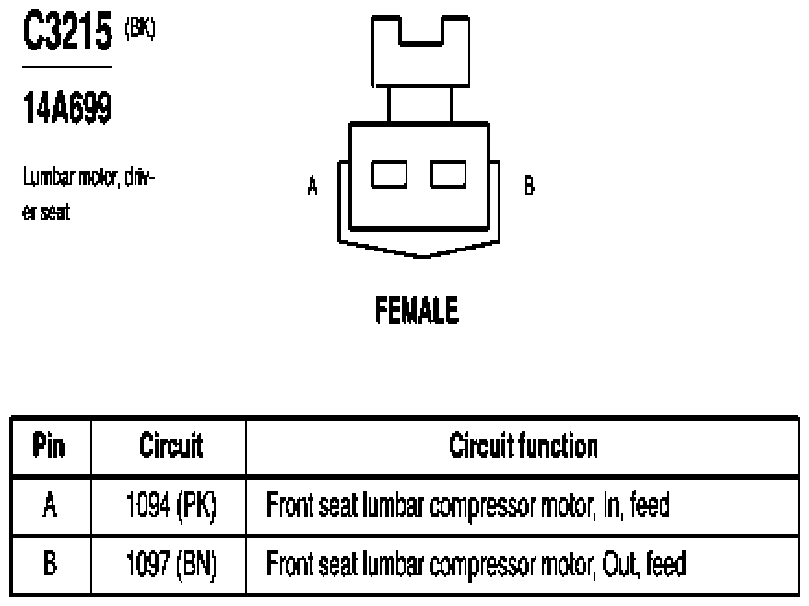

Fig 386: Lumbar Motor, Driver Seat Connector End View (C3215)

G07843981

Courtesy of FORD MOTOR CO.

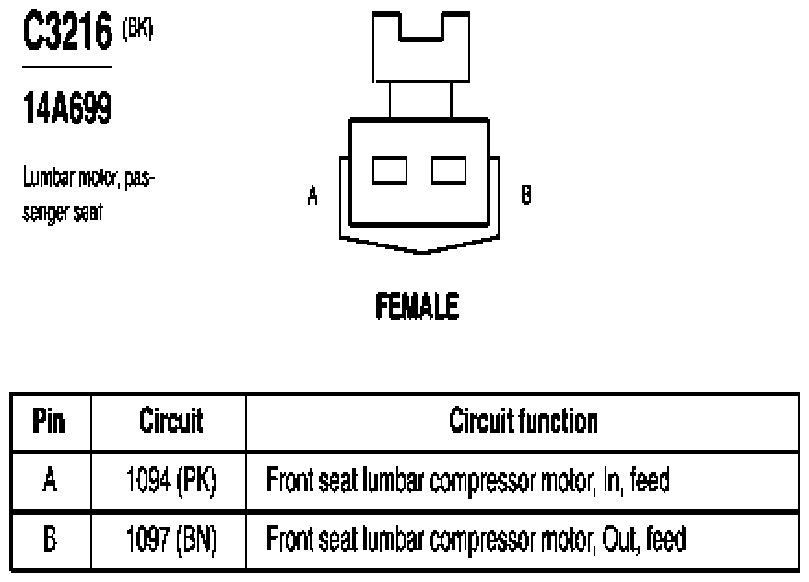

Fig 387: Lumbar Motor, Passenger Seat Connector End View (C3216)

G07843982

Courtesy of FORD MOTOR CO.

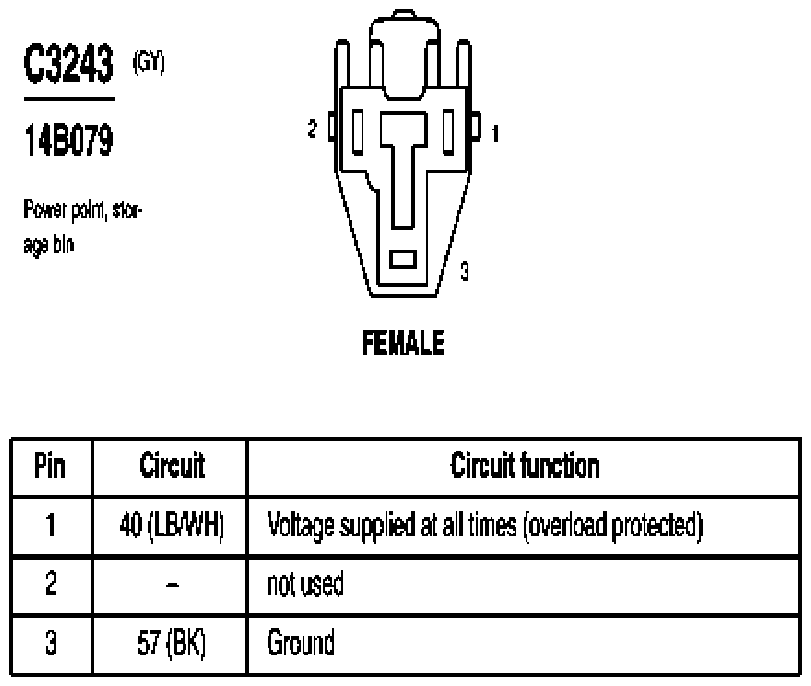

Fig 388: Power Point, Storage Bin Connector End View (C3243)

G07843983

Courtesy of FORD MOTOR CO.

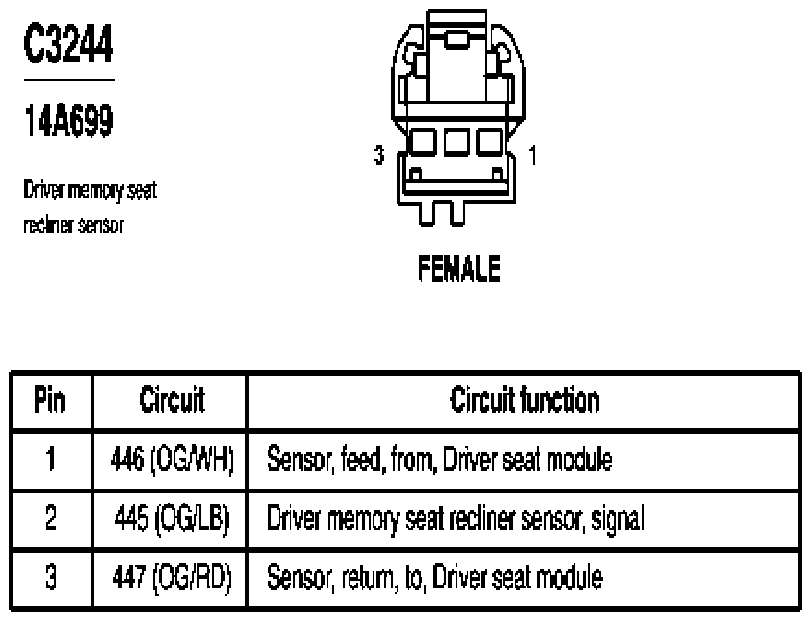

Fig 389: Driver Memory Seat Recliner Sensor Connector End View (C3244)

G07843984

Courtesy of FORD MOTOR CO.

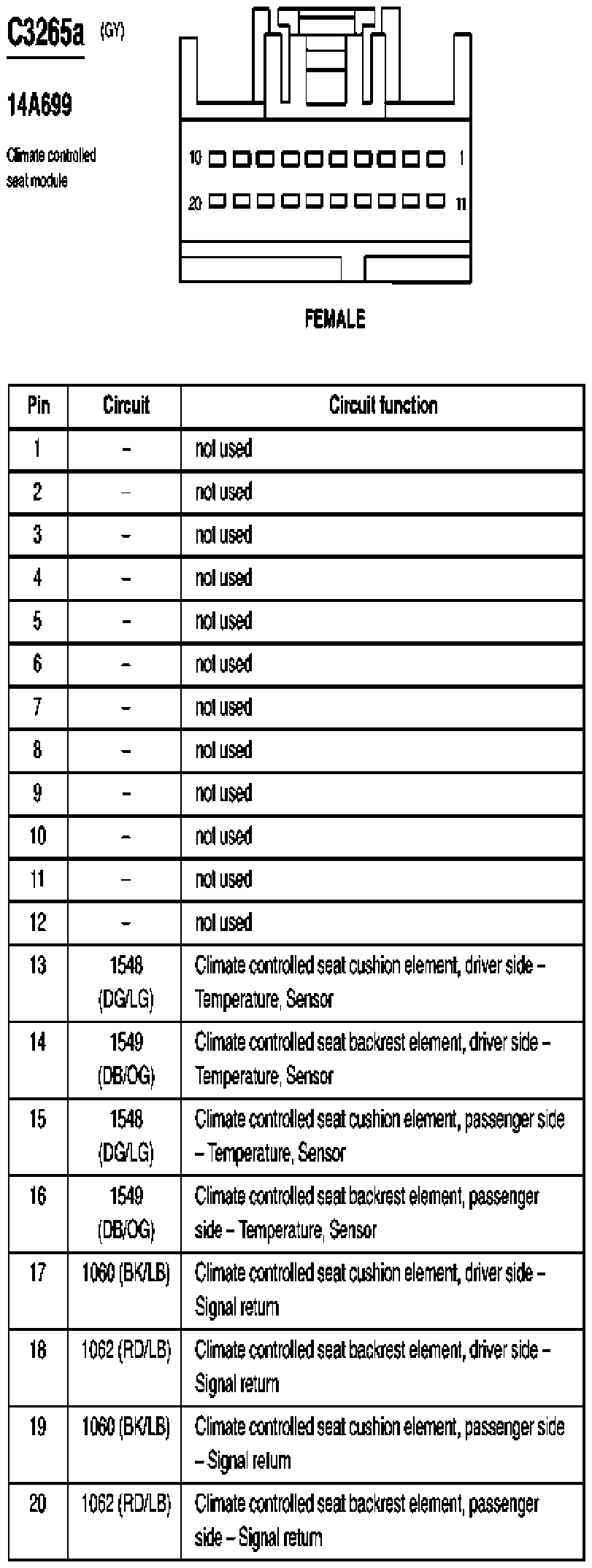

Fig 390: Climate Control Seat Module Connector End View (C3265a)

G03993633

Courtesy of FORD MOTOR CO.

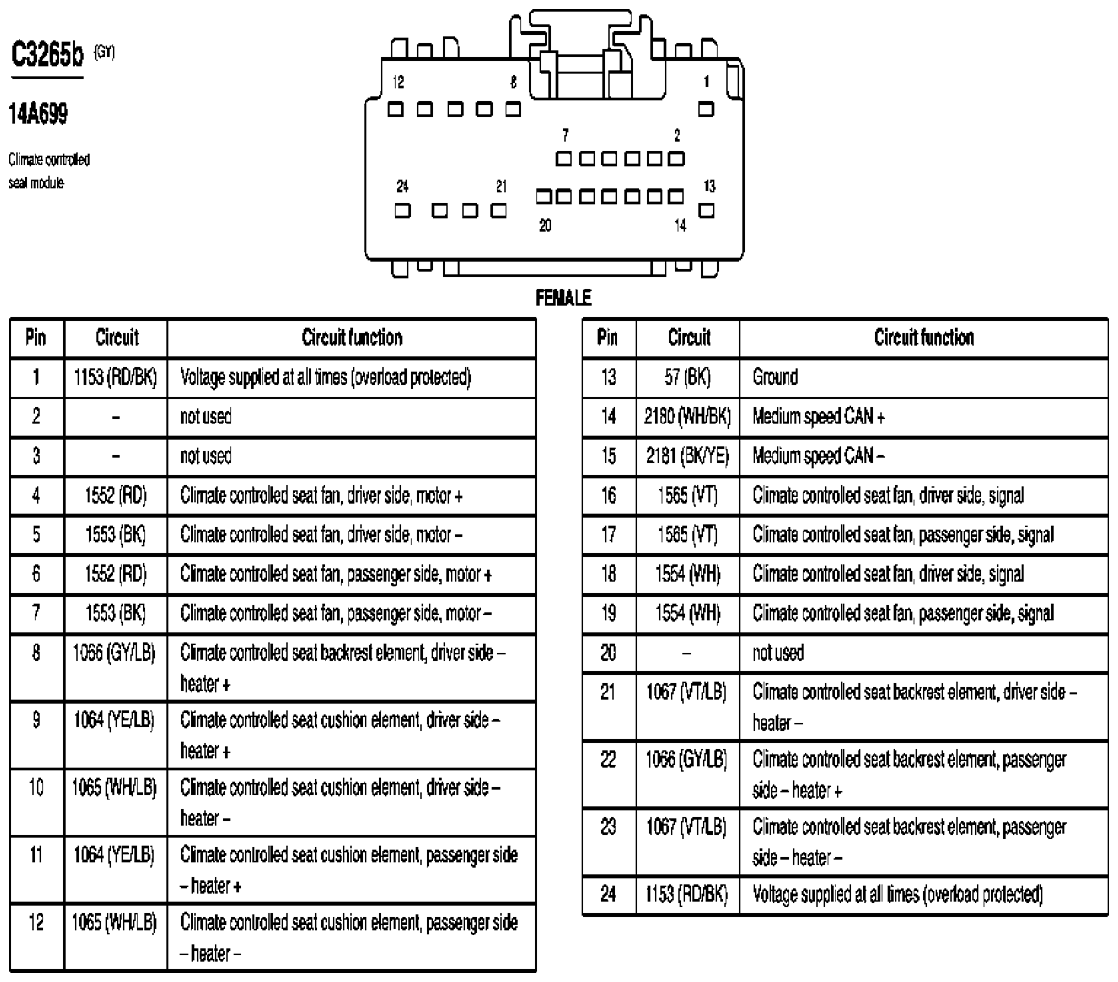

Fig 391: Climate Controlled Seat Module Connector End View (C3265b)

G07843985

Courtesy of FORD MOTOR CO.

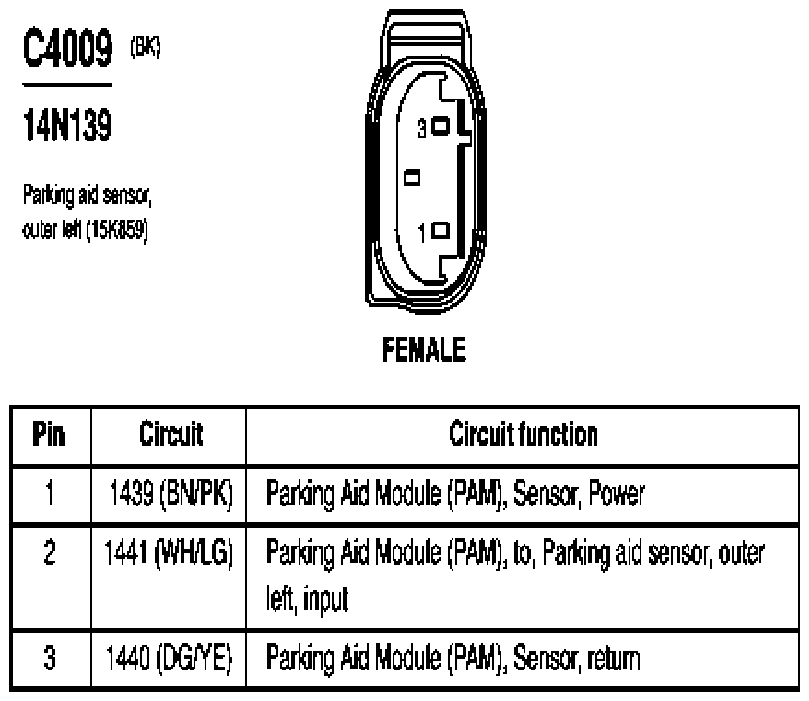

Fig 392: Parking Aid Sensor, Outer Left Connector End View (C4009)

G07843986

Courtesy of FORD MOTOR CO.

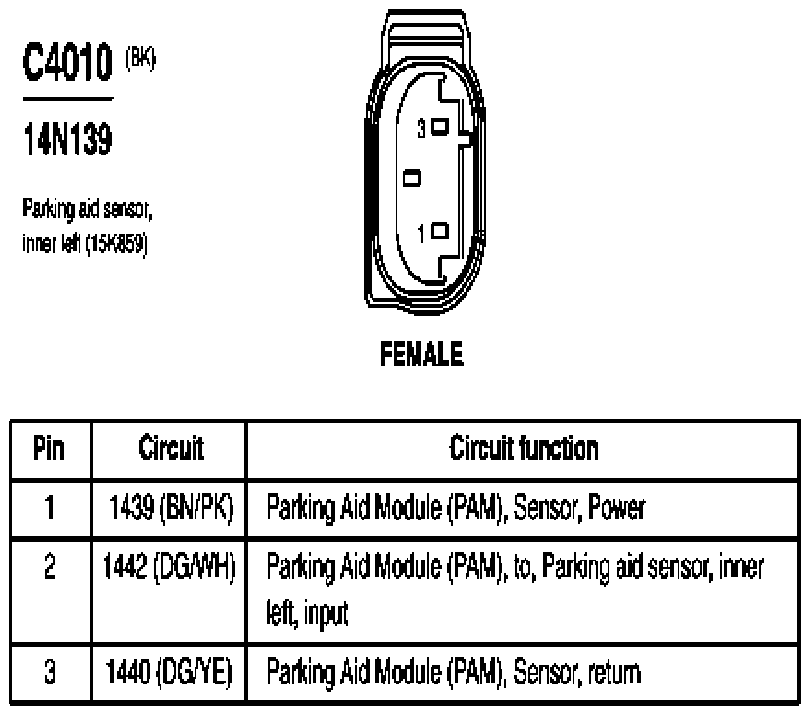

Fig 393: Parking Aid Sensor, Inner Left Connector End View (C4010)

G07843987

Courtesy of FORD MOTOR CO.

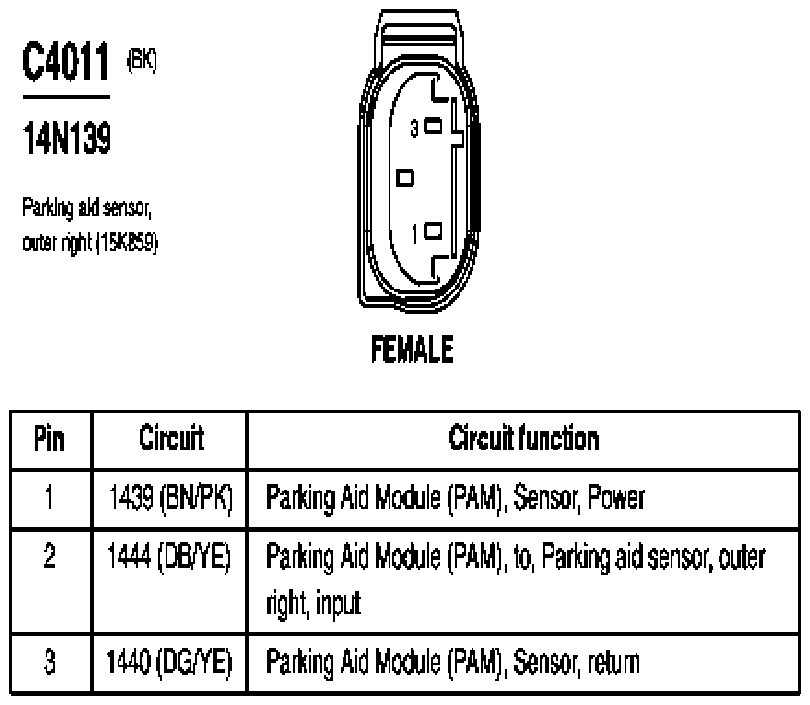

Fig 394: Parking Aid Sensor, Outer Right Connector End View (C4011)

G07843988

Courtesy of FORD MOTOR CO.

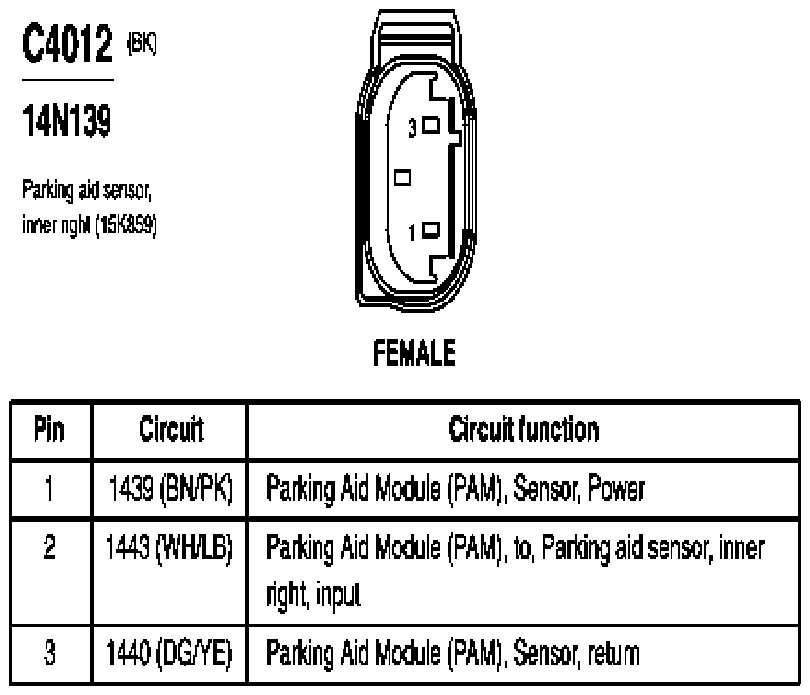

Fig 395: Parking Aid Sensor, Inner Right Connector End View (C4012)

G07843989

Courtesy of FORD MOTOR CO.

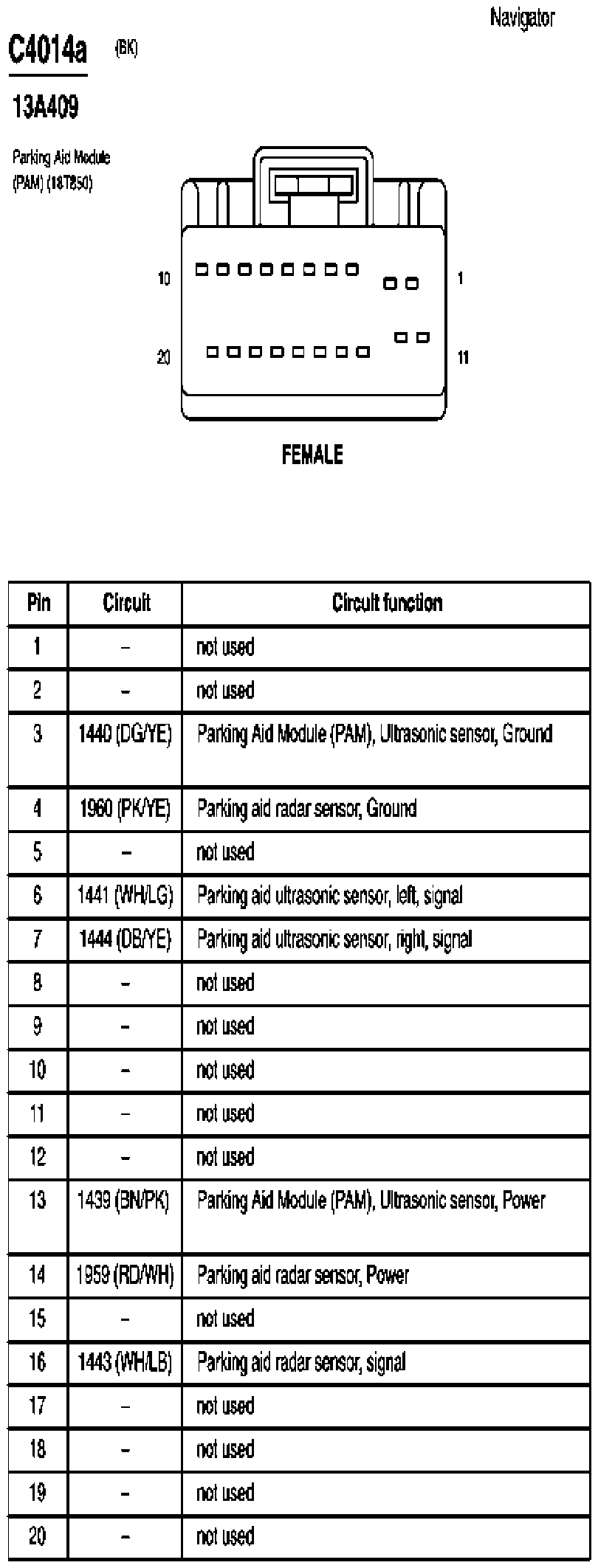

Fig 396: Parking Aid Module (PAM) Connector End View (C4014a)

G07843990

Courtesy of FORD MOTOR CO.

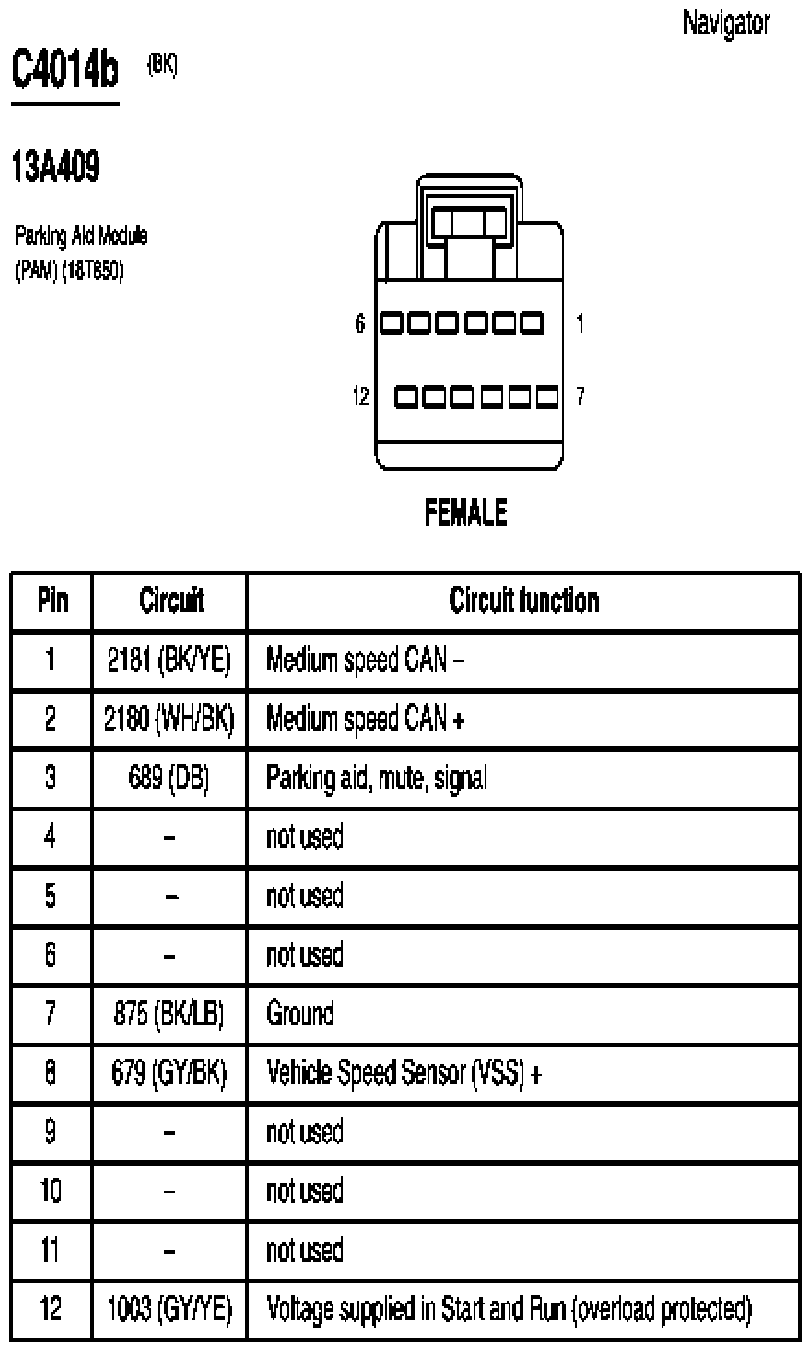

Fig 397: Parking Aid Module (PAM) Connector End View (C4014b)

G07843991

Courtesy of FORD MOTOR CO.

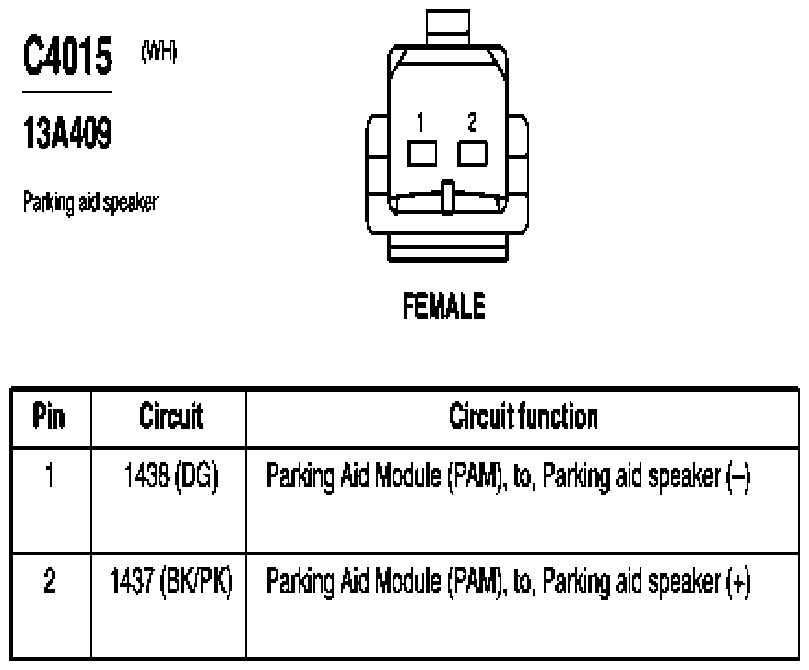

Fig 398: Parking Aid Speaker Connector End View (C4015)

G07843992

Courtesy of FORD MOTOR CO.

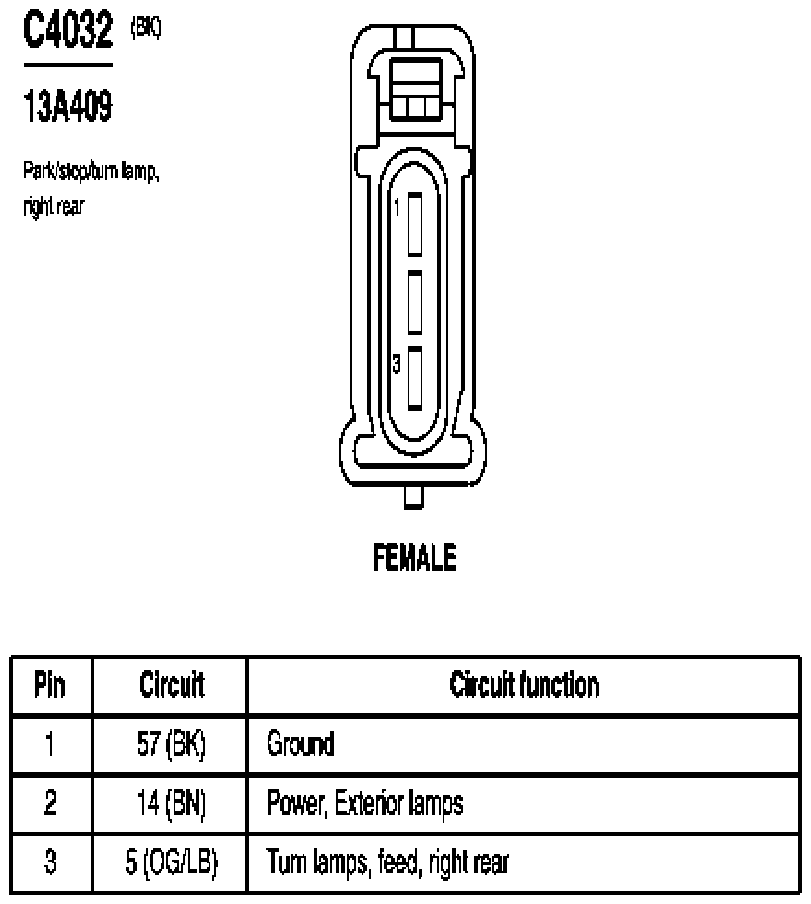

Fig 399: Park/Stop Turn Lamp, Right Rear Connector End View (C4032)

G07843993

Courtesy of FORD MOTOR CO.

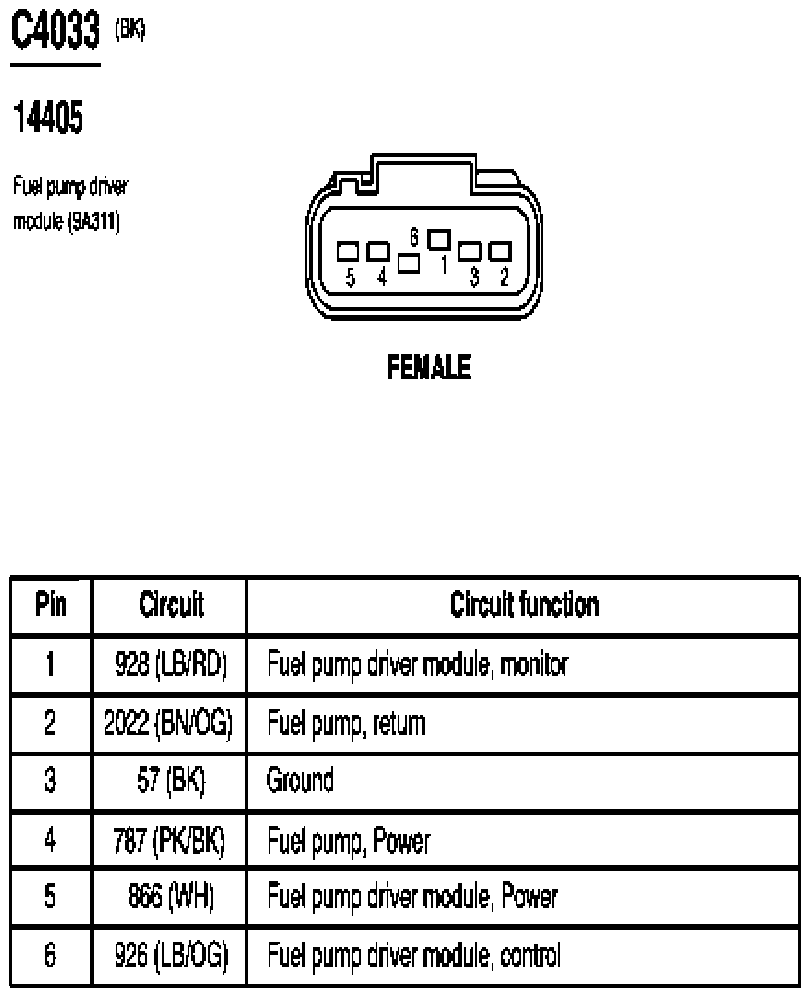

Fig 400: Fuel Pump Driver Module Connector End View (C4033)

G07843994

Courtesy of FORD MOTOR CO.

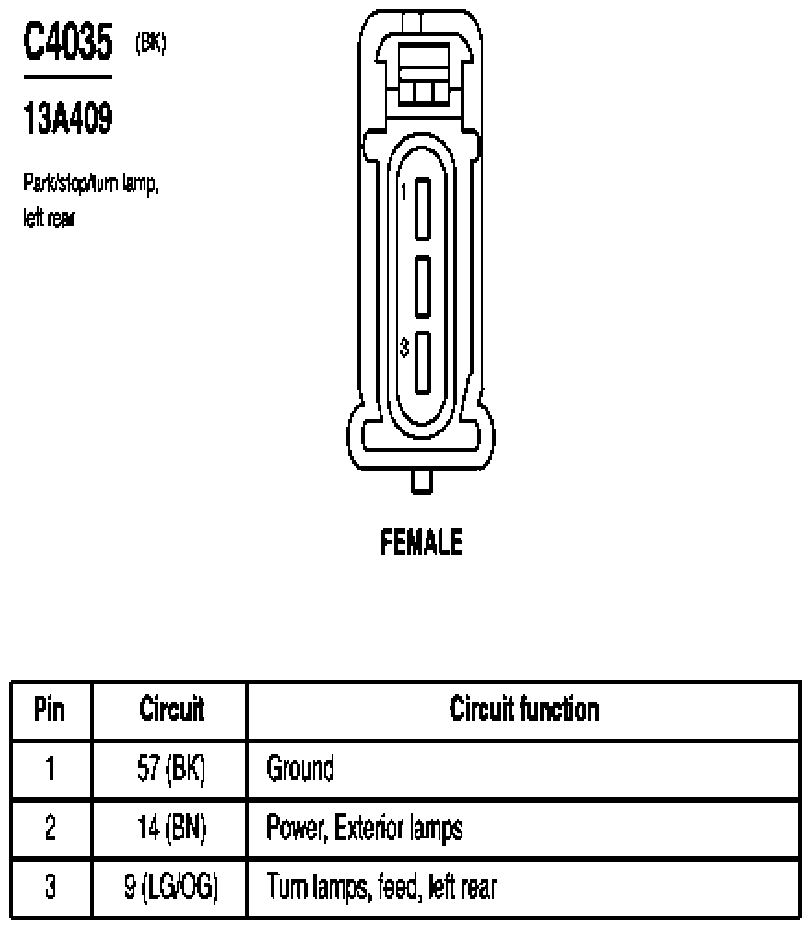

Fig 401: Park/Stop Turn Lamp, Left Rear Connector End View (C4035)

G07843995

Courtesy of FORD MOTOR CO.

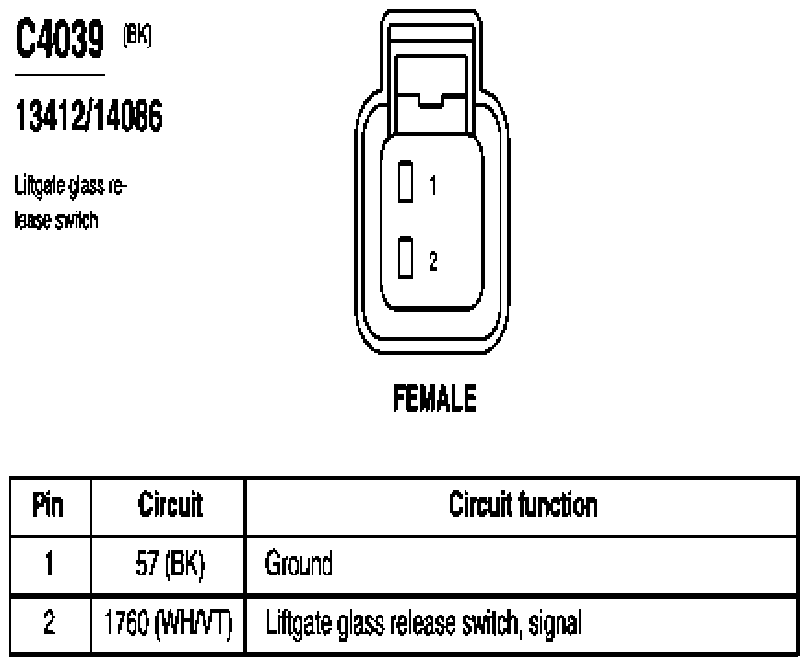

Fig 402: Liftgate Glass Release Switch Connector End View (C4039)

G07843996

Courtesy of FORD MOTOR CO.

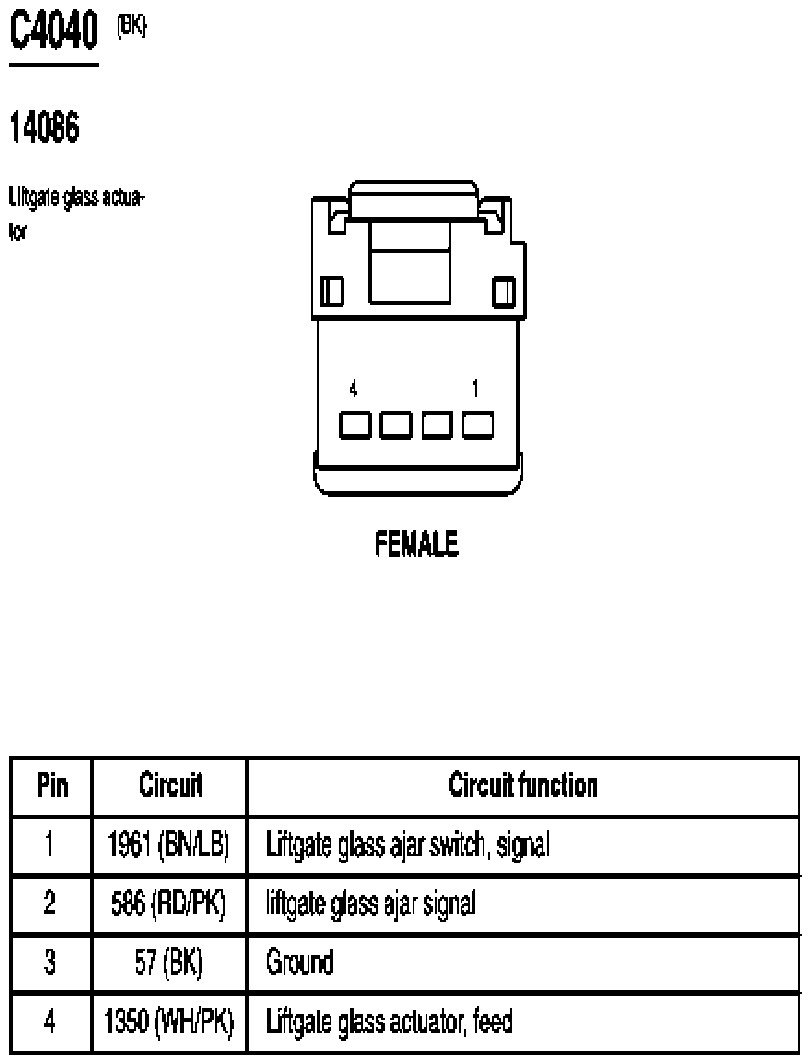

Fig 403: Liftgate Glass Actuator Connector End View (C4040)

G07843997

Courtesy of FORD MOTOR CO.

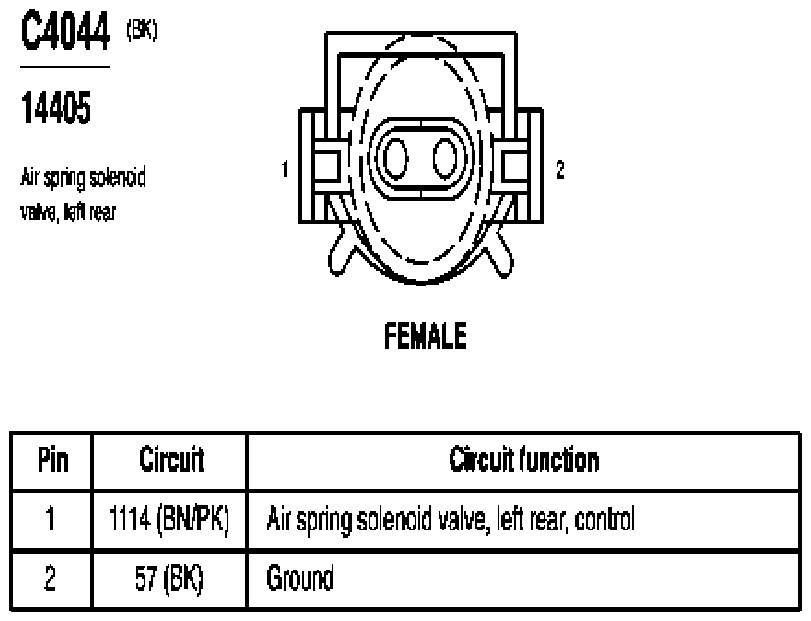

Fig 404: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)

G07843998

Courtesy of FORD MOTOR CO.

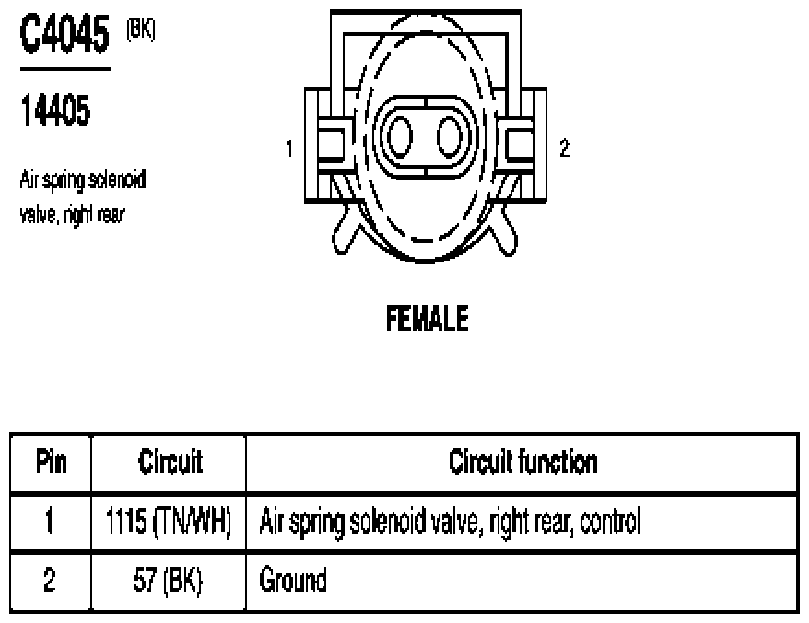

Fig 405: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)

G07843999

Courtesy of FORD MOTOR CO.

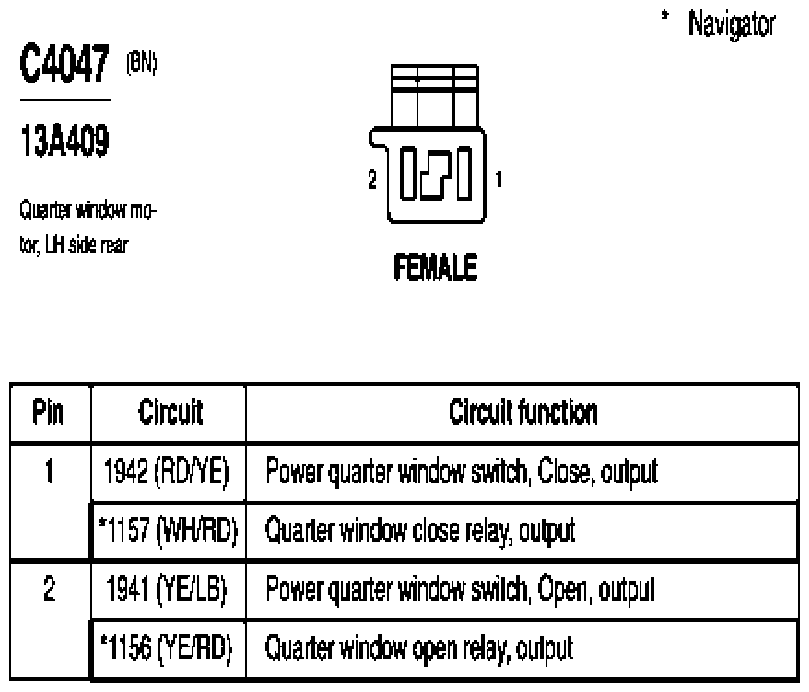

Fig 406: Quarter Window Motor, LH Side Rear Connector End View (C4047)

G07844000

Courtesy of FORD MOTOR CO.

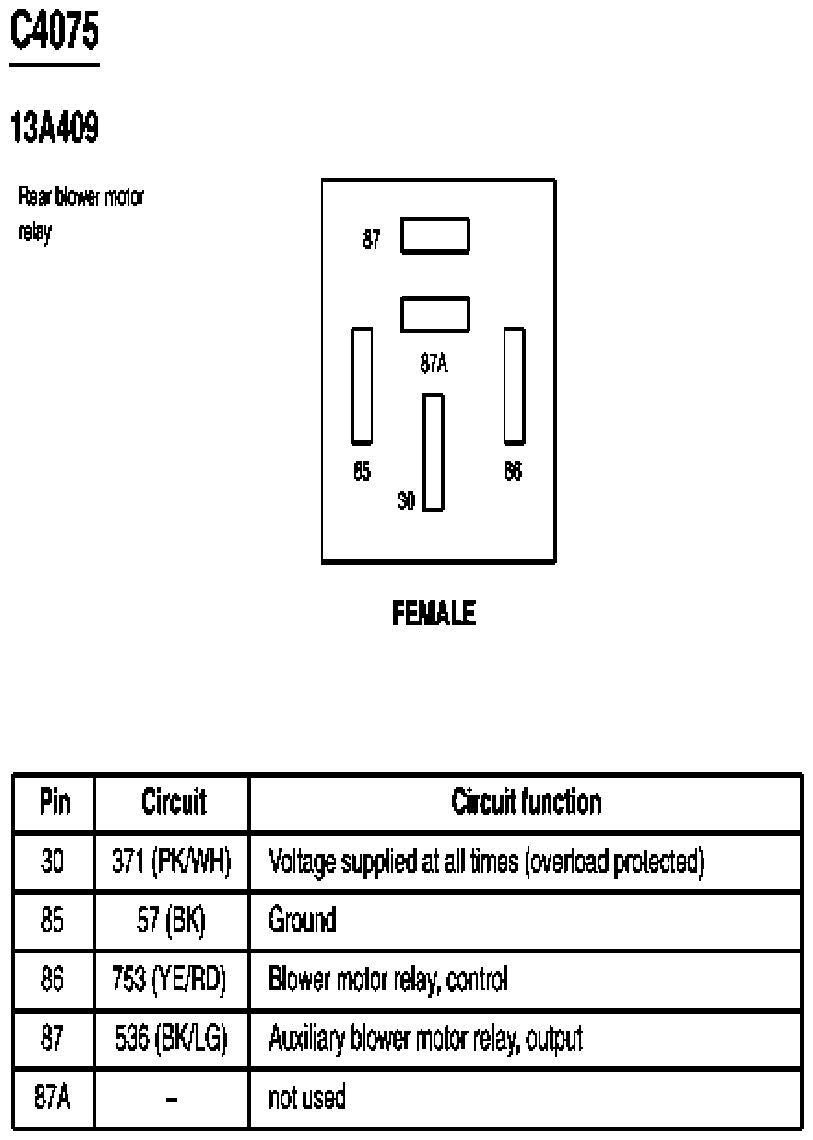

Fig 407: Rear Blower Motor Relay Connector End View (C4075)

G07844001

Courtesy of FORD MOTOR CO.

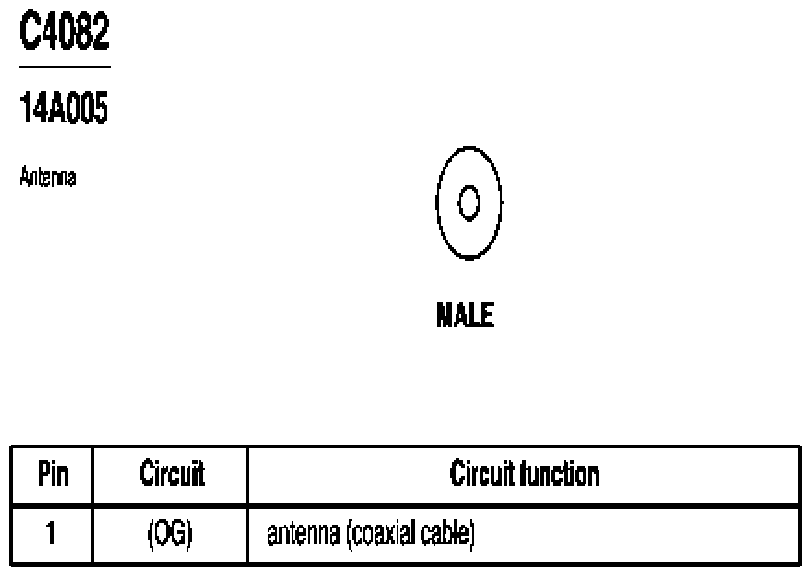

Fig 408: Antenna Connector End View (C4082)

G07844002

Courtesy of FORD MOTOR CO.

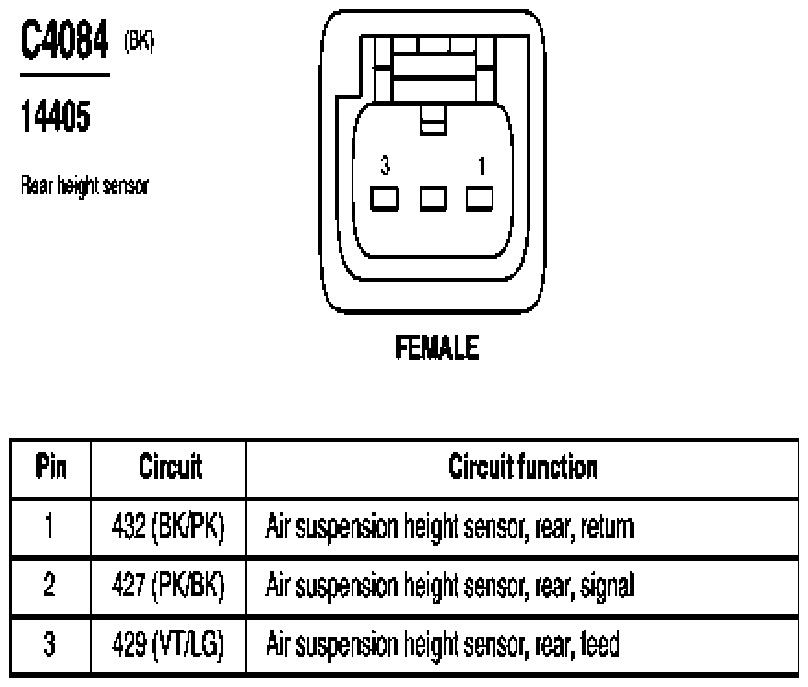

Fig 409: Rear Height Sensor Connector End View (C4084)

G07844003

Courtesy of FORD MOTOR CO.

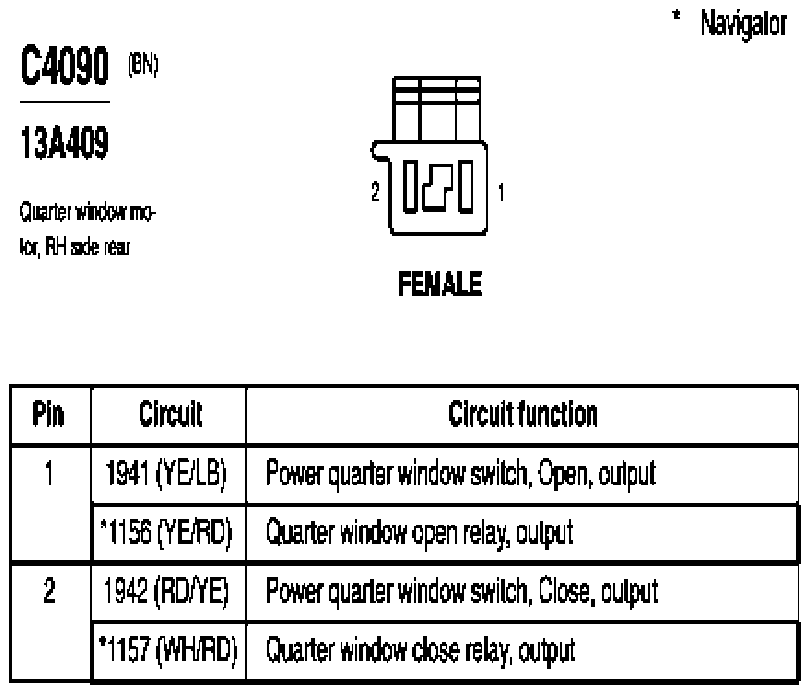

Fig 410: Quarter Window Motor, RH Side Rear Connector End View (C4090)

G07844004

Courtesy of FORD MOTOR CO.

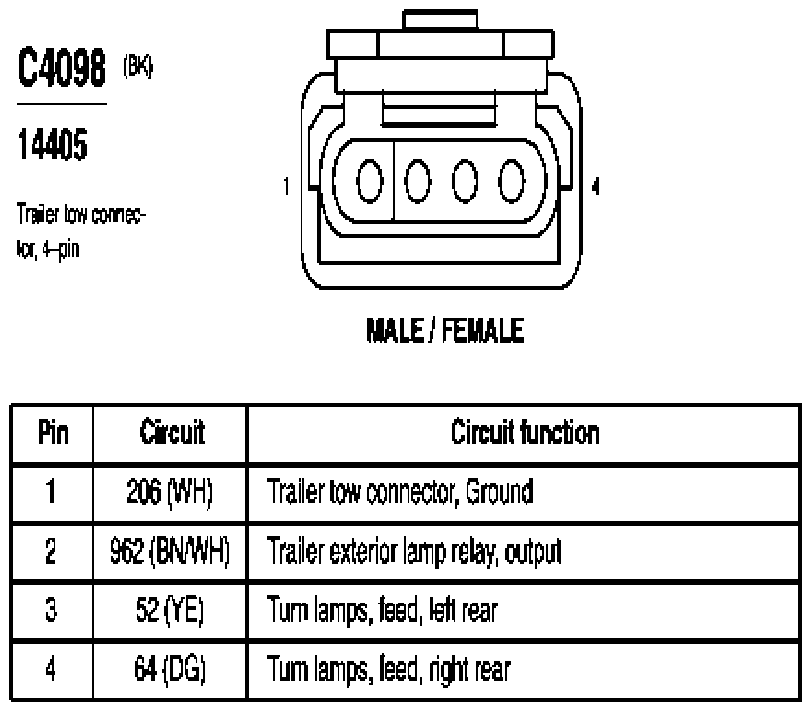

Fig 411: Trailer Tow Connector, 4-Pin Connector End View (C4098)

G07844005

Courtesy of FORD MOTOR CO.

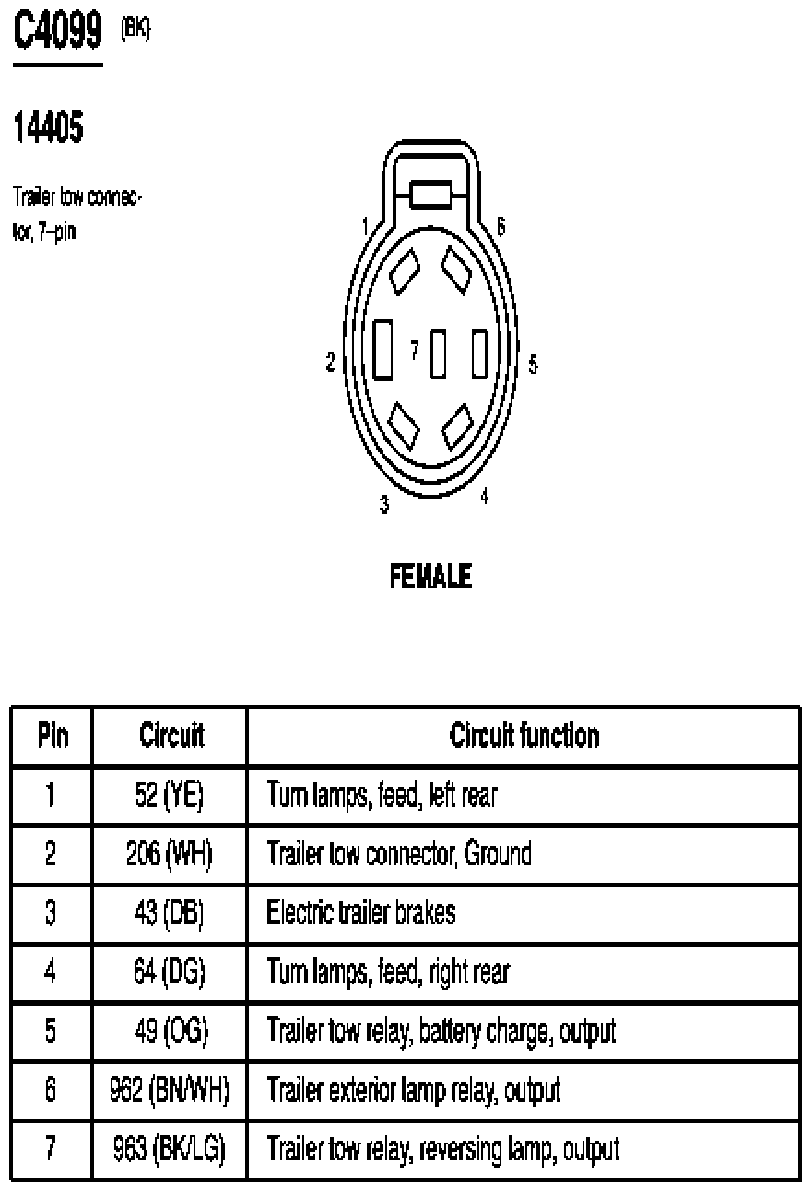

Fig 412: Trailer Low Connector, 7-Pin Connector End View (C4099)

G07844006

Courtesy of FORD MOTOR CO.

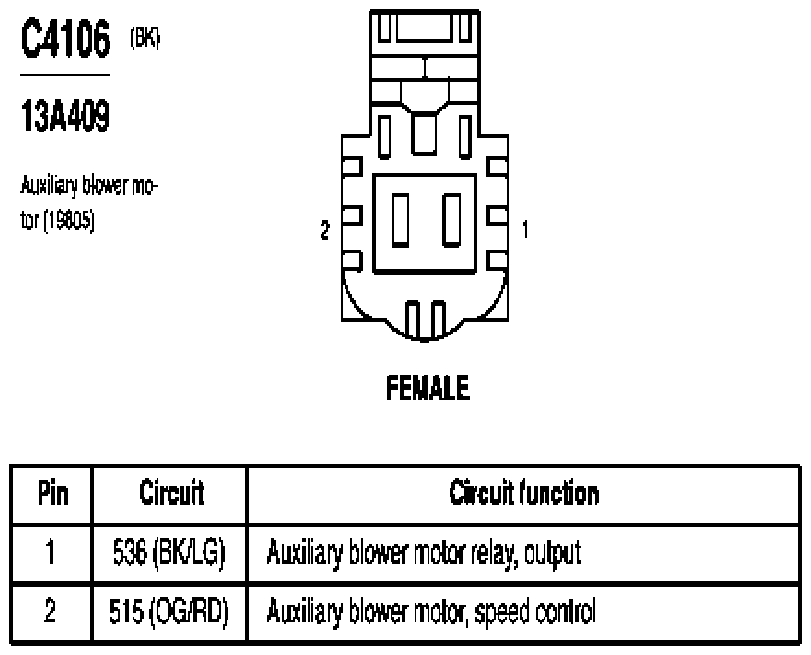

Fig 413: Auxiliary Blower Motor Connector End View (C4106)

G07844007

Courtesy of FORD MOTOR CO.

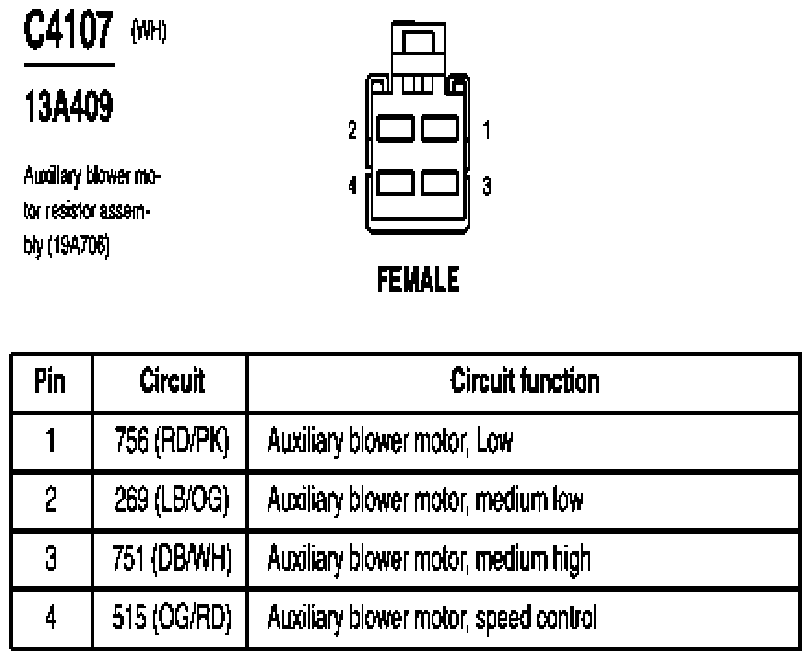

Fig 414: Auxiliary Blower Motor Resistor Assembly Connector End View (C4107)

G07844008

Courtesy of FORD MOTOR CO.

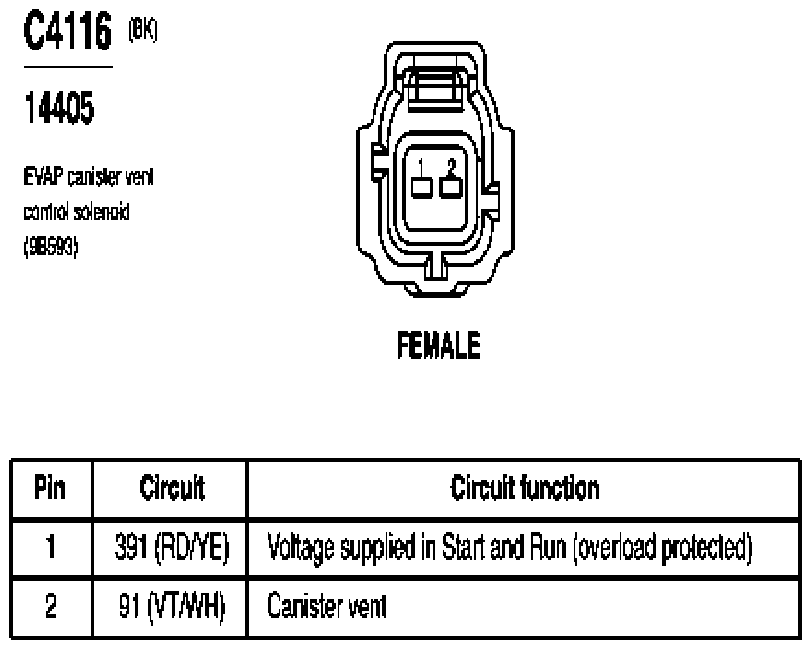

Fig 415: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07844009

Courtesy of FORD MOTOR CO.

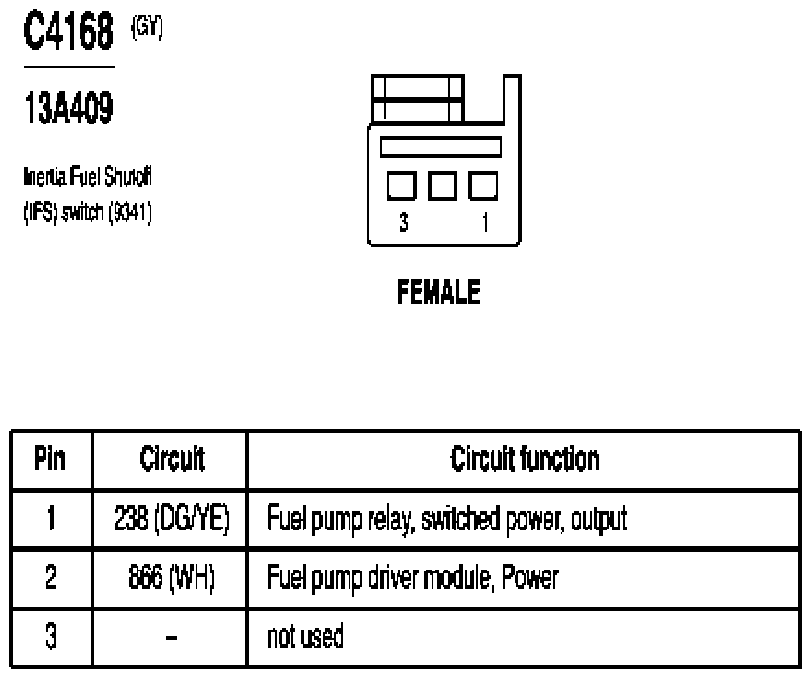

Fig 416: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

G07844010

Courtesy of FORD MOTOR CO.

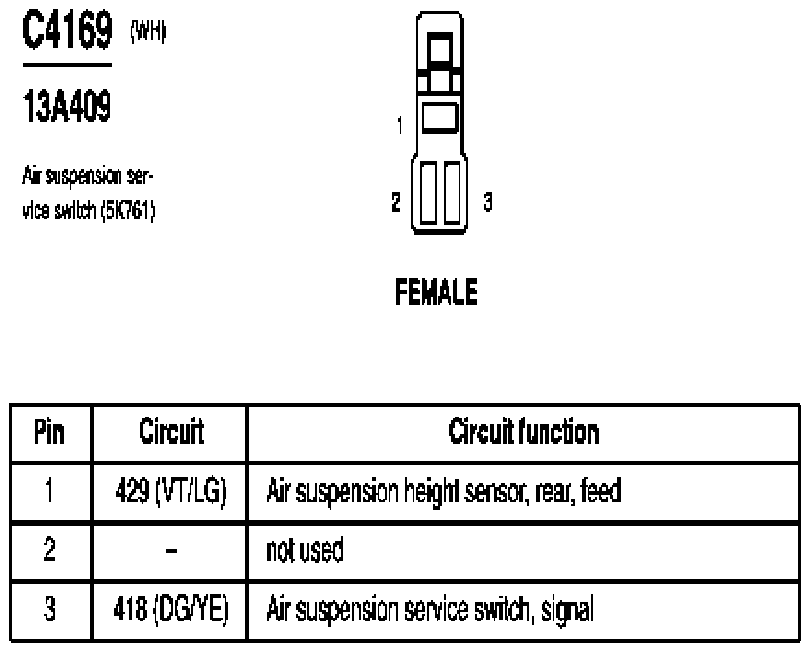

Fig 417: Air Suspension Service Switch Connector End View (C4169)

G07844011

Courtesy of FORD MOTOR CO.

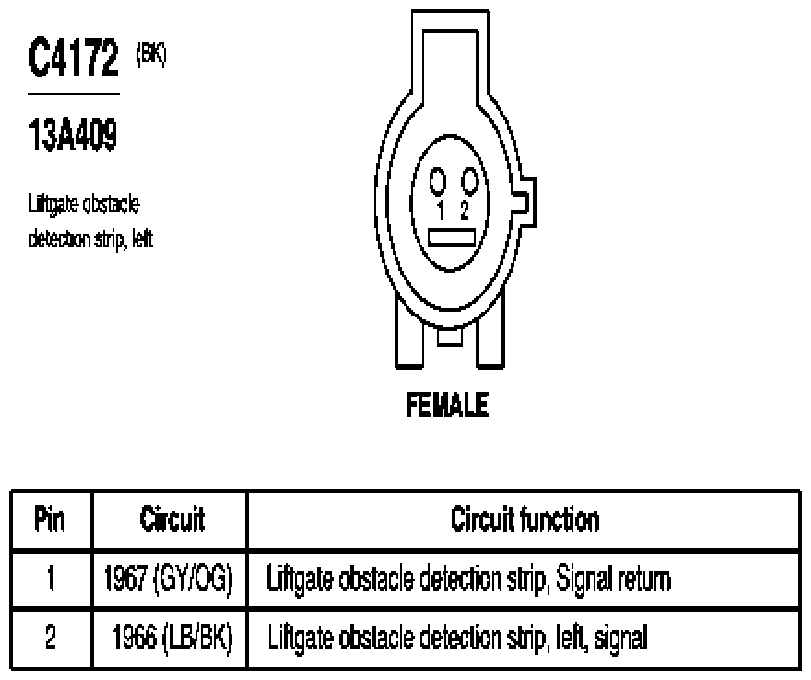

Fig 418: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)

G07844012

Courtesy of FORD MOTOR CO.

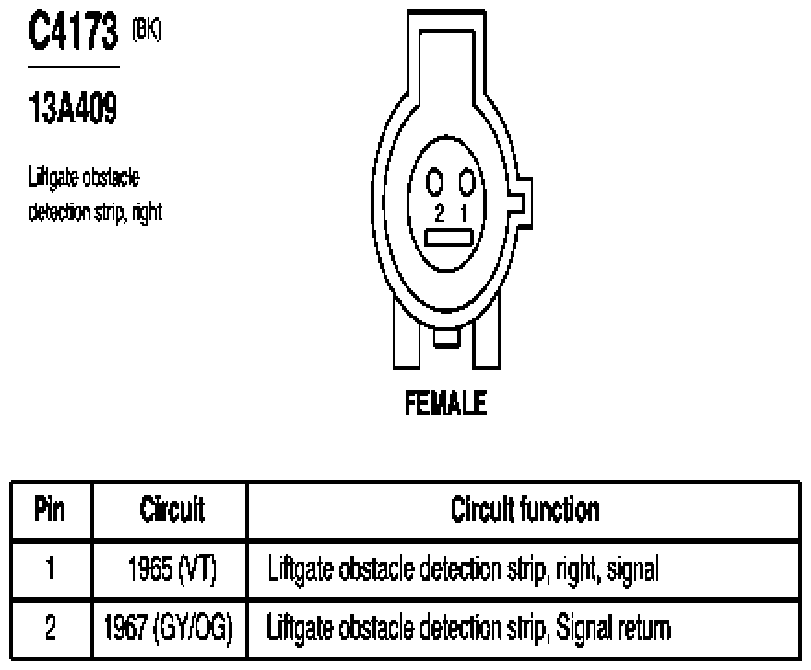

Fig 419: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)

G07844013

Courtesy of FORD MOTOR CO.

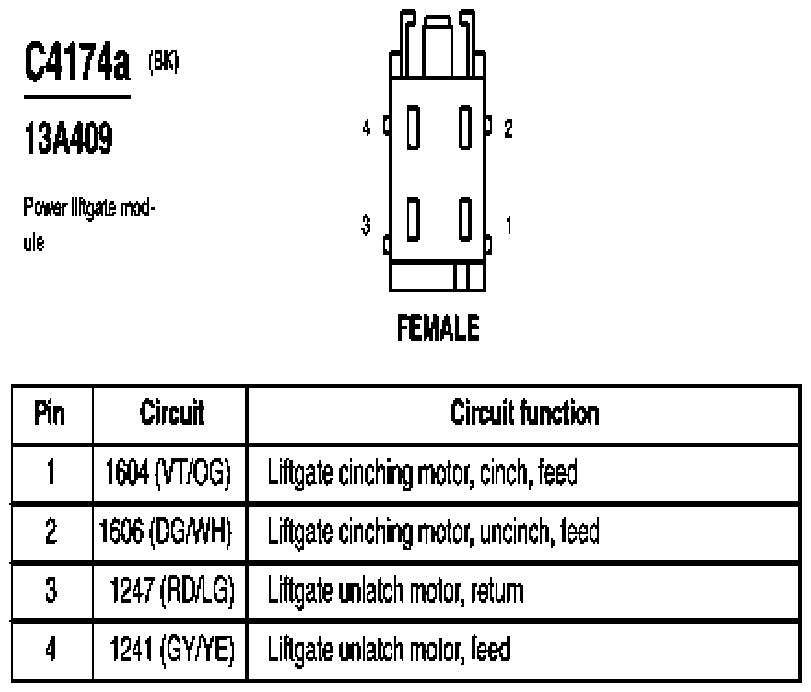

Fig 420: Power Liftgate Module Connector End View (C4174a)

G07844014

Courtesy of FORD MOTOR CO.

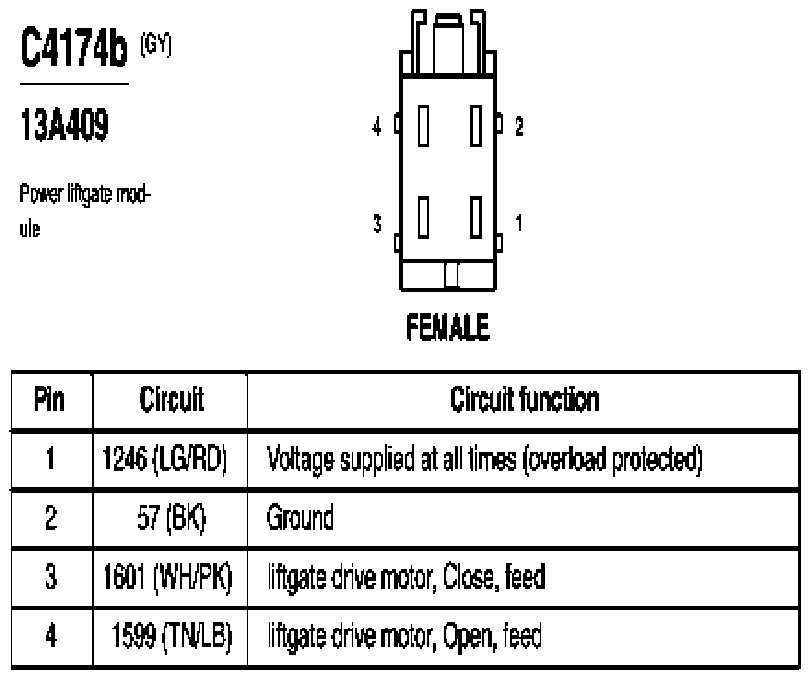

Fig 421: Power Liftgate Module Connector End View (C4174b)

G07844015

Courtesy of FORD MOTOR CO.

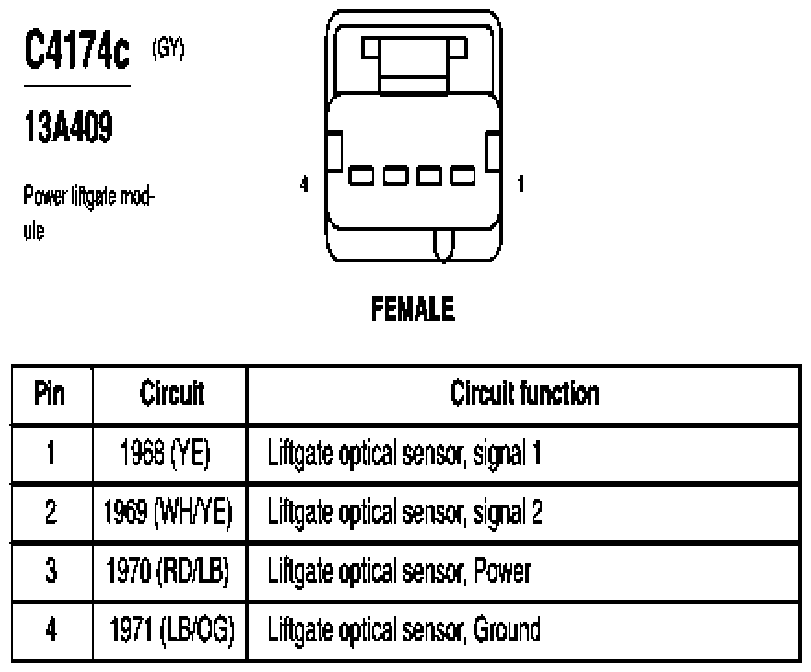

Fig 422: Power Liftgate Module Connector End View (C4174c)

G07844016

Courtesy of FORD MOTOR CO.

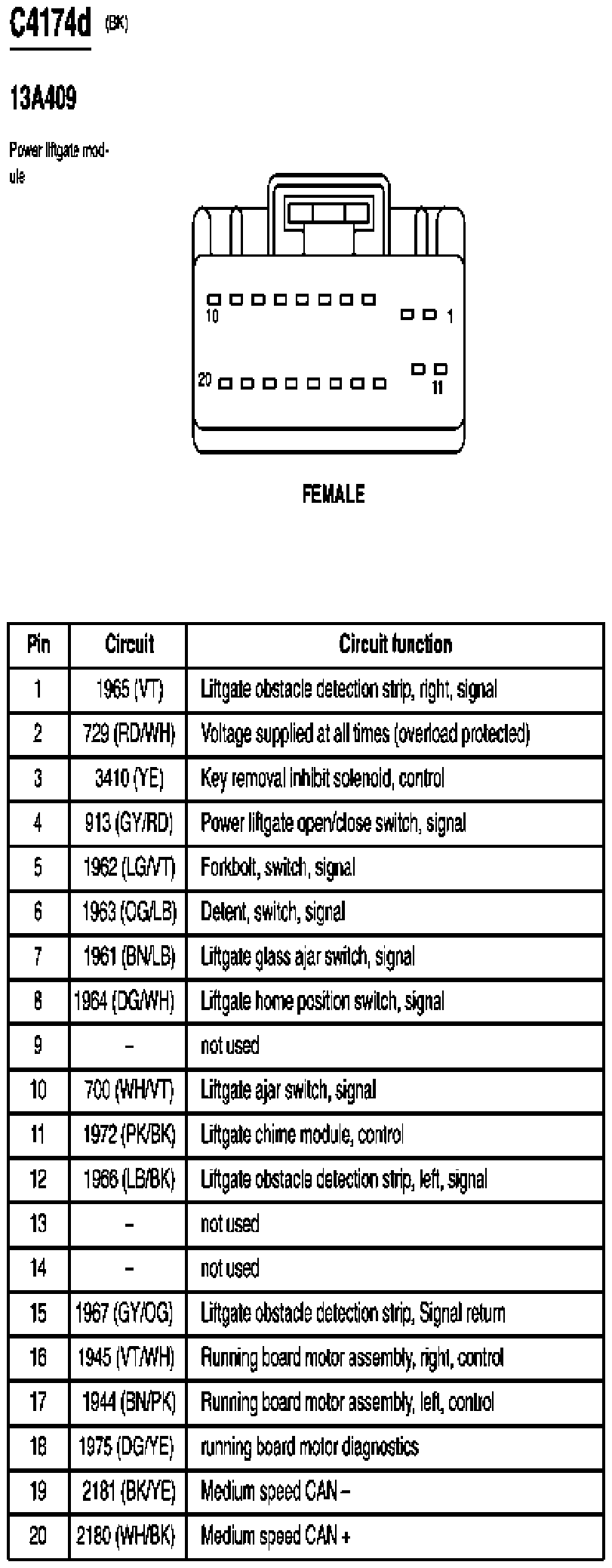

Fig 423: Power Liftgate Module Connector End View (C4174d)

G07844017

Courtesy of FORD MOTOR CO.

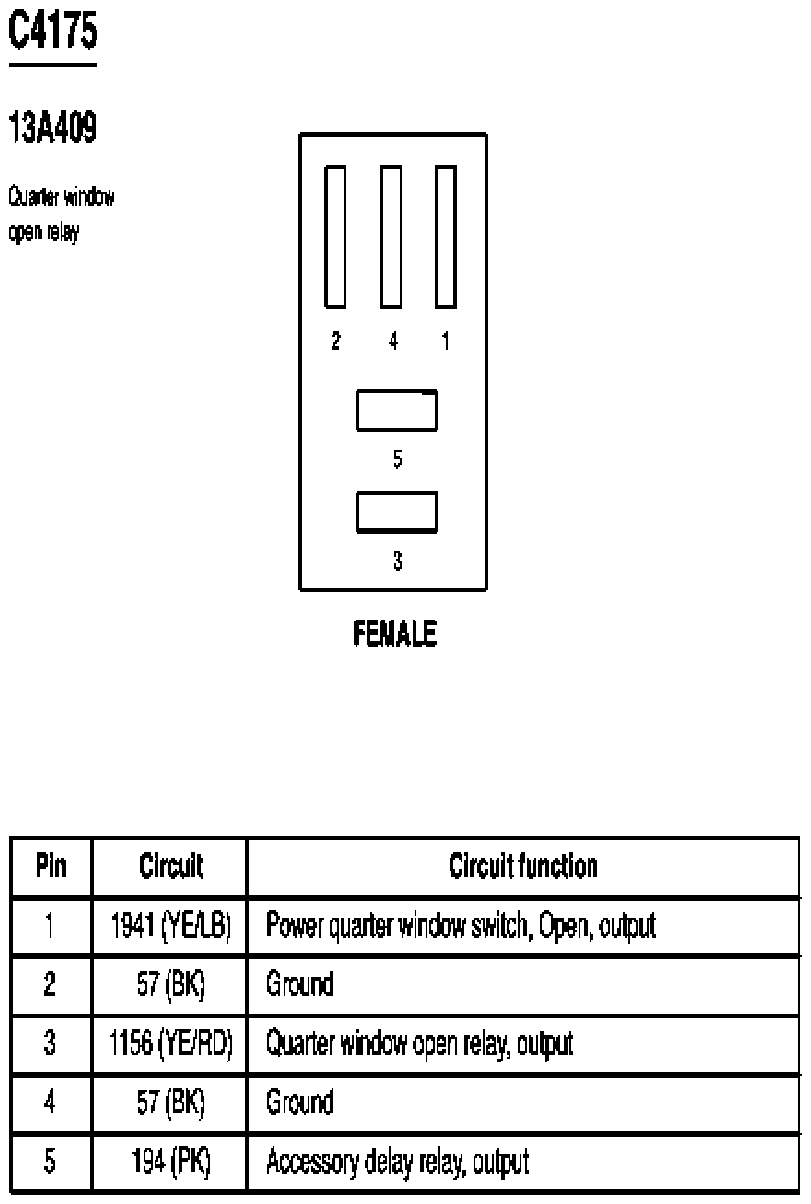

Fig 424: Quarter Window Open Relay Connector End View (C4175)

G07844018

Courtesy of FORD MOTOR CO.

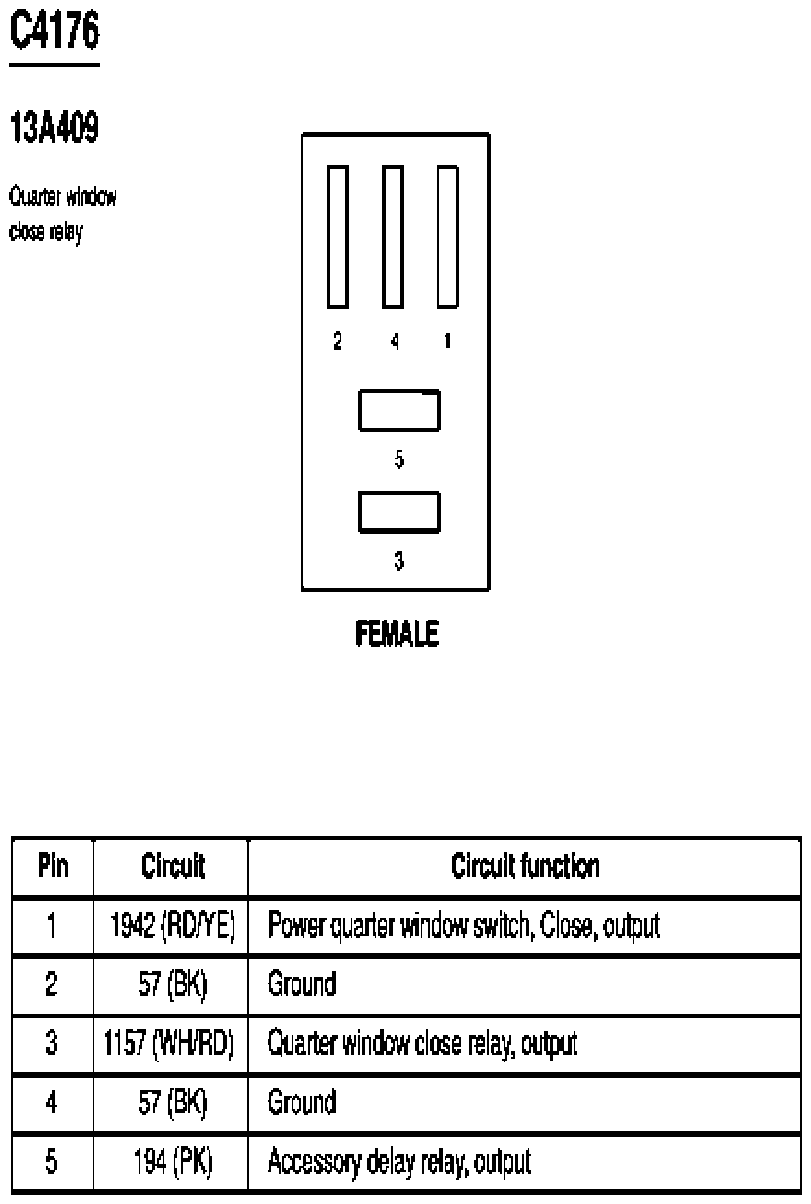

Fig 425: Quarter Window Close Relay Connector End View (C4176)

G07844019

Courtesy of FORD MOTOR CO.

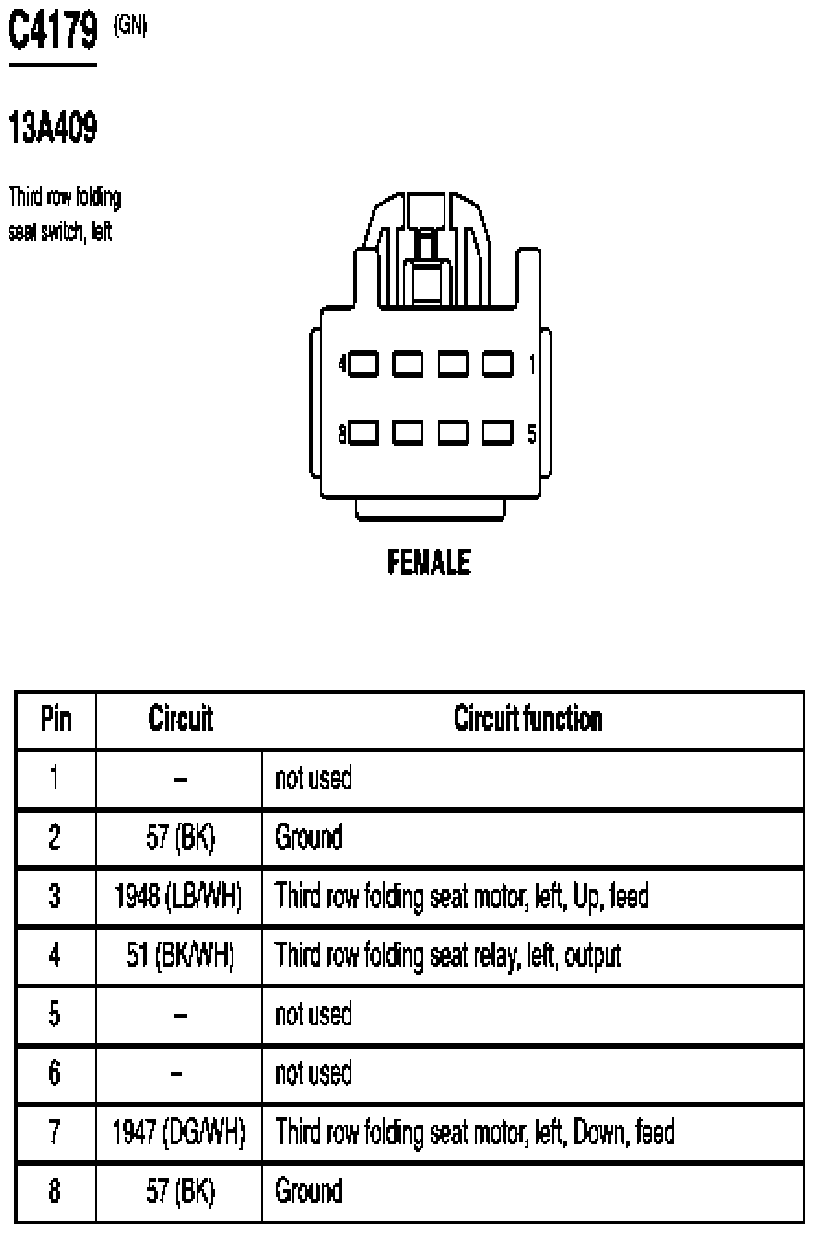

Fig 426: Third Row Folding Seat Switch, Left Connector End View (C4179)

G07844020

Courtesy of FORD MOTOR CO.

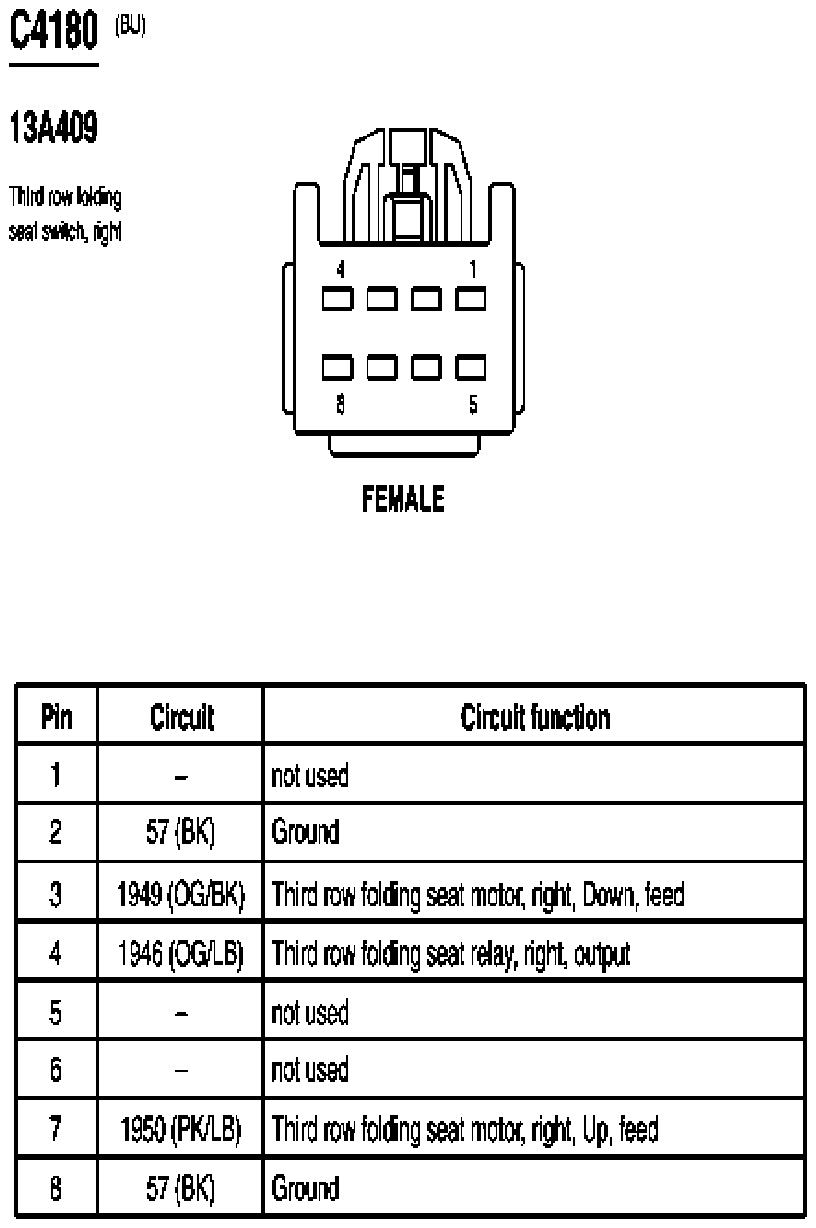

Fig 427: Third Row Folding Seat Switch, Right Connector End View (C4180)

G07844021

Courtesy of FORD MOTOR CO.

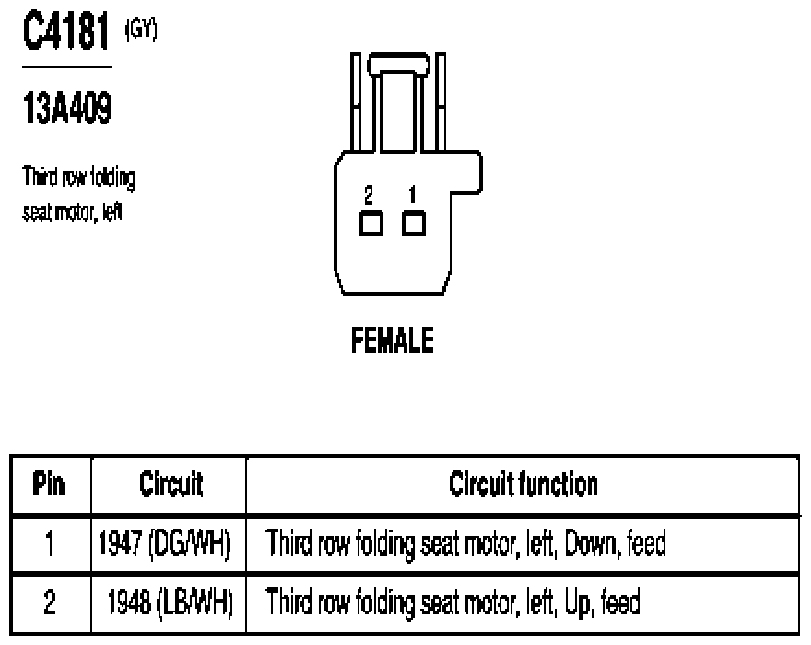

Fig 428: Third Row Folding Seat Motor, Left Connector End View (C4181)

G07844022

Courtesy of FORD MOTOR CO.

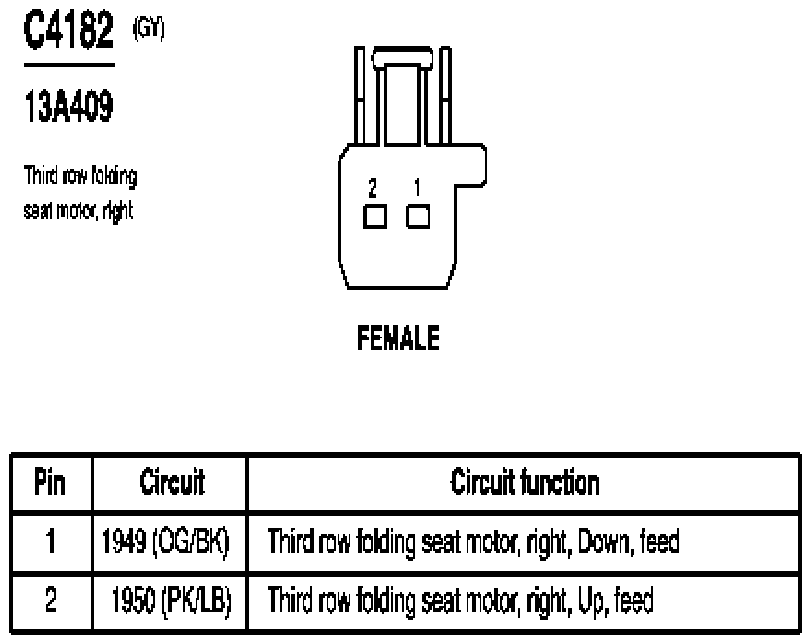

Fig 429: Third Row Folding Seat Motor, Right Connector End View (C4182)

G07844023

Courtesy of FORD MOTOR CO.

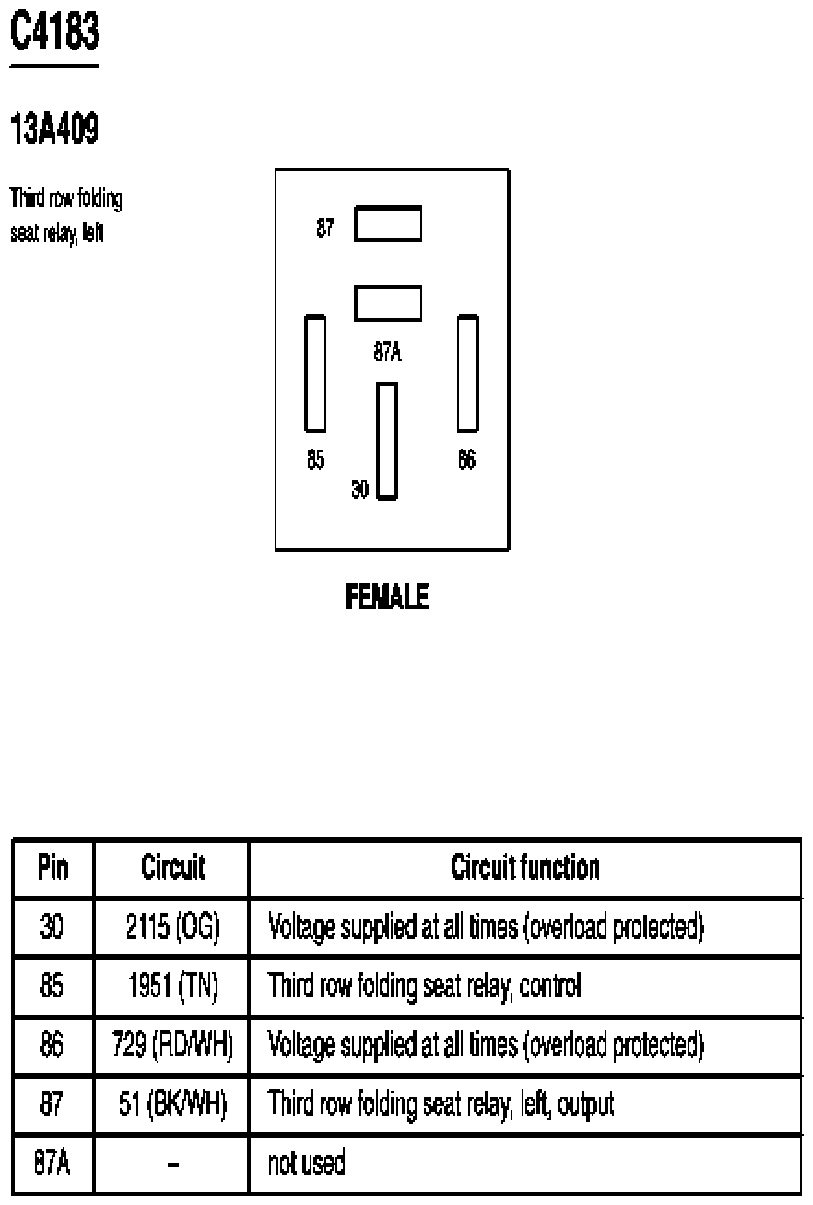

Fig 430: Third Row Folding Seat Relay, Left Connector End View (C4183)

G07844024

Courtesy of FORD MOTOR CO.

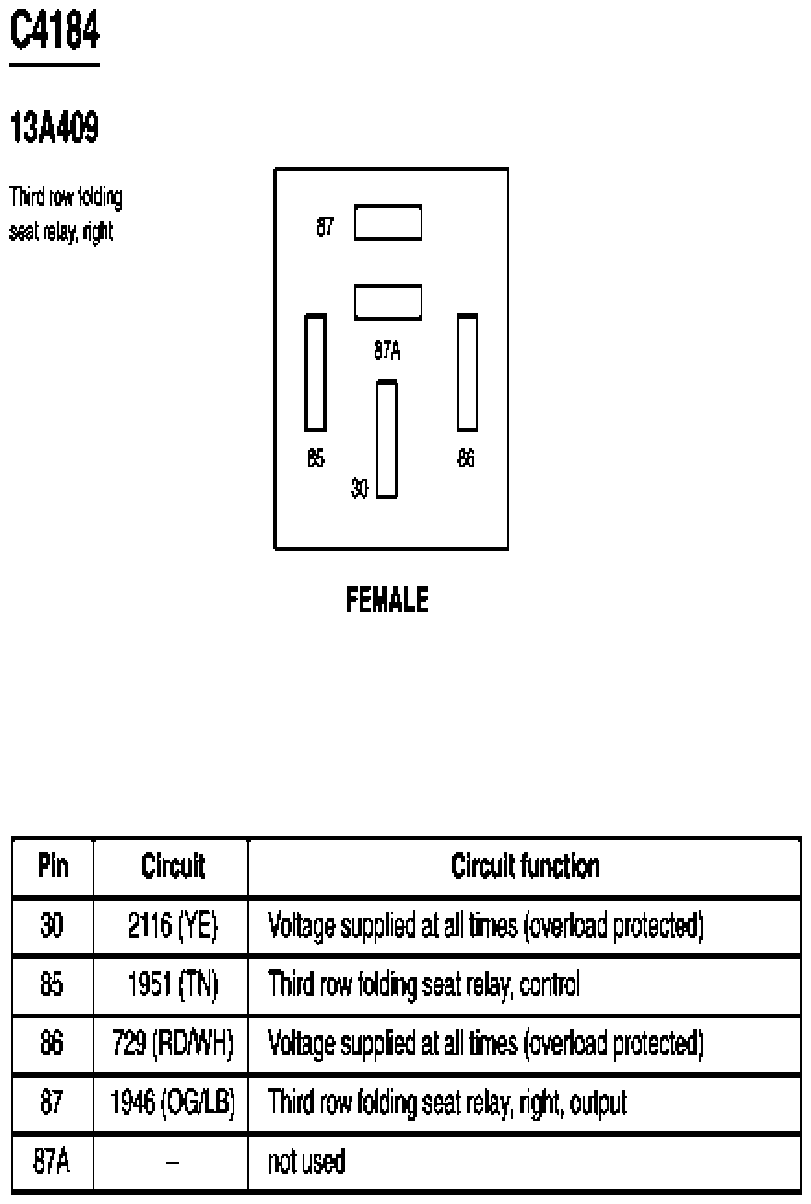

Fig 431: Third Row Folding Seat Relay, Right Connector End View (C4184)

G07844025

Courtesy of FORD MOTOR CO.

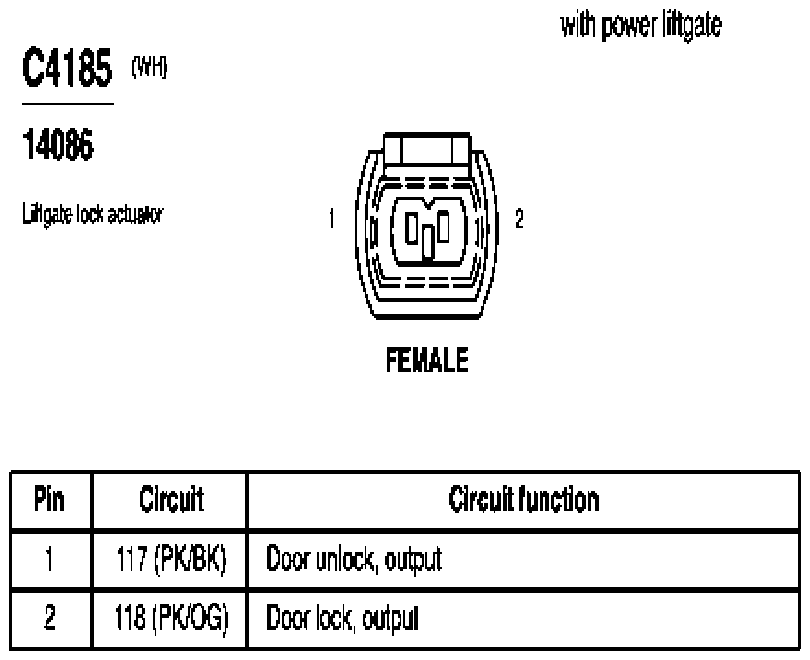

Fig 432: Liftgate Lock Actuator Connector End View (C4185)

G07844026

Courtesy of FORD MOTOR CO.

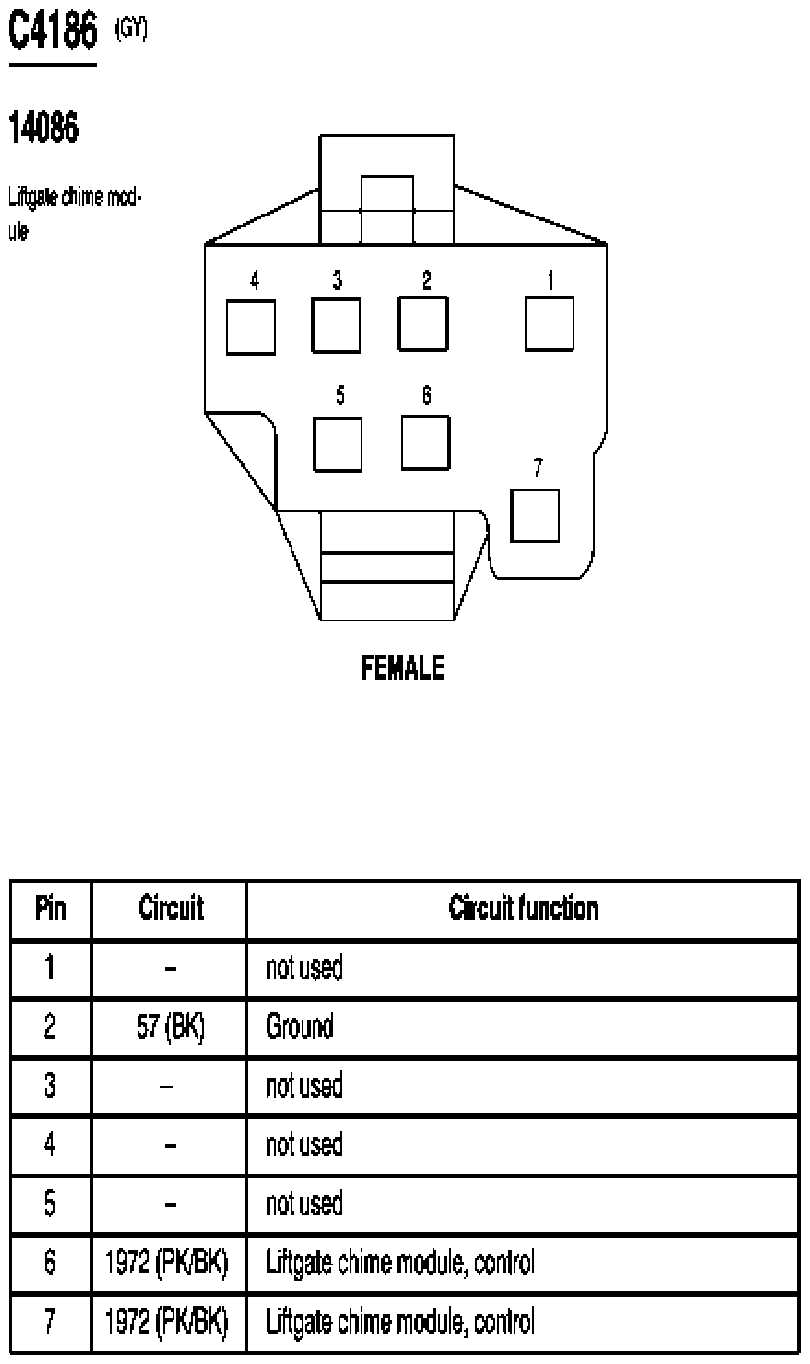

Fig 433: Liftgate Chime Module Connector End View (C4186)

G07844027

Courtesy of FORD MOTOR CO.

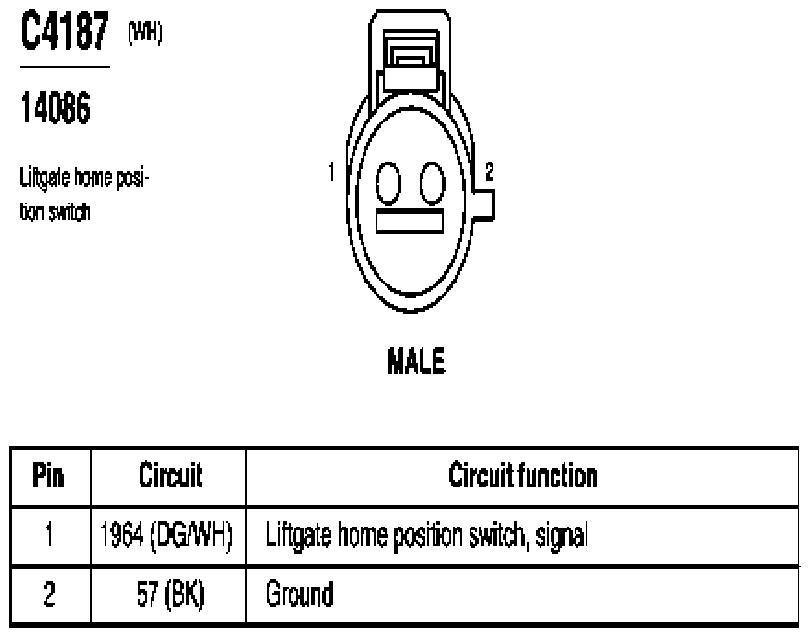

Fig 434: Liftgate Home Position Switch Connector End View (C4187)

G07844028

Courtesy of FORD MOTOR CO.

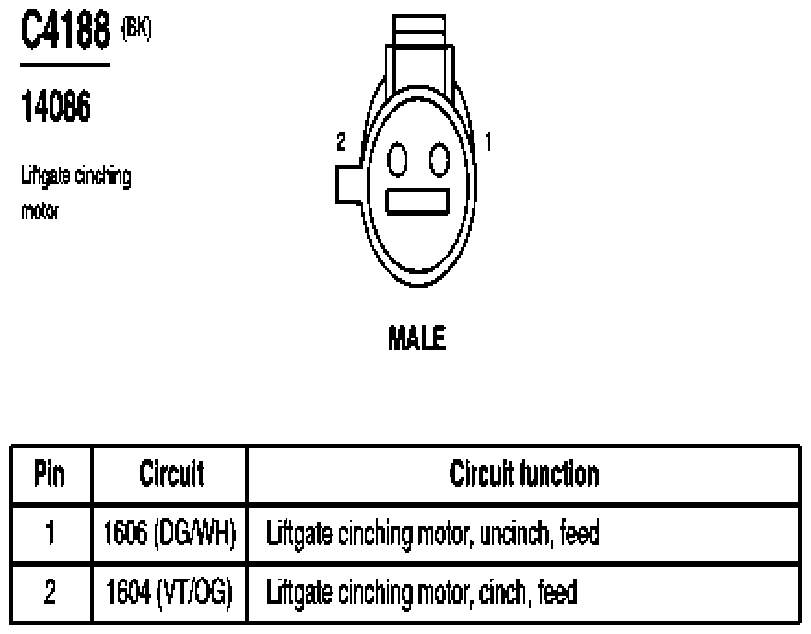

Fig 435: Liftgate Cinching Motor Connector End View (C4188)

G07844029

Courtesy of FORD MOTOR CO.

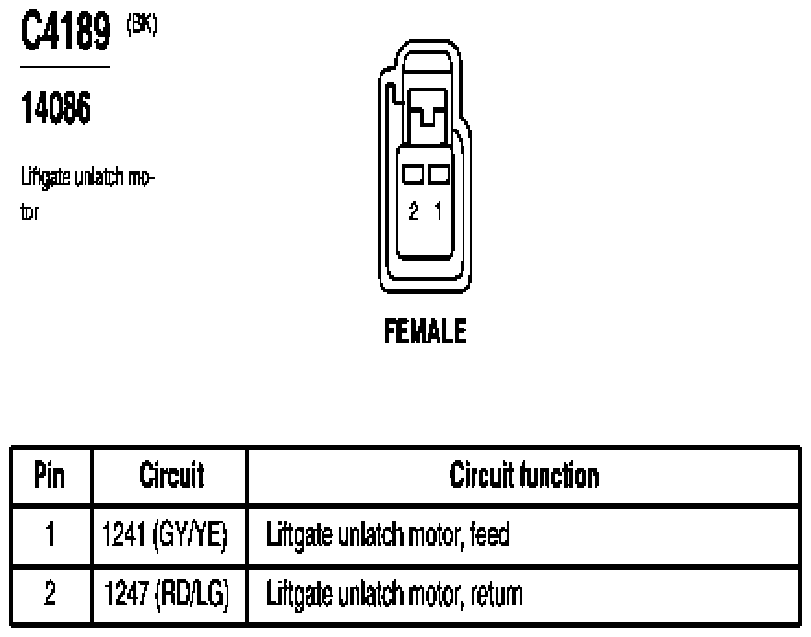

Fig 436: Liftgate Unlatch Motor Connector End View (C4189)

G07844030

Courtesy of FORD MOTOR CO.

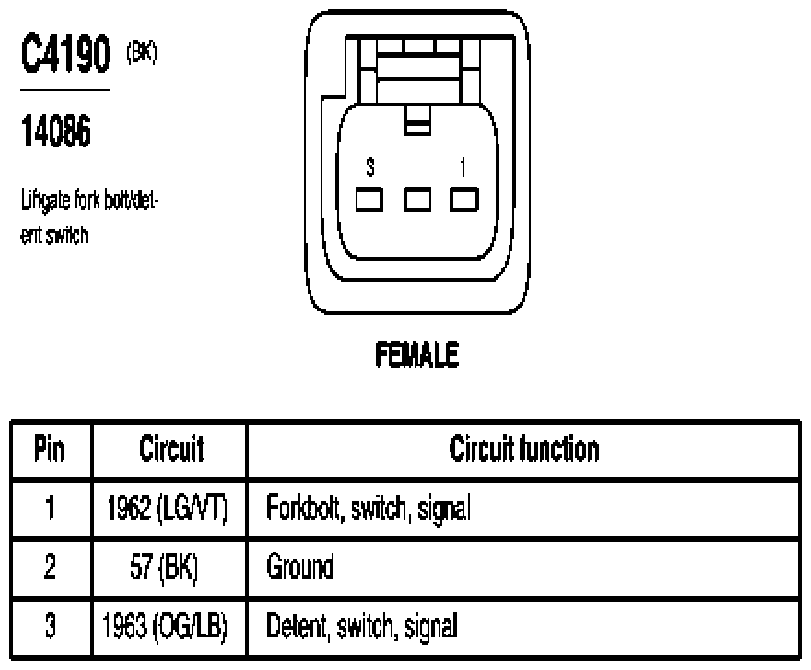

Fig 437: Liftgate Fork Bolt/Detent Switch Connector End View (C4190)

G07844031

Courtesy of FORD MOTOR CO.

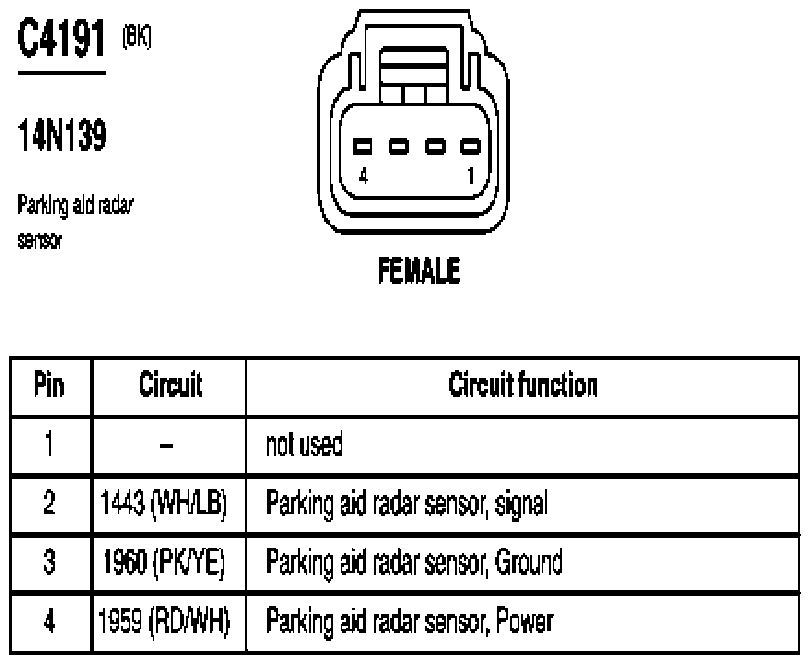

Fig 438: Parking Aid Radar Sensor Connector End View (C4191)

G07844032

Courtesy of FORD MOTOR CO.

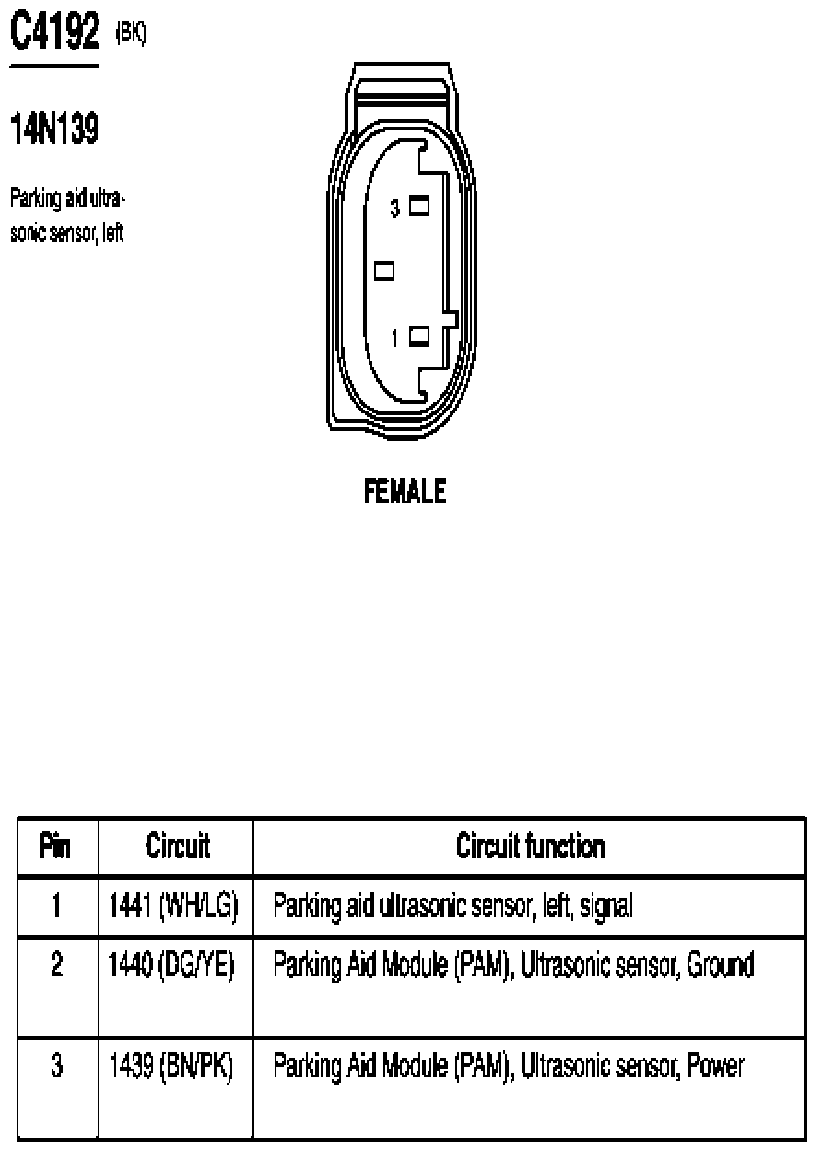

Fig 439: Parking Aid Ultrasonic Sensor, Left Connector End View (C4192)

G07844033

Courtesy of FORD MOTOR CO.

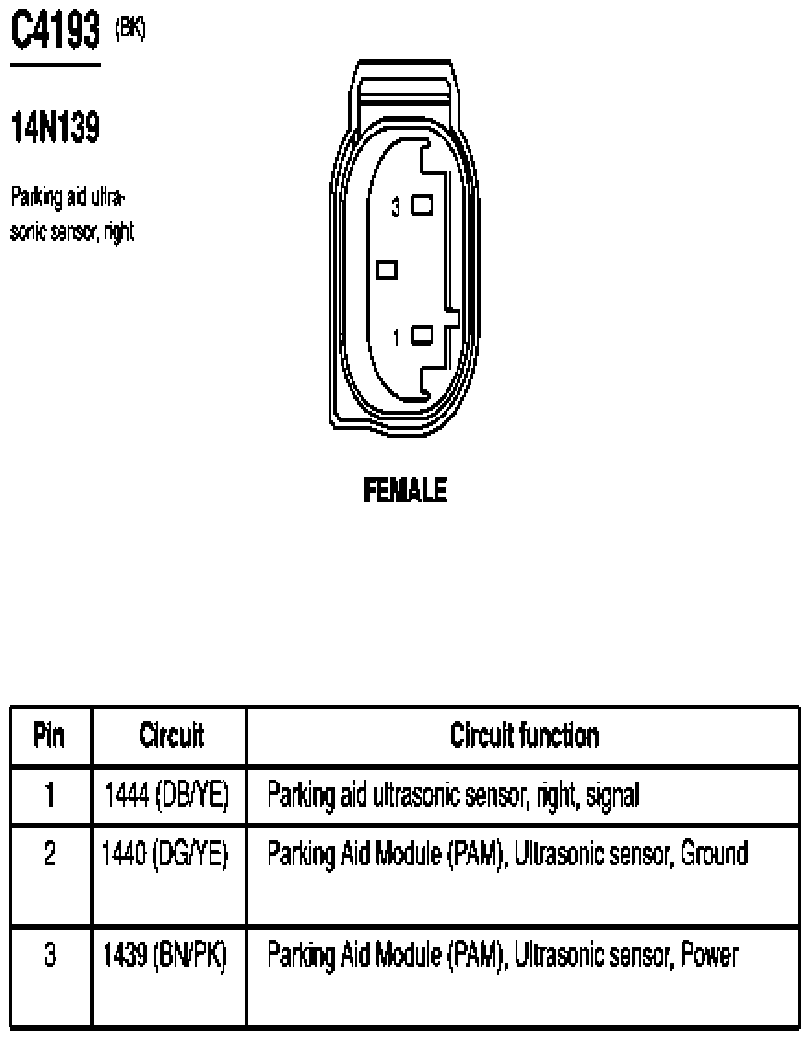

Fig 440: Parking Aid Ultrasonic Sensor, Right Connector End View (C4193)

G07844034

Courtesy of FORD MOTOR CO.

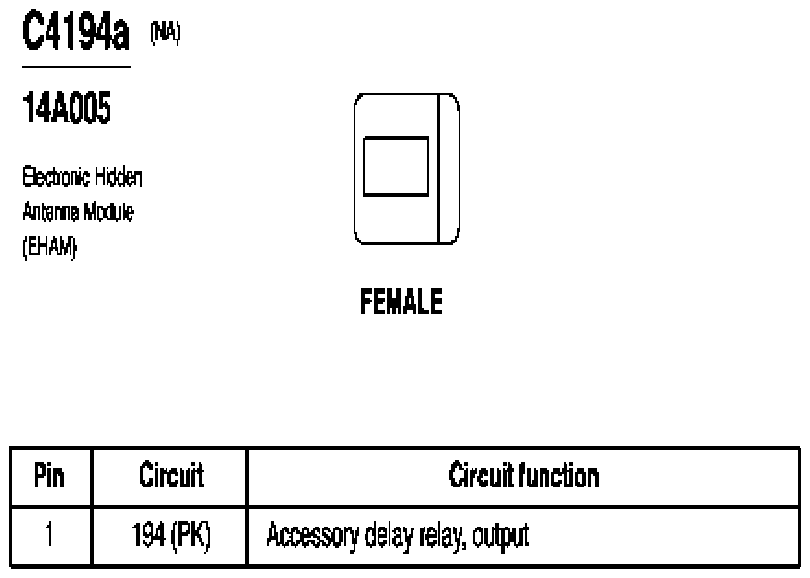

Fig 441: Electronic Hidden Antenna Module Connector End View (C4194a)

G07844035

Courtesy of FORD MOTOR CO.

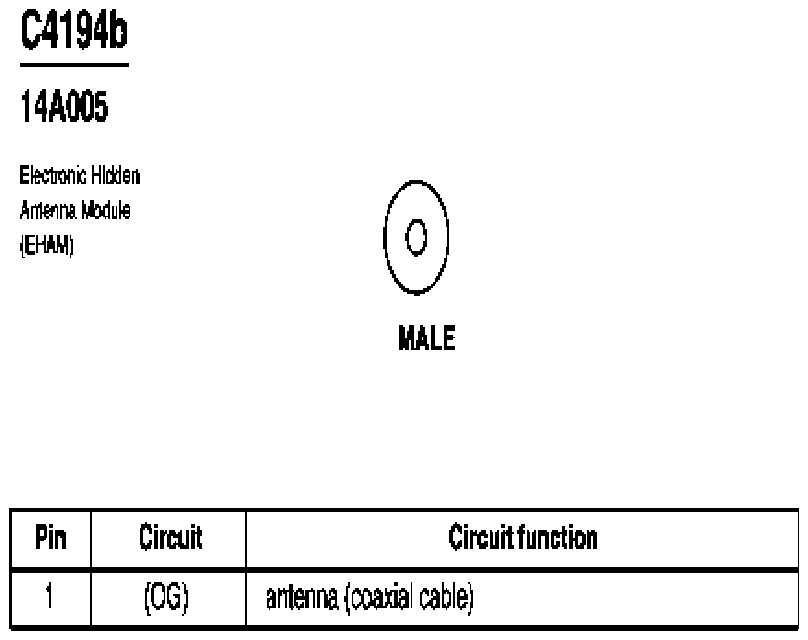

Fig 442: Electronic Hidden Antenna Module Connector End View (C4194b)

G07844036

Courtesy of FORD MOTOR CO.

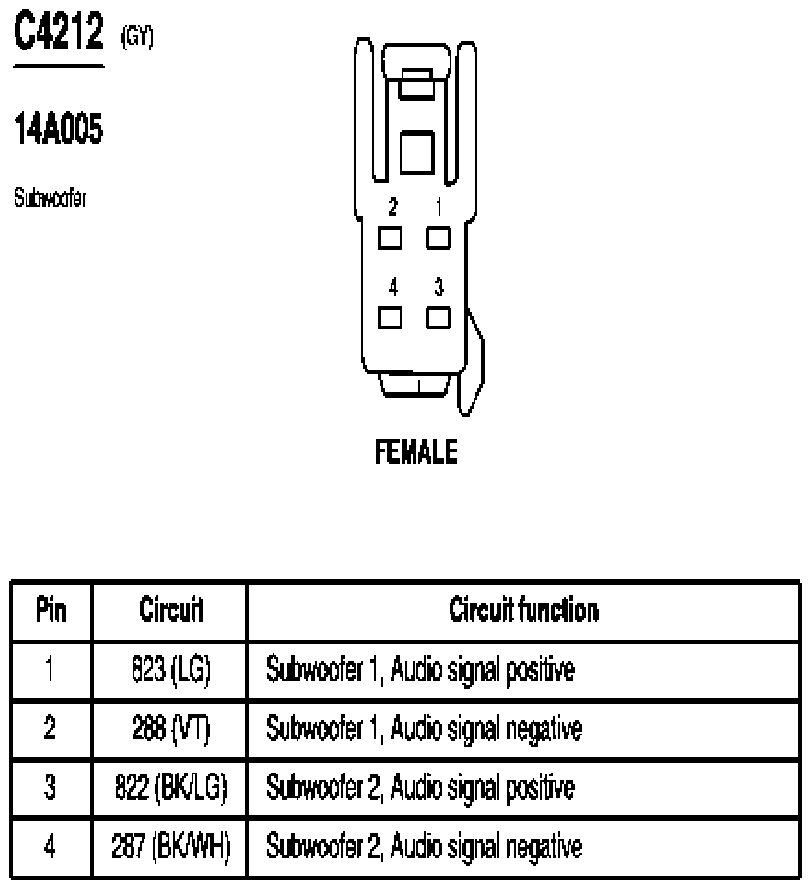

Fig 443: Subwoofer Connector End View (C4212)

G07844037

Courtesy of FORD MOTOR CO.

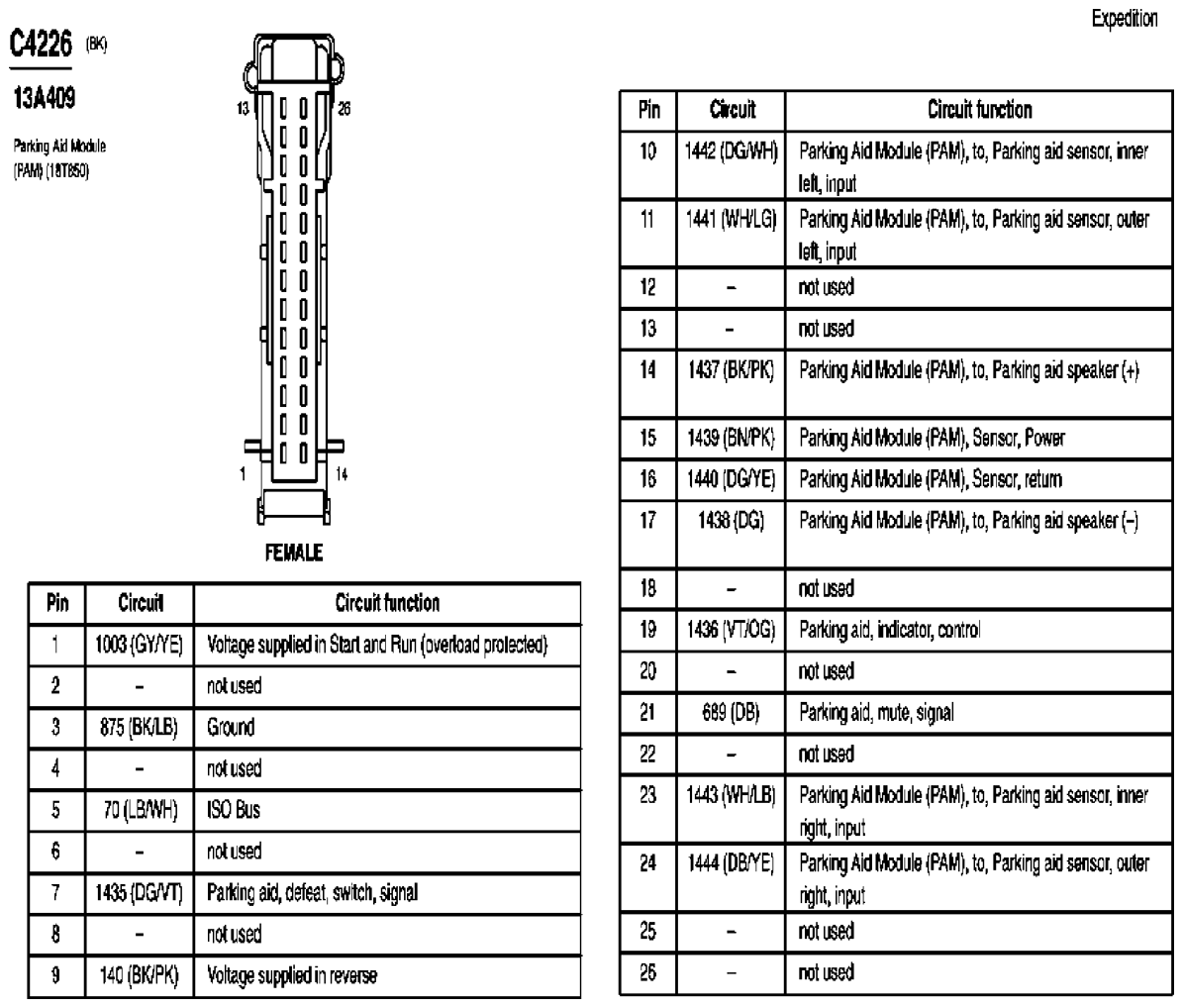

Fig 444: Parking Aid Module (PAM) Connector End View (C4226)

G03993648

Courtesy of FORD MOTOR CO.

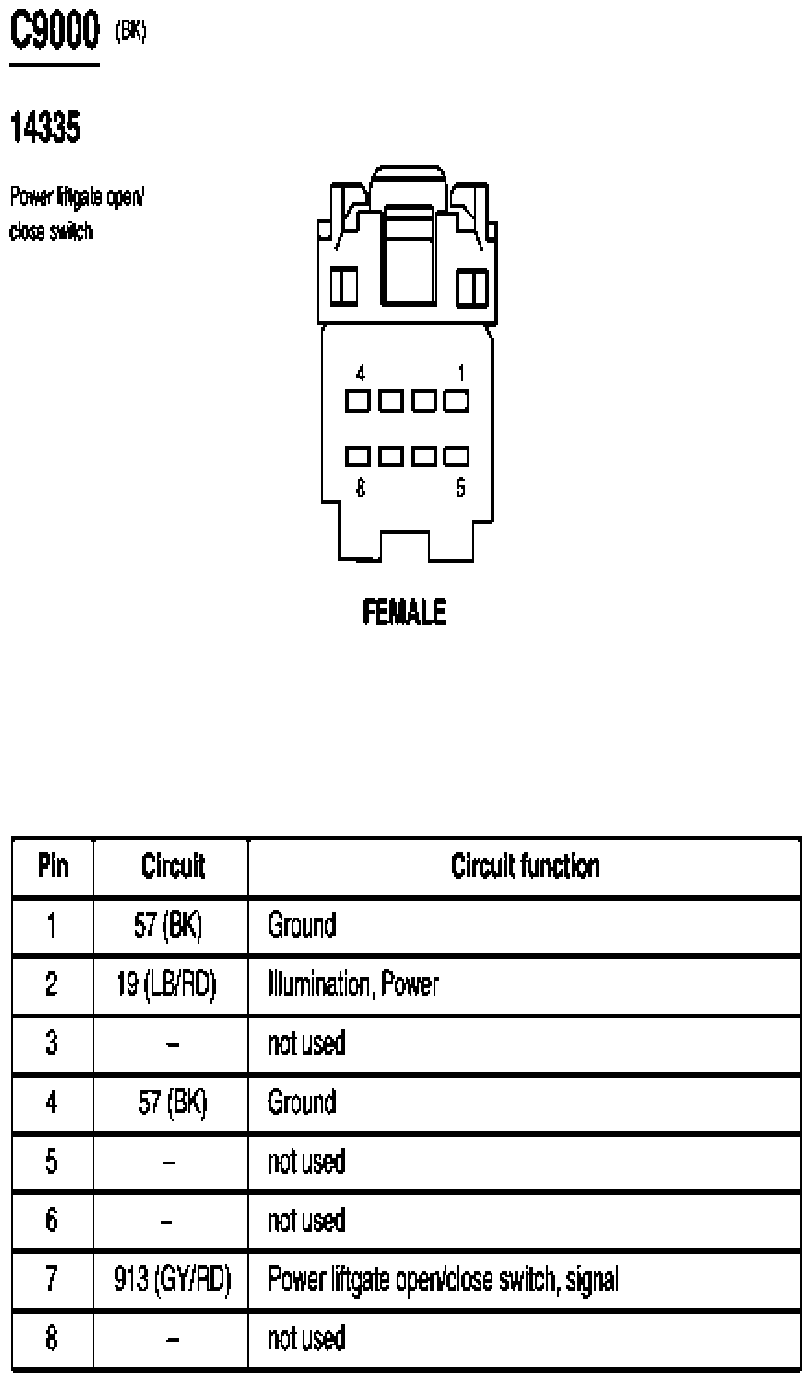

Fig 445: Power Liftgate Open/Close Switch Connector End View (C9000)

G07844038

Courtesy of FORD MOTOR CO.

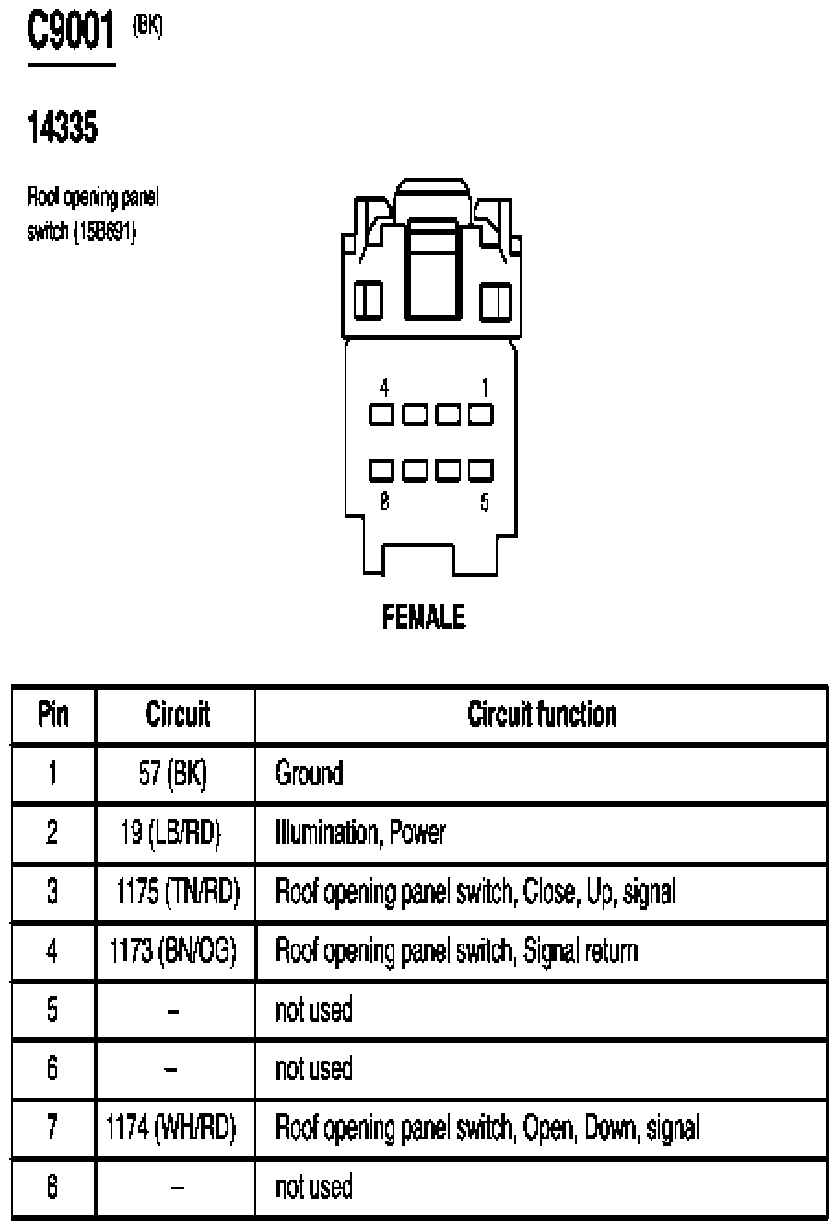

Fig 446: Roof Opening Panel Switch Connector End View (C9001)

G07844039

Courtesy of FORD MOTOR CO.

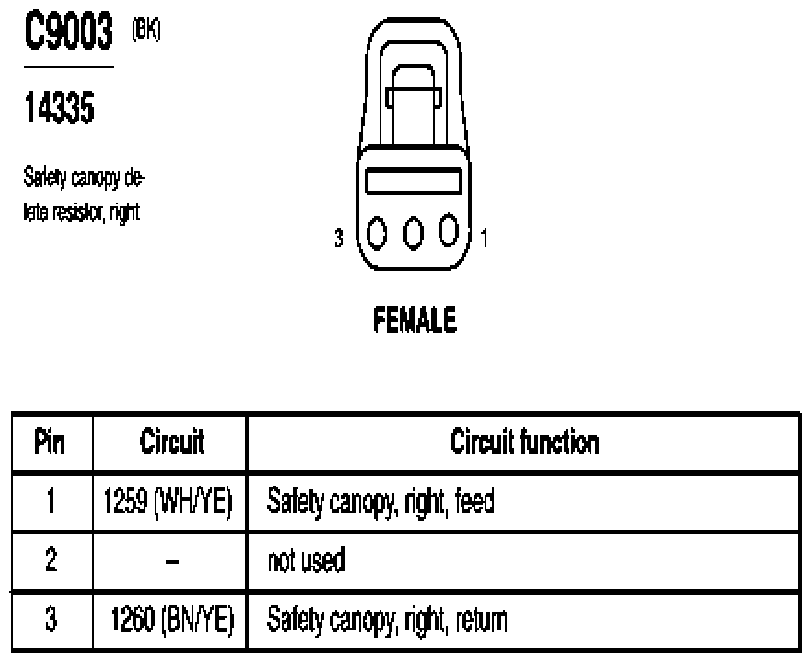

Fig 447: Safety Canopy Delete Resistor, Right Connector End View (C9003)

G07844040

Courtesy of FORD MOTOR CO.

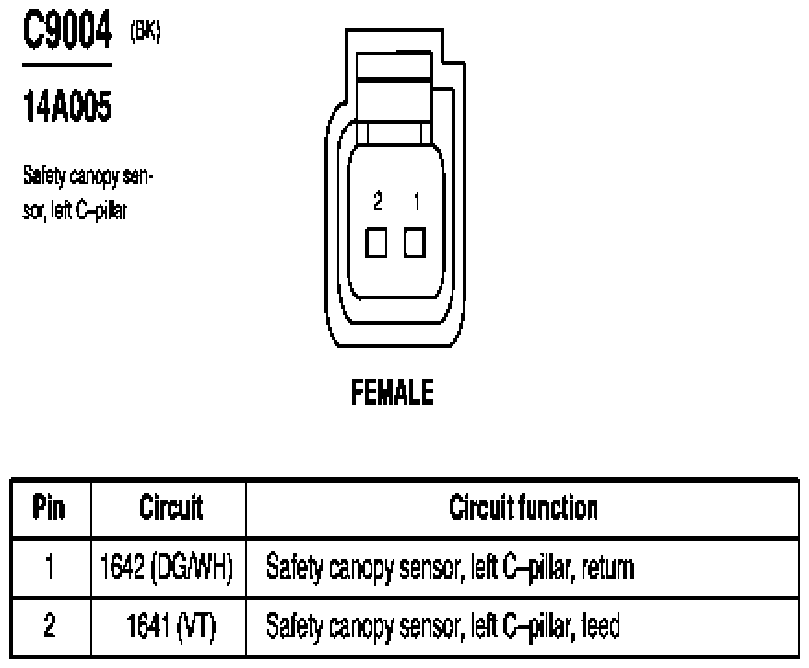

Fig 448: Safety Canopy Sensor, Left C-Pillar Connector End View (C9004)

G07844041

Courtesy of FORD MOTOR CO.

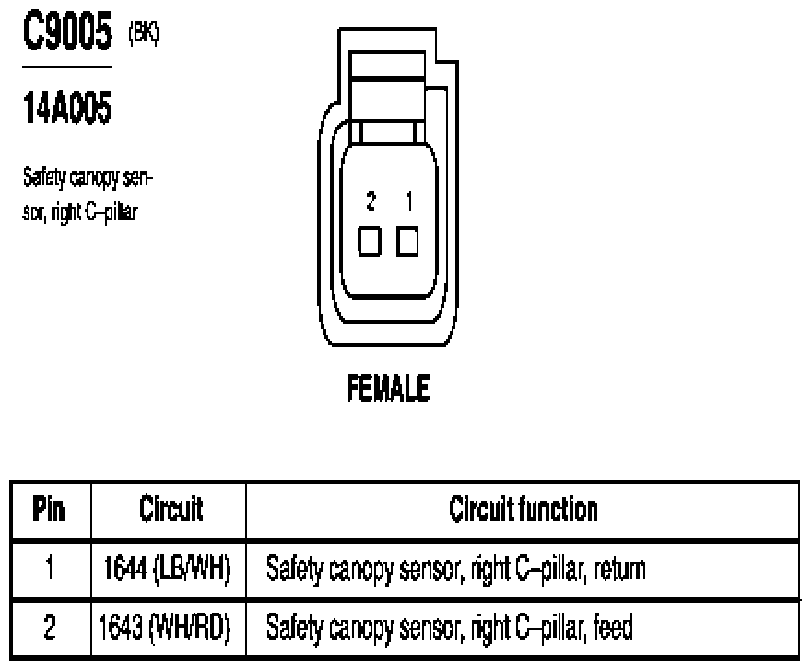

Fig 449: Safety Canopy Sensor, Right C-Pillar Connector End View (C9005)

G07844042

Courtesy of FORD MOTOR CO.

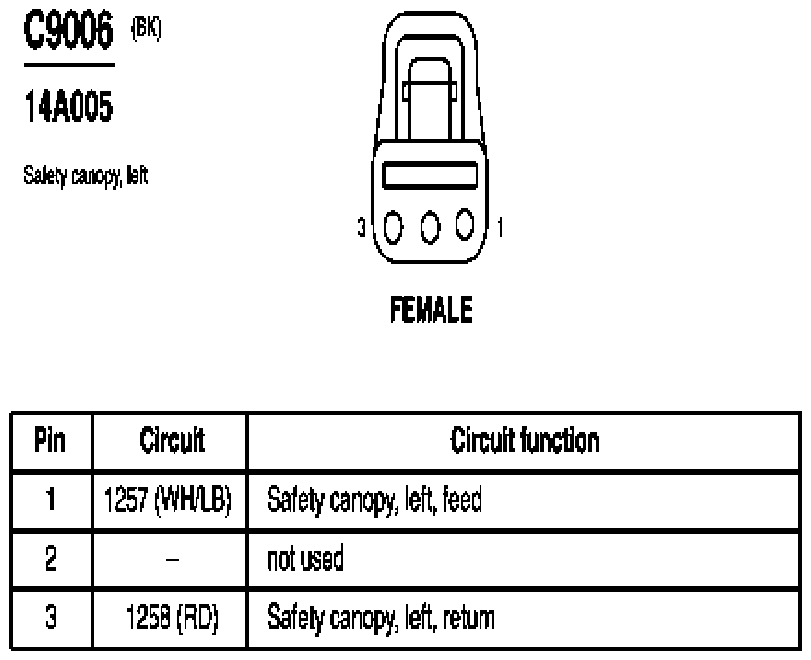

Fig 450: Safety Canopy, Left Connector End View (C9006)

G07844043

Courtesy of FORD MOTOR CO.

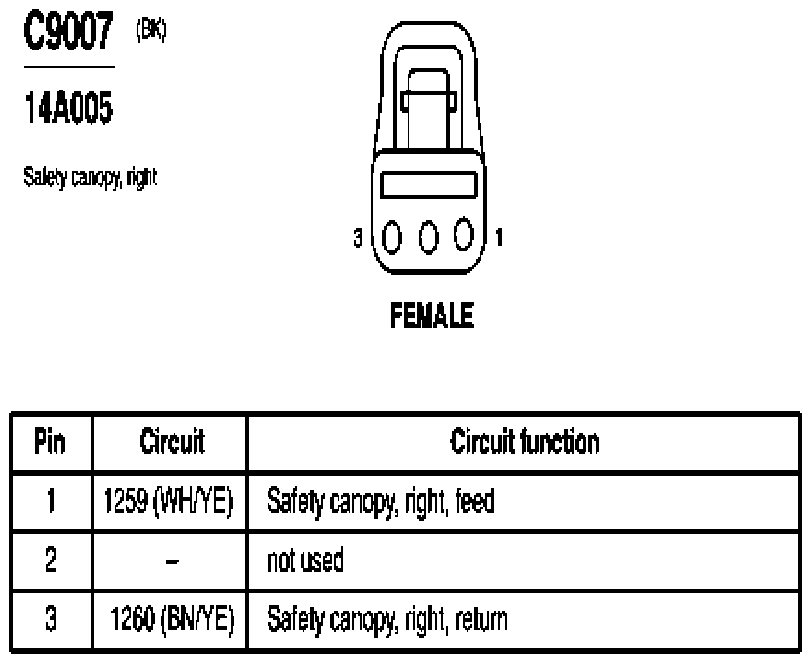

Fig 451: Safety Canopy, Right Connector End View (C9007)

G07844044

Courtesy of FORD MOTOR CO.

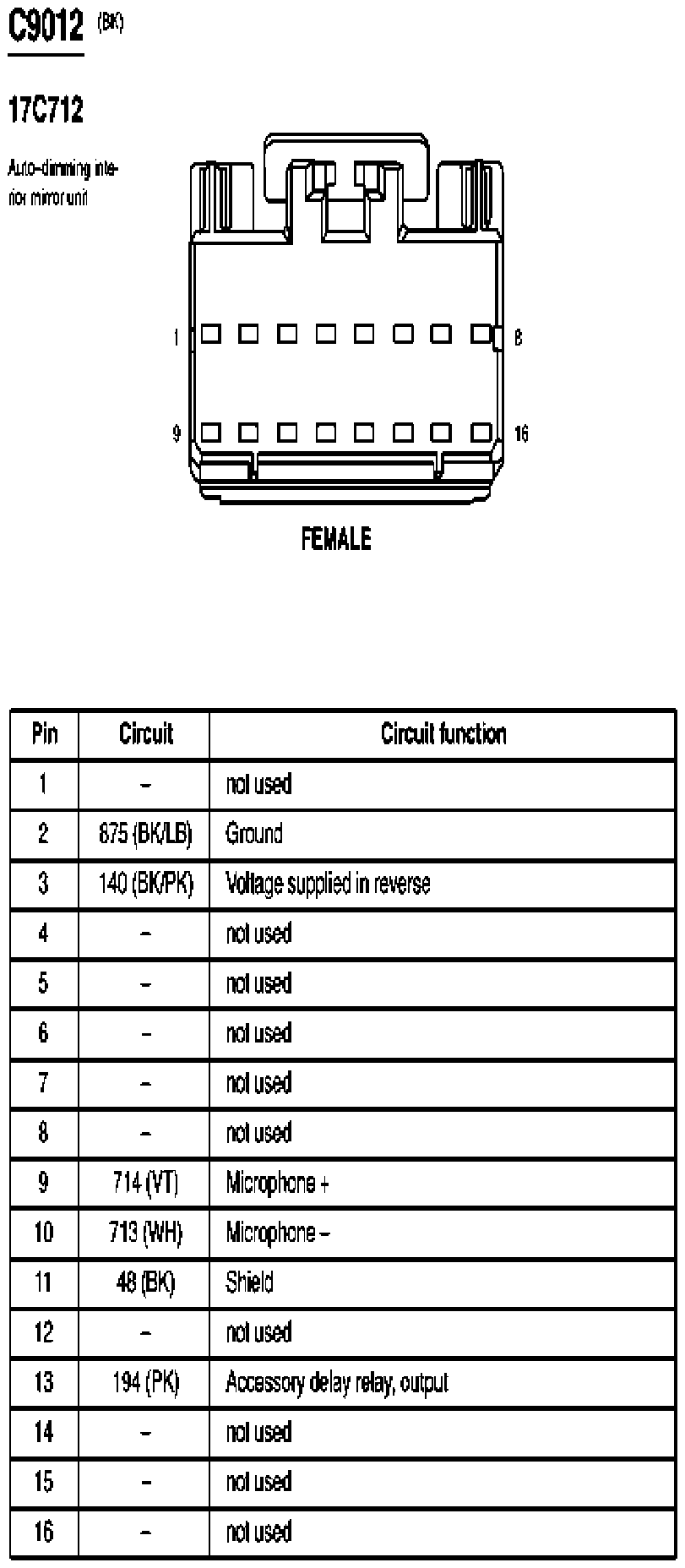

Fig 452: Auto-Dimming Interior Mirror Unit Connector End View (C9012)

G07844045

Courtesy of FORD MOTOR CO.

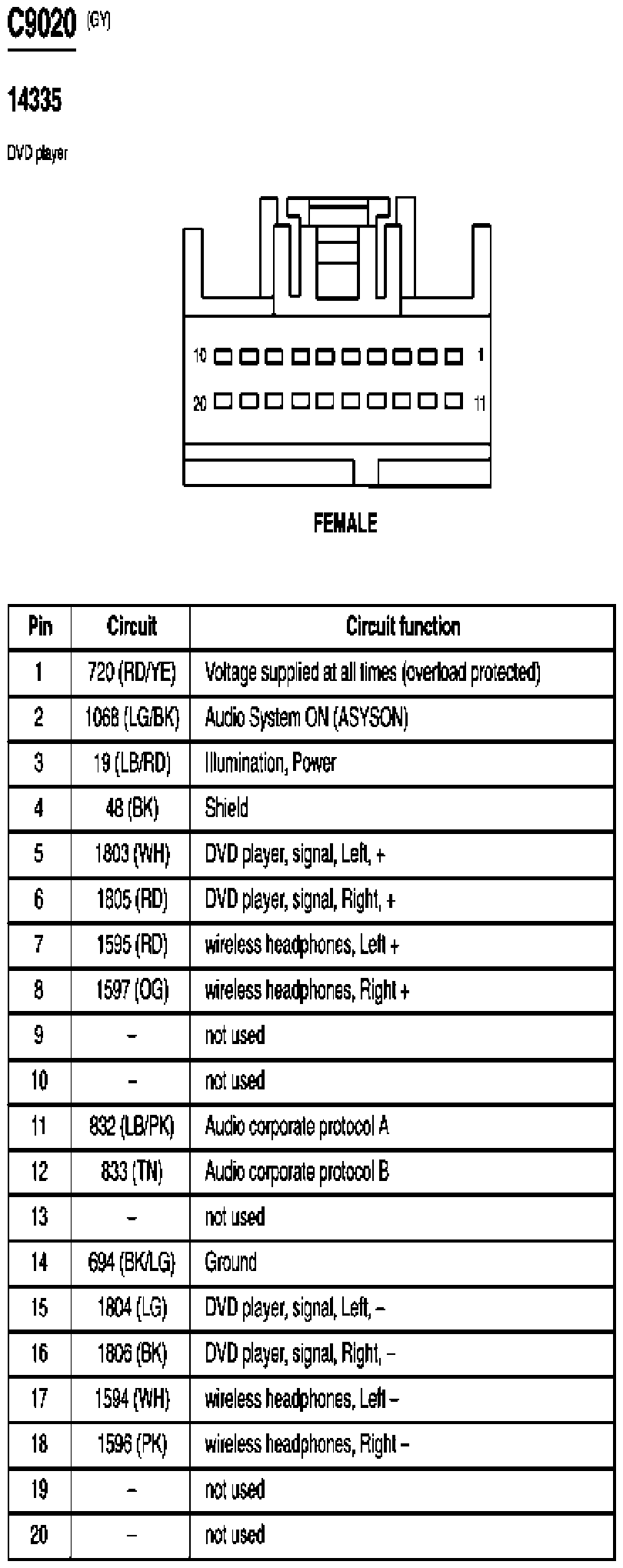

Fig 453: DVD Player Connector End View (C9020)

G07844046

Courtesy of FORD MOTOR CO.
