Receiver Drier: Notes

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D WSH-M1C231-B

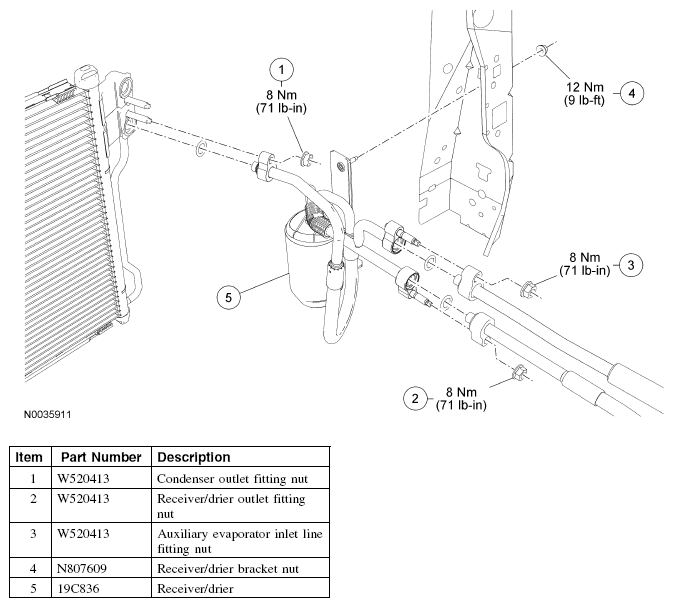

Fig 1: Receiver Drier Replacement Components With Torque Specifications
G04629500Courtesy of FORD MOTOR CO.
