EATC

CLIMATE CONTROL ASSEMBLY - EATC

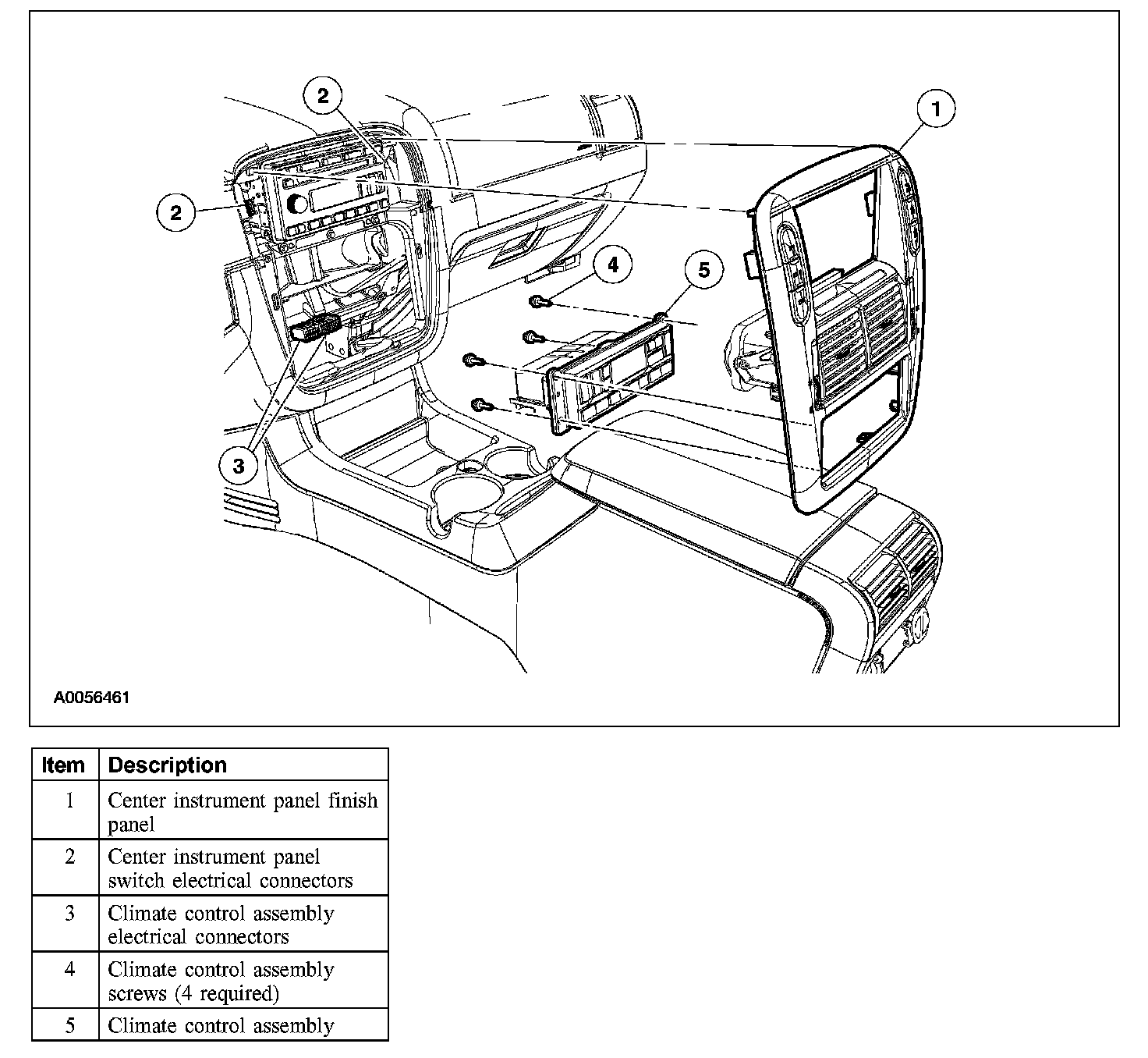

Removal and Installation
1. Remove the center instrument panel finish panel.
2. Disconnect the center instrument panel switch electrical connectors.
3. Disconnect the climate control assembly electrical connectors.
4. Remove the 4 climate control assembly screws.
5. Remove the climate control assembly.
6. To install, reverse the removal procedure.
