Manual

CLIMATE CONTROL ASSEMBLY - MANUAL

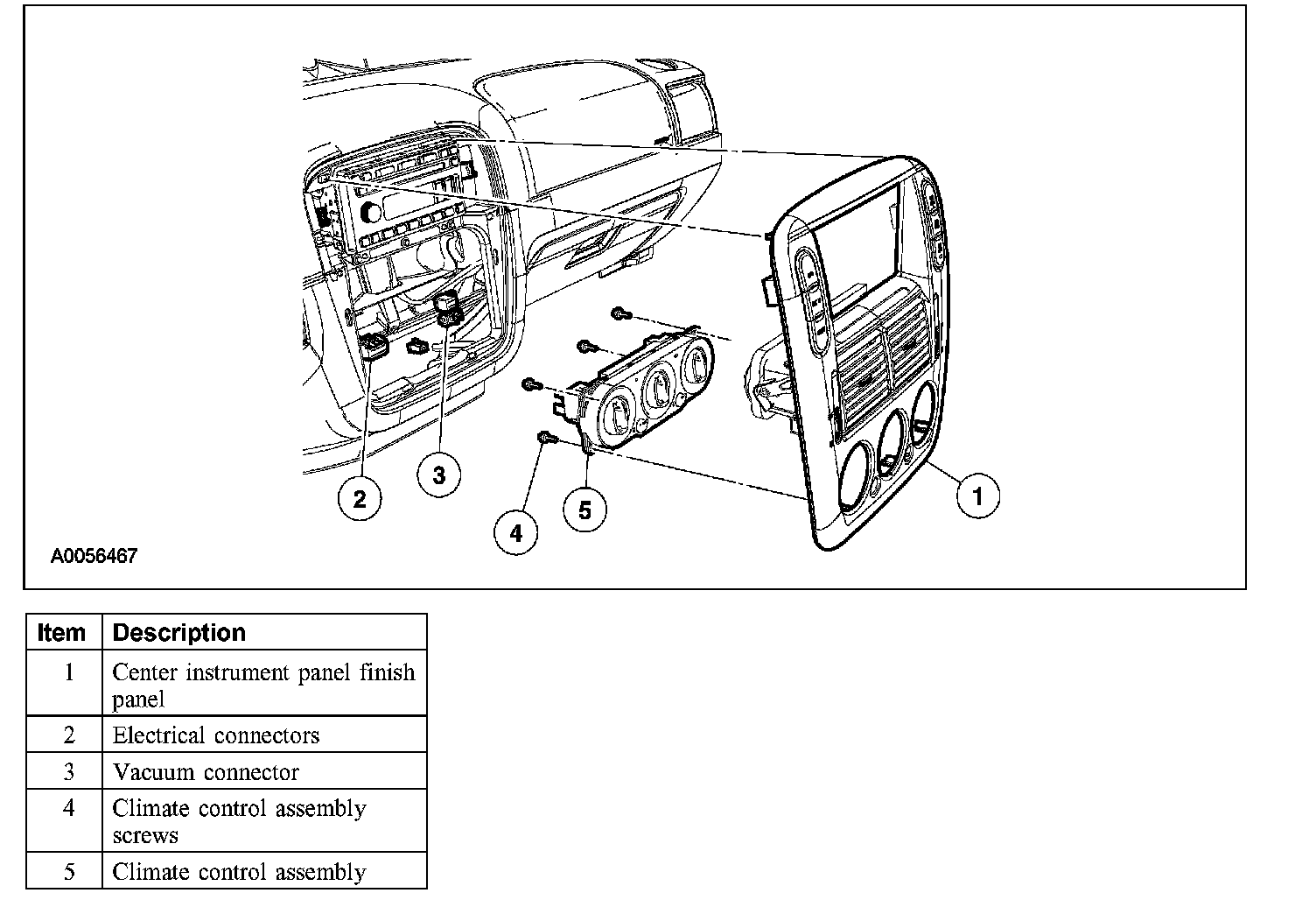

Removal and Installation
1. Remove the center instrument panel finish panel.
2. Disconnect the electrical connectors.
3. Disconnect the vacuum connector.
4. Remove the climate control assembly screws.
5. Remove the climate control assembly.
6. To install, reverse the removal procedure.
