Rear / Suspension-Exploded View

Rear / Suspension-Exploded View

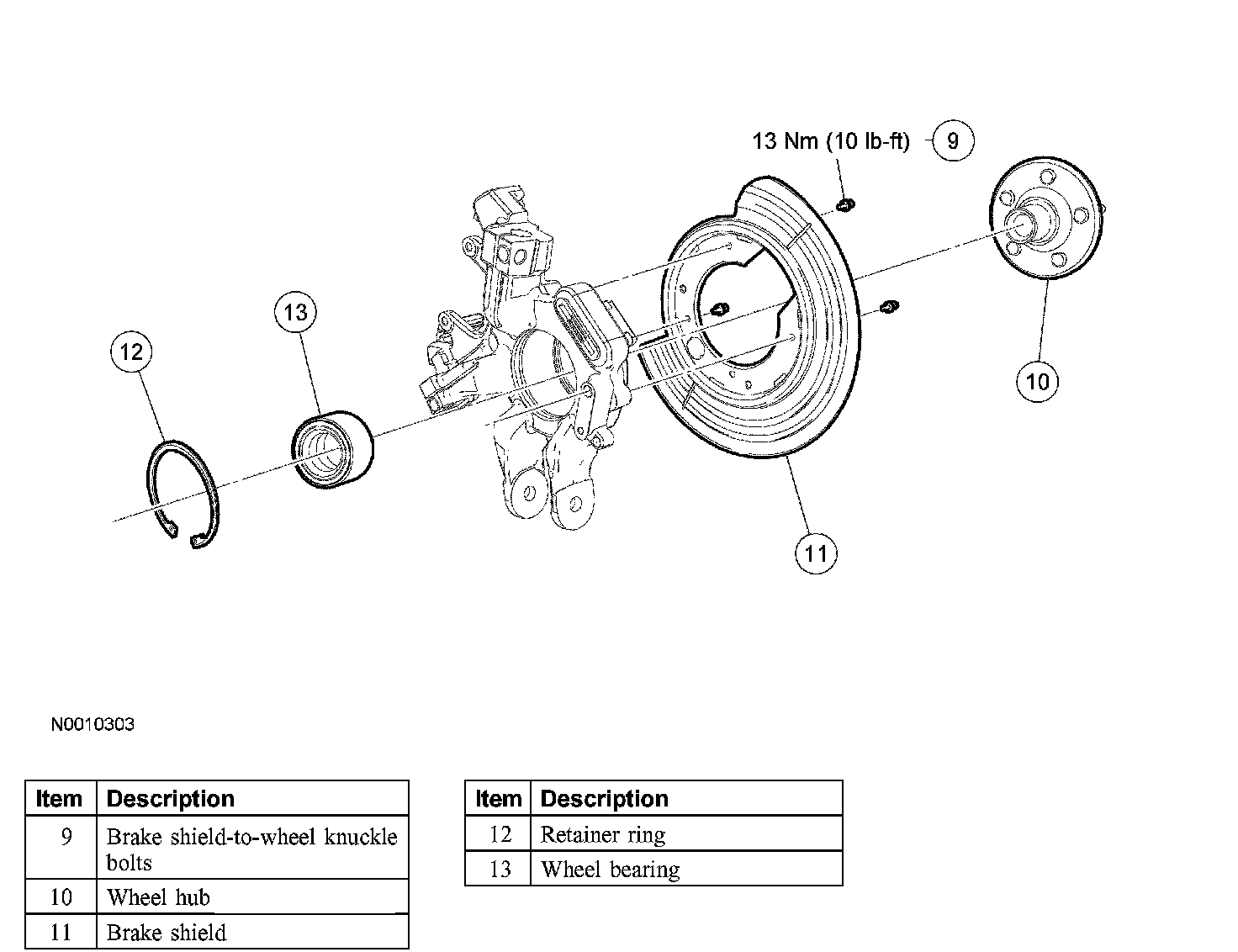

Part 1:

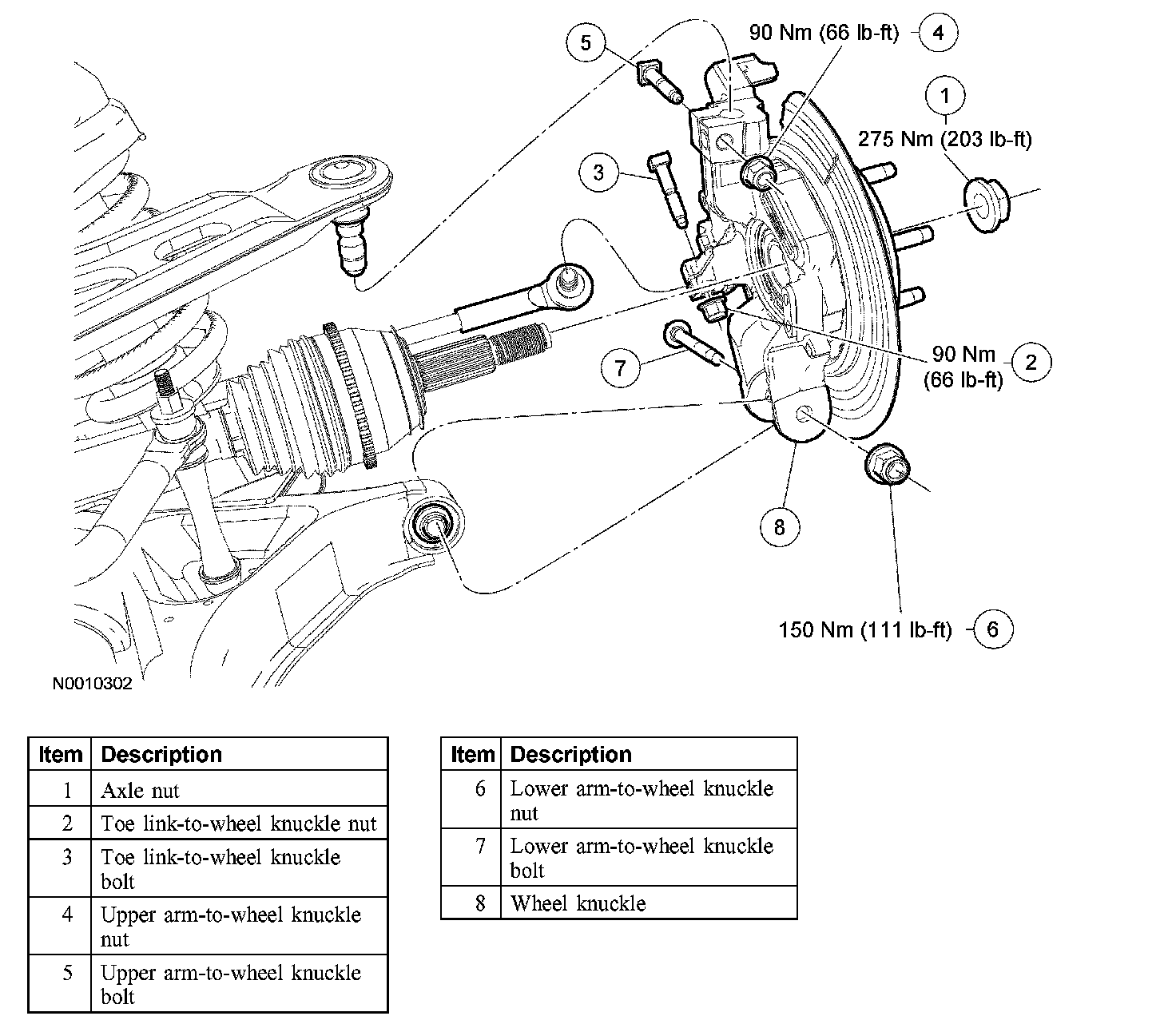

Part 2:

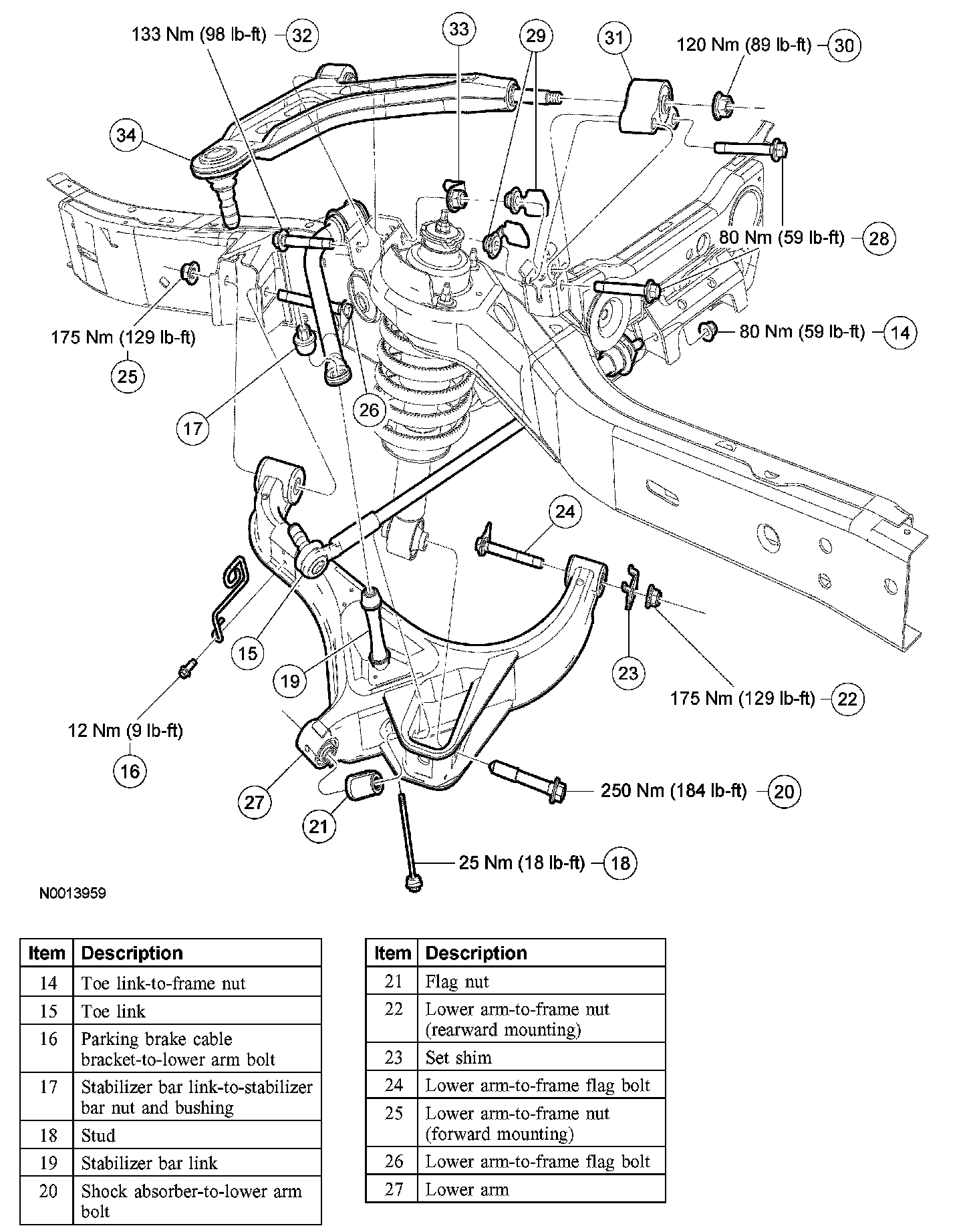

Part 3:




Part 4:
