Direct Clutch Drum Assembly: Notes

SPECIAL TOOL(S) CHART

G03915058
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04008451
 Protector, Piston Seal
307-049 (T74P-77404-A)
MATERIAL ITEM SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid
XT-5-QM		 MERCON® V

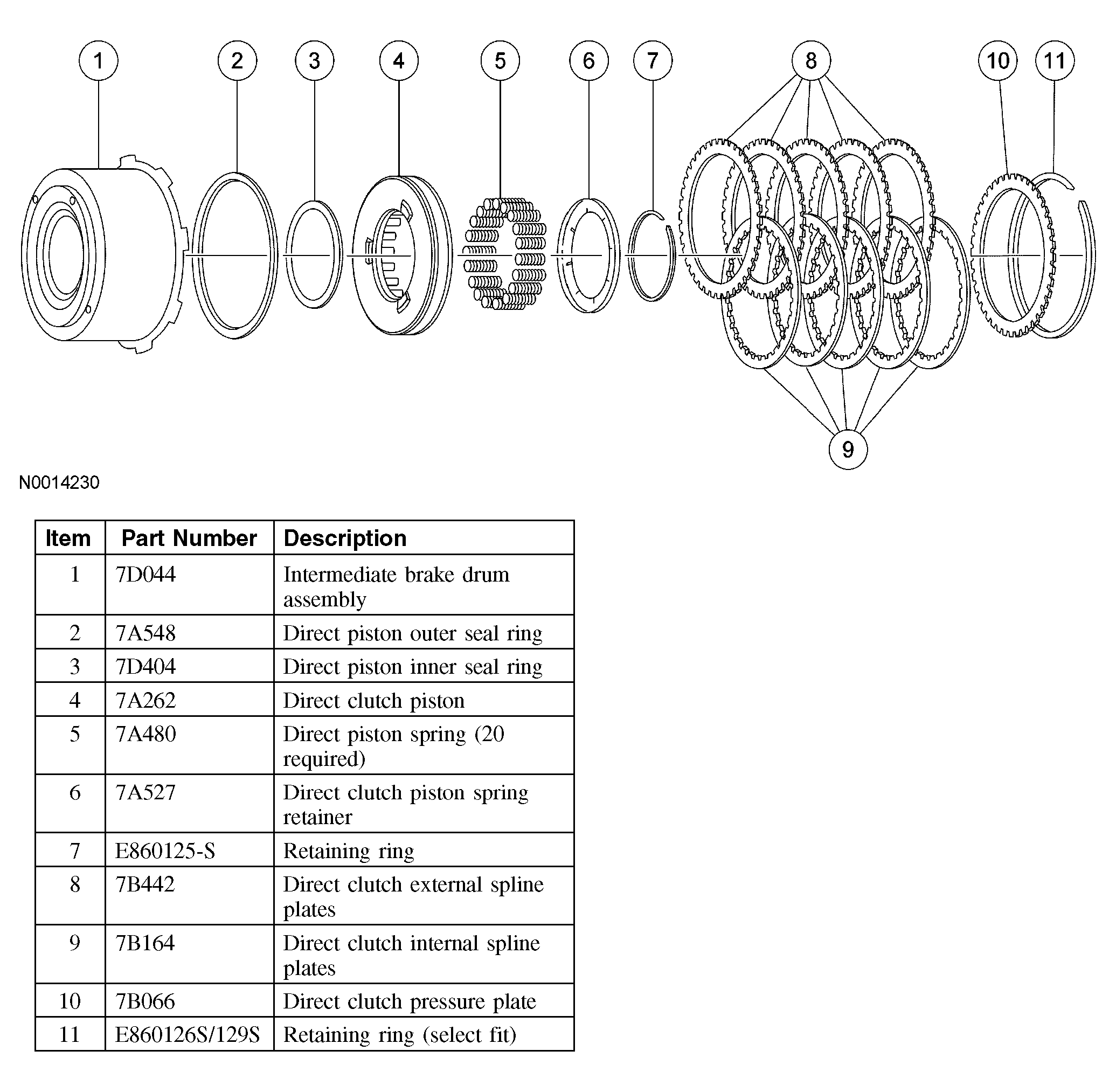

Fig 1: Identifying Direct Clutch Drum Assembly
G03949004Courtesy of FORD MOTOR CO.
