Quick Connect Coupling: Connect

    NOTE: Lubricate the fittings with clean engine oil.

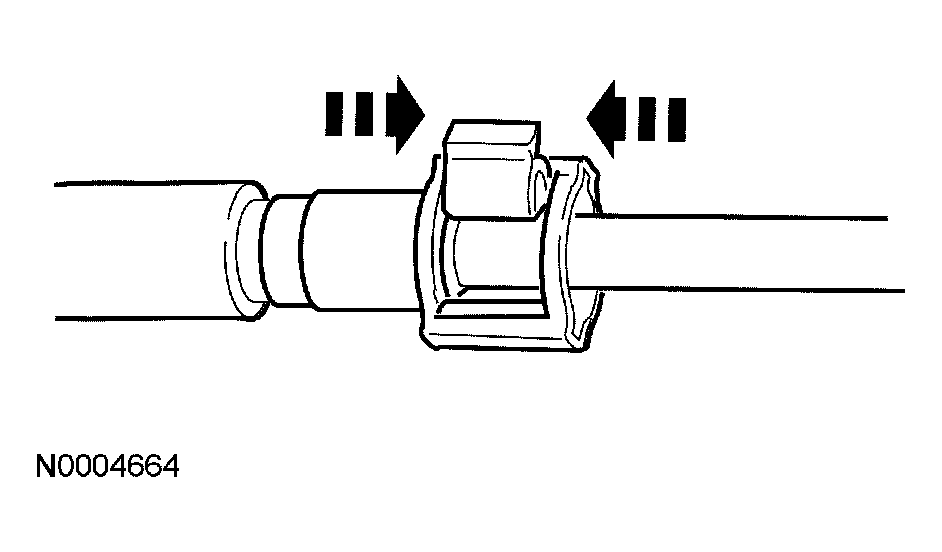

    Fig 1: Connecting Fittings
    G03949602Courtesy of FORD MOTOR CO.
  1. Connect the fittings.
  2. Push the clip up into the coupling. Pull on the tube to make sure it is seated correctly.

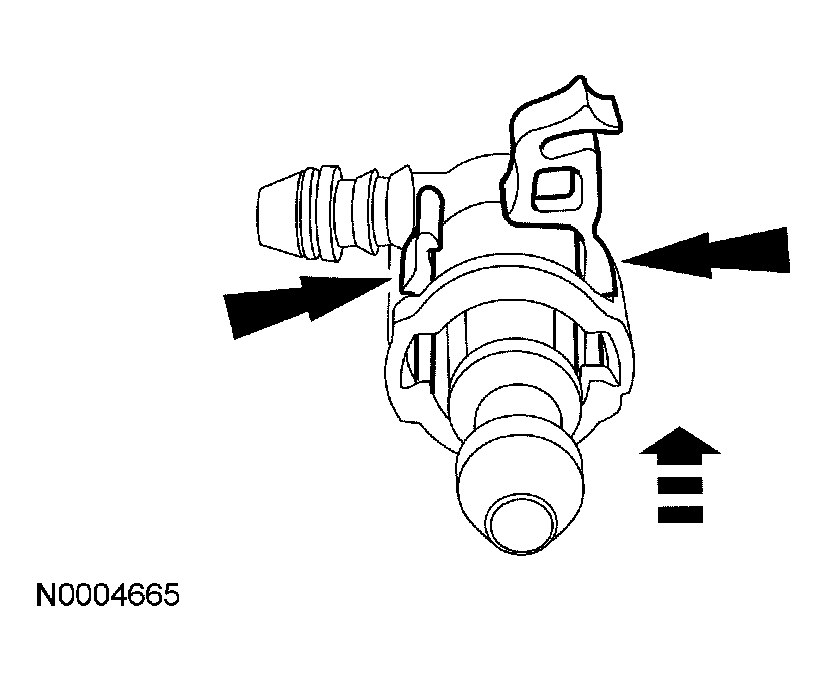

    Fig 2: Pushing Clip Up Into Coupling
    G03949603Courtesy of FORD MOTOR CO.
  3. Clip the locking tab in place.

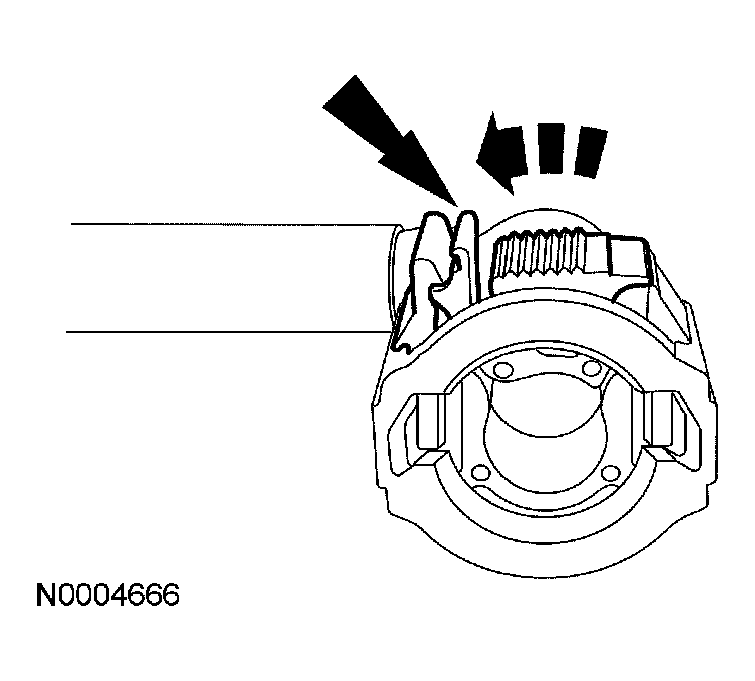

    Fig 3: Clipping Locking Tab
    G03949604Courtesy of FORD MOTOR CO.
