Forward Clutch: Notes

SPECIAL TOOL(S) CHART

G03915058
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G03949022
 Protector, Piston Seal
307-051 (T74P-77548-A)
G04008471
 Bonded Piston Seal Sizer
307-434
MATERIAL ITEM SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid
XT-5-QM		 MERCON® V

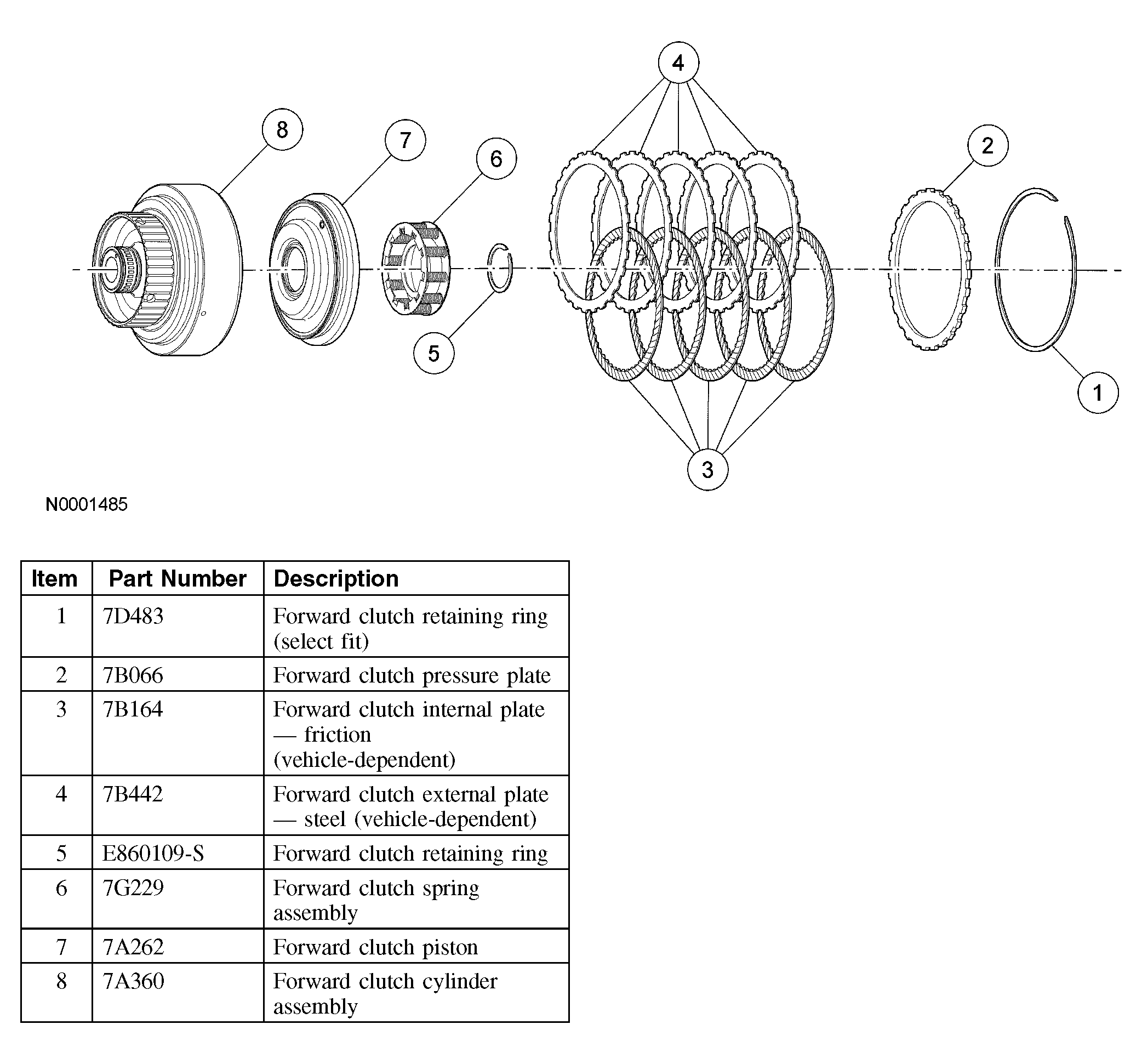

Fig 1: Identifying Forward Clutch Assembly
G03949024Courtesy of FORD MOTOR CO.
