Exhaust System - Exploded View

4.0L Shown, 4.6L Similar

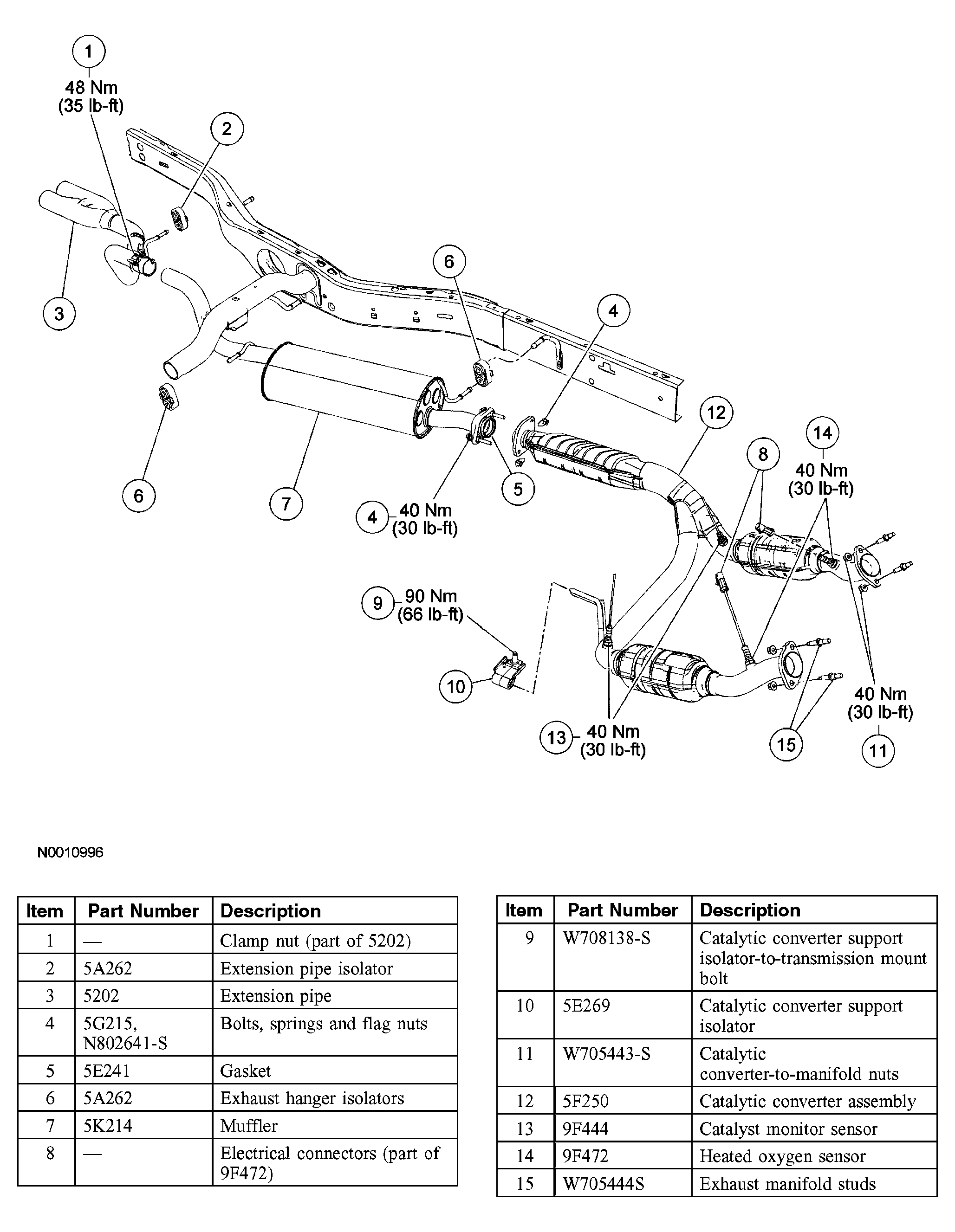

Fig 1: Exploded View Of Exhaust System - 4.0L With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the PROCEDURES .
