Engine Ignition Components - Exploded View

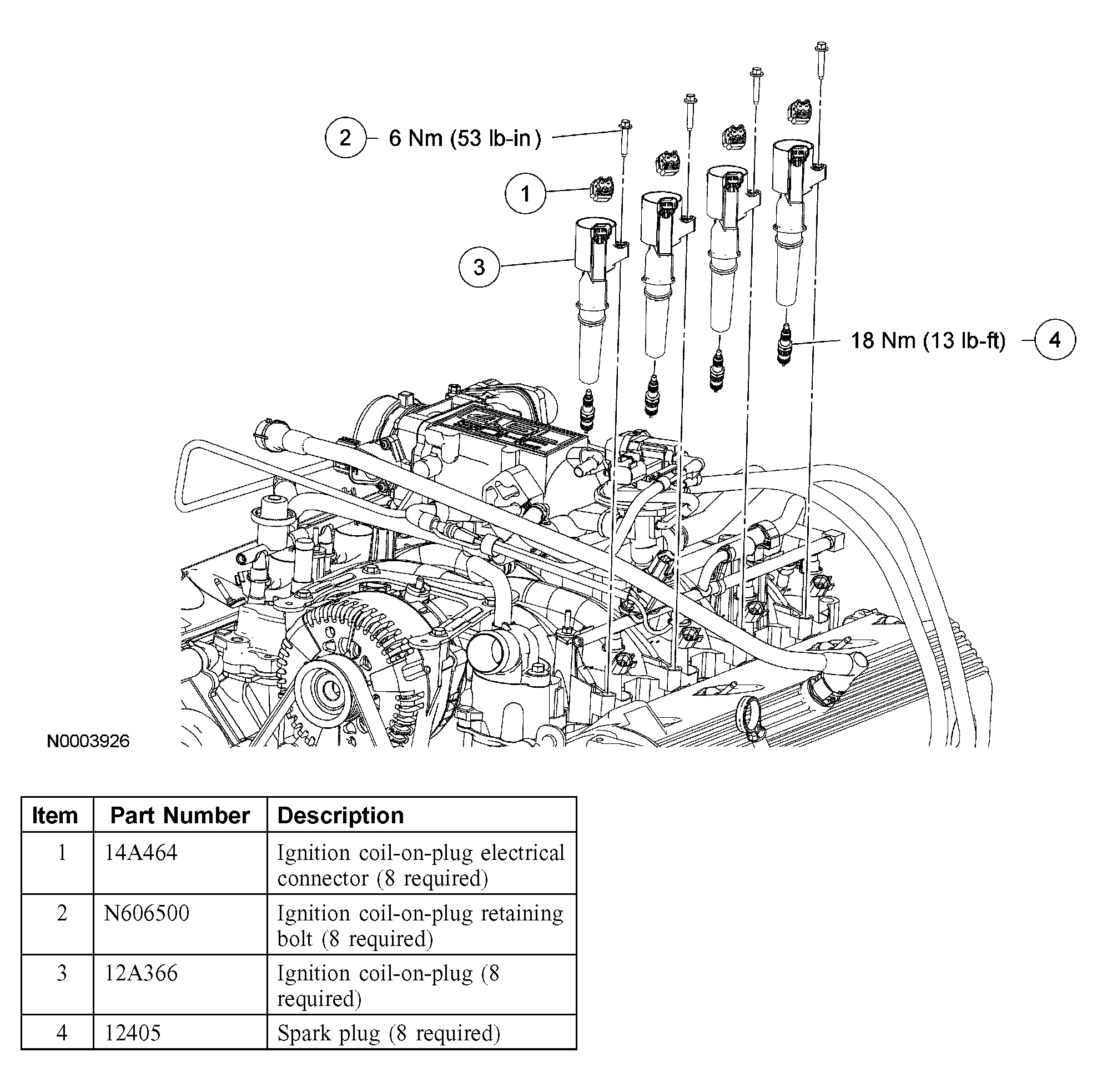

Fig 1: Exploded View Of Engine Ignition With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
