O/D indicator

WARNING: This page is about a different variant/trim than selected.

The O/D indicator is located in the instrument cluster and is colored green.

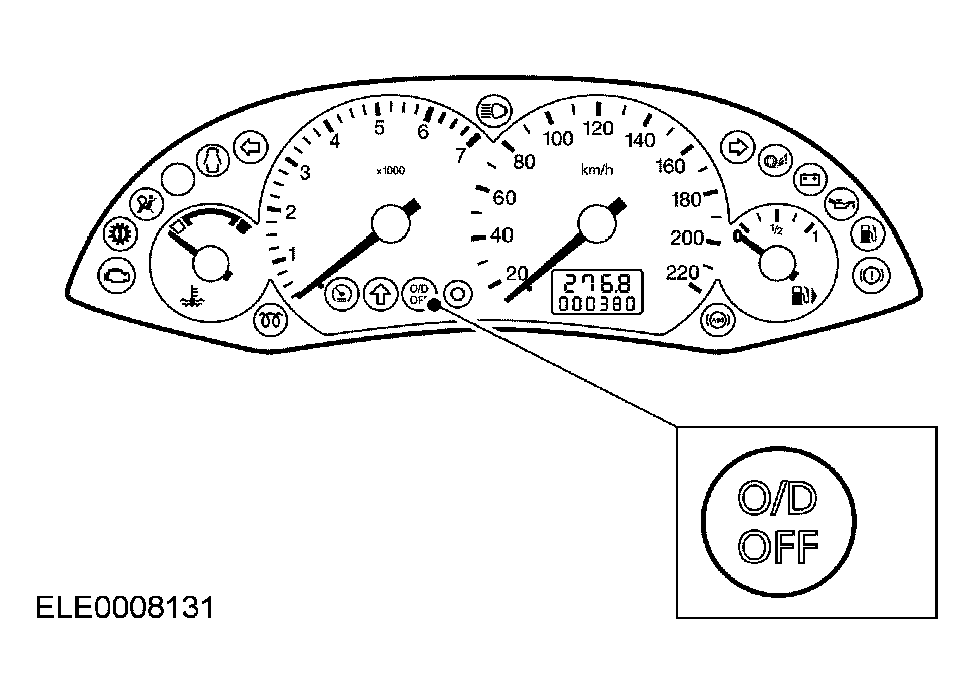

Fig 1: Identifying Instrument Cluster O/D Indicator
G03951216Courtesy of FORD MOTOR CO.

It tells the driver that shifting into 4th gear is prevented by the transmission control.
