Spring Lock Coupling: Connect

Install the spring lock coupling spring.

Fig 1: Installing Spring Lock Coupling Spring
Courtesy of FORD MOTOR CO.
Lubricate the inside of the coupling with PAG oil.

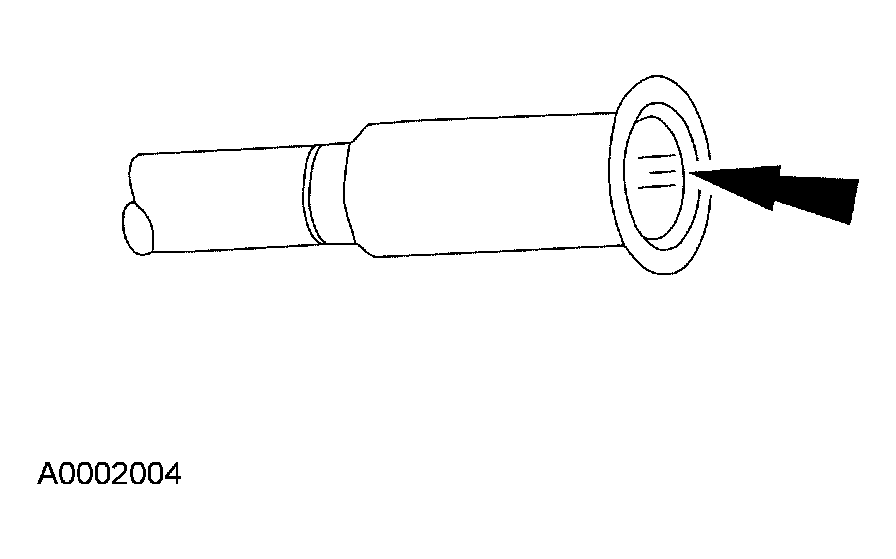

Fig 2: Lubricating Inside Of Coupling With PAG Oil
Courtesy of FORD MOTOR CO.

CAUTION: Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.

Fig 3: Installing O-Ring Seals

Courtesy of FORD MOTOR CO.

Install the O-ring seals.
Connect the spring lock coupling fittings with a twisting motion until the spring lock coupling spring snaps over the flared end of the female fitting.

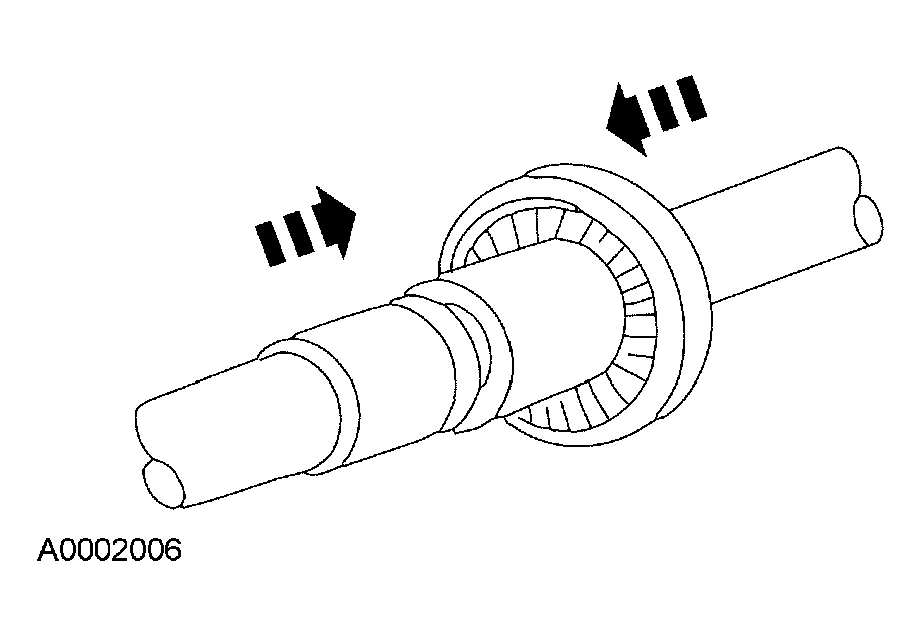

Fig 4: Connecting Spring Lock Coupling Fittings With A Twisting Motion Until Spring Lock Coupling Spring Snaps Over Flared End Of Female Fitting
Courtesy of FORD MOTOR CO.
Install the spring lock coupling clip.
