Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07844047

Courtesy of FORD MOTOR CO.

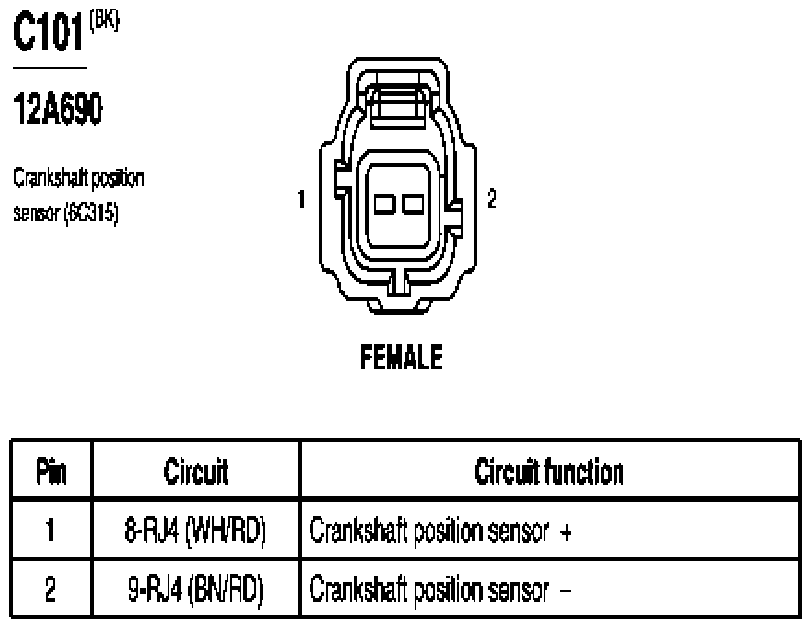

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07844048

Courtesy of FORD MOTOR CO.

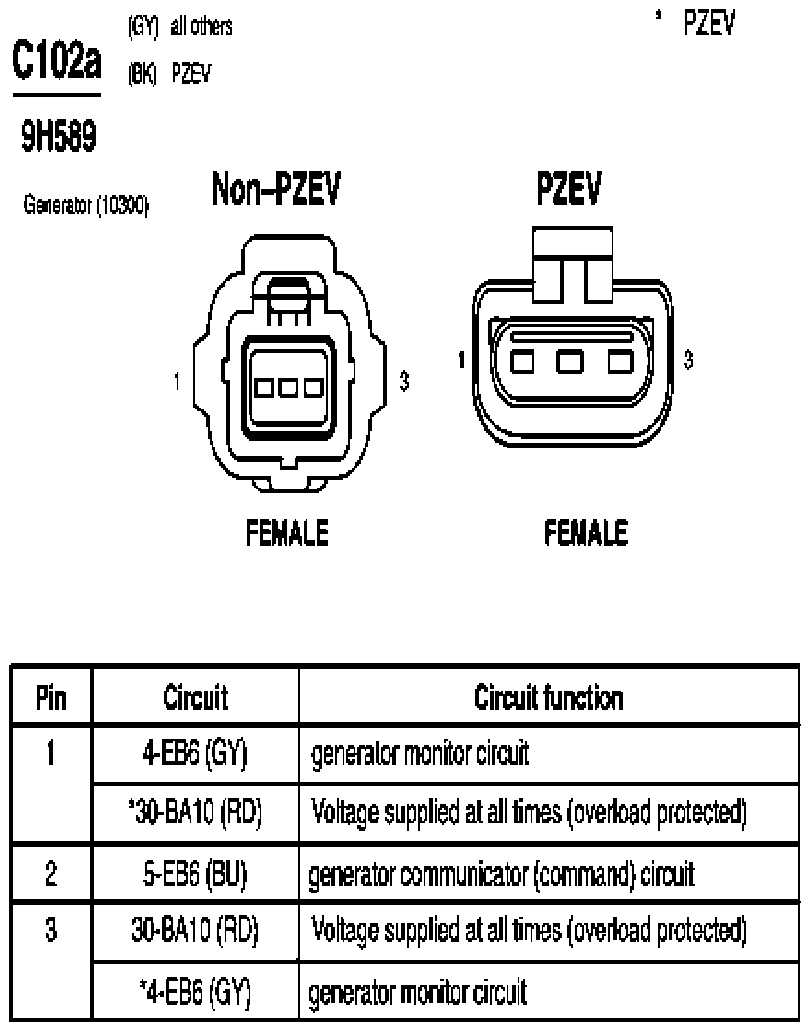

Fig 3: Generator Connector End View (C102a)

G07844049

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102c)

G07844050

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07844051

Courtesy of FORD MOTOR CO.

Fig 6: Cylinder-Head Temperature Sensor Connector End View (C107)

G07844052

Courtesy of FORD MOTOR CO.

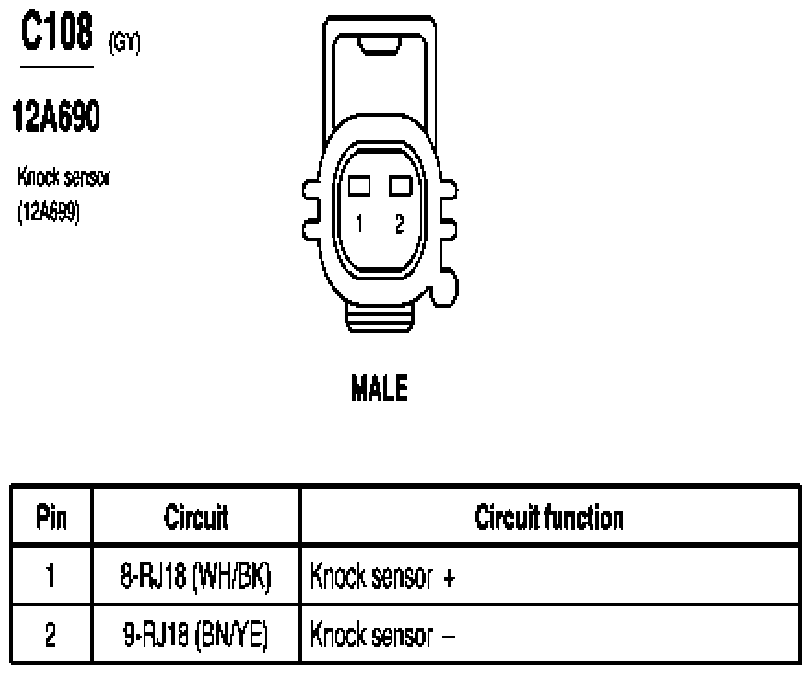

Fig 7: Knock Sensor Connector End View (C108)

G07844053

Courtesy of FORD MOTOR CO.

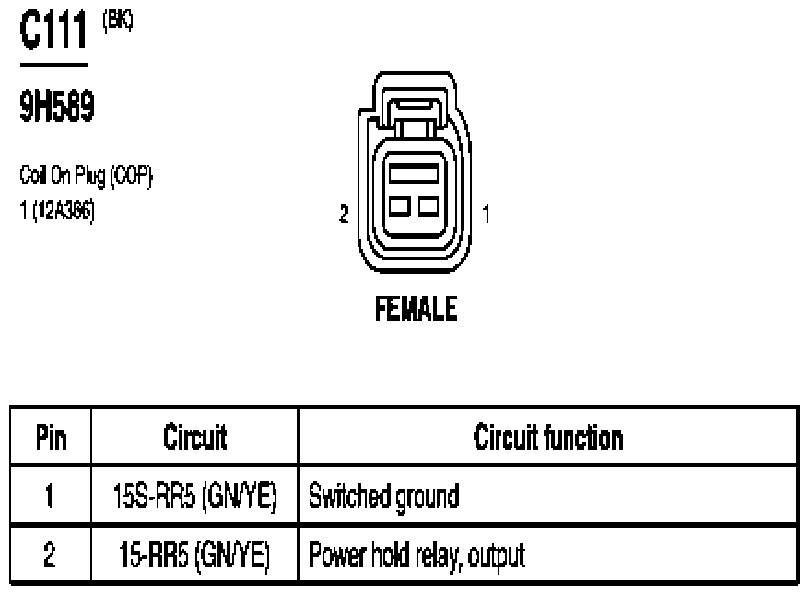

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G07844054

Courtesy of FORD MOTOR CO.

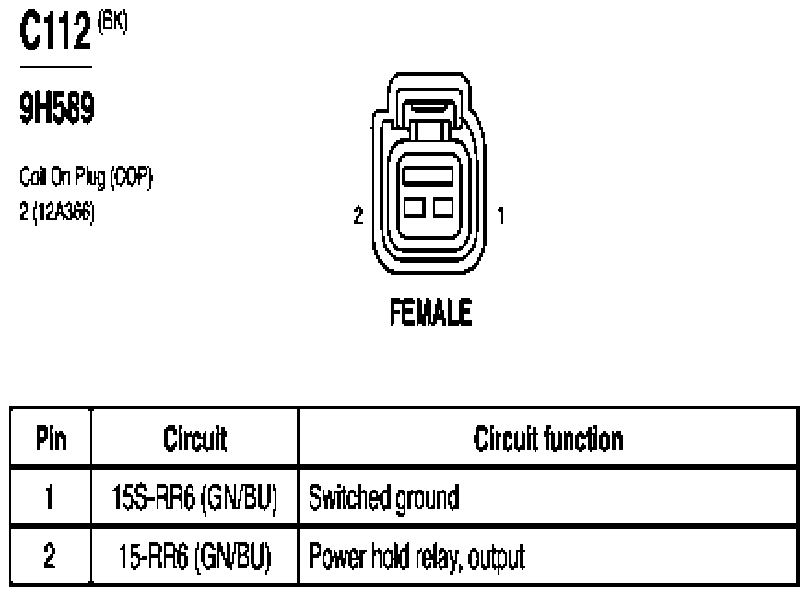

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G07844055

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G07844056

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G07844057

Courtesy of FORD MOTOR CO.

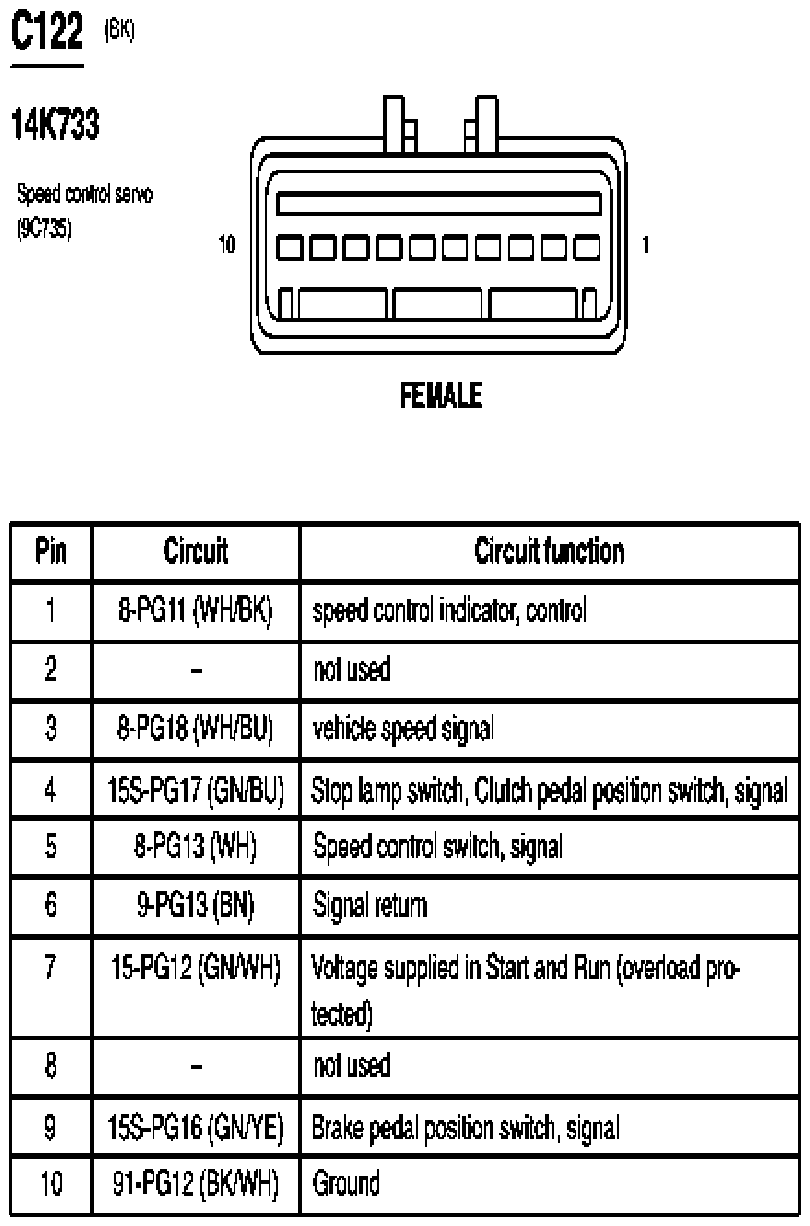

Fig 12: Speed Control Servo Connector End View (C122)

G07844058

Courtesy of FORD MOTOR CO.

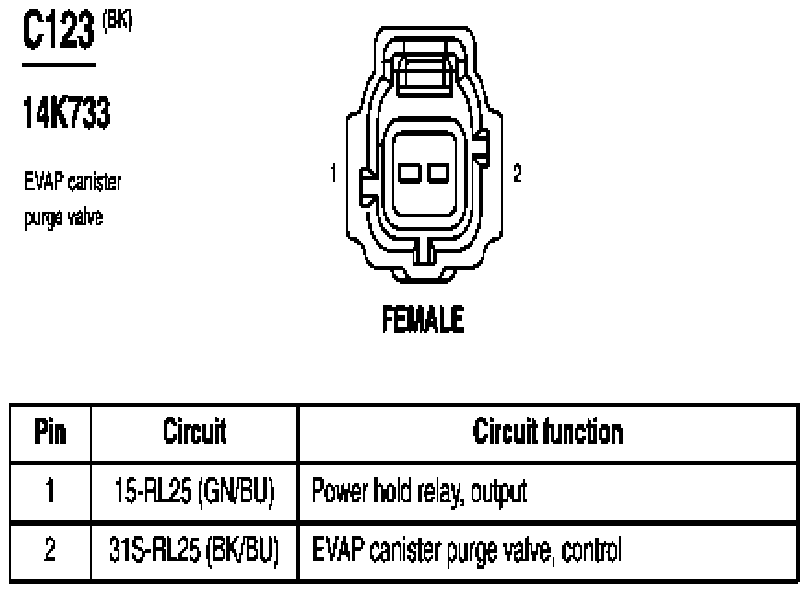

Fig 13: EVAP Canister Purge Valve Connector End View (C123)

G07844059

Courtesy of FORD MOTOR CO.

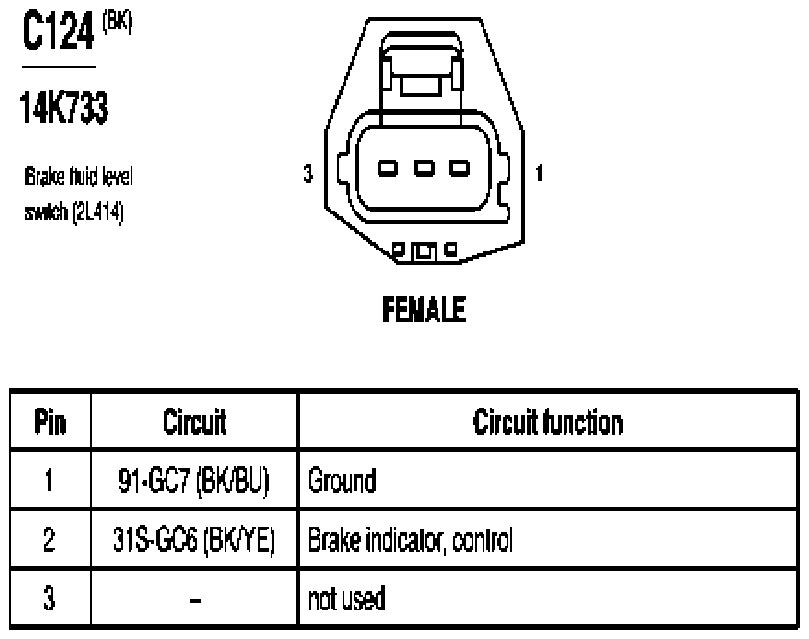

Fig 14: Brake Fluid Level Switch Connector End View (C124)

G07844060

Courtesy of FORD MOTOR CO.

Fig 15: Windshield Wiper Motor Connector End View (C125)

G07844061

Courtesy of FORD MOTOR CO.

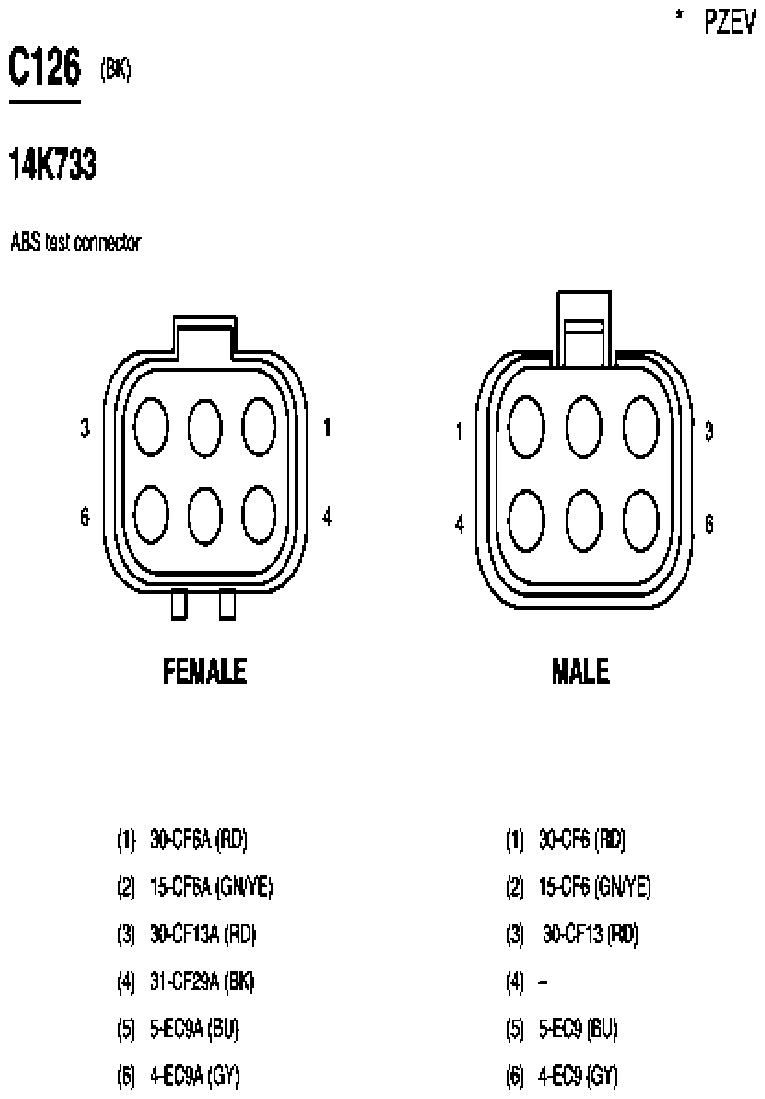

Fig 16: ABS Test Connector End View (C126)

G07844062

Courtesy of FORD MOTOR CO.

Fig 17: Engine Compartment Switch Connector End View (C127)

G07844063

Courtesy of FORD MOTOR CO.

Fig 18: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07844064

Courtesy of FORD MOTOR CO.

Fig 19: Horn Connector End View (C131)

G07844065

Courtesy of FORD MOTOR CO.

Fig 20: Inline Connector End View (C133)

G07844066

Courtesy of FORD MOTOR CO.

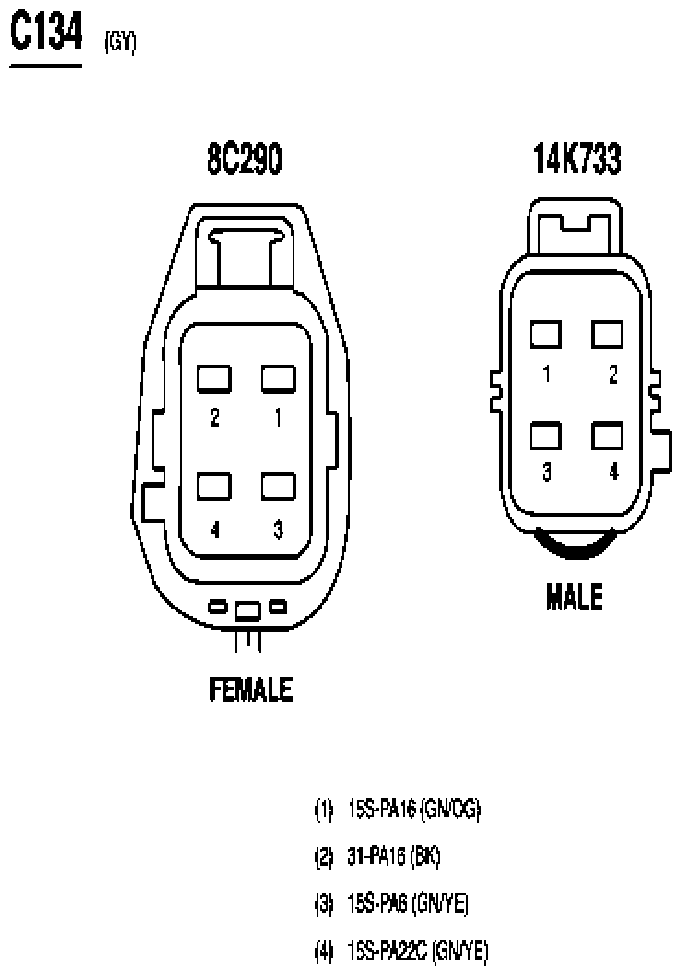

Fig 21: Inline Connector End View (C134)

G07844067

Courtesy of FORD MOTOR CO.

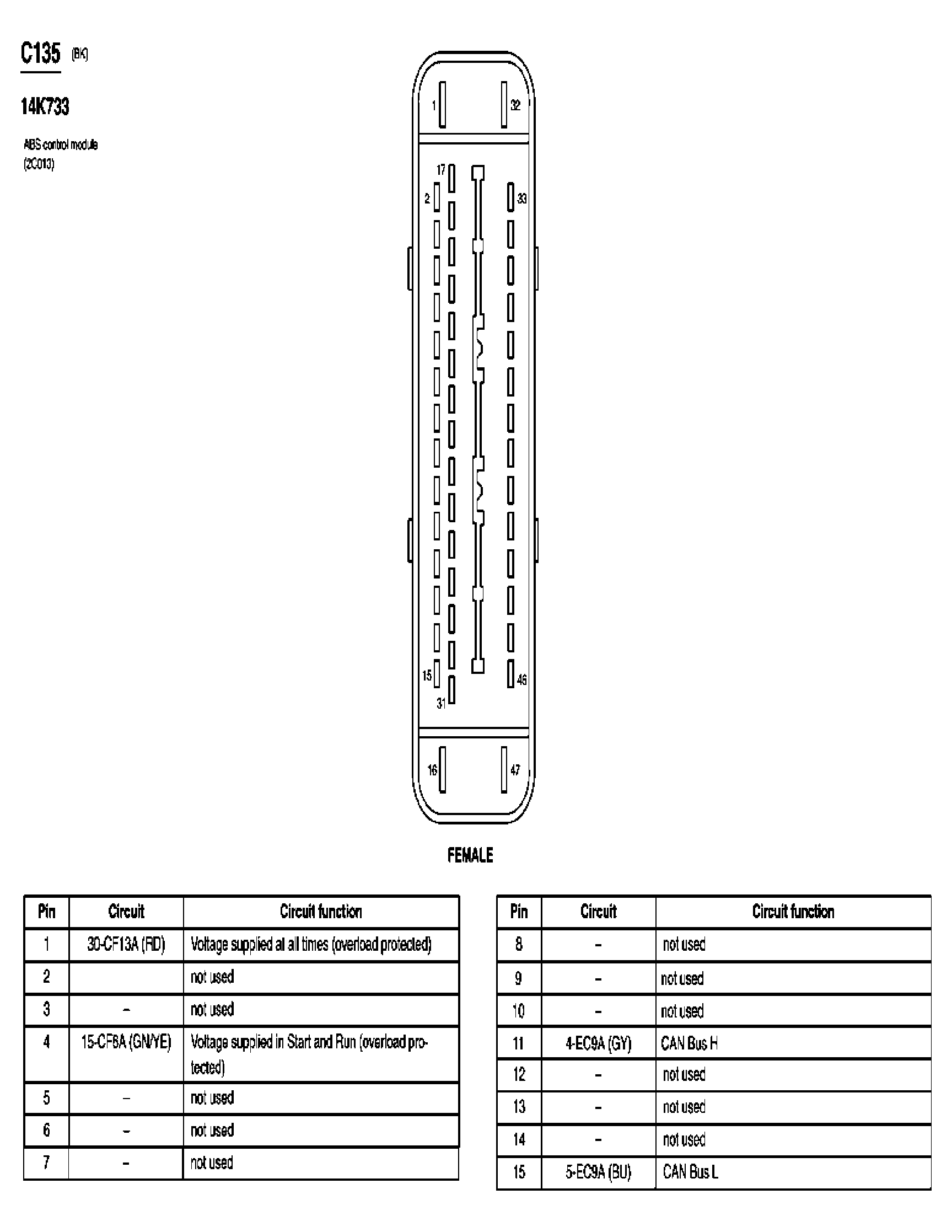

Fig 22: ABS Control Module Connector End View (C135) (1 Of 2)

G03994025

Courtesy of FORD MOTOR CO.

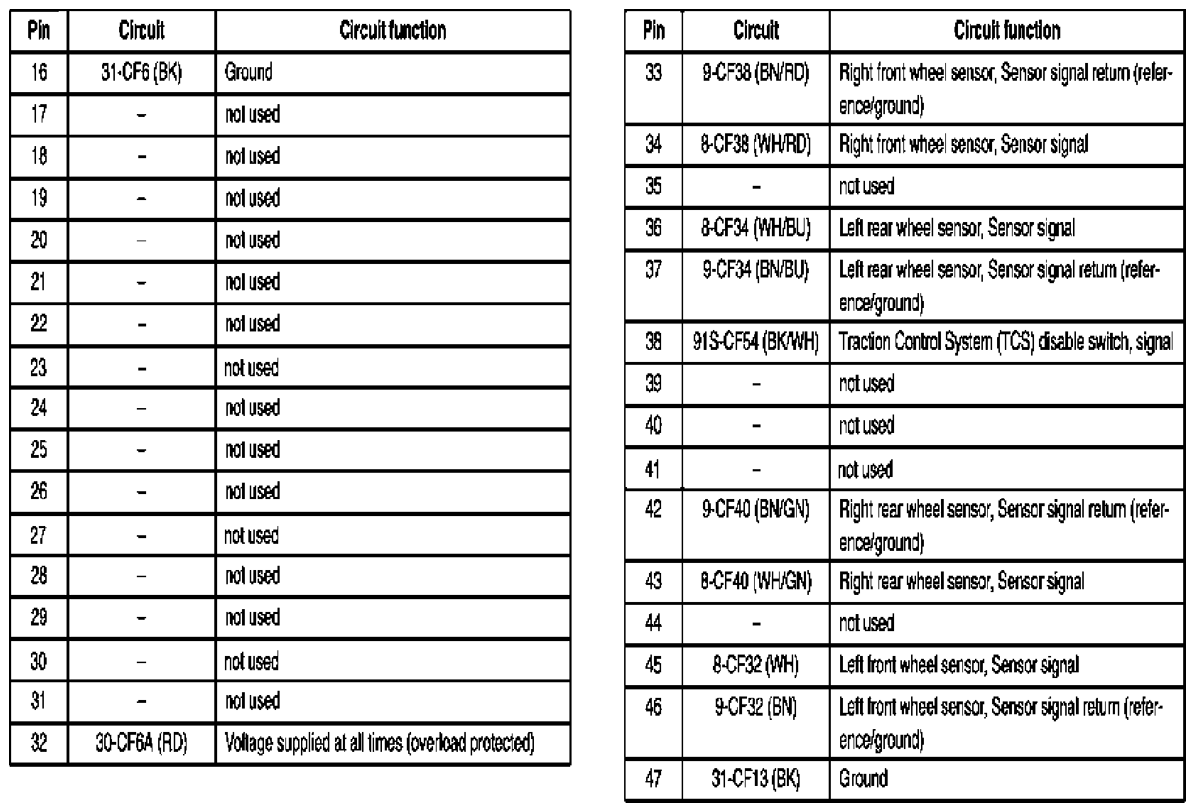

Fig 23: ABS Control Module Connector End View (C135) (2 Of 2)

G03994026

Courtesy of FORD MOTOR CO.

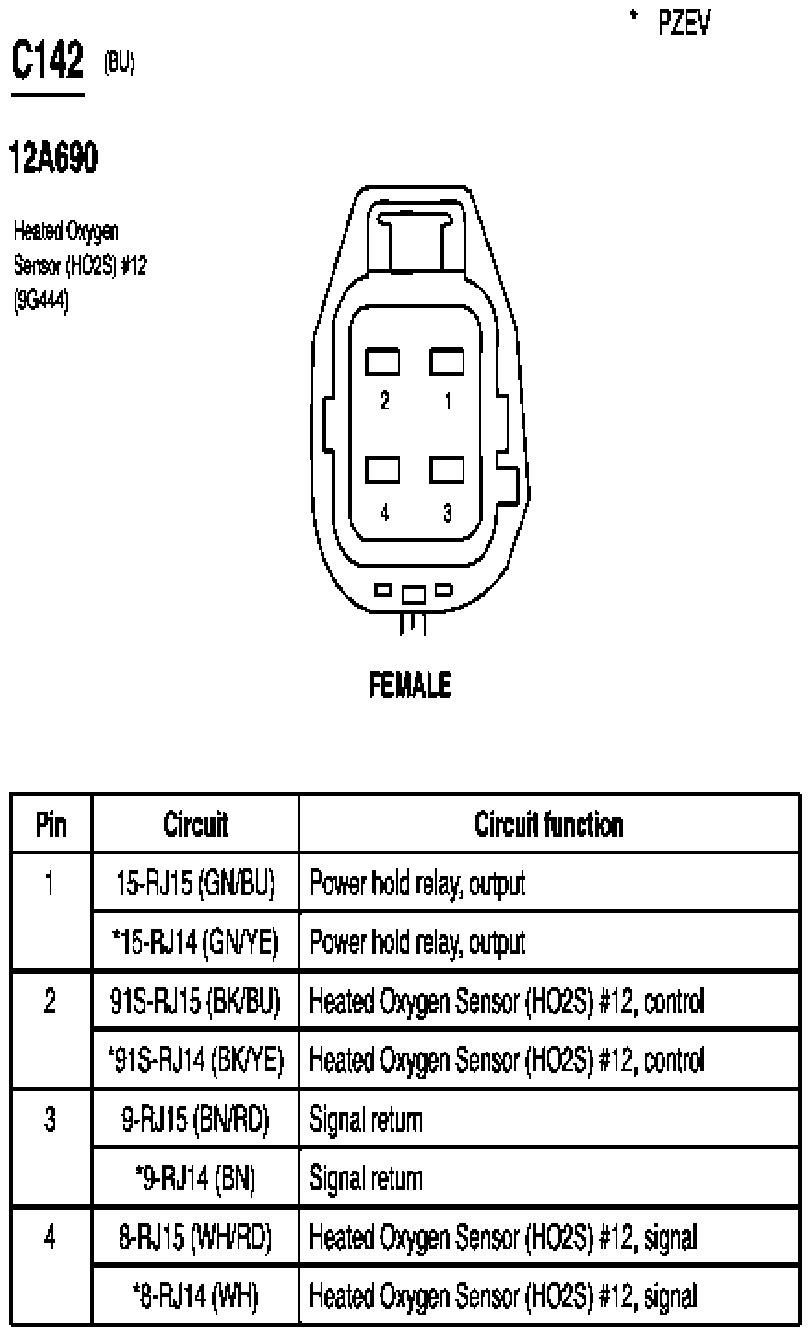

Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07844068

Courtesy of FORD MOTOR CO.

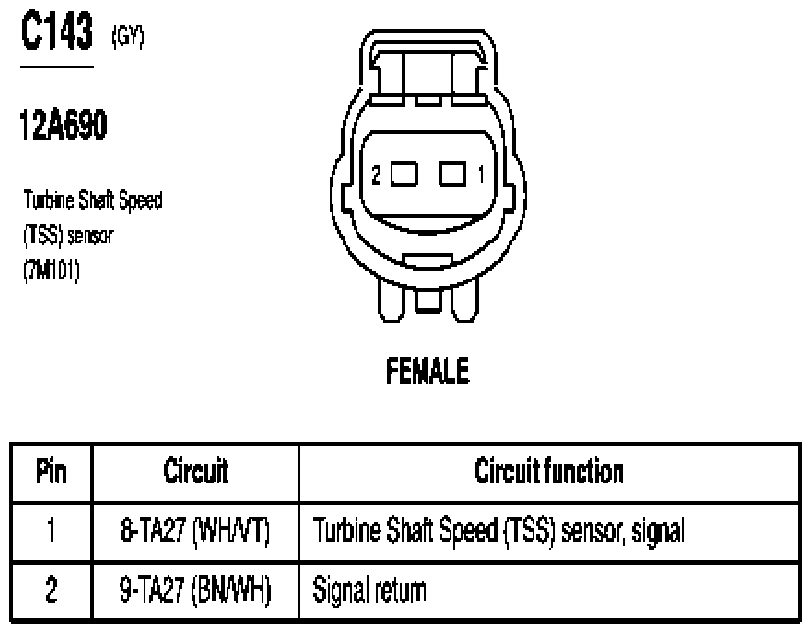

Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07844069

Courtesy of FORD MOTOR CO.

Fig 26: Inline Connector End View (C144)

G07844070

Courtesy of FORD MOTOR CO.

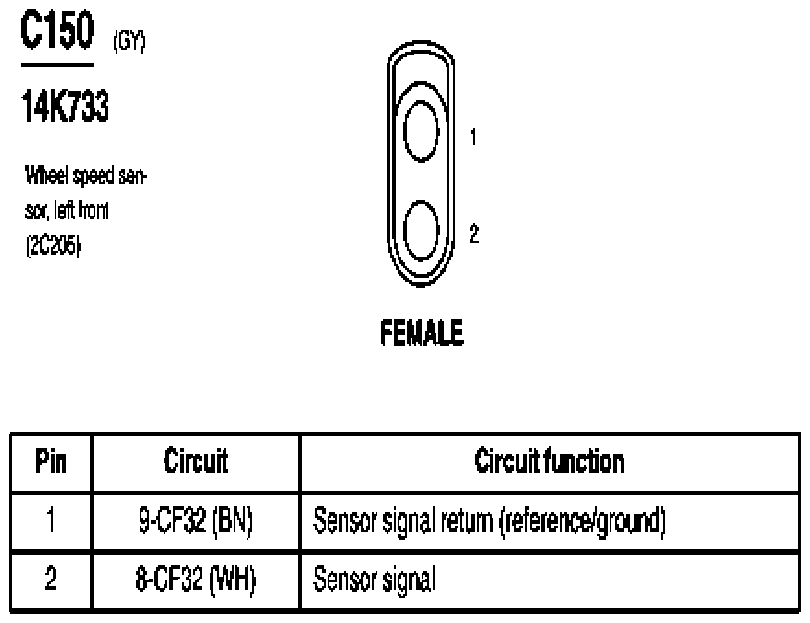

Fig 27: Wheel Speed Sensor, Left Front Connector End View (C150)

G07844071

Courtesy of FORD MOTOR CO.

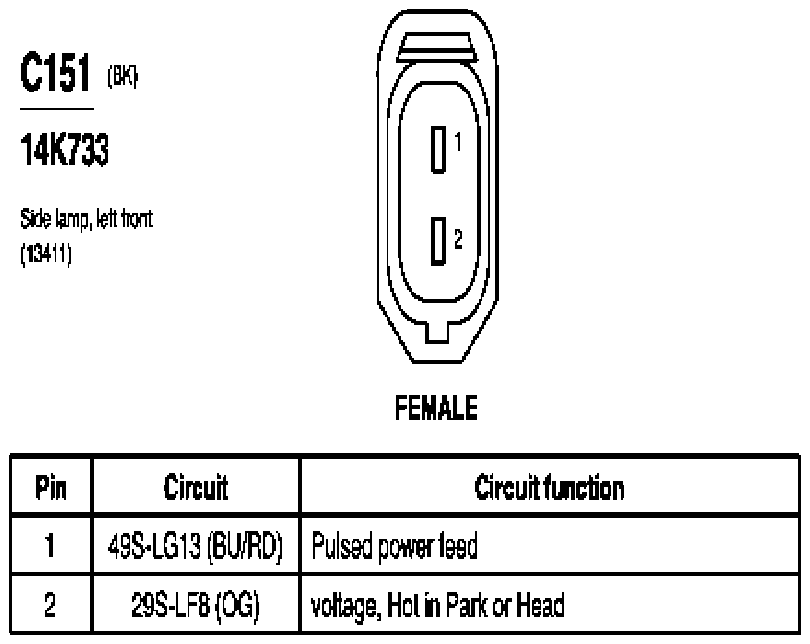

Fig 28: Side Lamp, Left Front Connector End View (C151)

G07844072

Courtesy of FORD MOTOR CO.

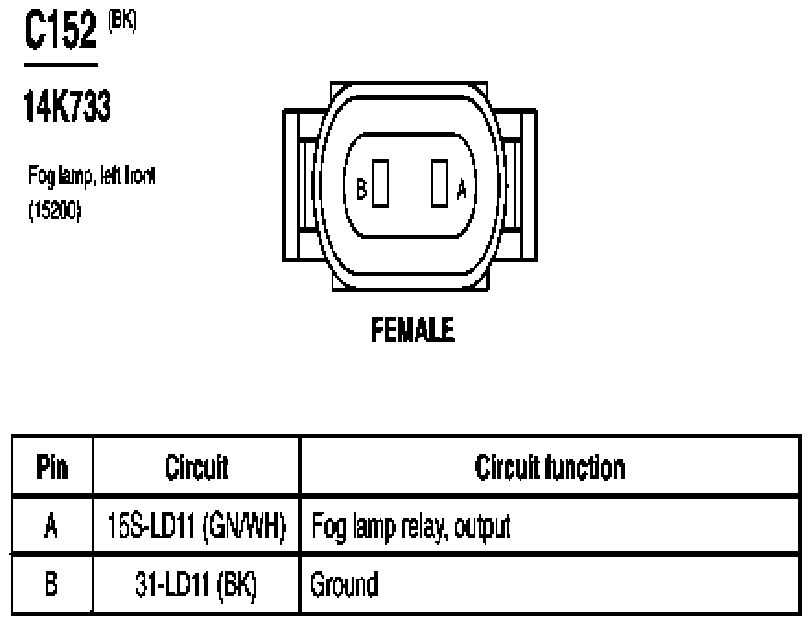

Fig 29: Fog Lamp, Left Front Connector End View (C152)

G07844073

Courtesy of FORD MOTOR CO.

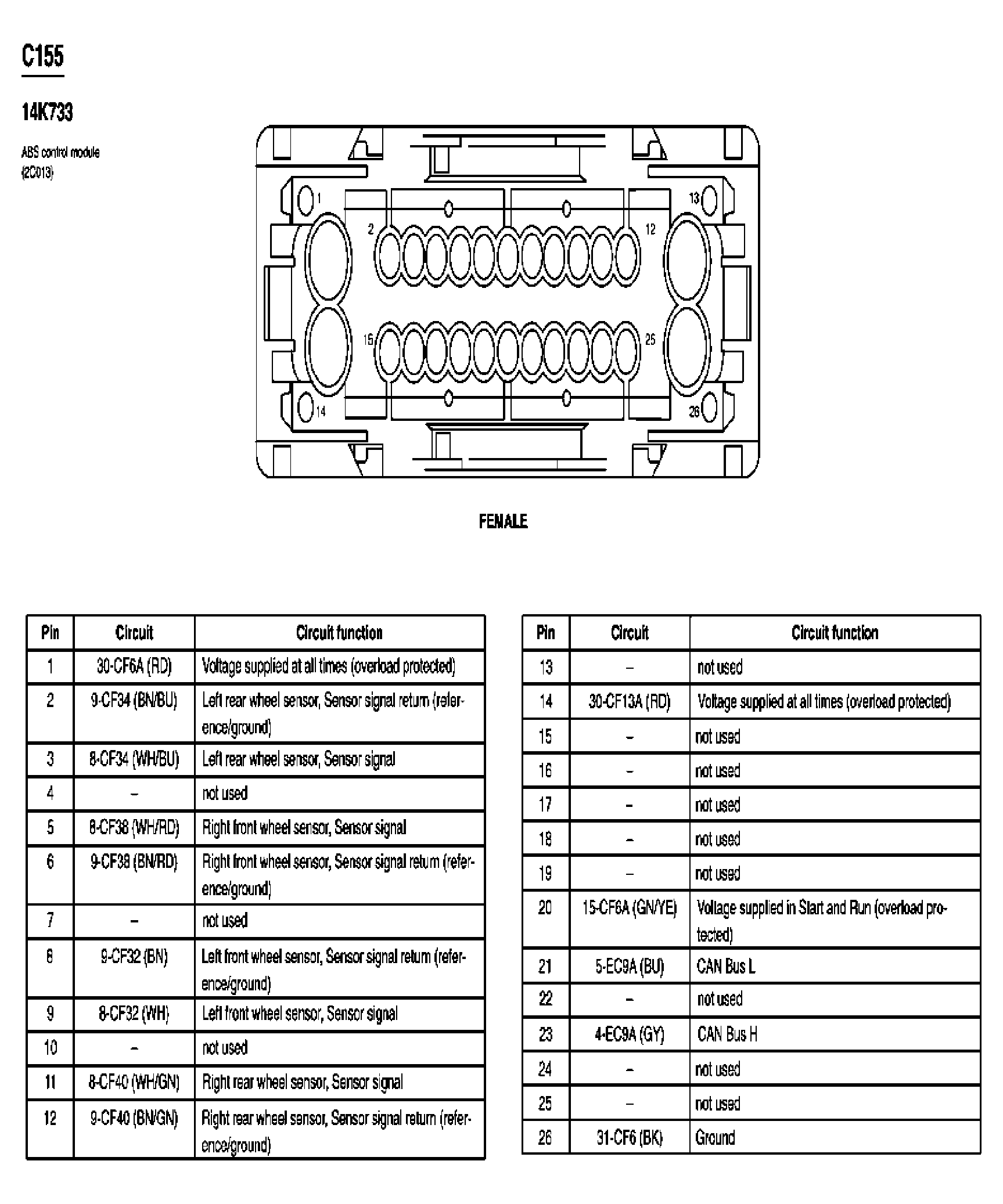

Fig 30: ABS Control Module Connector End View (C155)

G03994029

Courtesy of FORD MOTOR CO.

Fig 31: Air Pump Motor Connector End View (C158)

G07844074

Courtesy of FORD MOTOR CO.

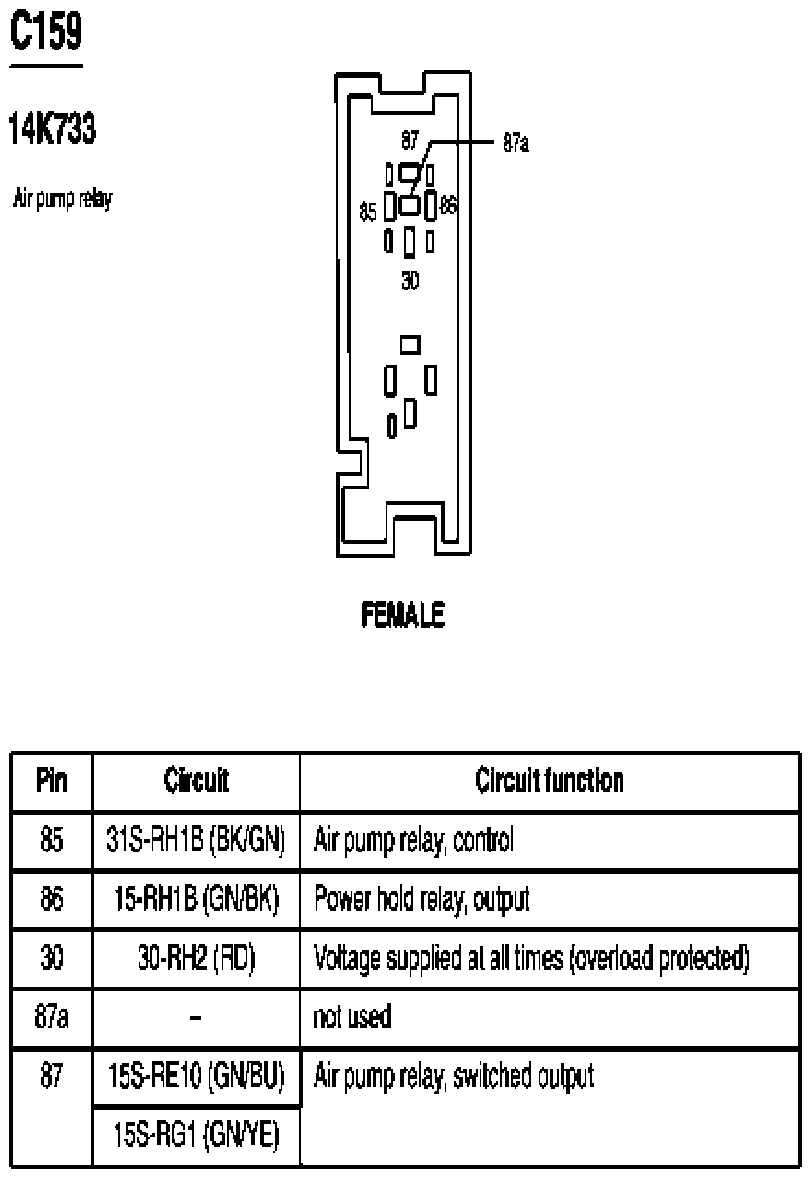

Fig 32: Air Pump Relay Connector End View (C159)

G07844075

Courtesy of FORD MOTOR CO.

Fig 33: Wheel Speed Sensor, Right Front Connector End View (C160)

G07844076

Courtesy of FORD MOTOR CO.

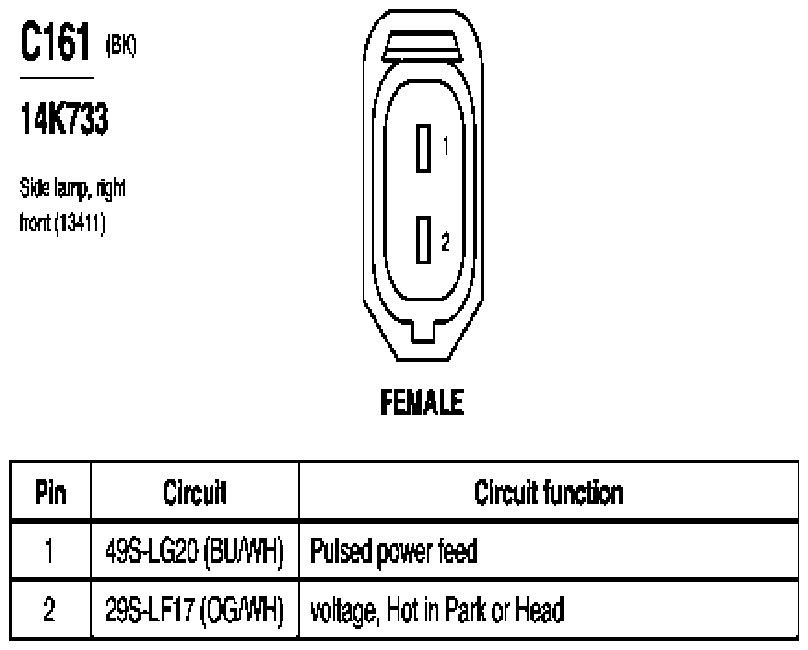

Fig 34: Side Lamp, Right Front Connector End View (C161)

G07844077

Courtesy of FORD MOTOR CO.

Fig 35: Fog Lamp, Right Front Connector End View (C162)

G07844078

Courtesy of FORD MOTOR CO.

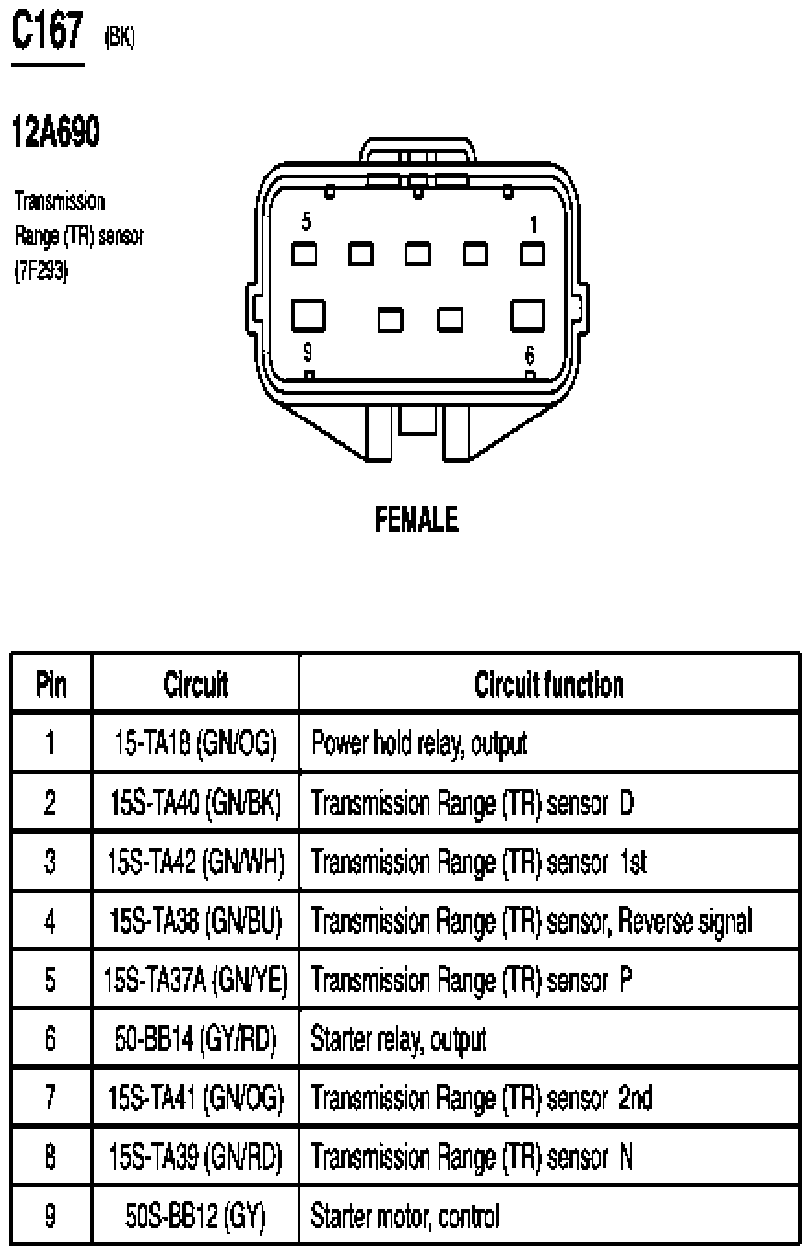

Fig 36: Transmission Range (TR) Sensor Connector End View (C167)

G07844079

Courtesy of FORD MOTOR CO.

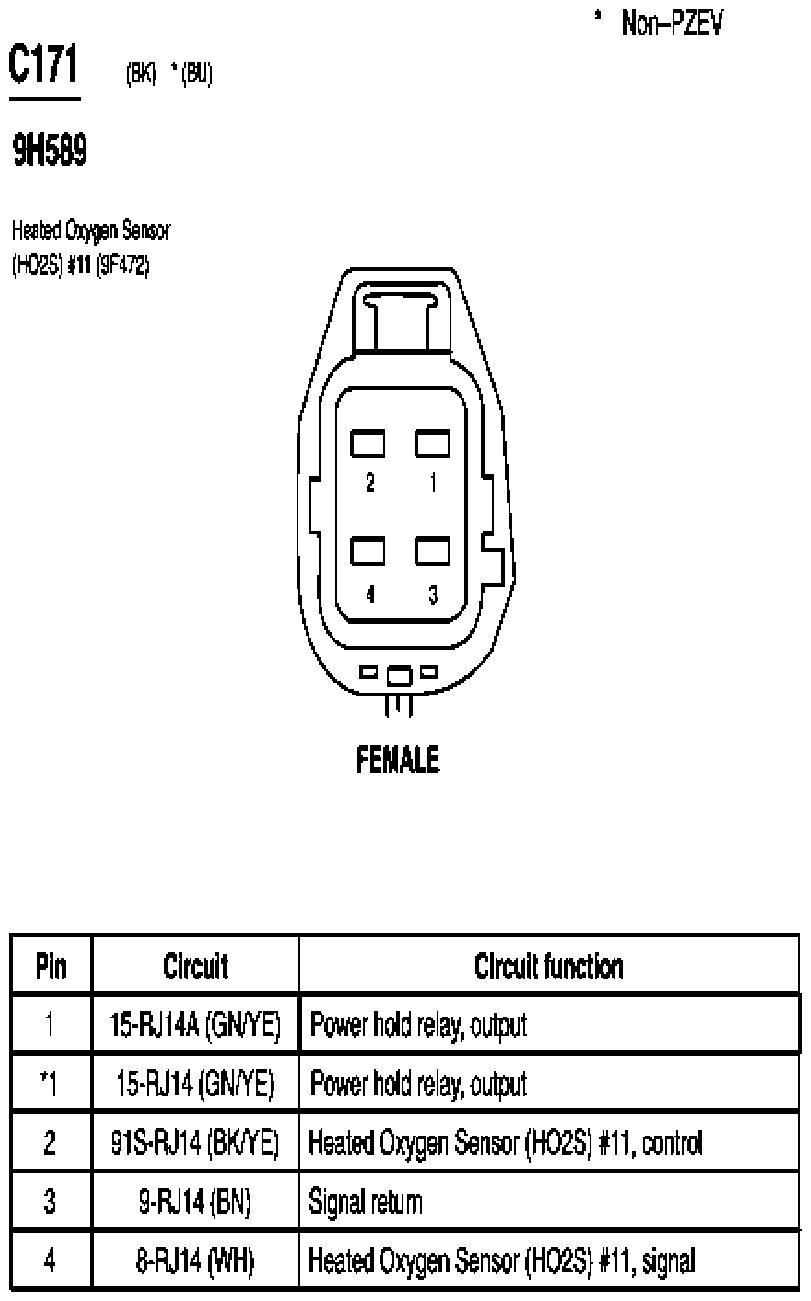

Fig 37: heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07844080

Courtesy of FORD MOTOR CO.

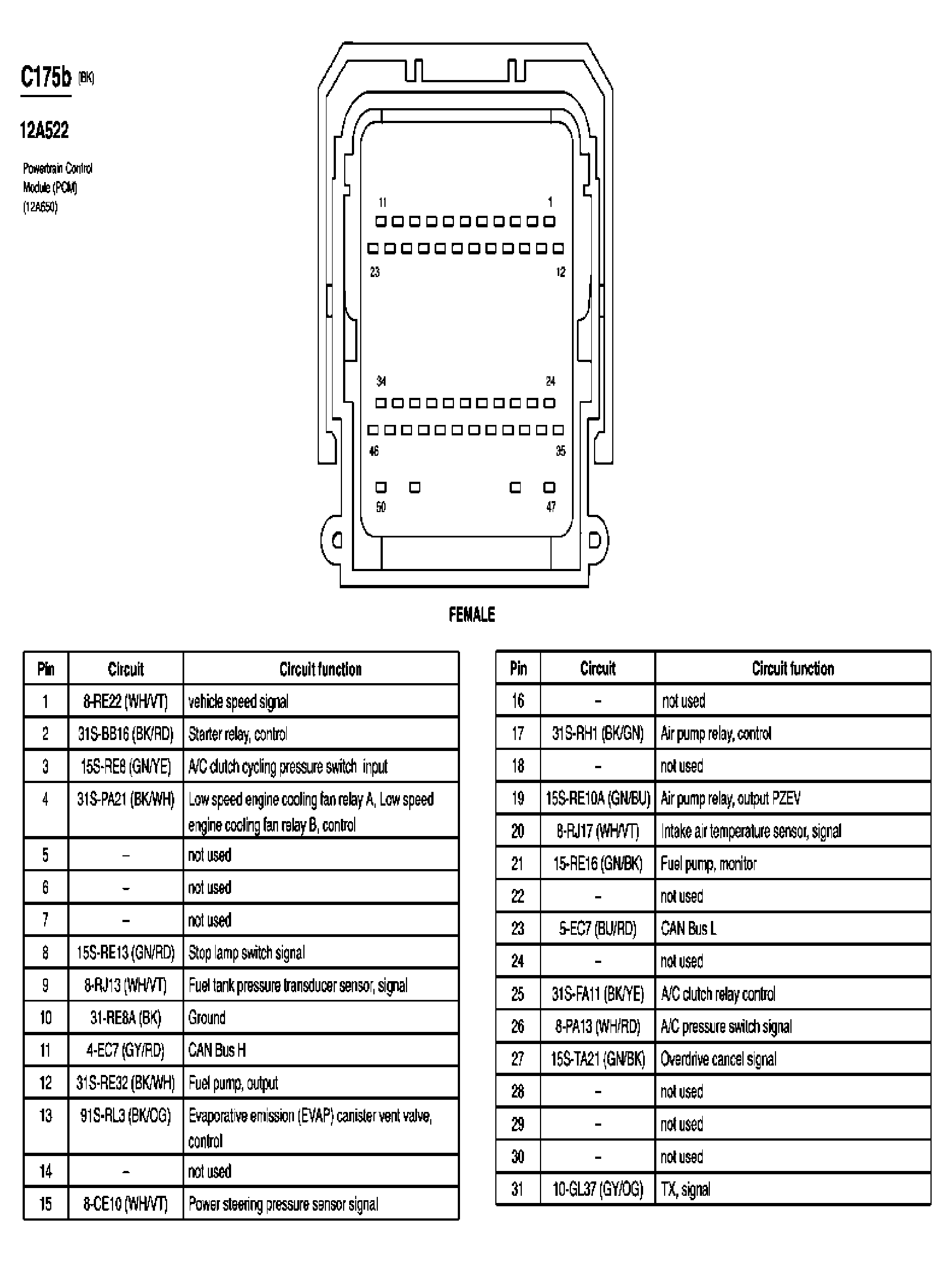

Fig 38: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)

G03994032

Courtesy of FORD MOTOR CO.

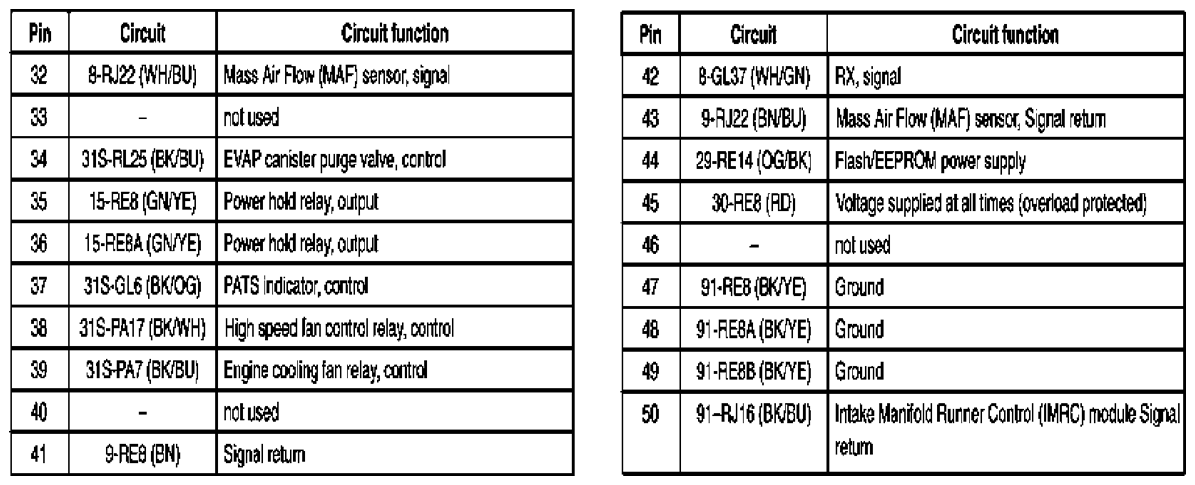

Fig 39: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)

G03994033

Courtesy of FORD MOTOR CO.

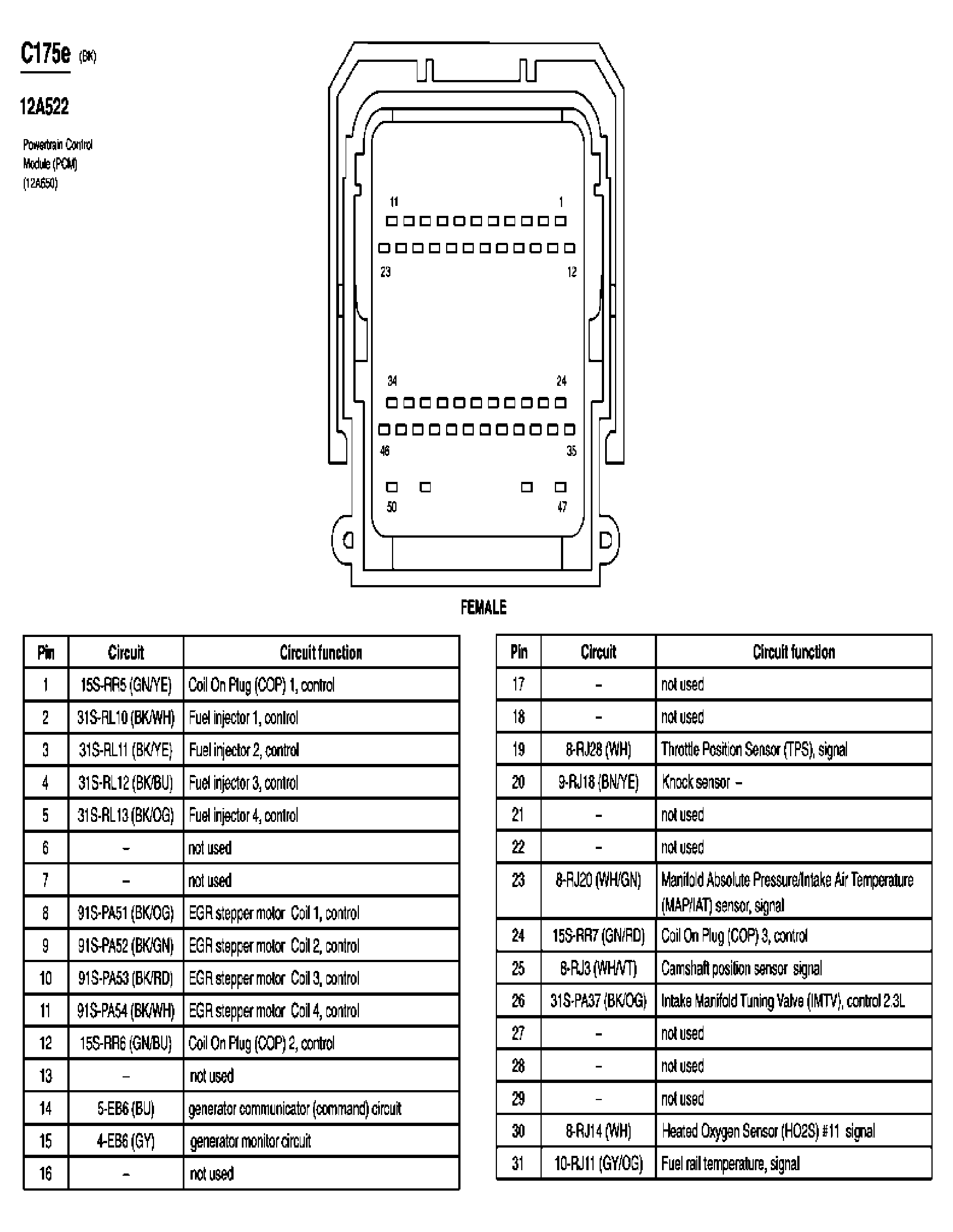

Fig 40: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)

G03994034

Courtesy of FORD MOTOR CO.

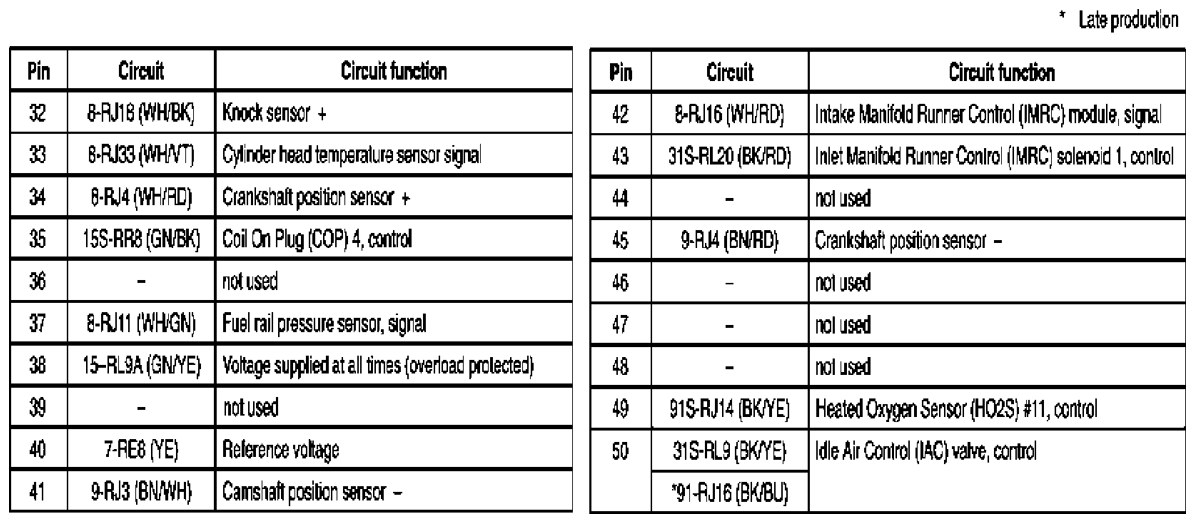

Fig 41: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)

G03994035

Courtesy of FORD MOTOR CO.

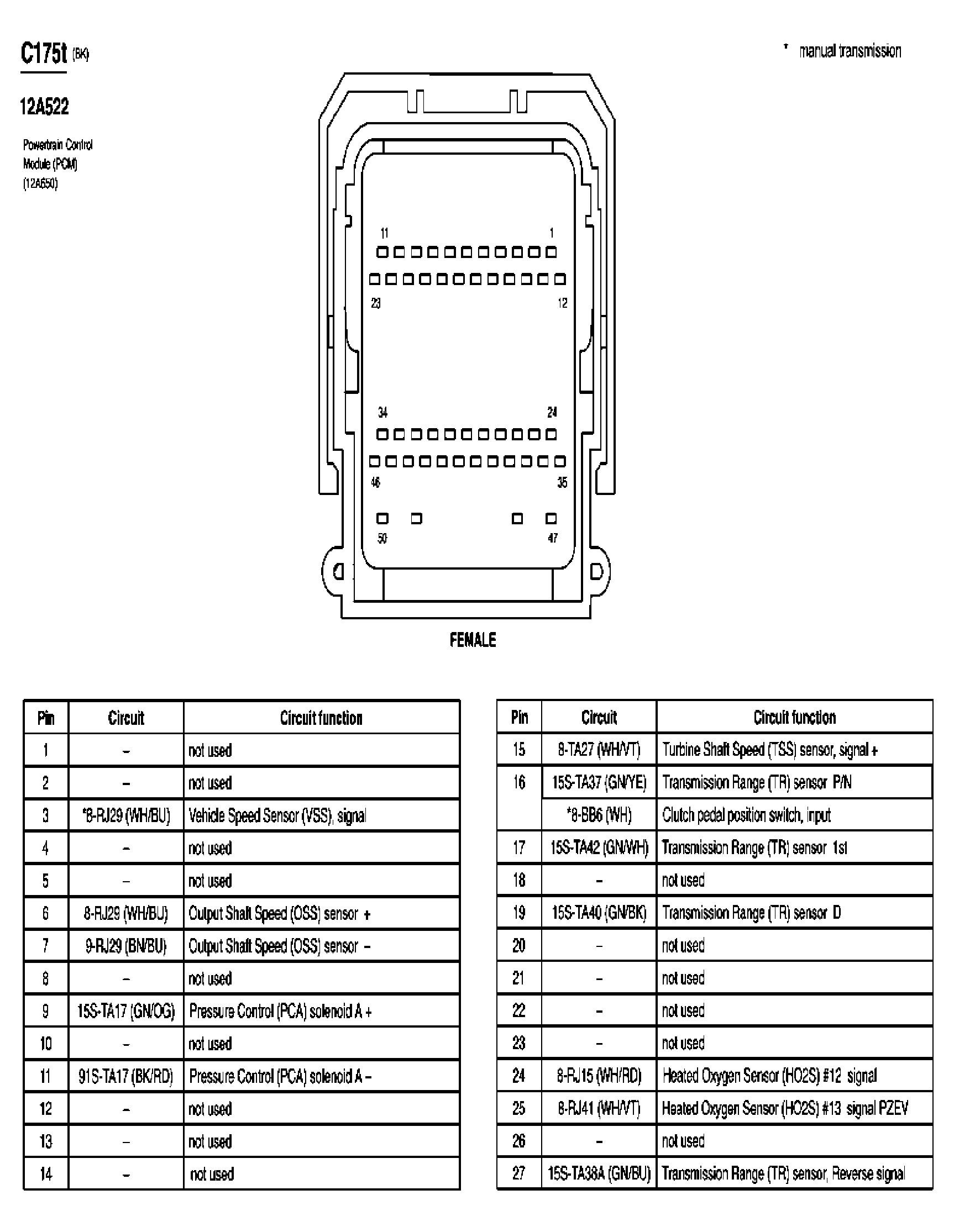

Fig 42: Powertrain Control Module (PCM) Connector End View (C175t) (1 Of 2)

G03994036

Courtesy of FORD MOTOR CO.

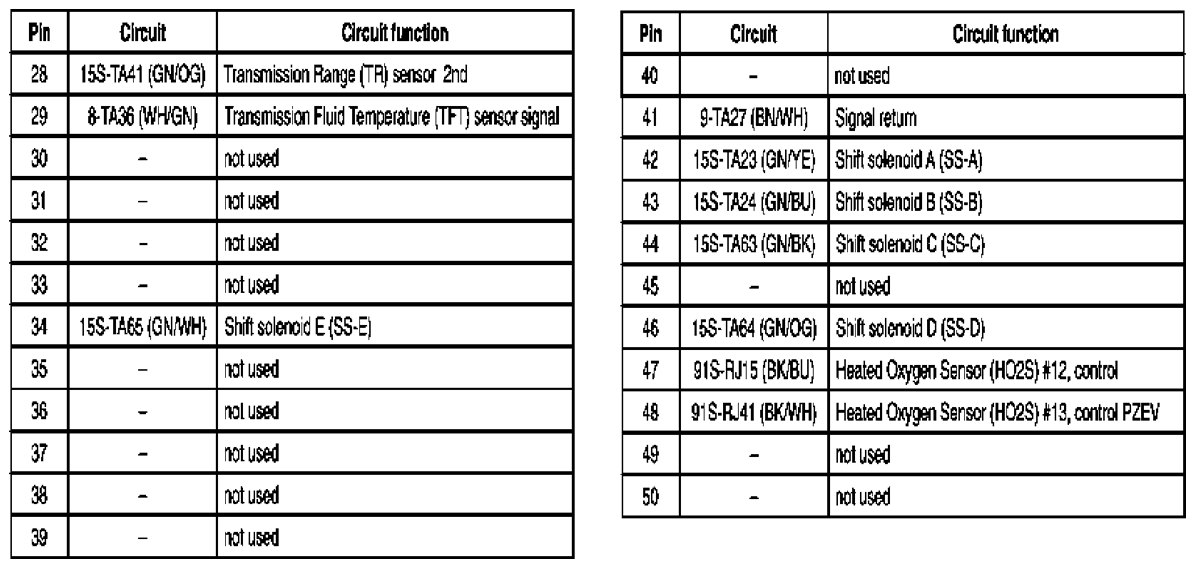

Fig 43: Powertrain Control Module (PCM) Connector End View (C175t) (2 Of 2)

G03994037

Courtesy of FORD MOTOR CO.

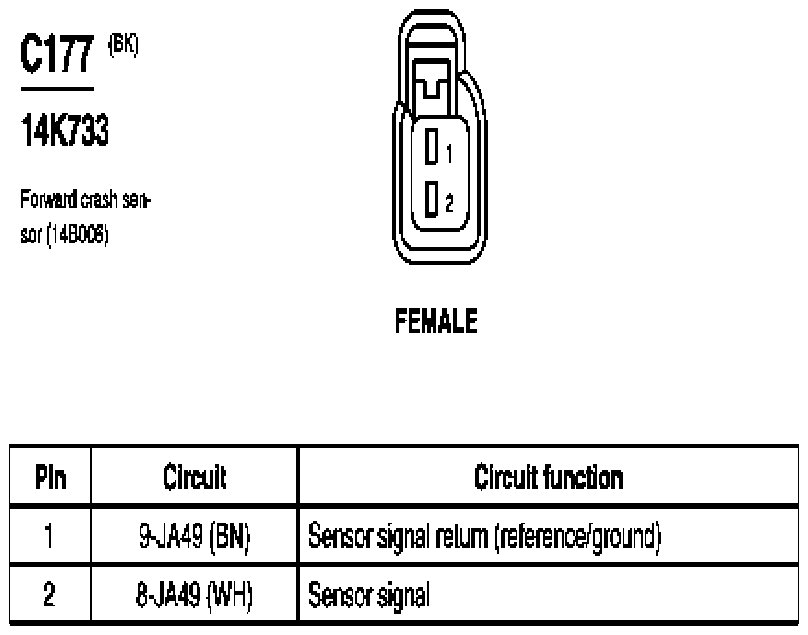

Fig 44: Forward Crash Sensor Connector End View (C177)

G07844081

Courtesy of FORD MOTOR CO.

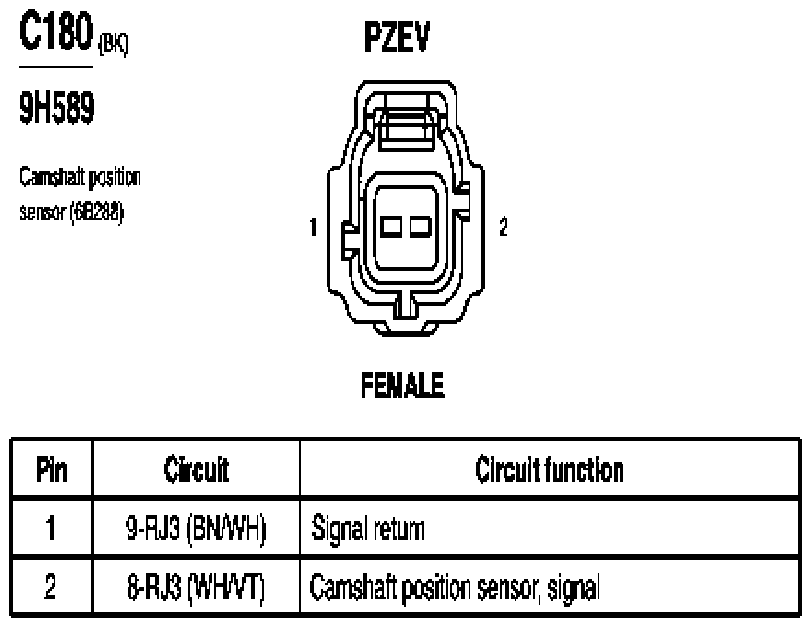

Fig 45: Camshaft Position Sensor Connector End View (C180)

G07844082

Courtesy of FORD MOTOR CO.

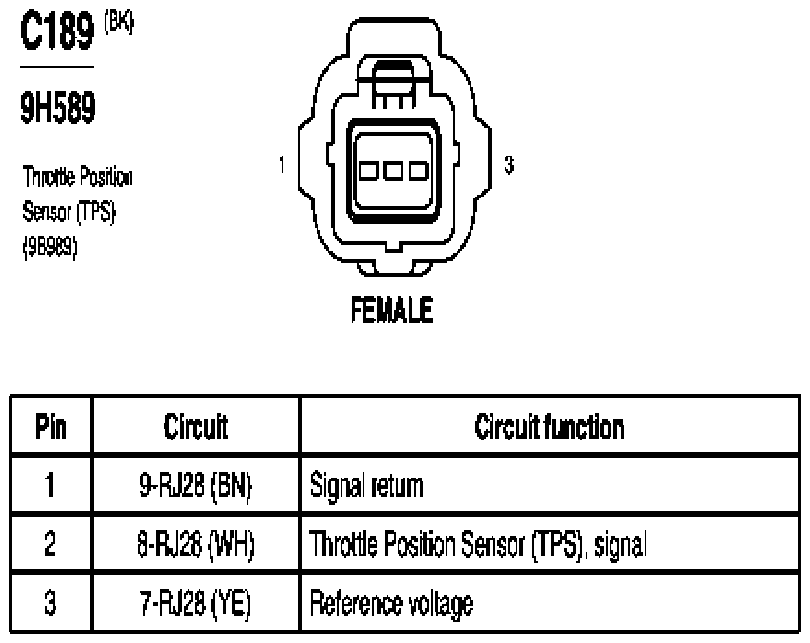

Fig 46: Throttle Position Sensor (TPS) Connector End View (C189)

G07844083

Courtesy of FORD MOTOR CO.

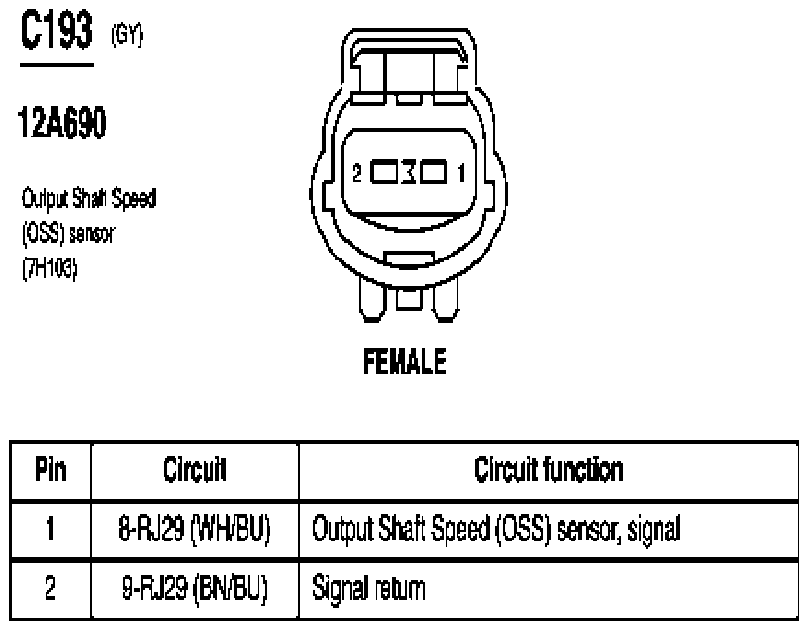

Fig 47: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07844084

Courtesy of FORD MOTOR CO.

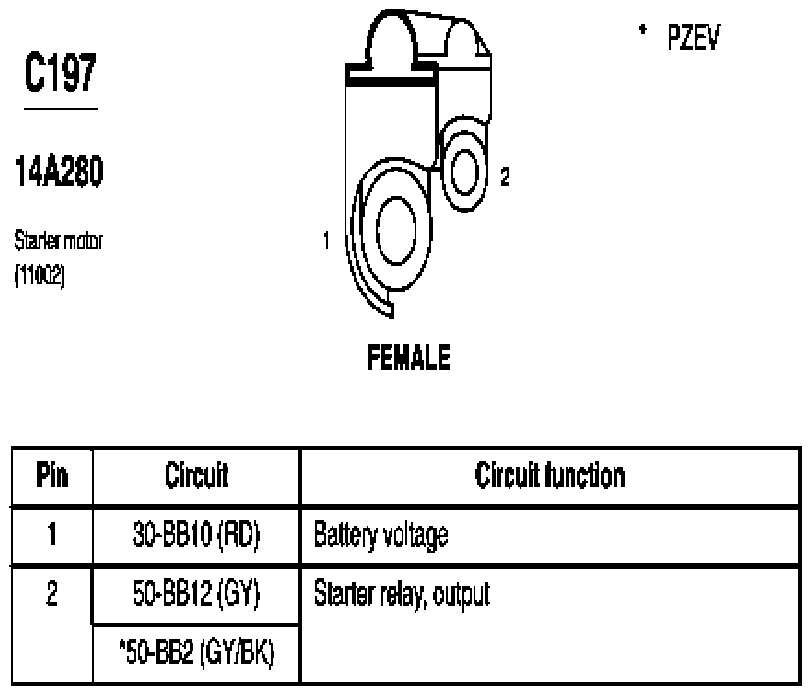

Fig 48: Starter Motor Connector End View (C197)

G07844085

Courtesy of FORD MOTOR CO.

Fig 49: Transmission Hardware Unit Connector End View (C199)

G07844086

Courtesy of FORD MOTOR CO.

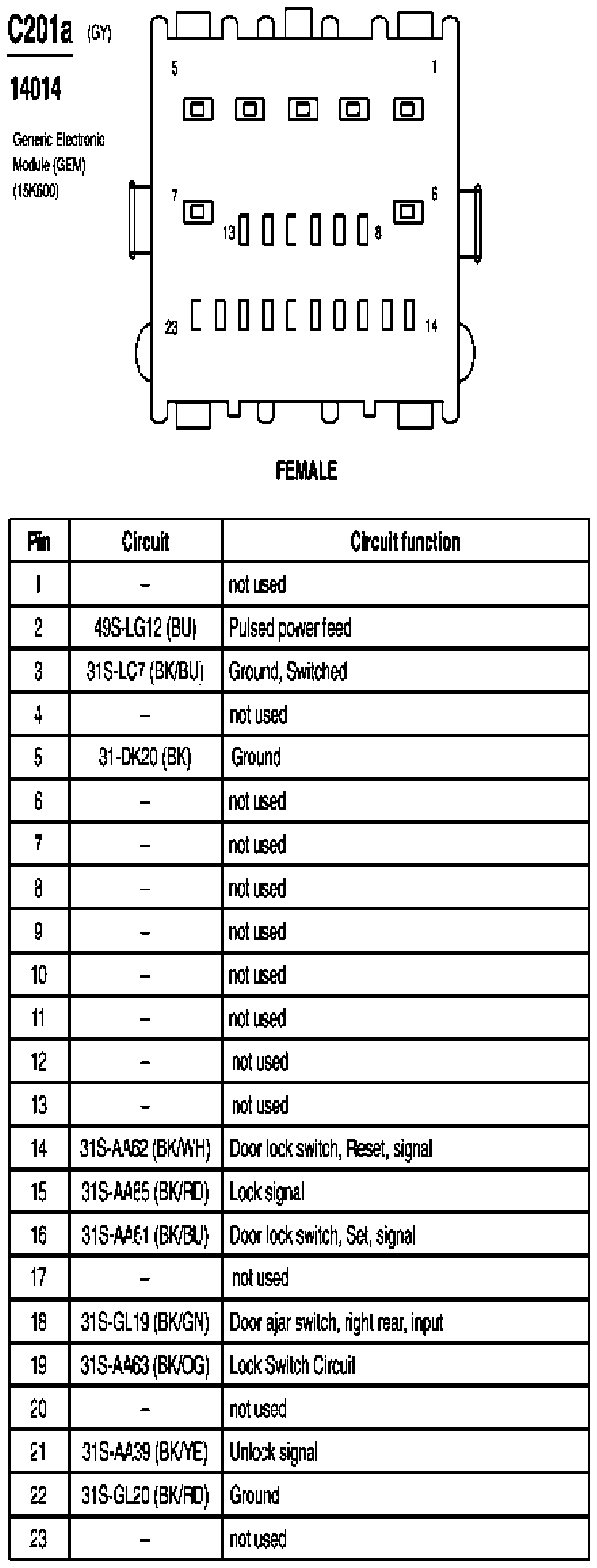

Fig 50: Generic Electronic Module (GEM) Connector End View (C201a)

G07844087

Courtesy of FORD MOTOR CO.

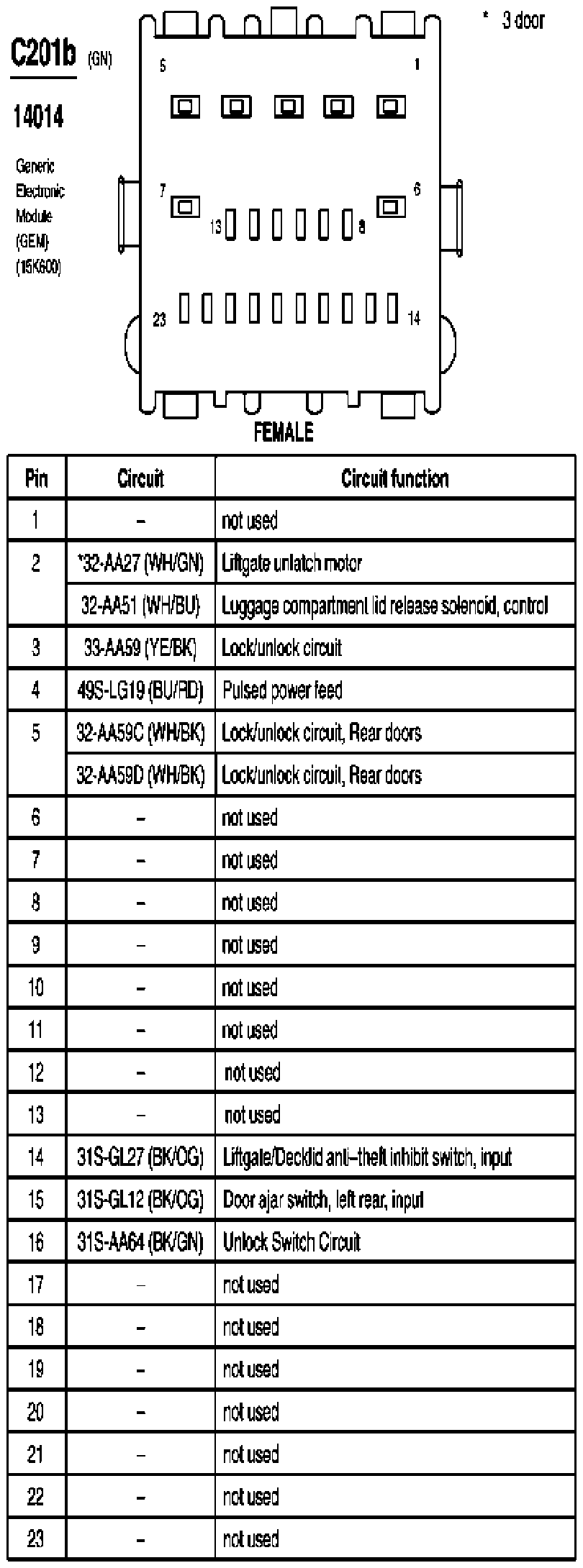

Fig 51: Generic Electronic Module (GEM) Connector End View (C201b)

G07844088

Courtesy of FORD MOTOR CO.

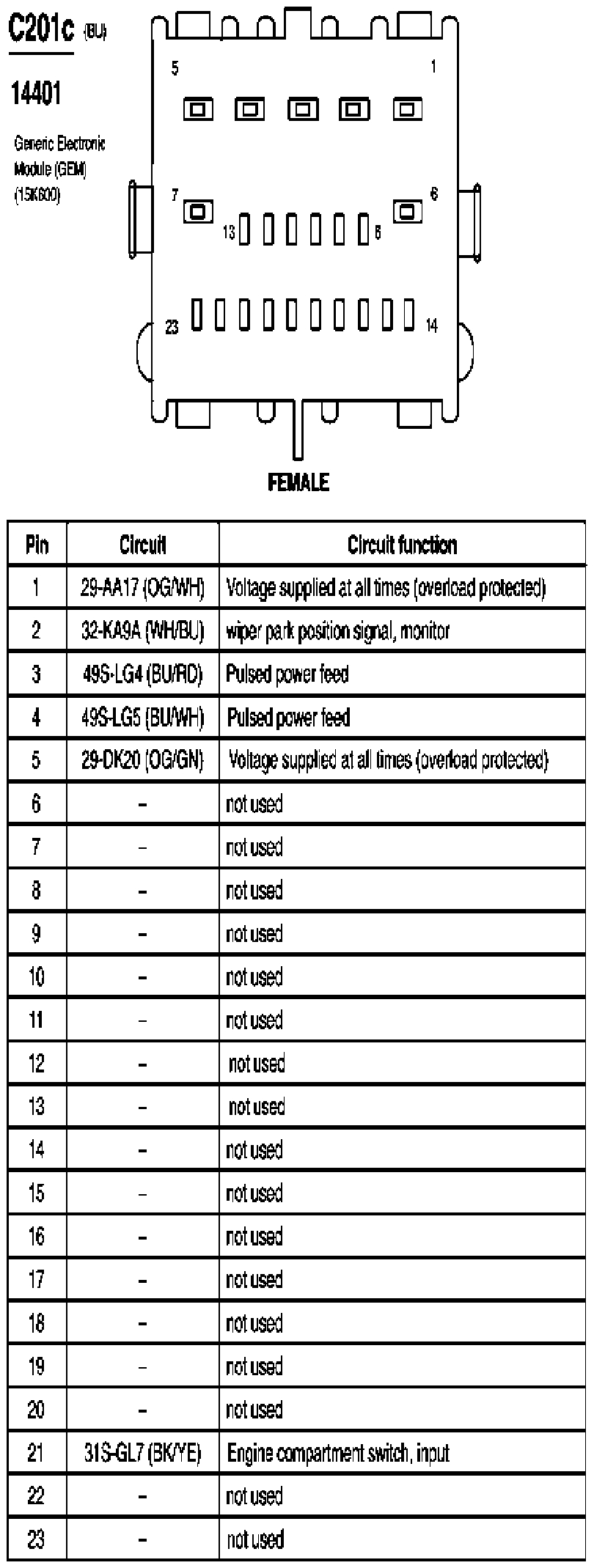

Fig 52: Generic Electronic Module (GEM) Connector End View (C201c)

G07844089

Courtesy of FORD MOTOR CO.

Fig 53: Generic Electronic Module (GEM) Connector End View (C201d)

G07844090

Courtesy of FORD MOTOR CO.

Fig 54: Generic Electronic Module (GEM) Connector End View (C201e)

G07844091

Courtesy of FORD MOTOR CO.

Fig 55: Multifunction Switch Connector End View (C202)

G07844092

Courtesy of FORD MOTOR CO.

Fig 56: Main Light Switch Connector End View (C205)

G07844093

Courtesy of FORD MOTOR CO.

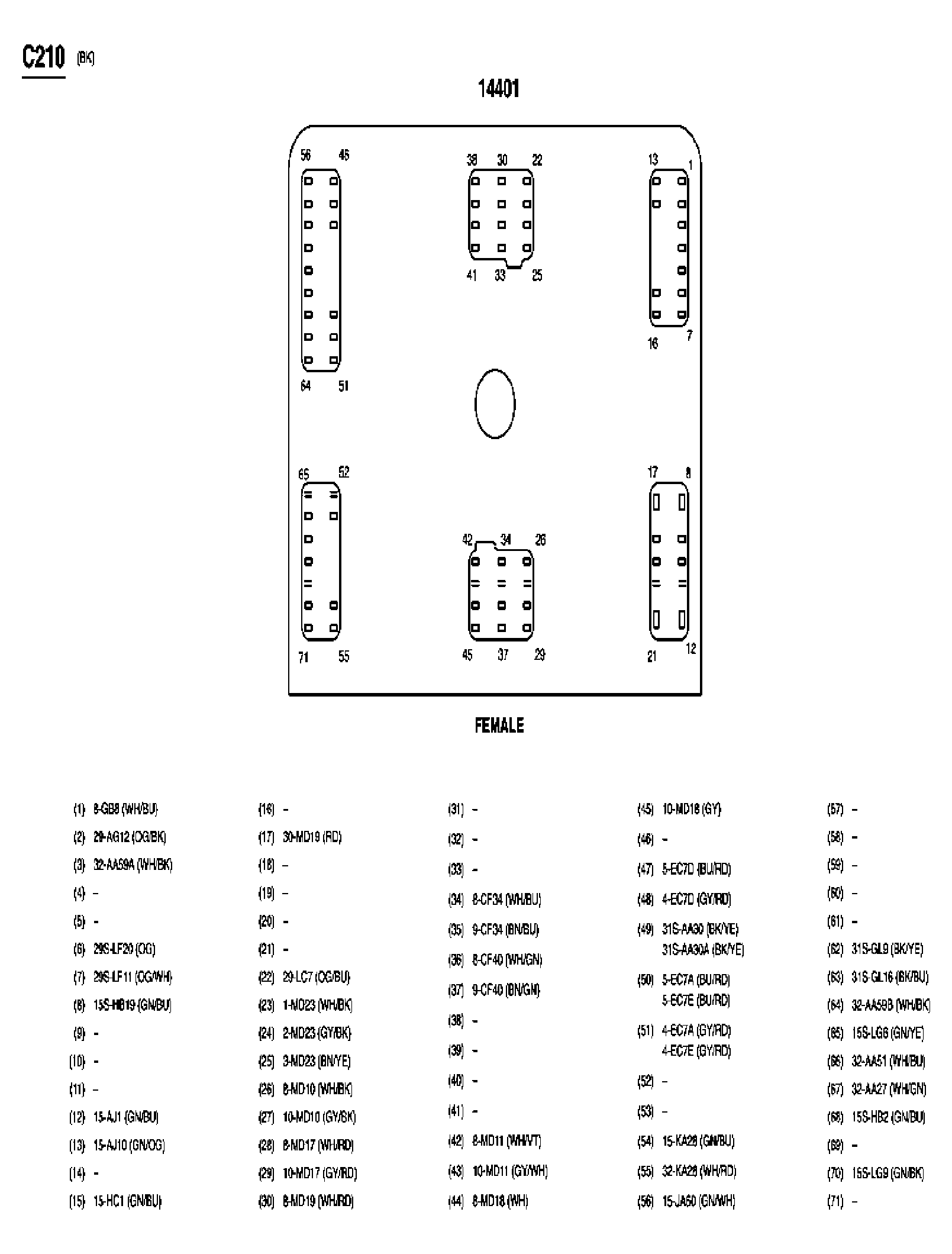

Fig 57: Inline Connector End View (C210)

G03994043

Courtesy of FORD MOTOR CO.

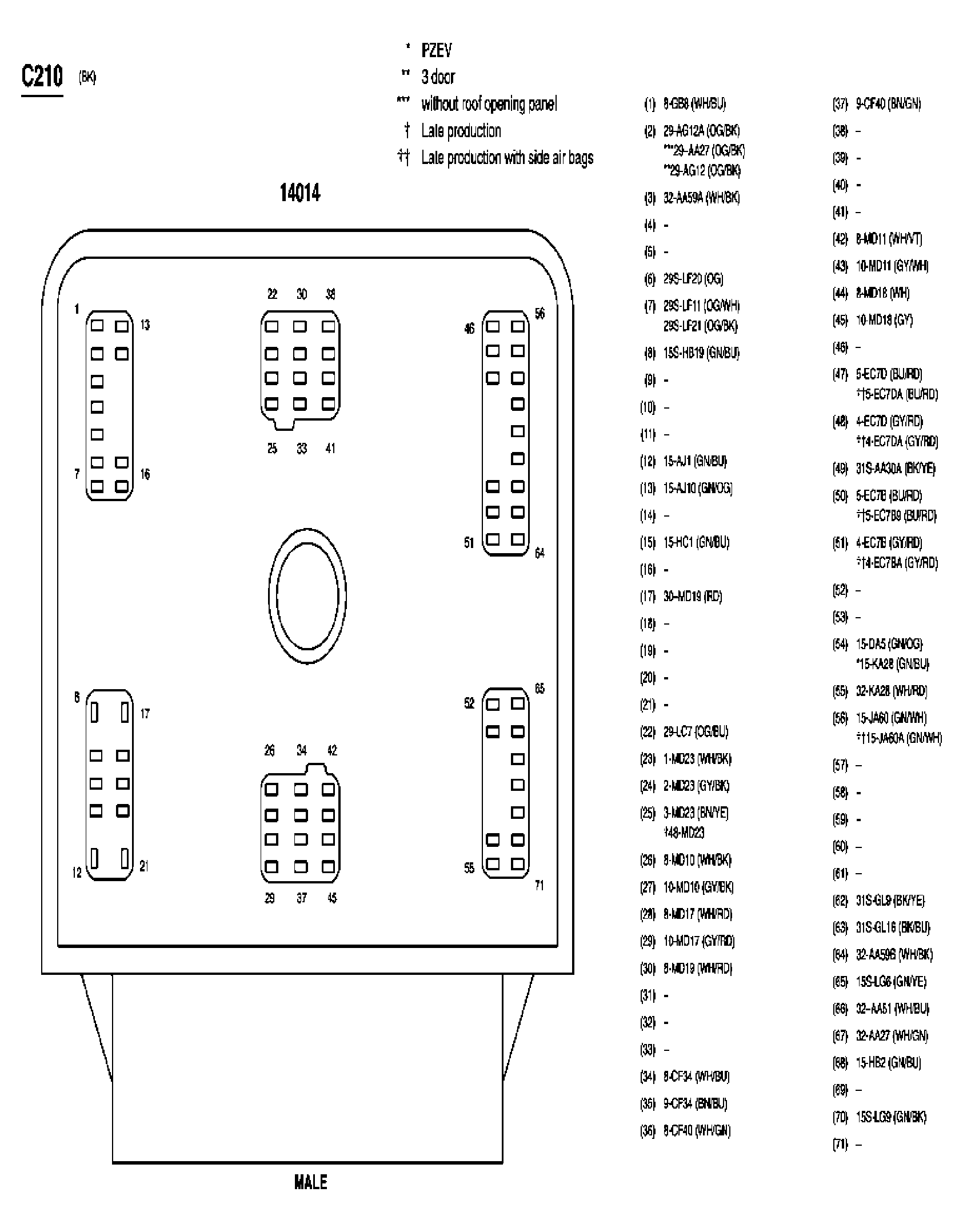

Fig 58: Inline Connector End View (C210)

G03994044

Courtesy of FORD MOTOR CO.

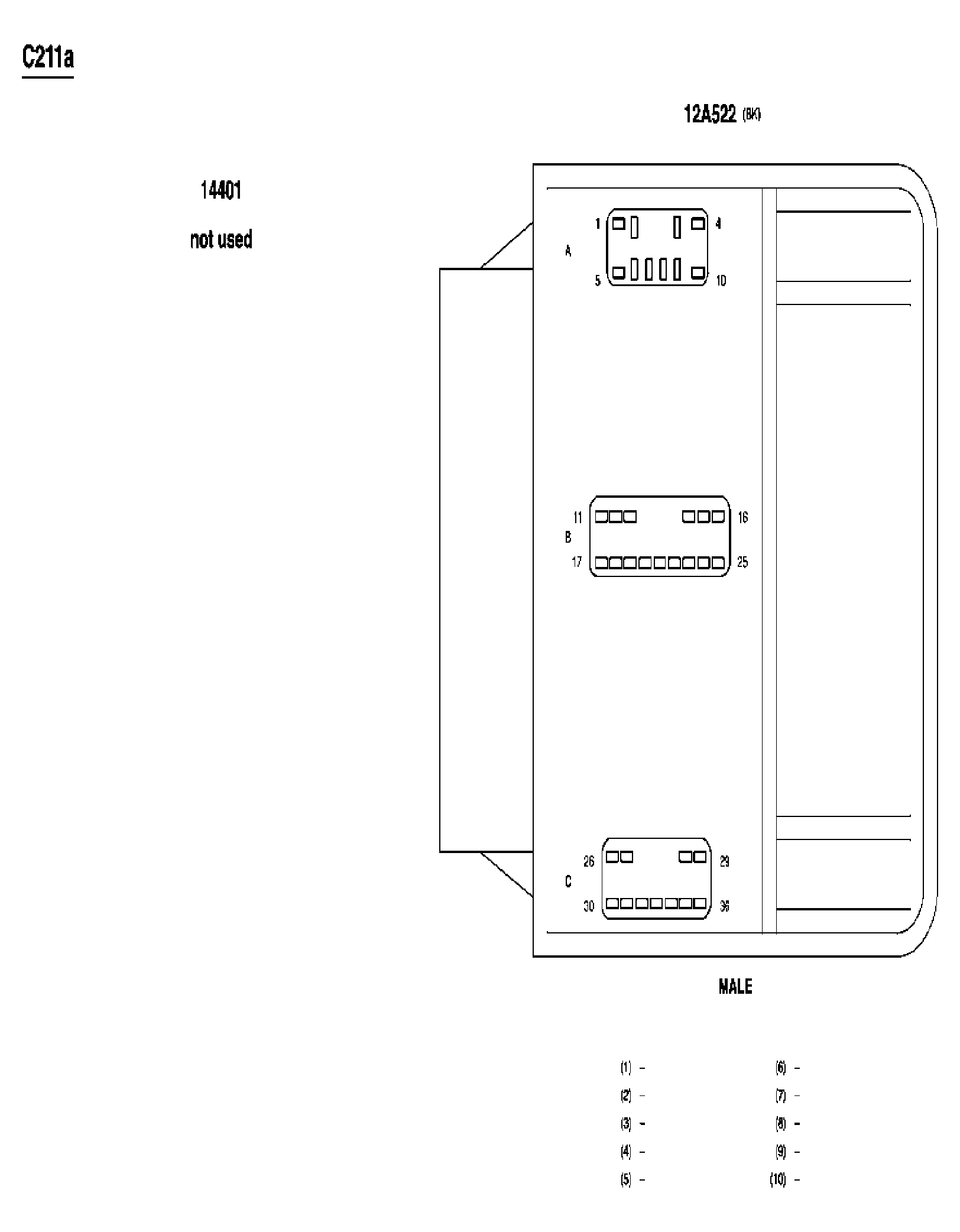

Fig 59: Inline Connector End View (C211a)

G03994045

Courtesy of FORD MOTOR CO.

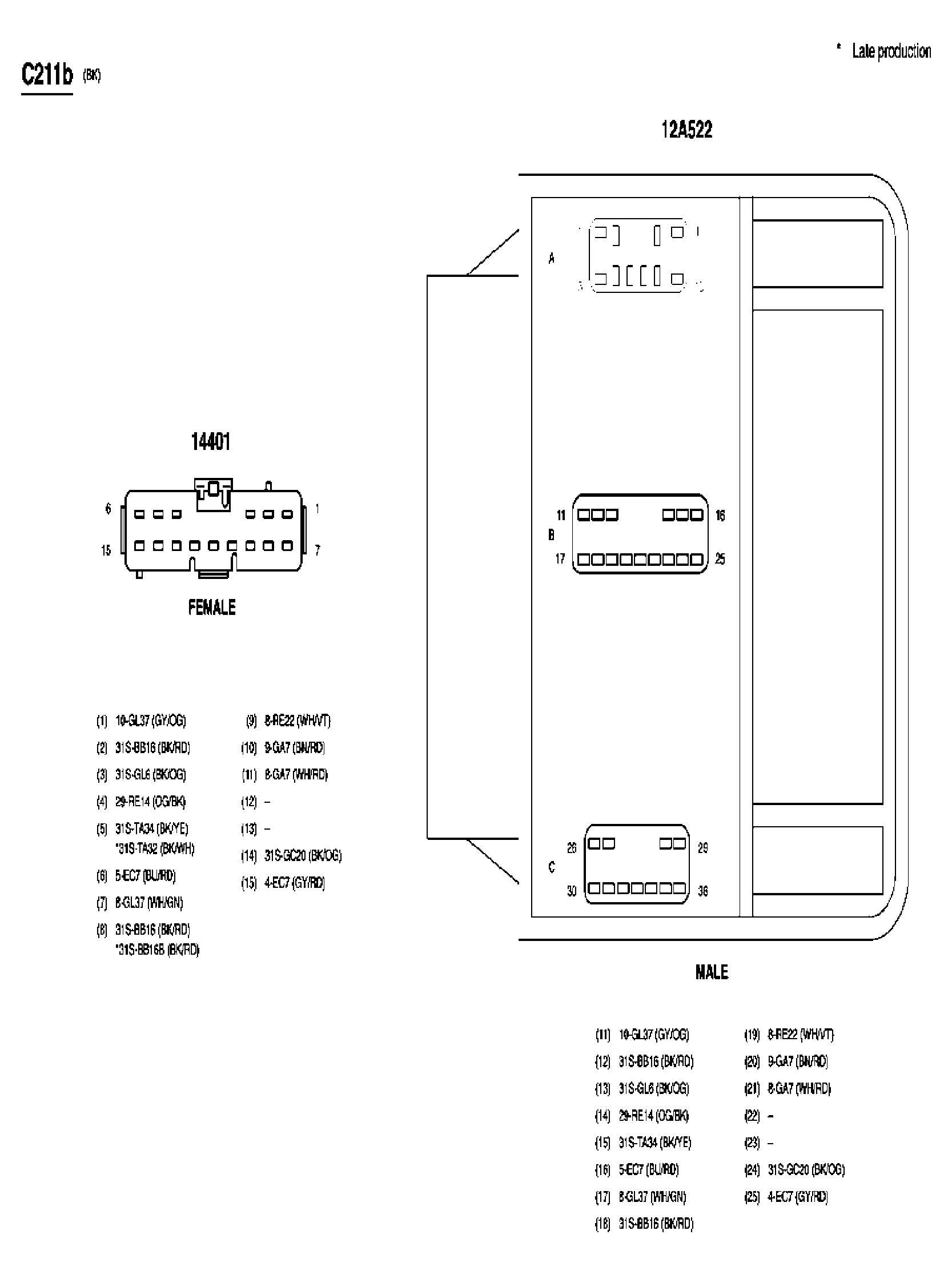

Fig 60: Inline Connector End View (C211b)

G03994046

Courtesy of FORD MOTOR CO.

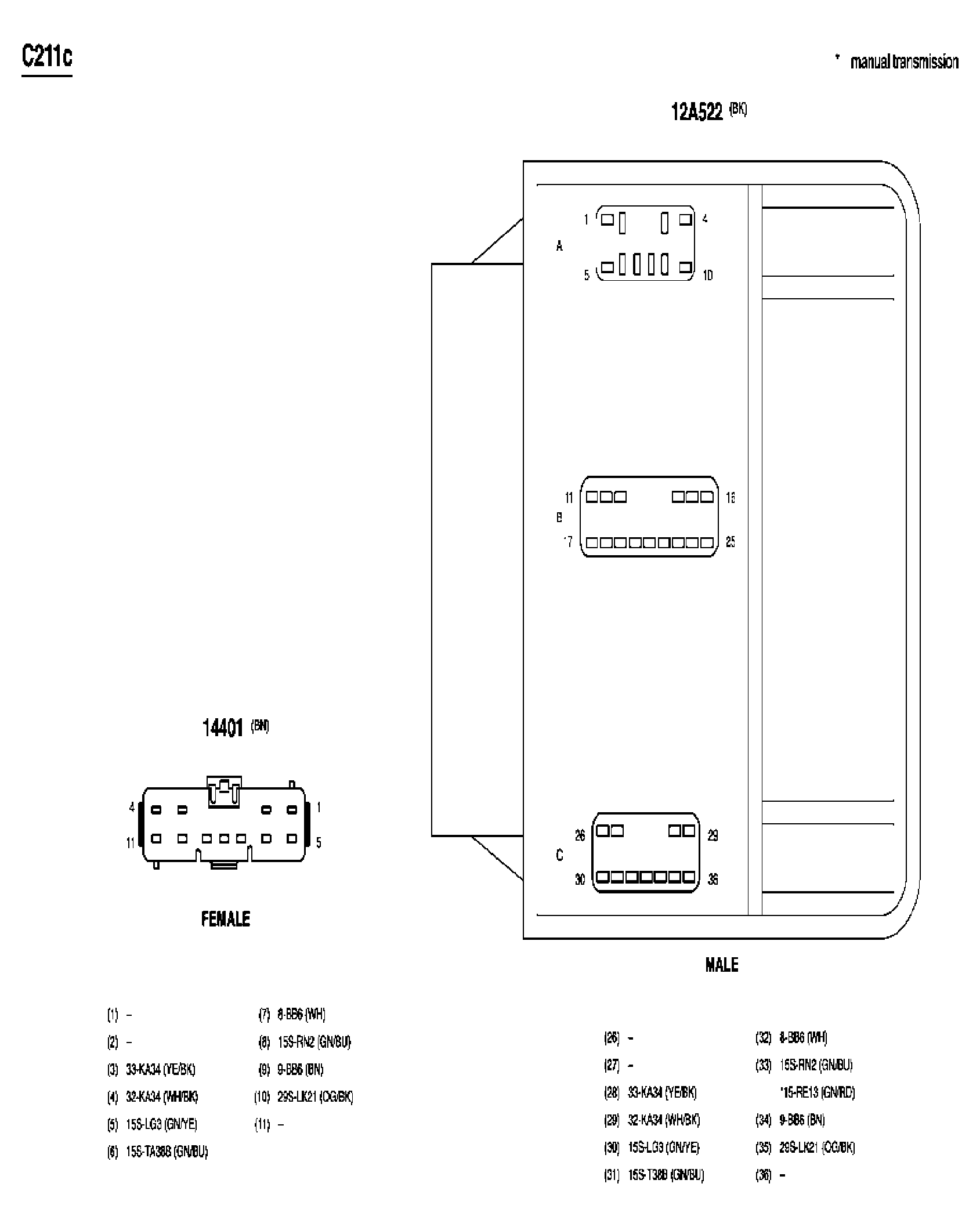

Fig 61: Inline Connector End View (C211c)

G03994047

Courtesy of FORD MOTOR CO.

Fig 62: Inline Connector End View (C212)

G07844094

Courtesy of FORD MOTOR CO.

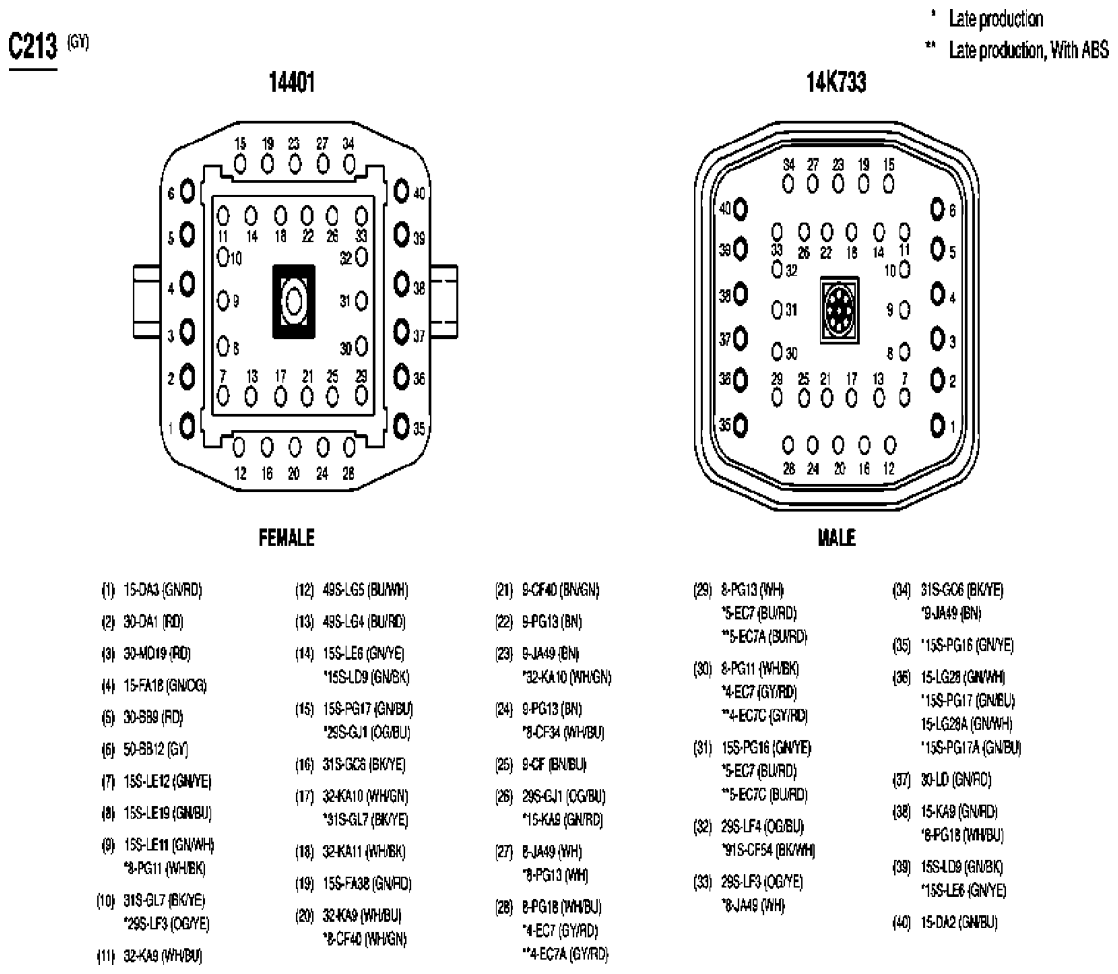

Fig 63: Inline Connector End View (C213)

G07844095

Courtesy of FORD MOTOR CO.

Fig 64: Inline Connector End View (C214)

G03994049

Courtesy of FORD MOTOR CO.

Fig 65: Ignition Switch Connector End View (C250)

G07844096

Courtesy of FORD MOTOR CO.

Fig 66: Data Link Connector (DLC) Connector End View (C251)

G07844097

Courtesy of FORD MOTOR CO.

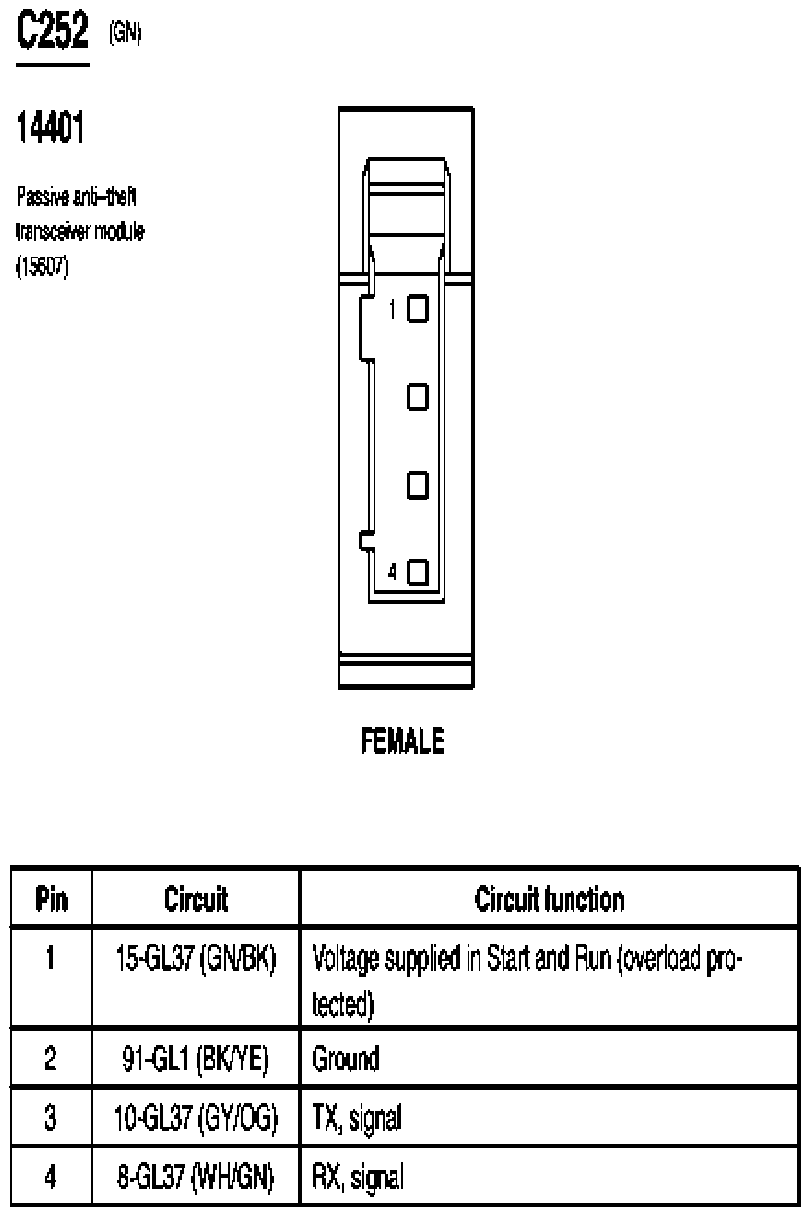

Fig 67: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07844098

Courtesy of FORD MOTOR CO.

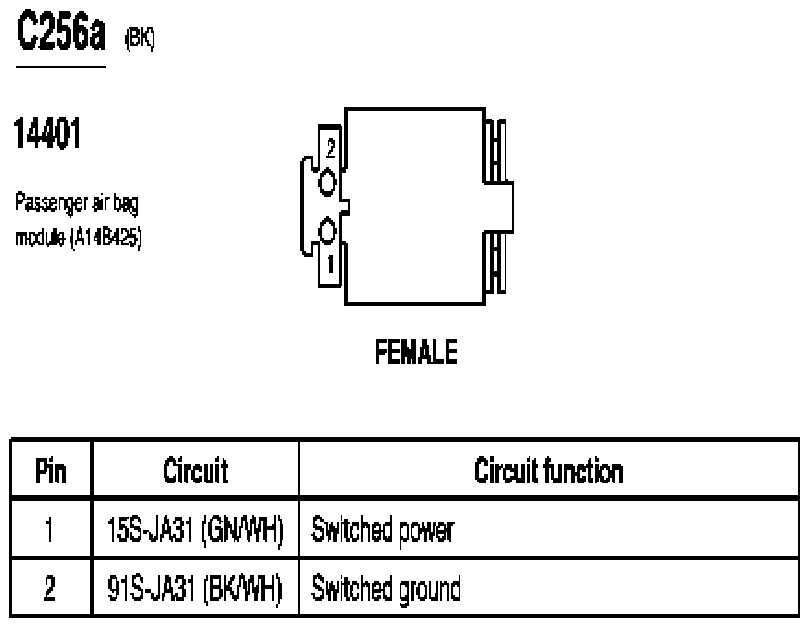

Fig 68: Passenger Air Bag Module Connector End View (C256a)

G07844099

Courtesy of FORD MOTOR CO.

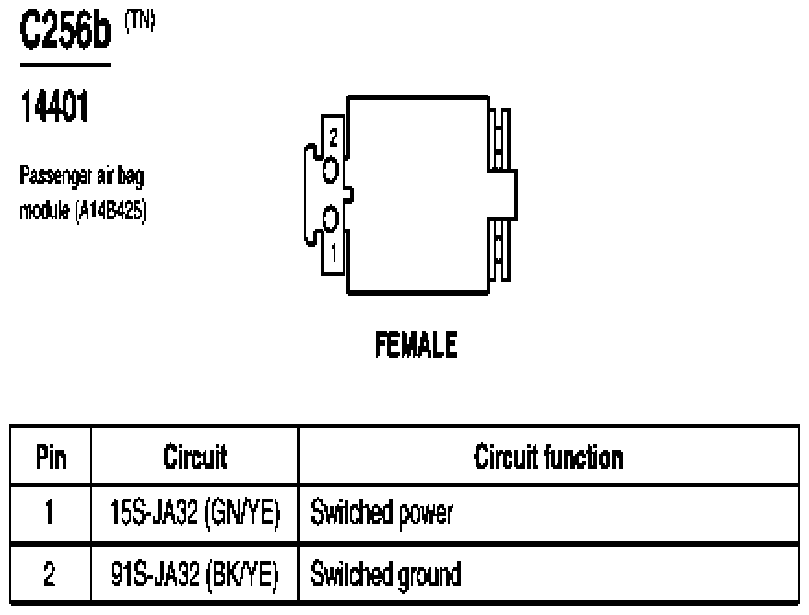

Fig 69: Passenger Air Bag Module Connector End View (C256b)

G07844100

Courtesy of FORD MOTOR CO.

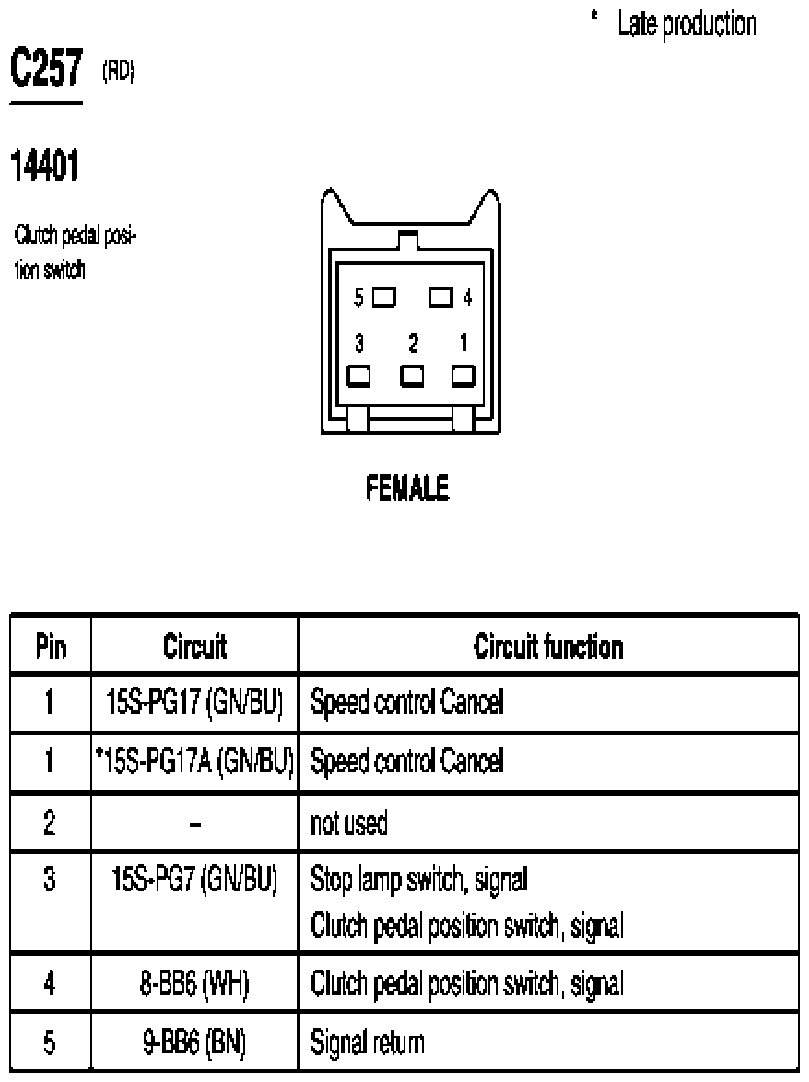

Fig 70: Clutch Pedal Position Switch Connector End View (C257)

G07844101

Courtesy of FORD MOTOR CO.

Fig 71: Central Junction Box (CJB) Connector End View (C270a)

G07844102

Courtesy of FORD MOTOR CO.

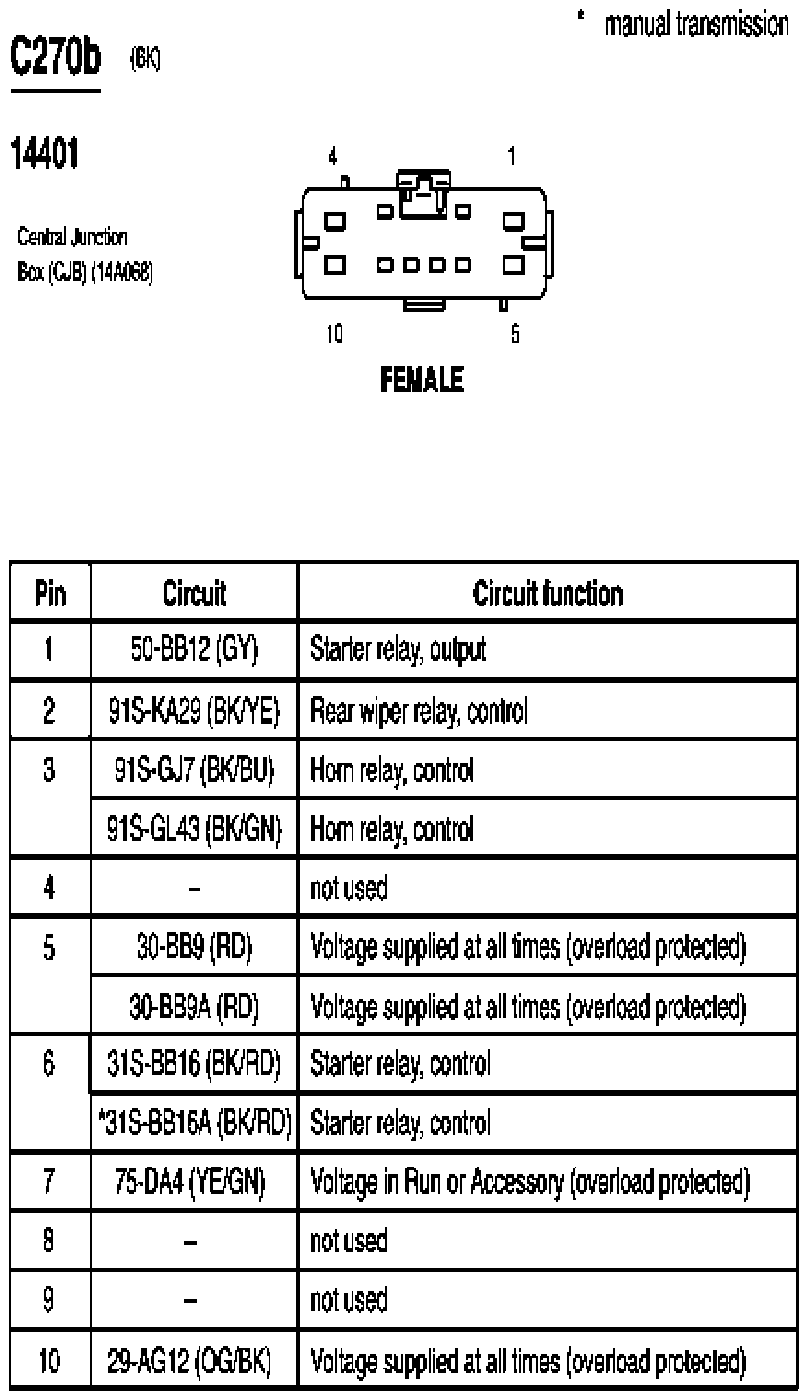

Fig 72: Central Junction Box (CJB) Connector End View (C270b)

G07844103

Courtesy of FORD MOTOR CO.

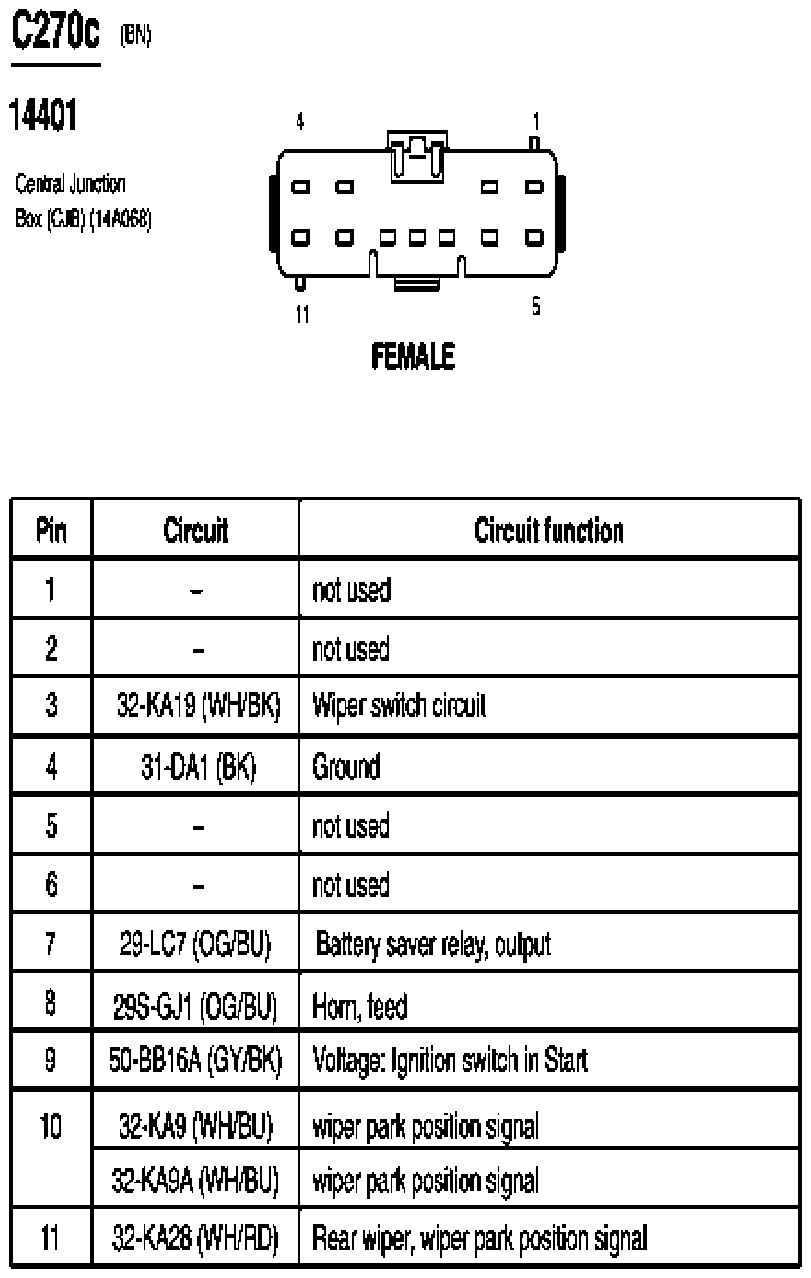

Fig 73: Central Junction Box (CJB) Connector End View (C270c)

G07844104

Courtesy of FORD MOTOR CO.

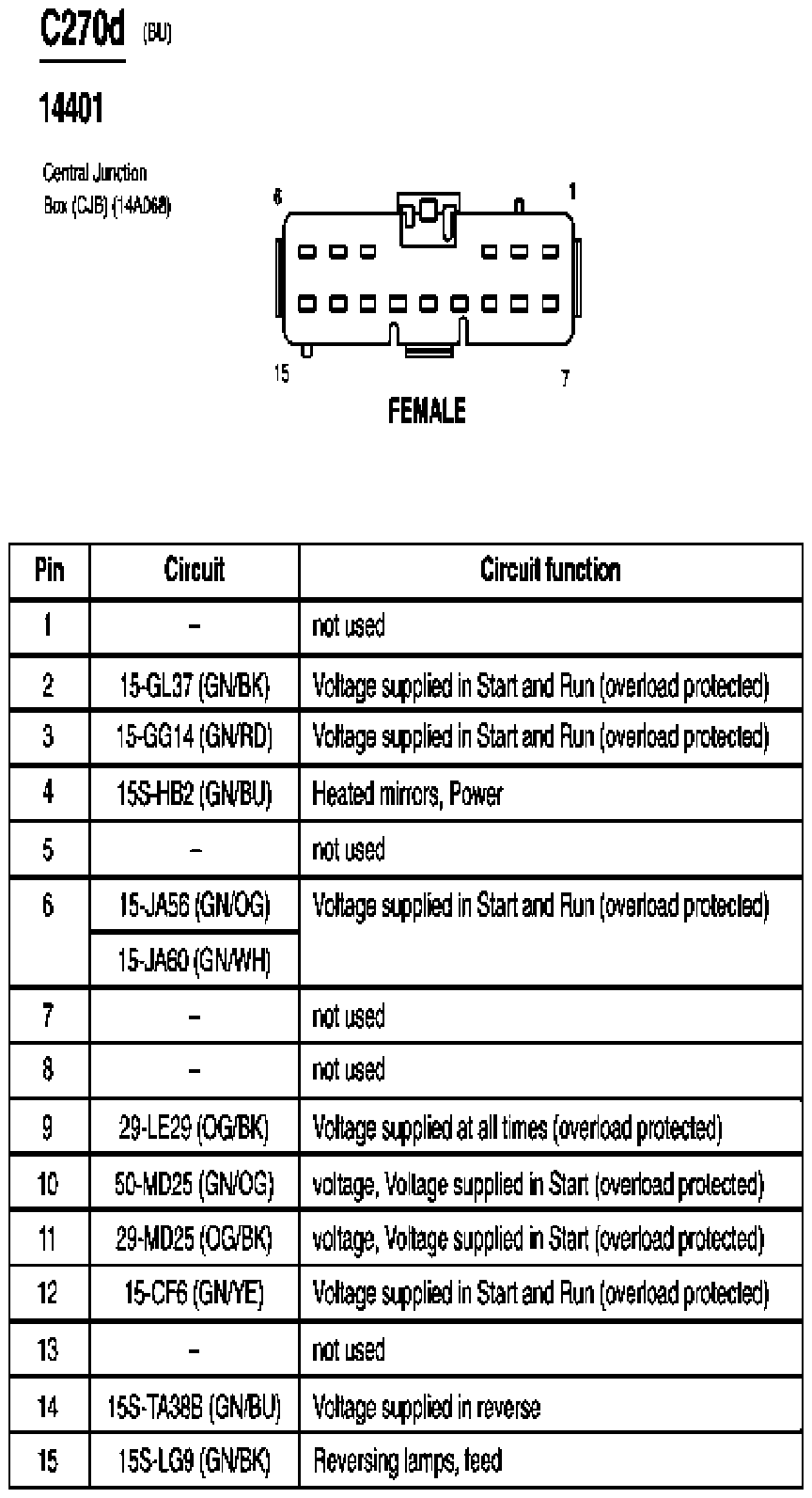

Fig 74: Central Junction Box (CJB) Connector End View (C270d)

G07844105

Courtesy of FORD MOTOR CO.

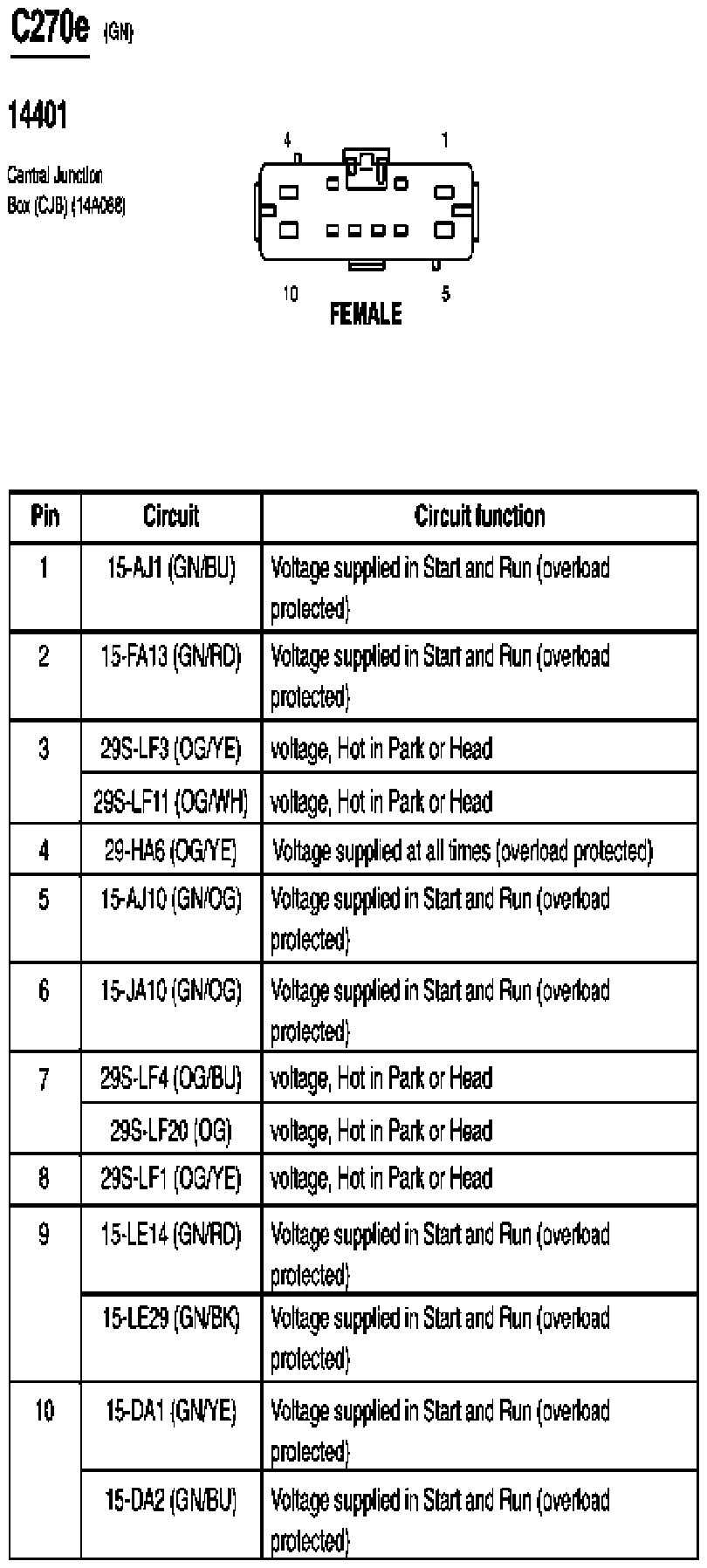

Fig 75: Central Junction Box (CJB) Connector End View (C270e)

G07844106

Courtesy of FORD MOTOR CO.

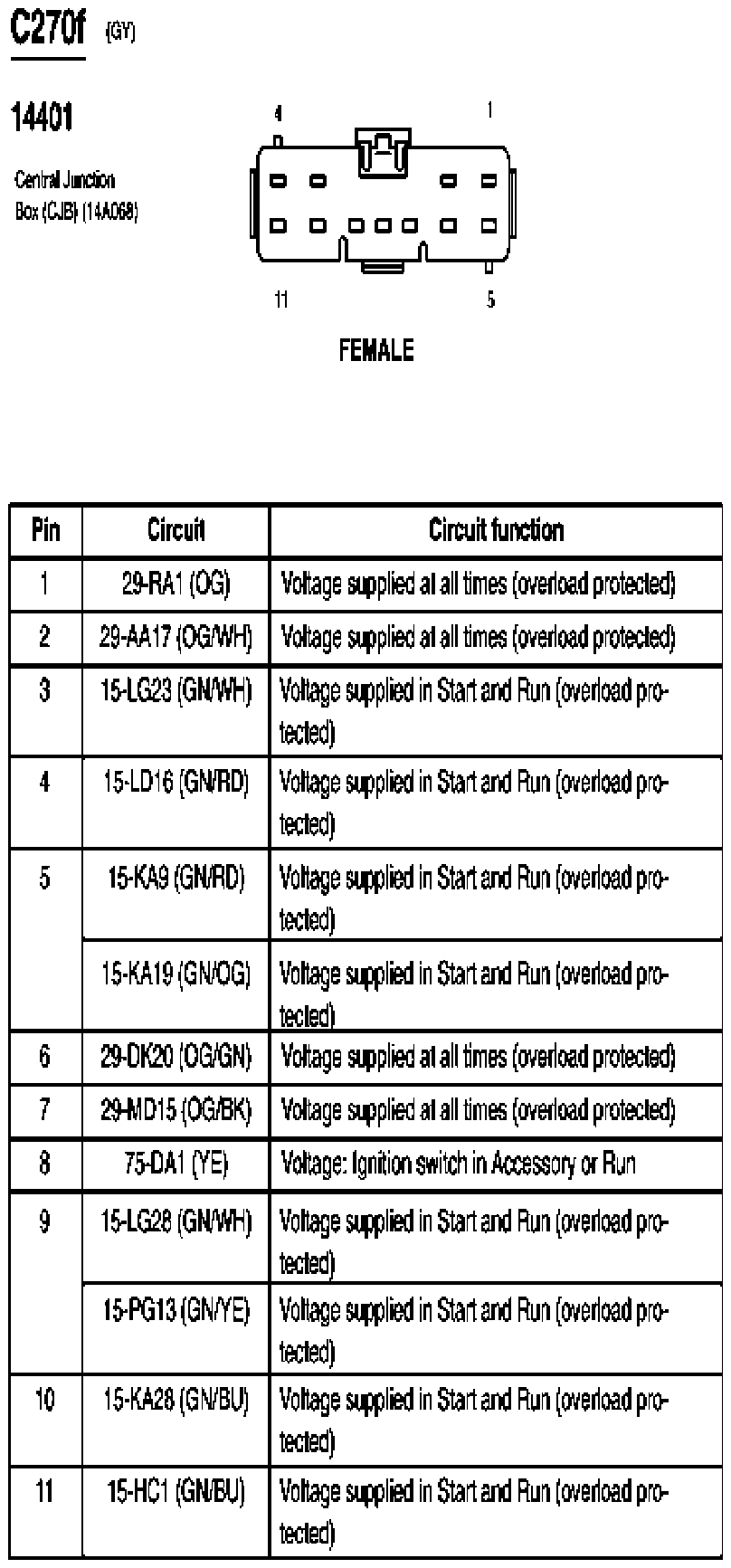

Fig 76: Central Junction Box (CJB) Connector End View (C270f)

G07844107

Courtesy of FORD MOTOR CO.

Fig 77: Central Junction Box (CJB) Connector End View (C270g)

G07844108

Courtesy of FORD MOTOR CO.

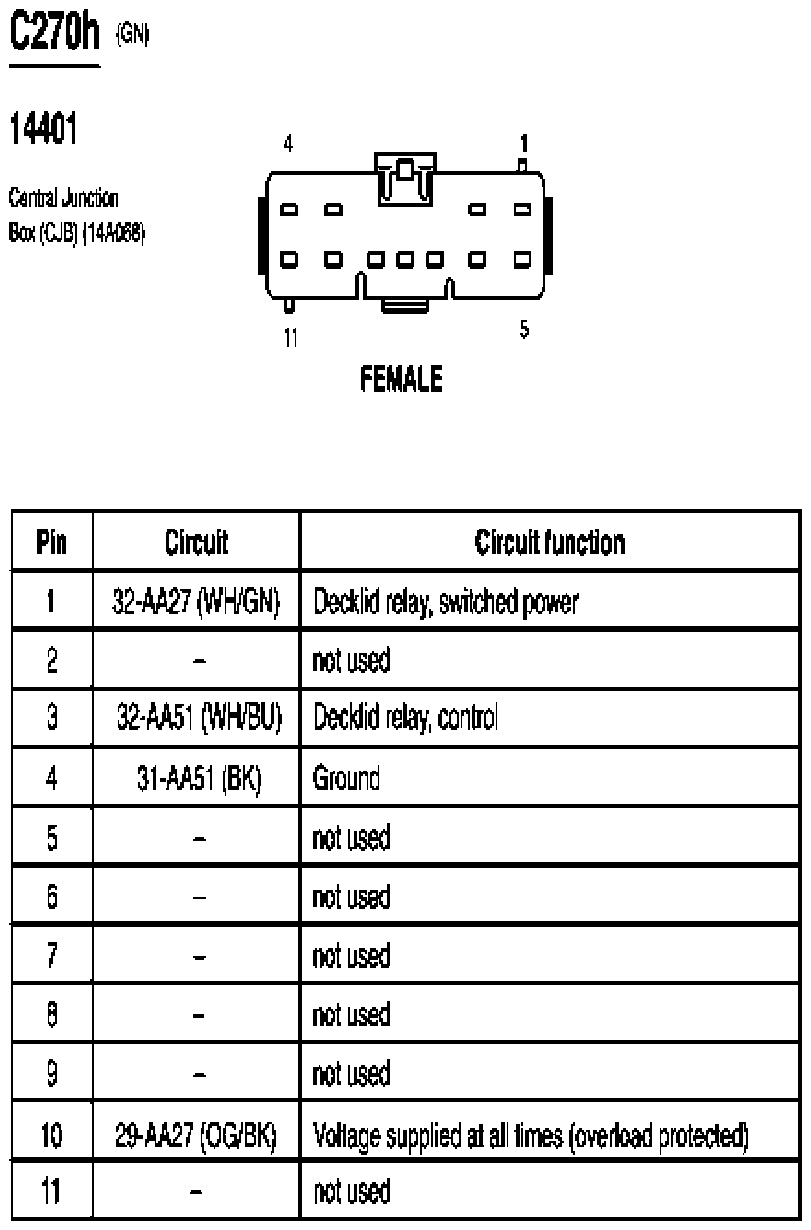

Fig 78: Central Junction Box (CJB) Connector End View (C270h)

G07844109

Courtesy of FORD MOTOR CO.

Fig 79: Brake Pedal Position Switch Connector End View (C278)

G07844110

Courtesy of FORD MOTOR CO.

Fig 80: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07844111

Courtesy of FORD MOTOR CO.

Fig 81: Heater Blower Motor Connector End View (C288)

G07844112

Courtesy of FORD MOTOR CO.

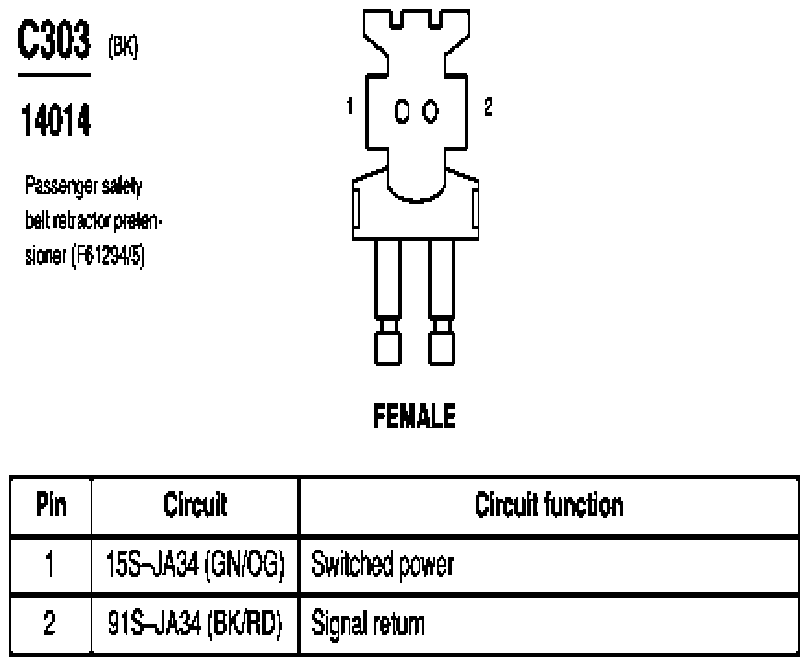

Fig 82: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G07844113

Courtesy of FORD MOTOR CO.

Fig 83: Side Air Bag Sensor, Right Connector End View (C304)

G07844114

Courtesy of FORD MOTOR CO.

Fig 84: Side Air Bag Sensor, Left Connector End View (C305)

G07844115

Courtesy of FORD MOTOR CO.

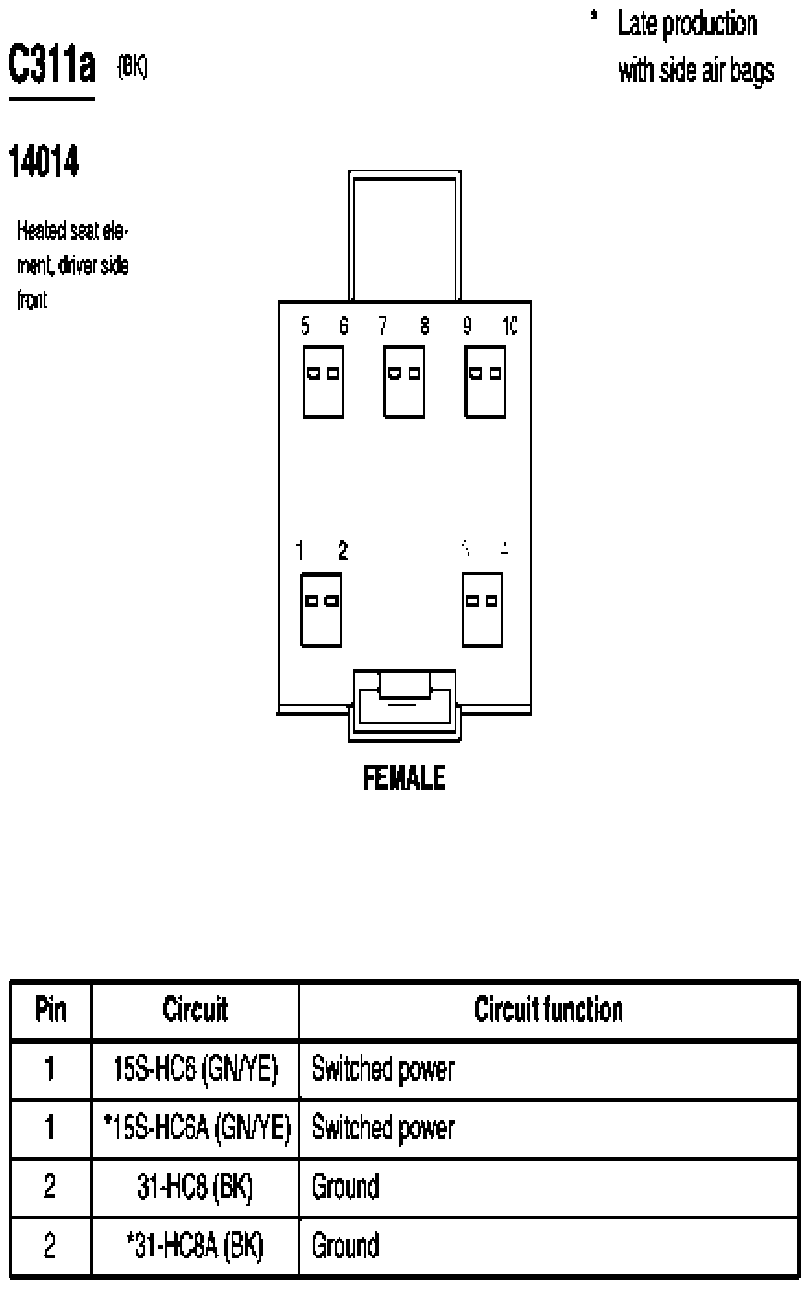

Fig 85: Heated Seat Element, Driver Side Front Connector End View (C311a)

G07844116

Courtesy of FORD MOTOR CO.

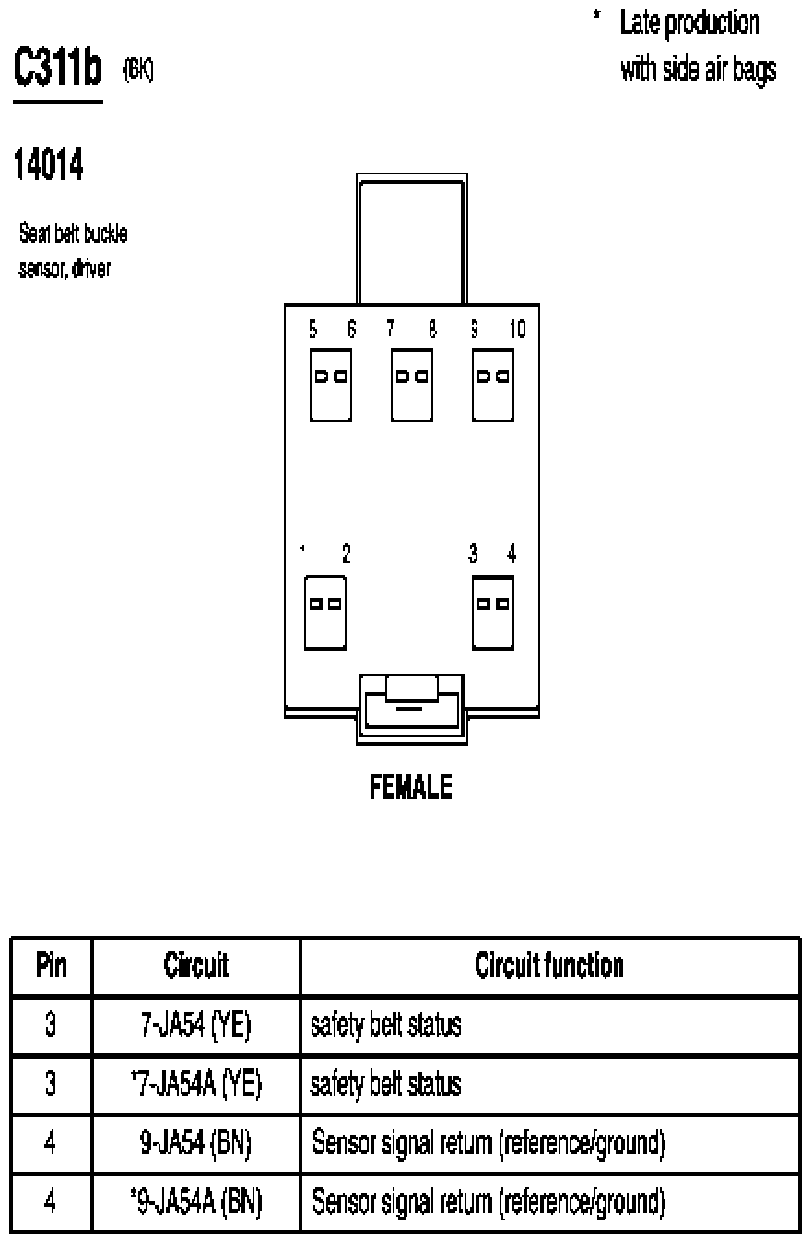

Fig 86: Seat Belt Buckle Sensor, Driver Connector End View (C311b)

G07844117

Courtesy of FORD MOTOR CO.

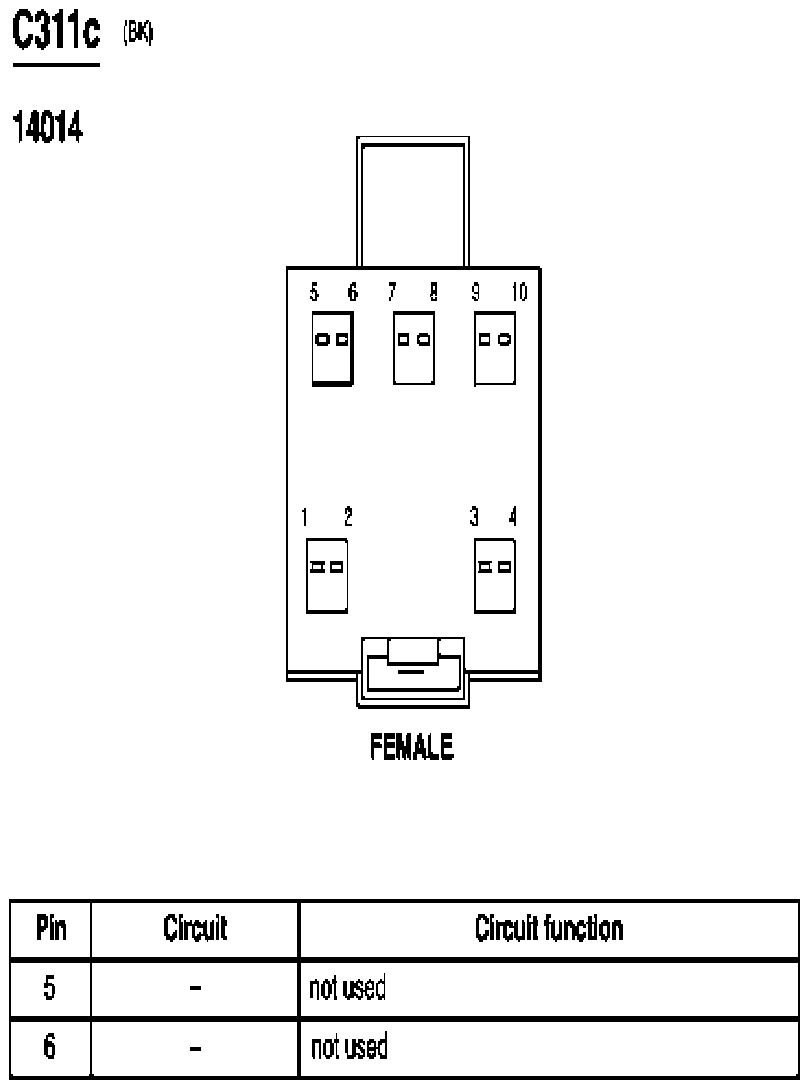

Fig 87: Inline Connector End View (C311c)

G07844118

Courtesy of FORD MOTOR CO.

Fig 88: Seat Track Position Sensor, Driver Connector End View (C311d)

G07844119

Courtesy of FORD MOTOR CO.

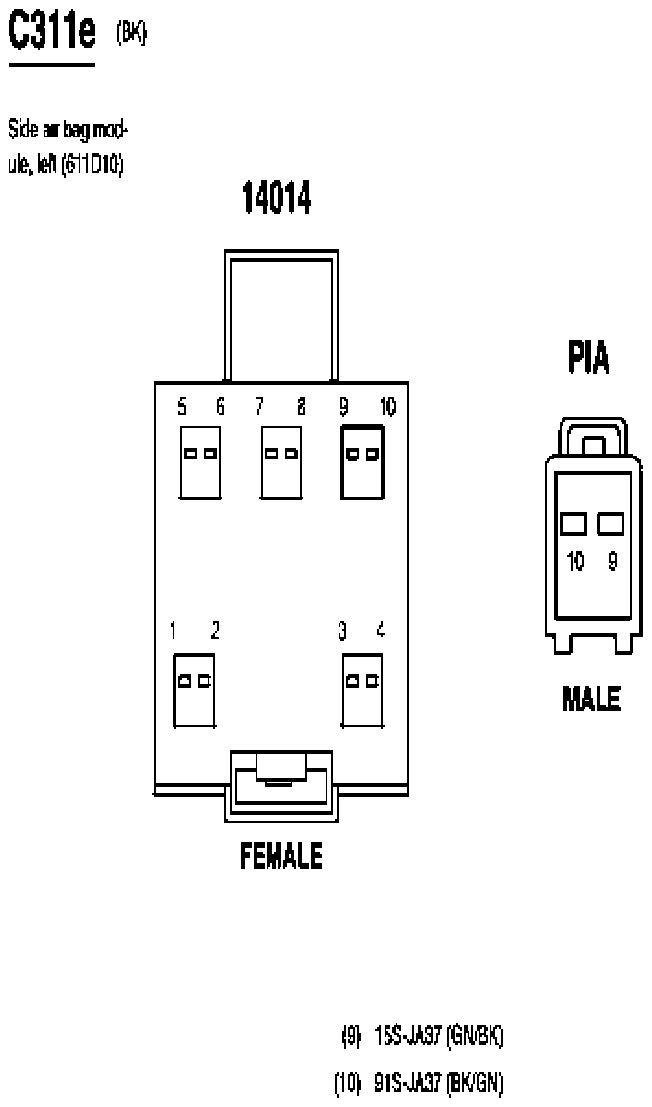

Fig 89: Side Air Bag Module, Left Connector End View (C311e)

G07844120

Courtesy of FORD MOTOR CO.

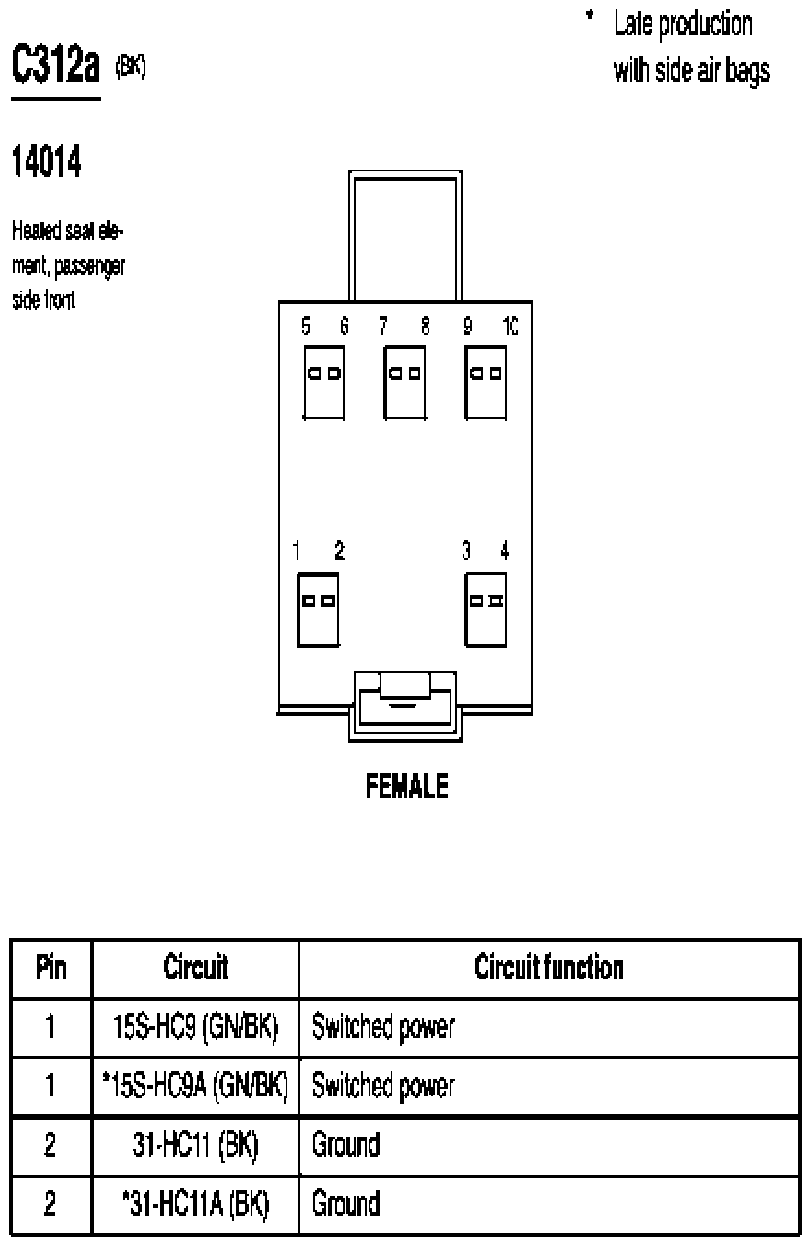

Fig 90: Heated Seat Element, Passenger Side Front Connector End View (C312a)

G07844121

Courtesy of FORD MOTOR CO.

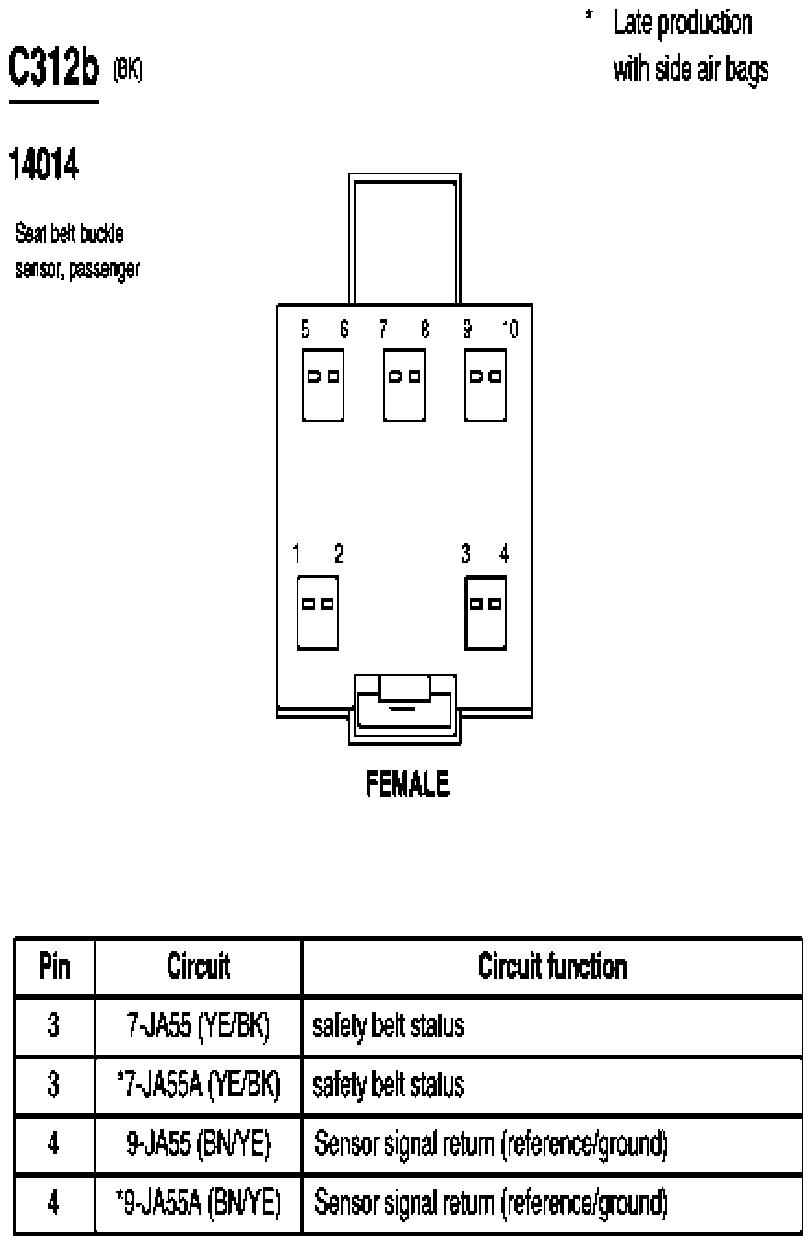

Fig 91: Seat Belt Buckle Sensor, Passenger Connector End View (C312b)

G07844122

Courtesy of FORD MOTOR CO.

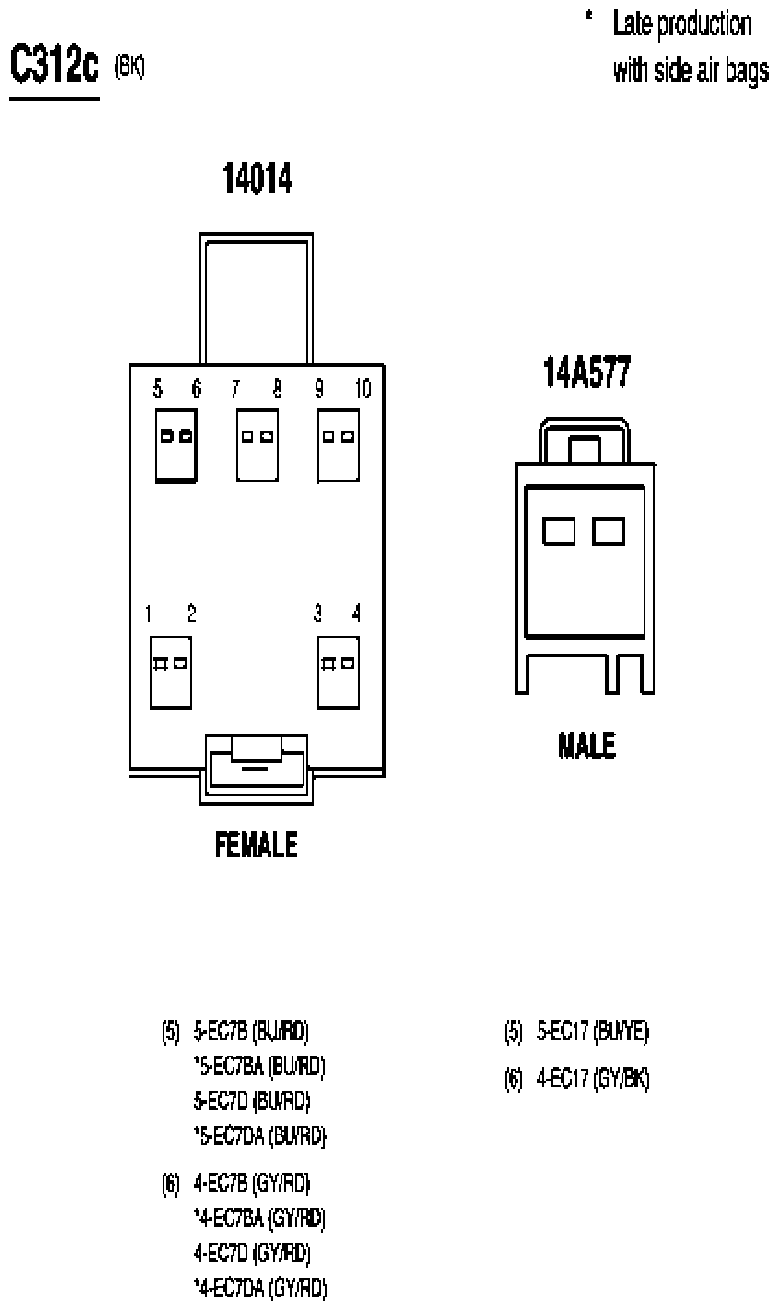

Fig 92: Inline Connector End View (C312c)

G07844123

Courtesy of FORD MOTOR CO.

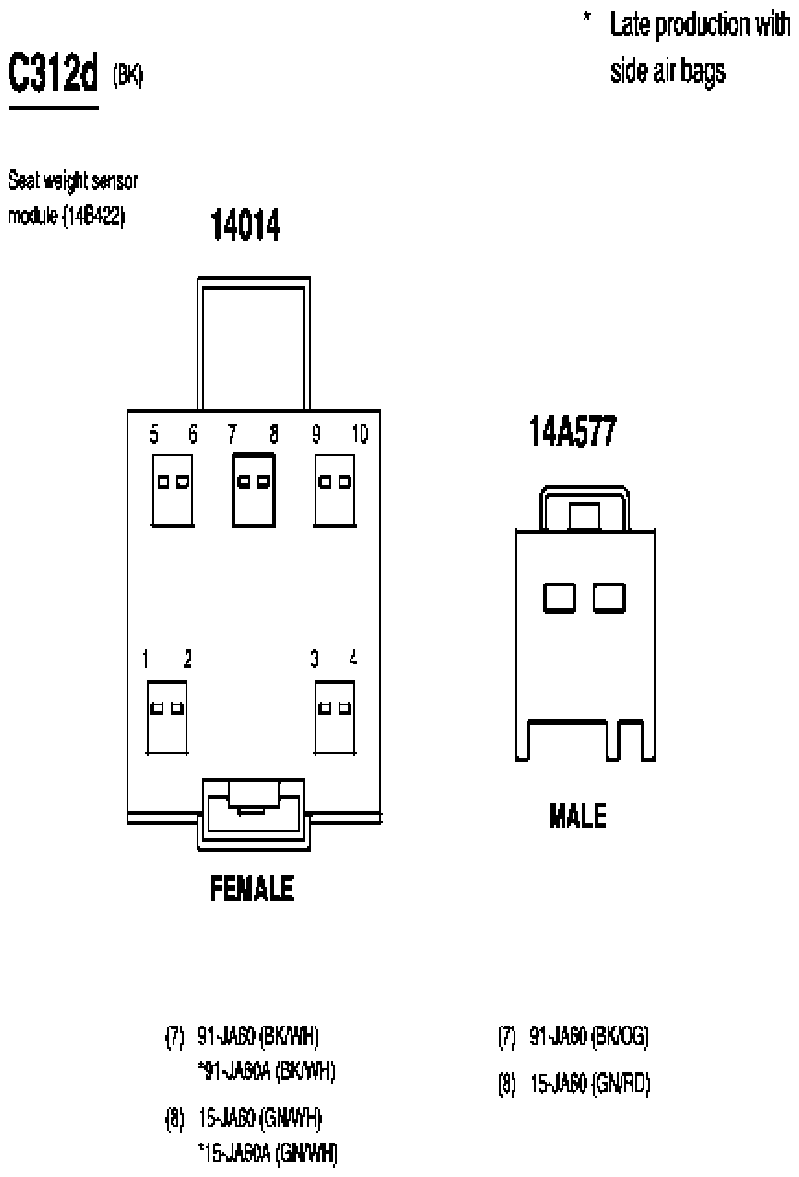

Fig 93: Seat Weight Sensor Module Connector End View (C312d)

G07844124

Courtesy of FORD MOTOR CO.

Fig 94: Side Air Bag Module, Right Connector End View (C312e)

G07844125

Courtesy of FORD MOTOR CO.

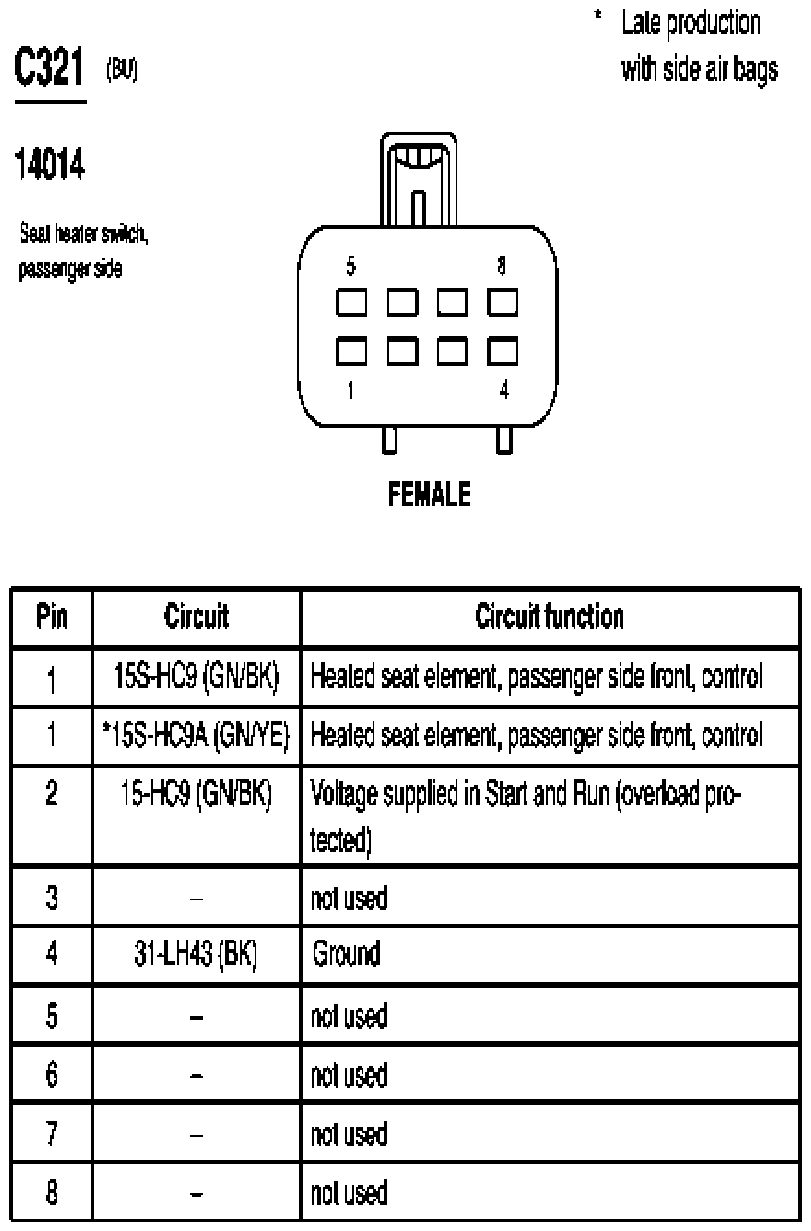

Fig 95: Seat Heater Switch, Passenger Side Connector End View (C321)

G07844126

Courtesy of FORD MOTOR CO.

Fig 96: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

G07844127

Courtesy of FORD MOTOR CO.

Fig 97: Seat Heater Switch, Driver Side Connector End View (C344)

G07844128

Courtesy of FORD MOTOR CO.

Fig 98: Seat Belt Tensioner, Passenger Seat Connector End View (C389)

G07844129

Courtesy of FORD MOTOR CO.

Fig 99: Speaker, Left Rear Connector End View (C395)

G07844130

Courtesy of FORD MOTOR CO.

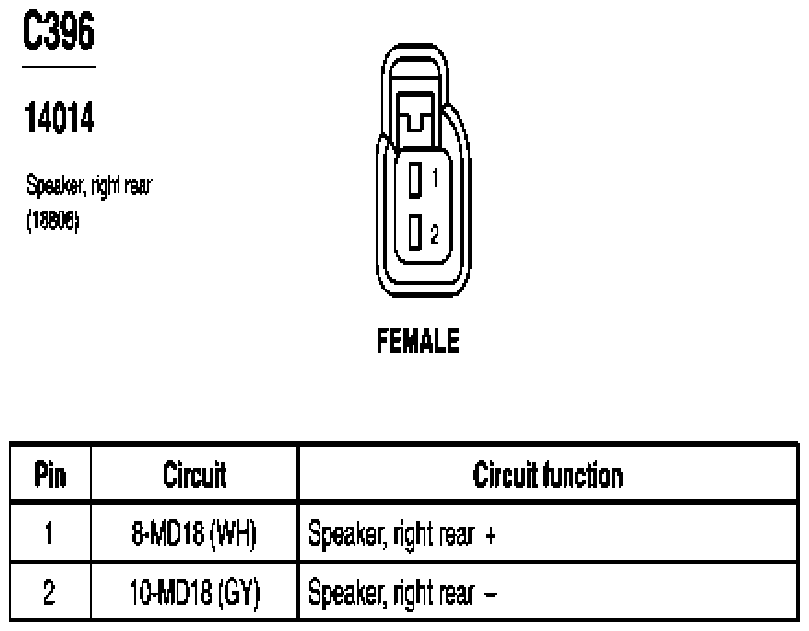

Fig 100: Speaker, Right Rear Connector End View (C396)

G07844131

Courtesy of FORD MOTOR CO.

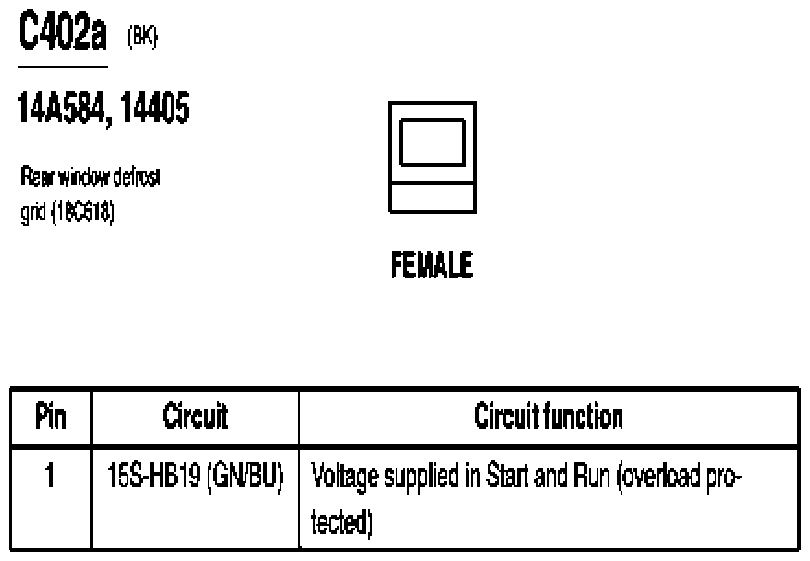

Fig 101: Rear Window Defrost Grid Connector End View (C402a)

G07844132

Courtesy of FORD MOTOR CO.

Fig 102: Rear Window Defrost Grid Connector End View (C402b)

G07844133

Courtesy of FORD MOTOR CO.

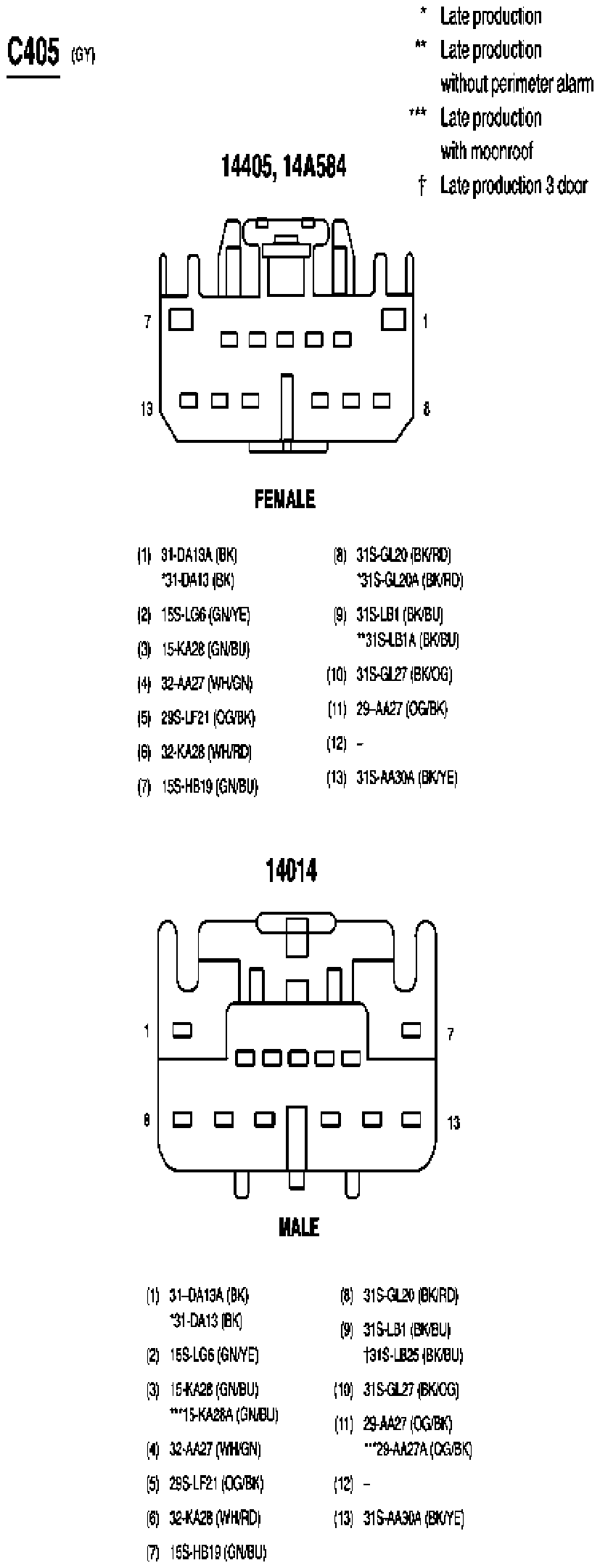

Fig 103: Inline Connector End View (C405)

G07844134

Courtesy of FORD MOTOR CO.

Fig 104: Inline Connector End View (C406)

G07844135

Courtesy of FORD MOTOR CO.

Fig 105: Inline Connector End View (C421)

G07844136

Courtesy of FORD MOTOR CO.

Fig 106: Inline Connector End View (C422)

G07844137

Courtesy of FORD MOTOR CO.

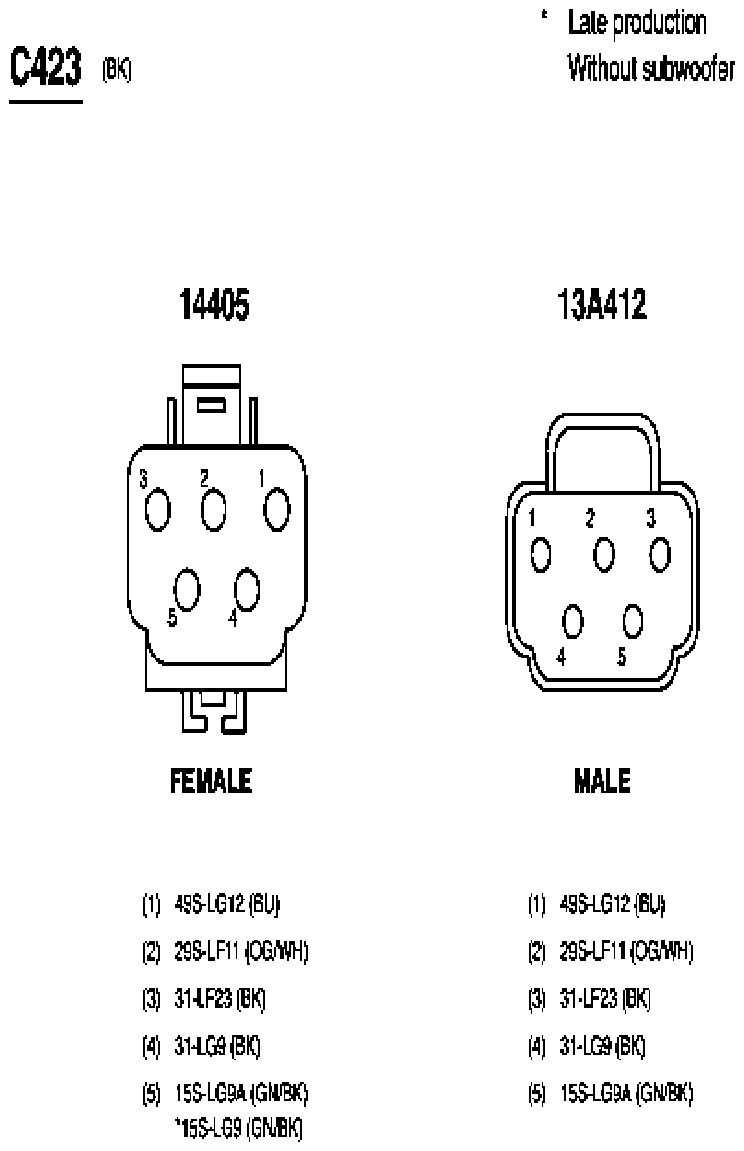

Fig 107: Inline Connector End View (C423)

G07844138

Courtesy of FORD MOTOR CO.

Fig 108: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07844139

Courtesy of FORD MOTOR CO.

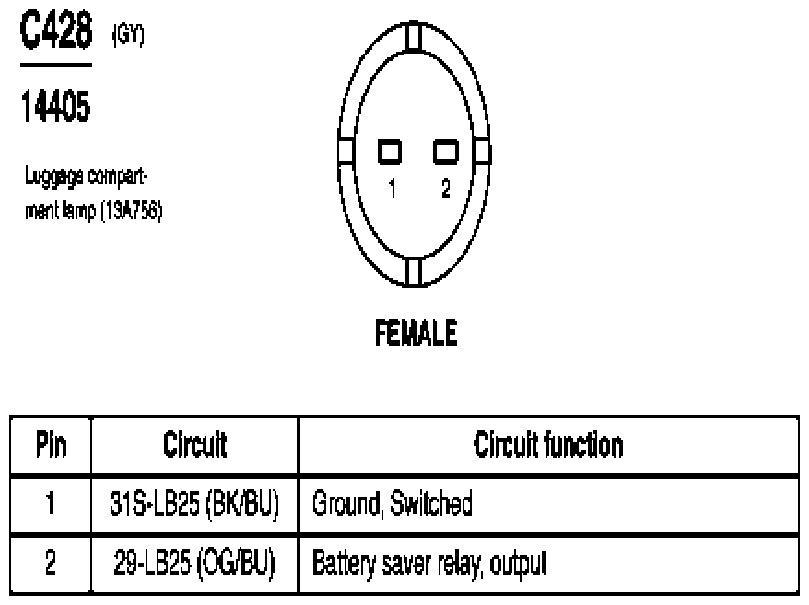

Fig 109: Luggage Compartment Lamp Connector End View (C428)

G07844140

Courtesy of FORD MOTOR CO.

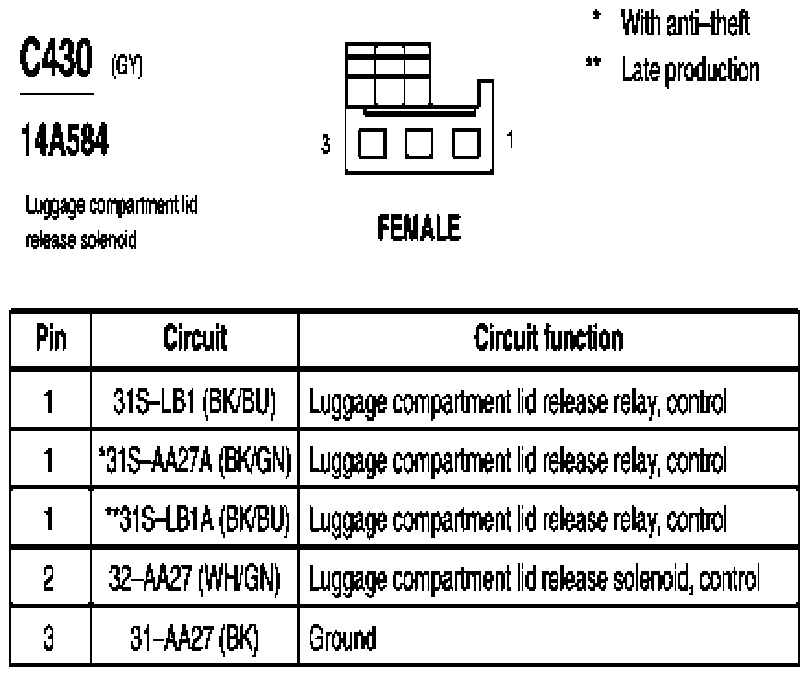

Fig 110: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07844141

Courtesy of FORD MOTOR CO.

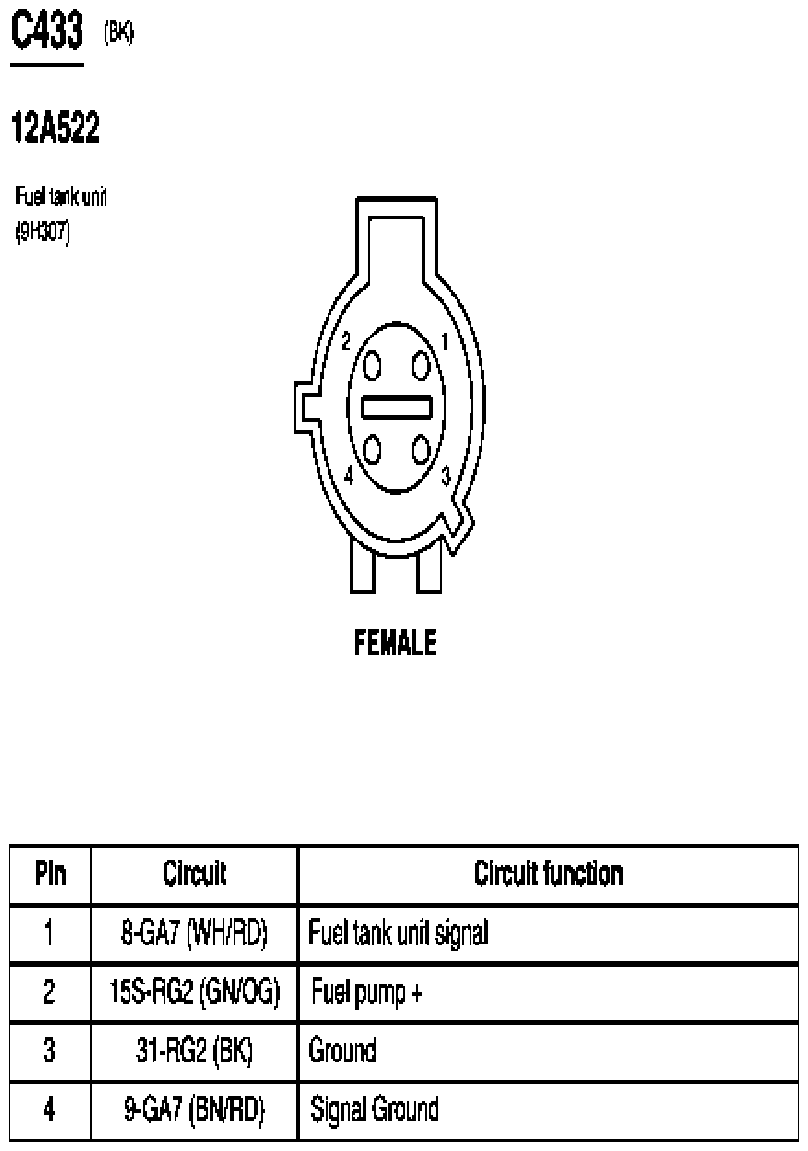

Fig 111: Fuel Tank Unit Connector End View (C433)

G07844142

Courtesy of FORD MOTOR CO.

Fig 112: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07844143

Courtesy of FORD MOTOR CO.

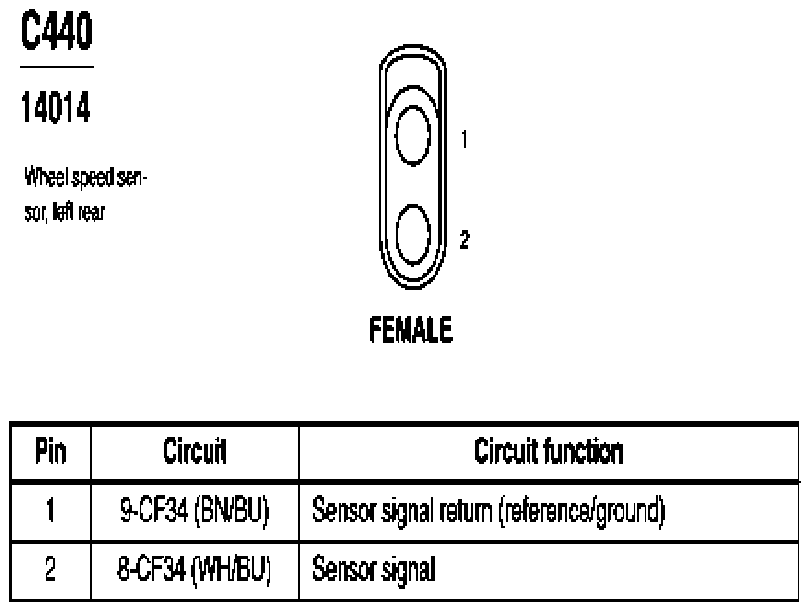

Fig 113: Wheel Speed Sensor Left Rear Connector End View (C440)

G07844144

Courtesy of FORD MOTOR CO.

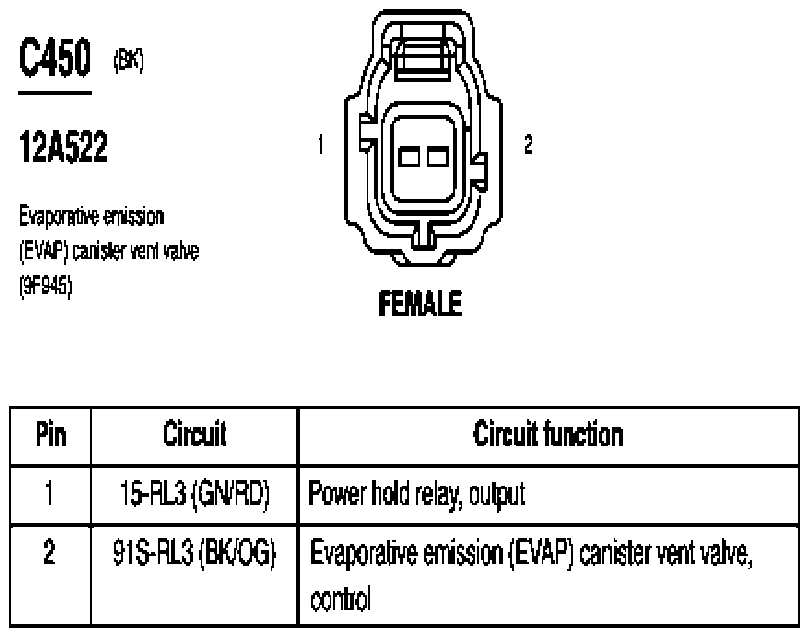

Fig 114: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07844145

Courtesy of FORD MOTOR CO.

Fig 115: Reversing Lamp, Left Connector End View (C451)

G07844146

Courtesy of FORD MOTOR CO.

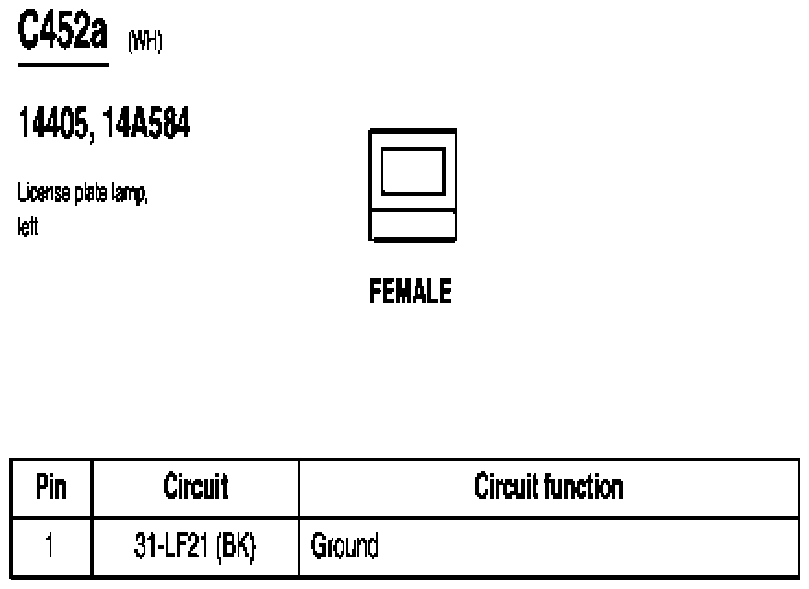

Fig 116: License Plate Lamp, Left Connector End View (C452a)

G07844147

Courtesy of FORD MOTOR CO.

Fig 117: License Plate Lamp, Left Connector End View (C452b)

G07844148

Courtesy of FORD MOTOR CO.

Fig 118: Reversing Lamp, Right Connector End View (C461)

G07844149

Courtesy of FORD MOTOR CO.

Fig 119: License Plate Lamp, Right Connector End View (C462a)

G07844150

Courtesy of FORD MOTOR CO.

Fig 120: License Plate Lamp, Right Connector End View (C462b)

G07844151

Courtesy of FORD MOTOR CO.

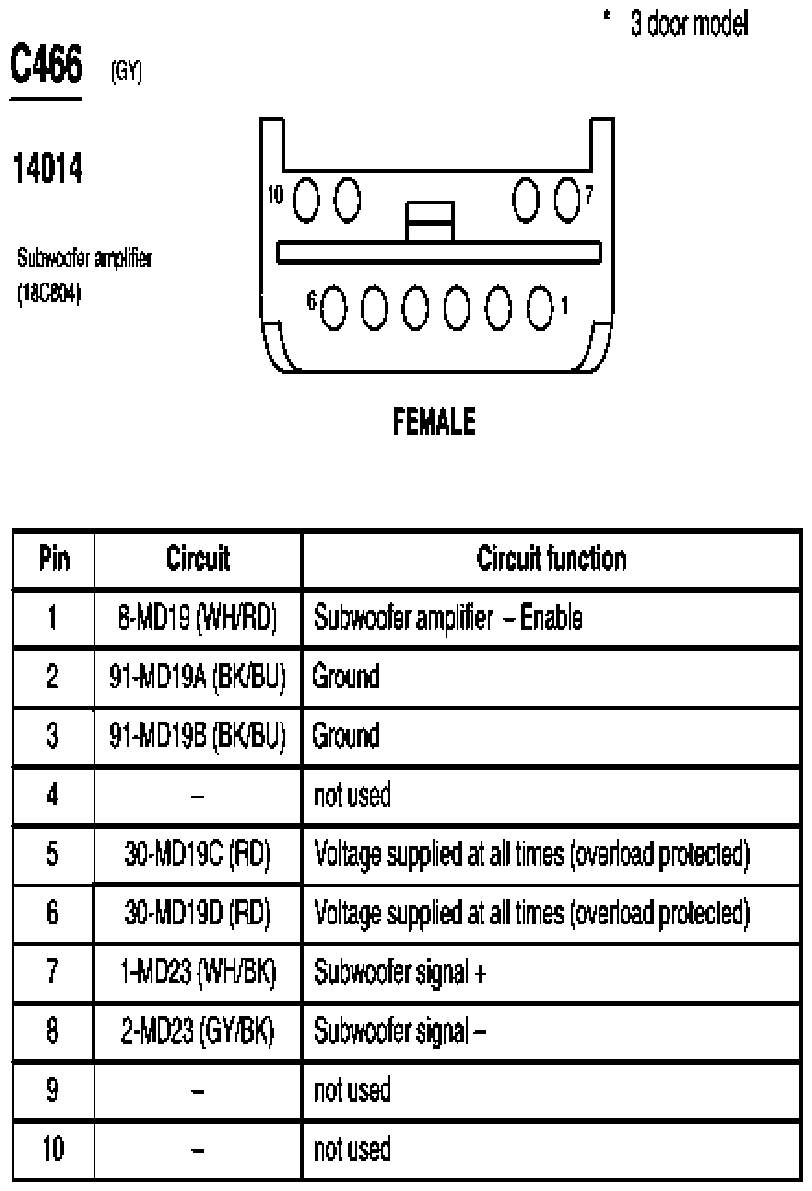

Fig 121: Subwoofer Amplifier Connector End View (C466)

G07844152

Courtesy of FORD MOTOR CO.

Fig 122: High Mounted Stoplamp Connector End View (C475)

G07844153

Courtesy of FORD MOTOR CO.

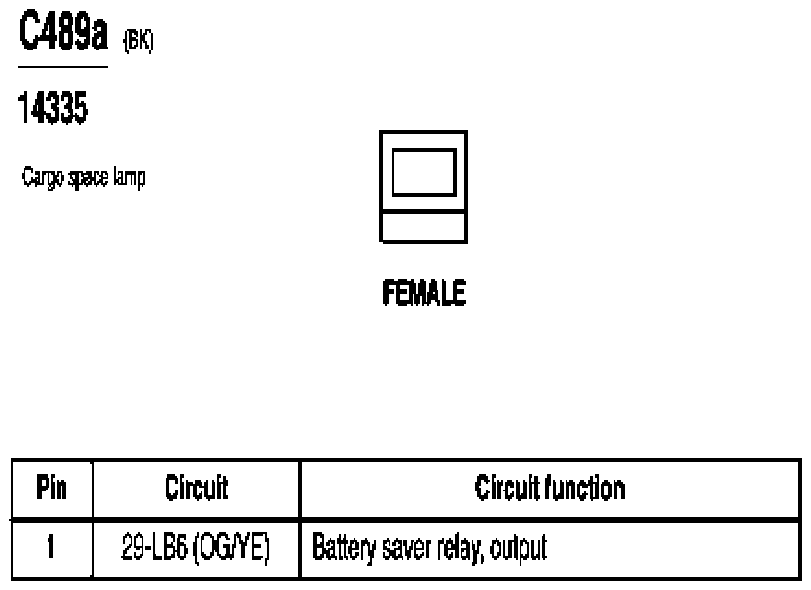

Fig 123: Cargo Space Lamp Connector End View (C489a)

G07844154

Courtesy of FORD MOTOR CO.

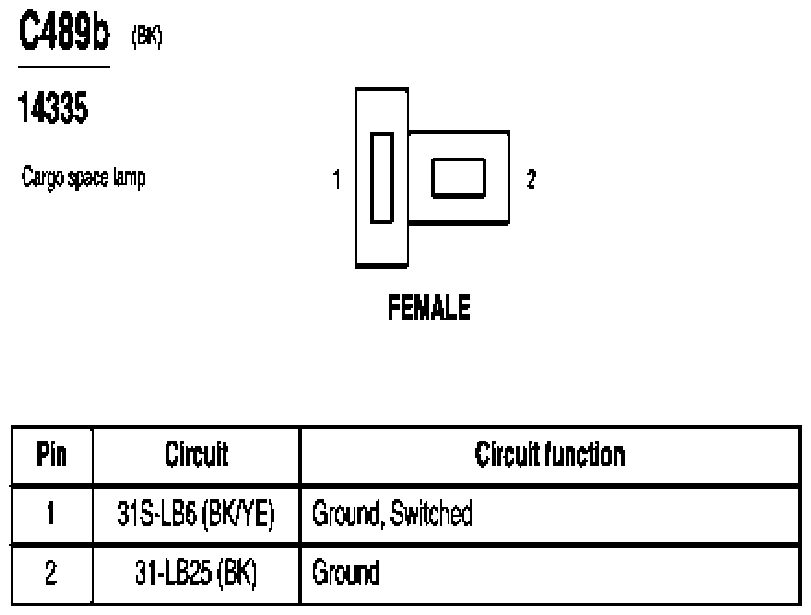

Fig 124: Cargo Space Lamp Connector End View (C489b)

G07844155

Courtesy of FORD MOTOR CO.

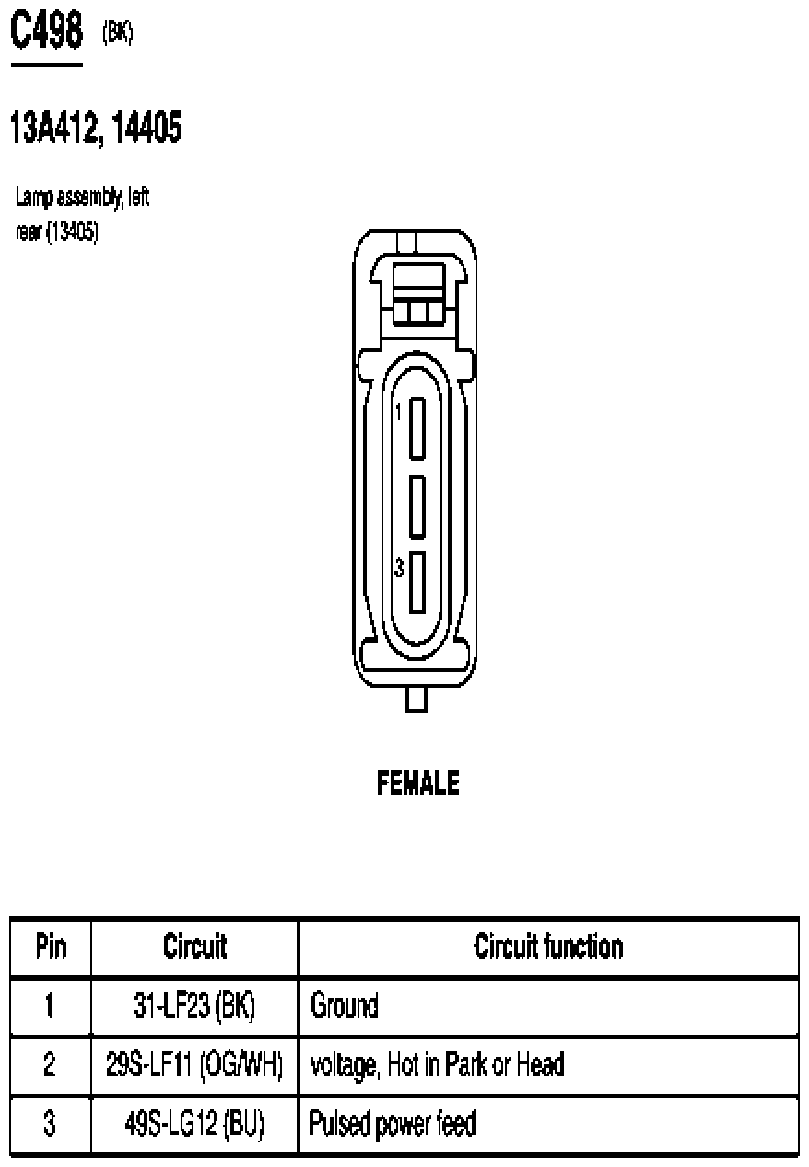

Fig 125: Lamp Assembly, Left Rear Connector End View (C498)

G07844156

Courtesy of FORD MOTOR CO.

Fig 126: Lamp Assembly, Right Rear Connector End View (C499)

G07844157

Courtesy of FORD MOTOR CO.

Fig 127: Master Window Adjust Switch Connector End View (C504a)

G07844158

Courtesy of FORD MOTOR CO.

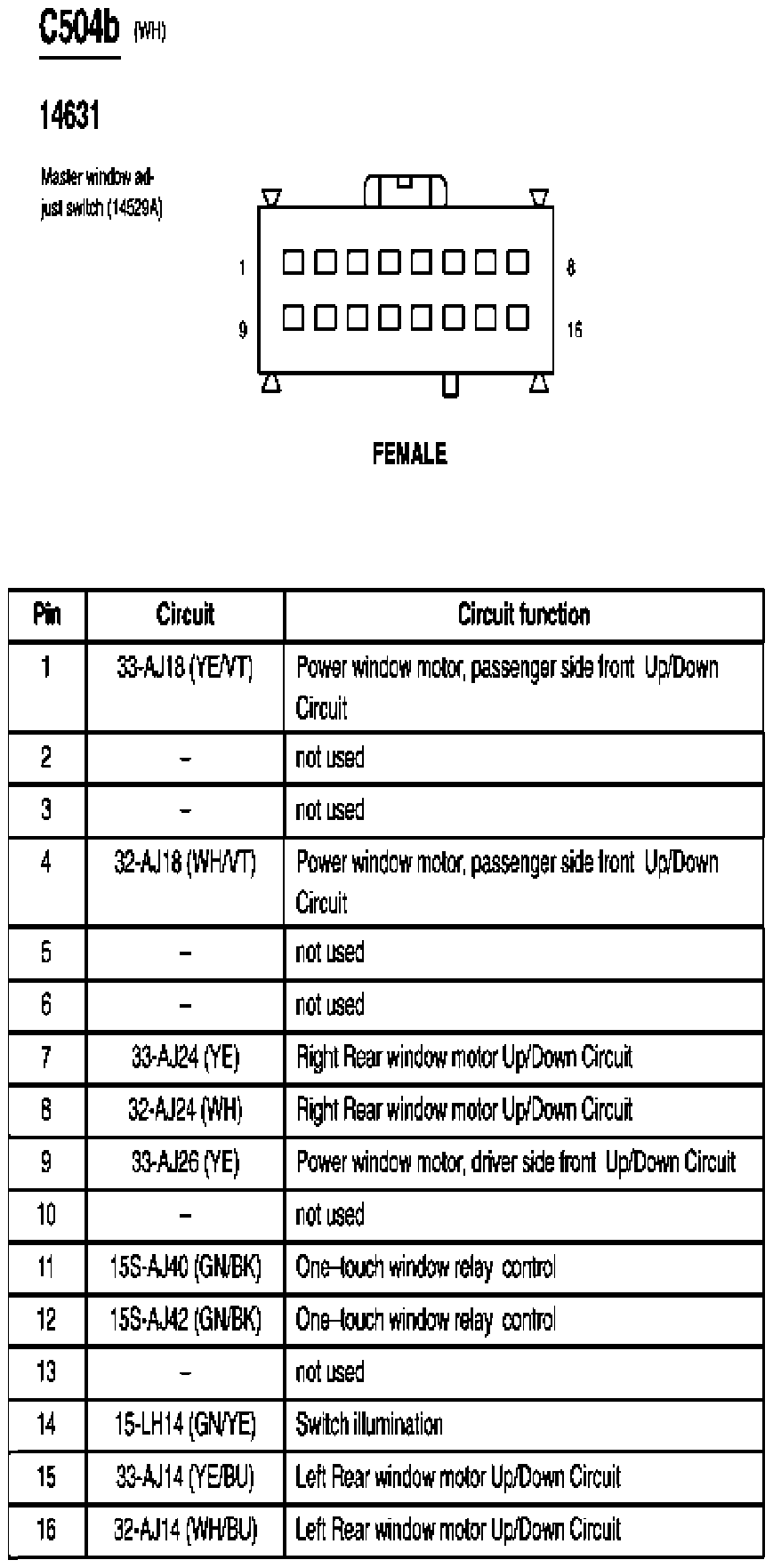

Fig 128: Master Window Adjust Switch Connector End View (C504b)

G07844159

Courtesy of FORD MOTOR CO.

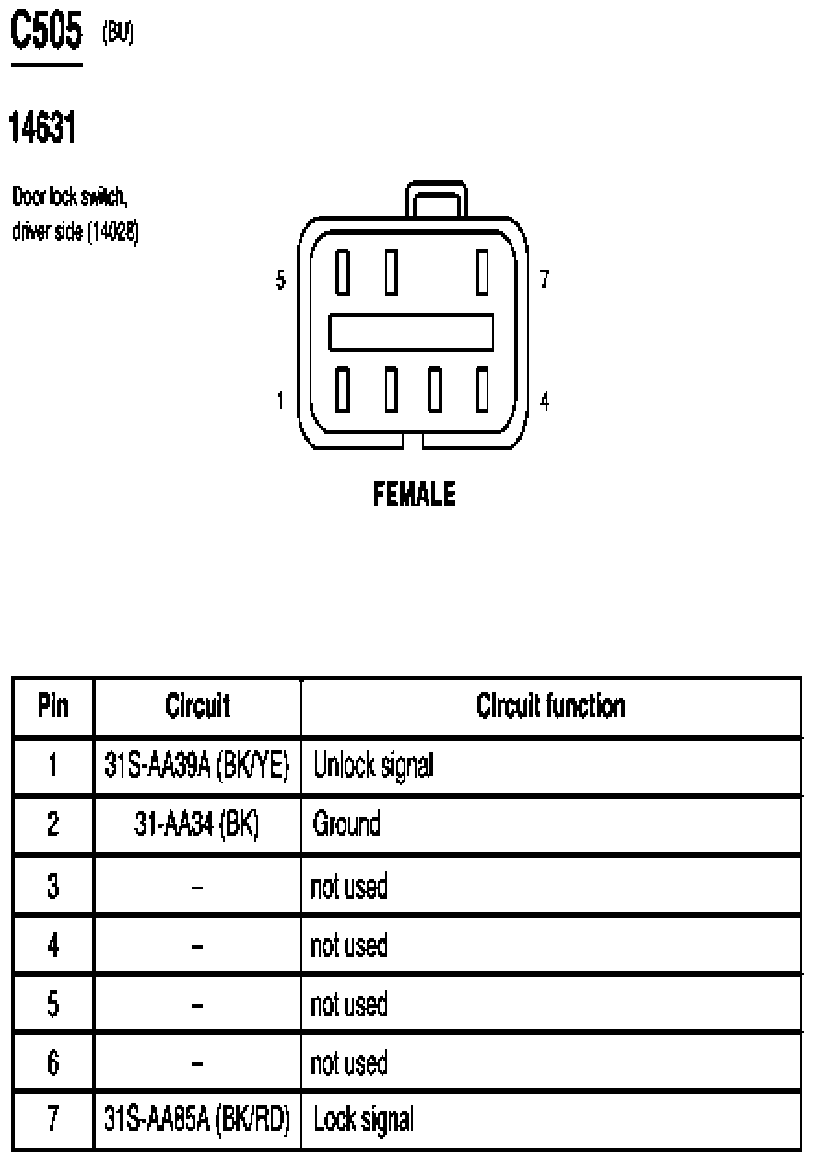

Fig 129: Door Lock Switch, Driver Side Connector End View (C505)

G07844160

Courtesy of FORD MOTOR CO.

Fig 130: Inline Connector End View (C510)

G07844161

Courtesy of FORD MOTOR CO.

Fig 131: Inline Connector End View (C511)

G07844162

Courtesy of FORD MOTOR CO.

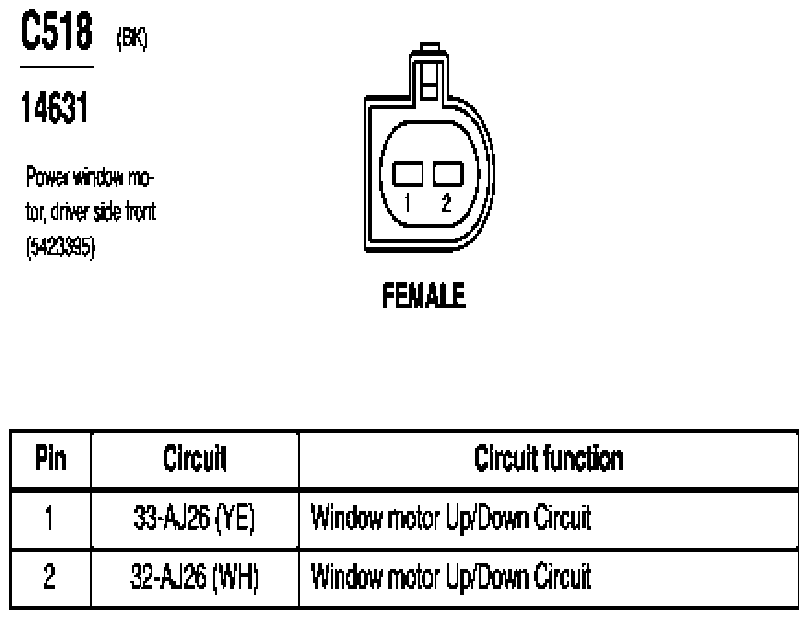

Fig 132: Power Window Motor, Driver Side Front Connector End View (C518)

G07844163

Courtesy of FORD MOTOR CO.

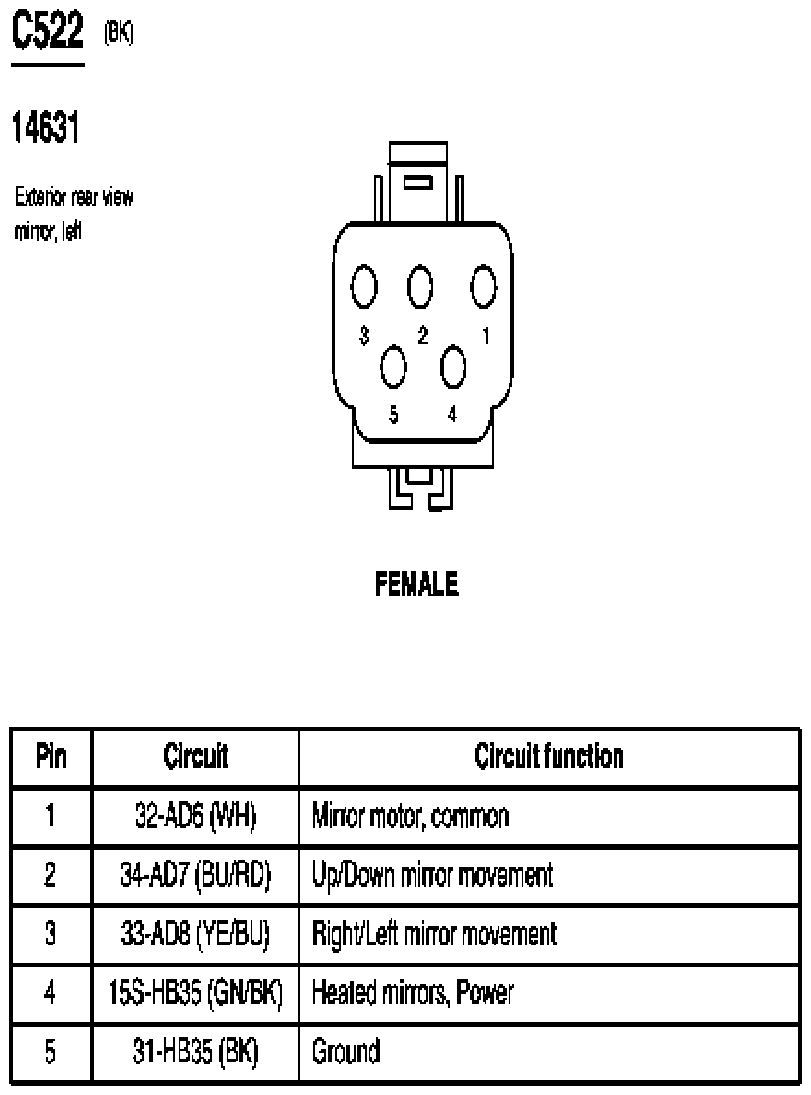

Fig 133: Exterior Rear View Mirror, Left Connector End View (C522)

G07844164

Courtesy of FORD MOTOR CO.

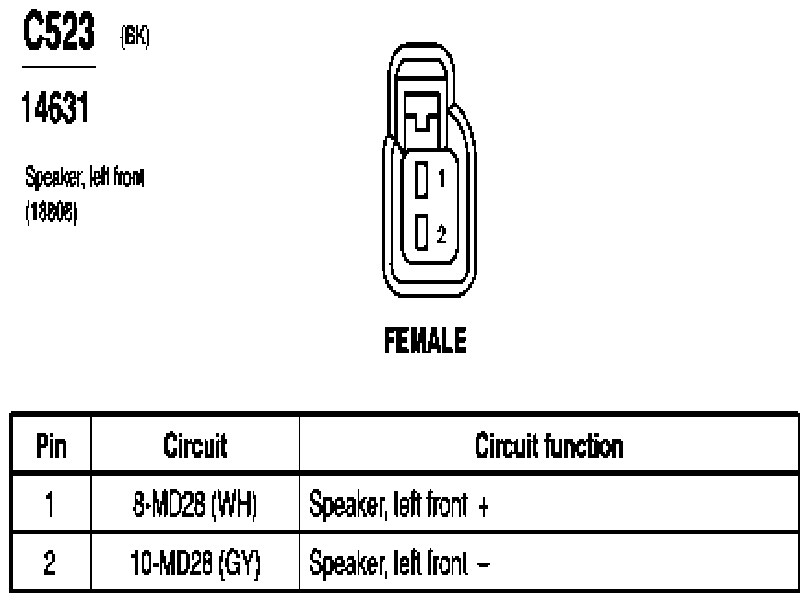

Fig 134: Speaker, Left Front Connector End View (C523)

G07844165

Courtesy of FORD MOTOR CO.

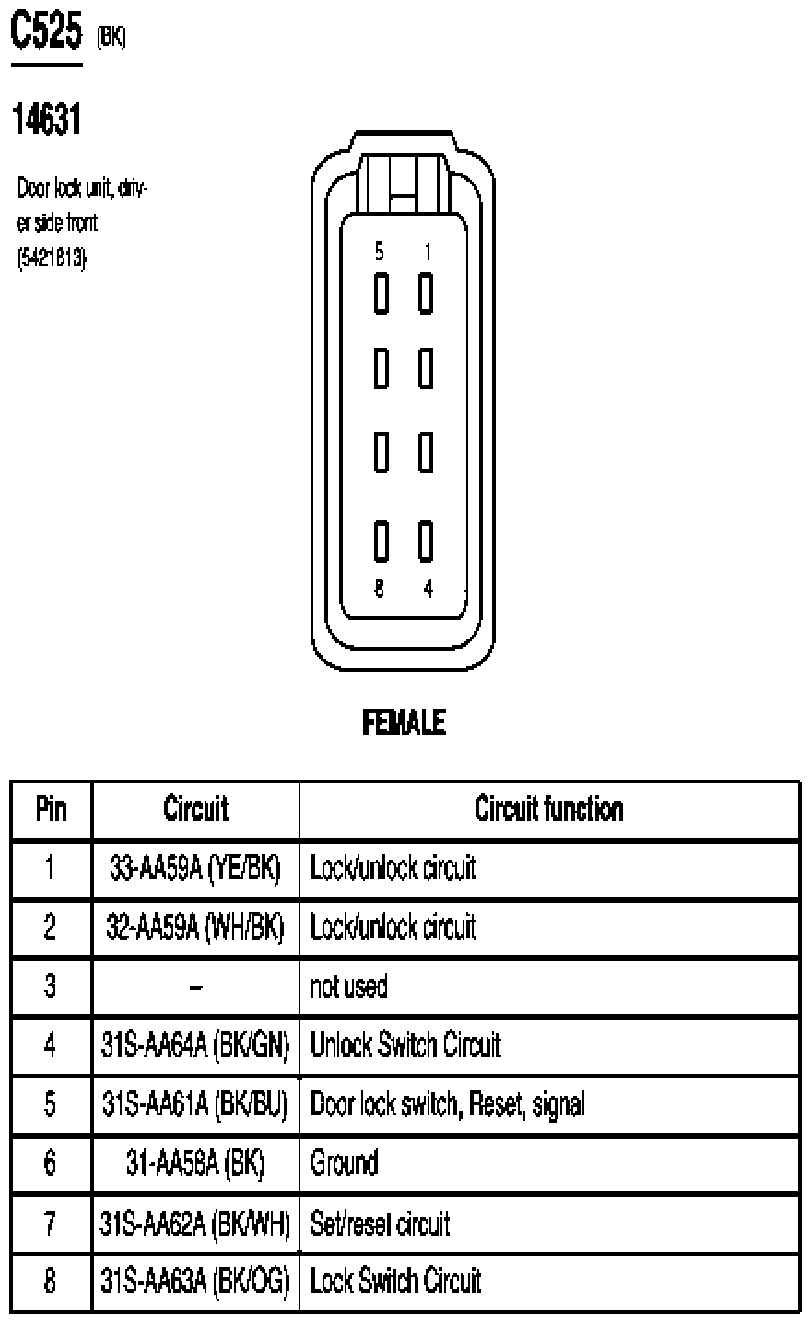

Fig 135: Door Lock Unit, Driver Side Front Connector End View (C525)

G07844166

Courtesy of FORD MOTOR CO.

Fig 136: Door Ajar Switch, Driver Side Front Connector End View (C526)

G07844167

Courtesy of FORD MOTOR CO.

Fig 137: Exterior Rear View Mirror Switch Connector End View (C527)

G07844168

Courtesy of FORD MOTOR CO.

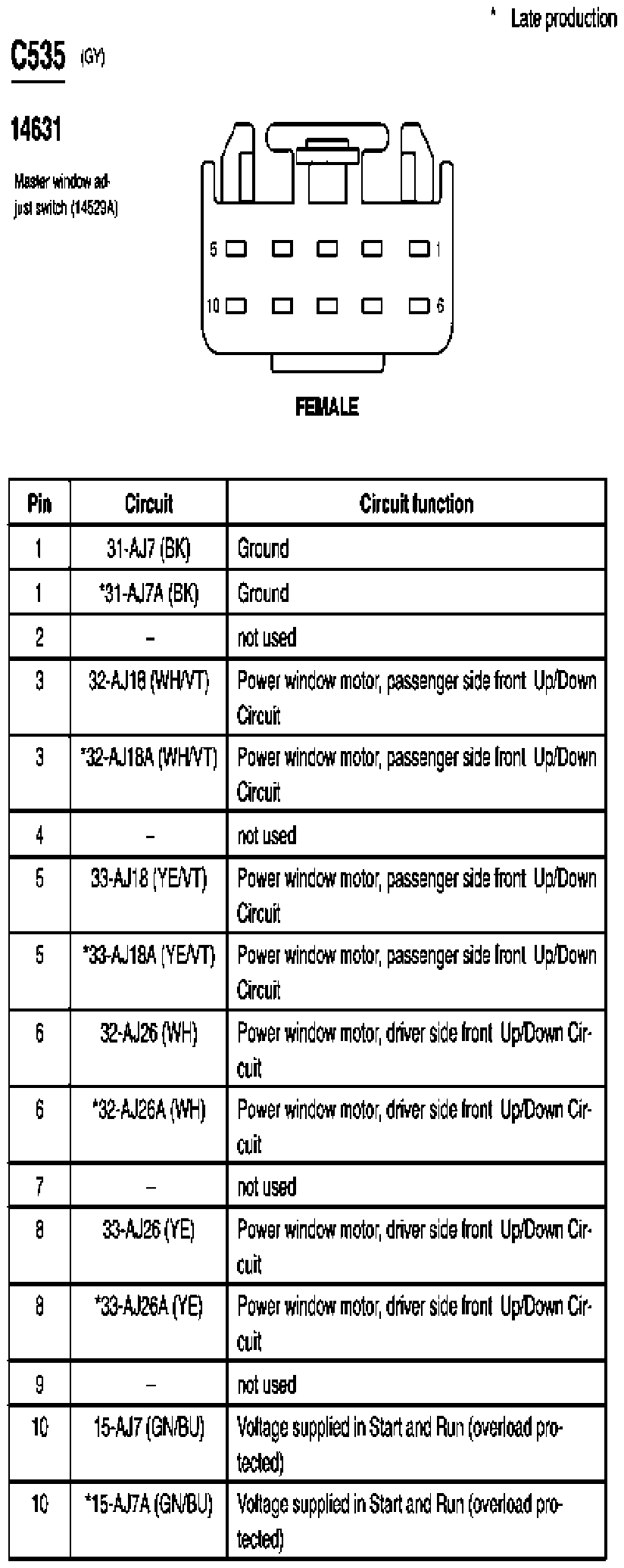

Fig 138: Master Window Adjust Switch Connector End View (C535)

G07844169

Courtesy of FORD MOTOR CO.

Fig 139: One-Touch Window Relay Connector End View (C546)

G07844170

Courtesy of FORD MOTOR CO.

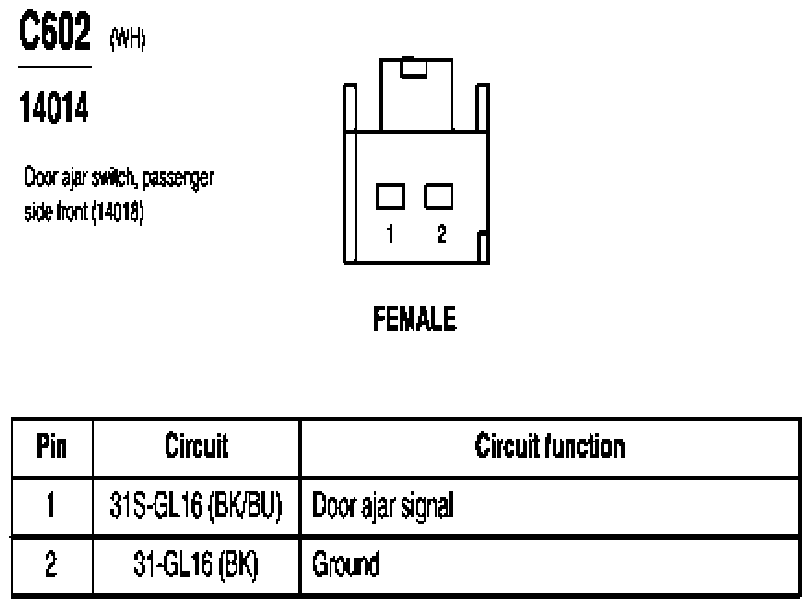

Fig 140: Door Ajar Switch, Passenger Side Front Connector End View (C602)

G07844171

Courtesy of FORD MOTOR CO.

Fig 141: Window Adjust Switch, Passenger Side Connector End View (C604)

G07844172

Courtesy of FORD MOTOR CO.

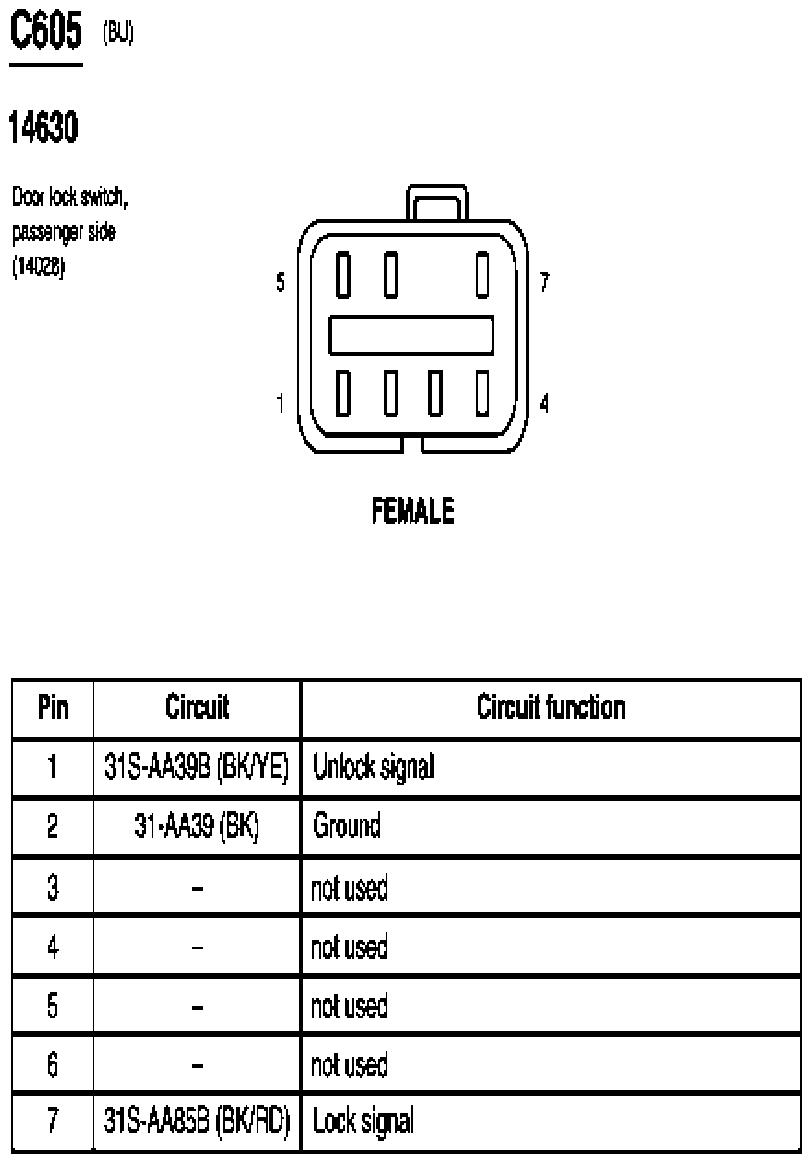

Fig 142: Door Lock Switch, Passenger Side Connector End View (C605)

G07844173

Courtesy of FORD MOTOR CO.

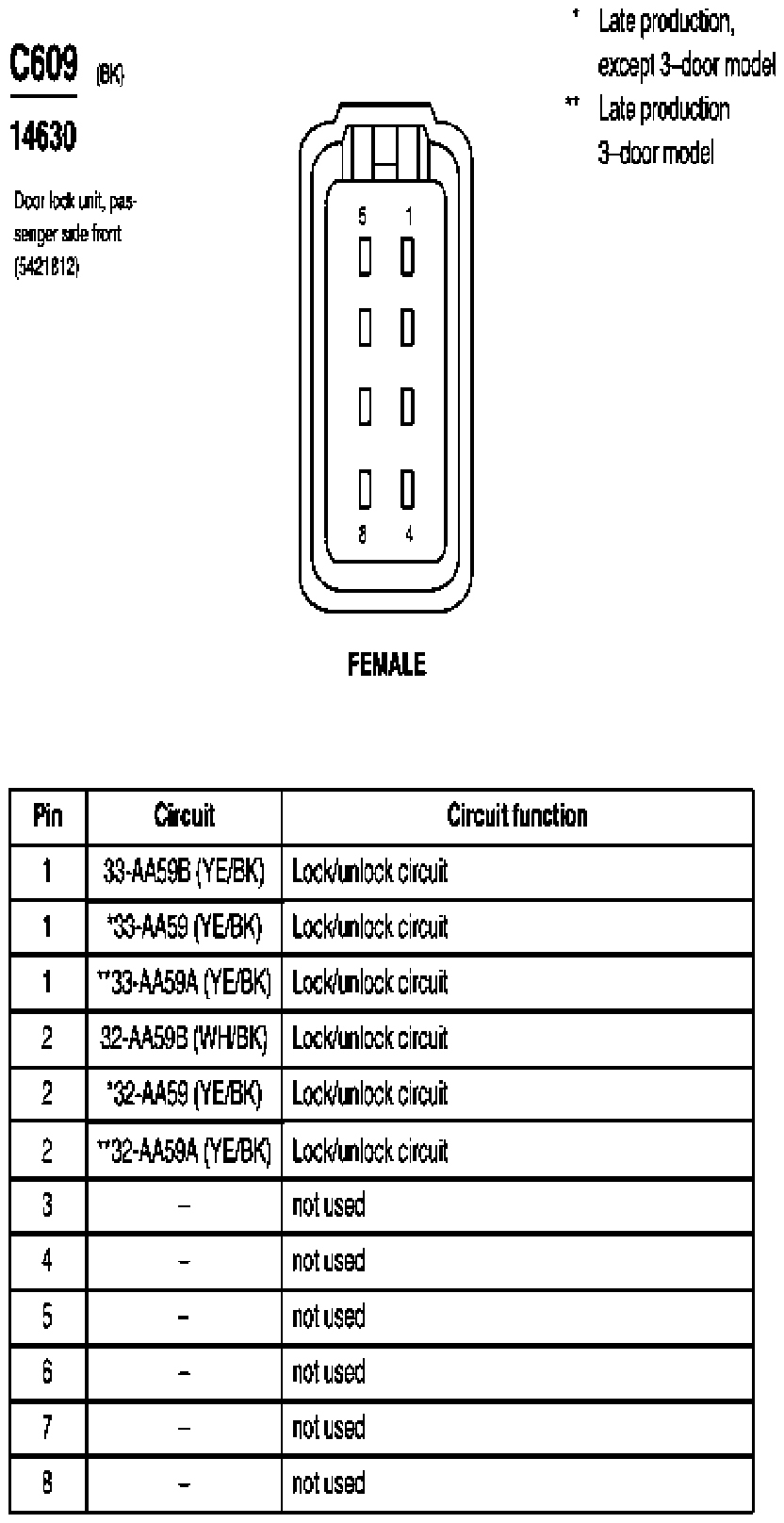

Fig 143: Door Lock Unit, Passenger Side Front Connector End View (C609)

G07844174

Courtesy of FORD MOTOR CO.

Fig 144: Inline Connector End View (C610)

G07844175

Courtesy of FORD MOTOR CO.

Fig 145: Speaker, Right Front Connector End View (C612)

G07844176

Courtesy of FORD MOTOR CO.

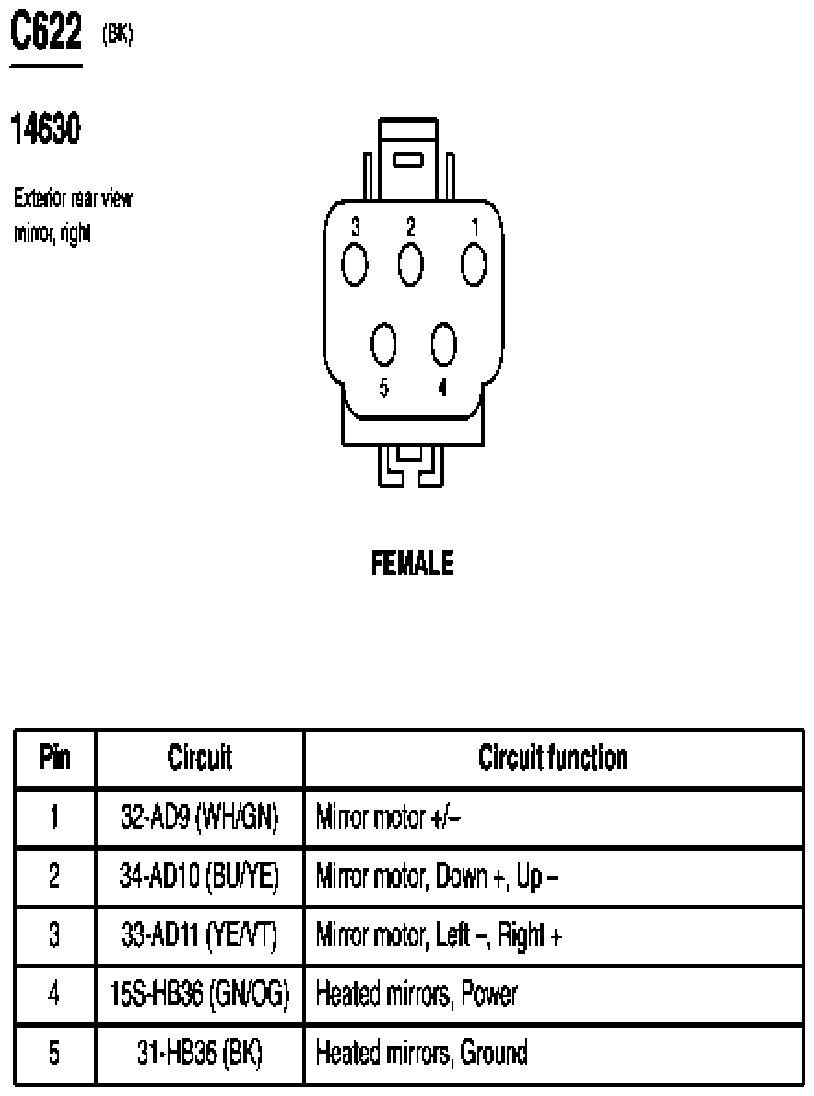

Fig 146: Exterior Rear View Mirror, Right Connector End View (C622)

G07844177

Courtesy of FORD MOTOR CO.

Fig 147: Power Window Motor, Passenger Side Front Connector End View (C623)

G07844178

Courtesy of FORD MOTOR CO.

Fig 148: Inline Connector End View (C700)

G07844179

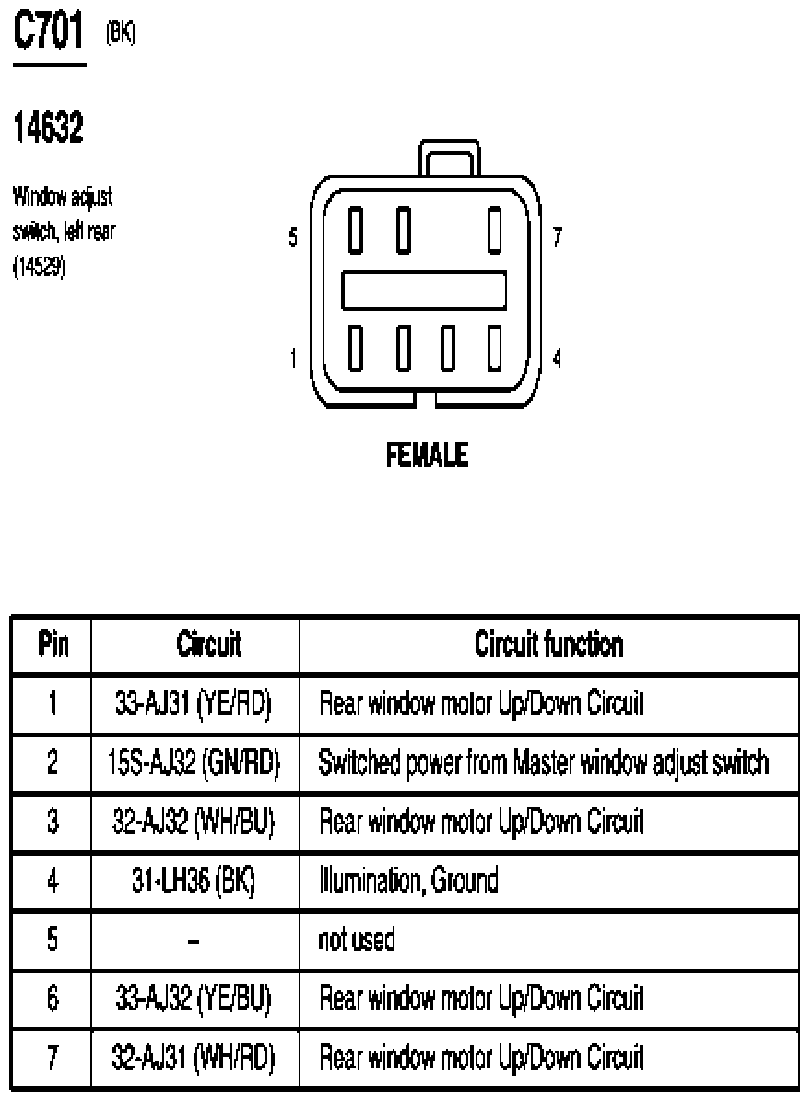

Courtesy of FORD MOTOR CO.

Fig 149: Window Adjust Switch, Left Rear Connector End View (C701)

G07844180

Courtesy of FORD MOTOR CO.

Fig 150: Speaker, Left Rear Connector End View (C702)

G07844181

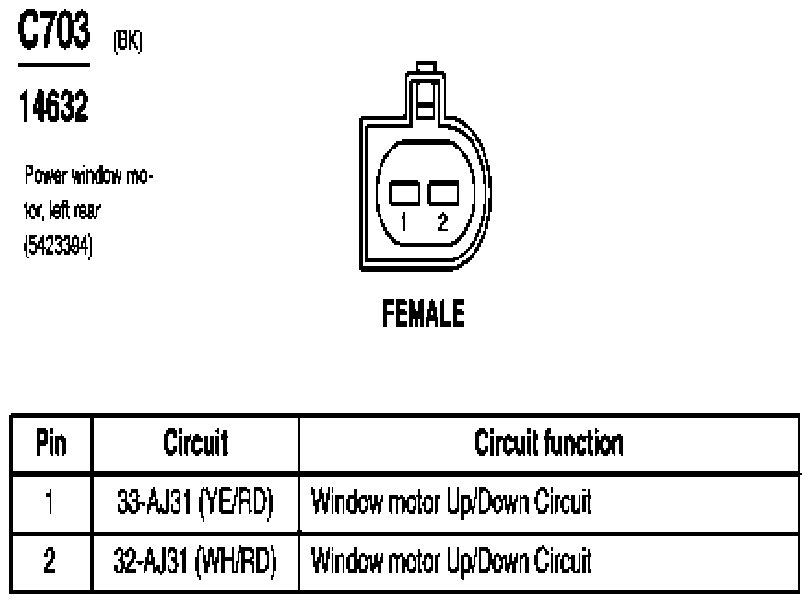

Courtesy of FORD MOTOR CO.

Fig 151: Power Window Motor, Left Rear Connector End View (C703)

G07844182

Courtesy of FORD MOTOR CO.

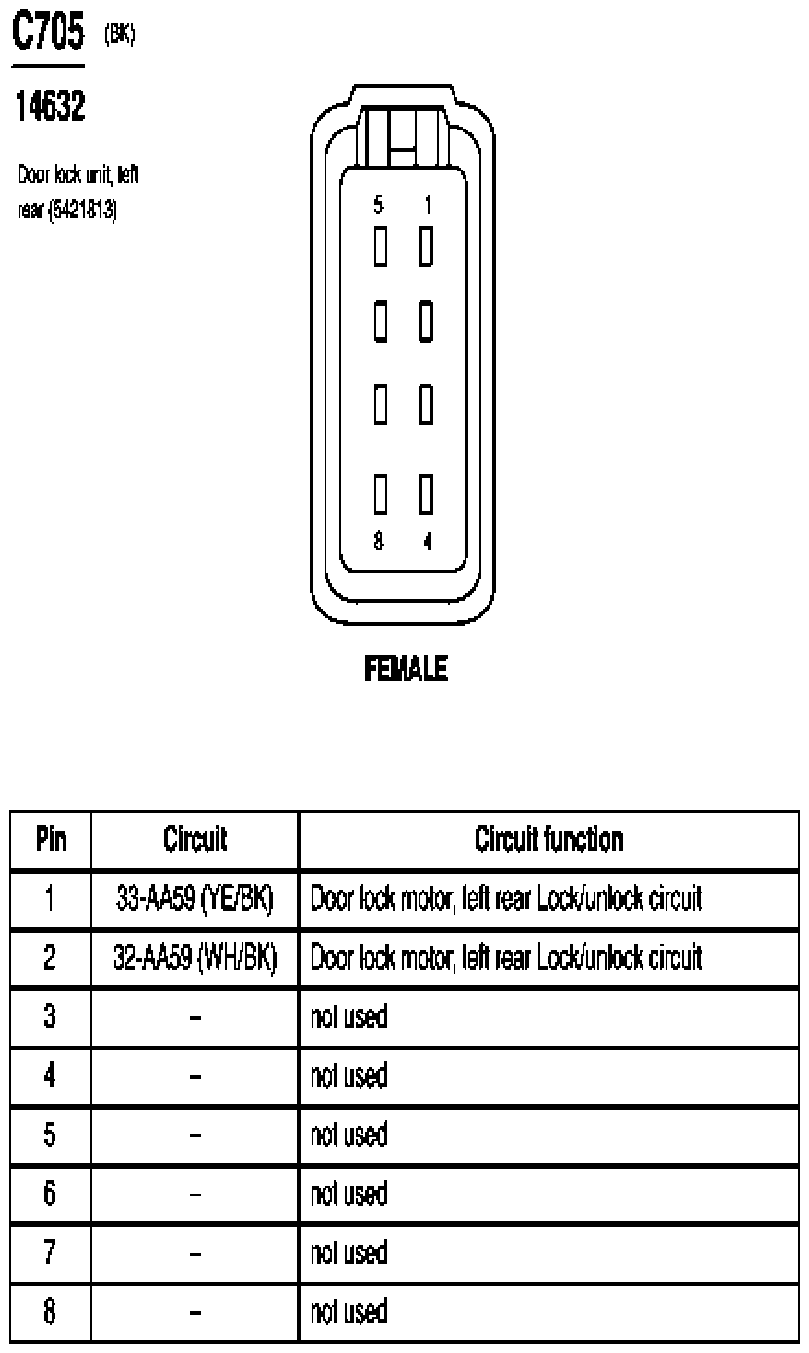

Fig 152: Door Lock Unit, Left Rear Connector End View (C705)

G07844183

Courtesy of FORD MOTOR CO.

Fig 153: Door Ajar Switch, Driver Side Rear Connector End View (C715)

G07844184

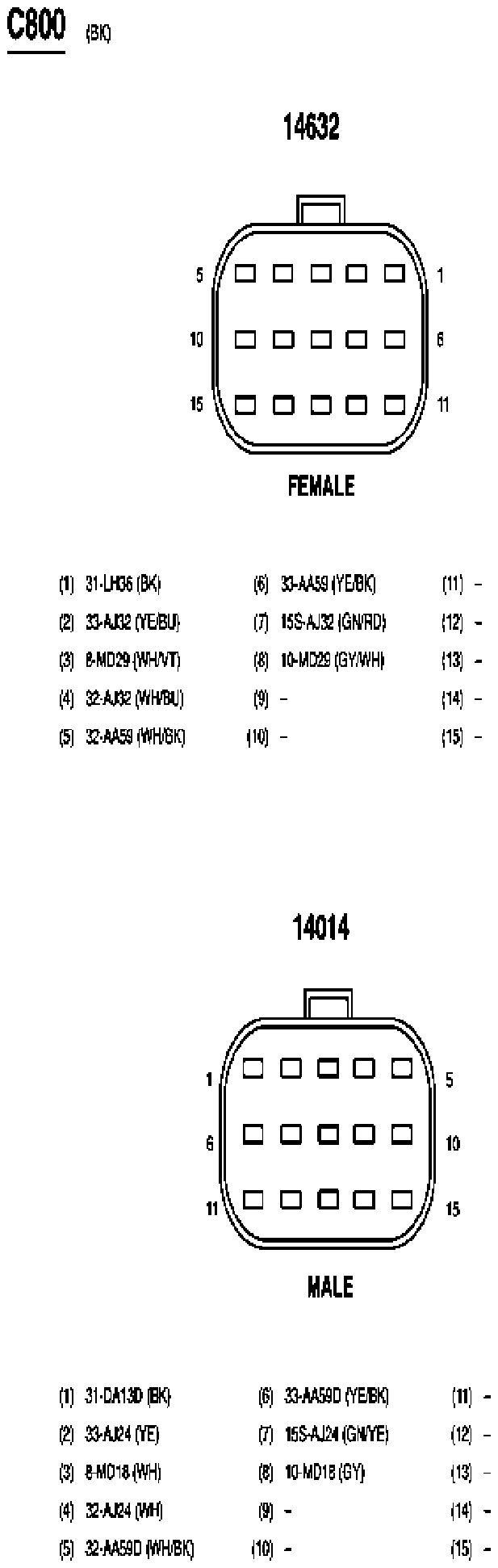

Courtesy of FORD MOTOR CO.

Fig 154: Inline Connector End View (C800)

G07844185

Courtesy of FORD MOTOR CO.

Fig 155: Window Adjust Switch, Right Rear Connector End View (C801)

G07844186

Courtesy of FORD MOTOR CO.

Fig 156: Speaker, Right Rear Connector End View (C802)

G07844187

Courtesy of FORD MOTOR CO.

Fig 157: Power Window Motor, Right Rear Connector End View (C803)

G07844188

Courtesy of FORD MOTOR CO.

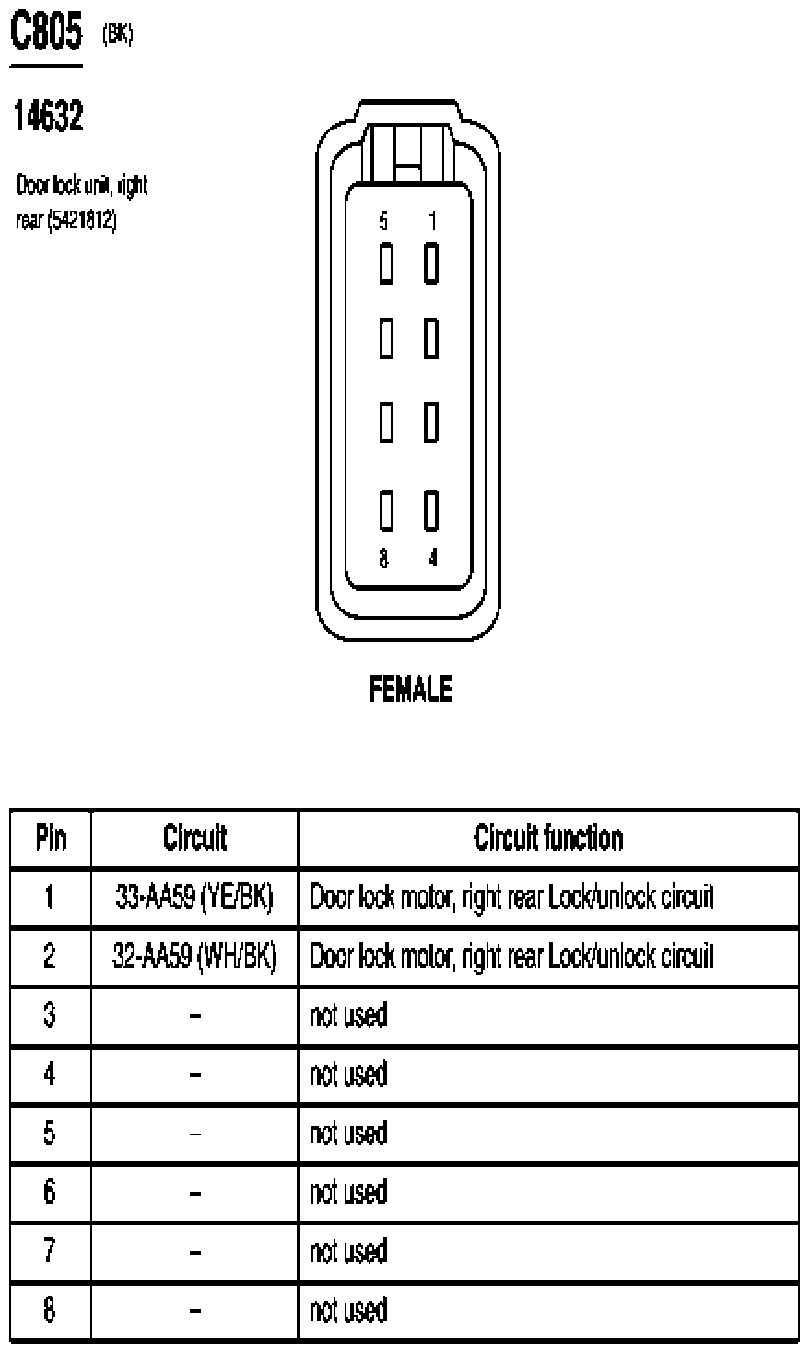

Fig 158: Door Lock Unit, Right Rear Connector End View (C805)

G07844189

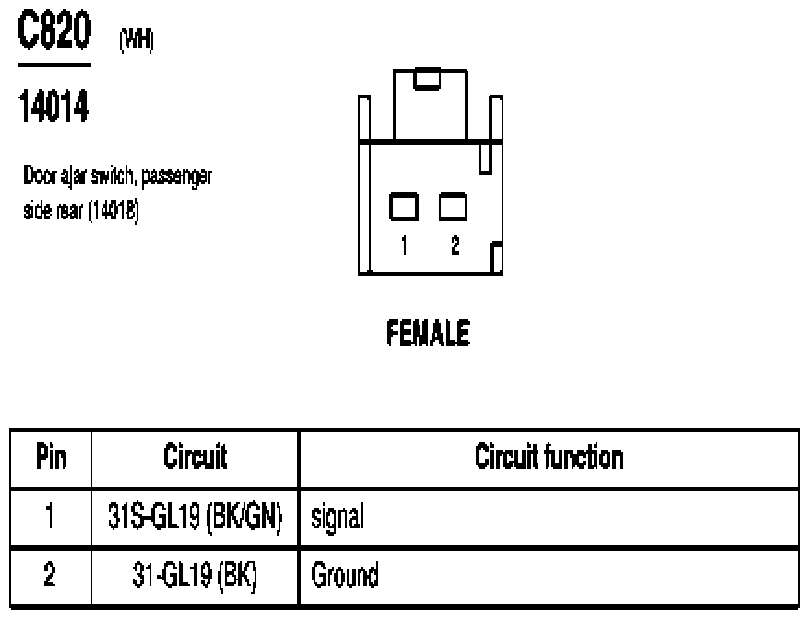

Courtesy of FORD MOTOR CO.

Fig 159: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G07844190

Courtesy of FORD MOTOR CO.

Fig 160: Inline Connector End View (C913)

G07844191

Courtesy of FORD MOTOR CO.

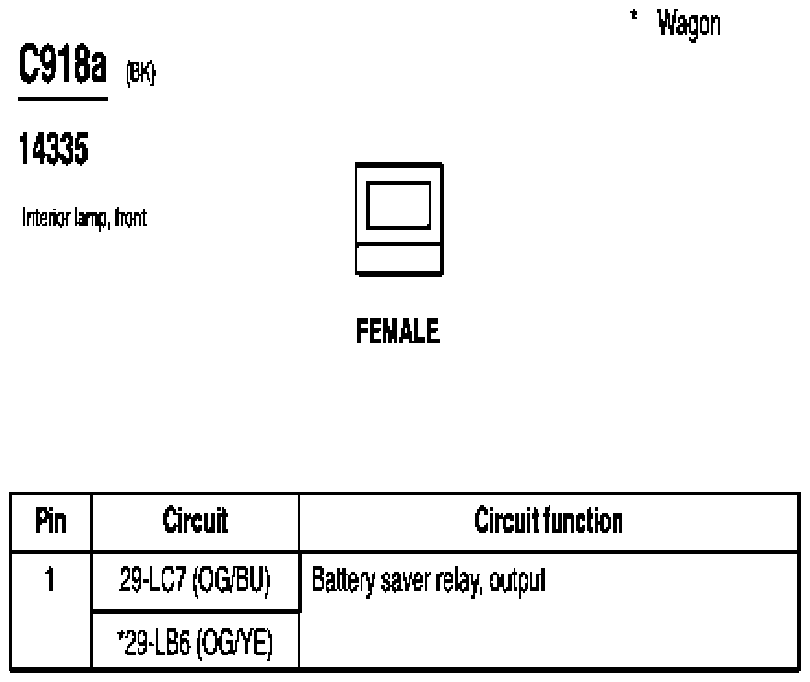

Fig 161: Interior Lamp, Front Connector End View (C918a)

G07844192

Courtesy of FORD MOTOR CO.

Fig 162: Interior Lamp, Front Connector End View (C918b)

G07844193

Courtesy of FORD MOTOR CO.

Fig 163: Daytime Running Lamps (DRL) Relay Connector End View (C1000)

G07844194

Courtesy of FORD MOTOR CO.

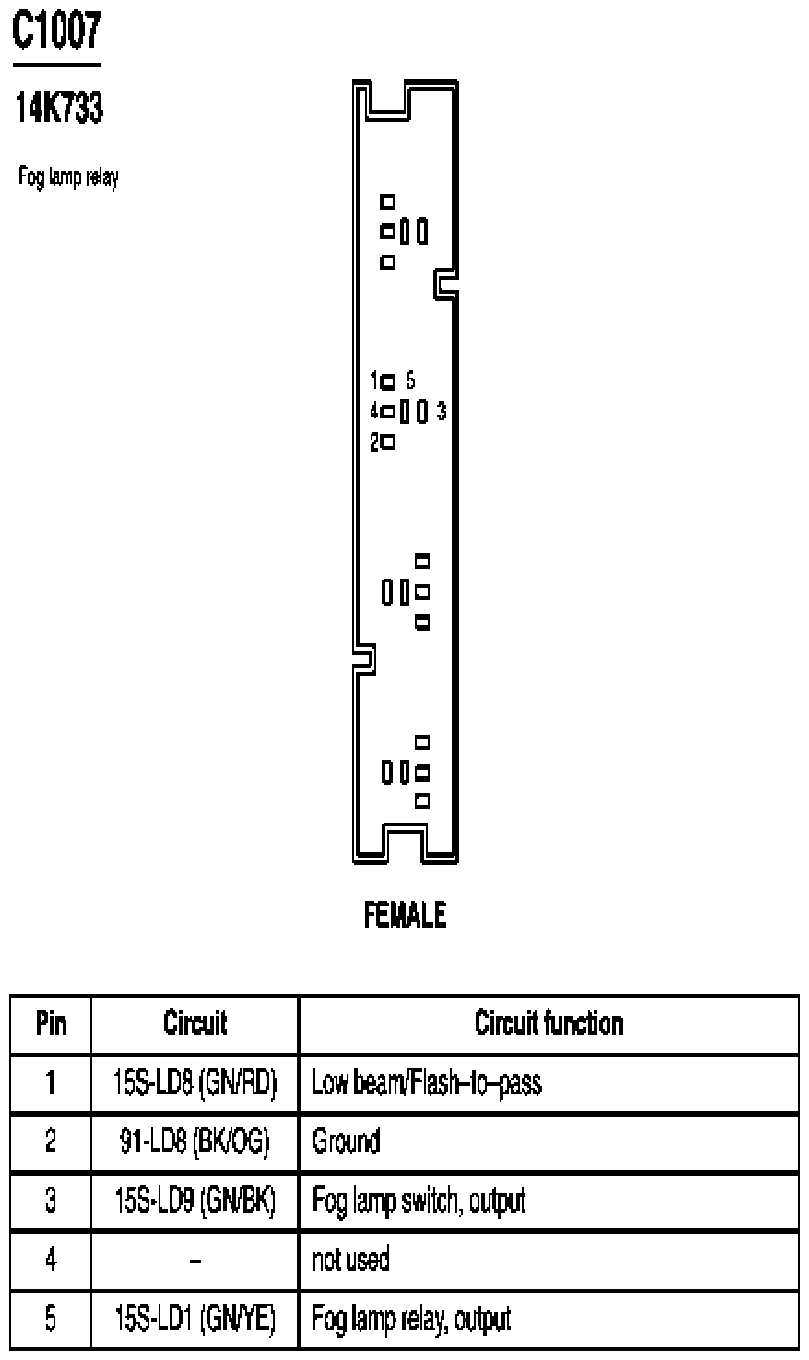

Fig 164: Fog Lamp Relay Connector End View (C1007)

G07844195

Courtesy of FORD MOTOR CO.

Fig 165: A/C Clutch Relay Connector End View (C1008)

G07844196

Courtesy of FORD MOTOR CO.

Fig 166: PCM Power Diode Connector End View (C1018)

G07844197

Courtesy of FORD MOTOR CO.

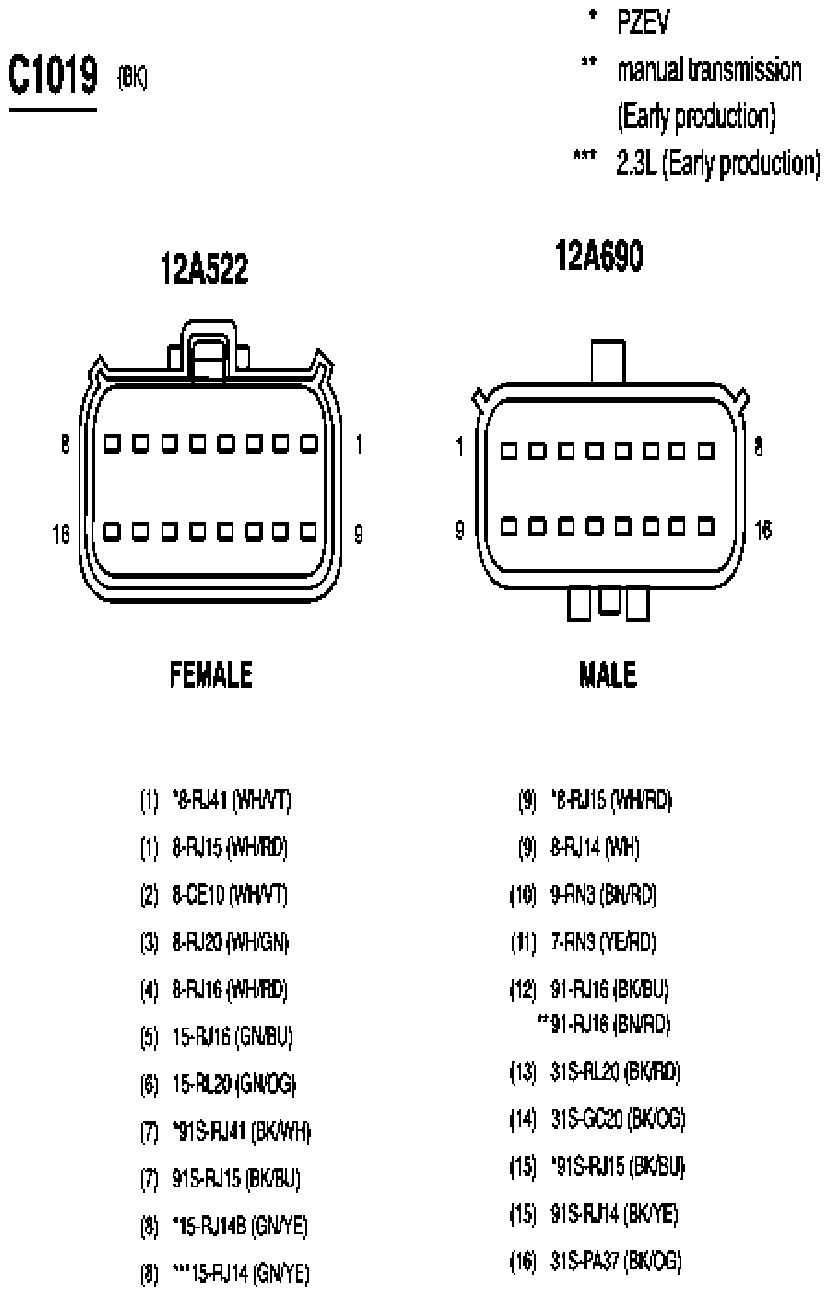

Fig 167: Inline Connector End View (C1019)

G07844198

Courtesy of FORD MOTOR CO.

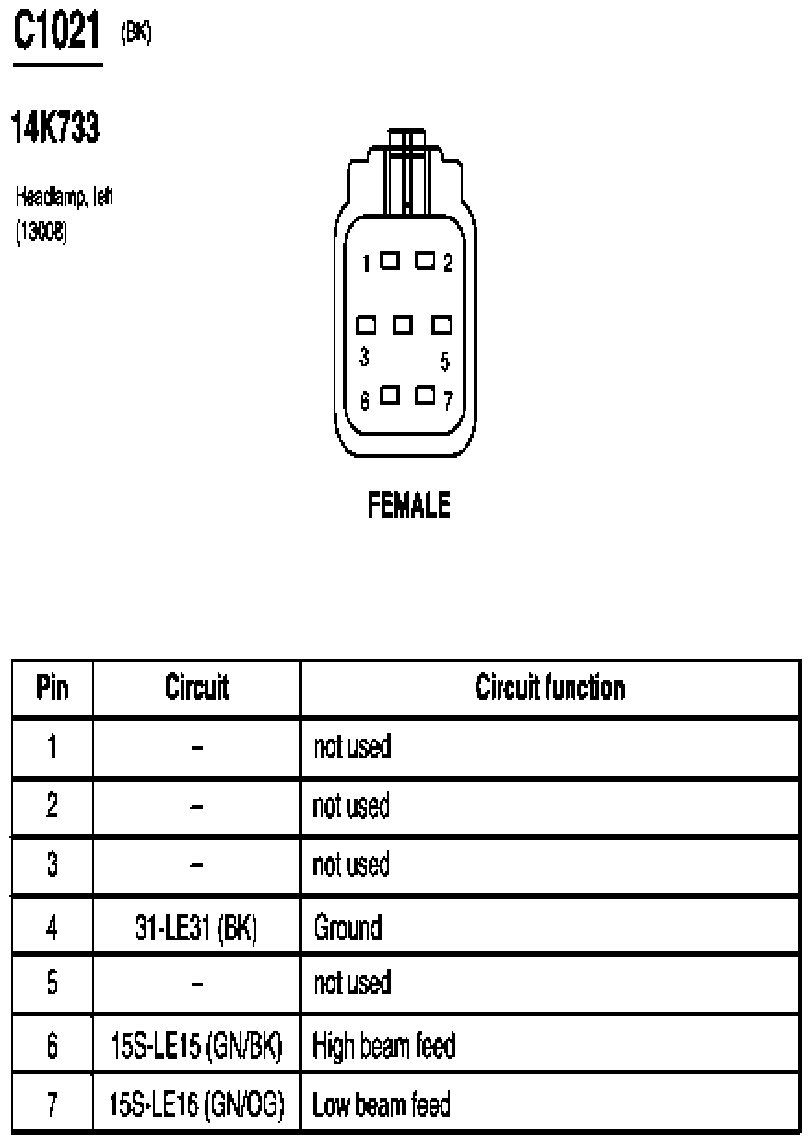

Fig 168: Headlamp, Left Connector End View (C1021)

G07844199

Courtesy of FORD MOTOR CO.

Fig 169: Park/Turn Lamp, Left Connector End View (C1023)

G07844200

Courtesy of FORD MOTOR CO.

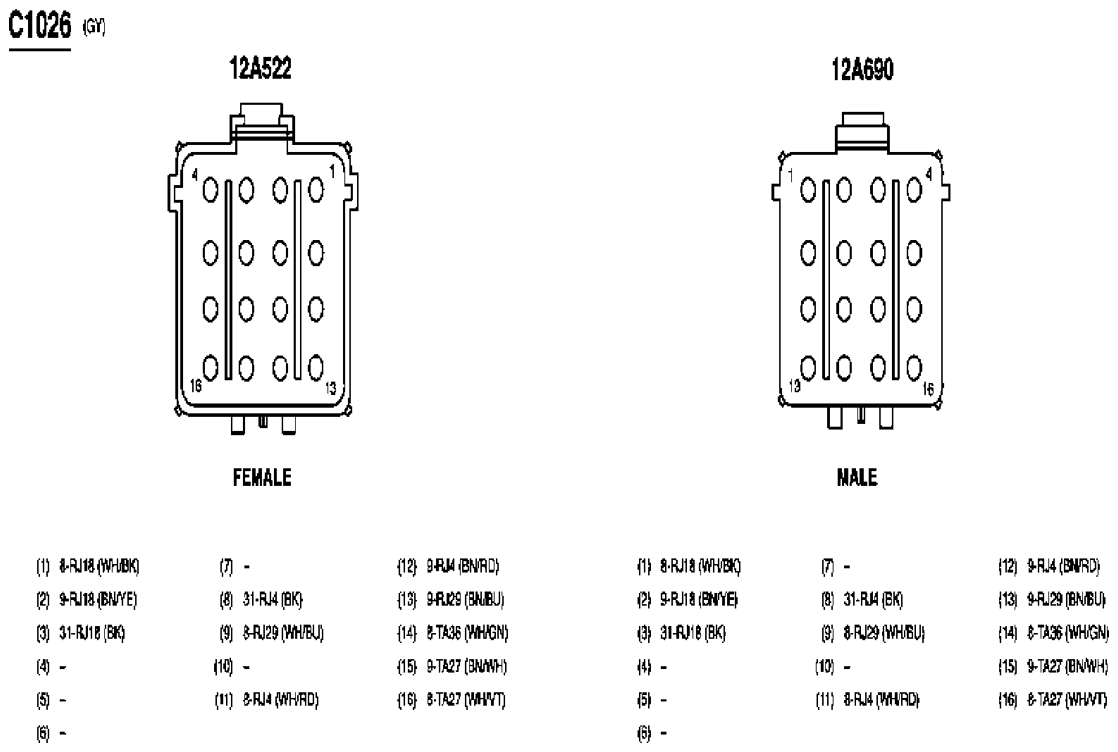

Fig 170: Inline Connector End View (C1026)

G07844201

Courtesy of FORD MOTOR CO.

Fig 171: Engine Cooling Fan Resistor Connector End View (C1027)

G07844202

Courtesy of FORD MOTOR CO.

Fig 172: Inline Connector End View (C1033)

G07844203

Courtesy of FORD MOTOR CO.

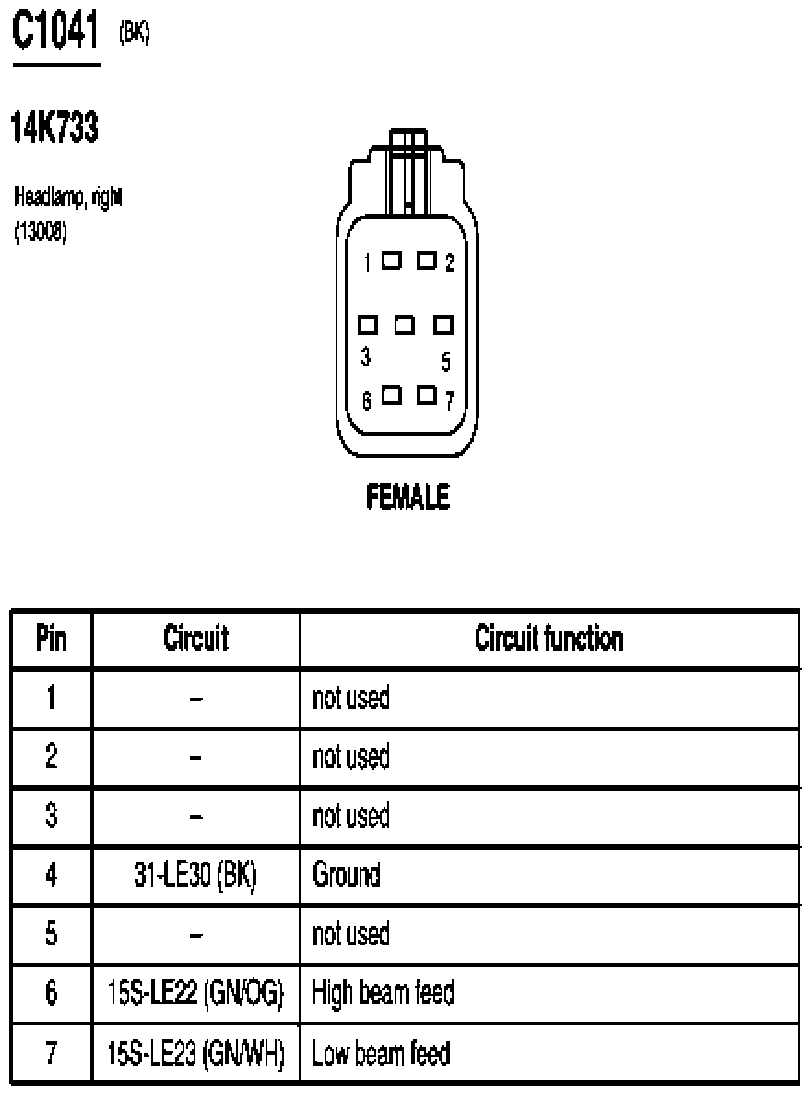

Fig 173: Headlamp, Right Connector End View (C1041)

G07844204

Courtesy of FORD MOTOR CO.

Fig 174: Park/Turn Lamp, Right Front Connector End View (C1043)

G07844205

Courtesy of FORD MOTOR CO.

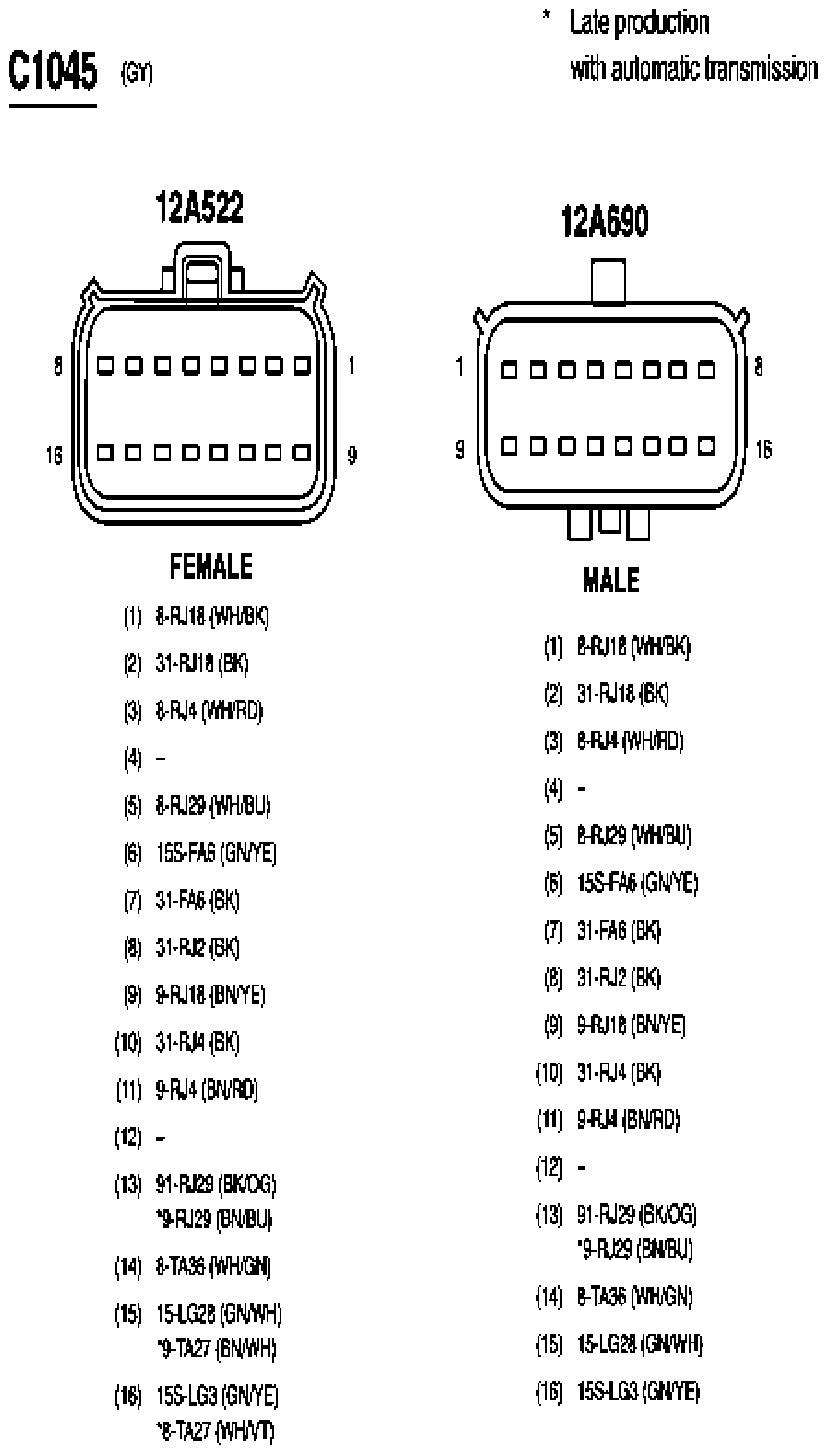

Fig 175: Inline Connector End View (C1045)

G07844206

Courtesy of FORD MOTOR CO.

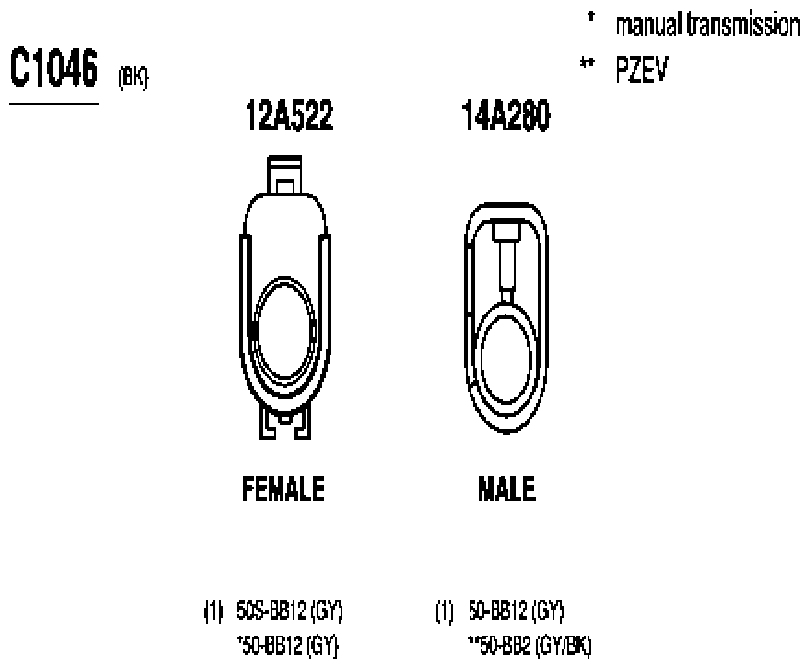

Fig 176: Inline Connector End View (C1046)

G07844207

Courtesy of FORD MOTOR CO.

Fig 177: Inline Connector End View (C1047)

G07844208

Courtesy of FORD MOTOR CO.

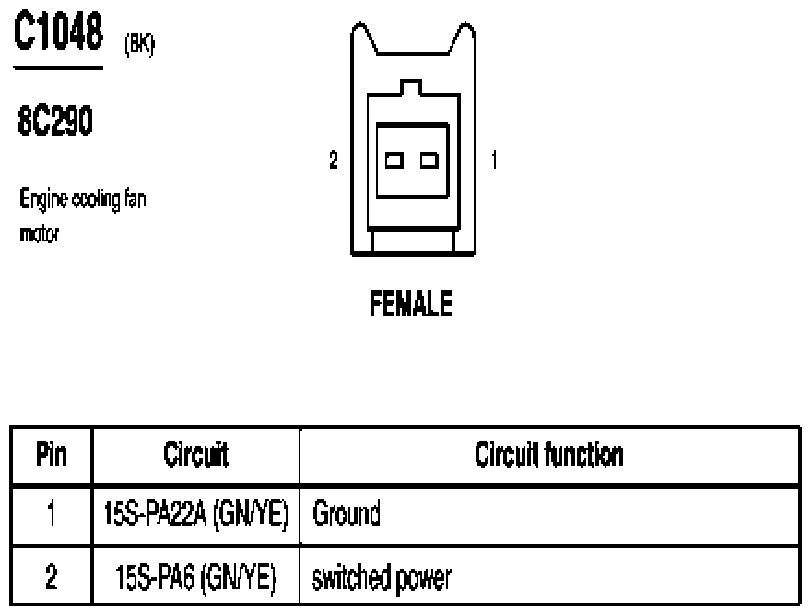

Fig 178: Engine Cooling Fan Motor Connector End View (C1048)

G07844209

Courtesy of FORD MOTOR CO.

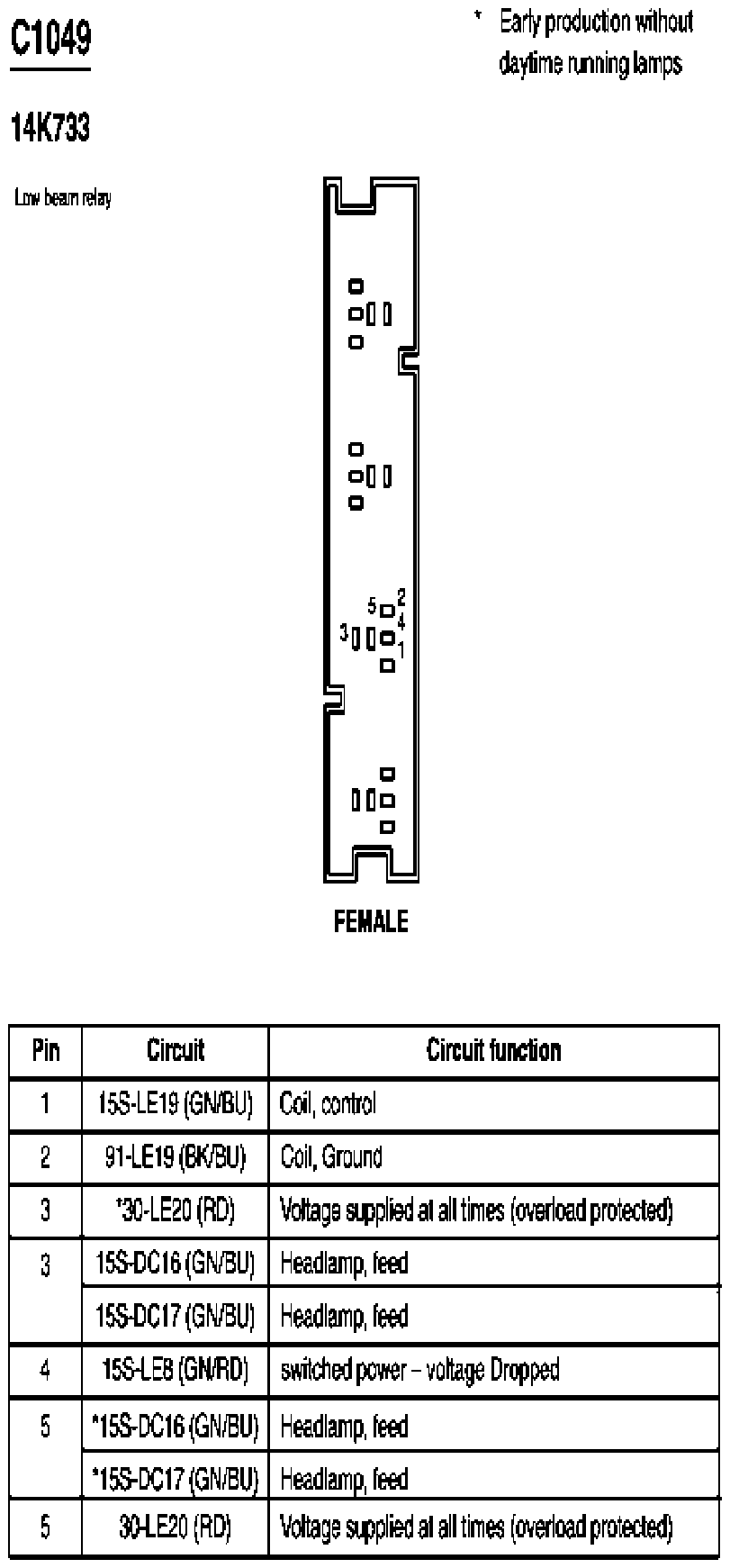

Fig 179: Low Beam Relay Connector End View (C1049)

G07844210

Courtesy of FORD MOTOR CO.

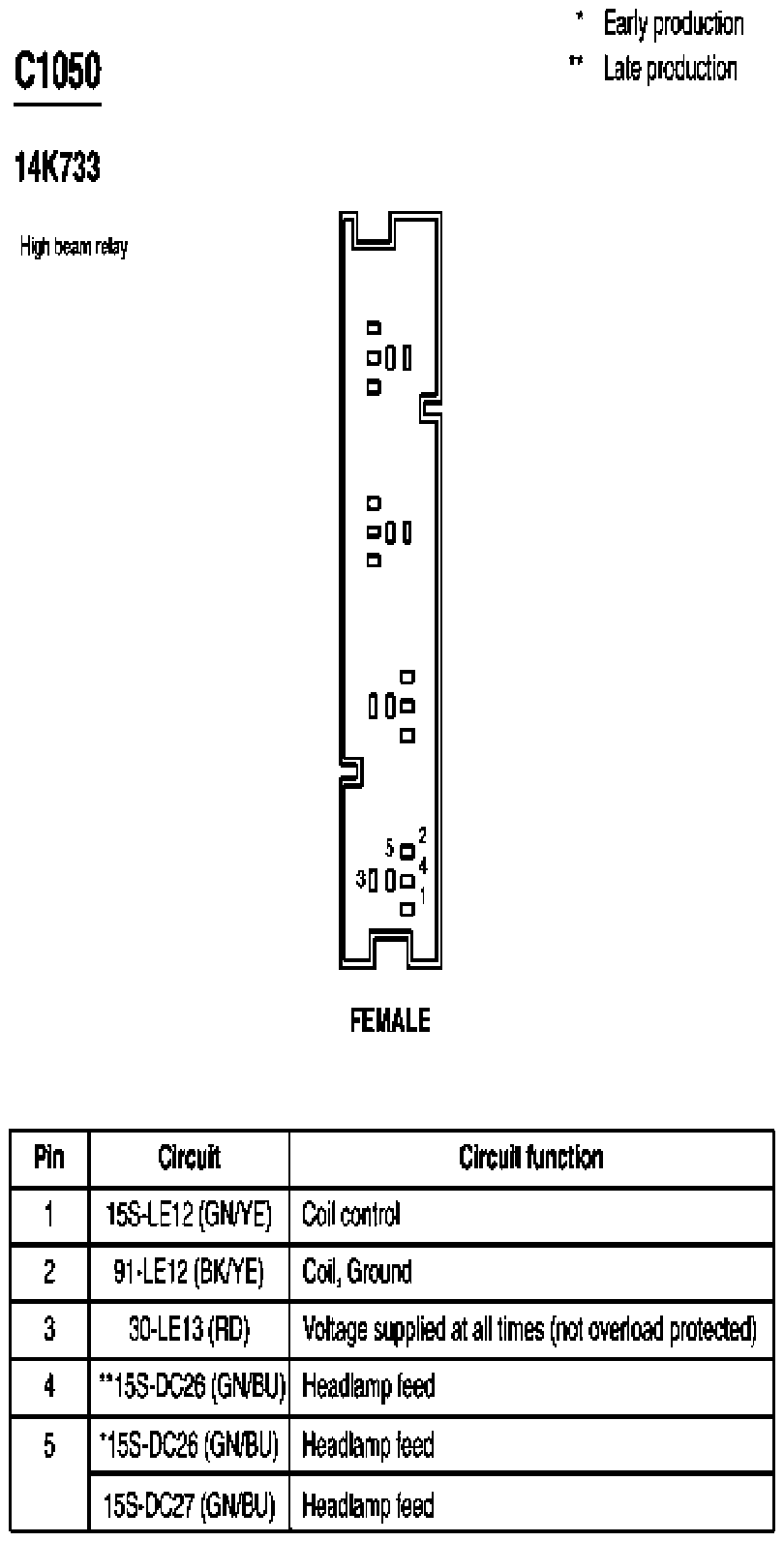

Fig 180: High Beam Relay Connector End View (C1050)

G07844211

Courtesy of FORD MOTOR CO.

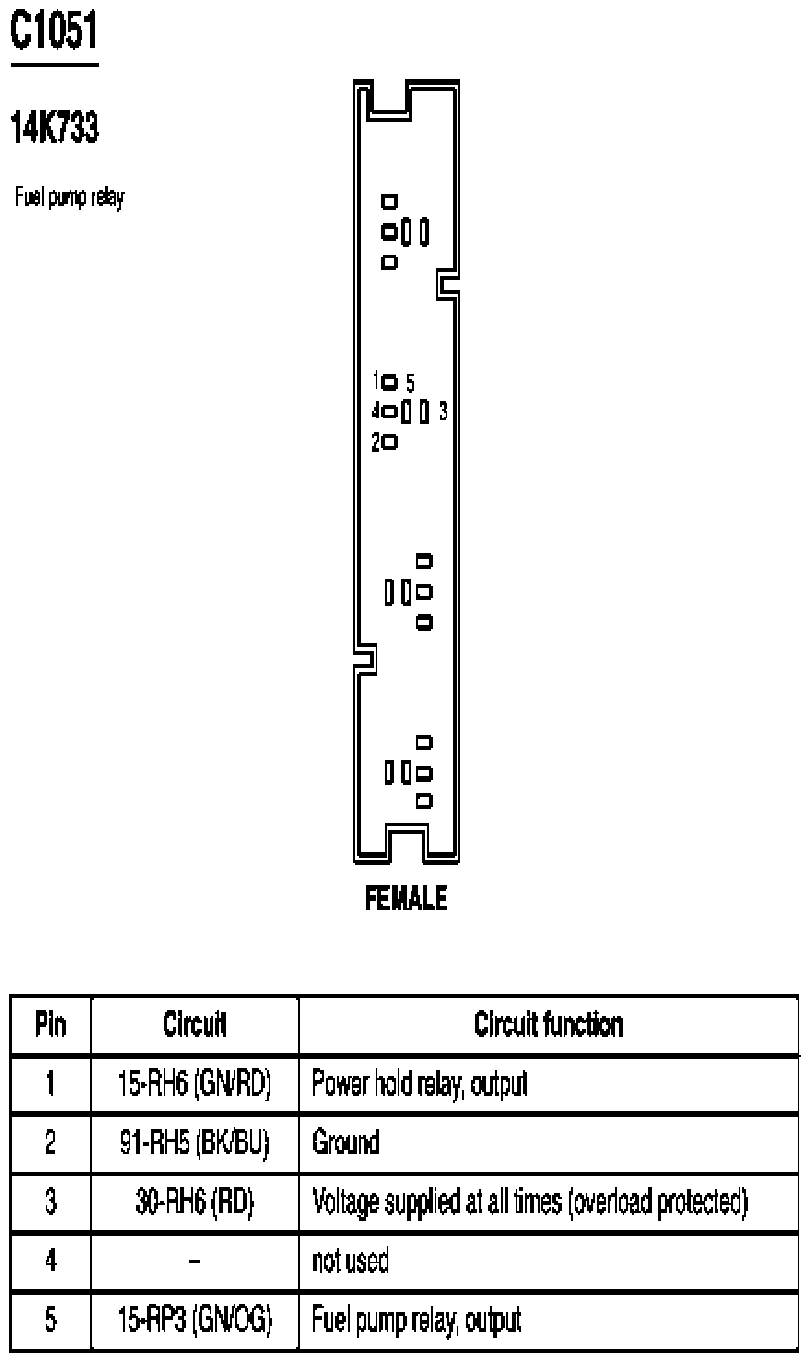

Fig 181: Fuel Pump Relay Connector End View (C1051)

G07844212

Courtesy of FORD MOTOR CO.

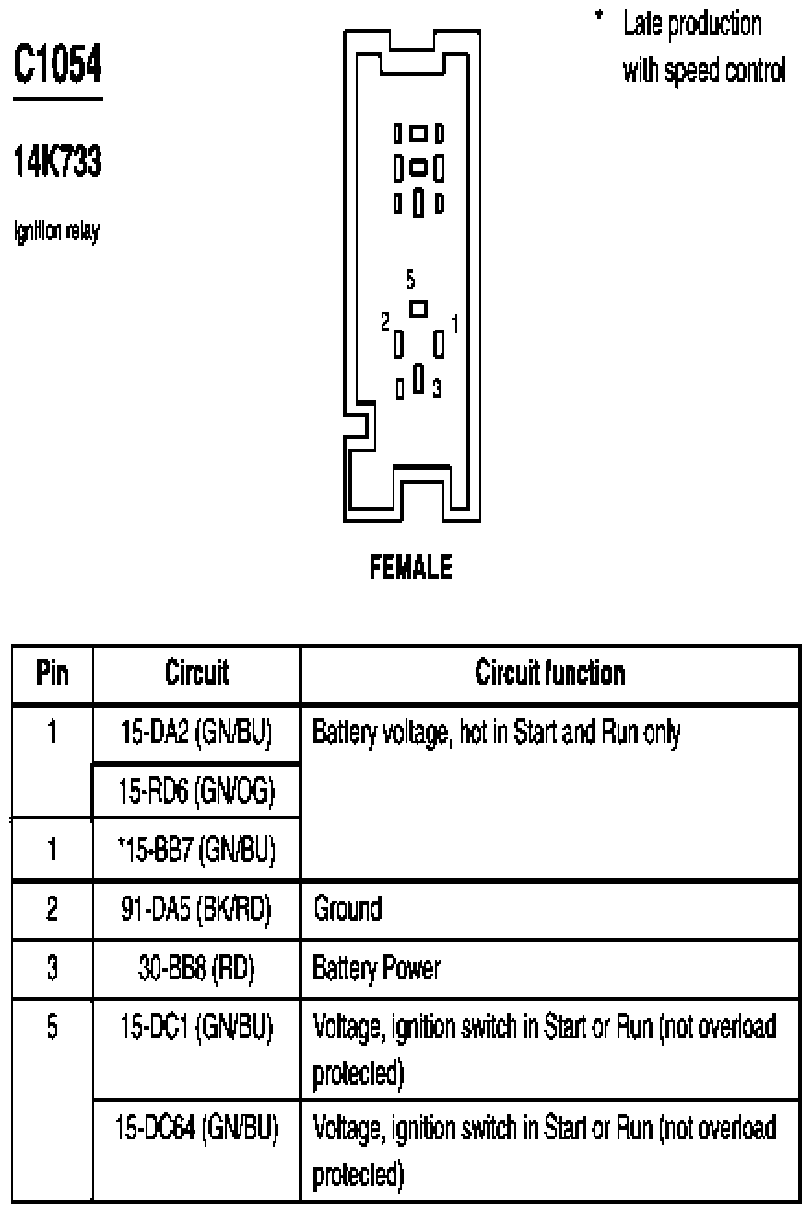

Fig 182: Ignition Relay Connector End View (C1054)

G07844213

Courtesy of FORD MOTOR CO.

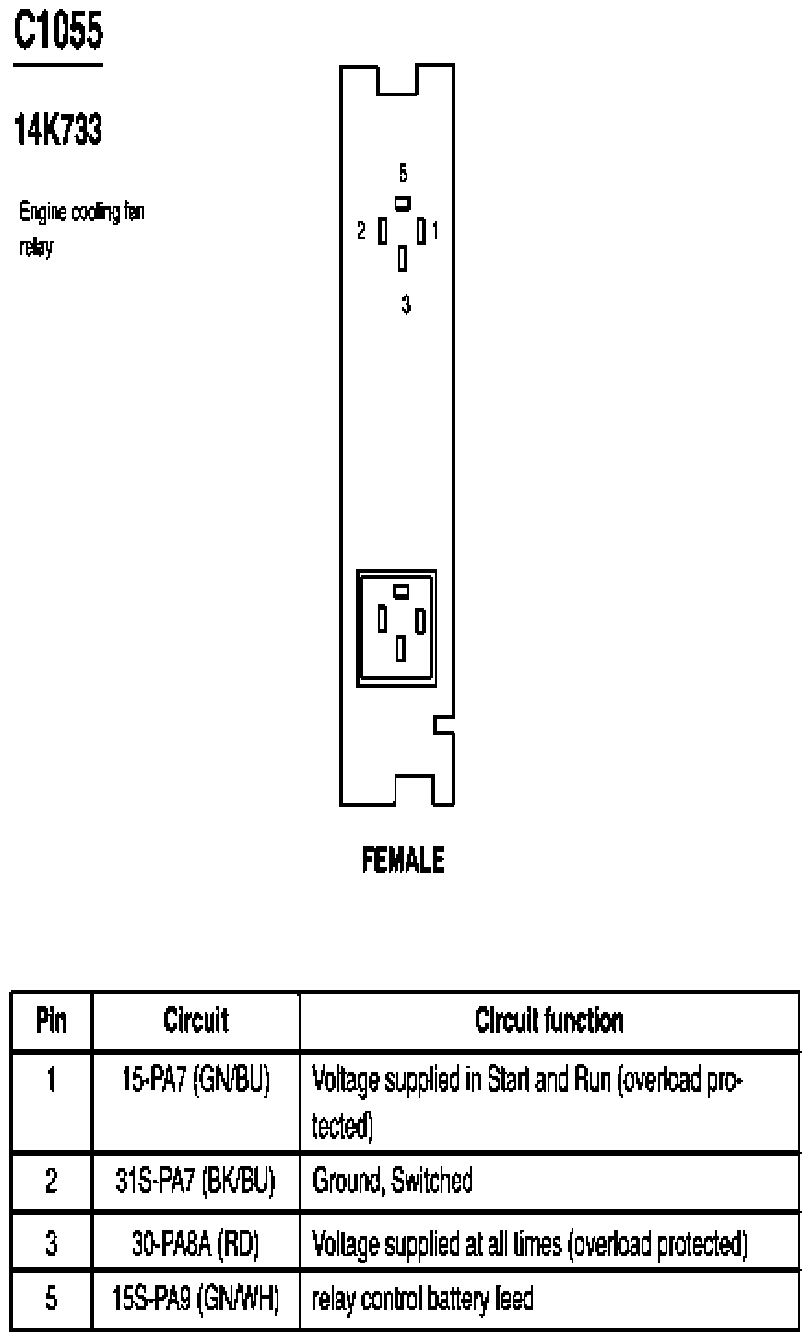

Fig 183: Engine Cooling, Fan Relay Connector End View (C1055)

G07844214

Courtesy of FORD MOTOR CO.

Fig 184: High Speed Fan Control Relay Connector End View (C1056)

G07844215

Courtesy of FORD MOTOR CO.

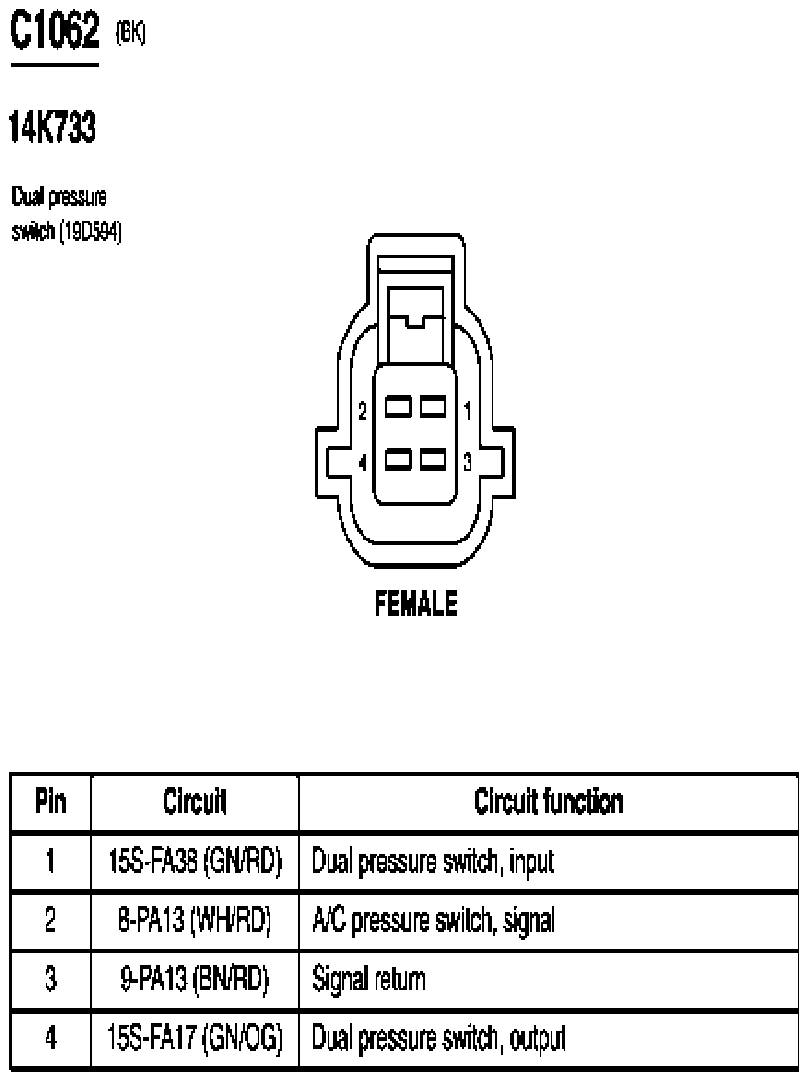

Fig 185: Dual Pressure Switch Connector End View (C1062)

G07844216

Courtesy of FORD MOTOR CO.

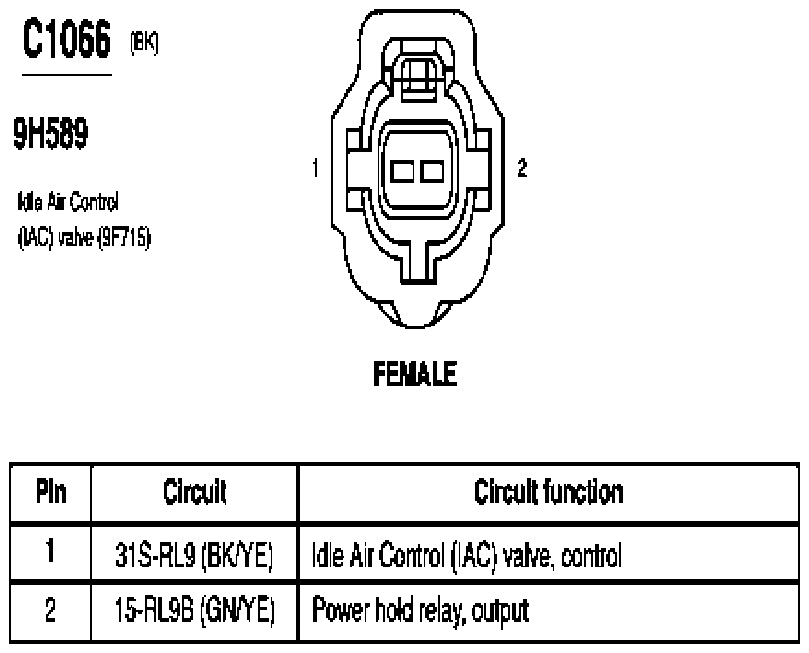

Fig 186: Idle Air Control (IAC) Valve Connector End View (C1066)

G07844217

Courtesy of FORD MOTOR CO.

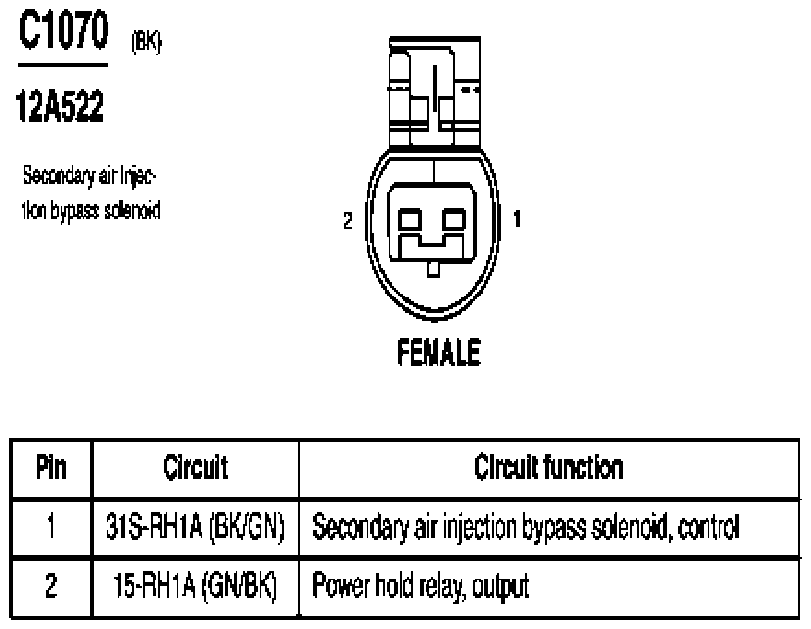

Fig 187: Secondary Air Injection Bypass Solenoid Connector End View (C1070)

G07844218

Courtesy of FORD MOTOR CO.

Fig 188: A/C Compressor Cycling Switch Connector End View (C1081)

G07844219

Courtesy of FORD MOTOR CO.

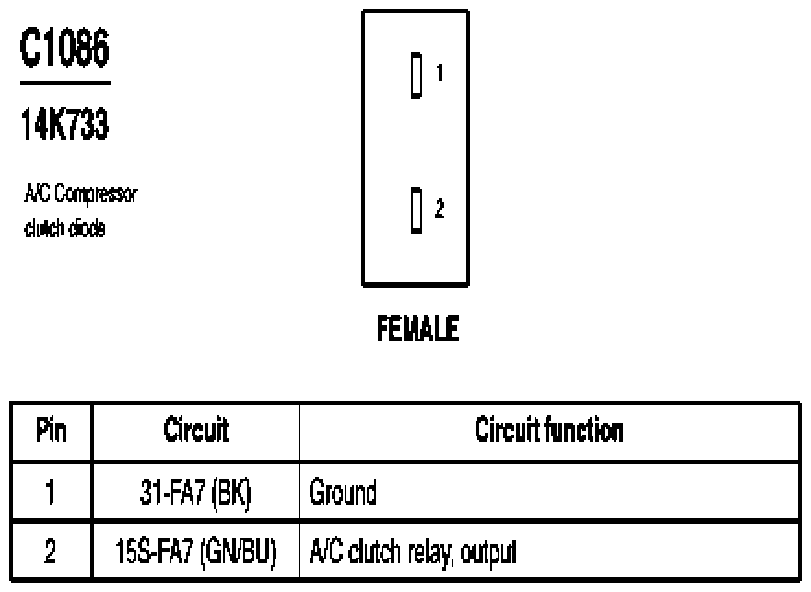

Fig 189: A/C Compressor Clutch Diode Connector End View (C1086)

G07844220

Courtesy of FORD MOTOR CO.

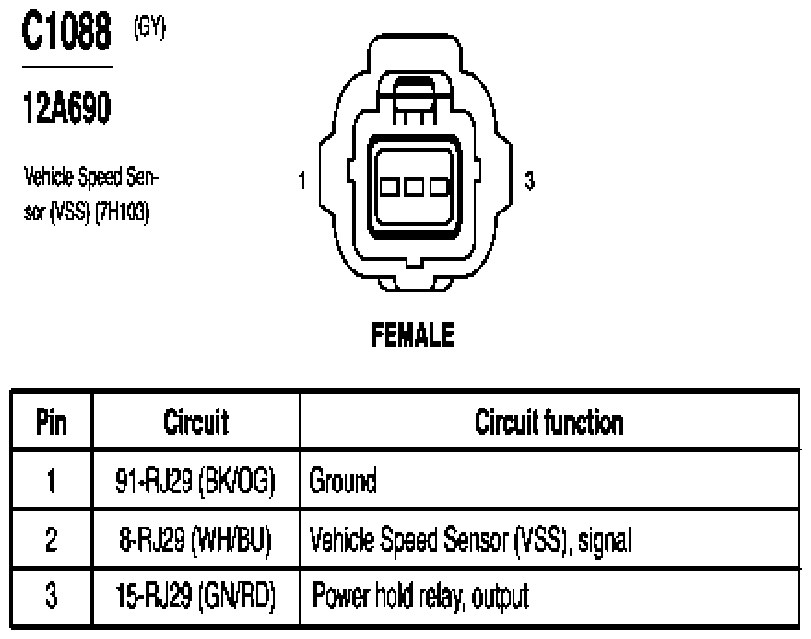

Fig 190: Vehicle Speed Sensor (VSS) Connector End View (C1088)

G07844221

Courtesy of FORD MOTOR CO.

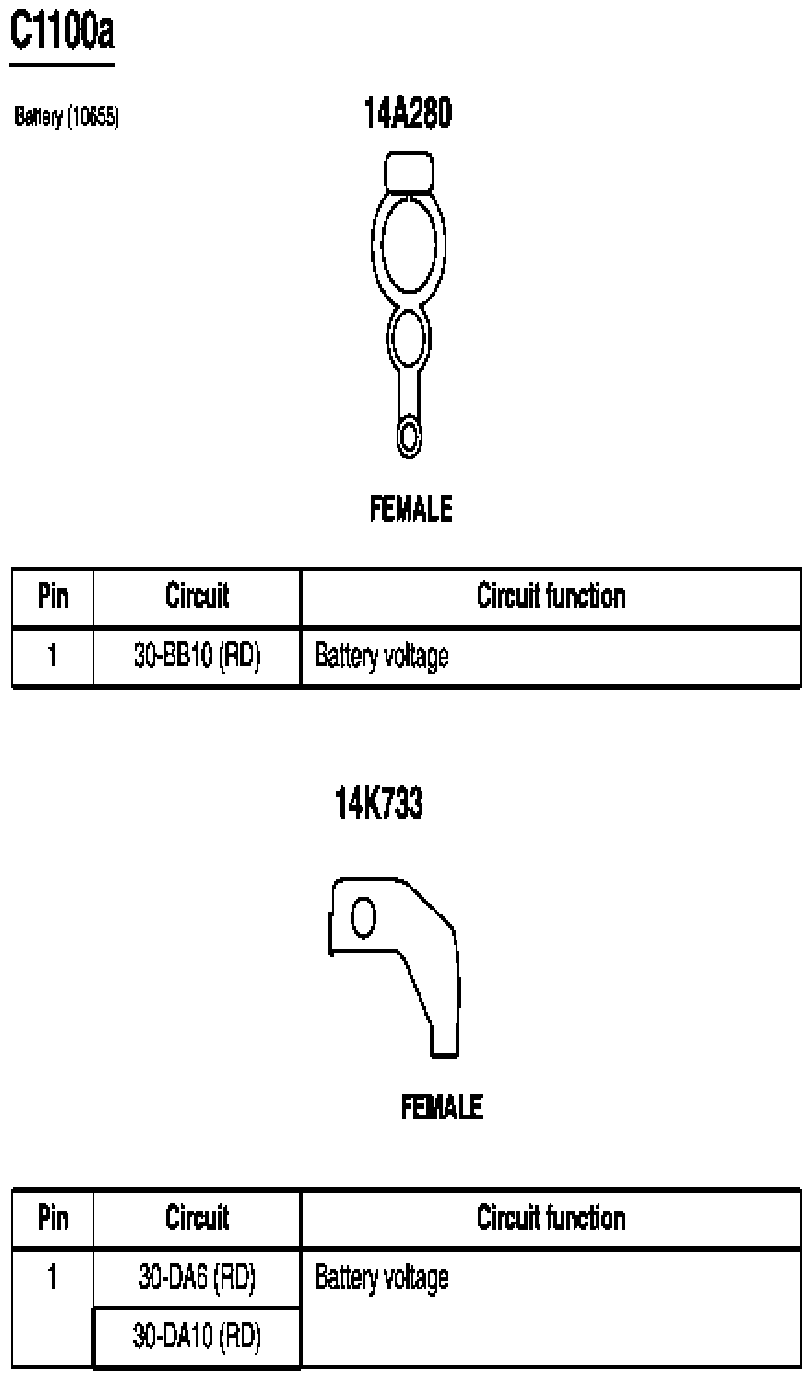

Fig 191: Battery Connector End View (C1100a)

G07844222

Courtesy of FORD MOTOR CO.

Fig 192: Battery Connector End View (C1100b)

G07844223

Courtesy of FORD MOTOR CO.

Fig 193: Battery Connector End View (C1100c)

G07844224

Courtesy of FORD MOTOR CO.

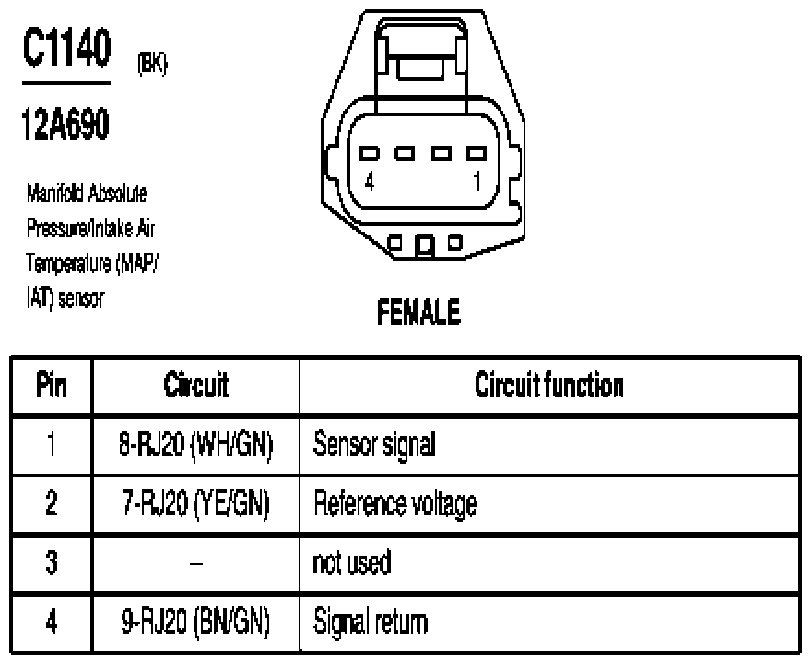

Fig 194: Manifold Absolute Pressure/Intake Air Temperature (MAP/IAT) Sensor Connector End View (C1140)

G07844225

Courtesy of FORD MOTOR CO.

Fig 195: Inline Connector End View (C1147)

G07844226

Courtesy of FORD MOTOR CO.

Fig 196: Inline Connector End View (C1148)

G07844227

Courtesy of FORD MOTOR CO.

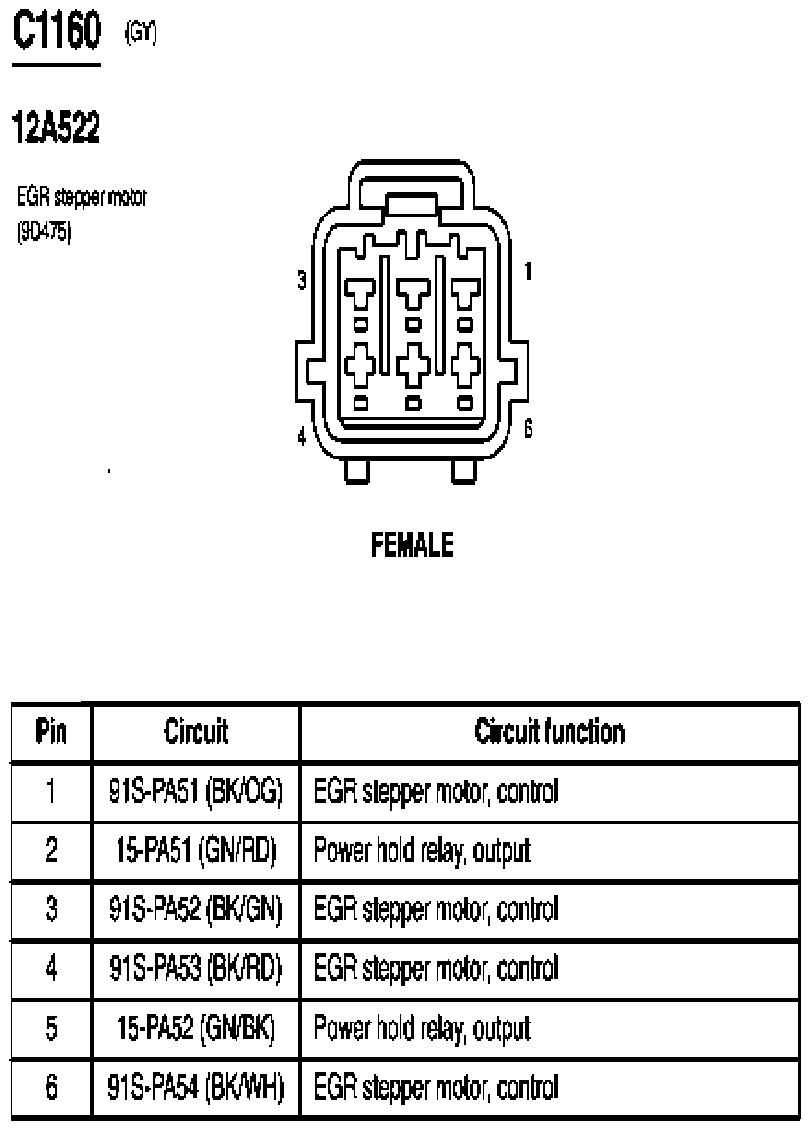

Fig 197: EGR Stepper Motor Connector End View (C1160)

G07844228

Courtesy of FORD MOTOR CO.

Fig 198: Inline Connector End View (C1168)

G07844229

Courtesy of FORD MOTOR CO.

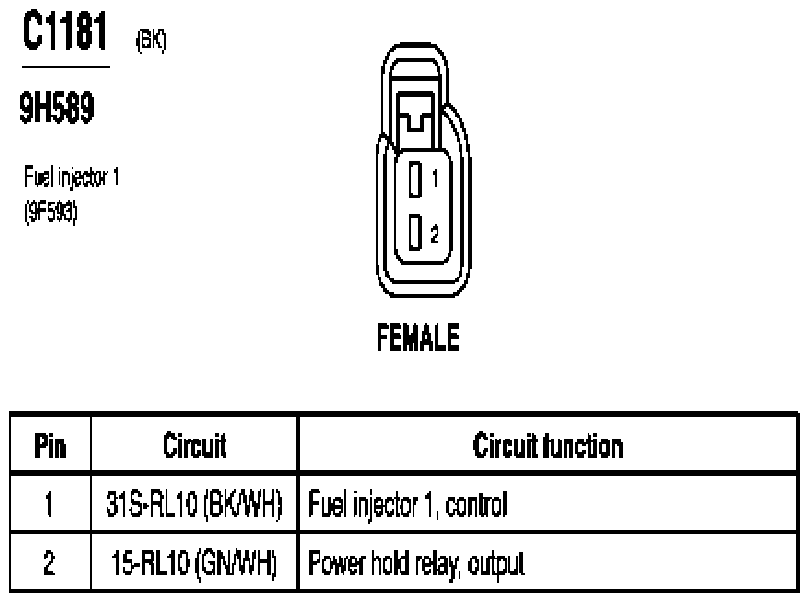

Fig 199: Fuel Injector 1 Connector End View (C1181)

G07844230

Courtesy of FORD MOTOR CO.

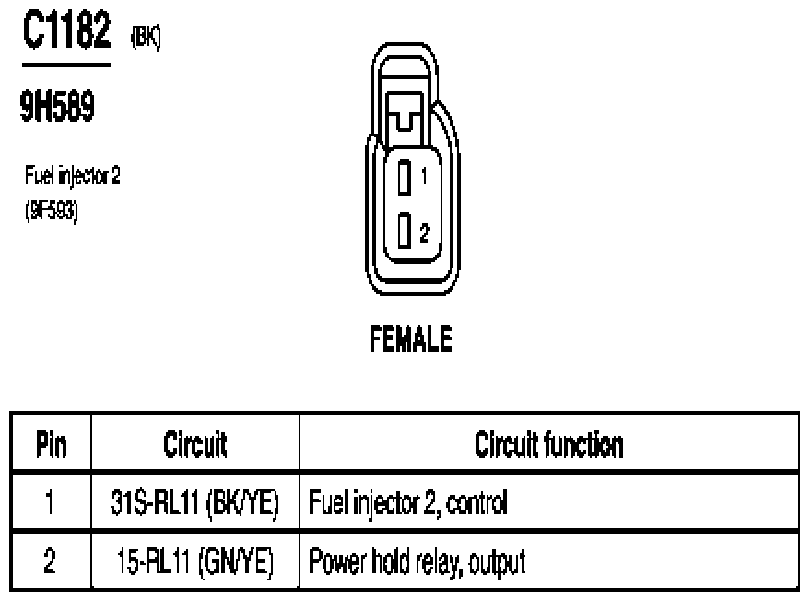

Fig 200: Fuel Injector 2 Connector End View (C1182)

G07844231

Courtesy of FORD MOTOR CO.

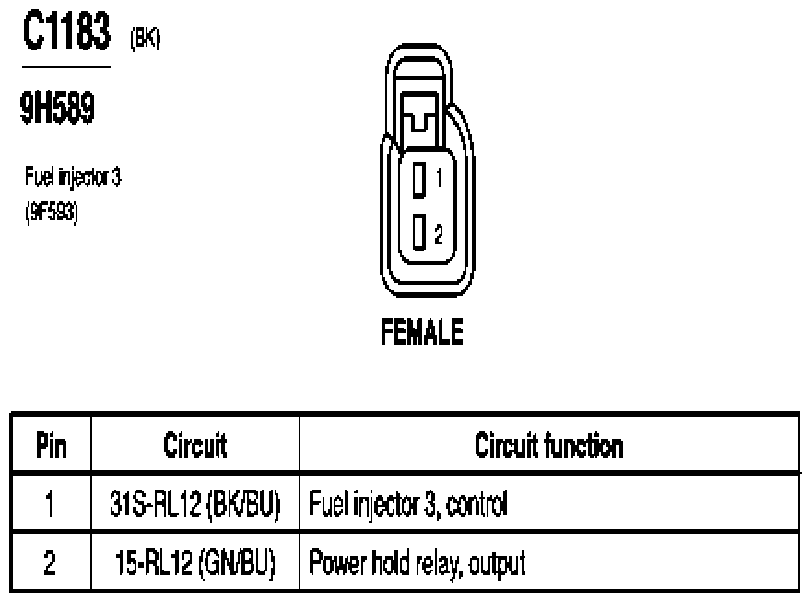

Fig 201: Fuel Injector 3 Connector End View (C1183)

G07844232

Courtesy of FORD MOTOR CO.

Fig 202: Fuel Injector 4 Connector End View (C1184)

G07844233

Courtesy of FORD MOTOR CO.

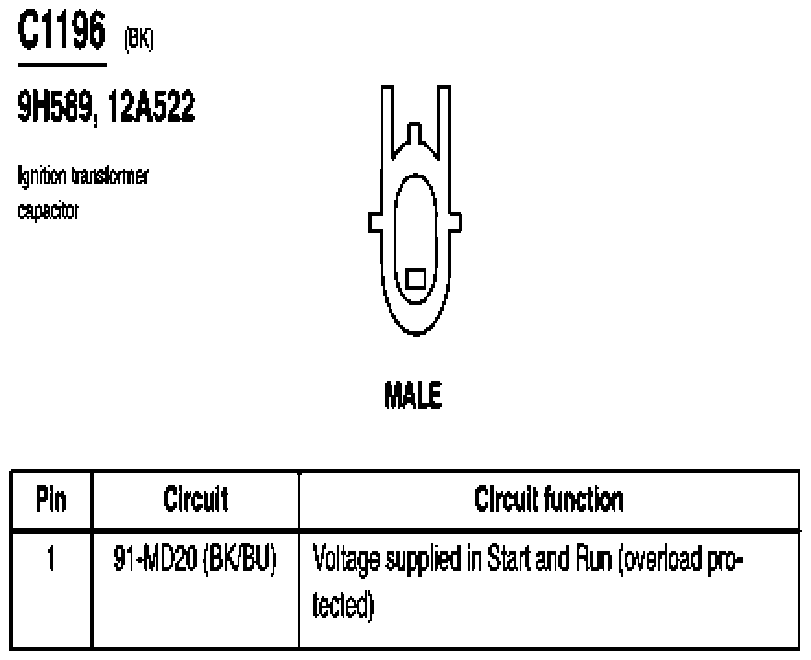

Fig 203: Ignition Transformer Capacitor Connector End View (C1196)

G07844234

Courtesy of FORD MOTOR CO.

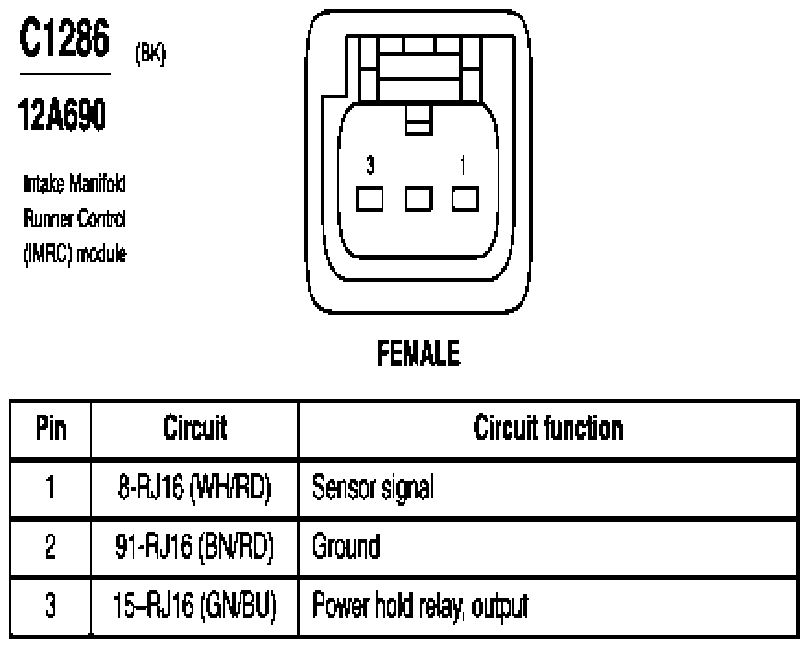

Fig 204: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)

G07844235

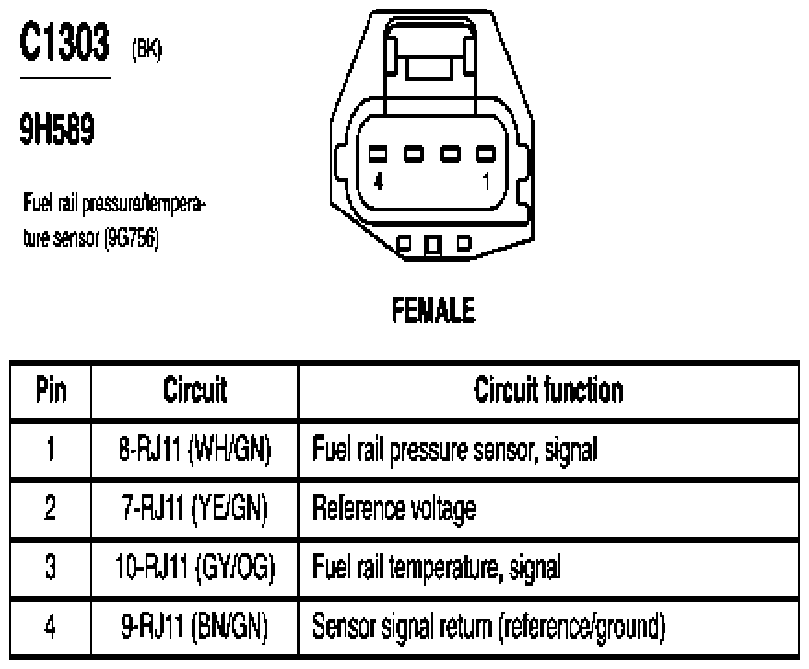

Courtesy of FORD MOTOR CO.

Fig 205: Fuel Rail Pressure/Temperature Sensor Connector End View (C1303)

G07844236

Courtesy of FORD MOTOR CO.

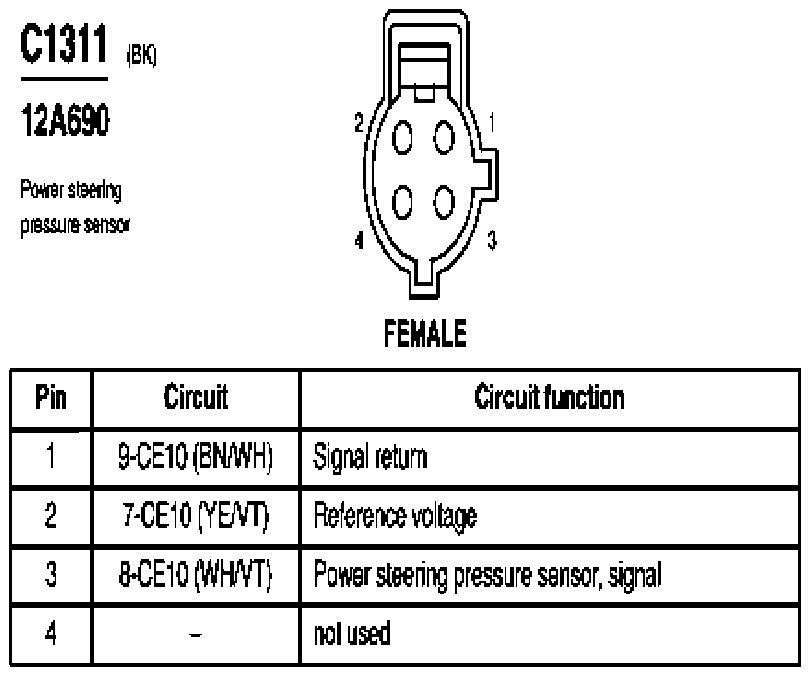

Fig 206: Power Steering Pressure Sensor Connector End View (C1311)

G07844237

Courtesy of FORD MOTOR CO.

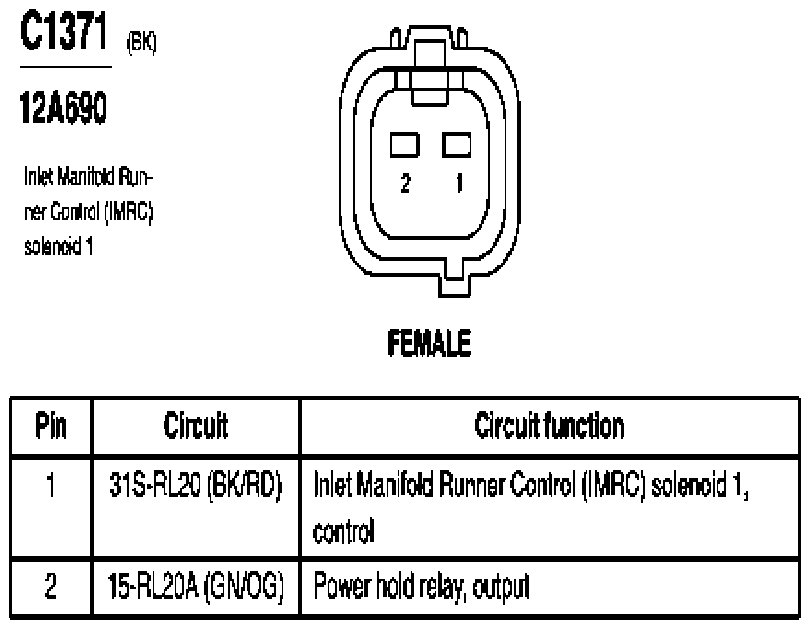

Fig 207: Inlet Manifold Runner Control (IMRC) Solenoid 1 Connector End View (C1371)

G07844238

Courtesy of FORD MOTOR CO.

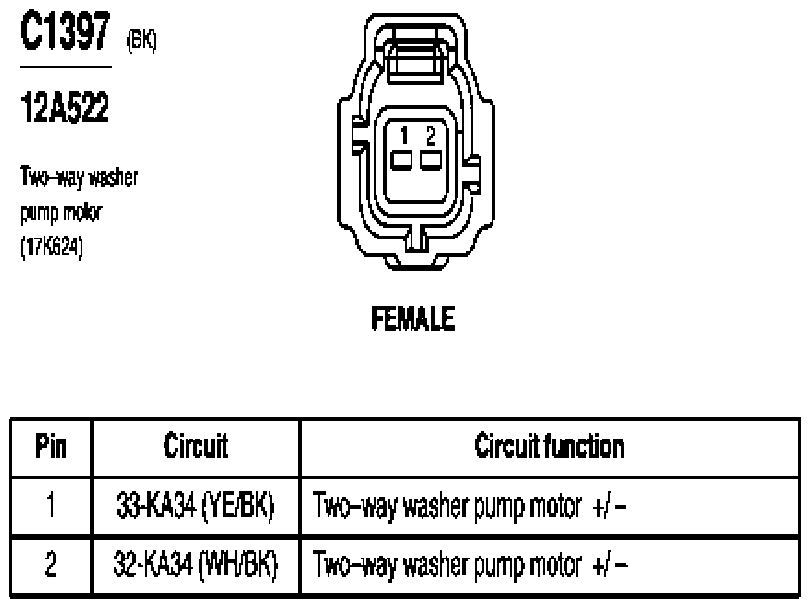

Fig 208: Two-Way Washer Pump Motor Connector End View (C1397)

G07844239

Courtesy of FORD MOTOR CO.

Fig 209: Power Hold Relay Connector End View (C1403)

G07844240

Courtesy of FORD MOTOR CO.

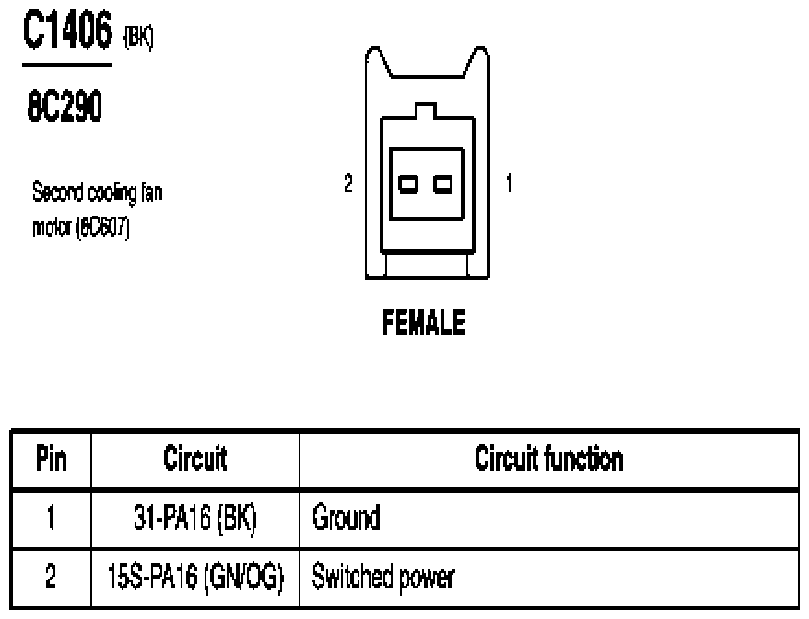

Fig 210: Second Cooling Fan Motor Connector End View (C1406)

G07844241

Courtesy of FORD MOTOR CO.

Fig 211: Park/Neutral Position (PNP) Switch Connector End View (C1407)

G07844242

Courtesy of FORD MOTOR CO.

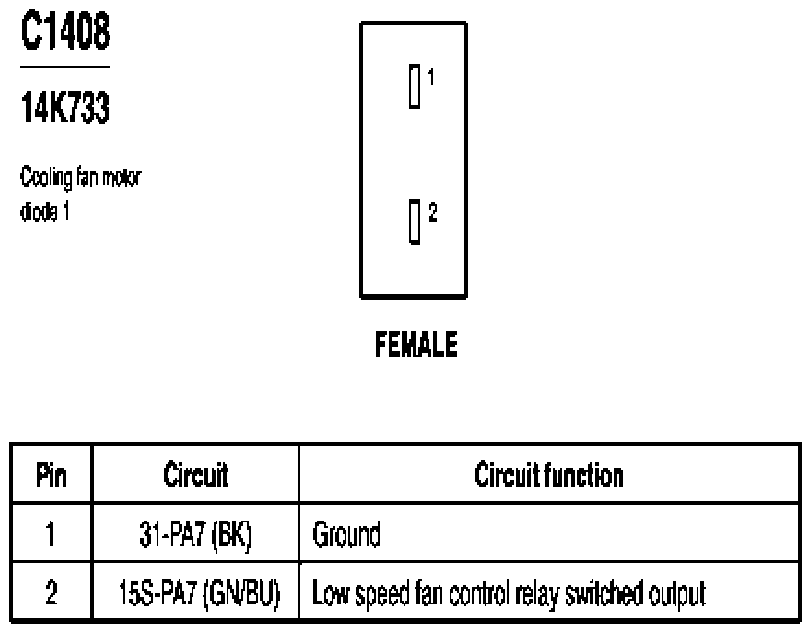

Fig 212: Cooling Fan Motor Diode 1 Connector End View (C1408)

G07844243

Courtesy of FORD MOTOR CO.

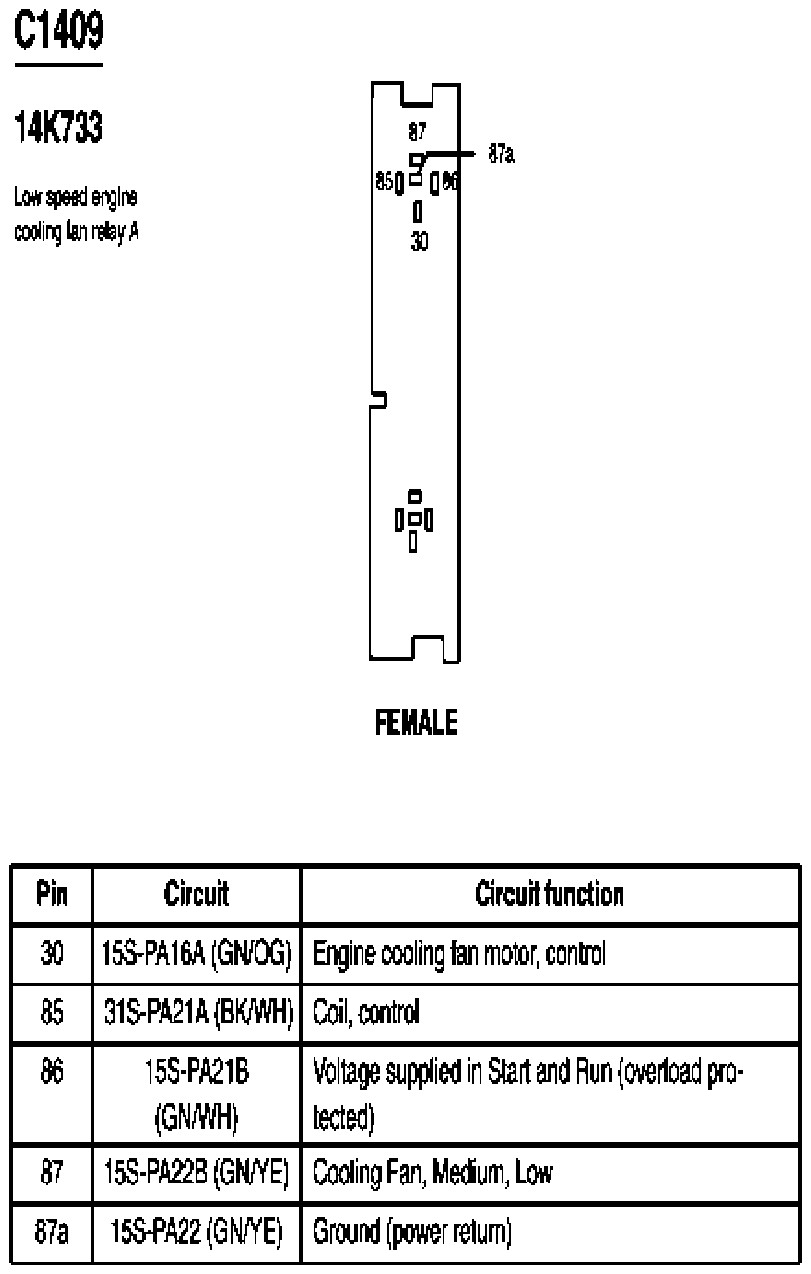

Fig 213: Low Speed Engine Cooling Fan Relay A Connector End View (C1409)

G07844244

Courtesy of FORD MOTOR CO.

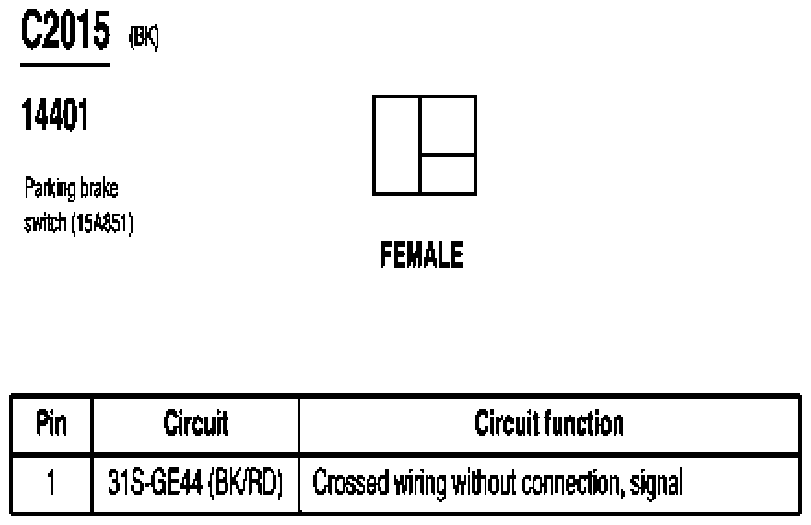

Fig 214: Parking Brake Switch Connector End View (C2015)

G07844245

Courtesy of FORD MOTOR CO.

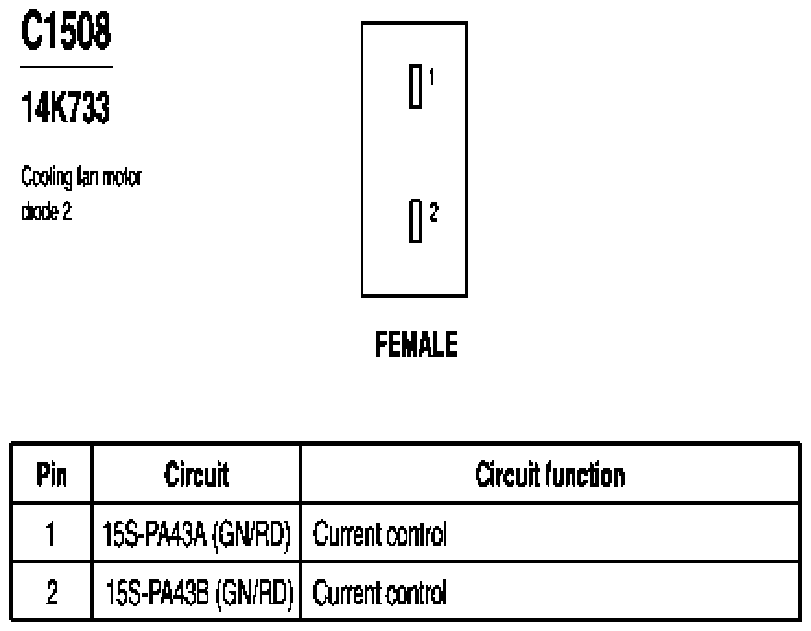

Fig 215: Cooling Fan Motor Diode 1 Connector End View (C1508)

G07844246

Courtesy of FORD MOTOR CO.

Fig 216: Intake Manifold Tuning Valve (IMTV) Connector End View (C1426)

G07844247

Courtesy of FORD MOTOR CO.

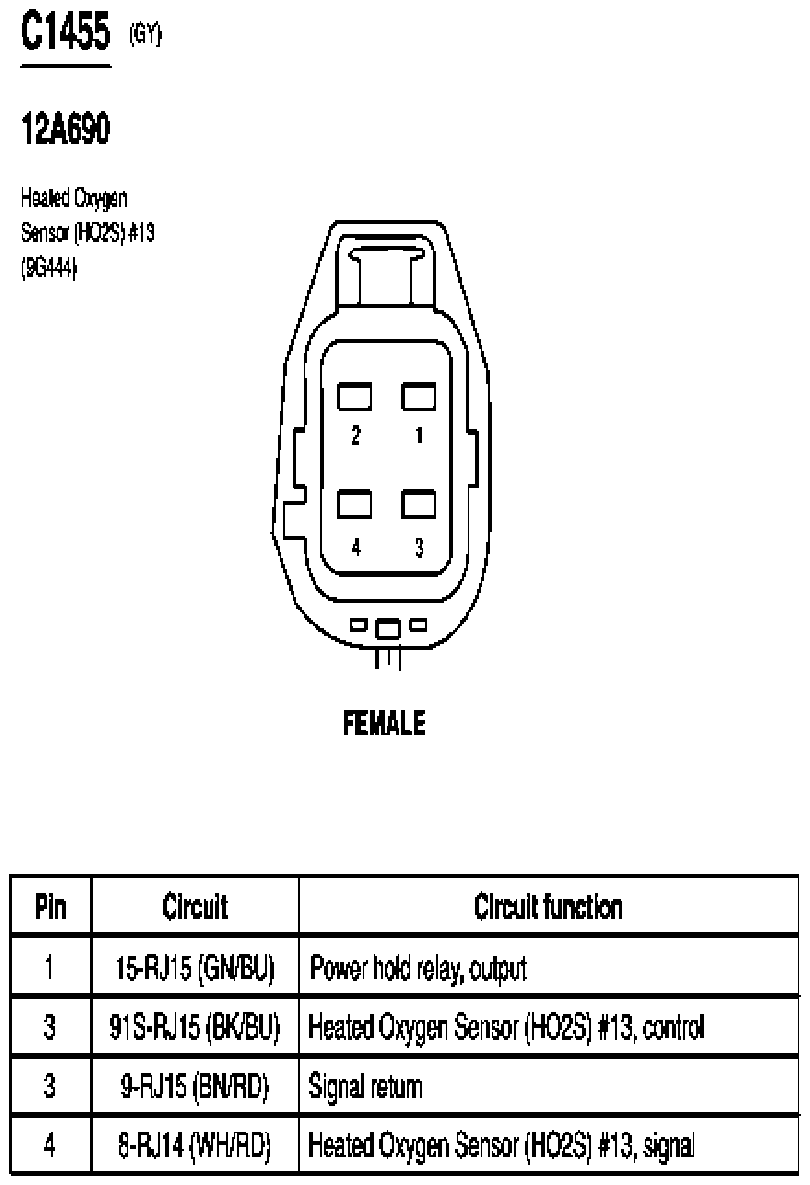

Fig 217: Heated Oxygen Sensor (HO2S) #13 Connector End View (C1455)

G07844248

Courtesy of FORD MOTOR CO.

Fig 218: Parking Brake Switch Connector End View (C2015)

G07844249

Courtesy of FORD MOTOR CO.

Fig 219: Rear Wiper Relay Connector End View (C2020)

G07844250

Courtesy of FORD MOTOR CO.

Fig 220: Rear Window Defrost Relay Connector End View (C2021)

G07844251

Courtesy of FORD MOTOR CO.

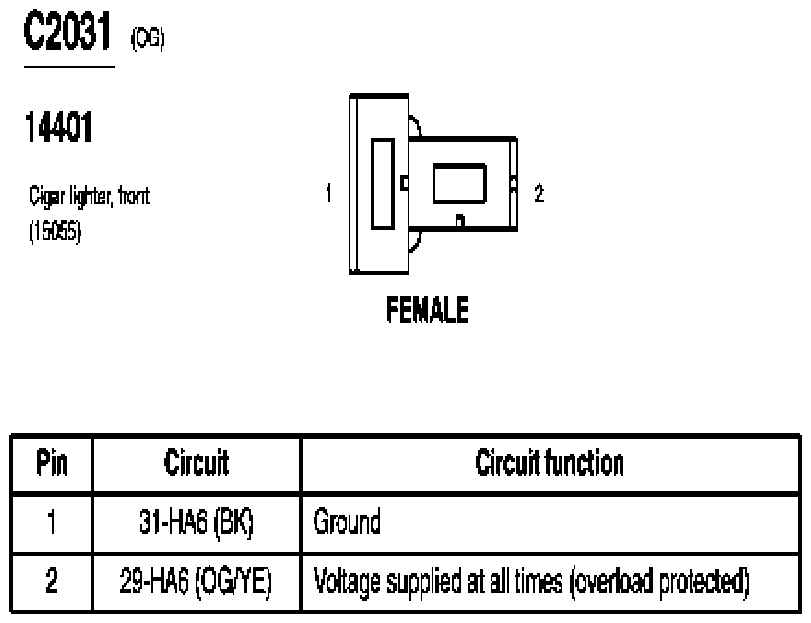

Fig 221: Cigar Lighter, Front Connector End View (C2031)

G07844252

Courtesy of FORD MOTOR CO.

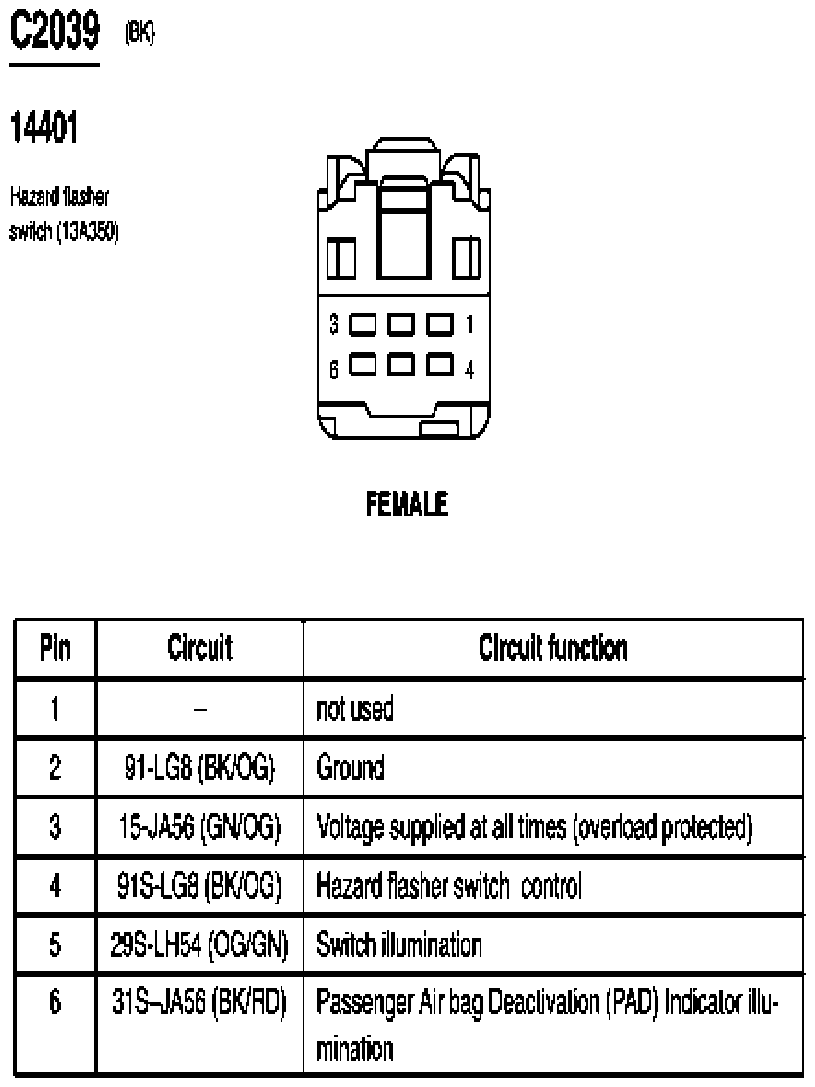

Fig 222: Hazard Flasher Switch Connector End View (C2039)

G03994102

Courtesy of FORD MOTOR CO.

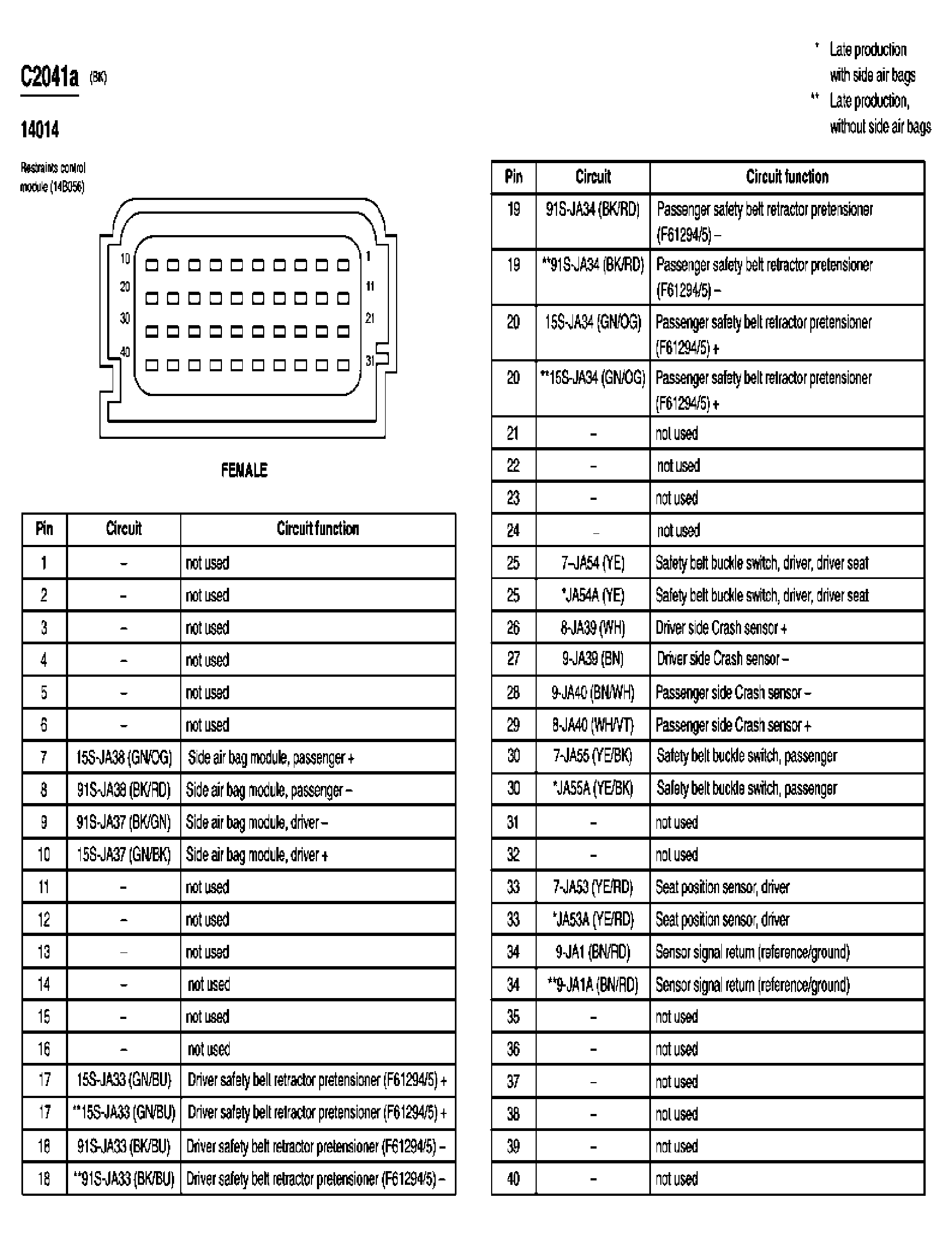

Fig 223: Restraints Control Module Connector End View (C2041a)

G03994103

Courtesy of FORD MOTOR CO.

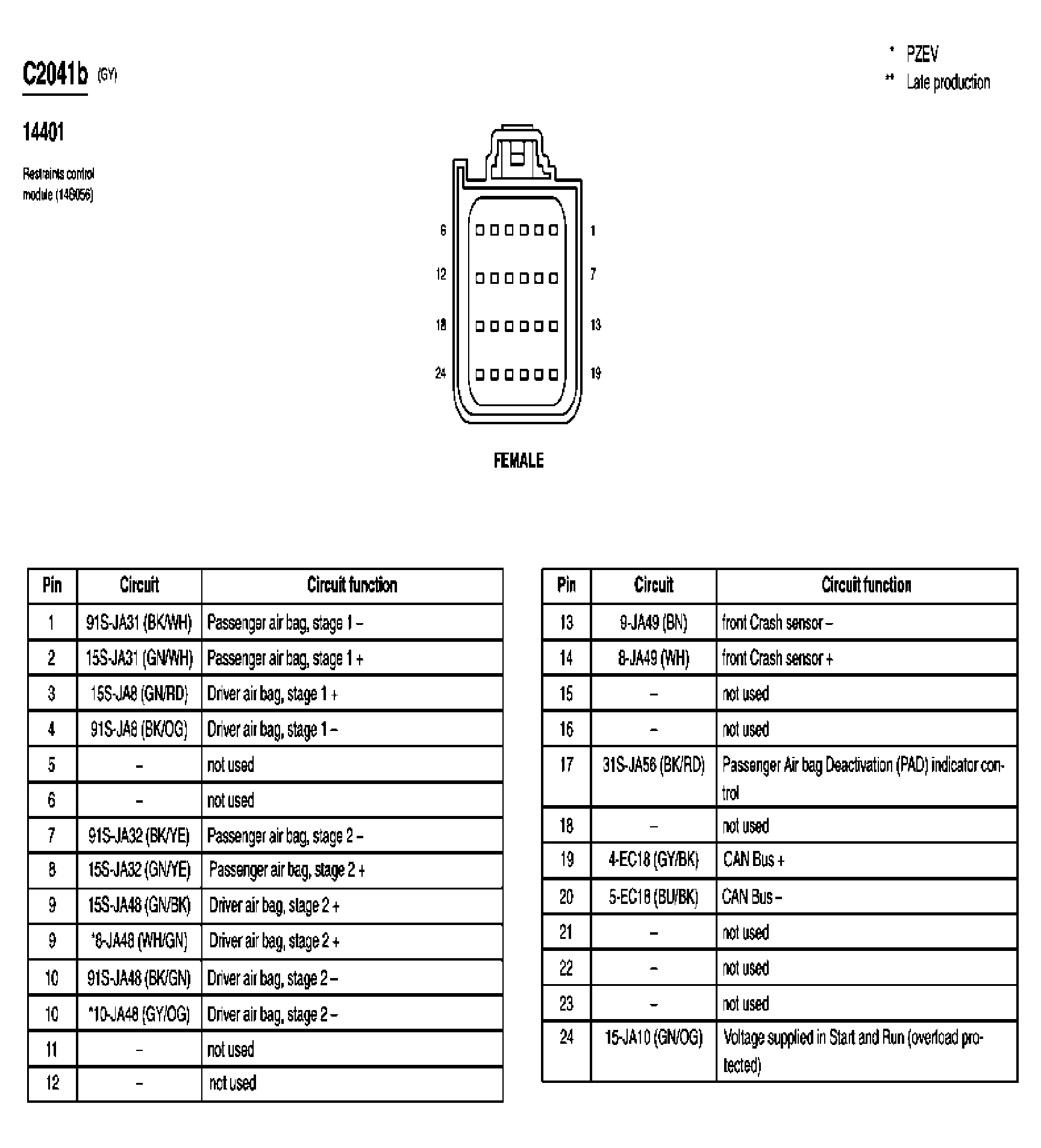

Fig 224: Restraints Control Module Connector End View (C2041b)

G03994104

Courtesy of FORD MOTOR CO.

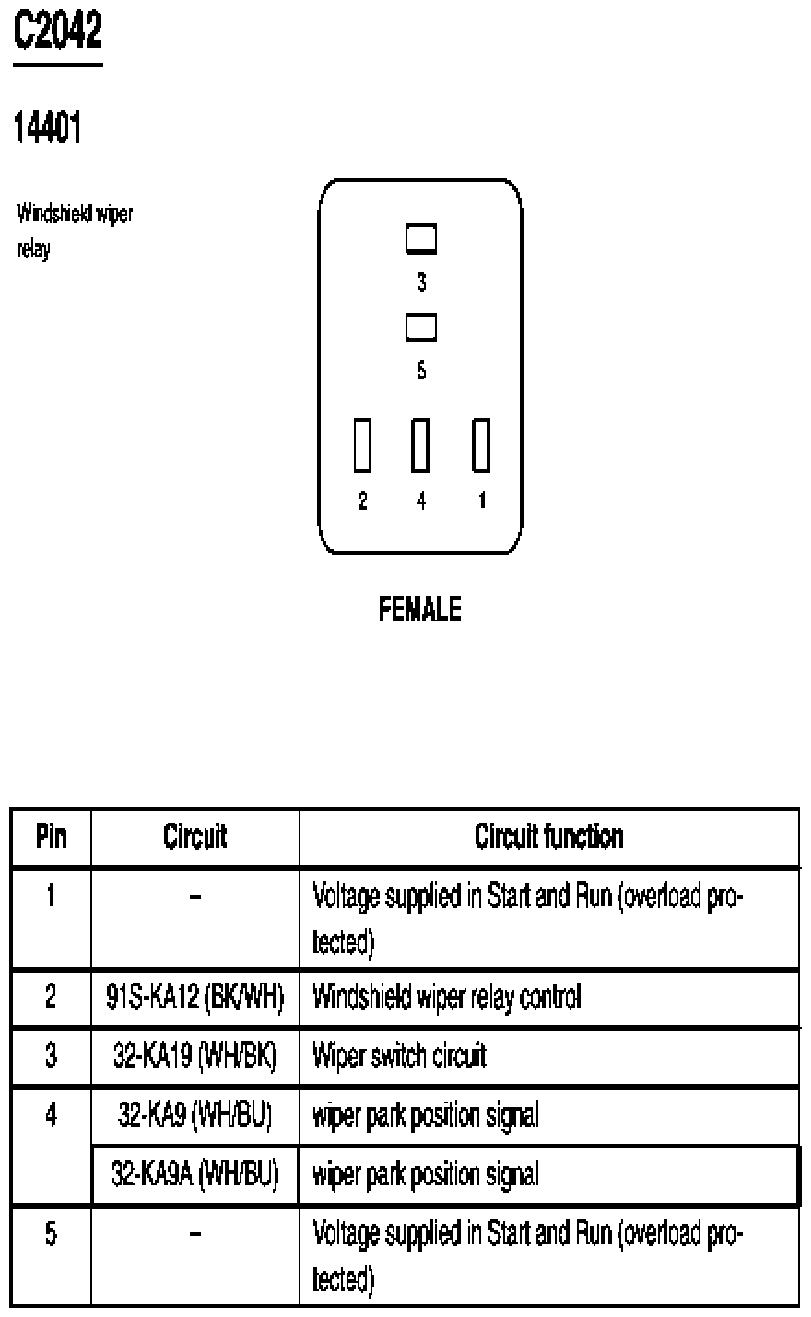

Fig 225: Windshield Wiper Relay Connector End View (C2042)

G07844253

Courtesy of FORD MOTOR CO.

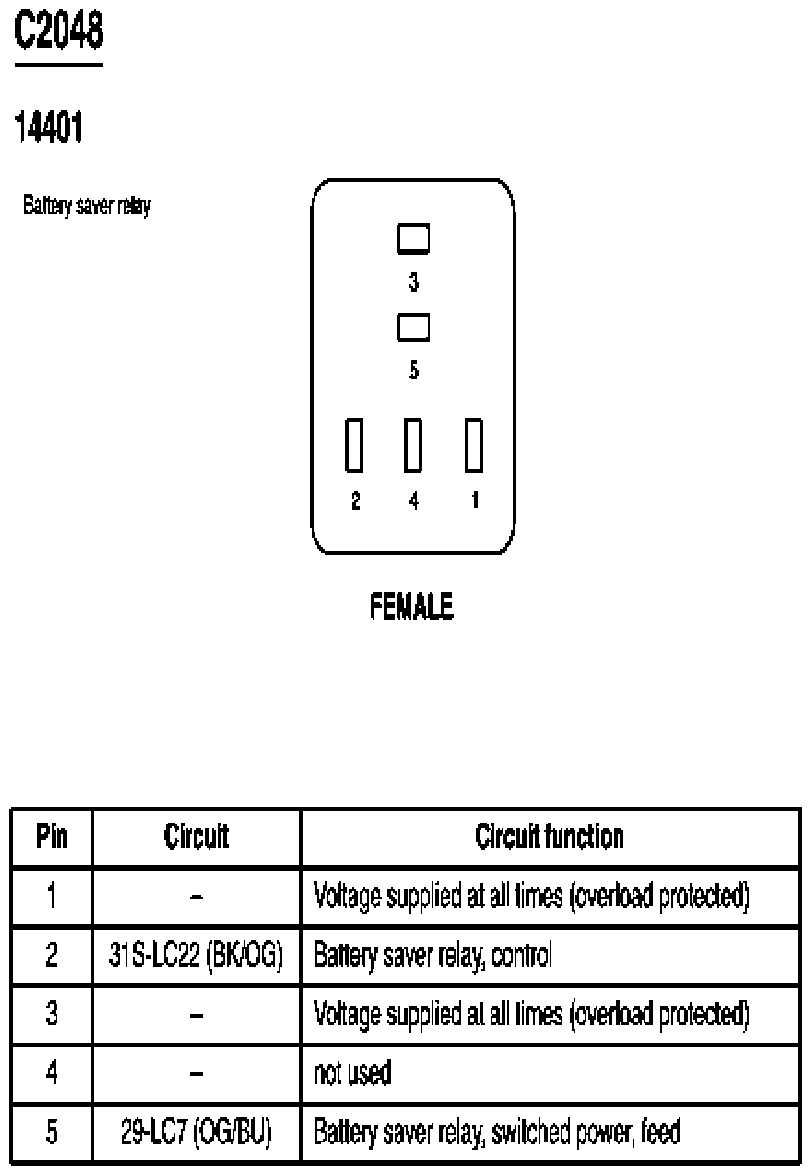

Fig 226: Battery Saver Relay Connector End View (C2048)

G07844254

Courtesy of FORD MOTOR CO.

Fig 227: Horn Relay Connector End View (C2077)

G07844255

Courtesy of FORD MOTOR CO.

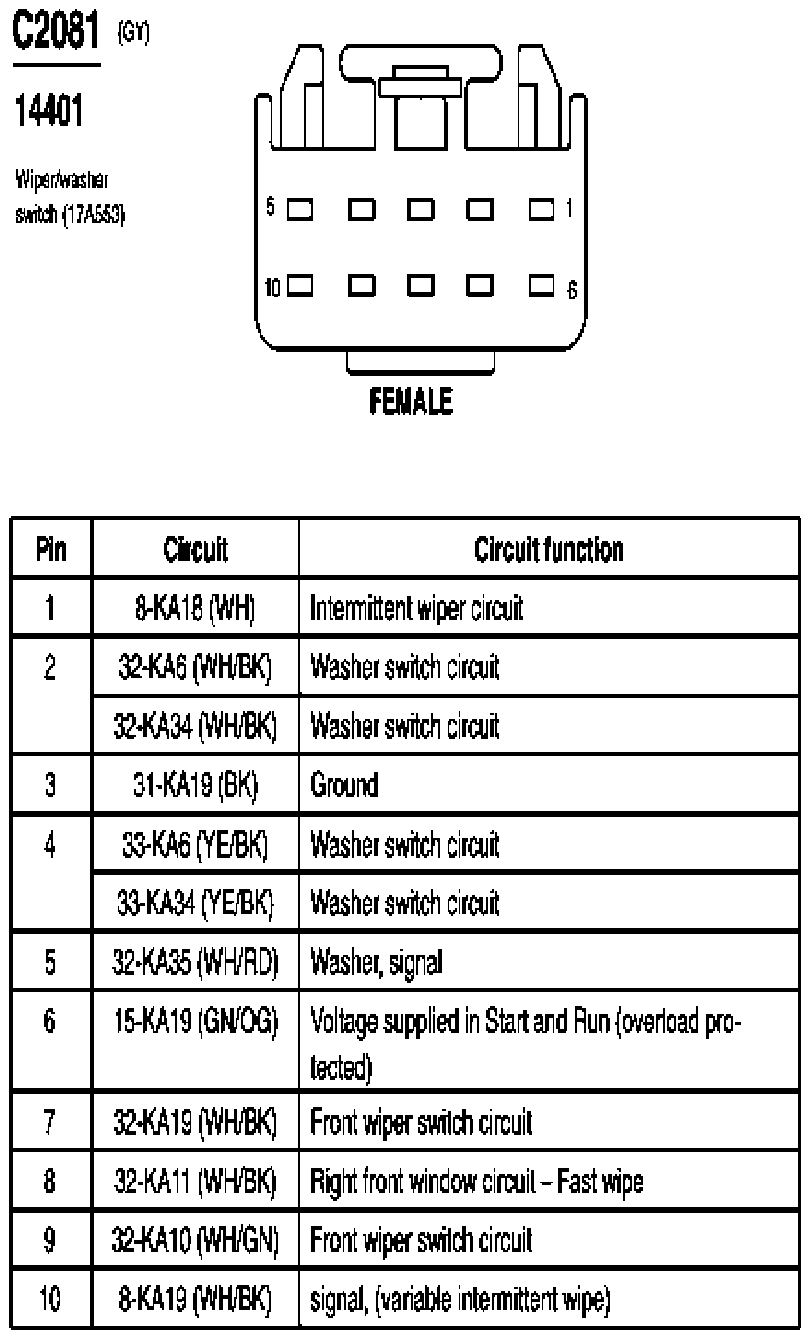

Fig 228: Wiper/Washer Switch Connector End View (C2081)

G07844256

Courtesy of FORD MOTOR CO.

Fig 229: Starter Relay Connector End View (C2163)

G07844257

Courtesy of FORD MOTOR CO.

Fig 230: Blower Motor Resistor Connector End View (C2184)

G07844258

Courtesy of FORD MOTOR CO.

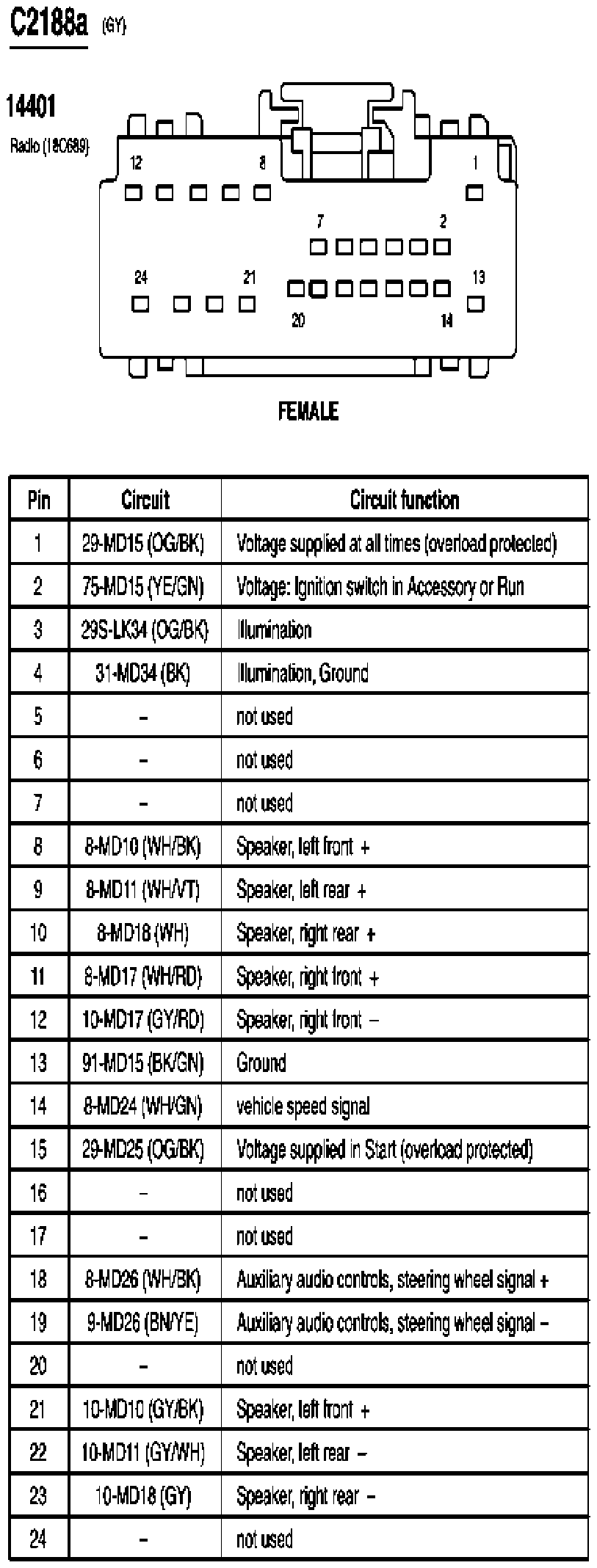

Fig 231: Radio Connector End View (C2188a)

G07844259

Courtesy of FORD MOTOR CO.

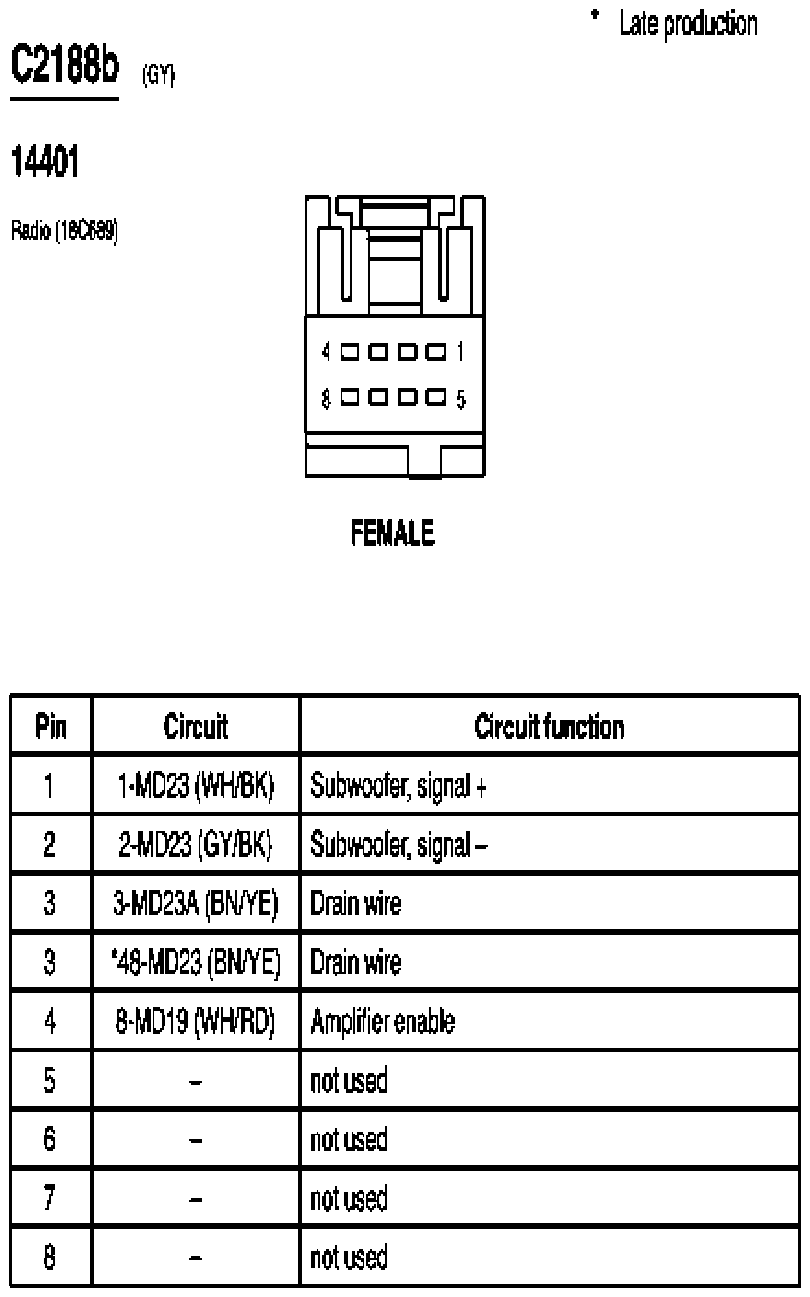

Fig 232: Radio Connector End View (C2188b)

G07844260

Courtesy of FORD MOTOR CO.

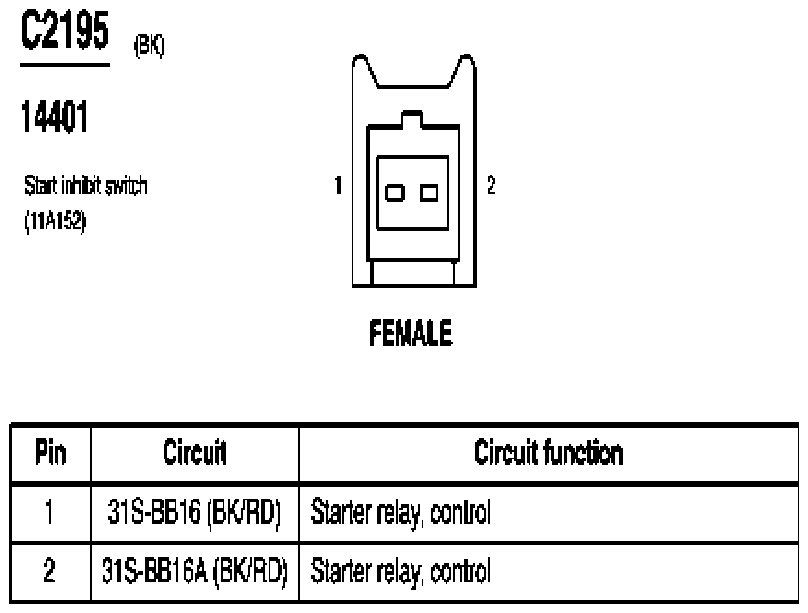

Fig 233: Start Inhibit Switch Connector End View (C2195)

G07844261

Courtesy of FORD MOTOR CO.

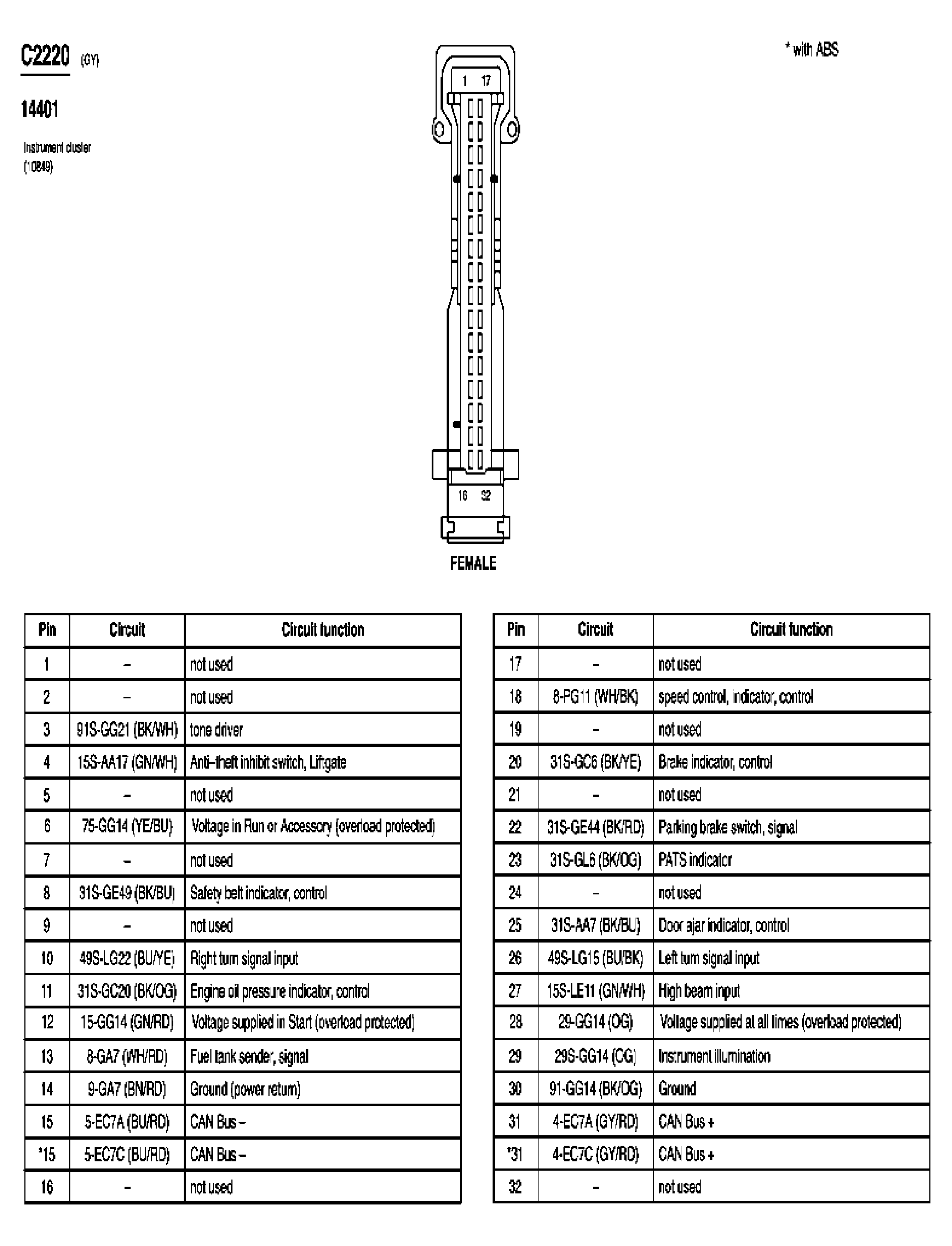

Fig 234: Instrument Cluster Connector End View (C2220)

G03994109

Courtesy of FORD MOTOR CO.

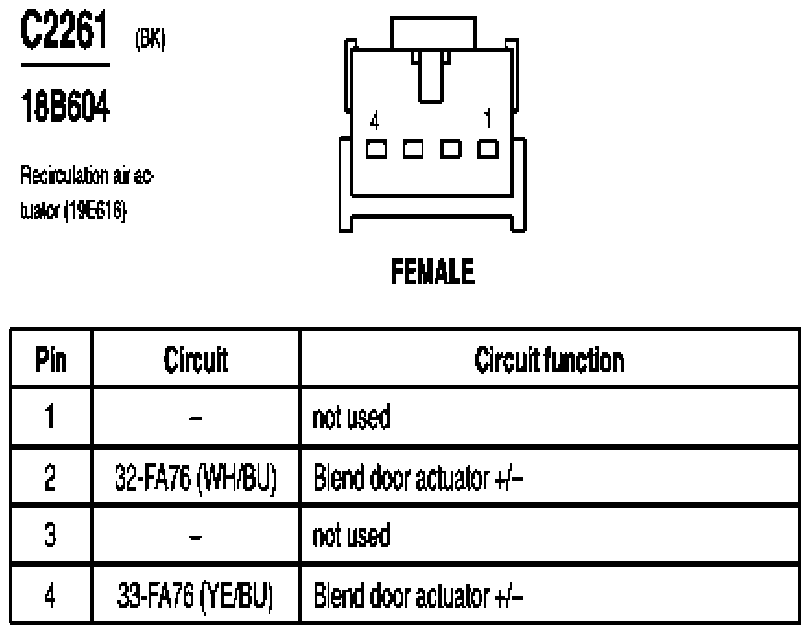

Fig 235: Recirculation Air Actuator Connector End View (C2261)

G07844262

Courtesy of FORD MOTOR CO.

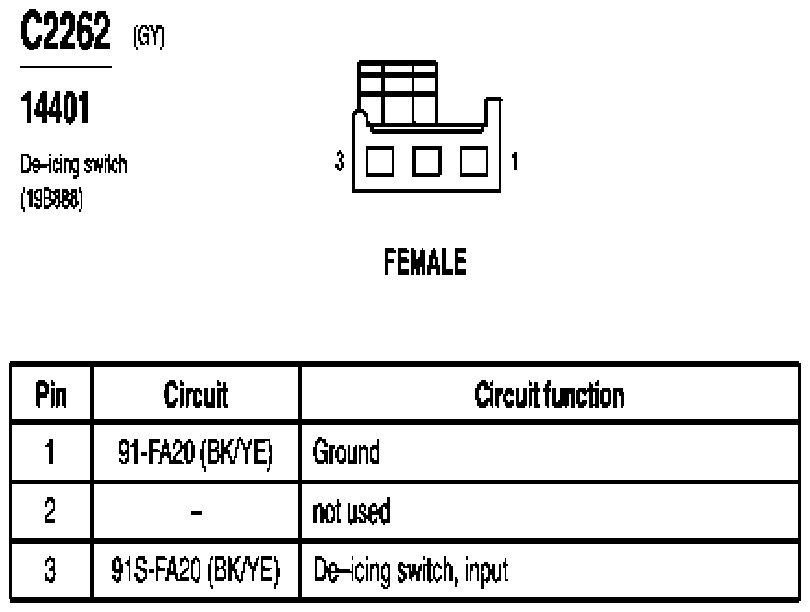

Fig 236: De-Icing Switch Connector End View (C2262)

G07844263

Courtesy of FORD MOTOR CO.

Fig 237: Heater Control Module Connector End View (C2263)

G07844264

Courtesy of FORD MOTOR CO.

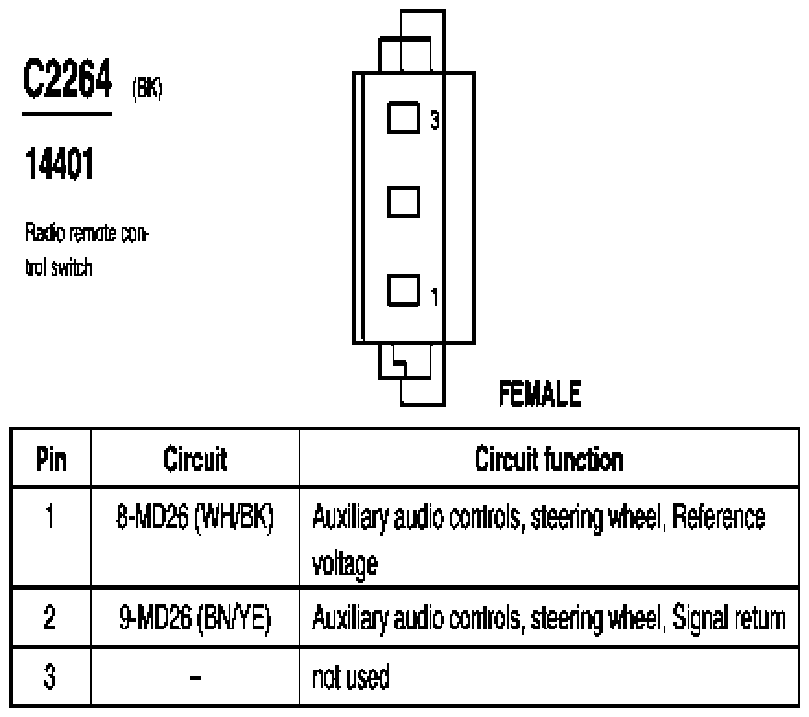

Fig 238: Radio Remote Control Switch Connector End View (C2264)

G07844265

Courtesy of FORD MOTOR CO.

Fig 239: Heater Blower Switch Connector End View (C2265)

G07844266

Courtesy of FORD MOTOR CO.

Fig 240: Heater Panel Illumination Lamp Connector End View (C2266)

G07844267

Courtesy of FORD MOTOR CO.

Fig 241: Traction Control System (TCS) Disable Switch Connector End View (C2267)

G07844268

Courtesy of FORD MOTOR CO.

Fig 242: Liftgate/Decklid Release Switch Connector End View (C2269)

G07844269

Courtesy of FORD MOTOR CO.

Fig 243: Clock Spring Connector End View (C2274)

G07844270

Courtesy of FORD MOTOR CO.

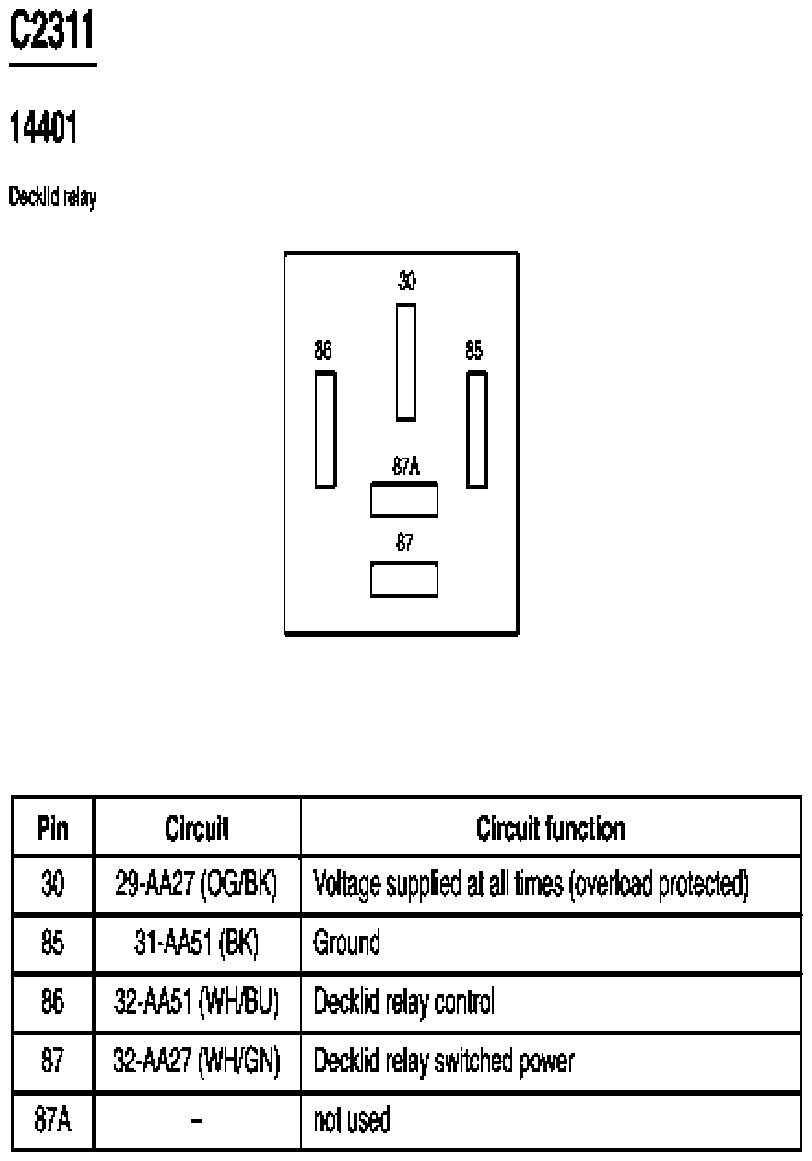

Fig 244: Decklid Relay Connector End View (C2311)

G07844271

Courtesy of FORD MOTOR CO.

Fig 245: Stoplamp Switch Connector End View (C2314)

G07844272

Courtesy of FORD MOTOR CO.

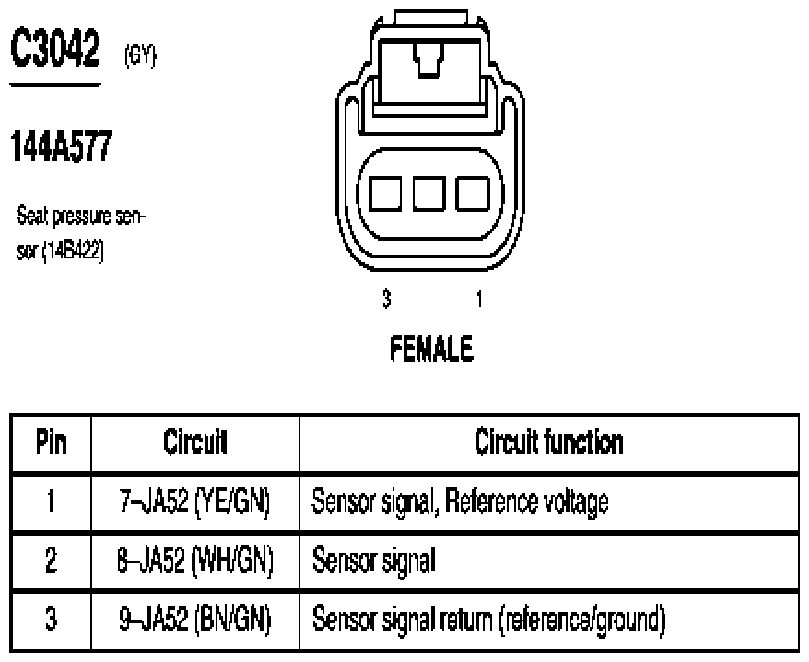

Fig 246: Seat Pressure Sensor Connector End View (C3042)

G07844273

Courtesy of FORD MOTOR CO.

Fig 247: Seat Weight Sensor Module Connector End View (C3043)

G07844274

Courtesy of FORD MOTOR CO.

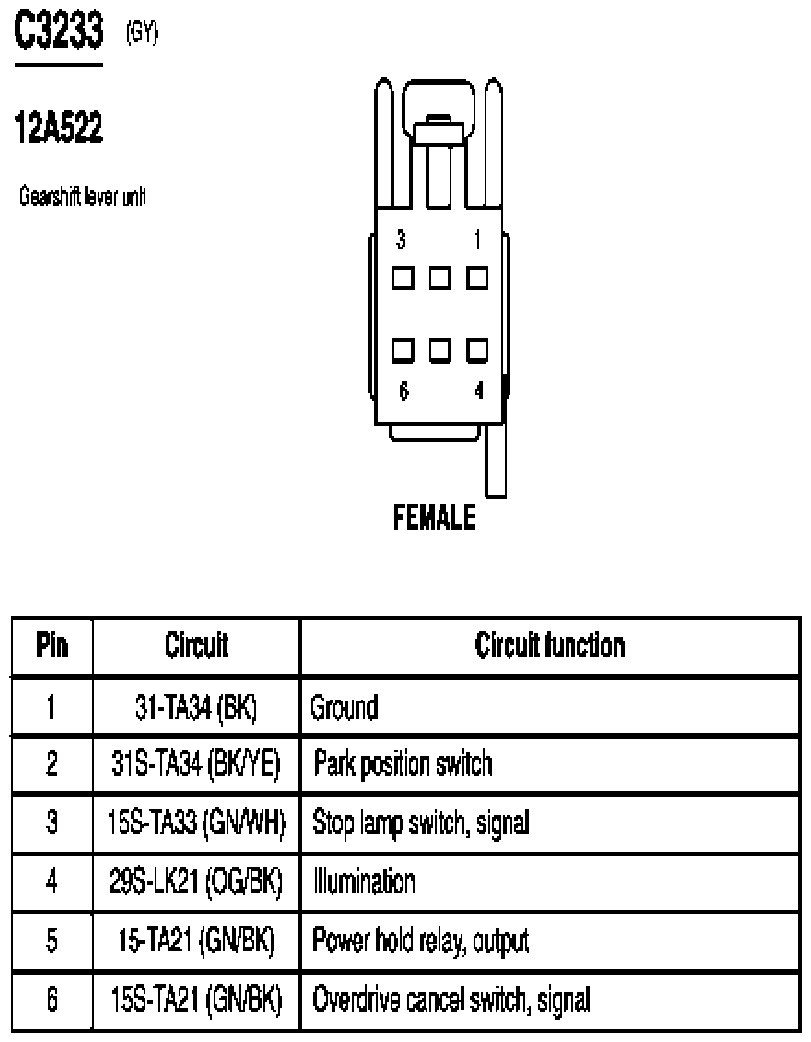

Fig 248: Gearshift Lever Unit Connector End View (C3233)

G07844275

Courtesy of FORD MOTOR CO.

Fig 249: Fuel Pump Driver Module Connector End View (C3239)

G07844276

Courtesy of FORD MOTOR CO.

Fig 250: Luggage Compartment Lid Release Relay Connector End View (C4086)

G07844277

Courtesy of FORD MOTOR CO.

Fig 251: Rear Wiper Motor Assembly Connector End View (C4218)

G07844278

Courtesy of FORD MOTOR CO.

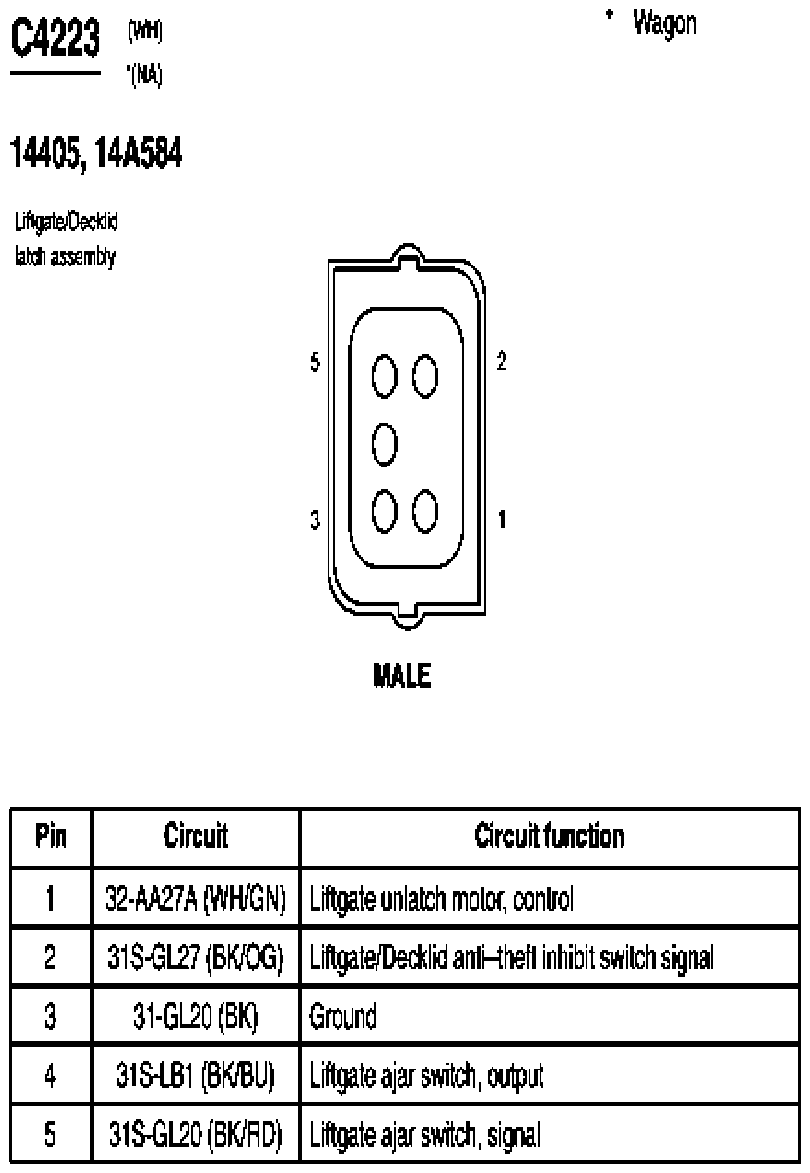

Fig 252: Liftgate/Decklid Latch Assembly Connector End View (C4223)

G07844279

Courtesy of FORD MOTOR CO.

Fig 253: Liftgate/Decklid Release Switch, Exterior Connector End View (C4224)

G07844280

Courtesy of FORD MOTOR CO.

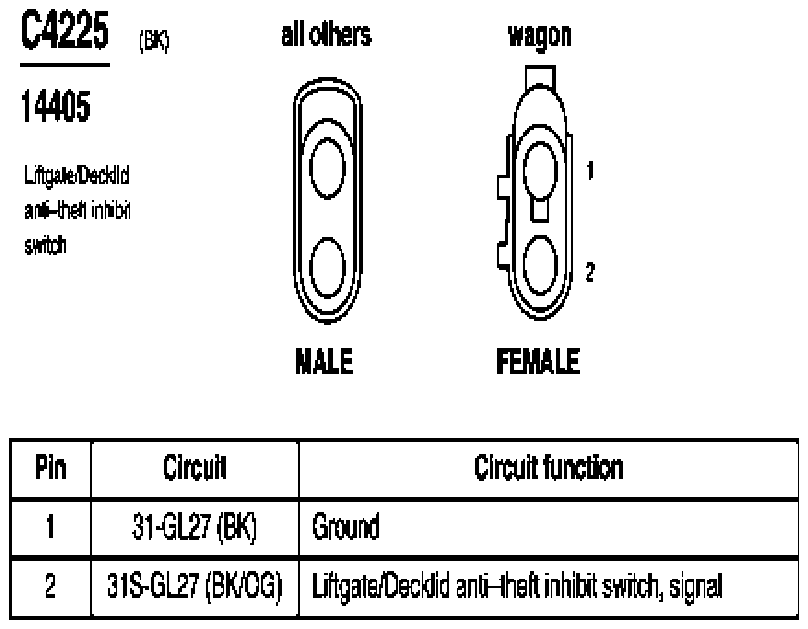

Fig 254: Liftgate/Decklid Anti-Theft Inhibit Switch Connector End View (C4225)

G07844281

Courtesy of FORD MOTOR CO.

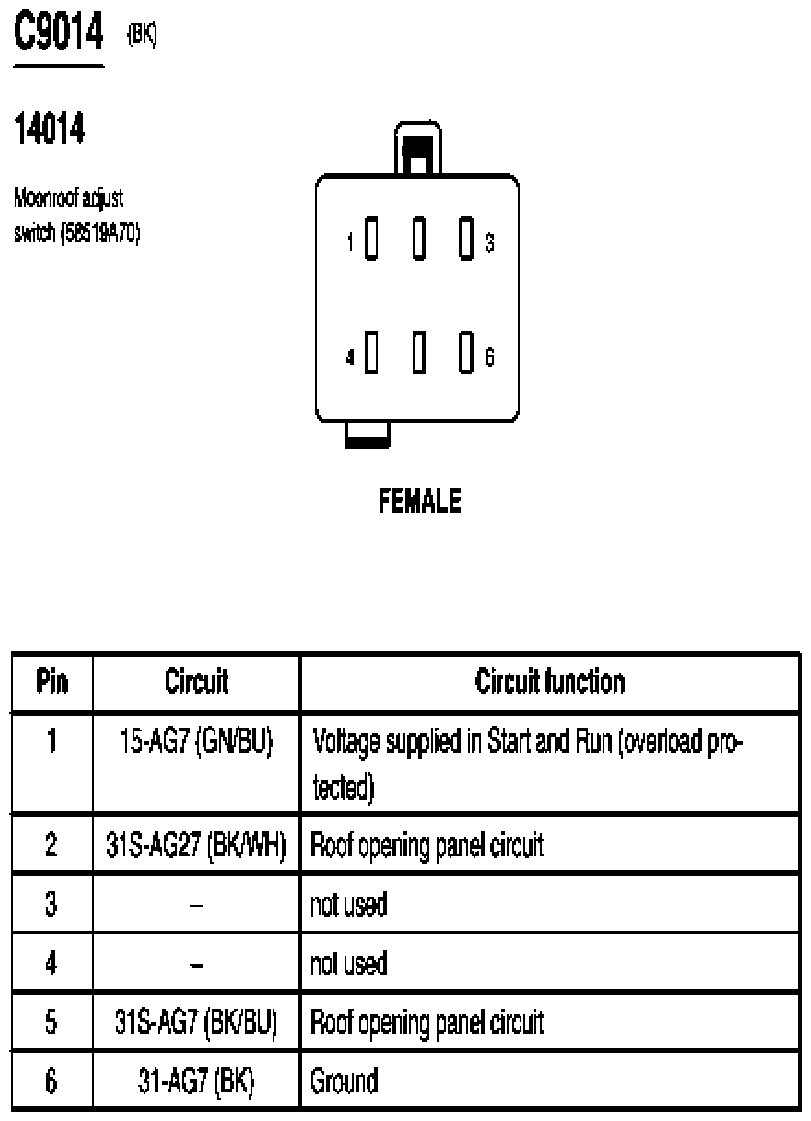

Fig 255: Moonroof Adjust Switch Connector End View (C9014)

G07844282

Courtesy of FORD MOTOR CO.

Fig 256: Roof Opening Panel Connector End View (C9015)

G03994117

Courtesy of FORD MOTOR CO.
