Clutch Controls: Notes

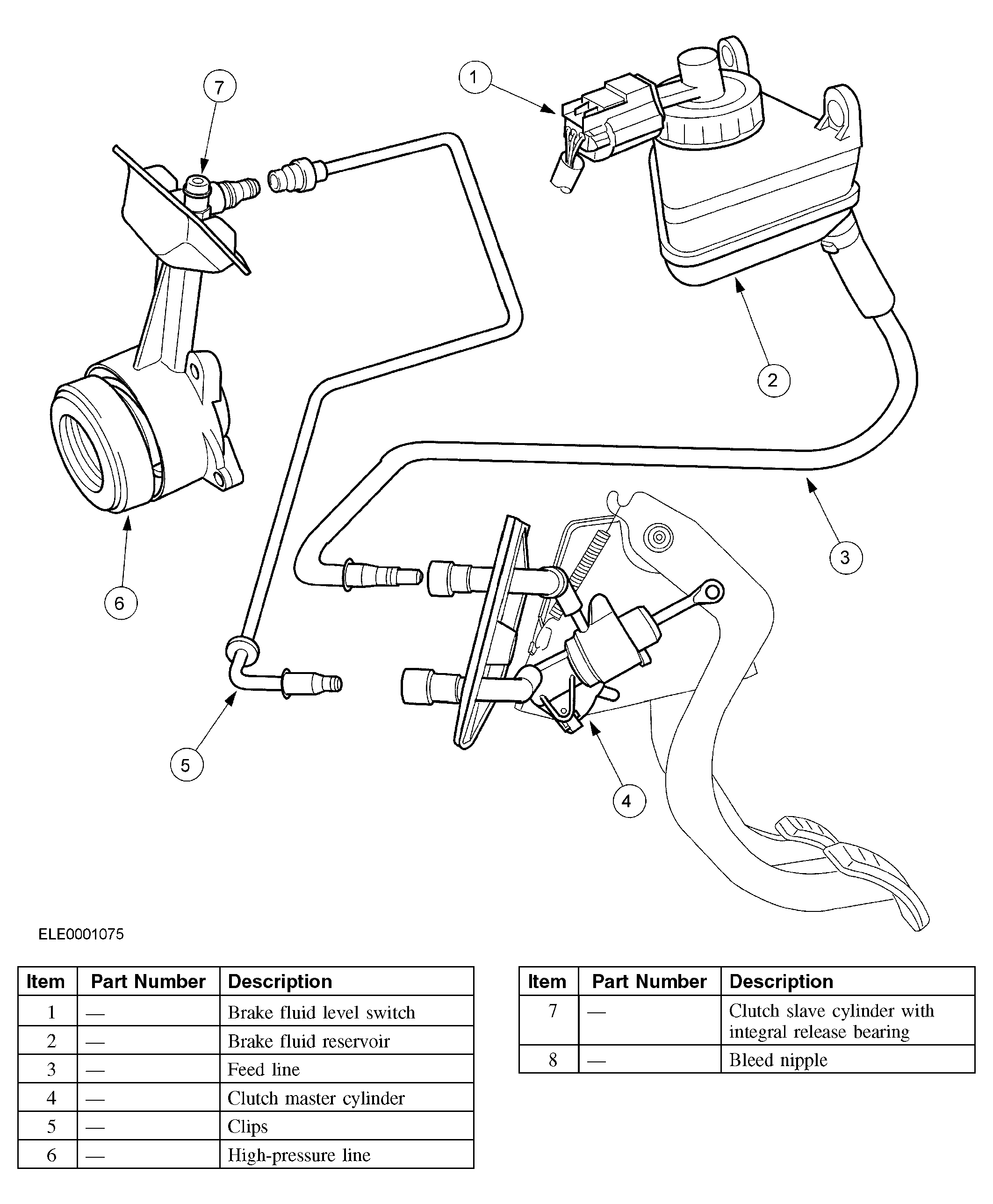

The vehicle is fitted with a hydraulic clutch system. The brake fluid reservoir with separate chamber is used to supply the system.
When the clutch pedal is depressed, pressure builds up in the clutch master cylinder and the integral release bearing in the clutch slave cylinder is actuated.
The advantages of the hydraulic clutch are:
- Automatic readjustment
- Low actuation force required
- Low-wearing
