Disassembly And Assembly Of Subassemblies: Differential: Notes

SPECIAL TOOL(S)

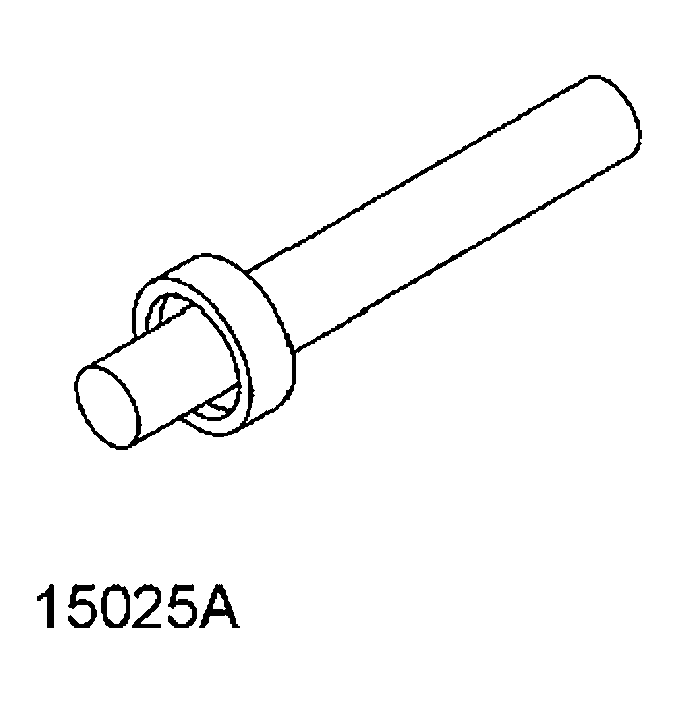

	Installer Differential Bearing 205-062 (15-025A)

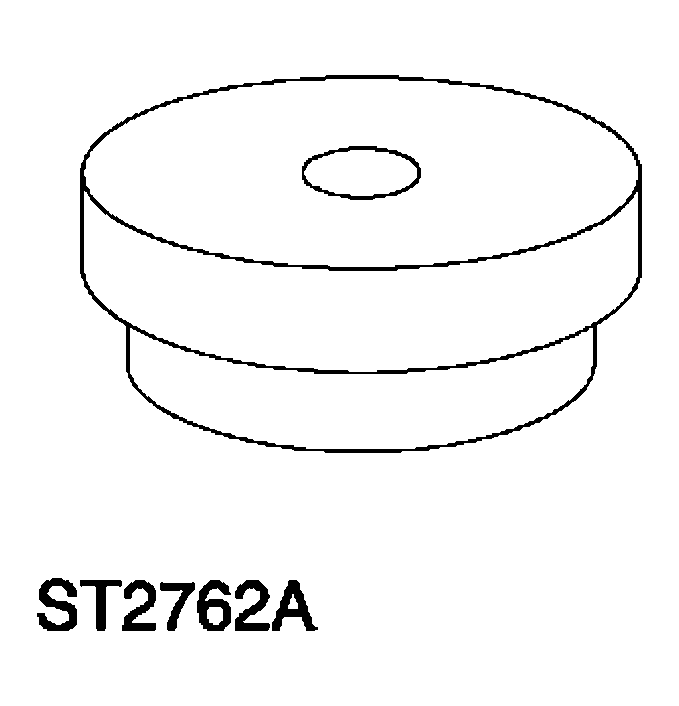

	Step Plate 205-D015 (T80L-630-4)

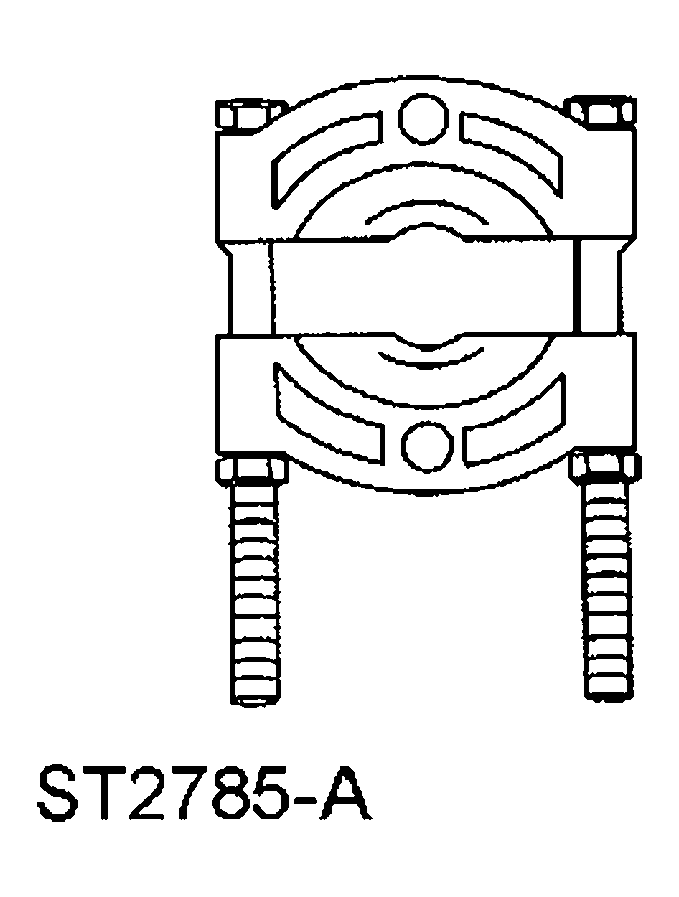

	Bearing Puller 205-D064 (D84L-1123-A) or equivalent

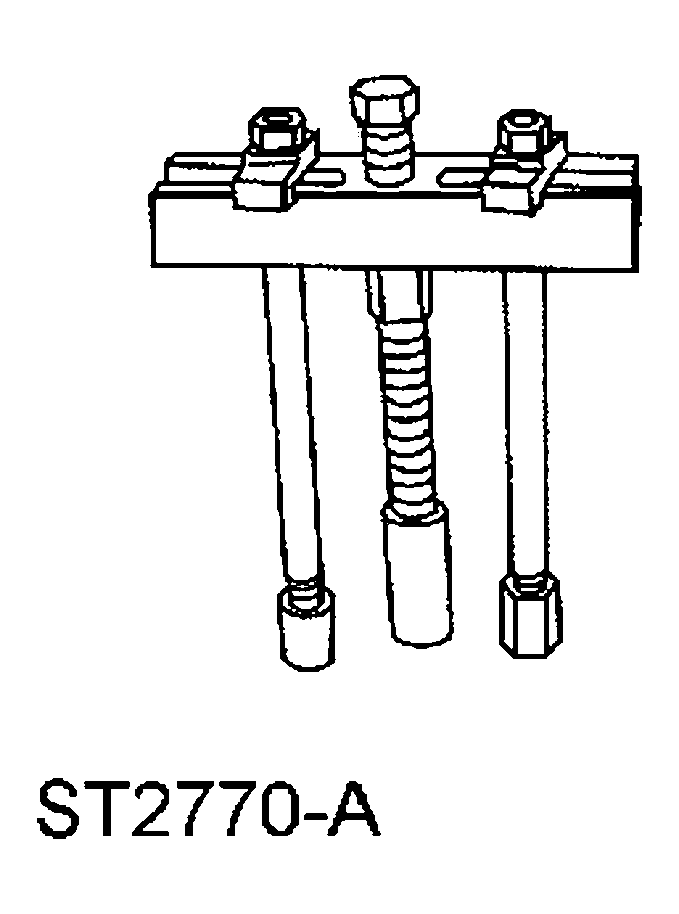

	Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C)

MATERIAL CHART

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

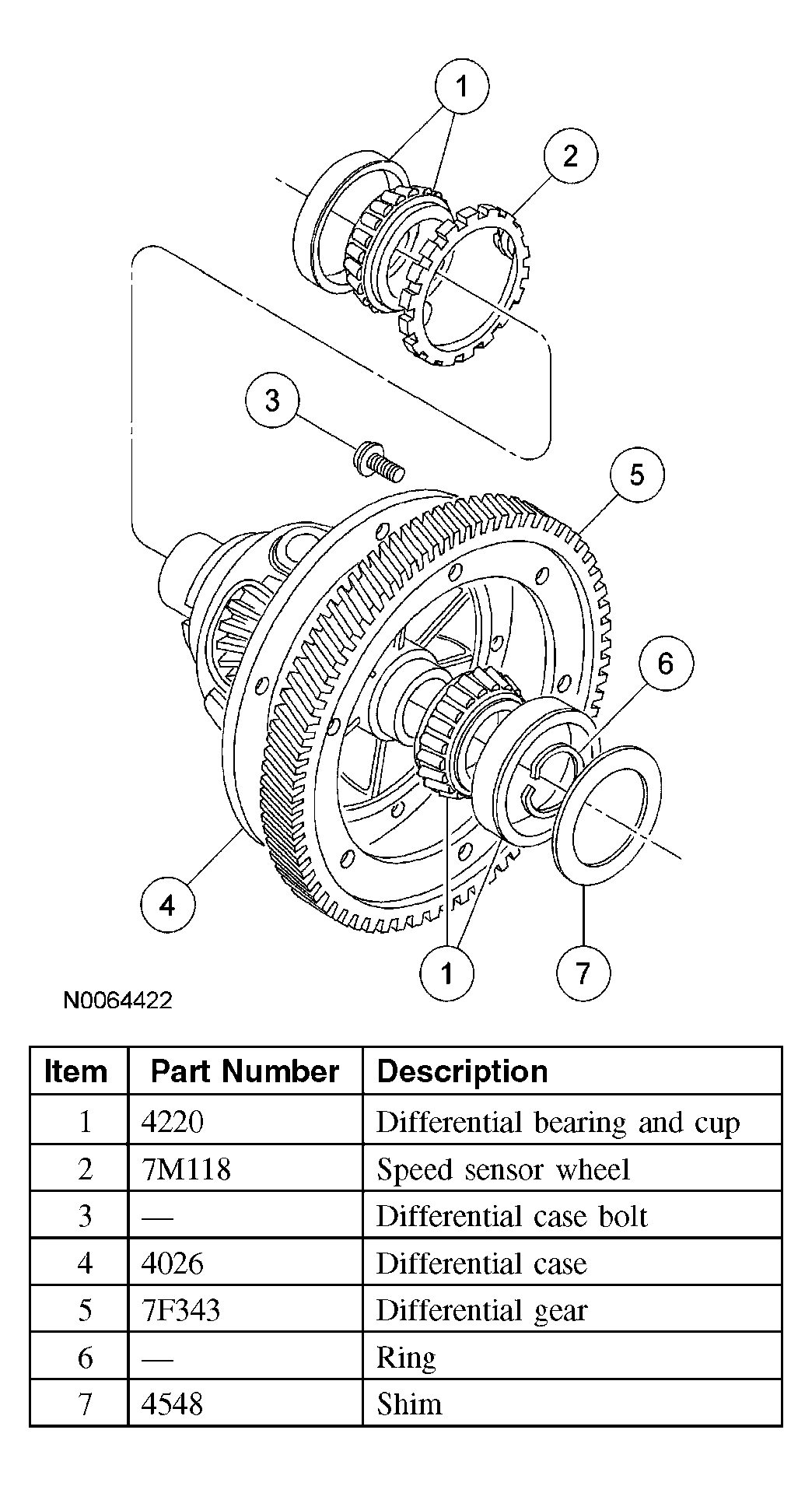

Fig 1: Identifying Differential Components

Courtesy of FORD MOTOR CO.
