Input Shaft: Notes

SPECIAL TOOL(S)

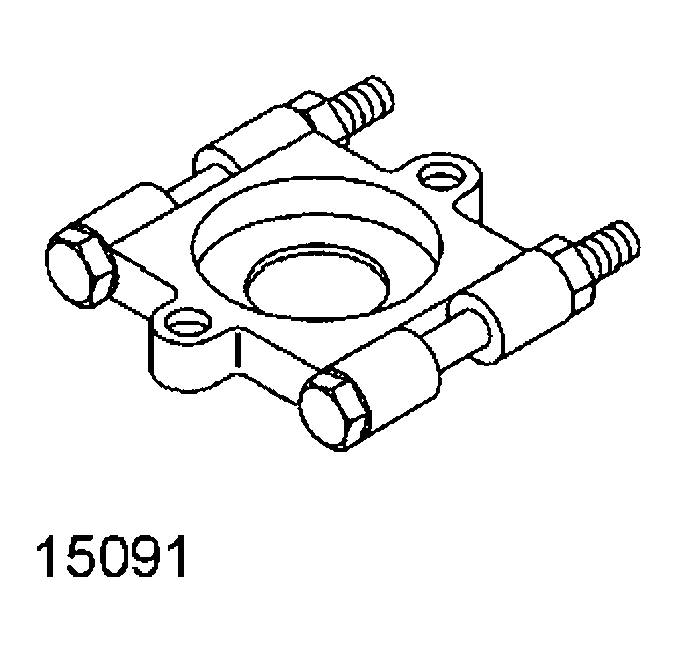

G04517326
 Remover, Bearing/Gear
205-D064 (D84L-1123-A)
MATERIAL CHART

Item Specification
Full Synthetic Manual
Transmission Fluid
XT-M5-QS		 WSD-M2C200-C

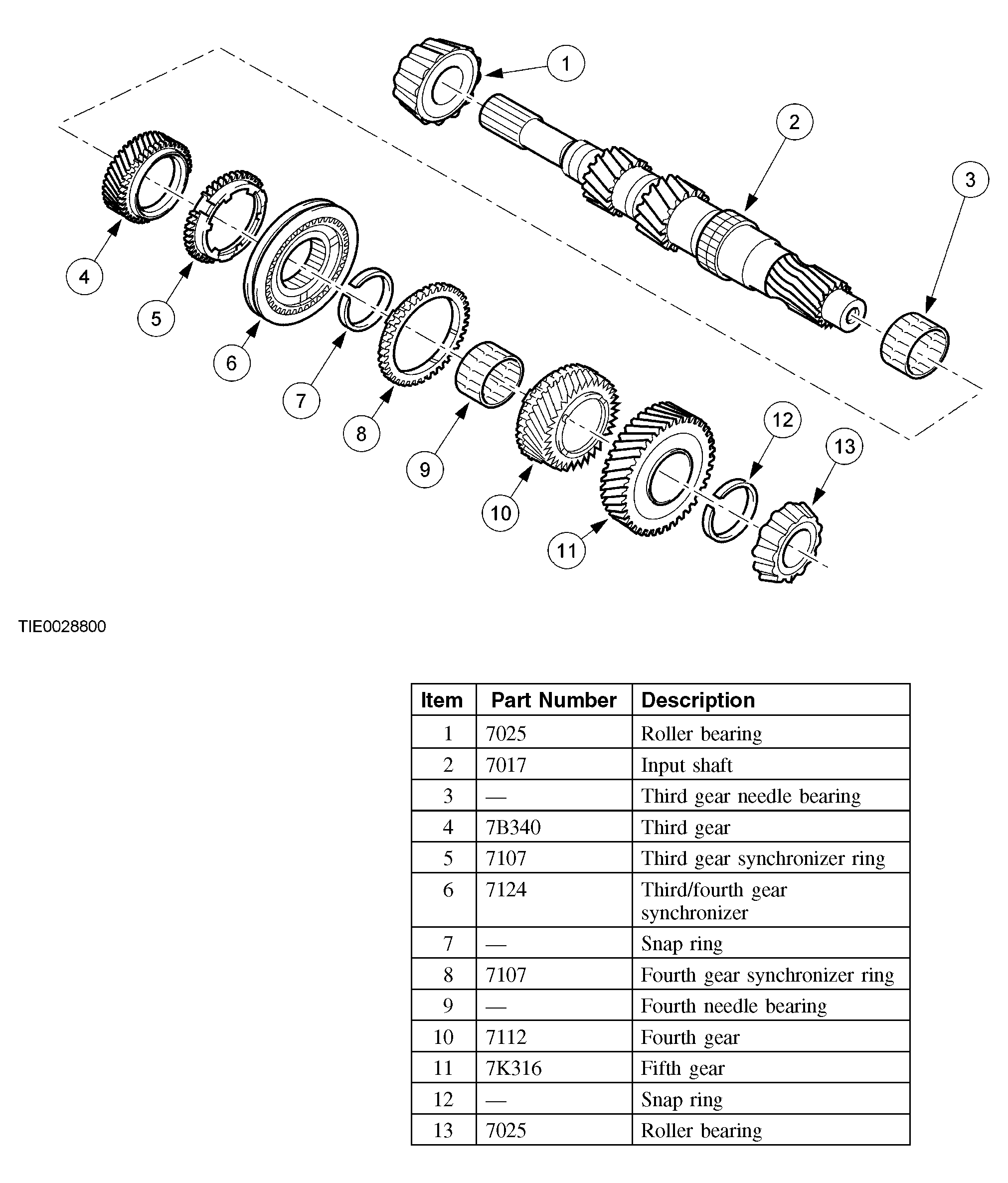

Fig 1: Exploded View Of Input Shaft
G04517327Courtesy of FORD MOTOR CO.
