Fill Procedure
MATERIAL CHART
| Item | Specification |
|---|---|
| Full Synthetic Manual Transmission Fluid XT-M5-QS |
WSD-M2C200-C |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Remove the drain plug and drain the transaxle.
- Clean and install the drain plug.

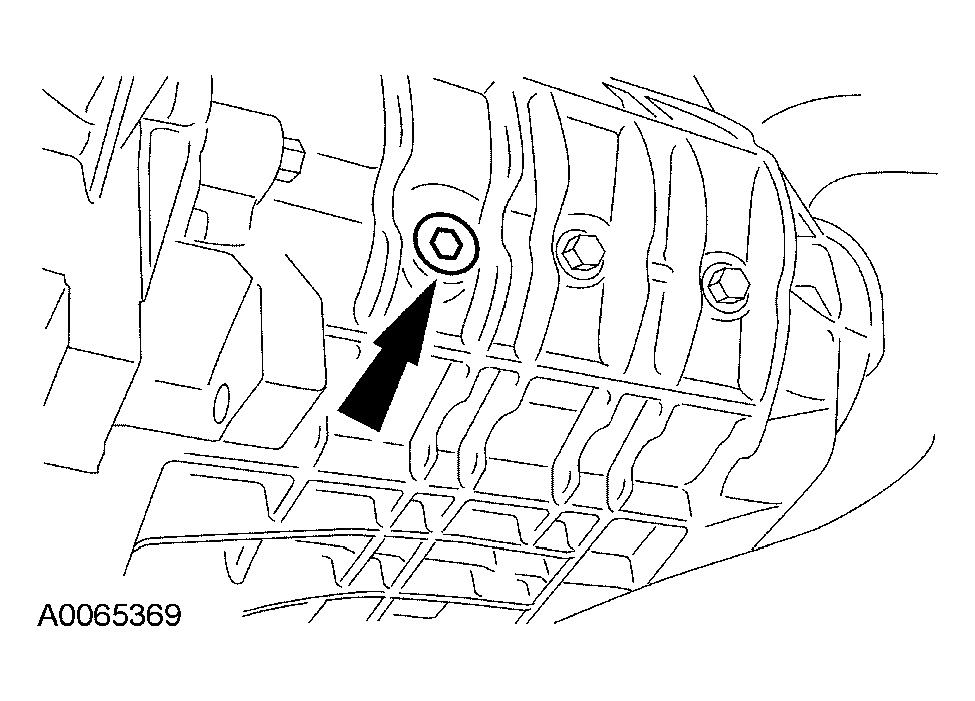

- Remove the fill plug.

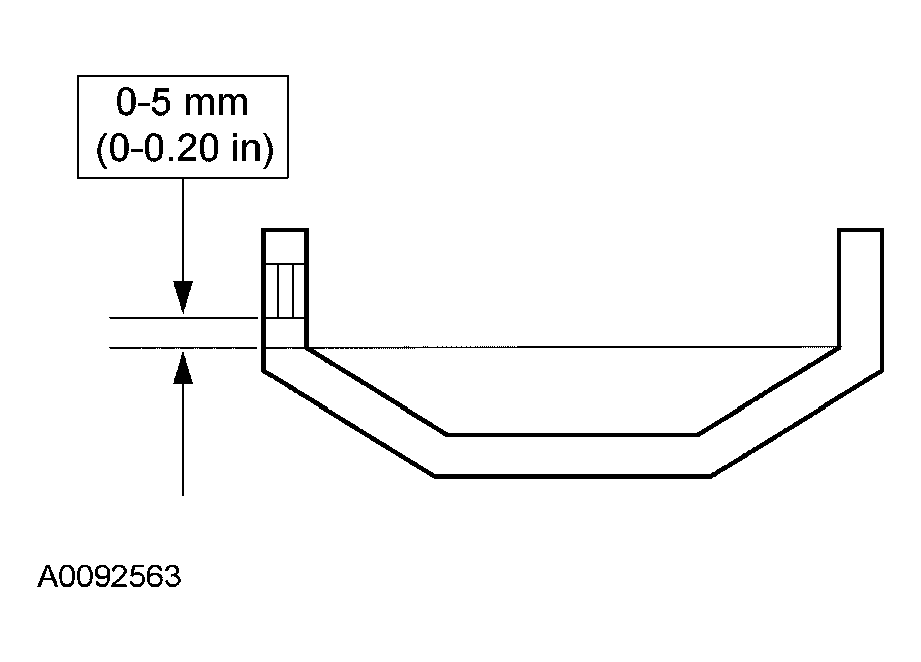

- Using a suitable oil suction gun, fill the transaxle to the correct level with the specified fluid. Transaxle fluid level: 0-5 mm below the lower edge of the filler plug bore.

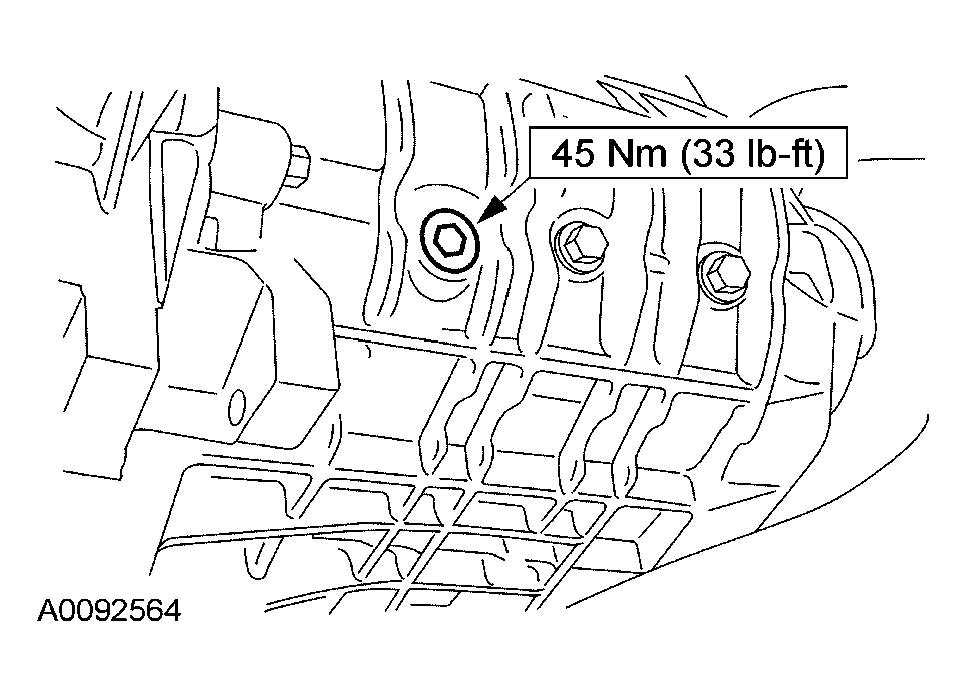

- Install the fill plug.
- Lower the vehicle.
NOTE:
Before removing, clean the area around the filler plug.
