Connector Circuit Reference

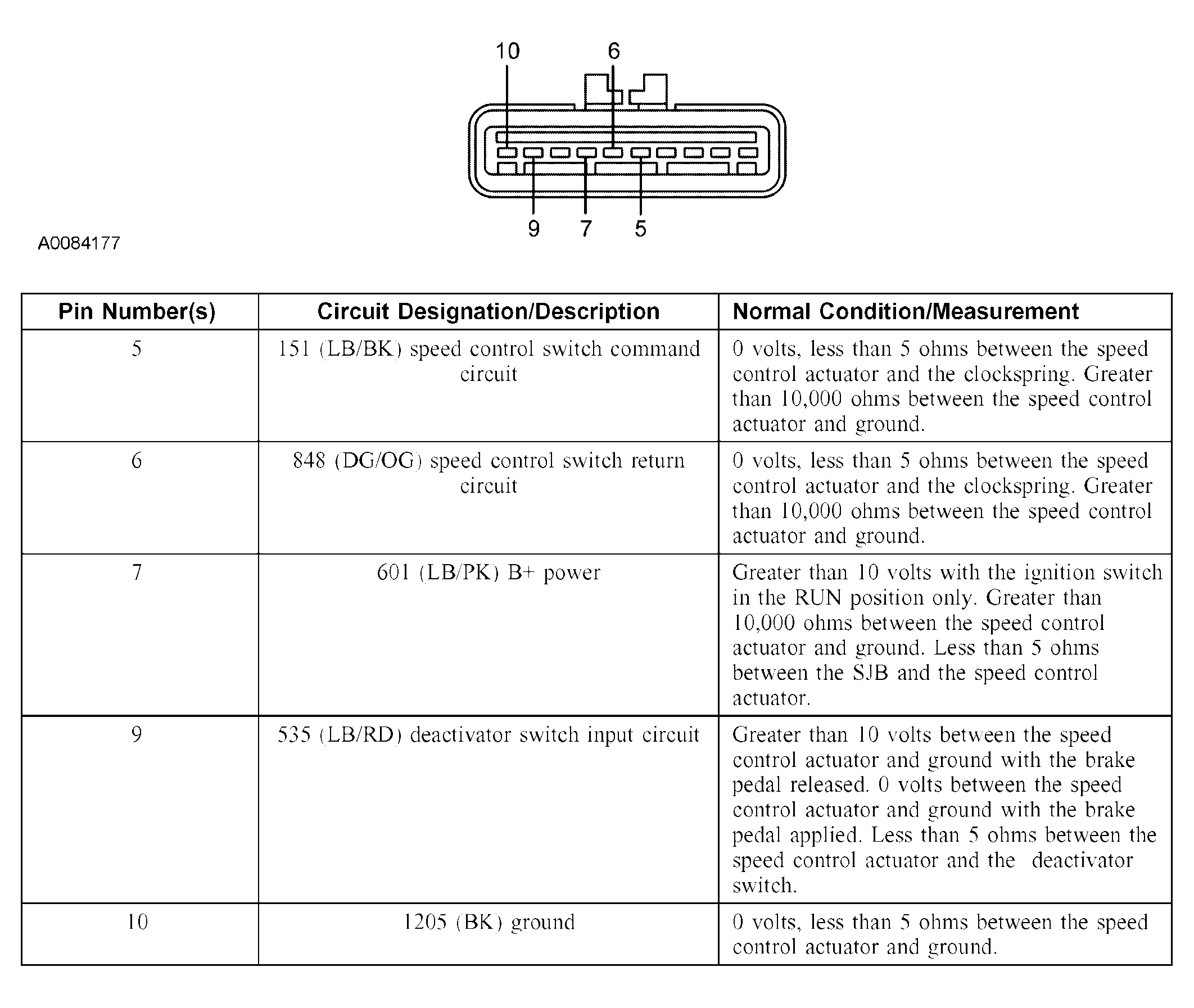

Fig 1: Identifying Speed Control Actuator C122 Connector Pins

Courtesy of FORD MOTOR CO.

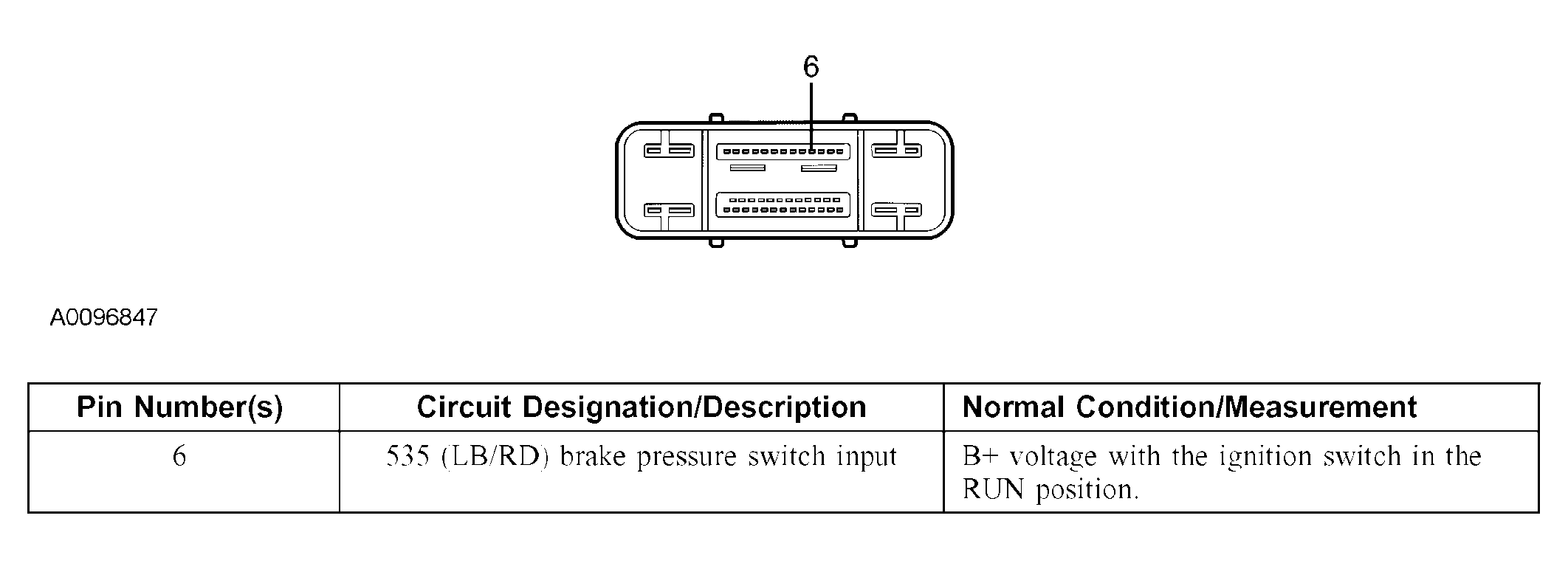

Fig 2: Identifying ABS Module C155 Connector Pins

Courtesy of FORD MOTOR CO.

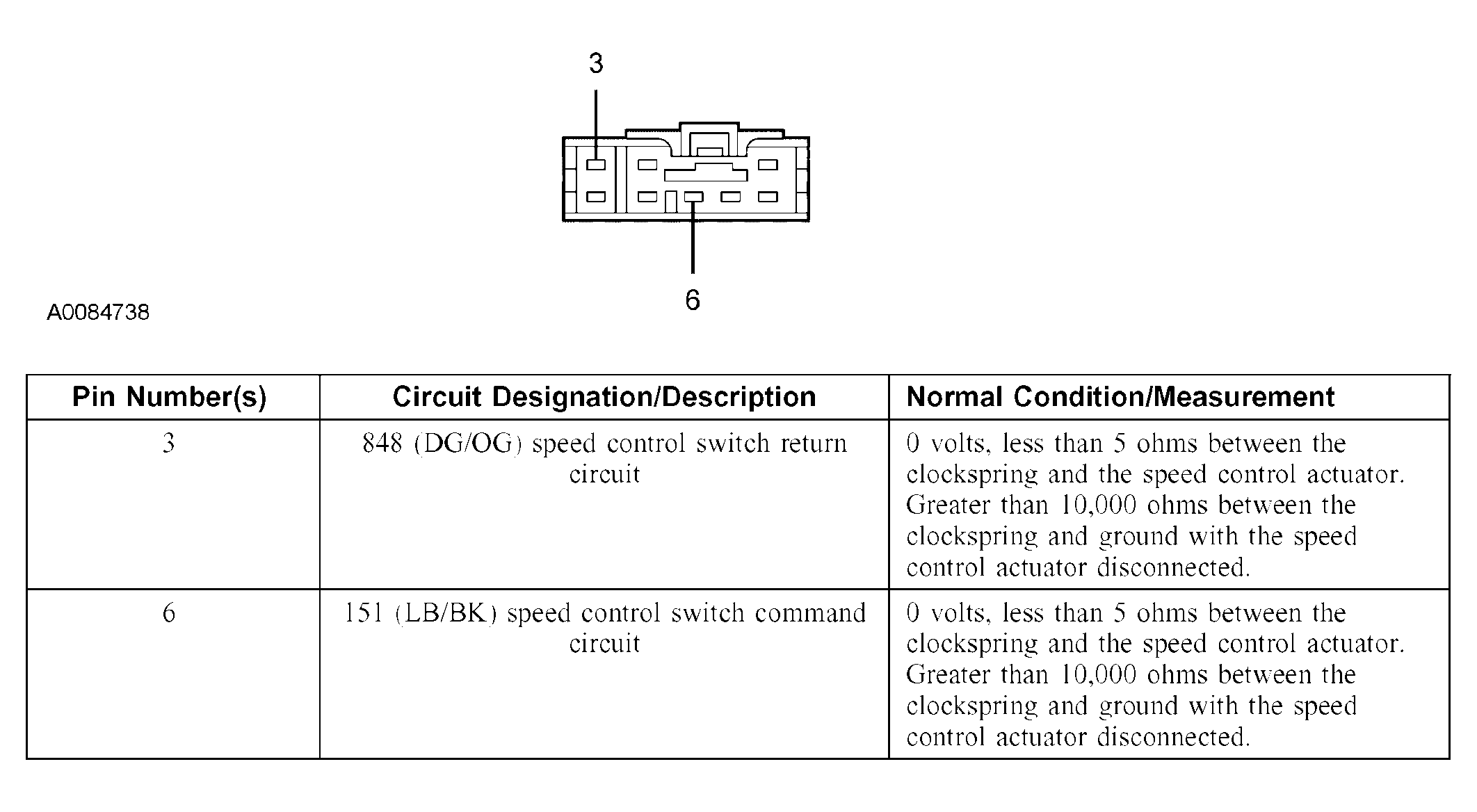

Fig 3: Identifying Clockspring C218b Connector Pins

Courtesy of FORD MOTOR CO.

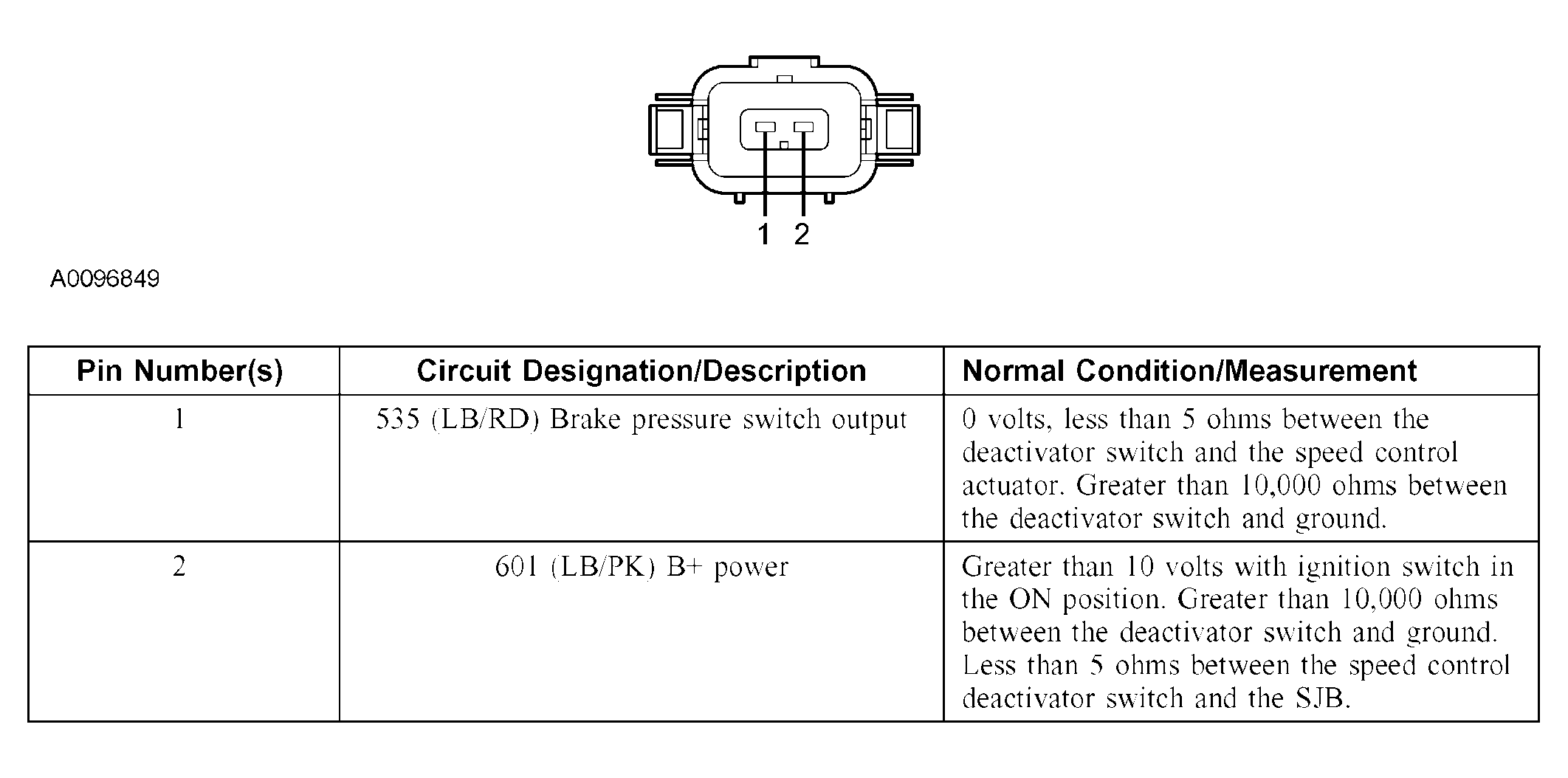

Fig 4: Identifying Speed Control Deactivator Switch C1025 Connector Pins

Courtesy of FORD MOTOR CO.

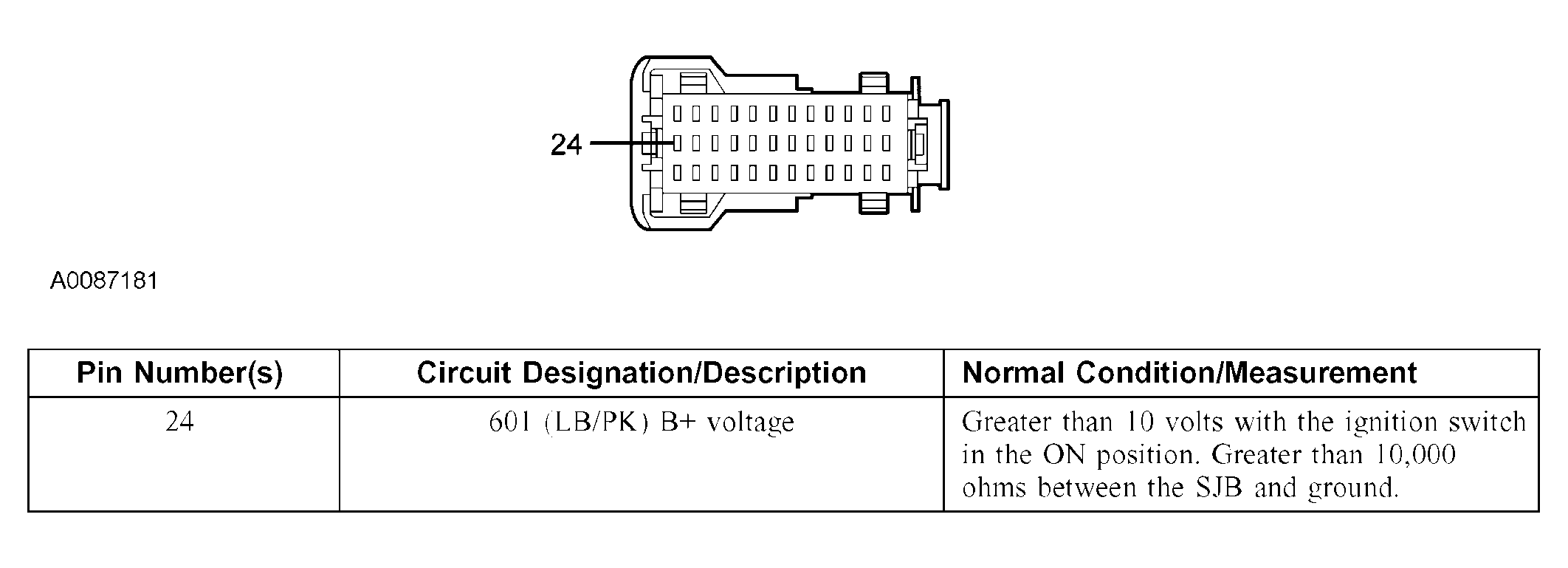

Fig 5: Identifying Smart Junction Box C2280h Connector Pins

Courtesy of FORD MOTOR CO.

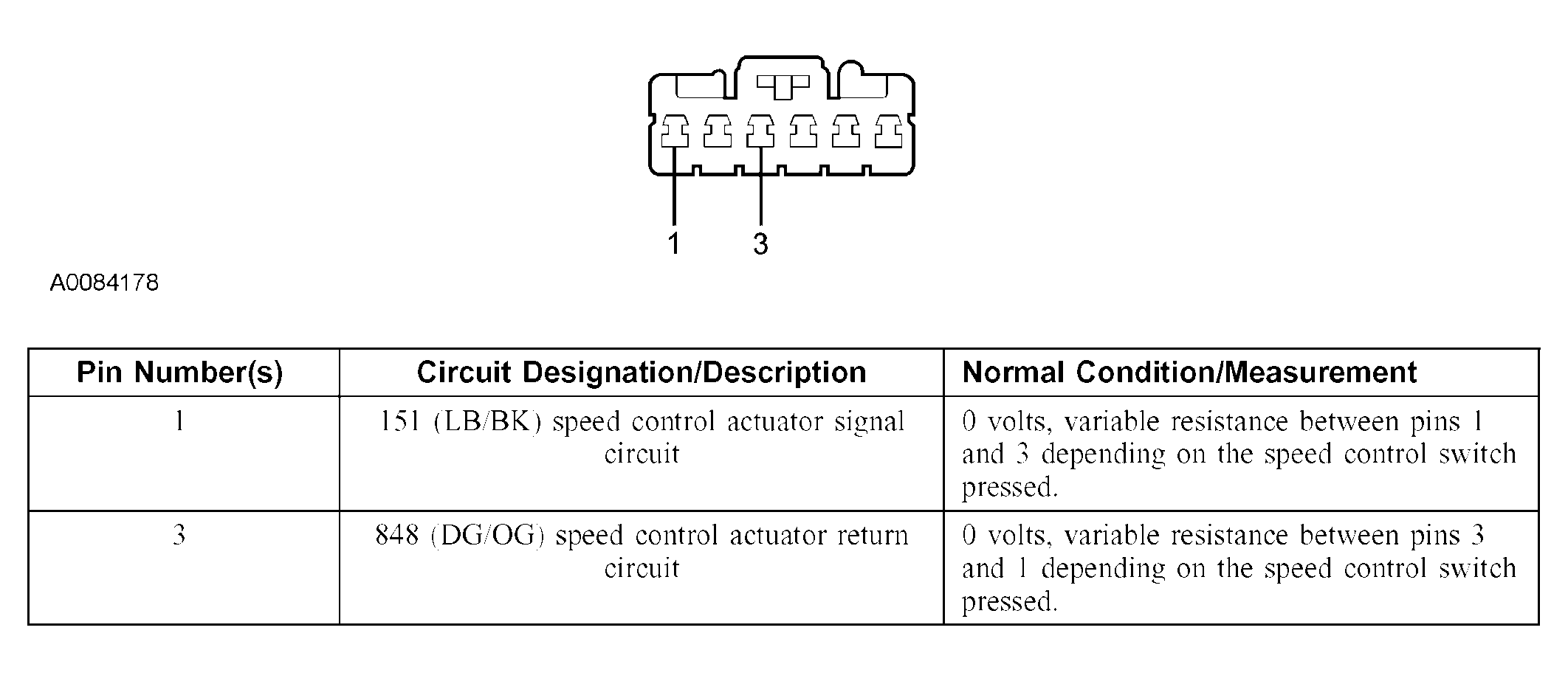

Fig 6: Identifying Horn Switch Wiring Harness Connector Pins

Courtesy of FORD MOTOR CO.
