Connector Views

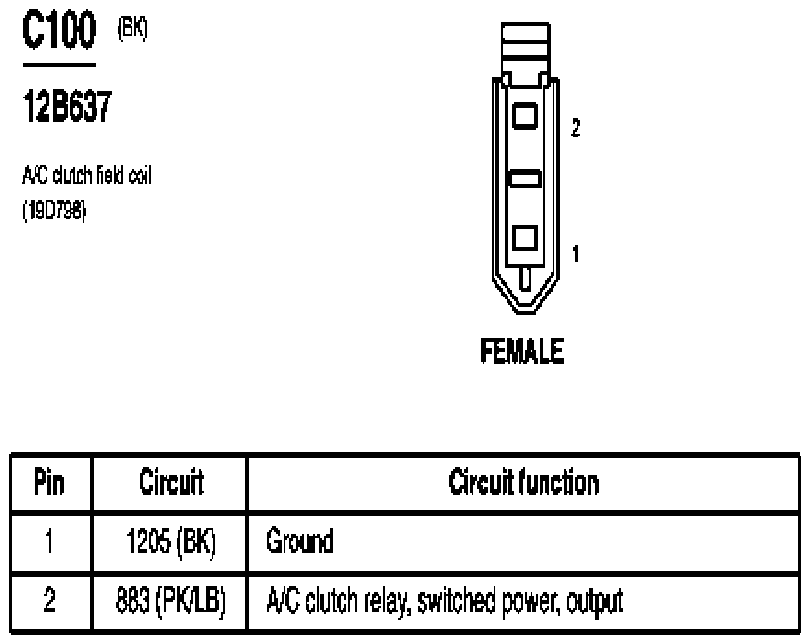

Fig 1: A/C Clutch Field Coil Connector End View (C100)
G07844283Courtesy of FORD MOTOR CO.

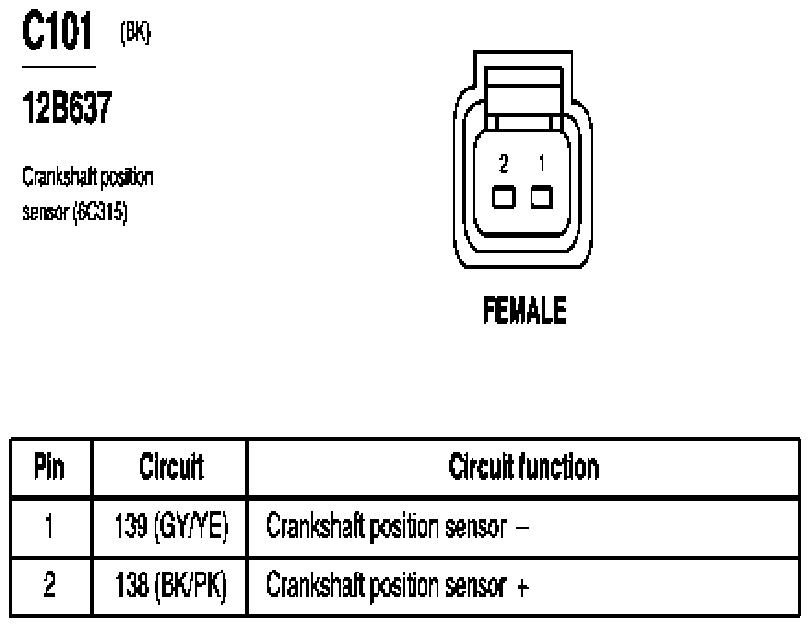

Fig 2: Crankshaft Position Sensor Connector End View (C101)
G07844284Courtesy of FORD MOTOR CO.

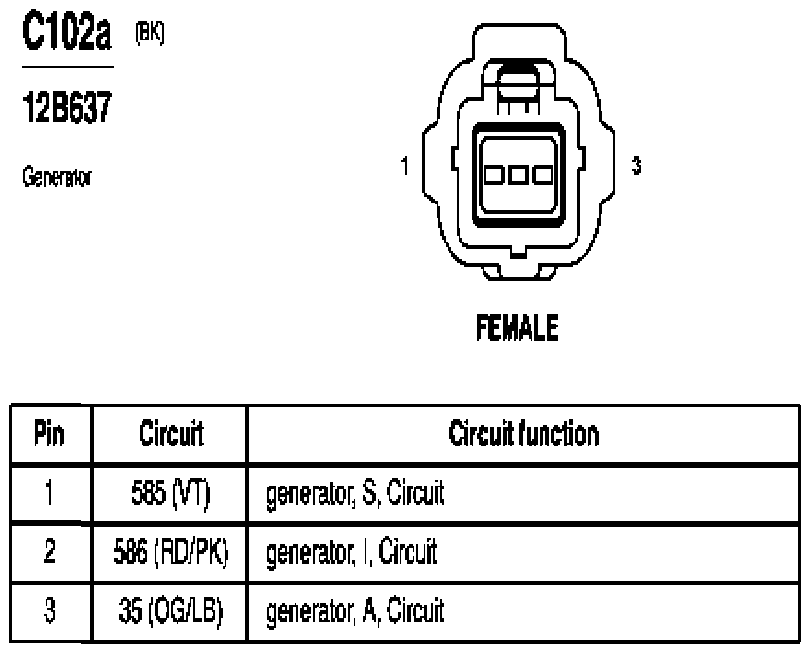

Fig 3: Generator Connector End View (C102a)
G07844285Courtesy of FORD MOTOR CO.

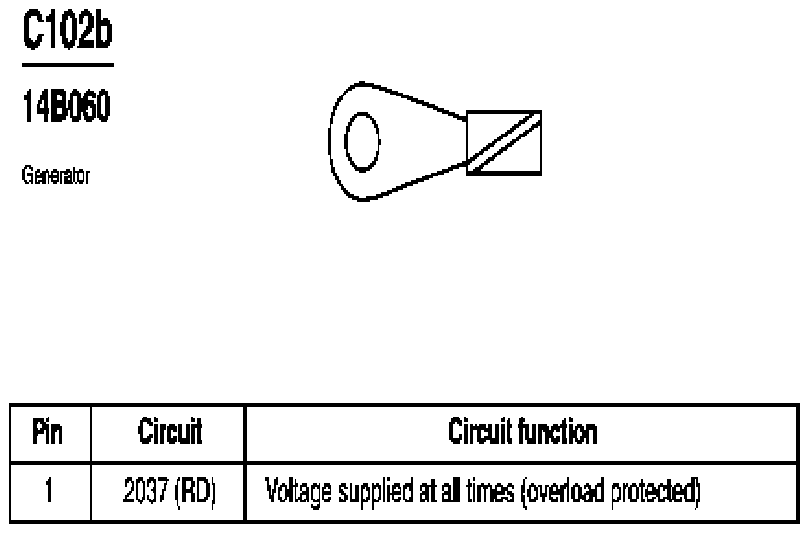

Fig 4: Generator Connector End View (C102b)
G07844286Courtesy of FORD MOTOR CO.

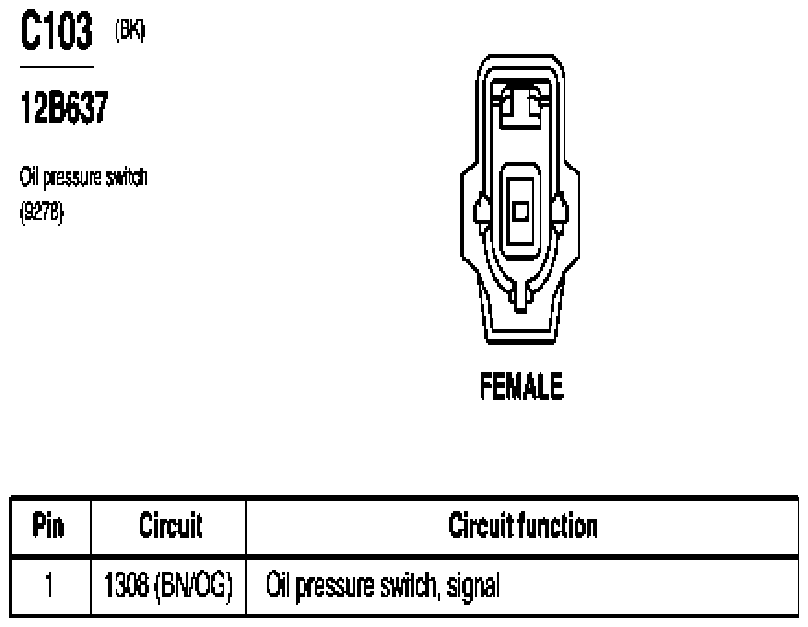

Fig 5: Oil Pressure Switch Connector End View (C103)
G07844287Courtesy of FORD MOTOR CO.

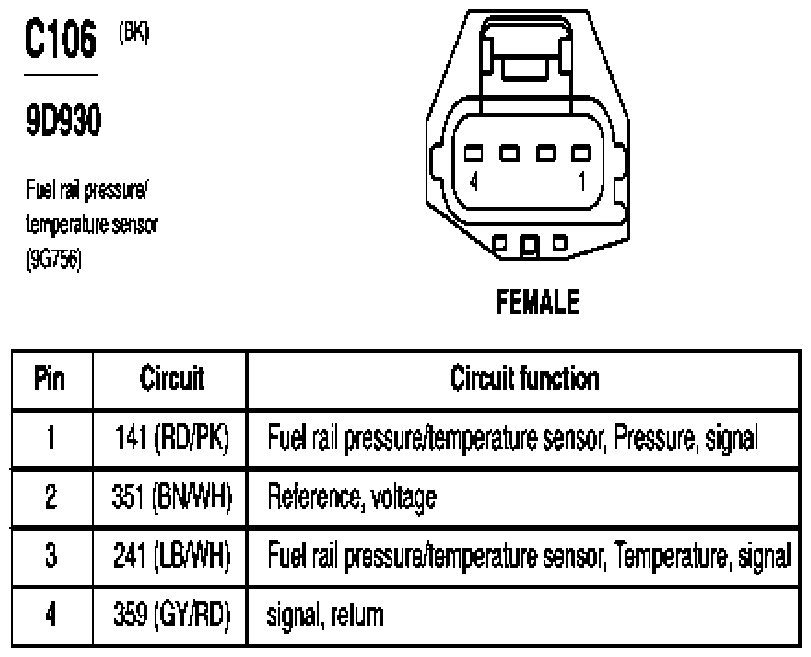

Fig 6: Fuel Rail Pressure/Temperature Sensor Connector End View (C106)
G07844288Courtesy of FORD MOTOR CO.

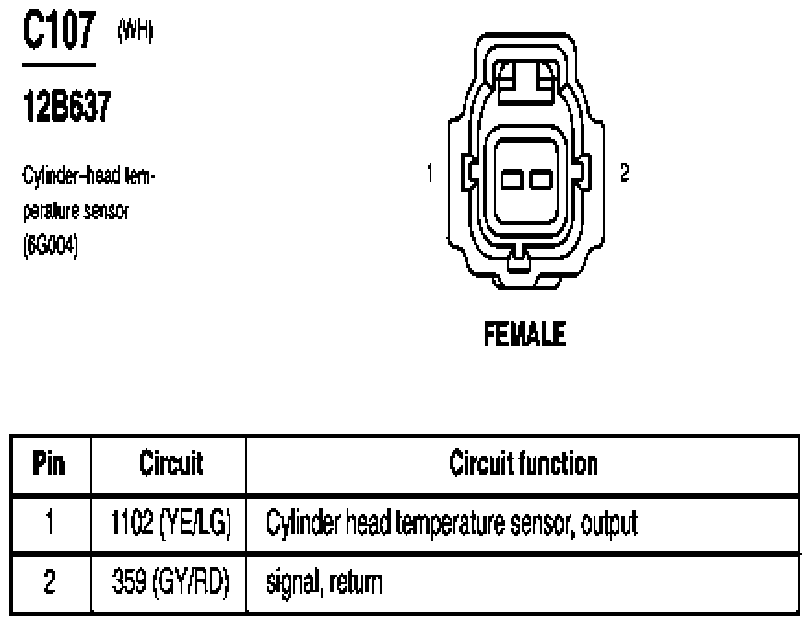

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)
G07844289Courtesy of FORD MOTOR CO.

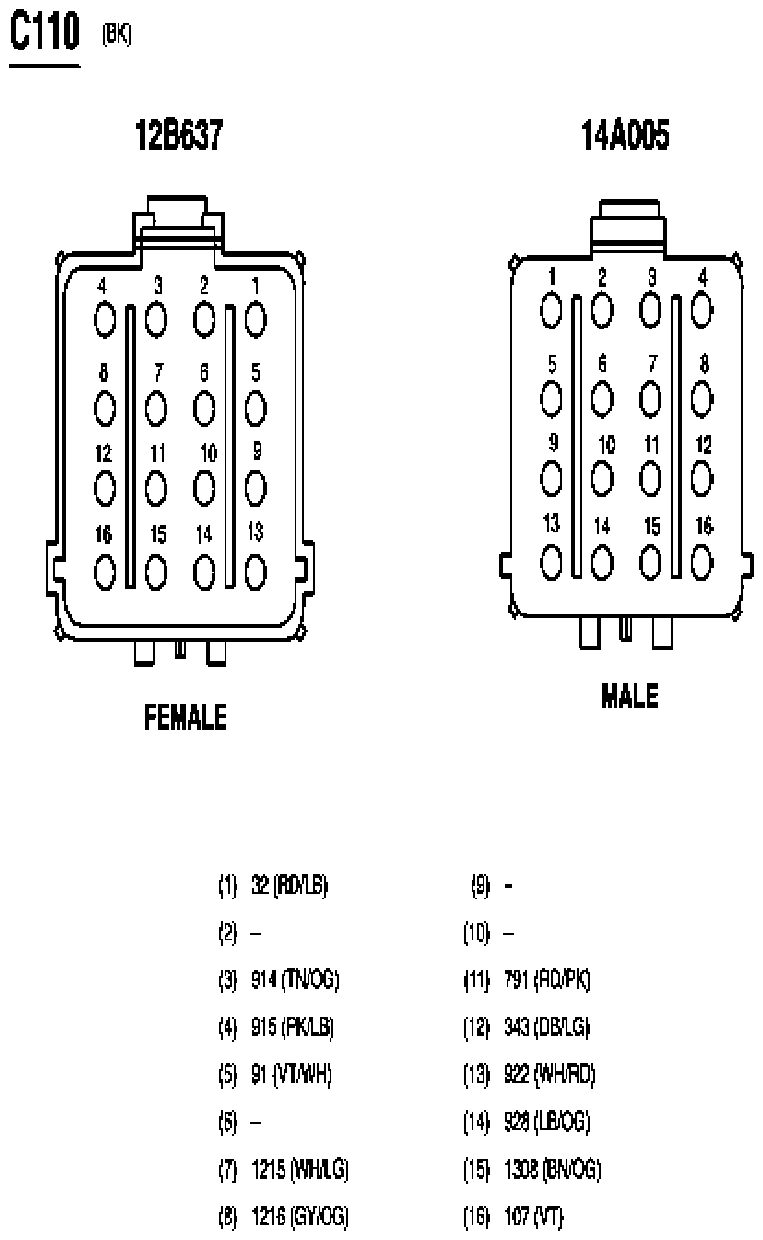

Fig 8: Inline Connector End View (C110)
G07844290Courtesy of FORD MOTOR CO.

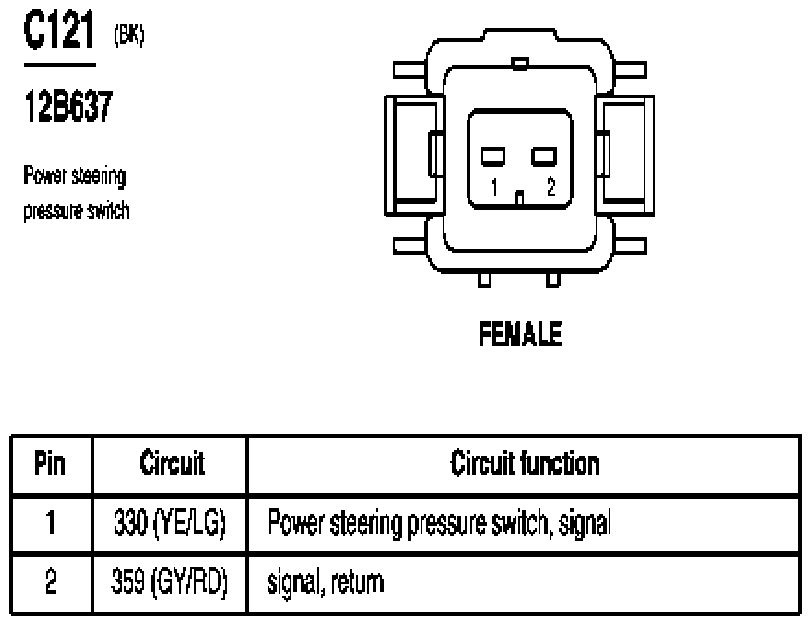

Fig 9: Power Steering Pressure Switch Connector End View (C121)
G07844291Courtesy of FORD MOTOR CO.

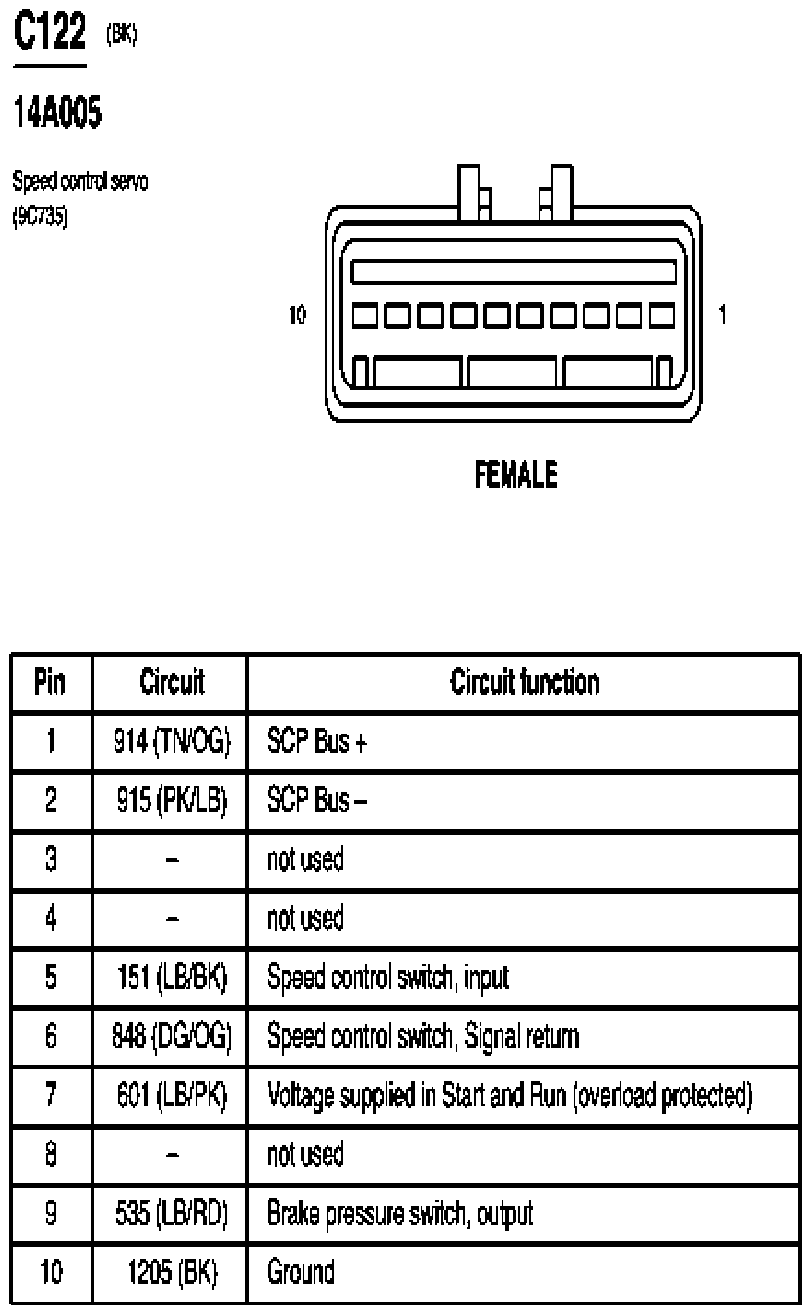

Fig 10: Speed Control Servo Connector End View (C122)
G07844292Courtesy of FORD MOTOR CO.

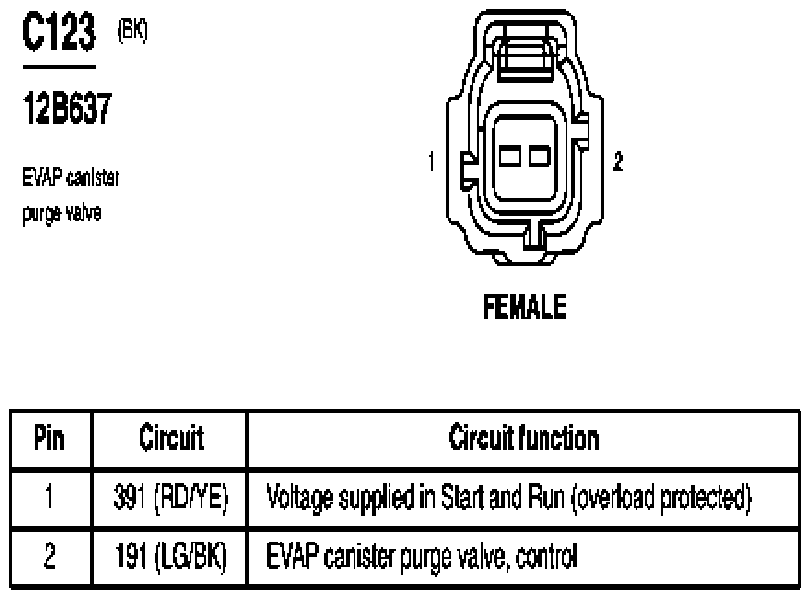

Fig 11: EVAP Canister Purge Valve Connector End View (C123)
G07844293Courtesy of FORD MOTOR CO.

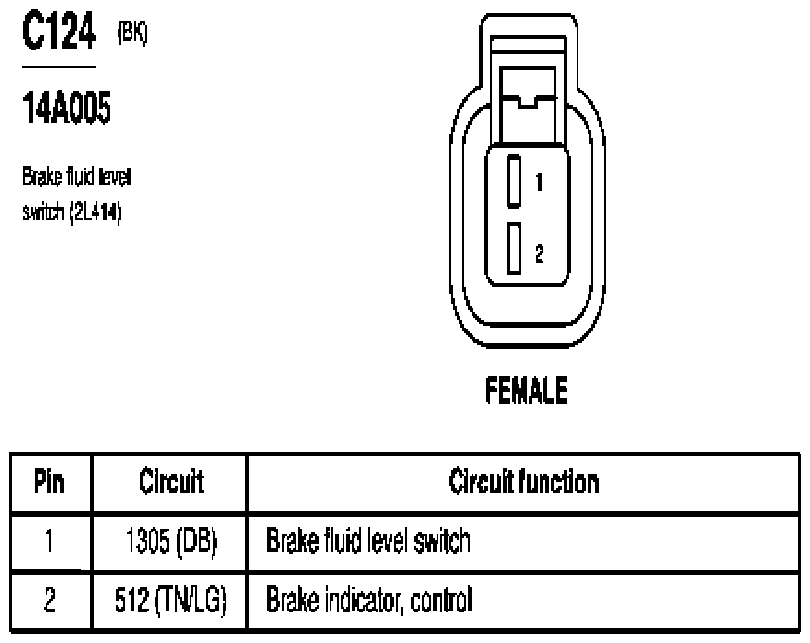

Fig 12: Brake Fluid Level Switch Connector End View (C124)
G07844294Courtesy of FORD MOTOR CO.

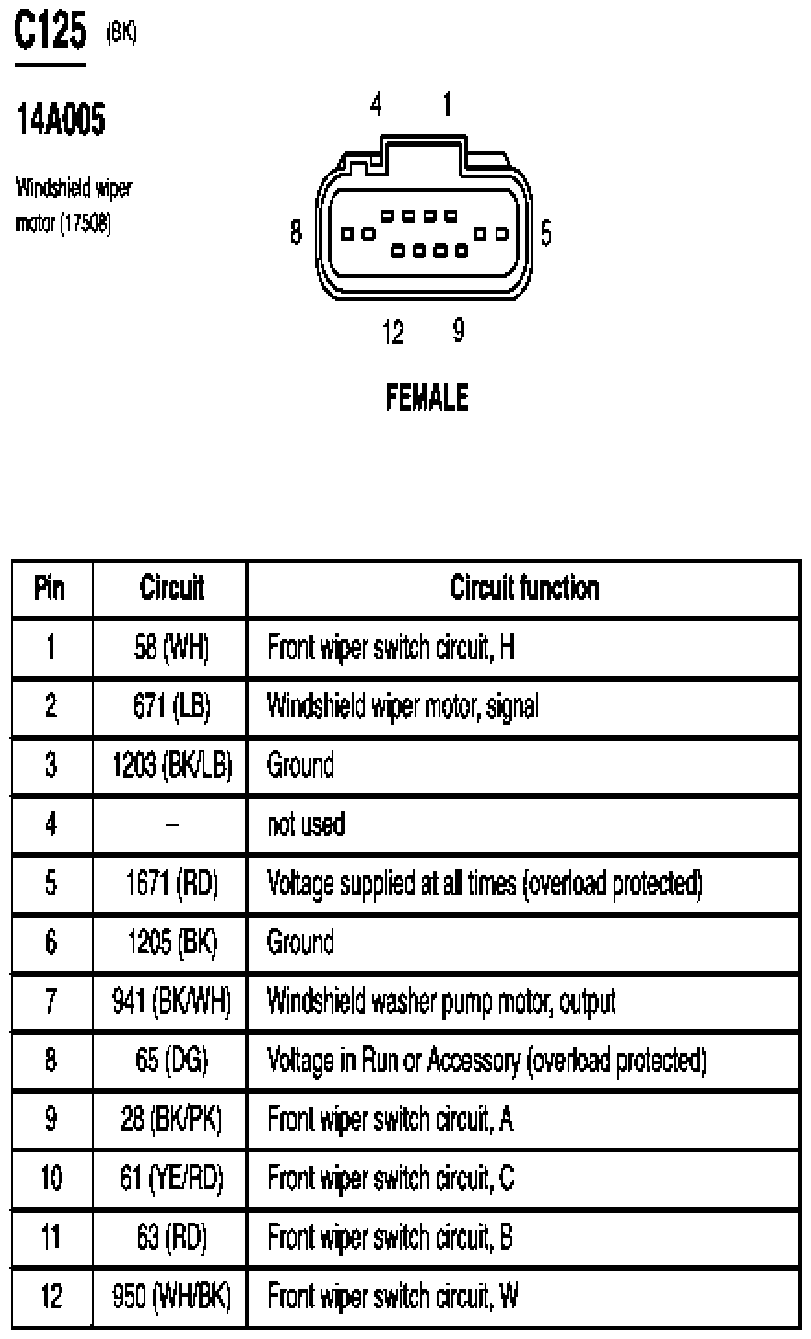

Fig 13: Windshield Wiper Motor Connector End View (C125)
G07844295Courtesy of FORD MOTOR CO.

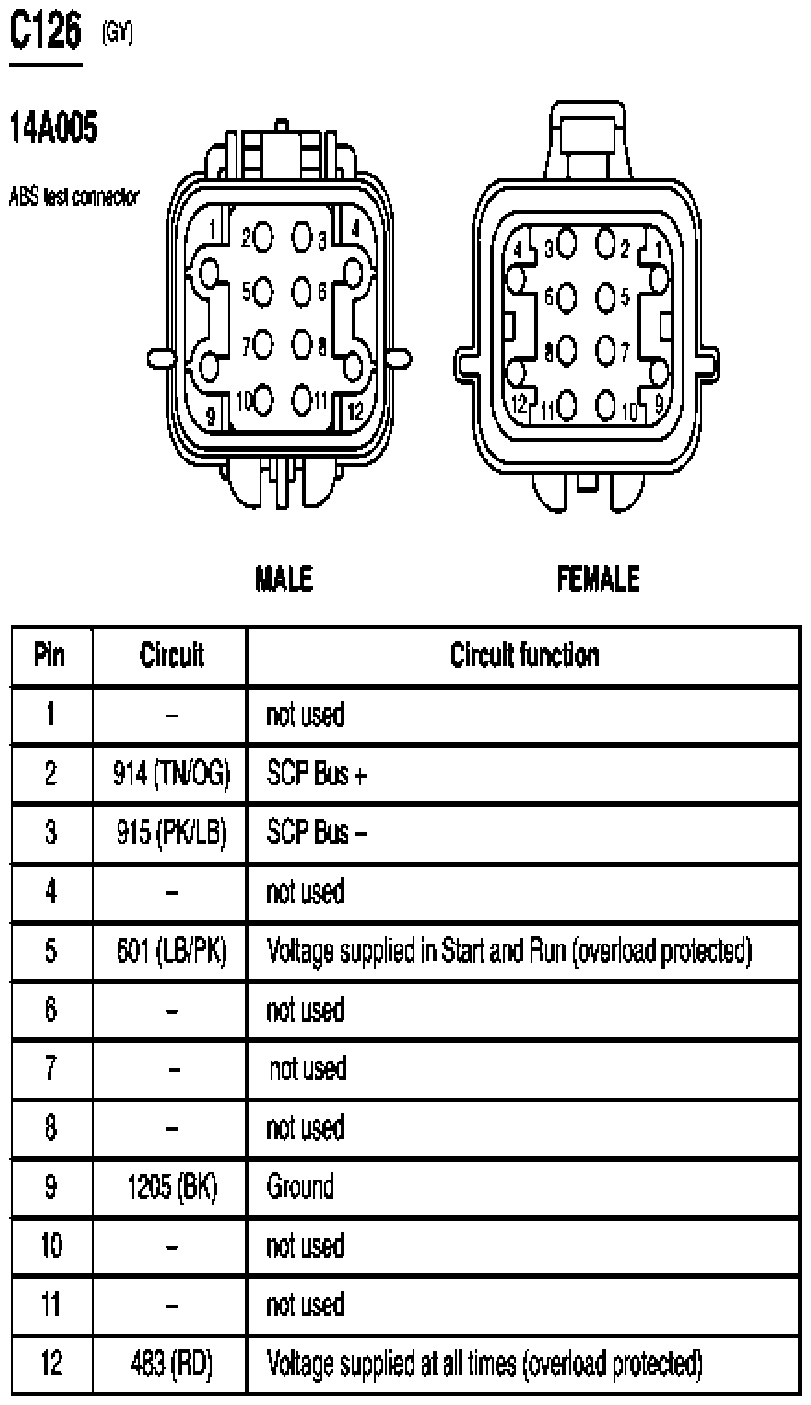

Fig 14: ABS Test Connector End View (C126)
G07844296Courtesy of FORD MOTOR CO.

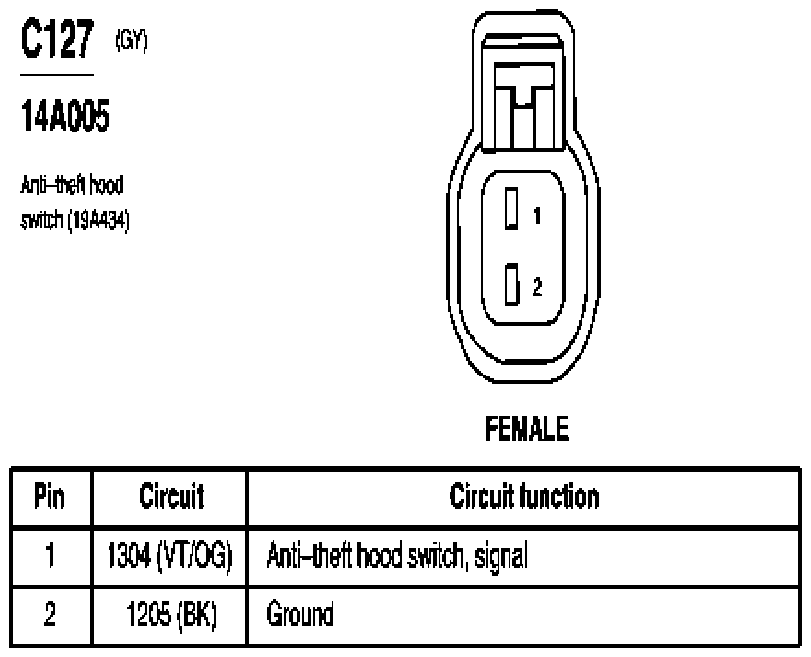

Fig 15: Anti-Theft Hood Switch Connector End View (C127)
G07844297Courtesy of FORD MOTOR CO.

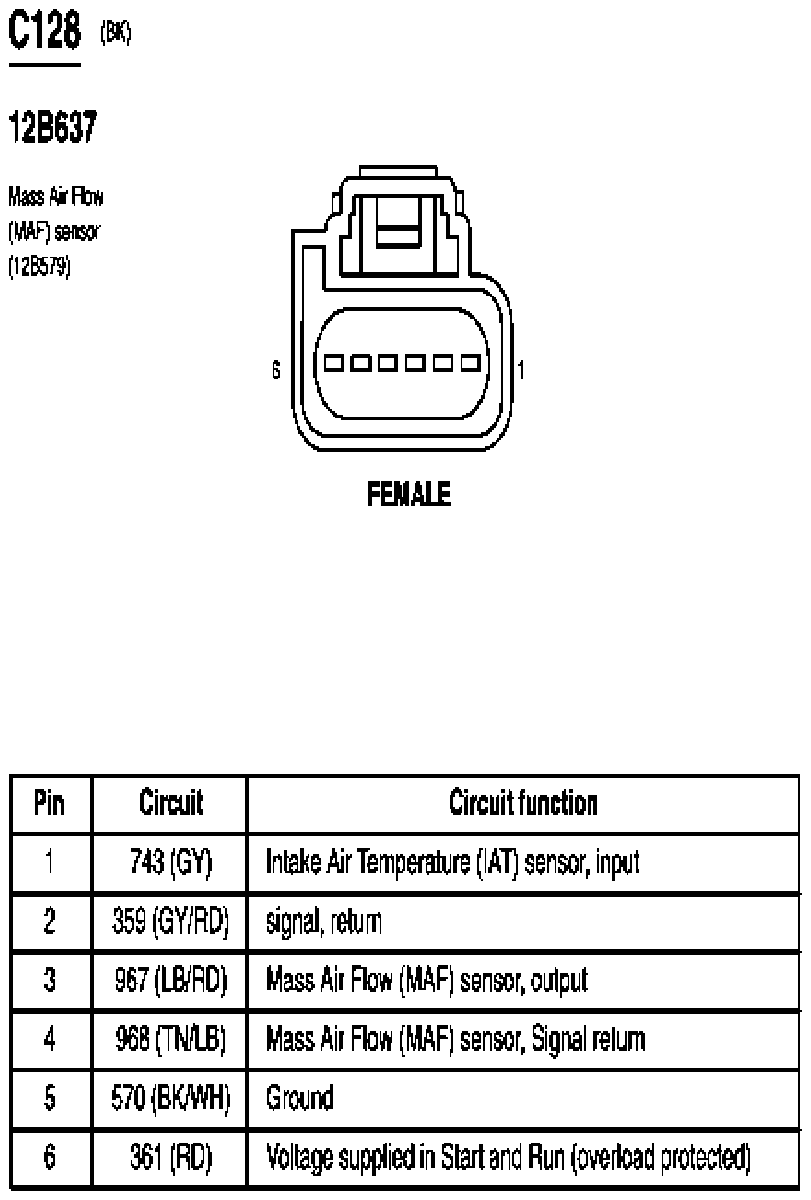

Fig 16: Mass Air Flow (MAF) Sensor Connector End View (C128)
G07844298Courtesy of FORD MOTOR CO.

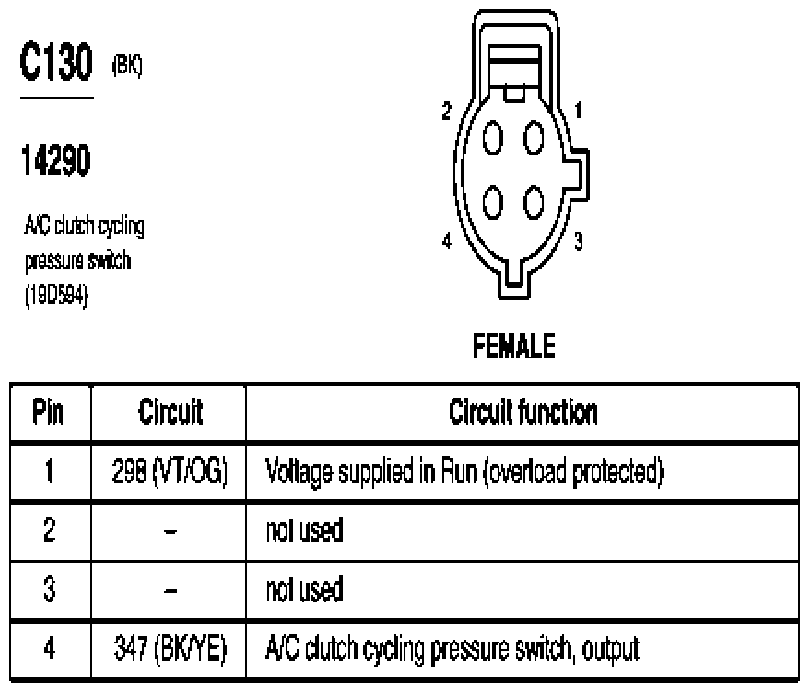

Fig 17: A/C Clutch Cycling Pressure Switch Connector End View (C130)
G07844299Courtesy of FORD MOTOR CO.

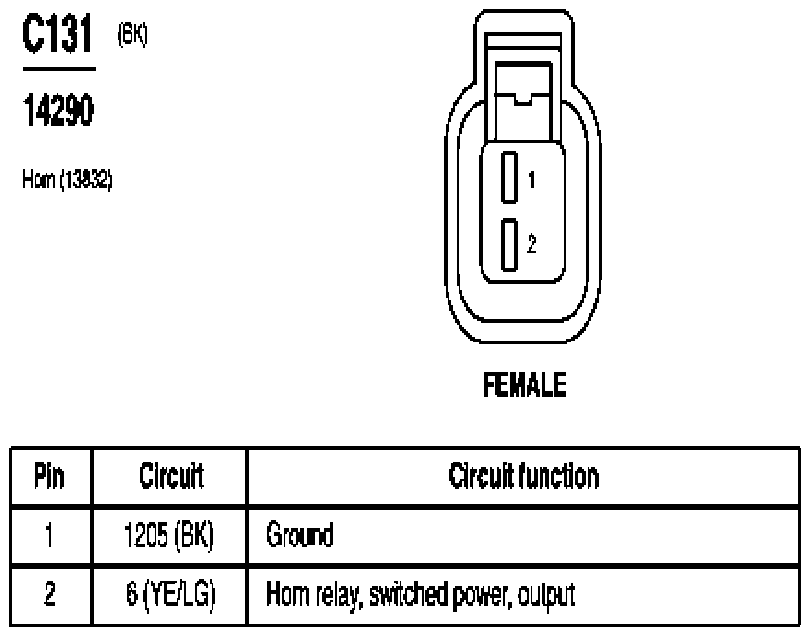

Fig 18: Horn Connector End View (C131)
G07844300Courtesy of FORD MOTOR CO.

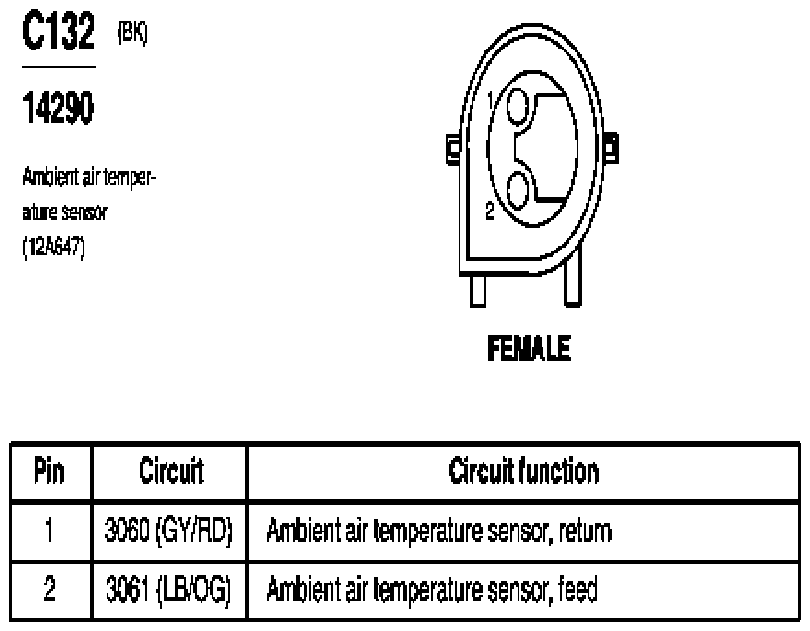

Fig 19: Ambient Air Temperature Sensor Connector End View (C132)
G07844301Courtesy of FORD MOTOR CO.

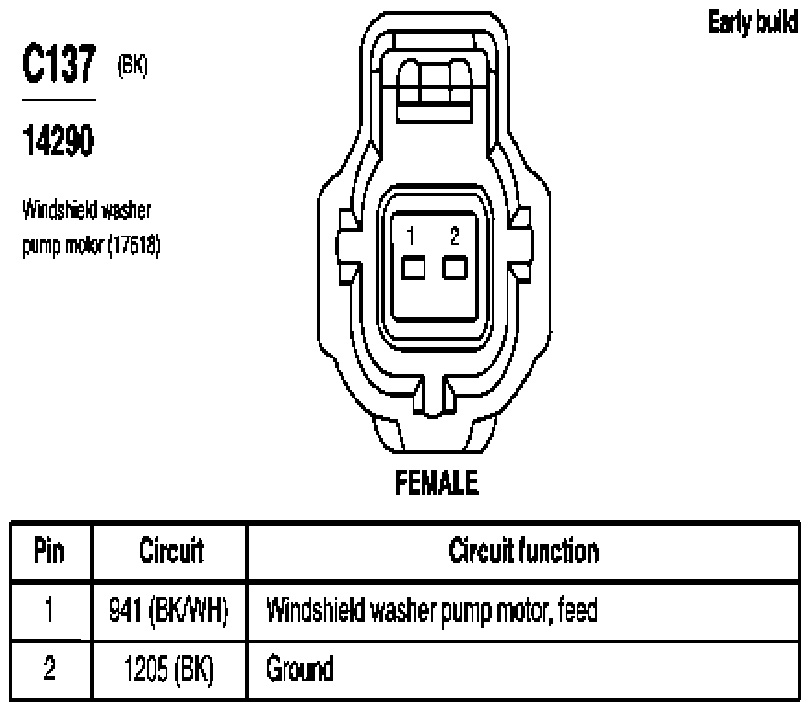

Fig 20: Windshield Washer Pump Motor Connector End View (C137)
G07844302Courtesy of FORD MOTOR CO.

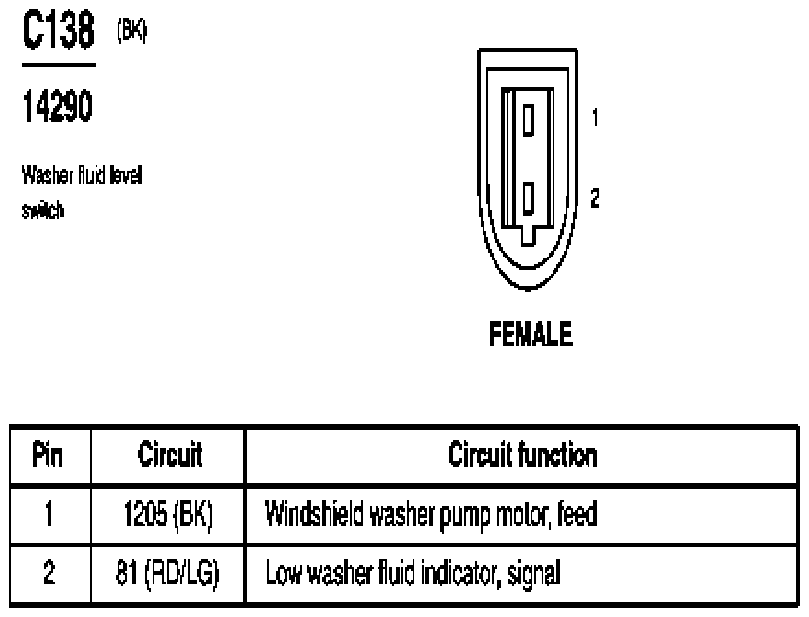

Fig 21: Washer Fluid Level Switch Connector End View (C138)
G07844303Courtesy of FORD MOTOR CO.

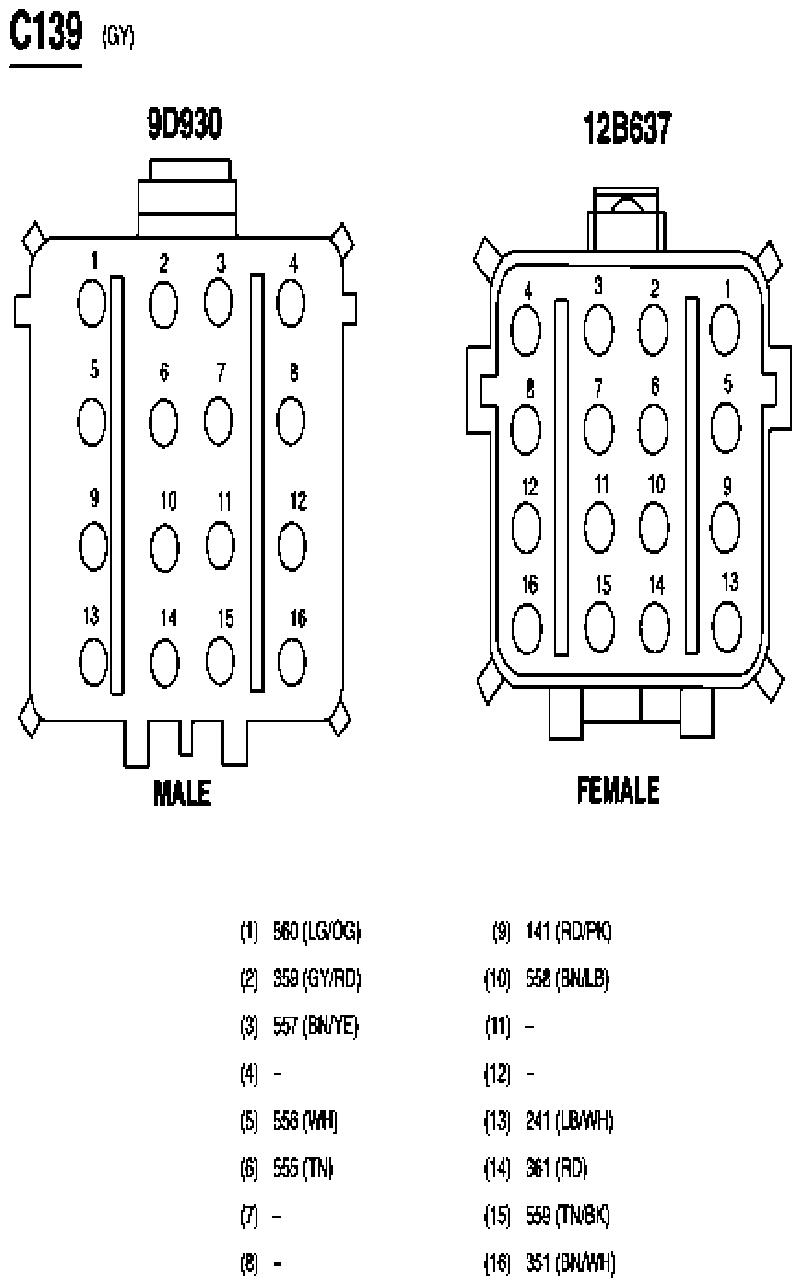

Fig 22: Inline Connector End View (C139)
G07844304Courtesy of FORD MOTOR CO.

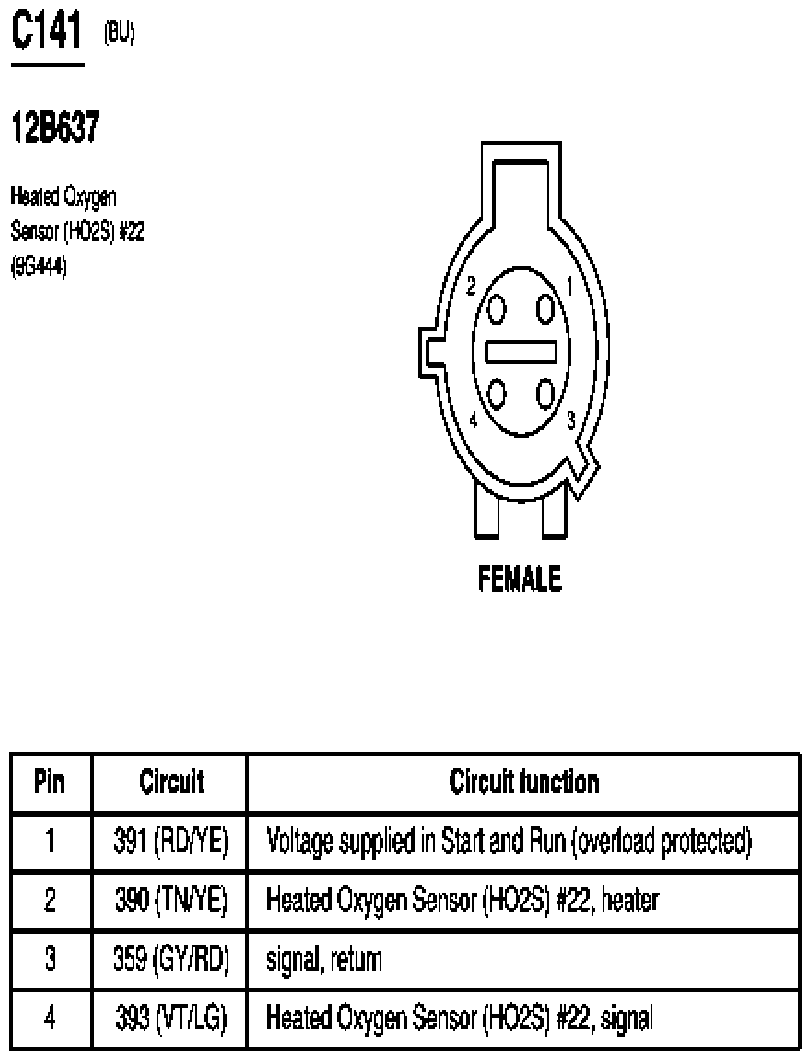

Fig 23: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
G07844305Courtesy of FORD MOTOR CO.

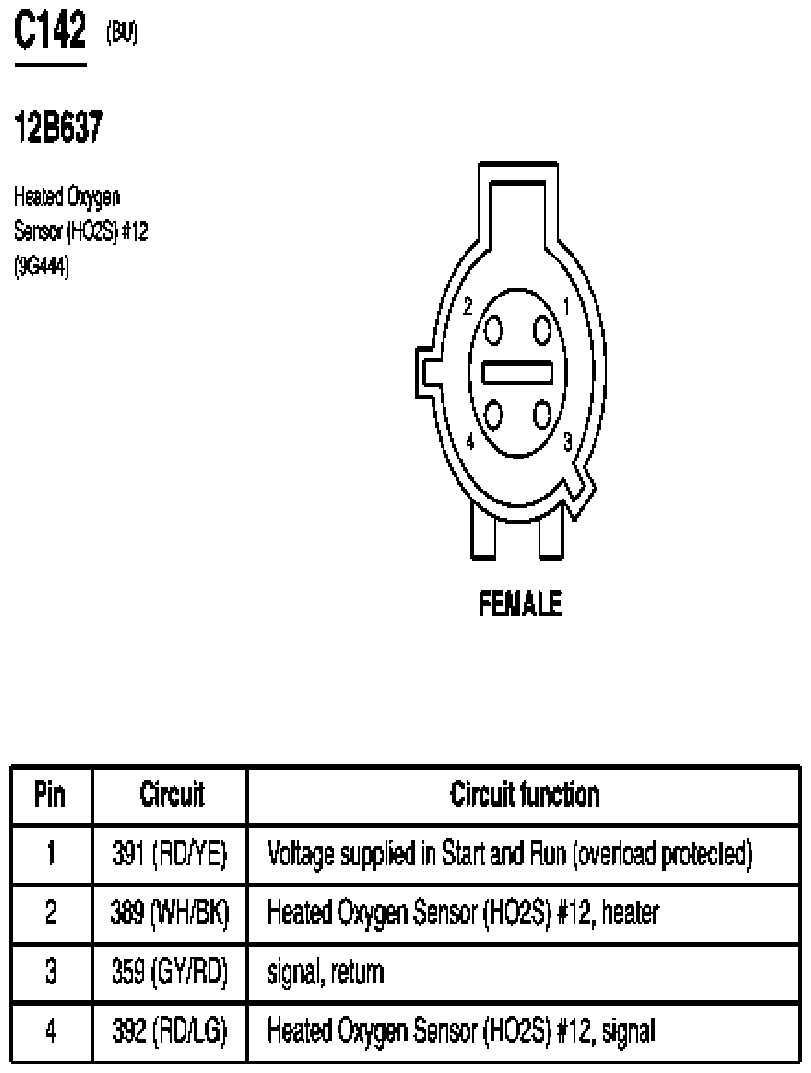

Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
G07844306Courtesy of FORD MOTOR CO.

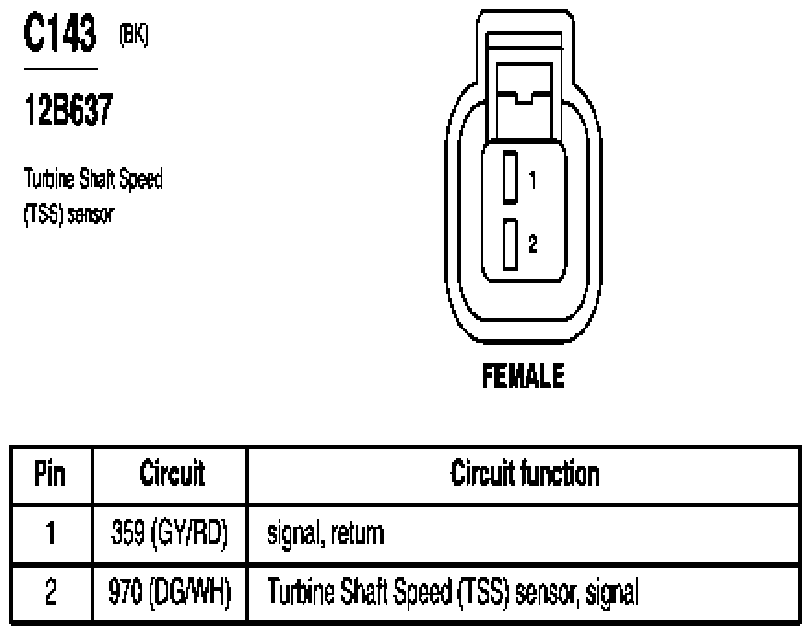

Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
G07844307Courtesy of FORD MOTOR CO.

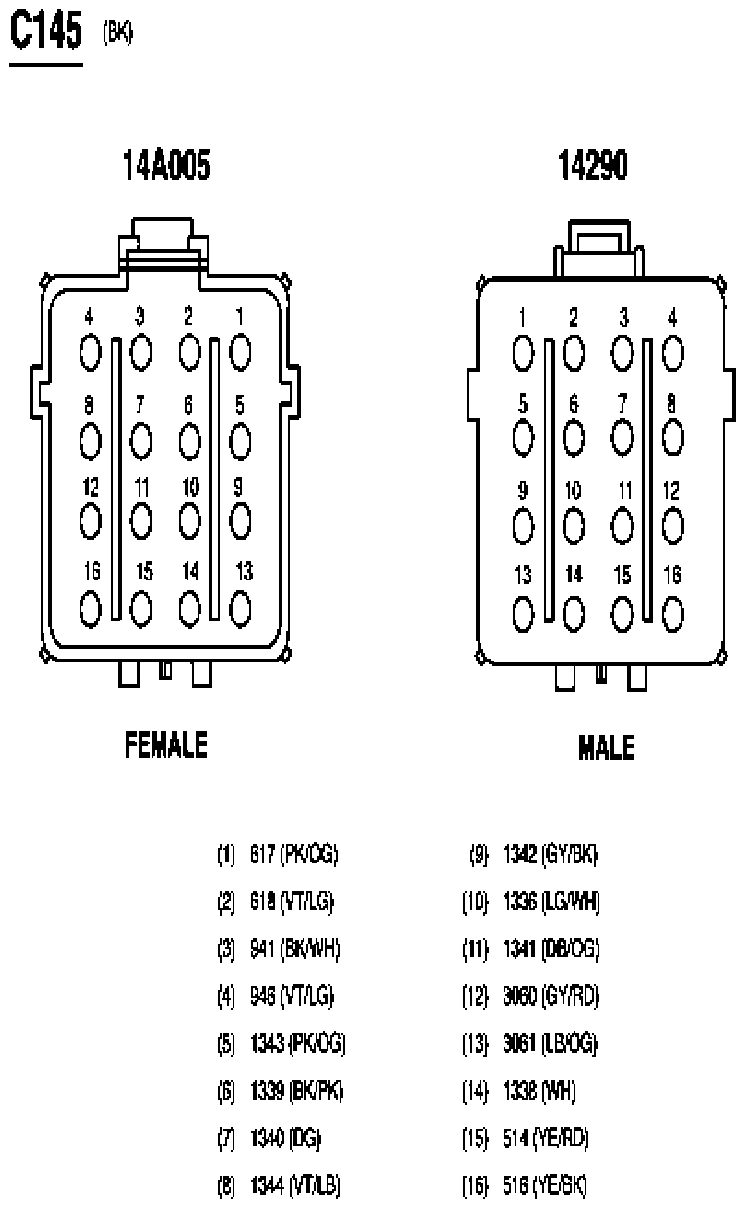

Fig 26: Inline Connector End View (C145)
G07844308Courtesy of FORD MOTOR CO.

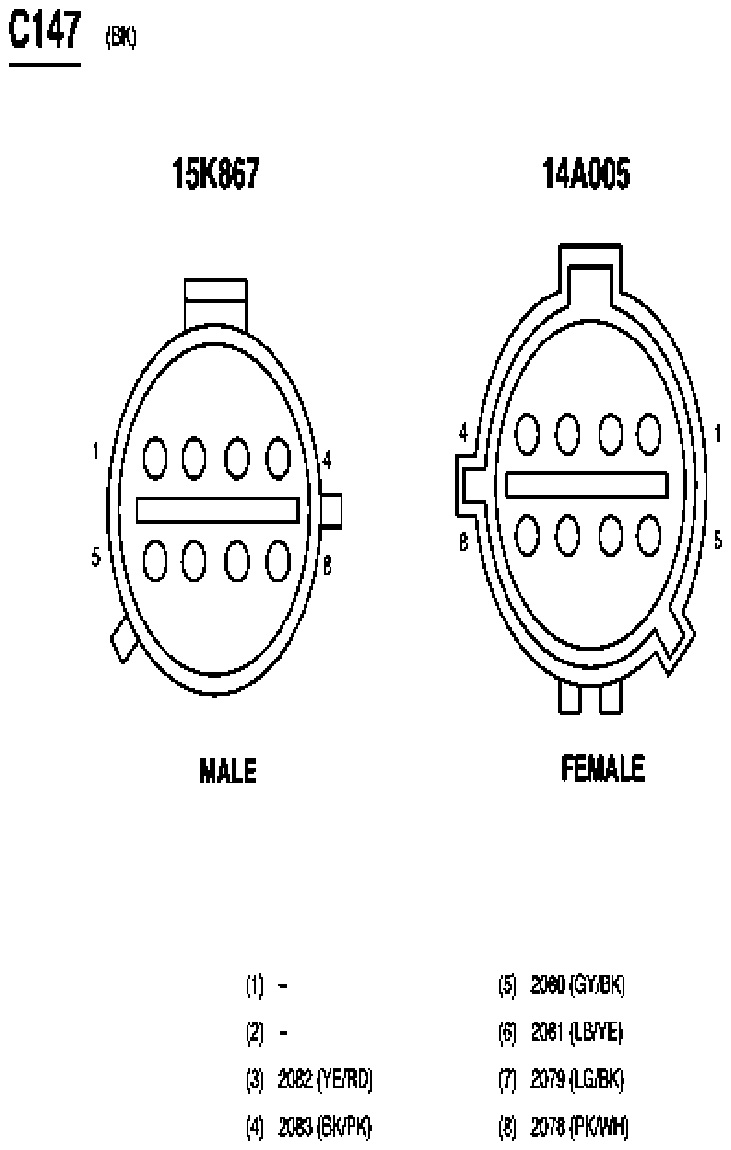

Fig 27: Inline Connector End View (C147)
G07844309Courtesy of FORD MOTOR CO.

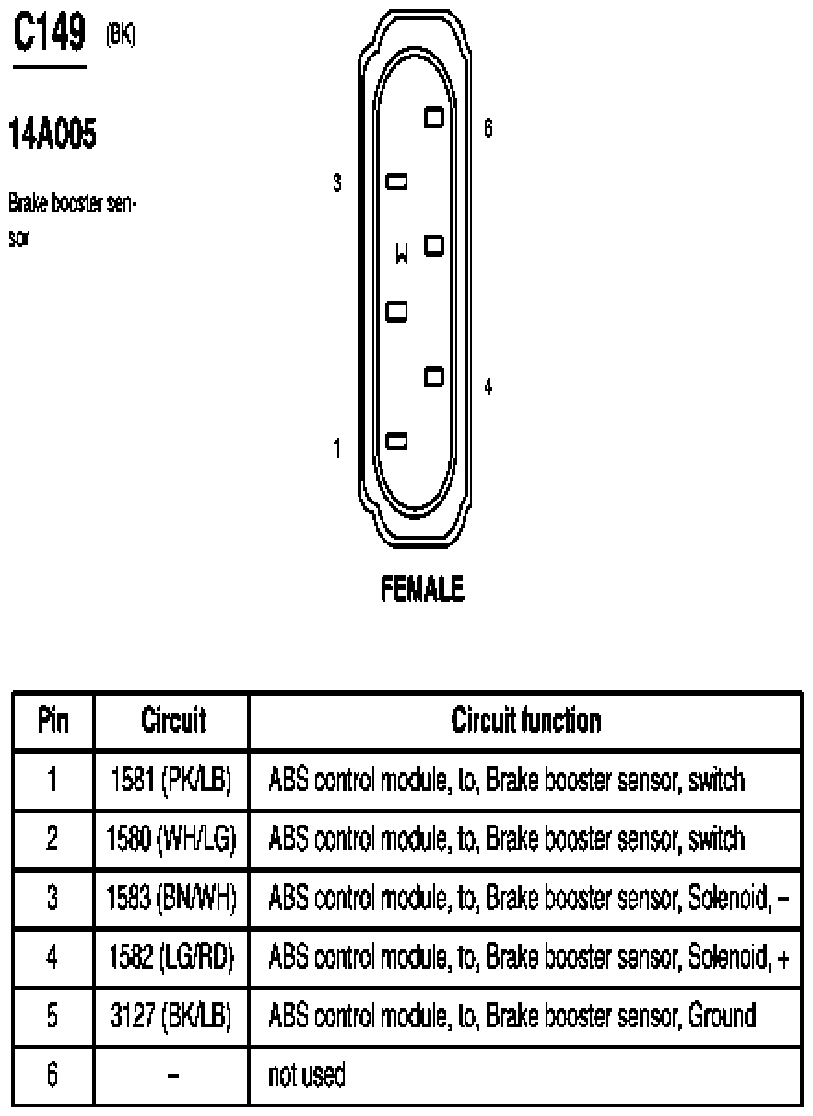

Fig 28: Brake Booster Sensor Connector End View (C149)
G07844310Courtesy of FORD MOTOR CO.

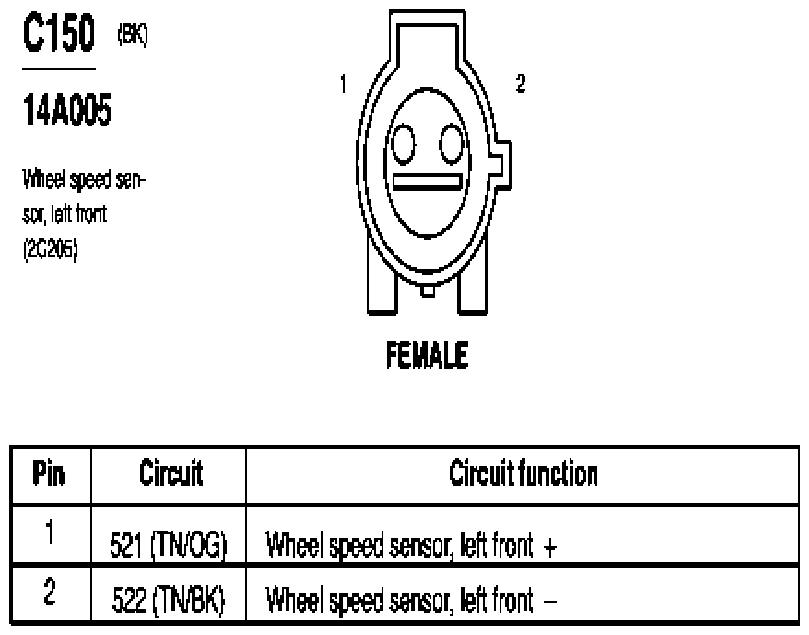

Fig 29: Wheel Speed Sensor, Left Front Connector End View (C150)
G07844311Courtesy of FORD MOTOR CO.

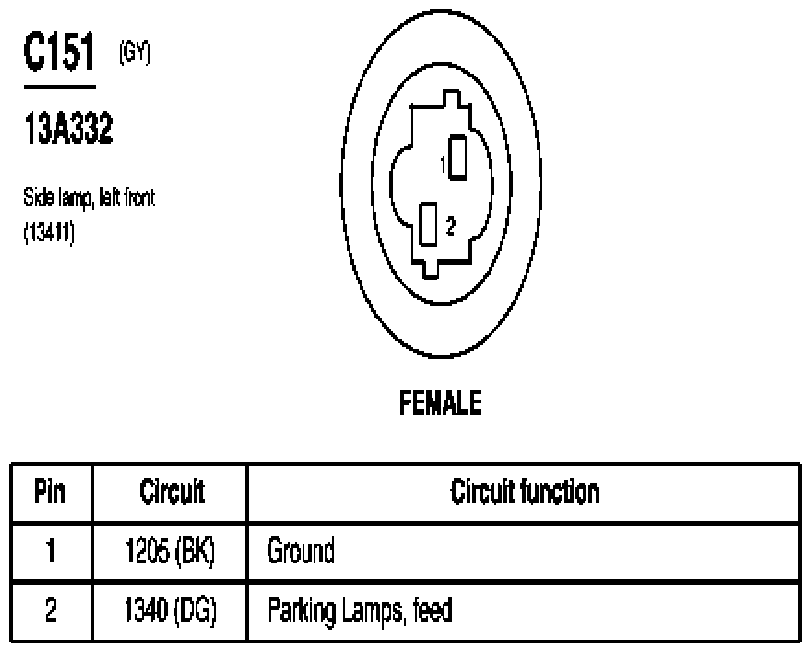

Fig 30: Side Lamp, Left Front Connector End View (C151)
G07844312Courtesy of FORD MOTOR CO.

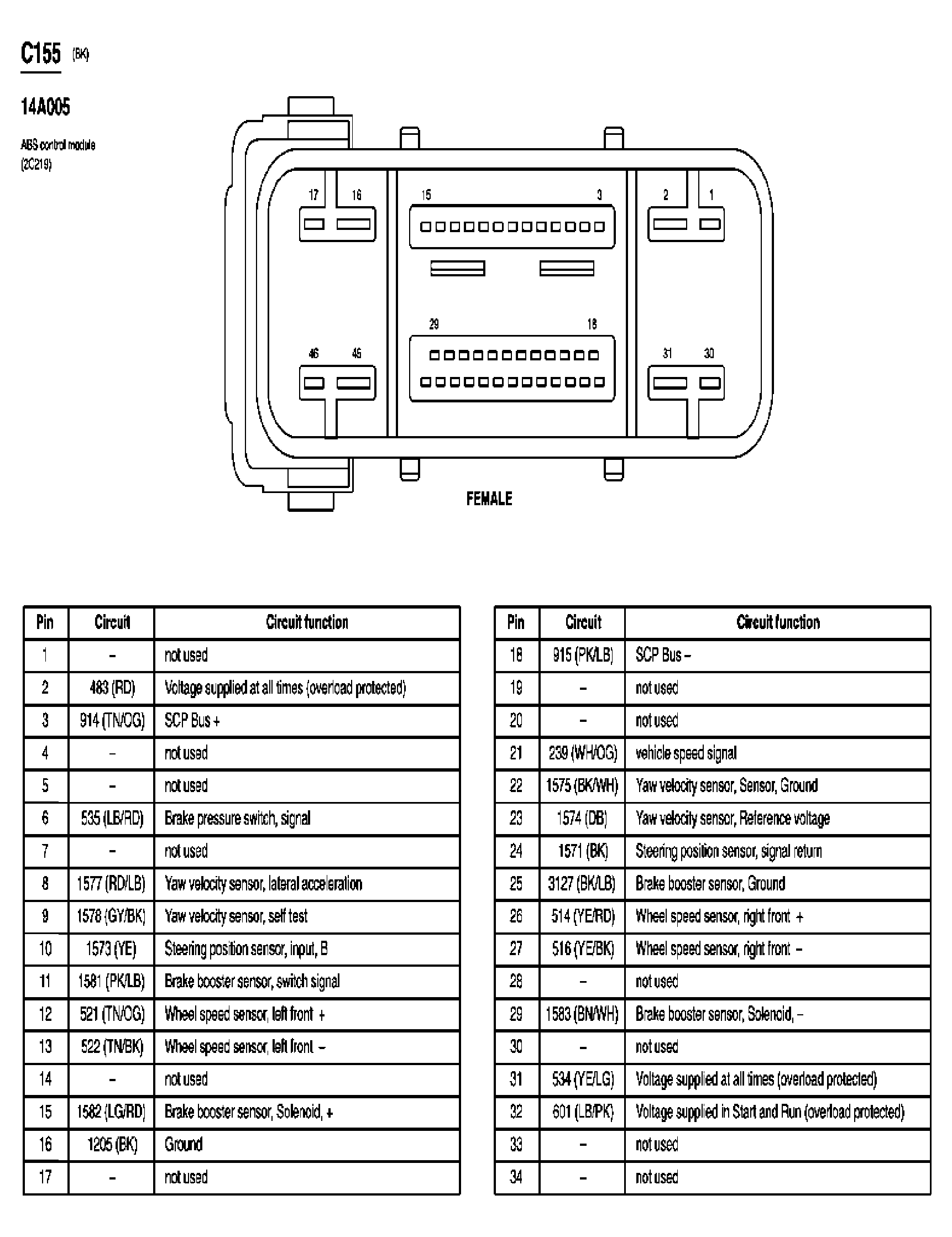

Fig 31: ABS Control Module Connector End View (C155) (1 Of 2)
G03994145Courtesy of FORD MOTOR CO.

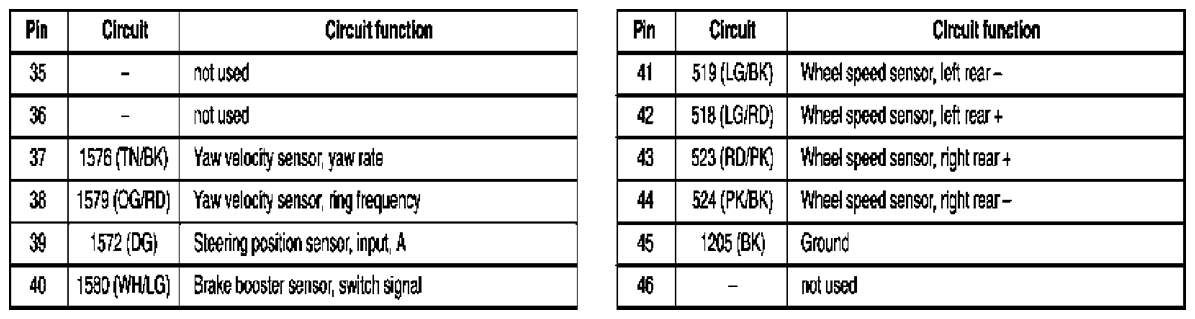

Fig 32: ABS Control Module Connector End View (C155) (2 Of 2)
G03994146Courtesy of FORD MOTOR CO.

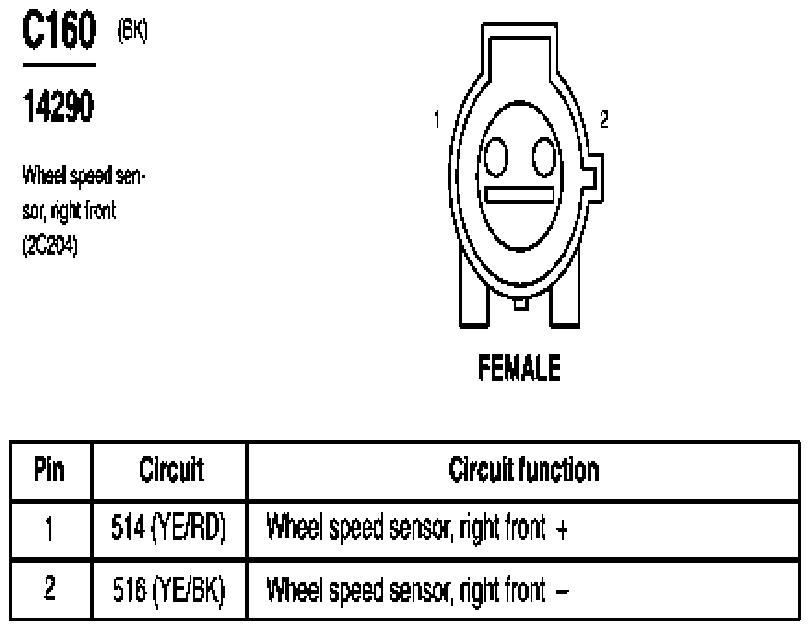

Fig 33: Wheel Speed Sensor, Right Front Connector End View (C160)
G07844313Courtesy of FORD MOTOR CO.

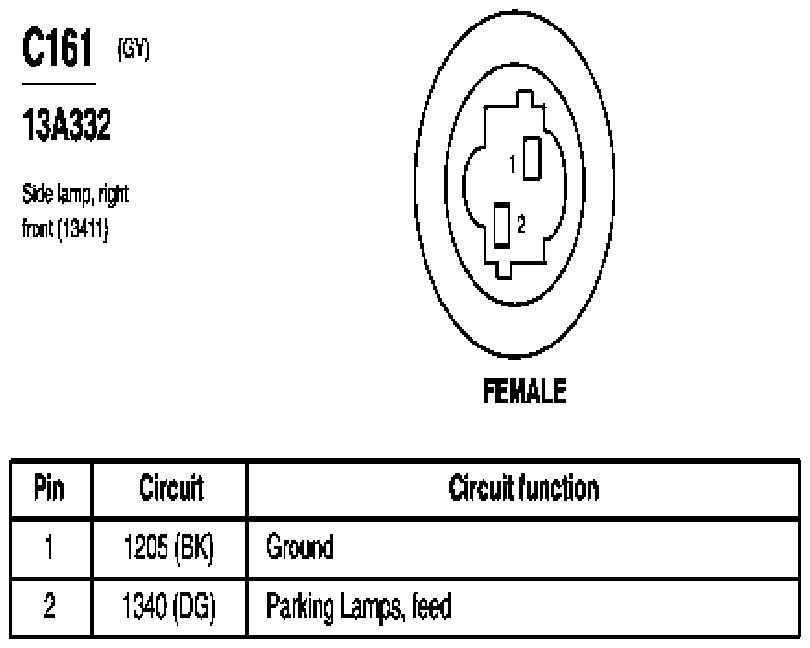

Fig 34: Side Lamp, Right Front Connector End View (C161)
G07844314Courtesy of FORD MOTOR CO.

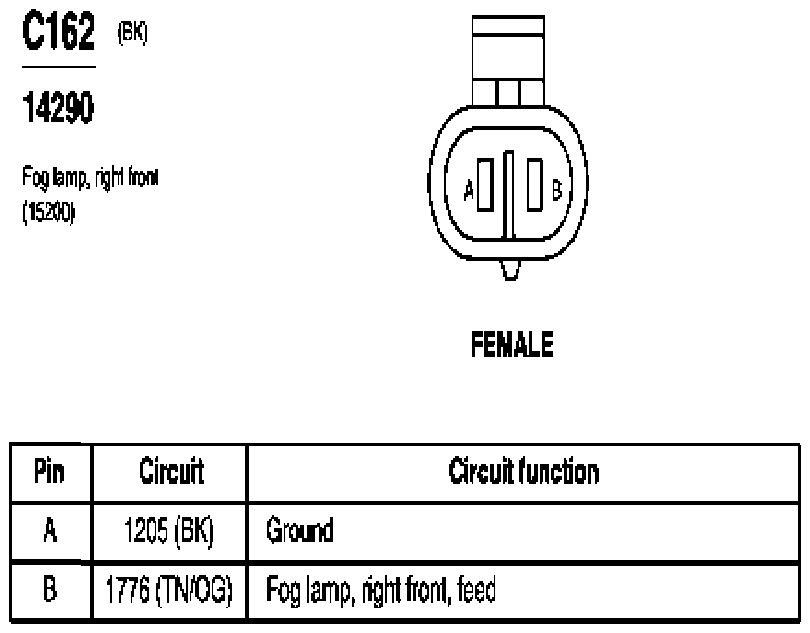

Fig 35: Fog Lamp, Right Front Connector End View (C162)
G07844315Courtesy of FORD MOTOR CO.

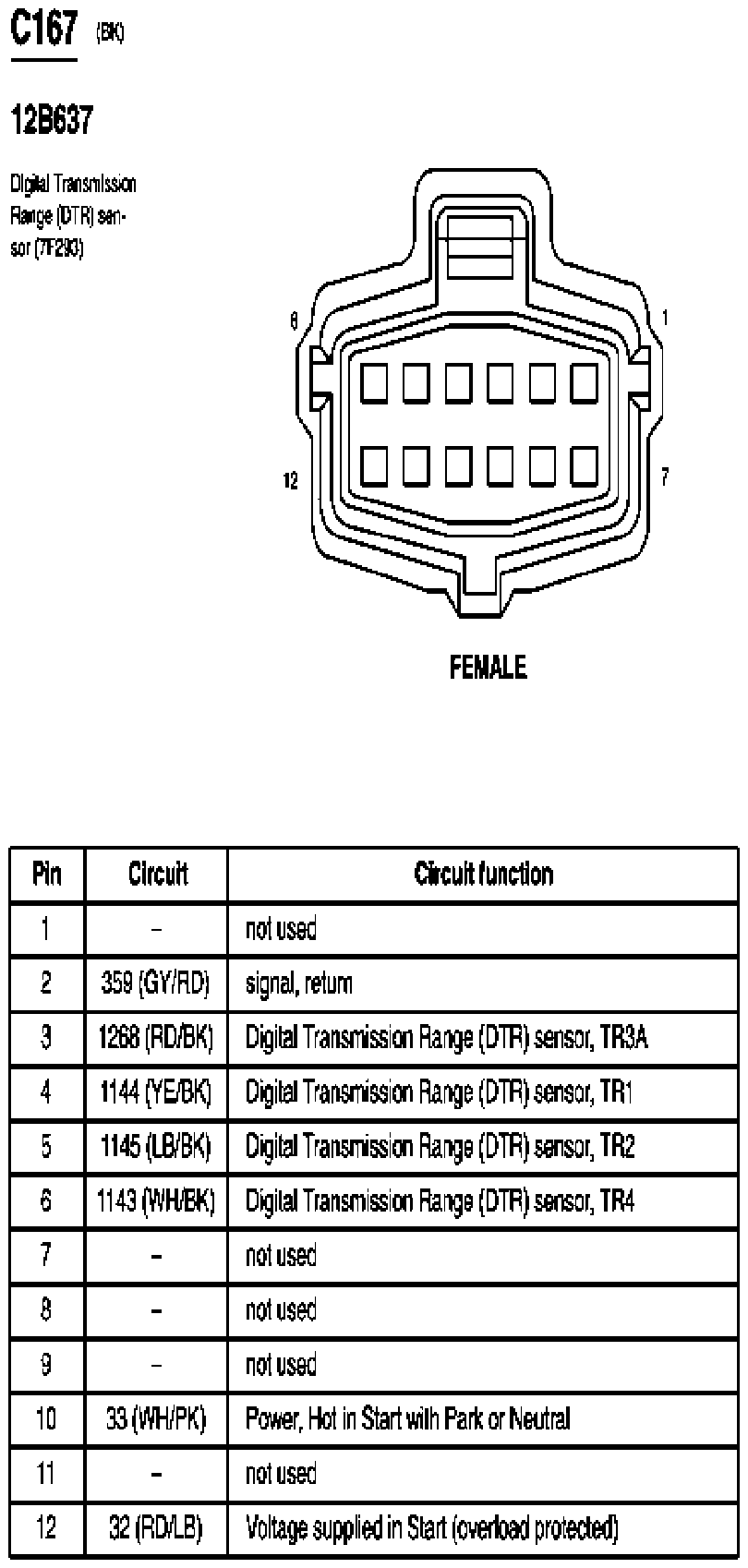

Fig 36: Digital Transmission Range (DTR) Sensor Connector End View (C167)
G07844316Courtesy of FORD MOTOR CO.

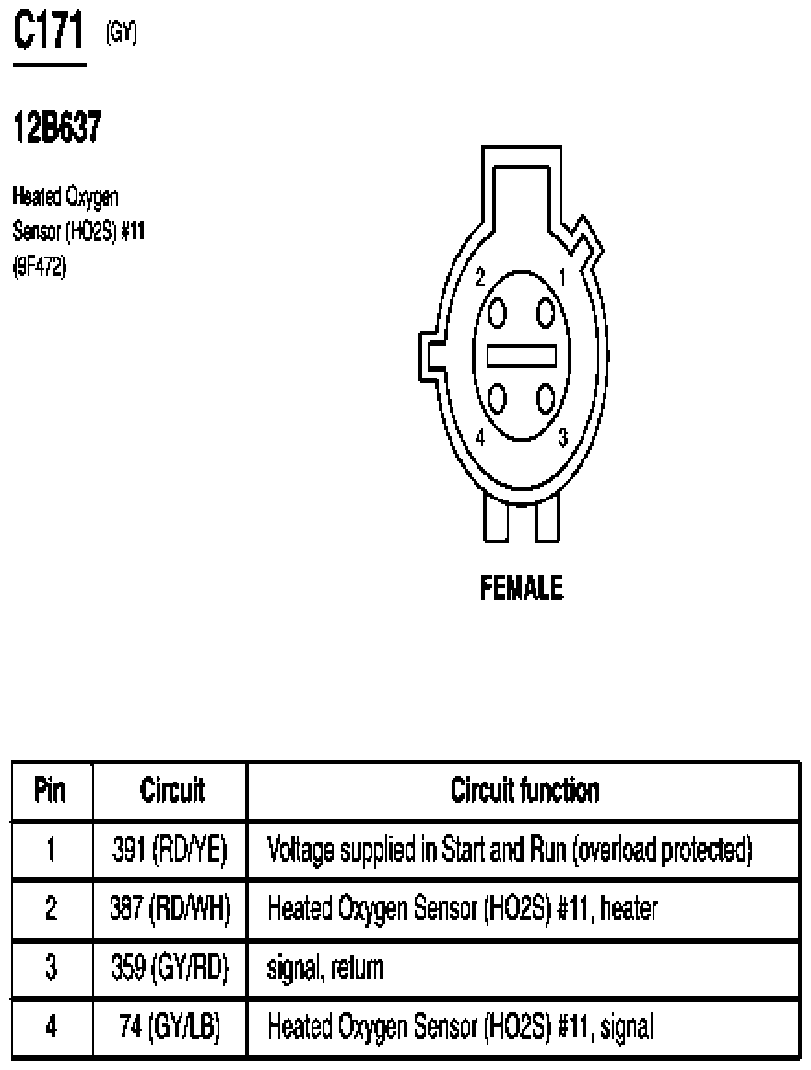

Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
G07844317Courtesy of FORD MOTOR CO.

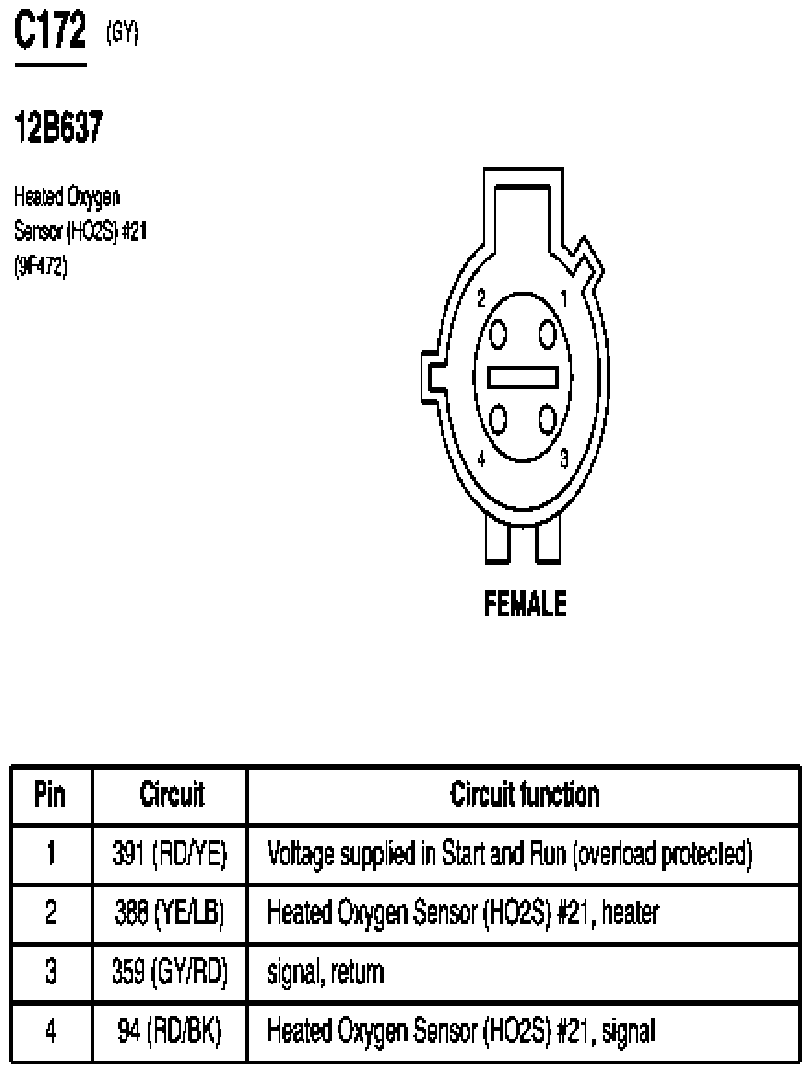

Fig 38: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
G07844318Courtesy of FORD MOTOR CO.

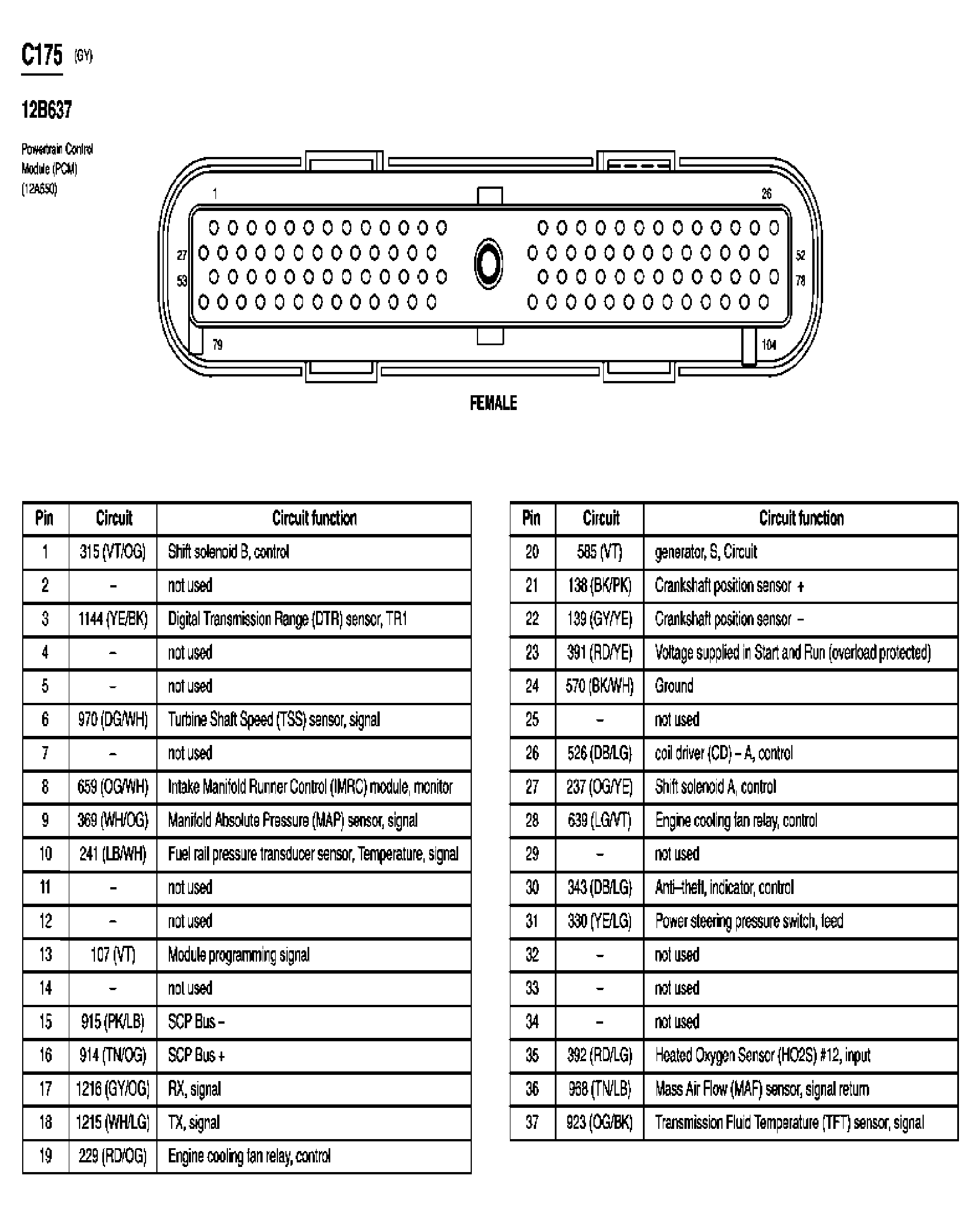

Fig 39: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
G03994149Courtesy of FORD MOTOR CO.

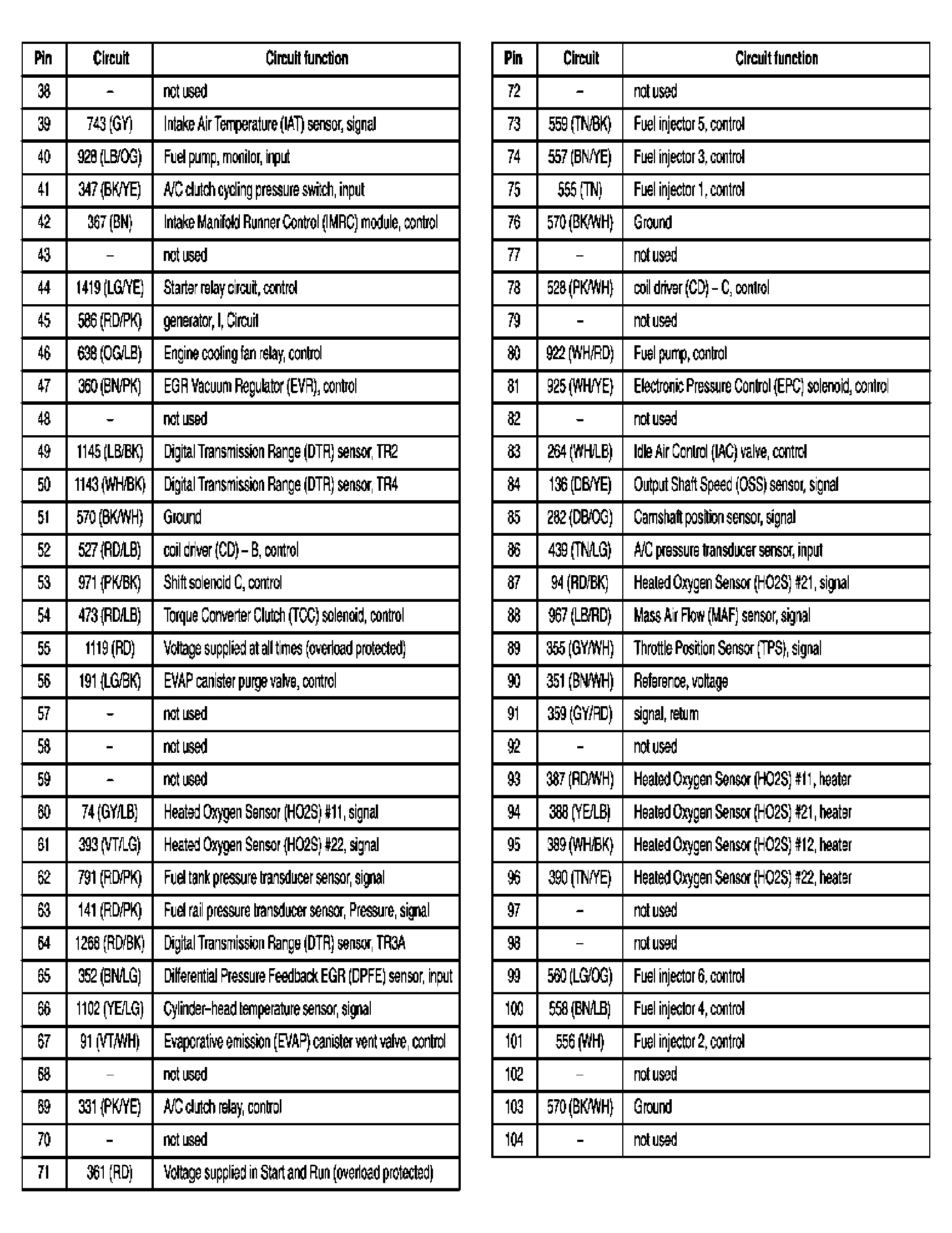

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
G03994150Courtesy of FORD MOTOR CO.

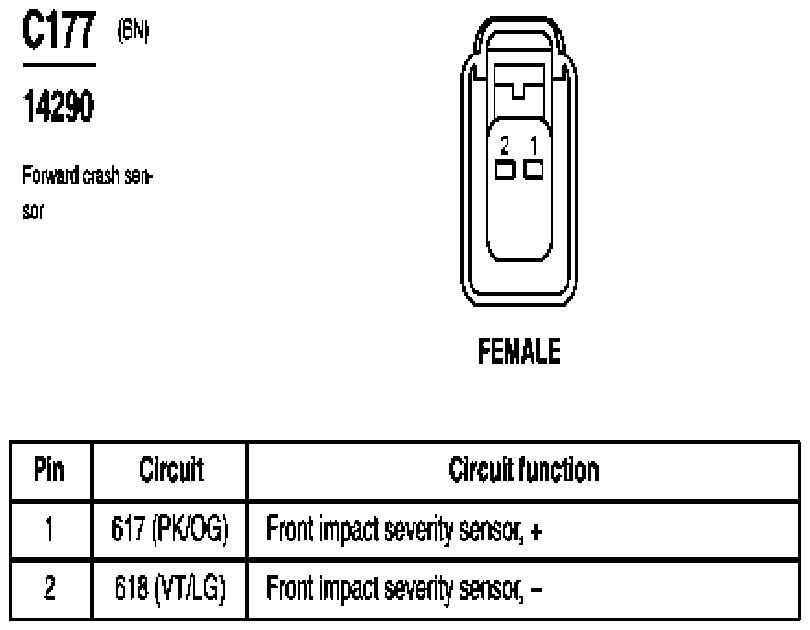

Fig 41: Forward Crash Sensor Connector End View (C177)
G07844319Courtesy of FORD MOTOR CO.

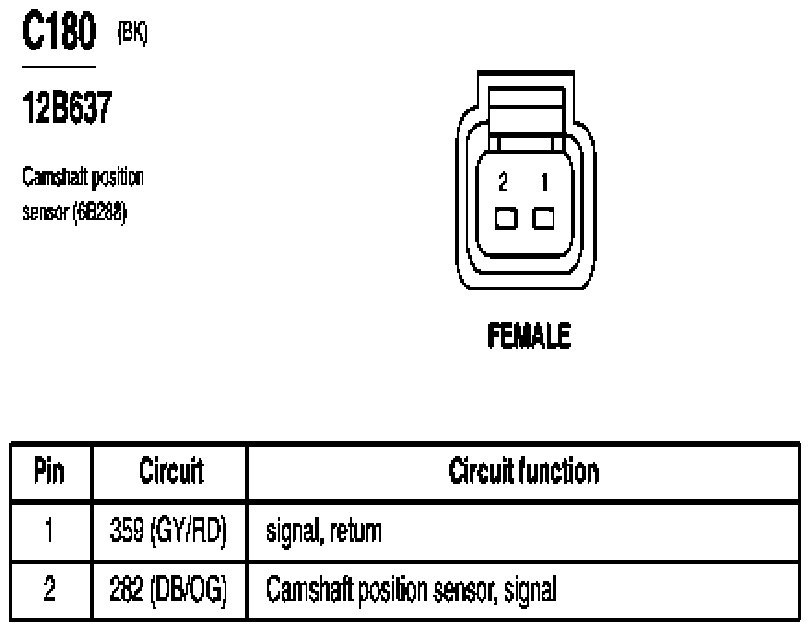

Fig 42: Camshaft Position Sensor Connector End View (C180)
G07844320Courtesy of FORD MOTOR CO.

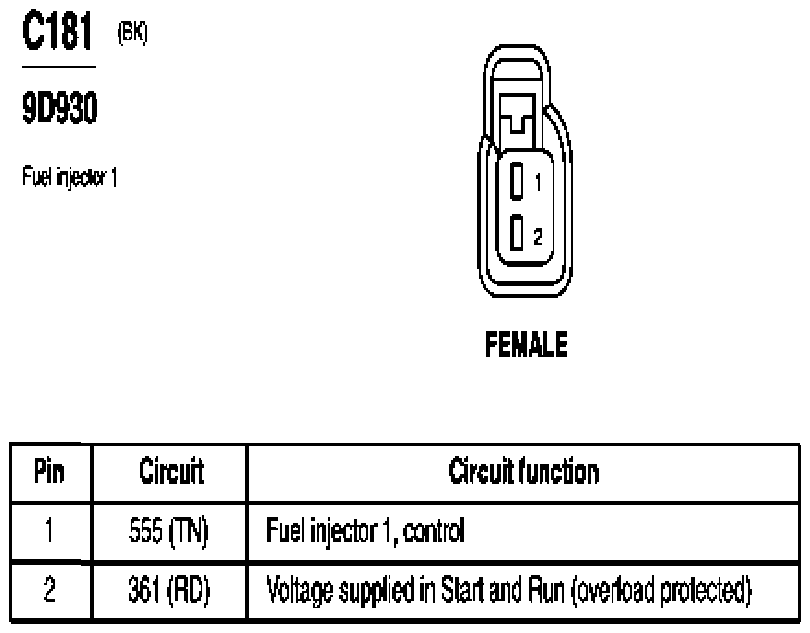

Fig 43: Fuel Injector 1 Connector End View (C181)
G07844321Courtesy of FORD MOTOR CO.

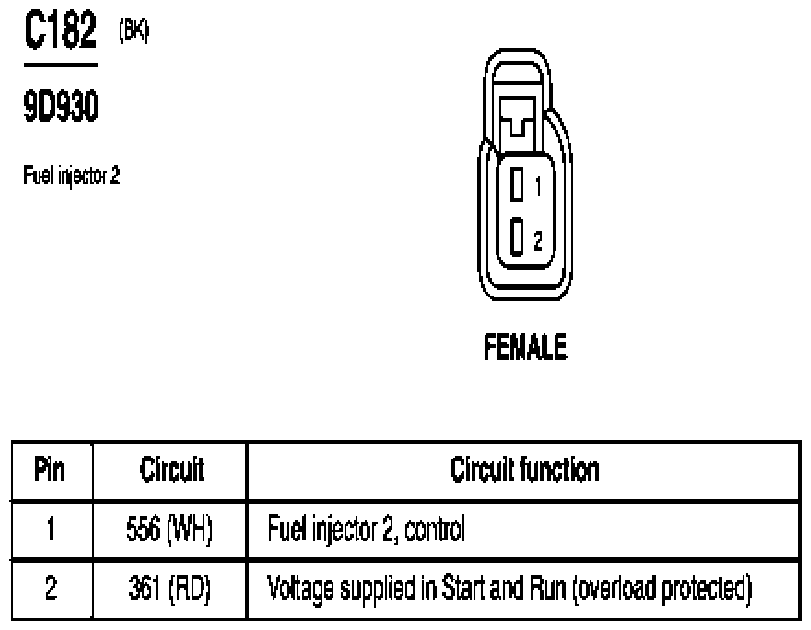

Fig 44: Fuel Injector 2 Connector End View (C182)
G07844322Courtesy of FORD MOTOR CO.

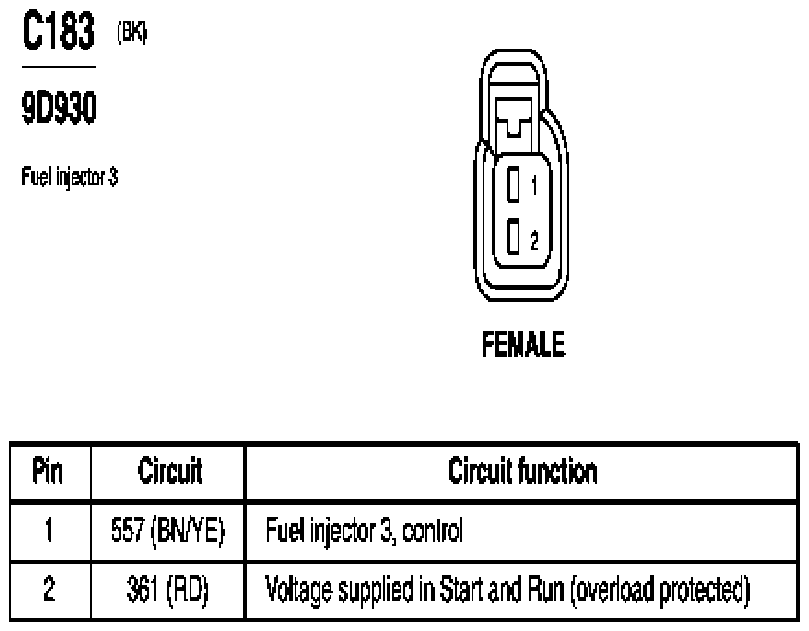

Fig 45: Fuel Injector 3 Connector End View (C183)
G07844323Courtesy of FORD MOTOR CO.

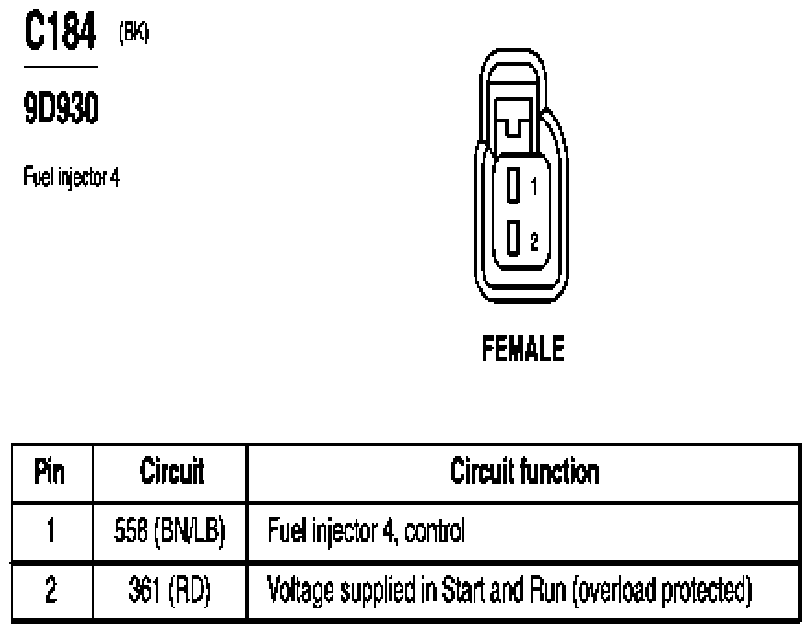

Fig 46: Fuel Injector 4 Connector End View (C184)
G07844324Courtesy of FORD MOTOR CO.

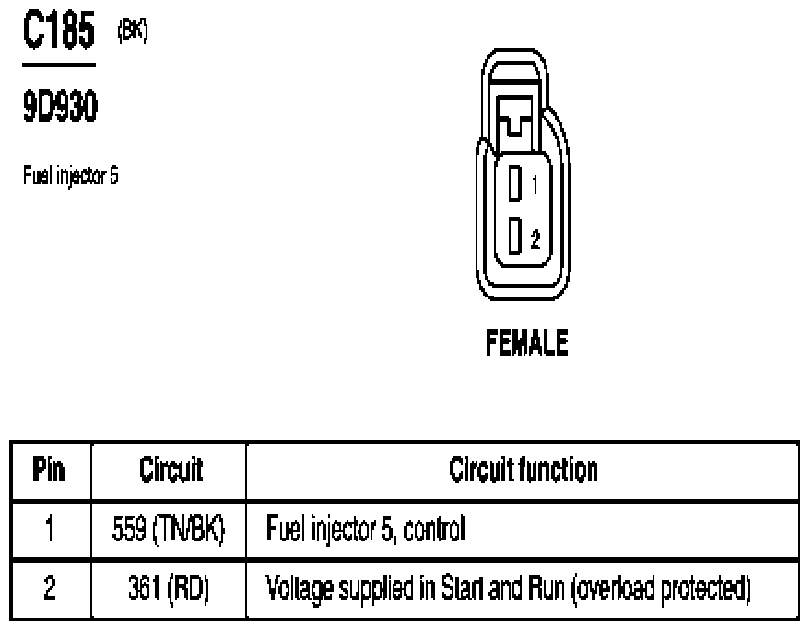

Fig 47: Fuel Injector 5 Connector End View (C185)
G07844325Courtesy of FORD MOTOR CO.

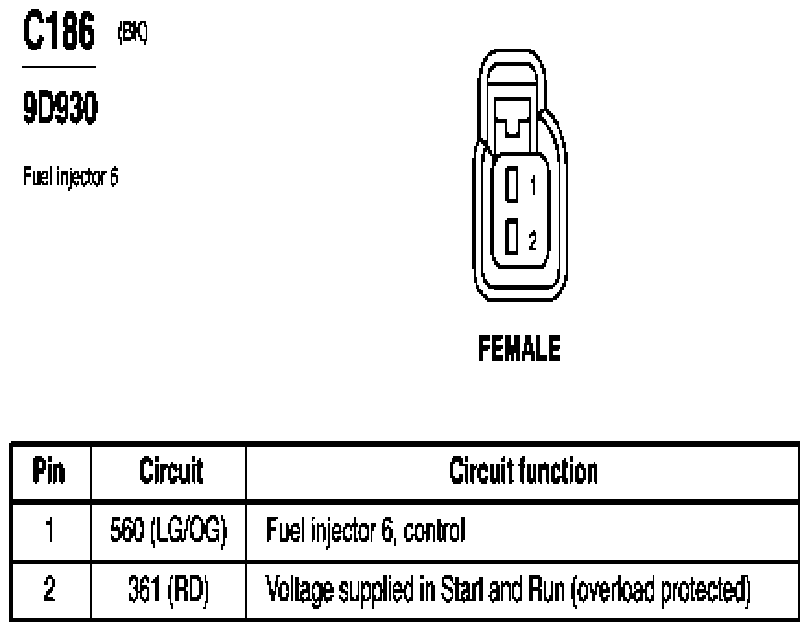

Fig 48: Fuel Injector 6 Connector End View (C186)
G07844326Courtesy of FORD MOTOR CO.

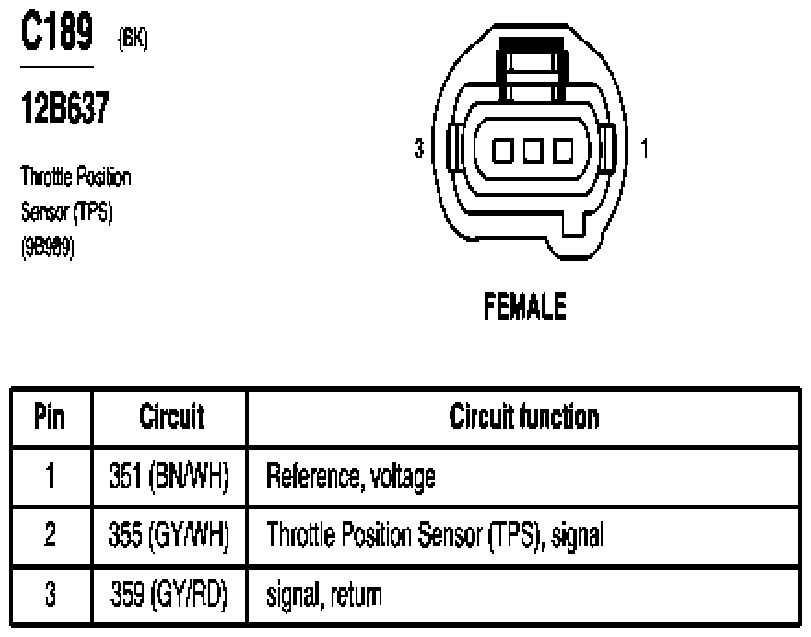

Fig 49: Throttle Position Sensor (TPS) Connector End View (C189)
G07844327Courtesy of FORD MOTOR CO.

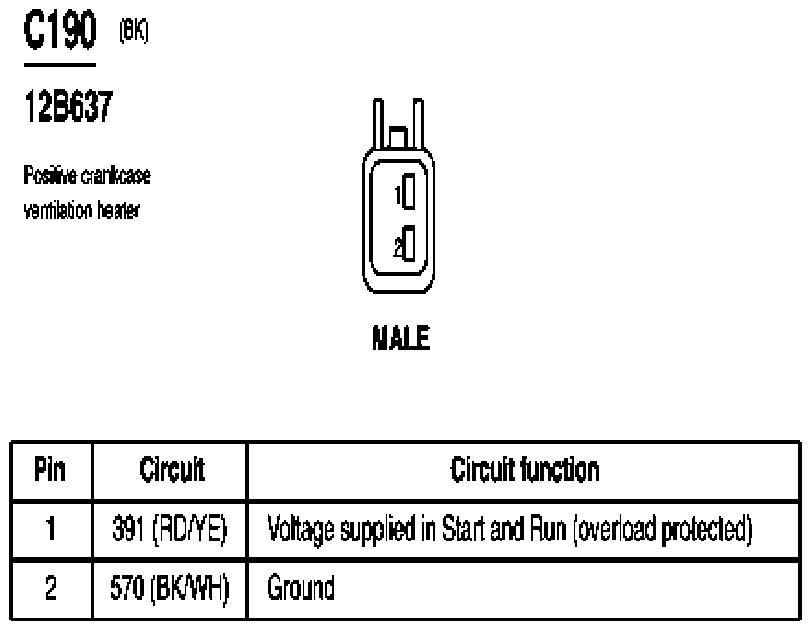

Fig 50: Positive Crankcase Ventilation Heater Connector End View (C190)
G07844328Courtesy of FORD MOTOR CO.

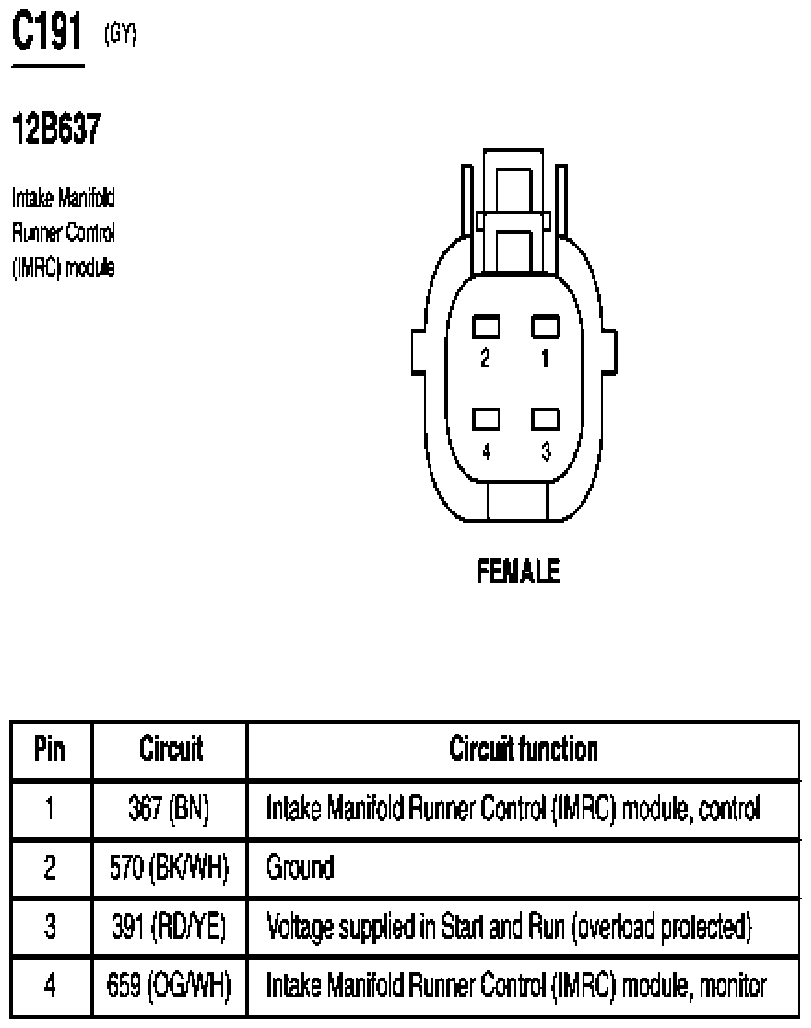

Fig 51: Intake Manifold Runner Control (IMRC) Module Connector End View (C191)
G07844329Courtesy of FORD MOTOR CO.

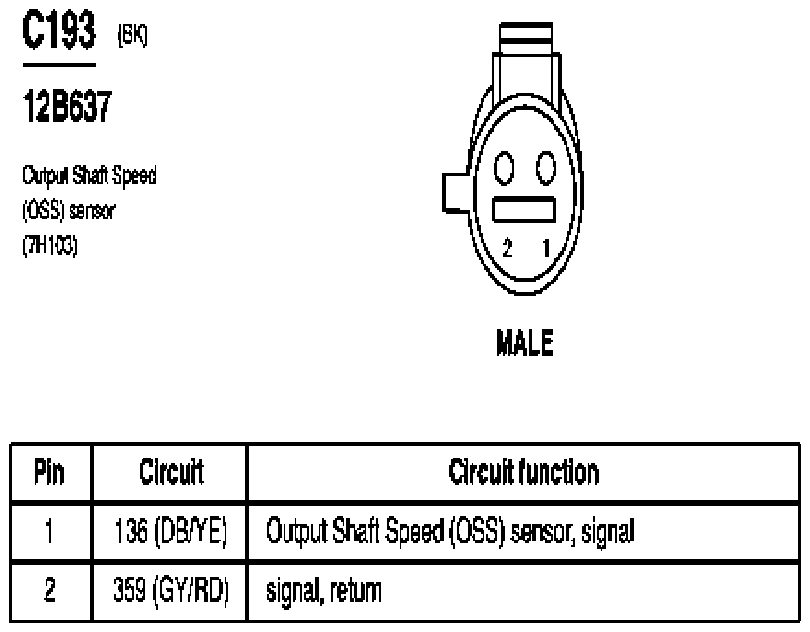

Fig 52: Output Shaft Speed (OSS) Sensor Connector End View (C193)
G07844330Courtesy of FORD MOTOR CO.

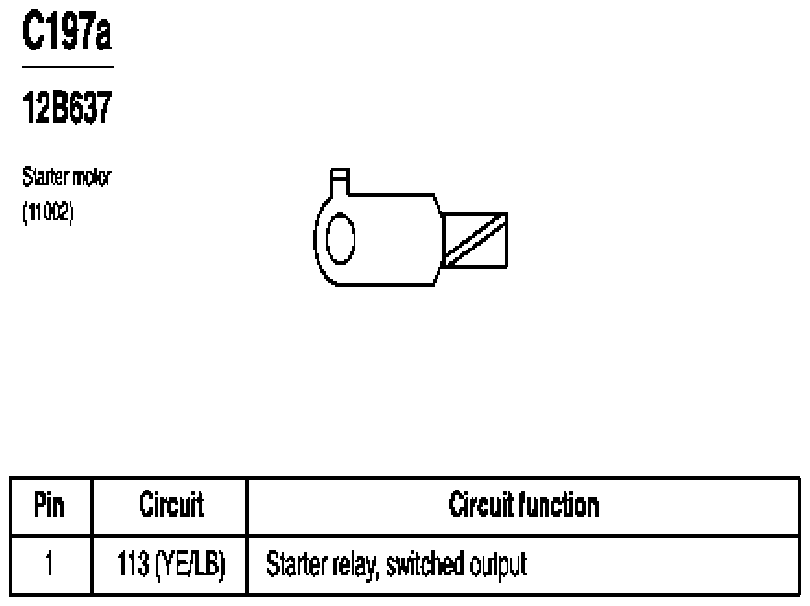

Fig 53: Starter Motor Connector End View (C197a)
G07844331Courtesy of FORD MOTOR CO.

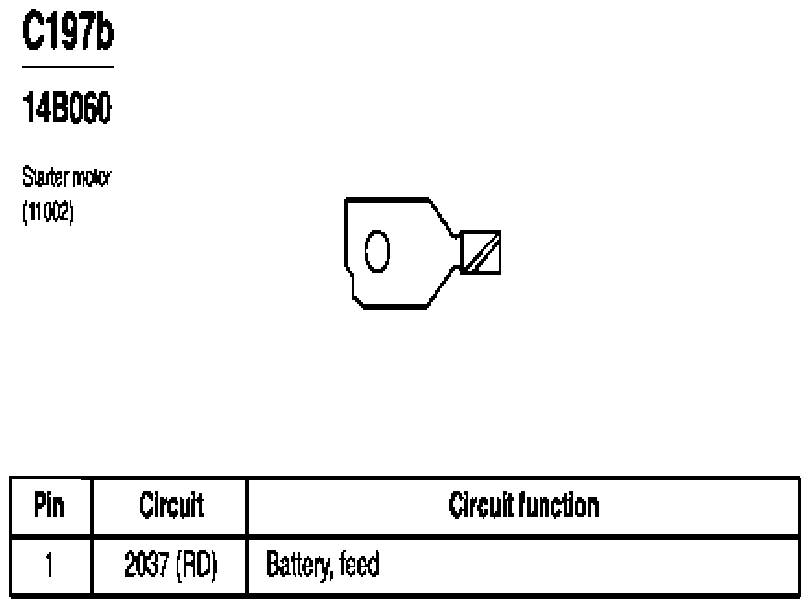

Fig 54: Starter Motor Connector End View (C197b)
G07844332Courtesy of FORD MOTOR CO.

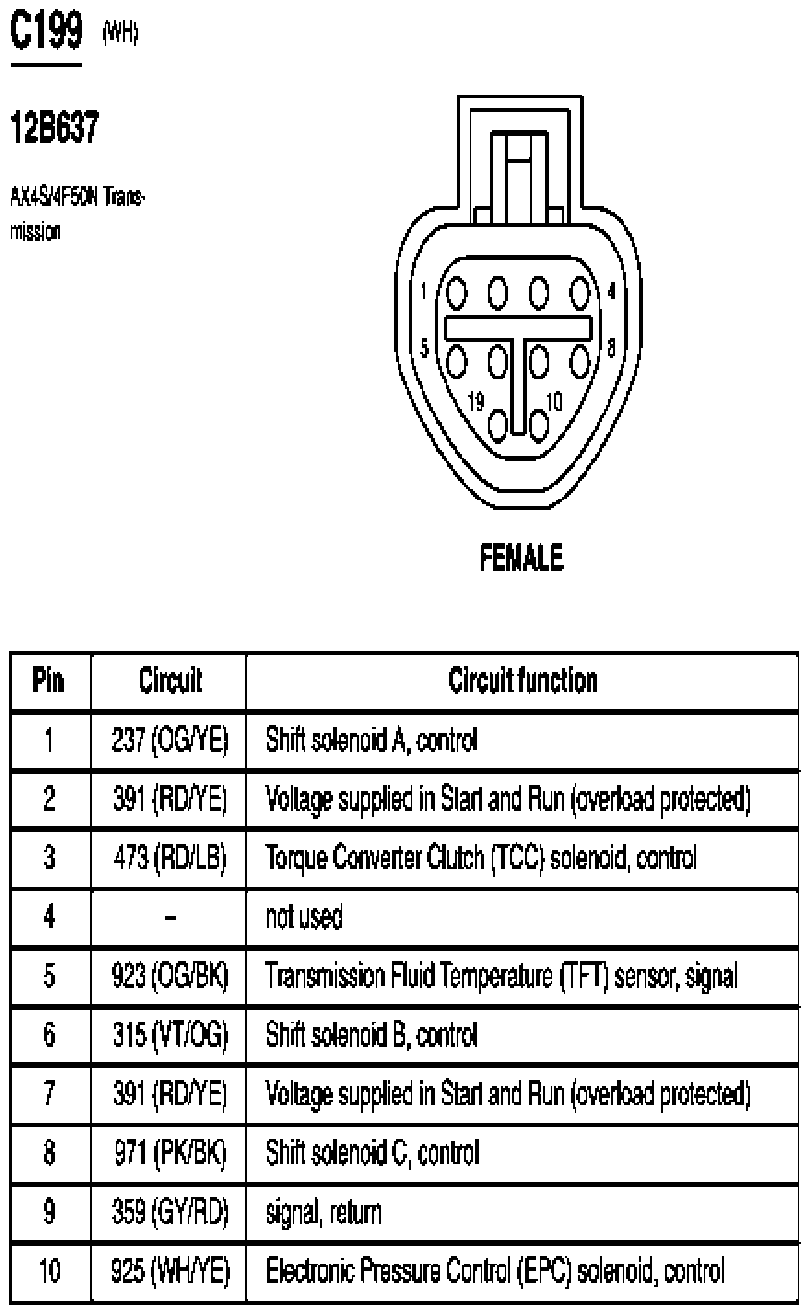

Fig 55: Transmission Connector End View (C199)
G07844333Courtesy of FORD MOTOR CO.
Fig 56: Multifunction Switch Connector End View (C202a)
G07844334Courtesy of FORD MOTOR CO.

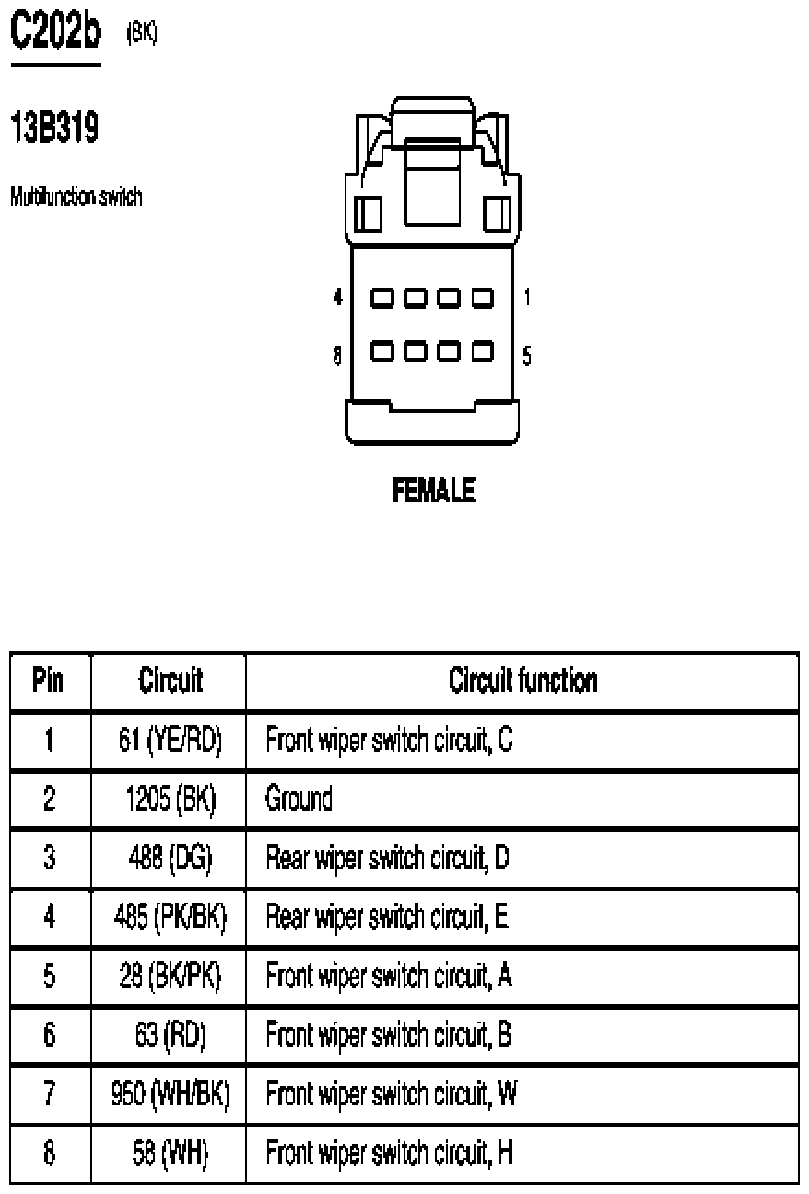

Fig 57: Multifunction Switch Connector End View (C202b)
G07844335Courtesy of FORD MOTOR CO.

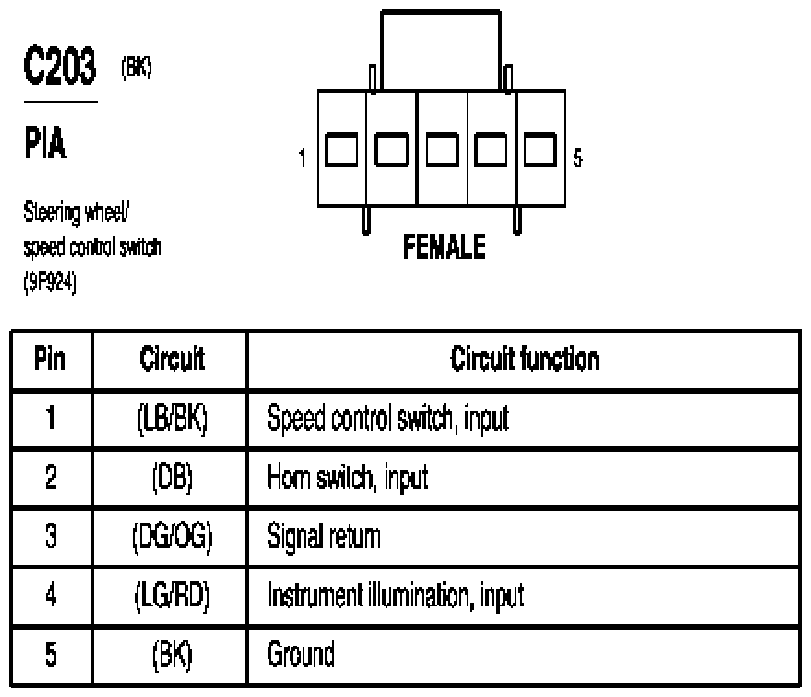

Fig 58: Steering Wheel/Speed Control Switch Connector End View (C203)
G07844336Courtesy of FORD MOTOR CO.

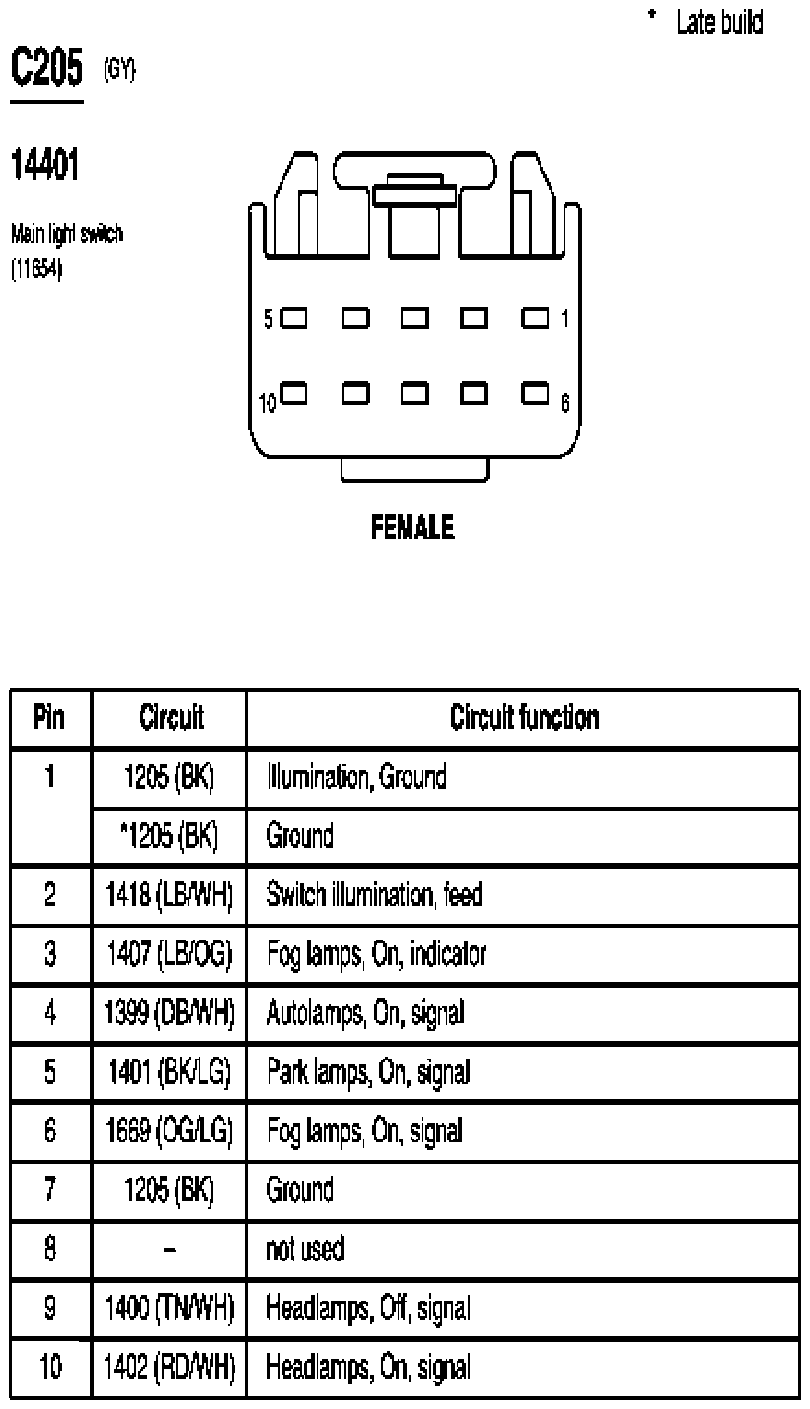

Fig 59: Main Light Switch Connector End View (C205)
G03994155Courtesy of FORD MOTOR CO.

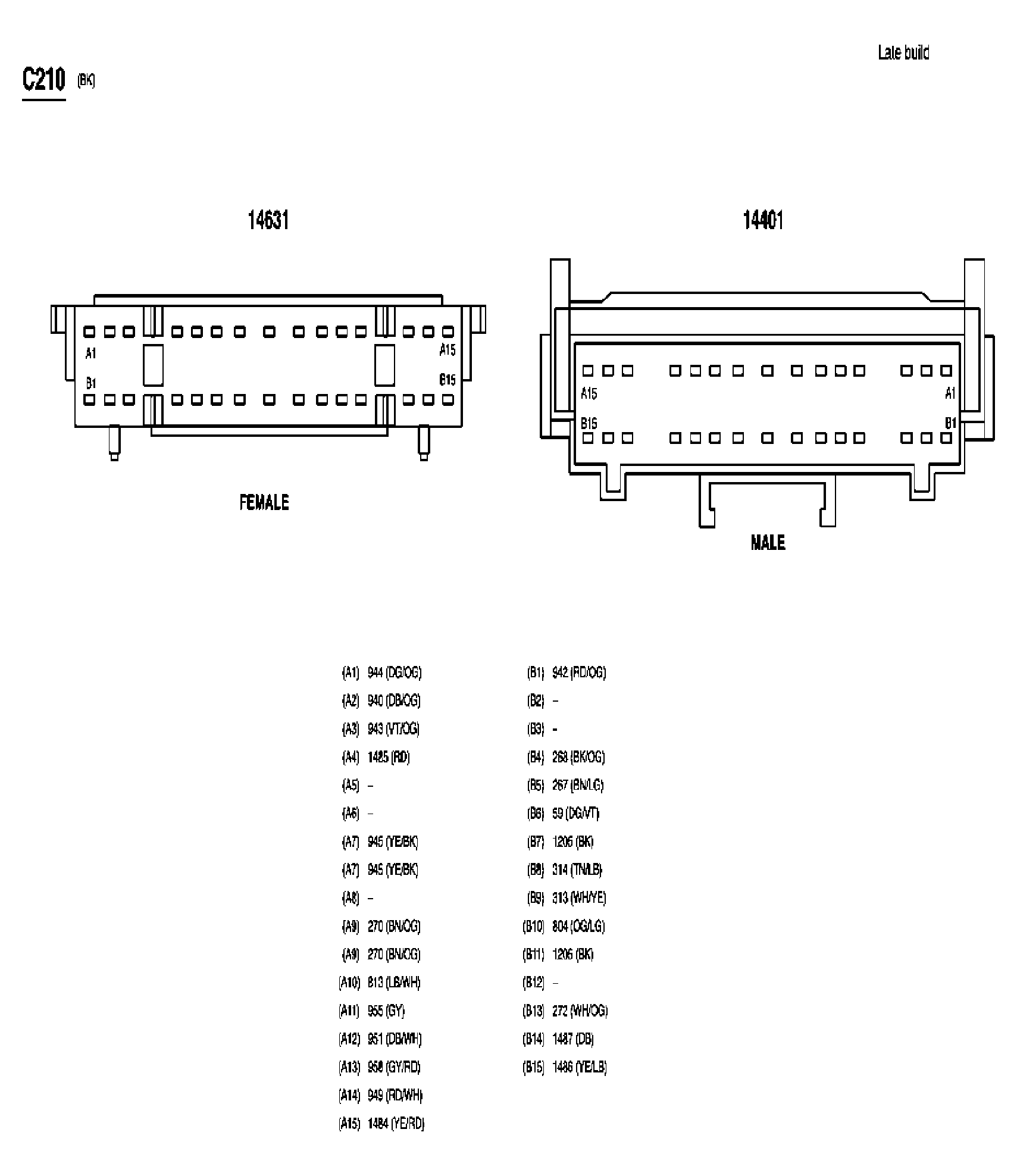

Fig 60: Inline Connector End View (C210)
G03994156Courtesy of FORD MOTOR CO.

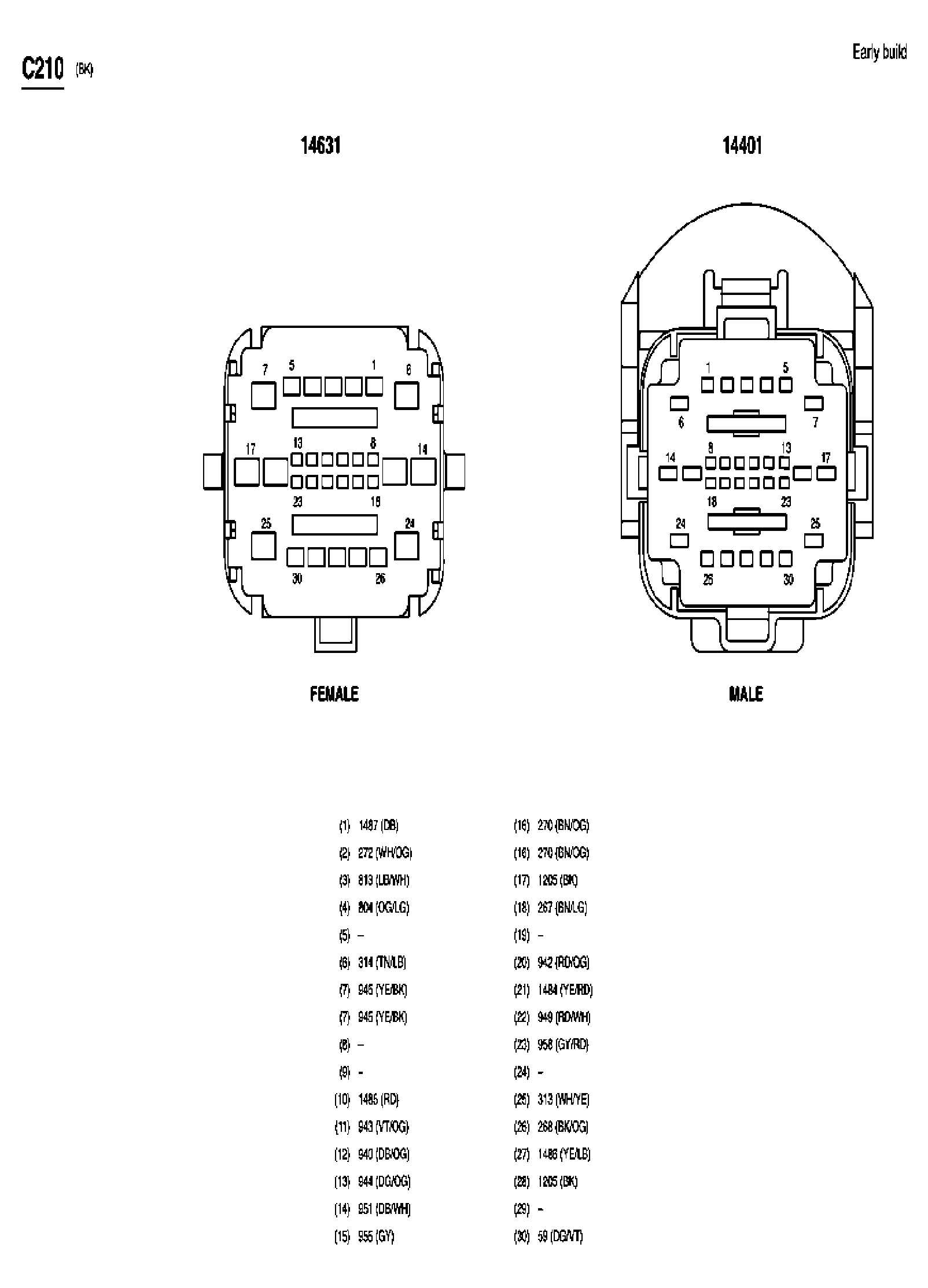

Fig 61: Inline Connector End View (C210)
G03994157Courtesy of FORD MOTOR CO.

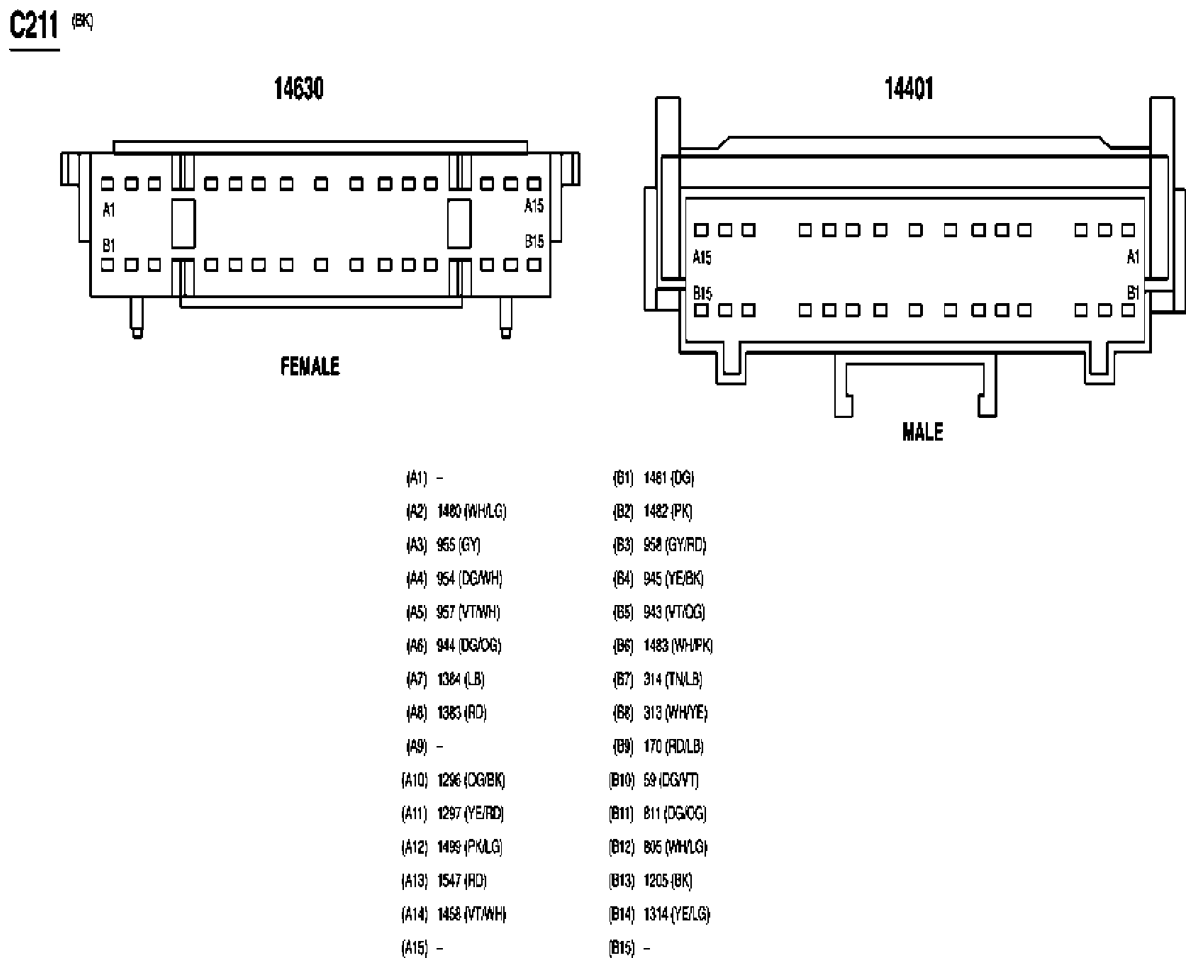

Fig 62: Inline Connector End View (C211)
G03994158Courtesy of FORD MOTOR CO.

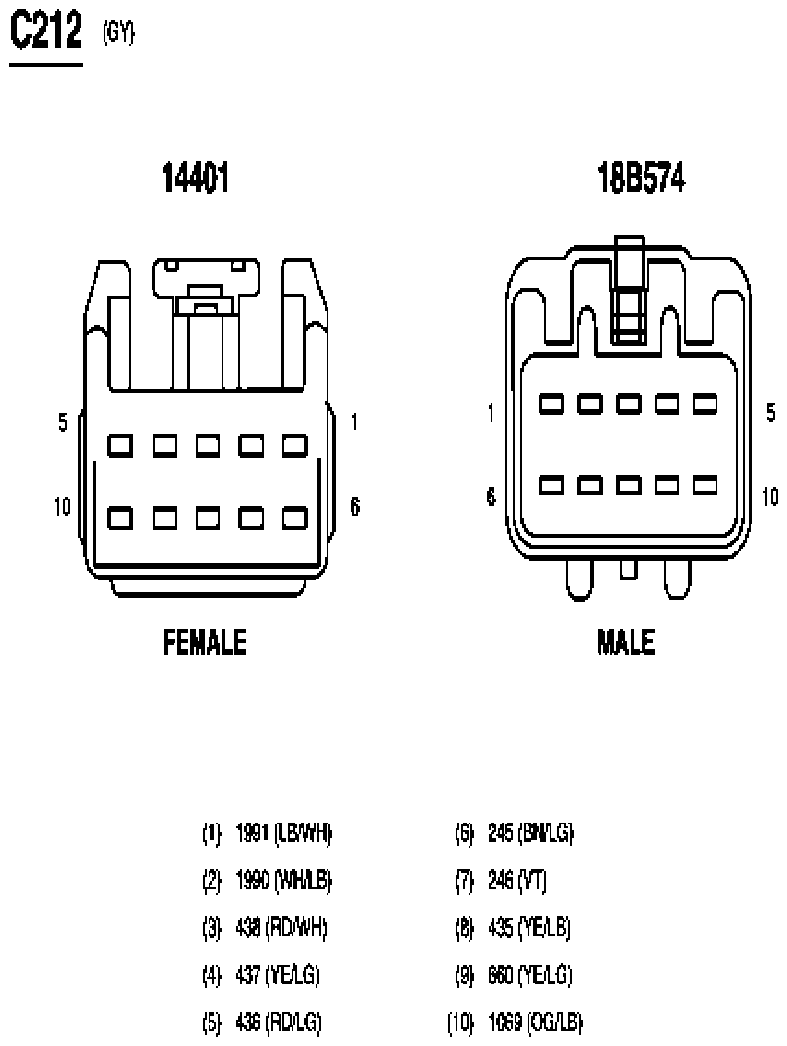

Fig 63: Inline Connector End View (C212)
G07844337Courtesy of FORD MOTOR CO.

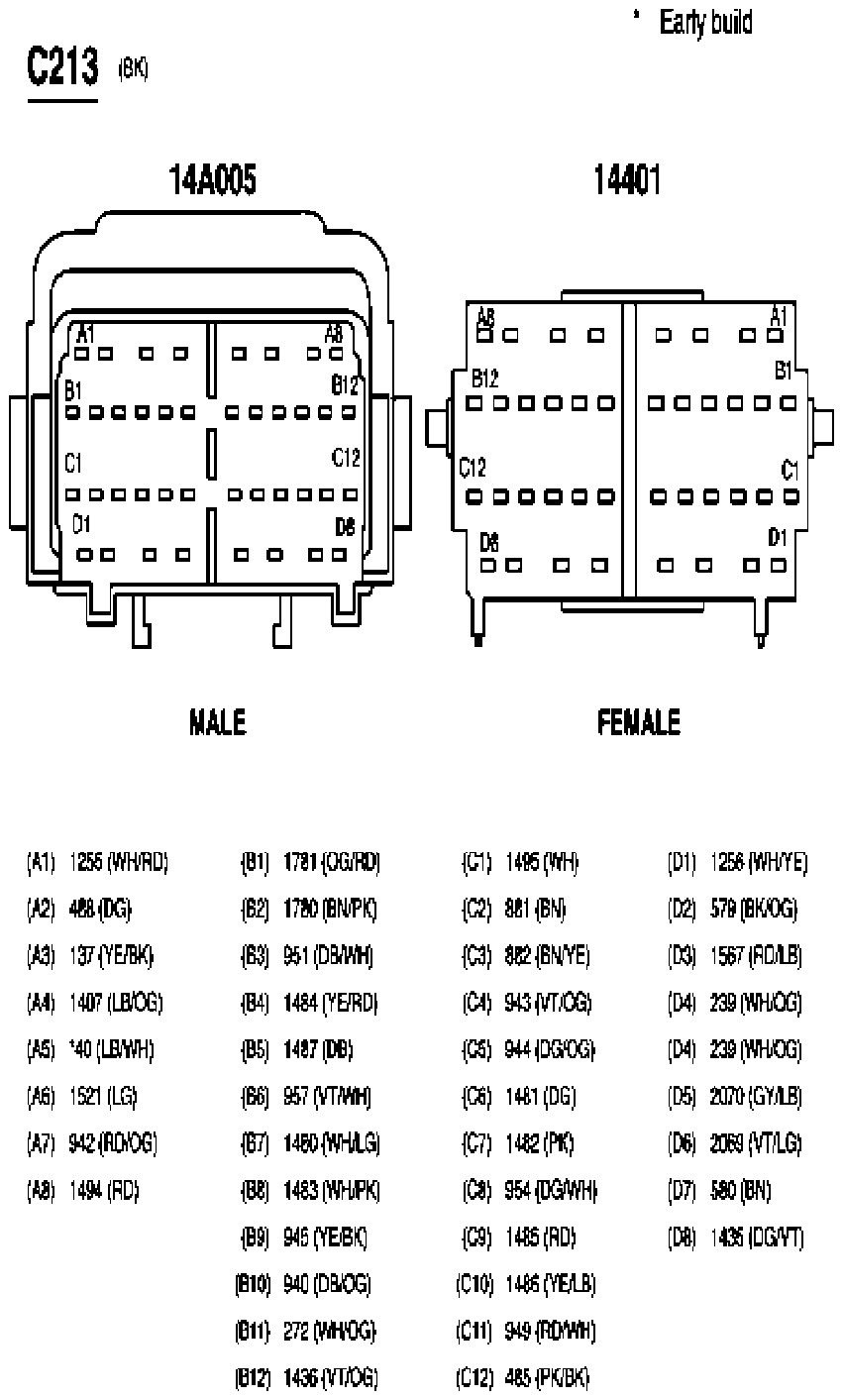

Fig 64: Inline Connector End View (C213)
G07844338Courtesy of FORD MOTOR CO.

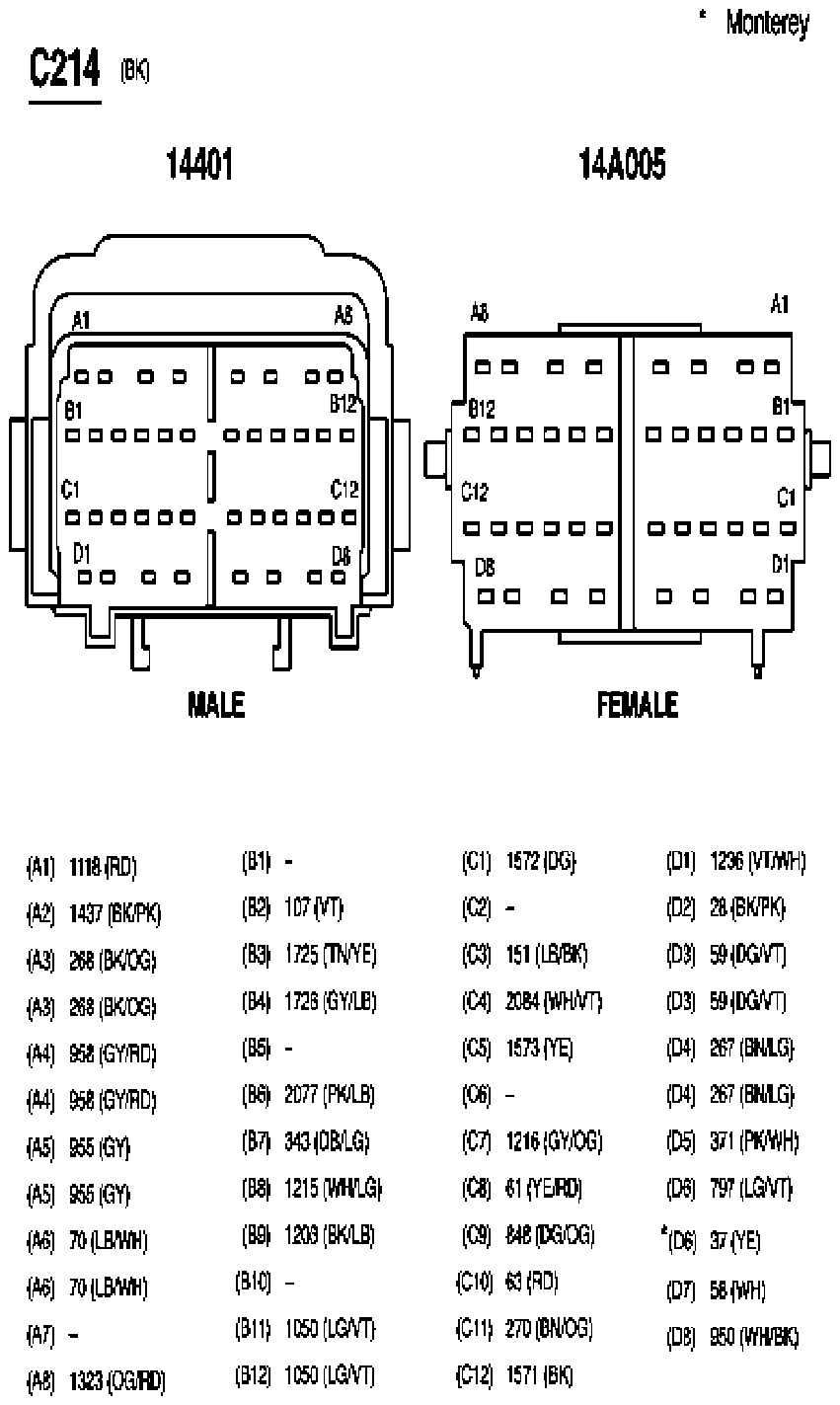

Fig 65: Inline Connector End View (C214)
G07844339Courtesy of FORD MOTOR CO.

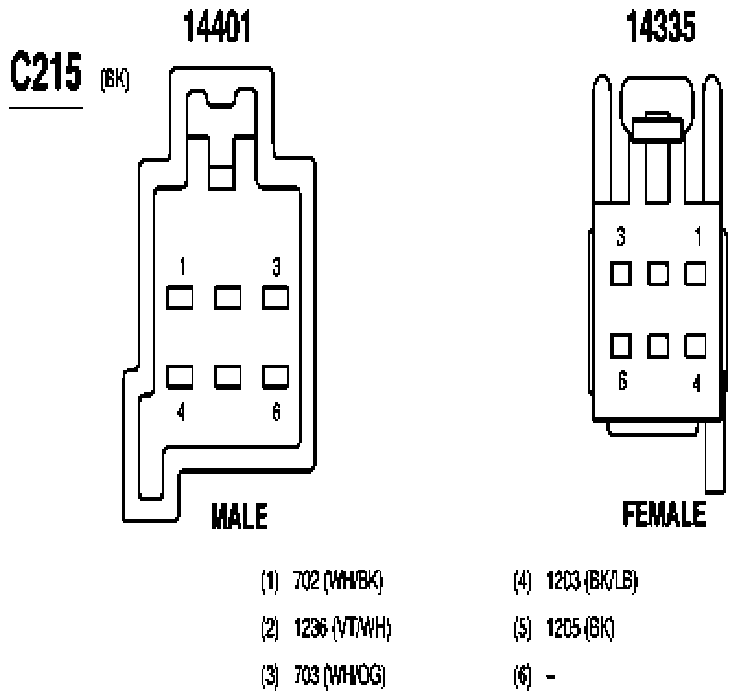

Fig 66: Inline Connector End View (C215)
G07844340Courtesy of FORD MOTOR CO.
Fig 67: Driver Air Bag Unit Connector End View (C216)
G07844341Courtesy of FORD MOTOR CO.

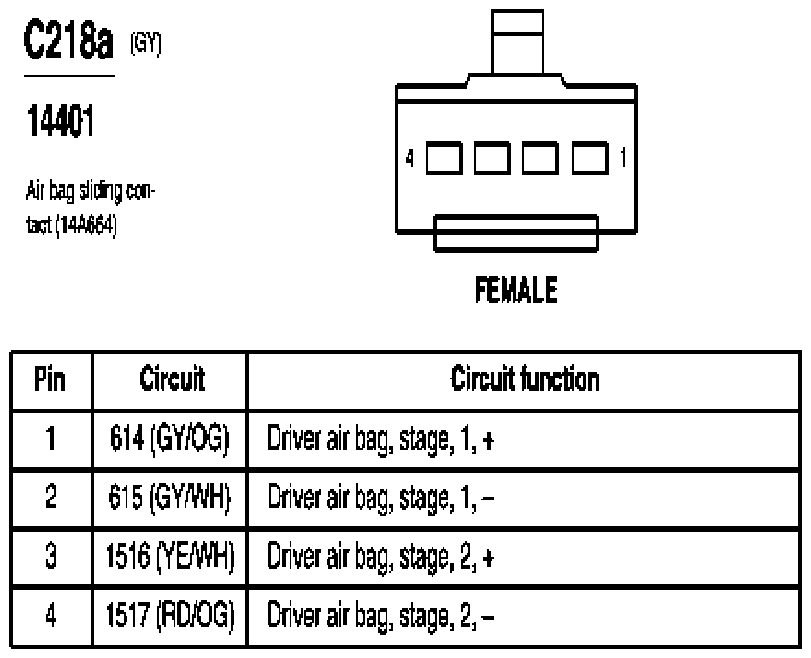

Fig 68: Air Bag Sliding Contact Connector End View (C218a)
G07844342Courtesy of FORD MOTOR CO.

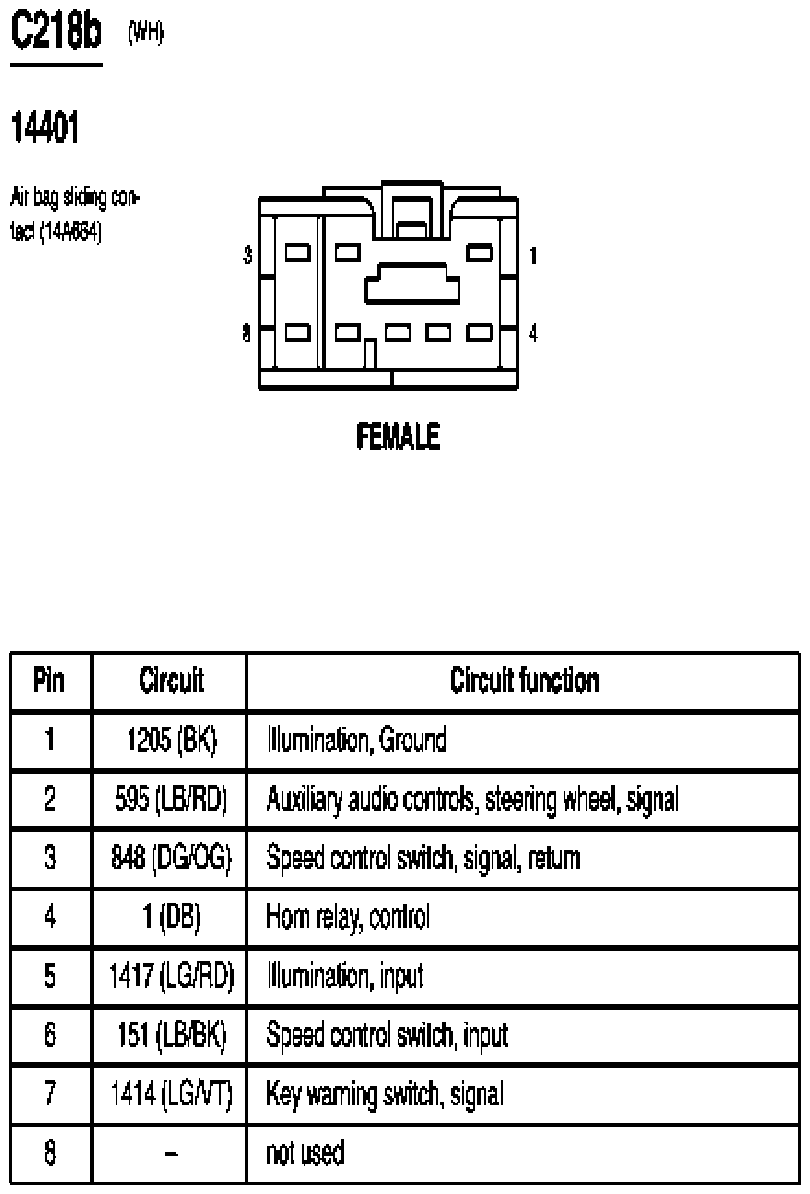

Fig 69: Air Bag Sliding Contact Connector End View (C218b)
G07844343Courtesy of FORD MOTOR CO.

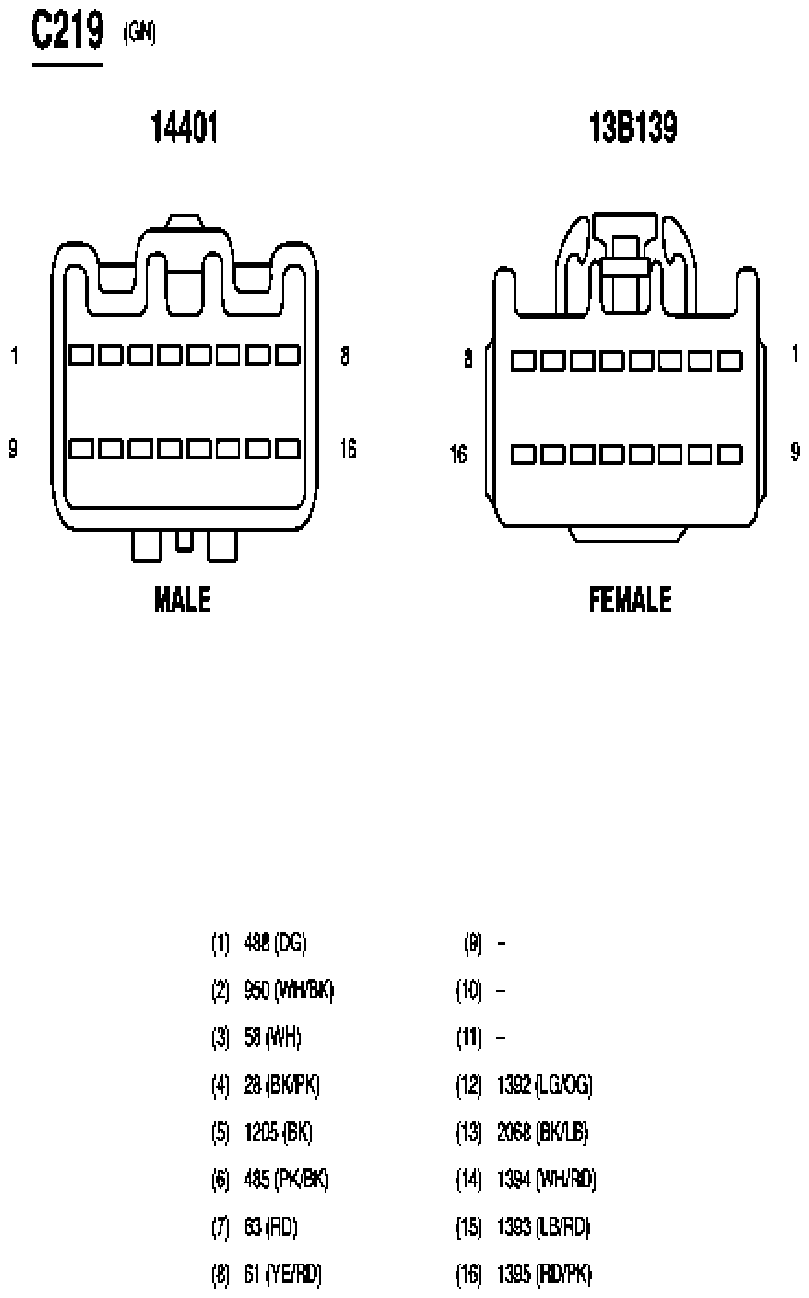

Fig 70: Inline Connector End View (C219)
G07844344Courtesy of FORD MOTOR CO.

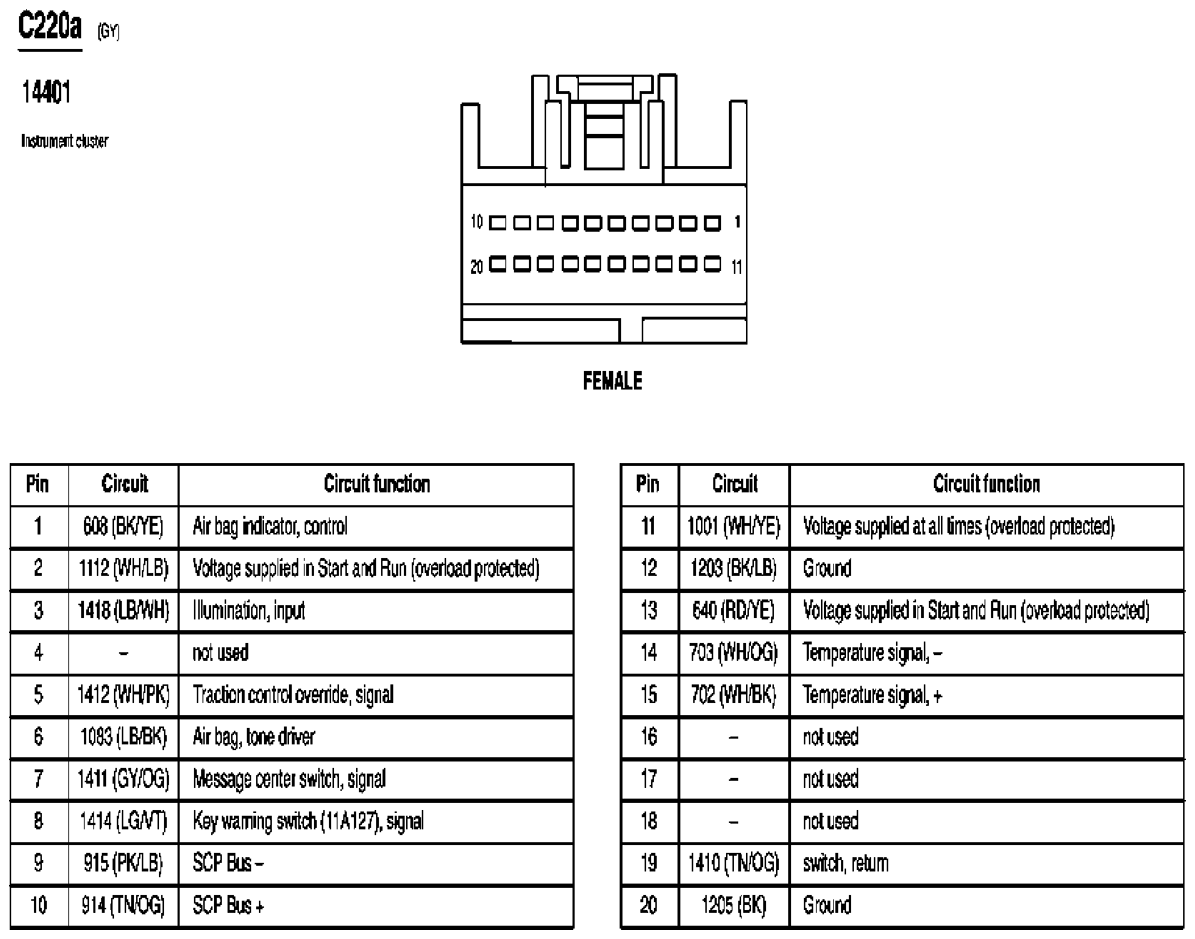

Fig 71: Instrument Cluster Connector End View (C220a)
G03994162Courtesy of FORD MOTOR CO.

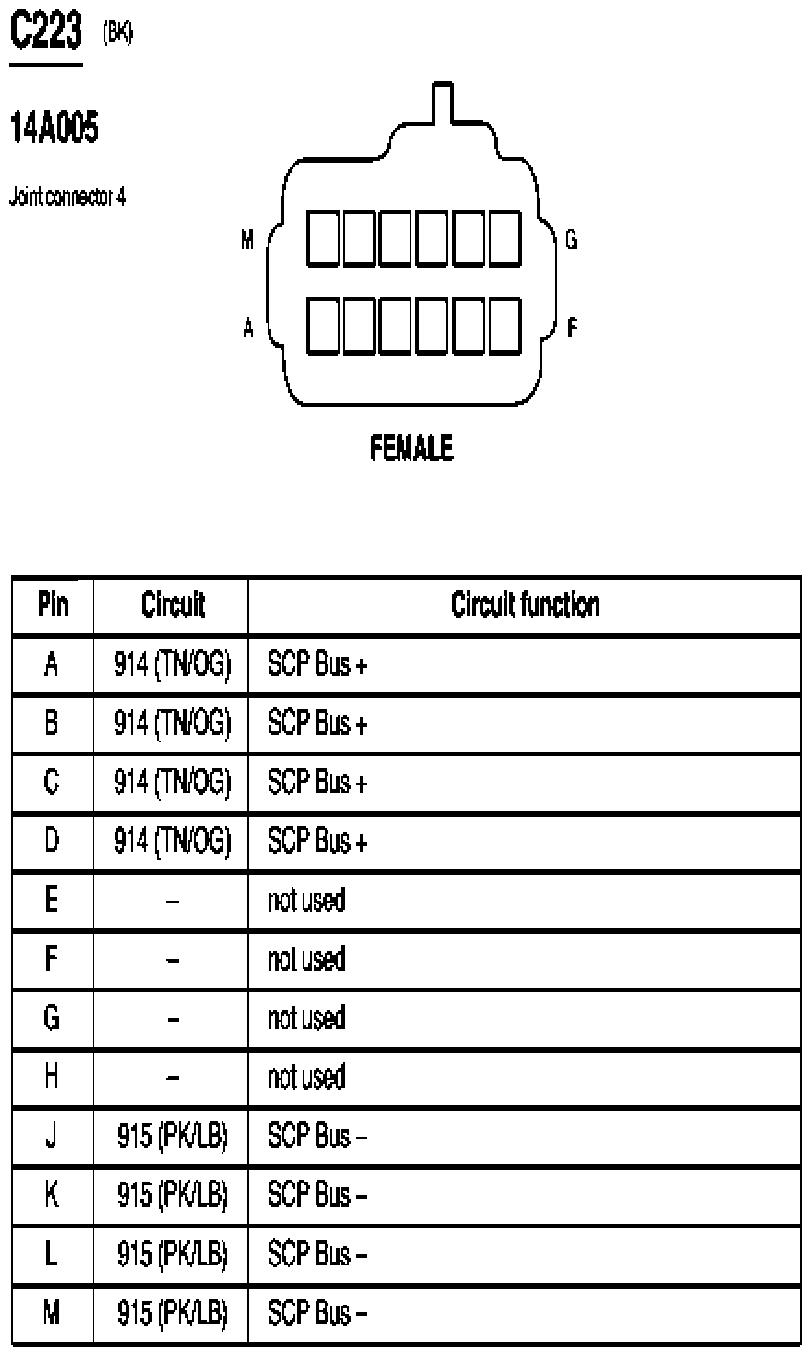

Fig 72: Joint Connector 4 Connector End View (C223)
G07844345Courtesy of FORD MOTOR CO.

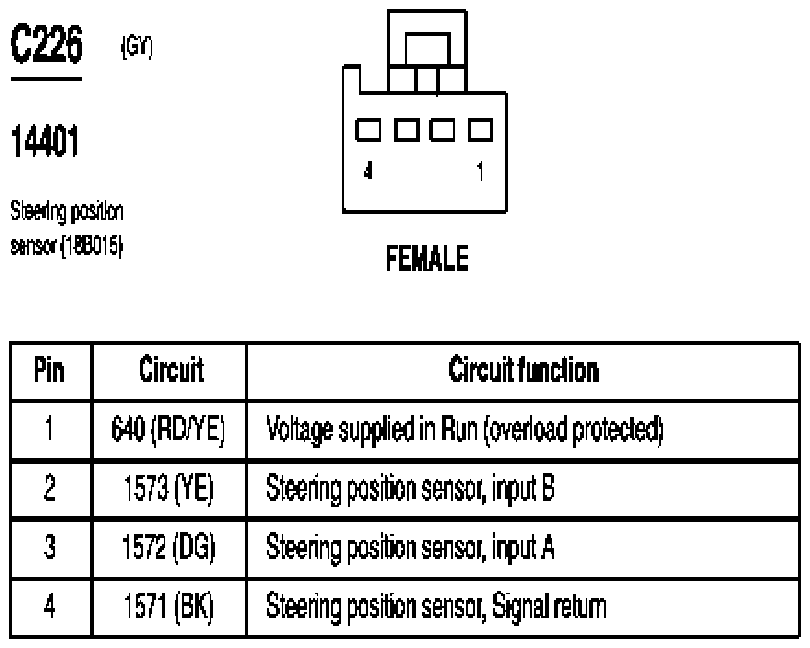

Fig 73: Steering Position Sensor Connector End View (C226)
G07844346Courtesy of FORD MOTOR CO.

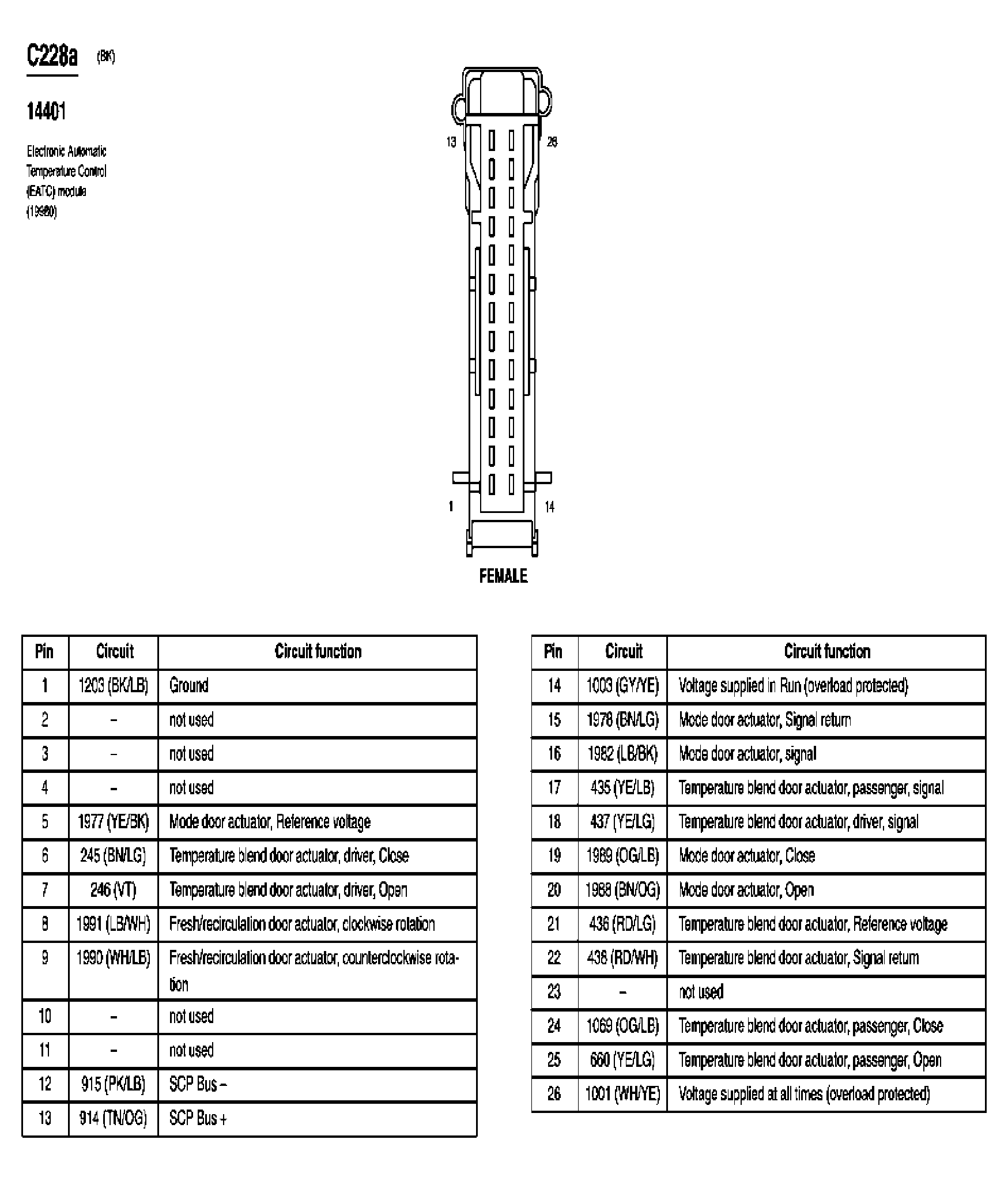

Fig 74: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
G03994164Courtesy of FORD MOTOR CO.

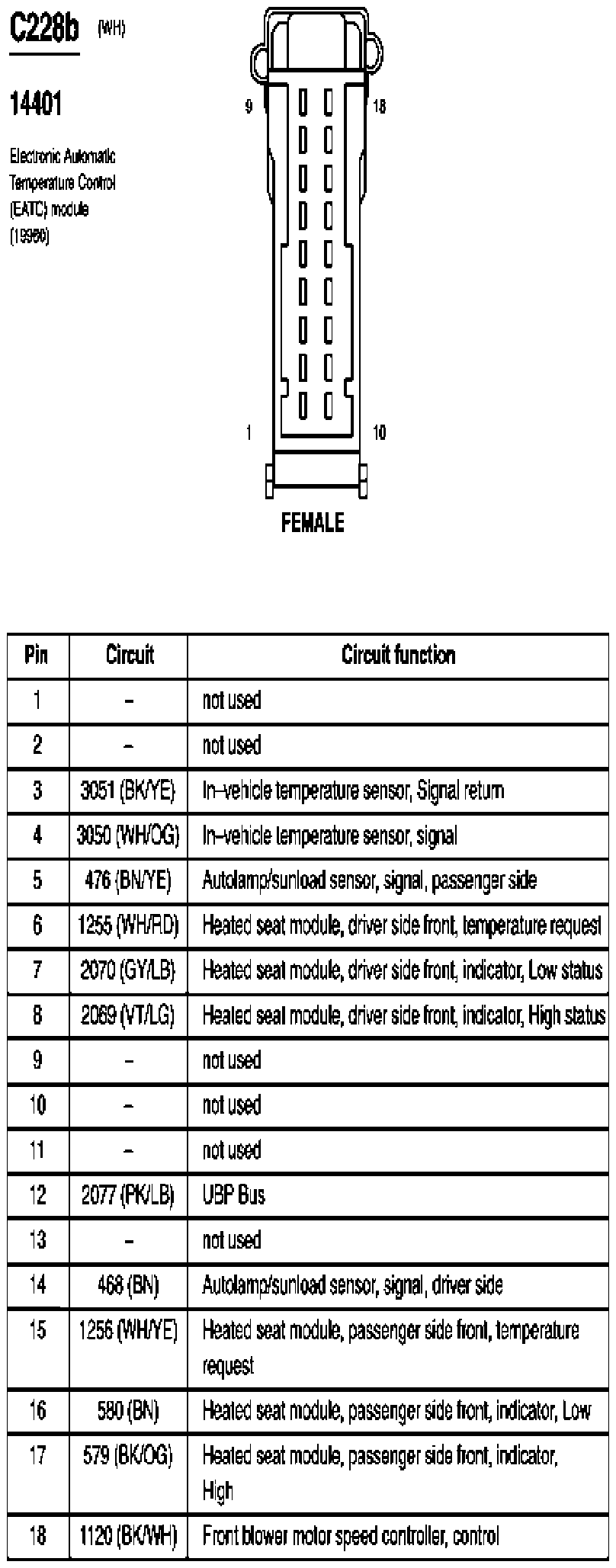

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
G07844347Courtesy of FORD MOTOR CO.

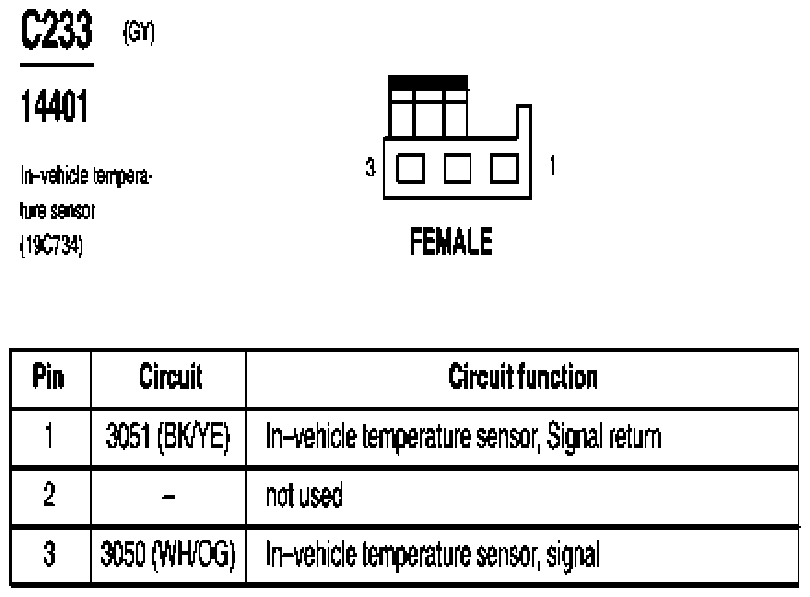

Fig 76: In-Vehicle Temperature Sensor Connector End View (C233)
G07844348Courtesy of FORD MOTOR CO.

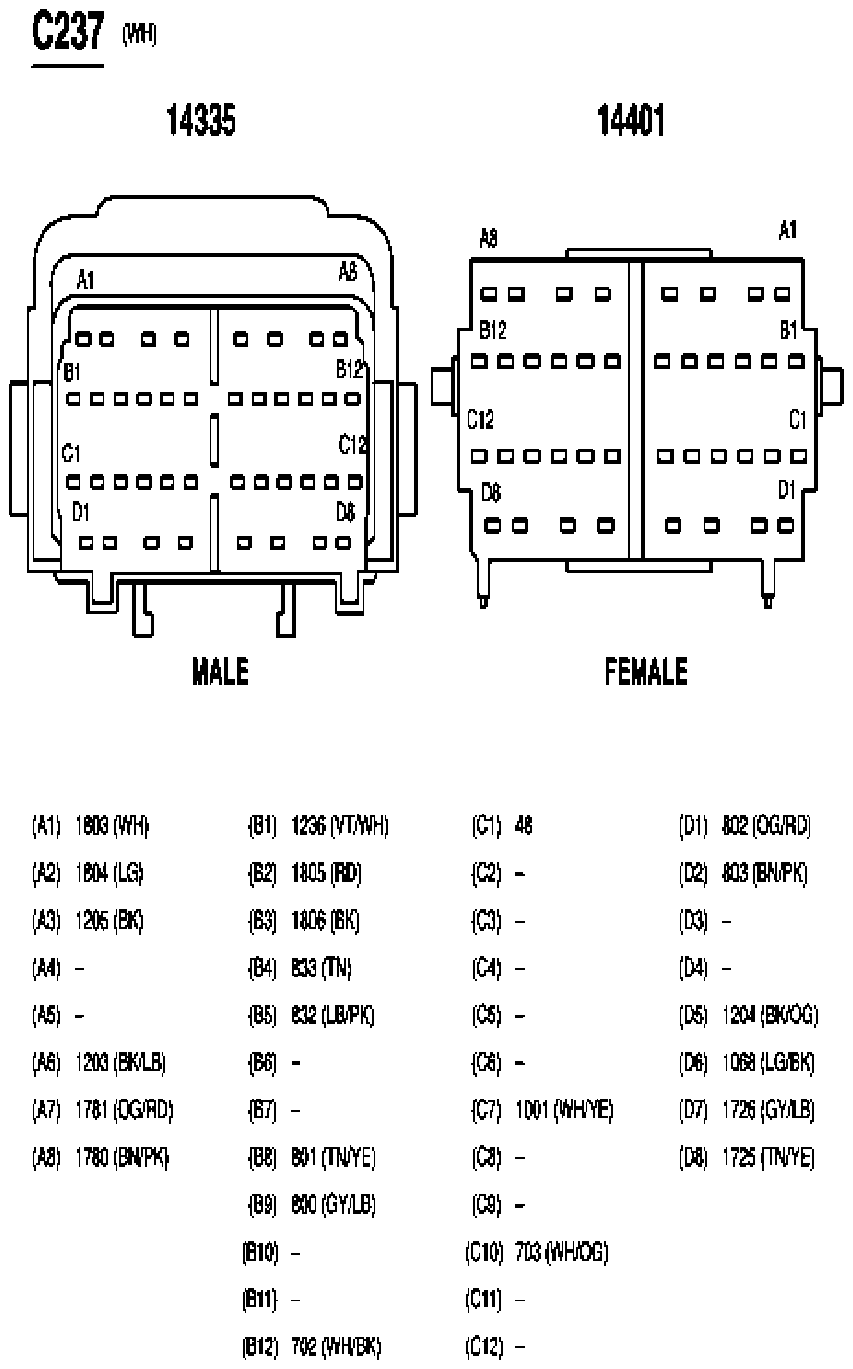

Fig 77: Inline Connector End View (C237)
G07844349Courtesy of FORD MOTOR CO.

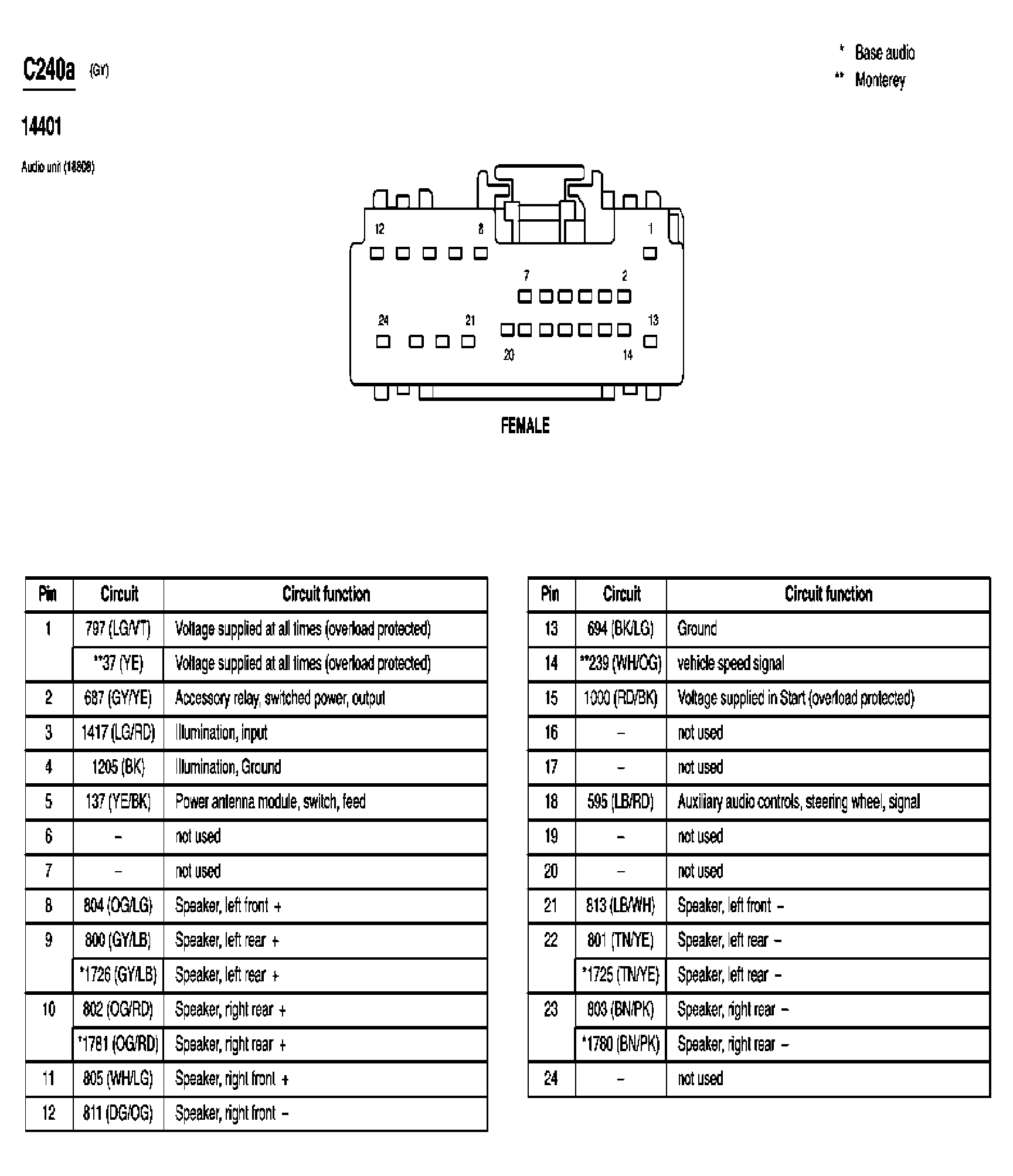

Fig 78: Audio Unit Connector End View (C240a)
G03994166Courtesy of FORD MOTOR CO.

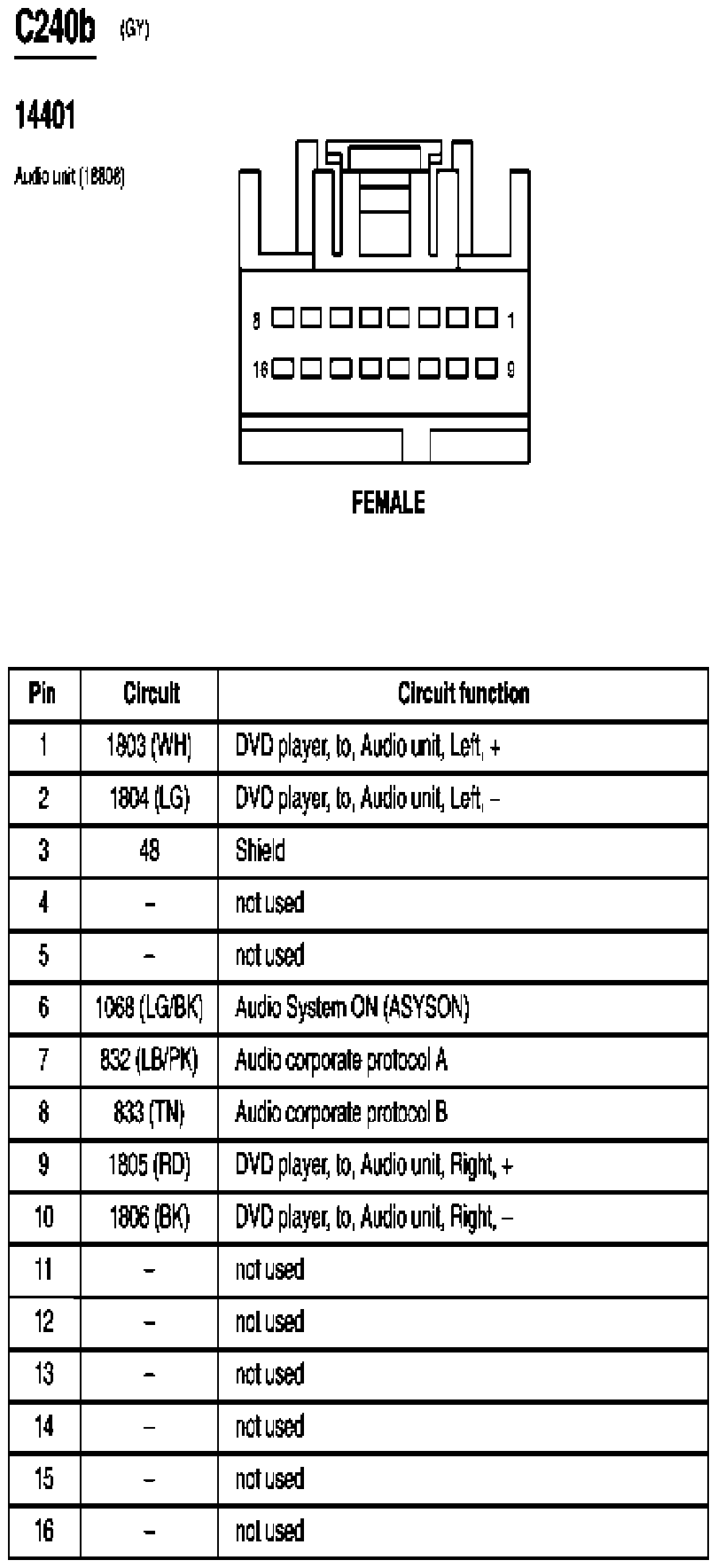

Fig 79: Audio Unit Connector End View (C240b)
G07844350Courtesy of FORD MOTOR CO.

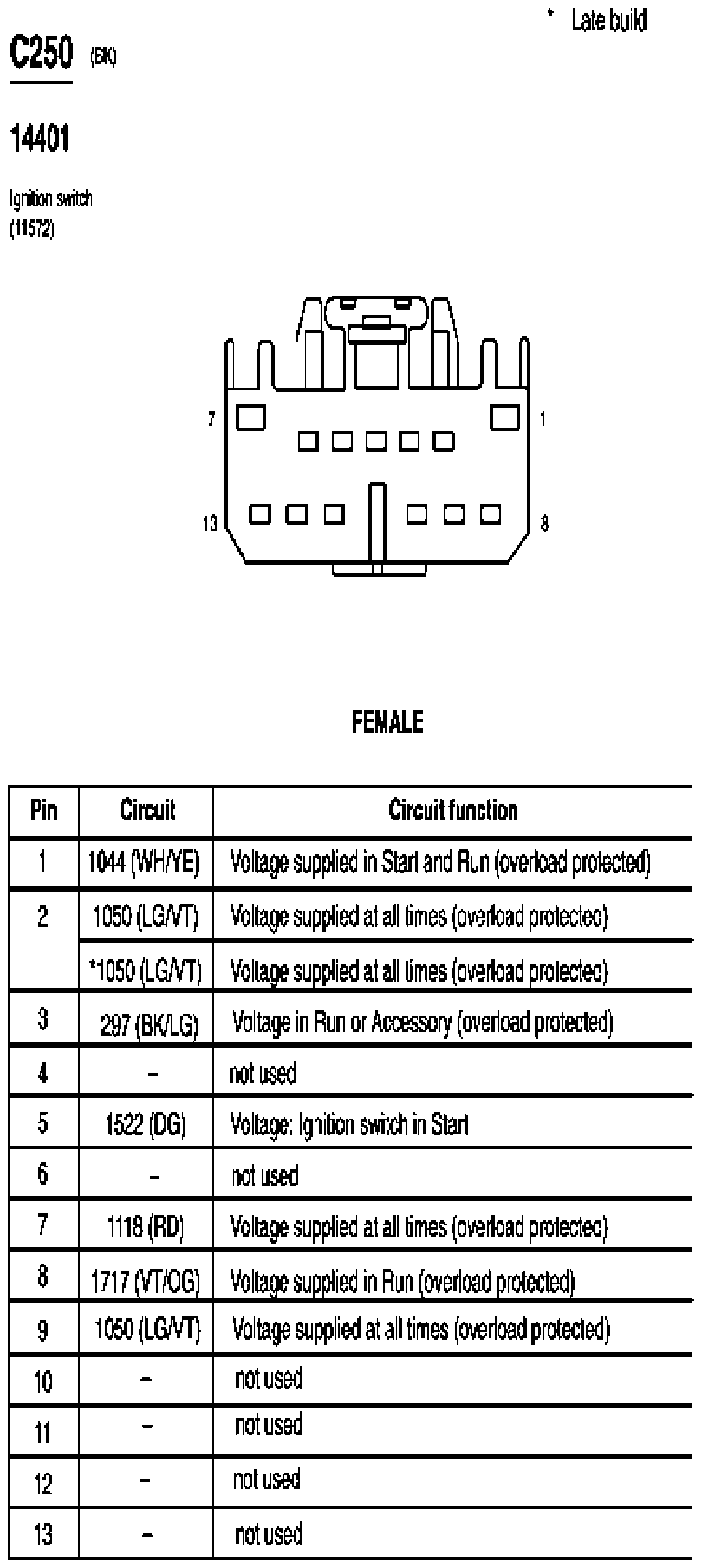

Fig 80: Ignition Switch Connector End View (C250)
G07844351Courtesy of FORD MOTOR CO.

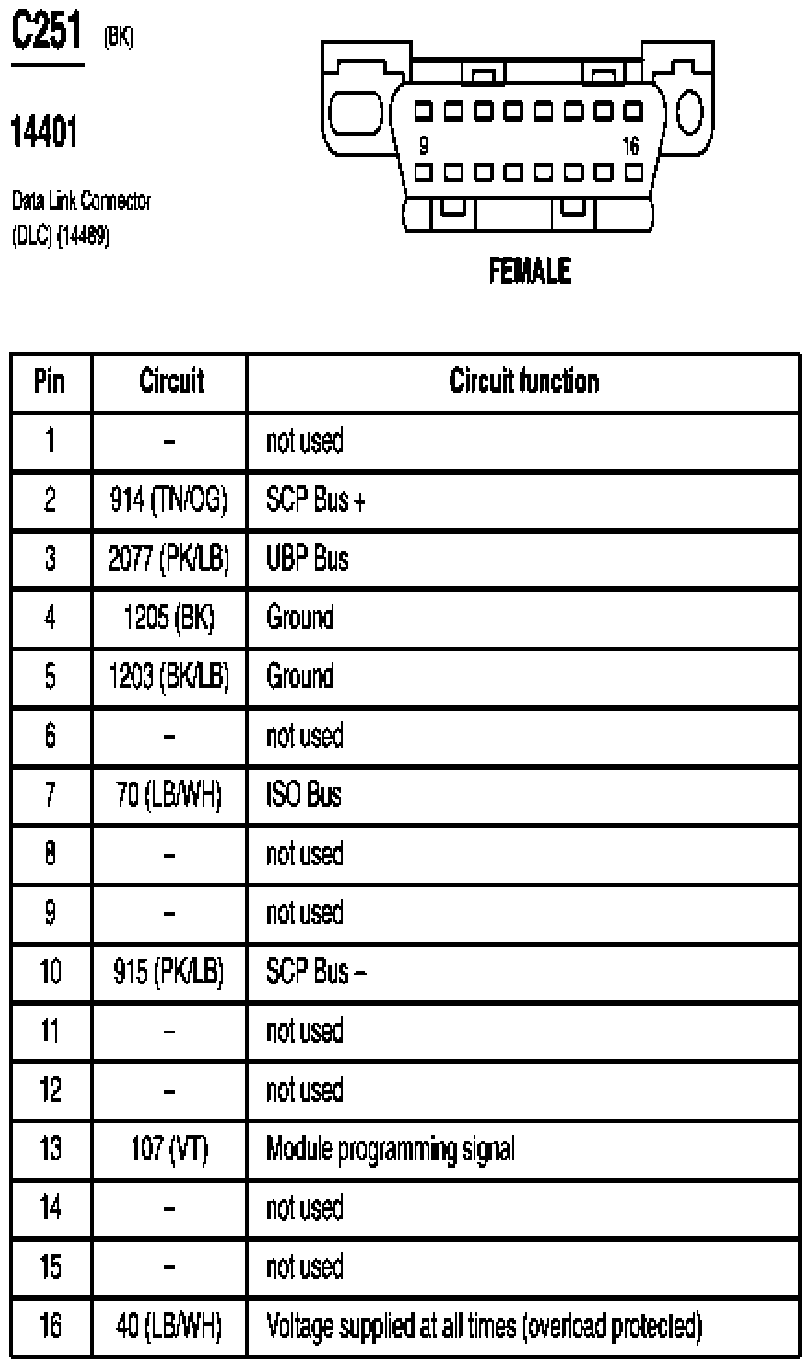

Fig 81: Data Link Connector (DLC) Connector End View (C251)
G07844352Courtesy of FORD MOTOR CO.

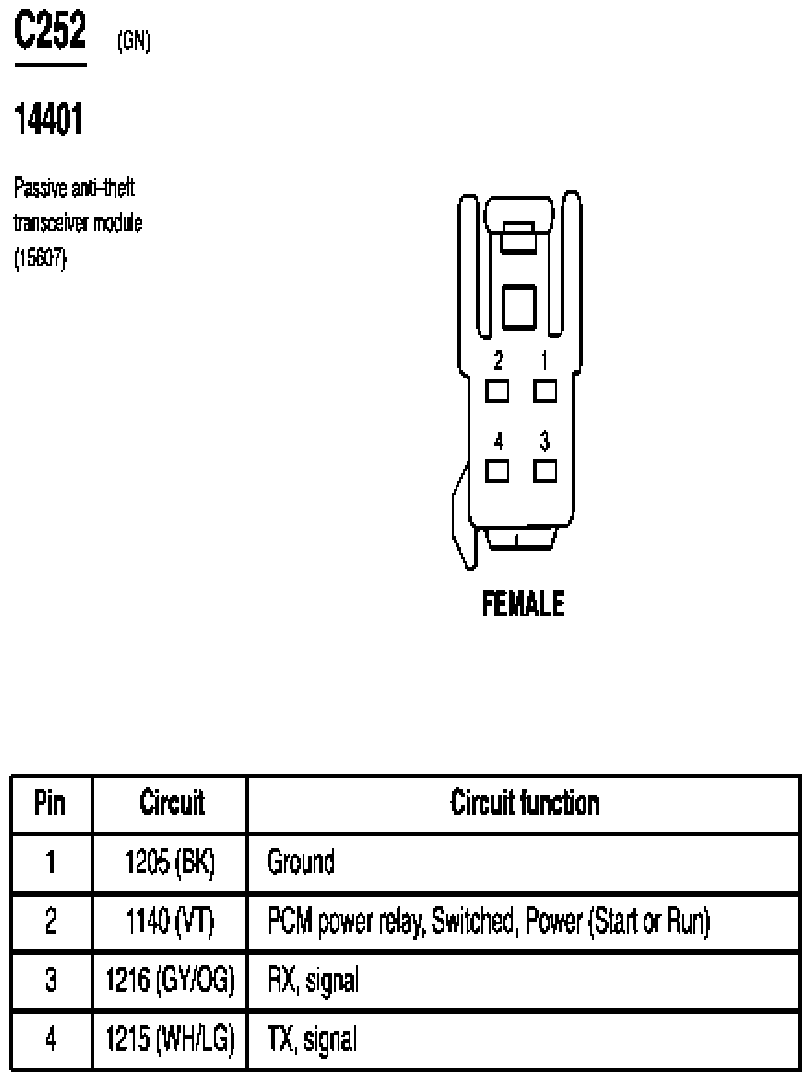

Fig 82: Passive Anti-Theft Transceiver Module Connector End View (C252)
G07844353Courtesy of FORD MOTOR CO.

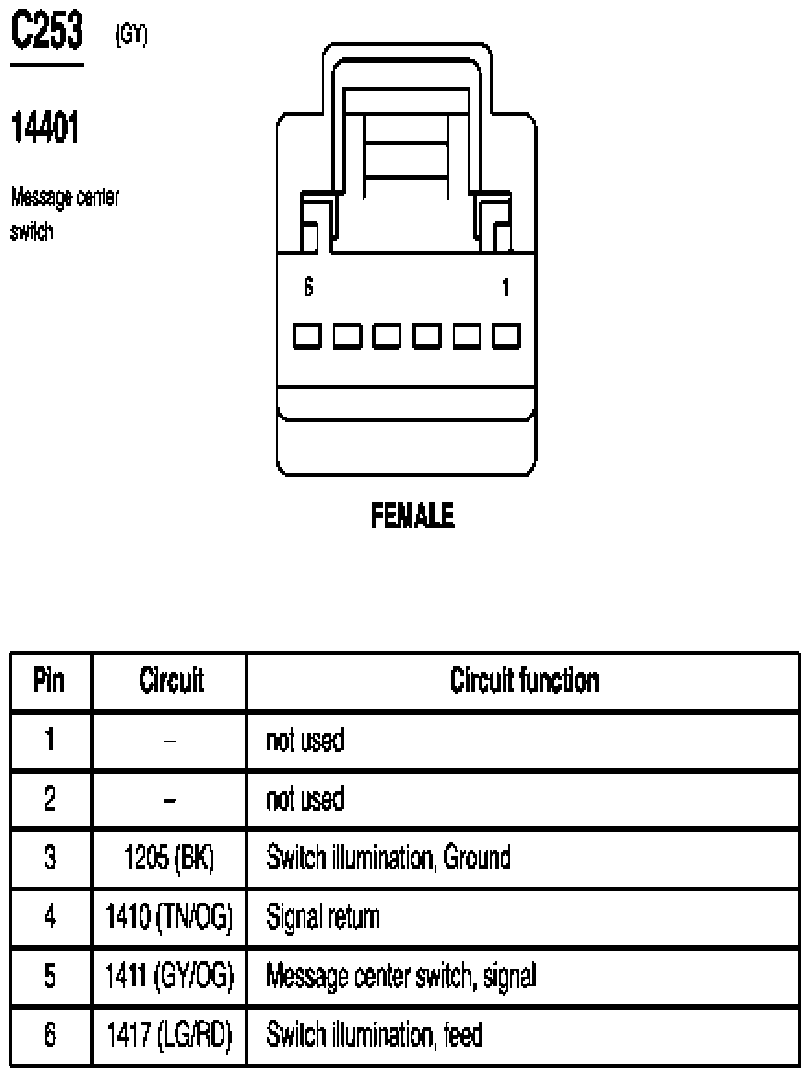

Fig 83: Message Center Switch Connector End View (C253)
G07844354Courtesy of FORD MOTOR CO.

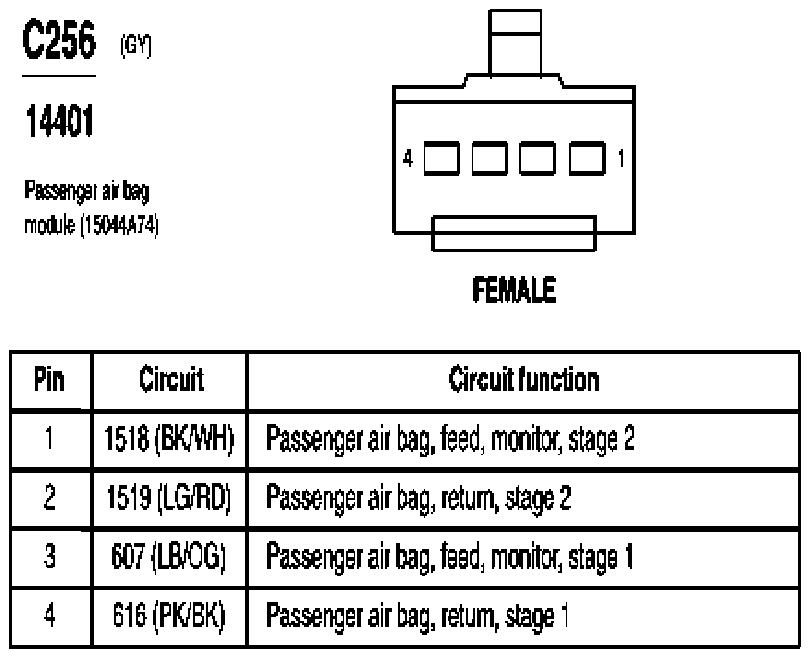

Fig 84: Passenger Air Bag Module Connector End View (C256)
G07844355Courtesy of FORD MOTOR CO.

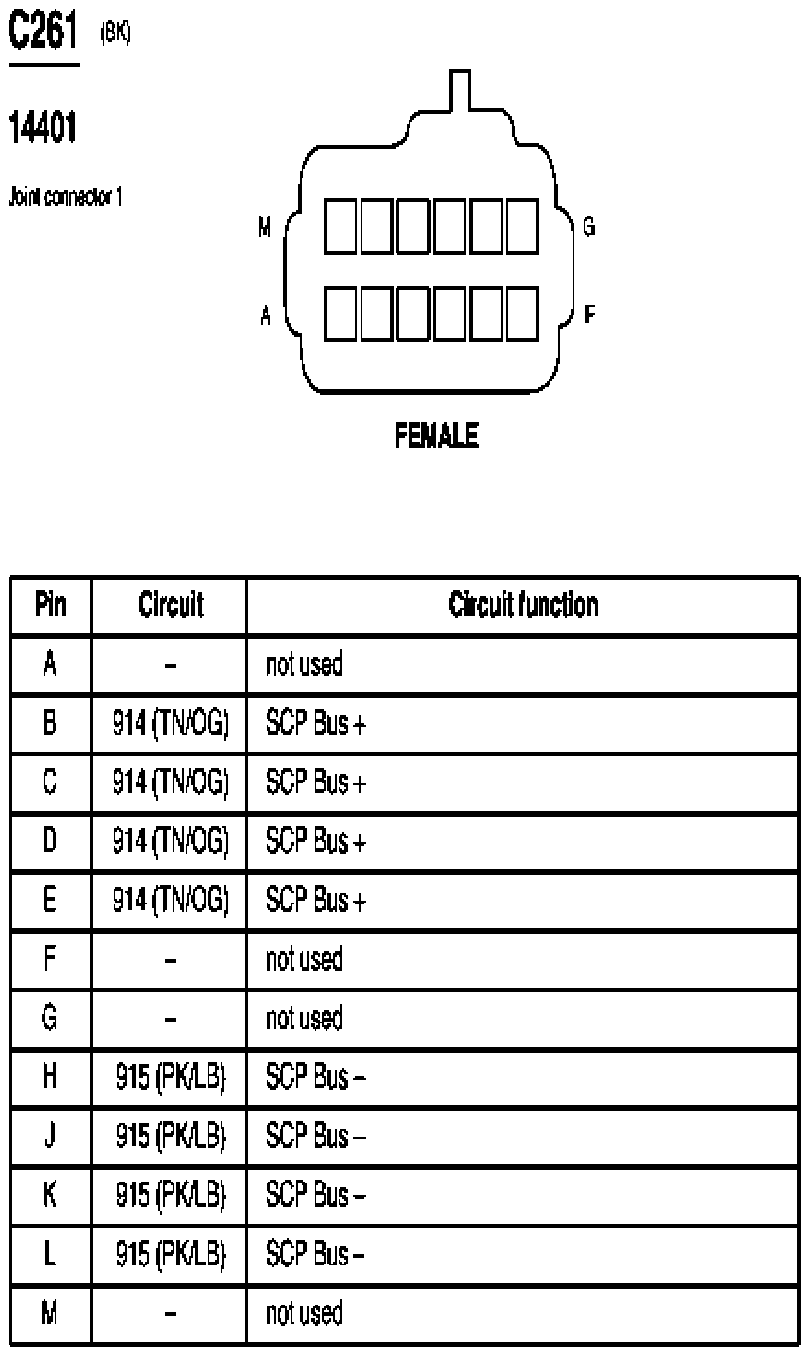

Fig 85: Joint Connector 1 Connector End View (C261)
G07844356Courtesy of FORD MOTOR CO.

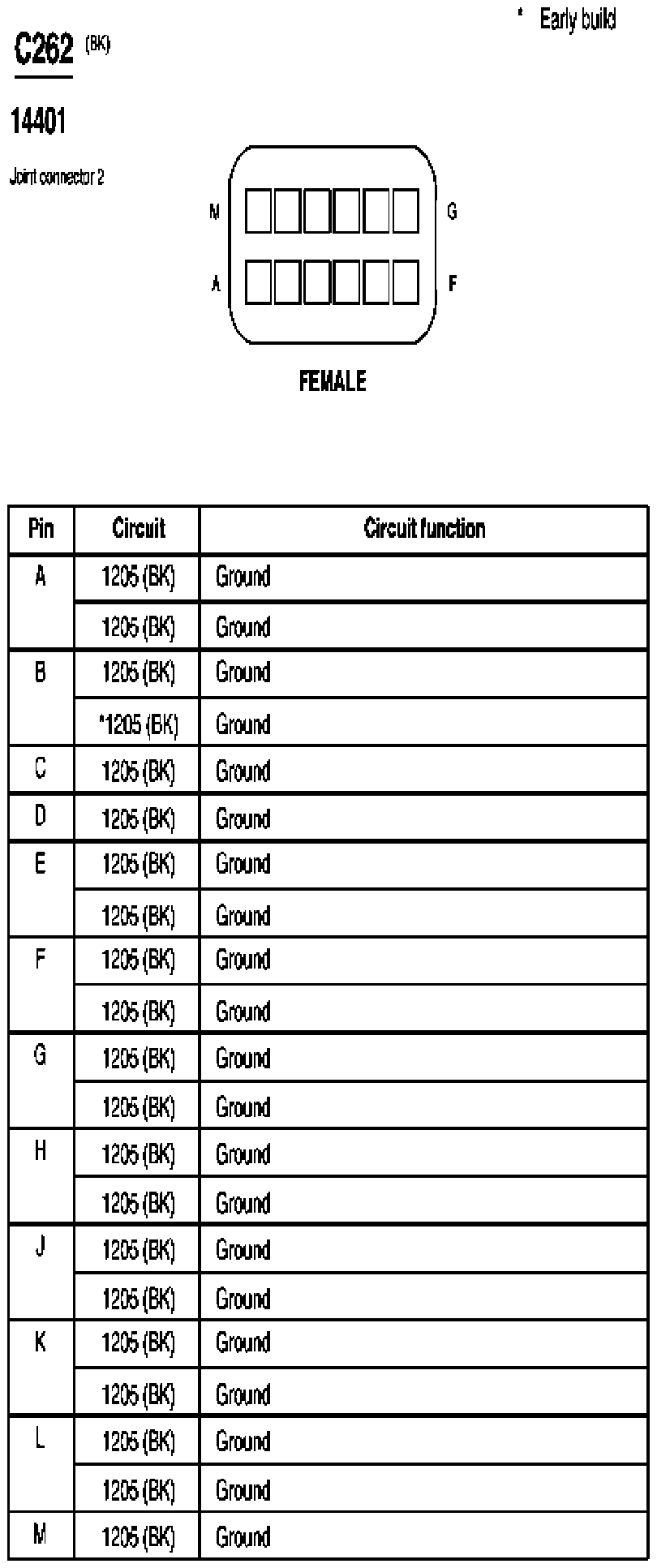

Fig 86: Joint Connector 2 Connector End View (C262)
G07844357Courtesy of FORD MOTOR CO.

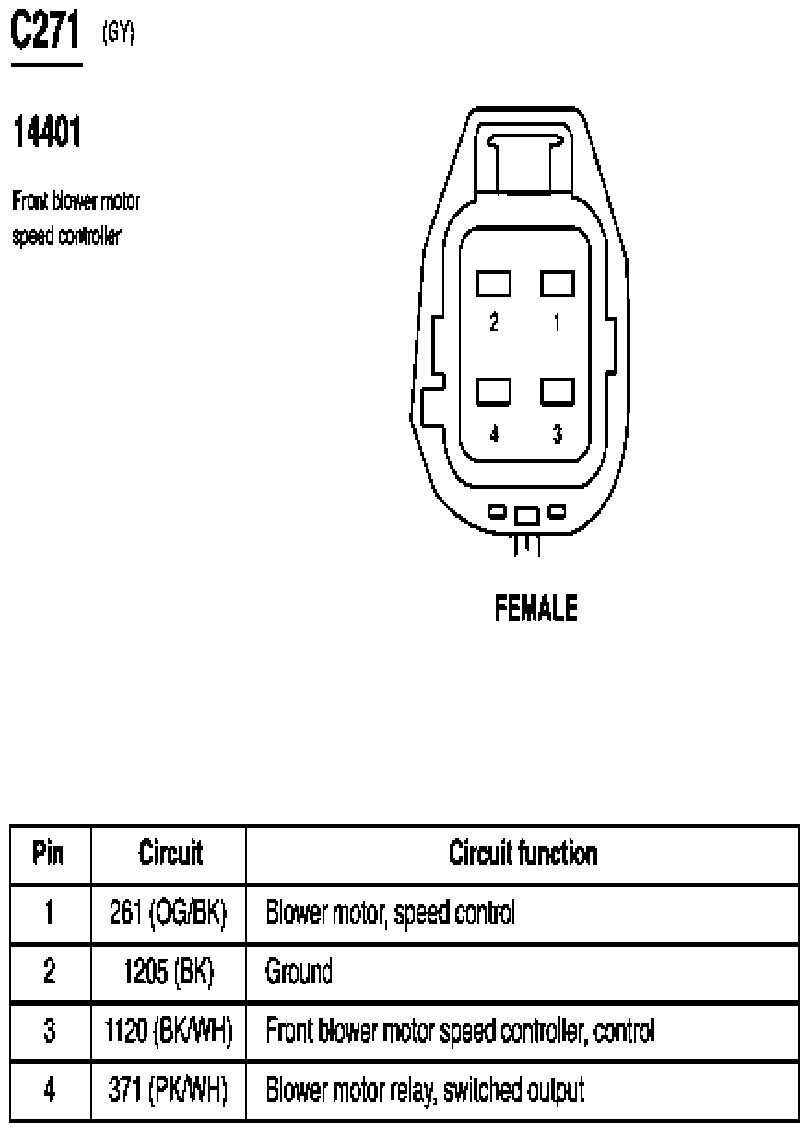

Fig 87: Front Blower Motor Speed Controller Connector End View (C271)
G07844358Courtesy of FORD MOTOR CO.

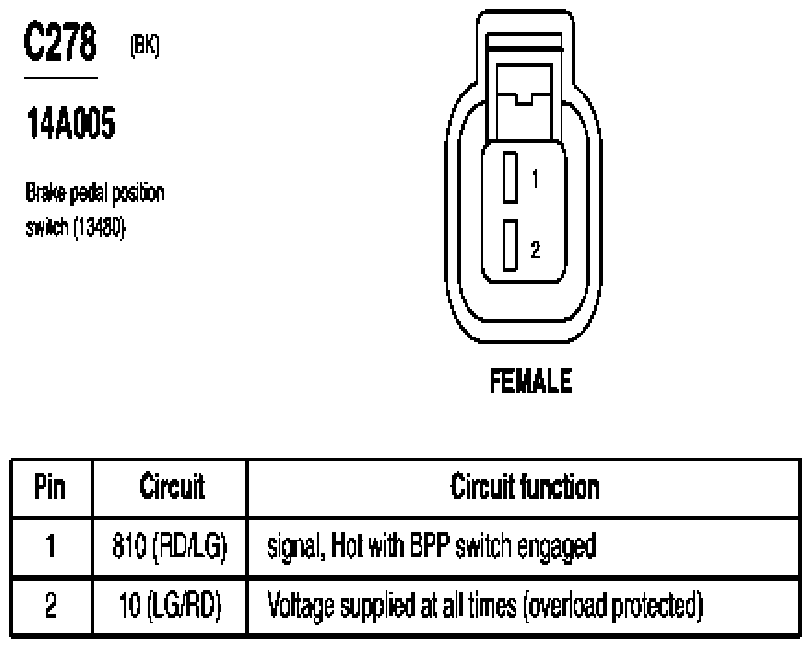

Fig 88: Brake Pedal Position Switch Connector End View (C278)
G07844359Courtesy of FORD MOTOR CO.

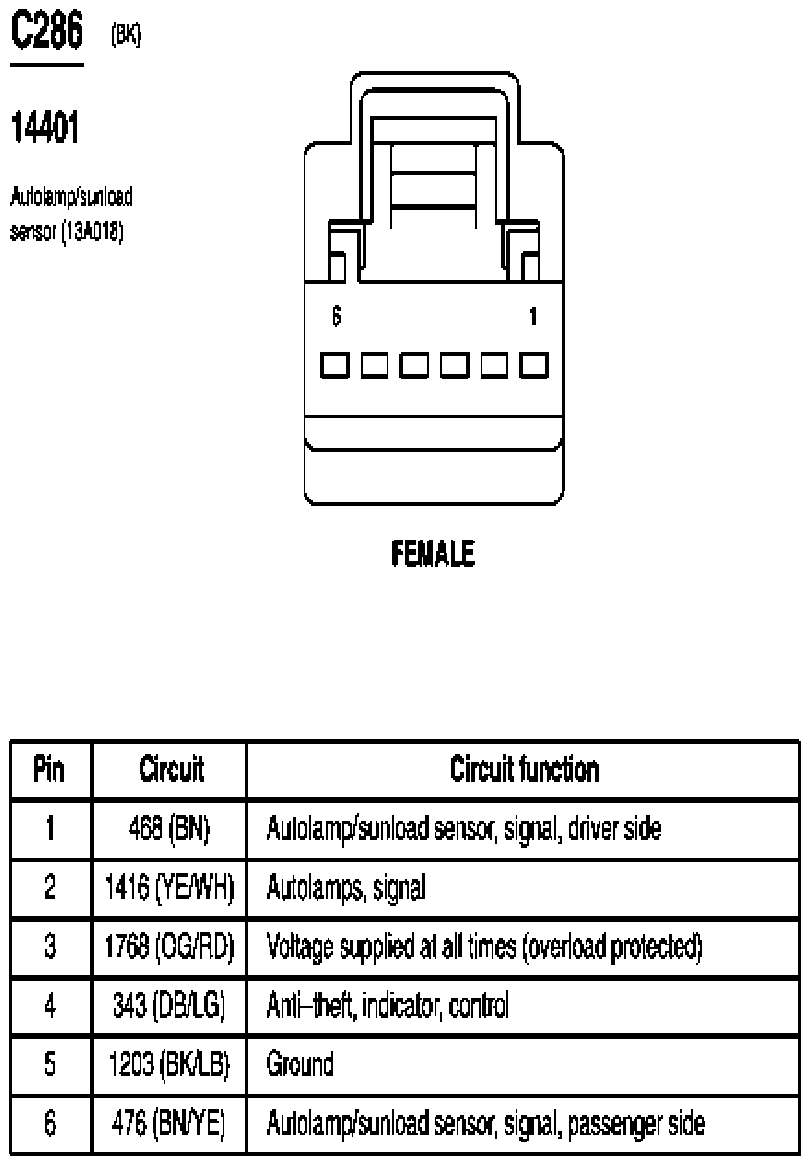

Fig 89: Autolamp/Sunload Sensor Connector End View (C286)
G07844360Courtesy of FORD MOTOR CO.

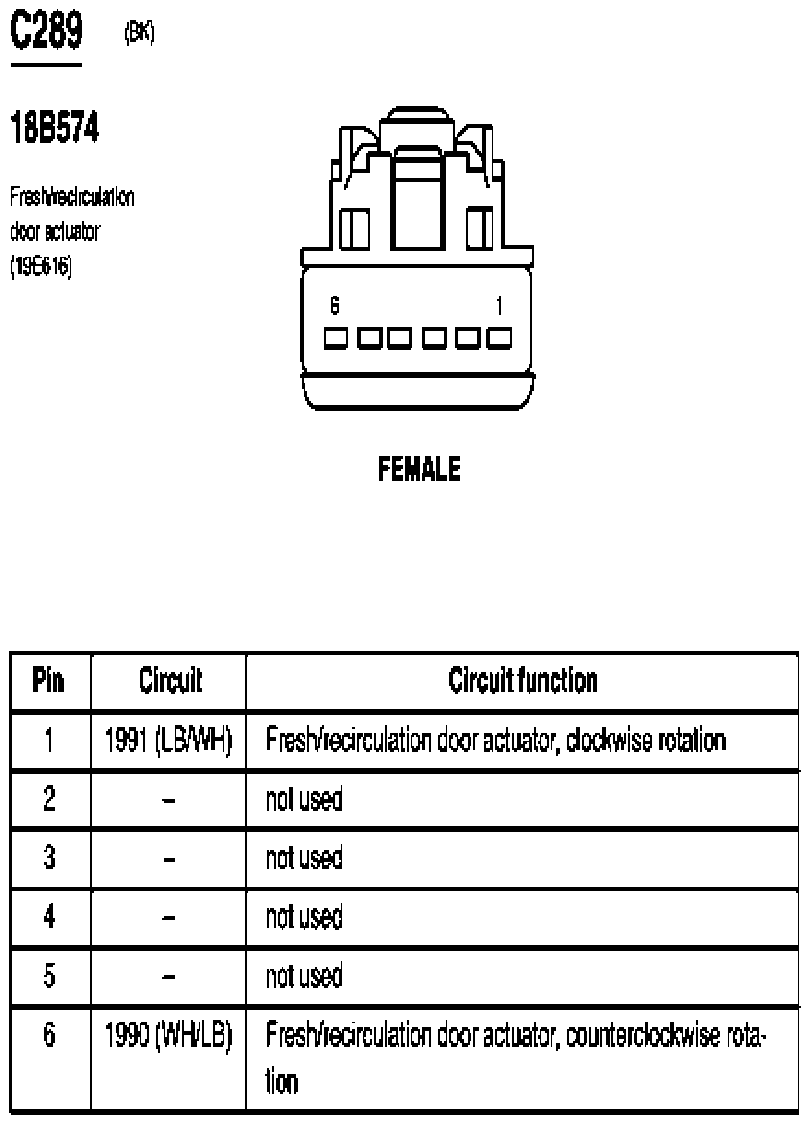

Fig 90: Fresh/Recirculation Door Actuator Connector End View (C289)
G07844361Courtesy of FORD MOTOR CO.

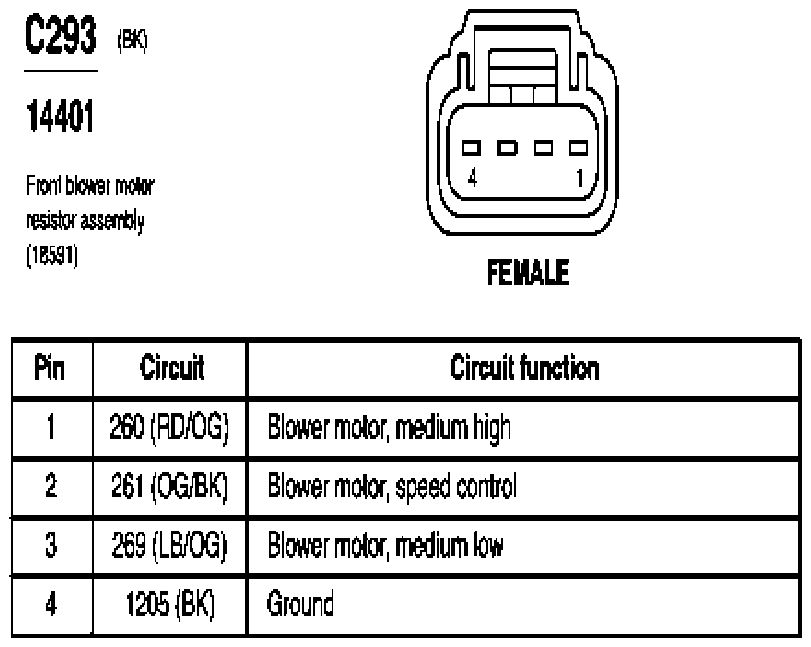

Fig 91: Front Blower Motor Resistor Assembly Connector End View (C293)
G07844362Courtesy of FORD MOTOR CO.

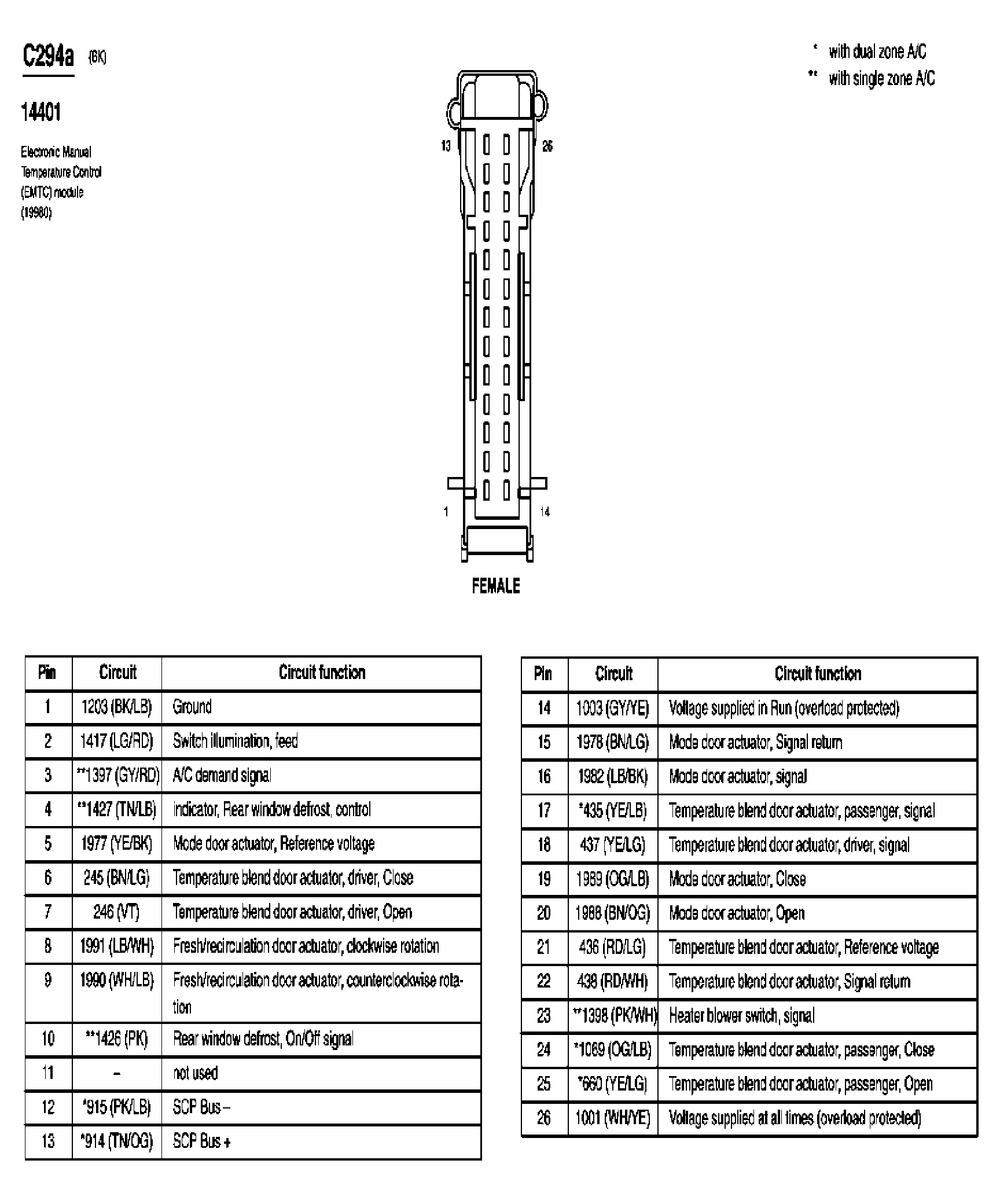

Fig 92: Electronic Automatic Temperature Control (EATC) Module Connector End View (C294a)
G03994172Courtesy of FORD MOTOR CO.

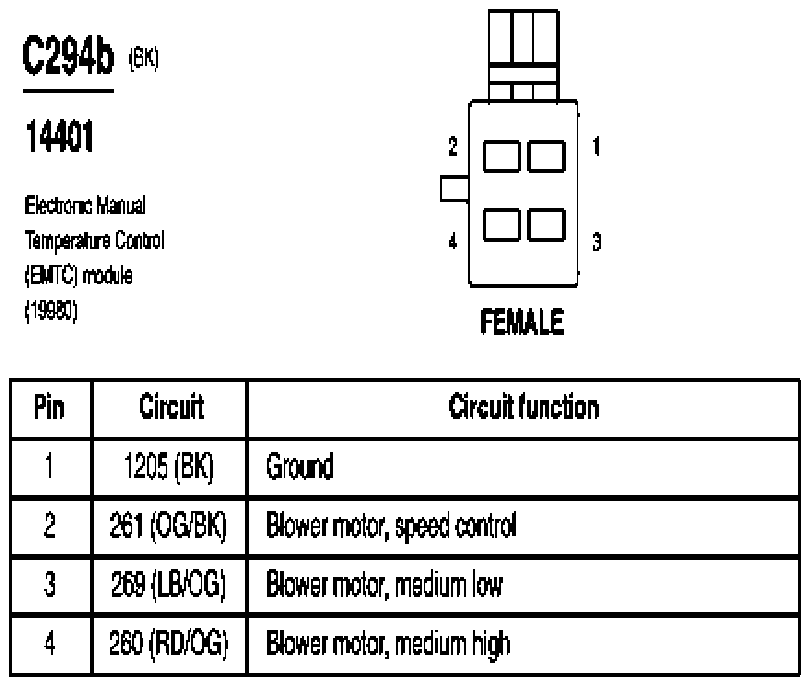

Fig 93: Electronic Manual Temperature Control (EMTC) Module Connector End View (C294b)
G07844363Courtesy of FORD MOTOR CO.

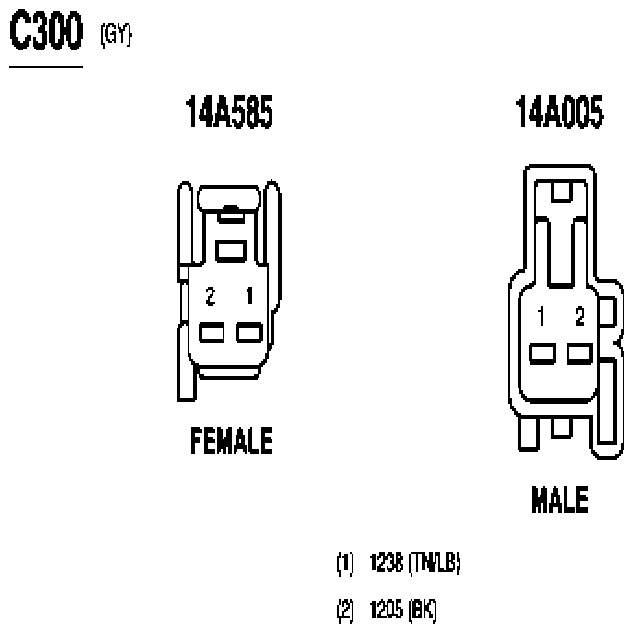

Fig 94: Inline Connector End View (C300)
G07844364Courtesy of FORD MOTOR CO.

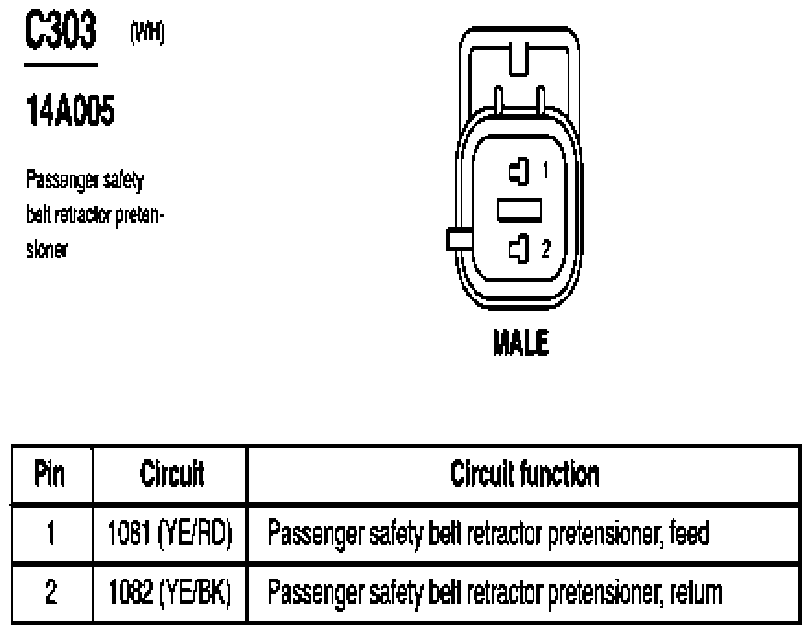

Fig 95: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
G07844365Courtesy of FORD MOTOR CO.

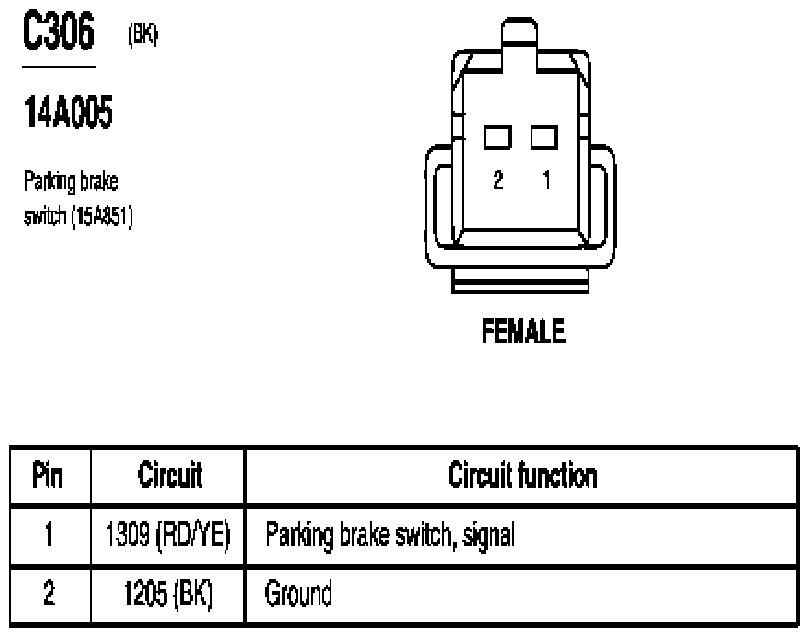

Fig 96: Parking Brake Switch Connector End View (C306)
G07844366Courtesy of FORD MOTOR CO.

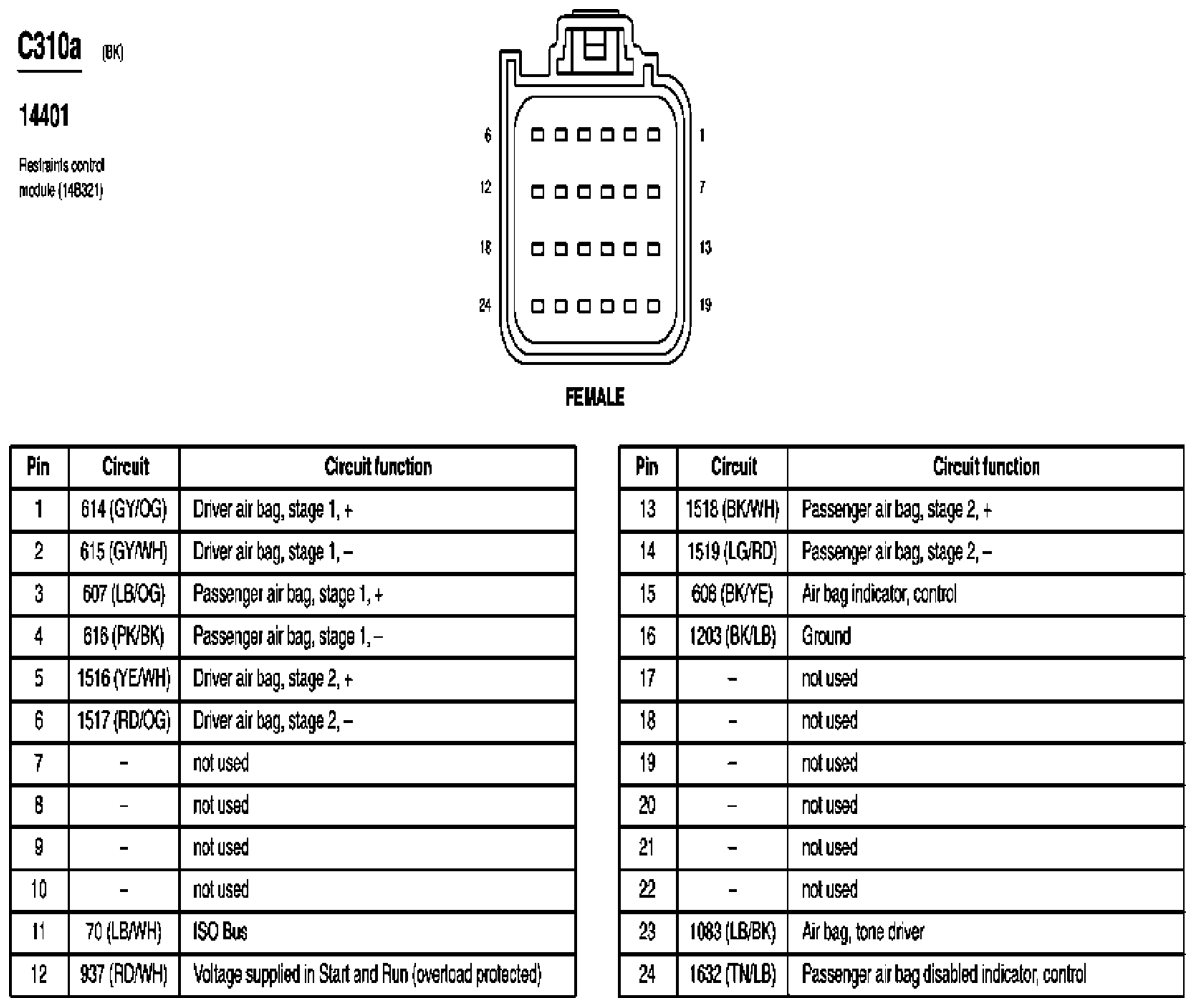

Fig 97: Restraints Control Module Connector End View (C310a)
G03994174Courtesy of FORD MOTOR CO.

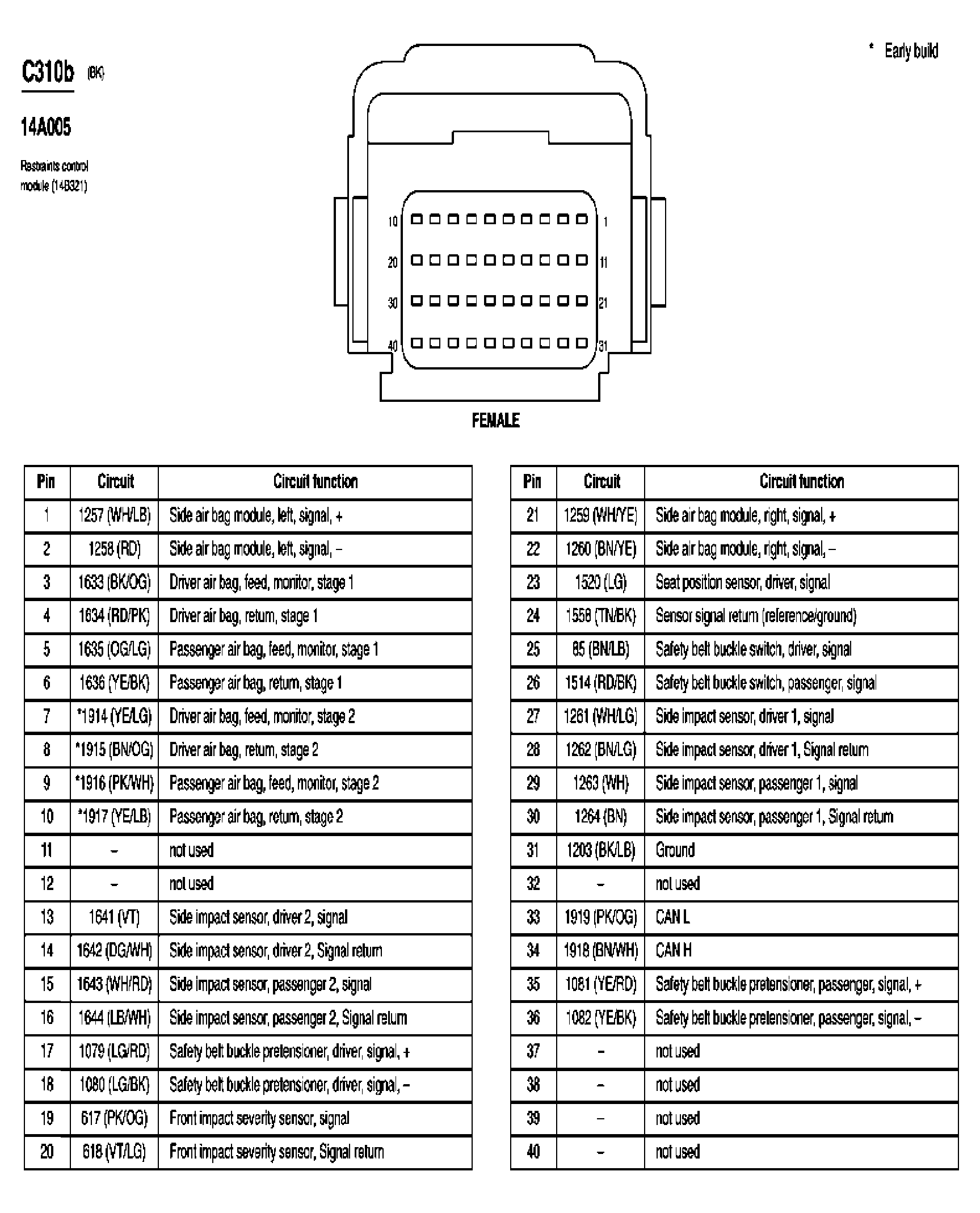

Fig 98: Restraints Control Module Connector End View (C310b)
G03994175Courtesy of FORD MOTOR CO.

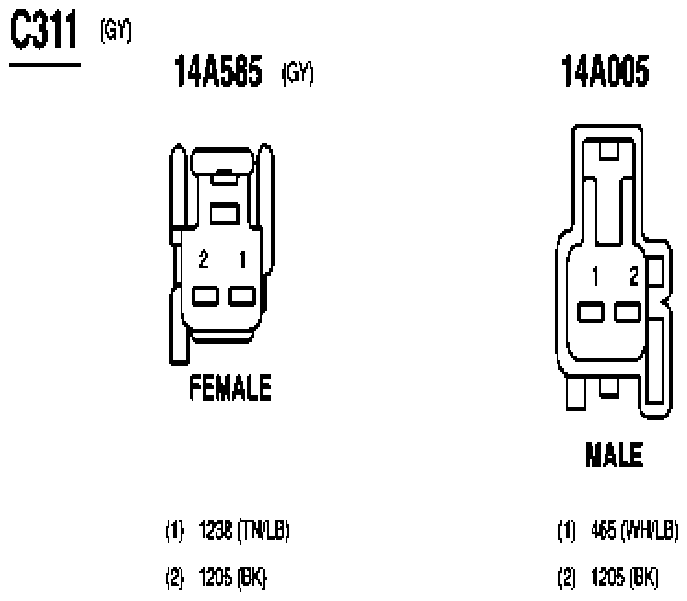

Fig 99: Inline Connector End View (C311)
G07844367Courtesy of FORD MOTOR CO.

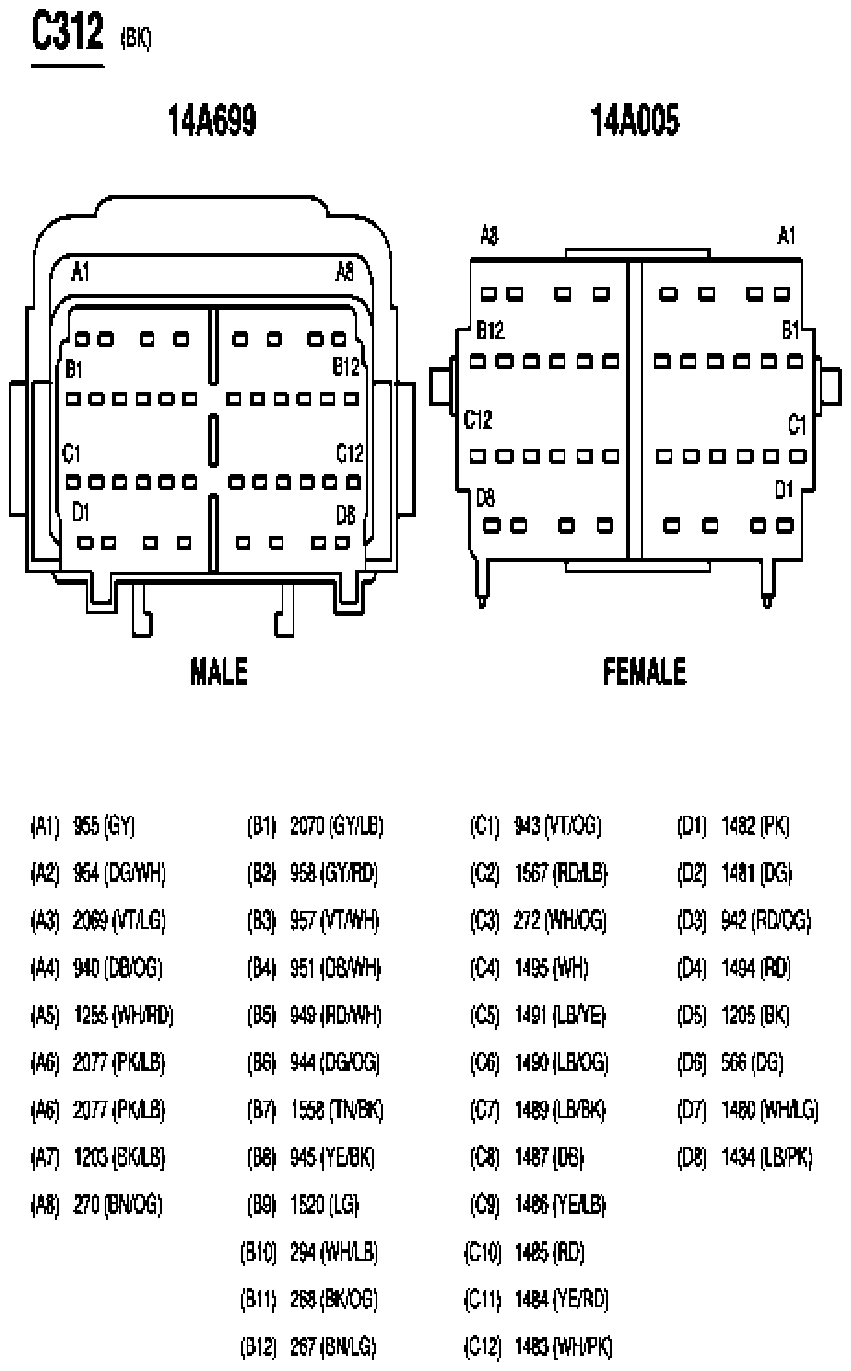

Fig 100: Inline Connector End View (C312)
G07844368Courtesy of FORD MOTOR CO.

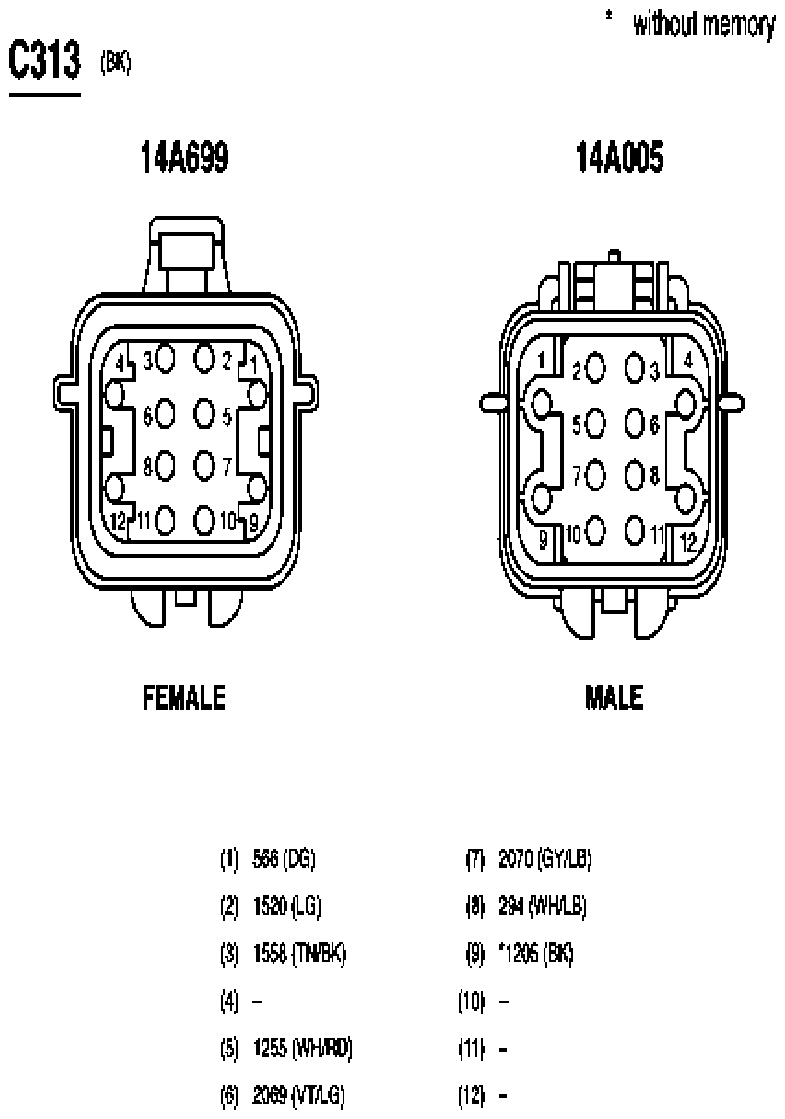

Fig 101: Inline Connector End View (C313)
G07844369Courtesy of FORD MOTOR CO.

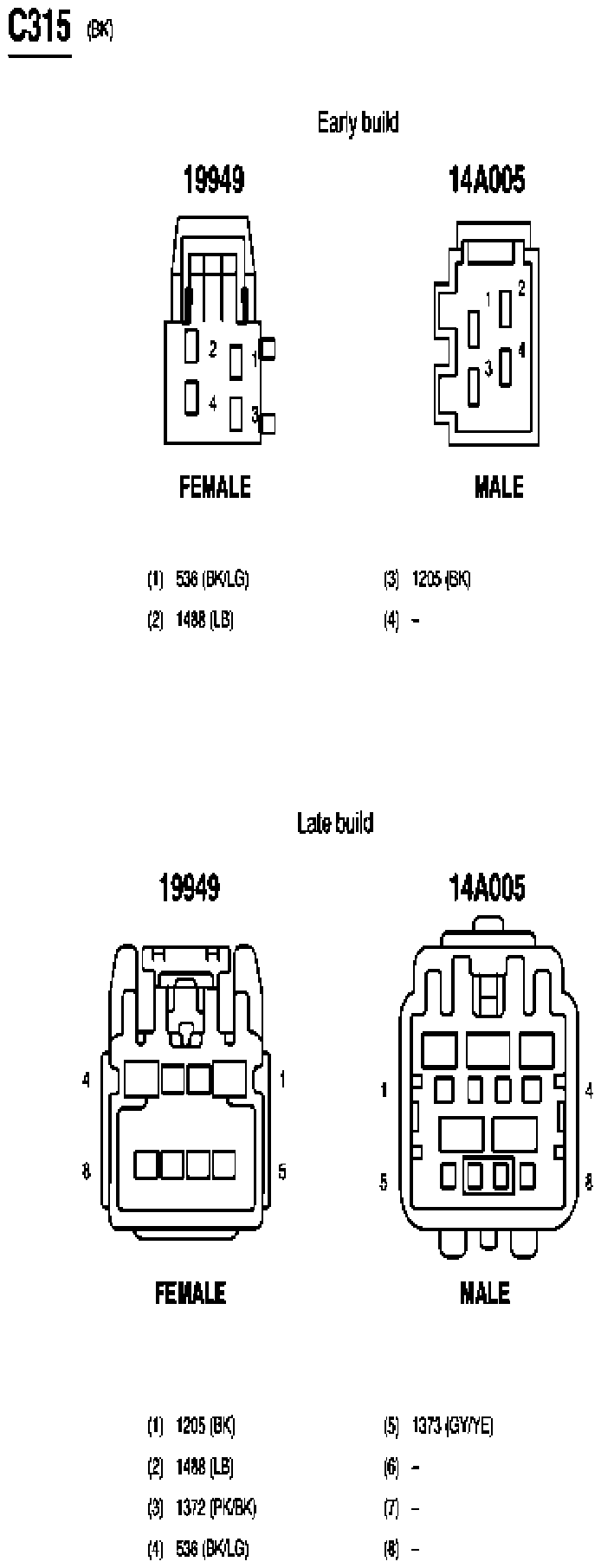

Fig 102: Inline Connector End View (C315)
G07844370Courtesy of FORD MOTOR CO.

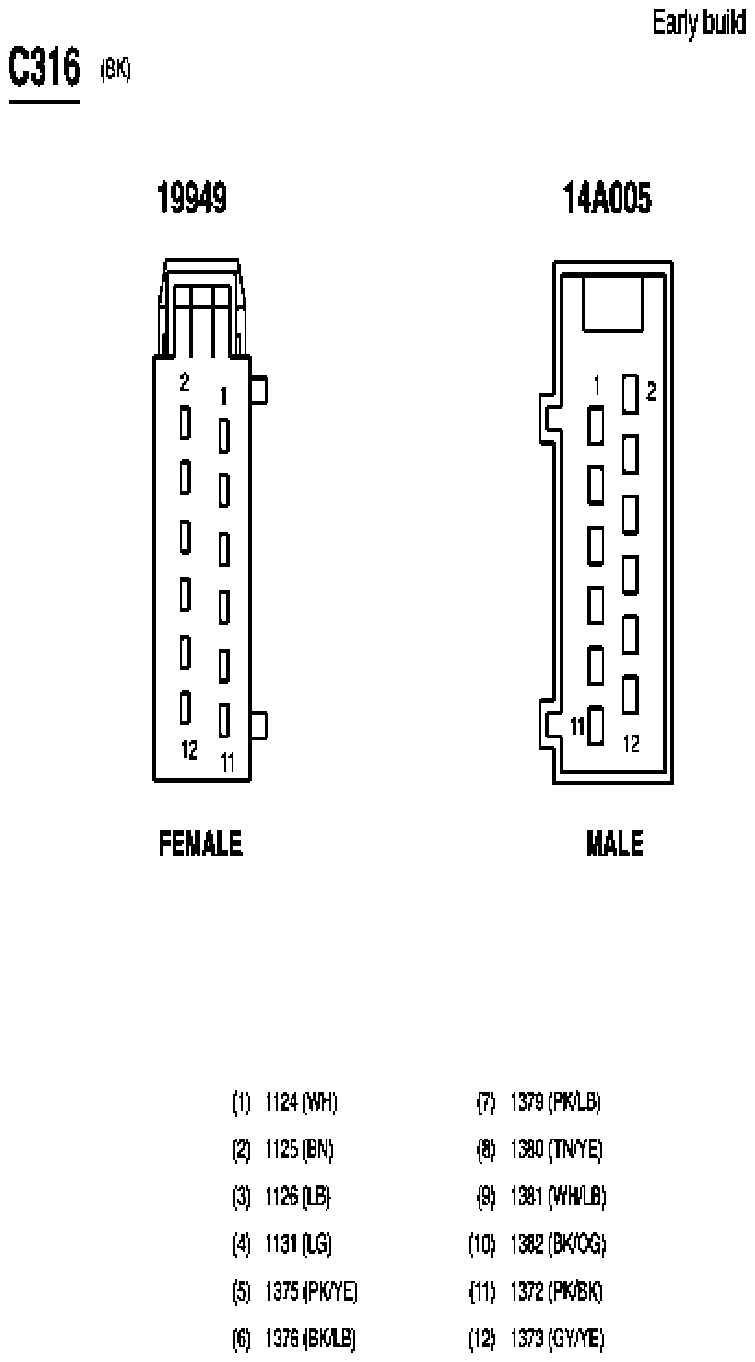

Fig 103: Inline Connector End View (C316)
G07844371Courtesy of FORD MOTOR CO.

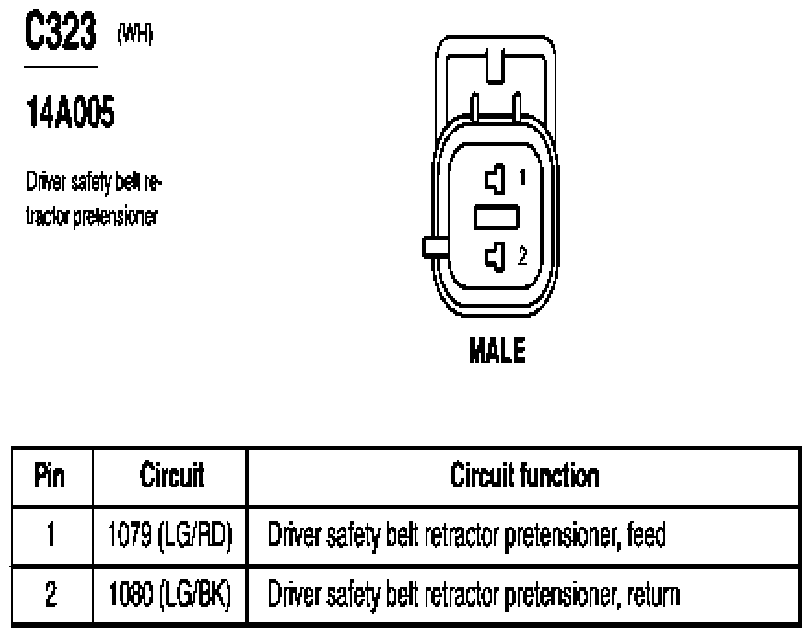

Fig 104: Driver Safety Belt Retractor Pretensioner Connector End View (C323)
G07844372Courtesy of FORD MOTOR CO.

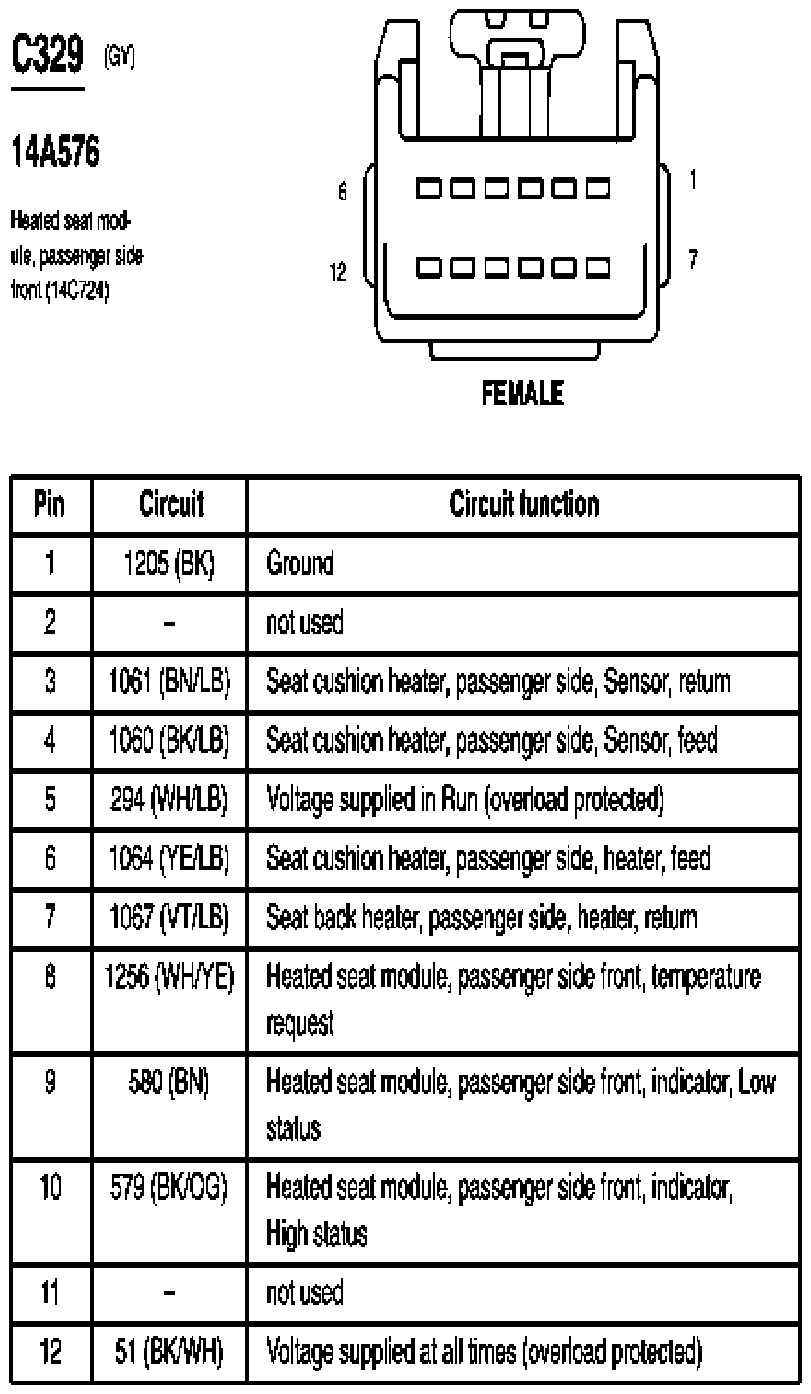

Fig 105: Heated Seat Module, Passenger Side Front Connector End View (C329)
G07844373Courtesy of FORD MOTOR CO.

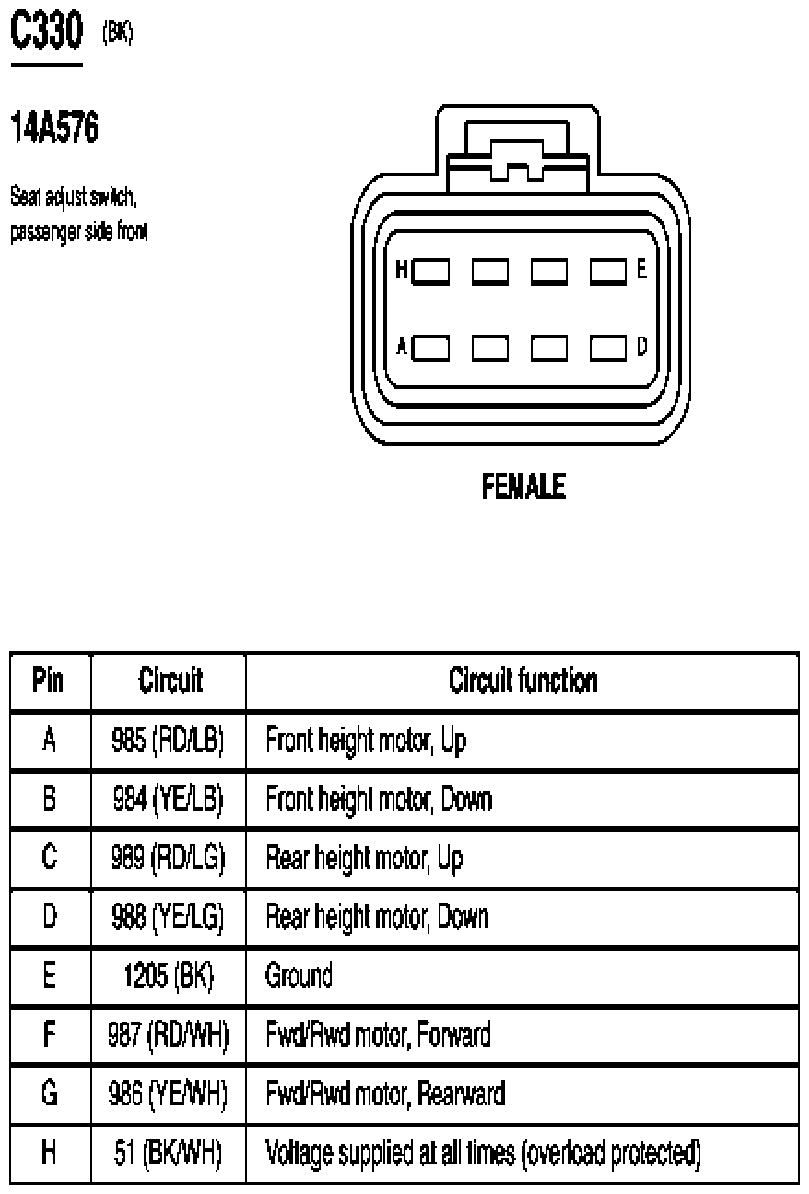

Fig 106: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
G07844374Courtesy of FORD MOTOR CO.

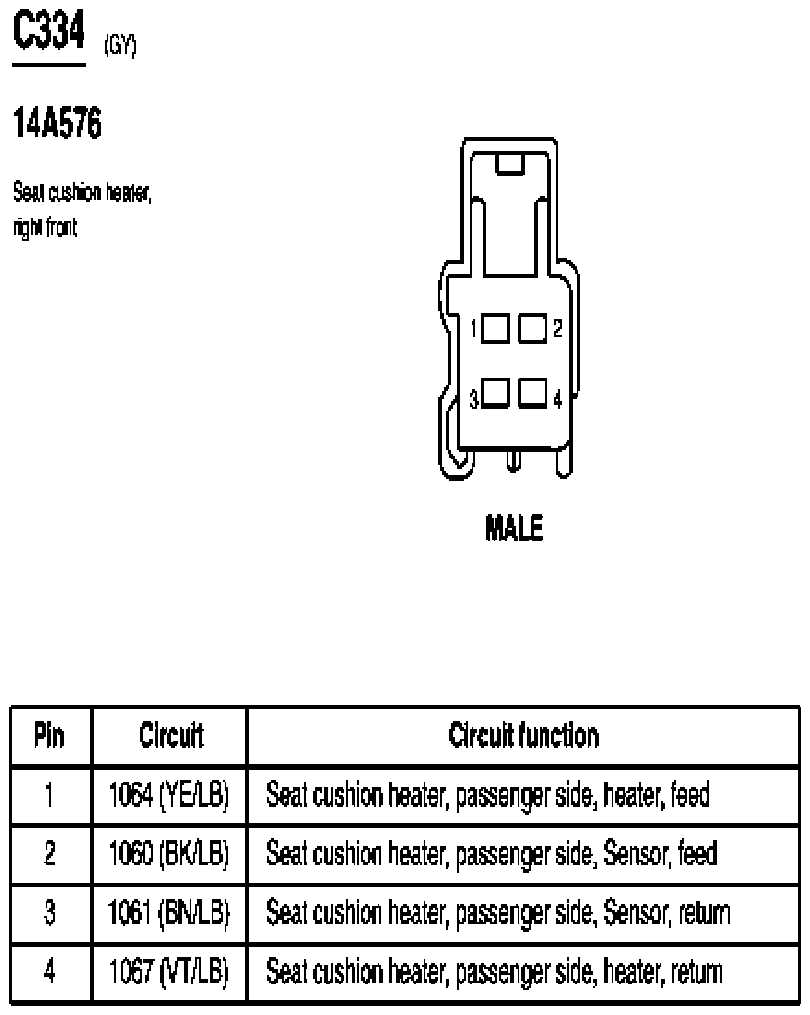

Fig 107: Seat Cushion Heater, Right Front Connector End View (C334)
G07844375Courtesy of FORD MOTOR CO.

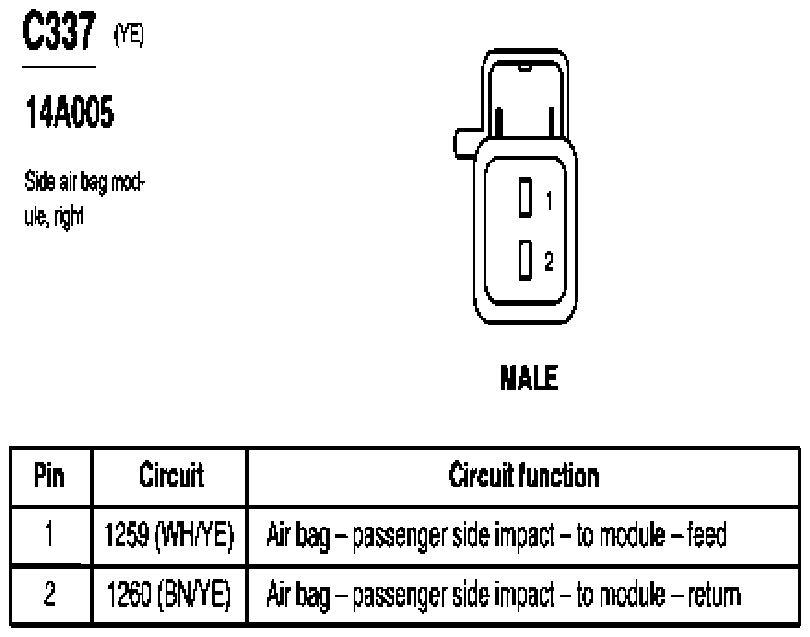

Fig 108: Side Air Bag Module, Right Connector End View (C337)
G07844376Courtesy of FORD MOTOR CO.

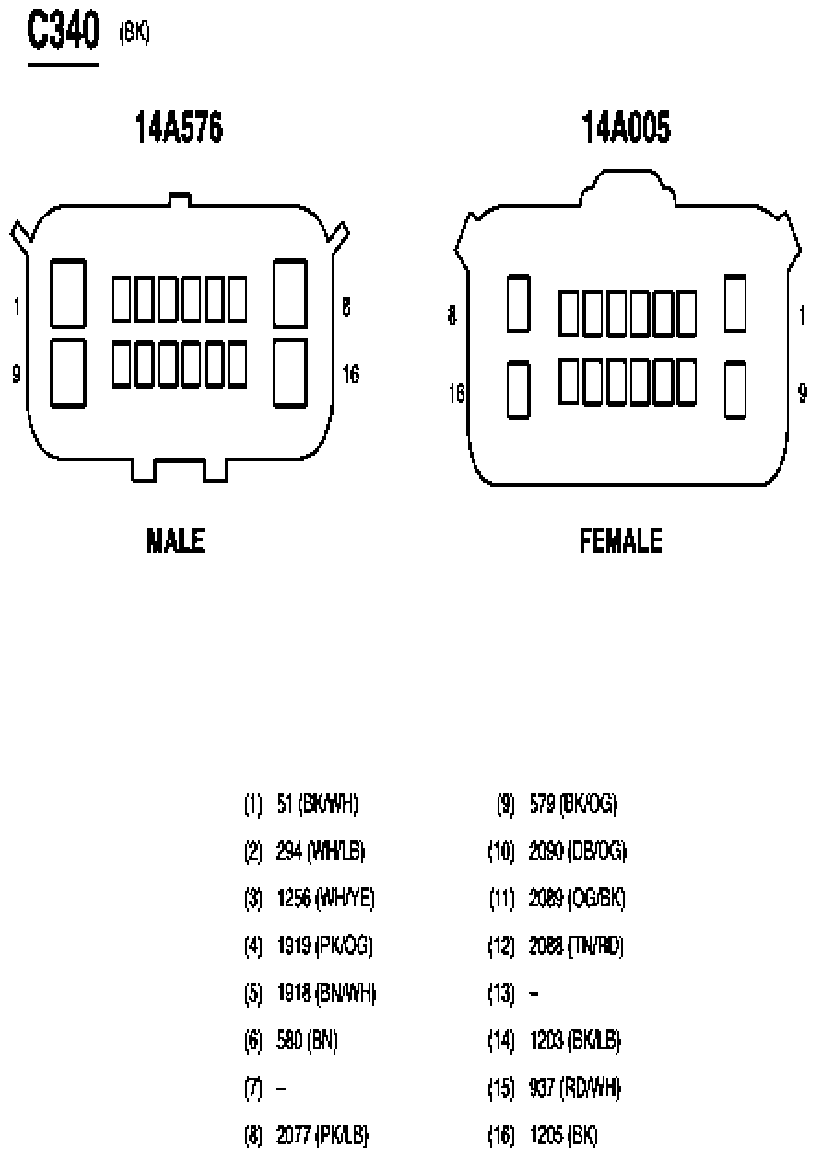

Fig 109: Inline Connector End View (C340)
G07844377Courtesy of FORD MOTOR CO.

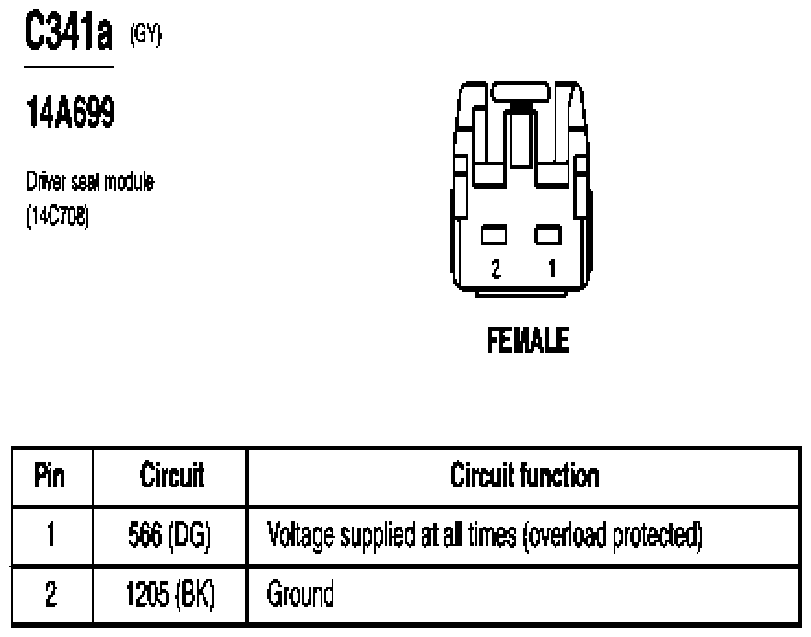

Fig 110: Driver Seat Module Connector End View (C341a)
G07844378Courtesy of FORD MOTOR CO.

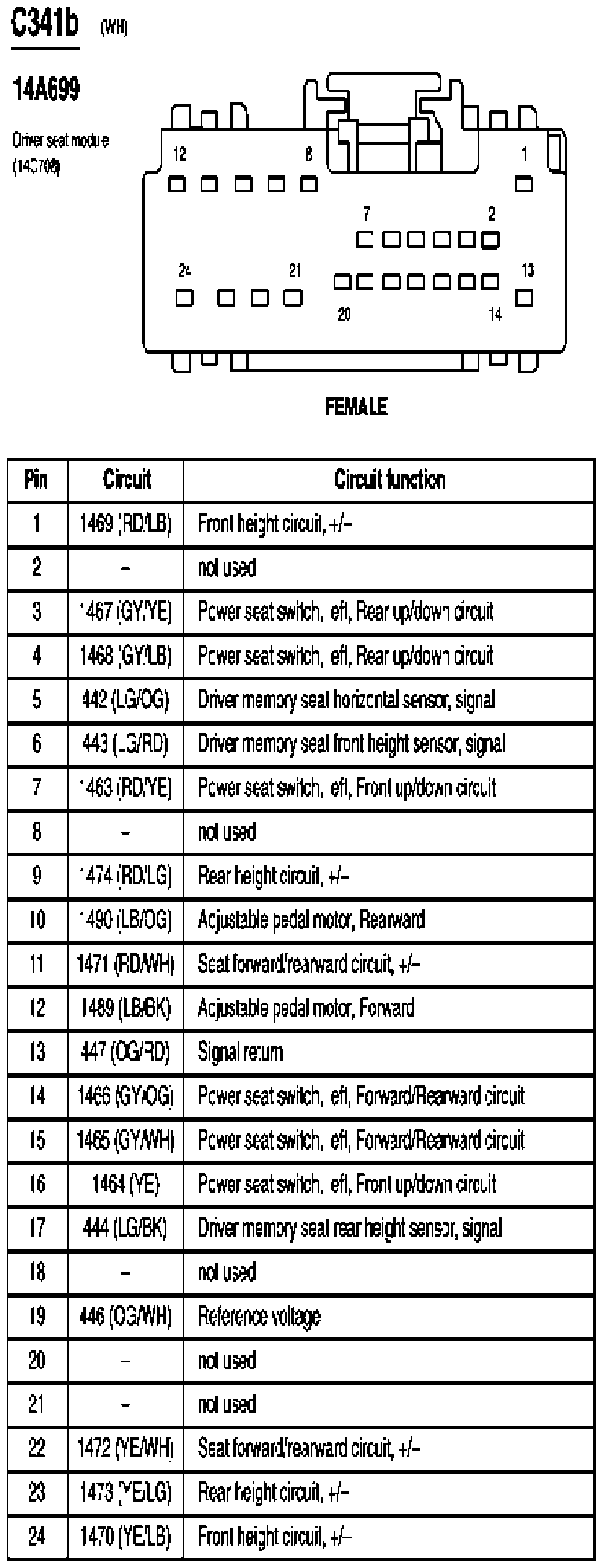

Fig 111: Driver Seat Module Connector End View (C341b)
G07844379Courtesy of FORD MOTOR CO.

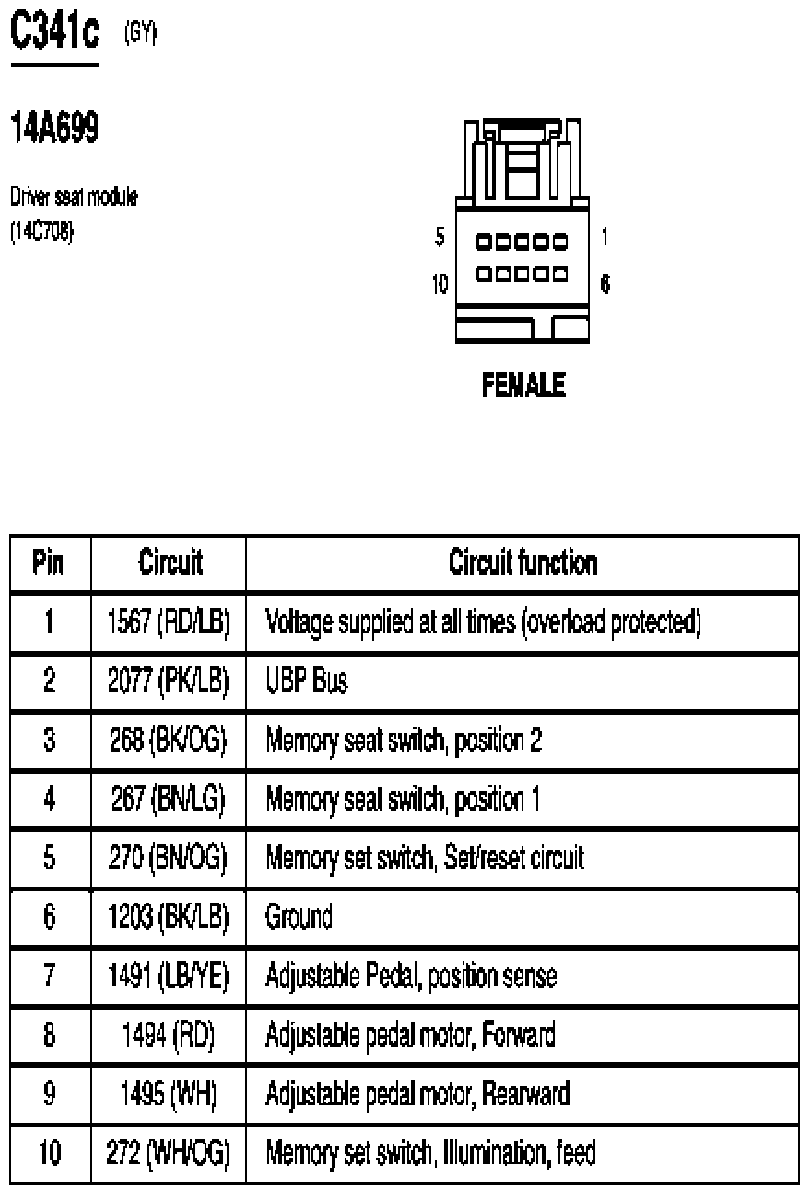

Fig 112: Driver Seat Module Connector End View (C341c)
G07844380Courtesy of FORD MOTOR CO.

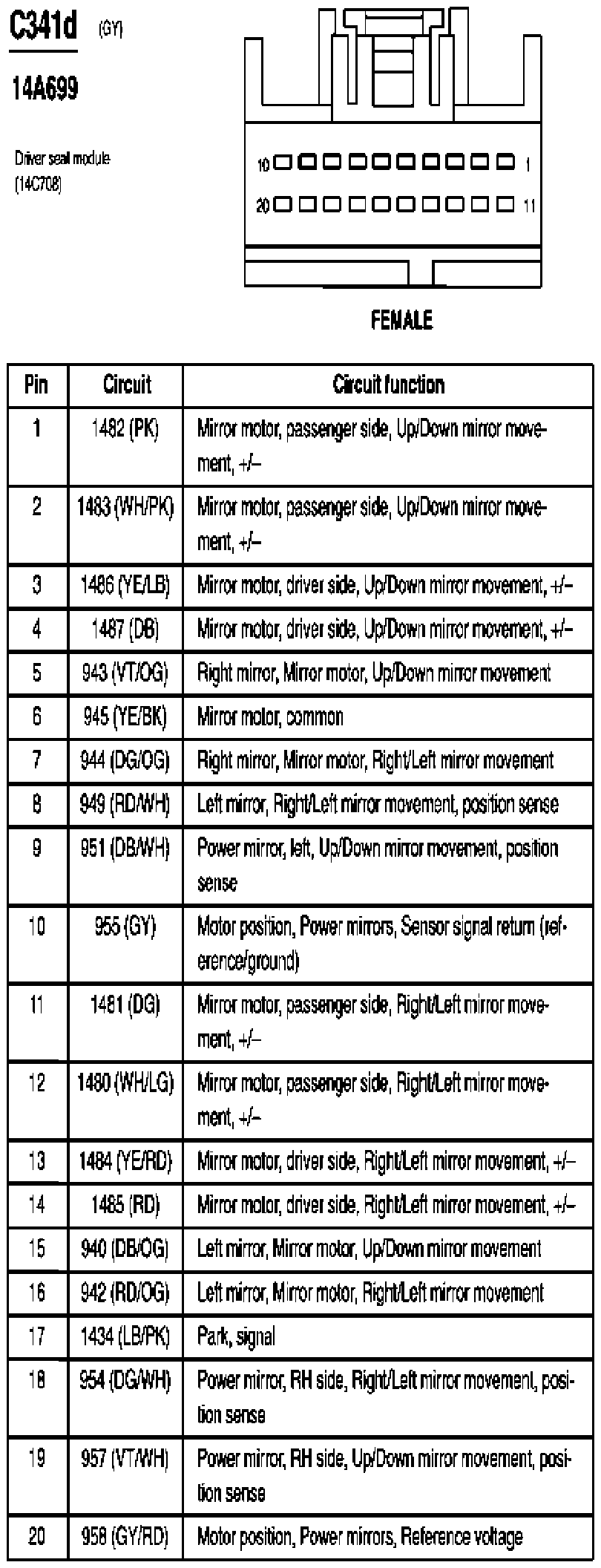

Fig 113: Driver Seat Module Connector End View (C341d)
G07844381Courtesy of FORD MOTOR CO.

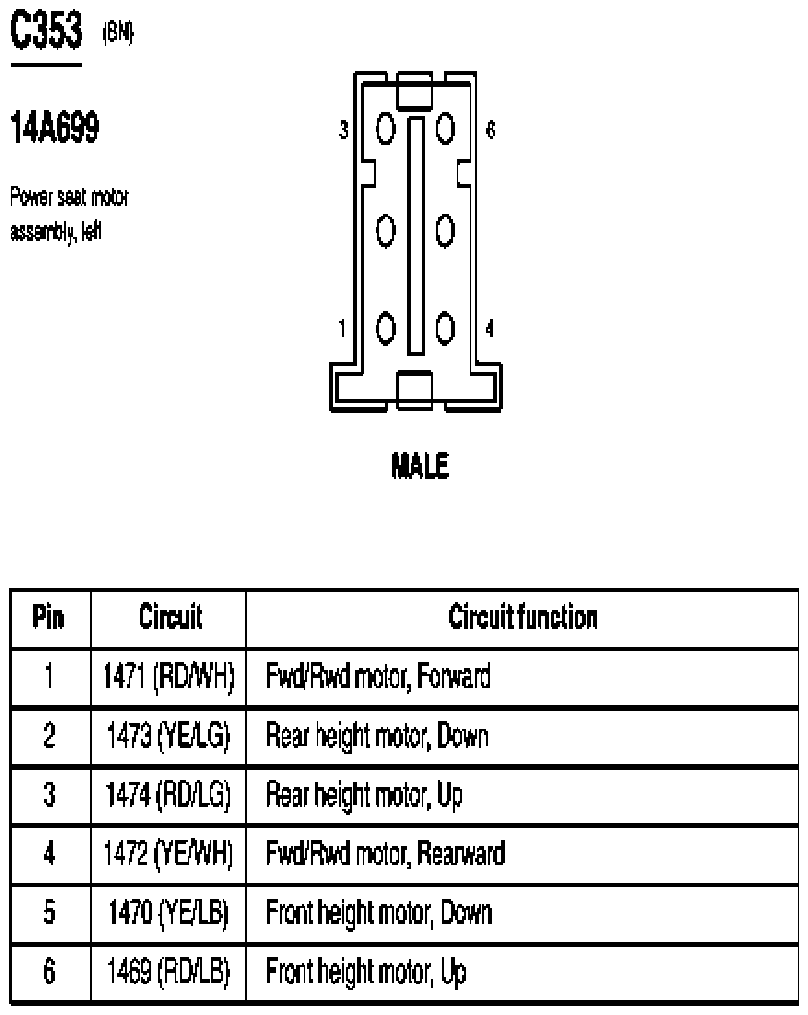

Fig 114: Power Seat Motor Assembly, Left Connector End View (C353)
G07844382Courtesy of FORD MOTOR CO.

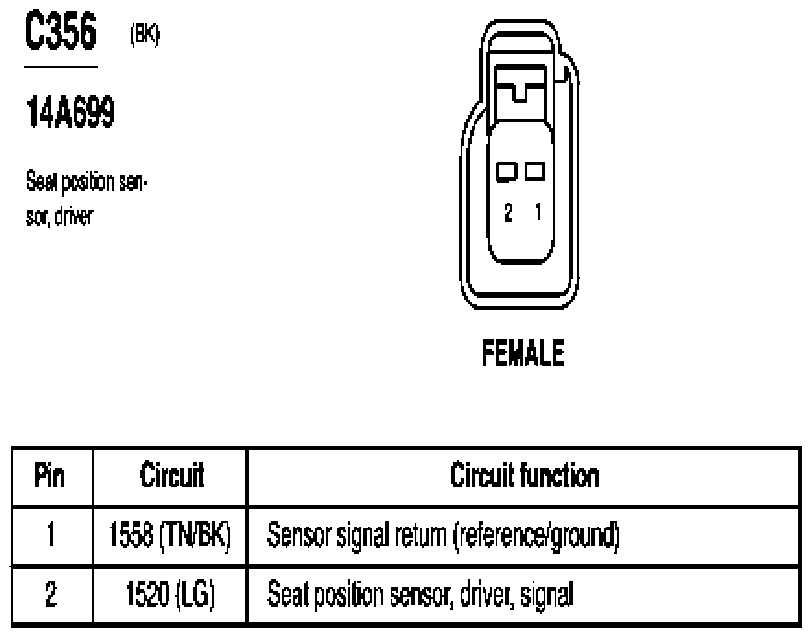

Fig 115: Seat Position Sensor, Driver Connector End View (C356)
G07844383Courtesy of FORD MOTOR CO.

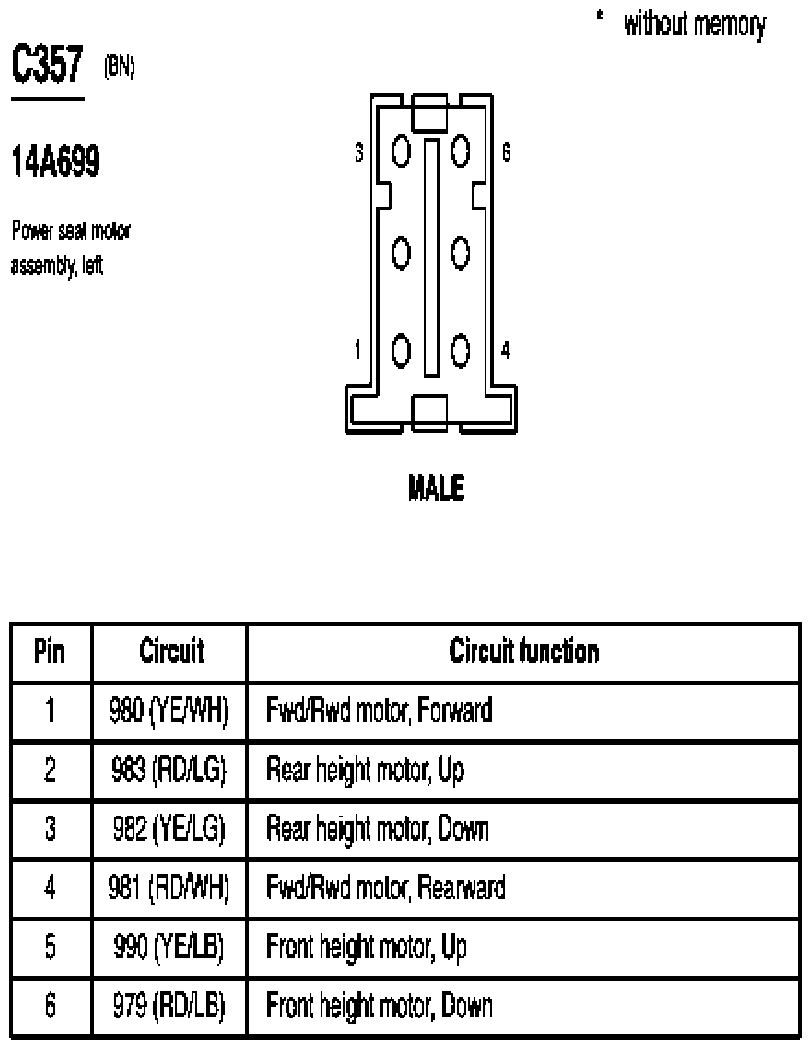

Fig 116: Power Seat Motor Assembly, Left Connector End View (C357)
G07844384Courtesy of FORD MOTOR CO.

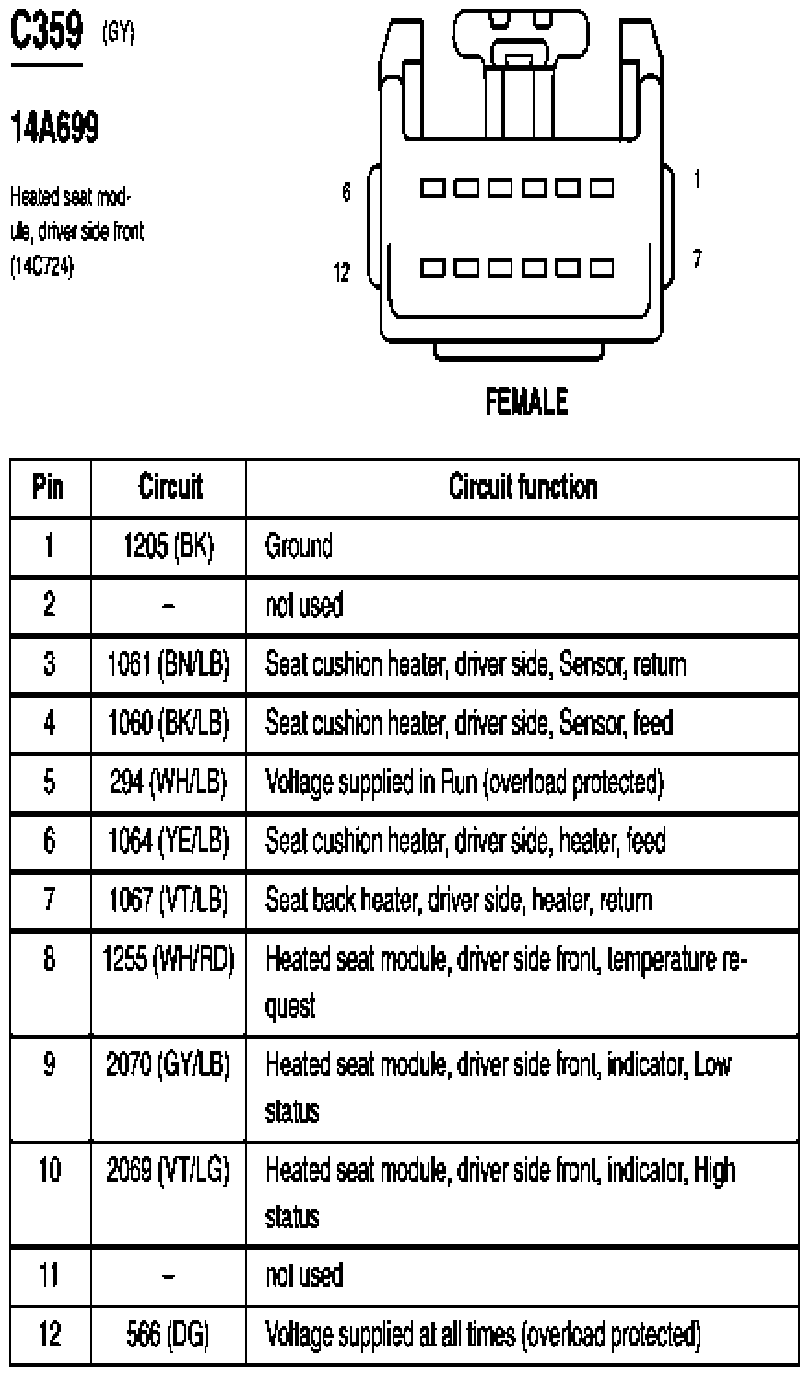

Fig 117: Heated Seat Module, Driver Side Front Connector End View (C359)
G07844385Courtesy of FORD MOTOR CO.

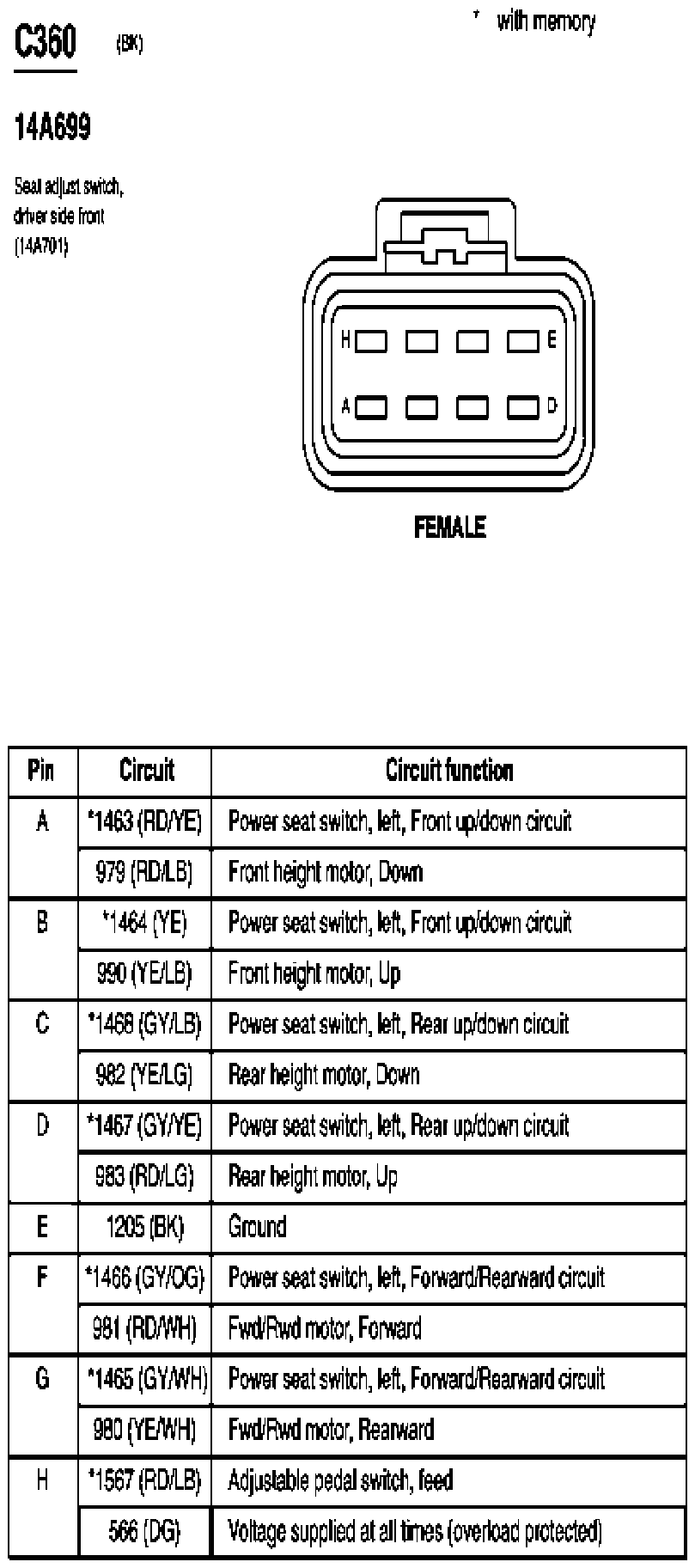

Fig 118: Seat Adjust Switch, Driver Side Front Connector End View (C360)
G07844386Courtesy of FORD MOTOR CO.

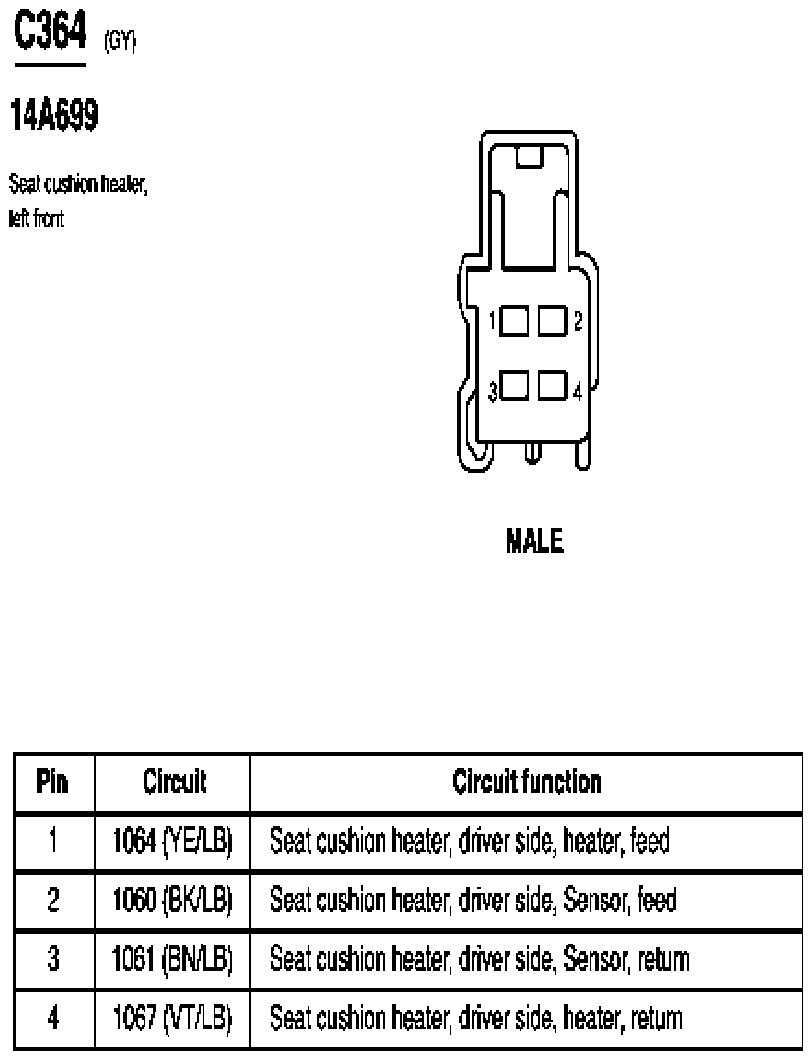

Fig 119: Seat Cushion Heater, Left Front Connector End View (C364)
G07844387Courtesy of FORD MOTOR CO.

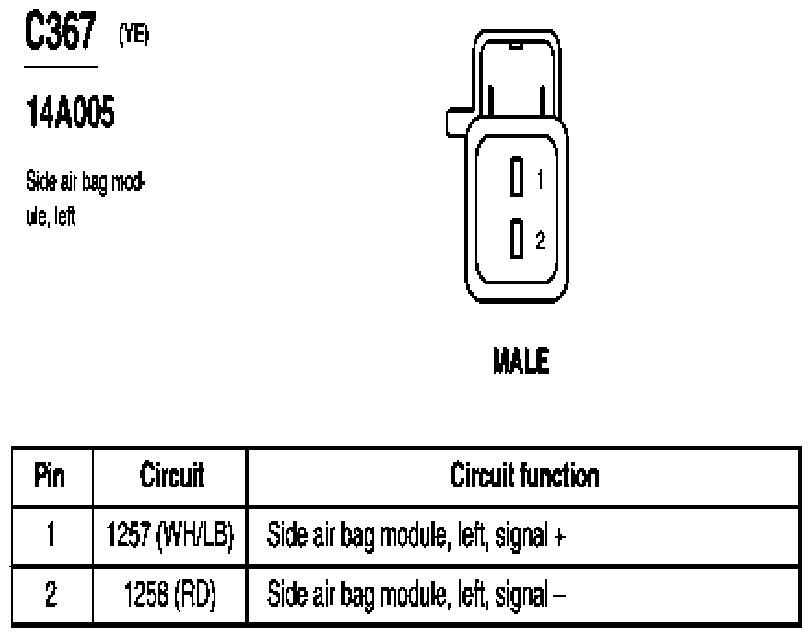

Fig 120: Side Air Bag Module, Left Connector End View (C367)
G07844388Courtesy of FORD MOTOR CO.

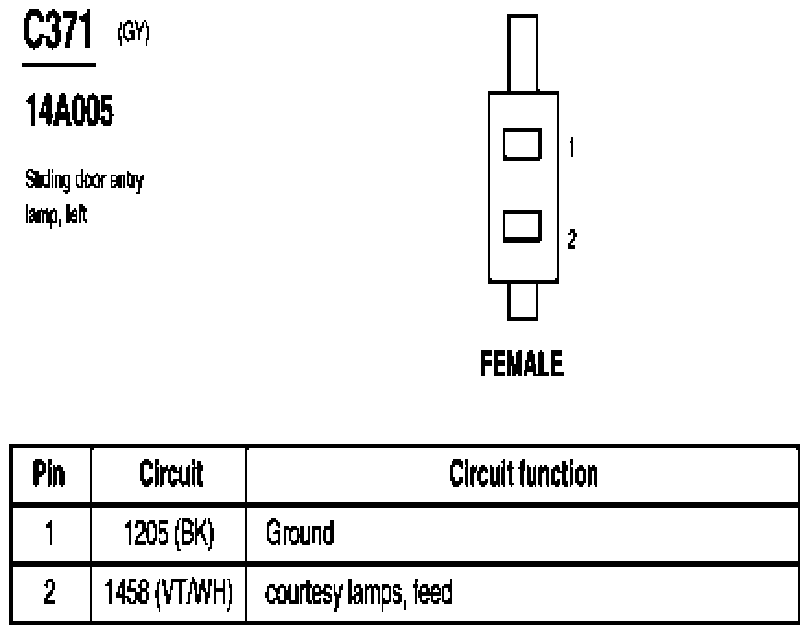

Fig 121: Sliding Door Entry, Lamp, Left Connector End View (C371)
G07844389Courtesy of FORD MOTOR CO.
Fig 122: Driver Memory Seat Horizontal Sensor Connector End View (C372)
G07844390Courtesy of FORD MOTOR CO.

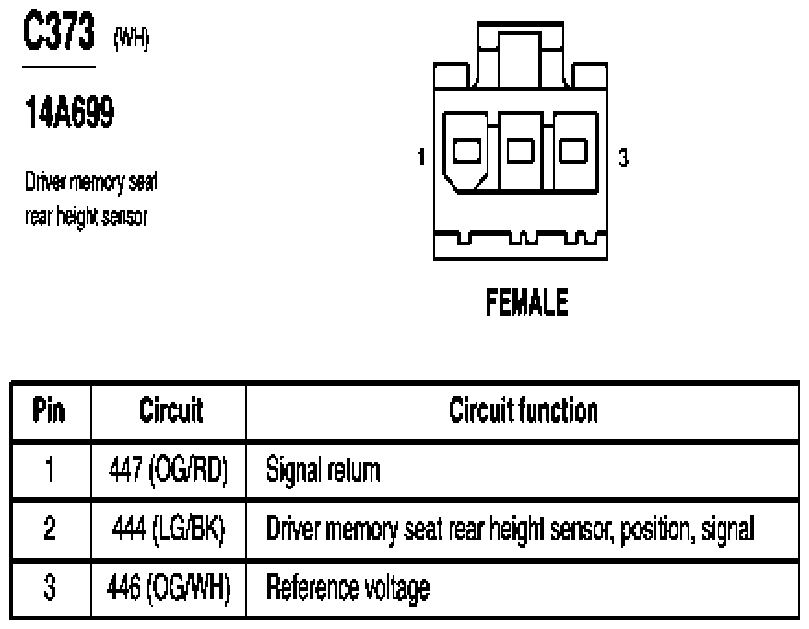

Fig 123: Driver Memory Seat Rear Height Sensor Connector End View (C373)
G07844391Courtesy of FORD MOTOR CO.

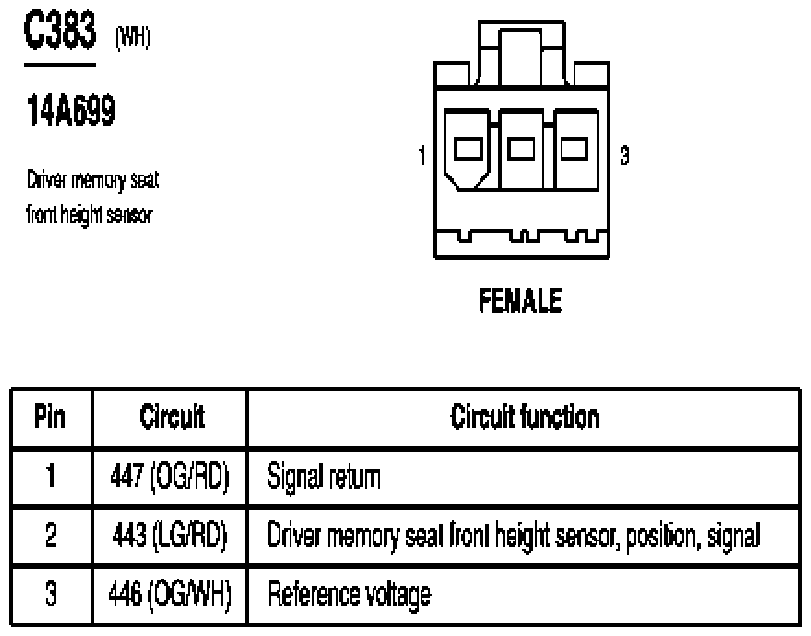

Fig 124: Driver Memory Seat Front Height Sensor Connector End View (C383)
G07844392Courtesy of FORD MOTOR CO.

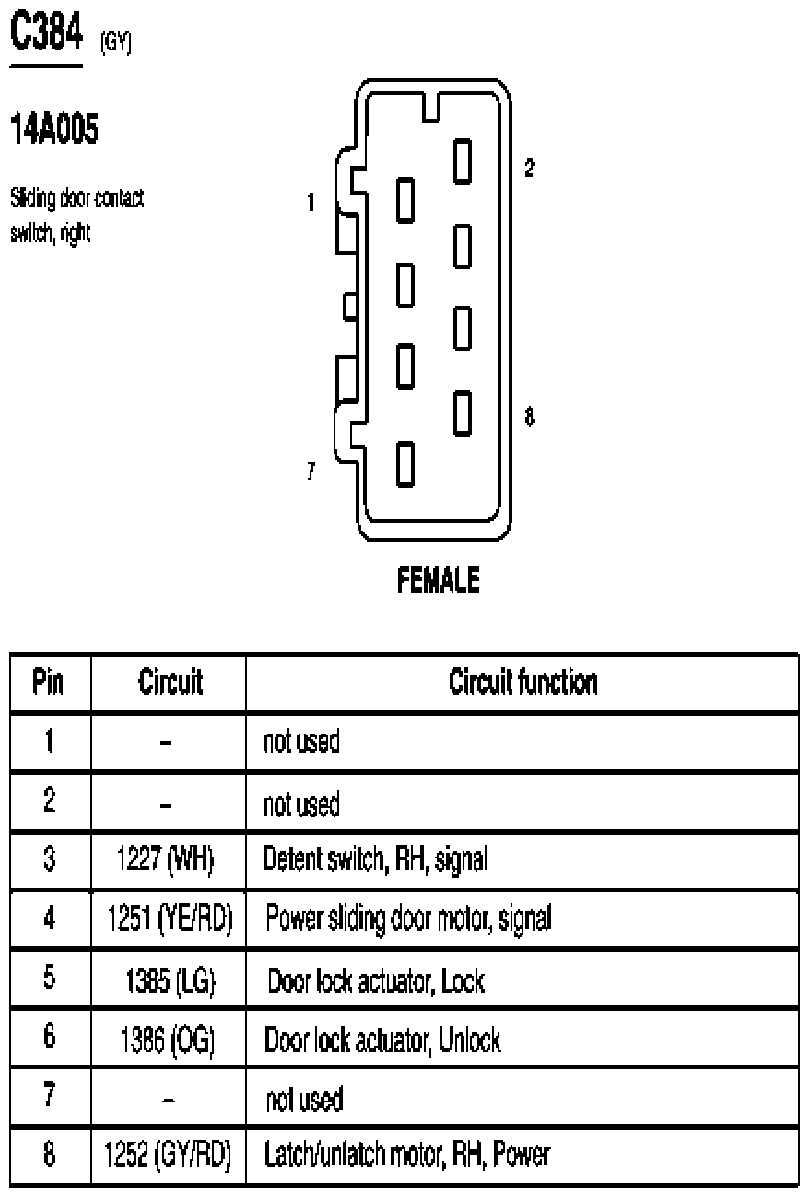

Fig 125: Sliding Door Contact Switch, Right Connector End View (C384)
G07844393Courtesy of FORD MOTOR CO.

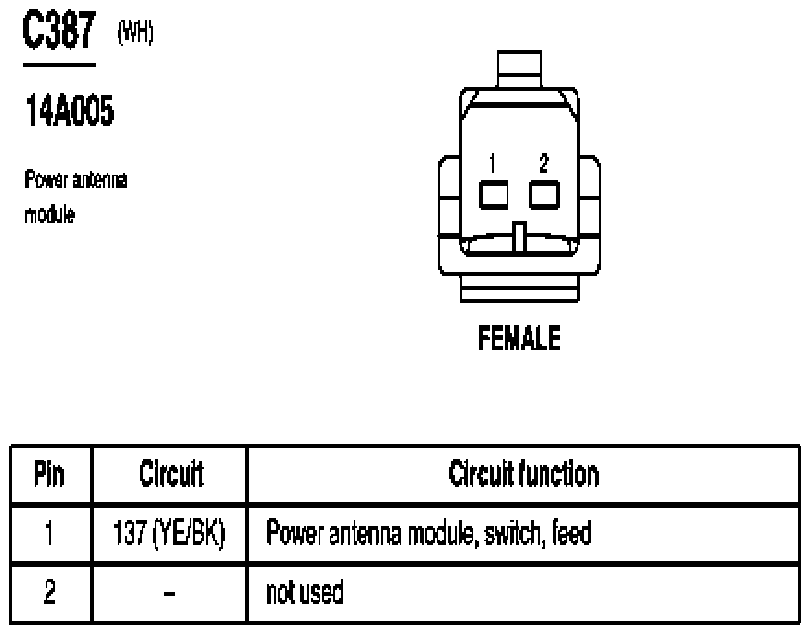

Fig 126: Power Antenna Module Connector End View (C387)
G07844394Courtesy of FORD MOTOR CO.

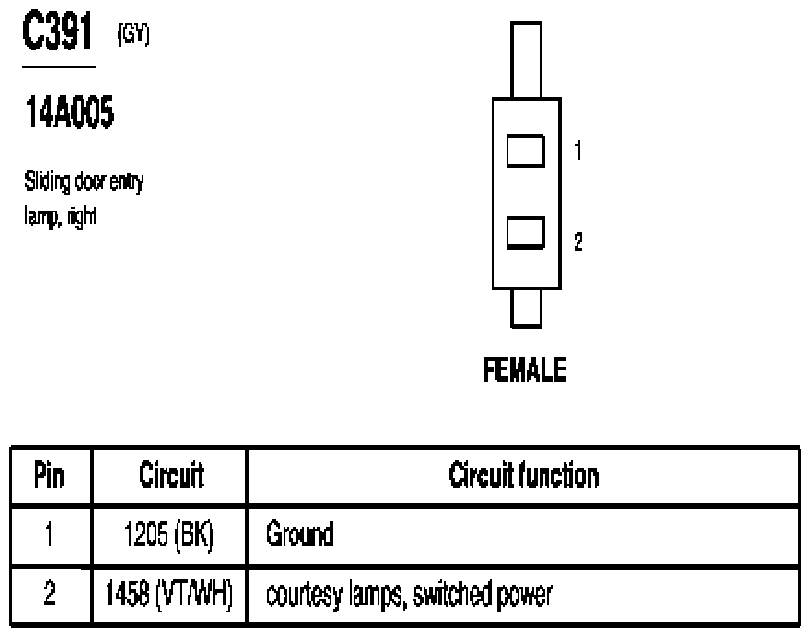

Fig 127: Sliding Door Entry Lamp, Right Connector End View (C391)
G07844395Courtesy of FORD MOTOR CO.

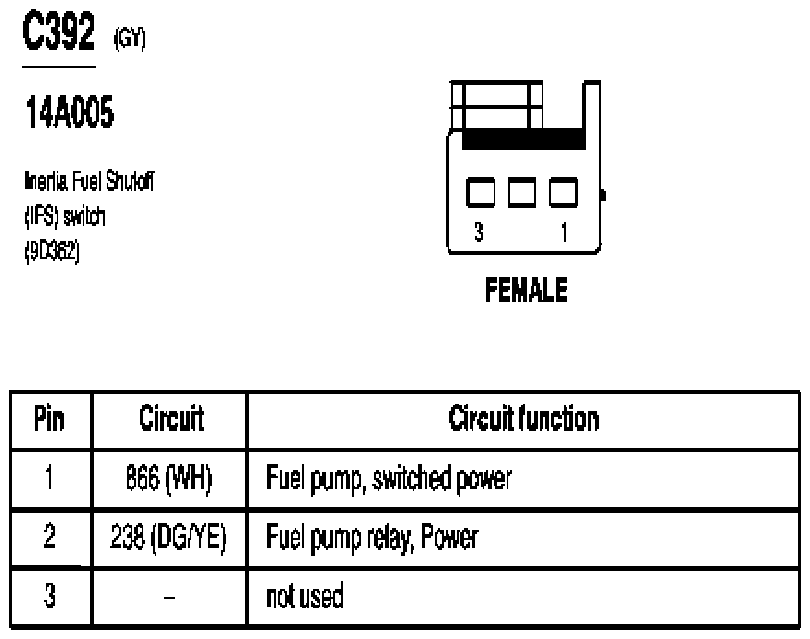

Fig 128: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
G07844396Courtesy of FORD MOTOR CO.

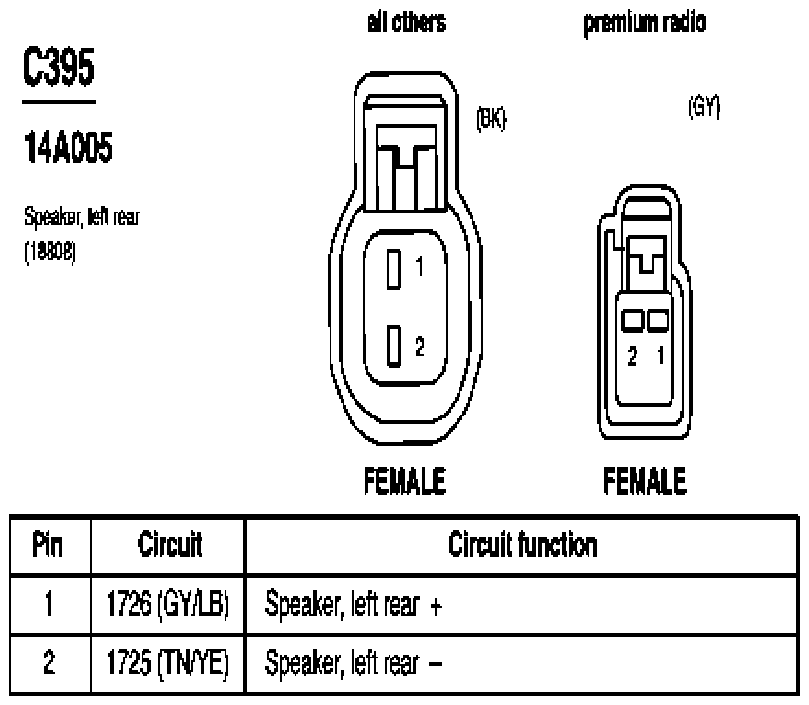

Fig 129: Speaker, Left Rear Connector End View (C395)
G07844397Courtesy of FORD MOTOR CO.

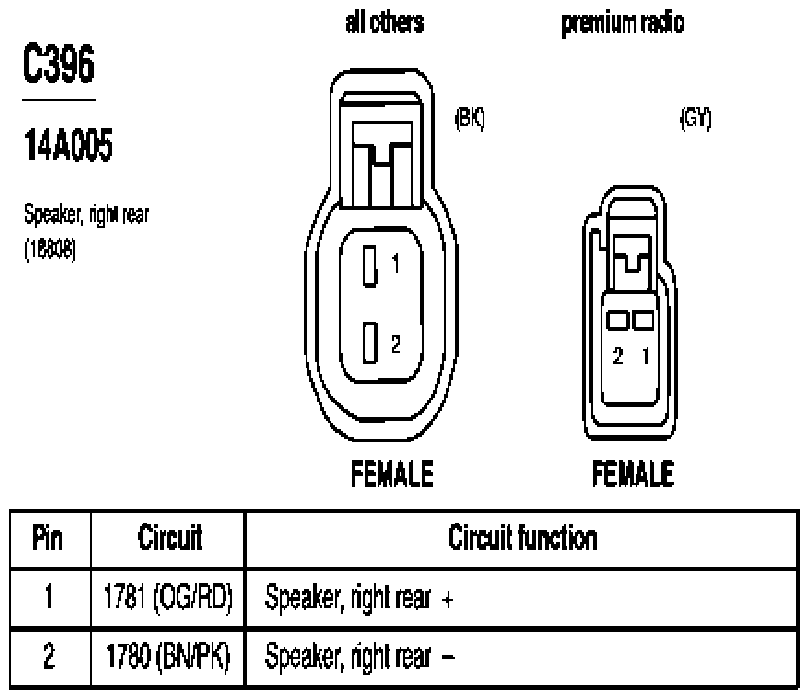

Fig 130: Speaker, Right Rear Connector End View (C396)
G07844398Courtesy of FORD MOTOR CO.

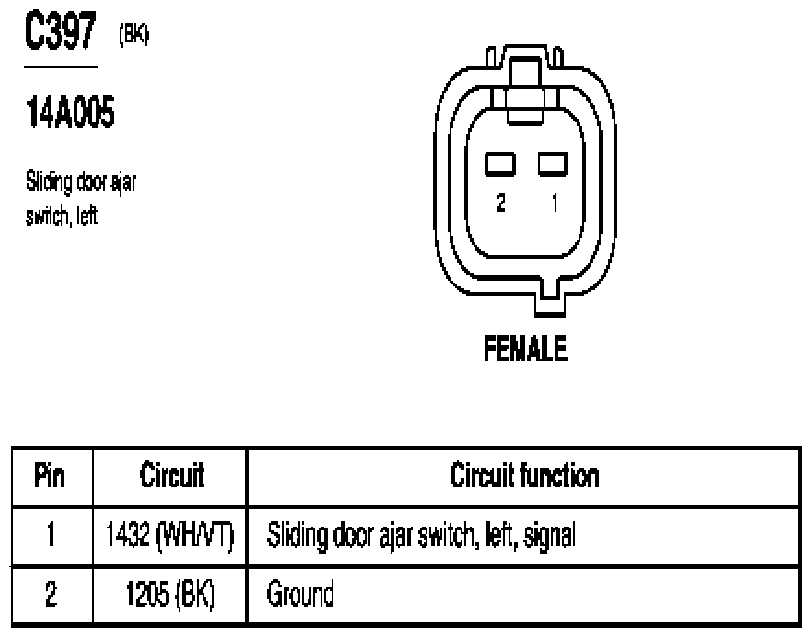

Fig 131: Sliding Door Ajar Switch, Left Connector End View (C397)
G07844399Courtesy of FORD MOTOR CO.

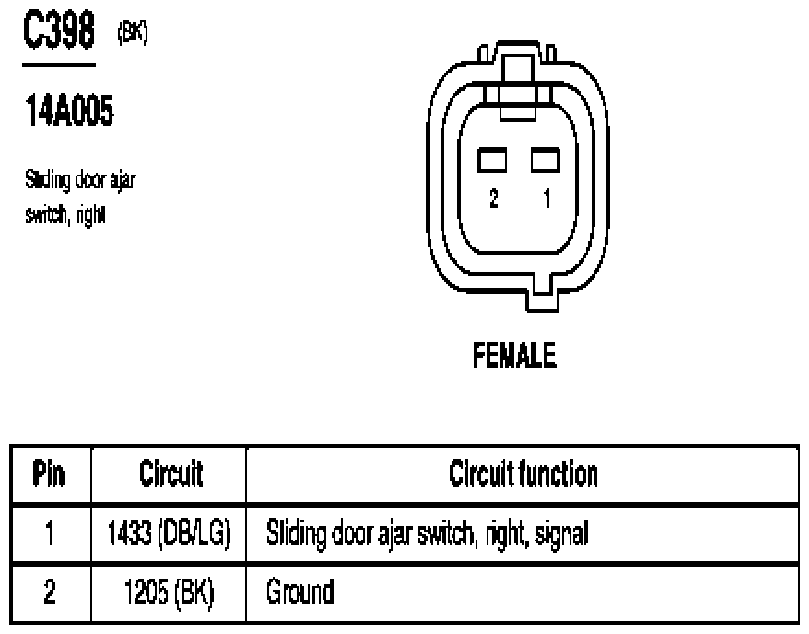

Fig 132: Sliding Door Ajar Switch, Right Connector End View (C398)
G07844400Courtesy of FORD MOTOR CO.

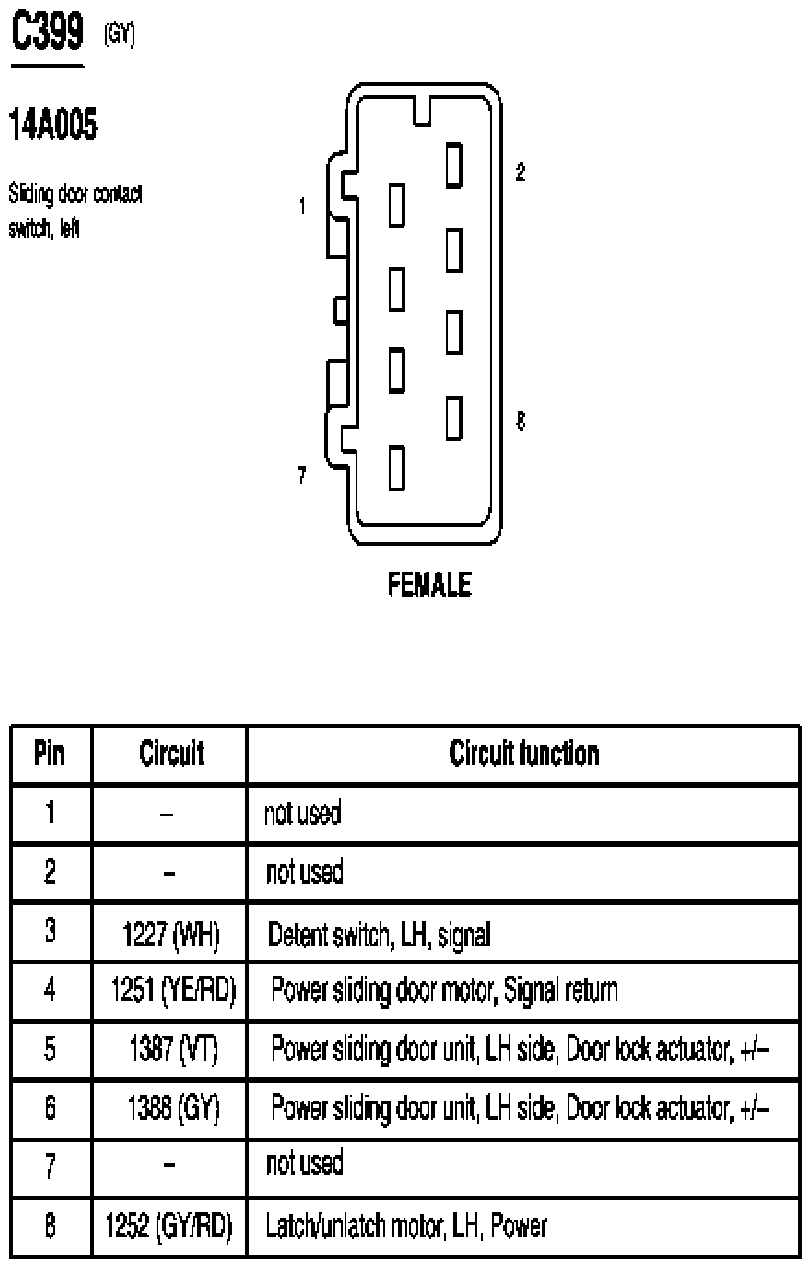

Fig 133: Sliding Door Contact Switch, Left Connector End View (C399)
G07844401Courtesy of FORD MOTOR CO.

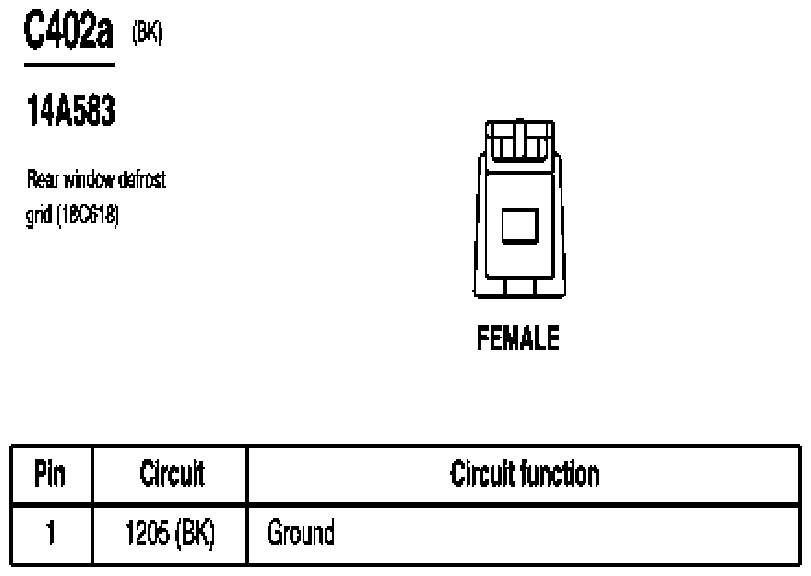

Fig 134: Rear Window Defrost Grid Connector End View (C402a)
G07844402Courtesy of FORD MOTOR CO.
Fig 135: Rear Window Defrost Grid Connector End View (C402b)
G07844403Courtesy of FORD MOTOR CO.

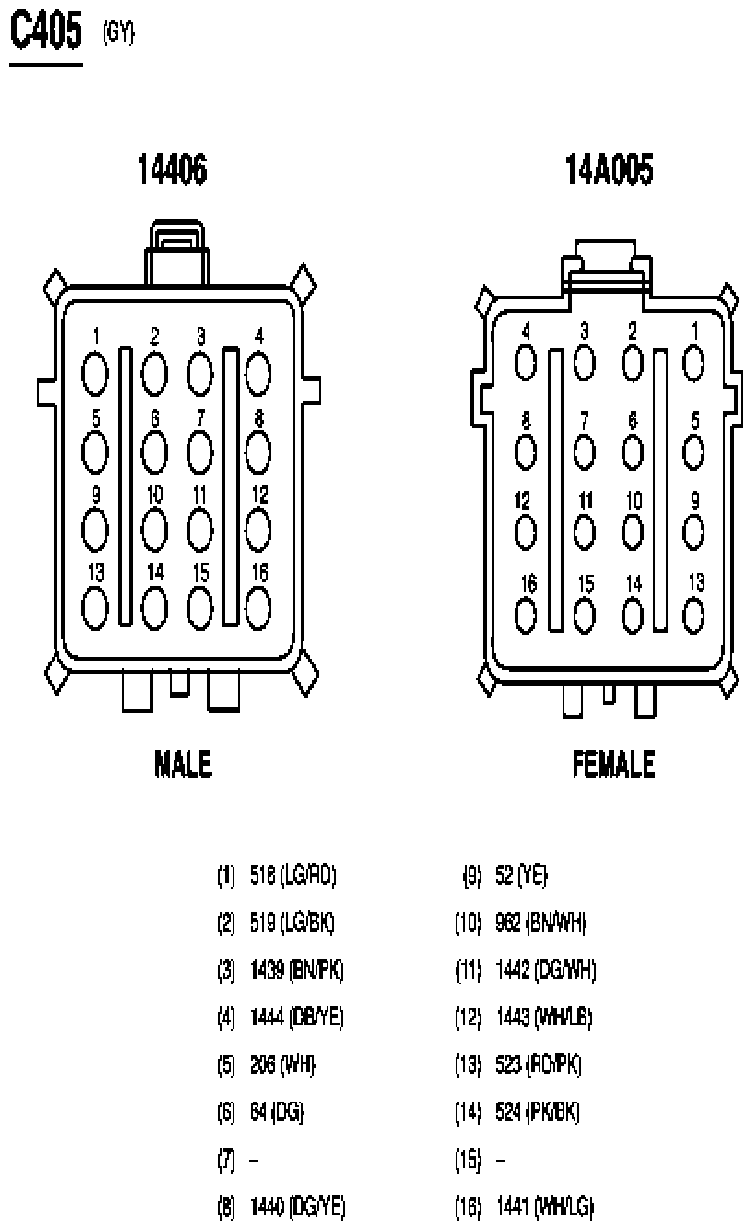

Fig 136: Inline Connector End View (C405)
G07844404Courtesy of FORD MOTOR CO.

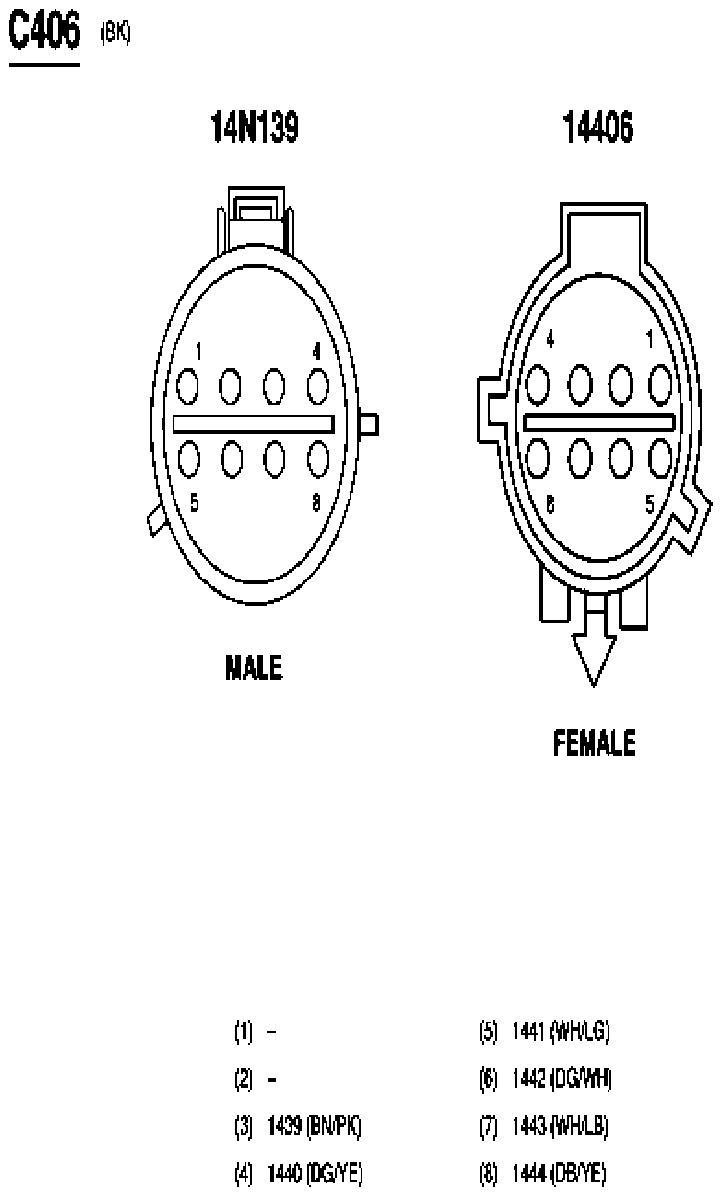

Fig 137: Inline Connector End View (C406)
G07844405Courtesy of FORD MOTOR CO.

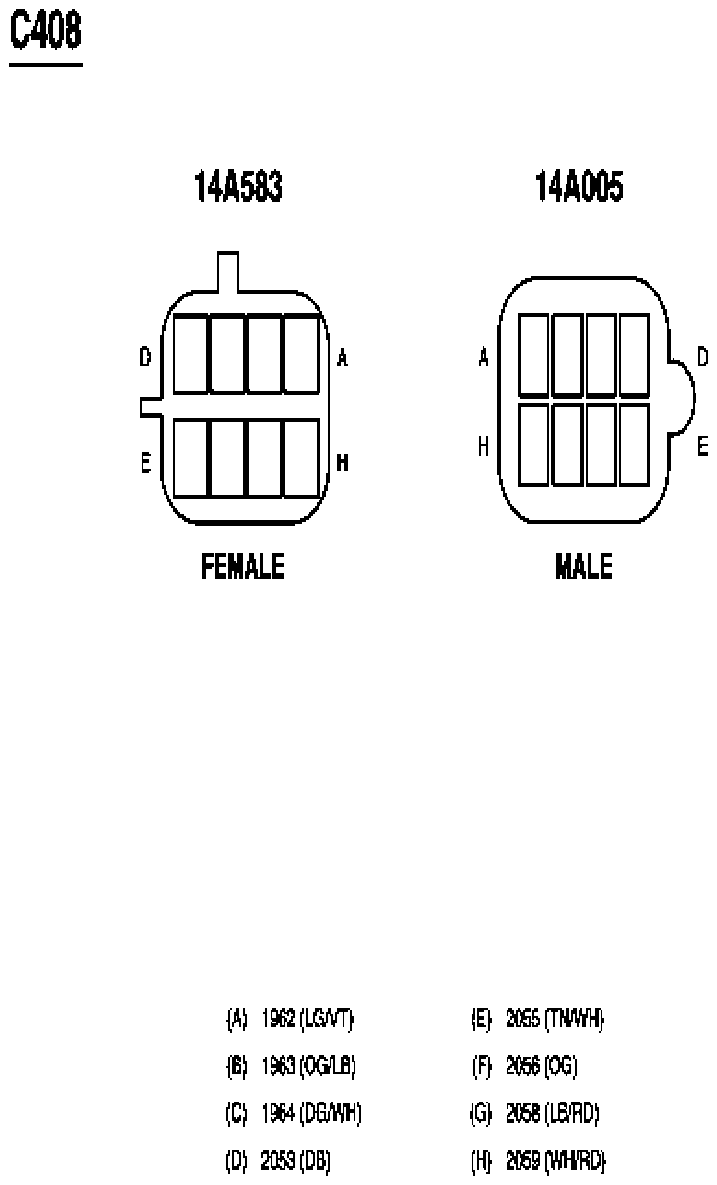

Fig 138: Inline Connector End View (C408)
G07844406Courtesy of FORD MOTOR CO.

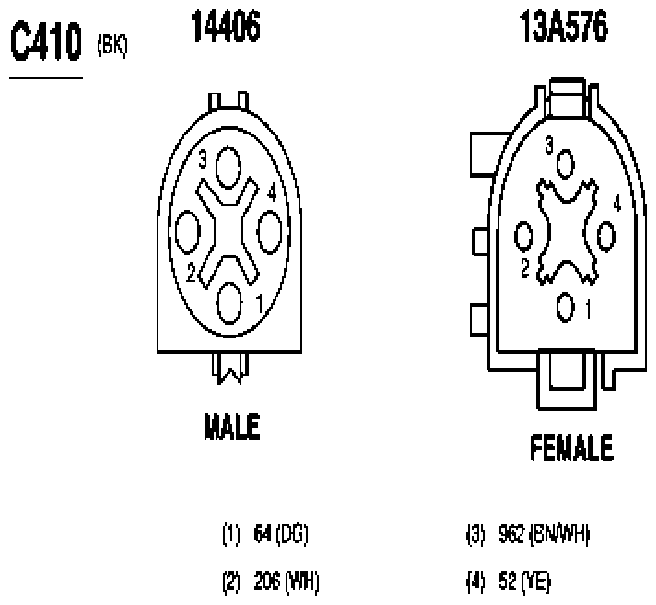

Fig 139: Inline Connector End View (C410)
G07844407Courtesy of FORD MOTOR CO.

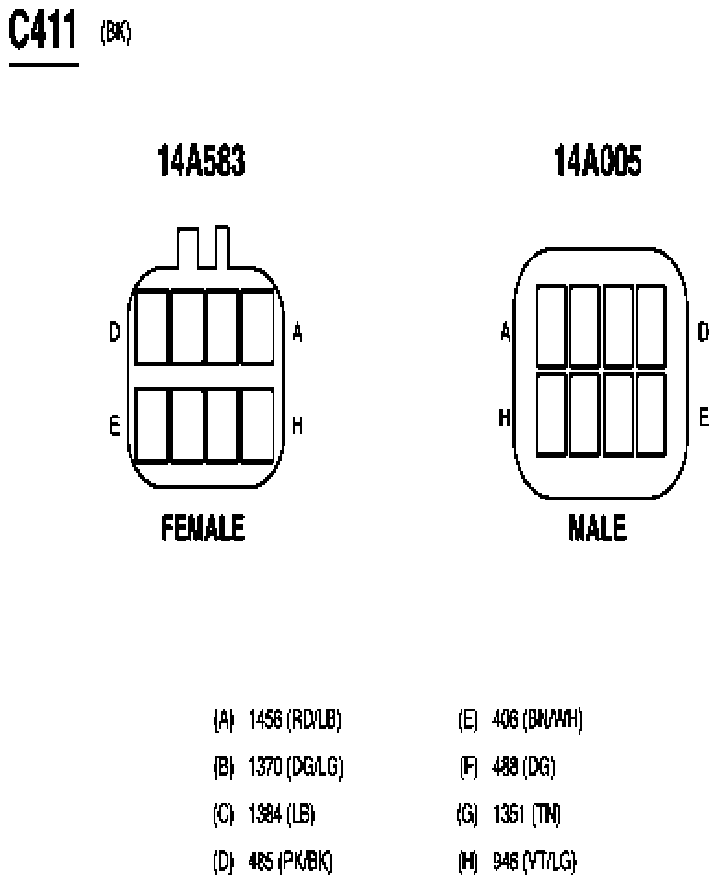

Fig 140: Inline Connector End View (C411)
G07844408Courtesy of FORD MOTOR CO.

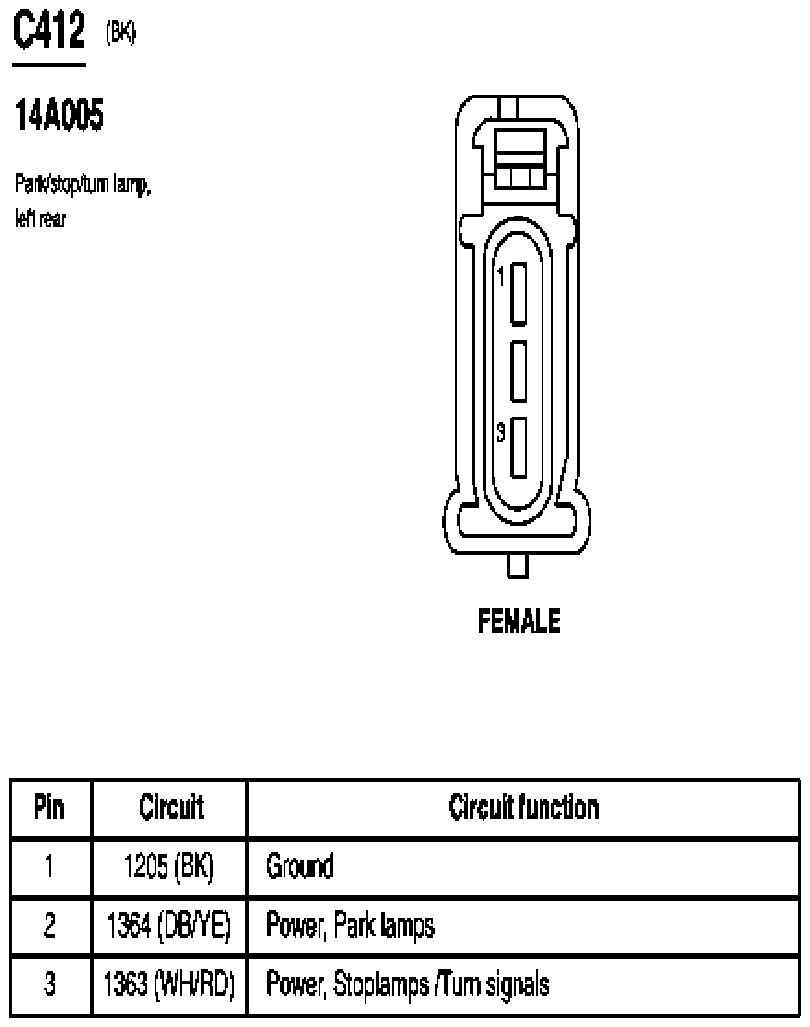

Fig 141: Park/Stop/Turn Lamp, Left Rear Connector End View (C412)
G07844409Courtesy of FORD MOTOR CO.

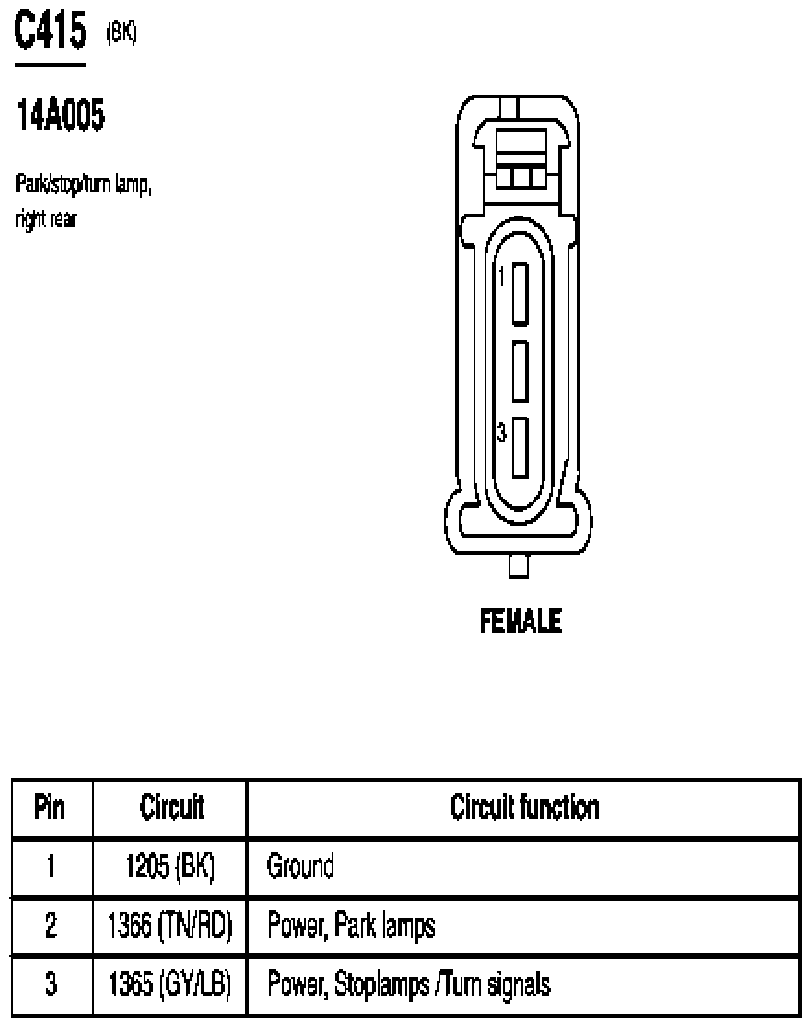

Fig 142: Park/Stop/Turn Lamp, Right Rear Connector End View (C415)
G07844410Courtesy of FORD MOTOR CO.

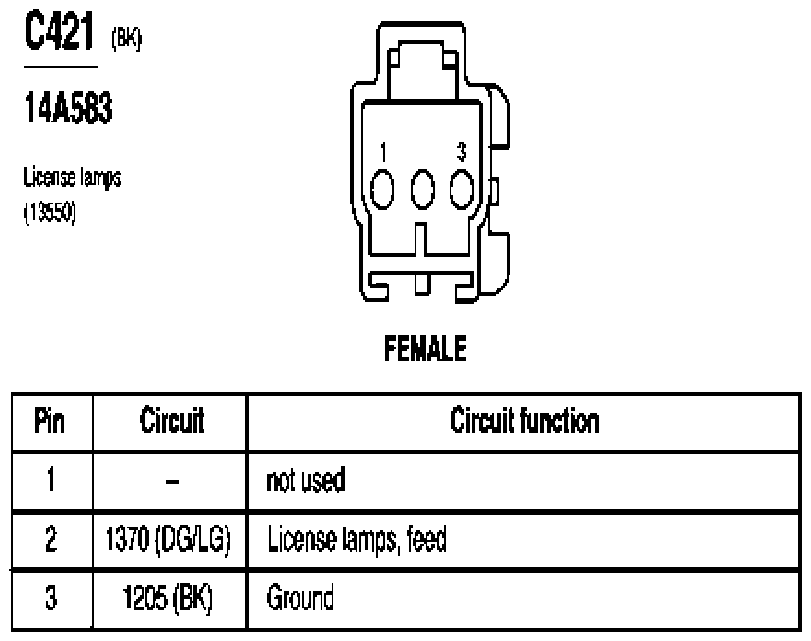

Fig 143: License Lamps Connector End View (C421)
G07844411Courtesy of FORD MOTOR CO.

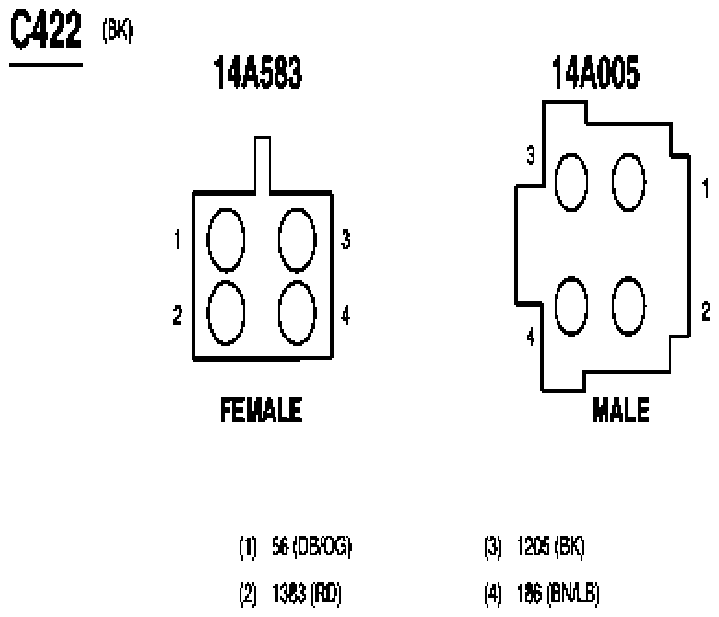

Fig 144: Inline Connector End View (C422)
G07844412Courtesy of FORD MOTOR CO.

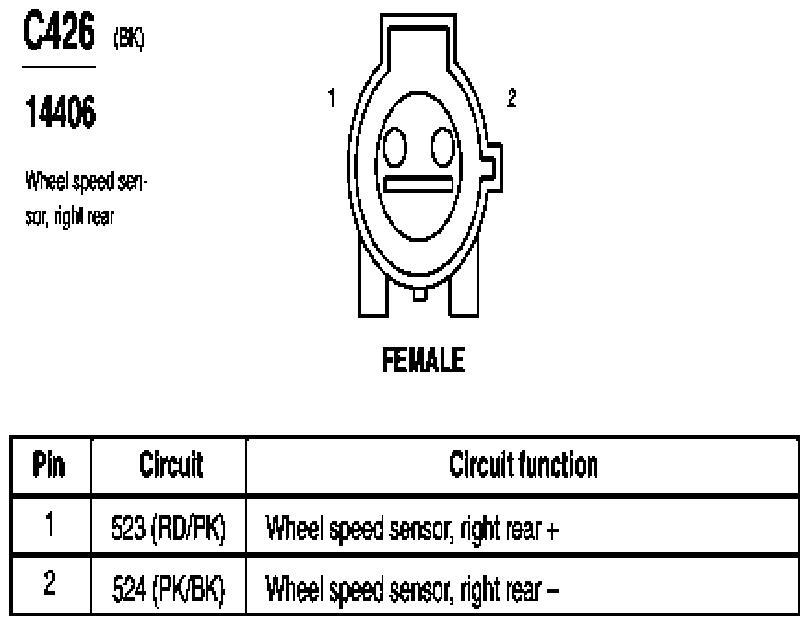

Fig 145: Wheel Speed Sensor, Right Rear Connector End View (C426)
G07844413Courtesy of FORD MOTOR CO.

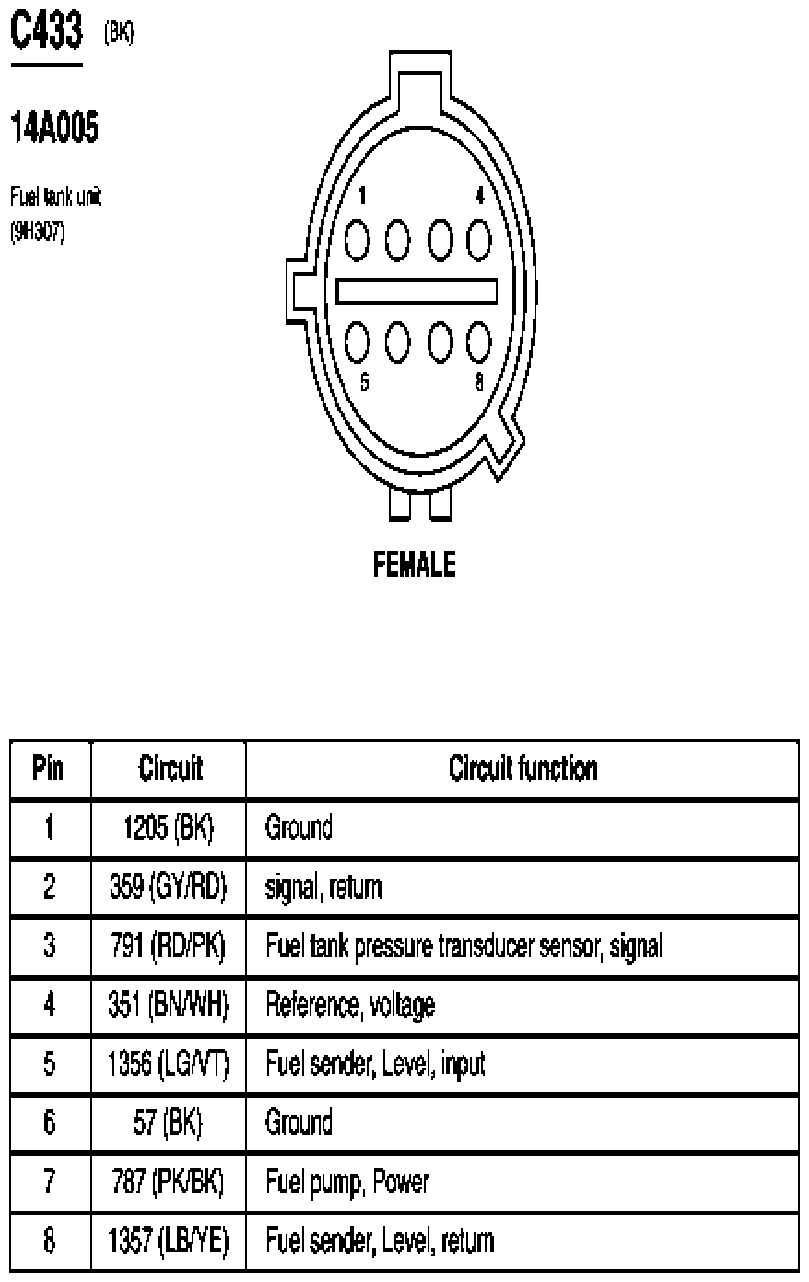

Fig 146: Fuel Tank Unit Connector End View (C433)
G07844414Courtesy of FORD MOTOR CO.

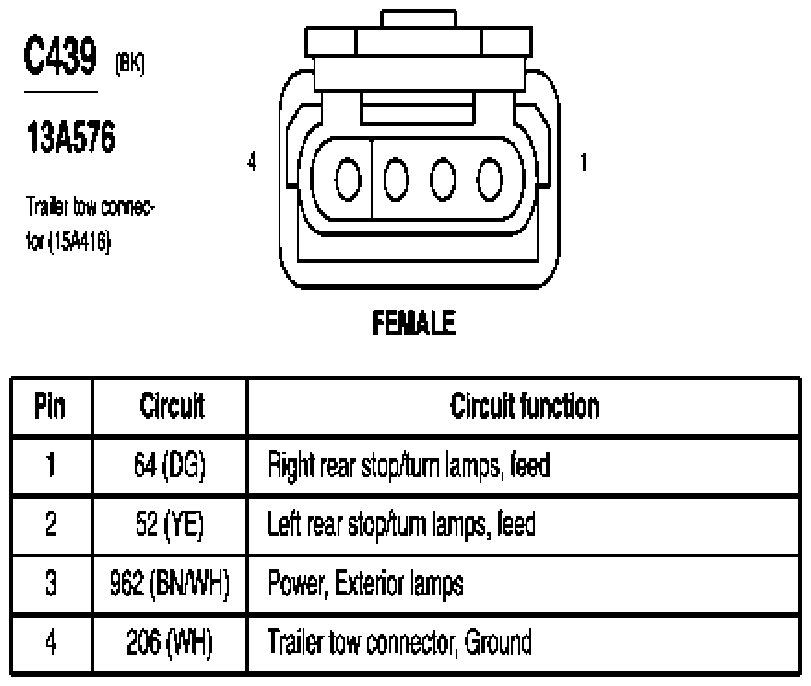

Fig 147: Trailer Tow Connector End View (C439)
G07844415Courtesy of FORD MOTOR CO.

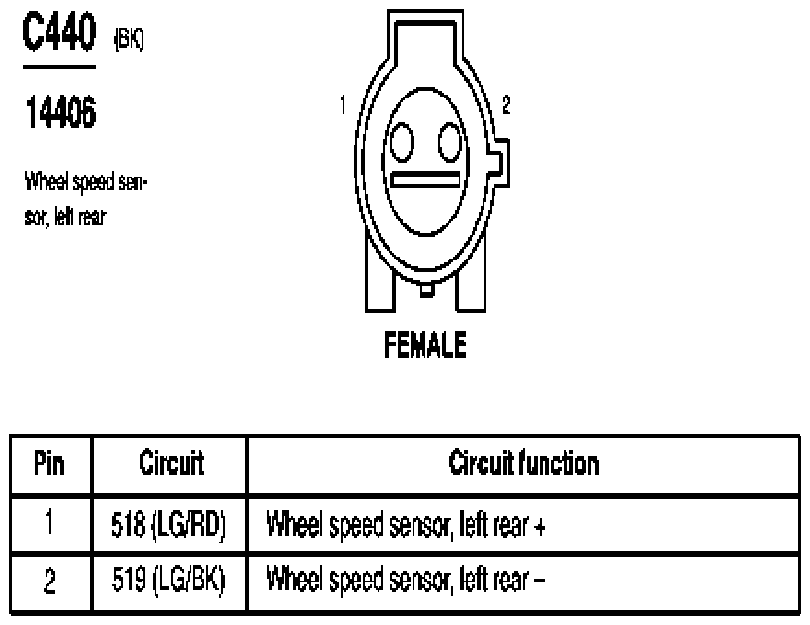

Fig 148: Wheel Speed Sensor, Left Rear Connector End View (C440)
G07844416Courtesy of FORD MOTOR CO.

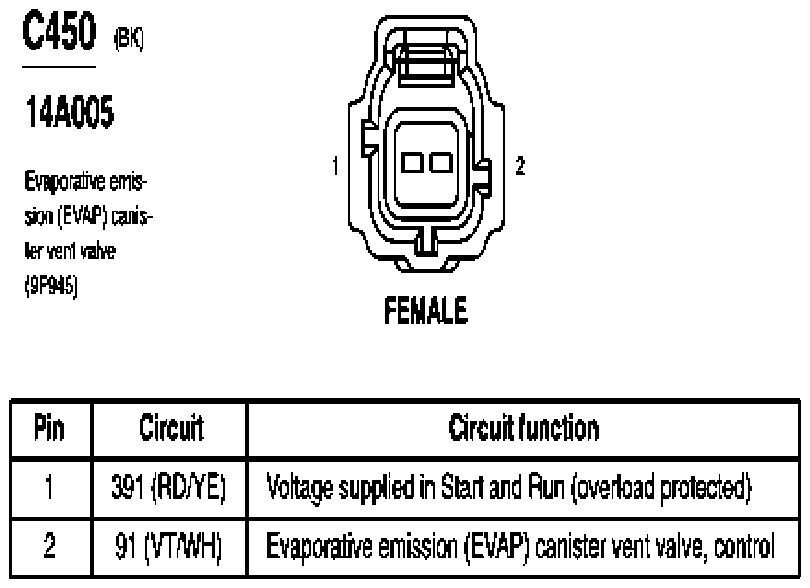

Fig 149: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
G07844417Courtesy of FORD MOTOR CO.

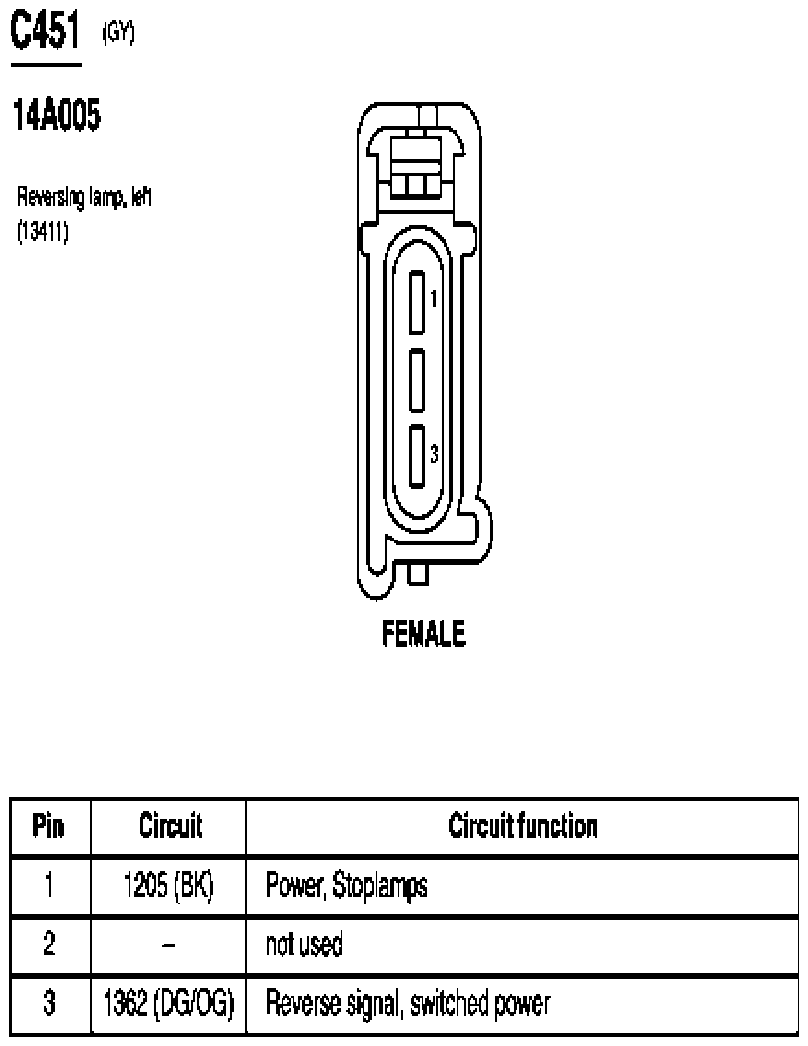

Fig 150: Reversing Lamp, Left Connector End View (C451)
G07844418Courtesy of FORD MOTOR CO.

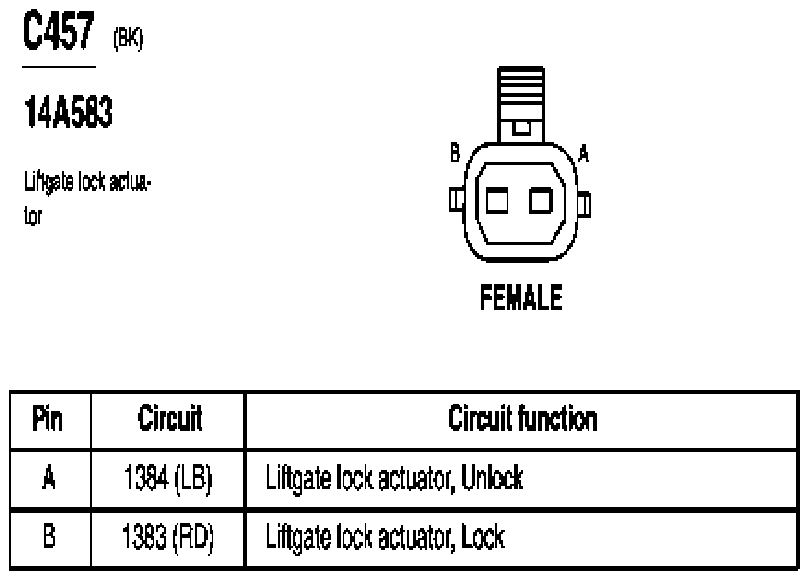

Fig 151: Liftgate Lock Actuator Connector End View (C457)
G07844419Courtesy of FORD MOTOR CO.

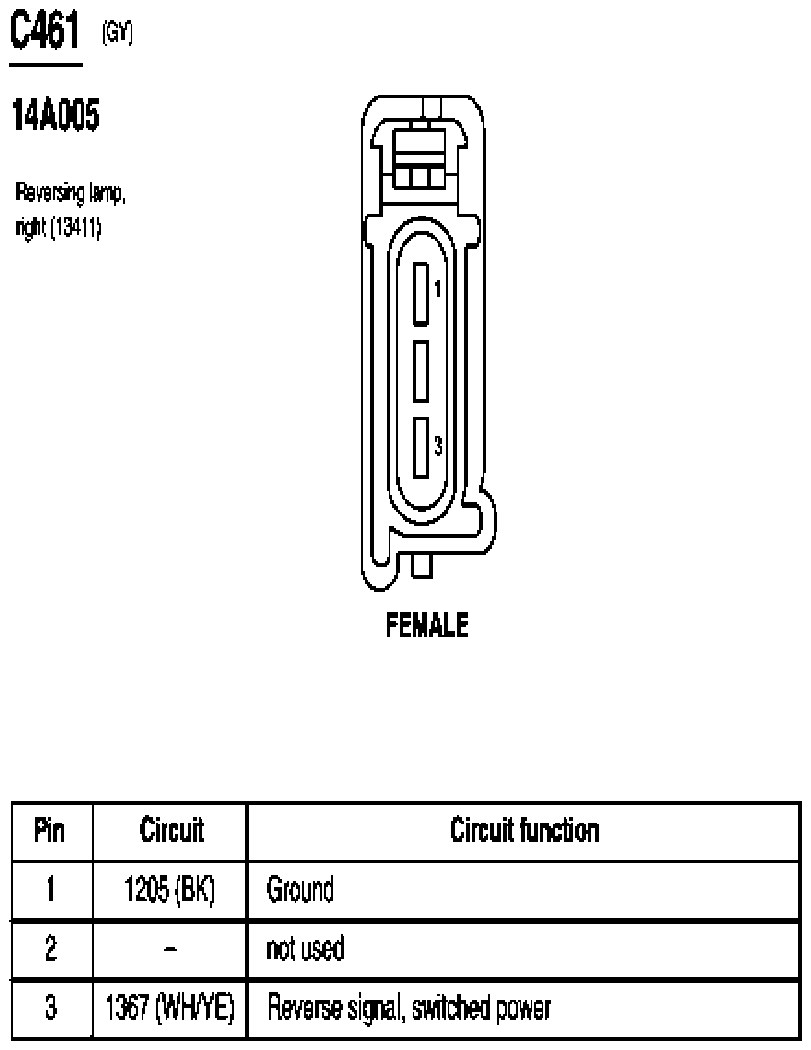

Fig 152: Reversing Lamp, Right Connector End View (C461)
G07844420Courtesy of FORD MOTOR CO.

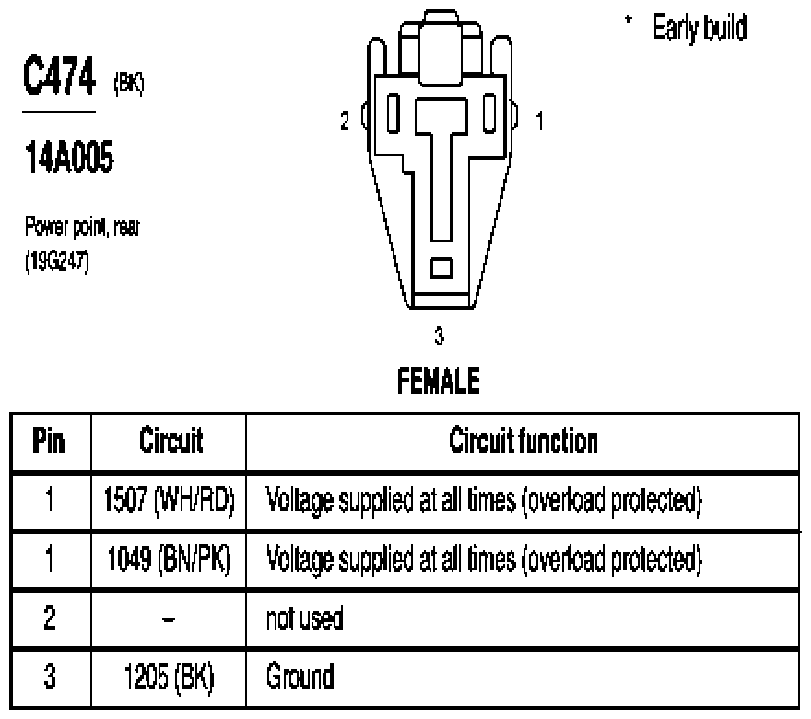

Fig 153: Power Point, Rear Connector End View (C474)
G07844421Courtesy of FORD MOTOR CO.

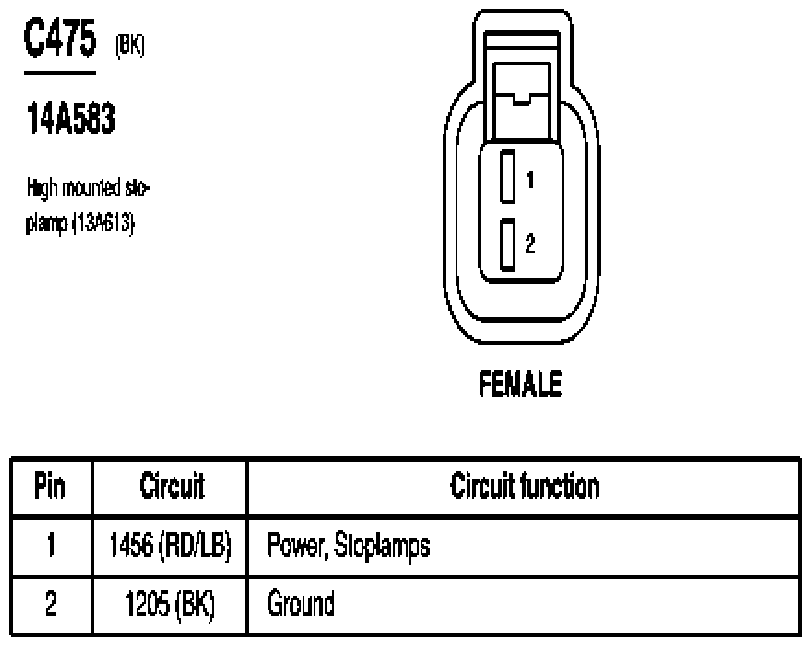

Fig 154: High Mounted Stoplamp Connector End View (C475)
G07844422Courtesy of FORD MOTOR CO.

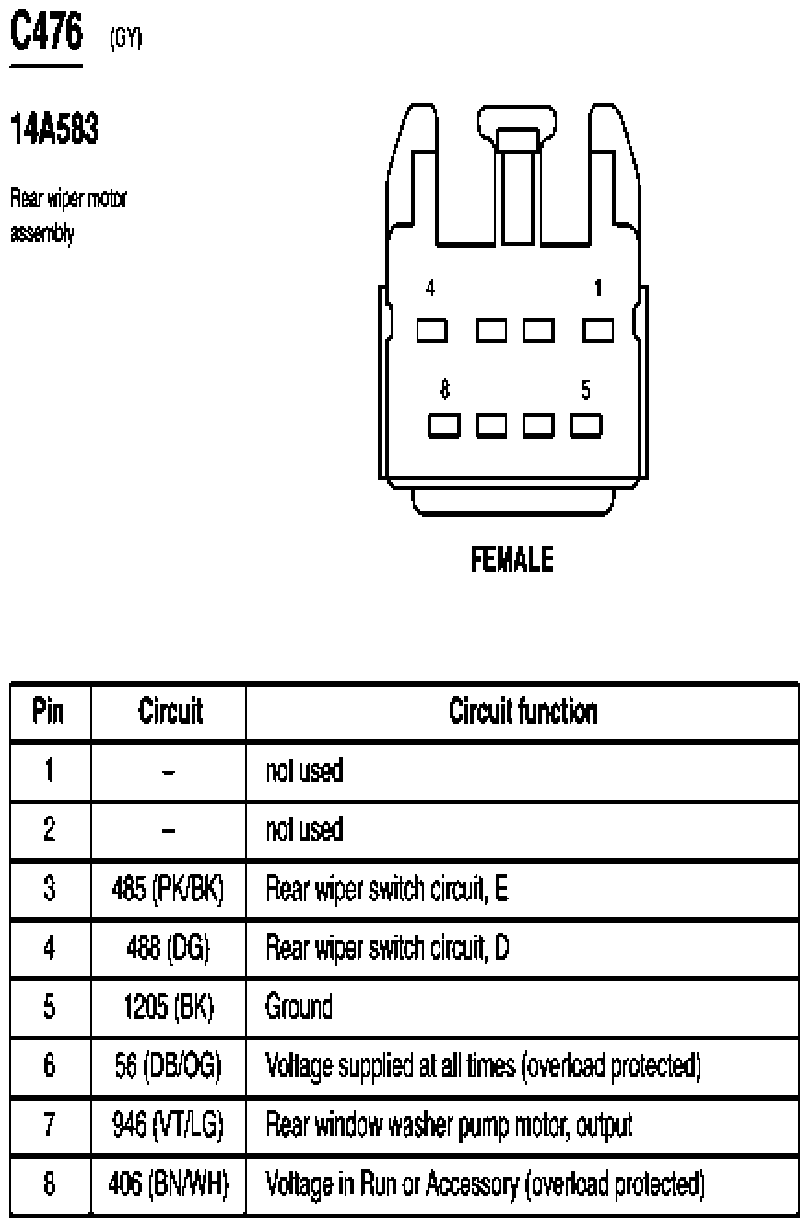

Fig 155: Rear Wiper Motor Assembly Connector End View (C476)
G07844423Courtesy of FORD MOTOR CO.

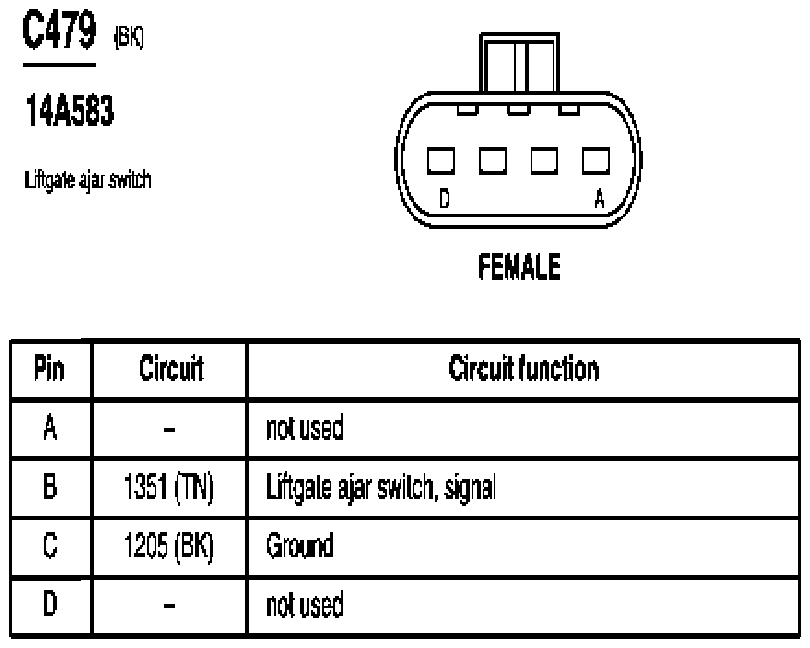

Fig 156: Liftgate Ajar Switch Connector End View (C479)
G07844424Courtesy of FORD MOTOR CO.

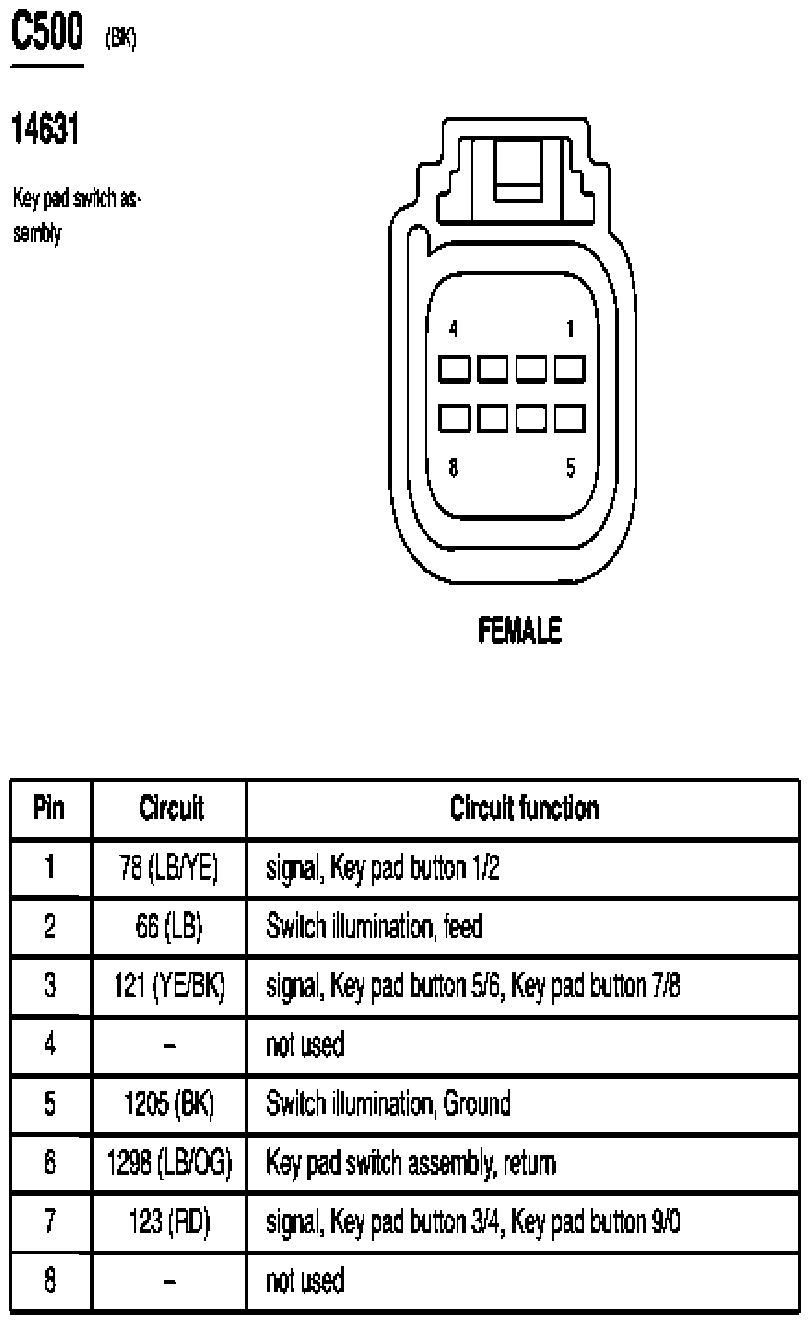

Fig 157: Key Pad Switch Assembly Connector End View (C500)
G07844425Courtesy of FORD MOTOR CO.

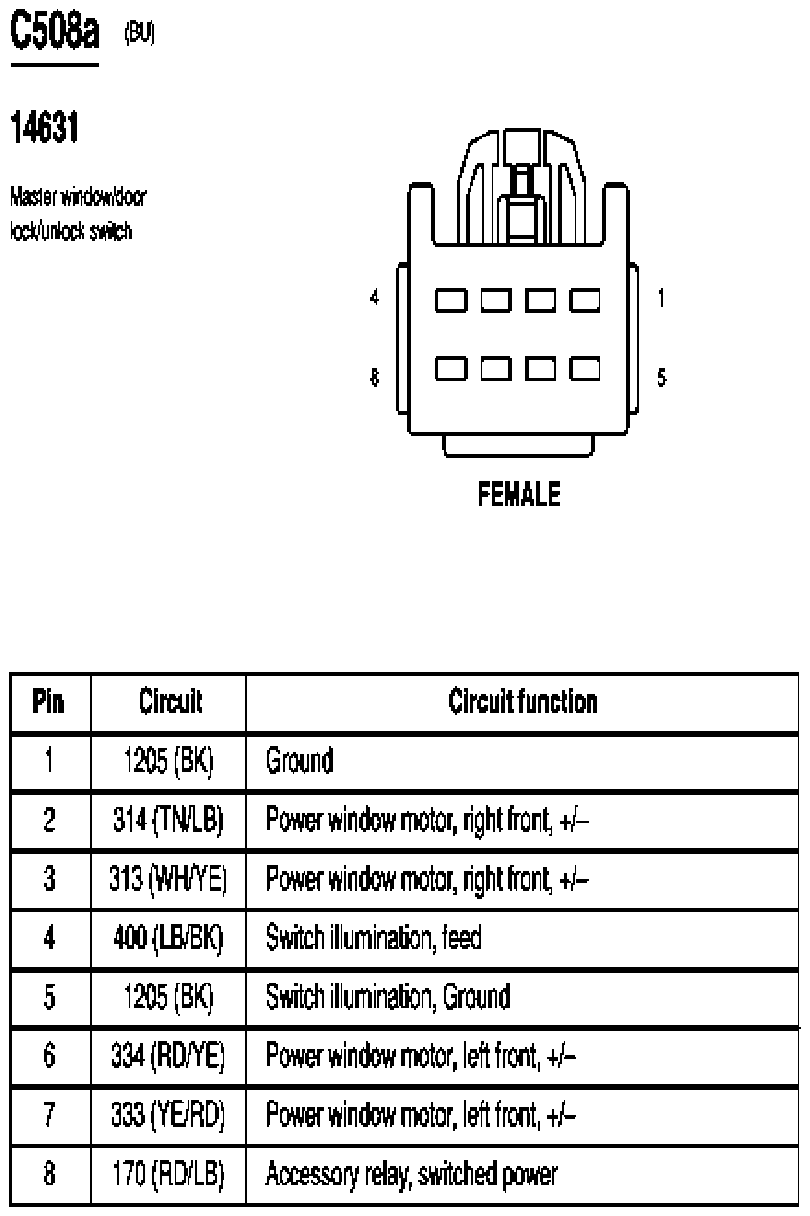

Fig 158: Master Window/Door Lock/Unlock Switch Connector End View (C508a)
G07844426Courtesy of FORD MOTOR CO.

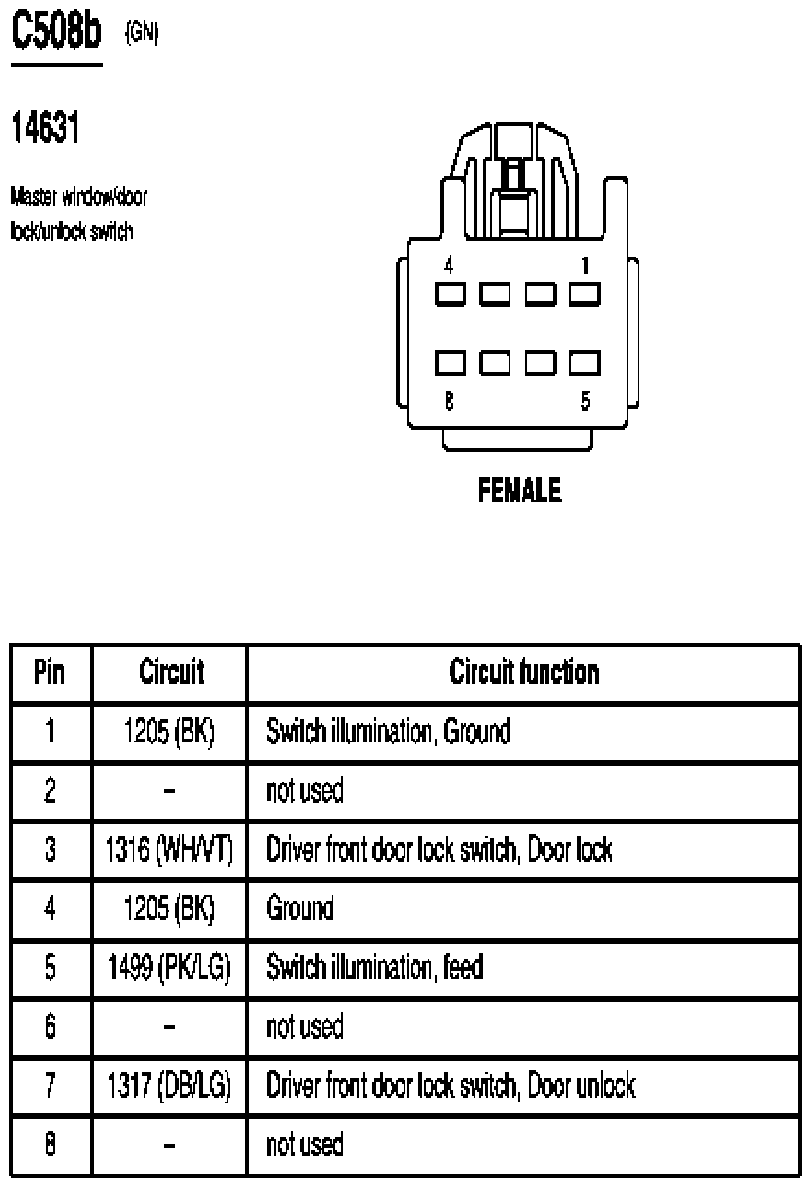

Fig 159: Master Window/Door Lock/Unlock Switch Connector End View (C508b)
G07844427Courtesy of FORD MOTOR CO.

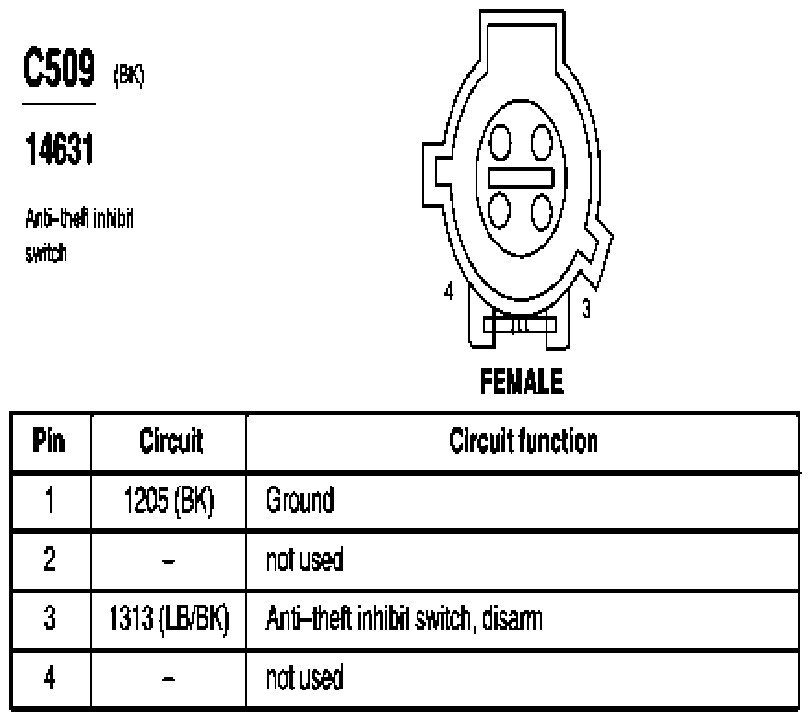

Fig 160: Anti-Theft Inhibit Switch Connector End View (C509)
G07844428Courtesy of FORD MOTOR CO.

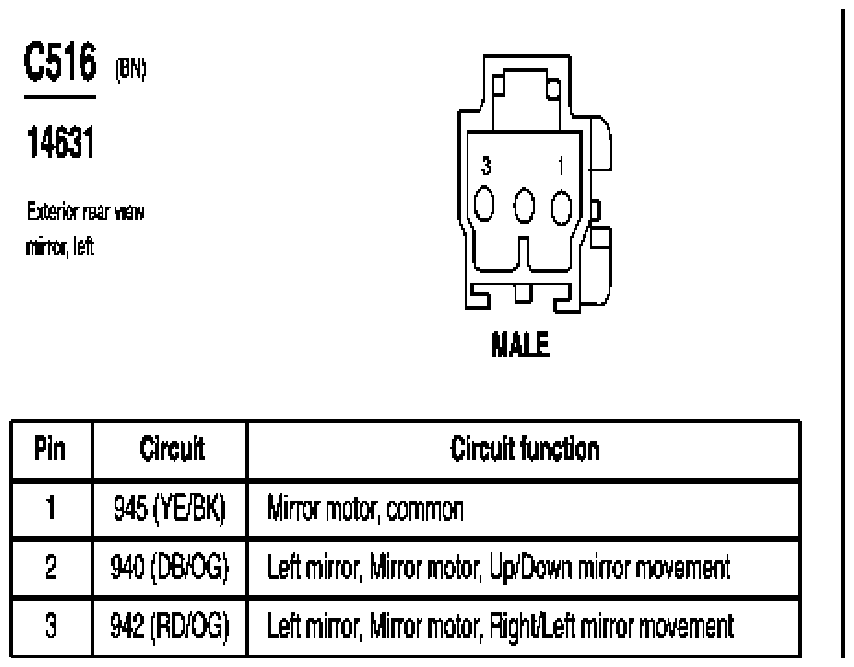

Fig 161: Exterior Rear View Mirror, Left Connector End View (C516)
G07844429Courtesy of FORD MOTOR CO.

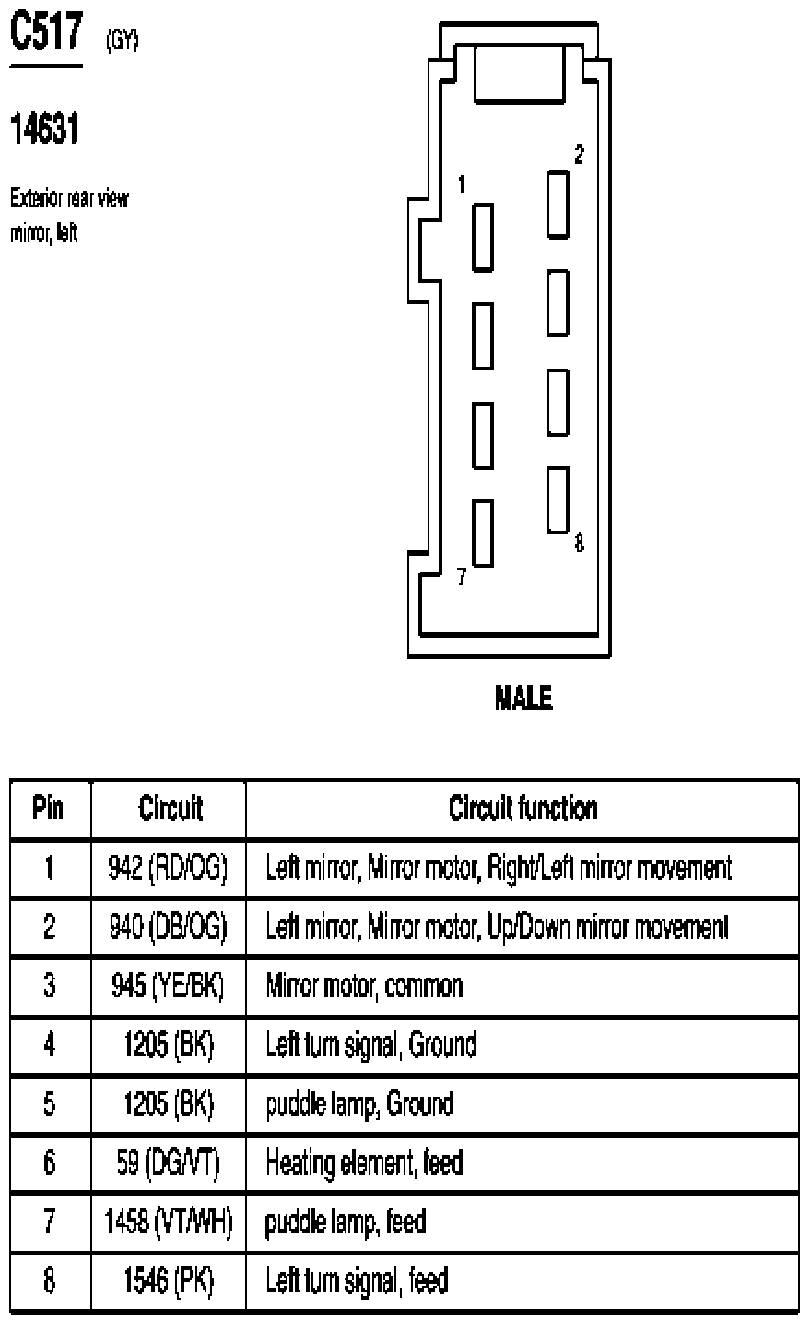

Fig 162: Exterior Rear View Mirror, Left Connector End View (C517)
G07844430Courtesy of FORD MOTOR CO.

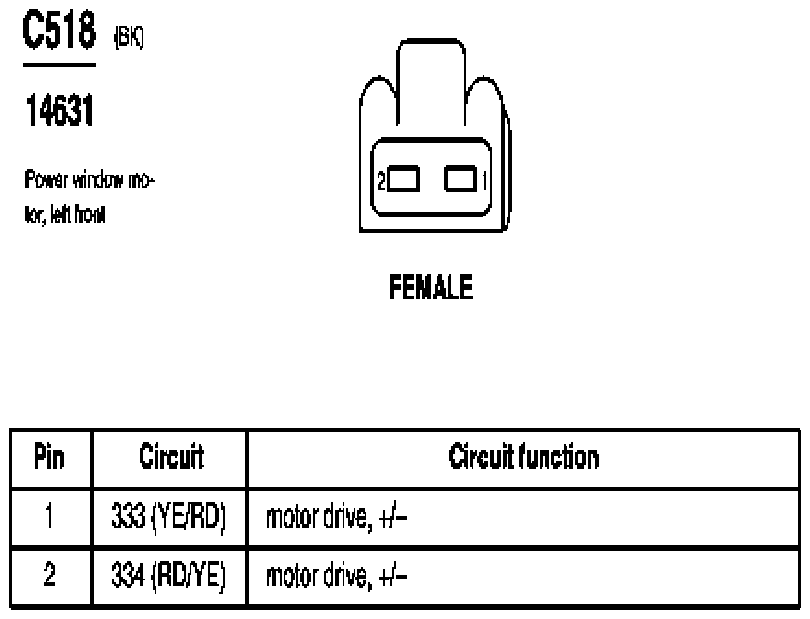

Fig 163: Power Window Motor, Left Front Connector End View (C518)
G07844431Courtesy of FORD MOTOR CO.

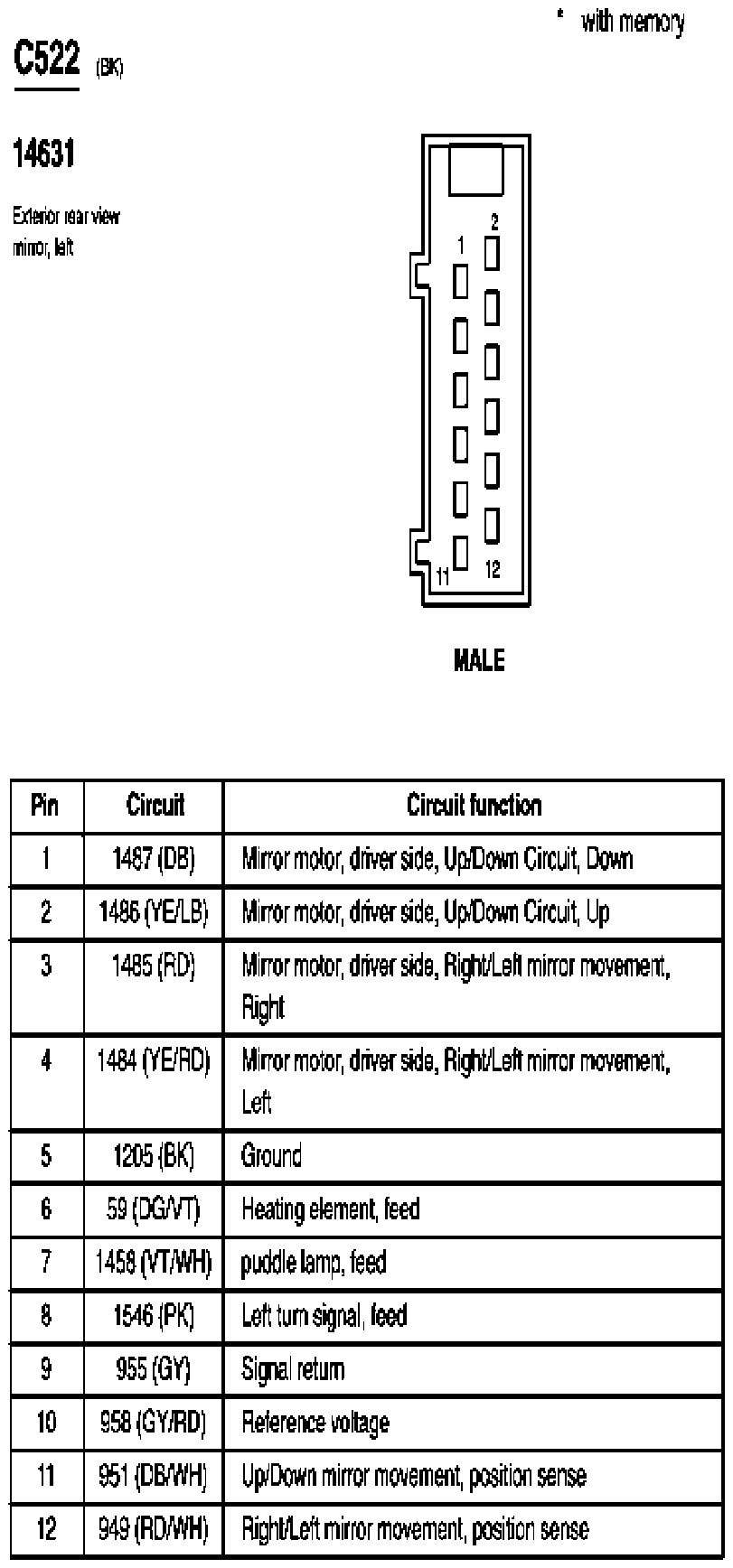

Fig 164: Exterior Rear View Mirror, Left Connector End View (C522)
G07844432Courtesy of FORD MOTOR CO.

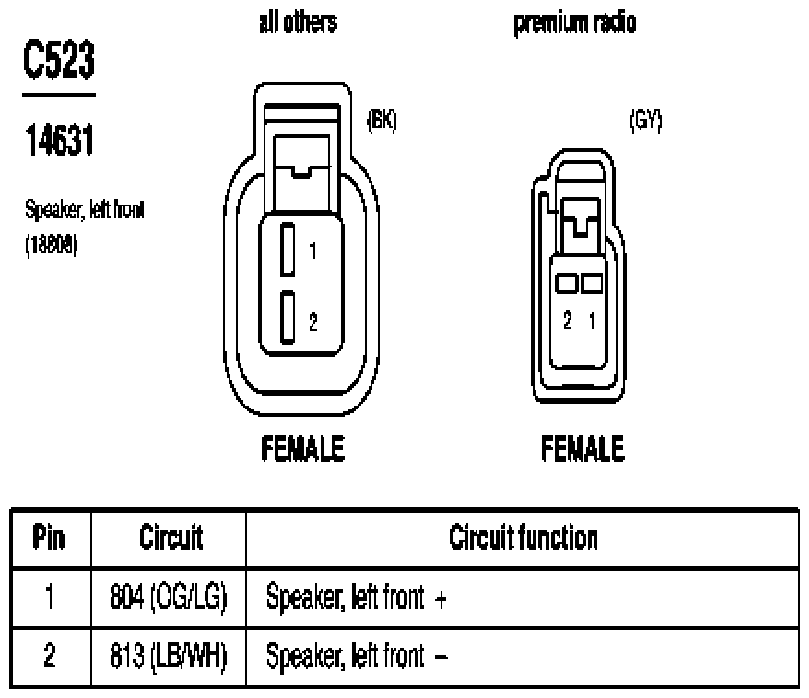

Fig 165: Speaker, Left Front Connector End View (C523)
G07844433Courtesy of FORD MOTOR CO.

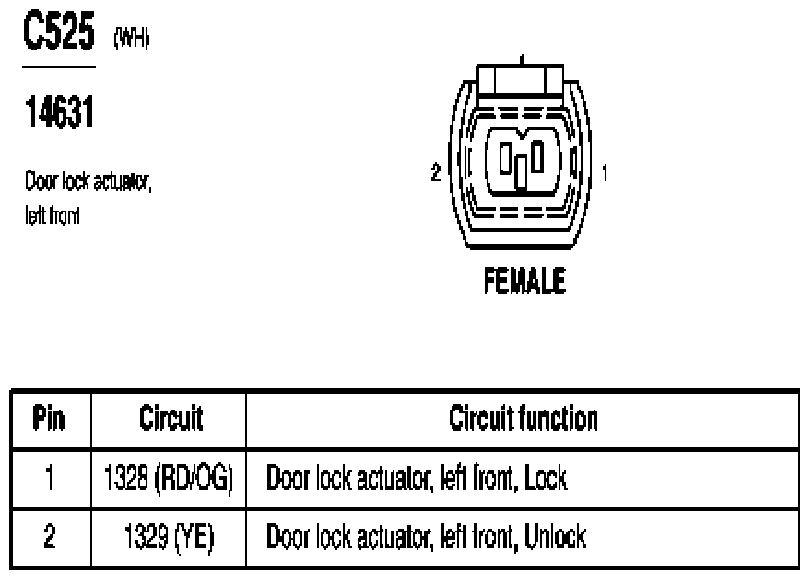

Fig 166: Door Lock Actuator, Left Front Connector End View (C525)
G07844434Courtesy of FORD MOTOR CO.

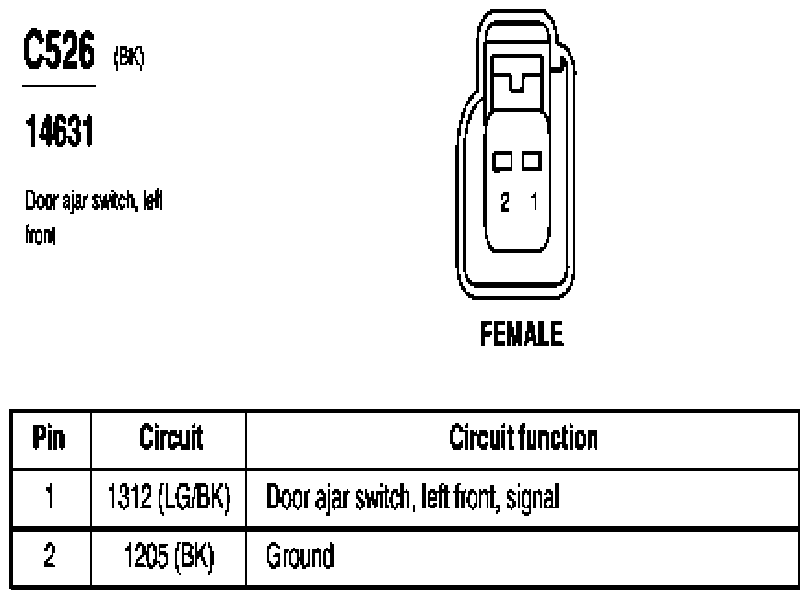

Fig 167: Door Ajar Switch, Left Front Connector End View (C526)
G07844435Courtesy of FORD MOTOR CO.

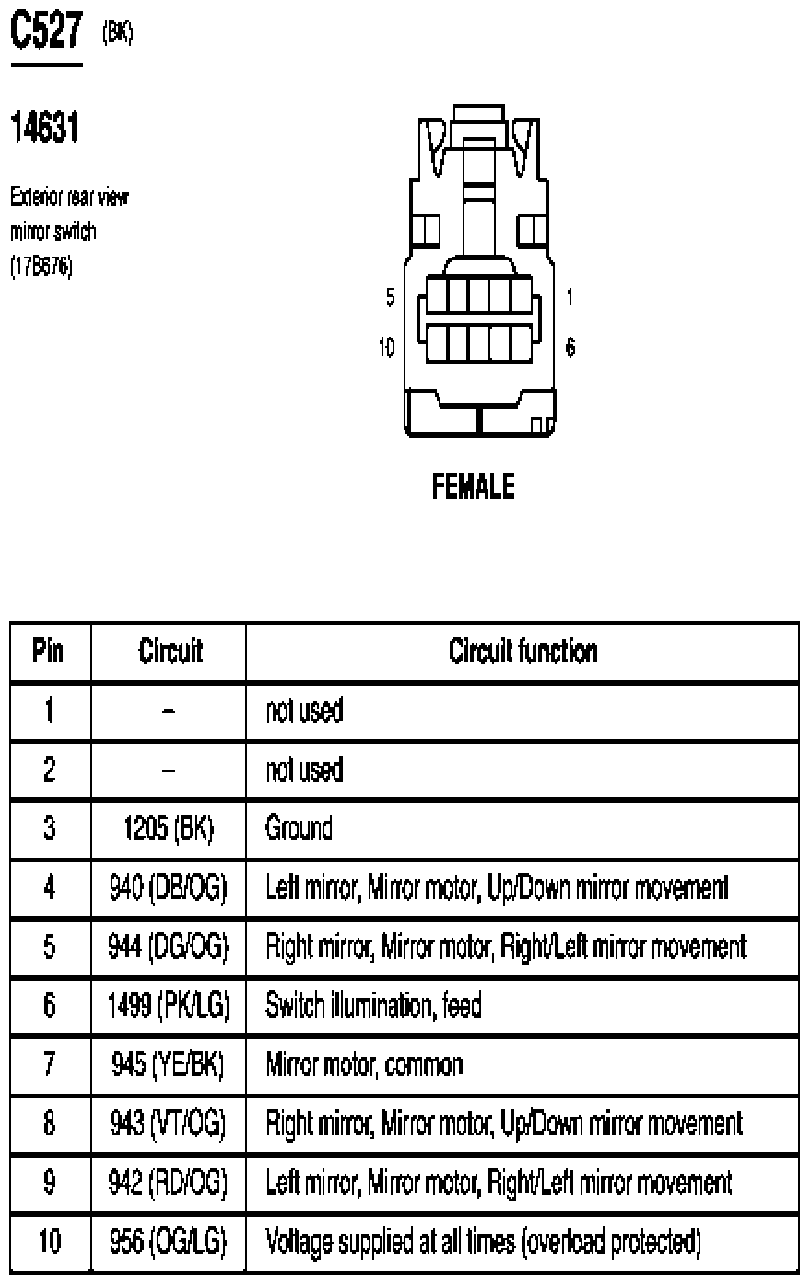

Fig 168: Exterior Rear View Mirror Switch Connector End View (C527)
G07844436Courtesy of FORD MOTOR CO.

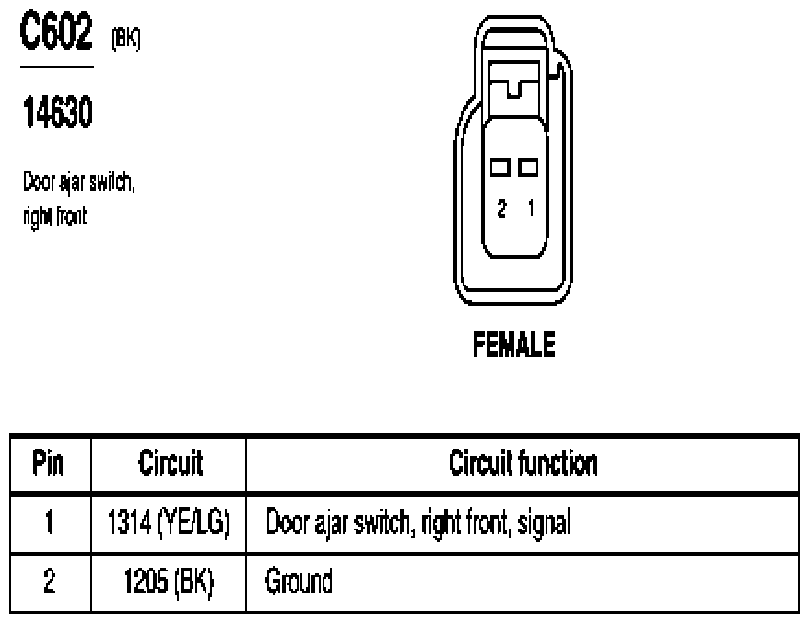

Fig 169: Door Ajar Switch, Right Front Connector End View (C602)
G07844437Courtesy of FORD MOTOR CO.

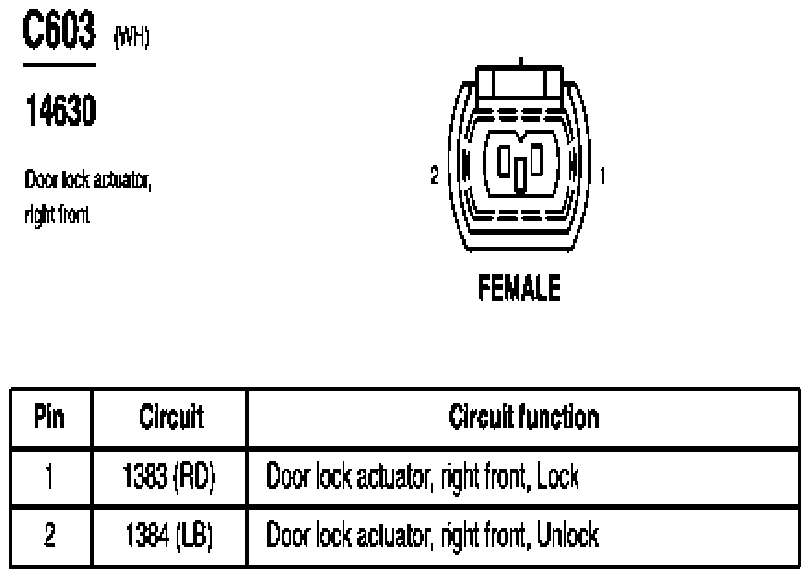

Fig 170: Door Lock Actuator, Right Front Connector End View (C603)
G07844438Courtesy of FORD MOTOR CO.

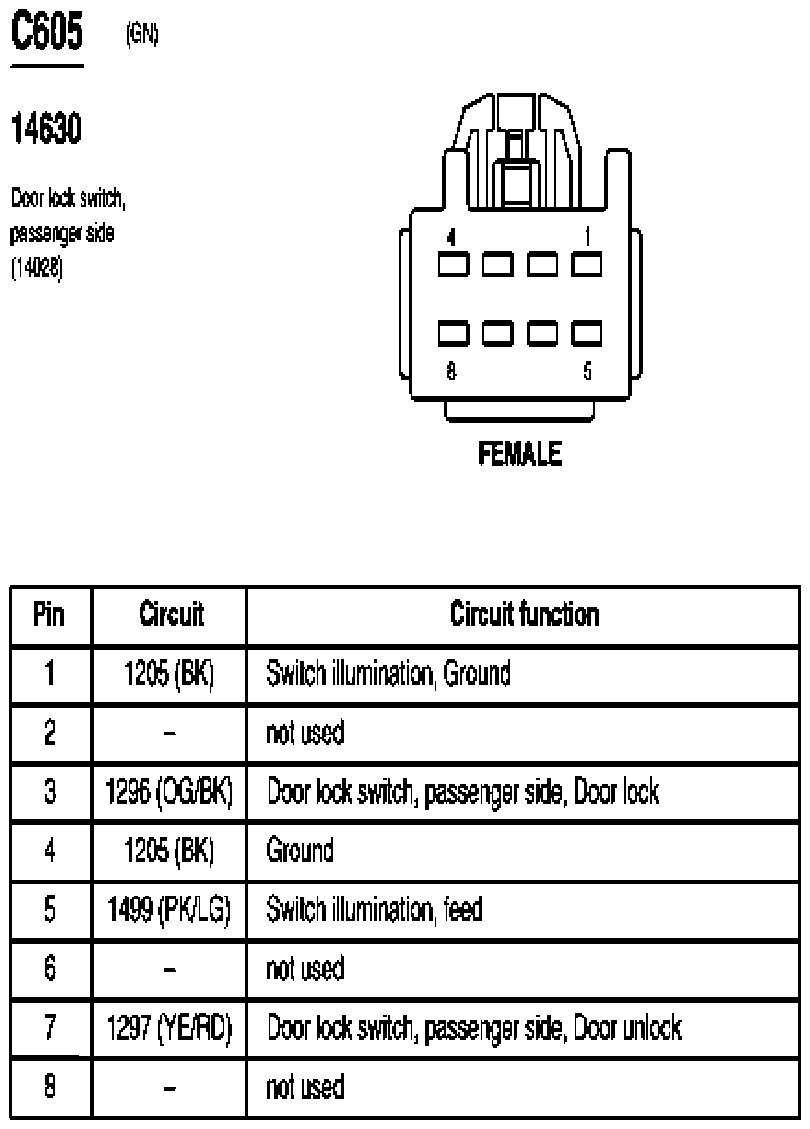

Fig 171: Door Lock Switch, Passenger Side Connector End View (C605)
G07844439Courtesy of FORD MOTOR CO.

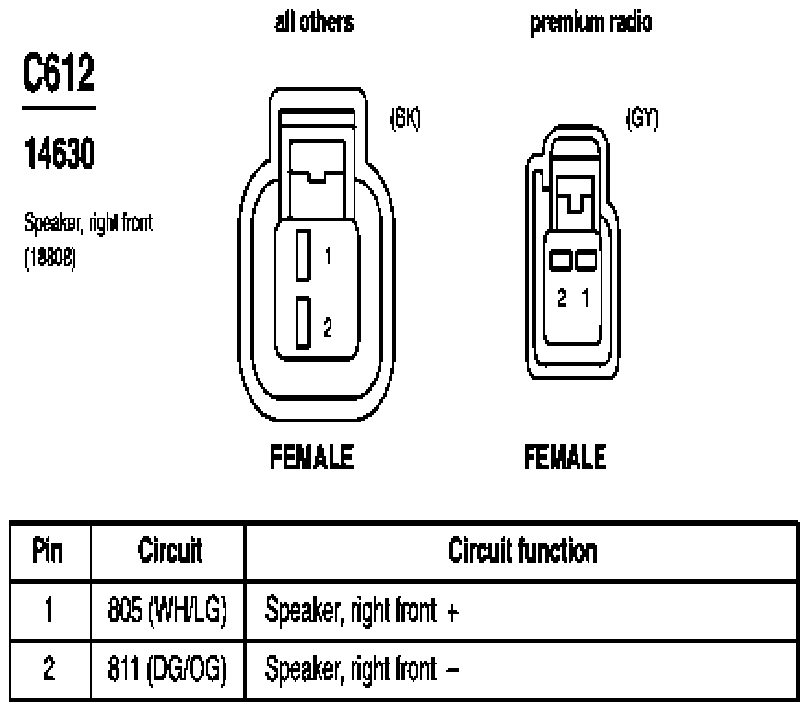

Fig 172: Speaker, Right Front Connector End View (C612)
G07844440Courtesy of FORD MOTOR CO.

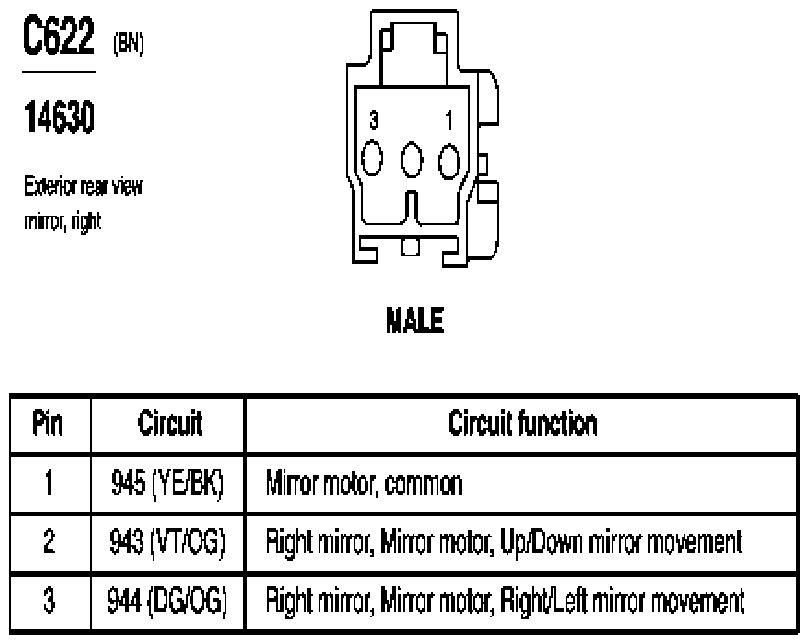

Fig 173: Exterior Rear View Mirror, Right Connector End View (C622)
G07844441Courtesy of FORD MOTOR CO.

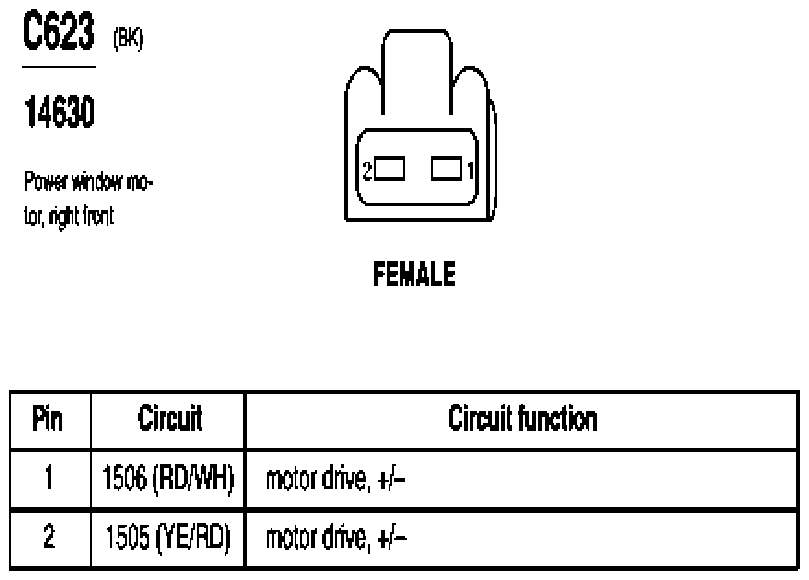

Fig 174: Power Window Motor, Right Front Connector End View (C623)
G07844442Courtesy of FORD MOTOR CO.

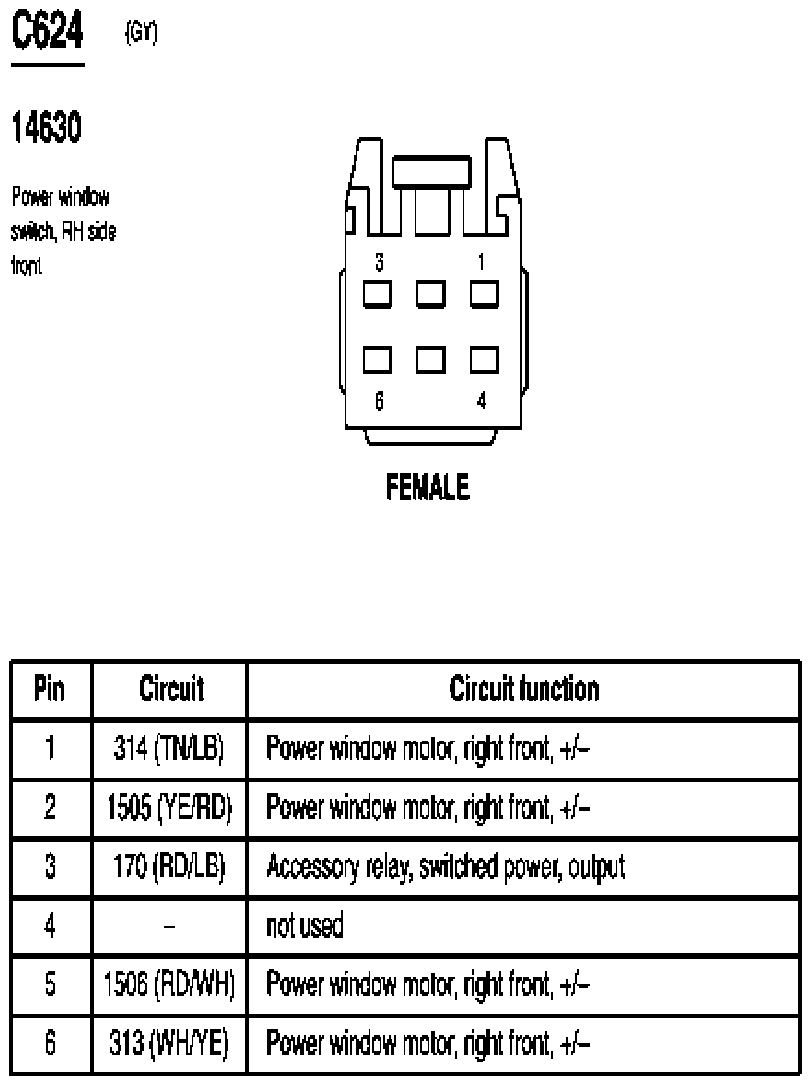

Fig 175: Power Window Switch, RH Side Front Connector End View (C624)
G07844443Courtesy of FORD MOTOR CO.

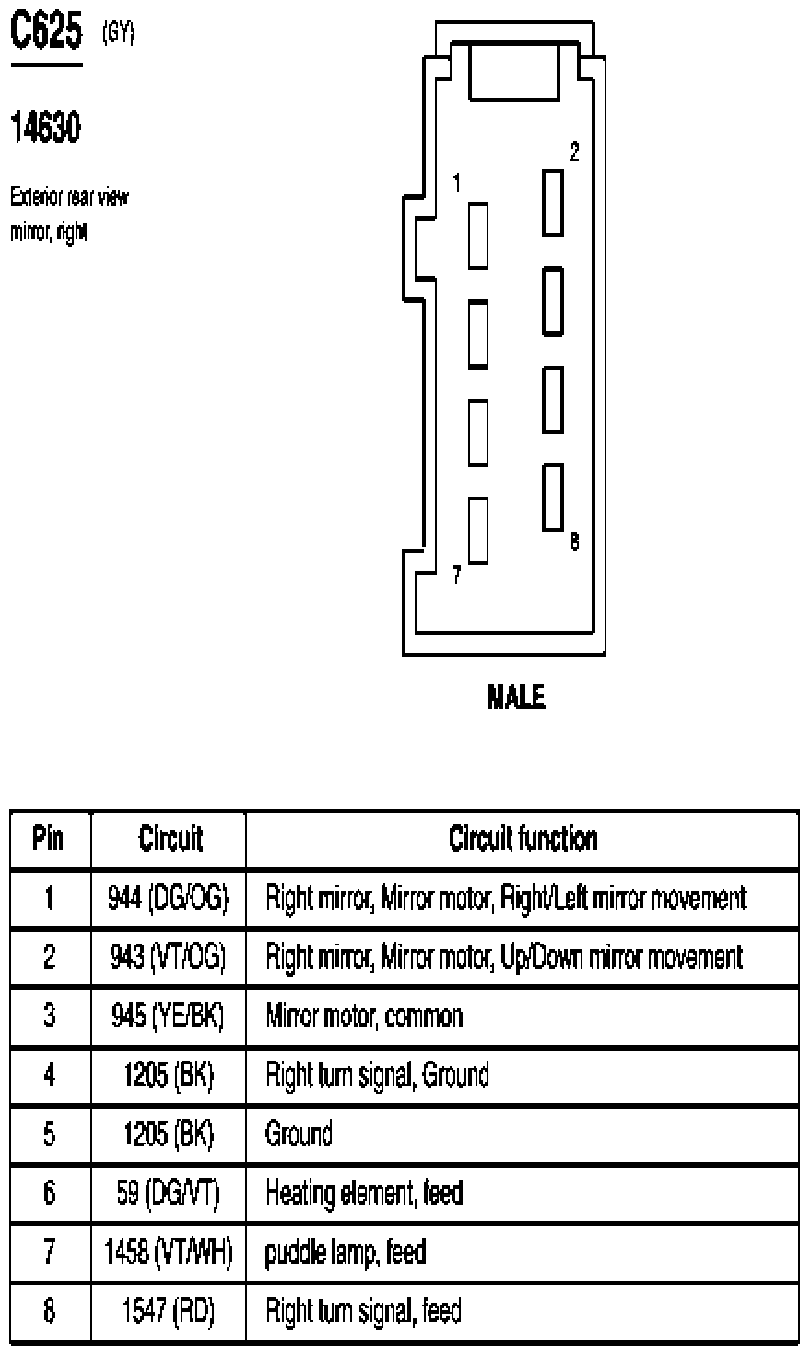

Fig 176: Exterior Rear View Mirror, Right Connector End View (C625)
G07844444Courtesy of FORD MOTOR CO.

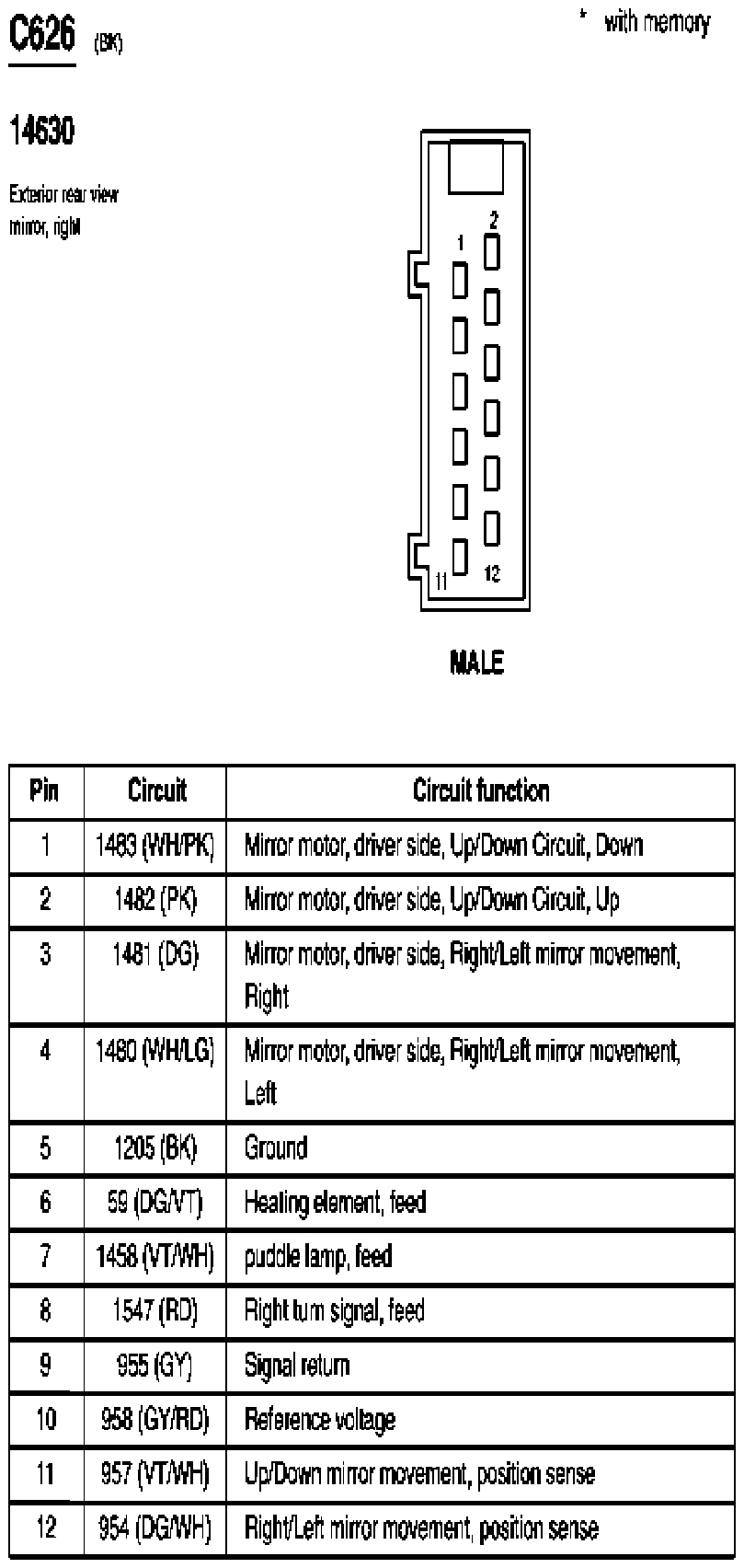

Fig 177: Exterior Rear View Mirror, Right Connector End View (C626)
G07844445Courtesy of FORD MOTOR CO.

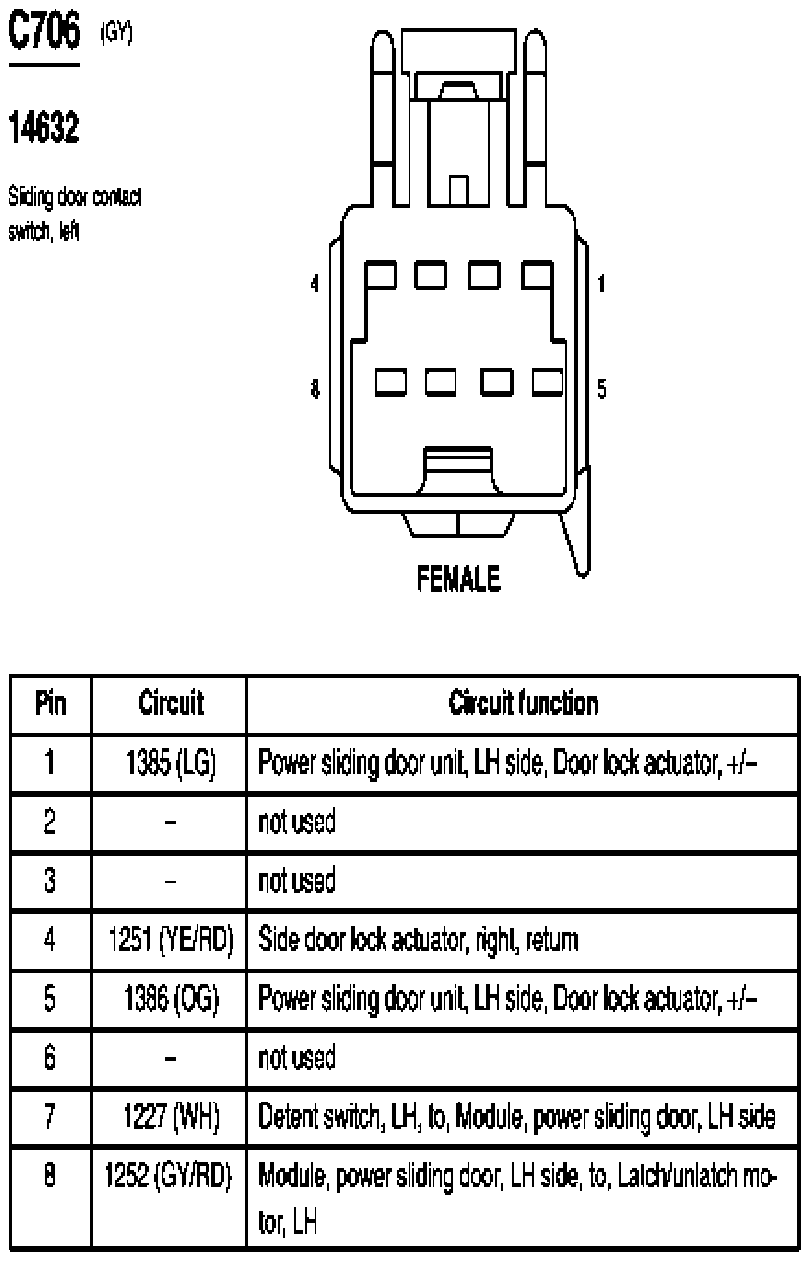

Fig 178: Sliding Door Contact Switch, Left Connector End View (C706)
G07844446Courtesy of FORD MOTOR CO.

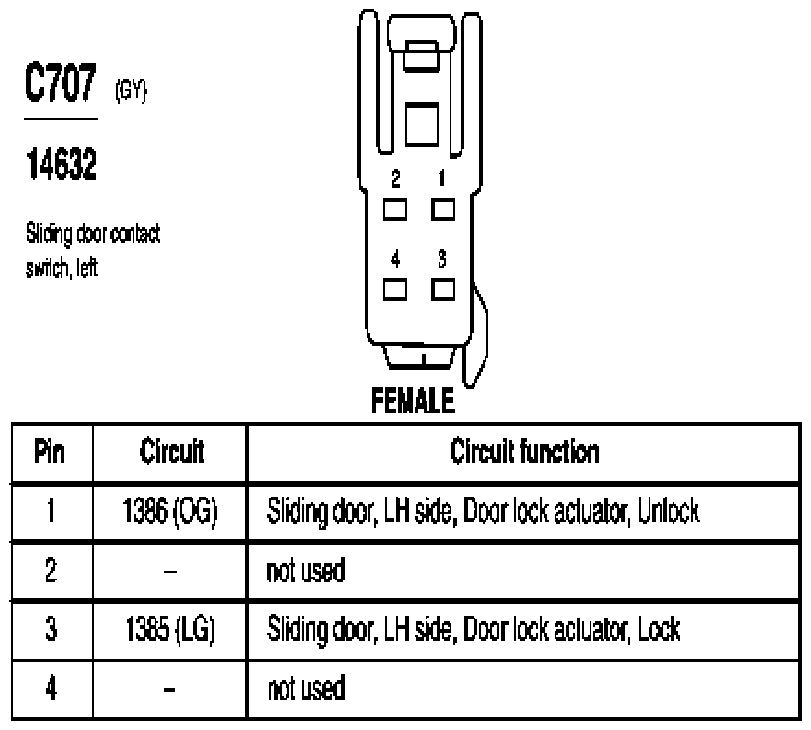

Fig 179: Sliding Door Contact Switch, Left Connector End View (C707)
G07844447Courtesy of FORD MOTOR CO.

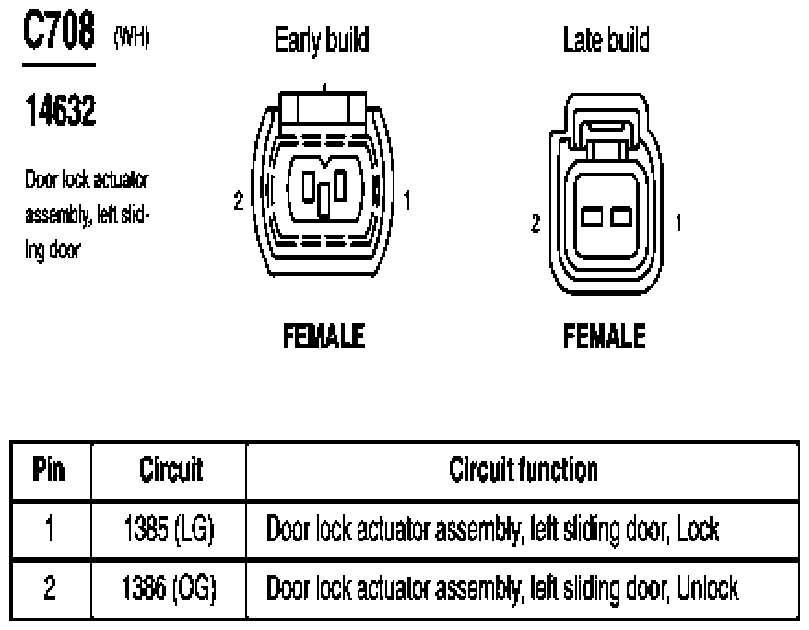

Fig 180: Door Lock Actuator Assembly, Left Sliding Door Connector End View (C708)
G07844448Courtesy of FORD MOTOR CO.
Fig 181: Latch Reverse Actuator, Left Power Sliding Door Connector End View (C709)
G07844449Courtesy of FORD MOTOR CO.

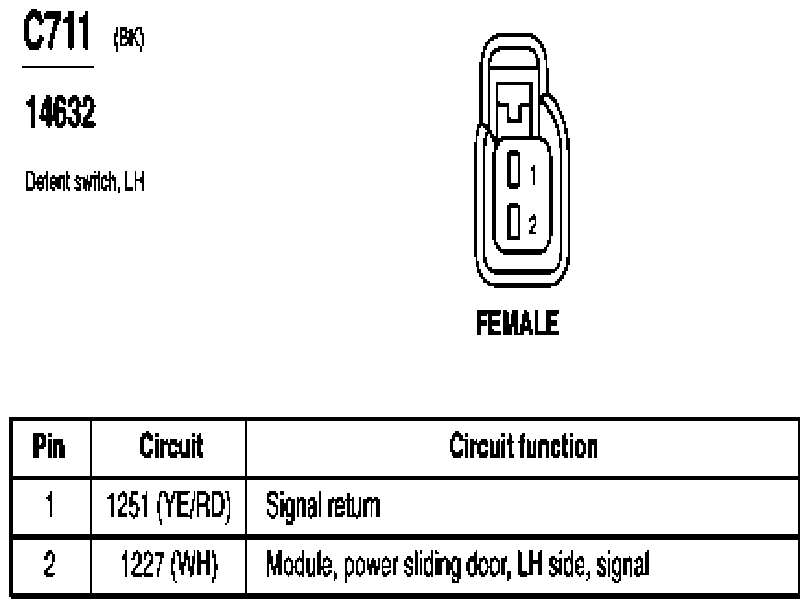

Fig 182: Detent Switch, LH Connector End View (C711)
G07844450Courtesy of FORD MOTOR CO.

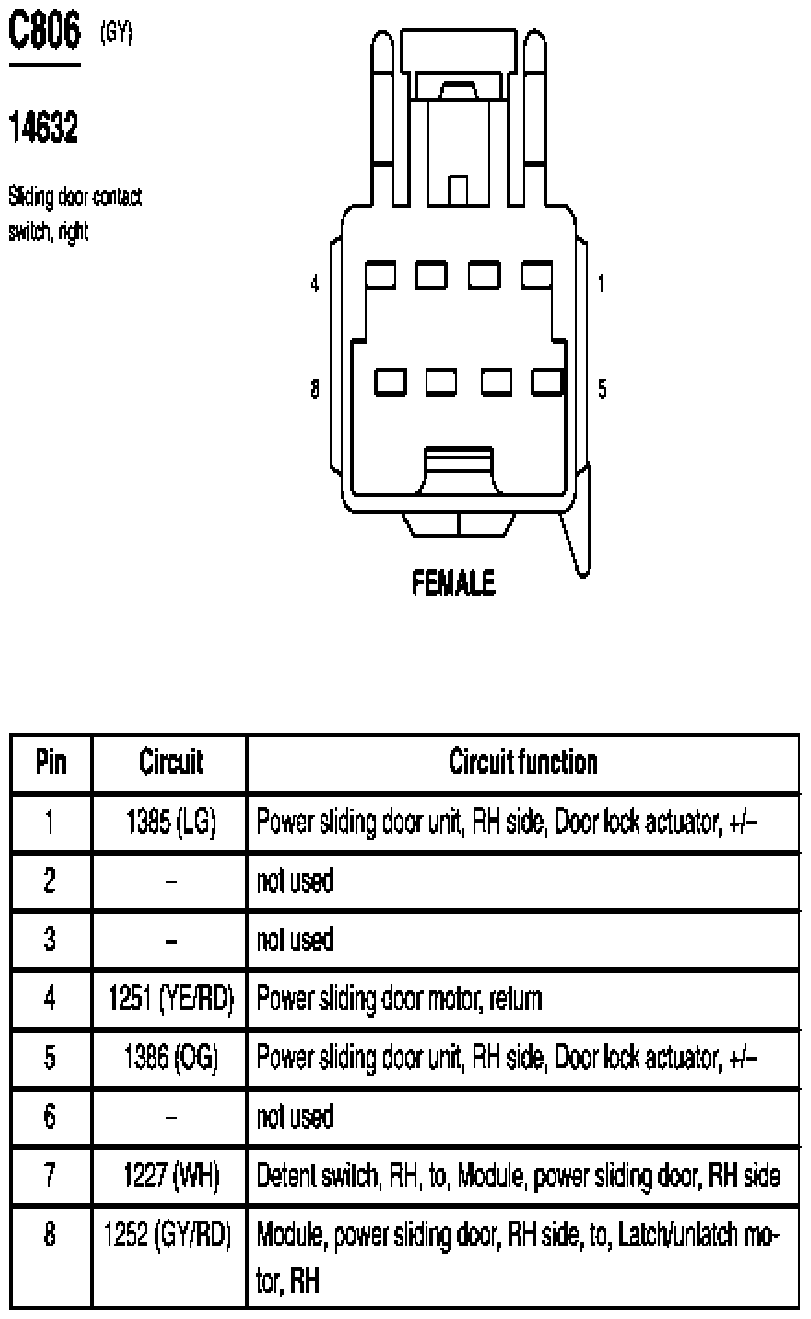

Fig 183: Sliding Door Contact Switch, Right Connector End View (C806)
G07844451Courtesy of FORD MOTOR CO.

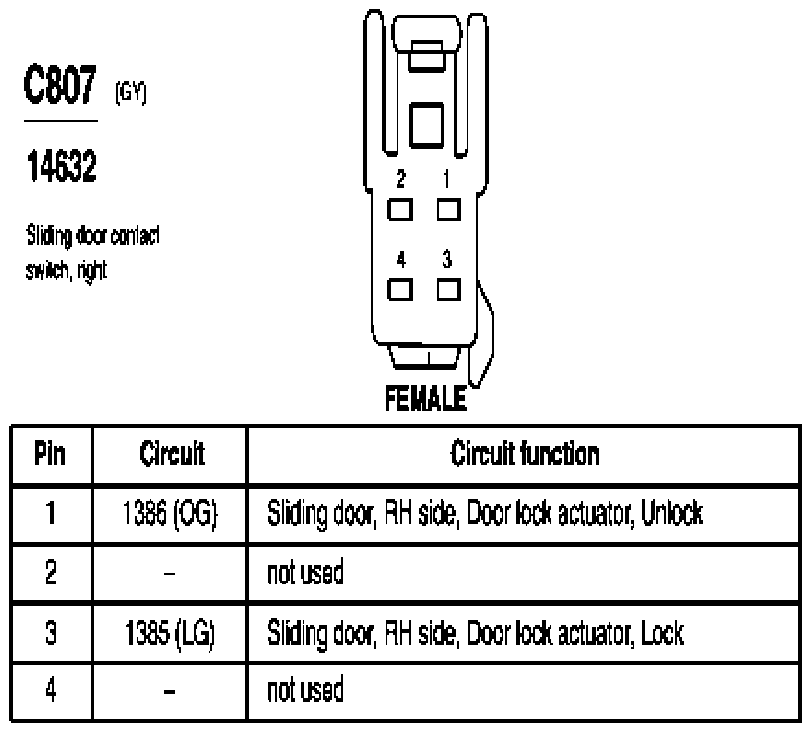

Fig 184: Sliding Door Contact Switch, Right Connector End View (C807)
G07844452Courtesy of FORD MOTOR CO.

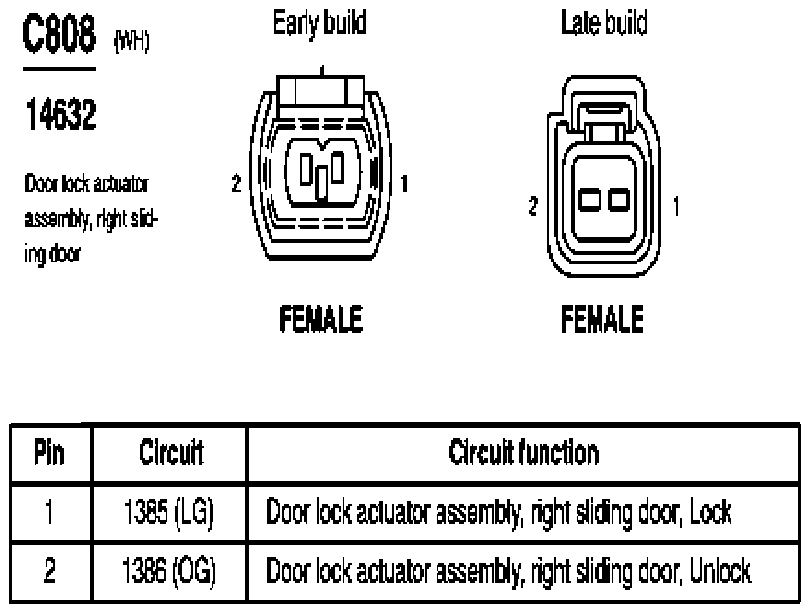

Fig 185: Door Lock Actuator Assembly, Right Sliding Door Connector End View (C808)
G07844453Courtesy of FORD MOTOR CO.

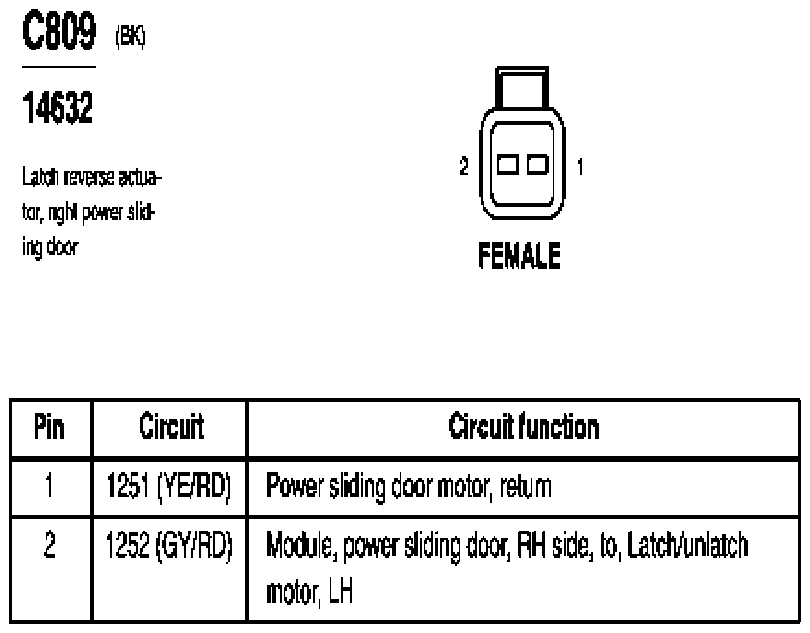

Fig 186: Latch Reverse Actuator, Right Power Sliding Door Connector End View (C809)
G07844454Courtesy of FORD MOTOR CO.

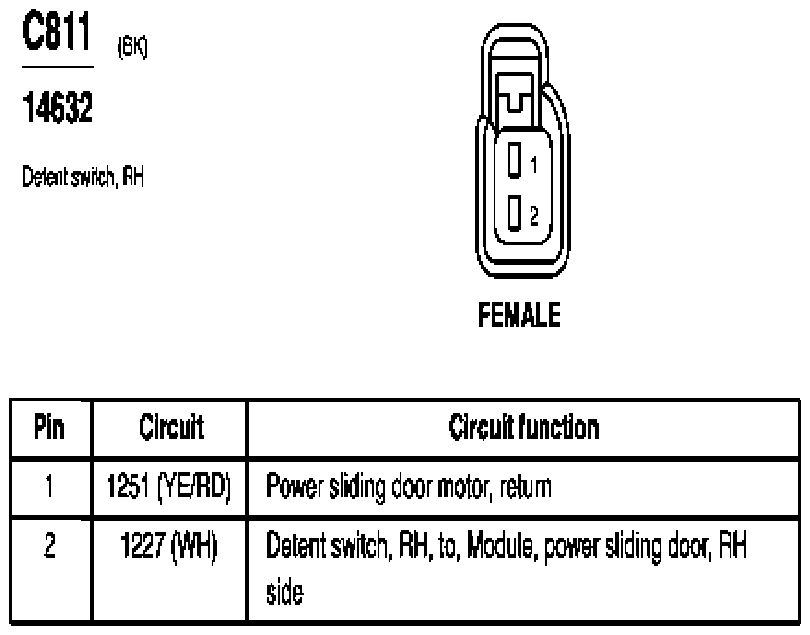

Fig 187: Detent Switch, RH Connector End View (C811)
G07844455Courtesy of FORD MOTOR CO.

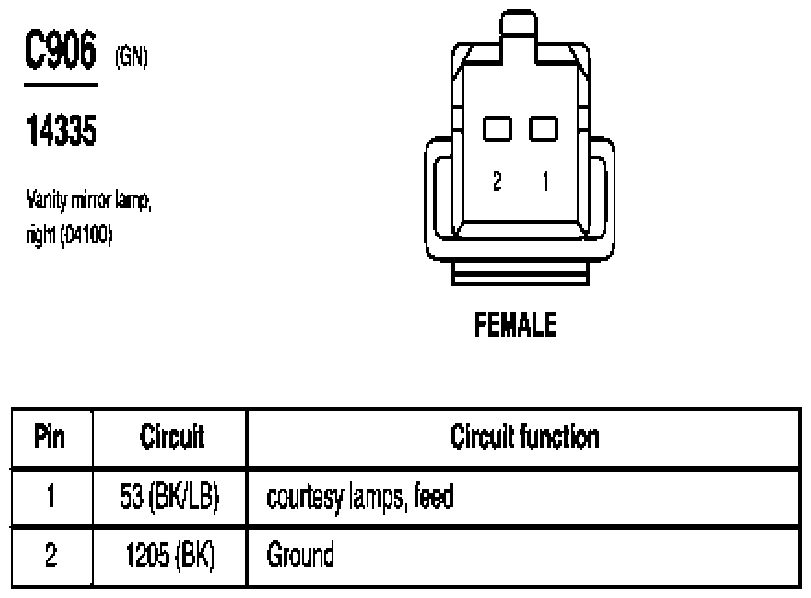

Fig 188: Vanity Mirror Lamp, Right Connector End View (C906)
G07844456Courtesy of FORD MOTOR CO.

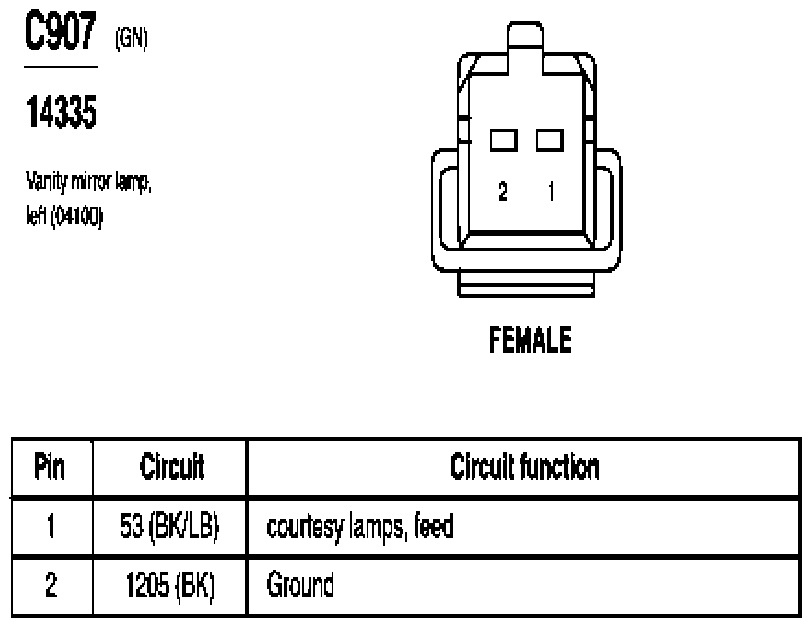

Fig 189: Vanity Mirror Lamp, Left Connector End View (C907)
G07844457Courtesy of FORD MOTOR CO.

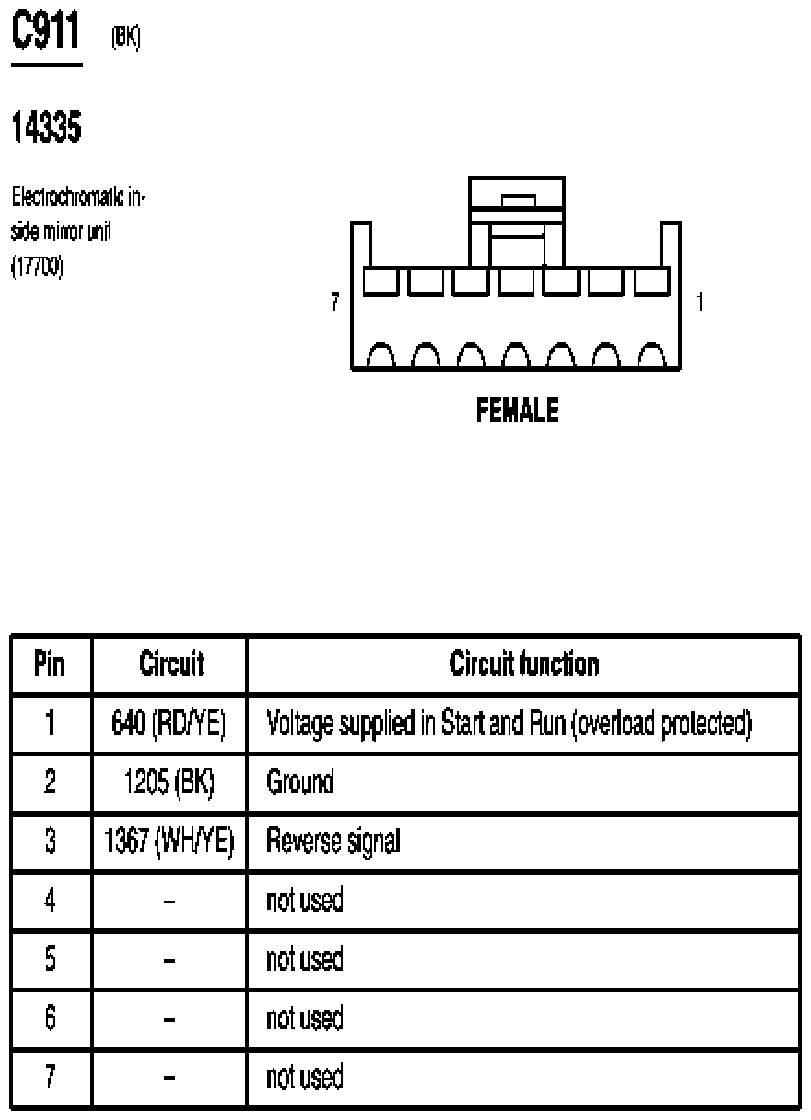

Fig 190: Electrochromatic Inside Mirror Unit Connector End View (C911)
G07844458Courtesy of FORD MOTOR CO.
Fig 191: Inline Connector End View (C913)
G07844459Courtesy of FORD MOTOR CO.

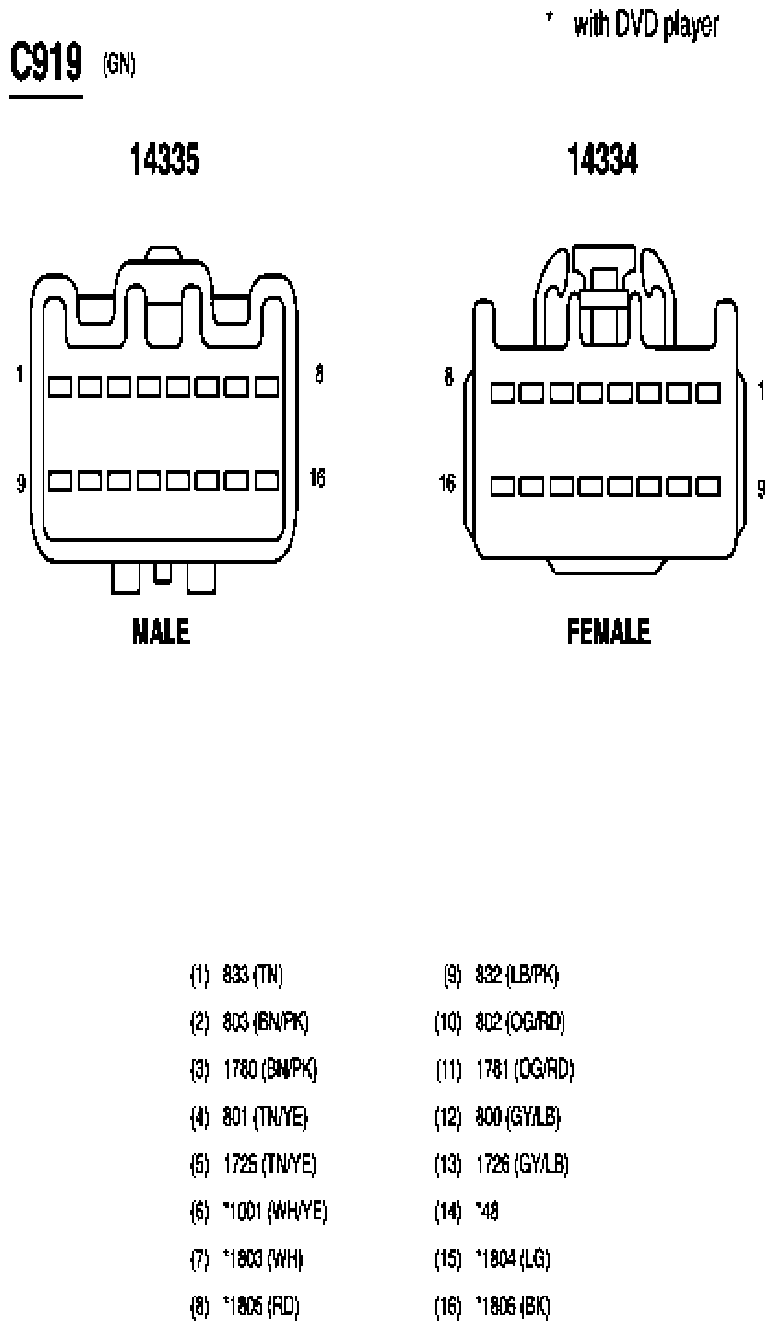

Fig 192: Inline Connector End View (C919)
G07844460Courtesy of FORD MOTOR CO.

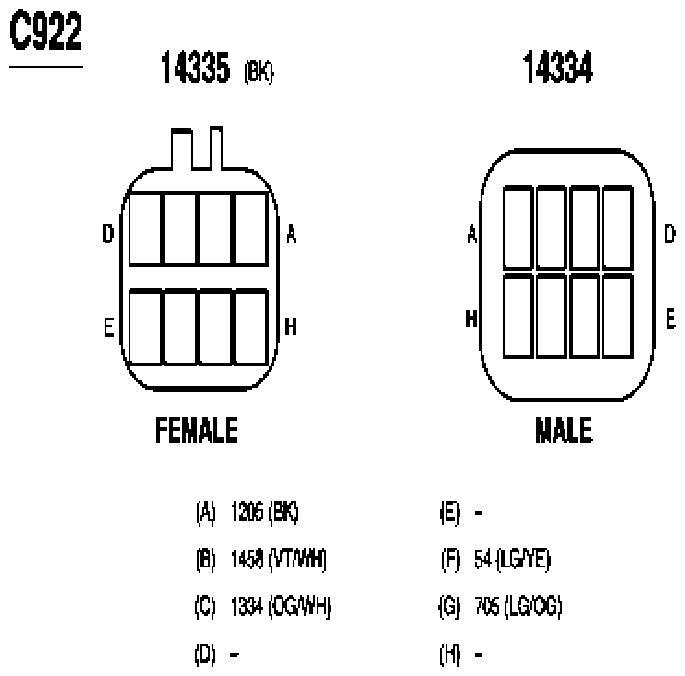

Fig 193: Inline Connector End View (C922)
G07844461Courtesy of FORD MOTOR CO.

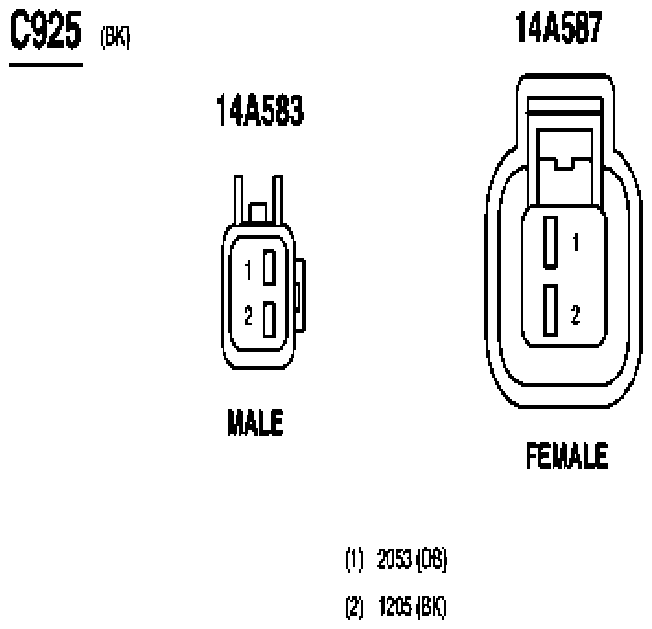

Fig 194: Inline Connector End View (C925)
G07844462Courtesy of FORD MOTOR CO.

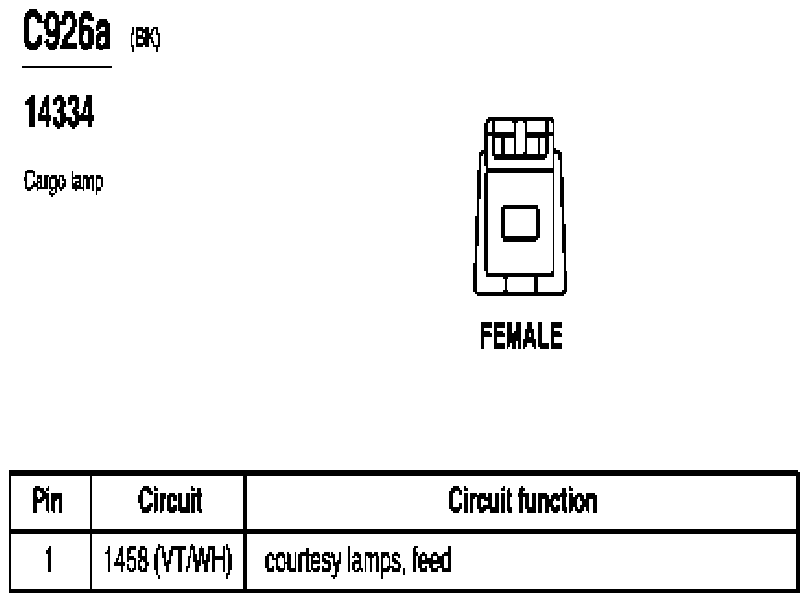

Fig 195: Cargo Lamp Connector End View (C926a)
G07844463Courtesy of FORD MOTOR CO.

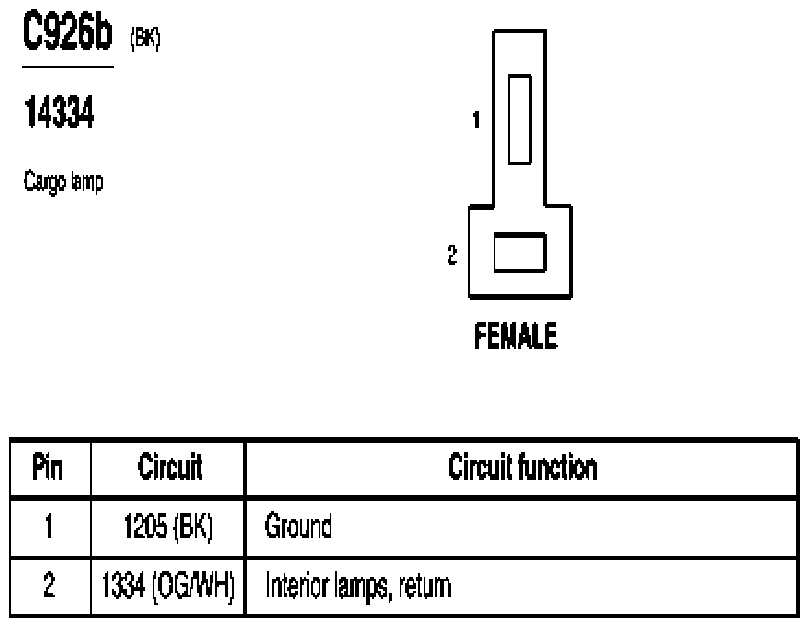

Fig 196: Cargo Lamp Connector End View (C926b)
G07844464Courtesy of FORD MOTOR CO.

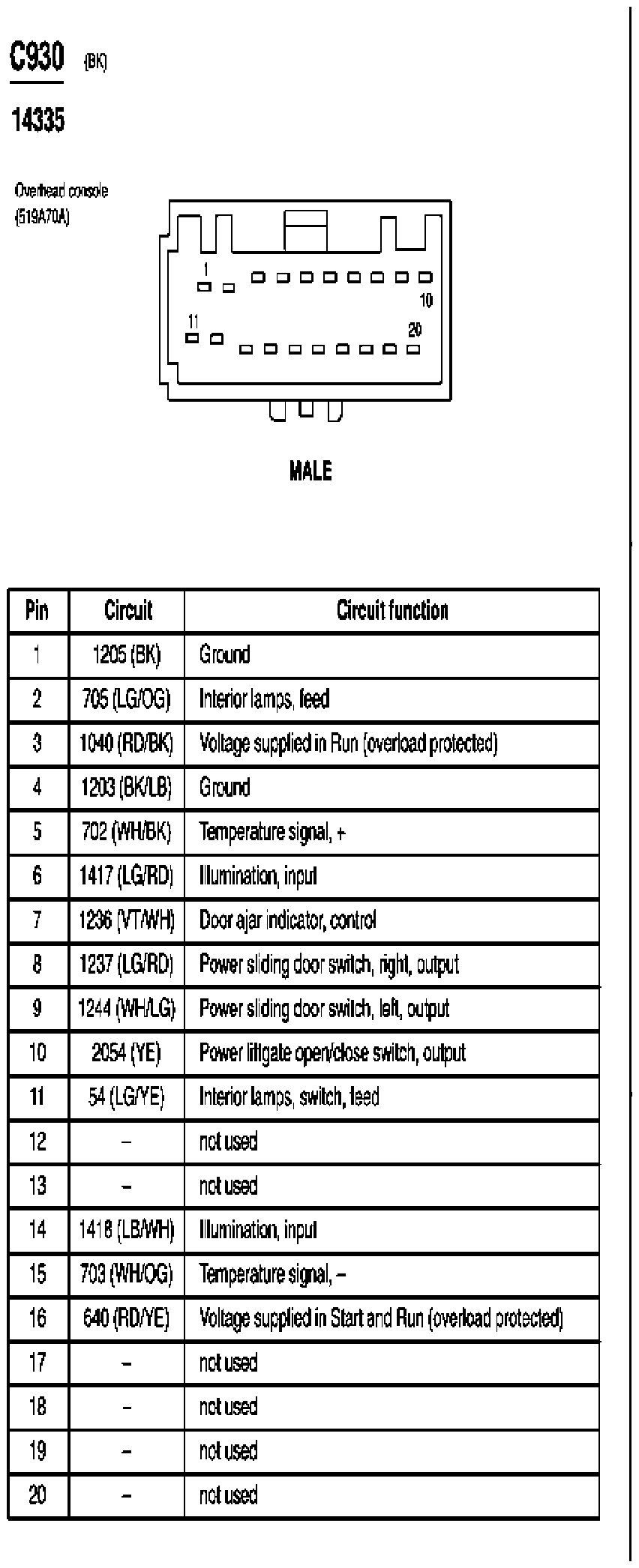

Fig 197: Overhead Console Connector End View (C930)
G07844465Courtesy of FORD MOTOR CO.

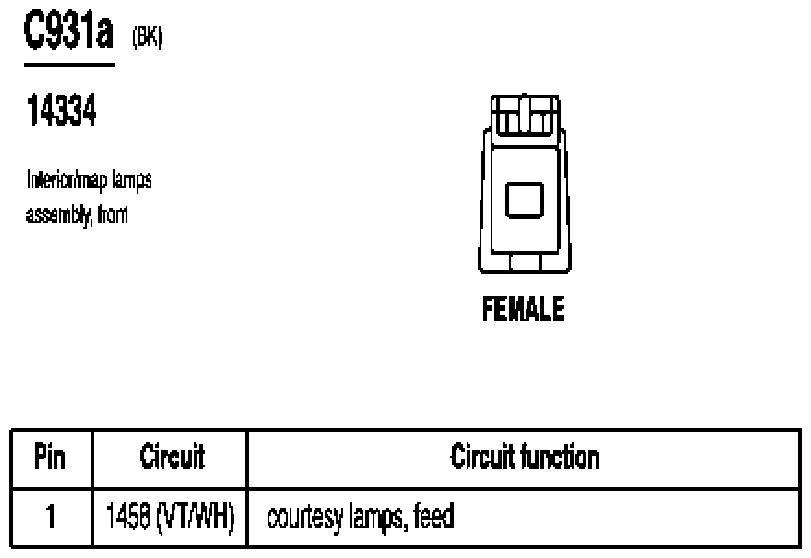

Fig 198: Interior/Map Lamps Assembly, Front Connector End View (C931a)
G07844466Courtesy of FORD MOTOR CO.

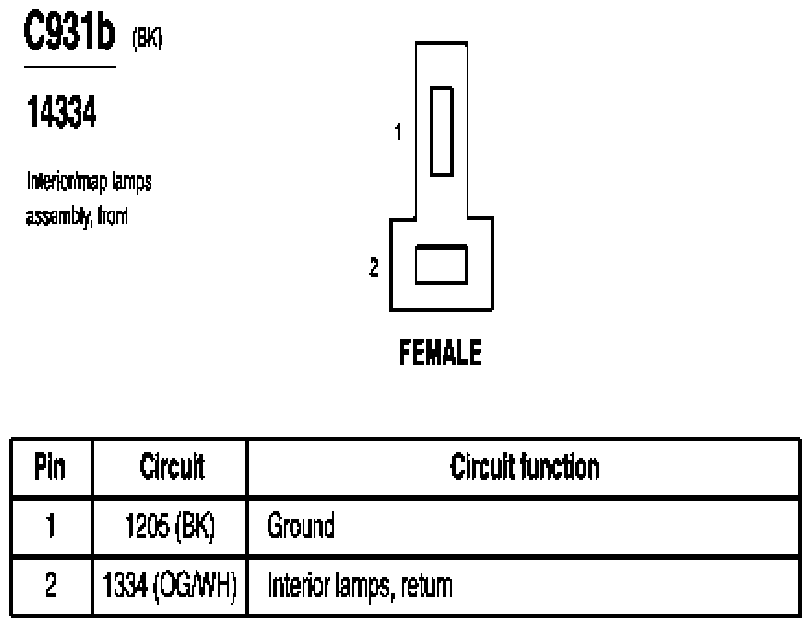

Fig 199: Interior/Map Lamps Assembly, Front Connector End View (C931b)
G07844467Courtesy of FORD MOTOR CO.

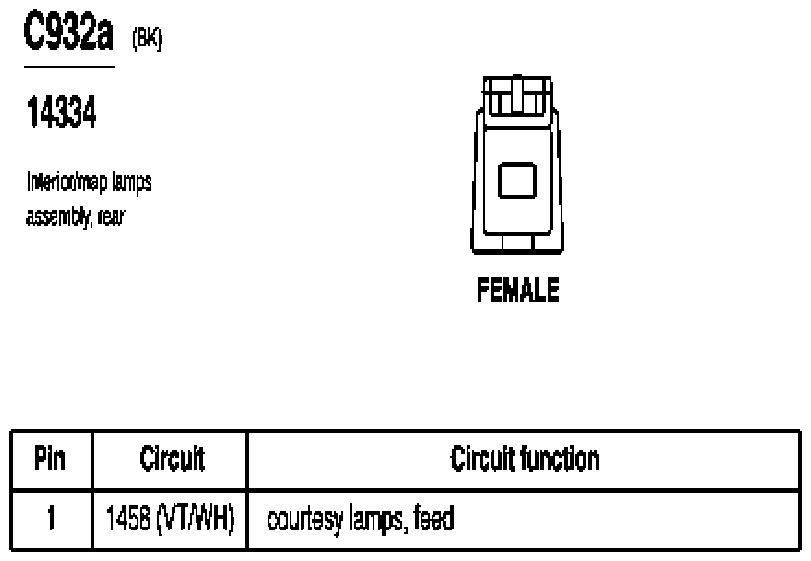

Fig 200: Interior/Map Lamps Assembly, Rear Connector End View (C932a)
G07844468Courtesy of FORD MOTOR CO.

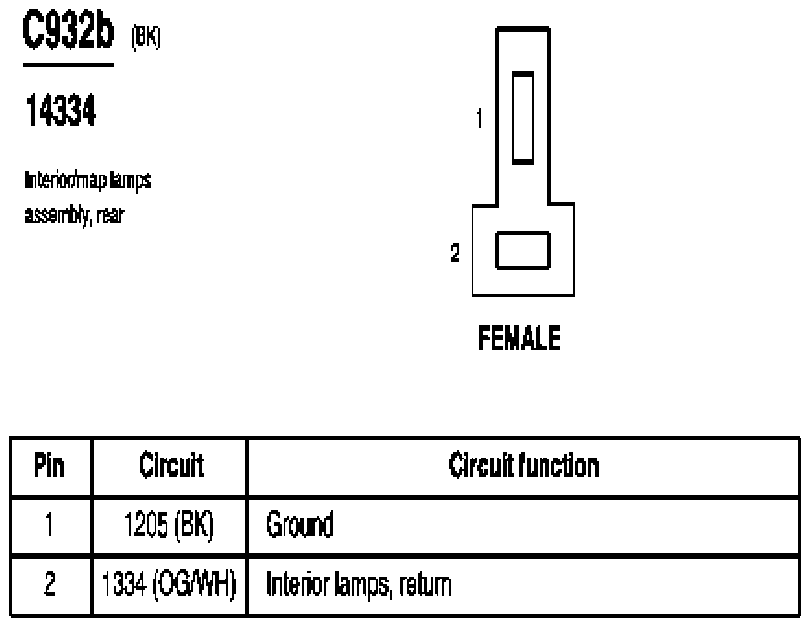

Fig 201: Interior/Map Lamps Assembly, Rear Connector End View (C932b)
G07844469Courtesy of FORD MOTOR CO.

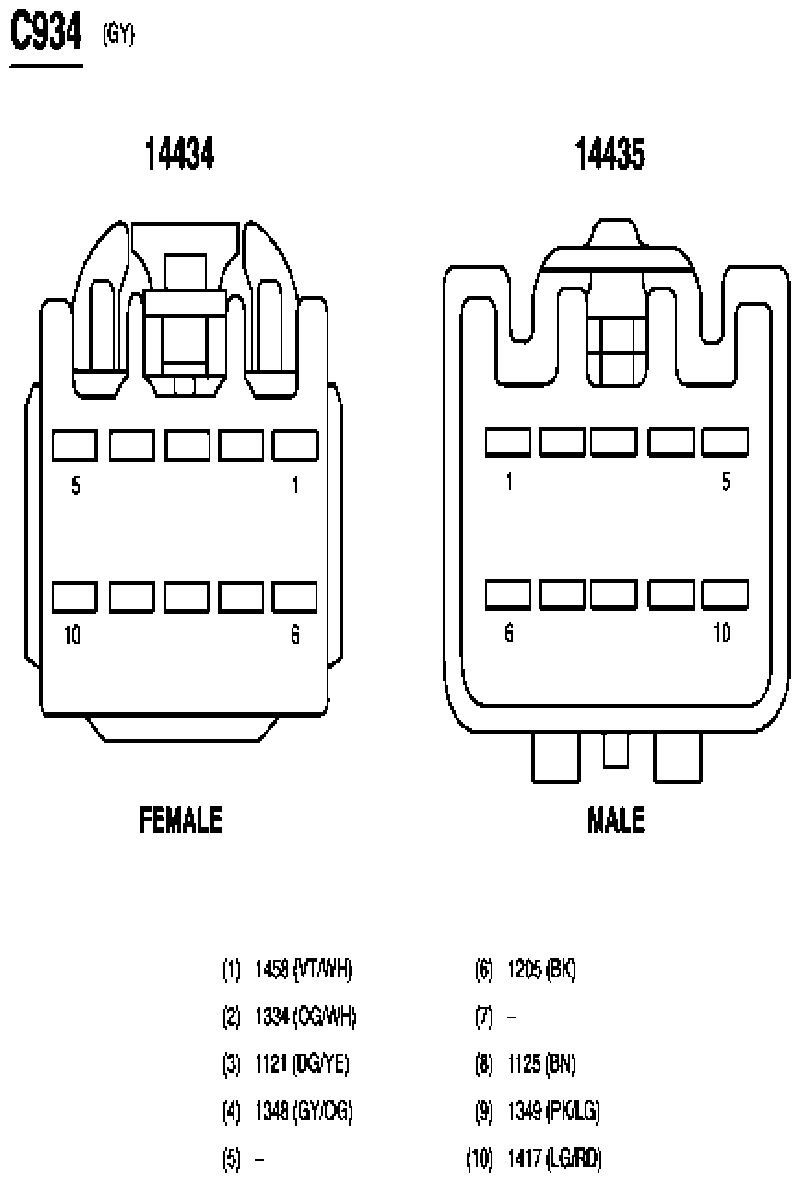

Fig 202: Inline Connector End View (C934)
G07844470Courtesy of FORD MOTOR CO.

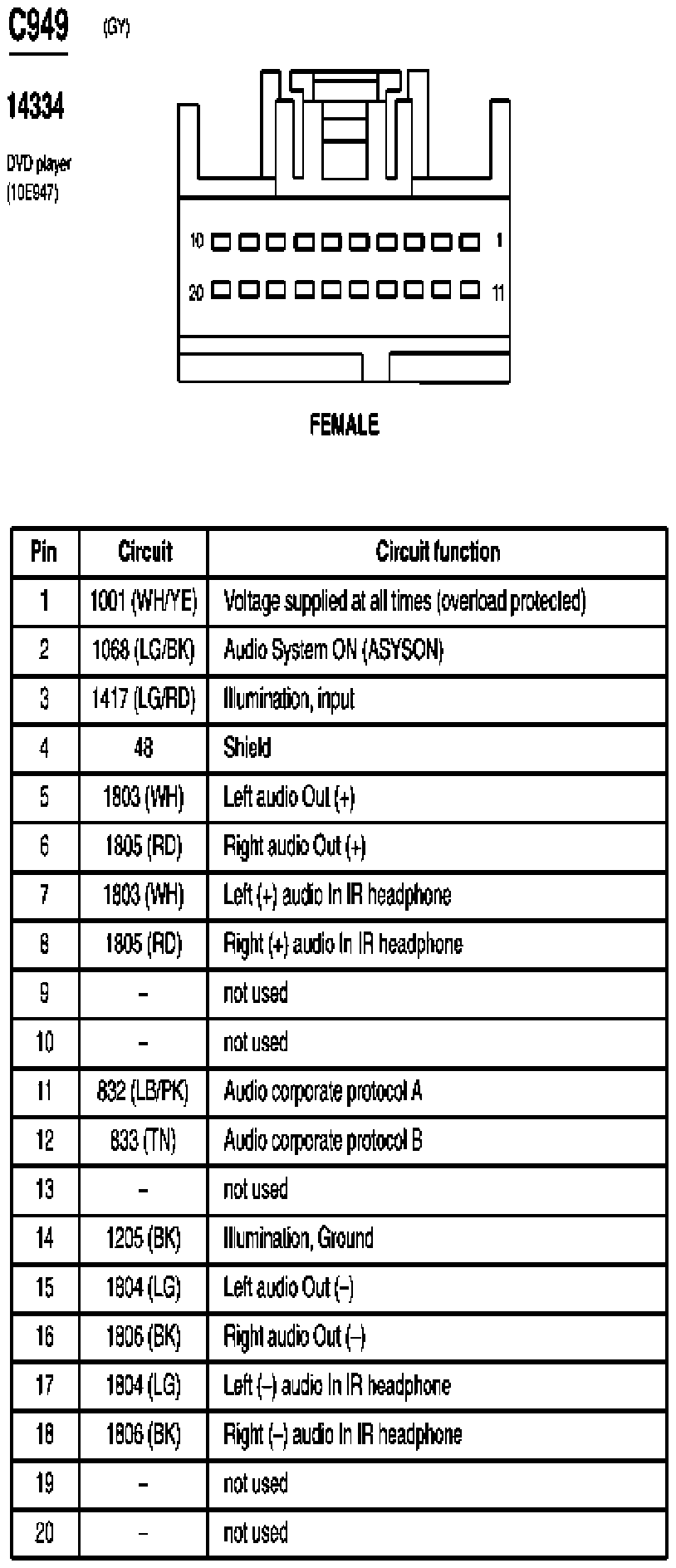

Fig 203: DVD Player Connector End View (C949)
G07844471Courtesy of FORD MOTOR CO.

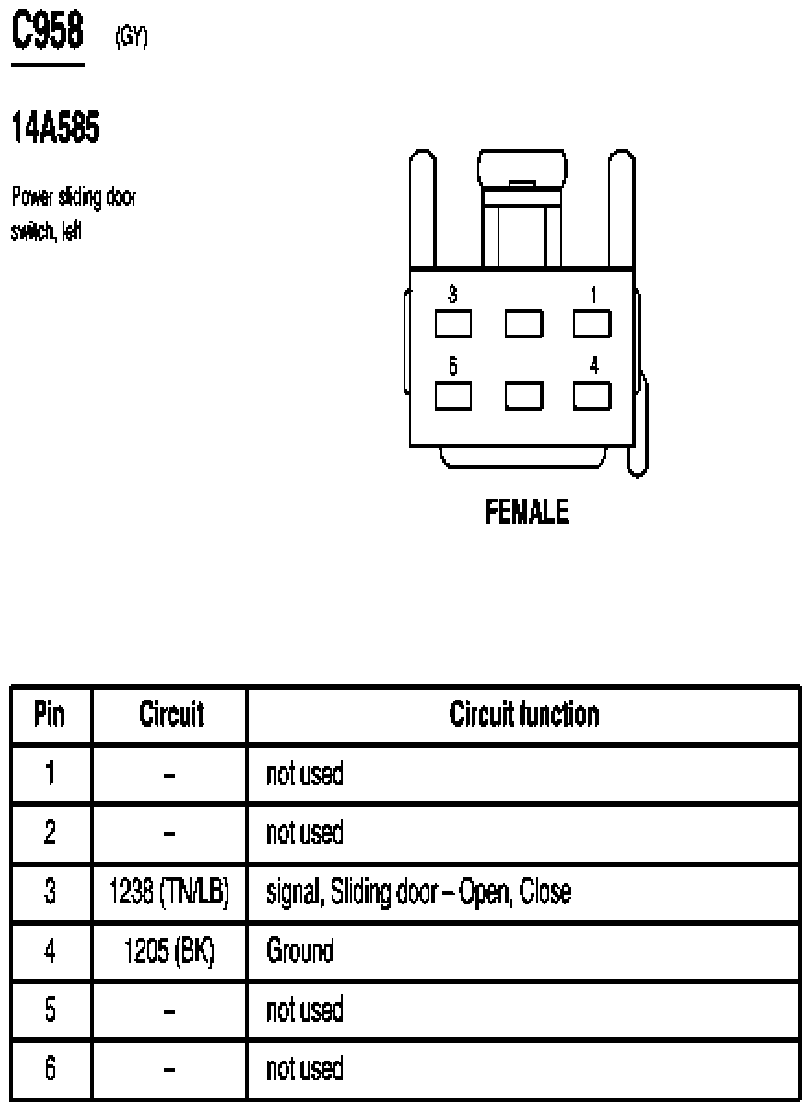

Fig 204: Power Sliding Door Switch, Left Connector End View (C958)
G07844472Courtesy of FORD MOTOR CO.

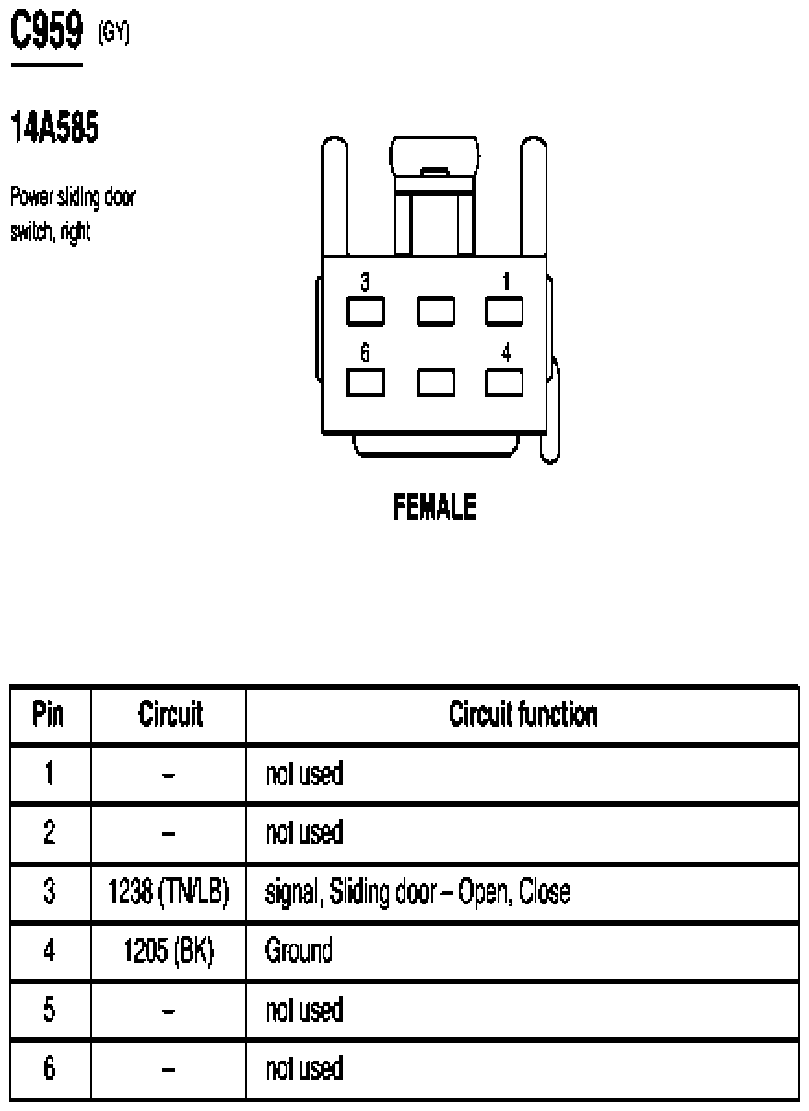

Fig 205: Power Sliding Door Switch, Right Connector End View (C959)
G07844473Courtesy of FORD MOTOR CO.

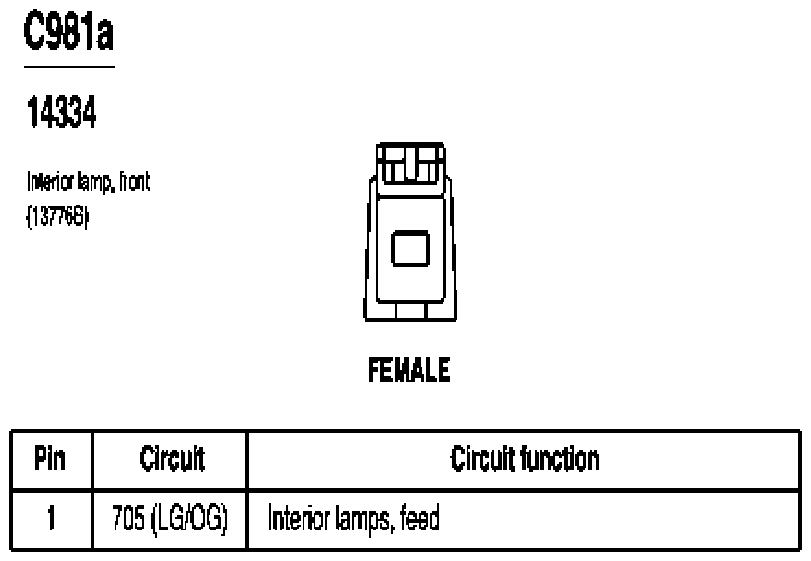

Fig 206: Interior Lamp, Front Connector End View (C981a)
G07844474Courtesy of FORD MOTOR CO.

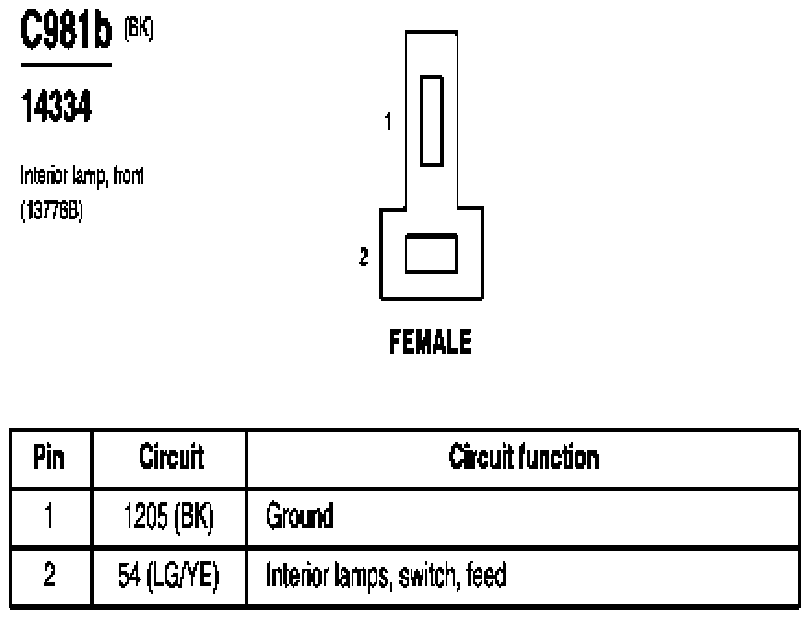

Fig 207: Interior Lamp, Front Connector End View (C981b)
G07844475Courtesy of FORD MOTOR CO.

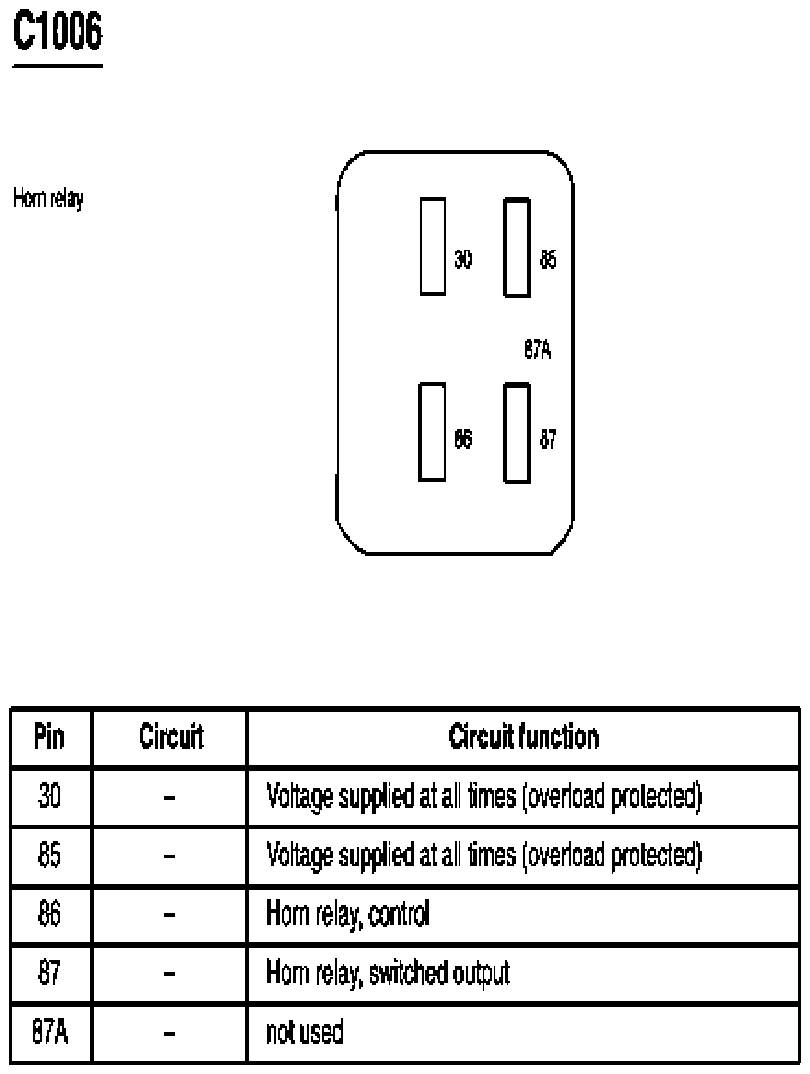

Fig 208: Horn Relay Connector End View (C1006)
G07844476Courtesy of FORD MOTOR CO.

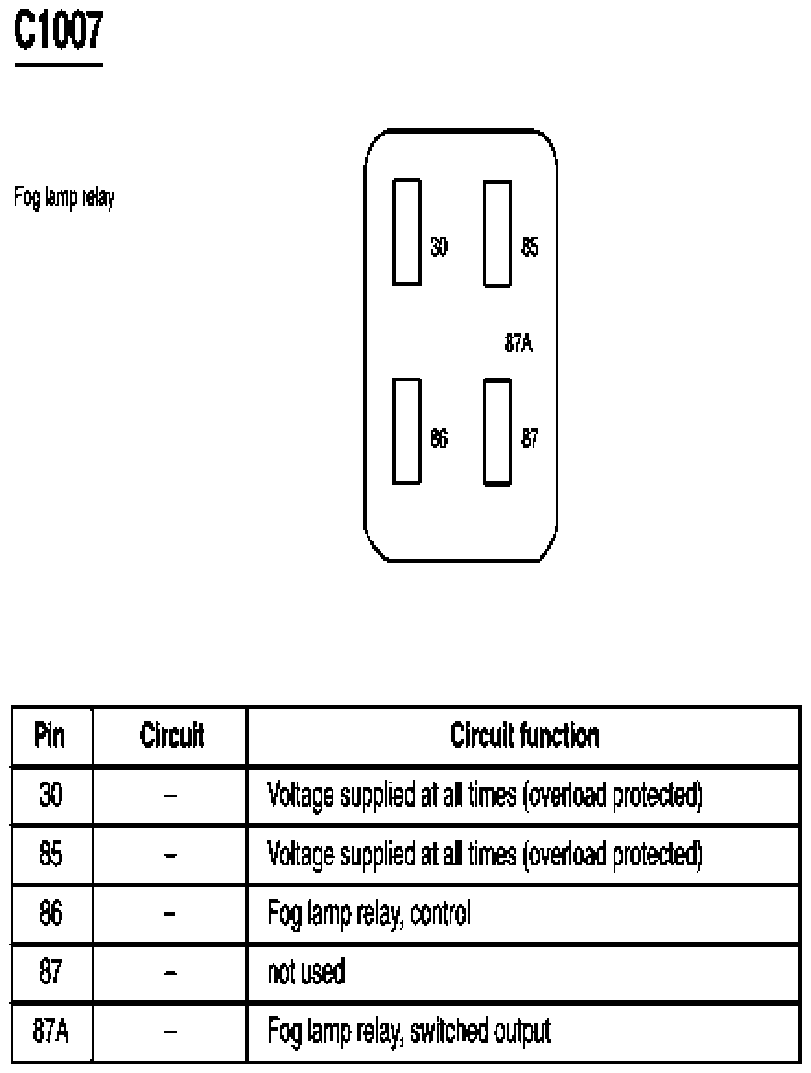

Fig 209: Fog Lamp Relay Connector End View (C1007)
G07844477Courtesy of FORD MOTOR CO.

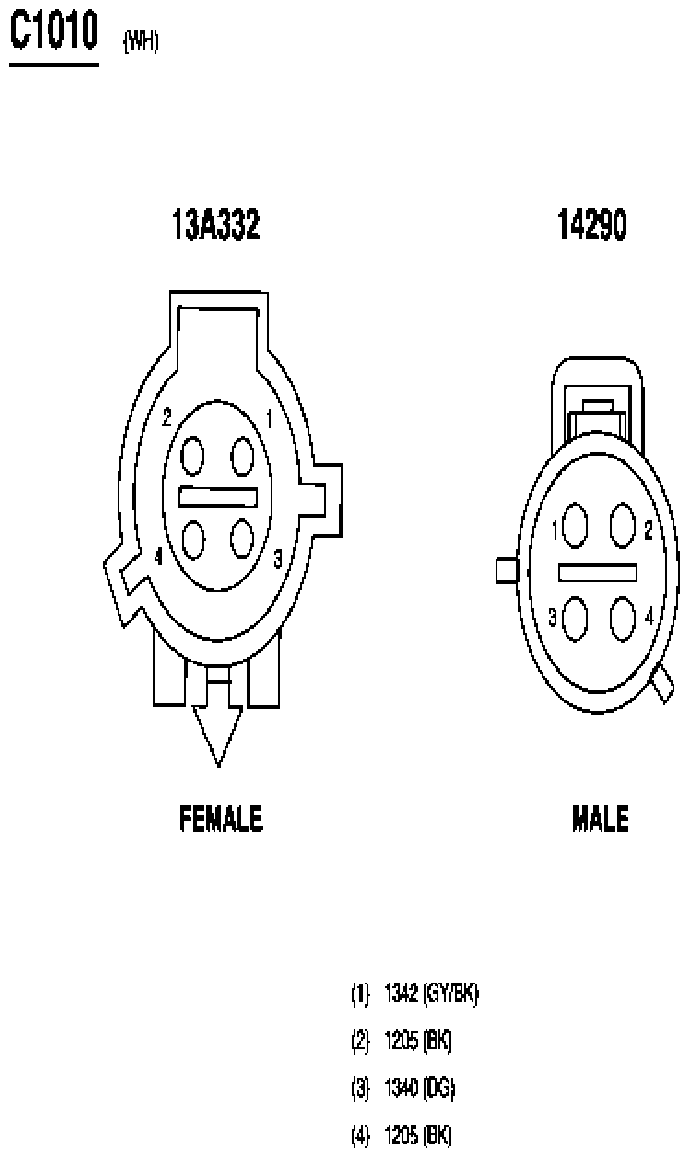

Fig 210: Inline Connector End View (C1010)
G07844478Courtesy of FORD MOTOR CO.

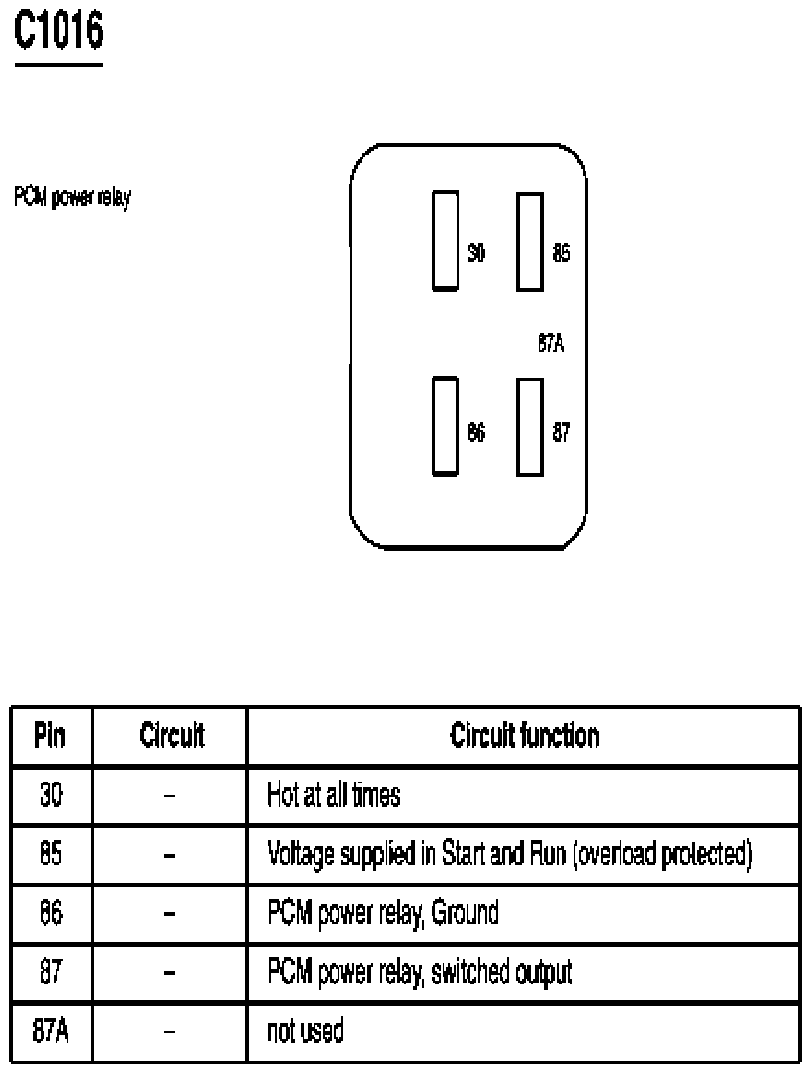

Fig 211: PCM Power Relay Connector End View (C1016)
G07844479Courtesy of FORD MOTOR CO.

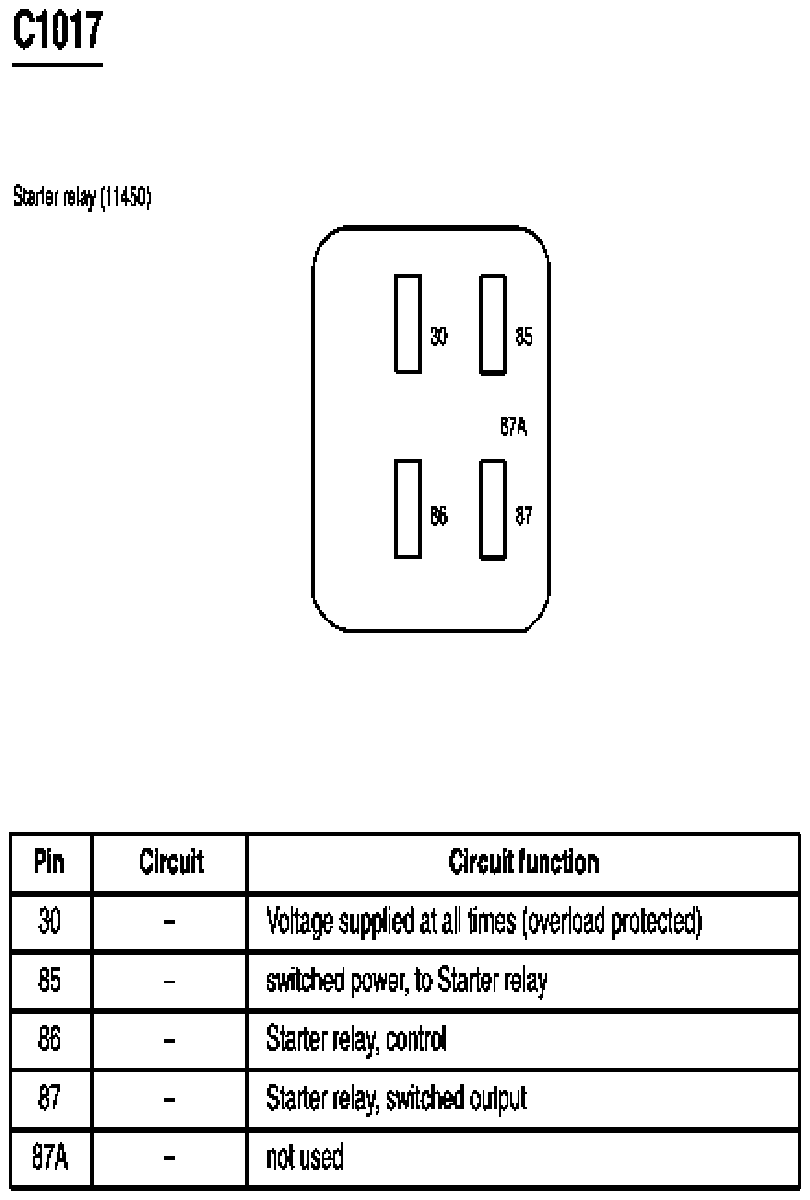

Fig 212: Starter Relay Connector End View (C1017)
G07844480Courtesy of FORD MOTOR CO.

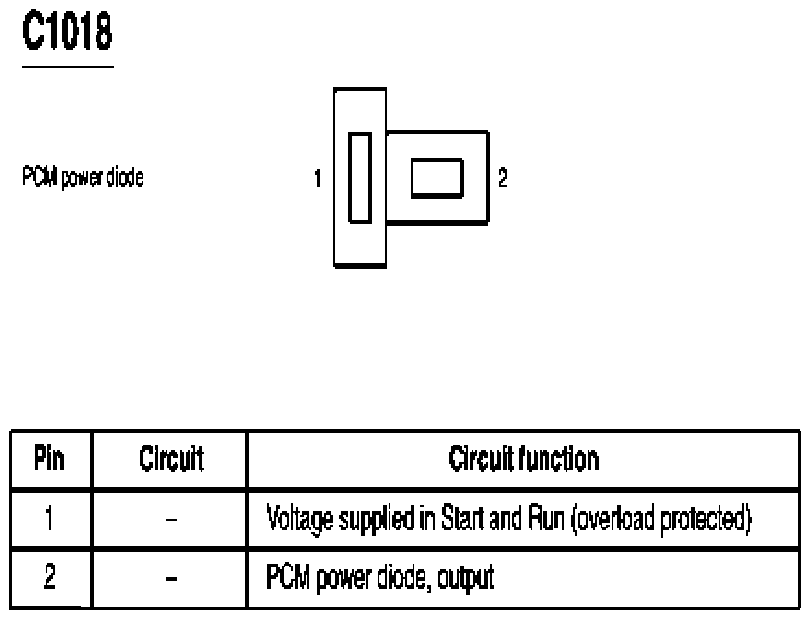

Fig 213: PCM Power Diode Connector End View (C1018)
G07844481Courtesy of FORD MOTOR CO.

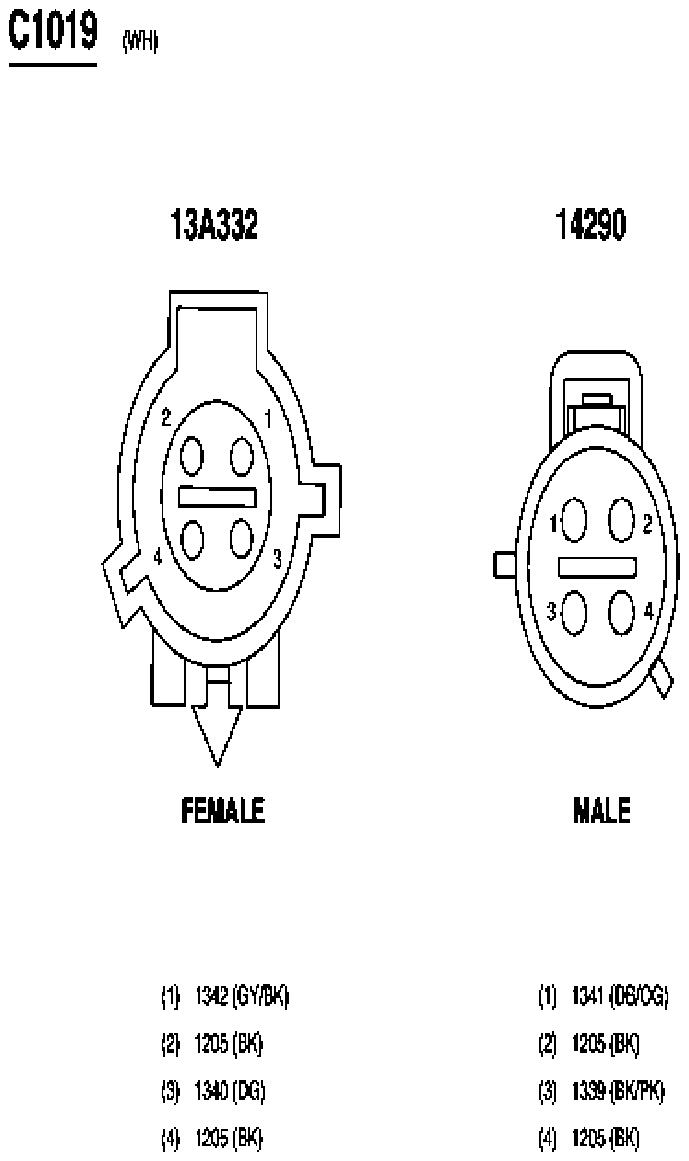

Fig 214: Inline Connector End View (C1019)
G07844482Courtesy of FORD MOTOR CO.

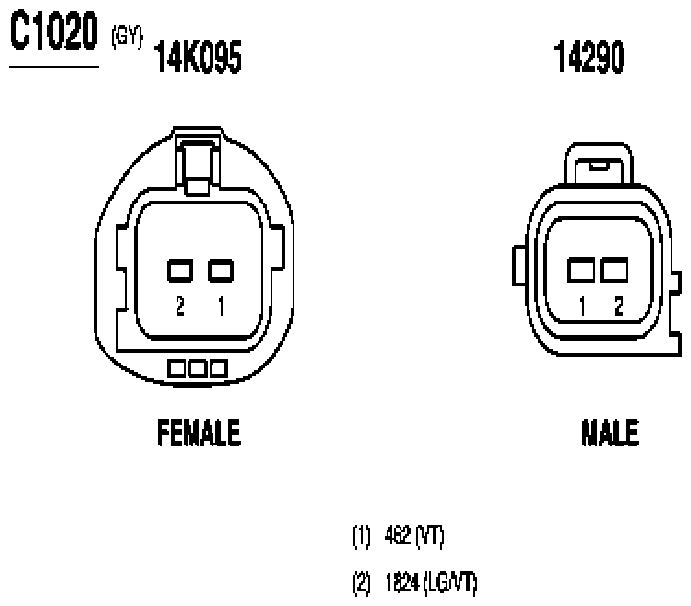

Fig 215: Inline Connector End View (C1020)
G07844483Courtesy of FORD MOTOR CO.

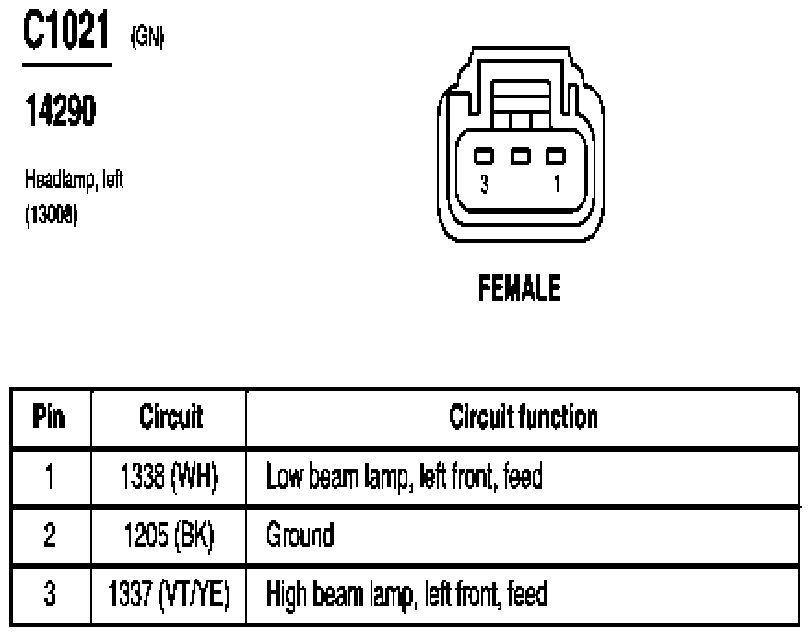

Fig 216: Headlamp, Left Connector End View (C1021)
G07844484Courtesy of FORD MOTOR CO.

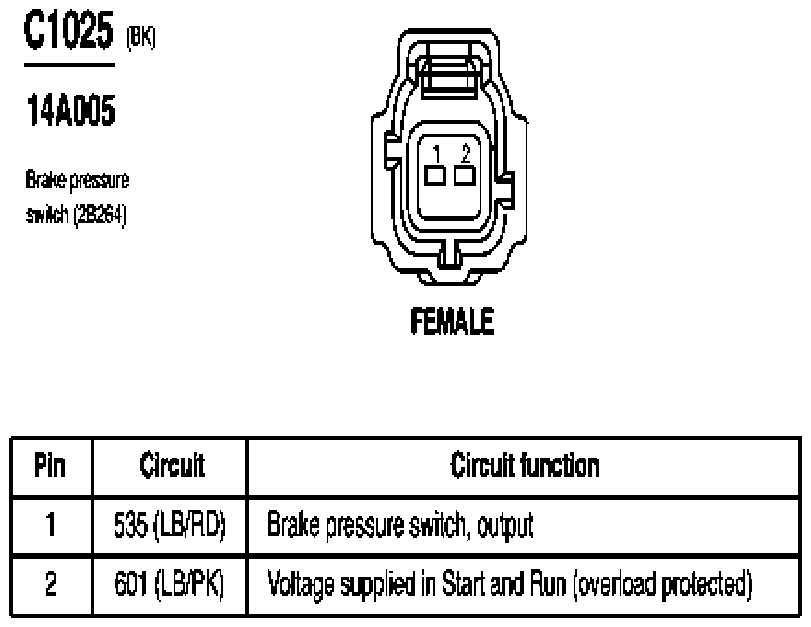

Fig 217: Brake Pressure Switch Connector End View (C1025)
G07844485Courtesy of FORD MOTOR CO.

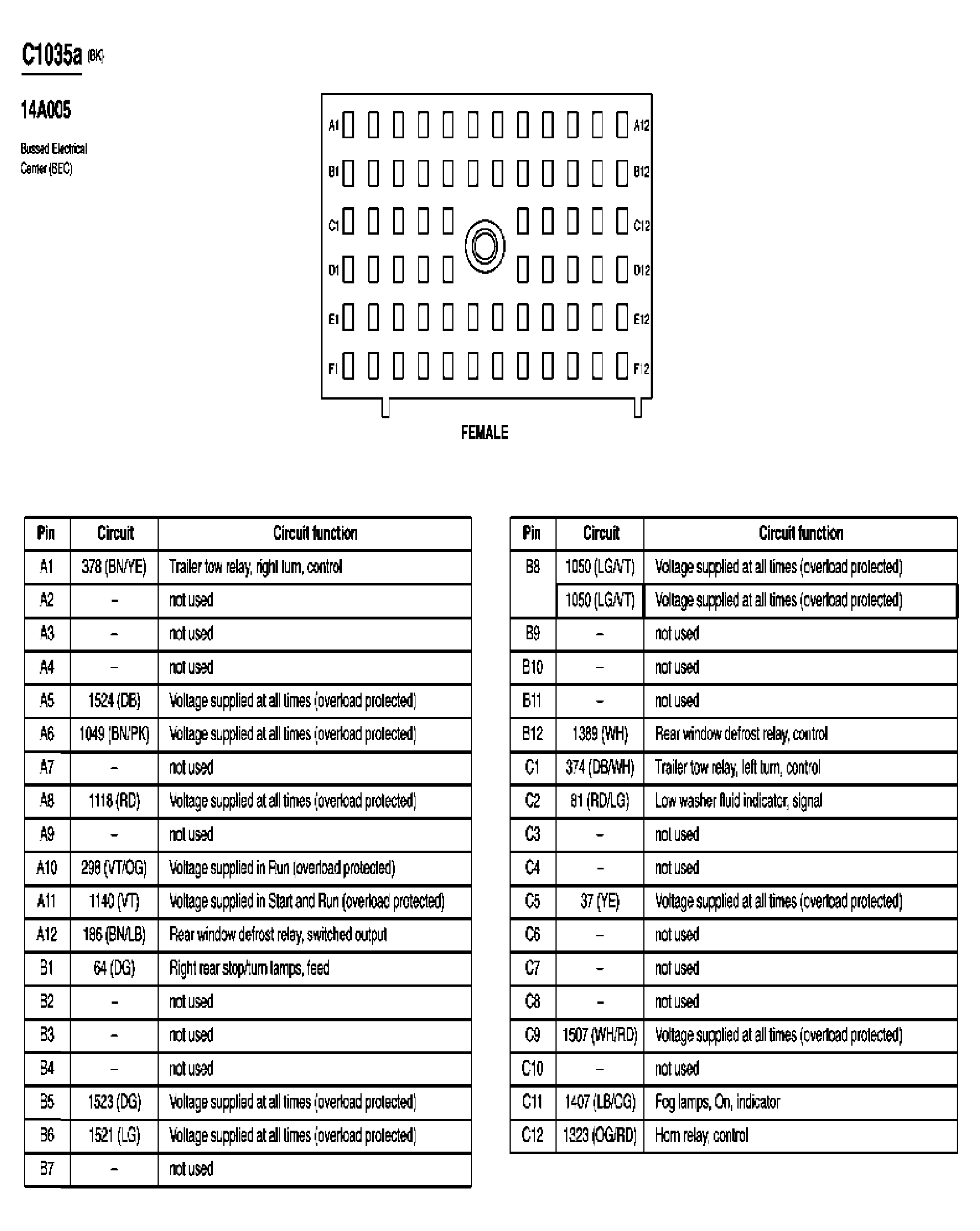

Fig 218: Bussed Electrical Center (BEC) Connector End View (C1035a) (1 Of 2)
G03994211Courtesy of FORD MOTOR CO.

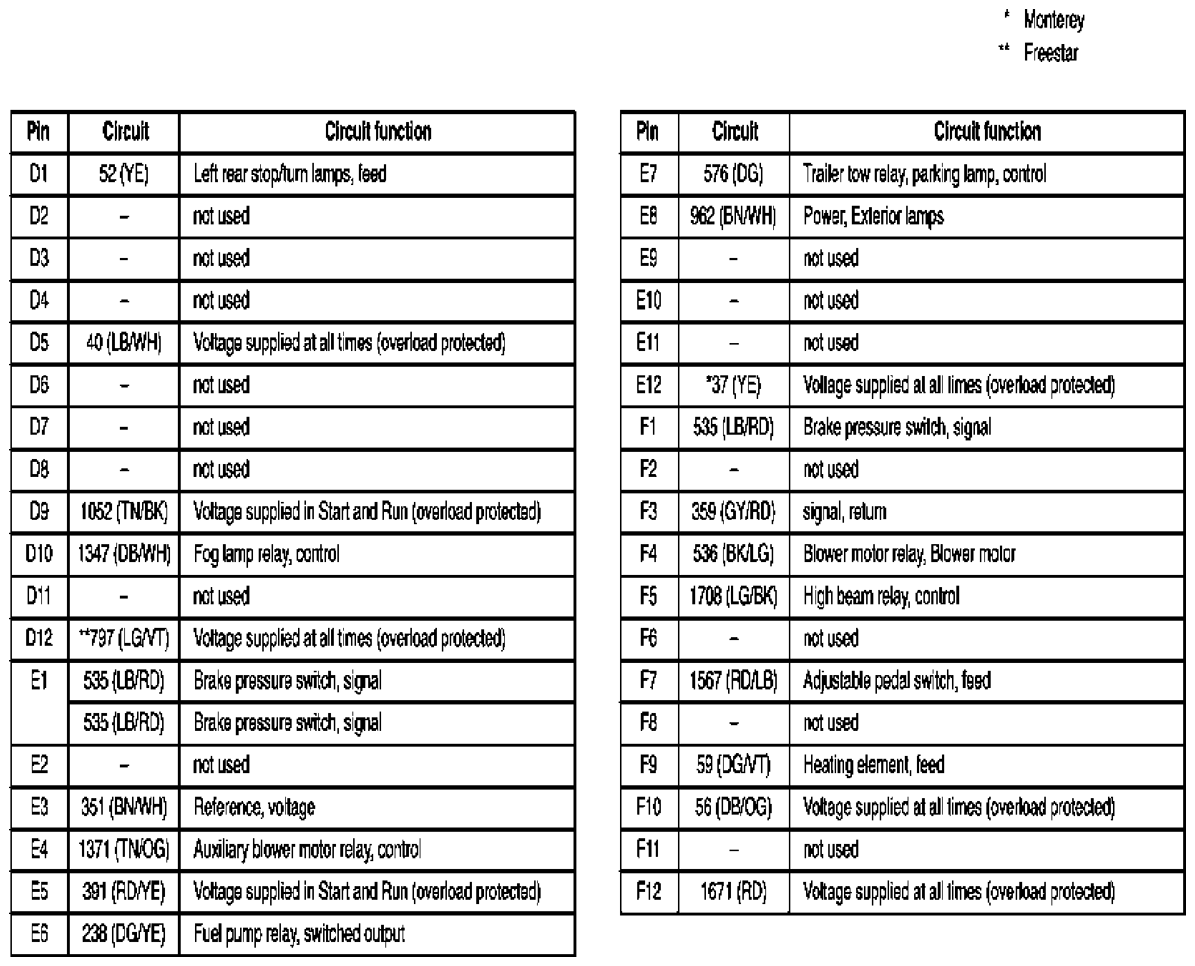

Fig 219: Bussed Electrical Center (BEC) Connector End View (C1035a) (2 Of 2)
G03994212Courtesy of FORD MOTOR CO.

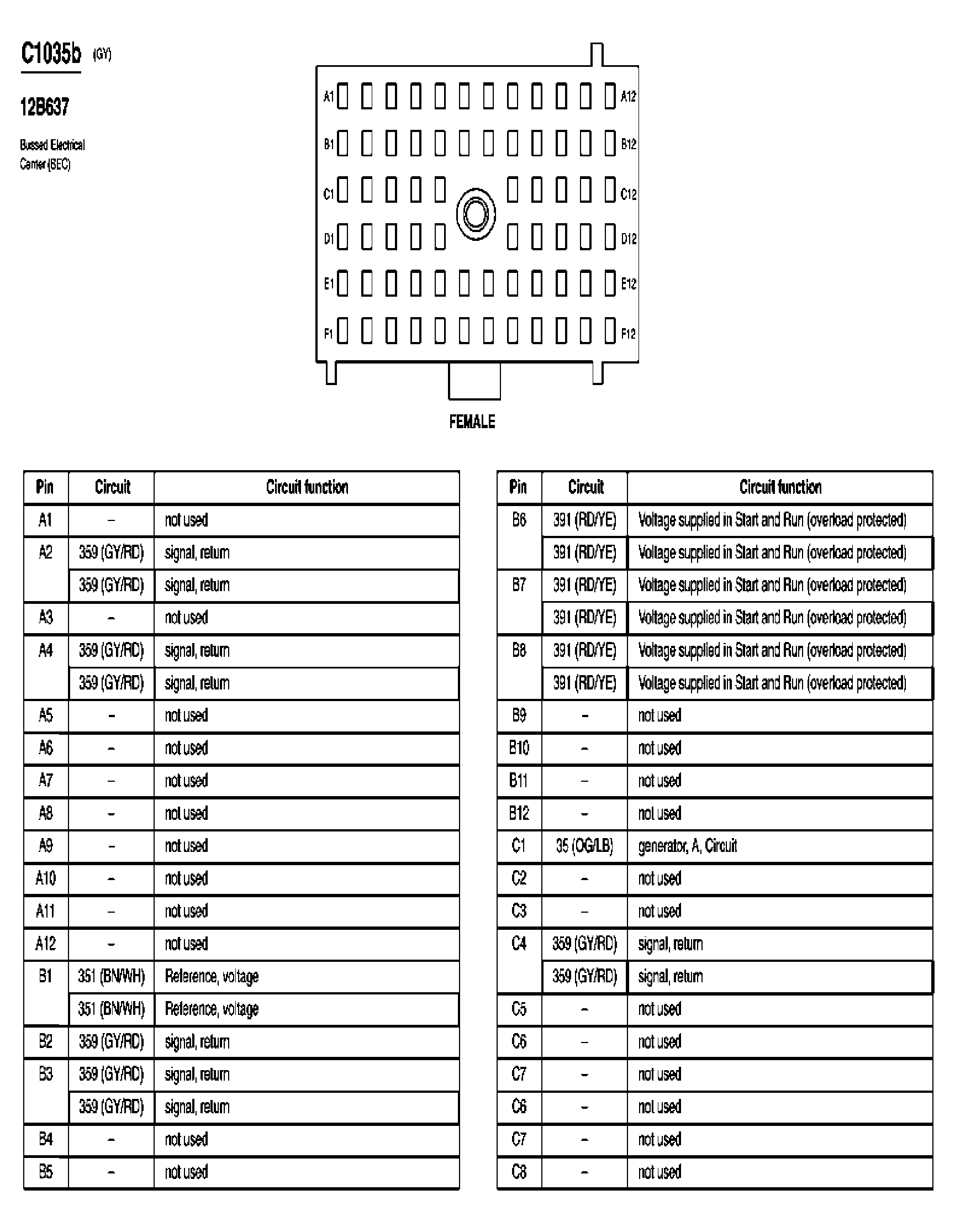

Fig 220: Bussed Electrical Center (BEC) Connector End View (C1035b) (1 Of 2)
G03994213Courtesy of FORD MOTOR CO.

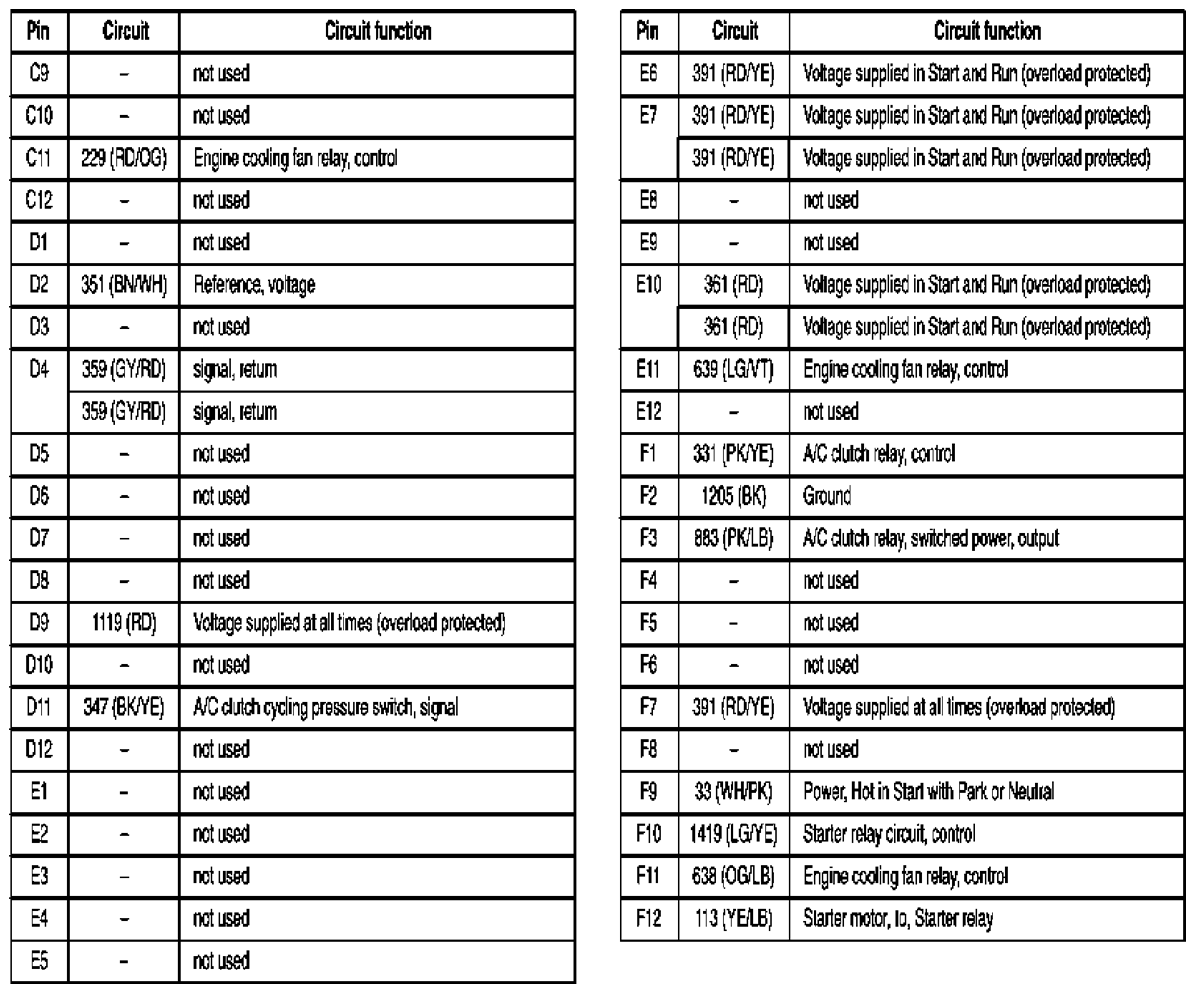

Fig 221: Bussed Electrical Center (BEC) Connector End View (C1035b) (2 Of 2)
G03994214Courtesy of FORD MOTOR CO.

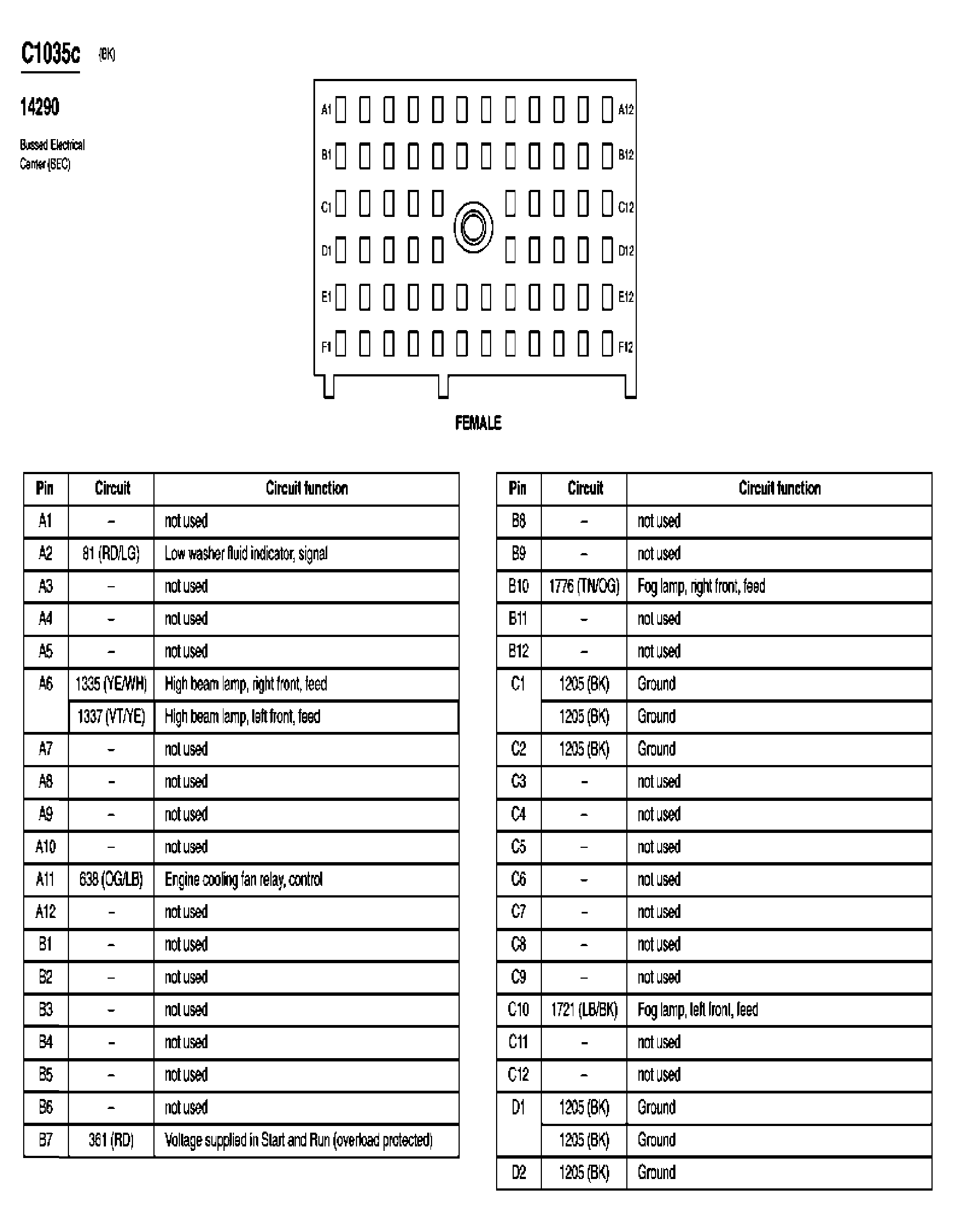

Fig 222: Bussed Electrical Center (BEC) Connector End View (C1035c) (1 Of 2)
G03994215Courtesy of FORD MOTOR CO.

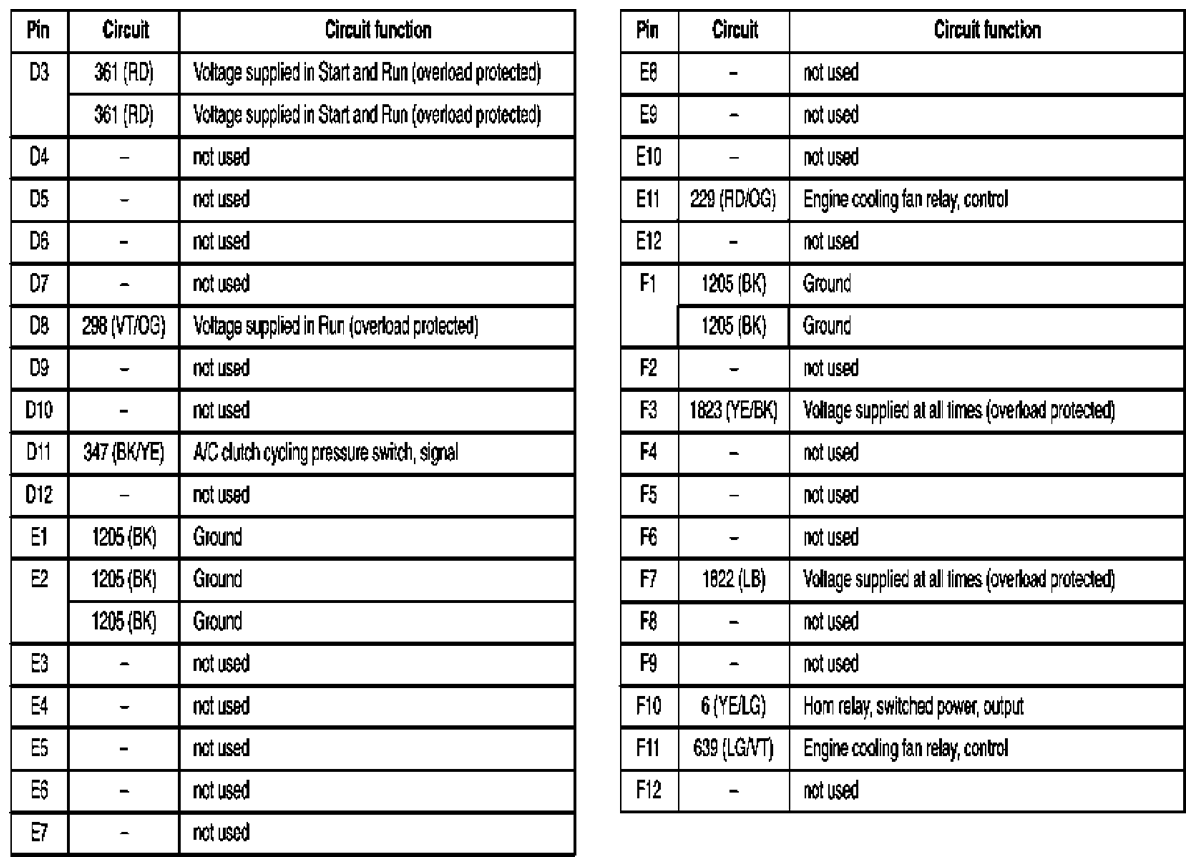

Fig 223: Bussed Electrical Center (BEC) Connector End View (C1035c) (2 Of 2)
G03994216Courtesy of FORD MOTOR CO.

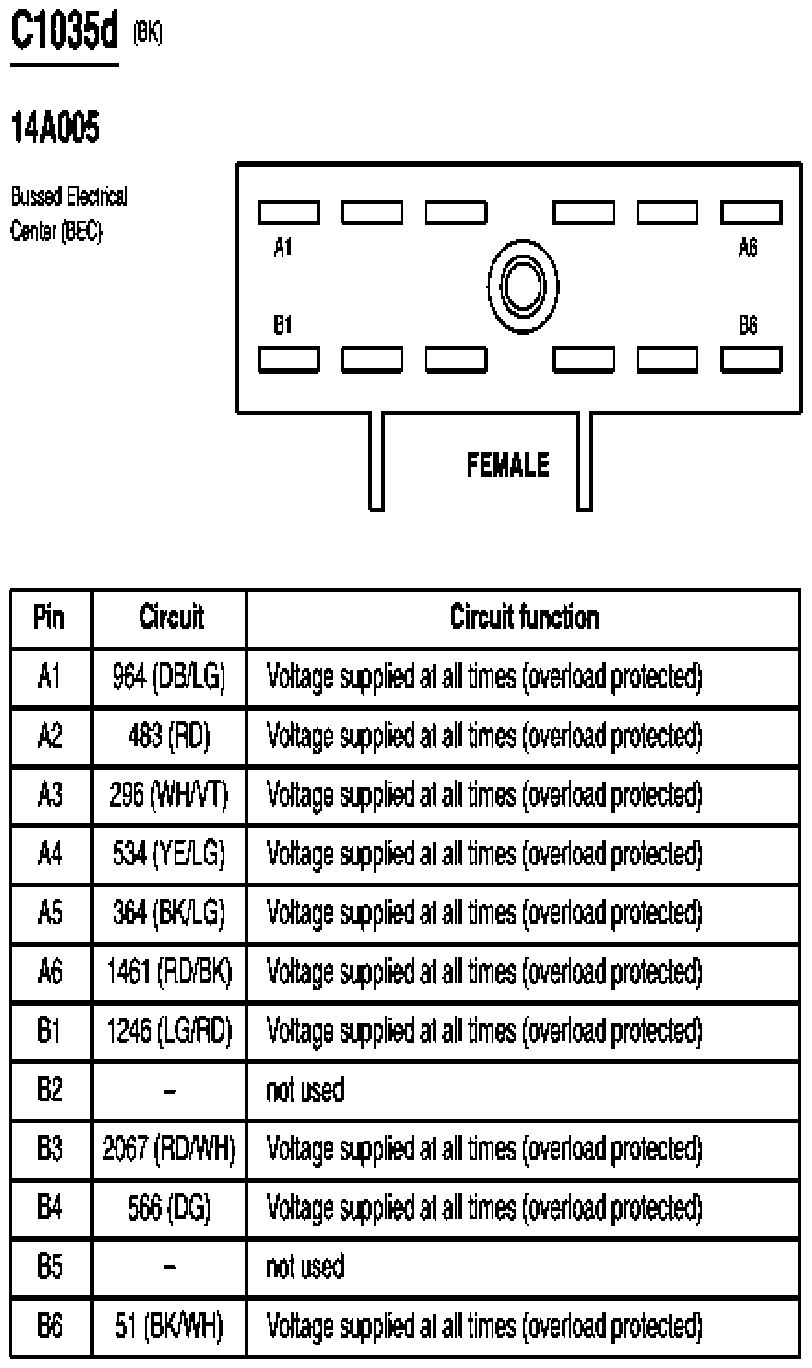

Fig 224: Bussed Electrical Center (BEC) Connector End View (C1035d)
G07844486Courtesy of FORD MOTOR CO.

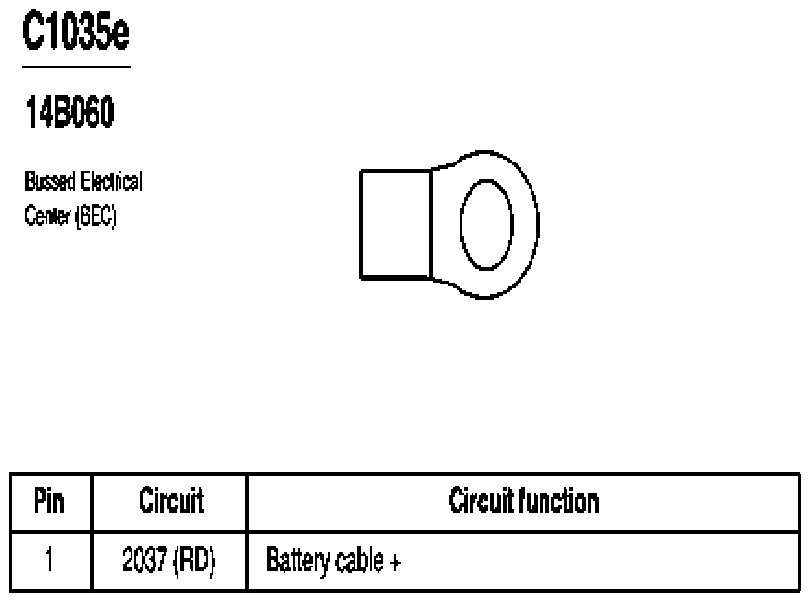

Fig 225: Bussed Electrical Center (BEC) Connector End View (C1035e)
G07844487Courtesy of FORD MOTOR CO.

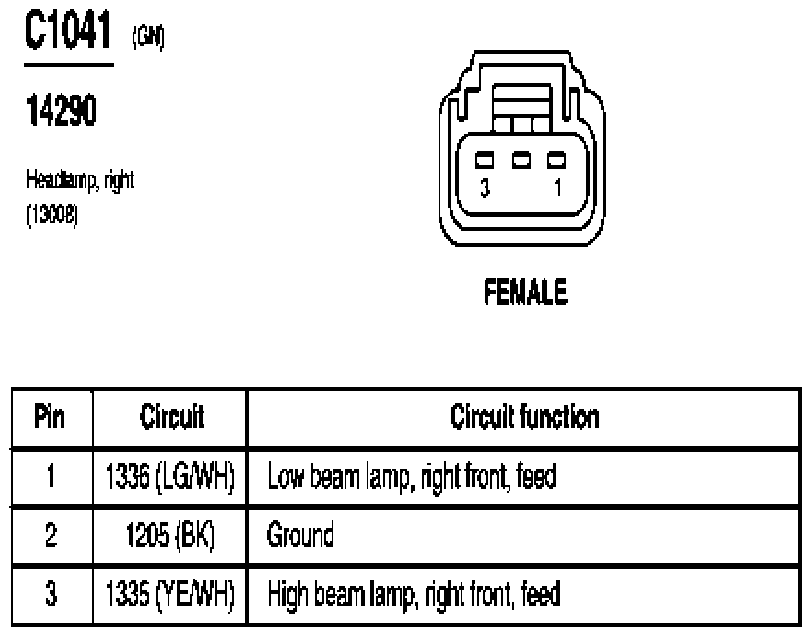

Fig 226: Headlamp, Right Connector End View (C1041)
G07844488Courtesy of FORD MOTOR CO.

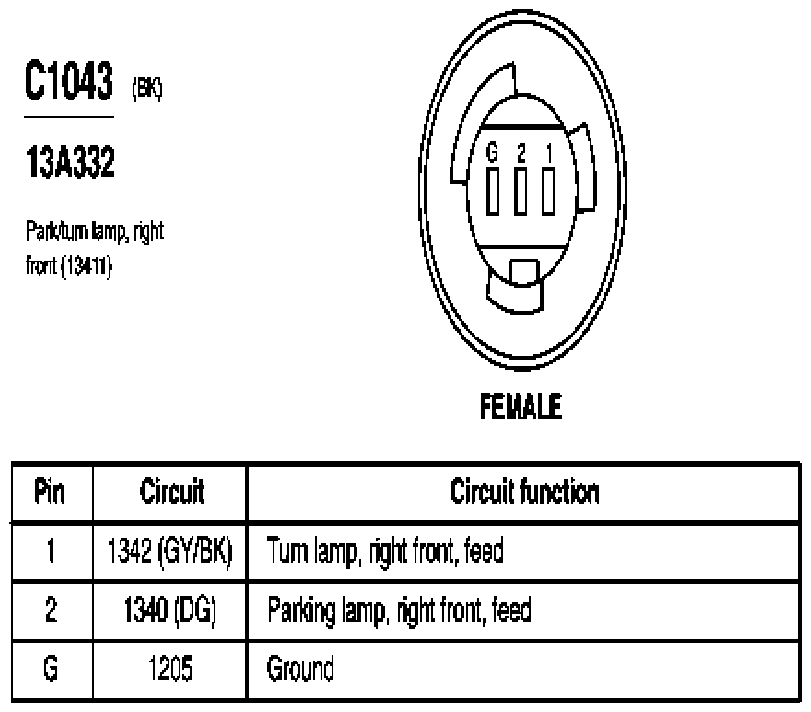

Fig 227: Park/Turn Lamp, Right Front Connector End View (C1043)
G07844489Courtesy of FORD MOTOR CO.

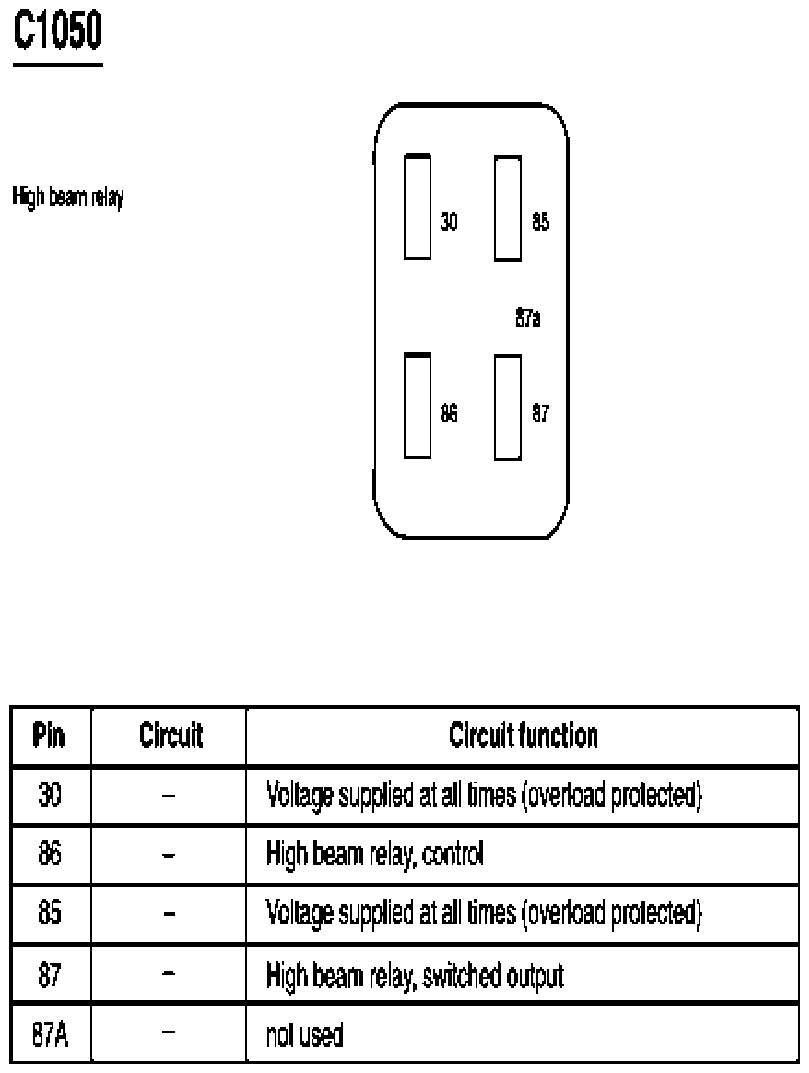

Fig 228: High Beam Relay Connector End View (C1050)
G07844490Courtesy of FORD MOTOR CO.

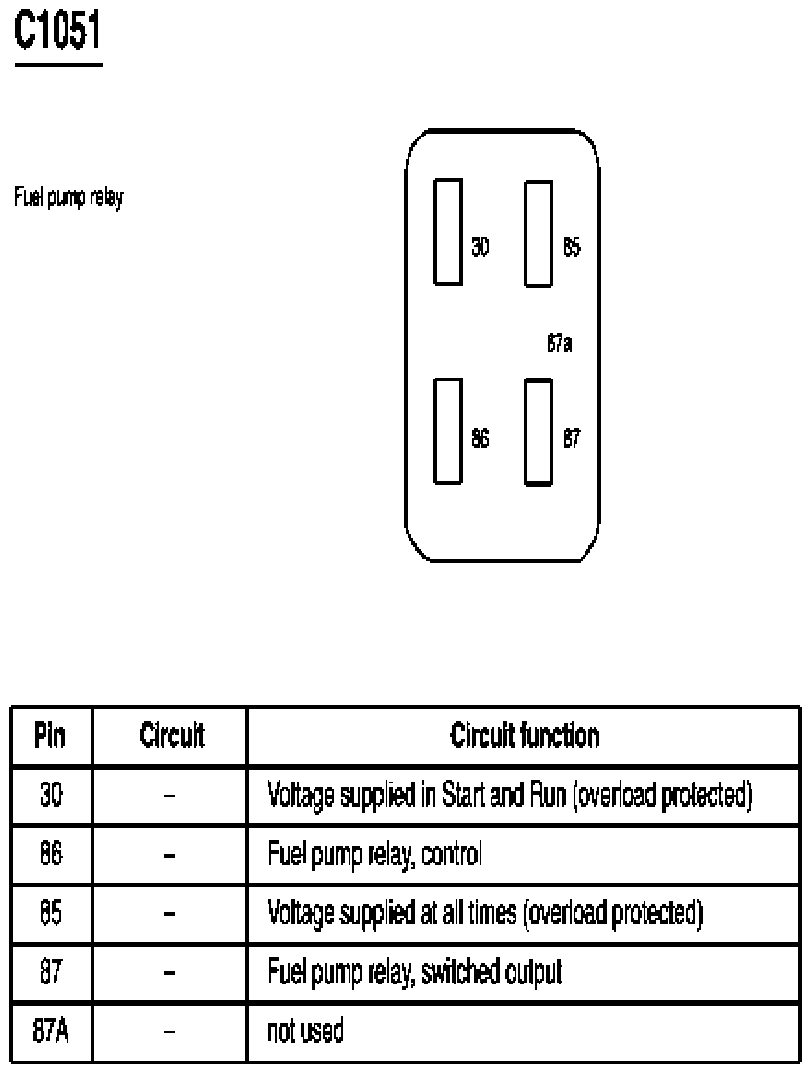

Fig 229: Fuel Pump Relay Connector End View (C1051)
G07844491Courtesy of FORD MOTOR CO.

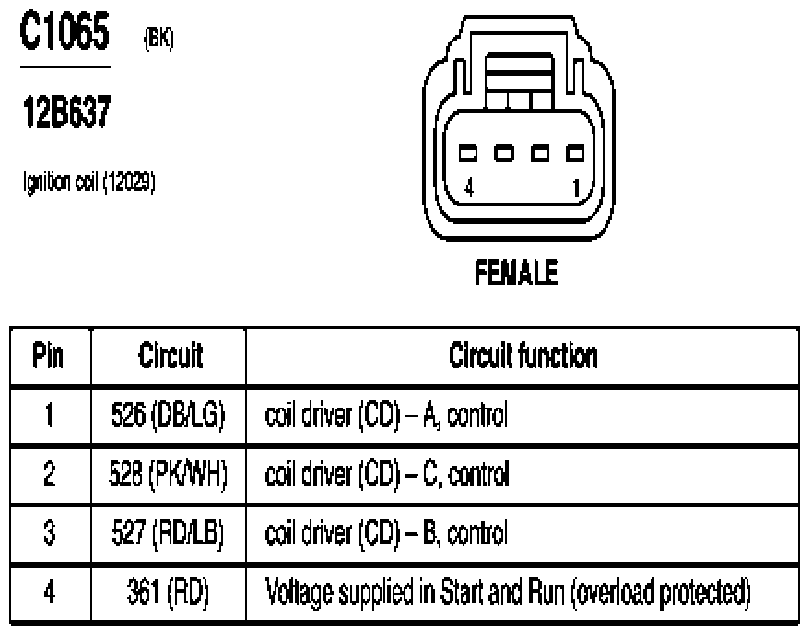

Fig 230: Ignition Coil Connector End View (C1065)
G07844492Courtesy of FORD MOTOR CO.

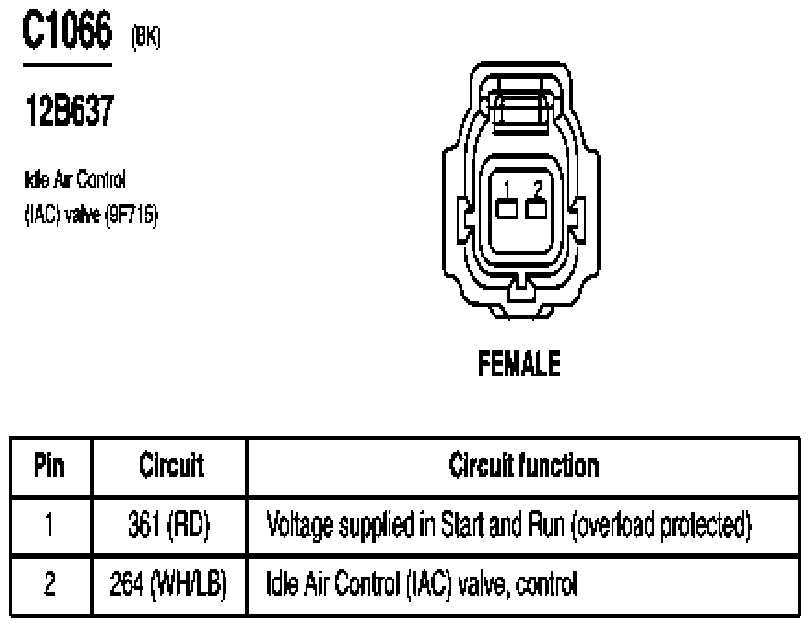

Fig 231: Idle Air Control (IAC) Valve Connector End View (C1066)
G07844493Courtesy of FORD MOTOR CO.

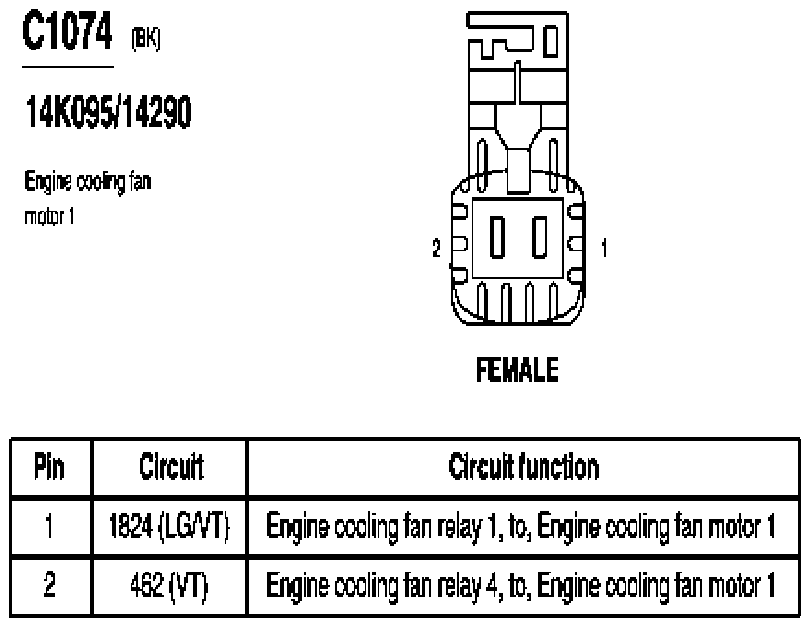

Fig 232: Engine Cooling Fan Motor 1 Connector End View (C1074)
G07844494Courtesy of FORD MOTOR CO.
Fig 233: Engine Cooling Fan Motor 2 Connector End View (C1077)
G07844495Courtesy of FORD MOTOR CO.

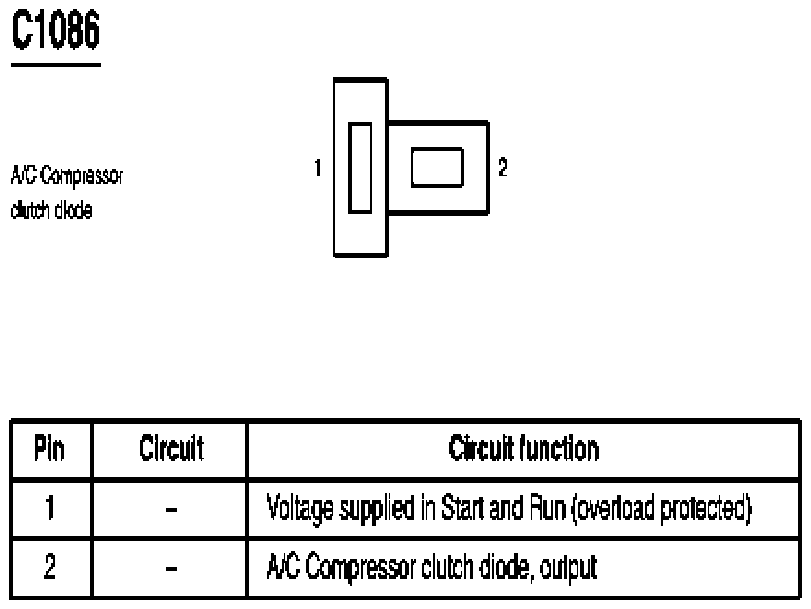

Fig 234: A/C Compressor Clutch Diode Connector End View (C1086)
G07844496Courtesy of FORD MOTOR CO.

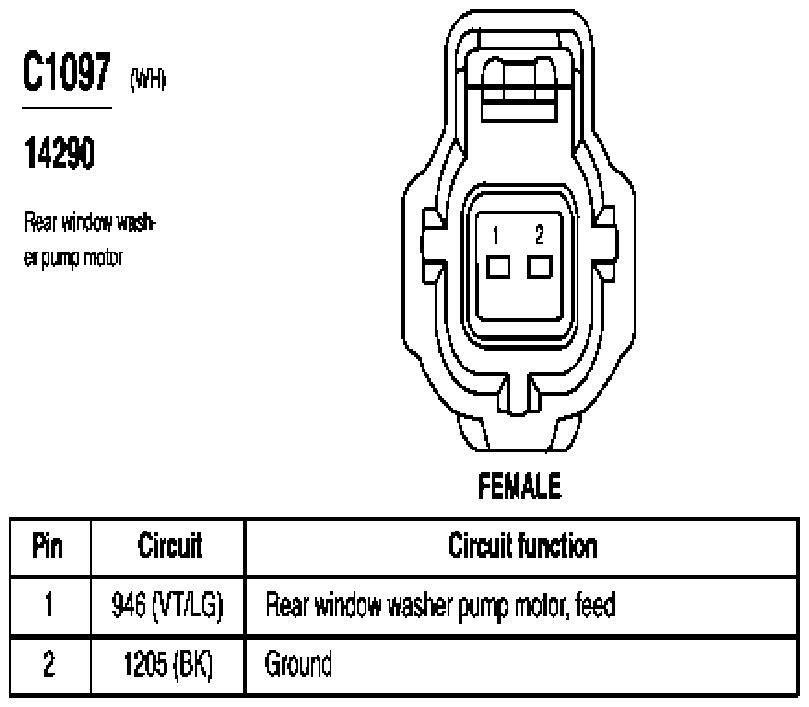

Fig 235: Rear Window Washer Pump Motor Connector End View (C1097)
G07844497Courtesy of FORD MOTOR CO.

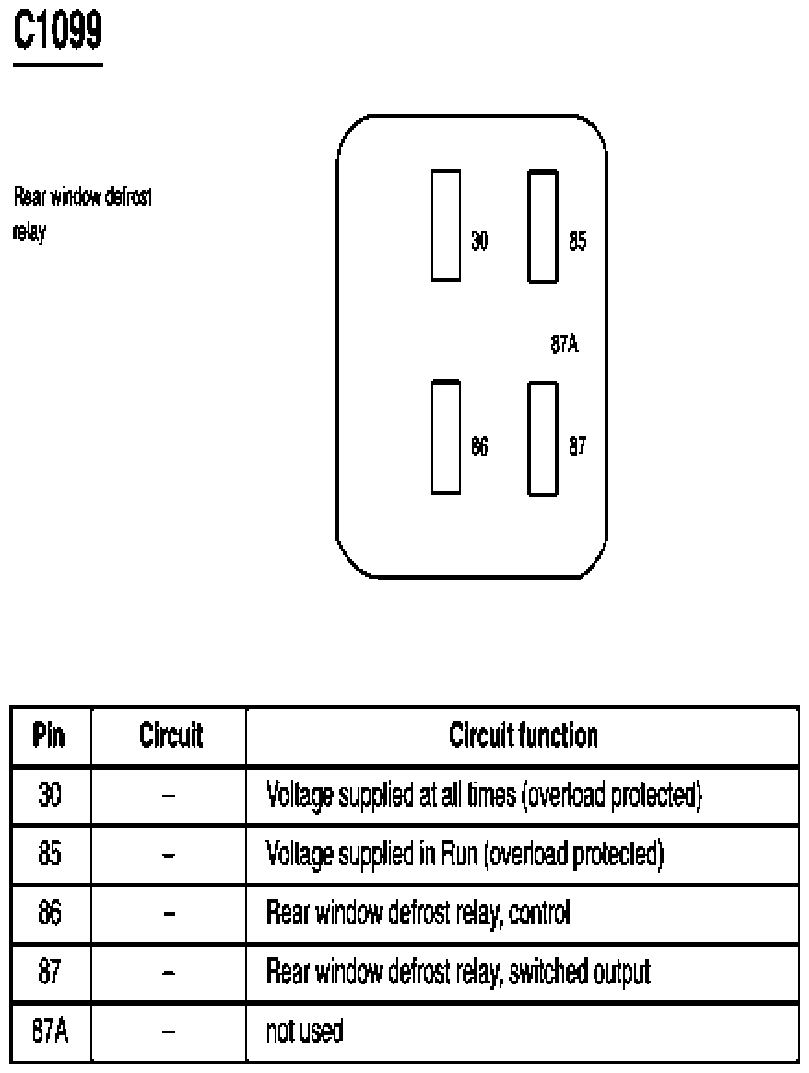

Fig 236: Rear Window Defrost Relay Connector End View (C1099)
G07844498Courtesy of FORD MOTOR CO.

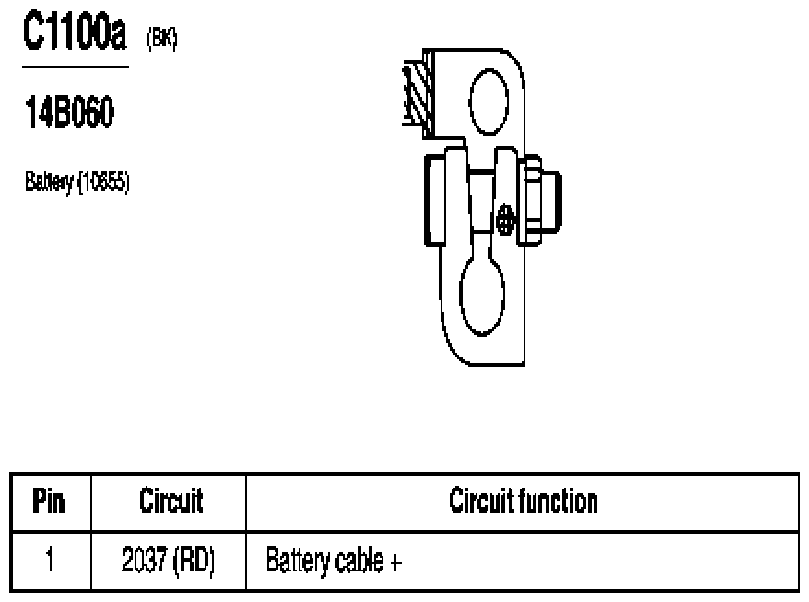

Fig 237: Battery Connector End View (C1100a)
G07844499Courtesy of FORD MOTOR CO.

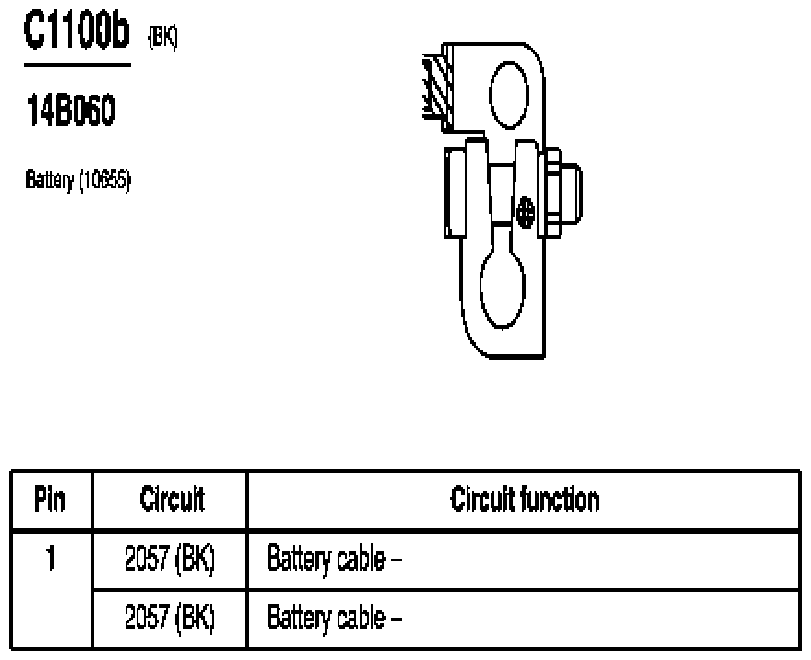

Fig 238: Battery Connector End View (C1100b)
G07844500Courtesy of FORD MOTOR CO.

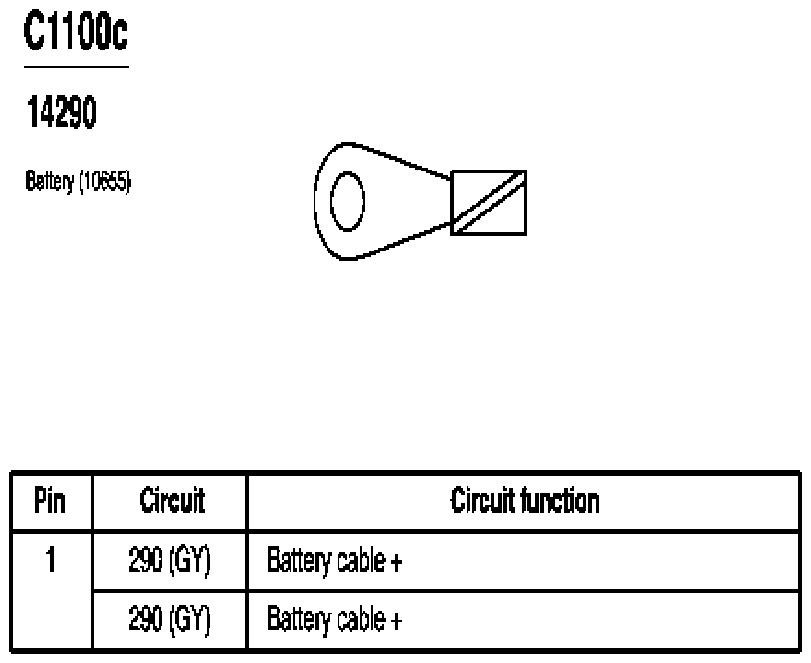

Fig 239: Battery Connector End View (C1100c)
G07844501Courtesy of FORD MOTOR CO.

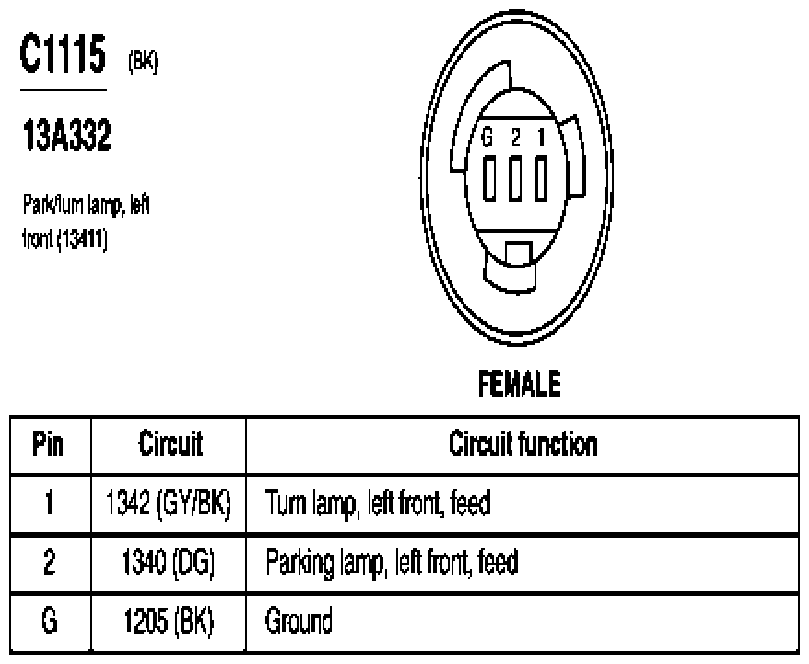

Fig 240: Park/Turn Lamp, Left Front Connector End View (C1115)
G07844502Courtesy of FORD MOTOR CO.

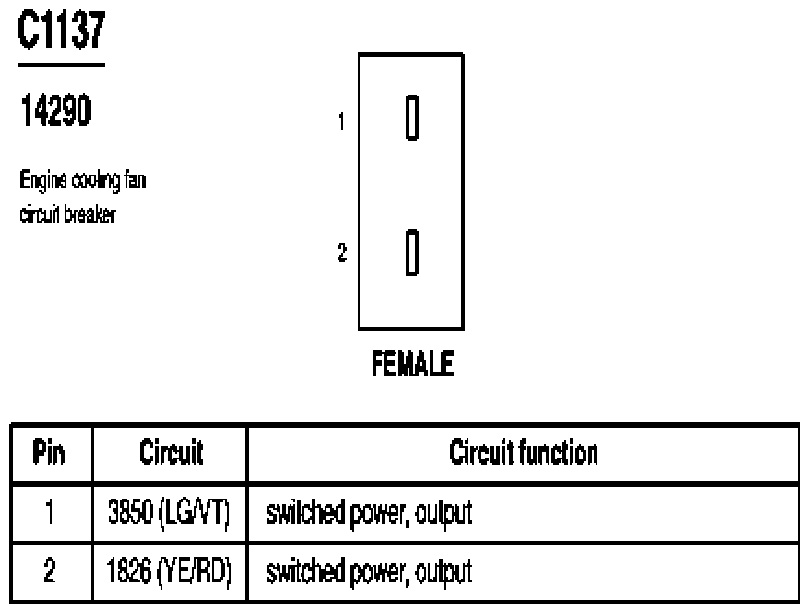

Fig 241: Engine Cooling Fan Circuit Breaker Connector End View (C1137)
G07844503Courtesy of FORD MOTOR CO.

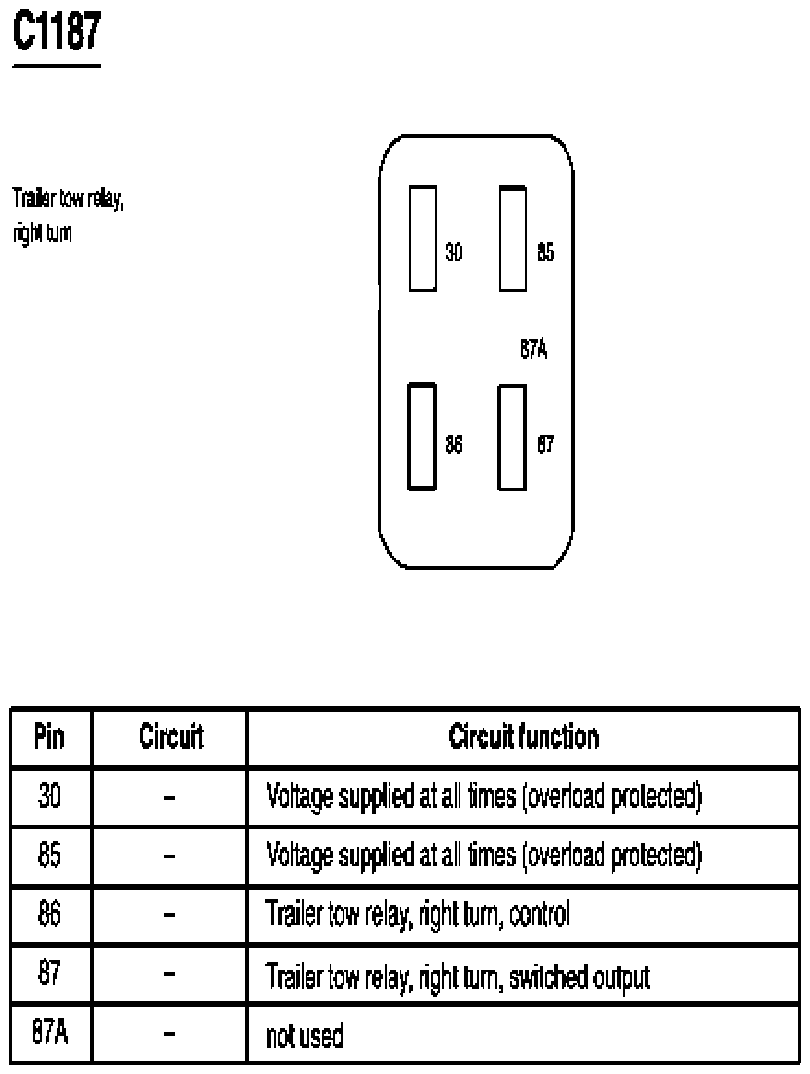

Fig 242: Trailer Tow Relay, Right Turn Connector End View (C1187)
G07844504Courtesy of FORD MOTOR CO.

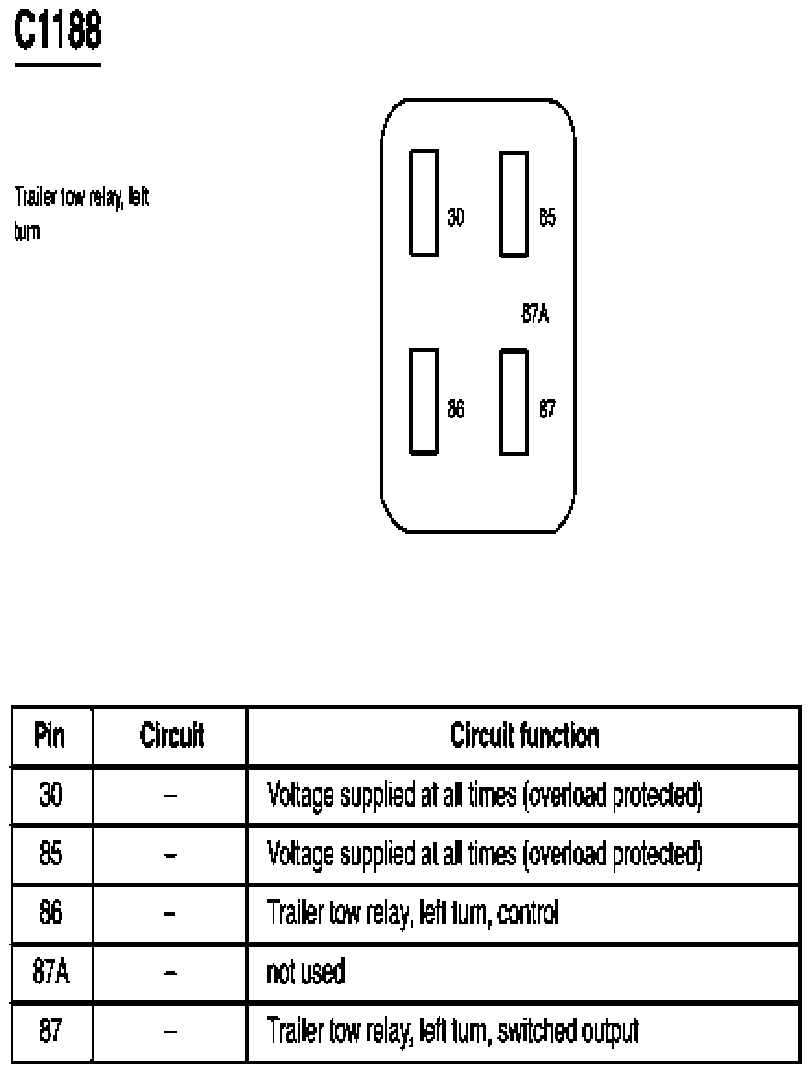

Fig 243: Trailer Tow Relay, Left Turn Connector End View (C1188)
G07844505Courtesy of FORD MOTOR CO.

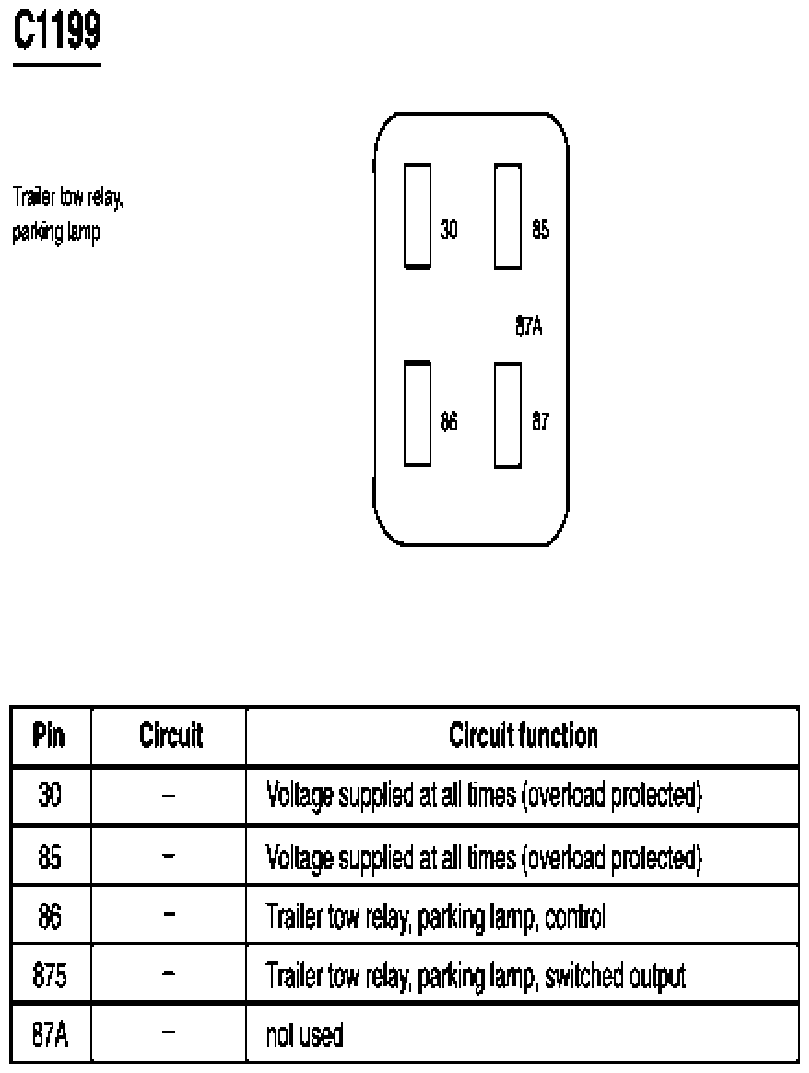

Fig 244: Trailer Tow Relay, Parking Lamp Connector End View (C1199)
G07844506Courtesy of FORD MOTOR CO.

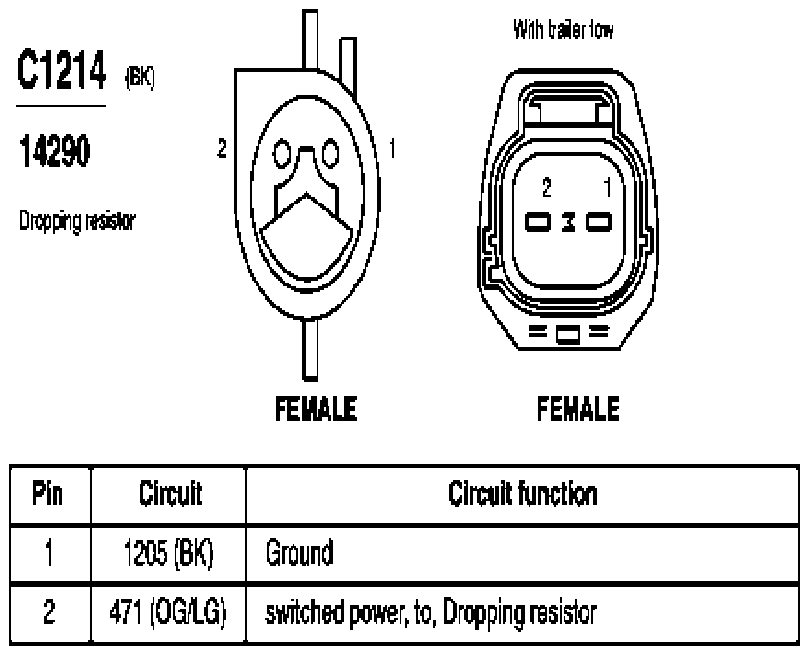

Fig 245: Dropping Resistor Connector End View (C1214)
G07844507Courtesy of FORD MOTOR CO.

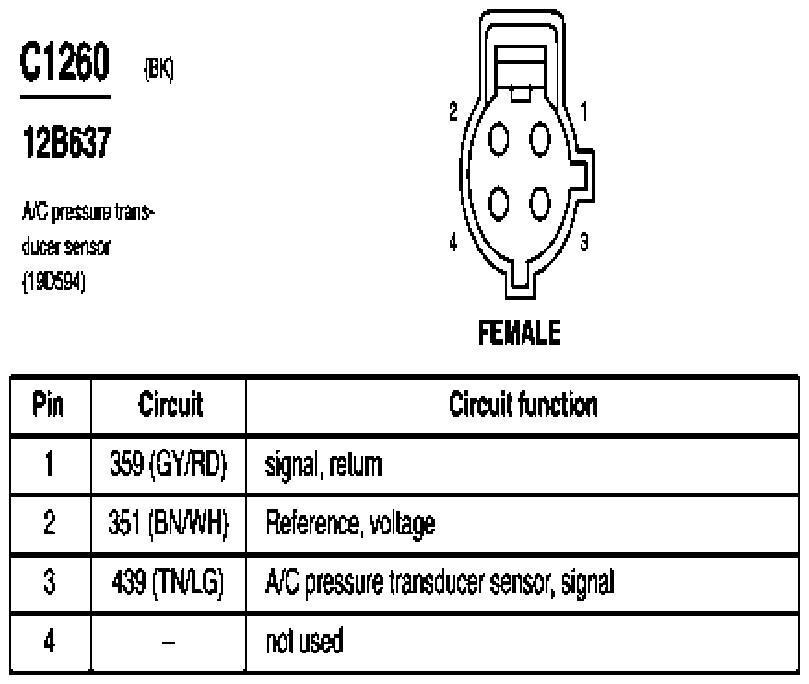

Fig 246: A/C Pressure Transducer Sensor Connector End View (C1260)
G07844508Courtesy of FORD MOTOR CO.

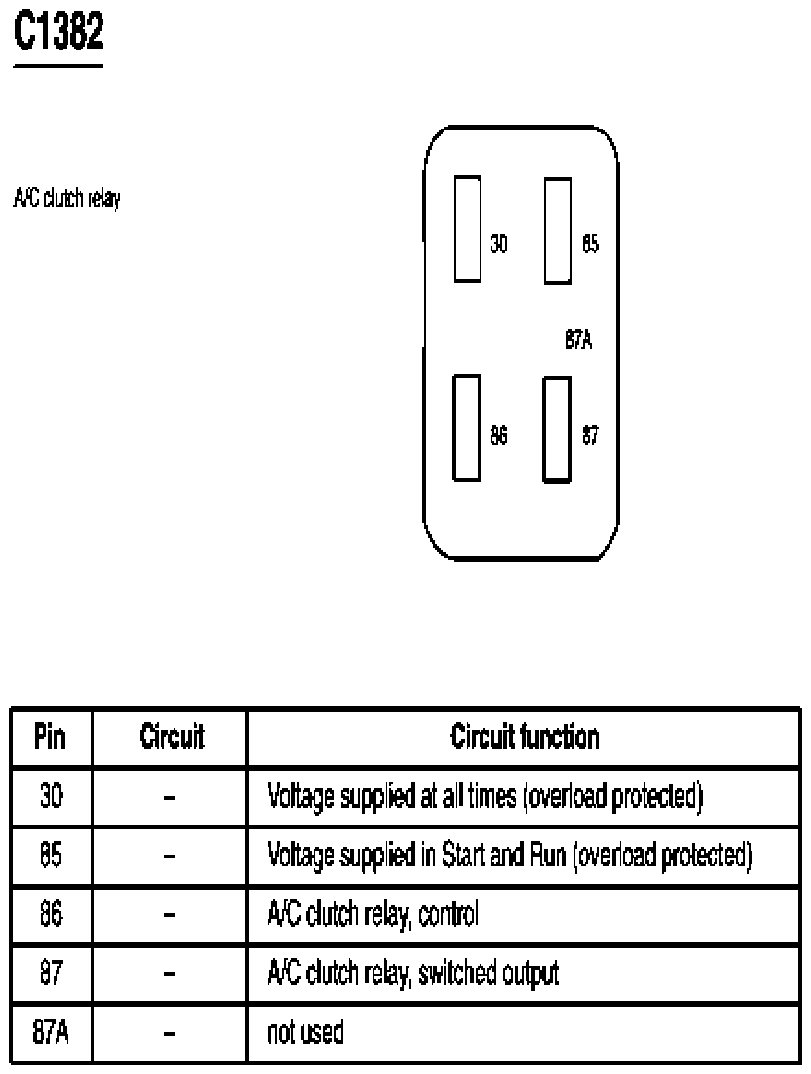

Fig 247: A/C Clutch Relay Connector End View (C1382)
G07844509Courtesy of FORD MOTOR CO.

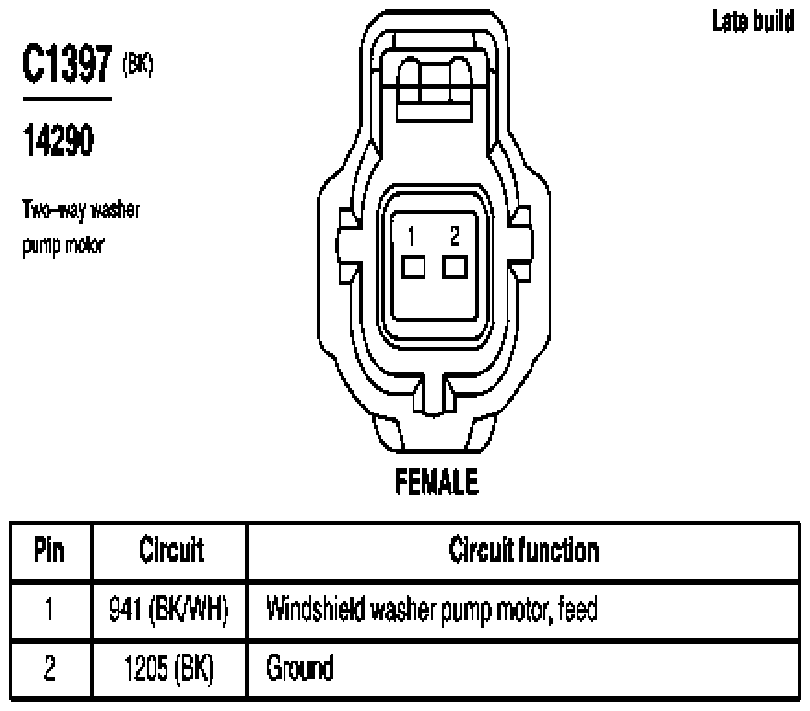

Fig 248: Two-Way Washer Pump Motor Connector End View (C1397)
G07844510Courtesy of FORD MOTOR CO.

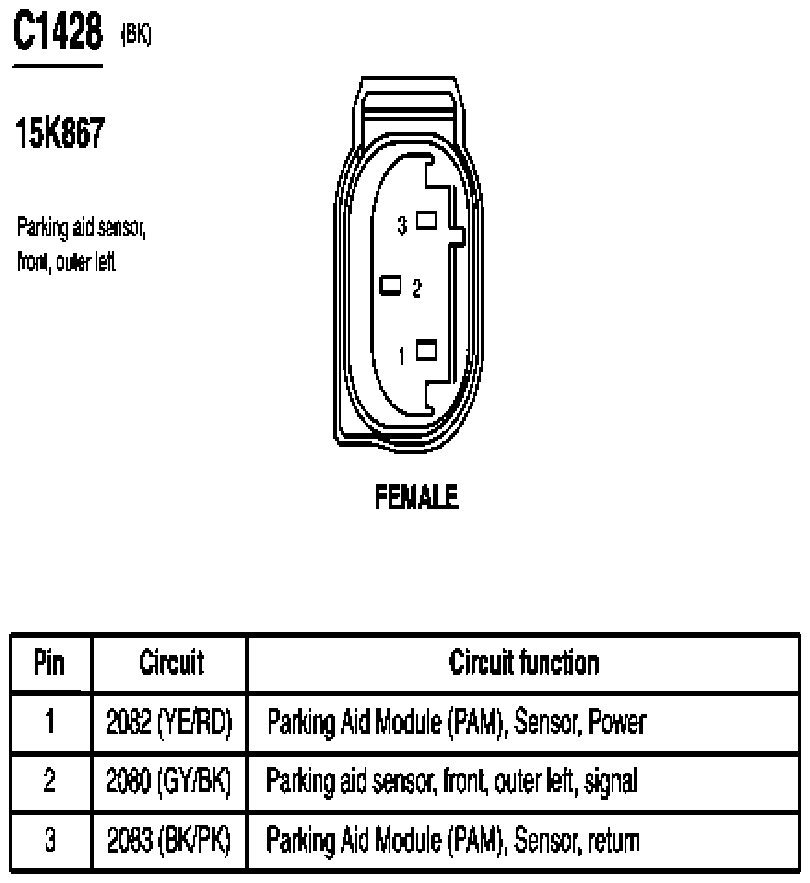

Fig 249: Parking Aid Sensor, Front, Outer Left Connector End View (C1428)
G07844511Courtesy of FORD MOTOR CO.

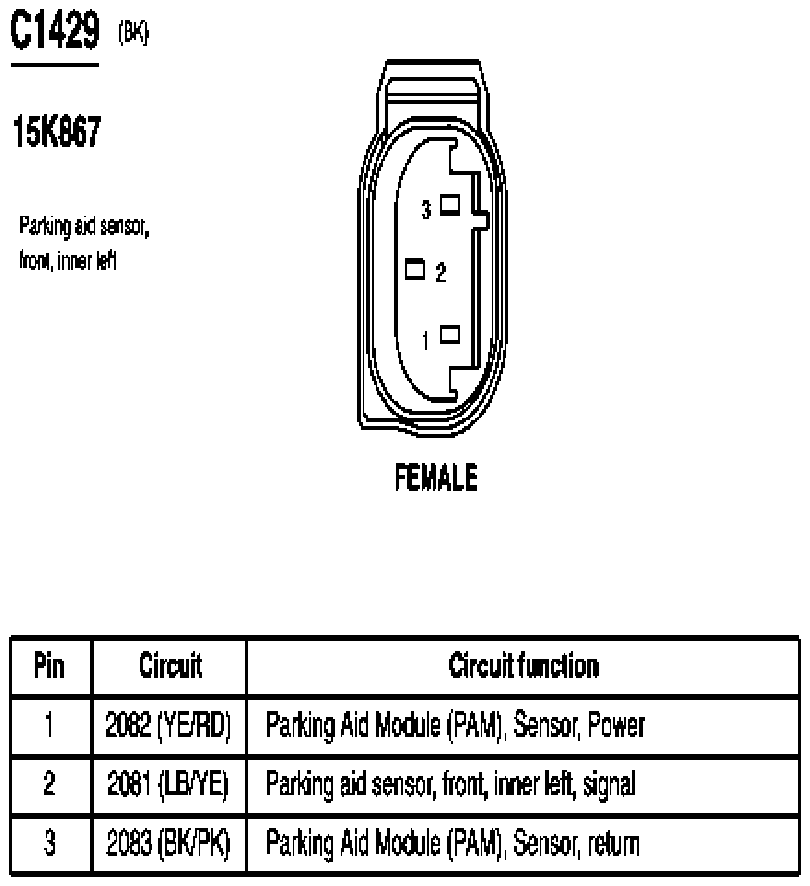

Fig 250: Parking Aid Sensor, Front, Inner Left Connector End View (C1429)
G07844512Courtesy of FORD MOTOR CO.

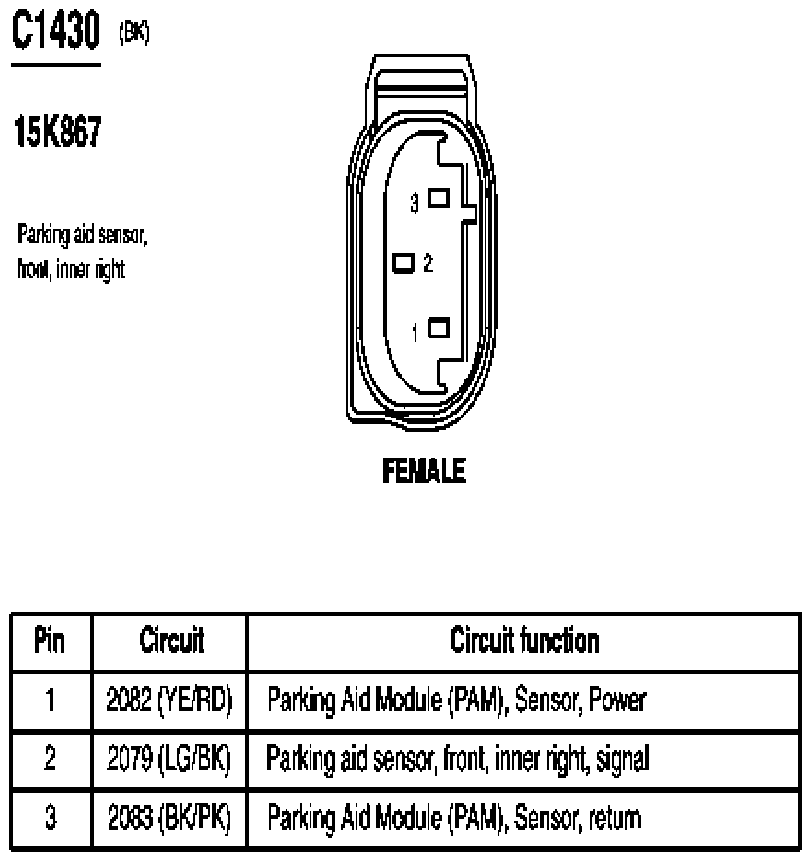

Fig 251: Parking Aid Sensor, Front, Inner Right Connector End View (C1430)
G07844513Courtesy of FORD MOTOR CO.

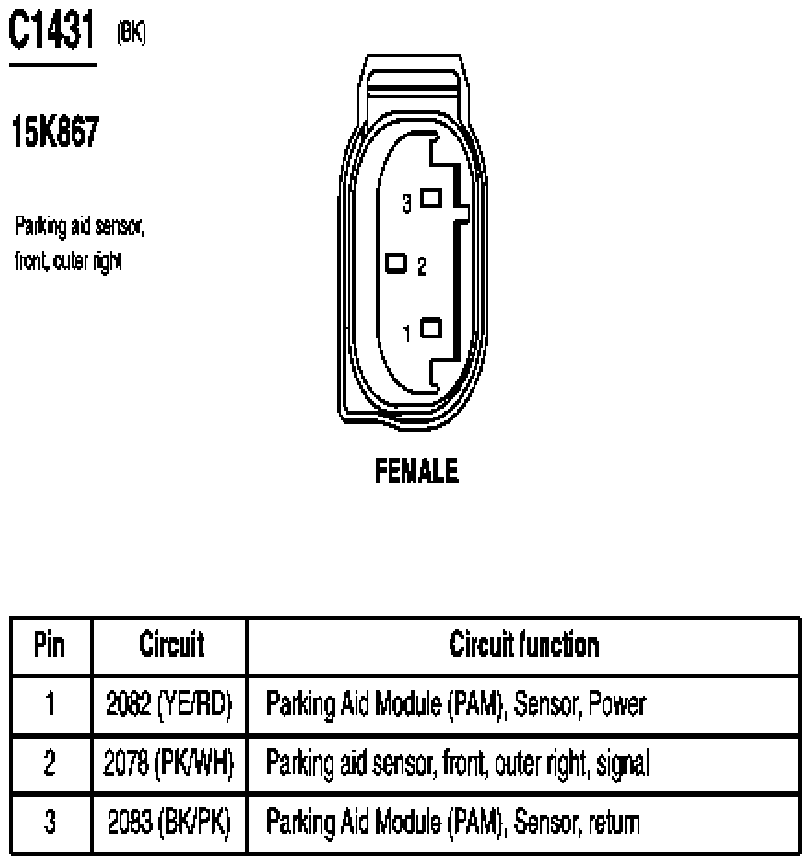

Fig 252: Parking Aid Sensor, Front, Outer Right Connector End View (C1431)
G07844514Courtesy of FORD MOTOR CO.

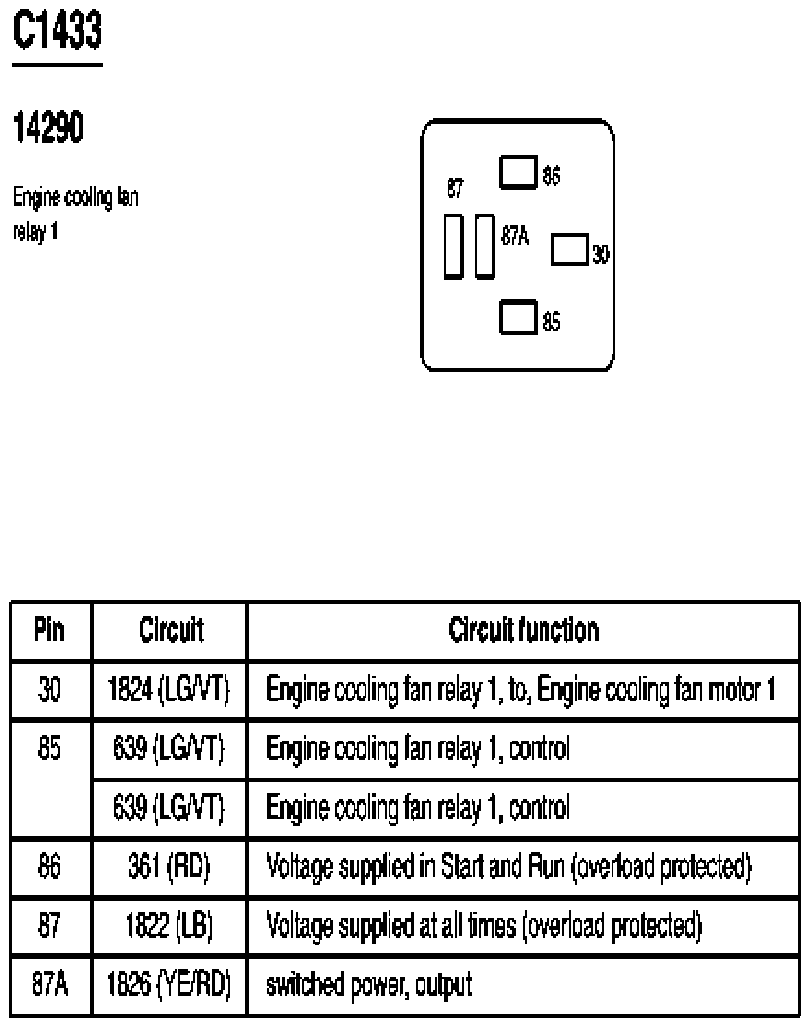

Fig 253: Engine Cooling Fan Relay 1 Connector End View (C1433)
G07844515Courtesy of FORD MOTOR CO.

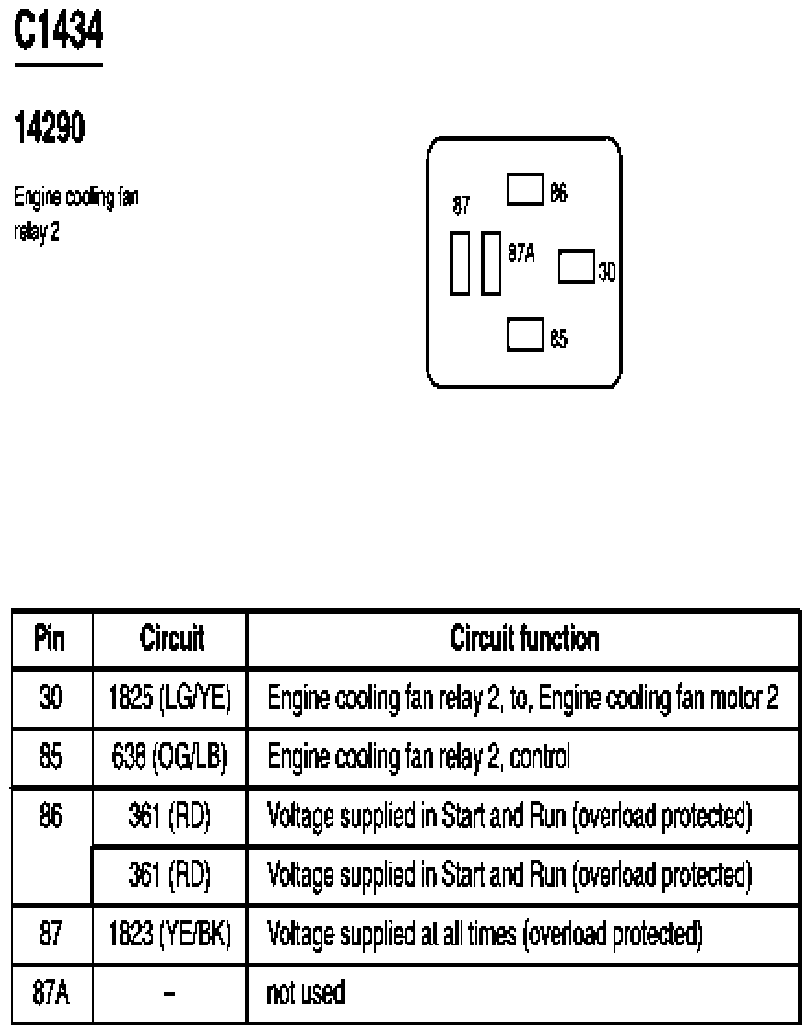

Fig 254: Engine Cooling Fan Relay 2 Connector End View (C1434)
G07844516Courtesy of FORD MOTOR CO.

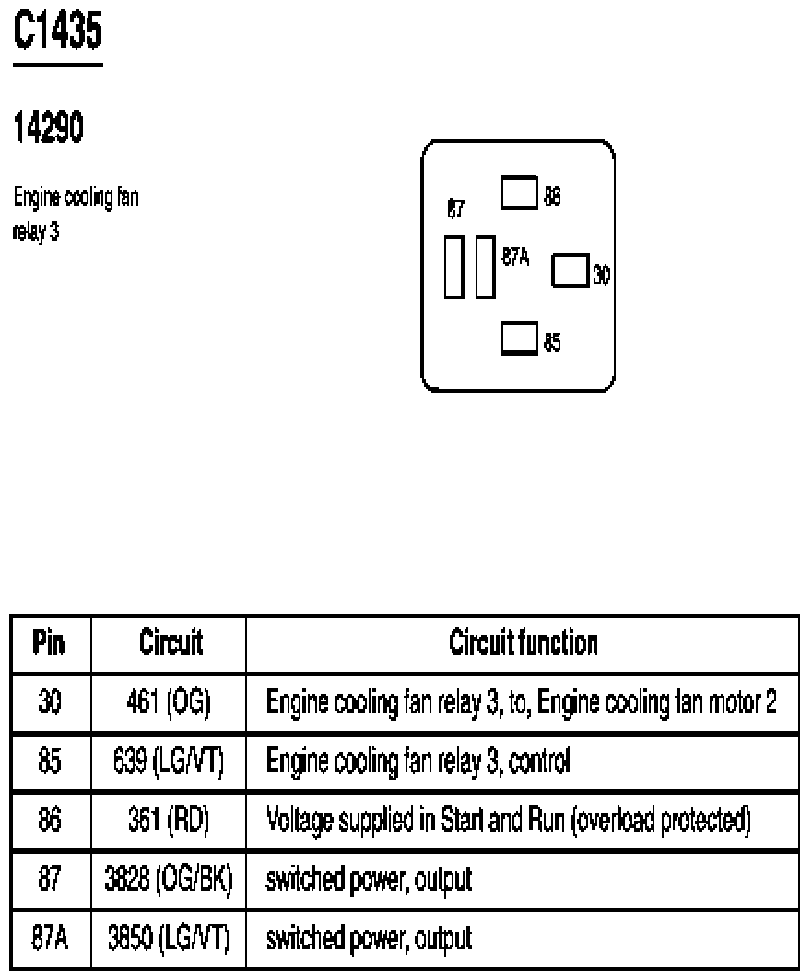

Fig 255: Engine Cooling Fan Relay 3 Connector End View (C1435)
G07844517Courtesy of FORD MOTOR CO.

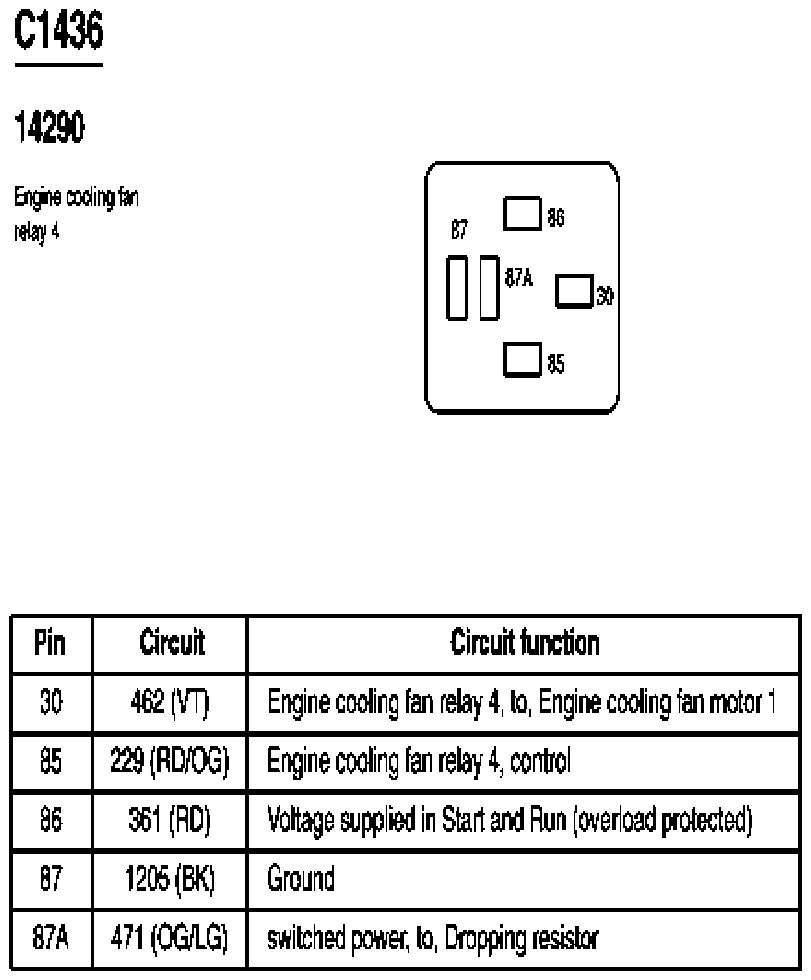

Fig 256: Engine Cooling Fan Relay 4 Connector End View (C1436)
G07844518Courtesy of FORD MOTOR CO.

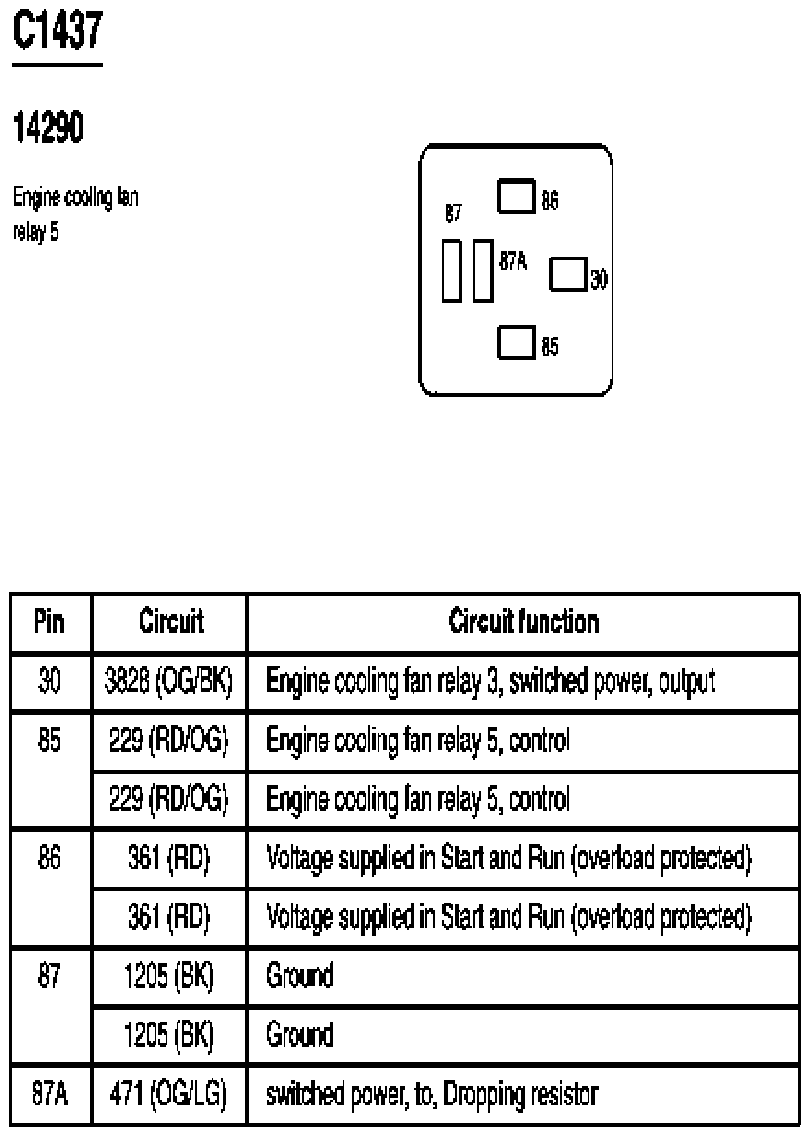

Fig 257: Engine Cooling Fan Relay 5 Connector End View (C1437)
G07844519Courtesy of FORD MOTOR CO.

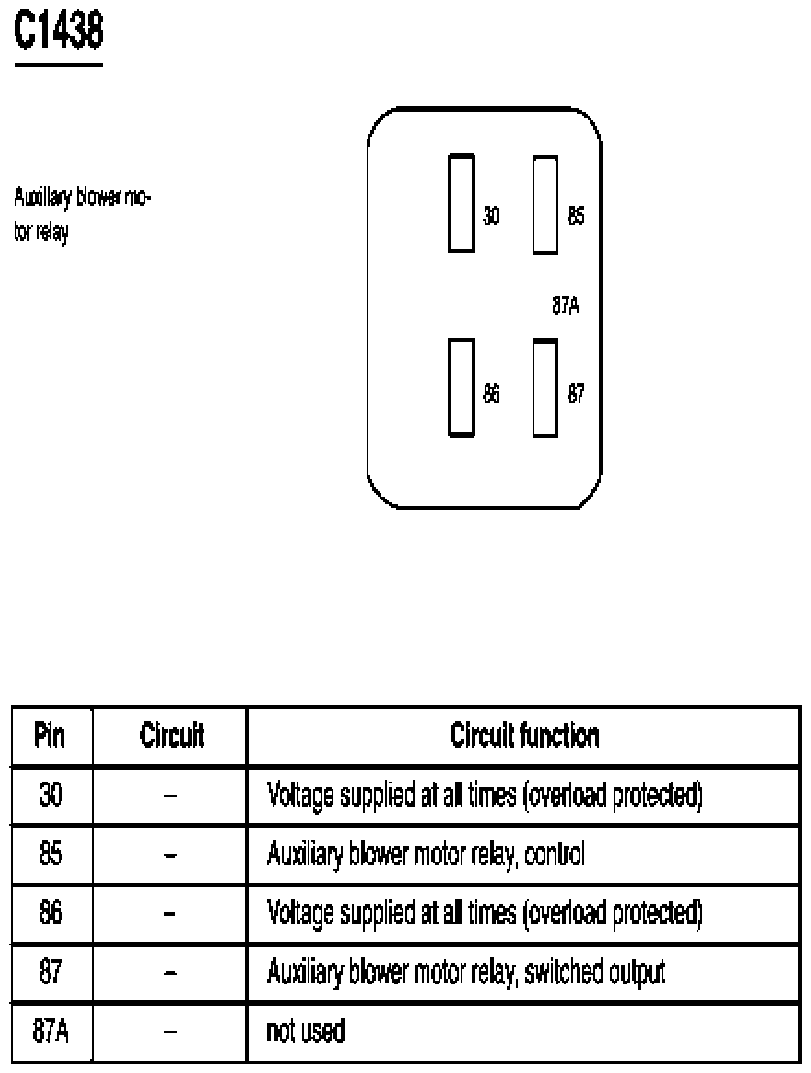

Fig 258: Auxiliary Blower Motor Relay Connector End View (C1438)
G07844520Courtesy of FORD MOTOR CO.

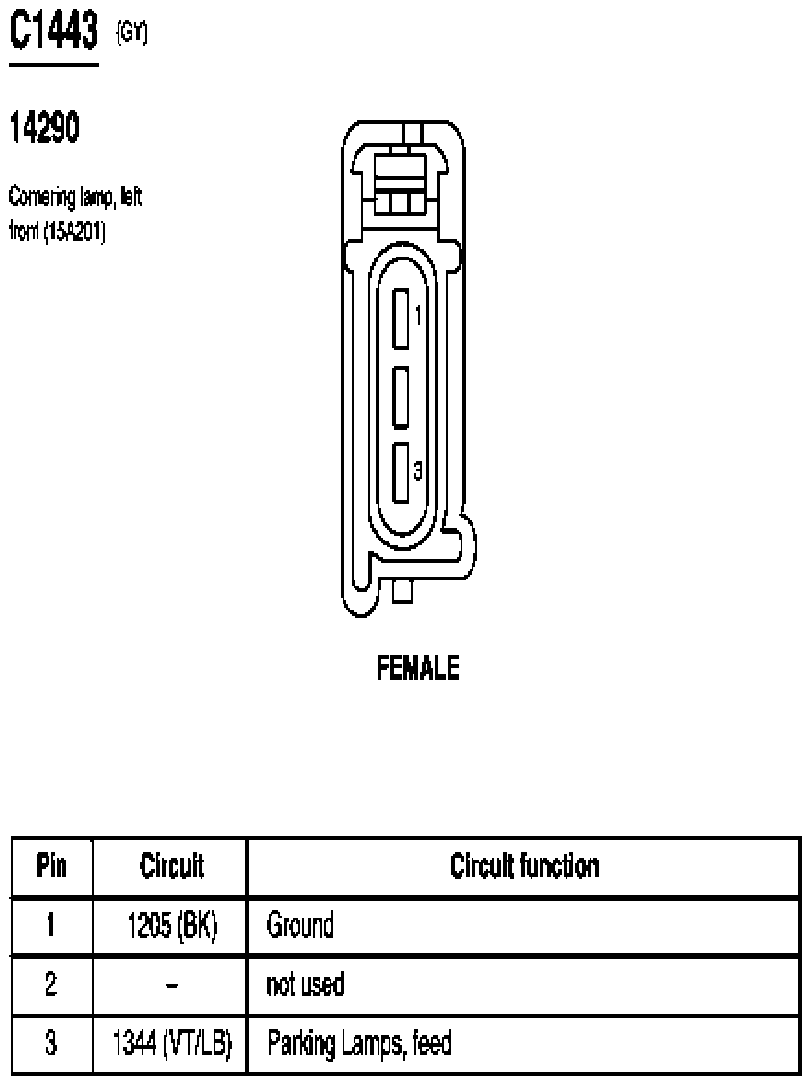

Fig 259: Connecting Lamp, Left Front Connector End View (C1443)
G07844521Courtesy of FORD MOTOR CO.

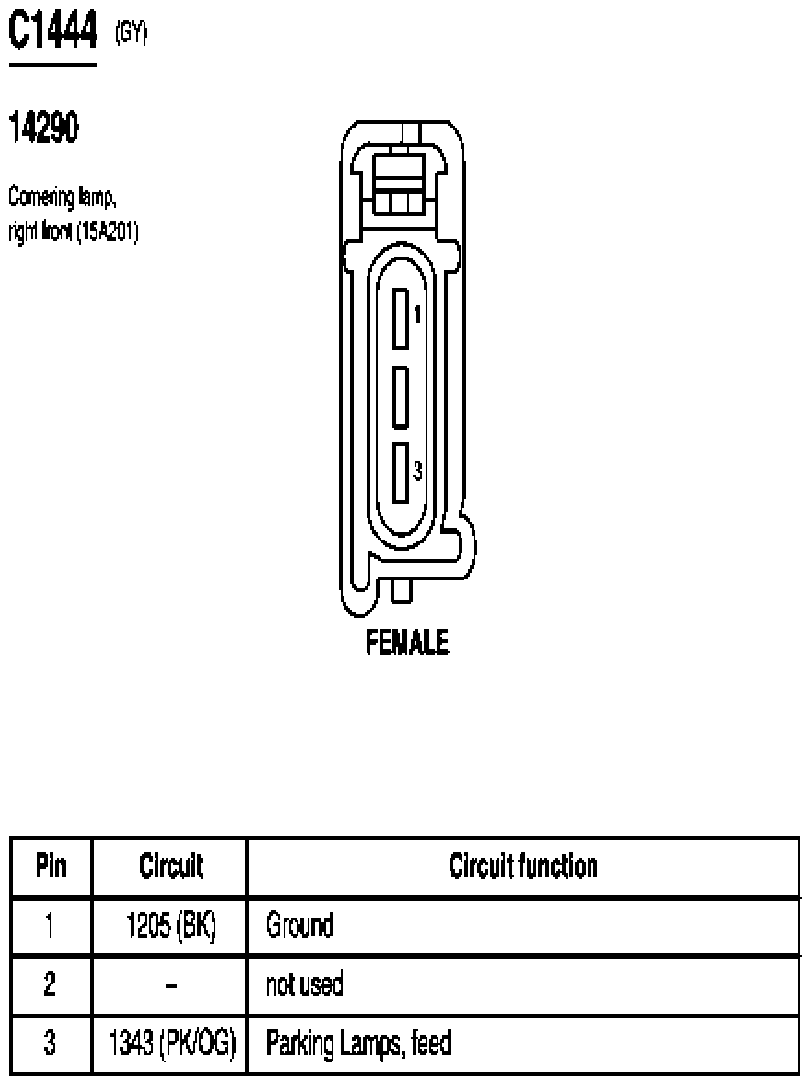

Fig 260: Connecting Lamp, Right Front Connector End View (C1444)
G07844522Courtesy of FORD MOTOR CO.

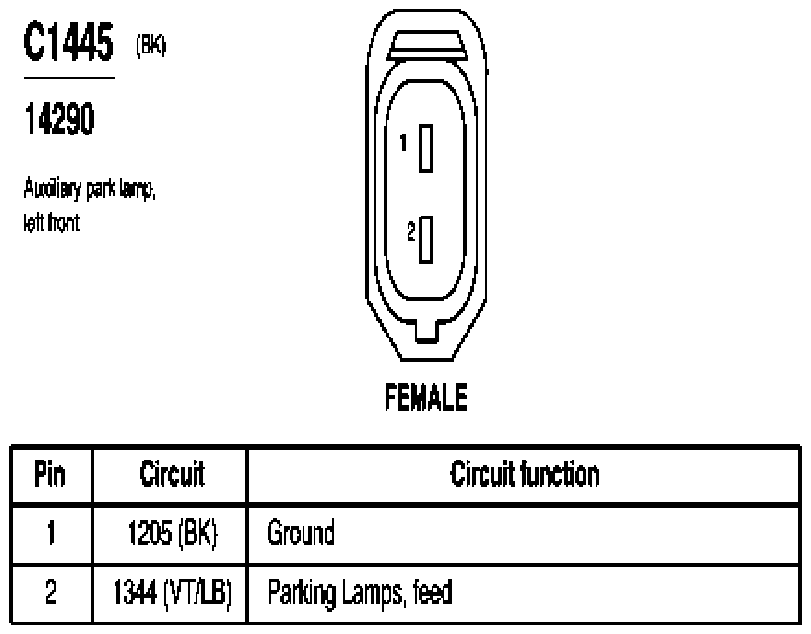

Fig 261: Auxiliary Park Lamp, Left Front Connector End View (C1445)
G07844523Courtesy of FORD MOTOR CO.

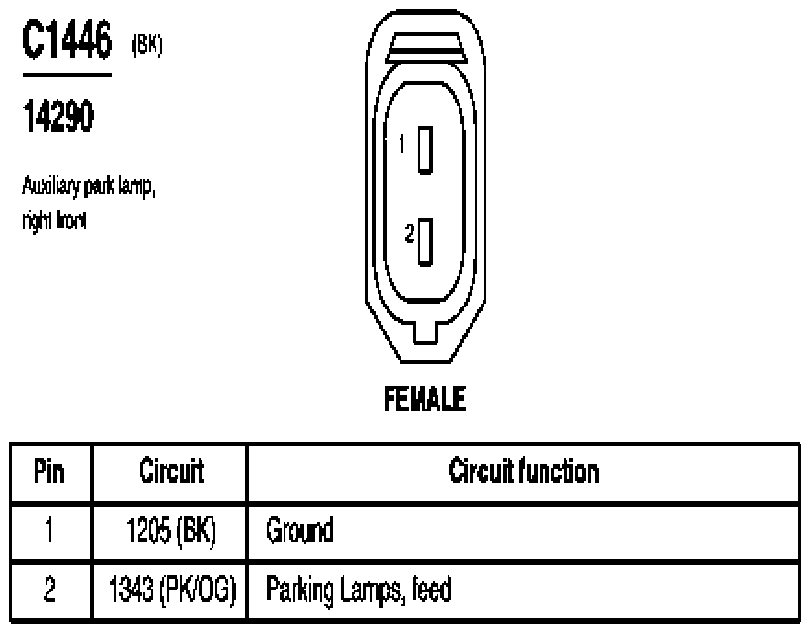

Fig 262: Auxiliary Park Lamp, Right Front Connector End View (C1446)
G07844524Courtesy of FORD MOTOR CO.

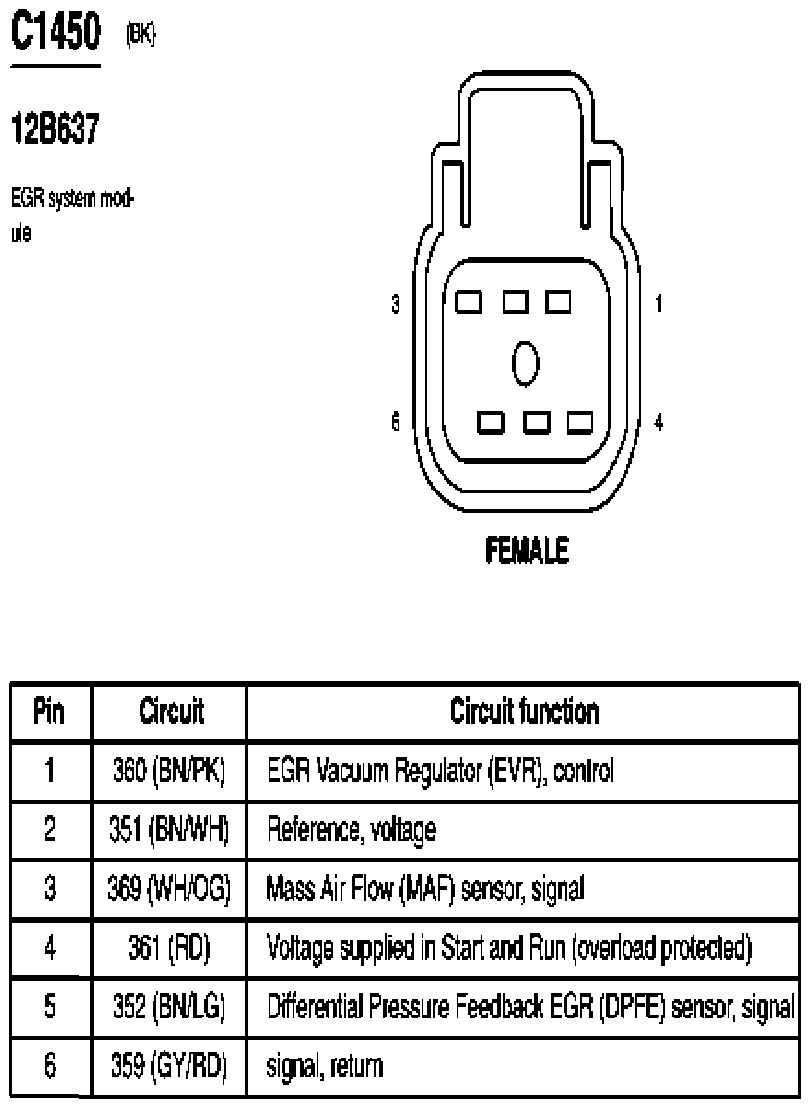

Fig 263: EGR System Module Connector End View (C1450)
G07844525Courtesy of FORD MOTOR CO.

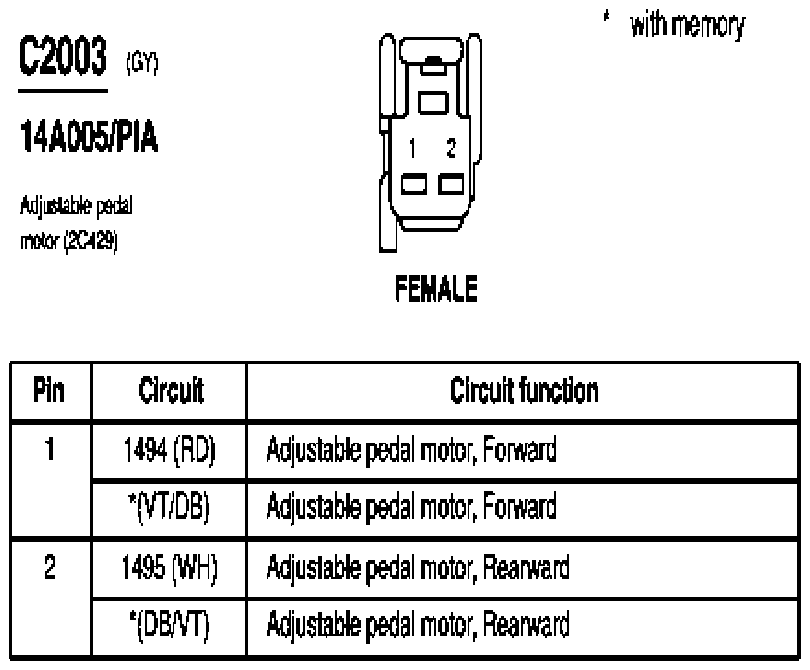

Fig 264: Adjustable Pedal Motor Connector End View (C2003)
G07844526Courtesy of FORD MOTOR CO.

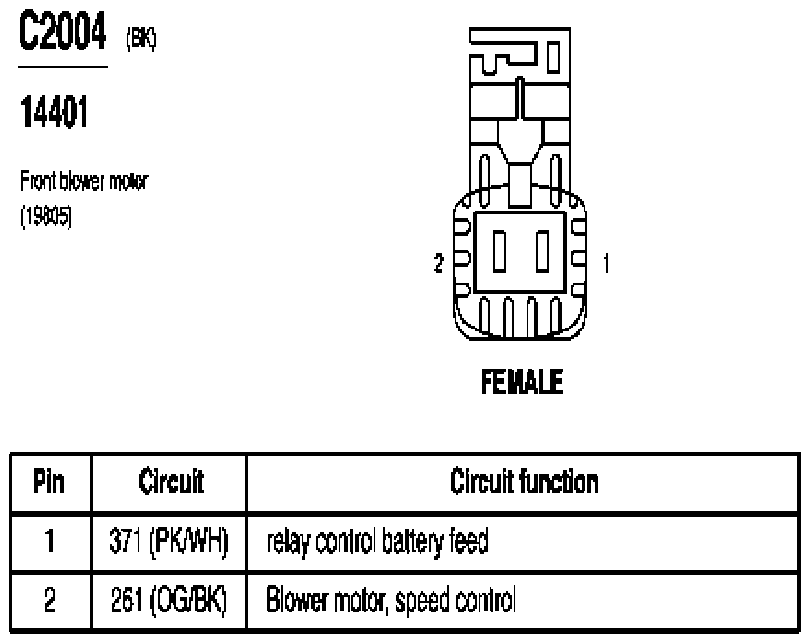

Fig 265: Front Blower Motor Connector End View (C2004)
G07844527Courtesy of FORD MOTOR CO.

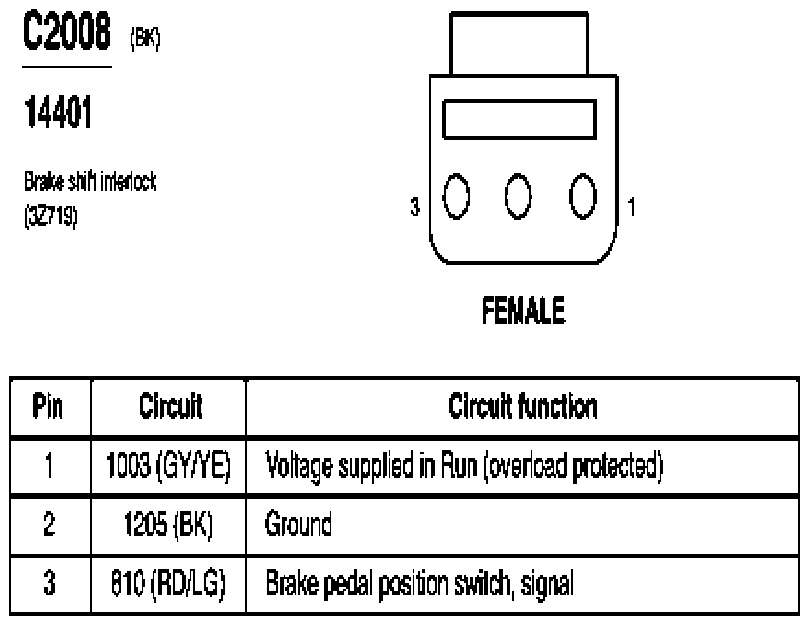

Fig 266: Brake Shift Interlock Connector End View (C2008)
G07844528Courtesy of FORD MOTOR CO.

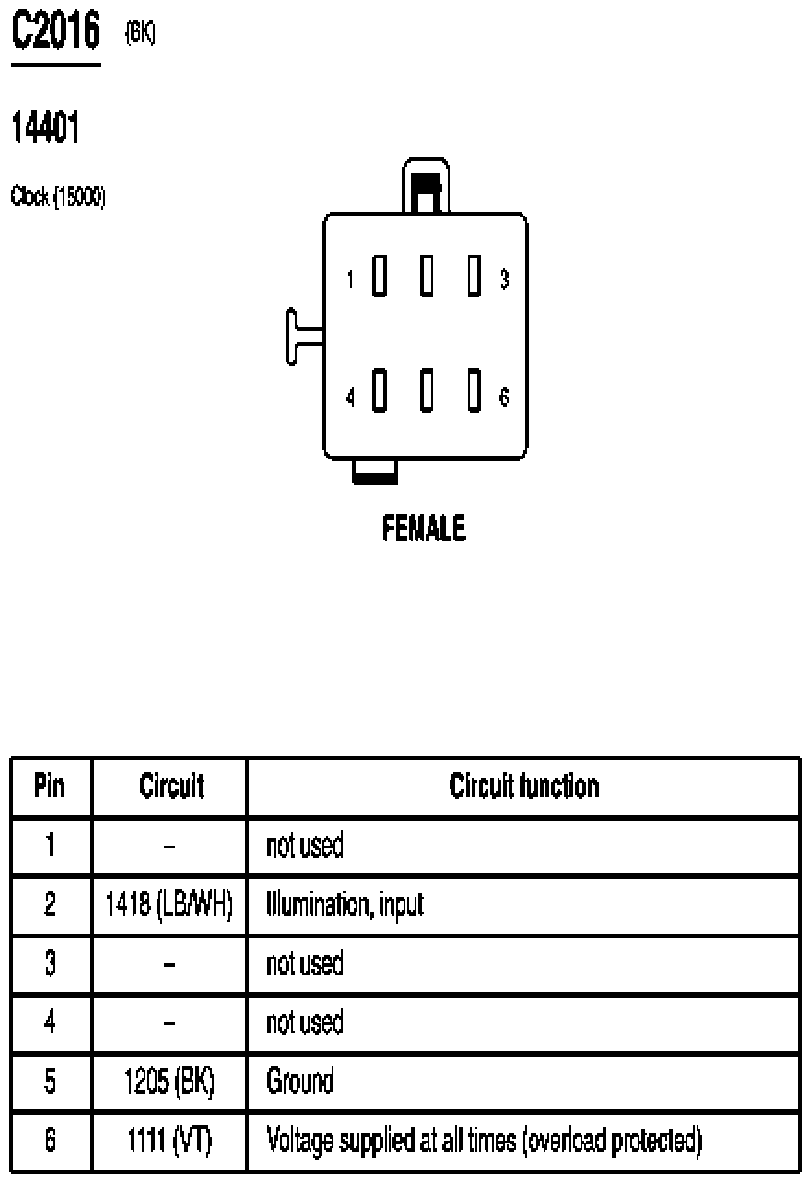

Fig 267: Clock Connector End View (C2016)
G07844529Courtesy of FORD MOTOR CO.

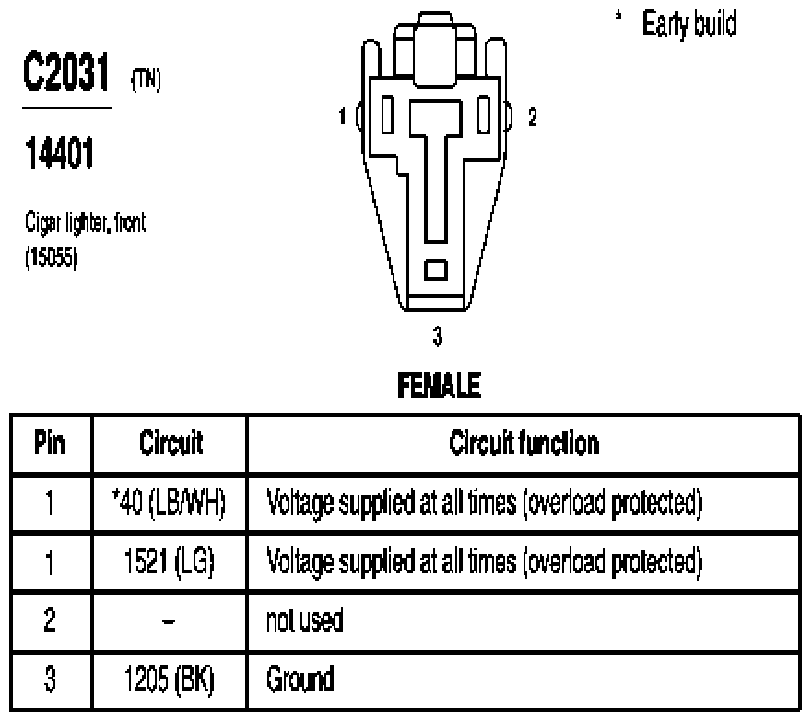

Fig 268: Cigar Lighter, Front Connector End View (C2031)
G07844530Courtesy of FORD MOTOR CO.

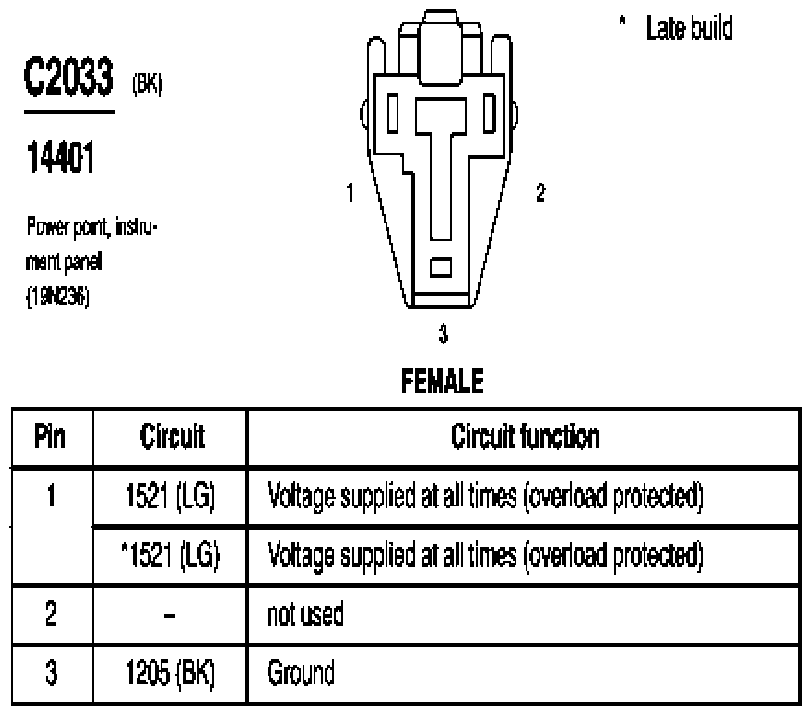

Fig 269: Power Point, Instrument Panel Connector End View (C2033)
G07844531Courtesy of FORD MOTOR CO.

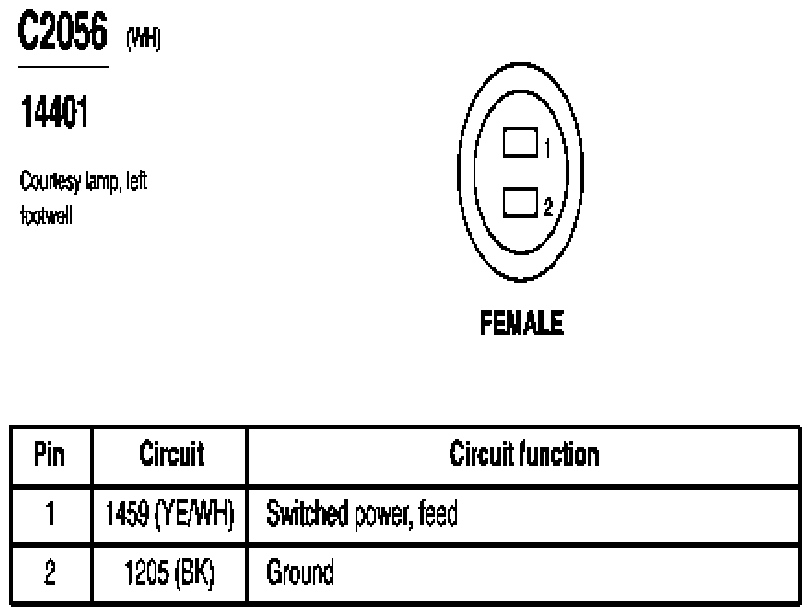

Fig 270: Courtesy Lamp, Left Footwell Connector End View (C2056)
G07844532Courtesy of FORD MOTOR CO.

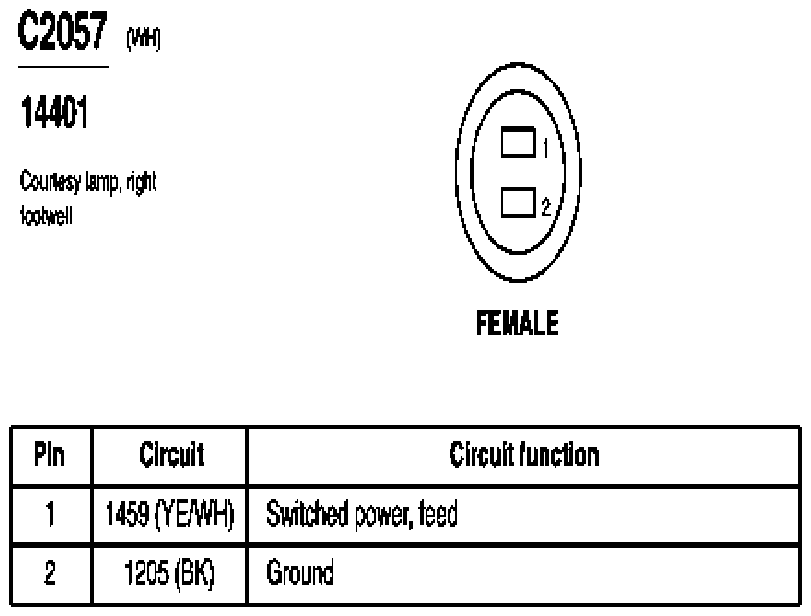

Fig 271: Courtesy Lamp, Right Footwell Connector End View (C2057)
G07844533Courtesy of FORD MOTOR CO.

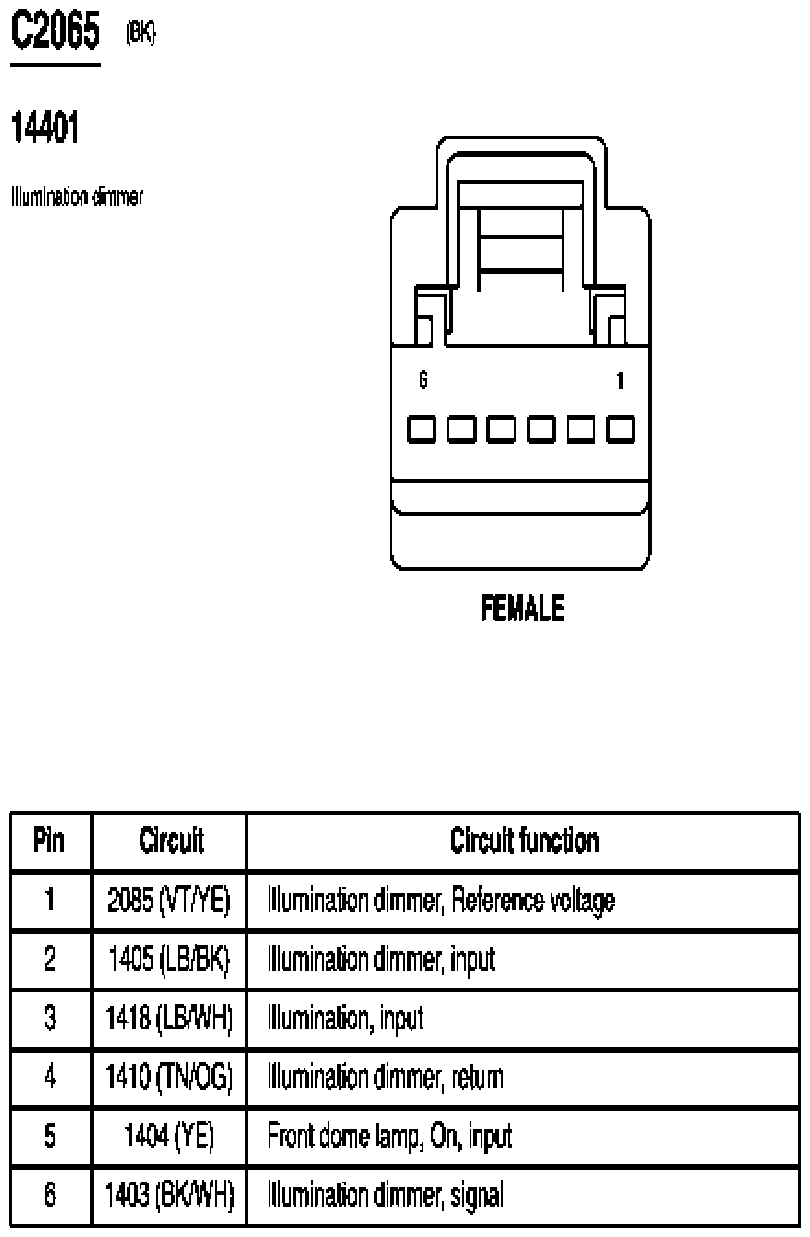

Fig 272: Illumination Dimmer Connector End View (C2065)
G07844534Courtesy of FORD MOTOR CO.

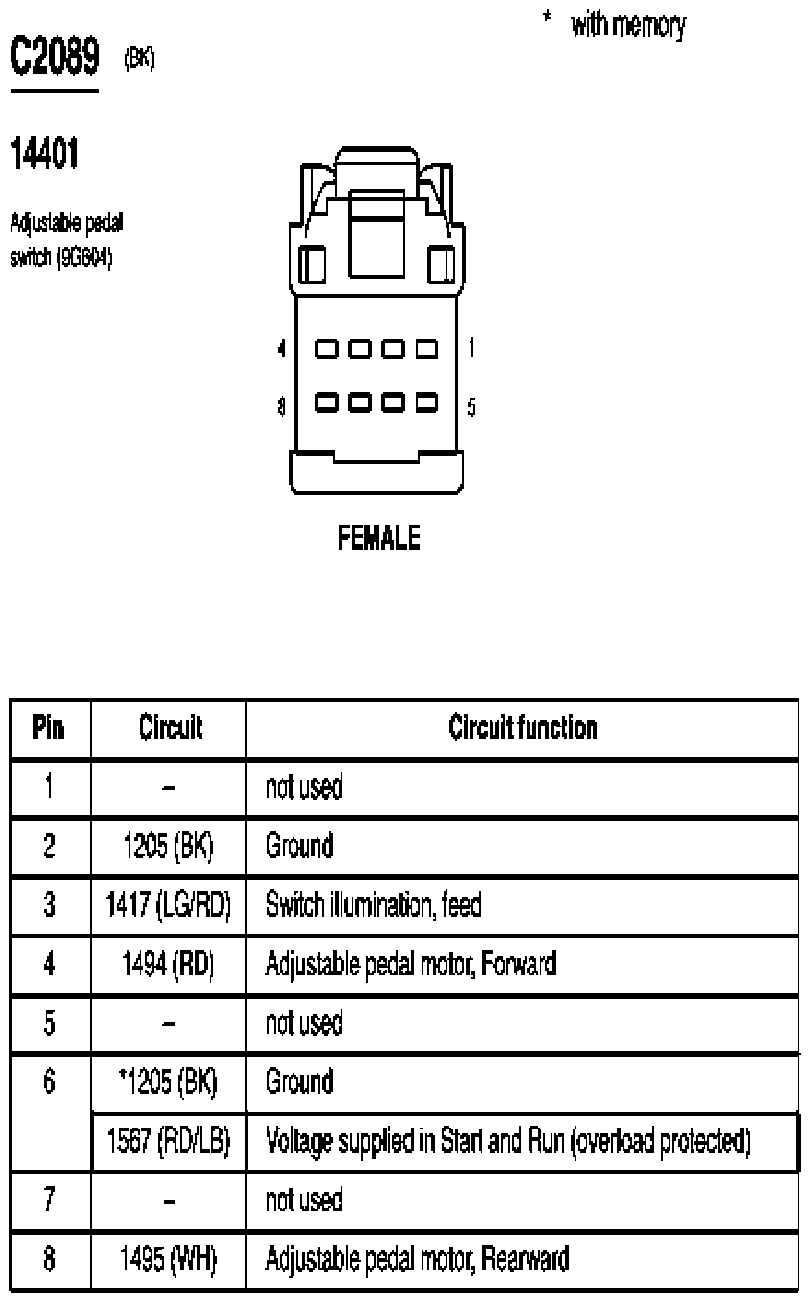

Fig 273: Adjustable Pedal Switch Connector End View (C2089)
G07844535Courtesy of FORD MOTOR CO.

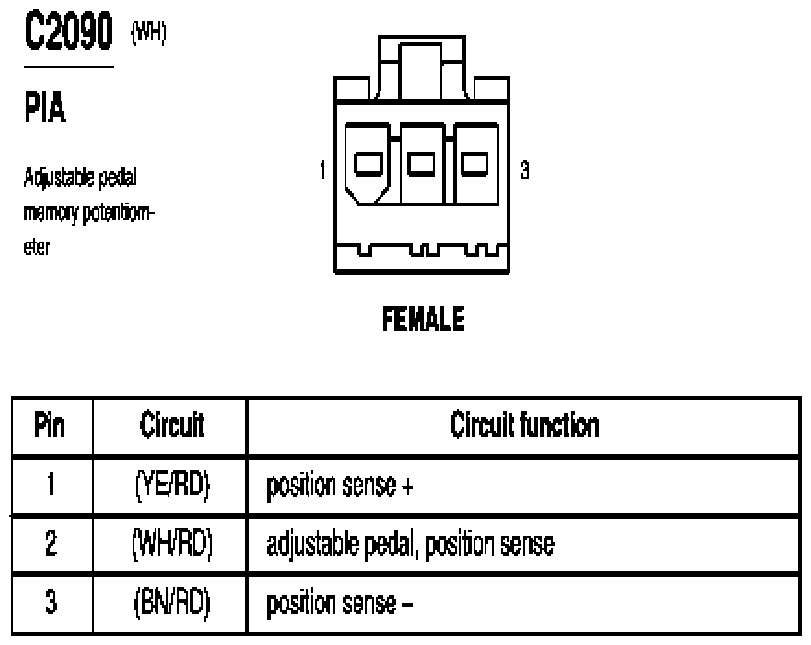

Fig 274: Adjustable Pedal Memory Potentiometer Connector End View (C2090)
G07844536Courtesy of FORD MOTOR CO.

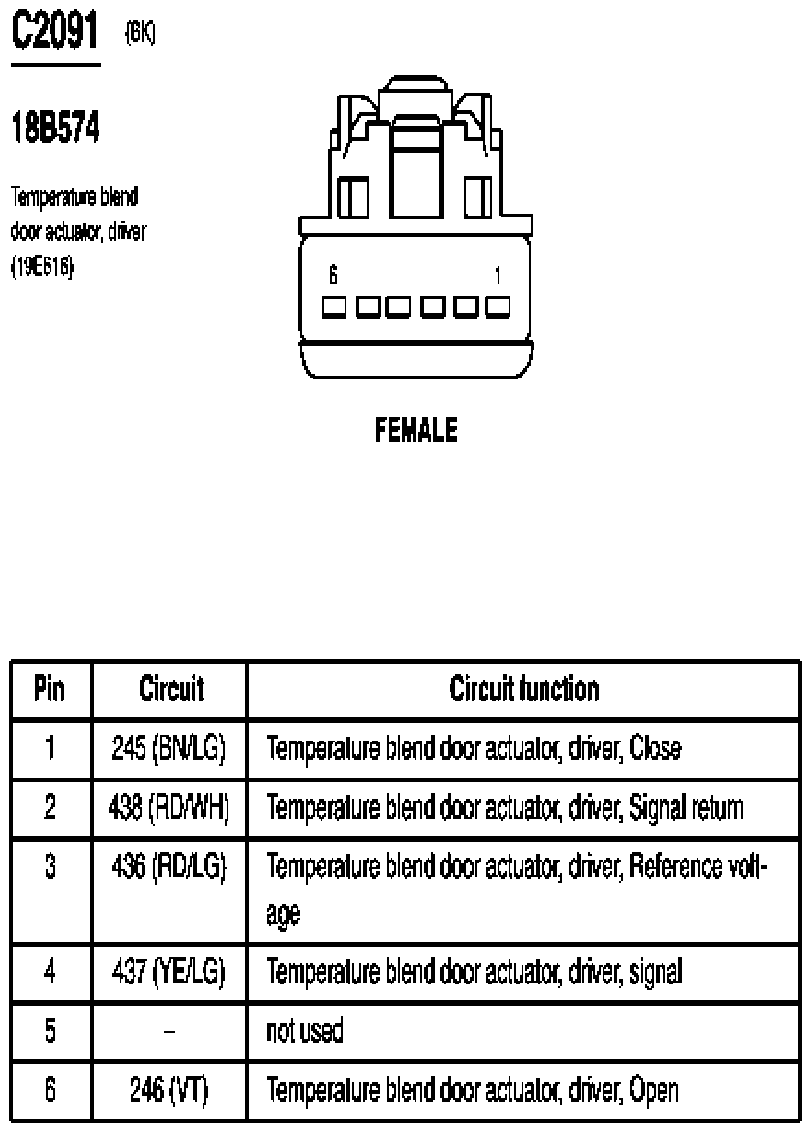

Fig 275: Temperature Blend Door Actuator, Driver Connector End View (C2091)
G07844537Courtesy of FORD MOTOR CO.

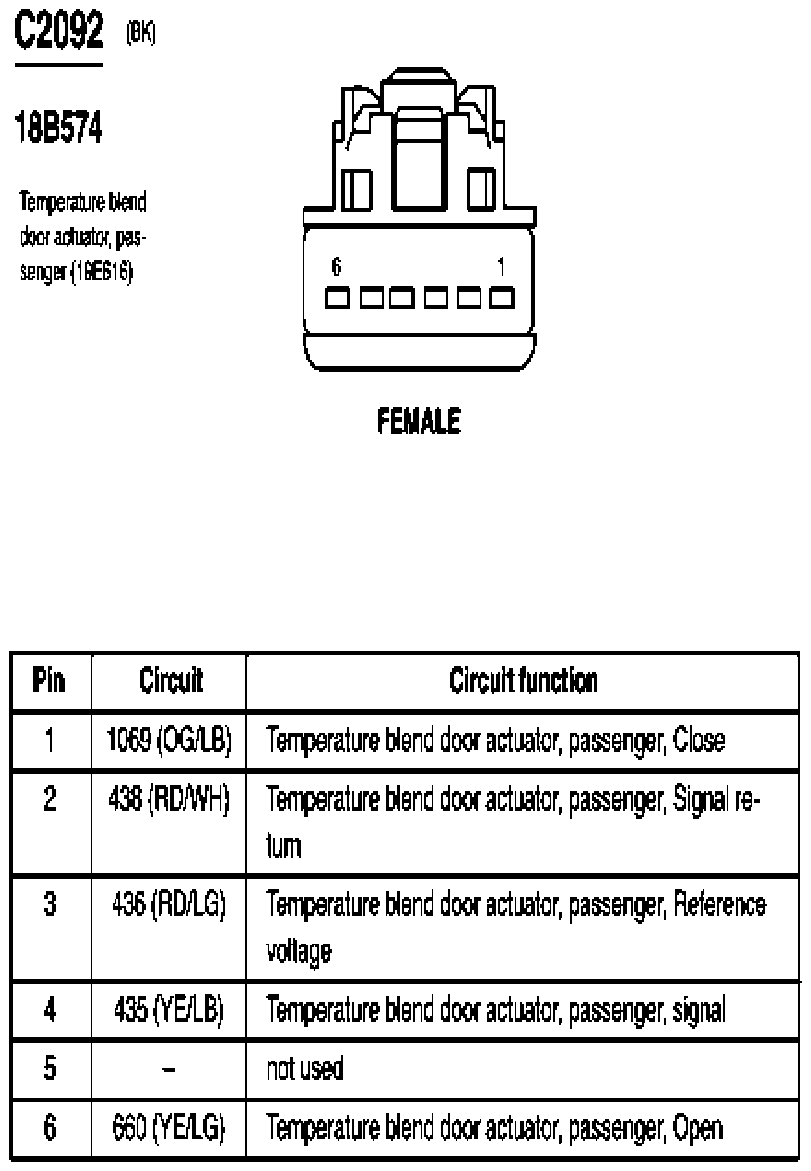

Fig 276: Temperature Blend Door Actuator, Passenger Connector End View (C2092)
G07844538Courtesy of FORD MOTOR CO.

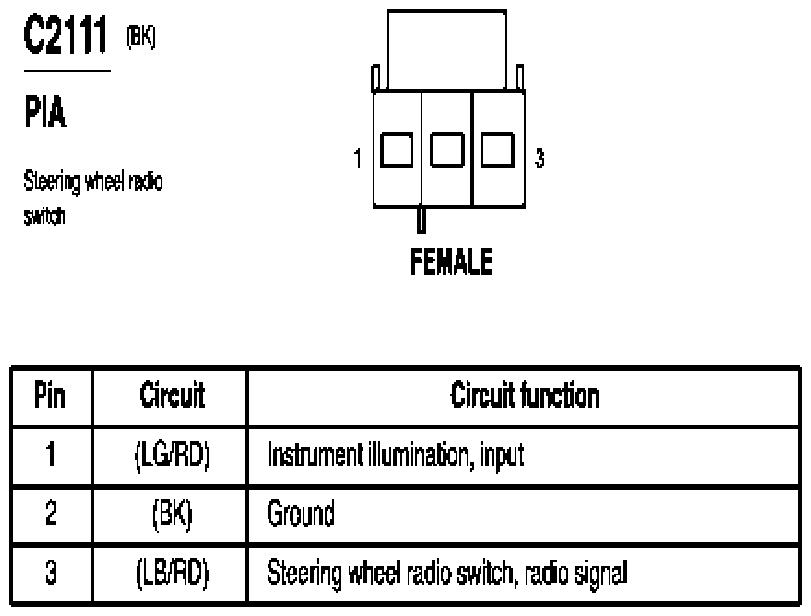

Fig 277: Steering Wheel Radio Switch Connector End View (C2111)
G07844539Courtesy of FORD MOTOR CO.

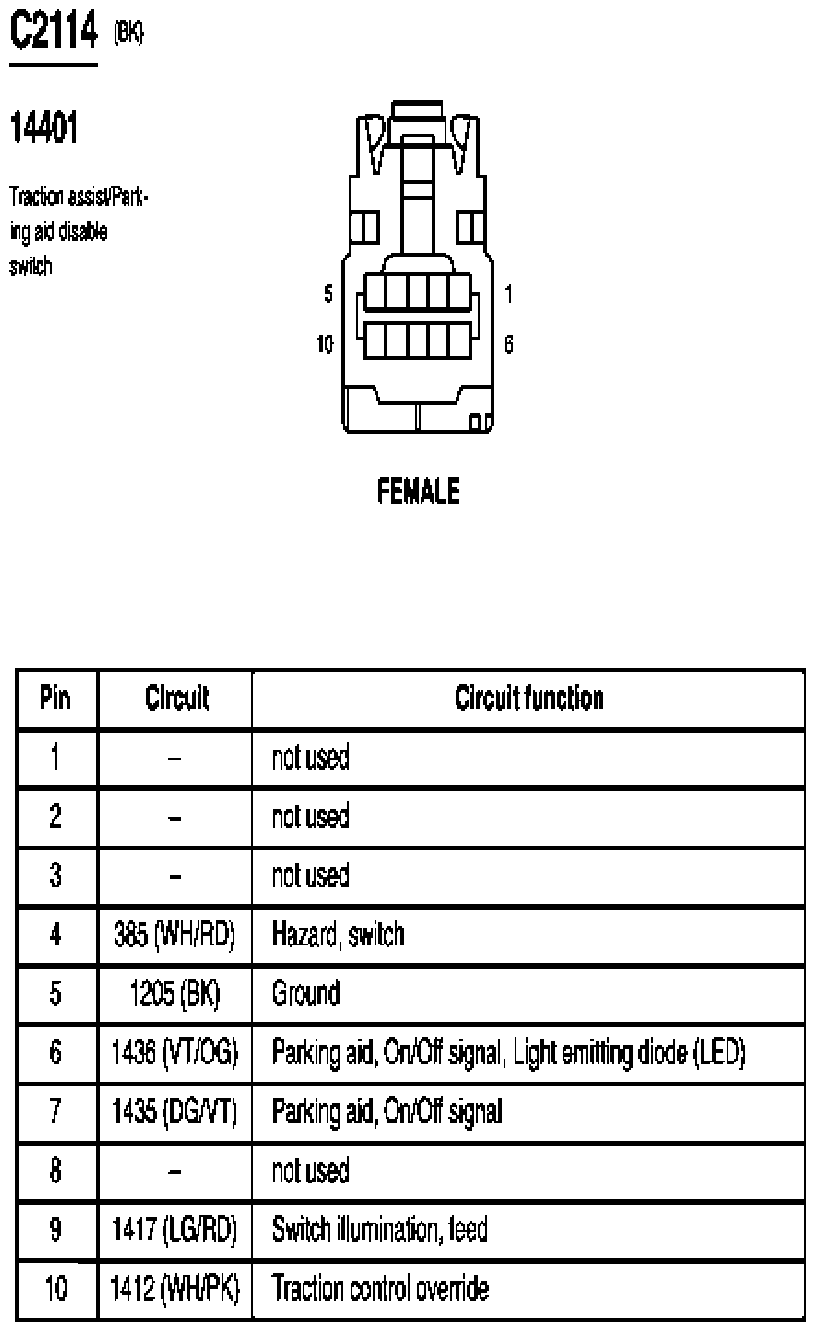

Fig 278: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)
G07844540Courtesy of FORD MOTOR CO.

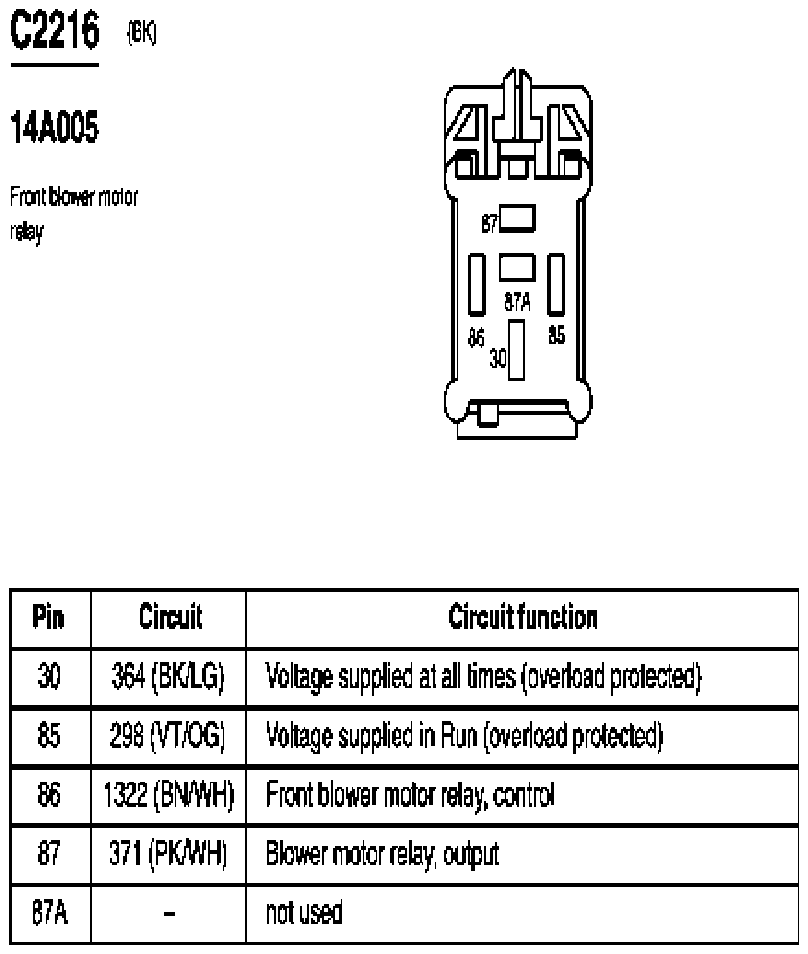

Fig 279: Front Blower Motor Relay Connector End View (C2216)
G07844541Courtesy of FORD MOTOR CO.

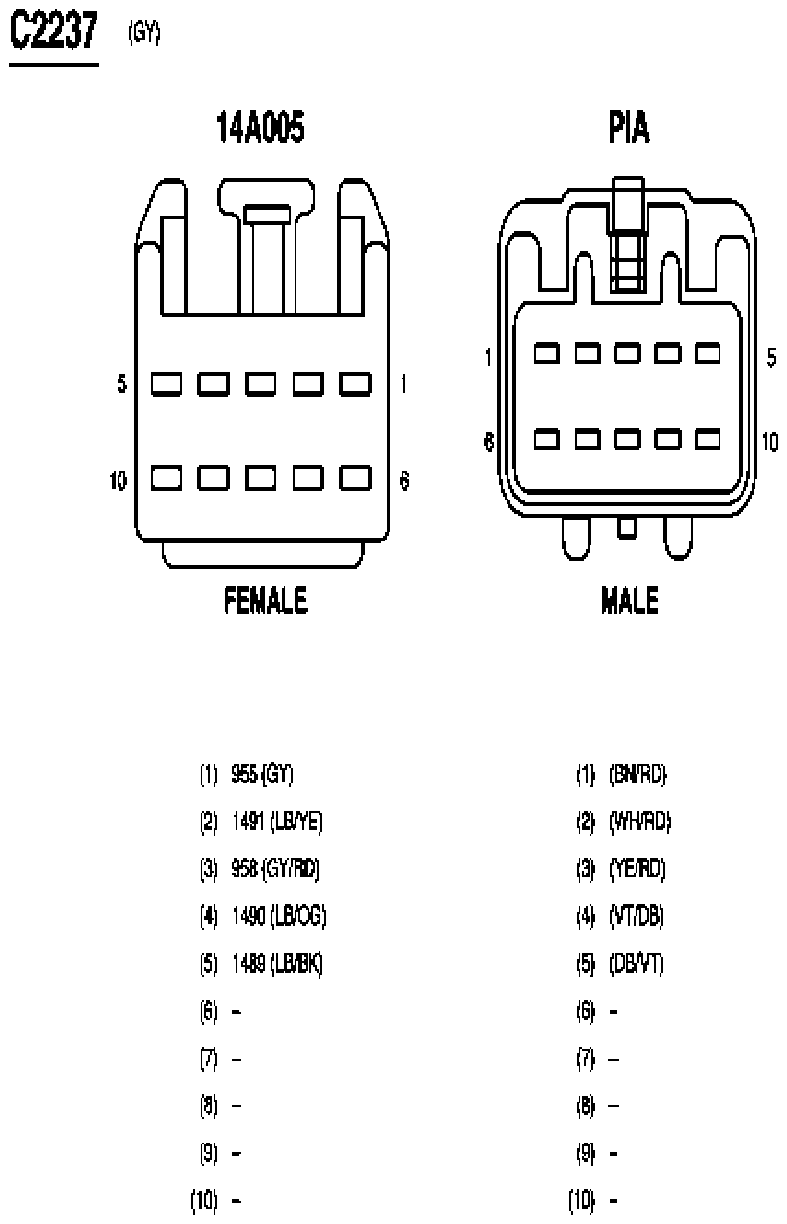

Fig 280: Inline Connector End View (C2237)
G07844542Courtesy of FORD MOTOR CO.

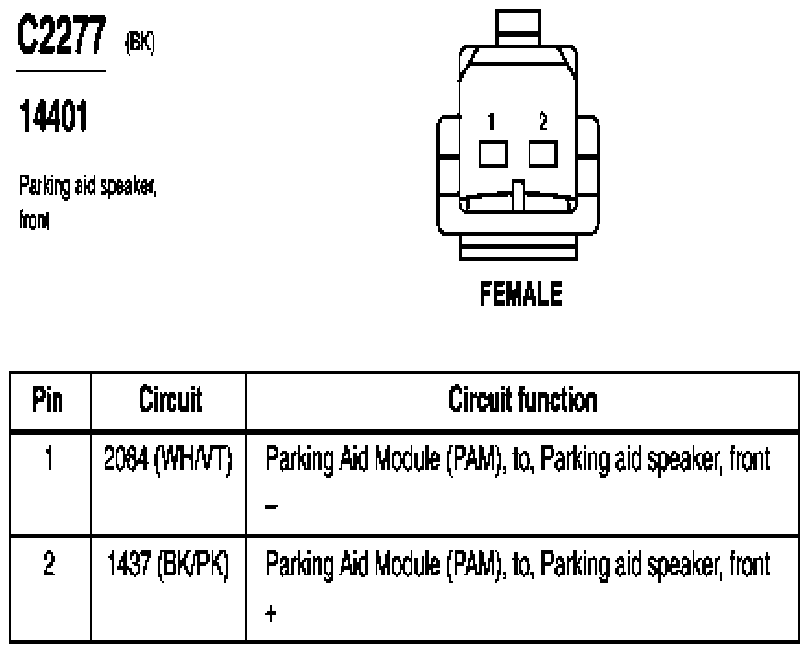

Fig 281: Parking Aid Speaker, Front Connector End View (C2277)
G07844543Courtesy of FORD MOTOR CO.

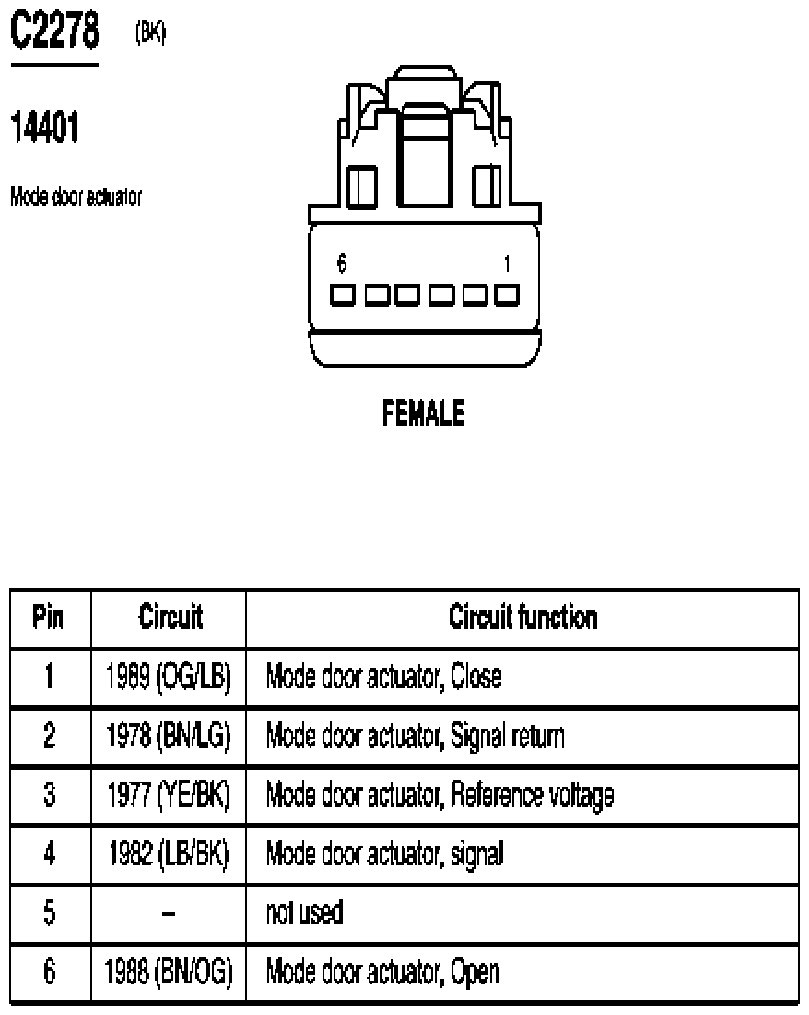

Fig 282: Mode Door Actuator Connector End View (C2278)
G07844544Courtesy of FORD MOTOR CO.

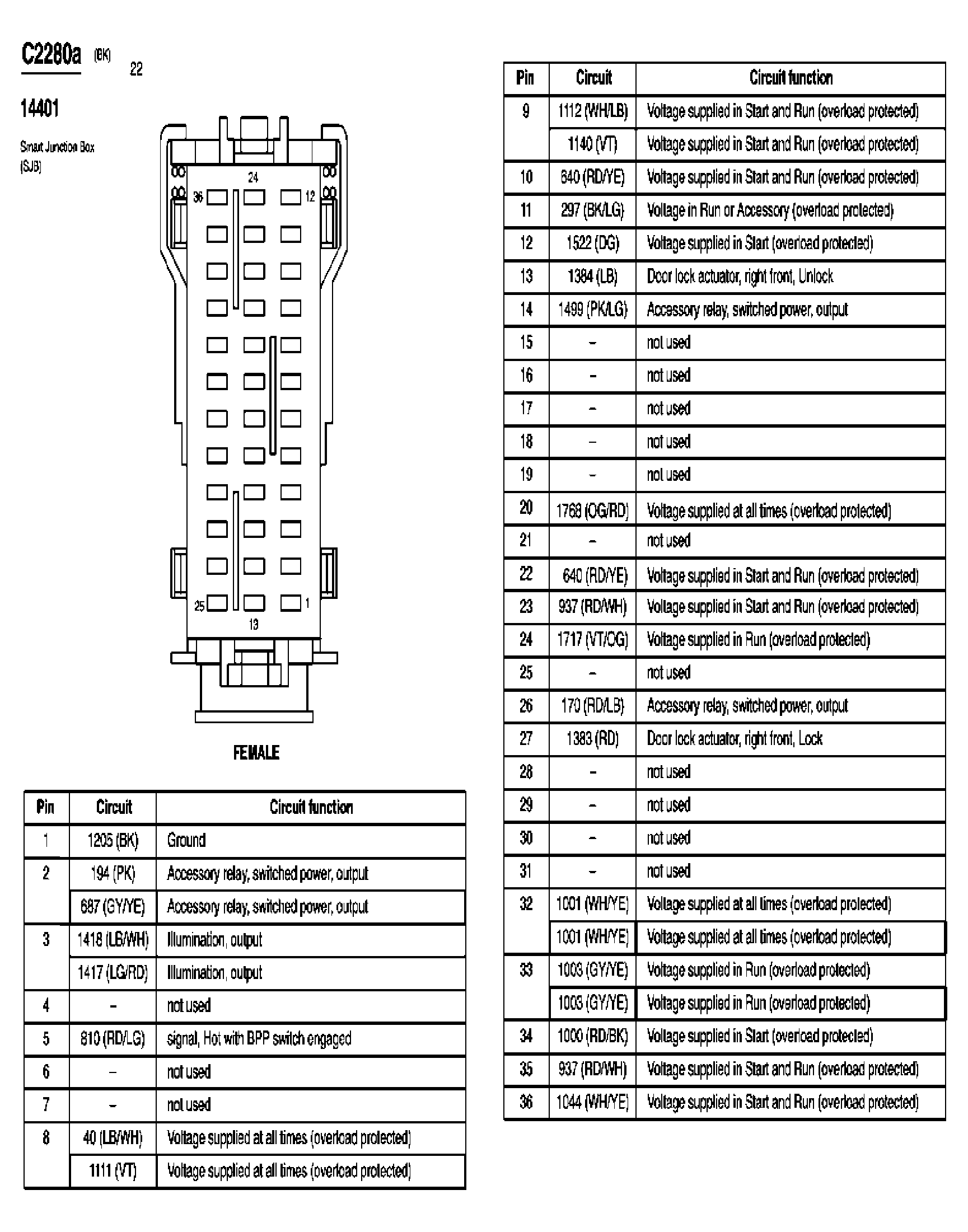

Fig 283: Smart Junction Box (SJB) Connector End View (C2280a)
G03994235Courtesy of FORD MOTOR CO.

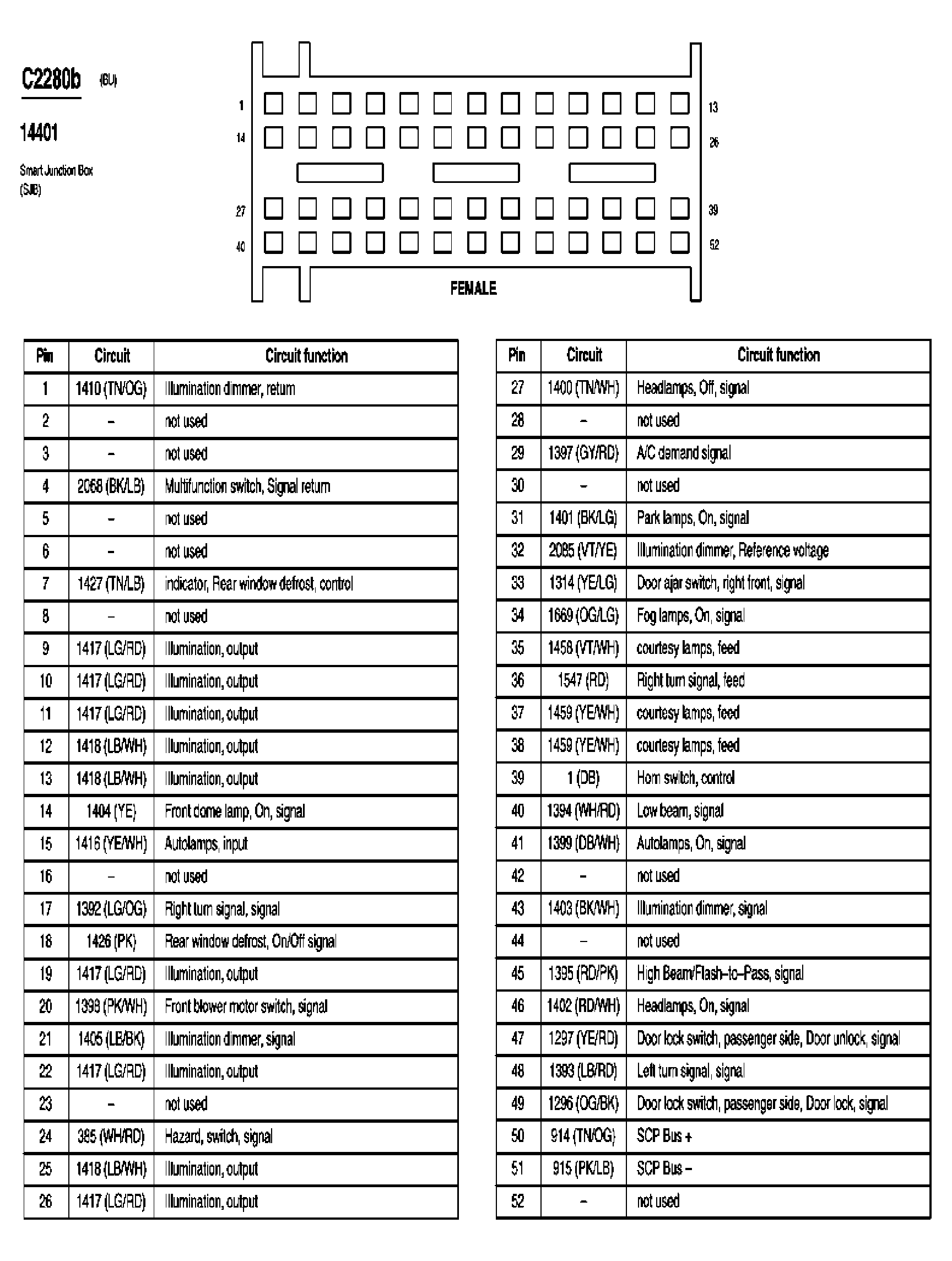

Fig 284: Smart Junction Box (SJB) Connector End View (C2280b)
G03994236Courtesy of FORD MOTOR CO.

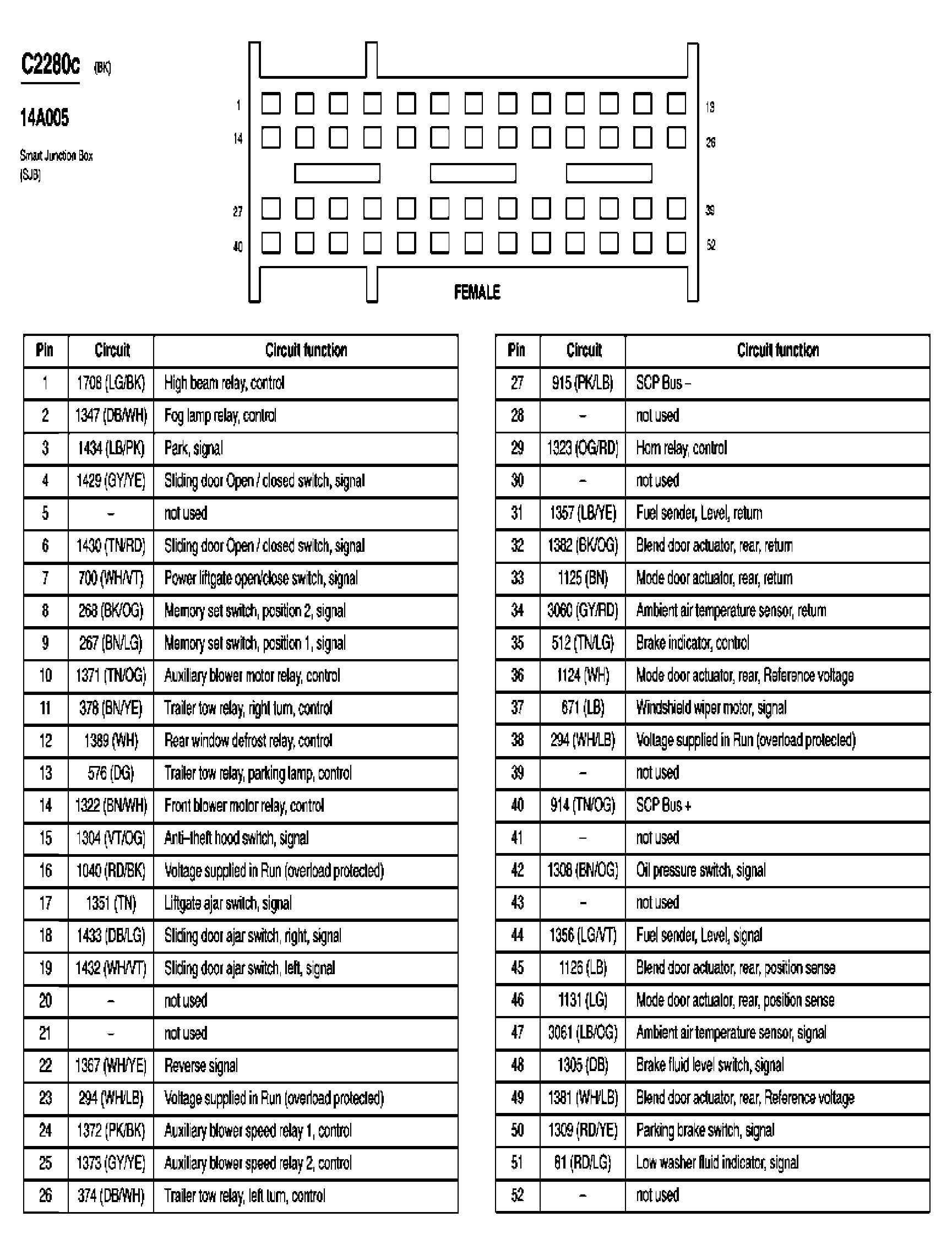

Fig 285: Smart Junction Box (SJB) Connector End View (C2280c)
G03994237Courtesy of FORD MOTOR CO.

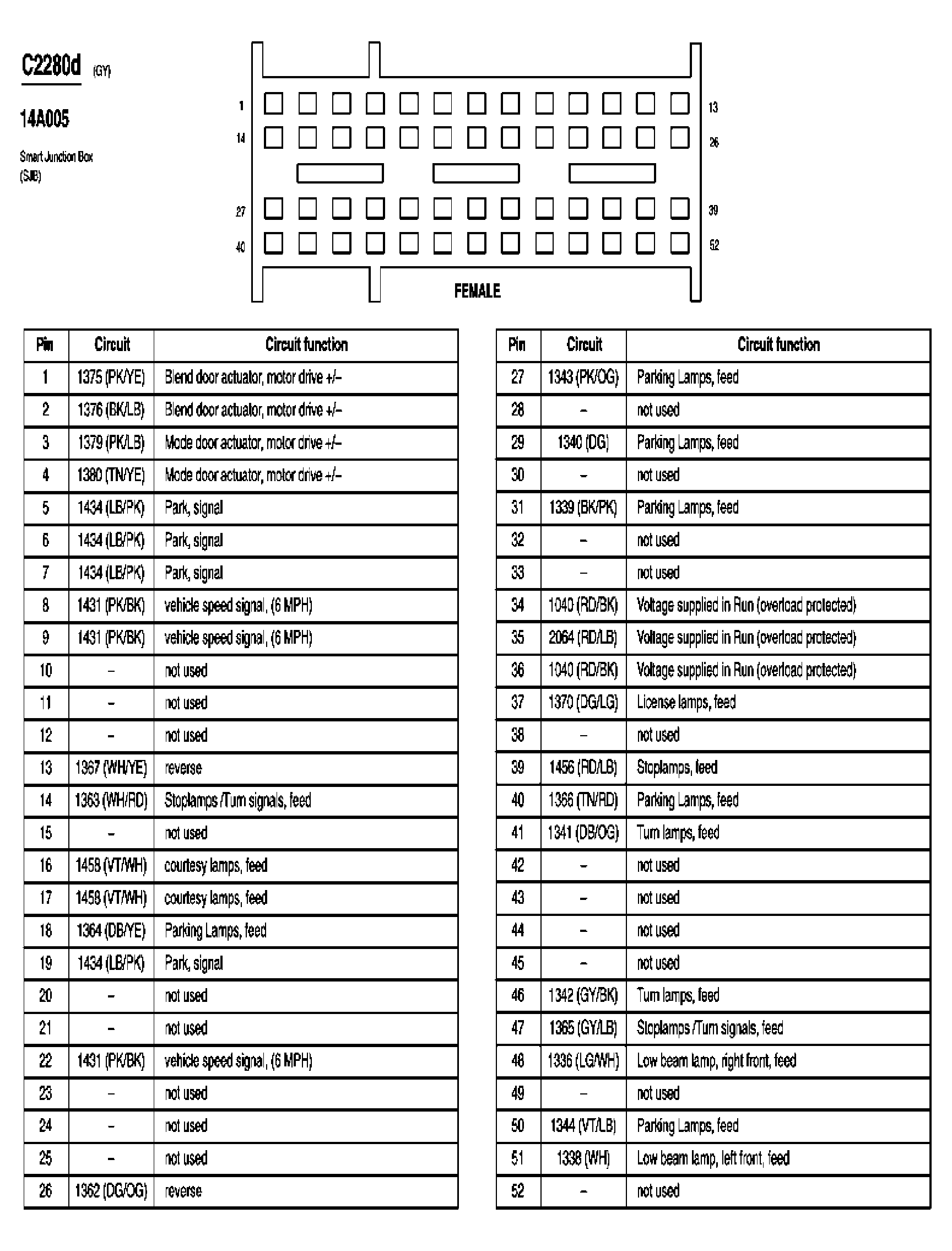

Fig 286: Smart Junction Box (SJB) Connector End View (C2280d)
G03994238Courtesy of FORD MOTOR CO.

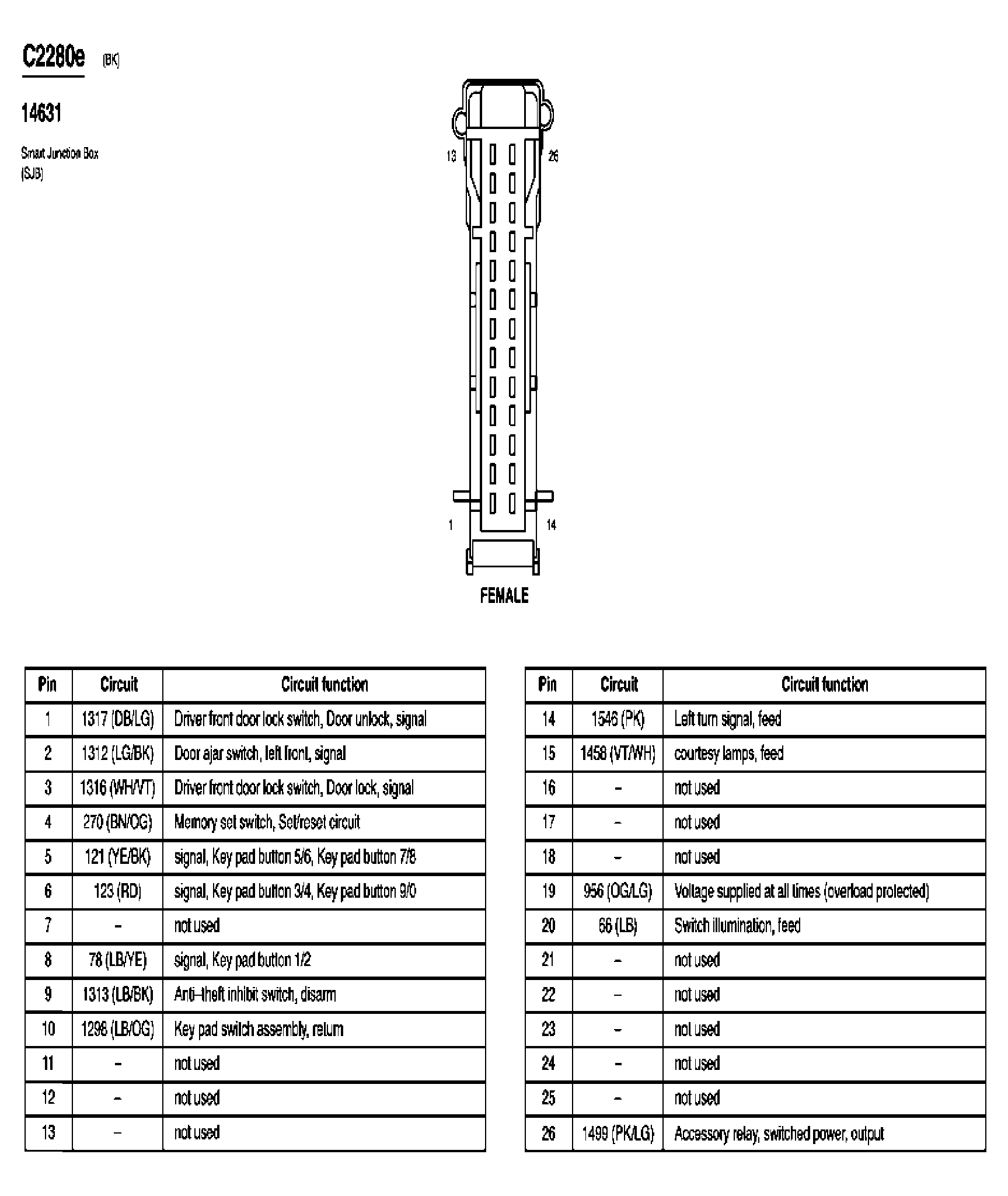

Fig 287: Smart Junction Box (SJB) Connector End View (C2280e)
G03994239Courtesy of FORD MOTOR CO.

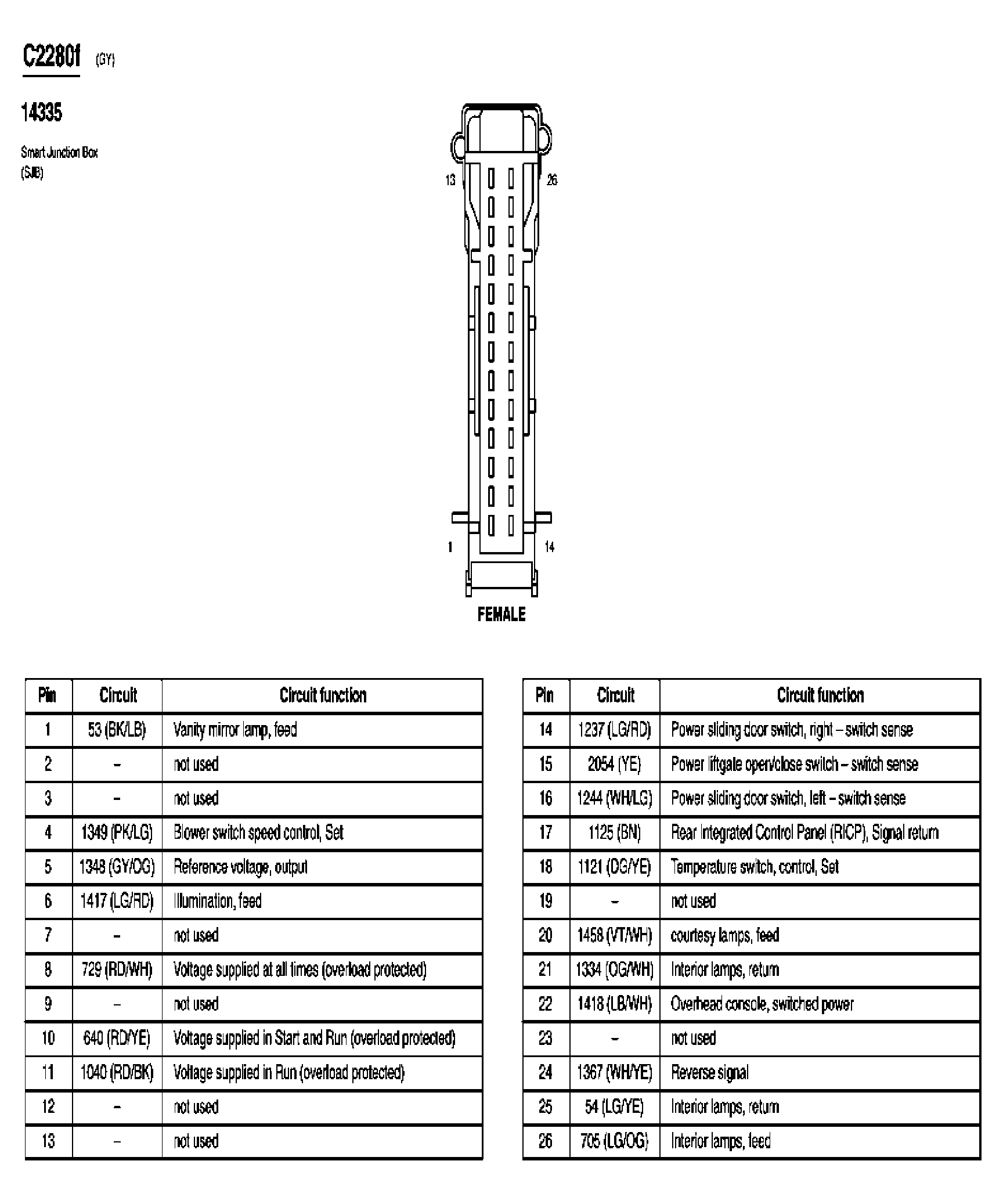

Fig 288: Smart Junction Box (SJB) Connector End View (C2280f)
G03994240Courtesy of FORD MOTOR CO.

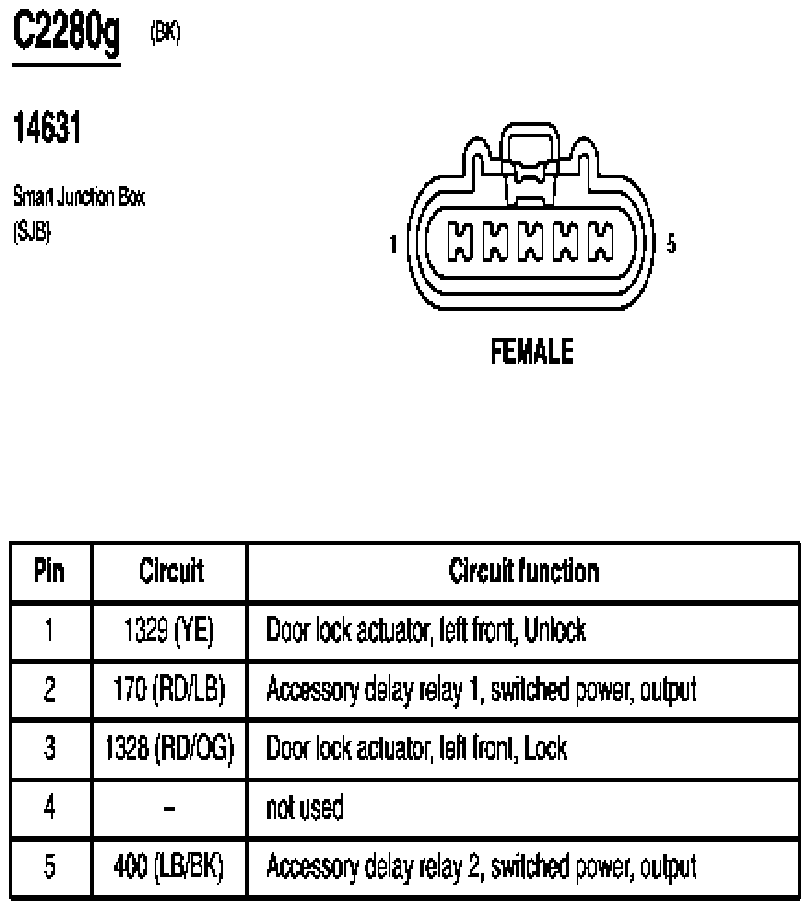

Fig 289: Smart Junction Box (SJB) Connector End View (C2280g)
G03994241Courtesy of FORD MOTOR CO.

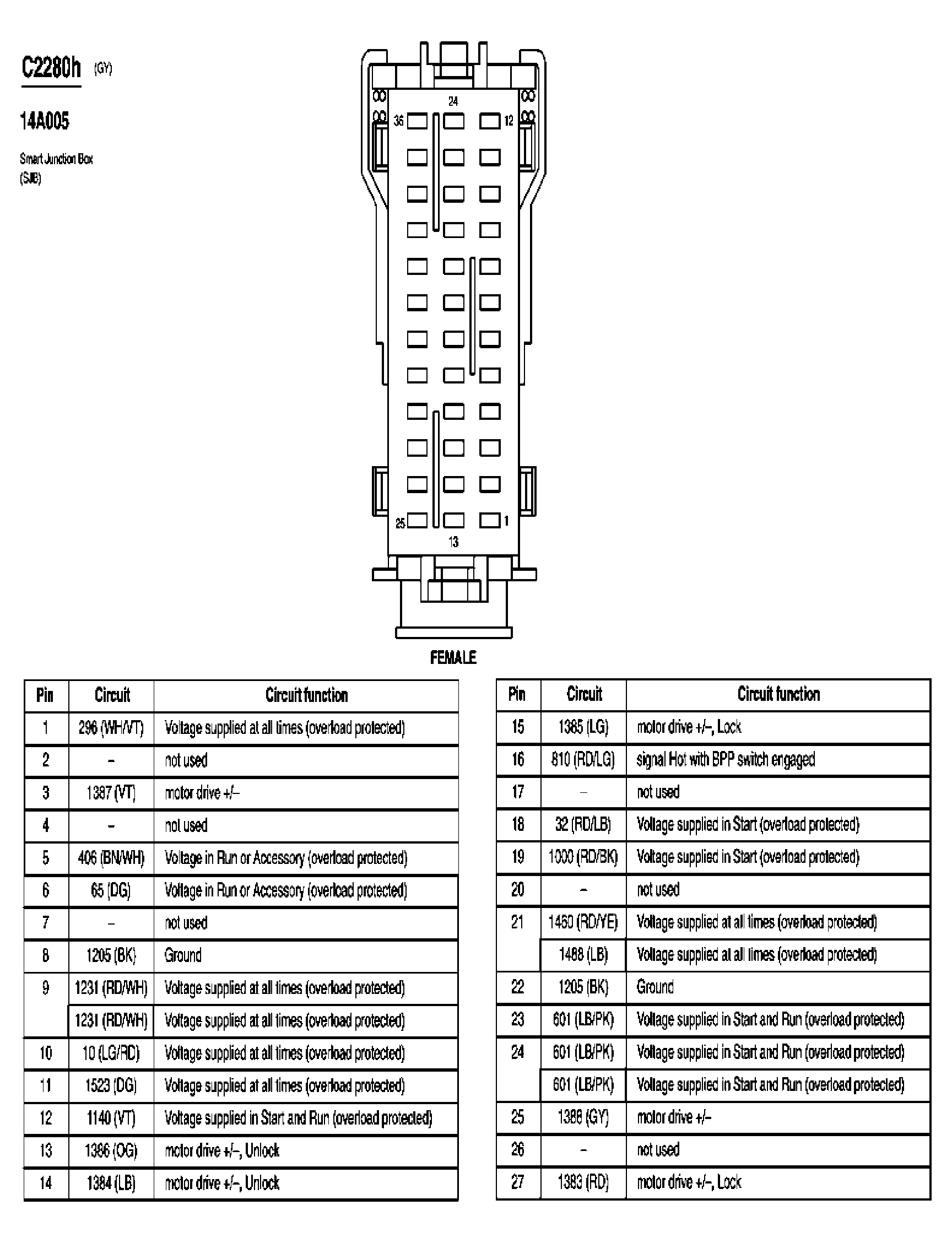

Fig 290: Smart Junction Box (SJB) Connector End View (C2280h) (1 Of 2)
G03994242Courtesy of FORD MOTOR CO.

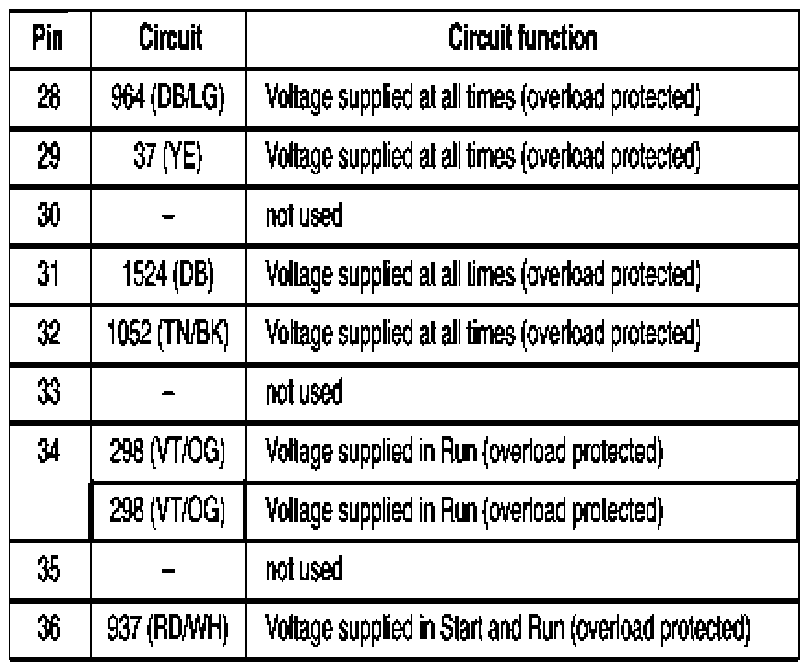

Fig 291: Smart Junction Box (SJB) Connector End View (C2280h) (2 Of 2)
G03994243Courtesy of FORD MOTOR CO.

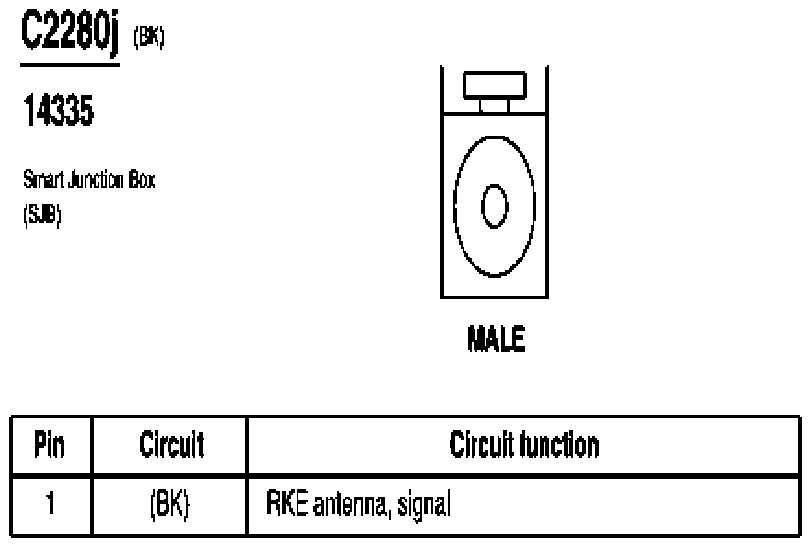

Fig 292: Smart Junction Box (SJB) Connector End View (C2280j)
G07844545Courtesy of FORD MOTOR CO.

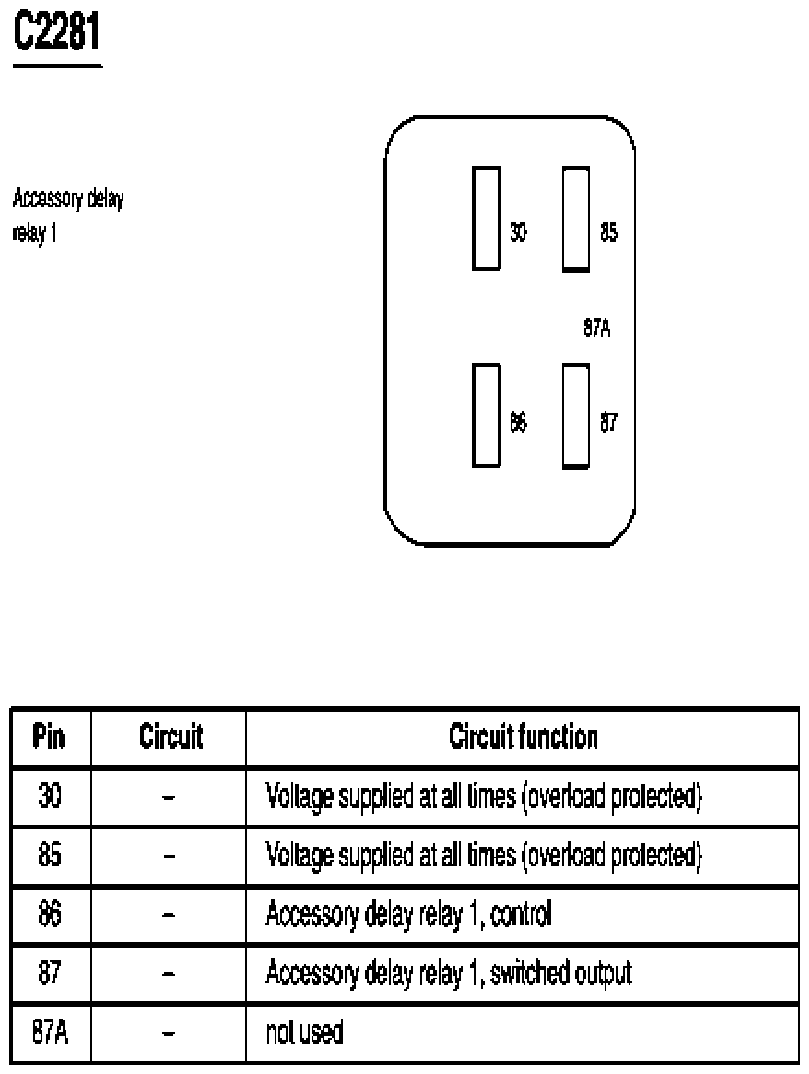

Fig 293: Accessory Delay Relay 1 Connector End View (C2281)
G07844546Courtesy of FORD MOTOR CO.

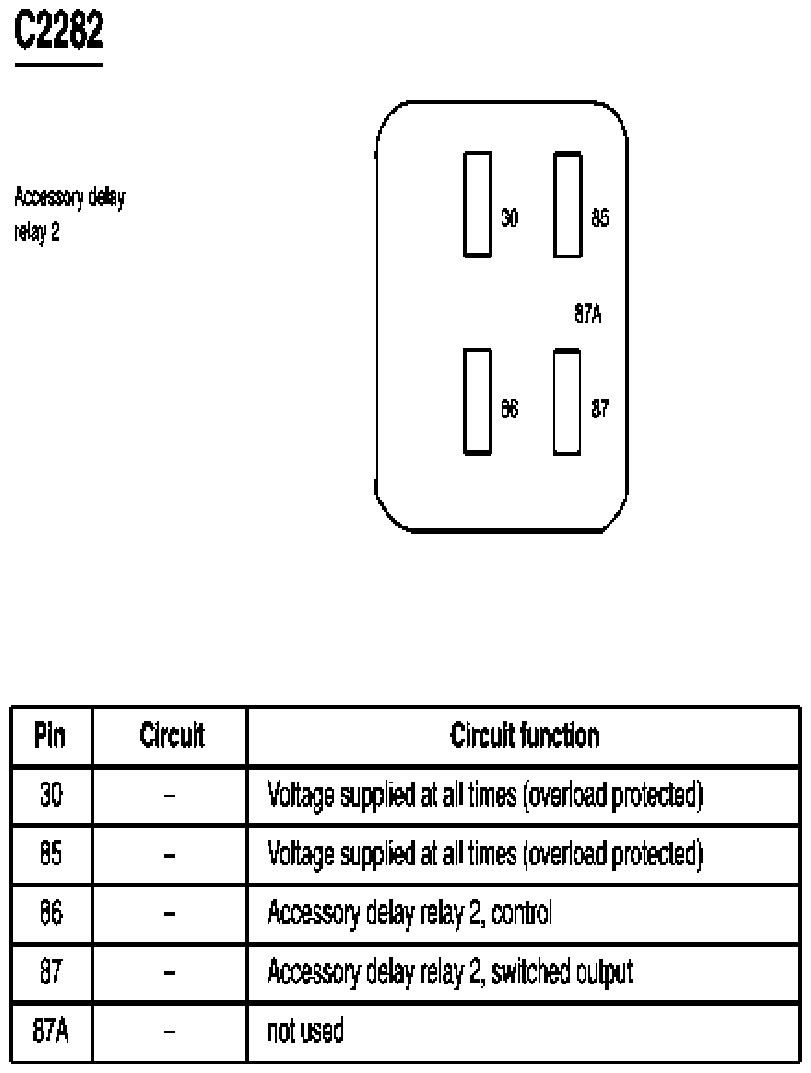

Fig 294: Accessory Delay Relay 2 Connector End View (C2282)
G07844547Courtesy of FORD MOTOR CO.

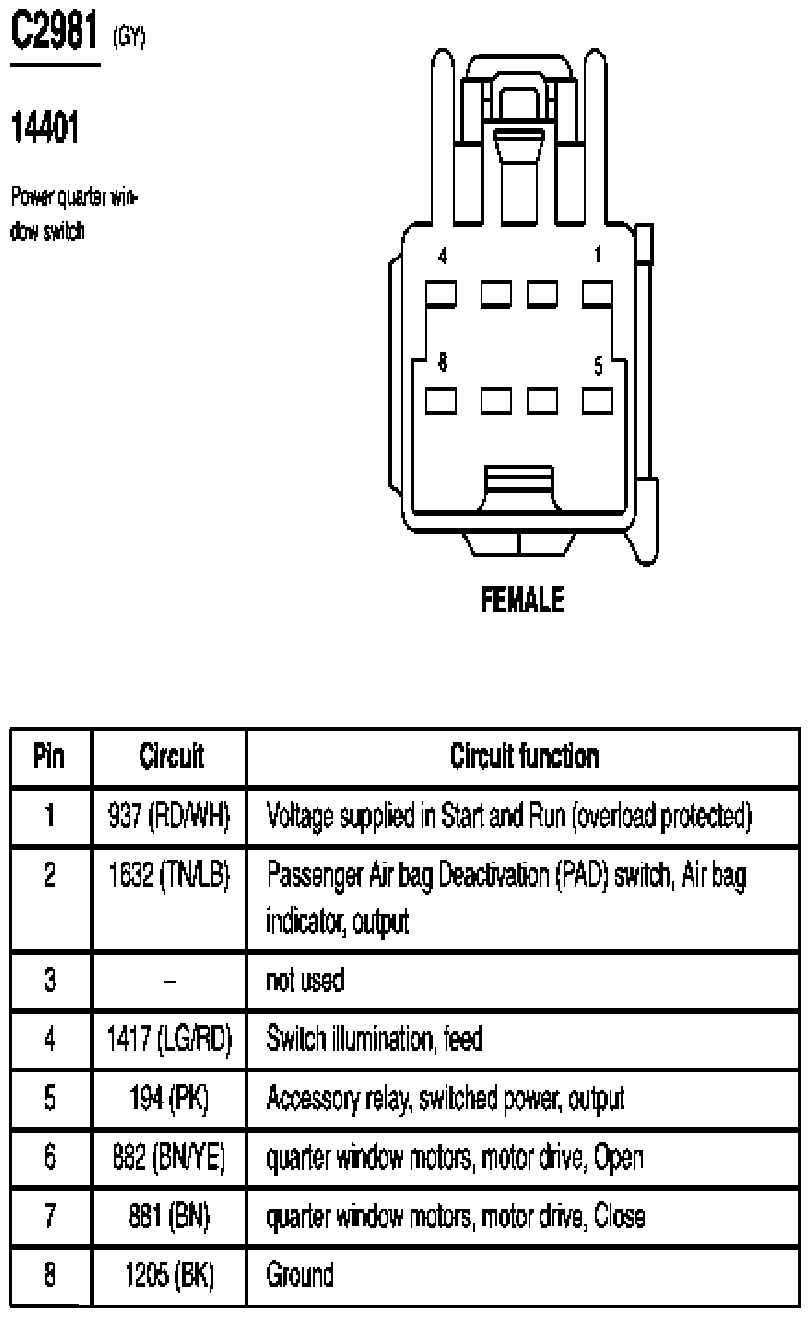

Fig 295: Power Quarter Window Switch Connector End View (C2981)
G07844548Courtesy of FORD MOTOR CO.

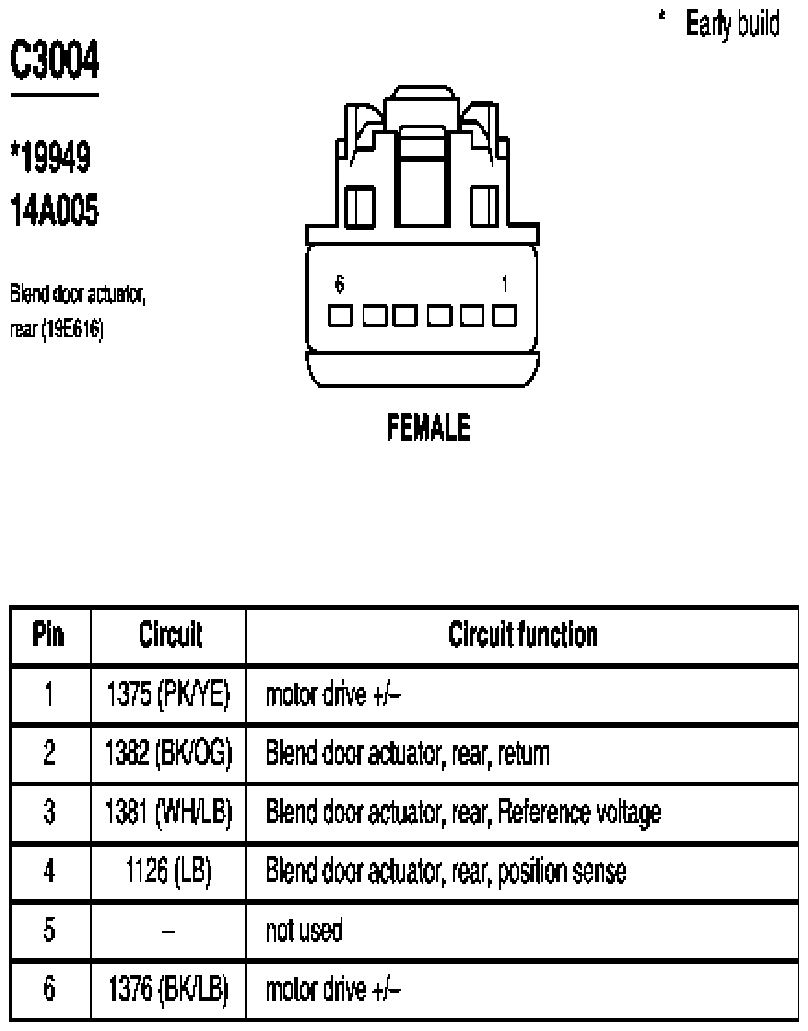

Fig 296: Blend Door Actuator, Rear Connector End View (C3004)
G07844549Courtesy of FORD MOTOR CO.

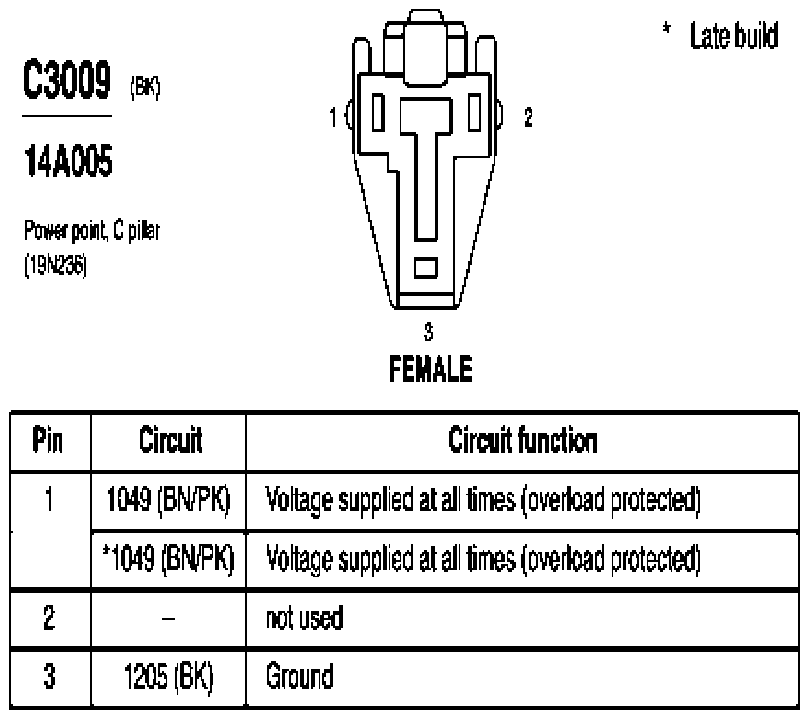

Fig 297: Power Point, C Pillar Connector End View (C3009)
G07844550Courtesy of FORD MOTOR CO.

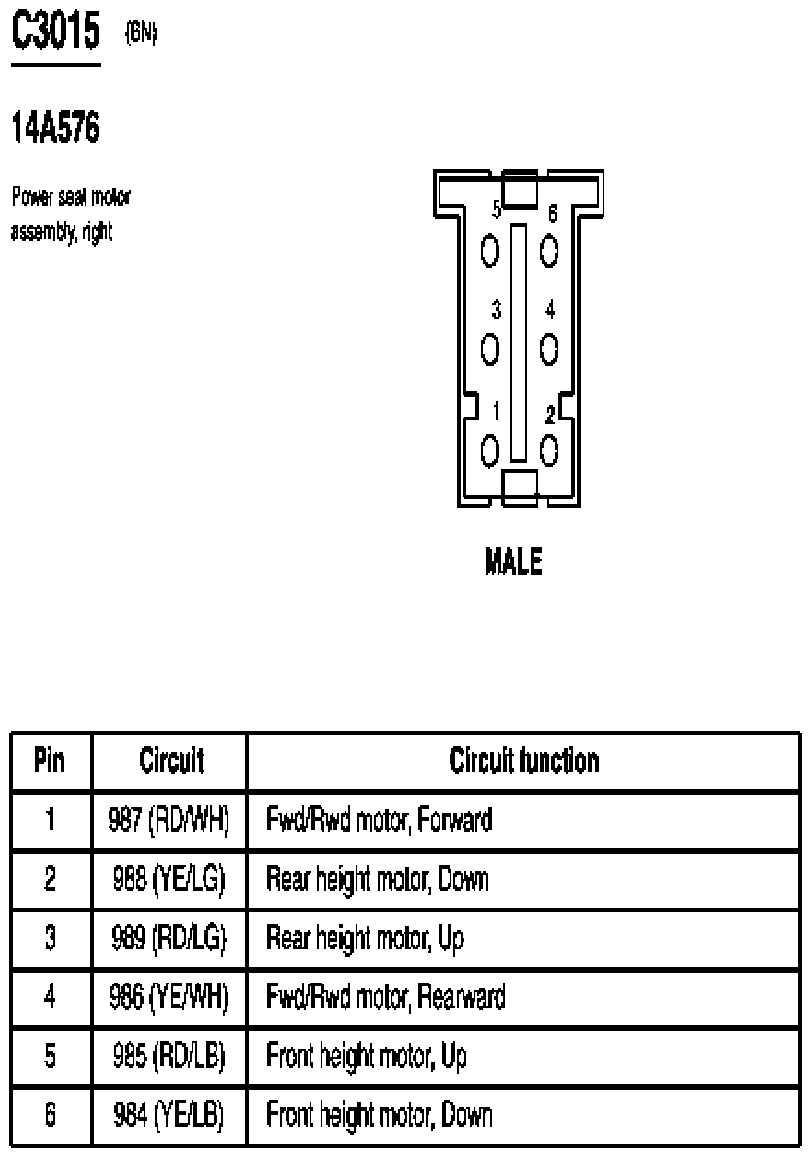

Fig 298: Power Seat Motor Assembly, Right Connector End View (C3015)
G07844551Courtesy of FORD MOTOR CO.

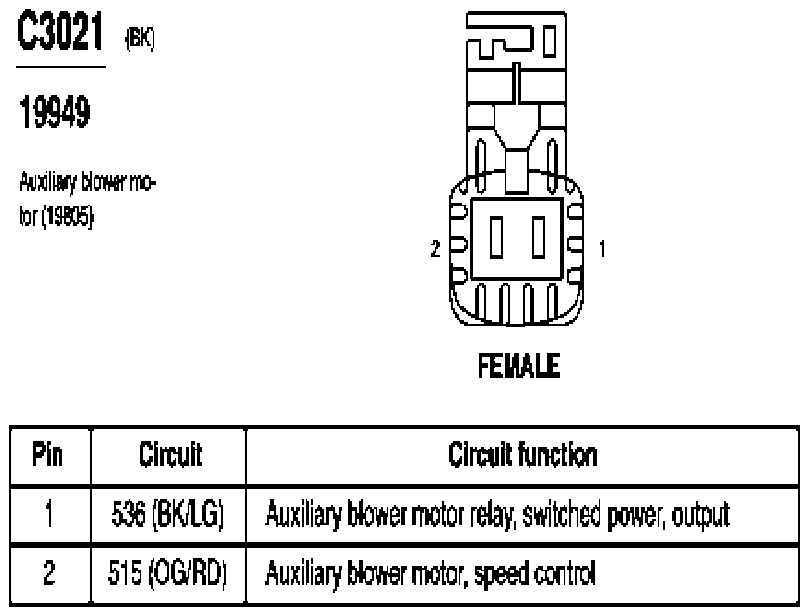

Fig 299: Auxiliary Blower Motor Relay Connector End View (C3021)
G07844552Courtesy of FORD MOTOR CO.

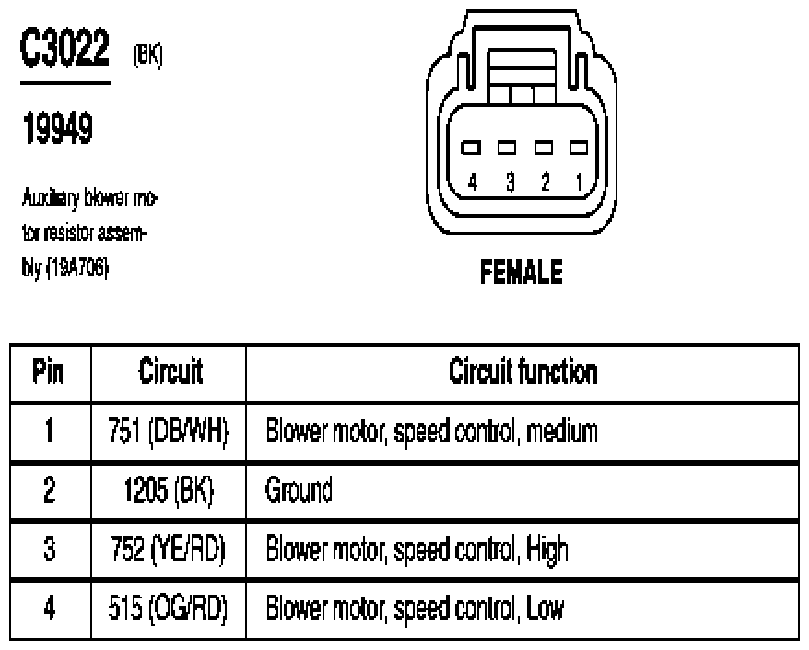

Fig 300: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)
G07844553Courtesy of FORD MOTOR CO.

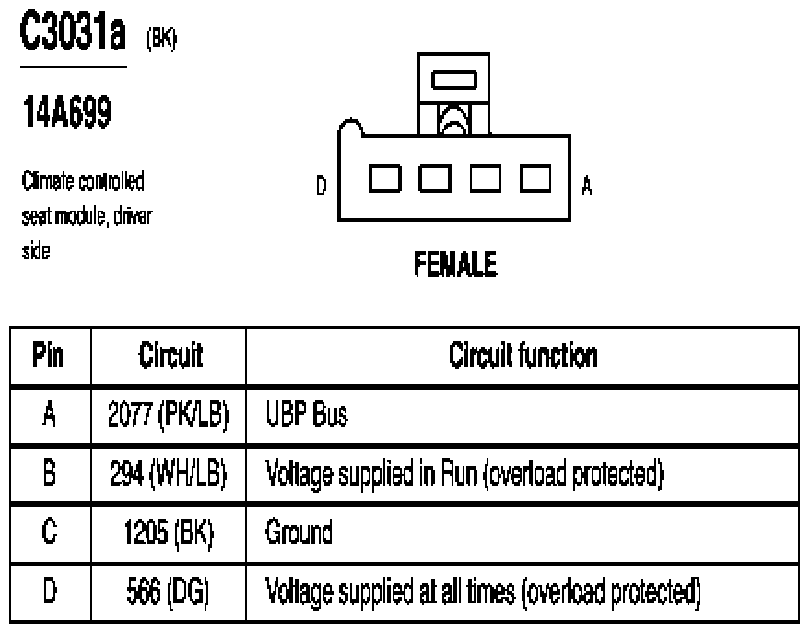

Fig 301: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
G07844554Courtesy of FORD MOTOR CO.

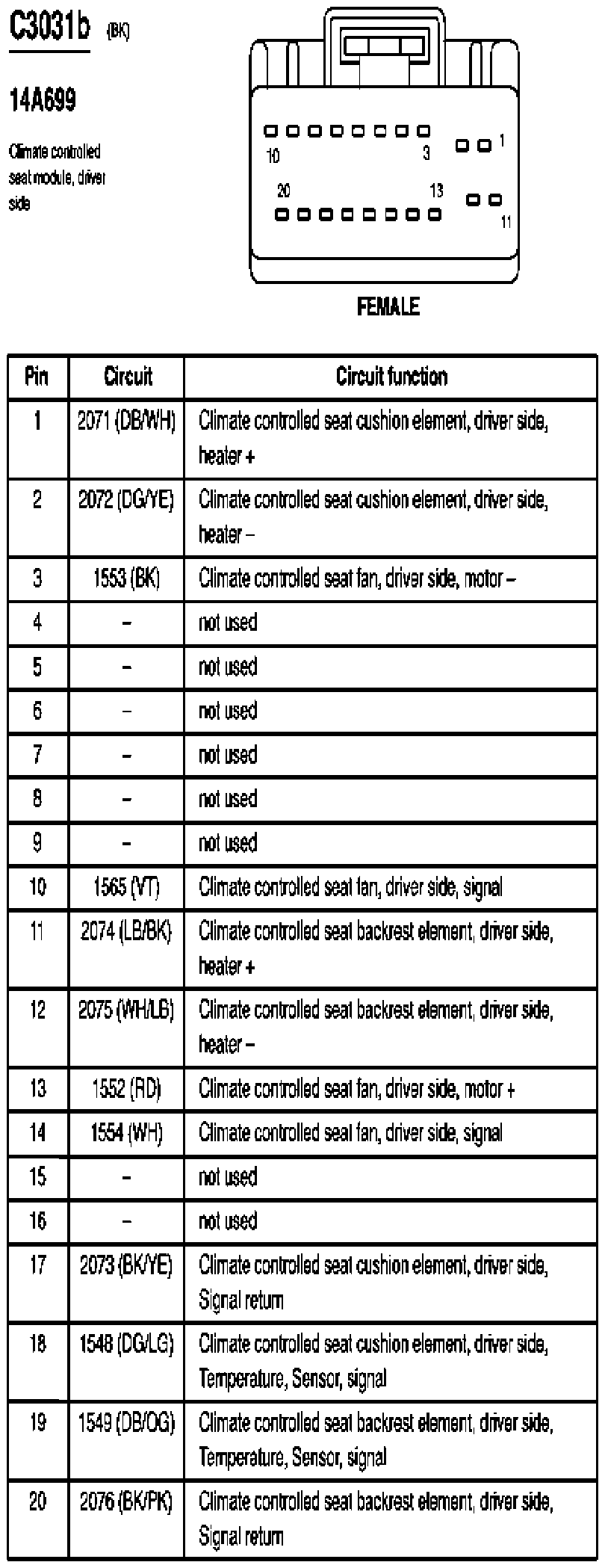

Fig 302: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)
G07844555Courtesy of FORD MOTOR CO.

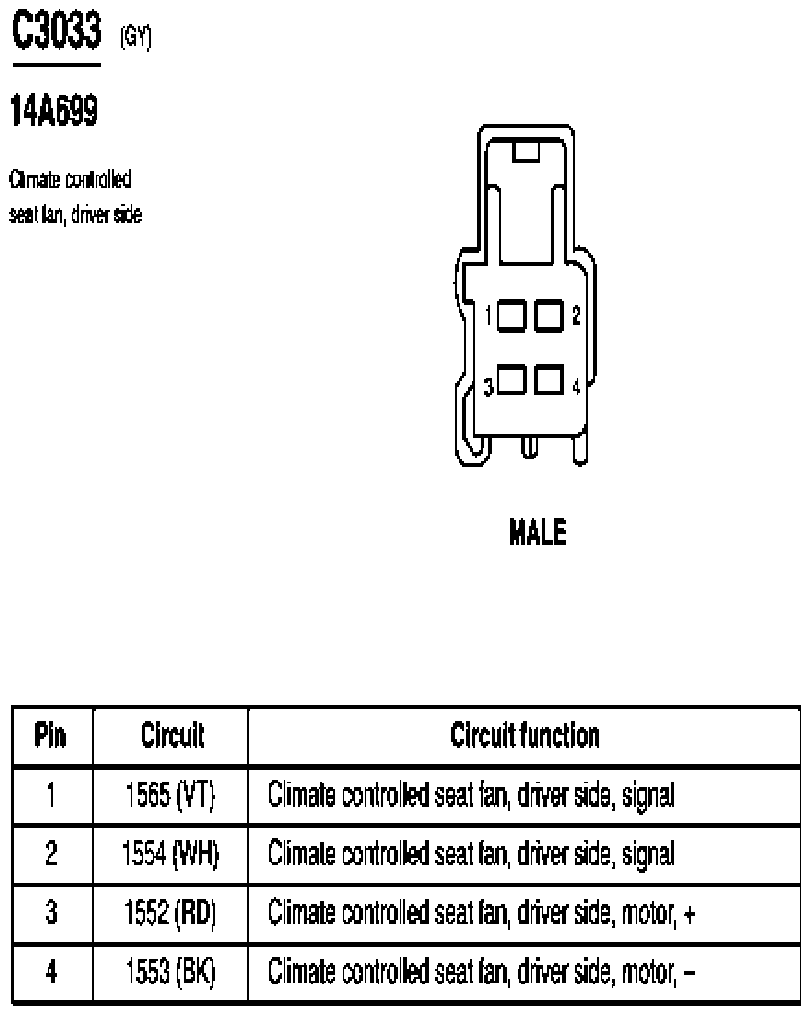

Fig 303: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
G07844556Courtesy of FORD MOTOR CO.

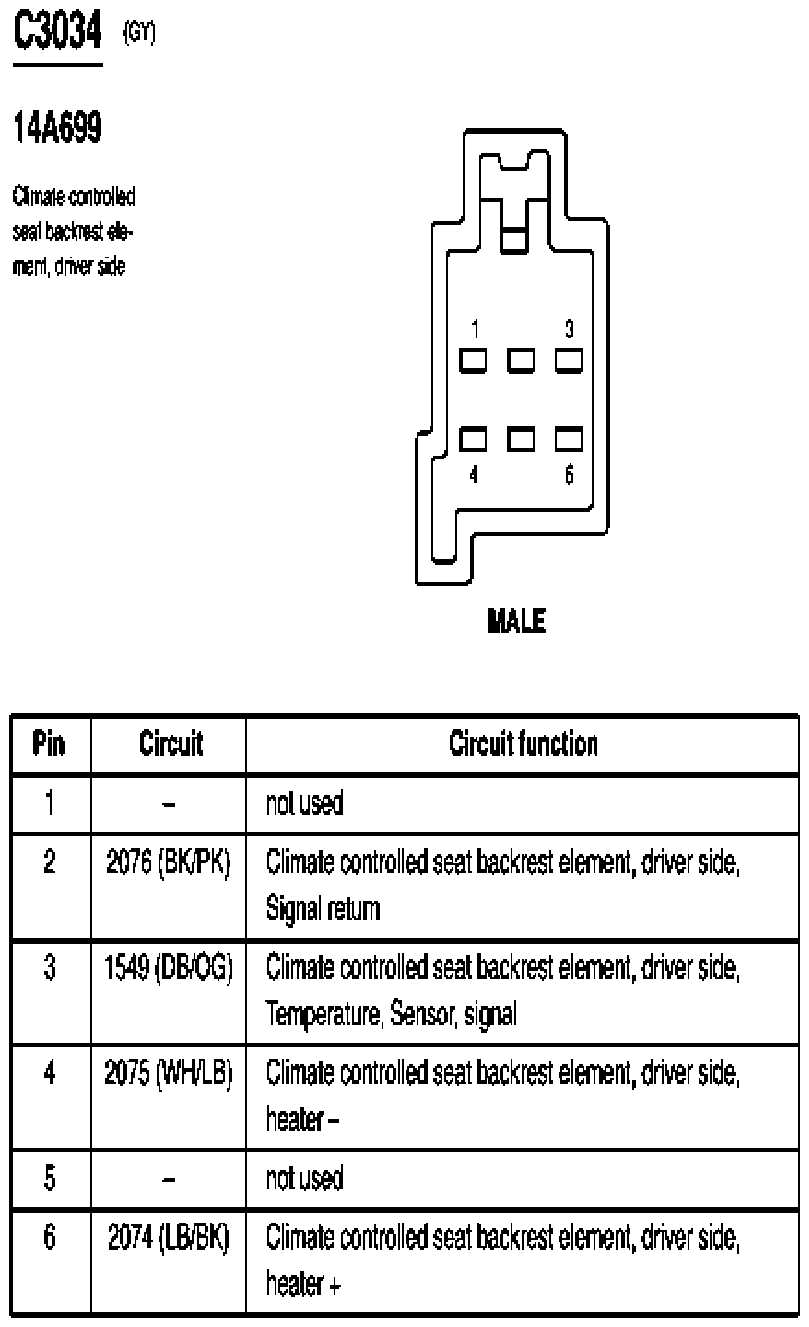

Fig 304: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
G07844557Courtesy of FORD MOTOR CO.

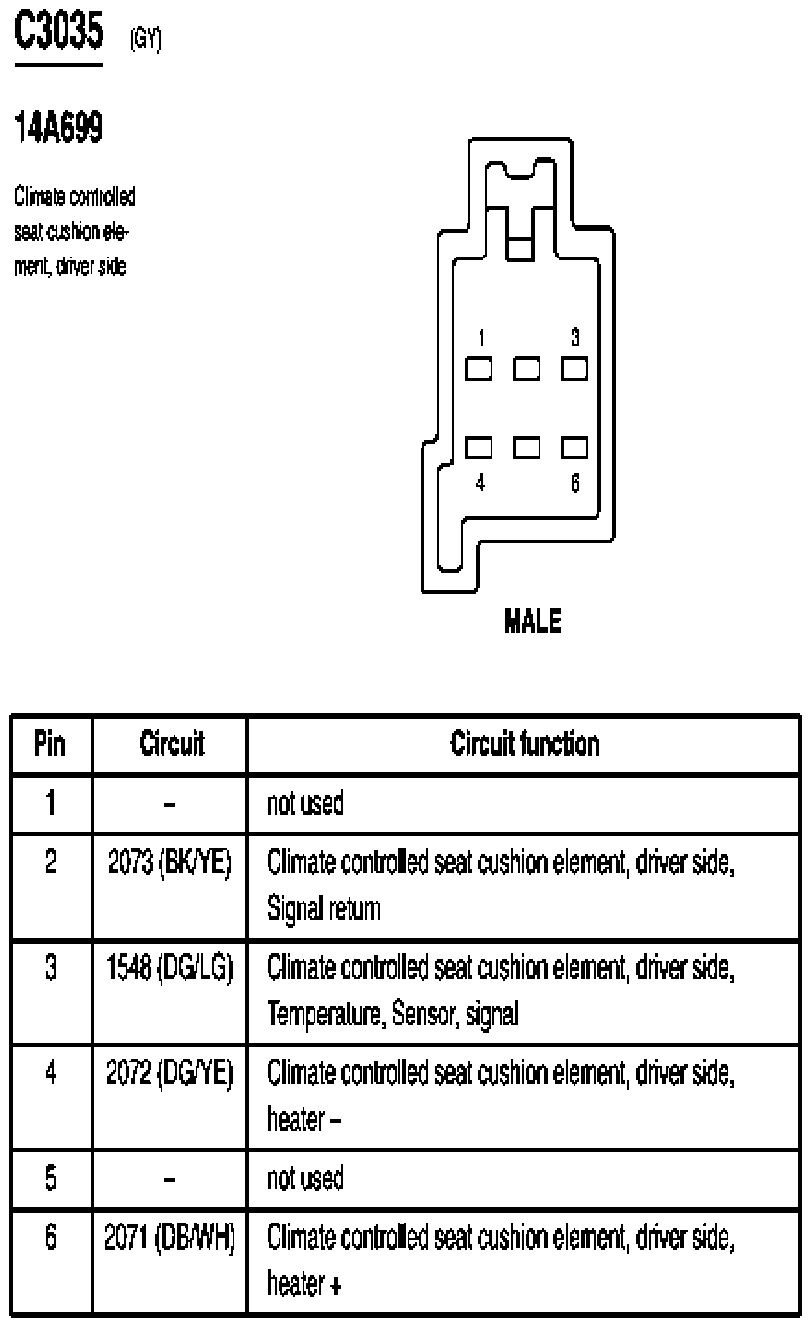

Fig 305: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)
G07844558Courtesy of FORD MOTOR CO.

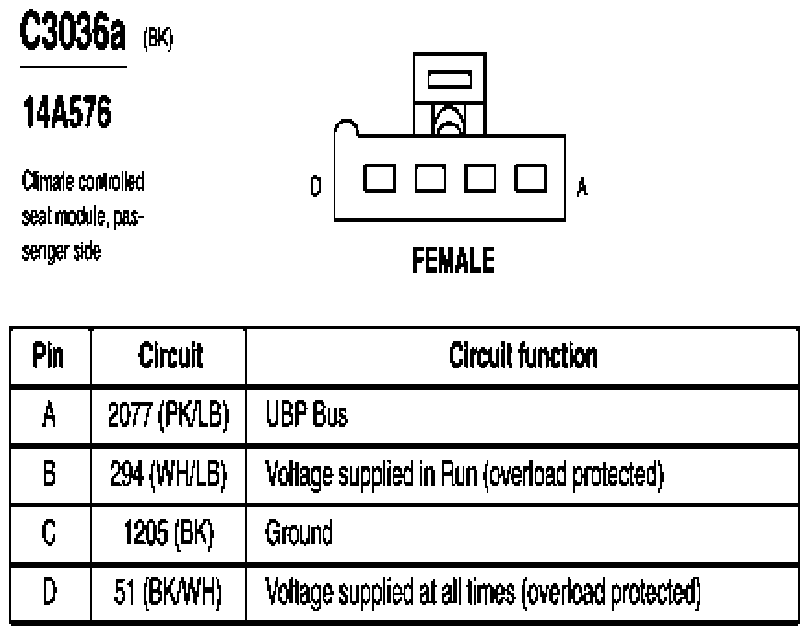

Fig 306: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)
G07844559Courtesy of FORD MOTOR CO.

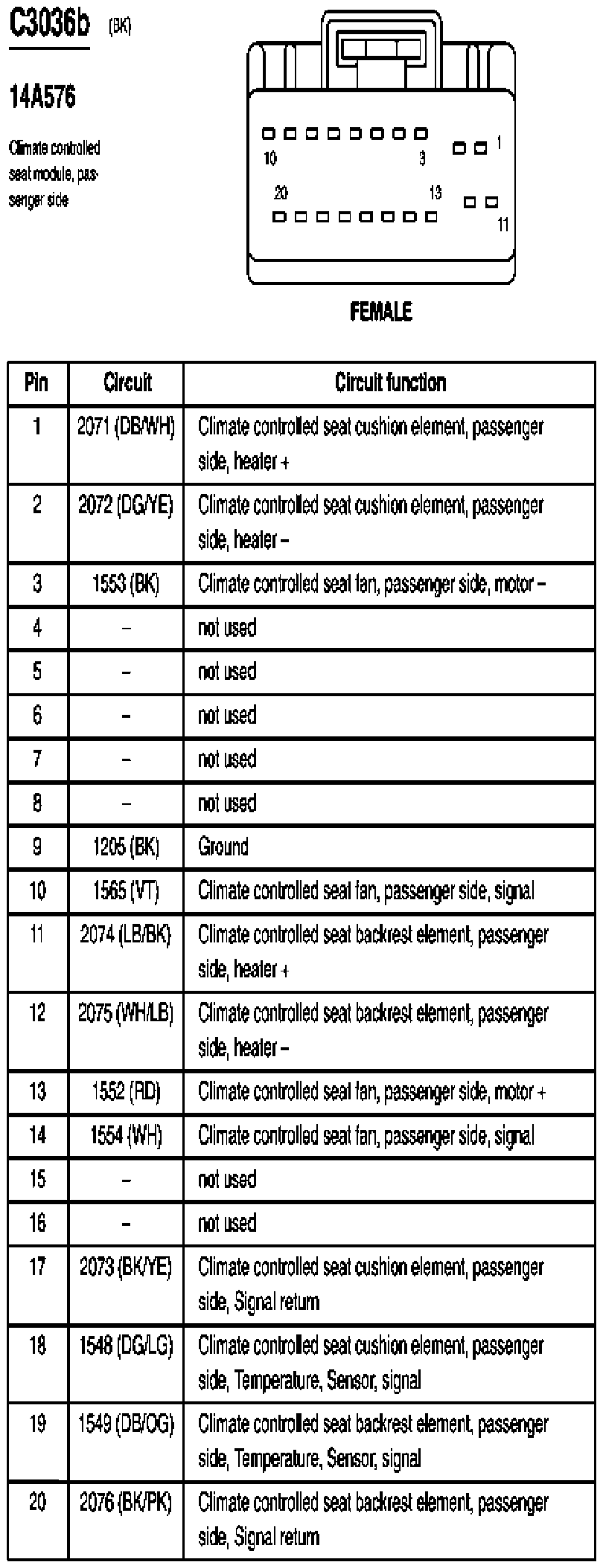

Fig 307: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
G07844560Courtesy of FORD MOTOR CO.

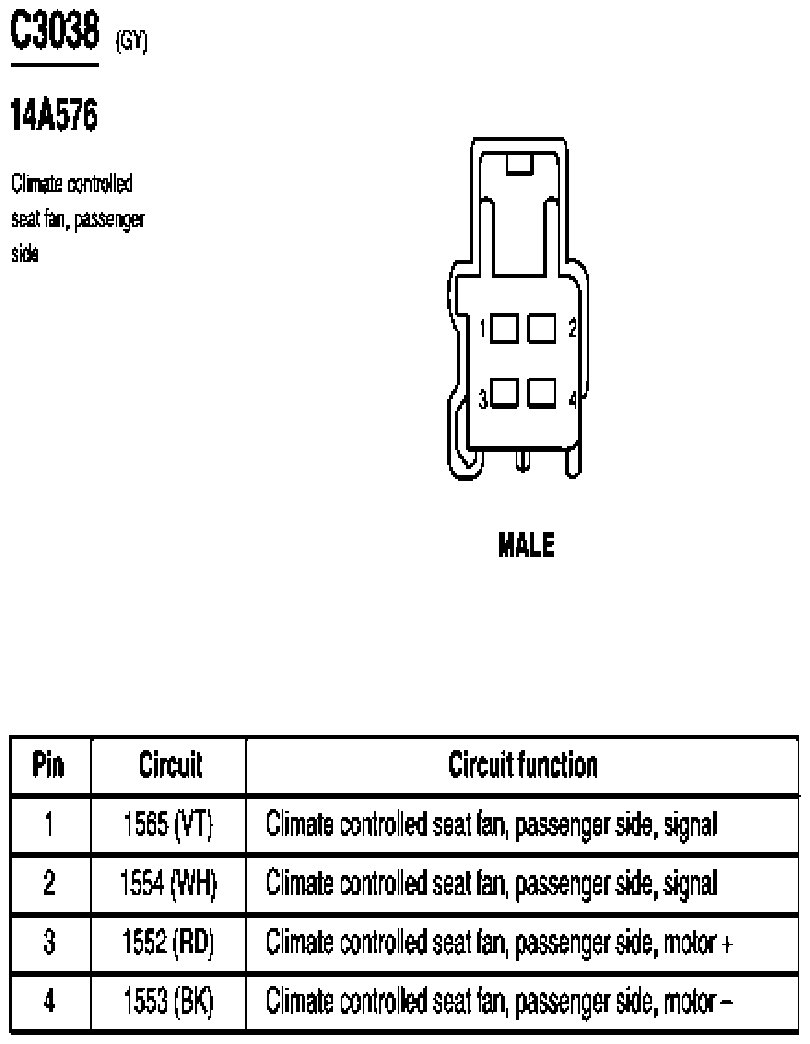

Fig 308: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
G07844561Courtesy of FORD MOTOR CO.

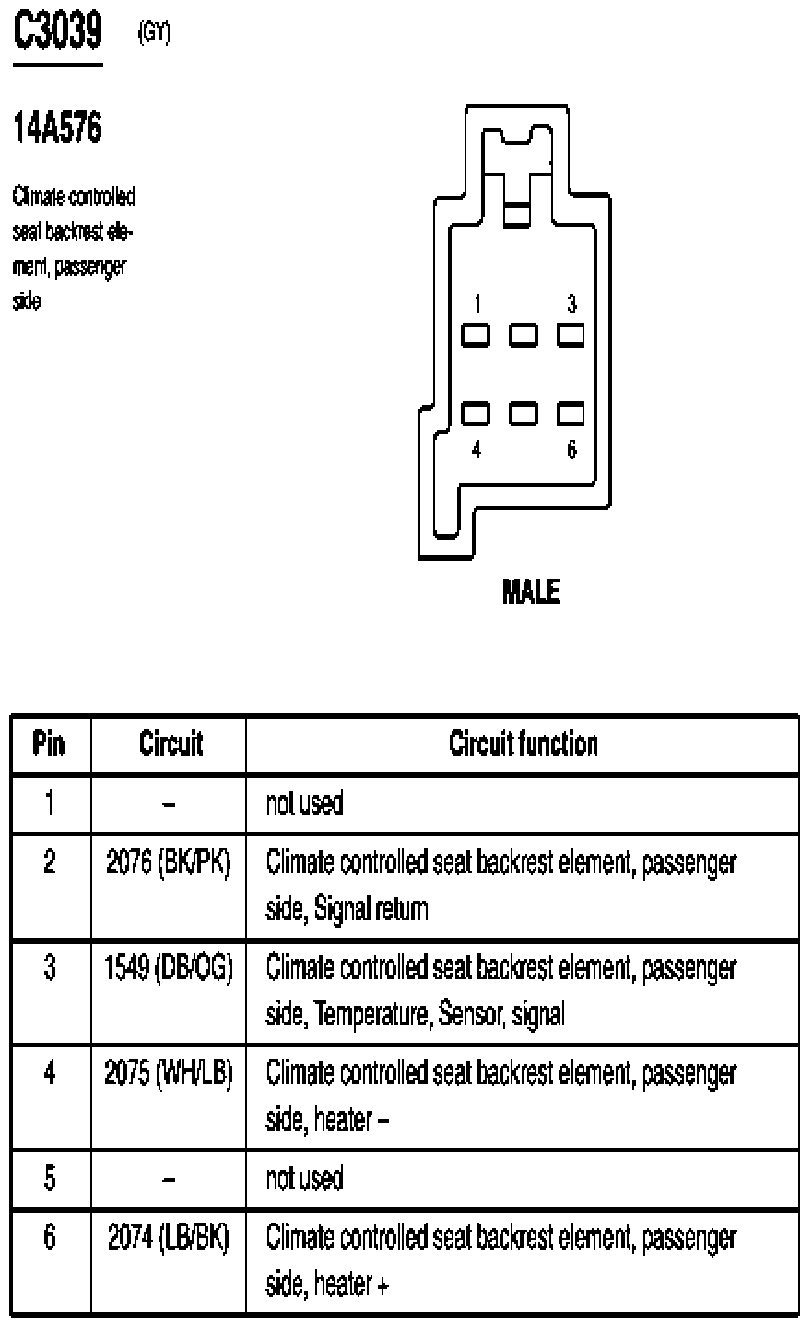

Fig 309: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
G07844562Courtesy of FORD MOTOR CO.

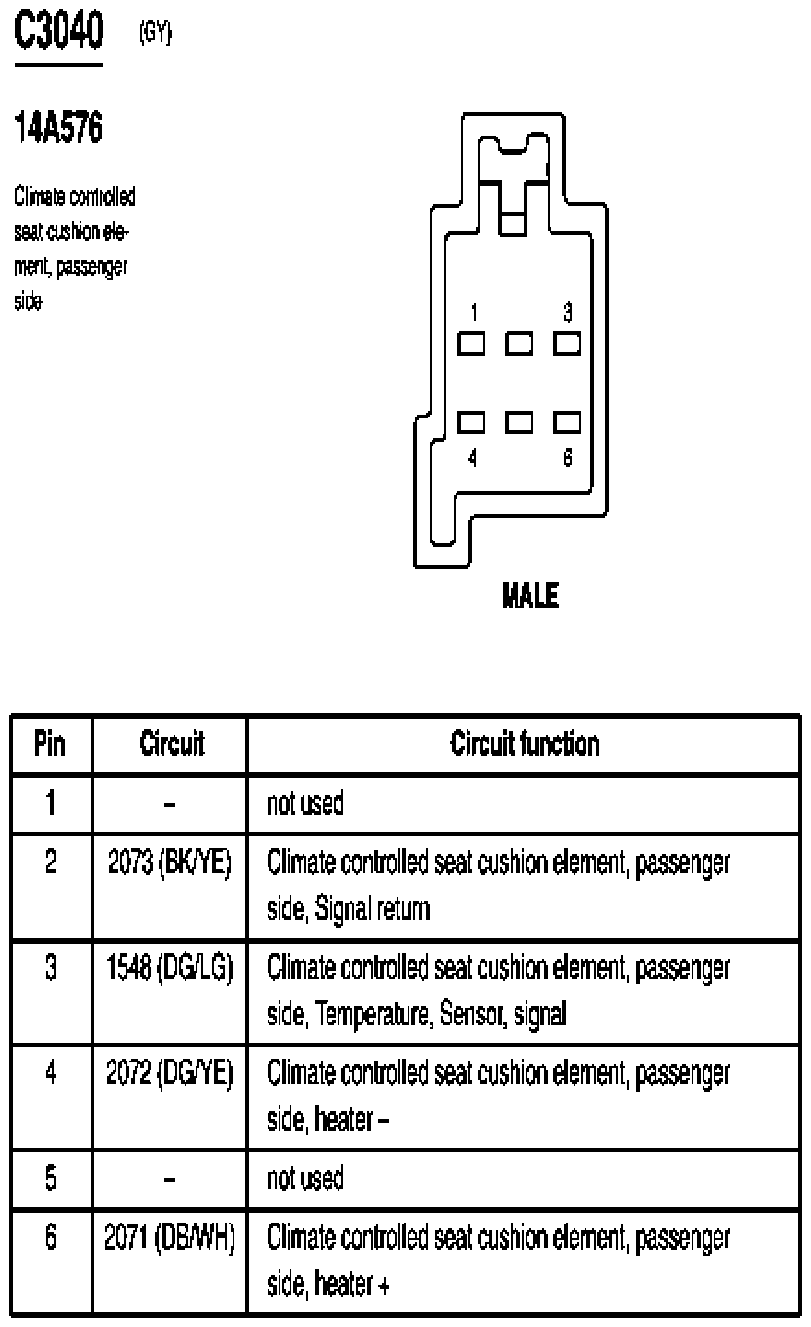

Fig 310: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
G07844563Courtesy of FORD MOTOR CO.

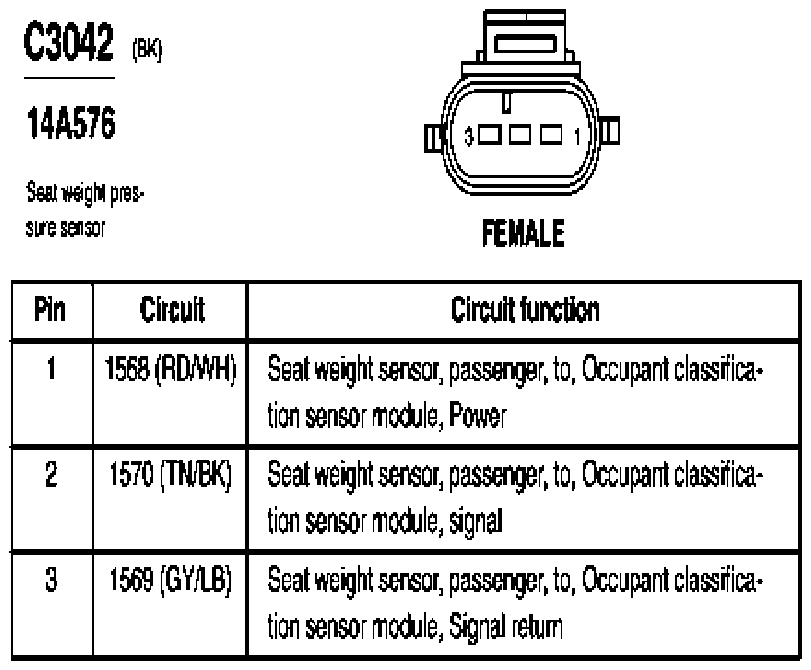

Fig 311: Seat Weight Pressure Sensor Connector End View (C3042)
G07844564Courtesy of FORD MOTOR CO.

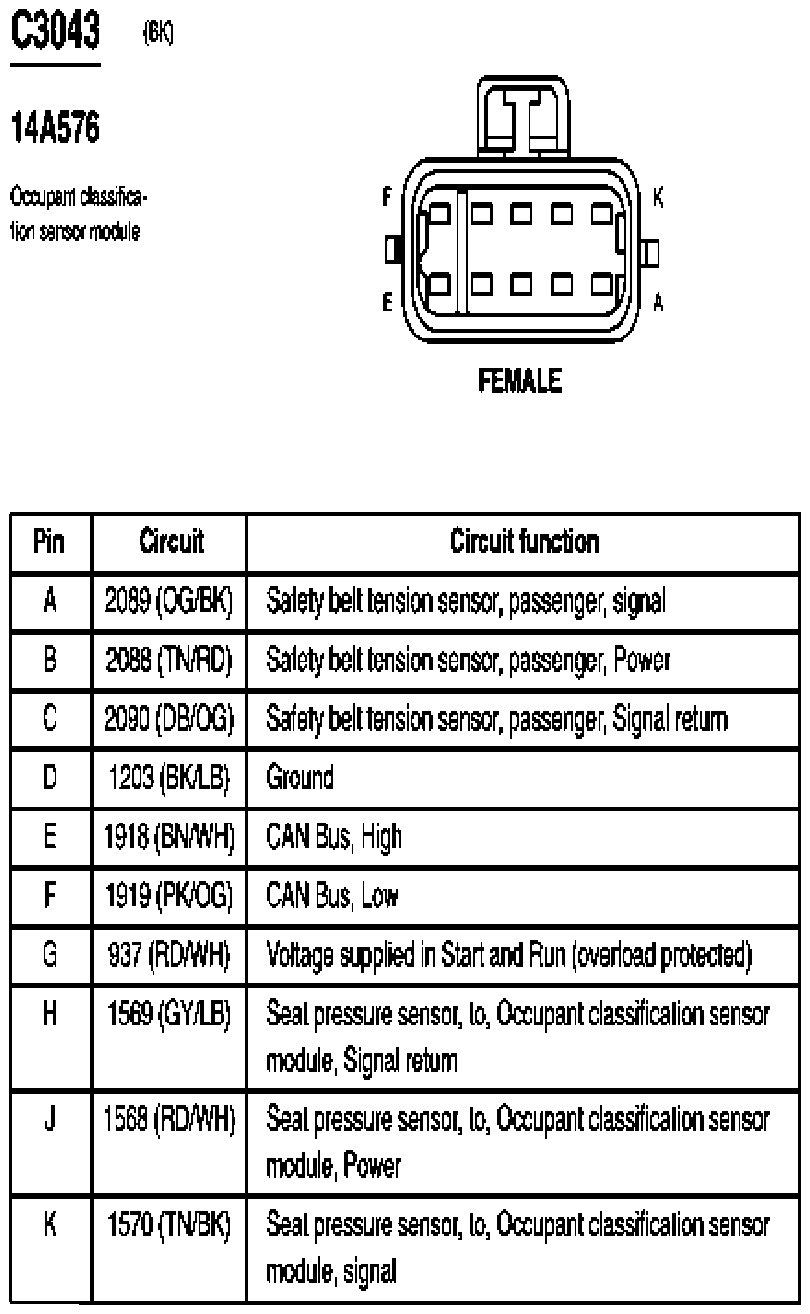

Fig 312: Occupant Classification Sensor Module Connector End View (C3043)
G07844565Courtesy of FORD MOTOR CO.

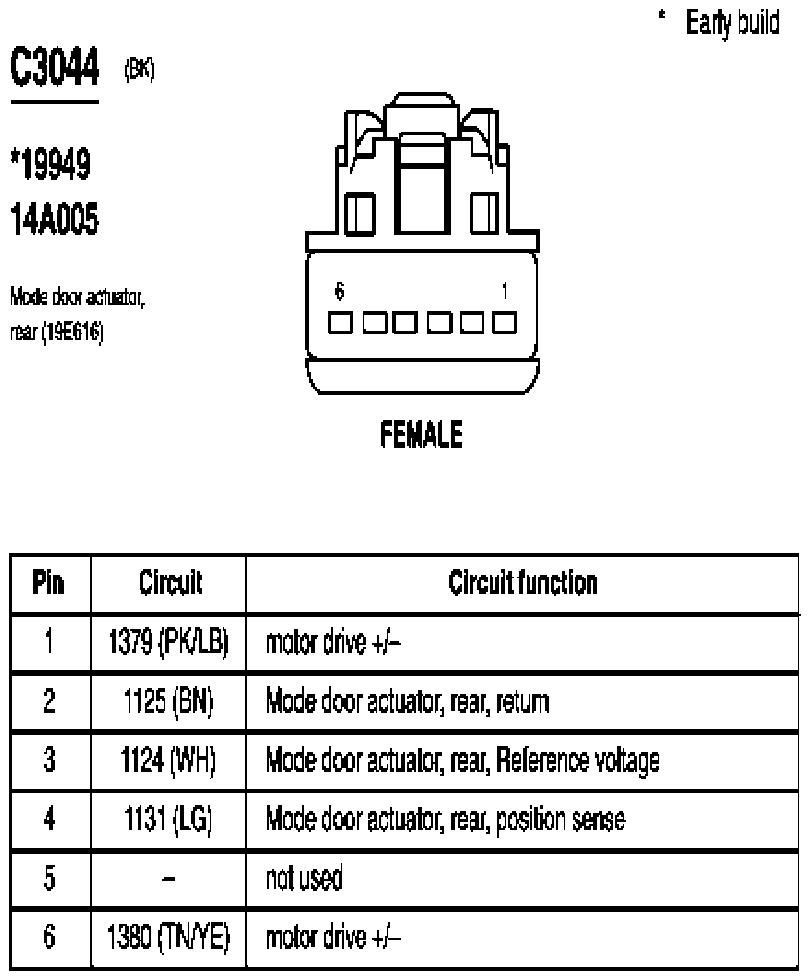

Fig 313: Mode Door Actuator, Rear Connector End View (C3044)
G07844566Courtesy of FORD MOTOR CO.

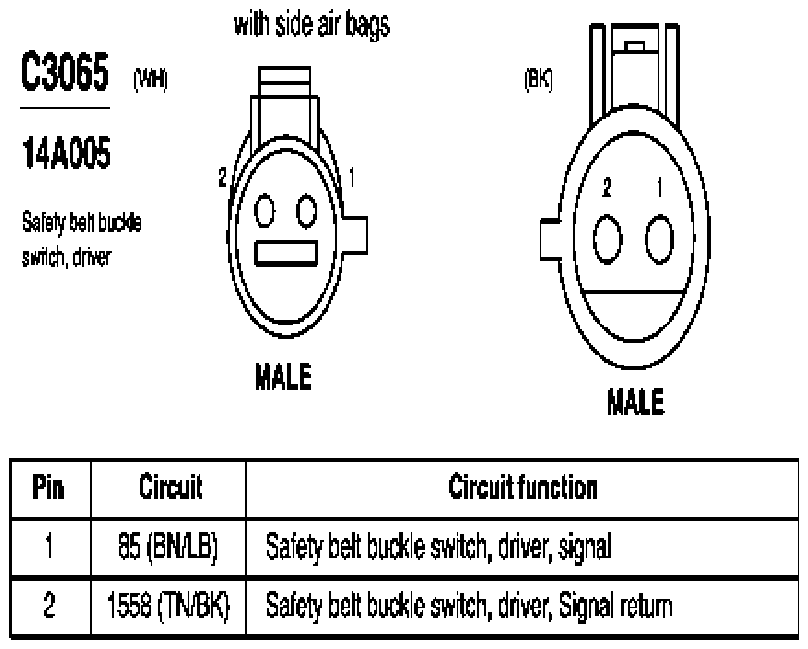

Fig 314: Safety Belt Buckle Switch, Driver Connector End View (C3065)
G07844567Courtesy of FORD MOTOR CO.

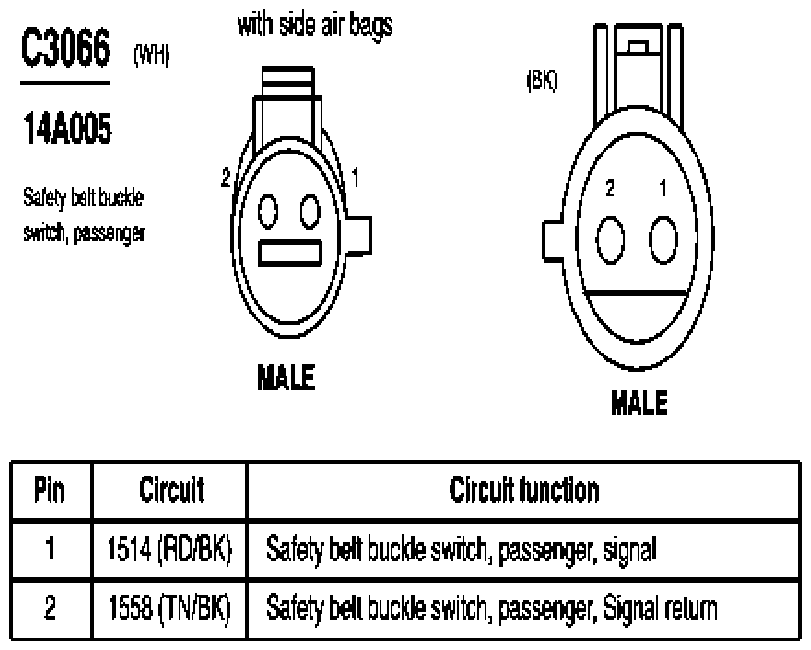

Fig 315: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
G07844568Courtesy of FORD MOTOR CO.

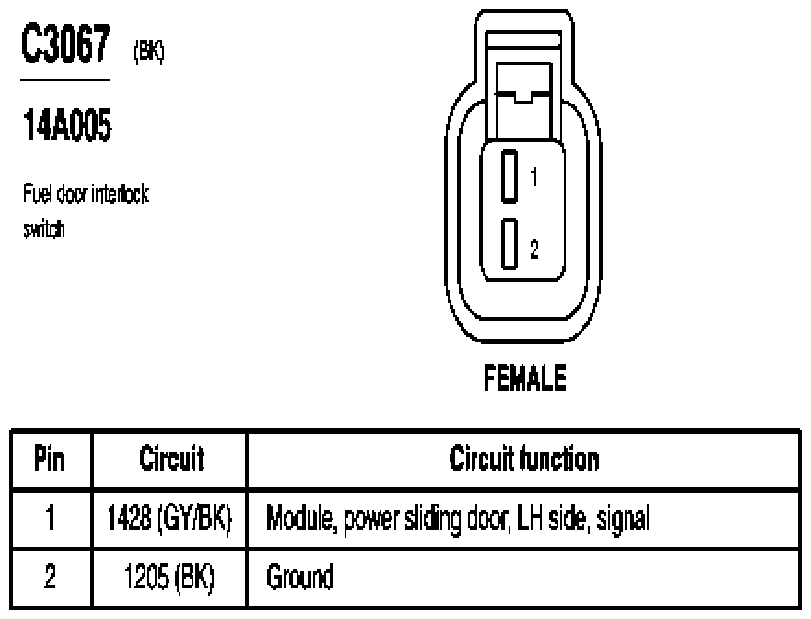

Fig 316: Fuel Door Interlock Switch Connector End View (C3067)
G07844569Courtesy of FORD MOTOR CO.
Fig 317: Module, Power Sliding Door, RH Side Connector End View (C3071a)
G07844570Courtesy of FORD MOTOR CO.

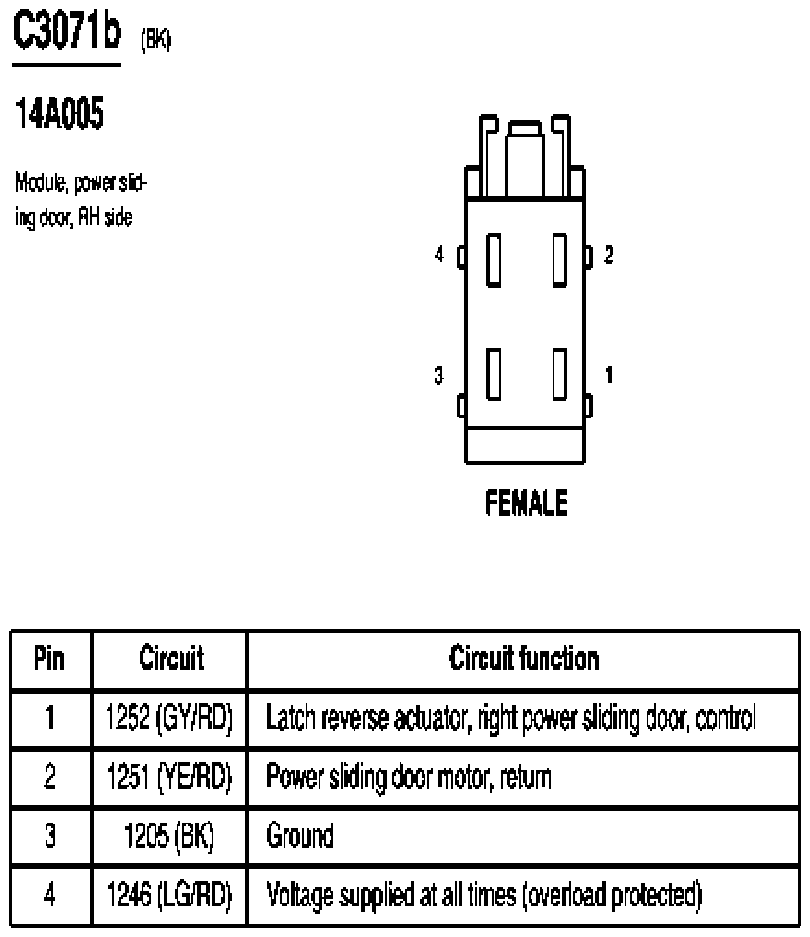

Fig 318: Module, Power Sliding Door, RH Side Connector End View (C3071b)
G07844571Courtesy of FORD MOTOR CO.

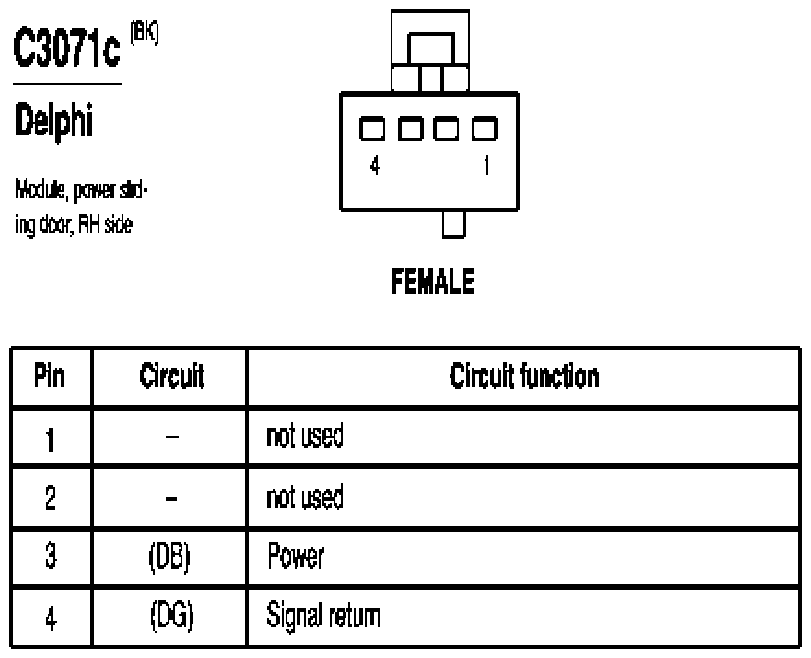

Fig 319: Module, Power Sliding Door, RH Side Connector End View (C3071c)
G07844572Courtesy of FORD MOTOR CO.

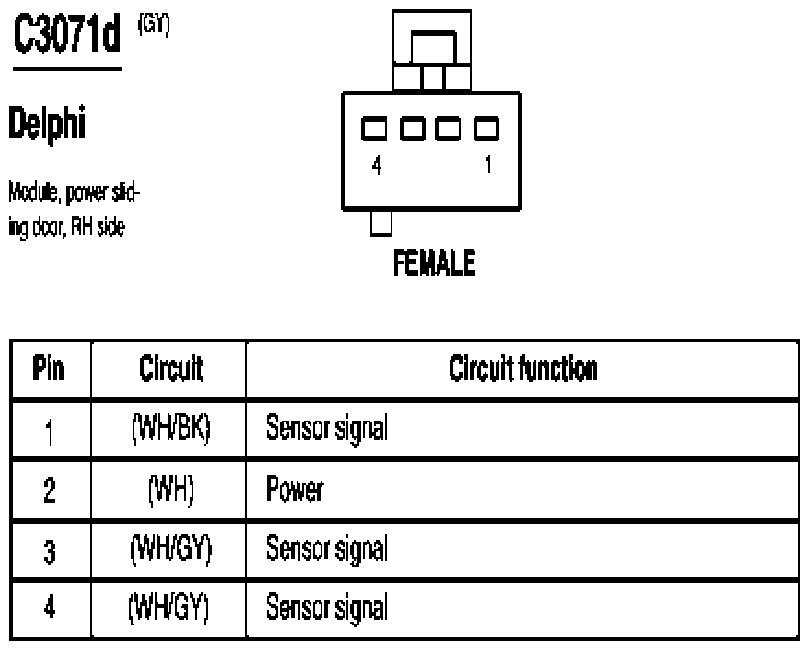

Fig 320: Module, Power Sliding Door, RH Side Connector End View (C3071d)
G07844573Courtesy of FORD MOTOR CO.

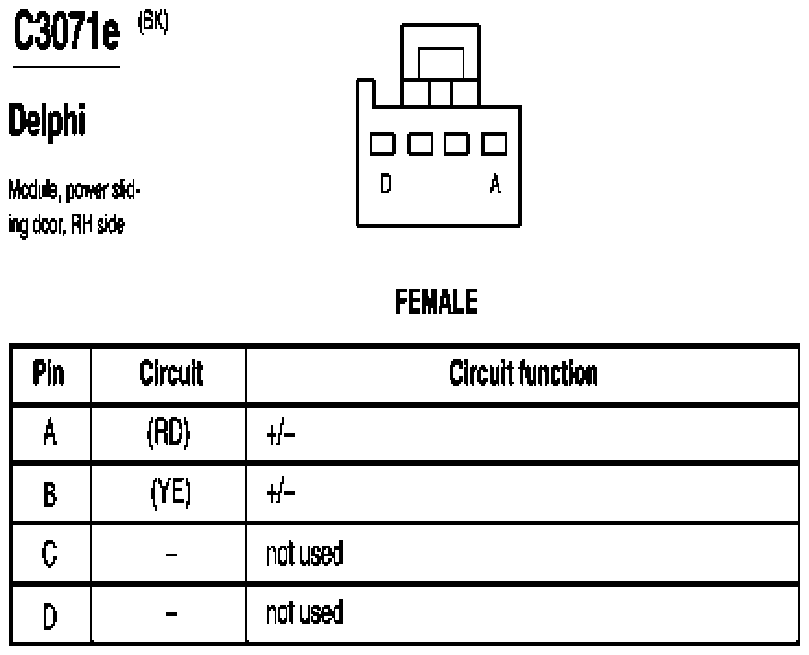

Fig 321: Module, Power Sliding Door, RH Side Connector End View (C3071e)
G07844574Courtesy of FORD MOTOR CO.

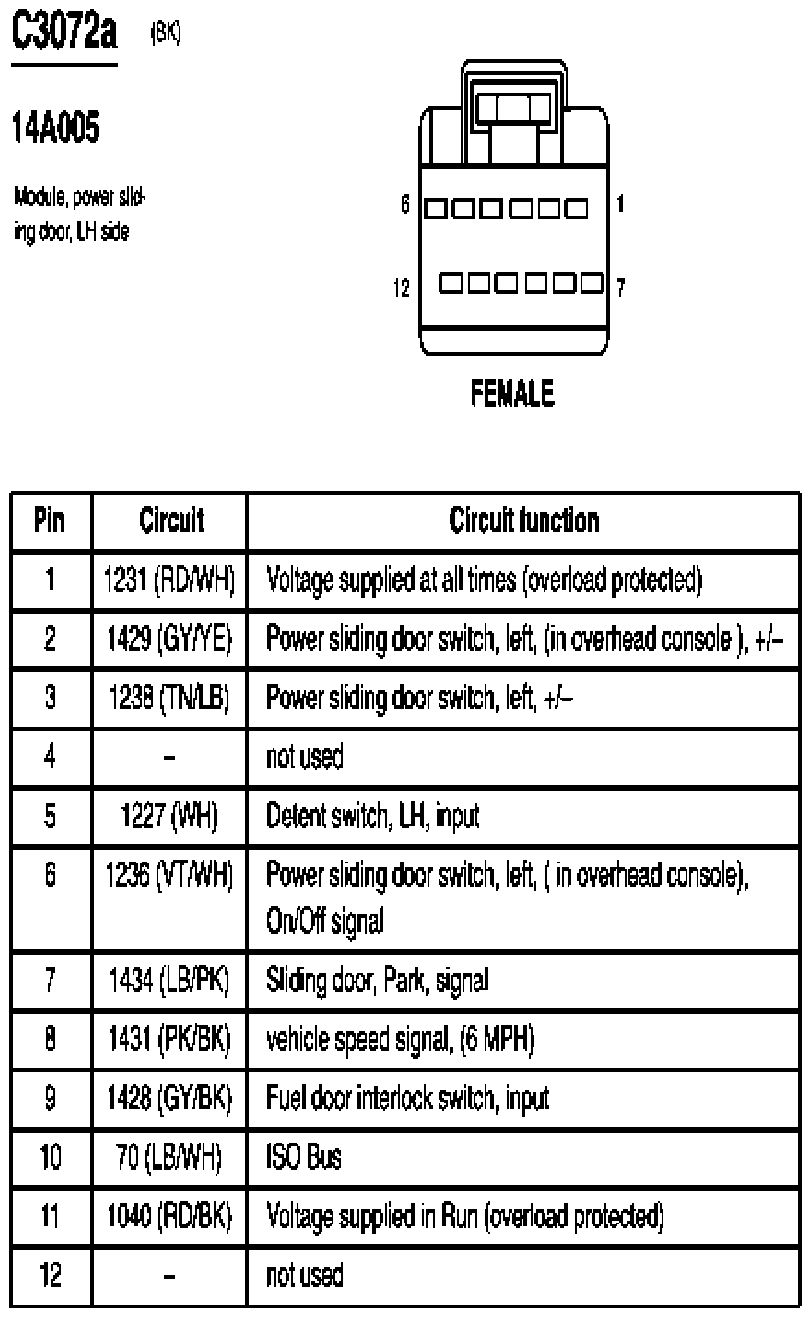

Fig 322: Module, Power Sliding Door, LH Side Connector End View (C3072a)
G07844575Courtesy of FORD MOTOR CO.

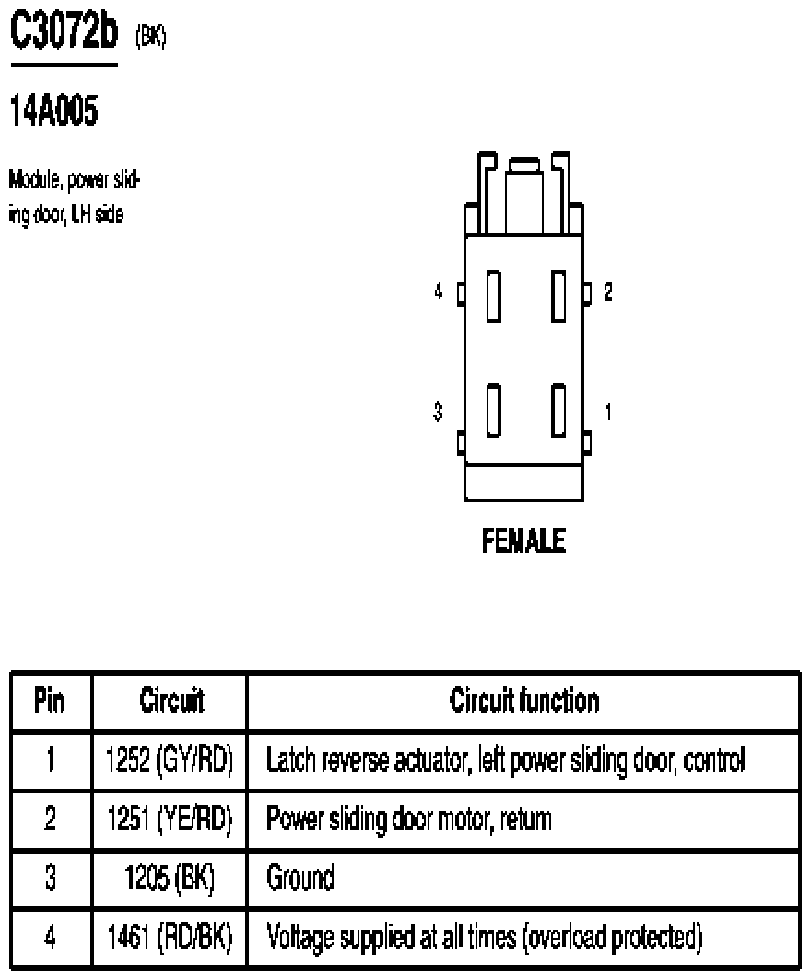

Fig 323: Module, Power Sliding Door, LH Side Connector End View (C3072b)
G07844576Courtesy of FORD MOTOR CO.

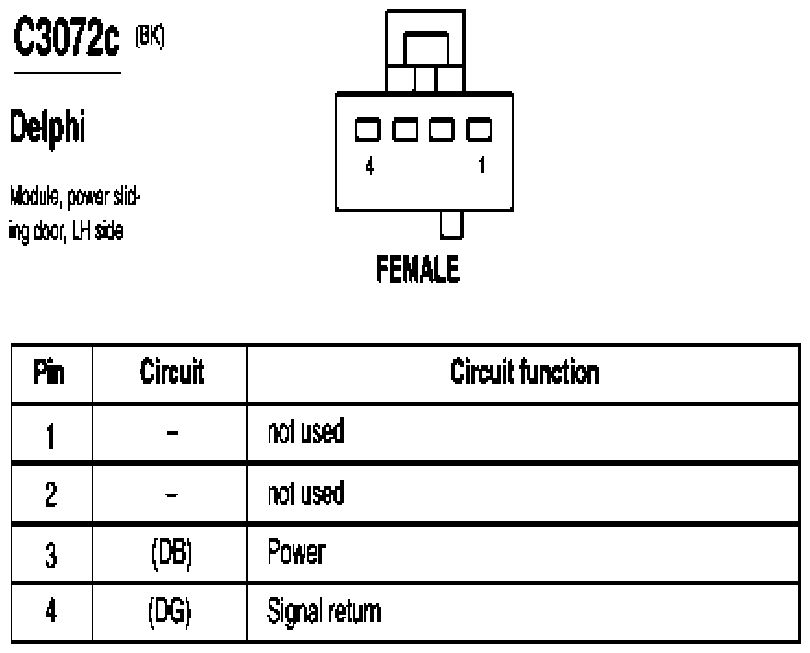

Fig 324: Module, Power Sliding Door, LH Side Connector End View (C3072c)
G07844577Courtesy of FORD MOTOR CO.

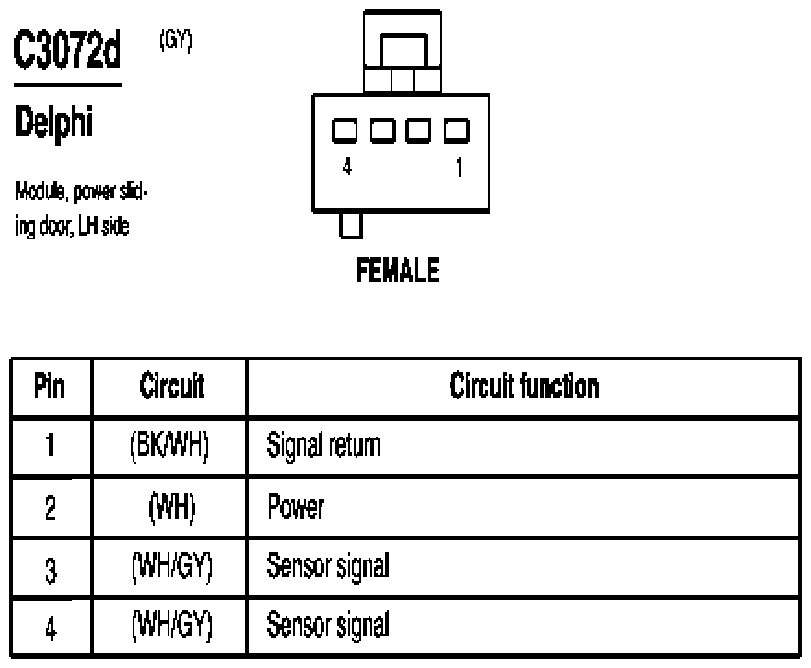

Fig 325: Module, Power Sliding Door, LH Side Connector End View (C3072d)
G07844578Courtesy of FORD MOTOR CO.

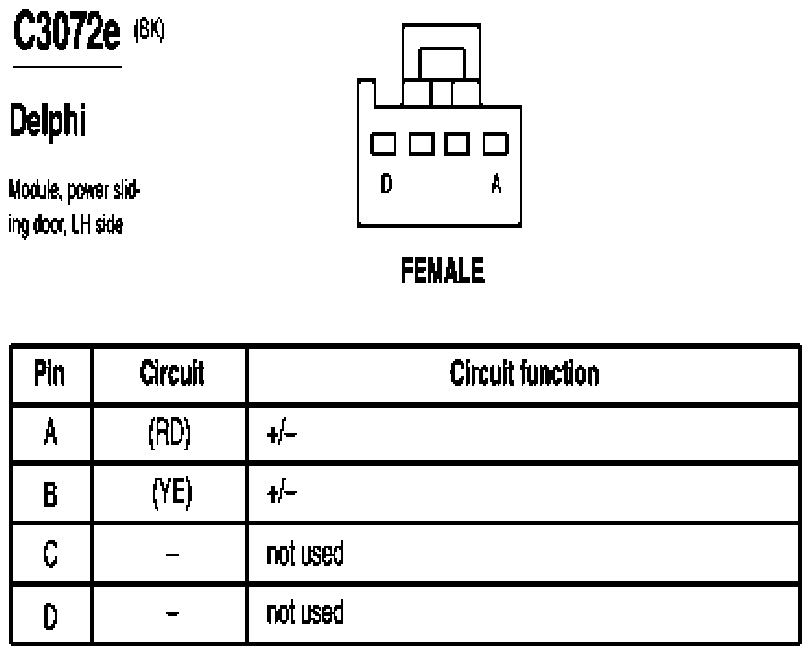

Fig 326: Module, Power Sliding Door, LH Side Connector End View (C3072e)
G07844579Courtesy of FORD MOTOR CO.

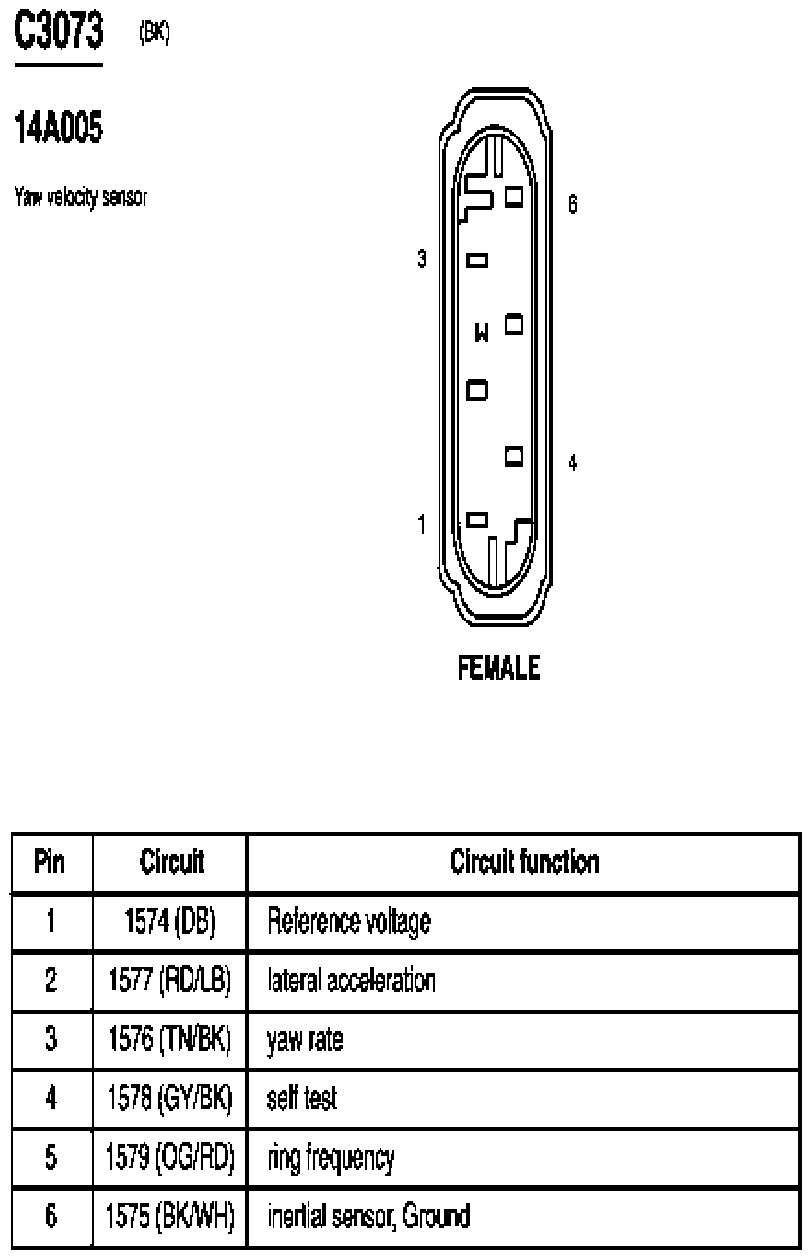

Fig 327: Yaw Velocity Sensor Connector End View (C3073)
G07844580Courtesy of FORD MOTOR CO.

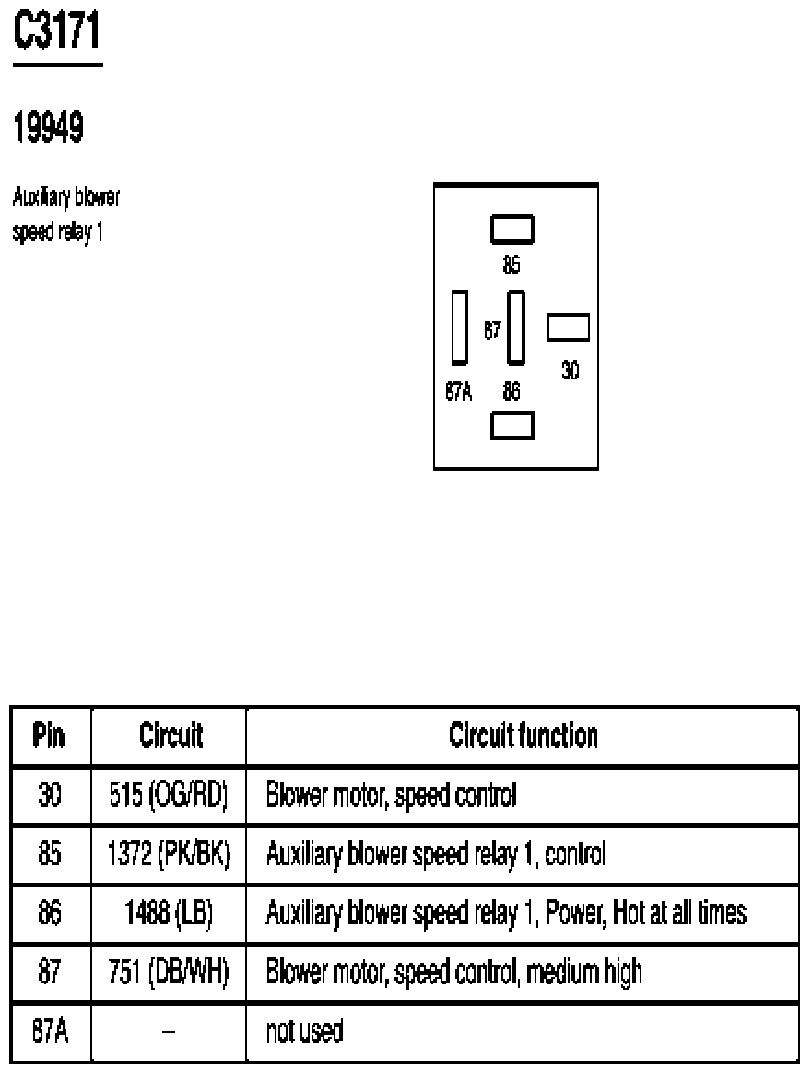

Fig 328: Auxiliary Blower Speed Relay 1 Connector End View (C3171)
G07844581Courtesy of FORD MOTOR CO.

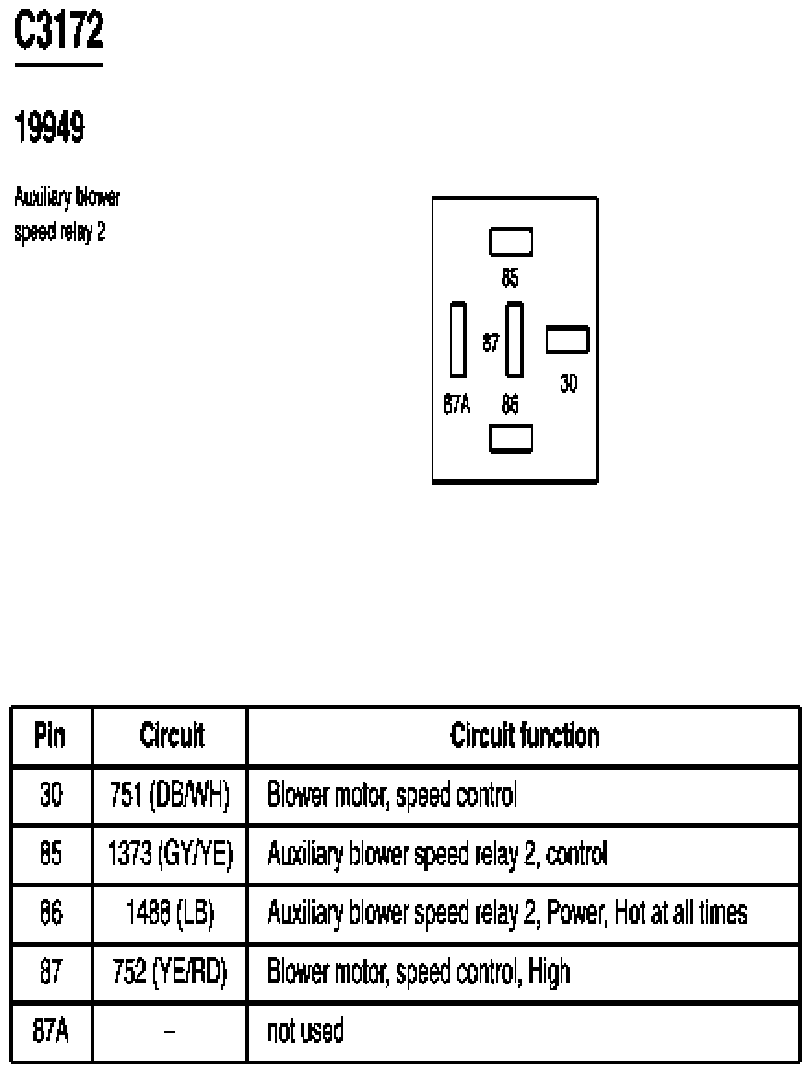

Fig 329: Auxiliary Blower Speed Relay 2 Connector End View (C3172)
G07844582Courtesy of FORD MOTOR CO.

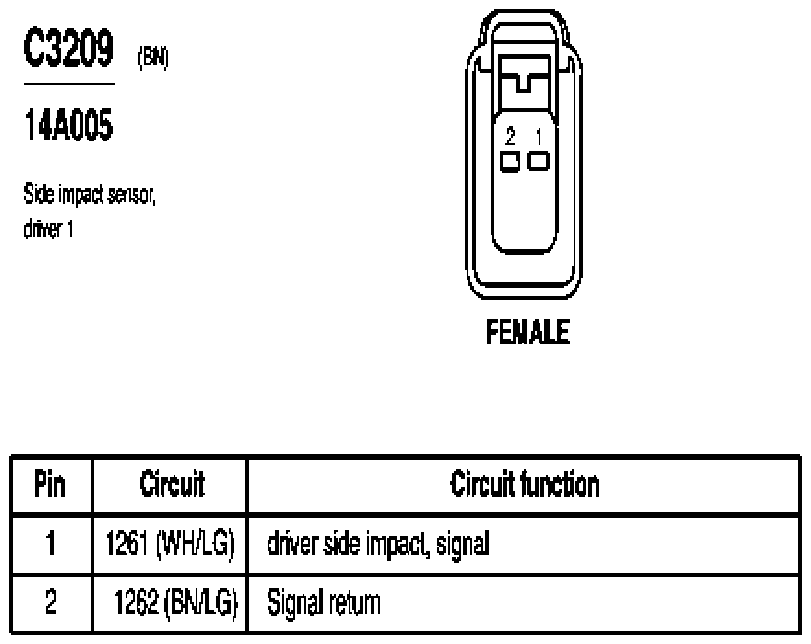

Fig 330: Side Impact Sensor, Driver 1 Connector End View (C3209)
G07844583Courtesy of FORD MOTOR CO.

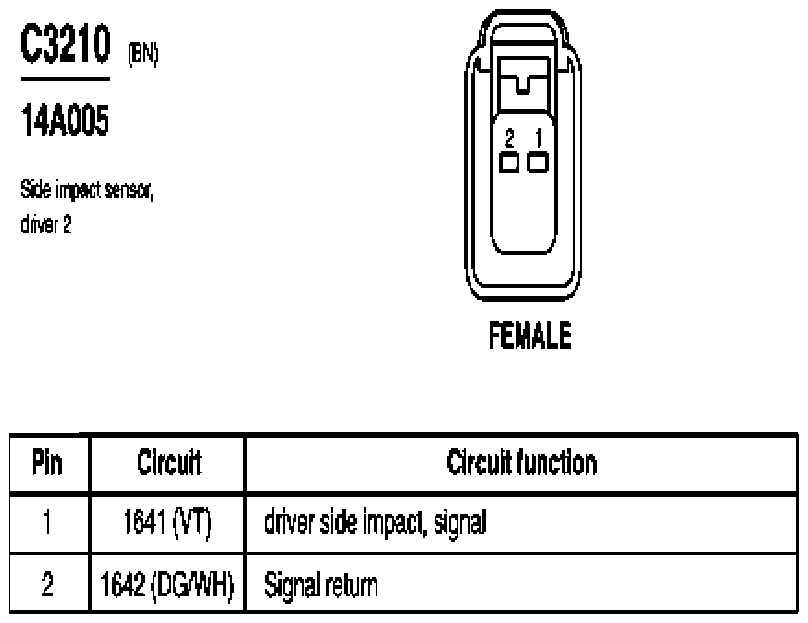

Fig 331: Side Impact Sensor, Driver 2 Connector End View (C3210)
G07844584Courtesy of FORD MOTOR CO.

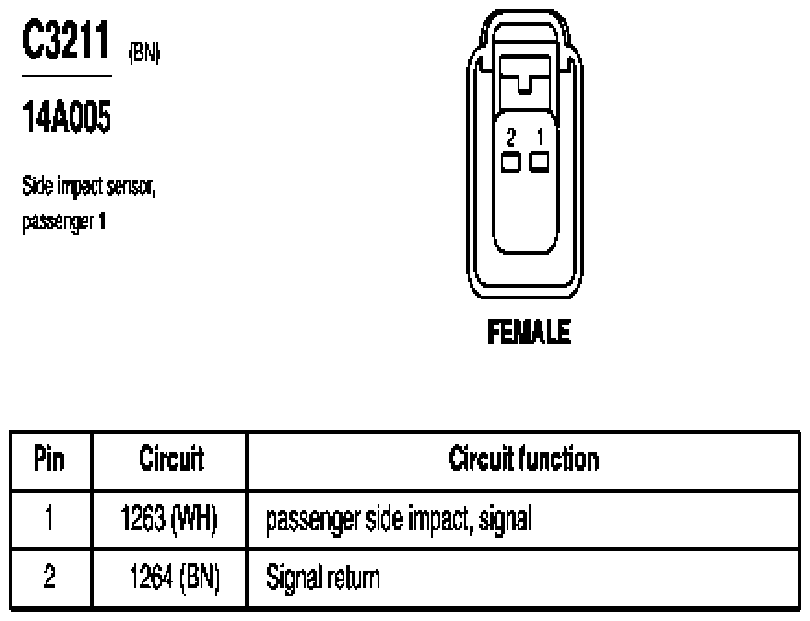

Fig 332: Side Impact Sensor, Passenger 1 Connector End View (C3211)
G07844585Courtesy of FORD MOTOR CO.

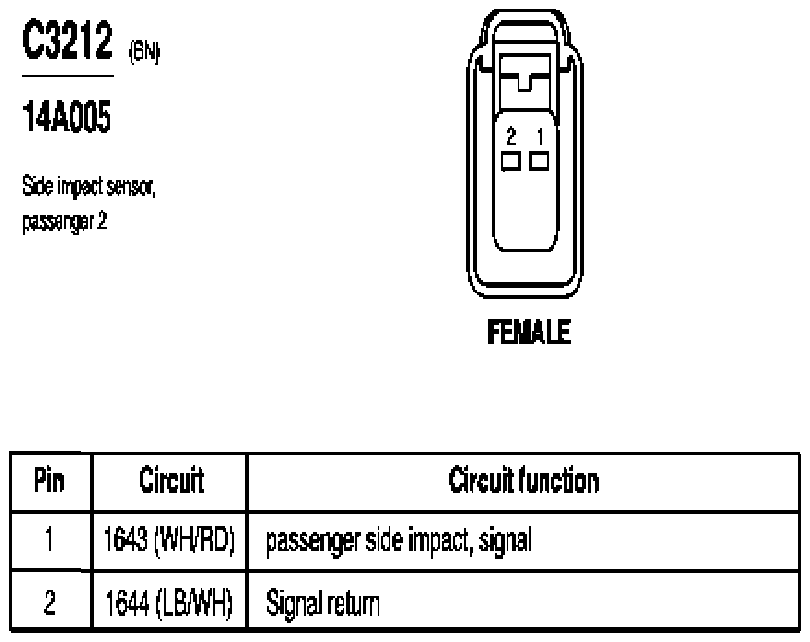

Fig 333: Side Impact Sensor, Passenger 2 Connector End View (C3212)
G07844586Courtesy of FORD MOTOR CO.

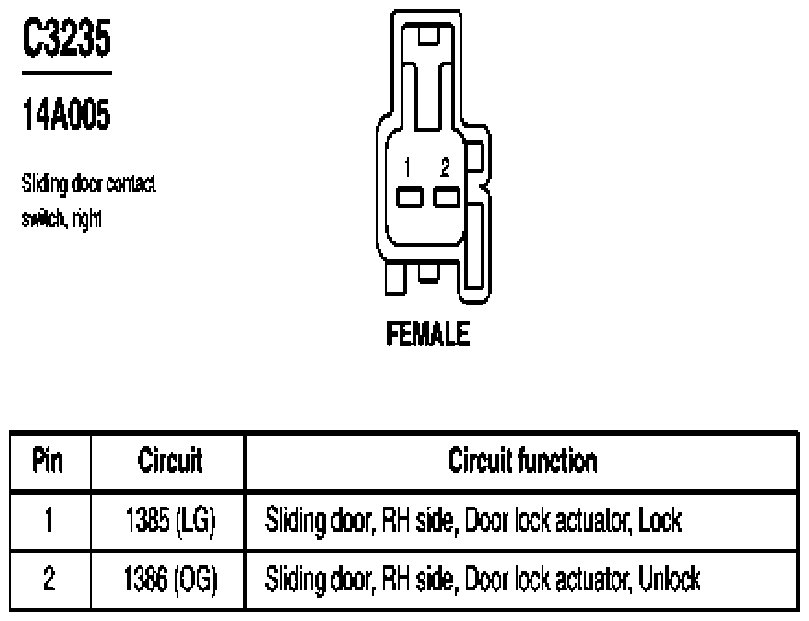

Fig 334: Sliding Door Contact Switch, Right Connector End View (C3235)
G07844587Courtesy of FORD MOTOR CO.

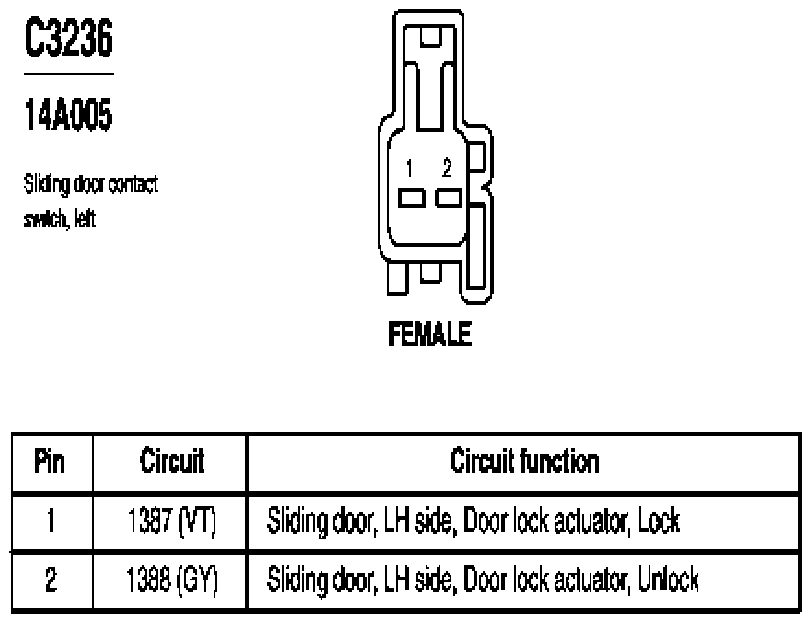

Fig 335: Sliding Door Contact Switch, Left Connector End View (C3236)
G07844588Courtesy of FORD MOTOR CO.

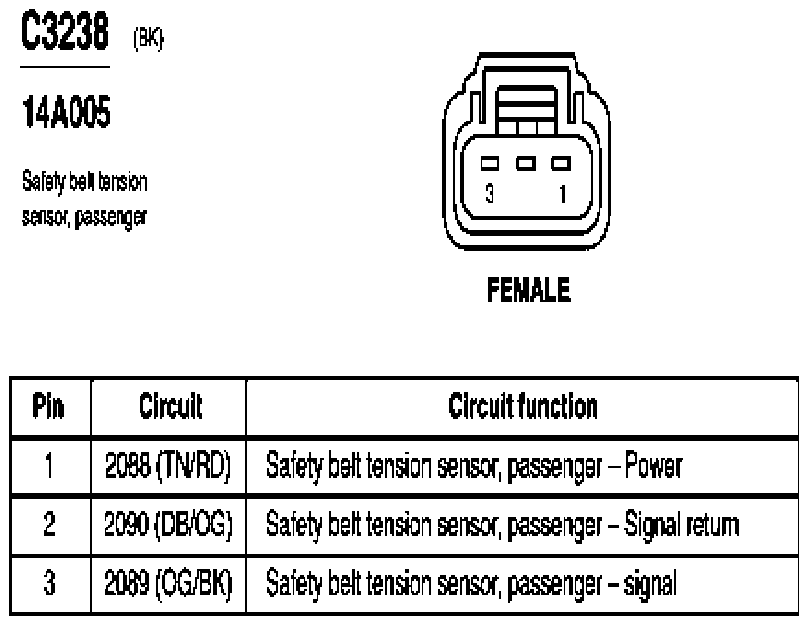

Fig 336: Safety Belt Tension Sensor, Passenger Connector End View (C3238)
G07844589Courtesy of FORD MOTOR CO.

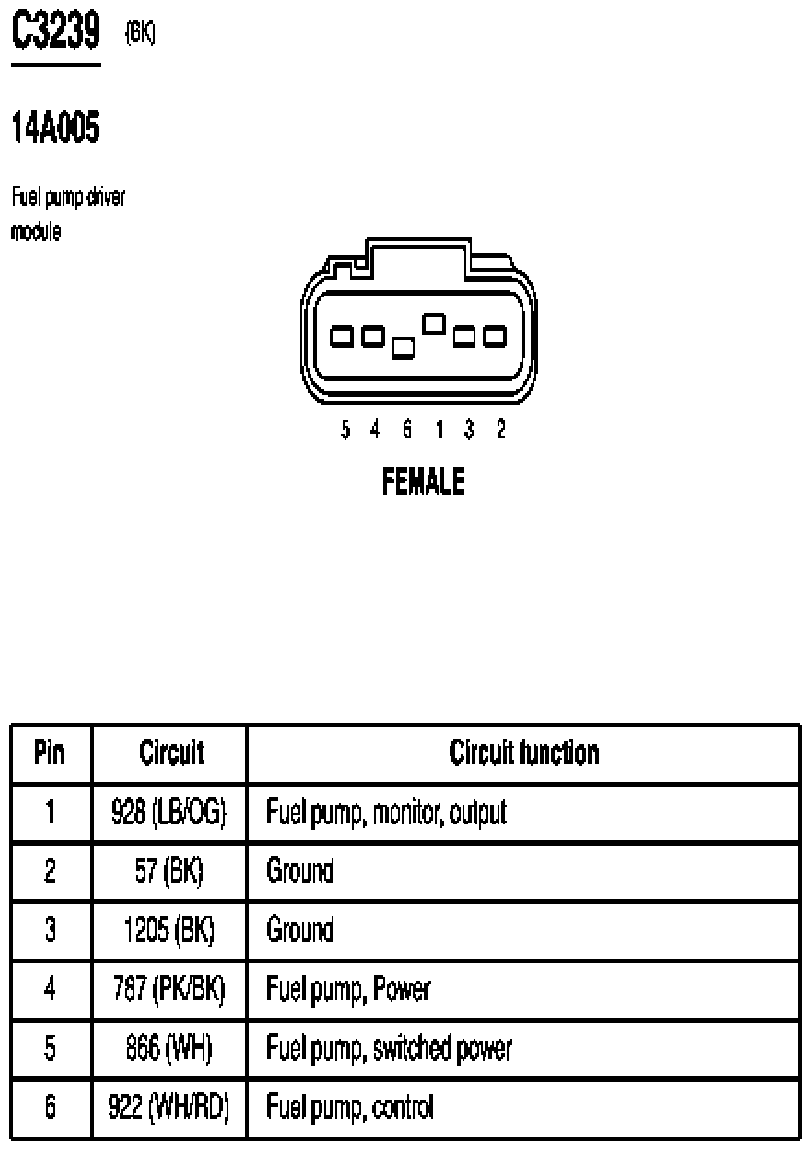

Fig 337: Fuel Pump Driver Module Connector End View (C3239)
G07844590Courtesy of FORD MOTOR CO.

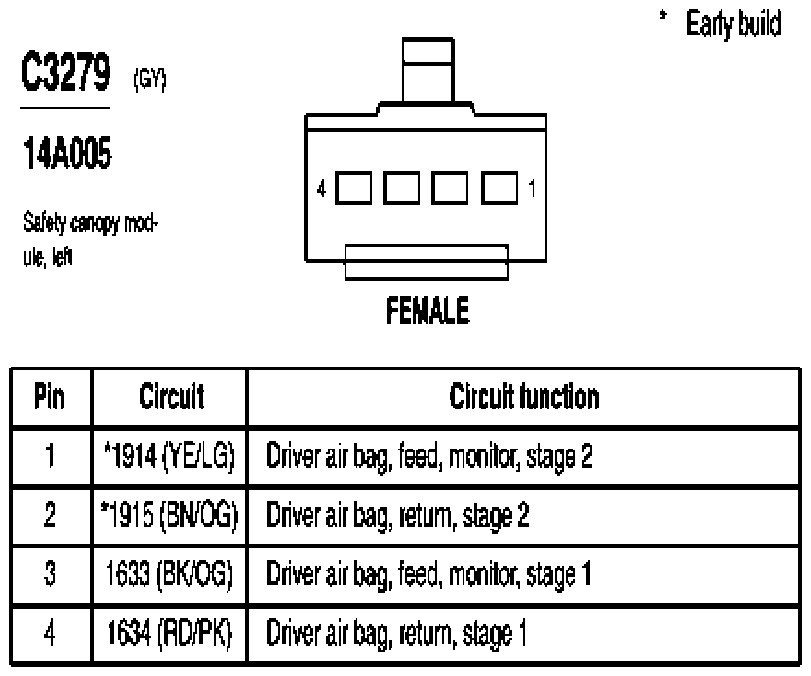

Fig 338: Safety Canopy Module, Left Connector End View (C3279)
G07844591Courtesy of FORD MOTOR CO.

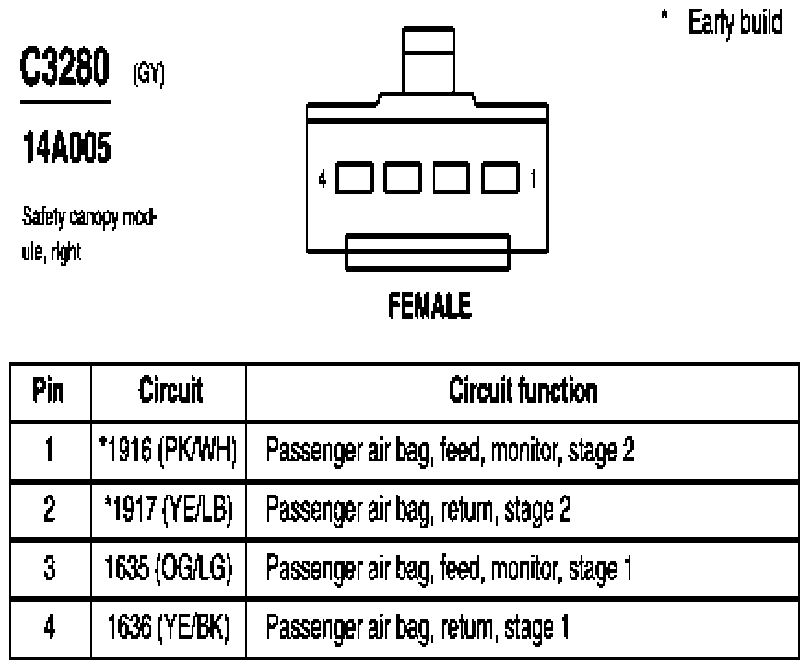

Fig 339: Safety Canopy Module, Right Connector End View (C3280)
G07844592Courtesy of FORD MOTOR CO.

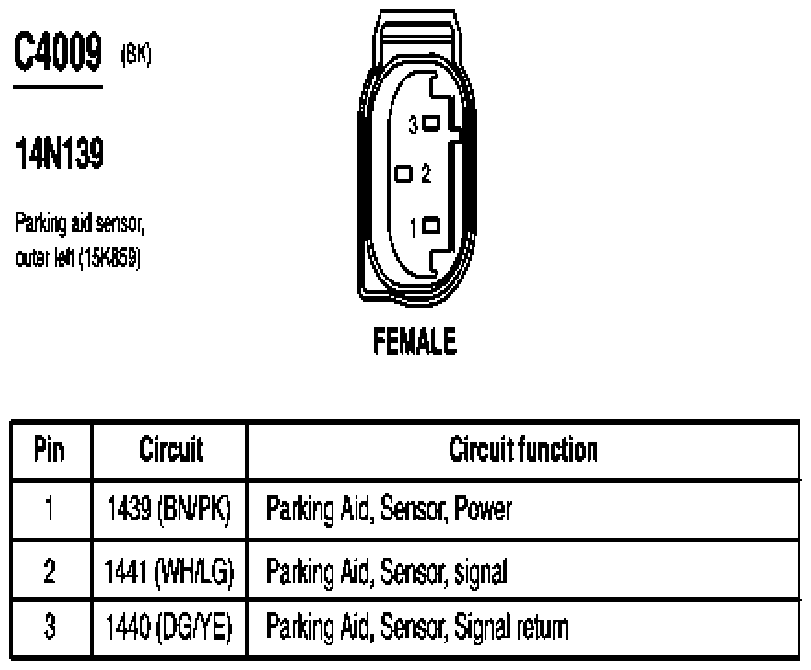

Fig 340: Parking Aid Sensor, Outer Left Connector End View (C4009)
G07844593Courtesy of FORD MOTOR CO.

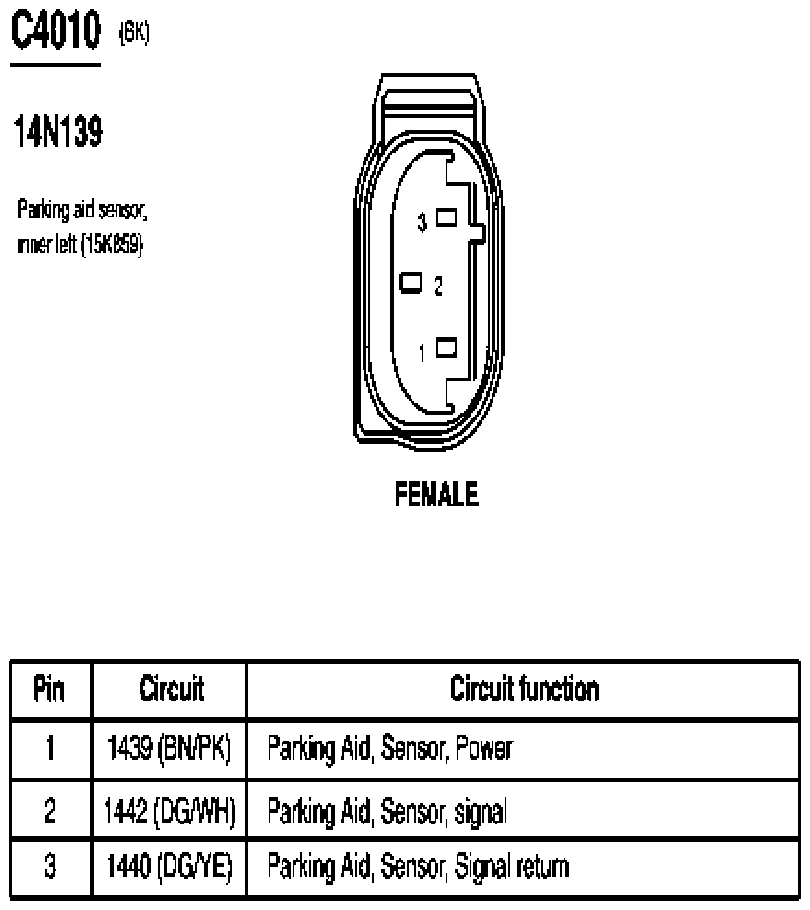

Fig 341: Parking Aid Sensor, Inner Left Connector End View (C4010)
G07844594Courtesy of FORD MOTOR CO.

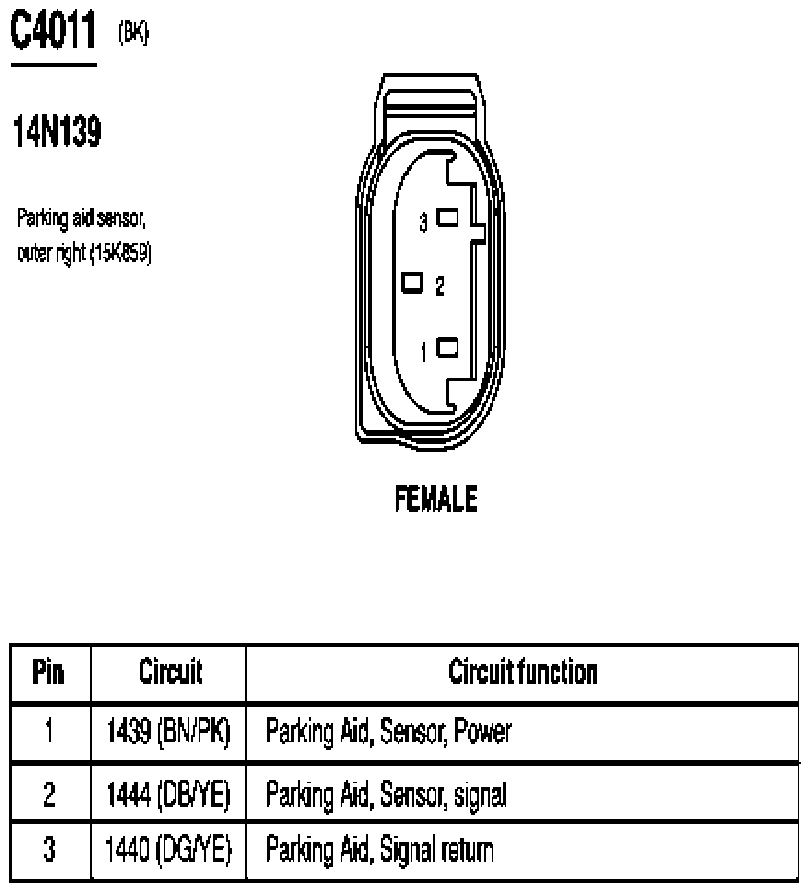

Fig 342: Parking Aid Sensor, Outer Right Connector End View (C4011)
G07844595Courtesy of FORD MOTOR CO.

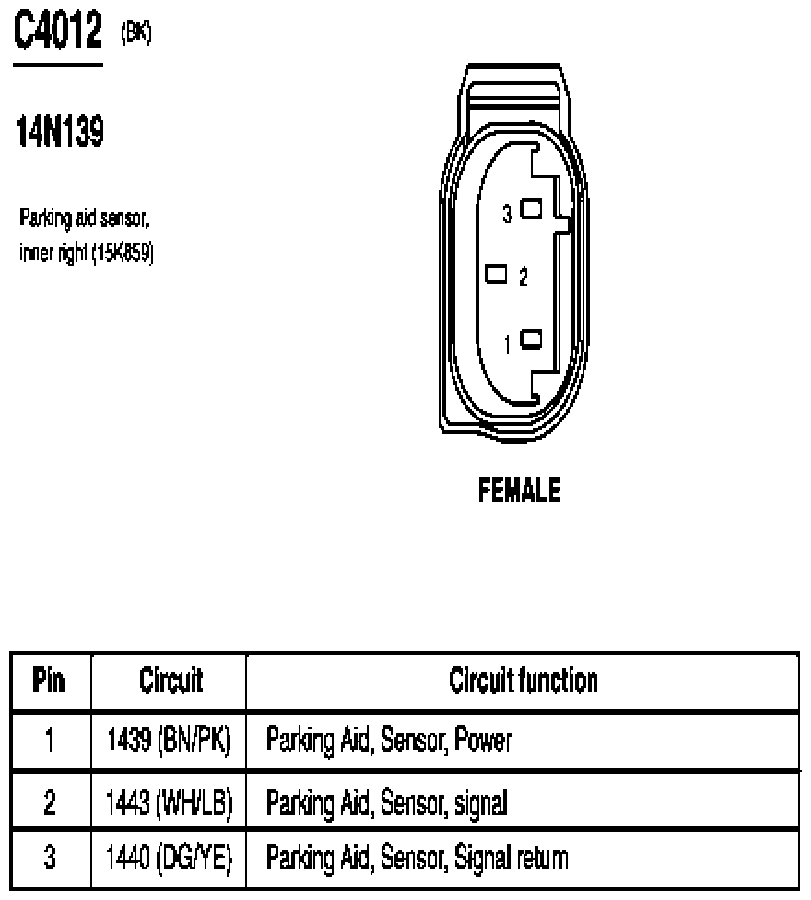

Fig 343: Parking Aid Sensor Inner Right Connector End View (C4012)
G03994260Courtesy of FORD MOTOR CO.

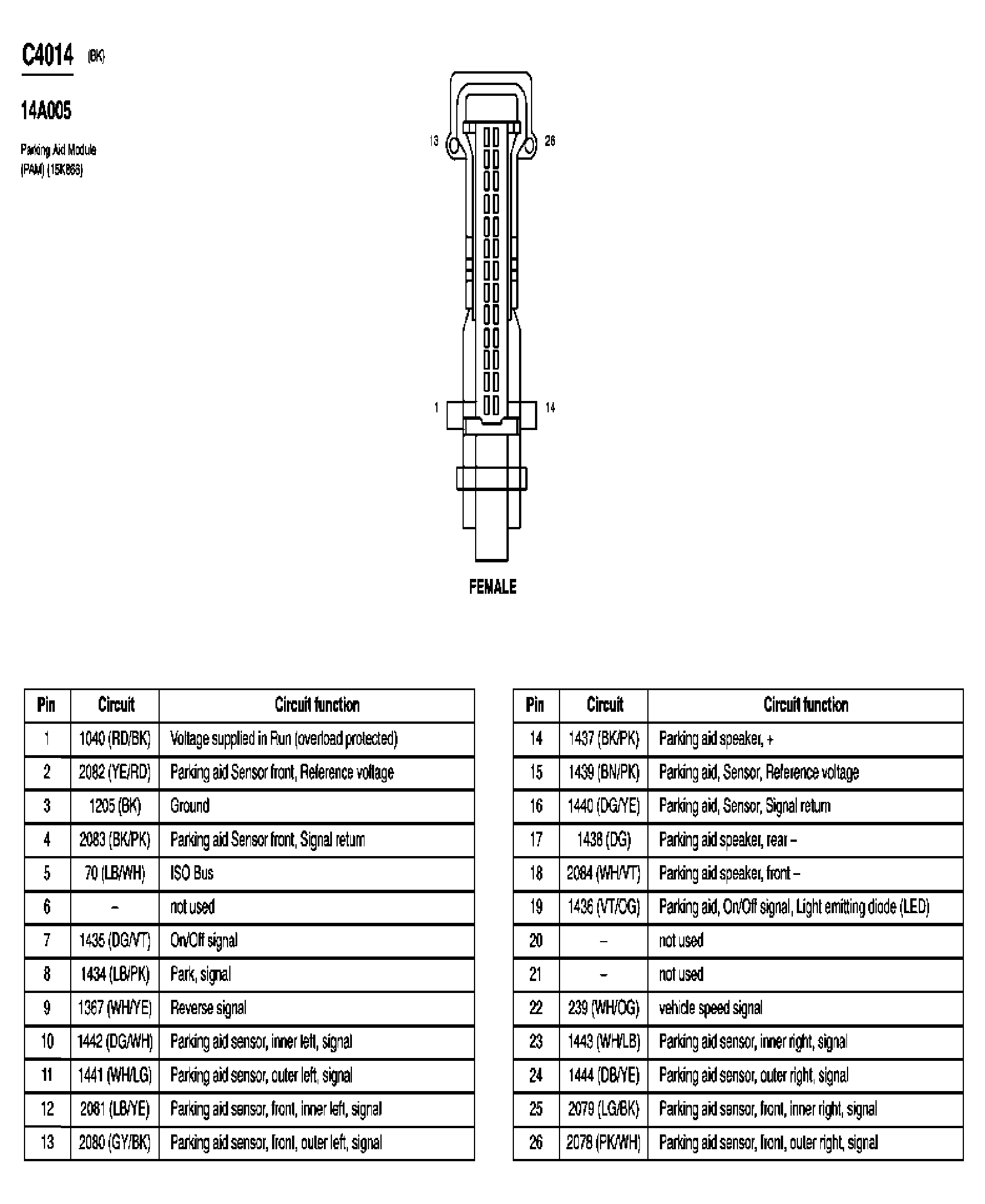

Fig 344: Parking Aid Module (PAM) Connector End View (C4014)
G03994261Courtesy of FORD MOTOR CO.

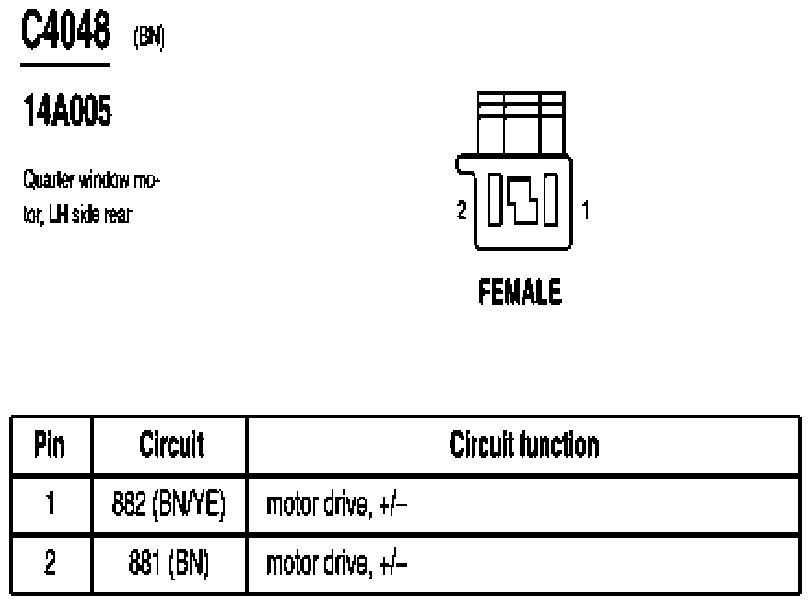

Fig 345: Quarter Window Motor, LH Side Rear Connector End View (C4048)
G07844596Courtesy of FORD MOTOR CO.

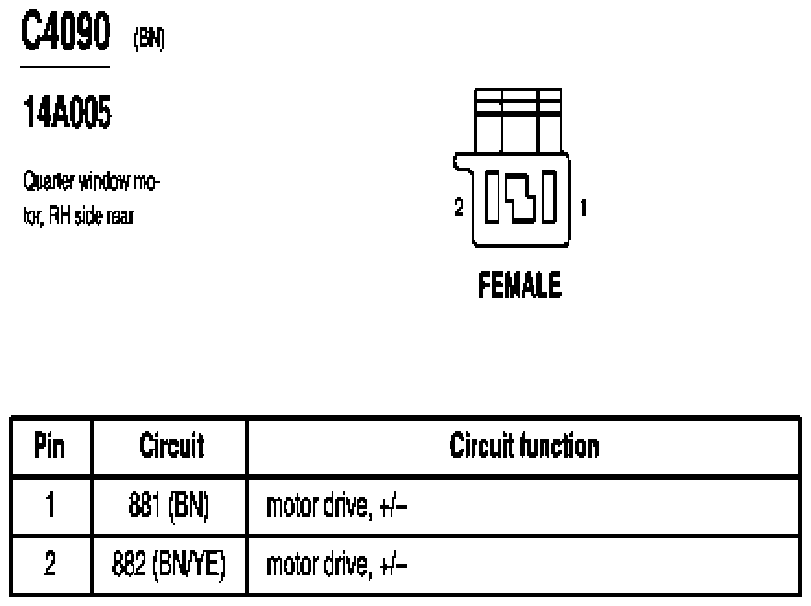

Fig 346: Quarter Window Motor, RH Side Rear Connector End View (C4090)
G07844597Courtesy of FORD MOTOR CO.

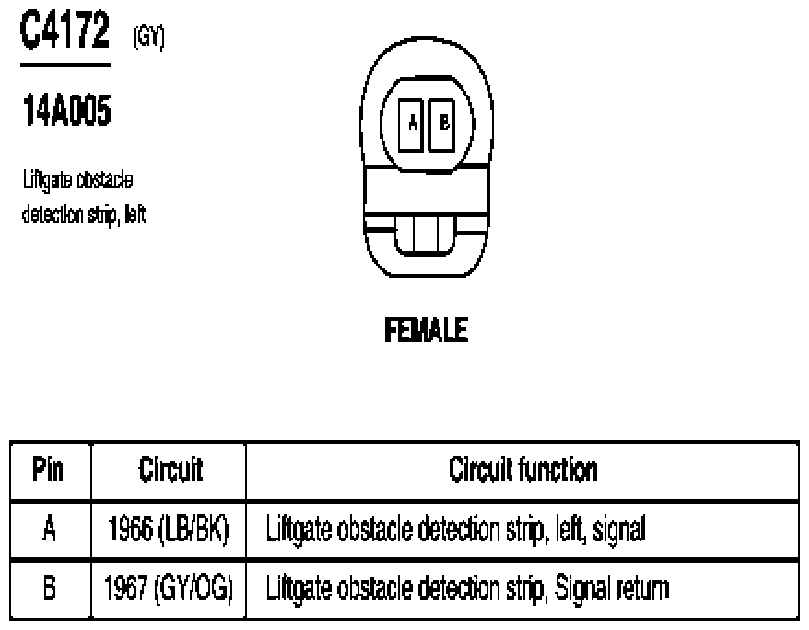

Fig 347: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)
G07844598Courtesy of FORD MOTOR CO.

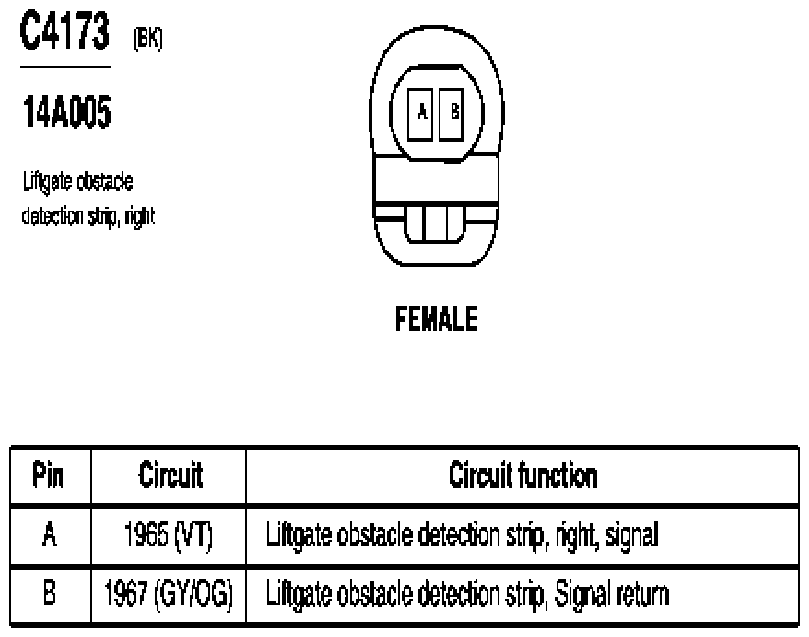

Fig 348: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)
G07844599Courtesy of FORD MOTOR CO.

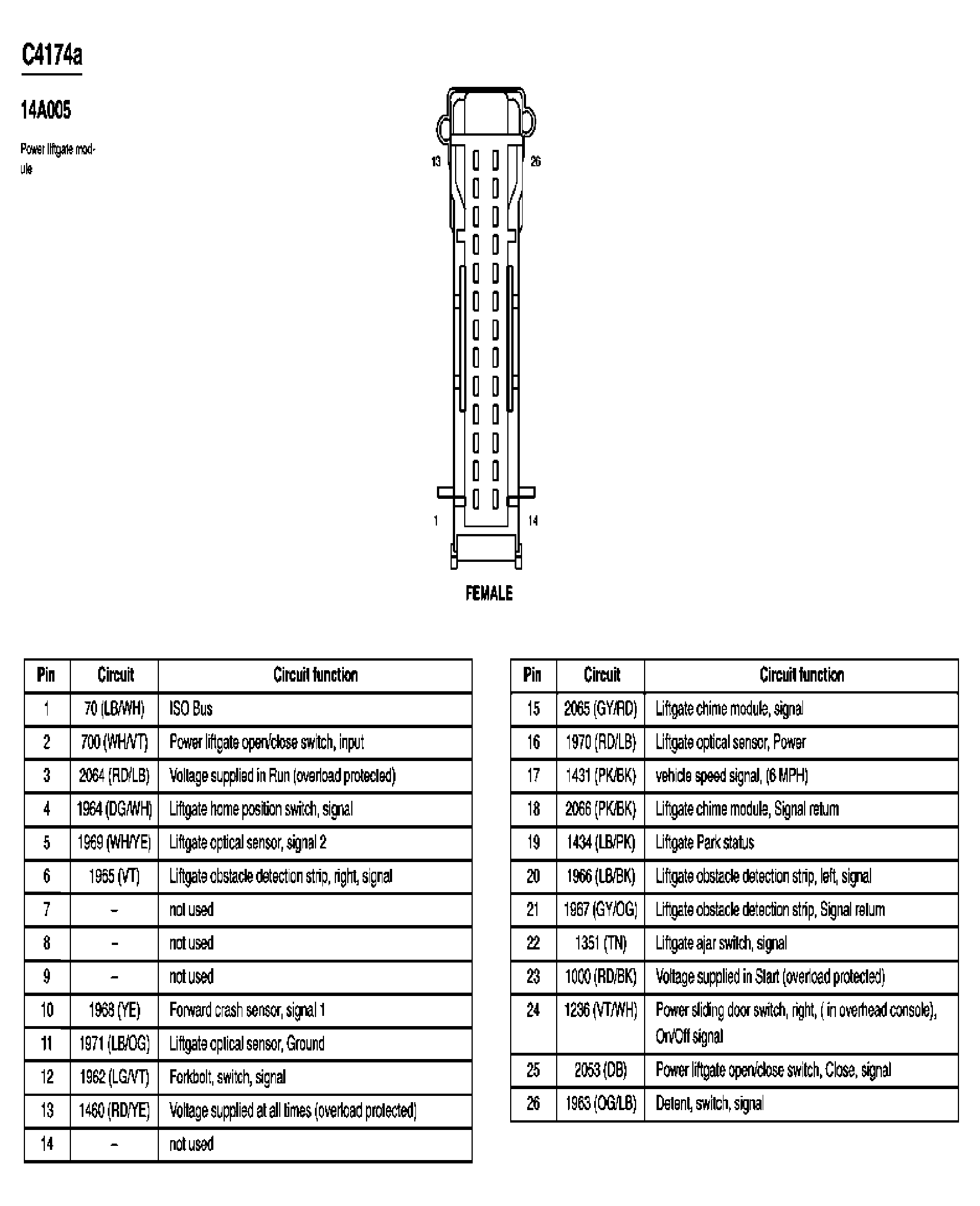

Fig 349: Power Liftgate Module Connector End View (C4174a)
G03994263Courtesy of FORD MOTOR CO.

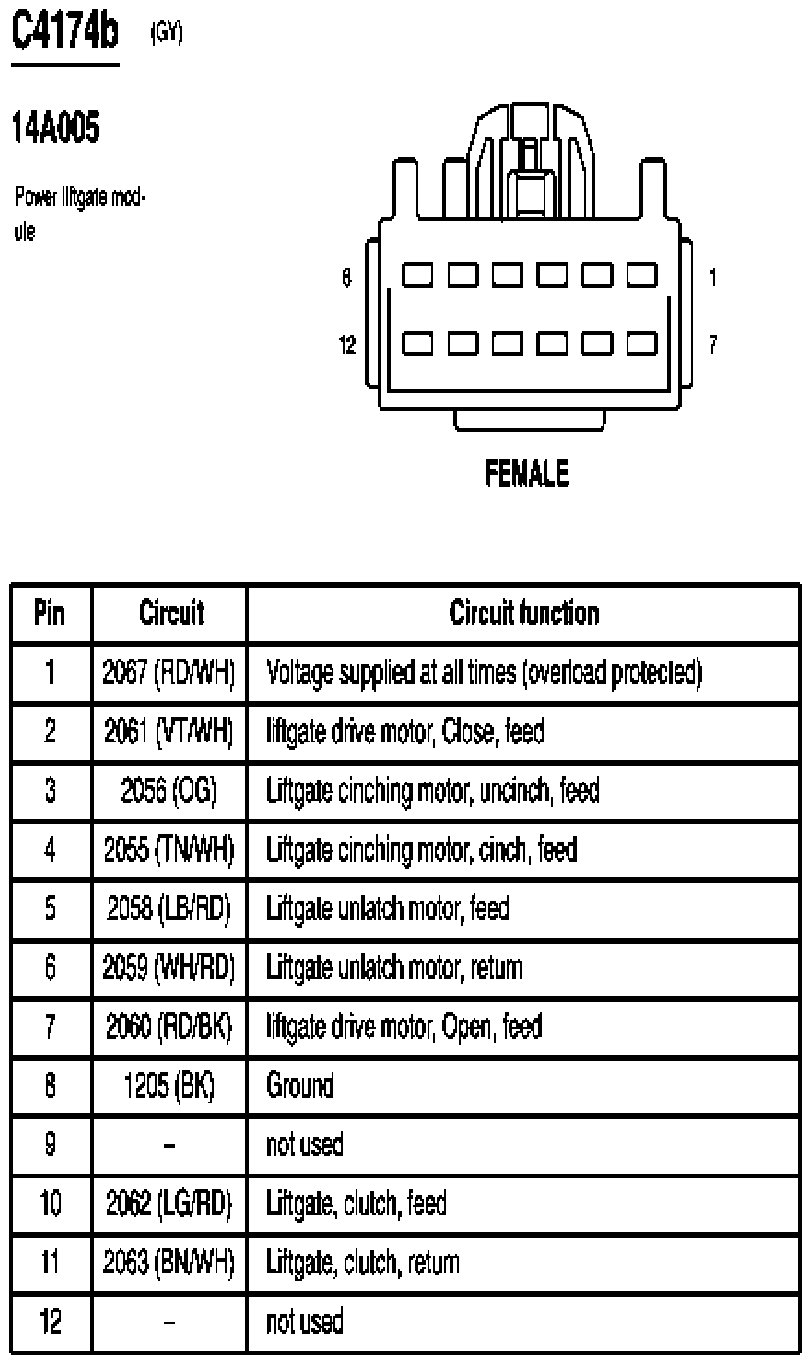

Fig 350: Power Liftgate Module Connector End View (C4174b)
G07844600Courtesy of FORD MOTOR CO.

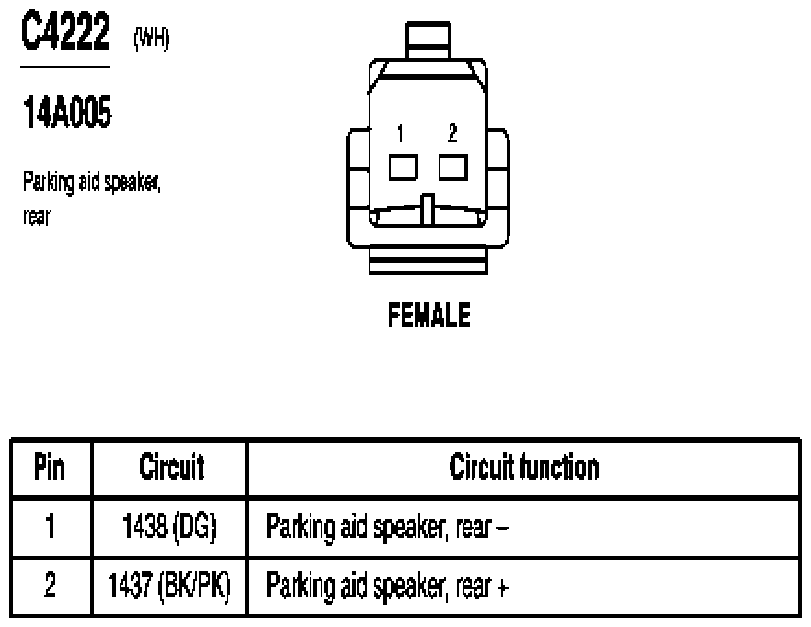

Fig 351: Parking Aid Speaker, Rear Connector End View (C4222)
G07844601Courtesy of FORD MOTOR CO.

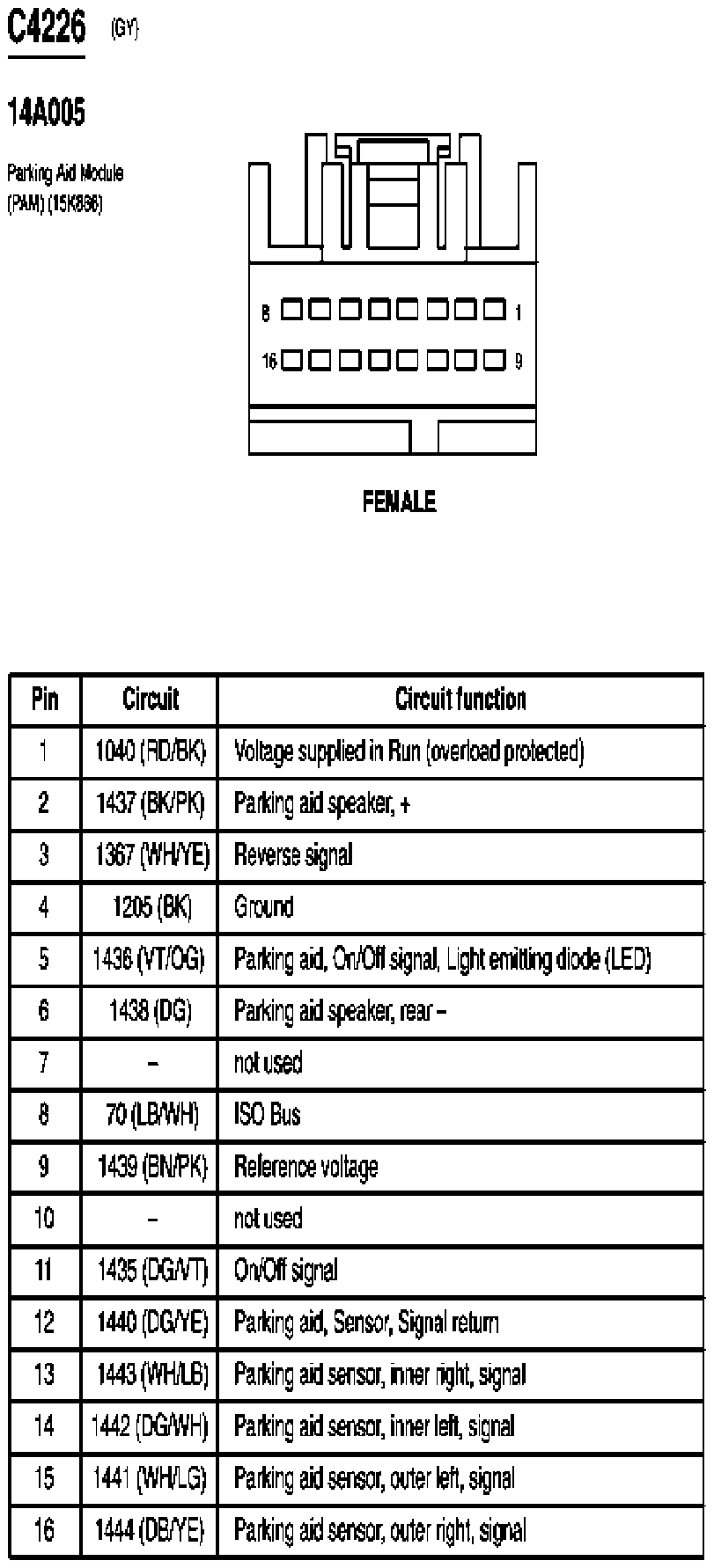

Fig 352: Parking Aid Module (PAM) Connector End View (C4226)
G07844602Courtesy of FORD MOTOR CO.

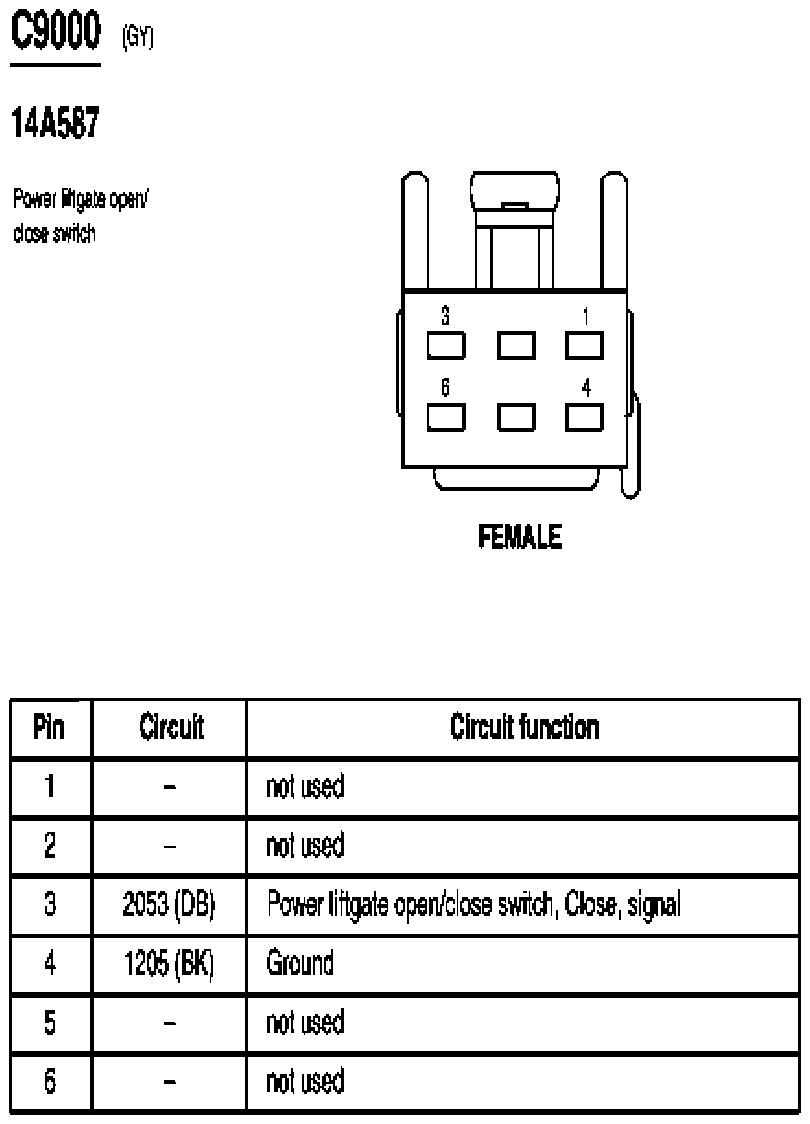

Fig 353: Power Liftgate Open/Close Switch Connector End View (C9000)
G07844603Courtesy of FORD MOTOR CO.

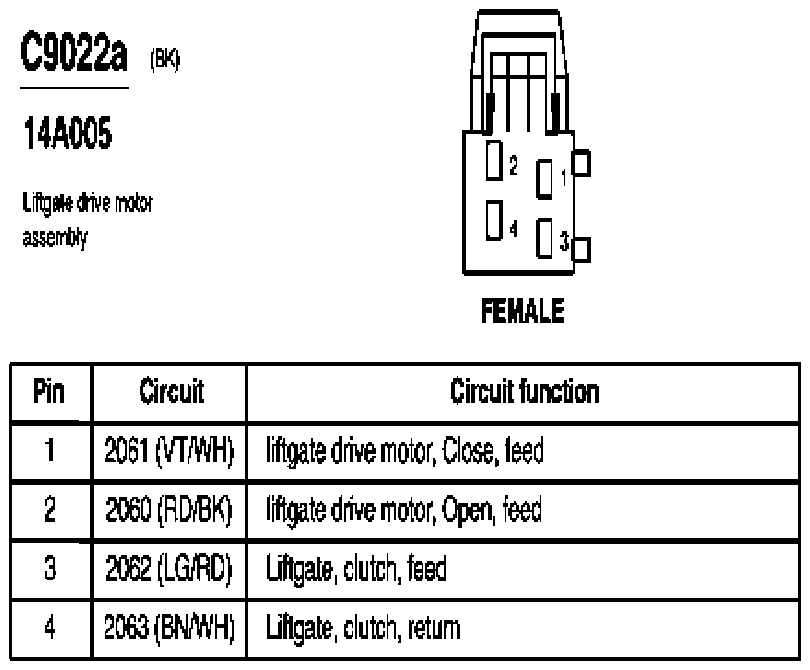

Fig 354: Liftgate Driver Motor Assembly Connector End View (C9022a)
G07844604Courtesy of FORD MOTOR CO.

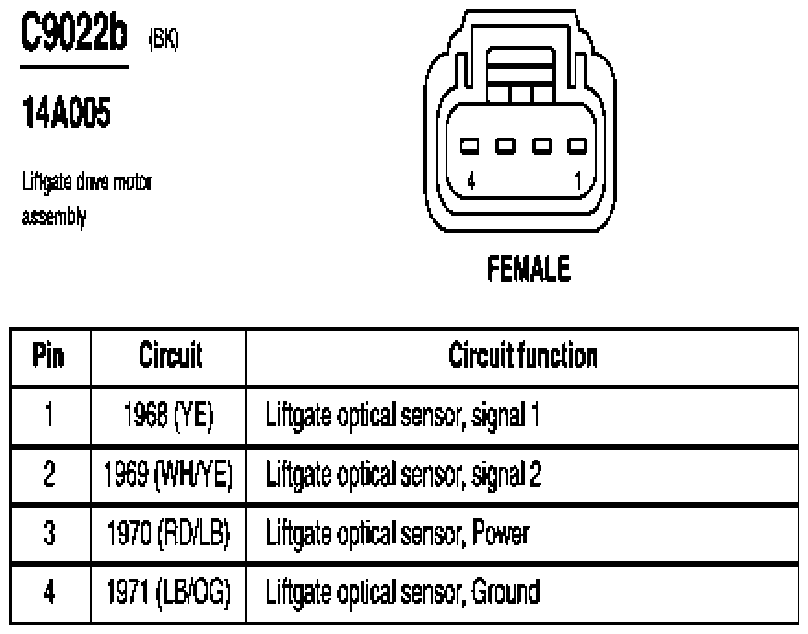

Fig 355: Liftgate Driver Motor Assembly Connector End View (C9022b)
G07844605Courtesy of FORD MOTOR CO.

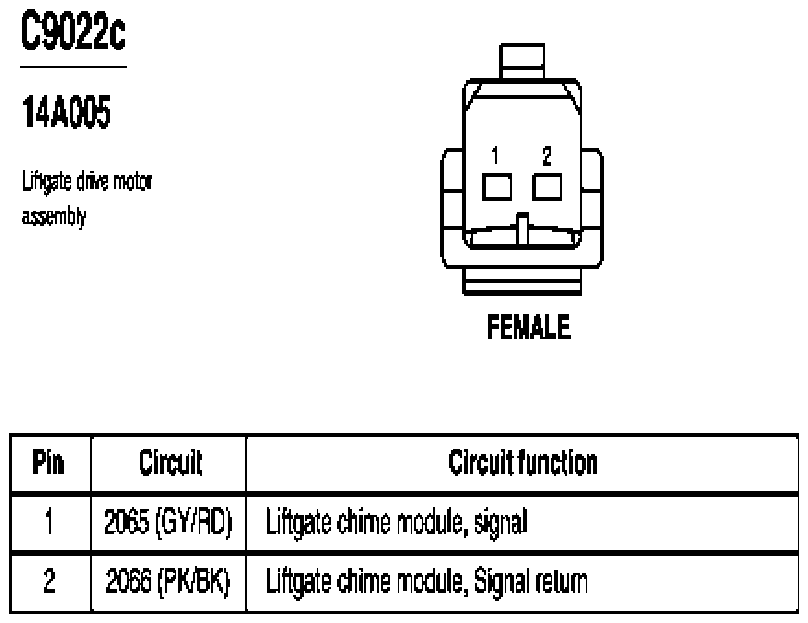

Fig 356: Liftgate Driver Motor Assembly Connector End View (C9022c)
G07844606Courtesy of FORD MOTOR CO.

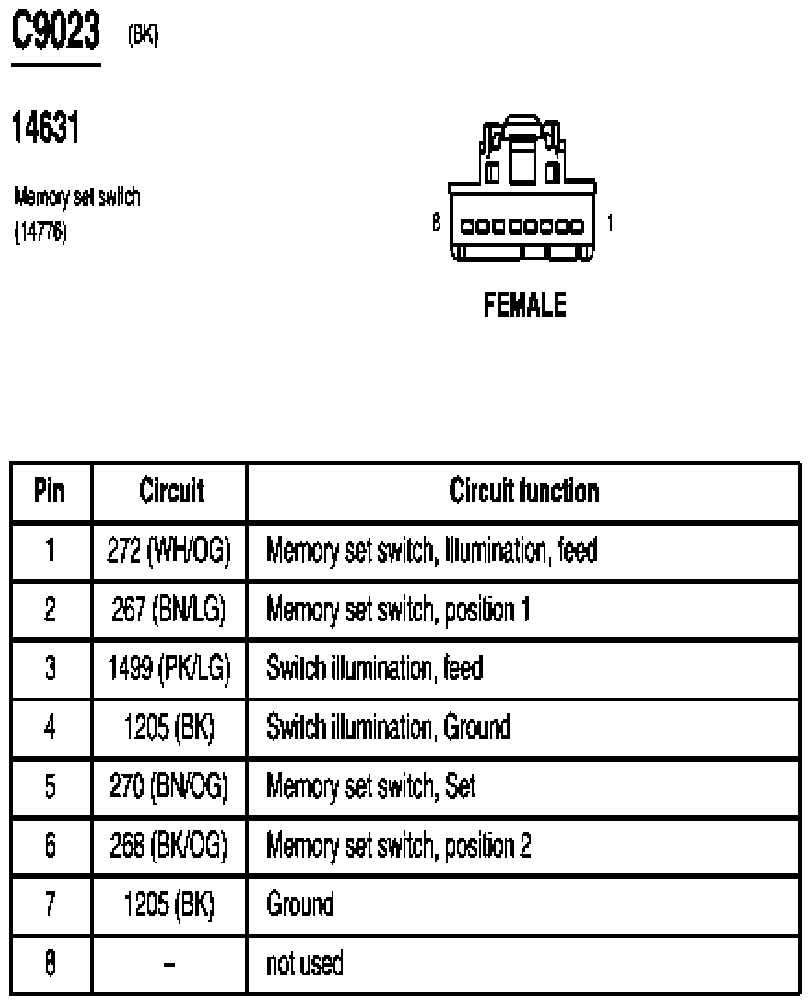

Fig 357: Memory Set Switch Connector End View (C9023)
G07844607Courtesy of FORD MOTOR CO.

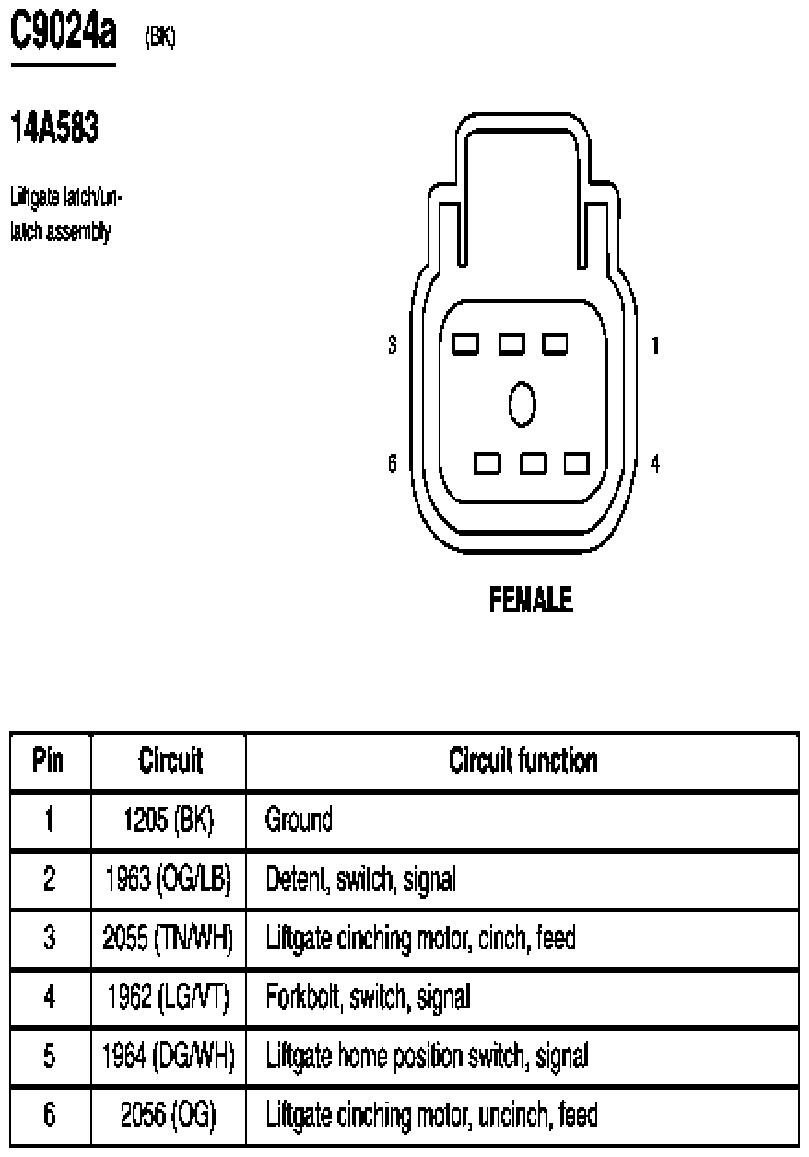

Fig 358: Liftgate Latch/Unlatch Assembly Connector End View (C9024a)
G07844608Courtesy of FORD MOTOR CO.

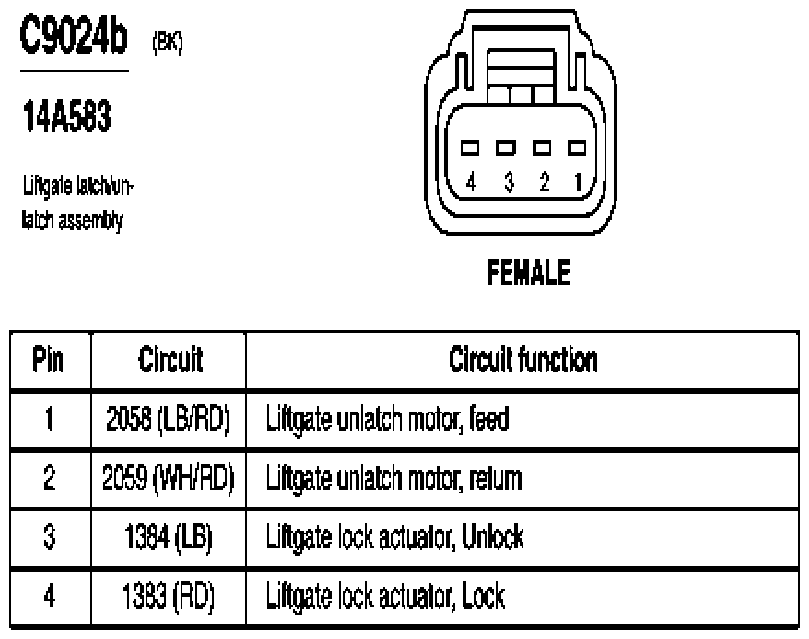

Fig 359: Liftgate Latch/Unlatch Assembly Connector End View (C9024b)
G07844609Courtesy of FORD MOTOR CO.

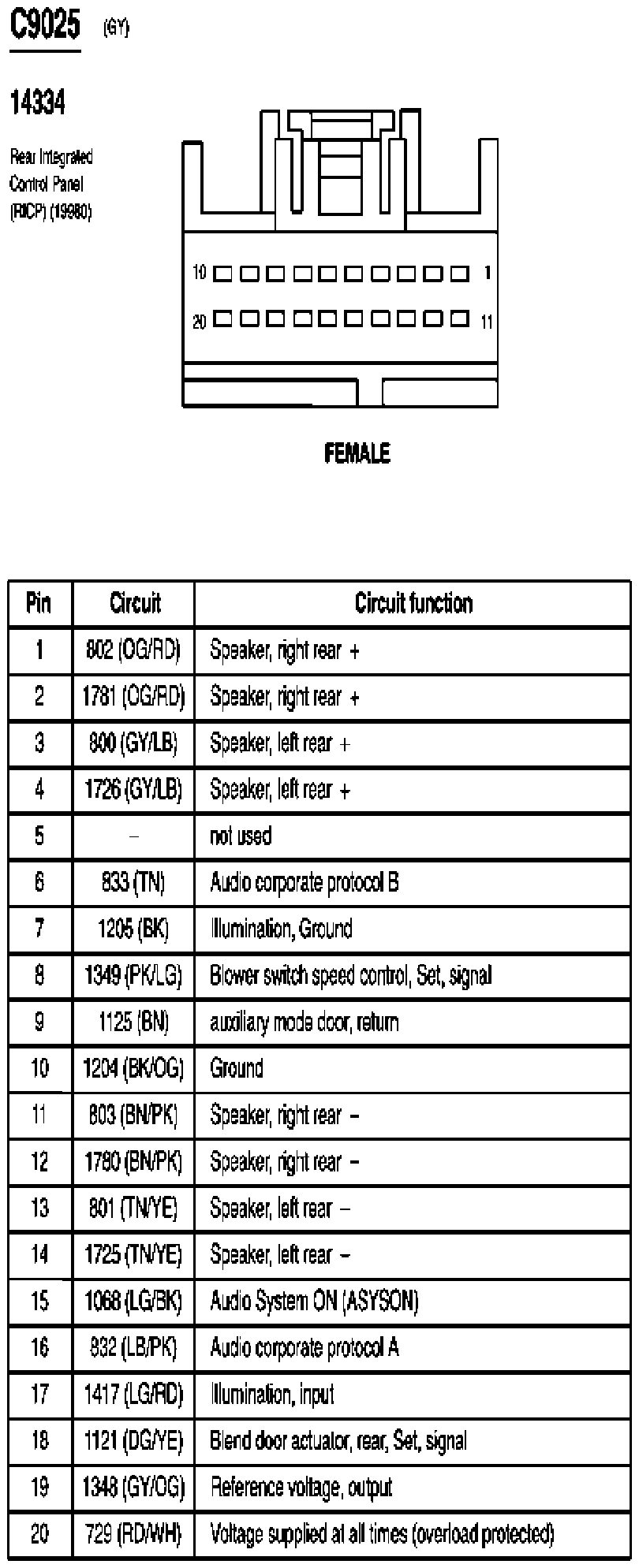

Fig 360: Rear Integrated Control Panel (RICP) Connector End View (C9025)
G07844610Courtesy of FORD MOTOR CO.

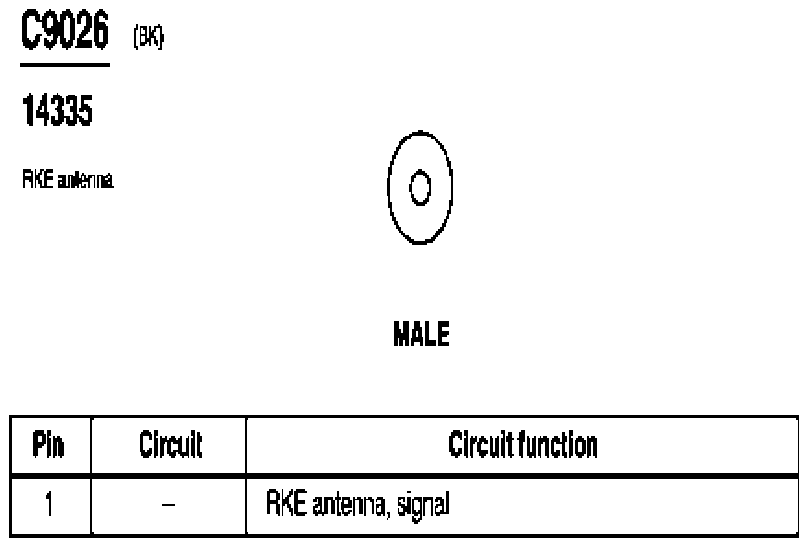

Fig 361: RKE Antenna Connector End View (C9026)
G07844611Courtesy of FORD MOTOR CO.
