Connector Circuit Reference

Fig 1: Identifying Generator C102a Connector Pinout
G04006057Courtesy of FORD MOTOR CO.
Fig 2: Identifying Generator C102b Connector Pinout
G04006058Courtesy of FORD MOTOR CO.

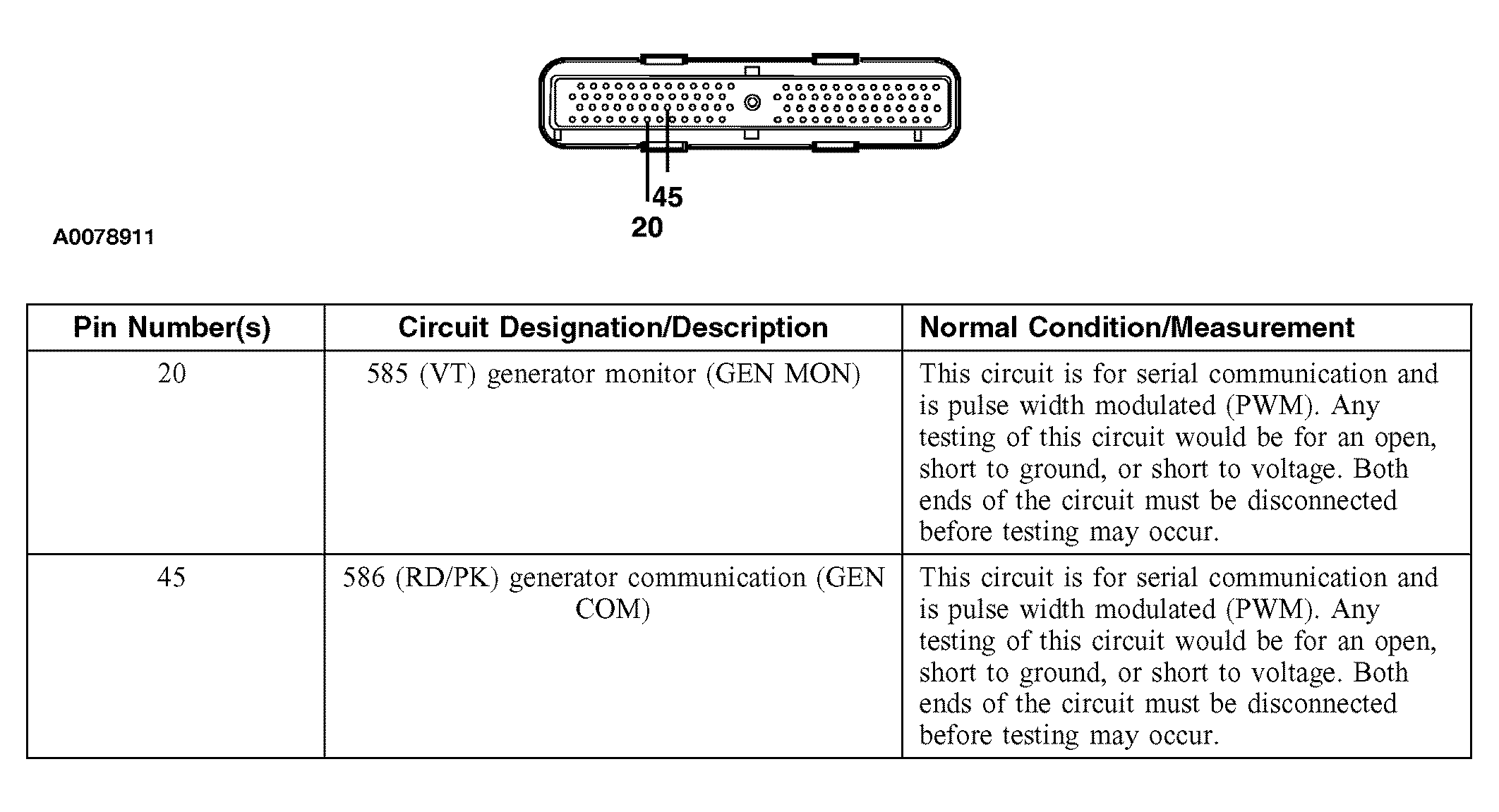

Fig 3: Identifying Powertrain Control Module (PCM) C175 Connector Pinout
G04006059Courtesy of FORD MOTOR CO.
