Multifunction Switch, Lamp Portion

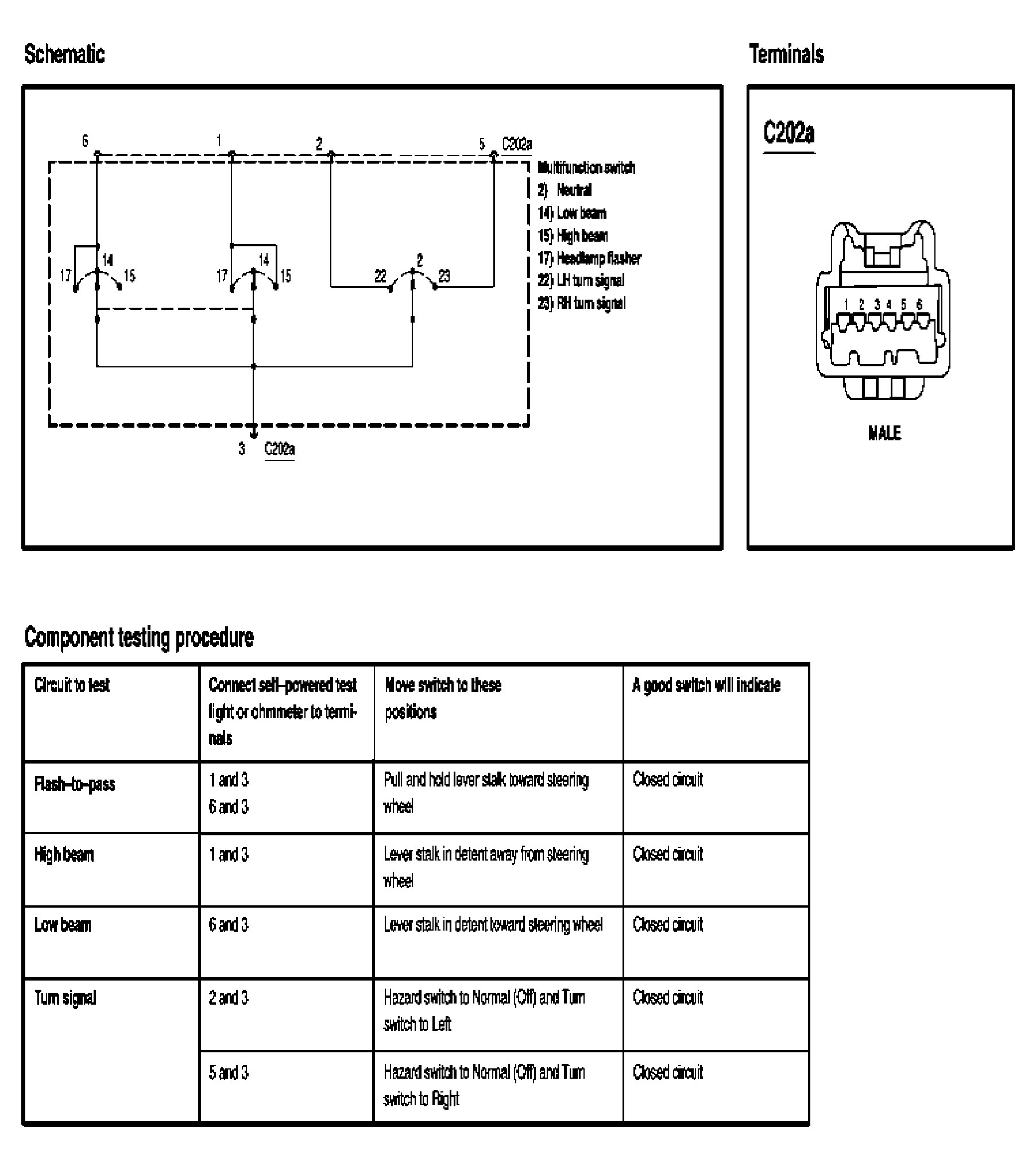

Fig 1: Multifunction Switch, Lamp Portion - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
