EATC Module C228a/EMTC module C294a

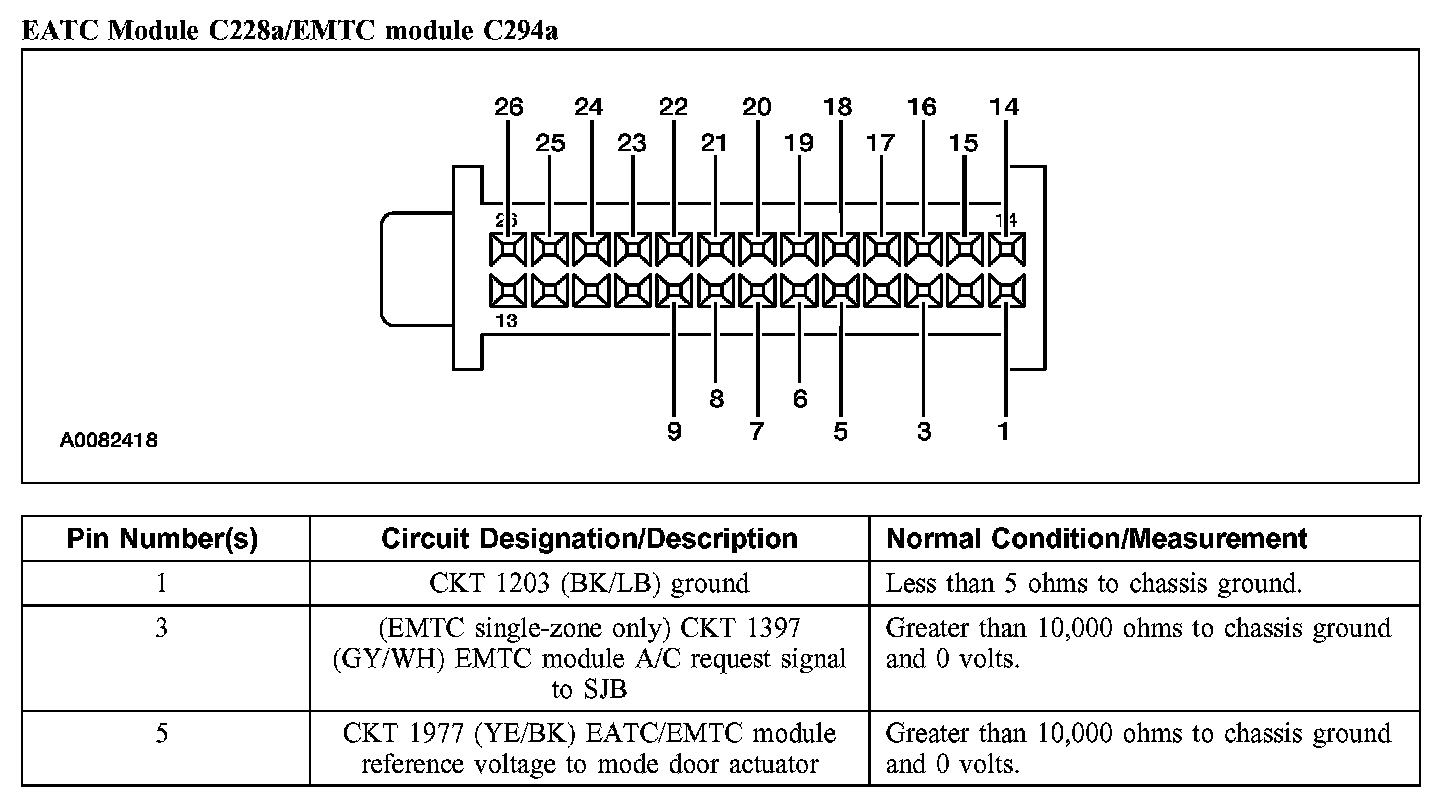

EATC Module C228a/EMTC Module C294a (Part 1):

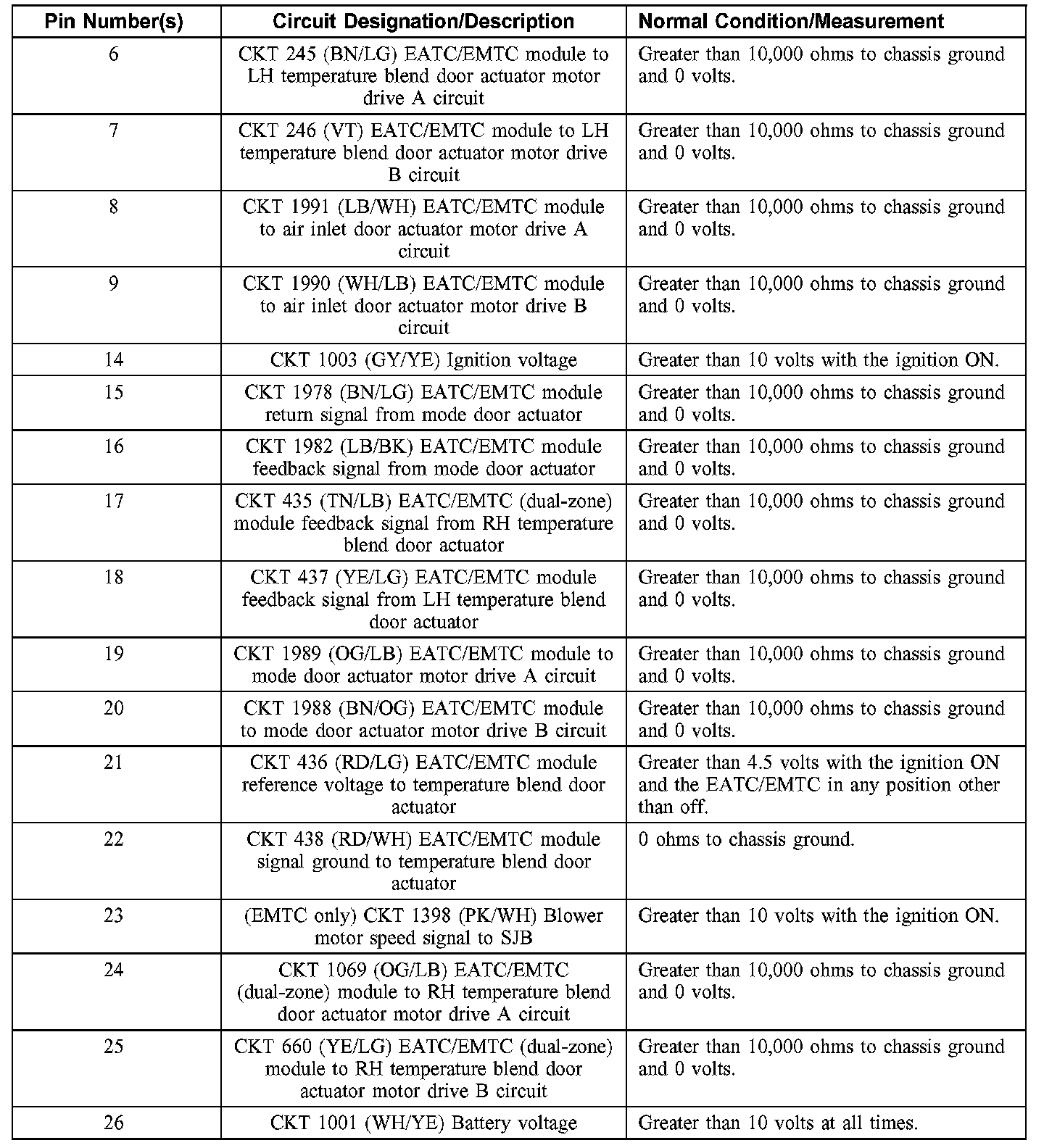

EATC Module C228a/EMTC Module C294a (Part 2):
