Speed Control Switch - With Remote Audio Controls

SPEED CONTROL SWITCH - WITH REMOTE AUDIO CONTROLS







Removal and Installation

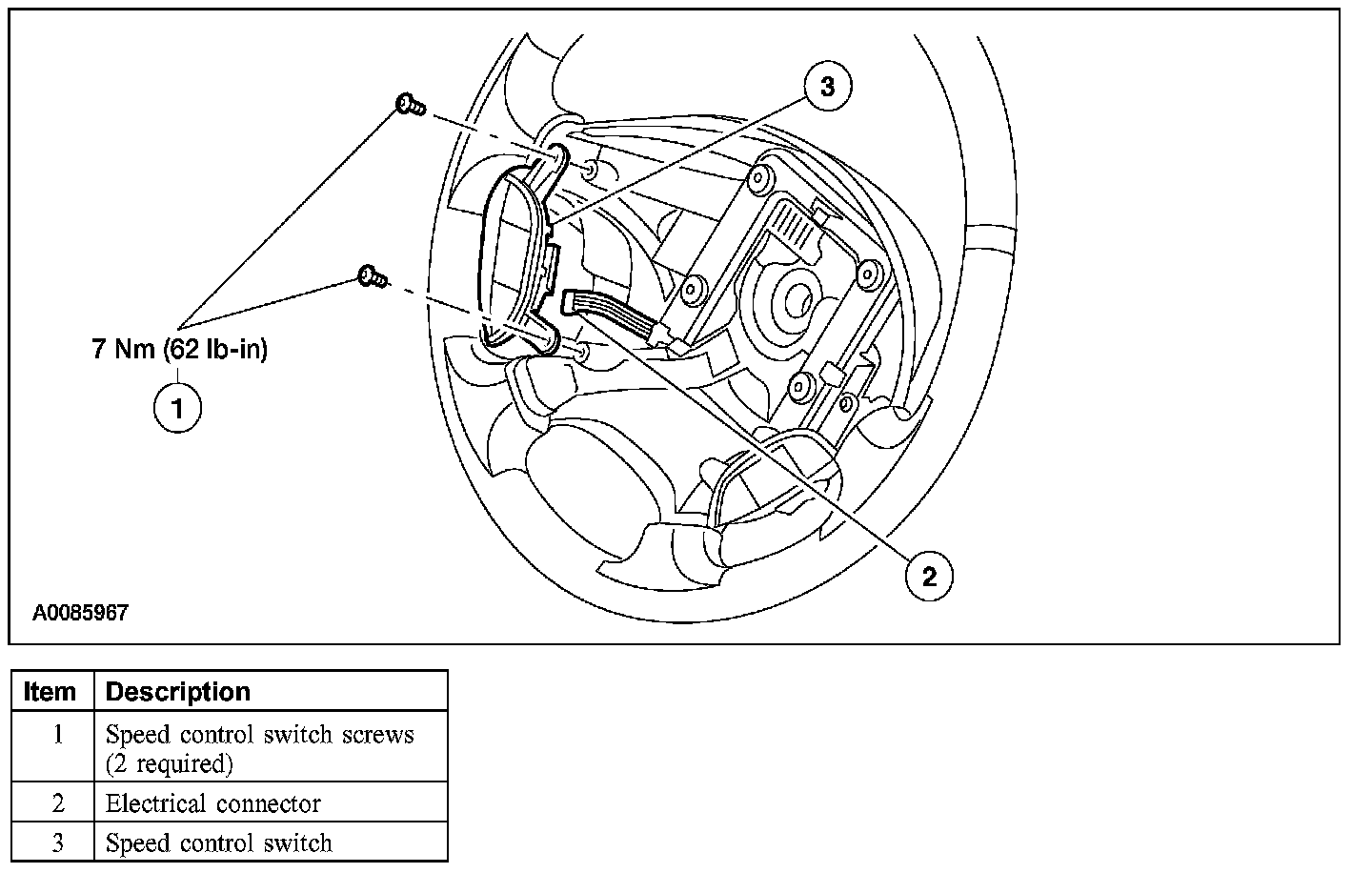

1. Remove the air bag.
2. Remove the 2 speed control switch screws and the speed control switch.
- Disconnect the electrical connector.
- To install, tighten to 7 Nm (62 lb-in).

3. To install, reverse the removal procedure.
