Speed Control Switch - Without Remote Audio Controls

SPEED CONTROL SWITCH - WITHOUT REMOTE AUDIO CONTROLS







Removal and Installation
1. Remove the air bag.

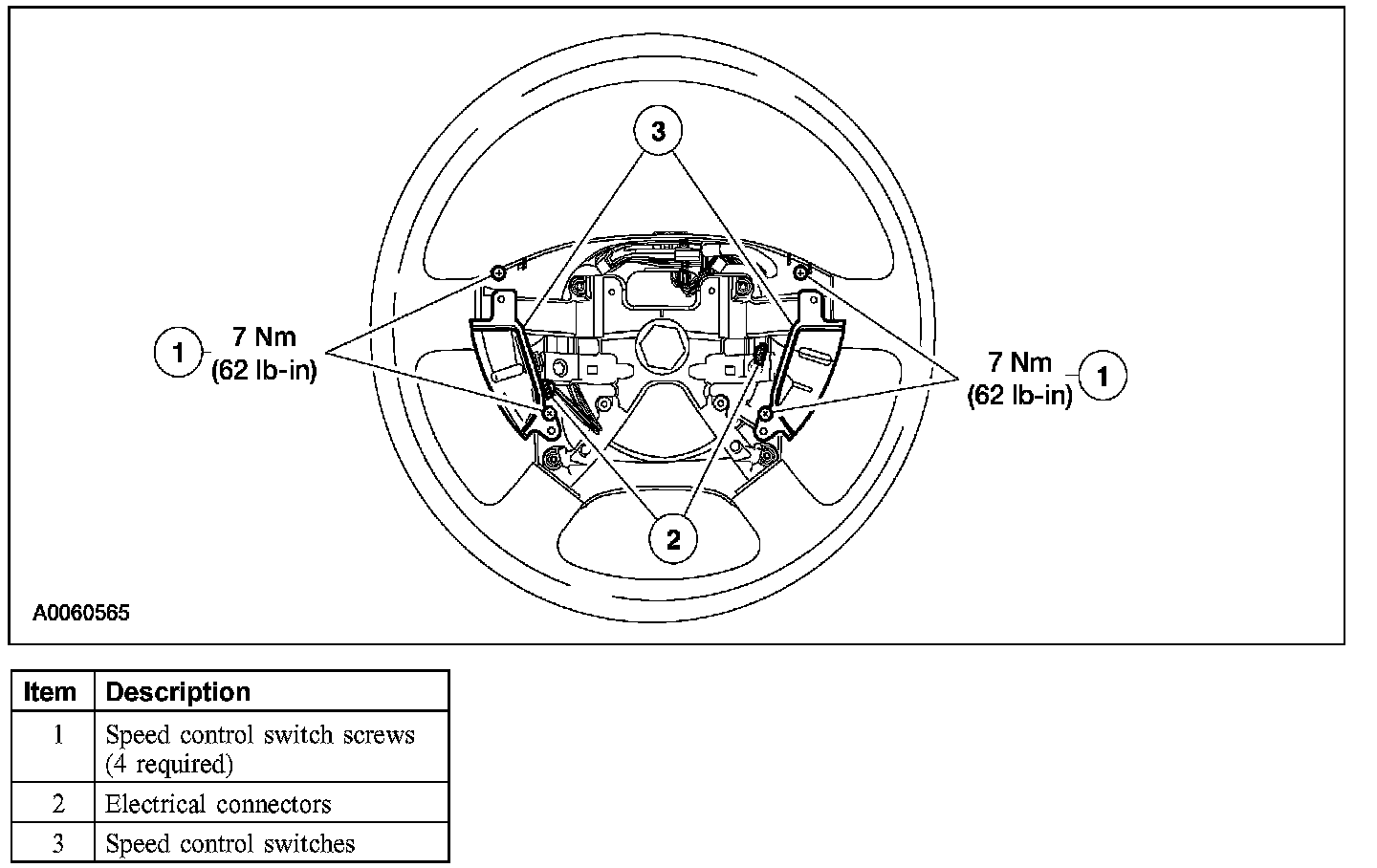

2. Remove the 4 speed control switch screws and the speed control switches.
- Disconnect the electrical connector.
- To install, tighten to 7 Nm (62 lb-in).

3. To install, reverse the removal procedure.
